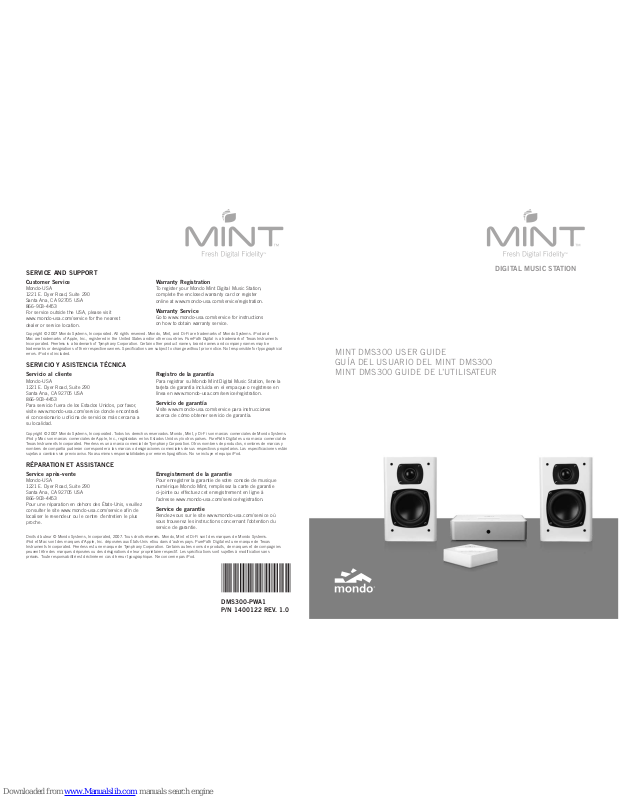

Mint DMS300 User Manual
Customer Service
M
ondo-USA
1221 E. Dyer Road, Suite 290
Santa Ana, CA 92705 USA
866-903-4453
For service outside the USA, please visit
www.mondo-usa.com/service for the nearest
dealer or service location.
Warranty Registration
T
o register your Mondo Mint Digital Music Station,
complete the enclosed warranty card or register
online at www.mondo-usa.com/service/registration.
Warranty Service
Go to www.mondo-usa.com/service for instructions
on how to obtain warranty service.
DMS300-PWA1
P/N 1400122 REV. 1.0
SERVICE AND SUPPORT
Copyright © 2007 Mondo Systems, Incorporated. All rights reserved. Mondo, Mint, and Di-Fi are trademarks of Mondo Systems. iPod and
Mac are trademarks of Apple, Inc., registered in the United States and/or other countries. PurePath Digital is a trademark of Texas Instruments
I
ncorporated. Peerless is a trademark of Tymphany Corporation. Certain other product names, brand names and company names may be
trademarks or designations of their respective owners. Specifications are subject to change without prior notice. Not responsible for typographical
errors. iPod not included.
Servicio al cliente
Mondo-USA
1221 E. Dyer Road, Suite 290
Santa Ana, CA 92705 USA
866-903-4453
Para servicio fuera de los Estados Unidos, por favor,
visite www.mondo-usa.com/service donde encontrará
el concesionario u oficina de servicios más cercana a
su localidad.
Registro de la garantía
Para registrar su Mondo Mint Digital Music Station, llene la
tarjeta de garantía incluida en el empaque o regístrese en
línea en www.mondo-usa.com/service/registration.
Servicio de garantía
Visite www.mondo-usa.com/service para instrucciones
acerca de cómo obtener servicio de garantía.
SERVICIO Y ASISTENCIA TÉCNICA
Copyright © 2007 Mondo Systems, Incorporated. T
odos los derechos reservados. Mondo, Mint, y Di-Fi son marcas comerciales de Mondo Systems.
iPod y Mac son marcas comerciales de Apple, Inc., registradas en los Estados Unidos y/o otros países. PurePath Digital es una marca comercial de
Texas Instruments Incorporated. Peerless es una marca comercial de Tymphany Corporation. Otros nombres de productos, nombres de marcas y
nombr
es de compañía pudieran cor
responder a las marcas o designaciones comerciales de sus respectivos propietarios. Las especificaciones están
sujetas a cambios sin pr
evio aviso. No asumimos r
esponsabilidades por er
rores tipográficos. No se incluye el equipo iPod.
Service après-vente
Mondo-USA
1221 E. Dyer Road, Suite 290
Santa Ana, CA 92705 USA
866-903-4453
Pour une réparation en dehors des États-Unis, veuillez
consulter le site www.mondo-usa.com/service afin de
localiser le revendeur ou le centre d’entretien le plus
proche.
Enregistrement de la garantie
Pour enregistrer la garantie de votre console de musique
numérique Mondo Mint, remplissez la carte de garantie
ci-jointe ou effectuez cet enregistrement en ligne à
l’adresse www.mondo-usa.com/service/registration.
Service de garantie
Rendez-vous sur le site www.mondo-usa.com/service où
vous trouverez les instructions concernant l’obtention du
service de garantie.
RÉPARATION ET ASSISTANCE
Dr
oits d’auteur © Mondo Systems, Incorporated, 2007. T
ous dr
oits réser
vés. Mondo, Mint et Di-Fi sont des mar
ques de Mondo Systems.
iPod et Mac sont des marques d’Apple, Inc. déposées aux États-Unis et/ou dans d’autres pays. PurePath Digital est une marque de Texas
Instruments Incorporated. Peerless est une marque de Tymphany Corporation. Certains autres noms de produits, de marques et de compagnies
peuvent êtr
e des mar
ques déposées ou des désignations de leur pr
opriétaire respectif. Les spécifications sont sujettes à modification sans
préavis. Toute responsabilité est déclinée en cas d’erreur typographique. Ne concerne pas iPod.
MINT DMS300 USER GUIDE
GUÍA DEL USUARIO DEL MINT DMS300
MINT DMS300 GUIDE DE L’UTILISATEUR
DIGITAL MUSIC STATION
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to par
t 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
inter
fer
ence will not occur in a par
ticular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
n
Reorient or relocate the receiving antenna.
n
Increase the separation between the equipment
and receiver.
n
Connect the equipment into an outlet on a cir
cuit
different from which the receiver is connected.
n
Consult your Mondo dealer or an experienced
electronics technician, or go online to
www.mondo-usa.com/service for additional help
and setup assistance.
This pr
oduct complies with the Canadian ICES-003
Class B specifications.
T
o reduce the risk of shock and prevent damage to the Mondo™ Mint™ Digital Music Station, to yourself or to your
p
roperty follow these safety precautions:
1
. Read these instructions.
2. Keep these instructions.
3
. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6
. Clean only with dry cloth.
U
nplug the system first.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8
. Do not install near any heat sources such as radia-
tors, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat. Do not place an open
flame, such as a candle, near the system.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
The power cord included for the Mint amplifier is a polarized plug. Do not force the prongs into an outlet that is
not designed for two sizes of prongs or use non-polarized
adapters. Always avoid over-loading wall outlets, extension
cords or power strips.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
Do
not operate the system with a damaged power cord.
To avoid damage, do not place items on top of the power
cord or position it where someone might trip.
11. Only use attachments/accessories specified by the
manufacturer. Make no modifications to the system or
accessories. Unauthorized alterations may compromise
safety, regulatory compliance and system performance—
as well as negate your warranty.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE.
1
2. Use only with the cart, stand, tripod,
bracket, or table specified by the manuf
acturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
t
o avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
1
4. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such
as vases, are placed on the apparatus.
Do not operate
the Mondo Mint outdoors.
16. To completely disconnect this apparatus from the
AC Mains, disconnect the power supply cord plug from
the AC receptacle.
17. The mains plug of the power supply cord shall
remain readily operable.
IMPORTANT SAFETY INSTRUCTIONS
WELCOME 4
PLAY YOUR MUSIC 4
WHAT’S IN THE BOX 5
SETUP INSTRUCTIONS 6
TIPS AND QUICK FIXES 11
SPANISH / ESPAÑOL 12
FRENCH / FRANÇAIS 22
TABLE OF CONTENTS
02 ENGLISH ENGLISH 03
DIGITAL MUSIC STATION
MINT DMS300
SEE MARKING ON BOTTOM OFPRODUCT
CAUTION
CAUTION: TO REDUCE
THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE
COVER (OR BACK).
NO USER-SERVICEABLE
PARTS INSIDE. REFER
SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THE LIGHTNING FLASH
WITH ARROWHEAD
WITHIN THE TRIANGLE
ALERTS YOU TO
UNINSULATED
“DANGEROUS
VOLTAGE” WITHIN THE
PRODUCT THAT MAY
CONSTITUTE RISK OF
ELECTRIC SHOCK.
THE EXCLAMATION
POINT WITHIN THE
TRIANGLE ALERTS
YOU TO IMPORTANT
OPERATING AND
MAINTENANCE
(SERVICING)
INSTRUCTIONS
ACCOMPANYING
THE PRODUCT.
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
FCC COMPLIANCE STATEMENT
Thank you for choosing the Mondo Mint Digital Music Station. You have
selected a true high-fidelity, compact music system that is designed to play
all of today’s music formats.
At Mondo, we want to make your music an experience. That’s why we’ve set up our website to help you
get the most from your Mondo Mint Digital Music Station. Visit us at www.mondo-usa.com to:
n
Learn about your Mondo Mint Digital Music Station.
n
Get setup help, view FAQs or troubleshoot.
n
Register your Mondo Mint Digital Music Station.
n
Discover tips on how to get the best-quality digital music.
n
Purchase additional Mondo products and accessories.
PLAY YOUR MUSIC
The Mondo Mint Digital Music Station is ready to take on all of the music in your life—from your
iPod, Mac or PC, MP3 player, CD player, satellite radio, handheld game, gaming console or TV.
The Mint amplifier is the heart of our system which takes music from any of the following sources
and transforms it into rich, high-quality sound.
WELCOME
Unpack and set up the Mondo Mint Digital Music Station—and high-fidelity
sound is yours.
WHAT’S IN THE BOX
iPod in Mint Amplifier Dock
n
All types of iPods (except iPod shuffle which is connected via
Line In) fit in the Mint amplifier dock.
n
Play is controlled from iPod docked in the Mint amplifier.
n
iPod is charged when Mint amplifier is plugged in.
iPod in Mint Wireless Dock
n
All types of iPods (except iPod shuffle) fit in the Mint
wireless dock.
n
iPod placed in the Mint wireless dock controls music
from up to 100 feet from the Mint amplifier. Place the
Mint wireless dock on your desk, nightstand or coffee
table and enjoy your favorite music from your iPod
by using the familiar iPod controls.
n
iPod is charged when the Mint wireless dock is plugged in.
Computer to Mint Amplifier
n
PC or Mac connects through USB port.
n
Play music from Mac music sources such as iTunes,
or from PC sources such as Windows
®
Media Player
or iTunes.
Line In to Connect Even More
n
Line In amplifies sound through stereo headset connection
to iPod shuffle, Zune™, and other MP3 players; portable
CD players and games; or XM™ and Sir
us™ satellite radio
players.
n
Line In amplifies sound through stereo RCA connection to
TVs or gaming consoles.
Station Components
n
Mondo Mint Amplifier (1)
n
Mondo Mint Speakers (2)
n
Mondo Mint Wireless Dock (1)
n
Mondo Mint Remote Control (1)
and battery (1)
n
4.9 ft (1.5 m) speaker cables (2)
n
4.9 ft (1.5 m) USB cable (1)
n
iPod adapters (5)
n
User guide (1)
n
Warranty card (1)
n
Wireless audio antenna (1)
n
6.5 ft (2 m) power cord for
amplifier (1)
n
6.2 ft (1.9 m) power adapter for
wireless dock (1)
n
Speaker feet (8)
Left Speaker
Amplifier
Right Speaker
VOLUME
MUTE
Wireless Dock
for iPod
Mini Remote Control
and Battery
iPod
Adapters
Wireless Audio
Antenna
Speaker
Feet
Speaker
Cables
Amplifier
Power Cord
Wireless Dock
AC Adapter
USB
Cable
04 ENGLISH ENGLISH 05
Not Included: An iPod is not included. You supply the Line In cable with correct connectors for your
music sour
ce. If any item is missing or damaged, go to www
.mondo-usa.com/ser
vice.
SETUP INSTRUCTIONS SETUP INSTRUCTIONS
P
OWER MUTE iPod USB
W
ireless
A
udio
L
INE IN VOLUME
06 ENGLISH ENGLISH 07
Setting up your Mondo Mint Digital Music Station is easy and quick with
the simple instructions below. You’ll be listening to your music in just a
few minutes time.
MONDO MINT SPEAKERS
Set Up Each Mint Speaker
1. Install optional speaker feet (4) on the bottom of each
speaker. This helps protect your furniture from scratches.
2. Plug red speaker cable connector into the red
speaker post.
3. Plug black speaker cable connector into the black
speaker post.
Speaker Grilles
Speaker grilles snap on and off. You can use speakers with grilles off if you prefer. To best protect
your speakers, leave grilles on.
Speaker Position
Proper positioning of the speakers will enhance the sound quality of your Mondo Mint Digital
Music Station.
1. Place a speaker to the left and right of the amplifier. Make sure speakers are unobstructed.
2. Determine the area of the room where you want to get optimum quality sound. That’s your
target space. Position each speaker the same distance from your target.
MONDO MINT AMPLIFIER
Set Up the Mint Amplifier
1. Plug speaker cable connectors from the right
speaker into right-side post on the back of the
Mint amplifier.
2. Connect red to red and black to black.
3. Connect the left speaker in the same way.
4. Plug the power cord into the Mint amplifier
and then into a wall outlet.
Mondo Mint Amplifier Control Panel
Power Button
1. Press power to turn the system on. The button will glow mint green and one of the sourceselection buttons will also glow green indicating that this music source is ready to play.
2. To turn power off, press mint green power button. The light will stop glowing and the Mint
system will turn off.
Volume Buttons
There are three buttons to control volume to the speakers: – (volume down) and + (volume up),
and mute. Volume and mute can be controlled by:
n
Mint amplifier
n
Mint remote control
n
Mint wireless dock (Mint wireless dock can control volume/mute for music played from your
iPod or your computer.)
Source-Selection Buttons
n
iPod – Plays your iPod while docked in the Mint amplifier.
n
USB – Plays music from your computer.
n
Wireless Audio – Plays your iPod while docked in the Mint wireless dock.
n
Line In – Plays devices connected through stereo headset jacks or RCA-type connectors.
(Cables not included.)
To choose a music source:
1. Make sure the power button is glowing mint green.
2. Select the source you want to play. When it is selected, it will glow green.
3. Be sure the music source is turned on and music is selected.
Mondo Mint Remote Control
The mini remote control has all of the same buttons that are
found on the Mint amplifier and they operate in the same
way. You can turn the volume up or down, mute your music
and select a source.
Before using the remote, remove the plastic safety tab.
Replace the battery when the remote stops operating normally
or its range seems reduced. For battery replacement and proper
disposal instructions, please see the Tips and Quick Fixes section
of this guide.
Warning: Any changes or modifications to the equipment not expressly approved by the party
r
esponsible for compliance could void your authority to operate the equipment.
SETUP INSTRUCTIONS SETUP INSTRUCTIONS
08 ENGLISH ENGLISH 09
1
2
3
Note: If you experience interference over the wireless connection:
n
Move the Mint wireless dock closer to the Mint amplifier.
n
Remove any major obstructions between the Mint wireless dock and the Mint amplifier.
Need more information on connecting to your PC or Mac? Go to www.mondo-usa.com/service or
consult your computer
’
s user manual for infor
mation on operating its sound system.
n
iPod mini
n
iPod with color display 20/30G
n
iPod with color display 40/60G
n
iPod with video 30G
n
iPod with video 60/80G
n
iPod nano: use the dock that came with
your nano.
n
iPod shuffle: use the Line In connection.
DOCKING AND PLAYING YOUR IPOD
Follow these steps to dock and play your iPod in the Mint amplifier or Mint wireless dock.
1. Select the correct iPod adapter for your iPod model.
2. Insert correct iPod adapter into the Mint amplifier or the Mint wireless dock. (To remove adapter,
place a coin into the narrow slot at the back of the adapter and lift.)
3. Set your iPod in the adapter so that the connection is snug.
4. Press the iPod button on the Mint amplifier or remote control. It should glow green.
5. Turn your iPod on and select your favorite music. Your iPod is charged while in the Mint amplifier
or Mint wireless dock that is plugged into a wall outlet.
MONDO MINT WIRELESS DOCK
The Mint wireless dock allows you to play and control song
selection and volume on your iPod up to 100 ft (30 m)
from the Mint amplifier.
Attaching the Mint Wireless Dock Antenna
1. Attach the antenna into the back of the Mint amplifier.
2. Before raising the antenna, turn the grooved part of the
antenna clockwise until it is finger tight—but do not use
force, as it may break and require replacement at your cost.
3. Raise the antenna upright at the joint to position it so that
it shows above the top of the Mint amplifier.
Pairing the Mint Wireless Dock to the Mint Amplifier
1. Connect the power cord to the Mint wireless dock and
plug it into a wall outlet. The Mint wireless dock is
automatically paired with the Mint amplifier at the factory.
2. Move the dock close to the Mint amplifier and press the
wireless audio source-selection button on the Mint amplifier.
The light on the Mint wireless dock will glow a steady green.
3. Your Mint wireless dock is now ready to use. Place your Mint wireless dock where it is most convenient
for you indoors within 100 feet of the Mint amplifier. The Mint wireless dock will remain paired, even
if you unplug and reposition the Mint wireless dock in another location. Dock your iPod and enjoy
music freedom!
4. If the Mint wireless dock blinks red, the dock has not been paired properly. Please see our Tips and
Quick Fixes section in this guide or online at
www
.mondo-usa.com/ser
vice
for mor
e infor
mation.
CONNECT YOUR COMPUTER
Compatible with Microsoft®Windows®XP and
Windows Vista
T
M
operating systems. Compatible
with Mac OS 9 and Mac OS X operating systems.
1. Quit all applications on your computer.
2. Connect the USB cable from the Mint amplifier to a
USB port on your computer. (For best quality, connect
directly to your computer’s USB port, not through a
USB hub.)
3. Press the USB button on the Mint amplifier or remote control. It should glow green.
4. PC: You will see the message, “Mondo Digital Music Station” appear. All of your sound will now
play through the Mondo Mint Digital Music Station.
Mac OS 9: See your Mac user manual for instructions on setting up a USB audio device.
Mac OS X: In System Preferences, open the Sound Control panel. Choose “Mondo Digital Music
Station” for sound output and close the control panel. All of your music and computer sound will
now play through the Mondo Mint Digital Music Station.
Mac OS X
Loading...
