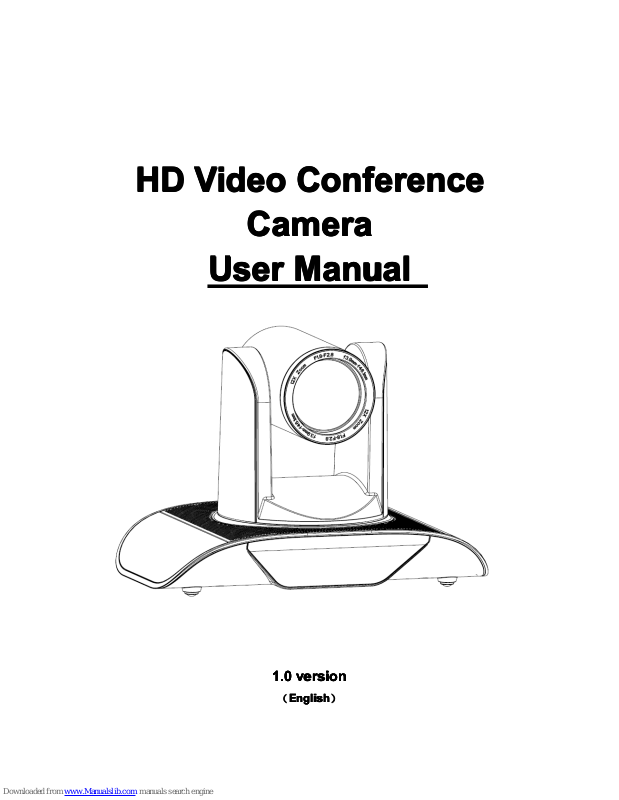

minrray UV950 User Manual

HD

HD Video

Video

Video Conference

Conference

Camera

User

User Manual

Manual

1.0

1.0 version

version

（

English

）

Preface:

Thanks for using our HD color video conference camera. This manual introduces the function , installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly.

Warning

This product can be only used in specified range in order to avoid any damage or danger;

● Don ’ t expose the camera to rain or moisture place .

● Don ’ t remove the cover to reduce the risk of electric shock. Refer servicing to qualified personnel.

● Never operate the camera under unqualified temperature, humidity and power supply;

● Please use the soft cloth to clean the camera. Use neuter cleanser if bad smeared .Don ’ t use the strong or cleanser avoiding scuffing.

Notes

Electromagnetic fields at the specific frequency may affect the image quality.

CONTENTS

1. Notes

.......................................................................................................

4

2. Accessories

............................................................................................

4

3. Fast Installation

.....................................................................................

5

4. Camera Highlights

................................................................................

7

5. Camera Specifications

.........................................................................

7

6. Camera Interface Explanation

............................................................

8

7. Remote Controller Explanation

..........................................................

9

8. Usage of IR Remote Controller

........................................................

11

9. RS-232C Interface (Pin Specs)

........................................................

14

10. Menu Setting

.....................................................................................

21

Notes

Electric

Electric Safety

Safety

Installation and operation must accord with electric safety standard

Caution

Caution to

to

to transport

transport

Avoid stress, vibration and soakage in transport, storage and installation.

Polarity

Polarity of

of

of power

power

power supply

supply

The power supply of the product is ± 12V

Polarity of the power supply drawing

Careful

Careful of

of

of installation

installation

Never move the camera by seizing the camera head. Don ’ t rotate camera head by hand;

otherwise, mechanical trouble will occur.

This series item must put on the smooth desk or platform, and it can not be installed

slantways;

If the camera is installed on TV or computer, the base can be fixed by four double-sided

adhesive trays.

Don ’ t apply in corrosive liquid, gas or solid environment to avoid the cover which is

made up of organic material.

To

make sure no obstacle in rotation range

Never power on before installation is not completed

Don

Don ’

’

’ t

t

t dispatch

dispatch

dispatch discretionarily

discretionarily

We are not responsible for any unauthorized modification or dismantling.

Accessories

When you open the box, check that all the supplied accessories are included:

Camera ………………………… 1

Power adapter ………………… 1

Power cable …………………… .1

RS232 cable …………………… .1

Remote controller ……………… 1

User manual …………………… 1

Double-side glue shim ……… ... 4

Fast

Fast Installation

Installation

1. Please check the connection before turning on the power.

2. Bottom Dial Switch Setting

Set the two switches 【 ON 】 .It is the normal working mode.

SW2-2 SW2-

1

Instructions

1 OFF OFF Undefined

2 ON OFF Updating mode

3 OFF ON Debugging mode

4 ON ON Working mode

3. The Rotary Switch Setting

The choice for 16 rotary switch video formats

Dial-up

0 1080P60

1 1080P50

2 1080I60

3 1080I50

4 720P60

5 720P50

6 1080P30

7 1080P25

8 --------

9 --------

A --------

B --------

C --------

D --------

E --------

F

Display the video format set on the menu

Note: Restart the camera after switching the dial code.

4. When the power supply switch is “ 【 on 】 ” , the indicator light is open (red color)

5, Camera initializes after powering on: horizontally turn left to the limit position, vertically

turn to the bottom; finally both horizontally and vertically turn to the middle position. The

motor stops running, and initialization is completed.(Note: If the power-on mode is opened

and saved preset position 0 or 1, then the pan/tilt will be set to 0 or 1 preset position)

6. Factory Default : entry OSD menu by pressing the menu key of remote controller,

【 MENU 】 -> 【 RESET 】 -> 【 ALL RESET 】 , moving the left/right key to select 【 Yes 】

，

then confirm by 【 HOME 】 key .

RESET

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

SYS.

SYS. RESET

RESET

RESET NO

NO

CAM.

CAM. RESET

RESET

RESET NO

NO

P

P T.

T.

RESET

RESET NO

NO

ALL.

ALL. RESET

RESET

RESET NO

NO

BACK

／ＭＥＮＵ

Camera

Camera Highlights

Highlights

1. Equipped with modern appearance and 12 X HD CMOS sensor, delivering vivid images.

2. Support DVI interface (inclding YPbPr, VGA and HDMI signal), HD-SDI interface and

CVBS interface (for options) .

3. IR remote controller signal transparent transmission function: camera can receive both

its own remote controller signal and the one from terminal equipment, by transmitting the

signal through VISCA IN to terminal equipment IR receiver.

Camera

Camera Specifications

Specifications

1. V ideo format : 1080P60/50 , 1080P30/25 , 1080I60/50 , 720P60/50

2. Output Interface: DVI interface (including YPbPr, VGA and HDMI signal), HD-SDI

interface and CVBS interface (for selections) .

3. Image Sensor : 1/2.8 inch 2 Megapixel (1920*1080)HD CMOS Sensor

4.Focus : f 3.9 ～ 46.1mm (12X) ， F1.8 – 2.8 , angle of view : 70 ° ( near )-6.3 ° ( far )

5. Rotation: ± 170 ° for pan rotation, and -30 ° ~+90 ° for tilt rotation, support upside down

installation.

6. The Control speed: 0.1 ° -150 ° /sec for pan rotation, 0.1 ° -80 ° /sec for tilt rotation.

7. Preset position NO. : 10 preset positions (can reach to 255 by serial command),

precision error less than 0.2 ° .

8. Support auto/ manual white balance, auto/manual exposure (iris, shuttle),

auto/manual/OnePush focus

9. Support WDR technical: performance ≥ 50 dB,

10.Control Signal interface : 8 pin mini DIN, RS232 ， VISCA/Pelco-D/Pelco-P

11. Power interface: HEC3800 p ower jack, Power supply adapter: DC12V/2.5A,

12. Max Consumption: 12W

13. Working temperature: -5 ℃ to +45 ℃

14. Storage temperature:-20 ℃ to +60 ℃

15. Weight: 2.0kg

Camera

Camera Interface

Interface

Interface Explanation

Explanation

1.Camera lens

2.Camera base

3. .Remote Controller Receiver light

4 .Bottom dial Switch

5. Tripod screw hole

6 .Installation Orientation Hole

7 .Rotary Switch : video format optional

8 .RS232 controller serial interface (input )

9 .RS232 controller serial interface (output )

1 0 .CVB interface (for selection)

1

1 .HD-SDI interface

1 2 .DVI-I interface (including YPbPr ,HDMIHD Digital Output and VGA interface) .

1 3 .DC12V Input Power Supply Jack

1 4 .Power indicator light(red)

Dimension:

Remote

Remote Controller

Controller

Controller Explanation

Explanation

Definition

Definition of

of

of IR

IR

IR controller

controller

0

0 、 Standby

Standby

Standby key

key

After pressing the standby key, the camera

will step into standby mode. Press again, the

camera will open again. (Note: Standby mode

power consumption is about half of the normal

mode)

1

1 、 Number

Number

Number key

key

Setting or locating presets

2

2 、 *

*

* key

key

Key combination use

3

3 、 Set

Set

Set preset

preset

preset key:

key:

Set preset ： Set preset key + 0-9 number key ： Clear preset key ：

Clear preset key + 0-9 number key or ：＃ + ＃ + ＃： Clear all the presets

4

4 、 BLC

BLC

BLC control

control

control key

key

BLC ON ： open black light compensation （ only work when exposure mode setting is Auto ） BLC OFF ： close black light compensation （ Only available in the exposure mode effective for Auto ）

5

5 、 Focus

Focus

Focus control

control

control key

key

Focus ＋： Focus length far from near Focus －： Focus length near from far Auto focus ： The camera focus mode is auto Manual focus ： The camera focus mode is manual

6

6 、 Camera

Camera

Camera address

address

address selection

selection

Select the camera which wants to be controlled

7

7 、 #

#

# key

key

8

8 、 pan/tilt

pan/tilt

pan/tilt control

control

control key

key

Press key ： Up

Press key ： Down Press key ： Left Press key ： Right

“ HOME ” key: Return to the middle position

9

9 、 Menu

Menu

Menu setting

setting

Open or close the OSD menu

10

10 、 Zoom

Zoom

Zoom Control

Control

Control key

key

zoom ＋： Lens near zoom －： Lens far

11.

11. Camera

Camera

Camera IR

IR

IR remote

remote

remote control

control

control address

address

address selection

selection

【 * 】 + 【＃】 + 【 F1 】： Camera Address No.1 【 * 】 + 【＃】 + 【 F2 】： Camera Address No. 2 【 * 】 + 【＃】 + 【 F3 】： Camera Address No. 3 【 * 】 + 【＃】 + 【 F4 】： Camera Address No. 4

Usage

Usage of

of

of IR

IR

IR Remote

Remote

Remote Controller

Controller

Finishing initialization, it can receive and execute the IR commands. Users can control

the pan/tilt/zoom, setting and running preset positions via the IR remote controller. Key Instruction ： 1 、 In this instruction, “ press the key ” means a click rather than a long-press, and a

special note will be given if a long-press for more than one second is required. 2 、 When a key-combination is required, do it in sequence. For example, “ 【 * 】 + 【 #

】

+ 【 F1 】 ” means press “ 【 * 】 ” first and then press “ 【 # 】 ” and press “ 【 F1 】 ” at last.

1.

1. Pan/Tilt

Pan/Tilt

Pan/Tilt Control

Control

Up: press

Down: press Left: press

Right: press Back to middle position ： press “ 【 HOME 】 ”

Press and hold the up/down/left/right key, the pan/tilt will keep running, from slow to fast,

until it run s to the endpoint; the pan/tilt running stops as soon as the key is released.

2.

2. Zoom

Zoom

Zoom Control

Control

ZOOM OUT: press “ ZOOM “ key

ZOOM IN: press “ ZOOM ” key Press and hold the key, the camera will keep zooming in or zooming out and stops as

soon as the key is released.

3.

3. Focus

Focus

Focus Control

Control

Focus (far) ： Press ” 【 focus+ 】 ” key Focus (near) ： Press “ 【 focus- 】 “ key Auto Focus: Press " 【 auto 】 " Manual Focus: Press " 【 manual 】 "

Press and hold the key, the action of focus continues and stops as soon as the key is

released.

4.

4. BLC

BLC

BLC Setting

Setting

BLC ON / OFF: not support

5.

5. Presets

Presets

Presets setting

setting

1 、 Preset setting : to set a preset position, the users should press the “ 【 SET PRESET 】 ” key first and then press the number key 0-9 to set a relative preset, 10

preset positions in total are available. 2 、 Preset clearing : to clear a preset position, the user can press the “ 【 CLEAR PRESET 】 ” key first and then press the number key 0-9 to clear the relative preset; Note : press the “ 【 # 】 ” key three times continually to cancel all the presets.

6.

6. Preset

Preset

Preset Running

Running

Press a number key 0-9 directly to run a relative preset.

Note:

Note: Action in vain if a relative preset position is not existed.

7.

7. Camera

Camera

Camera Selection

Selection

Select the camera address to control.

8.

8. Camera

Camera

Camera Remote

Remote

Remote Controller

Controller

Controller Address

Address

Address Setting

Setting

【 * 】 + 【＃】 + 【 F1 】： Camera Address No.1 【 * 】 + 【＃】 + 【 F2 】： Camera Address No. 2 【 * 】 + 【＃】 + 【 F3 】： Camera Address No. 3 【 * 】 + 【＃】 + 【 F4 】： Camera Address No. 4

9.

9. Left

Left

Left and

and

and Right

Right

Right Scan

Scan

Scan Setting

Setting

【 * 】 + 【 F4 】 + 【 * 】： Start the left and right scan mode 【 * 】 + 【 F4 】 + 【左】： Set the scan of left limit 【 * 】 + 【 F4 】 + 【右】： Set the scan of left right 【 * 】 + 【 F4 】 + 【 HOME 】： Clear the scan of the left and right limits

RS-232C

RS-232C Interface

Interface

Interface (Pin

(Pin

(Pin Specs)

Specs)

VISCA

VISCA OUT

OUT

OUT Function

Function

VISCA

VISCA OUT

OUT

OUT Function

Function

COM

COM control

control

In the normal working condition, the camera can be controlled via the RS-232C/ RS485

command (VISCA IN). The parameter of the RS232C COM is as follows: Baud Rate ： 2400/4800/9600/115200 Bit/S Start bit ： 1bit;

Data bit: 8bit;

Stop bit: 1bit;

Code: None

Powering on, the camera runs to the down left, and then back to the middle with the

farthest zoom rate in the auto focus and the auto exposure mode. Finishing the

unitization, the camera moves to the preset no.0 or no.1 if it’s saved. Now, the camera

can be controlled by the serial command.

VISCA

VISCA Protocol

Protocol

Part1.

Part1. Camera

Camera

Camera Return

Return

Return Command

Command

z = Camera Address + 8

Part

Part 2

2

2 Controlling

Controlling

Controlling Command

Command

Command Function

Function

Function Command

Command

Command Packet

Packet

Packet Note

Note

AddressSet Broadcast 88 30 01 FF Address setting

IF_Clear Broadcast 88 01 00 01 FF I/F Clear

CommandCancel 8x 21 FF

CAM_Power

On 8x 01 04 00 02 FF

Power ON/OFF

Off 8x 01 04 00 03 FF

CAM_Zoom

Stop 8x 01 04 07 00 FF

Tele(Standard) 8x 01 04 07 02 FF

Wide(Standard) 8x 01 04 07 03 FF

Tele(Variable) 8x 01 04 07 2p FF

p = 0(low) - 7(high)

Wide(Variable) 8x 01 04 07 3p FF

Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position

CAM_Focus

Stop 8x 01 04 08 00 FF

Far(Standard) 8x 01 04 08 02 FF

Near(Standard) 8x 01 04 08 03 FF

Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position

One P u sh AF 8x 01 04 1 8 0 1 FF

CAM_ZoomFocus Direct

8x 01 04 47 0p 0q 0r 0s 0t 0u 0v 0w FF

pqrs: Zoom Position tuvw: Focus Position

CAM_WB

Auto 8x 01 04 35 00 FF Normal Auto

Indoor 8x 01 04 35 01 FF

Outdoor 8x 01 04 35 02 FF

OnePush 8x 01 04 35 03 FF

Manual 8x 01 04 35 05 FF

CAM_RGain

Reset 8x 01 04 03 00 FF

Manual Control of R GainUp 8x 01 04 03 02 FF

Down 8x 01 04 03 03 FF

Ack/Completion

Ack/Completion Message

Message

Command

Command Packet

Packet

Packet Note

Note

ACK z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed.

Error

Error Messages

Messages

Command

Command Packet

Packet

Packet Note

Note

Syntax Error z0 60 02 FF

Returned when the command format is different or when a command with illegal command parameters is accepted

Command Not Executable

z0 61 41 FF

Returned when a command cannot be executed due to current conditions. For example, when commands controlling the focus manually are received during auto focus.

Command

Command Function

Function

Function Command

Command

Command Packet

Packet

Packet Note

Note

Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain

CAM_Bgain

Reset 8x 01 04 04 00 FF

Manual Control of B GainUp 8x 01 04 04 02 FF

Down 8x 01 04 04 03 FF

Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain

CAM_AE

Full Auto 8x 01 04 39 00 FF Automatic Exposure mode

Manual 8x 01 04 39 03 FF Manual Control mode

Shutter priority 8x 01 04 39 0A FF Shutter Priority Automatic Exposure mode

Iris priority 8x 01 04 39 0B FF Iris Priority Automatic Exposure mode

Bright 8x 01 04 39 0D FF B right mode(Manual control)

CAM_Shutter

Reset 8x 01 04 0A 00 FF

Shutter SettingUp 8x 01 04 0A 02 FF

Down 8x 01 04 0A 03 FF

Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position

CAM_Iris

Reset 8x 01 04 0B 00 FF

Iris SettingUp 8x 01 04 0B 02 FF

Down 8x 01 04 0B 03 FF

Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position

CAM_ Gain

Reset 8x 01 04 0C 00 FF

Gain SettingUp 8x 01 04 0C 02 FF

Down 8x 01 04 0C 03 FF

Direct 8x 01 04 0C 00 00 0p 0q FF pq: Gain Positon

CAM_ Bright

Reset 8x 01 04 0D 00 FF

Bright SettingUp 8x 01 04 0D 02 FF

Down 8x 01 04 0D 03 FF

Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright l Positon

CAM_ExpComp

On 8x 01 04 3E 02 FF

Exposure Compensation ON/OFF

Off 8x 01 04 3E 03 FF

Reset 8x 01 04 0E 00 FF

Exposure Compensation Amount SettingUp 8x 01 04 0E 02 FF

Down 8x 01 04 0E 03 FF

Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position

CAM_Aperture

Reset 8x 01 04 02 00 FF

Aperture ControlUp 8x 01 04 02 02 FF

Down 8x 01 04 02 03 FF

Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain

CAM_Memory

Reset 8x 01 04 3F 00 0p FF

p: Memory Number(=0 to 127 ) Corresponds to 0 to 9 on the Remote Commander

Set 8x 01 04 3F 01 0p FF

Recall 8x 01 04 3F 02 0p FF

CAM_LR_Reverse

On 8x 01 04 61 02 FF

Image Flip Horizontal ON/OFF

Off 8x 01 04 61 03 FF

CAM_PictureFlip

On 8x 01 04 66 02 FF

Image Flip Vertical ON/OFF

Off 8x 01 04 66 03 FF

VideoSystem Set 8 x 0 1 0 6 35 00 0p FF

P : 0~7 Video format 0:1080P60 1:1080P50 2:1080i60 3:1080i50

Command

Command Function

Function

Function Command

Command

Command Packet

Packet

Packet Note

Note

4:720P60 5:720P50 6:1080P30 7:1080P25

CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF)

SYS_Menu OFF 8x 01 0 6 0 6 03 FF Turn off the menu

IR_Receive

On 8x 01 06 08 02 FF

IR(remote commander)receive ON/OFFOff 8x 01 06 08 03 FF

On/Off 8x 01 06 08 10 FF

IR_ReceiveReturn

On 8x 01 7D 01 03 00 00 FF

IR(remote commander)receive message via the VISCA communication ON/OFF

Off 8x 01 7D 01 13 00 00 FF

Pan_tiltDrive

Up 8x 01 06 01 VV WW 03 01 FF

VV: Pan speed 0x01 (low speed) to 0x18 (high speed) WW: Tilt speed 0x01 (low speed) to 0x14 (high speed) YYYY: Pan Position(TBD) ZZZZ: Tilt Position(TBD)

Down 8x 01 06 01 VV WW 03 02 FF

Left 8x 01 06 01 VV WW 01 03 FF

Right 8x 01 06 01 VV WW 02 03 FF

Upleft 8x 01 06 01 VV WW 01 01 FF

Upright 8x 01 06 01 VV WW 02 01 FF

DownLeft 8x 01 06 01 VV WW 01 02 FF

DownRight 8x 01 06 01 VV WW 02 02 FF

Stop 8x 01 06 01 VV WW 03 03 FF

AbsolutePosition

8x 01 06 02 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

RelativePosition

8x 01 06 03 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

Home 8x 01 06 04 FF

Reset 8x 01 06 05 FF

Pan-tiltLimitSet

Set

8x 01 06 0 7 00 0 W 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF

W:1 UpRight 0:DownLeft YYYY: Pan Limit Position(TBD) ZZZZ: Tilt Limit Position(TBD)

Clear

8x 01 06 0 7 01 0 W 07 0 F 0 F 0 F 0 7 0 F 0 F 0 F FF

Part3

Part3 Checking

Checking

Checking Command

Command

Command Command

Command

Command Packet

Packet

Packet Return

Return

Return Packet

Packet

Packet Note

Note

CAM_PowerInq 8x 09 04 00 FF

y0 50 02 FF On y0 50 03 FF Off(Standby)

CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position

CAM_FocusModeInq 8x 09 04 38 FF

y0 50 02 FF Auto Focus y0 50 03 FF Manual Focus

CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position

CAM_WBModeInq 8x 09 04 35 FF

y0 50 00 FF Auto y0 50 01 FF Indoor mode y0 50 02 FF Outdoor mode y0 50 03 FF OnePush mode y0 50 0 4 FF

ATW

y0 50 05 FF Manual CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain

CAM_AEModeInq 8x 09 04 39 FF

y0 50 00 FF Full Auto

y0 50 03 FF Manual

y0 50 0A FF Shutter priority

y0 50 0B FF Iris priority

y0 50 0D FF Bright

Note

Note :

:

: 【 x 】 means the camera address you want to control , 【 y 】 = 【 x + 8 】 .

Pelco-D

Pelco-D Protocol

Protocol

CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position CAM_IrisPosInq 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq: Iris Position CAM_ GainPosi Inq 8x 09 04 4C FF y0 50 00 00 0p 0q FF pq: Gain Position CAM_ BrightPosi Inq 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq: Bright Position CAM_ExpCompModeInq 8x 09 04 3E FF y0 50 02 FF On

y0 50 03 FF Off CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain CAM_MemoryInq 8x 09 04 3F FF y0 50 p p FF p p: Memory number last operated. SYS_MenuModeInq 8x 09 06 06 FF y0 50 02 FF On

y0 50 03 FF Off CAM_LR_ReverseInq 8x 09 04 61 FF y0 50 02 FF On

y0 50 03 FF Off CAM_PictureFlipInq 8x 09 04 66 FF y0 50 02 FF On

y0 50 03 FF Off CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Camera ID

CAM_VersionInq 8x 09 00 02 FF

y0 50 ab cd

mn pq rs tu vw FF

VideoSystemInq 8x 09 06 23 FF y0 50 0 p FF

P : 0~7 Video format 0:1080P60 1:1080P50 2:1080i60 3:1080i50 4:720P60 5:720P50 6:1080P30 7:1080P25

IR_Receive 8x 09 06 08 FF

y0 50 02 FF On

y0 50 03 FF Off

IR_ReceiveReturn

y0 07 7D 01 04 00 FF Power ON/OFF

y0 07 7D 01 04 07 FF Zoom tele/wide

y0 07 7D 01 04 38 FF AF On/Off

y0 07 7D 01 04 33 FF CAM_Backlight

y0 07 7D 01 04 3F FF CAM_Memory

y0 07 7D 01 06 01 FF Pan_tiltDrive

Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF

ww: Pan Max Speed zz: Tilt Max Speed

Pan-tiltPosInq 8x 09 06 12 FF

y0 50 0w 0w 0w 0w

0z 0z 0z 0z FF

wwww: Pan Position zzzz: Tilt Position

Function

Function Byte1

Byte1

Byte1 Byte2

Byte2

Byte2 Byte3

Byte3

Byte3 Byte4

Byte4

Byte4 Byte5

Byte5

Byte5 Byte6

Byte6

Byte6 Byte7

Byte7

Up 0xFF Address 0x00 0x08 Pan Speed Tilt Speed SUM

Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed SUM

Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed SUM

Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed SUM

Upleft 0xFF Address 0x00 0x 0C Pan Speed Tilt Speed SUM

Upright 0xFF Address 0x00 0x 0A Pan Speed Tilt Speed SUM

DownLeft 0xFF Address 0x00 0x 14 Pan Speed Tilt Speed SUM

DownRight 0xFF Address 0x00 0x 12 Pan Speed Tilt Speed SUM

Zoom In 0xFF Address 0x00 0x20 0x00 0x00 SUM

Zoom Out 0xFF Address 0x00 0x40 0x00 0x00 SUM

Pelco-P

Pelco-P Protocol

Protocol

Focus Far 0xFF Address 0x00 0x80 0x00 0x00 SUM

Focus Near 0xFF Address 0x01 0x00 0x00 0x00 SUM

Set Preset 0xFF Address 0x00 0x03 0x00 Preset ID SUM

Clear Preset 0xFF Address 0x00 0x05 0x00 Preset ID SUM

Call Preset 0xFF Address 0x00 0x07 0x00 Preset ID SUM

Query Pan Position 0xFF Address 0x00 0x51 0x00 0x00 SUM

Query Pan Position Response 0xFF Address 0x00 0x59

Value High

Byte

Value Low

Byte

SUM

Query Tilt Position 0xFF Address 0x00 0x53 0x00 0x00 SUM

Query Tilt Position Response 0xFF Address 0x00 0x5B

Value High

Byte

Value Low

Byte

SUM

Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 SUM

Query Zoom Position Response 0xFF Address 0x00 0x5D

Value High

Byte

Value Low

Byte

SUM

Function

Function Byte1

Byte1

Byte1 Byte2

Byte2

Byte2 Byte3

Byte3

Byte3 Byte4

Byte4

Byte4 Byte5

Byte5

Byte5 Byte6

Byte6

Byte6 Byte7

Byte7

Byte7 Byte8

Byte8

Up 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF XOR

Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF XOR

Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF XOR

Right 0xA0 Address 0x00 0x02 Pan Speed Tilt Speed 0xAF XOR

Upleft 0xA0 Address 0x00 0x 0C Pan Speed Tilt Speed 0xAF XOR

Upright 0xA0 Address 0x00 0x 0A Pan Speed Tilt Speed 0xAF XOR

DownLeft 0xA0 Address 0x00 0x 14 Pan Speed Tilt Speed 0xAF XOR

DownRight 0xA0 Address 0x00 0x 12 Pan Speed Tilt Speed 0xAF XOR

Zoom In 0xA0 Address 0x00 0x20 0x00 0x00 0xAF XOR

Zoom Out 0xA0 Address 0x00 0x40 0x00 0x00 0xAF XOR

Focus Far 0xA0 Address 0x00 0x80 0x00 0x00 0xAF XOR

Focus Near 0xA0 Address 0x01 0x00 0x00 0x00 0xAF XOR

Set Preset 0xA0 Address 0x00 0x03 0x00 Preset ID 0xAF XOR

Clear Preset 0xA0 Address 0x00 0x05 0x00 Preset ID 0xAF XOR

Call Preset 0xA0 Address 0x00 0x07 0x00 Preset ID 0xAF XOR

Query Pan Position 0xA0 Address 0x00 0x51 0x00 0x00 0xAF XOR

Query Pan Position Response 0xA0 Address 0x00 0x59

Value High

Byte

Value Low

Byte

0xAF XOR

Query Tilt Position 0xA0 Address 0x00 0x53 0x00 0x00 0xAF XOR

Query Tilt Position Response 0xA0 Address 0x00 0x5B

Value High

Byte

Value Low

Byte

0xAF XOR

Query Zoom Position 0xA0 Address 0x00 0x55 0x00 0x00 0xAF XOR

Query Zoom Position

Response

0xA0 Address 0x00 0x5D

Value High

Byte

Value Low

Byte

0xAF XOR

Menu

Menu Setting

Setting

1.

1. Main

Main

Main Menu

Menu

In normal working mode, press 【 MENU 】 key to display the menu, using scroll arrow to

point at or highlight the selected items.

LANGUAGE

LANGUAGE : Language setting, Chinese / English

SYSTEM

SYSTEM OPTION

OPTION

OPTION ： System setting

CAMERA

CAMERA OPTION

OPTION

OPTION ： Camera setting

PT

PT OPTION

OPTION

OPTION ： Pan tilt setting

V.

FORMAT :

FORMAT : V ideo format setting

RESET

RESET ： Reset setting

HELP

HELP ： For help

VGA

VGA OUTPUT

OUTPUT

OUTPUT ： ON / OFF VGA in the P video format, No VGA in the I video format

Note: Component signal is available only when VGA is off.

2.

2. SYSTEM

SYSTEM

SYSTEM OPTION

OPTION

Move the pointer to the (SYSTEM SET) in the Main Menu, click the 【 HOME 】 and enter the

(SYSTEM SET) as follow,

PROTOCOL

PROTOCOL ： Defaulted Setting: VISCA

Type of Protocol: VISCA/Pelco-P/Pelco-D

ADDR

ADDR ： Defaulted Setting: 01

VISCA=1~7 Pelco-P/Pelco-D = 1~ 155

B.

B. RATE

RATE

RATE :

:

: Defaulted Setting: 9600

2400/4800/9600/115200

RS485

RS485 ： Defaulted Setting: OFF

It is ON when using RS485 communication

ＡＲＭ VER./

VER./

VER./ ＦＰＧＡ VER/CAM

VER/CAM

VER/CAM VER:

VER:

VER: Display the edition information , and it will update

synchronously with the software upgraded.

3.

3. CAMERA

CAMERA

CAMERA OPTION

OPTION

Move the pointer to the (CAMERA SET) in the Main Menu, click the 【 HOME 】 and enter the

(CAMERA SET) as follow,

EXPOSURE

EXPOSURE ： Exposure setting

COLOR:

COLOR: color setting

LEN:

LEN: lens setting

3.1

3.1 EXPOSURE

EXPOSURE

EXPOSURE SETTING

SETTING

Move the pointer to the (EXPOSURE) in the Main Menu, click the 【 HOME 】 and enter the

(EXPOSURE SET) as follow,

EXP.

EXP. MODE

MODE

MODE ： Defaulted Setting: Auto

For Settings: Auto , Manual , Shutter , Iris

SHUTTER

SHUTTER ： Defaulted Setting: Default

For Settings : 1/60 , 1/90 , 1/100 , 1/125 , 1/180 , 1/250 , 1/350 , 1/500 , 1/725 , 1/1000 , 1/1500 , 1/2000 , 1/3000 , 1/4000 , 1/6000 , 1/1000 （ only available in Manual Shutter mode ）

IRIS

IRIS ： Defaulted Setting: Default

For Settings : 0~1 3 （ only available in Manual Iris mode ）

BRIGHT

BRIGHT ： Defaulted Setting: 1

For Settings : 0~9

GAIN

:

Defaulted Setting : Default

For Settings: 0~15 （ only available in Manual mode ）

EV

EV MODE

MODE

MODE ： Defaulted Setting: OFF

For Settings: On/Off (only available in non manual model)

LEVEL

LEVEL ： Defaulted Setting: Default

For Settings : 0~3

WDR:

WDR: Defaulted Setting: OFF

For Settings: On/Off

LEVEL:

LEVEL: Defaulted Setting: Default

For Settings : 0~5

3.2

3.2 COLOR

COLOR

COLOR SETTING

SETTING

Move the pointer to the (COLOR SET) in the Main Menu, click the 【 HOME 】 and enter the

(COLOR SET) as follow,

WB

WB MODE

MODE

MODE ： Defaulted Setting: ATW

White balance mode setting: Auto , Indoor , Outdoor , OnePush , A TW , Manual

R.GAIN

R.GAIN ： Defaulted Setting: Default

Red gain setting : 0~50 （ only available in Manual mode ）

B.GAIN

B.GAIN ： Defaulted Setting: Default

Blue gain setting ： 0~50 （ only available in Manual mode ）

GAMMA

GAMMA : Defaulted Setting : 3

For Settings : 0 ~3

SATURATION

SATURATION ： Defaulted Setting: 4

For Settings : 0~9

APERTURE

APERTURE ： Defaulted Setting: 2

For Settings : 0~9

FLICK

FLICK ： Defaulted Setting: 50HZ

For Settings : 50HZ/60HZ/OFF

NR

NR LEVEL

LEVEL

LEVEL : Defaulted Setting : 6

For Settings : 0~9

CONTRAST

CONTRAST : Defaulted Setting : 3

For Settings : 0 ~9

3.3

3.3 LENS

LENS

LENS SETTING

SETTING

Move the pointer to the (LEN SET) in the Main Menu, click the 【 HOME 】 and enter the (LEN

SET) as follow,

FOCUS

FOCUS ： Auto , Manual , OnePush

4.

4. PAN

PAN

PAN TILT

TILT

TILT SETTING

SETTING

Move the pointer to the (PT SET) in the Main Menu, click the 【 HOME 】 and enter the (PT

SET) as follow,

POWER

POWER ACT:

ACT:

ACT: Defaulted Setting : OFF

0/1

0/1 (the camera will move to no.0/1 preset position after 12 seconds without control since

power on), off

SPEEDBYZ

SPEEDBYZ ： Defaulted Setting : On

only work for IR remote control , On （ when the camera zoom becomes larger, rotation speed comes down ） , Off

MOUNT.MODE

MOUNT.MODE ： Defaulted Setting : UP

For Setting:

UP,

DOWN

IR

IR M.SPEED

M.SPEED

M.SPEED ： Defaulted Setting : 16

IR remote control move speed: 5~24

IR

IR Z.SPEED

Z.SPEED

Z.SPEED ： Defaulted Setting : 07

IR remote control zoom speed: 1~7

MIN.SPEED:

MIN.SPEED: Defaulted Setting : 0

Minimum start speed for serial command: 0~9

SCAN.

SCAN. SPEED:

SPEED:

SPEED: Defaulted Setting : 10

Move speed: 4~15

5.

5. RESET

RESET

Move the pointer to the (SET) in the Main Menu, click the 【 HOME 】 and enter the (SET) as

follow,

SYS.

SYS. RESET

RESET

RESET ： Protocol: VISCA; Address: 1; baud rate:9600; Ｒ S485:Off

CAM.

CAM. RESET

RESET

RESET ： Camera parameter reset

PT.

RESET

RESET ： power action: Off; speed by zone: On; mount mode: Up;

IR move speed: 16; IR zoom speed: 7; MIN.SPEED 0; SCAN. SPEED 10

ALL

ALL RESET

RESET

RESET ： Reset above 3 items

6.

6. HELP

HELP

Show instruction of the OSD menu operation

HELP

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

∧ ∨ SELET

SELET

SELET MENU

MENU

＜＞ CHANGE

CHANGE

CHANGE SETTING

SETTING

ＨＯＭＥ ENTER

ENTER

ＭＥＮＵ RETURN

RETURN

BACK

BACK ／ＭＥＮＵ

7.

7. EXIT

EXIT

In main menu, press the key 【 MENU 】 again will show the exit window as follows:

EXIT

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

SAVE

SAVE ？ Y es/No

Yes/No

OK

OK ／ＨＯＭＥ BACK

BACK

BACK ／ＭＥＮＵ

SAVE

SAVE ？： to save settings ： Yes , No.

Notice ： press 【 HOME 】 key to confirm;

press 【 MENU 】 key to return to the main menu

Troubleshooting

Camera

Camera Maintains

Maintains

If camera is not used for long time, please turn off power adapter switch and AC plug.

Use soft cloth or tissue to clean the camera cover.

Use soft cloth to clean the lens; Use neuter cleanser if bad smeared. No use strong or

corrosive cleanser or corrosive cleanser avoiding scuffing.

Unqualified

Unqualified Application

Application

No shooting extreme light object, such as sunlight, lamplight etc.

No operating in unstable light environment, otherwise image will twinkle

No operating in radio wave with great power environment, such as TV station or

Wireless Launcher etc.

Image effective will not be good when the light is not accordant with camera’s lux.

Troubleshooting


No image

1, Check whether the power cord, voltage is OK, power indicator light is ON.

2, Turn off the power supply to check whether the camera can auto configure.

3, Check the dial switch in bottom and make sure the two dial position are all on OFF.

4, Check video and TV wire is connected correctly.

Abnormal display of image

Check whether the video connecting wires is well and other connecting sockets and

camera flat wires are well.

The camera can only works at one focus, other position can not be focused.

Change the position to see if this phenomenon still exists. If yes, it may be caused by

Camera control drive focus control system trouble.

Image dithering when at Maximum Zoom

1, Check whether camera is fixed correctly.

2, If there is vibrative mechanical object.

Remote

Remote Controller

Controller

1, Change the battery 2, Check the camera operation mode is right.

Terminal

1, Check the camera operation mode is right.

2, Check control wire is connected correctly.

minrray UV950 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
