Minrray UV570 User Manual

UV570 series NDI HD Video Conference Camera

The UV570 series camera offers perfect functions, superior performance and rich interfaces. The features include
advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic
color rendition.

Key Features

 Superb High-definition Image

UV570 employs 1/2.8 inch high quality CMOS sensor.

Resolution is up to 1920x1080 with frame rate up to 60fps.

 Multiple optical lens

5X, 12X, 20X, 30X optical zoom lens for selection; 5X lens
has 83 degree wide angle with little distortion.

 Leading Auto Focus Technology

Leading auto focus algorithm makes lens a fast, accurate

and stable auto-focusing.

 Low Noise and High SNR

Low Noise CMOS effectively ensure high SNR of camera

video. Advanced 2D/3D noise reduction technology is also
used to further reduce the noise, while ensuring image
sharpness.

 Multiple video output interfaces

HDMI, SDI, USB3.0 and LAN ports for video output. Both
video and audio can be output from HDMI, SDI, LAN,
USB3.0 at the same time. The transmission distance of SDI
under 1080p60 is 100 meters.

 USB3.0 supports dual code streams

Supports both main and sub-code streams output
simultaneously; support YUY2, MJPEG, H.264, NV12,
H.265 video encoding format.

 Built-in Gravity Sensor

Support automatic PTZ auto-flip function and easy to install.

 Multiple Network Protocols

Support ONVIF,GB/T28181, RTSP, RTMP, VISCA OVER
IP, IP VISCA, RTMPS,SRT, NDI protocols and support

RTMP push mode, easy to link streaming media server
(Wowza, FMS).Supports RTP multicast mode.

 Control protocol
RS422(compatible with RS485), RS232-in, RS232-out, and

RS232 interface supports cascade connection.

 Multiple Control Protocols

Support VISCA, PELCO-D, PELCO-P protocols; Support
automatic identification protocols.

 Extremely Quiet PTZ

Adopting step driving motor mechanism and motor drive
controller with high precision is to ensure PTZ works
smoothly with low speed and without noise.

 Multiple Preset

Support 255 preset positions (the remote controller is set to
10preset positions).

 Multiple Remote Controller

Users can choose infrared remote controller or wireless
remote controller according to the environmental
conditions.2.4G wireless remote controller is not affected by
the angle, distance, infrared interference.

 Wide Application

Tele-education, Lecture Capture, Webcasting,
Videoconferencing, Tele-training, Tele-medicine,
Interrogation and Emergency command systems.

 Low-power Sleep Function

Support low-power sleep/wake up, the consumption is lower
than 400mW under sleep mode.

Model

UV570-05

UV570-12

UV570-20

UV570-30

Camera Parameter

Optical Zoom

05X
f＝3.1～15.5mm

12X
f＝3.9～46.8mm

20X
f＝5.2～98mm

30X
f＝4.3～129mm

Sensor

1/2.8 inch high quality HD CMOS sensor

Effective Pixels

16: 9, 2.07 megapixel

Video Format

HDMI/SDI video format

1080P60/50/30/25, 1080I60/50, 720P60/50, 1080P59.94, 1080I59.94, 1080P29.97, 720P59.94, 720P29.97

USB3.0 interface video format
Main Stream - YUY2/MJPEG/NV12/H.264/H.265:

1920×1080P30,1280×720P30,1024×576P30,960×540P30,800×448P30,720×480P30,640×360P30,
640×480P30,320×176P30

Sub Stream - YUY2/NV12: 640×360P30,640×480P30,320×176P30
MJPEG/H.264/H.265: 1920×1080P30,1280×720P30,

1024×576P30,960×540P30,800×448P30,720×480P30,640×360P30, 640×480P30,320×176P30

View Angle

20°（tele）
84°（wide）

6.3°（tele）

72.5°（wide）

3.2°（tele）
56°（wide）

2.34°（tele）
65°（wide）

AV

F1.8 – F2.8

F1.8 – F2.4

F1.5 – F3.0

F1.6 – F4.7

Minimum
Illumination

0.5Lux (F1.8, AGC ON)
DNR

2D & 3D DNR

White Balance

Auto / Manual/ One Push/ Specify color temperature

Focus/Aperture/
Electronic Shutter

Auto/Manual/One Push Focus
Exposure Mode

Auto/Manual/Shutter priority/Aperture priority/brightness priority

Aperture

F1.8 ～ F11 CLOSE

Shutter Speed

1/25～1/10000

BLC

ON/OFF

DRC

OFF/ Dynamic level adjustment

Video Adjustment

Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR

≥50dB

Input/Output Interface

Video Interfaces

UV570-05/12/20/30-SU Model: HDMI, SDI, LAN(POE), RS232-IN/OUT, RS422 & RS485, A-IN, USB3.0(type
B compatible with USB2.0), DC12V, power switch

Order No.

UV570—XX—XX—XX

IR---IR Remoter

WR---Wireless Remoter

SU--- HDMI, USB3.0, SDI interface

U3---HDMI, USB3.0 interface

05---5X optical zoom
12---12X optical zoom
20--20X optical zoom
30--30X optical zoom

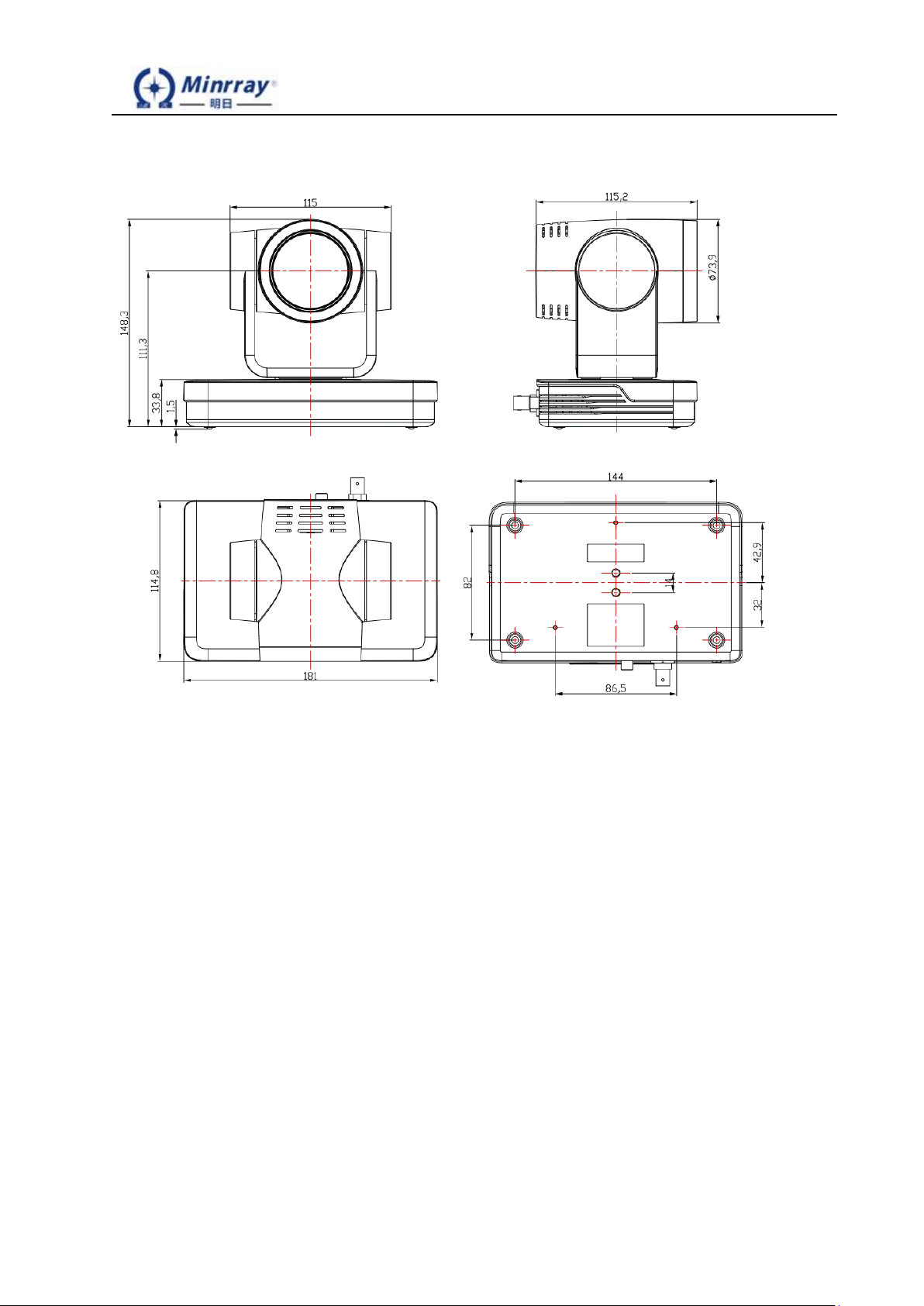

Technical Specifications
