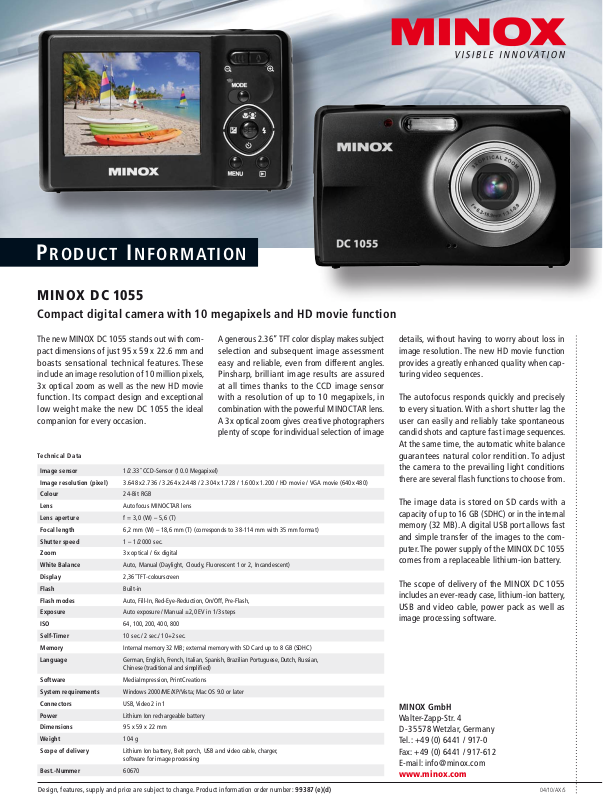

Minox DC 1055 BROCHURE

Product I n f o r m at I o n

MIN OX DC 1055

Compact digital camera with 10 megapixels and HD movie function

The new MINOX DC 1055 stands out with com­pact dimensions of just 95 x 59 x 22.6 mm and
boasts sensational technical features. These
include an image resolution of 10 million pixels,
3x optical zoom as well as the new HD movie
function. Its compact design and exceptional
low weight make the new DC 1055 the ideal
companion for every occasion.

A generous 2.36” TFT color display makes subject
selection and subsequent image assessment
easy and reliable, even from different angles.
Pinsharp, brilliant image results are assured
at all times thanks to the CCD image sensor
with a resolution of up to 10 megapixels, in
combination with the powerful MINOCTAR lens.
A 3x optical zoom gives creative photographers
plenty of scope for individual selection of image

details, without having to worry about loss in
image resolution. The new HD movie function
provides a greatly enhanced quality when cap­turing video sequences.

The autofocus responds quickly and precisely
to every situation. With a short shutter lag the
user can easily and reliably take spontaneous
candid shots and capture fast image sequences.
At the same time, the automatic white balance

Technical Dat a

Image sensor 1/2.33˝ CCD-Sensor (10.0 Megapixel)

Image resolution (pixel) 3.648 x 2.736 / 3.264 x 2.448 / 2.304 x 1.728 / 1.600 x 1.200 / HD movie / VGA movie (640 x 480)

Colour 24-Bit RGB

Lens Autofocus MINOCTAR lens

Lens aperture f = 3,0 (W) – 5,6 (T)

Focal length 6,2 mm (W) – 18,6 mm (T) (corresponds to 38-114 mm with 35 mm format)

Shutter speed 1 – 1/2000 sec.

Zoom 3x optical / 6x digital

White Balance Auto, Manual (Daylight, Cloudy, Fluorescent 1 or 2, Incandescent)

Display 2,36˝ TFT-colourscreen

Flash Built-in

Flash modes Auto, Fill-In, Red-Eye-Reduction, On/Off, Pre-Flash,

Exposure Auto exposure / Manual ±2,0 EV in 1/3 steps

ISO 64, 100, 200, 400, 800

Self-Timer 10 sec./ 2 sec./ 10+2 sec.

Memory Internal memory 32 MB; external memory with SD Card up to 8 GB (SDHC)

Language German, English, French, Italian, Spanish, Brazilian Portuguese, Dutch, Russian,

Software MediaImpression, PrintCreations

System requirements Windows 2000/ME/XP/Vista; Mac OS 9.0 or later

Connectors USB, Video 2 in 1

Power Lithium Ion rechargeable battery

Dimensions 95 x 59 x 22 mm

Weight 104 g

Scope of delivery Lithium Ion battery, Belt porch, USB and video cable, charger,

Best.-Nummer 60670

Design, features, supply and price are subject to change. Product information order number: 99387 (e)(d) 04/10/AX/S

Chinese (traditional and simplified)

software for image processing

guarantees natural color rendition. To adjust
the camera to the prevailing light conditions
there are several flash functions to choose from.

The image data is stored on SD cards with a
capacity of up to 16 GB (SDHC) or in the internal
memory (32 MB). A digital USB port allows fast
and simple transfer of the images to the com­puter. The power supply of the MINOX DC 1055
comes from a replaceable lithium-ion battery.

The scope of delivery of the MINOX DC 1055
includes an ever-ready case, lithium-ion battery,
USB and video cable, power pack as well as
image processing software.
