Minox DC 1044 User Guide

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may

cause undesired operation.

Note:

This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

EN-1

READ THIS FIRST

Trademark Information



Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.

 Pentium® is a registered trademark of Intel Corporation.  Macintosh is a trademark of Apple Inc.  SD™ is a trademark.  SDHC™ is a trademark.  Other names and products may be trademarks or registered trademarks of their

respective owners.

Product Information

 Product design and specifications are subject to change without notice. This

includes primary product specifications, software, software drivers, and user’s manual. This User Manual is a general reference guide for the product.

 The product and accessories that come with your camera may be different from

those described in this manual. This is due to the fact that different retailers often specify slightly different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, chargers, AC adapters, memory cards, cables, pouches, and language support. Occasionally a retailer will specify a unique product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories.

 The illustrations in this manual are for the purpose of explanation and may differ

from the actual design of your camera.

 The manufacturer assumes no liability for any errors or discrepancies in this user

manual.

EN-2

SAFETY INSTRUCTIONS

Read and understand all Warnings and Cautions before using this product.

Warnings

If foreign objects or water have entered the camera, turn the power off and remove the battery.

Continued use might cause fire or electric shock. Consult the store of purchase.

If the camera has fallen or its case has been damaged, turn the power off and remove the battery.

Continued use might cause fire or electric shock. Consult the store of purchase.

Do not disassemble, change or repair the camera.

This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase.

Use the supplied AC adapter only with the indicated power supply voltage.

Use with any other power supply voltage might cause fire or electric shock.

Do not use the camera in areas near water.

This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the shore.

Do not place the camera on inclined or unstable surfaces.

This might cause the camera to fall or tilt over, causing damage.

Keep the battery out of the reach of children.

Swallowing the battery might cause poisoning. If the battery is accidentally swallowed, immediately consult a physician.

Do not use the camera while you are walking, driving or riding a motorcycle.

This might cause you to fall over or result in traffic accident.

Please use battery with complete external seals.

Do not use battery from which the seals have been damaged or removed. This may cause leakage, explosion, or injury.

EN-3

Cautions

Insert the battery paying careful attention to the polarity (+ or –) of the terminals.

Inserting the battery with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking.

Do not fire the flash close to anyone’s eyes.

This might cause damage to the person’s eyesight.

Do not subject the LCD monitor to impact.

This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid enters your eyes or comes into contact with your body or clothes, rinse with fresh water. If the internal fluid has entered your eyes, consult a physician to receive treatment.

A camera is a precision instrument. Do not drop it, strike it or use excessive force when handling the camera.

This might cause damage to the camera.

Do not use the camera in humid, steamy, smoky, or dusty places.

This might cause fire or electric shock.

Do not remove the battery immediately after long period of continuous use.

The battery becomes hot during use. Touching a hot battery might cause burns.

Do not wrap the camera or place it in cloth or blankets.

This might cause heat to build up and deform the case, resulting in fire. Use the camera in a well-ventilated place.

Do not leave the camera in places where the temperature may rise significantly, such as inside a car.

This might adversely affect the case or the parts inside, resulting in fire.

Before you move the camera, disconnect cords and cables.

Failure to do this might damage cords and cables, resulting in fire and electric shock.

EN-4

Notes on Battery Usage

When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below:

 Use only the specified battery (3.7V).  Avoid extremely cold environments as low temperatures can shorten the battery

life and reduce camera performance.

 When you are using a new rechargeable battery or a rechargeable battery that has

not been used for an extended period of time (the battery that passed the expiry date is an exception), it may affect the number of images that can be captured. Therefore, to maximize its performance and lifetime, we recommend that you fully charge the battery and discharge it for at least one complete cycle before use.

 The battery may feel warm after a long period of continuous use of the camera or

the flash. This is normal and not a malfunction.

 The camera may feel warm after a long period of continuous use. This is normal

and not a malfunction.

 If the battery is not to be used for a long period of time, remove it from the camera

to prevent leakage or corrosion and store it after no battery power is left. Stored for a long time in a fully charged condition, its performance may be impaired.

 Always keep the battery terminals clean.  There is a risk of explosion if the battery is replaced by an incorrect type.  Dispose of used battery according to the recycle instructions.  Charge the rechargeable battery fully before using for the first time.  To prevent short-circuiting or fire, keep the battery away from other metal objects

when carrying or storing.

This symbol mark [crossed-out wheeled bin] indicates separate collection of waste batteries in the EU countries. The batteries provided with this product shall not be treated as household waste. Please use the return and collection systems available in your country for the disposal of the waste batteries.

If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the batteries contains a heavy metal at a certain concentration. It is indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead.

EN-5

CONTENTS

7 INTRODUCTION

7Overview 7 Package Contents

8 GETTING TO KNOW YOUR

CAMERA

8 Front View 9Rear View 10 LCD Monitor Display

12 GETTING STARTED

12 Preparation 13 Charging the Battery 14 Initial Settings

16 CAPTURE MODE

16 Capturing Images 17 Taking Images When the Smile

Feature Is On

18 Recording Shots into Multiple

Image Layout 19 Setting the Scene Mode 20 Setting the Panorama Mode

21 VIDEO MODE

21 Recording Video Clips 21 Playing Back Video Clips

22 PLAYBACK MODE

22 Playing Back Still Images 23 Playback Display 23 Removing Red-eye 24 Attaching Voice Memos 25 DPOF Settings 26 Protecting Images 27 Erasing Images

28 MENU OPTIONS

28 Capture Menu 31 Video Menu 32 Playback Menu 33 Setup Menu

35 TRANSFERRING FILES TO

YOUR COMPUTER

35 Downloading Your Files

36 USING THE CAMERA AS A PC

CAMERA

37 EDITING SOFTWARE

INSTALLATION

38 SPECIFICATIONS

39 APPENDIX

39 Possible Number of Shots 40 Troubleshooting

EN-6

INTRODUCTION

Overview

Congratulations on your purchase of the new digital camera. Capturing high-quality digital images is fast and easy with this state-of-the-art smart camera. Equipped with a 10.0-megapixel CCD, this camera is capable of capturing images with a resolution of up to 3648 x 2736 pixels.

Package Contents

Carefully unpack your camera and ensure that you have the following items:

Common Product Components:

 Digital camera  User’s manual  Software CD-ROM  USB cable  AV c a ble  Camera strap  Camera pouch  Rechargeable lithium-ion battery  Battery charger  AC adapter for battery charger

Common (Optional) Accessories:

 SD/SDHC memory card

 Accessories and components may vary by retailer.

EN-7

GETTING TO KNOW YOUR CAMERA

Front View

123 5

1. MODE button

2. Self-timer LED

3. ON/OFF power button

4. Status LED

5. Flash

6. Lens

7. Microphone

8. Zoom lever

EN-8

Rear View

2 3

4 5 6

7 8 9

Item

8 Capture Mode 6 Video Mode 7 Playback Mode

Function

1. Shutter button Record button Voice memo rec.

2. Playback Playback Playback

3. Menu Menu Menu

4. Focus

auto>Z>O>Q

5. Flash

Auto>a>d>c>`>_

6. Self-timer

Off>f>g>h

7. Compensation

s>P

Focus auto>O>Q

Self-timer Off>f>g

next 10th image

Next image

previous 10th image

Previous image

8. Set Set Set

9. -- -- Delete

EN-9

LCD Monitor Display

2008 / 01 / 01 00 : 00

00001

+ 0.3

x4.0

Capture mode

1. Zoom status

2. Flash mode [Blank]Auto Flash [a] Forced Flash [d] Flash Off [c] Red-eye Reduction [`] Slow Sync [_] Pre-flash

3. Battery condition [l] Full battery power [o] Medium battery power [n] Low battery power [m] No battery power

4. Storage media [r] Internal memory

(no card)

[q] SD/SDHC memory card

5. [ ] Histogram

6. Main focus area

7. Image quality

[y] Fine [x] Standard [w] Economy

8. Image size resolution [p] 3648 x 2736 [l] 2816 x 2112 [i] 2272 x 1704 [f] 1600 x 1200 [x] 640 x 480

9. Available number of shots

10. ISO [Blank] Auto [:] ISO 64 [5] ISO 100 [7] ISO 200 [9] ISO 400 [0] ISO 800 [;] ISO 1600

11. Self-timer icon

12. Date and time

13. [s] Exposure

14. Capture mode icon [Blank] Single [T] Continuous [U] AEB [-]Album Shot [/] Burst [.] Cont.flash [+] Pre-Shot [,]Coupl. Shot

15. Slow shutter warning

16. White balance

17. Focus setting

2008 / 01 / 01 00 : 00

[f] 2 sec. [g] 10 sec. [h] 10+2 sec.

compensation [P] Backlight correction (Adjust exposure value with the e / f buttons)

[Blank] Auto [$] Incand. [&] Fluoresc.1 [*] Fluoresc.2 [%] Daylight [#] Cloudy [(] Manual WB

[Blank] Auto focus [Z] Face detection [O] Macro [Q] Infinity

1 2

x4.0

18. Scene mode

[W] Smile Shot [t] Anti-shake [T] Panorama [Q] Portrait Man [R] Portrait Lady [N

] Landscape

[F] Sports [B] Night Portrait [C] Night Scene [G] Candlelight [H] Fireworks [M] Text [K] Sunset [I] Sunrise [E] Splash Water [J] Flow Water [X] Snow

[S] Beach [D] Pets [L] Nautral Green [N] User Setting

00001

1011

EN-10

Video mode [B]

00 : 21

x4.0

100 - 0001

Total

00 : 00 : 08

Play

00 : 00 : 01

1. Zoom status

2. Flash mode

3. Battery condition

4. Storage media

5. Main focus area

6. Video quality

7. Video resolution Available recording time/Elapsed time

9. Self-timer icon

10.Date and time

11.Focus setting

12. Mode icon

Playback mode [7] - Still image playback

1. Voice memo

2. Battery condition

3. Storage media

4. Histogram

5. Image quality

6. ISO

7. Image size resolution

8. File number

9. Folder number

10.Date and time

11. Exposure value

12.Aperture value

13.Shutter speed value

14. DPOF icon

15. Protect icon

16. Mode icon

Playback mode [7] - Video playback

1. Video status bar

2. Elapsed time

3. File number

4. Folder number

5. Play mode

6. Mode icon

Protect icon

8. Total recorded time

00 : 00 : 08

6 5 4 3

1 2

x4.0

00 : 00 : 01

100 - 0001

00 : 21

8 9

EN-11

GETTING STARTED

Preparation

1. Attach the camera strap.

2. Open the battery/memory card cover.

3. Insert the supplied battery with correct orientation as shown.

4. Insert an SD/SDHC memory card (Optional).



The camera has (approx. 28MB available for image storage) but you can load an SD/SDHC memory card to expand the camera’s memory capacity.

 Be sure to format the memory card with this

camera before its initial usage.

5. Close the battery/memory card cover and make sure it is locked securely.

32MB internal memory



To prevent valuable data from being accidentally erased from an SD/SDHC memory card the side of the

 To save, edit, or erase data on an SD/SDHC memory card,

you must unlock the card.

 To prevent damaging of an SD/SDHC memory card, be sure

to turn off the power when inserting or removing the SD/SDHC memory card. If inserting or removing the SD/SDHC memory card with the power on, the camera will automatically turn off.

, you can slide the write protect tab (on

SD/SDHC

memory card) to “LOCK”.

EN-12

Charging the Battery

Charge the battery fully with the supplied battery charger before use.

1. Insert the battery into the battery charger.

2. Connect the power cord to the charger and insert the plug into a wall outlet.  The status LED on the charger lights red

when charging has started and lights green when charging is completed. The LED also lights green if no battery is inserted into the charger.

 Charging time varies according to the

ambient temperature and the status of battery.

 Remove the battery after charging is completed.

 The battery may feel warm after it has been charged or immediately after being used. This is

normal and not a malfunction.

 When using the camera in cold areas, keep the camera and battery warm by holding them inside

your outer clothes.

EN-13

Initial Settings

Setting the Date and Time

The date/time needs to be set if and when:

 The camera is turned on for the first time.  The camera is turned on after leaving the camera without the battery for an

extended period of time. When the date and time information is not displayed on the LCD monitor, follow these steps to set the correct date and time.

1. Toggle the MODE button to [8] or [B]; or press

the [7]

button

SET

button.

2. Press the MENU button.

3. Select [Setup] with the f button.

4. Select [Date/Time] with the c / d buttons, and

press the SET button.

5. Select the date format with the c / d buttons,

and press the SET button.

 Select the item’s field with the e / f buttons

and adjust the value for the date and time with the c / d buttons.



The time is displayed in 24-hour format.



After confirming all settings are correct, press the

6. To exit from the [Setup] menu, press the MENU

button.

EN-14

Choosing the Language

Specify in which language menus and messages are to be displayed on the LCD monitor.

Toggle the MODE button to [8] or [B]; or press the [7]

2. Press the MENU button.

3. Select [Setup] menu with the f button.

4. Select [Language] with the c / d buttons and

5. Select the displayed language with the c / d

button.

press the

SET

button.

buttons and press the  The setting will be stored.

SET

button.

Formatting the Memory Card or Internal Memory

This utility formats the internal memory (or memory card) and erases all stored images and data.

1. Toggle the MODE button to [8] or [B]; or press

the [7]

button

SET

button.

SET

button.

2. Press the MENU button.

3. Select [Setup] menu with f button.

4. Select [Format] with the c / d buttons, then press the

5. Select [Execute] with the c / d buttons, and press the



To cancel formatting, select [Cancel] and press the

EN-15

CAPTURE MODE

Capturing Images

Your camera is equipped with a 3.0" full color TFT LCD monitor to help you compose images, playback recorded images/video clips or adjust menu settings.

1. Press the ON/OFF button to turn the power on.

 The status LED lights green and the camera is initiated.

2. Toggle the MODE button to [8].

3. Compose your image in the LCD monitor.

 Slide the zoom lever to =/X side to zoom in on the subject, and enlarges the

subject on the LCD monitor.

 Slide the zoom lever to >/Y side to zoom out on the subject, and provides a

wider angle image.

4. Press the shutter button.  Pressing the shutter button down halfway

automatically focuses and adjusts the exposure, and pressing the shutter button down fully captures the images.

 The focus area frame turns green when the

camera is in focus and the exposure is calculated.

 When the focus is not suitable, the frame of

the focus area turns red.

EN-16

Taking Images When the Smile Feature Is On

With the camera’s new “smile detection” function, this camera detects smiles so you do not miss those special moments in life.

1. Toggle the MODE button until the scene mode

selection screen appears.

2. Select [Smile Shot] with the e / f buttons, and

press the SET button.

3. Compose the image, and press the shutter button down fully.

4. Once the camera detects a smile, it will automatically capture 3 images (by default, the flash mode setting is set to d).  If the flash mode setting is changed to a, the

camera will only capture an image after it detects a smile.

 When capturing group shots (if the number of

people is more than 1), the camera will automatically capture the image(s) when it detects two smiles. The number of shots taken depends on the flash mode setting.

 If the camera does not detect a smile within 5

seconds, the camera returns to preview display.

 Press the shutter button once again to reactivate

this function.

EN-17

Recording Shots into Multiple Image Layout

The Album Shot mode enables you to easily record images and combine three shots into a single image.

1. Toggle the MODE button to [8].

2. Press the MENU button, and select the [Function] menu with the f buttons.

3. Select [Capture Md.] with the c / d buttons, and press the SET button.

4. Select [Album Shot] with the c / d buttons, and press the SET button.

5. Press the MENU button.

6. Press the shutter button to capture the first image.

7. Press the shutter button again to capture the second and third images.

 The camera returns to normal preview display by pressing the d button. Press the d

button again to switch back to album shot preview display.

 This shot can only be recorded if there are 3 shots recorded in each of the available

frames.

Recording Shots using Face Detection Technology

Face Detection Technology can identify and focus on the human faces in the image. This advanced function simultaneously detects up to 5 human faces regardless of their position in the scene.

1. Toggle the MODE button to [8].

2. Toggle the OZ button until [Z] icon appears on the LCD monitor.

 The white frame is identified as the “top priority” face (main focus frame), and gray

ones around the other faces.

3. Press the shutter button halfway down to lock the focus.

 The main focus frame simultaneously turns green.  If the “top priority” face is out of focus, all frames will be disappeared from the screen.

4. Press the shutter button down fully to capture your image.

 Subjects that are not suitable with this function:

a. A person wearing glasses, sunglasses, or face covered with hat or hair. b. A person turning sideways.

EN-18

Setting the Scene Mode

By simply selecting one of the following 21 modes, you can capture the image with the most appropriate settings.

1. Toggle the MODE button until the scene mode selection screen appears.

2. Select the desired scene mode with the e / f buttons, and press the SET button.

3. Compose the image and press the shutter button.

The table below will help you choose the appropriate scene mode:

Scene mode Description

W Smile Shot Select this mode to automatically capture an image when a smiling

face is detected.

n Anti-Shake This mode minimizes the influences of hand shaking when you want

to capture an image.

T Panorama Select this mode when you want to capture a series of shots then

stitch them together with software to make a single photo.

Q Portrait Man Select this mode when you want to capture an image that makes a

man stand out against a blurred background.

R Portrait Lady Select this mode when you want to capture an image that makes a

lady stand out against a blurred background.

l Landscape Select this mode when you want to capture an image with infinity

focus, hard sharpness and high saturation.

l Sports Select this mode when you want to capture fast-moving subjects. g Night Portrait Select this mode when you want to capture people with an evening or

night scene background.

h Night Scene Select this mode when you want to capture dark scenes such as night

views.

c Candlelight Select this mode when you want to capture photos of candlelit scene,

without spoiling the ambience.

d Fireworks Select this mode when you want to capture fireworks clearly with

optimal exposure. The shutter speed becomes slower, so using a tripod is recommended.

EN-19

Scene mode Description

| Text Select this mode when you want to capture an image that contains

e Sunset Select this mode when you want to capture a sunset. This mode

m Sunrise Select this mode when you want to capture a sunrise. This mode

k Splash Water Select this mode when you want to capture photos of splashing water. e Flow Water Select this mode when you want to capture the soft flowing water. _ Snow Select this mode when you want to capture clear snow scenes

S Beach Select this mode when you want to capture bright beach scenes and

a Pets Select this mode when you want to capture your pets. Shoot from

L Nautral Green Select this mode when you want to capture the green scenery

\ User Setting This mode allows you to manually set your favorite parameters and

black and white subjects like printed documents.

helps keep the deep hues in the scene.

without darkened subjects and bluish tint.

sunlit water surfaces.

their eye level.

background such as forest. This mode helps to brighten the colors.

these settings will be memorized.

Setting the Panorama Mode

This mode is designed to make it easier to take a series of shots then stitch them together with software to make a single image. You can capture a photographic subject that won’t fit into a single frame, such as a landscape, and stitch it together later with a program such as Panorama Maker application.

1. Toggle the MODE button until the scene mode selection screen appears.

2. Select [Panorama] with the e / f buttons, and press the SET button.

3. Select the photographic direction with the e / f buttons.

4. Shoot the first image.  The next image appears beside the previous image.

5. Orient the camera so that the second frame overlaps a small portion of the photographic subject of the first image and press the shutter button to capture the next image.

6. Follow the same steps to capture subsequent images in the sequence.

7. Finish the sequence by pressing the MENU button or switch to another mode after the last image has been recorded.

EN-20

VIDEO MODE

Recording Video Clips

This mode allows you to record video clips at a resolution of VGA 640 x 480 / QVGA 320 x 240 pixels.

1. Toggle the MODE button to [B].

2. Compose the image.

3. Press the shutter button.

 The recording of the video clip will start.  Pressing the shutter button one more time will end the recording of the video clip.  The recording time depends on the storage size and the subject of the image to be

recorded.

 The zoom function cannot be used during video recording.

 When recording a video clip, the flash and "10+2 sec." self-timer function cannot be used.  If the write speed of your SD/SDHC memory card is not fast enough for recording video clips in

the currently selected quality, the video recording will stop. In this case, select a video quality lower than the current one.

Playing Back Video Clips

You can play back recorded video clips on the camera.

1. Press the [7] button.

 The last image appears on the screen.

2. Select the desired video clip with the e / f buttons.

3. Press the SET button.



A press of the f / e buttons during playback allows fast forward play / fast reverse play.

 To stop video playback, press the d button.

This stops playback and returns to the start of the video clip.

 To pause video playback, press the SET button.

This pauses video playback. To cancel pause, press the SET button again.

 Video clips cannot be displayed rotated or enlarged.  Windows Media Player or QuickTime Player is recommended to play back the video clip on your

computer.

 QuickTime Player is a free media player available at www.apple.com; and compatible with Mac

and Windows computers.

 For more information about the operation of the media player, refer to its respective help

documentation.

EN-21

PLAYBACK MODE

Playing Back Still Images

You can play back the still images on the LCD monitor.

1. Press the [7] button.  The last image appears on the screen.

2. The images can be displayed in forward or reverse sequence with the e / f buttons.  To view the previous image, press the e

button.

 To view the next image, press the f button.  Slide the zoom lever to =/X side enlarges

thei mage.

 To return to normal magnification, slide the

zoom lever to >/Y side.

 An [B] icon is displayed with the video data. Video clips cannot be rotated.  An [a] icon is displayed with images which have an audio memo recorded.

EN-22

Playback Display

100- 0001

This function allows you to search quickly for the image that you want and playback images on the LCD monitor sequentially.

1. Press the [7] button.

2. Press the c button to display the next 10th image.  If the 1st image taken is displayed, press the

c button to playback the 11th image taken. Press the c button again to playback the 21th image taken and so forth.

3. Press the d button to display the previous 10th image.

4. Press and hold the e / f button to display the previous or next images automatically in sequential order.

 Release the e / f

 If the total number of images is less than 10, press the d button jumps to the first image and

press the c button jumps to the last image.

 Video clips will be displayed with an [S] icon.

button if you wish to stop the automatic playback.

100- 0001

Removing Red-eye

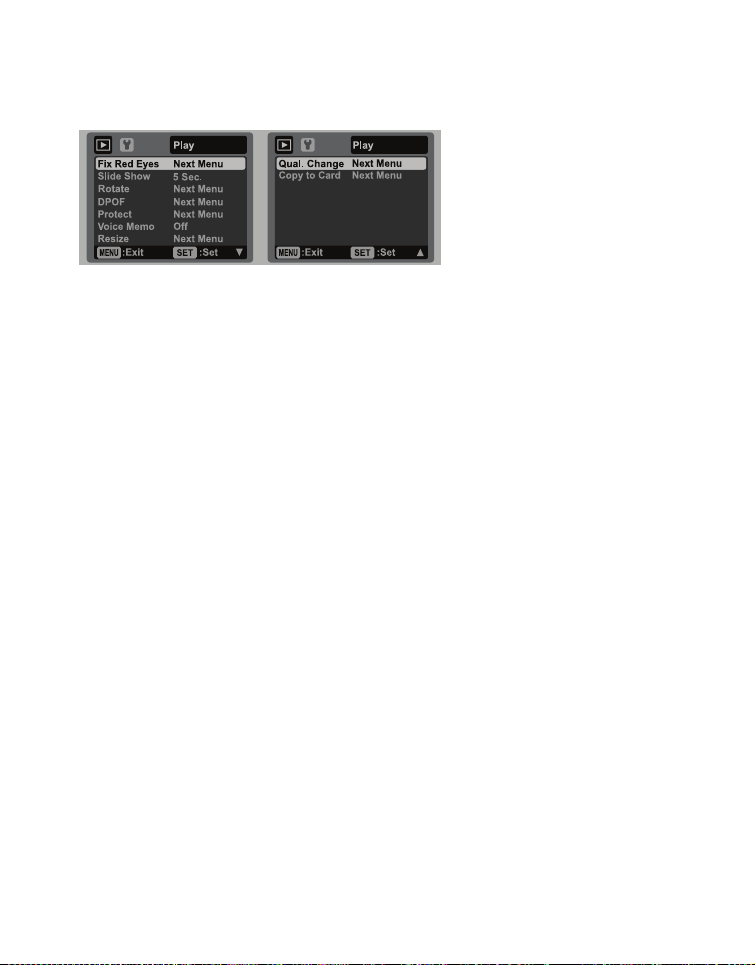

You can use this function to remove the red-eye effect after an image is taken.

1. Press the [7] button.

2. Select the image that you want to edit with the / f buttons.

3. Press the MENU button.

4. Select [Fix Red Eyes] with the c / d buttons, and press the SET button.

5. Select [Execute] with the c / d buttons, and press the SET button.

6. View the changes on the corrected image.

7. To save your corrected image, select [Confirm] with the c / d buttons, and press the SET button.  When this process ends, this replaces the

original image with the corrected image.

EN-23

Attaching Voice Memos

100- 0001

A maximum of 30 seconds of audio can be recorded as a memo for captured still images. The voice memo can be recorded only once.

1. Press the [7] button.

 The last image appears on the screen.

2. Select the image to which you want to attach the voice memo with the e / f buttons.

3. Press the MENU button.

4. Select [Voice Memo] with the c / d buttons, and press the SET button.

5. Select [On] with the c / d buttons, and press the SET button.

6. Press the MENU button to exit from the menu.

7. Press the SET button.  [VOICE RECORDING] is displayed on the screen and recording starts.

8. To stop recording a voice memo as it is being recorded, press the SET button again.  [VOICE RECORD END] will be displayed and the recording will end. An [a] icon

is displayed with images that have been recorded with a voice memo.

Playing back voice memo

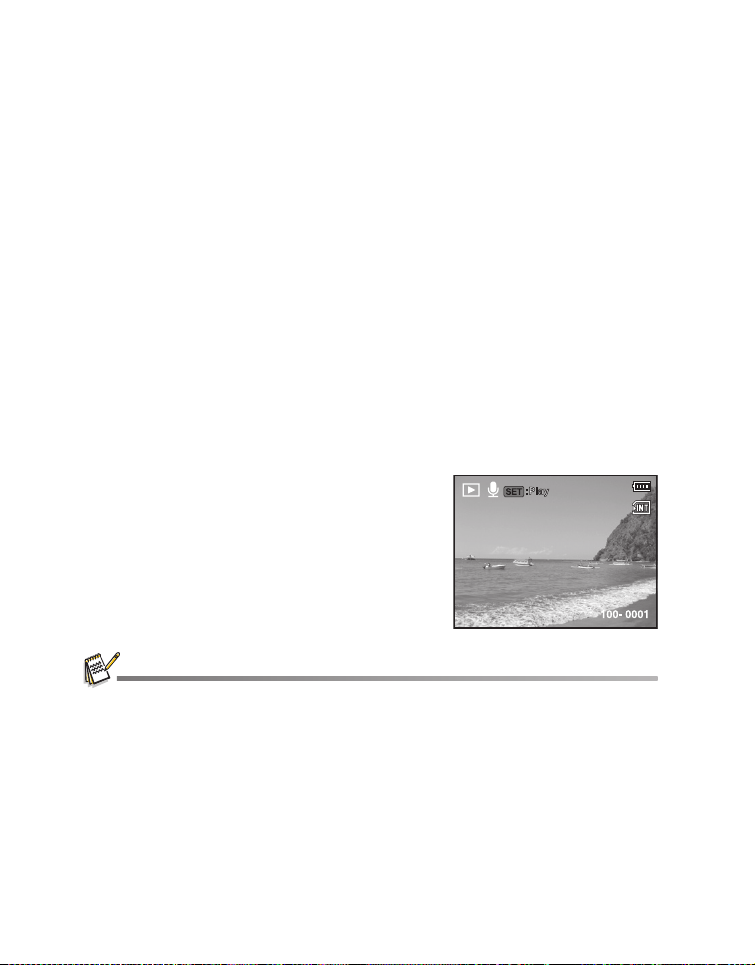

A press of the SET button displays [VOICE PLAYBACK] and plays back the voice memo.

100- 0001

 Voice memo is only available for still images.

EN-24

DPOF Settings

100- 0001

DPOF is the abbreviation for Digital Print Order Format, which allows you to embed printing information on your memory card. You can select the images to be printed and how many prints to make with the DPOF menu in the camera and insert the memory card to the card compatible printer. When the printer starts printing, it will read the embedded information on the memory card and print the specified images.

1. Press the [7] button.

2. Select the image that you want to set DPOF with the e / f buttons.

3. Press the MENU button.

4. Select [DPOF] with the c / d buttons, and press the SET button.

 The DPOF setting screen is displayed.

5. Select [Single] or [All] with the c / d buttons, and press the SET button.



[Single]: Sets DPOF for each individual image.

 [All]: Sets DPOF for all images at once.

6. Select [Print Num] with the c / d buttons, and press the SET button.

 This displays the number of prints setting screen.

7. Set the number of prints with the c / d buttons, and press the SET button.

 You can set up to 9 prints for each image.

8. Select [Date Print] with the c / d buttons, and press the SET button.

 The date setting screen appears.

9. Select date to [On] or [Off] with the c / d buttons, and press the SET button.



[On]: The date of the image will also be printed.



[Off]: The date of the image will not be printed.

10. Select [Print] with the c / d buttons, and press the SET button.

11. Select [Execute] with the c / d buttons, and press the SET button.



This creates a file containing the DPOF information, and when the operation is finished, the screen returns to the playback mode.

 The DPOF icon [D] is displayed on each image

that has set up DPOF settings.

100- 0001

 The date that is printed on the image is the date set on the camera. To print the correct date on

the image, set the date on the camera before you capture the image. Refer to section in this manual titled “Setting the Date and Time” for further details.

EN-25

Protecting Images

Set the data to read-only to prevent images from being erased by mistake.

1. Press the [7] button.

2. Select the image that you want to protect with the e / f buttons.

3. Press the MENU button.

4. Select [Protect] with the c / d buttons, and press the SET button.

5. Select [Single] or [All] with the c / d buttons, and press the SET button.

6. Select [Set] with the c / d buttons, and press the SET button.  Protection is applied to the image and the

camera returns to the playback mode.

 The protect icon [A] is displayed with protected

images. When [All] has been selected, [A] is displayed with all the images.

Canceling the Protection

To cancel protection for only one image, display the image on which you want to remove the image protection.

1. Select [Protect] with the c / d buttons from the playback menu, and press the SET button.

2. Select [Single] or [All] with the c / d buttons, and press the SET button.

3. Select [Cancel Protect] with the c / d buttons, and press the SET button.  The removal of image protection is executed and the camera returns to the

playback mode.

 Formatting an SD/SDHC memory card overrides protection, and erases all images regardless of

their protected status.

EN-26

Erasing Images

Erasing single image / Erasing all images

1. Press the [7] button.

2. Select the image you want to delete with the e / buttons.

3. Press the F button.

4. Select [Single] or [All] with the c / d buttons, and press the SET button.  [Single]: Deletes the selected image or the last

image.

 [All]: Deletes all of the images except for the

protected images.

5. Select [Execute] with the c / d buttons, and press the SET button.  To not delete, select [Cancel], and press the

SET button.

 Deleting an image will not affect sequential image numbering. For example, if you delete image

number 240, the next captured image will be numbered 241 even though 240 no longer exists. In other words, an image-number is retired when an image is deleted and will not be reused or reassigned to another subsequently captured image.

EN-27

MENU OPTIONS

Capture Menu

This menu is for the basic settings to be used when capturing still images.

Function

1. Toggle the MODE button to [8].

2. Press the MENU button, and select the [Capture] / [Function] menu with the e / f

buttons.

3. Select the desired option item with the c / d buttons, and press the SET button to

enter its respective menu.

4. Select the desired setting with the c / d buttons, and press the SET button.

5. To exit from the menu, press the MENU button.

Size

This sets the size of the image that will be captured.

* [p] 3648 x 2736 * [l] 2816 x 2112 * [i] 2272 x 1704 * [f] 1600 x 1200 * [x] 640 x 480

Quality

This sets the quality (compression) at which the image is captured.

* [y] Fine * [x] Standard * [w] Economy

Sharpness

This sets the sharpness of the image that will be captured.

* Hard / Standard / Soft

Saturation

This sets the saturation of the image that will be captured.

* High / Standard / Low

EN-28

W. B al anc e

This sets the white balance for a variety of lighting conditions and permits images to be captured that approach the conditions that are seen by the human eye.

* [Blank] Auto * [$] Incand. * [&] Fluoresc.1 * [*] Fluoresc.2 * [%] Daylight * [#] Cloudy * [(] Manual WB

ISO

This sets the sensitivity for capturing images. When the sensitivity is raised (and the ISO figure is increased), photography will become possible even in dark locations, but the more pixelated (grainier) the image will appear.

* [Blank] Auto * [:] ISO 64 * [5] ISO 100 * [7] ISO 200 * [9] ISO 400 * [0] ISO 800 * [;] ISO 1600

Metering

This sets the metering method for calculating the exposure.

* Center: Averages the light metered from the entire frame, but gives greater weight to the

subject matter at the center.

* Spot: A very small portion of the center of the screen is measured to calculate the correct

exposure.

* Average: The exposure is measured all off the image area.

Color

This sets the color of the image that will be captured.

* Standard / Vivid / Sepia / B&W / Blue / Red / Green / Yellow / Purple

EN-29

Capture Md.

This sets the recording method at the time of capturing images.

* [Blank] Single: Captures one image at a time. * [ T ] Continuous: Permits continuous capture of up to 3 images. * [ U ] AEB: Permits 3 consecutive images in the order of standard exposure,

* [ -] Album Shot: Creates an album-like layout to combine 3 shots into a single image. * [ / ] Burst: Permits continuous photography while pressing holding the shutter button.

* [ . ] Cont.flash: Permits continuous capture of up to 3 images with flash. * [ + ]

* [ ,] Coupl.Shot: Uses separate areas to combine two shots. You can include yourself

underexposure and overexposure compensation.

As long as you hold the shutter button pressed, images are captured until the memory capacity is exhausted.

Pre-Shot: Lets you capture the background first, then have someone to capture you in front of it.

in the shot.

Quick Shot

If this function is set to “On”, the camera takes a quick shot without focusing.

* On / Off

Digi. Zoom

This sets whether or not to use digital zoom at the time of photography.

* On / Off

Preview

This sets whether or not to display the captured image on the screen immediately after the image is captured.

* On / Off

Date Print

The date of recording can be printed directly on the still images. This function must be activated before the image is captured.

* On / Off

EN-30

Video Menu

This menu is for the basic settings to be used when recording video clips.

1. Toggle the MODE button to [B].

2. Press the MENU button, and select the [Capture] / [Function] menu with the e / f buttons.

3. Select the desired option item with the c / d buttons, and press the SET button to enter its respective menu.

4. Select the desired setting with the c / d buttons, and press the SET button.

5. To exit from the menu, press the MENU button.

Size

This sets the size of the video clip that will be captured.

* [ x ] 640 x 480 * [ s ] 320 x 240

Quality

This sets the quality (compression) at which the video clip is captured.

* [y] Fine * [x] Standard

Color

This sets the color of the video clip that will be captured.

* Standard / Vivid / Sepia / B&W / Blue / Red / Green / Yellow / Purple

Audio

This sets whether or not to record audio at the time of video recording.

* On / Off

Digi. Zoom

Refer to section in this manual titled “Digi. Zoom” in Capture Menu for further details.

EN-31

Playback Menu

In the [7] mode, choose which settings are to be used for playback.

1. Press the [7] button.

2. Press the MENU button.

3. Select the desired option item with the c / d buttons, and press the SET button to enter its

respective menu.

4. Select the desired setting with the c / d buttons, and press the SET button.

5. To exit from the menu, press the MENU button.

Fix Red Eyes

Refer to section in this manual titled “Removing Red-eye” for further details.

Slide Show

This function enables you to playback your still images automatically in order one image at a time. * 3 Sec. / 5 Sec. / 10 Sec.

Rotate

If you wish to rotate a still image 90 degrees to the right, select +90 degrees to the left, select -90

/ -90

* +90

. Video clips cannot be rotated.

DPOF

Refer to section in this manual titled “DPOF Settings” for further details.

Protect

Refer to section in this manual titled “Protecting Images” for further details.

Voi c e Me m o

Refer to section in this manual titled “Attaching Voice Memos” for further details.

Resize

Resizes a previously saved image. Resizing replaces the original image with the changed image. It is only possible to resize to a smaller size.

Qual. Change

Changes the quality (compression) of a recorded image. Compresses images down to half of their size or less, overwrites old size images with newly compressed images. It is only possible to reduce the image quality/size, never to increase it.

Copy to Card

Allows you to copy your files from the camera’s internal memory to an SD/SDHC memory card. Of course, you can only do this if you have a memory card installed and some files in internal memory. * Cancel / Execute

; if you wish to rotate it 90

EN-32

Setup Menu

Set your camera’s operating environment.

1. Toggle the MODE button to [8] or [B]; or press the [7]

2. Press the MENU button, and select the [Setup] menu with the f button.

3. Select the desired option item with the c / d buttons, and press the SET button to enter its respective menu.

4. Select the desired setting with the c / d buttons, and press the SET button.

5. To exit from the menu, press the MENU button.

Date/Time

Refer to section in this manual titled “Setting the Date and Time” for further details.

Language

Refer to section in this manual titled “Choosing the Language” for further details.

Auto Off

If no operation is performed for a specific period of time, the power to the camera is automatically turned off. This feature is useful for reducing battery usage.

* 1 Min. / 2 Min. / 3 Min. / Off

Beep

This sets whether or not to mute the camera sound each time you press the camera's buttons.

* On / Off

Display

This sets the image information display state.

* Default / All / Off

Video Out

This sets your camera to match the system of the equipment that you are going to connect to the camera.

* PAL / NTSC

Fr. No. Reset

This creates a new folder. The captured images are recorded to the newly created folder from number 0001.

* Cancel / Execute

button.

EN-33

Light Freq.

This camera supports different lighting frequencies: 50 Hz and 60 Hz. When photographing under fluorescent lighting, select the correct frequency setting depending in your local area's voltage. This function is only effective if you set the White Balance to Fluorescent setting.

* 50 Hz / 60 Hz

LCD Bright.

Select a brightness level for the LCD monitor. The LCD becomes brighter with the c button and darker with the d button. The adjustment range is from -5 to 5.

Format

Refer to section in this manual titled “Formatting the Memory Card or Internal Memory” for further details.

Media Info.

This displays the free capacity of the internal memory or the memory card.

Sys. Info.

This displays the firmware version of the camera.

Sys. Reset

This returns all basic settings to the camera’s default settings. The time setting will not be reset.

* Cancel / Execute

EN-34

TRANSFERRING FILES TO YOUR COMPUTER

System Requirement

Windows Macintosh

 Pentium III 1GHz or equivalent  Windows 2000/XP/Vista  512MB RAM  150MB available hard disk space  CD-ROM drive  Available USB port

Downloading Your Files

1. Connect one end of the USB cable to an available USB port on your computer.

2. Connect the other end of the USB cable to the USB terminal on the camera.

3. Turn on your camera.

4. Select [PC] using the c / d buttons and press the SET button.

5. From the Windows desktop, double click on “My Computer”.

6. Look for a new “removable disk” icon.  This “removable disk” is actually the memory (or memory card) in your camera.

Typically, the camera will be assigned drive letter “e” or higher.

7. Double click on the removable disk and locate the DCIM folder.

8. Double click on the DCIM folder to open it to find more folders.  Your recorded images and video clips will be inside these folders.

9. Copy & Paste or Drag-N-Drop image and video files to a folder on your computer.

 PowerPC G3/G4/G5  OS 9.0 or later  256MB RAM (512MB recommended)  128MB available hard disk space  CD-ROM drive  Available USB port

Mac users: Double-click the “untitled” or “unlabeled” disk drive icon on your desktop. iPhoto may automatically launch.

EN-35

USING THE CAMERA AS A PC CAMERA

Your camera can act as a PC camera, which allows you to videoconference with business associates, or have a real-time conversation with friends or family. To use the camera for videoconferencing, your computer system must include the items as below:

 Microphone  Sound card  Speakers or headphones  Network or Internet connection

1. After installing the PC camera driver (included on the CD-ROM) in your Windows operating system, restart your computer.

2. Connect one end of the USB cable to the USB terminal of the camera.

3. Connect the other end of the USB cable to an available USB port on your computer.

4. Turn on your camera.

5. Select [PC Camera] with the c / d buttons and press the SET button.

6. Position the camera steadily on top of your computer monitor or use a tripod.

7. Launch the videoconferencing application software.

 Simply follow the instructions in the application software to start your camera.

 This function is not supported by Mac.  You are recommended to use Windows NetMeeting (Windows Meeting Space on Windows Vista)

as a videoconferencing application software.

 The video resolution for videoconferencing applications is generally 320 x 240.  For more information about the operation of videoconference application software, refer to its

respective help documentation.

EN-36

EDITING SOFTWARE INSTALLATION

There are 3 types of software that are included on the CD-ROM:

ArcSoft MediaImpression™ - manages your media for you, and gives you tons of fun and exciting ways to create and share projects featuring your photo, video, and music files. Create your own movies or photo slide shows, complete with soundtrack; edit, enhance, and add fun creative effects to your photos; and share your files easily through simple email attachments or popular photo printing and video sharing websites.

Print Creations - brings you a family of fun and easy print-project software that brings out the creativity in you. You can personalize the designs with your own digital pictures and text based on professionally designed templates and layouts. Projects can be printed at home or saved as image files for sharing with family and friends by email or the web.

Arcsoft Panorama Maker® 4.0 - Like magic, ArcSoft Panorama Maker 4 turns any series of overlapping photos into a gorgeous panoramic image in just seconds. The program does most of the work for you by automatically selecting an entire group of pictures with one click, automatically organizing the photos into the proper order, then seamlessly stitching the photos into a panoramic masterpiece that you can print, share or post to the web. Create horizontal, vertical and 360° panorama pictures all within this one amazing program.

To install software:

1. Insert the CD-ROM that came with the camera into your CD-ROM drive.

The welcome screen appears.

2. Click the respective software name.

Follow the on-screen instructions to complete the installation.



For more information about the operation of the software, refer to its respective help documentation.



For Windows 2000/XP/Vista users, please make sure to install and use the software in “Administrator” mode.

 The software is not supported by Mac.

EN-37

SPECIFICATIONS

Item Description

Image sensor 1/2.33” CCD sensor (10.0 megapixels)

Image resolution

LCD monitor 3.0” full color TFT LCD (230K pixels)

Recording media

File format DCF, JPEG (EXIF 2.2), DPOF, Motion-JPEG (AVI)

Lens

Focus Range

Shutter speed 1 - 1/2000 sec.

Digital zoom

Flash effective range

Te rm i na l s

Power supply Rechargeable Lithium-ion battery (3.7V)

Dimensions

Weight Approx. 116g (without battery and memory card)

* Design and specifications are subject to change without notice.

10M: 3648 x 2736, 6M: 2816 x 2112, 4M: 2272 x 1704, 2M: 1600 x 1200, VGA: 640 x 480 <Video clip>

VGA: 640 x 480 (30 fps), QVGA: 320 x 240 (30 fps)

32MB internal memory (approx. 28MB available for image storage) Supports SD/SDHC memory card (up to 8GB) (optional)

3x optical zoom lens Aperture range: 2.9(W) - 5.4(T) Focal length: 6.4mm - 19.2mm (equivalent to 35mm - 105mm on a 35mm camera)

Standard

0.4m to infinity Macro Wide: 0.05m to infinity Tele: 0.4m to infinity

4x (Capture mode) 4x (Playback mode)

0.5m - 2.4m (Wide)

0.5m - 2.1m (Tele)

AV O U T USB 2.0 compliant (2 in 1 terminal)

Approx. 95mm x 58.1mm x 18.8mm (without protruding parts)

EN-38

APPENDIX

Possible Number of Shots

Possible number of shots (still image)

The table shows the approximate shots that you can capture at each setting based on the capacity of the internal memory and the SD/SDHC memory card.

Size Quality

3648 x 2736

2816 x 2112

2272 x 1704

1600 x 1200

640 x 480

y Fine x Standard w Economy y Fine x Standard w Economy y Fine x Standard w Economy y Fine x Standard w Economy y Fine x Standard w Economy

Internal Memory

128MB 256MB 512MB

5 27 55 112 225 451 903 1812 13 59 120 241 484 969 1940 3894 15 68 138 278 558 1117 2236 4488 16 71 143 288 578 1158 2319 4654 21 93 187 376 755 1511 3025 6071 22 97 195 393 787 1577 3157 6335 28 124 250 502 1006 2015 4034 8095 30 133 268 538 1078 2159 4321 8671 35 155 313 629 1260 2524 5051 10136 53 235 472 949 1901 3805 7615 15281 62 271 545 1094 2192 4388 8783 17624 67 295 594 1192 2388 4781 9568 19200

125 544 1094 2194 4395 8797 17605 35326 146 635 1276 2560 5127 10263 20539 41214 176 766 1541 3091 6191 12391 24797 49759

Possible recording time / sec (video clip)

Size Quality

y Fine

xStandard y Fine x Standard

640 x 480

320 x 240

* We recommend a memory card of at least 10MB/Sec write speed to prevent auto stop or

unexpected results. If you experience an error using a slower SD/SDHC memory card, you can set your camera’s video recording to QVGA (320 x 240) and standard quality.

Internal Memory

128MB 256MB 512MB 1GB 2GB

00:00:23 00:01:43 00:03:28 00:06:57 00:13:55 00:27:52 00:55:47 01:53:34

00:00:29 00:02:07 00:04:16 00:08:35 00:17:11 00:34:24 01:09:07 02:17:54

00:01:22 00:05:58 00:12:00 00:24:05 00:48:14 01:43:46 03:32:46 06:39:17

00:01:38 00:07:08 00:14:22 00:28:49 00:57:43 01:49:22 04:05:15 08:12:42

SD/SDHC memory card capacity

1GB 2GB

SD/SDHC

memory card capacity

SDHC

4GB

SDHC

4GB

8GB

SDHC

8GB

SDHC

EN-39

Troubleshooting

Refer to the symptoms and solutions listed below before sending the camera for repairs. If the problem persists, contact your local reseller or service center

Symptom Cause Solutions / Corrective Actions

The power does not come on.

The battery runs out quickly. The battery is not fully charged.

The battery or camera feels warm.

Even if I press the shutter button, the camera does not take a picture.

Images do not appear on the LCD monitor.

Although the camera is set to auto focus, it does not focus.

The contents on the memory card cannot be played back.

Files cannot be deleted. The file is protected. Cancel protection.

Even when the camera’s buttons are pressed, it does not operate.

The date and time is wrong.

Cannot download images. The free space on the hard disk in

The battery is not inserted. Insert the battery correctly.

The battery is exhausted. Recharge the battery.

The battery is not used for an extended period of time after being charged.

Long period of continuous use of the camera or the flash.

The shutter button is not pressed all the way down.

The memory card does not have any free capacity.

The memory card is write-protected.

LCD monitor is dark. Adjust the brightness of the

The lens is dirty. Wipe clean with a soft, dry cloth or

The distance to the subject is smaller than the effective range.

You played back a memory card that was not formatted by this

The memory card is write-protected.

The battery is running low. Recharge the battery.

The correct date and time is not set.

your computer may be insufficient.

No power supply. Recharge the battery.

camera

Fully charge the battery and discharge it for at least one complete cycle before use to maximize its performance and lifetime.

Press the shutter button all the way down.

Insert a new memory card, or delete unwanted files.

Remove the write-protection.

LCD monitor in the menu.

lens paper.

Get your subject within the effective focus range.

Insert a memory card that was formatted on this camera.

Remove the write-protection.

Set the correct date and time.

Check whether the hard disk has space for running Windows, and if the drive for loading image files has a capacity at least that of the memory card inserted in the camera.

EN-40

Minox DC 1044 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
