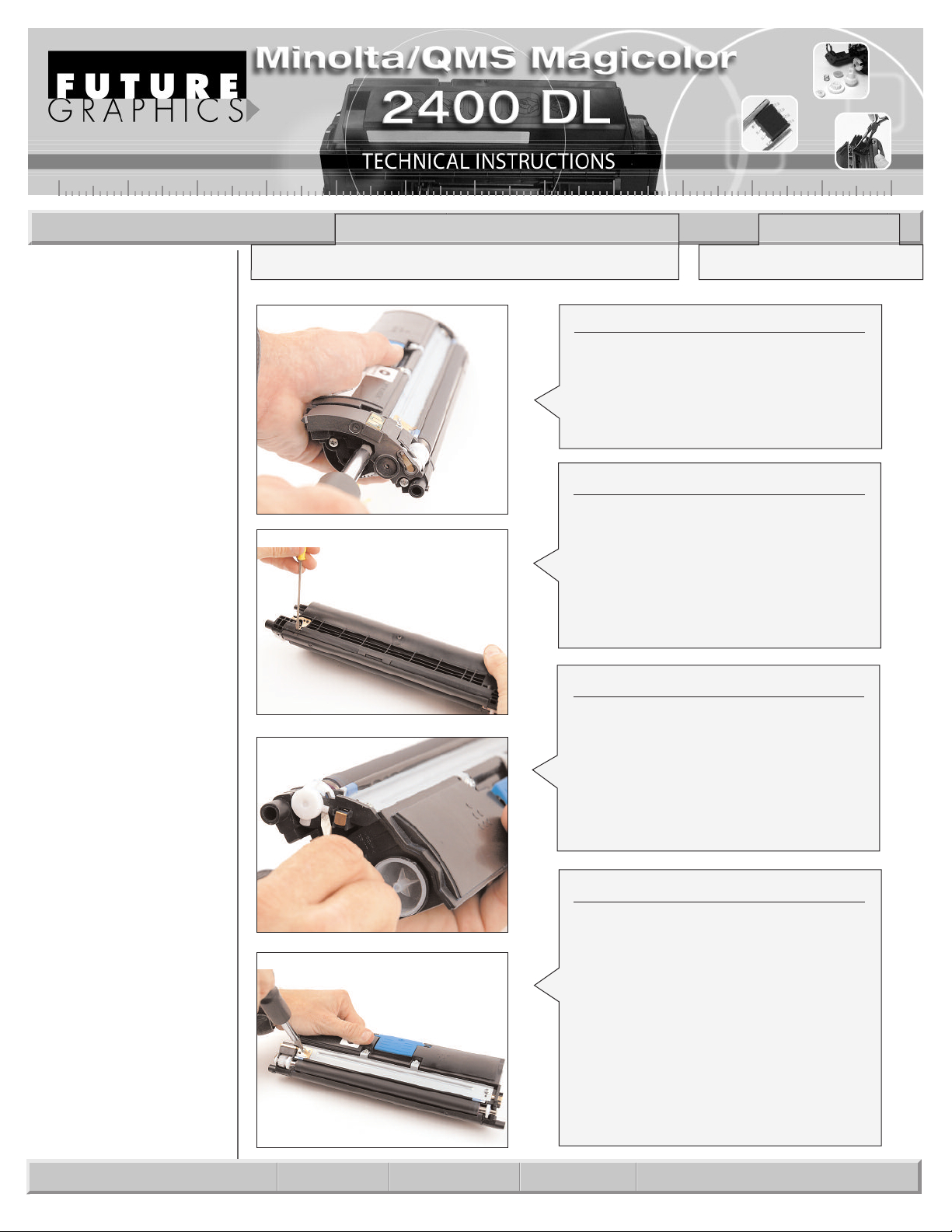

Photo 1

Photo 2

Photo 3

Photo 4

See Last Page.

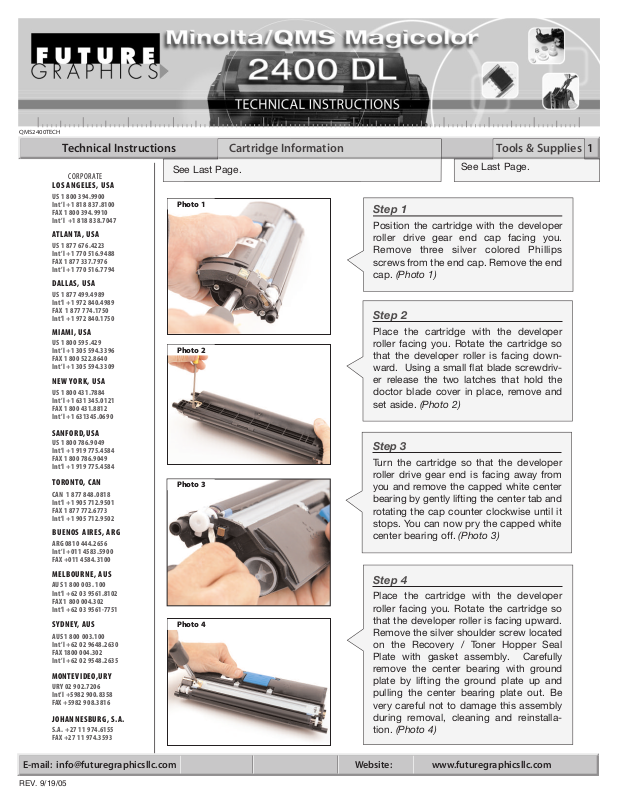

Step 1

Position the cartridge with the developer
roller drive gear end cap facing you.
Remove three silver colored Phillips
screws from the end cap. Remove the end
cap. (Photo 1)

Step 2

Place the cartridge with the developer
roller facing you. Rotate the cartridge so
that the developer roller is facing down­ward. Using a small flat blade screwdriv­er release the two latches that hold the
doctor blade cover in place, remove and
set aside. (Photo 2)

Step 3

Turn the cartridge so that the developer
roller drive gear end is facing away from
you and remove the capped white center
bearing by gently lifting the center tab and

otating the cap counter clockwise until it

r
stops. Y
center bearing off.

ou can now pry the capped white

(Photo 3)

Step 4

Place the cartridge with the developer
roller facing you. Rotate the cartridge so
that the developer roller is facing upward.
Remove the silver shoulder screw located
on the Recovery / Toner Hopper Seal
Plate with gasket assembly. Carefully

emove the center bearing with ground

r
plate by lifting the gr
pulling the center bearing plate out. Be
very careful not to damage this assembly
during r

emoval, cleaning and r

tion. (Photo 4)

ound plate up and

einstalla-

E-mail: [e-mail] Website: www.futuregraphicsllc.com

REV. 9/19/05

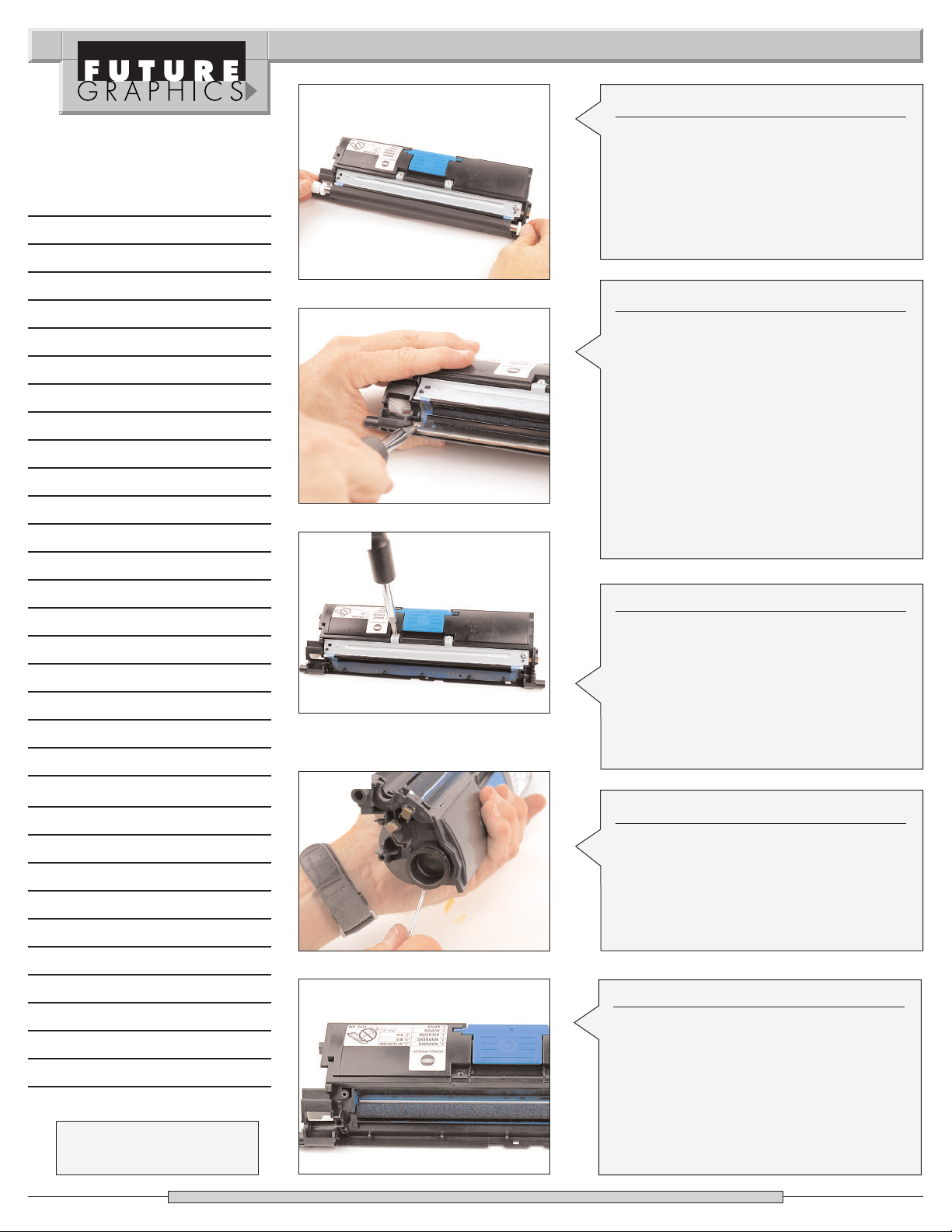

2 Minolta/QMS Magicolor 2400 DL Technical Instructions

Photo 5

S

tep 5

sing your fingers grasp the ends of the

U
developer roller shaft and remove with

Notes

oth developer bearings and developer

b
roller driver gear still installed. Remove the
bearings and drive gear for further clean­ing. Clean the developer roller with a dry
soft cloth. (Photo 5)

Photo 6

Photo 7

Step 6

Remove the two silver Phillip screws from
each side of the developer Dr. Blade
assembly. This assembly is resting on five
pins that protrude through the assembly.
Carefully pry the assembly forward using
a small flat blade screwdriver on either
side where you removed the screws. The
assembly is made of two VERY THIN
metal blades attached to a bracket. Clean
the assembly with gentle compressed air
and soft cloth with light pressure. Be very
careful not to bend the blades.

(Photo 6)

Step 7

Next remove Recovery / Toner Hopper
Seal Plate with gasket assembly by
removing the three silver shoulder screws
located at the top and the end using a
Phillip screwdriver. Be very careful not to
damage this assembly during removal,
cleaning and reinstallation.

(Photo 7)

Need trust-worthy, detailed Technical
Instructions for another engine?

Visit: www.futuregraphicsllc.com

o 8

hot

P

Step 8

Rotate the toner hopper to the fill plug
side of the cartridge. Remove the plug
using a small flat blade screwdriver turned
sideways prying against the cartridge
side. Be careful not to damage the car­tridge walls.

o 9

hot

P

Step 9

Clean the toner hopper using compressed
air being car
sweeper blade or r
the adder roller.

(Photo 9)

(Photo 8)

eful not to damage the Mylar

etaining blade behind

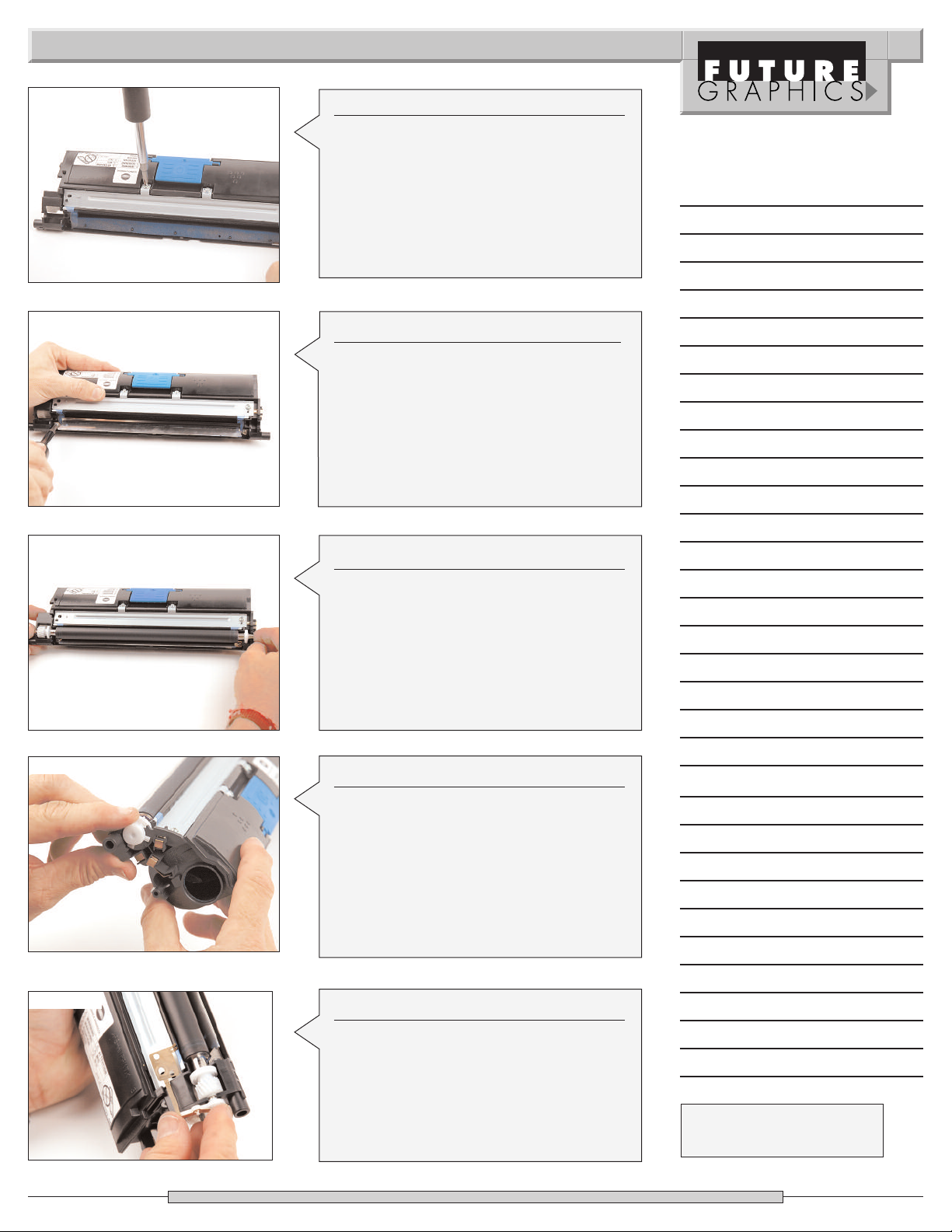

Minolta/QMS Magicolor 2400 DL Technical Instructions 3

Photo 10

Photo 11

Photo 12

Step 10

With the toner fill hole side of the cartridge

acing right and the opening for the devel-

f
oper roller facing you reinstall the
Recovery / Toner Hopper Seal Plate with
gasket assembly and install three silver

houlder screws located at the top and at

s
the filler hole ends using a Phillip screw­driver.

(Photo 10)

Step 11

Install the developer Dr. Blade assembly
and hold in place with the two silver
Phillip screws. Careful not to bend or
damage the thin metal blades.

(Photo 11)

Step 12

Take the developer roller with white bear­ings and drive gear attached and place
back into the toner hopper. (Photo 12)

Notes

o 13

hot

P

Photo 14

Step 13

Turn the cartridge so that the developer
roller drive gear end is facing away from
you and install the capped white center
bearing with the hollow tab facing up.
Rotate the bearing clockwise until the hol­low part of the bearing tab rests on the
cartridge notch. The lar
this will lock into the housing.

ger tab opposite

(Photo 13)

Step 14

Move to the gear side of the developer
roller shaft and install the center bearing
with ground plate using the remaining

.

shoulder scr

ew

(Photo 14)

thy, detailed Technical

or

ust-w

eed tr

N
Instructions for another engine?

Visit: www.futuregraphicsllc.com

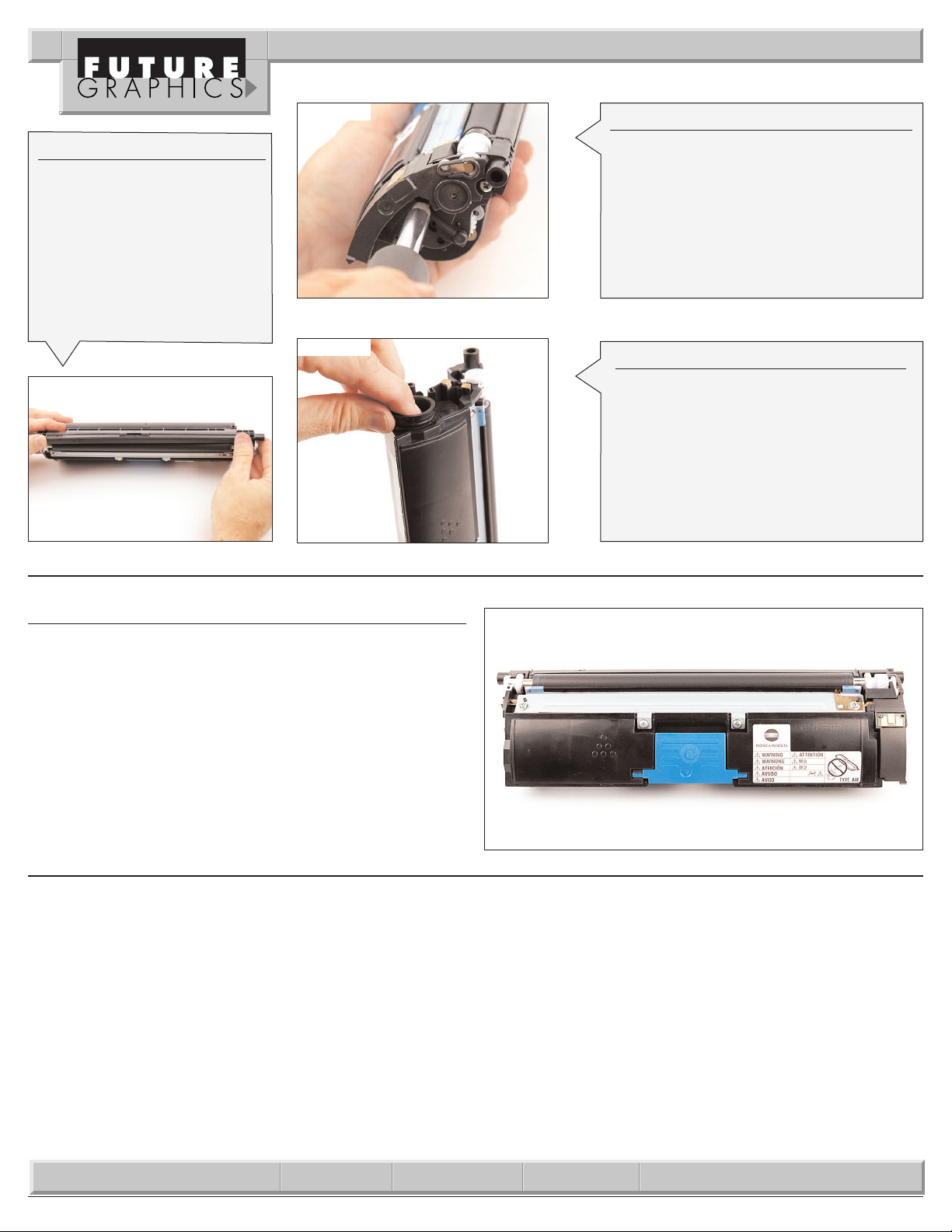

4 Minolta/QMS Magicolor 2400 DL Technical Instructions

Step 15

lace the cartridge with the

P
developer roller facing you.
Rotate the cartridge so that the
developer roller is facing down­ward. Align the latches of the
doctor blade cover with the foam
ends facing inward toward the
developer roller shaft and snap
back into place. (Photo 15)

Photo 15

Photo 16

Photo 17

Step 16

Move the toner hoper so that the gear side
is facing you. Place the black end cap back

nto position. Install three silver colored

i
Phillips screws into the end cap.

* New chip needed. (Photo 16)

Step 17

Place the toner hopper vertical on end
with the gear side down and toner hopper
fill hole up. Install the toner and place the
cap back on. (Photo 17)

Supplies and Tools Requirements:

Phillips Screwdriver #2
Small flat blade screwdriver
Cotton swabs
Cotton cloth

The QMS 2400 cartridges look similar to the QMS2300 but

ar

e not interchangeable. The print speed on the QMS2400 is 5

ppm color and 20 ppm black. Both the cartridges and the sep

­arate drum/waste cartridge are easily accessible and are loaded
from the top of the printer. The toner cartridges have changed
from a mechanical “new cartridge” sensor on the QMS2300 to
a memory chip.

Components (120v)

1710587-004 T

oner Black - High Capacity (appr
1710587-005 Toner Yellow - High Capacity (approx. 4,500 prints at 5% coverage)
1710587-006 T
1710587-007 T

oner Magenta - High Capacity (appr

oner Cyan - High Capacity (approx. 4,500 prints at 5% coverage)
1710587-001 Toner Yellow - Standard Capacity (approx. 1,500 prints at 5% coverage)
1710587-002 Toner Magenta - Standard Capacity (approx. 1,500 prints at 5% coverage)
1710587-003 Toner Cyan- Standar

d Capacity (appr

1710591-001 OPC Drum Cartridge (appr

ox. 4,500 prints at 5% coverage)

ox. 4,500 prints at 5% coverage)

ox. 1,500 prints at 5% coverage)

ox. 45,000 mono / 11,250 color prints- continuous mode)

None of FG's pr

Future Graphics (FG) is a distributor of compatible replacement parts and products for imagining equipment.

o

duc

ts ar

e genuine OEM r

eplac

emen

ts and no affiliation or sponsorship is to be implied between FG and any OEM.

t par

E-mail: [e-mail] Website: www.futuregraphicsllc.com
