USER'S MANUAL
For U.S.A./Canadian Users
As an ENERGY STAR Partner, Minolta
Co., Ltd has determined that this printer
meets the ENERGY STAR Guidelines for
energy efficiency.
For Other Country Users
This printer meets the *EPA’s ENERGY
STAR
*The U.S. Environmental Protection Agency
Guidelines for energy efficiency.
What is an Energy Star Printer?
Energy Star Printers have a feature that allows them to automatically
“go to sleep” after a period of inactivity. This auto-feature can
reduce a Printer’s annual electricity costs by over 60 percent.
Foreword
Safety Information
Laser Safety
This printer is a page printer which operates by means of a laser.
There is no possibility of danger from the laser, provided the printer
is operated according to the instructions in this manual provided.
Since radiation emitted by the laser is completely confined within
protective housing, the laser beam cannot escape from the machine
during any phase of user operation.
Internal Laser Radiation
Maximum Radiation Power: 8.8 x 10-4(W)
Wave Length: 770-810 (nm)
This is a Class IIIb Laser Diode Assy. that has an invisible laser
beam. The print head unit is NOT A FIELD SERVICE ITEM.
Therefore, the print head unit should not be opened under any cir
cumstances.
For United States Users
Laser Safety
This printer is certified as a Class 1 Laser product under the U.S.
Department of Health and Human Service (DHHS) Radiation
Performance Standard according to the Radiation Control for Health
and Safety Act of 1968. This means that the printer does not produce
hazardous laser radiation.
-
CDRH Regulations
The Center for Devices and Radiological Health (CDRH) of the
U.S. Food and Drug Administration implemented regulations for
laser products on August 2, 1976. These regulations apply to laser
products manufactured from August 1. Compliance is mandatory for
products marketed in the United States. The label shown below indi
cates compliance with the CDRH regulations and must be attached
to laser products marketed in the United States.
WARNING: Use of controls, adjustments or performance of procedures other than those specified in this manual may result in
hazardous radiation exposure.
-
i
Foreword
For other Countries Users
WARNING: Use of controls, adjustments or performance of pro-
cedures other than those specified in this manual may result in
hazardous radiation exposure.
This is a semiconductor laser. The maximum power of the laser
diode is 8.8 x 10-4W and the wavelength is 770-810 nm.
For Denmark Users
ADVARSEL: Usynlig laserstråling ved åbning, når sikkerhedsaf-
brydere er ude af funktion. Undgå udsttelse for stråling.
Klasse 1 laser produkt der opfylder IEC825 sikkerheds kravene.
For Finland, Sweden Users
VAROITU S!: Laitteen käyttäminen muulla kuin tässä käyttöo-
hjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.
VARNNING: Om apparaten används på annat sätt än i denna
bruksanvisning specificerats, kan an v änderen utsattas för osynling
laserstrålnig, som överskrider gränsen för laserklass 1.
VARO: Avattaessa ja suojalukitus ohitettaessa olet alttiina nakymattomalle lasersateilylle. Aja katso sateeseen.
VARNING: Osynlig laserstråining när denna del är öppnad och
spärren är urkopplad. Betrakta ej stråien.
ii
Foreword
For Norway Users
ADVARSEL: Dersum apparatet brukes på annen måte enn spesi-
fisert i denne bruksanvisning, kan brukeren utsettes for unsynlig
laserstråling som overskrider grensen for laser klasse 1.
Dette er en halvleder laser. Maksimal effeckt til laserdiode er 8.8 x
10-4W og bolgelengde er 770-810 nm.
WARNING LABEL
iii
Foreword
FCC/ICES (1/2)
NOTE: Without Minolta Network option.
FCC: Declaration of Conformity
Product Type Laser Beam Printer
Product Name PageWorks 20
Options
Accessories
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Minolta Corporation
101 Williams Drive, Ramsey, New Jersey 07446
Telephone number: 201-825-4000
USER INSTRUCTIONS (FOR U.S.A. Users)
FCC PART 15 - RADIO FREQUENCY DEVICE WARNING
This equipment has been tested and found to comply with the limit s
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
Third Tray Unit, Duplex Unit
SIMM (max 64MB), DIMM,
Hard Disk (1080MB)
iv
Foreword
• Re-orient or relocate the receiving antenna.
• Increase the separ ation between the equipment and the
receiver.
• Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
• Any changes or modifications not expressly approved
by Minolta could void the user’s authority to operate
this equipment.
• A LAN adapter is only to be used in industrial area
including commercial areas. Use of a LAN adapter in
residential areas is forbidden.
This device must be used with shielded interface cables. The use of
non-shielded cables is likely to result in interference with radio
communications and is prohibited under the FCC rules.
The design and production of this unit conform to FCC regulations,
and any changes or modifications must be registered with the FCC
and are subject to FCC control. Any changes made by the purchaser
or user without first contacting the manufacturer will be subject to
penalty under FCC regulations.
USER INSTRUCTIONS (For Canadian Users)
INTERFERENCE-CAUSING EQUIPMENT STANDARD
(ICES-003 ISSUE 2) WARNING
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Cet appil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
v
Foreword
FCC/ICES (2/2)
NOTE: Installed Minolta Network options. When the Network
cable is attached to either of the IEEE 802.3 connectors, the
printer meets the requirements of FCC/ICES Class A.
USER INSTRUCTIONS (FOR U.S.A. Users)
FCC PART 15-RADIO FREQUENCY DEVICE WARNING
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to
correct the interference at his own expense.
This device must be used with shielded interface cables. The use of
non-shielded cables is likely to result in interference with radio
communications and is prohibited under the FCC rules.
The design and production of this unit conform to FCC regulations,
and any changes or modifications must be registered with the FCC
and are subject to FCC control. Any changes made by the purchaser
or user without first contacting the manufacturer will be subject to
penalty under FCC regulations.
USER INSTRUCTIONS (For Canadian Users)
INTERFERENCE-CAUSING EQUIPMENT STANDARD
(ICES-003 ISSUE 2) WARNING
This Class A digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Cet appil numérique de la classeA respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
vi
Foreword
OZONE RELEASE (For all Users)
During printer operation, a small quantity of ozone is released. This
amount is not large enough to harm a person adversely. Ho wev er , be
sure the room where the machine is being used has adequate venti
lation, especially if you are printing a high volume of materials, or
if the machine is being used continuously over a long period.
WARNING LABEL
-
vii
Foreword
Welcome
Thank you for selecting a Minolta PageWorks 20 Printer!
This User’s manual explains the functions of the printer and how it
operates. It also provides you with troubleshooting tips as well as
general precautions you should observe when operating the printer.
To ensure top performance and effective use of your printer, read
this manual carefully from cover to cover, and keep it on hand for
later reference.
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into other languages without the express written prior consent from Minolta Co.,
Ltd.
The contents of this manual are subject to change without notice.
Trademark Acknowledgments
HP, LaserJet 4V and PCL are registered trademarks of HewlettPackard Company.
Centronics is a registered trademark of Centronics Data Computer
Corporation.
TrueType is a registered trademark of Apple Computer Inc.
IBM is a registered trademark of International Business Machines
Corporation.
Intellifont is a trademark of Agfa Corporation.
Adobe, PostScript and the PostScript logo are trademarks of Adobe
Systems, Inc.
NetWare is a registered trademarks of Novell Inc.
Minolta is a registered trademark of Minolta Co., Ltd.
PageWorks is a trademark of Minolta in the U.S. and Canada.
Super Fine Micro-Toning and RealTone are trademarks of Minolta
Co., Ltd.
All other products or name brands are trademarks or registered
trademarks of their respective holders.
viii
Foreword
U.S.A. Technical Support
If you continue to experience technical difficulty with the operation
of your printer product, please contact your support representative:
Toll free at 1-800-459-3250
or via our website at http://www.minoltappd.com.
Hours of operation and toll free nature of our support program is
subject to change without prior notice.
ix
Contents
Chapter 1 Introduction
1. Printer Features.............................................1-1
2. Printer Parts and Accessories.....................1-2
3. Control Panel.................................................1-6
Layout for Control Panel..................................1-6
Indicator Function............................................1-7
LCD Function ..................................................1-7
Key Functions..................................................1-8
Chapter 2 Setting-Up
1. Installation Precaution..................................2-1
Selecting a Location for the Printer.................2-1
Power Source..................................................2-1
Grounding........................................................2-2

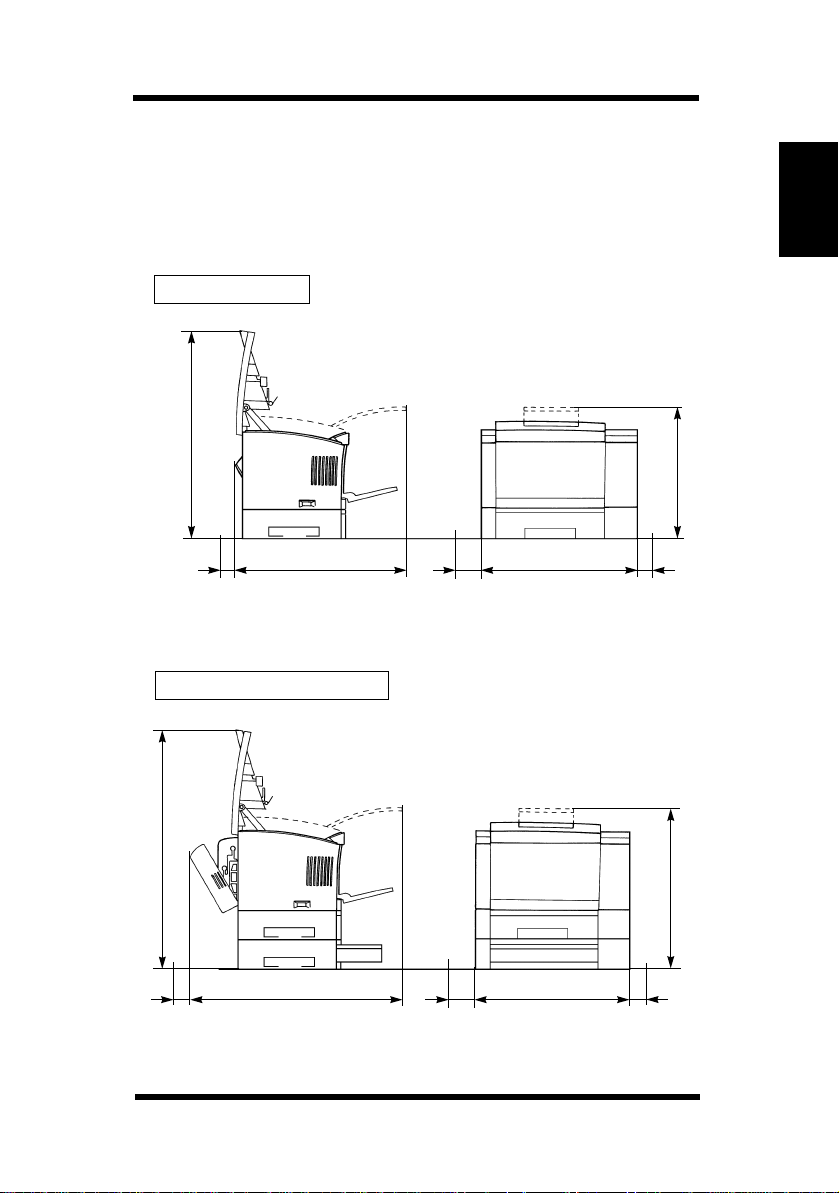

Space Requirements.......................................2-3
2. Operational Precaution..................................2-4
Operating Environment....................................2-4
Operation.........................................................2-4
Printer Supplies...............................................2-6
3. Setting Up Your Printer.................................2-7
4. Connecting the Power Cord .........................2-9
5. Turning the Printer ON and OFF ..................2-10
Turning the Printer ON.....................................2-10
Turning the Printer OFF...................................2-10
6. Printing a Test Page......................................2-11

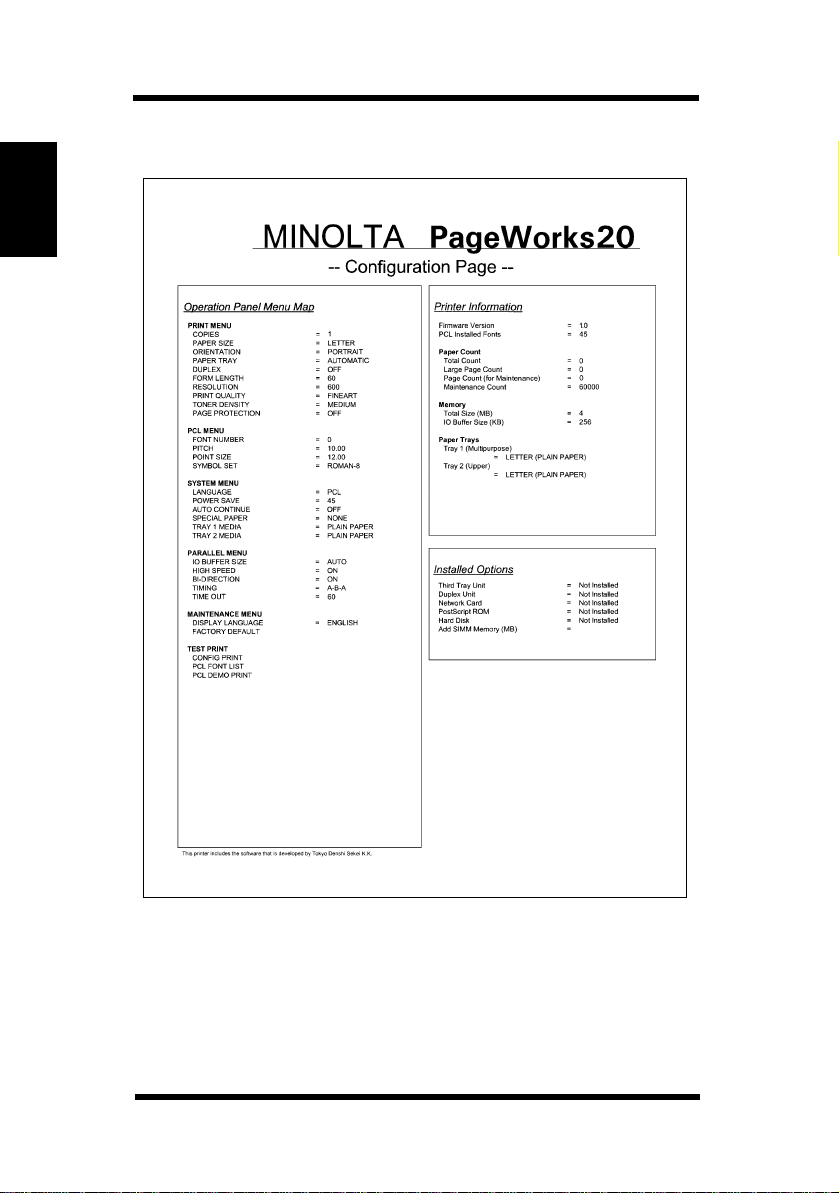

Configuration Page..........................................2-12
PCL Font List...................................................2-13
PCL Demo Print ..............................................2-15
x

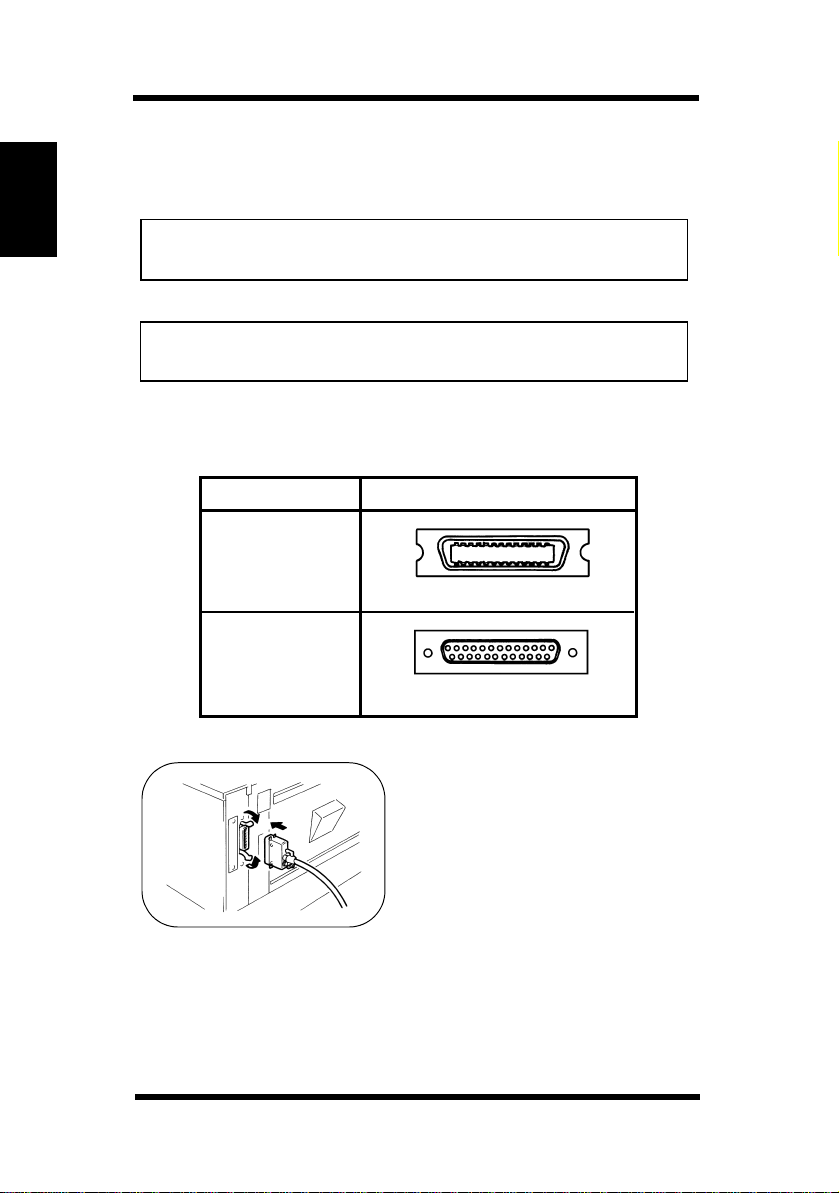

7. Connecting the Interface Cable ...................2-16
Interface Port...................................................2-16

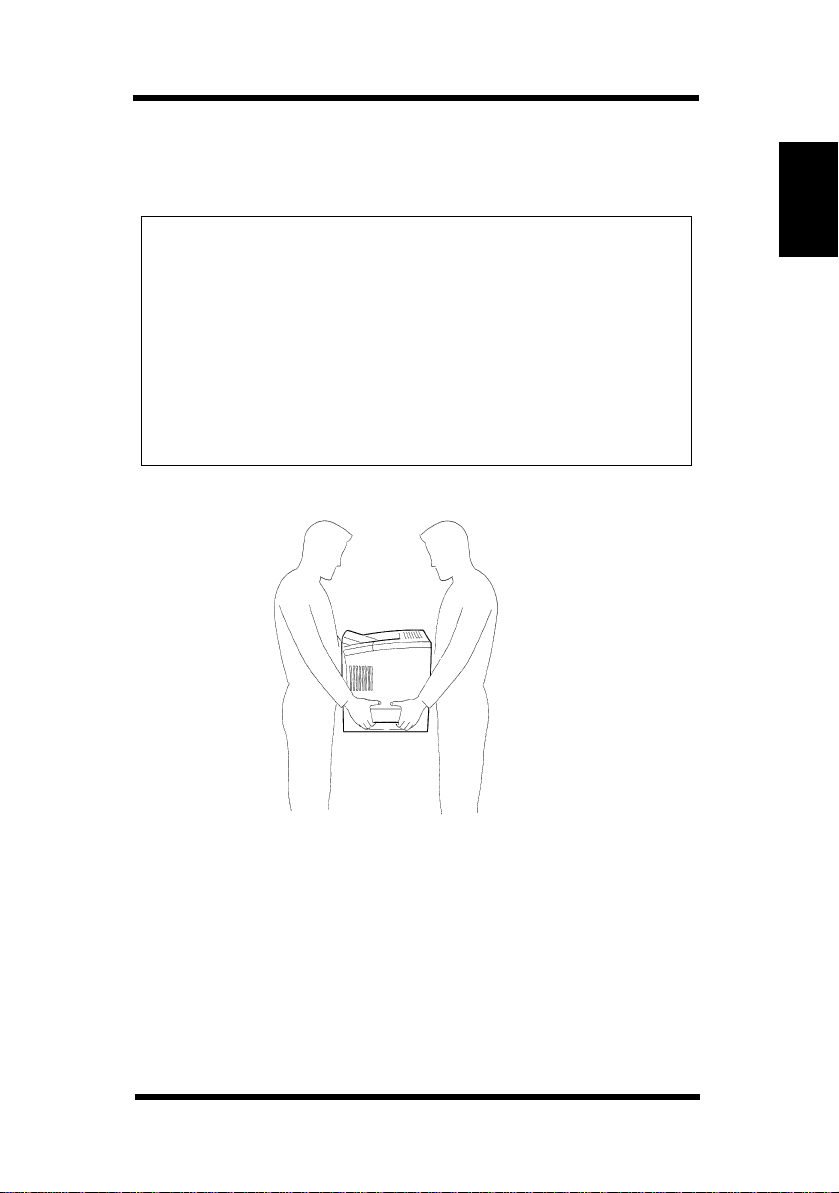

8. Moving the Printer.........................................2-17
Chapter 3 Using the Printer
1. Using the Control Panel................................3-1
Basic Menu Setting Method ............................3-1
Tray 1 Paper Size Setting Method ...................3-2
Job Separation................................................3-3
2. Understanding Printer Menus......................3-4
Overview of Printer Menus..............................3-4
Printer Menus..................................................3-6
(1) Print Menu ...............................................3-7
(2) PCL Menu................................................3-10
(3) PS Menu..................................................3-11
(4) System Menu...........................................3-12
(5) Parallel Menu...........................................3-14
(6) Maintenance Menu..................................3-16
(7) Network Menu.......................................... 3-17
(8) Test Print..................................................3-19
Contents
3. Loading Paper................................................3-21
Supported Media.............................................3-21
Paper Type....................................................3-21
Paper Size.....................................................3-21
Capacity........................................................3-22
Printable Area ...............................................3-23
Page Orientation..............................................3-24
Printing on Envelopes......................................3-25
Printing on Labels............................................3-26
xi
Contents
Printing on Thick paper ...................................3-26
Printing on Transparencies..............................3-26
Printing on Custom Paper...............................3-26
Duplex Printing................................................3-27
Paper Type....................................................3-28
Paper Size.....................................................3-28
Loading Paper in Tray 1...................................3-29

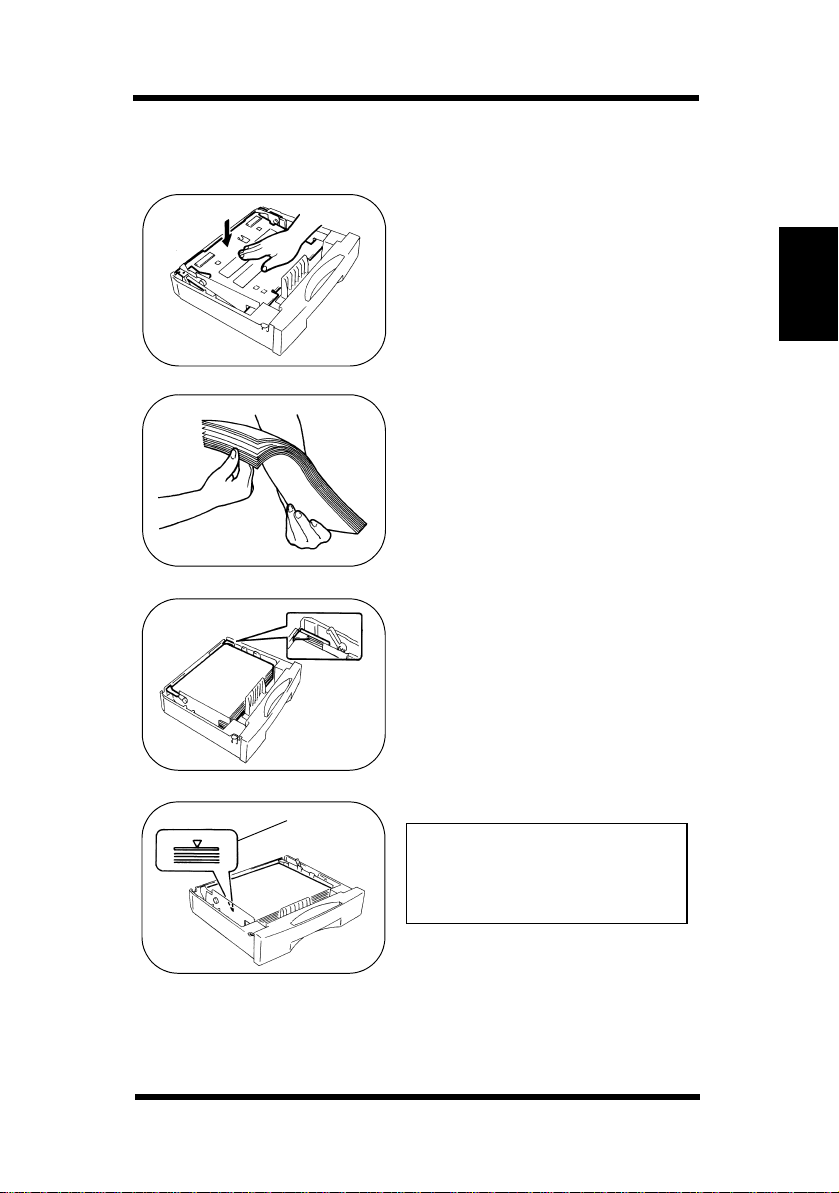

Loading Paper in Tray 2...................................3-31
Loading Paper in Tray 3...................................3-33
Automatic Tray Setting.....................................3-35
Using Manual Feed.........................................3-36
Special Paper Tray Setting..............................3-37
4. Printing...........................................................3-38
5. Understanding Fonts ....................................3-40
Fonts................................................................3-40
Scalable Fonts...............................................3-40
Bitmap Fonts.................................................3-40
Minolta Font Manager......................................3-40
Chapter 4 Maintaining Your Printer
1. Supplies for Maintenance.............................4-1
2. Replacing the Imaging Cartridge.................4-2

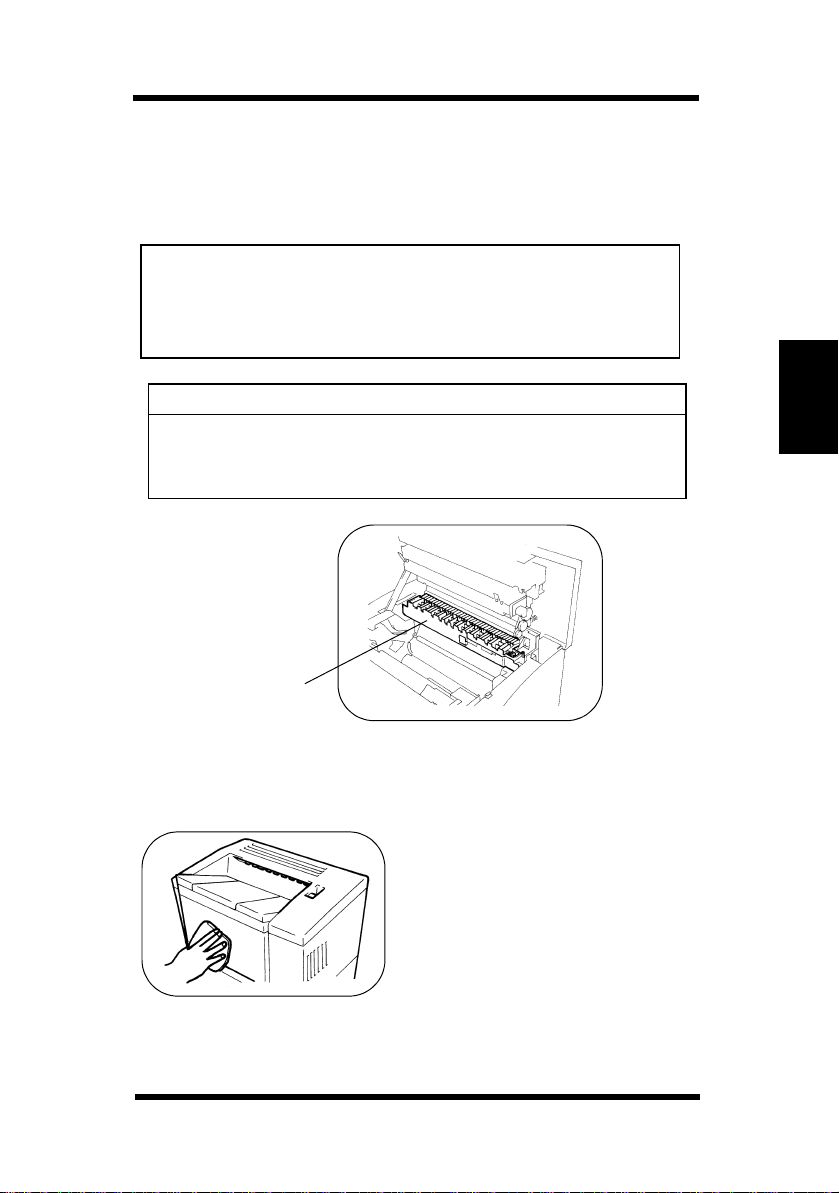

3. Cleaning Your Printer....................................4-4
External Cleaning............................................4-4
Internal Cleaning .............................................4-5
Chapter 5 Solving Printer Problems
1. Clearing a Paper Misfeed..............................5-1
Paper Misfeed in Tray 1...................................5-1
xii
Paper Misfeed in Tray 2 or Tray 3....................5-3
Paper Misfeed inside the Printer .....................5-5
Paper Misfeed in the Duplex Unit....................5-6
2. Printing Problems..........................................5-8
3. Print Quality Problems..................................5-9
4. Understanding Printer Messages ................5-12
(1) Status Messages .......................................5-13
(2) Warning Messages ....................................5-15
(3) Caution Messages.....................................5-16
(4) Operator Call Messages............................5-17
(5) Service Call Messages ..............................5-19
Chapter 6 Installing Options
1. Installing the Third Tray Unit .......................6-1
2. Installing the Duplex Unit.............................6-3
3. Installing the Network Card..........................6-5
Contents
4. Installing the Adobe PostScript ROM-DIMM
and Hard Disk ................................................6-7
5. Installing the SIMM........................................6-11
Chapter 7 Specifications
1. Printer.............................................................7-1
2. Third Tray Unit (Optional) .............................7-5
250-Sheet Universal Third Tray Unit................7-5
500-Sheet Third Tray Unit (Letter)...................7-6
500-Sheet Third Tray Unit (A4)........................7-7
3. Duplex Unit (Optional)...................................7-8
xiii
Contents
4. SIMM...............................................................7-9
5. Interface Connector and Cable....................7-10
Appendix A
Character Sets...................................................A-1
Appendix B
Font Lists ...........................................................B-1
Index
Index...................................................................C-1
xiv
Chapter 1
Introduction
Chapter 1Introduction
1--1
Chapter 1Introduction
1-0
1. Printer Features
• Outstanding performance with an engine speed of 20ppm and
High Speed RISC Processor NR4645/100MHz.
• Image Quality comparable to 1200dpi with Minolta’s Super Fine
Micro-Toning
• High Quality graphics and photographic images with RealTone
2400 (256 gray levels).
• Paper handling versatility comes with A3 Full-Bleed printing,
Duplexing, and GUI Driver supporting N-up Printing, etc.
• High Speed Data T ransfer with IEEE1284 compliant interface and
Network Option (Ethernet).
• Easy Maintenance with All-in-one Imaging Cartridge.
• Space saving design.
• Compatible with optional Adobe PostScript Level2.
• Environmentally friendly with Toner Save Mode and Energy Star
compliance.
TM
system realizes clear and smooth text data.
Chapter 1Introduction
1-1
2. Printer Parts and Accessories
Chapter 1Introduction
1. Upper Cover Lock
Release Button
2. Control Panel
3. Tray 2
1-2
4. Paper Exit Tray
5. Paper Guide
Plates
6. Tray 1
(multipurpose)
7. Power Switch
2. Printer Parts and Accessories
1. Upper Cover Lock Release Button:
Press this button to open the upper cover.
2. Control Panel:
The control panel allows you to set the printing options and displays the current printer status.
3. Tray 2:
Holds up to 500 sheets of Letter size paper.
4. Paper Exit Tray:
The printed paper is fed out face down on this tray.
500 sheet capacity for printed paper.
5. Paper Guide Plates:
Slide these guides left or right according to the paper size being
fed.
6. Tray 1 (multipurpose):
150 sheet capacity for plain paper.
Use this tray for special paper.
7. Power Switch:
Turns the printer on and off.
Chapter 1Introduction
1-3
2. Printer Parts and Accessories
Chapter 1Introduction
8. Upper Cover Unit
9. Power Cord Socket
10. Parallel Interface Connector
11. Network Cover
12. Fusing Section
13. Imaging Cartridge
14. Sealing Tape
1-4
2. Printer Parts and Accessories
8. Upper Cover Unit:
Open for replacing the imaging cartridge or removing jammed
paper.
9. Power Cord Socket:
Connect the power cord to this socket.
10. Parallel Interface Connector:
Provides a parallel interface connection for the host computer.
11. Network Cover:
Remove this cover for installing the optional network card.
12. Fusing Section:
Fixes the toner image to the paper.
13. Imaging Cartridge:
It is important for forming an image.
14. Sealing Tape:
Pull out the sealing tape when installing a new imaging cartridge.
Chapter 1Introduction
1-5
3. Control Panel
Chapter 1Introduction
Layout for Control Panel
The control panel is comprised of 1 LCD (16 characters by 2 lines),
3 LEDs and 8 keys.
3
READY PCL
2
4
1. LCD
2. Data LED
3. Message LED
4. On Line LED
5. On Line key
6. Proceed key
•
•
On Line
Menu
▼▼▼
▼
9
5
Data
Proceed
Item
▼
10
Message
•
Tray1 Paper
Select
▼
6
11
7
7. Tray1 Paper key
8. Shift key
9. Menu key
10. Item key
11. Select key
12. Enter/Reset key
Shift
Enter
∗
Reset
1
8
12
1-6
Indicator Function
3. Control Panel
Chapter 1Introduction
Indicator
ONLINE
DA T A
MESSAGE
On
The printer is ready
to receive data.
Data is stored in the
printer memory.
Engine error.
The printer requires
service.
Off
The printer cannot
receive data.
No data is stored in
the printer memory .
No error.
Blinking
Going off-line.
The printer is
receiving data and
processing data.
Recoverable error
such as paper empty,
paper misfeed, etc.
LCD Function
The LCD is composed of 16-digits and 2 lines.
READY PCL
TRAY2 IS EMPTY
First line: Displays the current printer status and selected printer
language.
Second line: Normally , nothing is displayed. However, one of the
warning messages listed below may be displayed when needed.
MAINTENANCE REQ
TRAY2 IS EMPTY
TRAY3 IS EMPTY
TONER IS LOW
TONER EMPTY
JOB SEPARATION
When an error occurs, the printer will display an error message on
the LCD. For the contents of an error message, see “Understanding
Printer Messages” page 5-12.
1-7
3. Control Panel
Chapter 1Introduction
Key Functions
On Line key
Press the On Line key to switch between on-line and off-line. The
printer should be on-line to receive data.
Proceed key
Press the Proceed key to resume printing after an interruption.
This key is pressed:
- when a paper size error (LOAD message) occurs.
See “Operator Call Message” page 5-17.
- when the Paper Size Error occurs.
See “Operator Call Message” page 5-18.
- when the Memory Overflow or Job Too Complex error occurs.
See “Caution Message” page 5-16.
Tray1 Paper key
Press the Tray1 Paper key to enter the Tray 1 paper size setting
mode. You can enter this mod e only from off-line.
Shift key
While holding down the Shift key , press the Menu ke y . Each menu
is displayed in reverse order.
While holding down the Shift key , press the Item key. Each item is
displayed in reverse order.
While holding down the Shift key, press the Select key. Each user
selection value is displayed in reverse order .
Menu key
Press the Menu key when off-line to enter the menu mode.
Repeated key operation displays the menu group in order.
Item key
Press the Item key in the menu mode to enter the item mode.
Repeated key operation displays the items in order.
Select key
Press the Select key in the item mode or the tray 1 paper size setting mode to enter the user selection mode. Repeated key operation displays the user selection values in order.
1-8
3. Control Panel
When the Select key is pressed continuously, the numerical value
increases at high speed.
Enter/Reset key
Press the Enter/Reset key to save the settings of the user selections.
While holding down the Shift key when off-line, press the Enter/
Reset key. The job data is canceled. Returns the printer on-line
automatically after canceling the job data.
NOTE
To reset the job data, you must take the printer off-line by pressing
the On Line key while printing.
Chapter 1Introduction
1-9
Memo
Chapter 1Introduction
1-10
Chapter 2
Setting Up
Chapter 2Setting Up
2--1
Chapter 2Setting Up
2-0
1. Installation Precaution
Selecting a Location for the Printer
A proper location helps to ensure that your printer provides you with
the long service life for which it is designed. Double check to make
sure that the location you select has the following characteristics.
• Choose a location that is well-ventilated.
• Make sure there is no chance of ammonia or other organic gas-
ses being generated in the area.
• The power outlet you plan to connect to for power should be
nearby and unobstructed.
• Make sure that the machine is not exposed to direct sunlight.
• Avoid areas in the direct air flow of air conditioners, heaters, or
ventilators, and areas subjected to temperature and humidity
extremes.
• Choose a firm, level surface where the printer will not be
exposed to strong vibration.
• Keep the printer away from any objects that might block its heat
vents.
• Do not locate the printer near curtains or other combustible
objects.
• Choose an area where there is no possibility of the printer being
splashed with water or other liquids.
• Make sure that the surrounding area is clean, dry, and free of
dust.
Chapter 2Setting Up
Power Source
The power source requirements for this printer are as follows.
• Power source: 120V, 50-60Hz
• Voltage fluctuation: Within ± 10%
• Frequency fluctuation: Within ± 3Hz
2-1
Chapter 2Setting Up
1. Installation Precaution
NOTES
• Use a power source with minimal voltage and frequency fluctu-
ation.
• Only use an outlet that is rated for the voltage capacity specif ied
for this printer.
• Be sure to plug the power cord all the way into the outlet. The
outlet should be located near the printer and easily accessible so
you can unplug the power cord immediately should any problem
occur.
• Make sure that the outlet is visible, and not hidden behind the
printer or any other object.
• If any other electrical equipment is plugged into the same outlet,
make sure that the capacity of the outlet is not exceeded.
• If you use an extension cord, make sure its capacity is greater
than the power consumption of the printer. Using an extension
cord with a lower capacity creates the danger of fire.
• Never use a multiple socket to connect other appliances or
machines to the same outlet being used to power the printer.
Grounding
Always ground the printer to guard against the danger of electric
shock. T o ground the printer, connect the grounding wire to the
ground terminal of the electrical outlet you are plugging into or to a
grounding contact that complies with local electrical standards in
your area.
Contact your Technical Representative if you are unable to make
grounding connections yourself.
NOTE
Never connect the grounding wire to a gas pipe, the
grounding wire for a telephone, or a water pipe.
2-2
1. Installation Precaution
Space Requirements
To make printer operation, supply replacement and service maintenance easier, the minimum installation space below is necessary.
Locate the printer in an installation site with adequate space.
Without options
30.5 (774)
Chapter 2Setting Up
17.3 (440)
23.7 (603)
0.6 (15)
Installed with full options
34.6 (880)
29.6 (753)
0.6 (15)
3.5 (90)
3.5 (90)
21.5 (545)
0.6 (15)
Unit: inch (mm)
21.3 (541)
21.5 (545)
0.6 (15)
Unit: inch (mm)
2-3
Chapter 2Setting Up
2. Operational Precaution
Operating Environment
The following describes the operating environment required when
using the printer.
Temperature: 50°F to 95°F (10°C to 35°C) with a fluctuation of
50°F (10°C) per hour.
Humidity: 15% to 85% RH with a fluctuation of 20% per hour.
Humidity (%)
86°F
65%
95°F
Temperature (°F)
86
6850
80
60
40
20
85%
15%
50°F
0
Operation
To ensure the optimum performance of the printer, follow the precautions listed below.
• Nev er turn the printer off or open any of its covers while a print-
ing operation is being performed.
• Never locate any object that generates magnetic force, flamma-
ble gas, or is flammable near the printer.
• When unplugging the power cord, gras p the pl ug and never pull
on the cord. A damaged cord creates the danger of fire or elec
tric shock.
• Nev er touch the power cord when your hands are wet. Doing so
creates the danger of electric shock.
• Always unplug the power cord before moving the printer. Fail-
ure to do so can damage the power cord, creating the danger of
fire or electric shock.
• Always unplug the power cord if you do not plan to use the
printer for a long time.
-
2-4
2. Operational Precaution
• Nev er try to remove any panel or cover that is secured. The inte-
rior of the printer contains high-voltage circuitry which creates
the danger of electric shock when exposed.
• Never try to modify the printer. Doing so creates the danger of
fire or electric shock.
• Nev er place any hea vy objects on the po wer cord, or pull on it or
bend it. Doing so creates the danger of fire or electric shock.
• Always make sure the printer is not setting on the electrical cord
or communications cables of any other electrical equipment.
Also make sure that cords and cables do not get into the printer’s
mechanism. Any of these conditions create the danger of mal
function and fire.
• Always take care so that paper clips, staples, or other small
pieces of metal do not get into the printer through its vents or
other openings. Such objects create the danger of fire or electric
shock.
• Never place containers of water or any other liquid on the
printer. Liquids getting into the printer create the danger of fire
or electric shock.
• Should metal or liquid accidently get inside the printer, immedi-
ately turn it off, unplug the power cord, and contact your technical representative. Failure to take immediate action creates the
danger of fire or electric shock.
• Always turn th e pr in ter off immediately whenever it becomes
very hot, or when it emits smoke, an unusual odor, or noise.
Immediately turn off the printer, unplug it, and contact your
technical representative. Failure to take immediate action cre
ates the danger of fire or electric shock.
-
-
Chapter 2Setting Up
NOTE
Be sure to locate the printer in a well-ventilated location.
A negligible amount of ozone is generated during normal
operation of this printer. Because of this, an unpleasant
odor may result when the printer is used for extensive
printing in a poorly ventilated area. For comfortable,
healthy, and safe operation, be sure to locate the printer in
a well-ventilated area.
2-5
Chapter 2Setting Up
2. Operational Precaution
Printer Supplies
Note the following precautions when handling the printer supplies
such as the imaging cartridge and paper.
• Avoid storing the supplies in the following locations.
Areas subjected to direct sunlight. Keep the imaging cartridge
away from fluorescent light as well.
Areas exposed to open flame.
Areas subjected to high humidity.
Areas subjected to large amounts of dust.
• Keep paper that has been removed from its wrapper but not yet
loaded into the printer tray in a sealed plastic bag, which is
stored in a cool, dark location.
• Use only the imaging cartridge expressly specified for this
printer.
• Keep supplies out of the reach of small children.
• Should your hands become soiled with toner, immediately wash
them with soap and water.
NOTE
Whenever you remove the imaging cartridge from the
printer, immediately cover it with a cloth to prevent light
from striking it.
2-6
3. Setting Up Your Printer
Set up your printer according to the following procedure.
NOTES
- Keep all the boxes and packing materials that the printer
comes in for later use when transporting the printer.
- Since the printer weighs approximately 55.1 lbs (25 kg),
two people are required to lift it.
1. Place the printer in the location
you have chosen.
Chapter 2Setting Up
Upper Cover
Upper Cover
Lock Release
Button
2. Pressing the upper cover lock
release button, open the upper
cover.
3. T ake the imaging cartridge out of
the box.
Holding it with both hands, shake
it well in the direction of the
arrows.
2-7
Chapter 2Setting Up
3. Setting Up Your Printer
4. Pull the tab outward slowly until
the sealing tape is completely
removed.
5. Shake the imaging cartridge 4 or
5 times in the direction of the
arrows to distribute the toner
evenly.
6. Install the imaging cartridge
securely into the printer by slid
ing the pins on each side of the
cartridge along the grooves of the
cartridge guide.
-
2-8
7. Close the upper cover.
4. Connecting the Power Cord
Connect the power cord according to the following procedure.
1. Make sure that the power switch
of the printer is placed in the ❍
(OFF) position.
2. Plug one end of the power cord
into the printer’s power cord
socket and plug the other end of
the power cord into the power
outlet.
Chapter 2Setting Up
2-9
Chapter 2Setting Up
5. Turning the Printer ON and OFF
Turning the Printer ON
Press the power switch to the (ON)
position.
NOTE
This printer will automatically go
into power save mode a given
period of time after the last activ
ity.
See “System Menu” page 3-12.
When you turn the printer on, the following takes place.
1. All the LED’s light up and then go out.
2. Asterisks appears on the display from left to right.
3. The message SELF TEST appears on the display.
When the printer detects an error during an initialization or
diagnostic, an error massage appears on the display.
For details, see “Understanding Printer Messages” page 5-12.
-
4. The message WARMING UP appears on the display.
5. The message READY is displa yed after warming up is com-
pleted.
This takes about 70 seconds. The printer is now ready to print.
Turning the Printer OFF
Make sure that the printer is nothing
operating.
Press the power switch to the ❍
(OFF) position.
2-10
6. Printing a Test Page
To make sure the printer works correctly before connecting the
printer to the computer, print a conf iguration page according to the
following procedure.
1. Load Letter paper into tray 1.
→ See “Loading Paper in Tray 1”
page 3-29.
2. Using the control panel, select
TEST PRINT from the menu
mode. Select
from the item mode. Press the
Enter key to start printing.
CONFIG PRINT
→ See “Test Print” page 3-19.
3. If an error message appears, see
“Understanding Printer Mes
sages” on page 5-12 for more
information.
-
Chapter 2Setting Up
2-11
Chapter 2Setting Up
6. Printing a Test Page
Config Print
2-12
PCL Font List
6. Printing a Test Page
Chapter 2Setting Up
2-13
Chapter 2Setting Up
6. Printing a Test Page
2-14

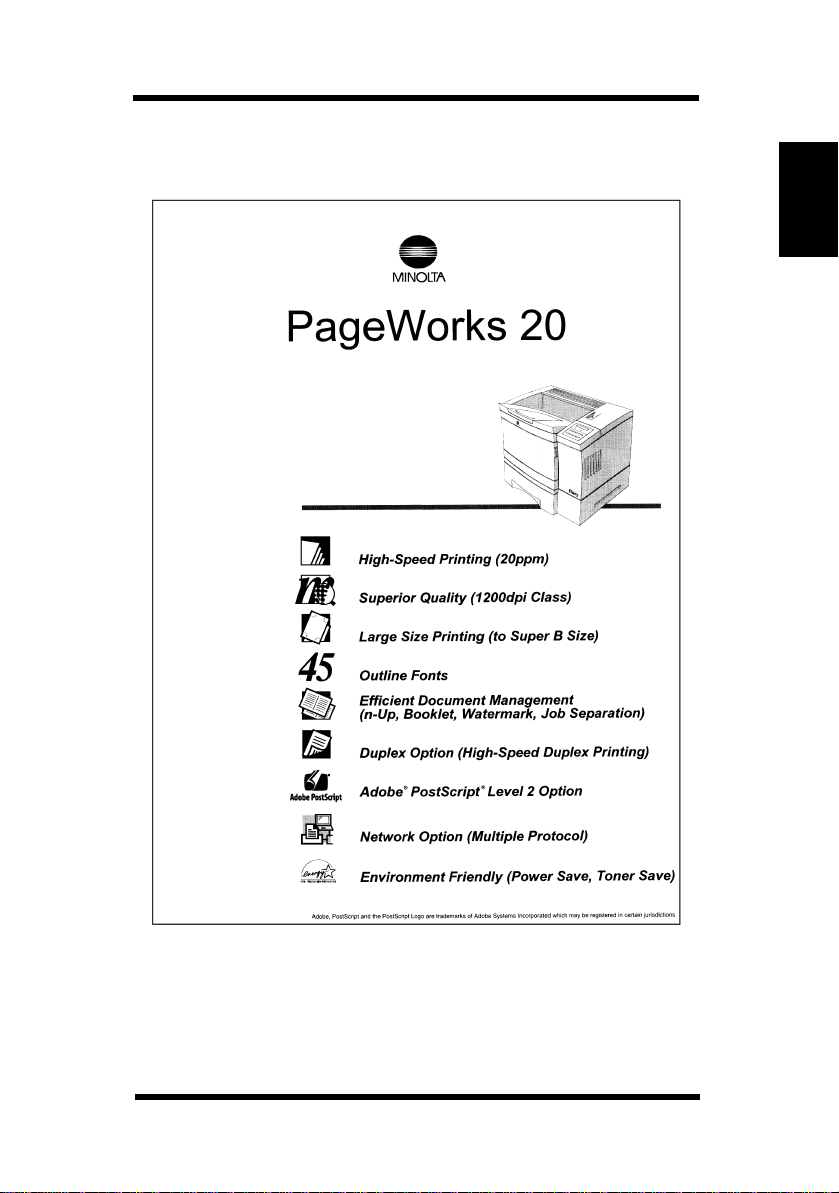

PCL Demo Print
6. Printing a Test Page
Chapter 2Setting Up
2-15
Chapter 2Setting Up
7. Connecting the Interface Cable
You can connect the printer to your computer using the printer’s parallel ports. For more information, see “Specifications” page 7-10.
IMPORTANT
You must purchase an IEEE 1284 type-B cable. If you try
to use any other cable, you may damage the printer’s port.
NOTE
Always use a shielded interface cable. Use of an
unshielded cable can result in radio interference with data.
Interface Port
Parallel Port
PRINTER
Centronics 36-pin connector
IBM PC AT or
compatible
2-16
EIA 25-pin connector
1. Make sure that the power switch
of the computer and printer is
turned off.
2. Connect one end of the interface
cable to the printer port of the
computer.
3. Then connect the other end of the
interface cable to the interface
connector on the backside of the
printer.
8. Moving the Printer
When moving the printer, follow the notes below.
NOTES
- Since the printer weighs approximately 55.1 lbs (25 kg),
two people are required to lift it.
- When transporting the printer, remove the imaging cartridge first.
- Whenever you remove the imaging cartridge from the
printer, immediately cov er it with a cloth to prevent light
from striking it.
- When an option is installed, remove the option from the
printer and carry the printer separately.
Chapter 2Setting Up
2-17
Chapter 2Setting Up
Memo
2-18
Chapter 3
Using Your Printer
Chapter 3Using Your Printer
3--1
Chapter 3Using Your Printer
3-0
1. Using the Control Panel
The control panel allows you to control most of the printing options.
If you use your software to control print jobs, you do not have to
change the control panel settings repeatedly. Any software setting
will override the control panel settings.
Use the control panel when:
• Your software does not allow you to make the user selection.
• You are making printer configuration changes which software
cannot control.
• You need to identify the fonts available in the printer’s memory.
• You need to print a test print.
• You need to switch between on-line and off-line.
Basic Menu Setting Method
1. Press the On Line key to take the printer off-line.
2. Press the Menu key as many times as necessary to select the
menu group you want to set.
3. Press the Item key as many times as necessary to select the item
you want to set.
Pressing the Menu key will return you to the menu mode.
4. Press the Select key as many times as necessary to change the
user selection.
Pressing the Menu key will return you to the menu mode.
Pressing the Item key will return you to the item mode.
5. Press the Enter key to save your selection.
An asterisk (*) appears at the right of the setting.
6. Press the On Line key to return the printer on-line.
Chapter 3Using Your Printer
- The printer should be off-line to select the printer menus.
- Pressing the On Line key will return the printer on-line from any
menu mode.
- When a key operation is not performed for 30 seconds or more in
any menu mode, the printer will return on-line automatically.
3-1
Chapter 3Using Your Printer
1. Using the Control Pa nel
Tray 1 Paper Size Setting Method
You can enter the tray1 paper size setting mode only from off-line.
1. Press the On Line key to take the printer off-line.
2. Press the Tray1 Paper key to enter the tray 1 paper size setting
mode.
3. Press the Select key as many times as necessary to select the
paper size you want to specify.
4. Press the Enter key to save your selection.
An asterisk (*) appears at the right of the setting.
The printer returns on-line automatically.
The paper sizes displayed in the tray 1 paper size setting mode are
as follows.
ITEM
TRAY1 PAPER SIZE LETTER LETTER, LEGAL,
FACTORY DEFAULT
USER SELECTION
LEDGER, EXEC, C5,
DL, MONARC, COM10,
A4, A3, A3+, B4,
JIS B5, ISO B5,
UNIVERSAL,
JOB SEPARATION
- If the paper in tray 1 has been used up, reload the paper and the
printer resumes printing automatically.
- If you select UNIVERSAL, the printer feeds paper from tray 1 irrespective of the paper size setting on the computer only when you
specify tray 1 as the paper source.
- If you select JOB SEPARATION, tray 1 becomes the separator
source.
3-2
1. Using the Control Panel
Job Separation
Your printer can insert a blank page between print jobs. This may be
helpful when there is more than one person using the printer.
1. Load the separator sheets in tray 1. You don’t need to specify
the paper size and the direction of the loaded separator sheet.
2. Press the Tray1 Paper key to enter the tray 1 paper size setting
mode.
3. Press the Select key as many times as necessary to select JOB
SEPARATION
4. Press the Enter key to save your selection.
An asterisk (*) appears at the right of the setting.
The printer returns on-line automatically.
While the printer is READY or OFFLINE, the printer displays JOB
SEPARATION
- If you select JOB SEPARATION, you cannot specify tray 1 as the
paper source.
- If selecting JOB SEPARATION, the paper loaded in tray 1 is
inserted as a separator sheet between print jobs.
- If you select MANUAL FEED, you cannot specify JOB SEPARA-
TION.
- If selecting JOB SEPARATION, when the paper source is set to tray
1, tray 2 becomes the default paper source.
- When a separator sheet misfeed occurs, the printer does not perform jam recovery for a separator sheet.
.
on the control panel.
Chapter 3Using Your Printer
USEFUL TIP
The printer driver for this printer can also be used to insert a blank
page between print jobs.
For details, See the Printer Driver User’s Manual.
3-3
Chapter 3Using Your Printer
2. Understanding the Printer Menus
Overview of Printer Menus
MENUS
PRINT MENU see page 3-7
PCL MENU see page 3-10
PS MENU see page 3-11
SYSTEM MENU see page 3-12
PARALLEL MENU see page 3-14
MAINTENANCE MENU see page 3-16
NETWORK MENU see page 3-17
TEST PRINT see page 3-19
PRINT MENU
COPIES
PAPER SIZE
ORIENTATION
PAPER TRAY
DUPLEX
FORM LENGTH
RESOLUTION
PRINT QUALITY
TONER DENSITY
PAGE PROTECTION
PCL MENU
FONT NUMBER
PITCH
POINT SIZE
SYMBOL SET
PS MENU
JAM RECOVER
NOTE
Menu items in italics appear only when
the required option is installed.
3-4
SYSTEM MENU
LANGUAGE
POWER SAVE
AUTO CONTINUE
SPECIAL PAPER
TRAY1 MEDIA
TRAY2 MEDIA
TRAY3 MEDIA
2. Understanding the Printer Menus
Chapter 3Using Your Printer
PARALLEL MENU
IO BUFFER SIZE
HIGH SPEED
BI-DIRECTION
TIMING
ADOBE PROTOCOL
TIME OUT
MAINTENANCE MENU
DISPLAY LANGUAGE
FACTORY DEFAULT
SERVICE MESSAGE
NETWORK MENU
IP ADDRESS
SUBNET MASK
GATEWAY
NETWARE FRAME
TEST PRINT
CONFIG PRINT
PCL FONT LIST
PCL DEMO
PS CONFIG PRINT
PS FONT LIST
NETWORK CONFIG PRINT
3-5
Chapter 3Using Your Printer
2. Understanding the Printer Menus
Printer Menus
The printer has six standard menus and two optional menus that
allow you to configure the printer.
Some of the items or values are displayed only when a specific
option is installed. Other items or values may only be effective for a
particular printer language. You can select these items or values at
any time, but they only affect printer function when you use the
specified printer language. The standard and optional menus are as
follows.
(1) Print Menu
(2) PCL Menu
(3) PS Menu
(4) System Menu
(5) Parallel Menu
(6) Maintenance Menu
(7) Network Menu
(8) Test Print
3-6
Tray 1
Tray 2
Tray 3
(1) Print Menu
2. Understanding the Printer Menus
ITEM
COPIES
PAPER SIZE
ORIENTATION
PAPER TRAY
DUPLEX
FORM LENGTH
RESOLUTION
PRINT QUALITY
TONER DENSITY
PAGE
PROTECTION
FACTORY DEFAULT
1
LETTER
PORTRAIT
AUTOMATIC
OFF
60
600
FINEART
MEDIUM
OFF
USER SELECTION
1 to 999
LETTER
LEGAL
LEDGER
EXEC
A4, A3, B4, JIS B5
PORTRAIT
LANDSCAPE
TRAY 1
TRAY 2
TRAY 3
MANUAL FEED
AUTOMATIC
OFF
SHORT-EDGE BIND
LONG-EDGE BIND
5 to 128
300
600
FINEART
TONER SAVE
STANDARD
EXTRA LIGHT
LIGHT
MEDIUM LIGHT
MEDIUM
MEDIUM DARK
DARK
EXTRA DARK
OFF
ON
Chapter 3Using Your Printer
3-7
Chapter 3Using Your Printer
2. Understanding the Printer Menus
COPIES
Specifies the number of copies you want to print.
PAPER SIZE
Specifies the paper size you want to use for printing.
ORIENTATION
Selects the direction of the print on the page.
Portrait orientation means the page is talle r th an it is wide wh en
you view the printed text upright.
Landscape orientation means the page is wider than it is tall when
you view the printed text upright.
PAPER TRAY
Specifies the paper source. If AUTOMATIC is selected, the
printer will automatically search all paper trays for the required
paper size.
For more information, see “Automatic T ray Switching” page 3-35.
DUPLEX
This item appears only when the printer is equipped with the
duplex unit.
Specifies whether to print on both sides of the paper. If you
attempt duplex printing, you can choose either short edge or long
edge.
For more information, see “Duplex Printing” page 3-27.
FORM LENGTH
Specifies the number of lines per page.
RESOLUTION
Selects 300 or 600 dpi (dots per inch) as the print resolution.
Higher resolution prints more slowly but produces higher-quality
graphics, whereas lower resolution prints faster but produces
lower-quality graphics.
PRINT QUALITY
Selects the text quality you want to use for your printed document.
STANDARD: Normal quality printing.
3-8
2. Understanding the Printer Menus
FINEART: Smooths the jagged edges of the printed image. More
effective when printing at 600 dpi.
TONER SAVE: Toner Save allows you to use less toner when
printing.
TONER DENSITY
Selects the density of the toner applied to the page. This setting
can be fine-adjusted in 7 different steps.
PAGE PROTECTION
Page Protection allows you to make sure the entire page is processed before it is printed. Set the setting to ON only when the
JOB TOO COMPLEX error occurs. If P age Protection is set to ON,
printing speed may be slowed.
NOTE
The settings you make in the print menu may be overridden by the
settings you make with your printer driver.
Chapter 3Using Your Printer
3-9
2. Understanding the Printer Menus
(2) PCL Menu
Chapter 3Using Your Printer
ITEM
FONT NUMBER
PITCH
POINT SIZE
SYMBOL SET
FACTORY DEFAULT
0
10.00
12.00
ROMAN-8
USER SELECTION
0 to 50
0.44 to 99.99
4.00 to 999.75
ROMAN-8, ISO L1,
ISO L2, ISO L5, PC-8,
PC-8 DN, PC-850,
PC-852, PC-8 TK,
WIN L1, WIN L2,
WIN L5, DESKTOP,
PS TEXT, VN INTL,
VN US, MS PUBL,
MATH-8, PS MATH,
VN MATH, PIFONT,
LEGAL, ISO 4, ISO 6,
ISO 11, ISO 15, ISO 17,
ISO 21, ISO 60, ISO 69,
WIN 3.0, MC TEXT,
SYMBOL, WING
FONT NUMBER
Font Number is the number you use to select a font from the control panel.
PITCH
Pitch is the number of characters printed per horizontal inch. This
setting is for a mono-space scalable font.
POINT SIZE
Point Size is font height. This setting is for a proportional scalable
font.
SYMBOL SET
Symbol Set is a set of alphabetic and numeric characters, punctuation, and special symbols used when printing with a selected font.
3-10
2. Understanding the Printer Menus
(3) PS Menu
This item appears only when PostScript is installed.
ITEM
JAM RECOVER ON ON
FACTORY DEFAULT
RANGE OF USER
SELECTION
OFF
JAM RECOVER
When Jam Recover is set to OFF, the printer does not reprint a
page that has misfed.
When the Jam Recover is set to ON, the printer keeps the image
for a printed page until the printer signals that the page has suc
cessfully exited the printer. Then the printer reprints all misfed
pages. However, printing speed may be slowed.
Chapter 3Using Your Printer
-
3-11
2. Understanding the Printer Menus
(4) System Menu
Chapter 3Using Your Printer
ITEM
LANGUAGE
POWER SAVE
AUTO CONTINUE
SPECIAL PAPER
TRAY 1 MEDIA
TRAY 2 MEDIA
TRAY 3 MEDIA
FACTORY DEFAULT
PCL
45
OFF
NONE
PLAIN PAPER
PLAIN PAPER
PLAIN PAPER
USER SELECTION
PCL
PS
AUTO
0 to 180
OFF
20sec, 30sec, 60sec,
90sec, 120sec
NONE
TRAY 1
TRAY 3
PLAIN PAPER
THIN PAPER
TRANSPARENCY
ENVELOPE
PLAIN PAPER
THIN PAPER
PLAIN PAPER
THIN PAPER
LANGUAGE
The printer language defines how the computer communicates
with the printer. If you select AUTO, the printer language will be
switched automatically. However, neither PS nor AUTO will
appear if PostScript is not installed.
POWER SAVE
The Power Save setting determines the length of time the printer
waits after the last job is printed before it goes into a reduced
power state. A value of zero means that it does not go into power
save mode. When the printer recei v es the ne xt job, the power save
mode is canceled. The power save mode is also cancelled auto
matically by pressing any key , removing and reinstalling the paper
tray, or opening and closing the upper cover.
3-12
-
2. Understanding the Printer Menus
AUTO CONTINUE
When a recoverable error has occurred, set the length of time that
the printer takes to return to the on-line state automatically.
Recoverable errors: MEMORY OVERFLOW
JOB TOO COMPLEX
SPECIAL PAPER
Specifies the paper source which the special paper is loaded in.
See “Special Paper Tray Setting” page 3-37.
TRAY 1 MEDIA
Specifies the media type that is loaded in tray 1 to get the best
possible result on the paper.
PLAIN PAPER: 75 to 157 g/m
THIN PAPER: 60 to 75 g/m
2
2
TRANSPARENCY: Transparencies
ENVELOPE: Envelopes
TRAY 2 MEDIA
Specifies the media type that is loaded in tray 2 to get the best
possible result on the paper.
Chapter 3Using Your Printer
TRAY 3 MEDIA
This item appears only when the optional third tray unit is
installed. Specifies the media type that is loaded in tray 3 to get
the best possible result on the paper.
3-13
2. Understanding the Printer Menus
(5) Parallel Menu
Chapter 3Using Your Printer
ITEM
IO BUFFER SIZE
HIGH SPEED
BI-DIRECTION
TIMING
ADOBE PROTOCOL
TIME OUT
FACTORY DEFAULT
AUTO
ON
ON
A-B-A
STANDARD
60
USER SELECTION
16K, 64K, 256K, 1M
AUTO
OFF
ON
OFF
ON
A-B-A
A-B
B-A
STANDARD
BINARY
TBCP
5 to 300
IO BUFFER SIZE
Selects the receiving buffer size. If AUTO is selected, the printer
automatically sets the buffer size depending on the amount of
memory carried in the printer.
HIGH SPEED
Sets whether it transfers data at high speed. Basically, you don’t
need to change the setting. However , depending on the PC you are
using, you may not be able to run at high speed. In such a case, set
the setting to OFF.
BI-DIRECTION
Sets whether to enable bi-directional communication. Basically,
you don’t need to change the setting. However, depending on the
PC you are using, it may not support bi-directional communica
tion. In such case, set the setting to OFF after verifying the PC
specification.
3-14
-
2. Understanding the Printer Menus
TIMING
Sets the timing of “Busy to Ack” in the communication format
between the printer and PC. Basically, you don’t need to change
the setting. However, depending on the PC you are using, it may
not be able to support a proper communication between the
printer and PC. In such a case, change the setting after verifying
the PC specification.
A-B: Ack in Busy.
A-B-A: Ack while Busy.
B-A: Ack after Busy.
ADOBE PROTOCOL
This item appears only when PostScript is installed.
Standard: Tells the driver to send data to the printer in a ASCII
format.
Binary: Tells the driver to send data to the printer in a binary for-
mat.
TBCP: This allows you to change between ASCII and binary for-
mat by a particular control code.
TIME OUT
The Time Out setting determines the time out period from the end
of the print job to the ready state. After the time out period, the
printer searches for next data from interface channel.
Chapter 3Using Your Printer
3-15
2. Understanding the Printer Menus
(6) Maintenance Menu
Chapter 3Using Your Printer
ITEM
DISPLAY LANGUAGE
FACTORY DEFAULT
SERVICE MESSAGE
FACTORY DEFAULT
ENGLISH
ON
USER SELECTION
ENGLISH
DEUTSCH
FRANCAIS
ITALIANO
NEDERLANDS
DANSK
ÑOL
ESPA
CESKY
ON
OFF
DISPLAY LANGUAGE
The Display Language setting determines the language of the text
that appears on the control panel. The setting becomes effective
by restarting the printer after making changes.
FACTORY DEFAULT
The printer settings except the network menu and parallel menu
settings are set to the factory default values.
SERVICE MESSAGE
This item appears only when the MAINTENANCE REQ message
is displayed on the control panel. You can clear the message by
changing this setting to OFF. If the
MAINTENANCE REQ mes-
sage appears, the printer is approaching the maintenance interval.
See “Maintaining Your Printer” page 4-1.
3-16
2. Understanding the Printer Menus
(7) Network Menu
This item appears only when the optional network card is installed.
Using the software utility available with the optional network card
enables making of the settings in detail. For details, see the manual
for the network card.
ITEM
IP ADDRESS
SUBNET MASK
GATEWAY
NETWARE FRAME
FACTORY
DEFAULT
198, 102, 102, 254
255, 255, 255, 0
0, 0, 0, 0
AUTO
USER SELECTION
xxx, xxx, xxx, xxx
xxx, xxx, xxx, xxx
xxx, xxx, xxx, xxx
AUTO
ETHERNET 2
IEEE 802.3
IEEE 802.2
SNAP+IEEE 802.2
IP ADDRESS
Types an IP address. This is the numerical value to distinguish all
networks utilizing the TCP/IP protocol. The value in each field
must be a number from 0 to 255.
SUBNET MASK
Types a subnet mask address. This number combined with the IP
address identifies which network your computer is on. The value
in each field must be a number from 0 to 255.
GATEWAY
Types a default gateway address. A gateway is a connection or
interchange point that connects two networks that would other
wise be incompatible.
Chapter 3Using Your Printer
-
NETWARE FRAME
Specifies a NetWare frame type. If NetWare frame is set to
AUTO, a proper frame type is automatically selected.
3-17
Chapter 3Using Your Printer
2. Understanding the Printer Menus
NOTE
Any setting changes you make in the network menu becomes effective by pressing the On Line key.
CAUTION
Pressing the On Line key after making the network settings will
restart the network card immediately. The printer continues dis
playing “READY” on the control panel while the network card is
being restarted. However, access to the network card is disabled
until the LED for the network card lights up steadily.
-
3-18
2. Understanding the Printer Menus
(8) Test Print
A test print is printed out with the paper size and paper tray settings
you made in the print menu. For details, see “Print Menu” page 3-6.
ITEM
CONFIG PRINT
PCL FONT LIST
PCL DEMO PRINT
PS CONFIG PRINT
PS FONT LIST
NETWORK CONFIG
PRINT
1. Press the On Line key to take the printer off-line.
2. Press the Menu key as many times as necessary to select the test
print menu.
3. Press the Item key as many times as necessary to select the item
you want to print.
4. Press the Enter key to start printing.
The printer returns on-line automatically.
Chapter 3Using Your Printer
CONFIG PRINT
Prints the internal settings of the control panel, printer information
and installed options. Config print is printed out in the display lan
guage you selected.
PCL FONT LIST
Prints a font list used in PCL. It includes typeface, pitch, point
size, escape sequence and font number.
PCL DEMO PRINT
Prints the demo page for PCL. PCL demo print is printed out in
the display language you selected.
-
3-19
Chapter 3Using Your Printer
2. Understanding the Printer Menus
PS CONFIG PRINT
Prints various information for PS, RAM capacity and so on. PS
config print is printed out in the display language you selected.
PS FONT LIST
Prints a font sample that shows all the fonts available in PS.
NETWORK CONFIG PRIN T
Prints the contents of the setting or the status of the network. If the
printer detects a network error after turning the printer on, the
printer automatically prints out a network config page. At this
time, check the contents for an error.
3-20
3. Loading Paper
Supported Media
Use only supported sizes or weights of paper. Do not use other
media which may not meet the media specifications for this printer.
Paper Type
• Plain paper: 60 to 90 g/m2 (16 to 24 lb)
Recycled paper: 60 to 90 g/m2 (16 to 24 lb)
• Special paper (Tray 1 only):
transparencies, labels, envelopes, letterhead,
thick paper: 91 to 157 g/m2 (24 to 41 lb)
Paper Size
Chapter 3Using Your Printer
Paper Type
Plain/Recycled
paper
Special paper
*Universal size (custom size) can be set by using the printer driver.
For details, see the Printer Driver User’s Manual.
A3 (297mm x 420mm)
Super B (A3+) (328mm x 453mm)
A4 (210mm x 297mm)
B4 (257mm x 364m m )
JIS B5 (182mm x 257mm)
Letter (LTR) (8.5” x 11”)
Legal (LGL) (8.5” x 14”)
Ledger (LGR) (11” x 17”)
Executive (EXEC) (7.25” x 10.5”)
ISO B5 (176mm x 250mm)
Com-10 (4.125” x 9.5”)
C5 (162mm x 229mm)
DL (110mm x 220mm)
Monarch (3.875” x 7.5”)
Universal* (92 to 330mm x 140 to 483mm)
Paper Size
3-21
3. Loading Paper
Chapter 3Using Your Printer
Paper Size
Tray1
A3
Super B (A3+)
A4
B4
JIS B5
Letter (LTR)
Legal (LGL)
Ledger (LGR)
Executive (EXEC)
ISO B5 (envelope)
Com-10 (envelope)
C5 (envelope)
DL (envelope)
Monarch (envelope)
Universal (custom size)
*Tray 3: Optional 250-Sheet Universal Tray
Paper Source
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
❍
Tray 2
❍
Tray 3*
❍
❍
❍
❍
❍
❍
❍
❍
Capacity
• Tray 1:
Plain/recycled paper: Up to 150 Sheets
Special paper:
-Thick paper, letter head, labels, envelopes: Up to 10 sheets
-Transparencies: Up to 5 sheets
• Tray 2:
Plain/recycled paper: Up to 500 sheets
• Tray 3 (optional):
Plain/recycled paper: Up to 250 sheets
3-22
Printable Area
3. Loading Paper
One-sided printing
5 mm (0.2 inch)
5 mm (0.2 inch)
Printable area
Double-sided printing
7.5 mm (0.3 inch)
Margins of 5 mm (0.2 inch) along the
four edges of the document.
Chapter 3Using Your Printer
5 mm (0.2 inch)
5 mm (0.2 inch)
Margins of 7.5 mm (0.3 inch) along
the four edges of the document.
7.5 mm (0.3 inch)
Printable area
7.5 mm (0.3 inch)
7.5 mm (0.3 inch)
3-23
Chapter 3Using Your Printer
3. Loading Paper
Printing Orientation
For all paper sizes, the printer prints on the paper face up from any
tray.
Paper loaded crosswise:
(A4, JIS B5, Letter)
A
A
The direction of
paper loading
Paper loaded lengthwise:
(A3, Super B, B4, Ledger, Legal, Executive, Envelopes, Universal)
The direction of
the paper loading
Printing at portrait
orientation
A
Printing at portrait
orientation
Printing at landscape
orientation
A
Printing at landscape
orientation
3-24
3. Loading Paper
Printing on Envelopes
- Tray 1 only.
- The following lists the envelope sizes you can specify from the
control panel or printer driver.
ISO B5 (176mm x 250mm)
COM10 (Commercial-10) (4.125” x 9.5”)
C5 (162mm x 229mm)
DL (110mm x 220mm)
Monarch (3.875” x 7.5”)
- Select the envelope size you want to print in the tray1 paper size
setting mode.
See “Tray 1 Paper Size Setting Method” page 3-2.
- Load envelopes face up.
- The top edge of the envelopes should be loaded facing the left
paper guide plate.
- Specify envelope as the media type from the control panel.
See “Understanding the Printer Menus” page 3-11.
- Do not specify duplex printing.
Note the following points whenever printing on envelopes.
Chapter 3Using Your Printer
• Make sure that all edges are created sharply and that all flaps are
folded correctly .
• Do not use envelopes that are self-adhesive. Use only envelopes
that have standard adhesive that sticks after it is moistened.
• Use envelopes whose flaps run the entire length of the envelope.
Envelopes that seal at on end will not feed properly.
• Do not use envelopes that have a window. Such envelopes can
seriously damage the printer.
• Do not use envelopes that are wrinkled.
• Nev er use envelopes that have clasps or any other type of fastener
that can damage the printer.
• Do not store env elopes in an area that is subject to high humidity.
3-25
Chapter 3Using Your Printer
3. Loading Paper
Printing on Labels
- Tray 1 only.
- Load labels face up.
- Use only labels designed for laser printers or plain paper copiers.
- Do not specify duplex printing.
Printing on Thick Paper
- Tray 1 only.
- Load thick paper face up.
- Do not specify duplex printing.
Printing on Transparencies
Be careful when you handle transparencies. Fingerprints on the surface of the transparency can cause poor print quality.
- Tray 1 only.
- Use only transparencies designed for laser printers or plain paper
copiers.
- Load transparencies face up.
- Specify transparency as the media type from the control panel.
See “Understanding the Printer Menus” page 3-12.
- Do not specify duplex printing.
Printing on Custom Paper
If you cannot specify the custom paper size with your software
application, you cannot print on the custom paper.
- Tray 1 only.
- Load custom paper face up.
- Do not specify “LONG-EDGE BIND” in the duplex mode.
3-26
3. Loading Paper
Duplex Printing
Enables printing on both sides of the paper only when the printer is
equipped with the duplex unit.
If you attempt duplex printing, you can choose either Bind Long
Edge or Bind Short Edge.
(1) Bind Long Edge
A
A
A
A
Portrait
(2) Bind Short Edge
Landscape
A
A
A
Portrait
NOTE
To attempt duplex printing, you may need to add more
memory (an additional 8MB recommended).
Landscape
A
Chapter 3Using Your Printer
3-27
3. Loading Paper
The supported paper types and sizes for duplex printing are as follows.
Paper Type
- Plain paper: 60 to 90 g/m2 (16 to 24 lb)
- Recycled paper: 60 to 90 g/m2 (16 to 24 lb)
Chapter 3Using Your Printer
NOTE
Do not use special paper (transparencies, labels, envelopes, let-
terhead and thick paper) for duplex printing.
Paper Size
A3, Super B, A4, B4, JIS B5, Letter, Legal, Ledger, Executive,
Custom*.
*Do not perform duplex printing for a custom size smaller than A5
size.
NOTES
- When printing for Super B size, you may need to add more memory.
- You canno t combine duplex printing for a custom size with
LONG-EDGE BIND.
Remember the following when you attempt duplex printing.
• The same size page is printed on the front and back of the paper.
• Always specify “PLAIN PAPER” for th e media type setting.
See “Understanding the Printer Menus” page 3-12.
• The first page is printed out on the paper face down.
3-28
Loading Paper in Tray 1
1. Open tray 1.
2. Fan the paper thoroughly and
align the edges.
3. Adjust the paper guide plates to
fit the paper size and load paper
face up in the tray.
3. Loading Paper
Chapter 3Using Your Printer
Load A4, JIS B5 and LTR with
the long edge toward the back of
the tray.
Load A3, A3+, B4, LGL, LGR,
EXEC, envelopes and Custom
with the short edge toward the
back of the tray.
NOTE
Do not stack paper higher than
the
▼mark.
3-29
Chapter 3Using Your Printer
3. Loading Paper
4. Specify the tray 1 paper size.
→See “Tray 1 Paper Size Setting
Method” page 3-2.
5. Specify the tray 1 media type.
→See “System Menu” page 3-12.
→See “Basic Menu Setting
Method” page 3-1.
3-30
Loading Paper in Tray 2
1. When the paper tray is in the
printer, pull it out and remove it.
2. Press down the paper lifting plate
until it locks.
3. Fan the paper thoroughly and
align the edges.
4. Load paper face up, placing it
under the two clips in the tray.
3. Loading Paper
Chapter 3Using Your Printer
Max. Level
Indicator
Letter size only.
NOTES
Do not load paper beyond the
Max. Level Indicator.
Do not add more paper until all
sheets have been used up.
3-31
Chapter 3Using Your Printer
3. Loading Paper
5. Slide the tray securely into position.
6. Specify the tray 2 media type.
→See “System Menu” page 3-12.
→See “Basic Menu Setting
Method” page 3-1.
USEFUL TIP
Tray 2 and tray 3 can be used
interchangeably.
3-32
Tray 2
Tray 3
Second Tray Unit
Optional Third Tray Unit
Second Tray Unit
Optional Third Tray Unit
Loading Paper in Tray 3
1. When the paper tray is in the tray
unit, pull it out and remove it.
2. Open the paper cover.
3. Press down the paper lifting plate
until it locks.
4. Fan the paper thoroughly and
align the edges.
3. Loading Paper
Chapter 3Using Your Printer
5. Load paper face up, placing it
under the two clips in the tray.
Adjust the paper guide plates to
fit the paper size.
Load A4, JIS B5 and LTR with
the long edge toward the back of
the tray.
3-33
Chapter 3Using Your Printer
3. Loading Paper
Max. Level
Indicator
Load A3, B4, LGL, LGR and
EXEC with the short edge toward
the back of the tray.
NOTES
Do not load paper beyond the
Max. Level Indicator.
Do not add more paper until all
sheets have been used up.
6. Close the paper cover.
Slide the tray securely into posi-
tion.
3-34
7. Specify the tray 3 media type.
→See “System Menu” page 3-12.
→See “Basic Menu Setting
Method” page 3-1.
USEFUL TIP
Tray 2 and tray 3 can be used
interchangeably.
See page 3-32.
3. Loading Paper
Automatic Tray Setting
If you select AUTOMATIC or Auto for the paper source from the
control panel or printer driver, the printer will automatically search
all paper trays for the required paper size. At this time, the paper
source is selected in the priority order of tray 2, tray 3 and tray 1.
For more information, see the Printer Driver User’s Manual.
If the tray currently selected for use runs out of paper and there is
another tray loaded with paper of the same size, the printer automat
ically selects that tray to permit an uninterrupted print cycle. However, a tray that is designated for special paper is excluded from
automatic tray switching.
1. Press the On Line key to take the printer off-line.
2. Press the Menu key as many times as necessary to select the
print menu.
3. Press the Item key as many times as necessary to select the
paper source.
4. Press the Select key to select AUTOMA TIC.
5. Press the On Line key to return the printer on-line.
Chapter 3Using Your Printer
-
USEFUL TIPS
This feature is a great advantage when you need to make a large
number of prints on the same size paper. For example, you can
make up to 1,150 prints without interruption by using tray 1, tray 2
and optional tray 3.
NOTE
If you specify JOB SEP ARATION or UNIVERSAL, tray 1 will not be
selected in the automatic paper source mode.
3-35
3. Loading Paper
Using Manual Feed
Using manual feed is useful when you temporarily want to print on
paper that is not loaded in any tray. The manual feed feature allows
you to print on custom sizes of paper, envelopes, labels and trans
parencies.
-
Chapter 3Using Your Printer
1. Select Manual Feed as the paper source from the control panel
or printer driver.
See “Understanding the Printer Menus” page 3-7.
See the Printer Driver User’s Manual.
2. Send a print command from your computer. The control panel
displays Manual Feed and the specified paper size. The printer
goes off-line.
3. Remove any paper remaining in tray 1.
4. Adjust the paper guides to fit the specified paper size and load
paper in tray 1.
See “Loading Paper in T ray 1” page 3-29.
5. Press the On Line key to start printing.
6. If the print data is multi page, the printer makes multiple prints.
7. Reload the paper which was loaded previously in tray 1 after
printing is completed.
3-36
3. Loading Paper
Special Paper Tray Setting
When you load special paper in the tray, it can be specified as the
special paper tray so that the other users will not use the special
paper by mistake.
1. Press the On Line key to take the printer off-line.
2. Press the Menu key as many times as necessary to select the
System menu.
3. Press the Item key as many times as necessary to select SPE-
CIAL PAPER.
4. Press the Select key to select the tray you are loading special
paper in.
5. Press the Enter key to save your selection.
An asterisk (*) appears at the right of the setting.
6. Press the On Line key to return the printer on-line.
The tray selected for the special paper mode will not be selected in
the automatic paper source mode.
Chapter 3Using Your Printer
NOTE
Tray 1 and tray 3 can be specified as the special paper tray.
3-37
Chapter 3Using Your Printer
4. Printing
There are three sources to print from: tray 1, tray 2 and tray 3. Select
the printing source according to your needs.
1. Open tray 1.
2. Load paper in tray 1, tray 2 or
tray 3.
→ See “Loading Paper in Tray 1”
page 3-29.
→ See “Loading Paper in Tray 2”
page 3-31.
→ See “Loading Paper in Tray 3”
page 3-33.
3-38
NOTE
If special paper is loaded, the
printer is unable to make multiple
prints.
3. Pull out the paper exit tray if the
loaded paper is larger than B4
size.
4. Printing
4. Send a print command from the
computer.
The printed paper is fed out face
down on the paper exit tray.
NOTES
The paper exit tray can hold a
maximum of 500 sheets of paper.
Use care not to exceed this limit
when making multiple prints.
Chapter 3Using Your Printer
3-39
Chapter 3Using Your Printer
5. Understanding Fonts
Font
A font is a specific group of characters that have common style and
size characteristics. Your printer can store a variety of different fonts
in its memory for printing. Since these fonts reside in printer mem
ory, they are called resident fonts.
The PageWorks 20 uses two types of resident fonts: scalable fonts
and bitmap fonts. Appendix B of this User’s Manual contains a table
that shows samples of all the available resident fonts.
In addition to resident fonts, you can also download non-resident
soft fonts for printing.
Scalable Fonts
Scalable fonts (also called outline font) can be enlarged or reduced
(scaled) to suit your printing needs. There are few limitations on the
sizes that you can specify for scalable fonts.
Bitmap Fonts
A bitmap font is stored in printer memory as a set of characters and
symbols with a specific size and unique design. Each bit of the font
is precisely mapped, so this type of font cannot be scaled to different
sizes.
-
The PageWorks 20 maintains 10 TrueType fonts and 35 Intellifont
typefaces in memory.
Minolta Font Manager
The Minolta Font Manager has screen fonts for Windows 3.1x and
Windows 95, and contains 96 True Type fonts. They can all be dis
played and printed as scalable fonts.
3-40
-
Chapter 4
Maintaining Your Printer
Chapter 4Maintaining Your Printer
4--1
Chapter 4Maintaining Your Printer
4-0
1. Supplies for Maintenance
The following table lists the approximate replacement interval for
each supplies.
Supply Page Count * Replacement by
Imaging Cartridge 10,000 pages User
* Approximate A4-size page count based on 5% coverage of toner.
Supply Problem Replacement by
Fusing Unit Paper misfeeds most
often in the fusing
section
Image Transfer Unit Poor print quality Tech Rep
Paper Take-up Roller Paper is not fed Tech Rep
If the above problems occur after showing the MAINTENANCE REQ
message, it is time to replace the supplies. Please contact your Technical Representative.
CAUTION
For proper printer operation, use only Minolta supplies.
Tech Rep
Chapter 4Maintaining Your Printer
4-1
Chapter 4Maintaining Your Printer
2. Replacing the Imaging Cartridge
The imaging cartridge contains the print drum and a supply of t oner.
If you print typical business A4 size page with 5% coverage of
toner, the imaging cartridge lasts approximately 10,000 pages. How
ever , the life of the imaging cartridge varies with the density of toner
for your pages.
If the TONER IS LOW message appears on the control panel, the
toner level in the imaging cartridge is getting low and print quality
will degrade. You need to get ready to replace the imaging cartridge.
T o use as much of the remaining toner as possible, remove the imag
ing cartridge, shake it 2 or 3 times and reinstall it in the printer. If
print quality is not satisfactory, you should replace the imaging car
tridge with a new one according to the following procedure.
If the TONER EMPTY message appears on the control panel, the
toner in the imaging cartridge has run out. You must replace the
imaging cartridge with a new one immediately.
1. Turn the printer off and then disconnect the power cord and interface cable from the printer.
-
-
-
4-2
2. If you have pulled out the paper
exit tray, push it into the printer
before opening the upper cover.
2. Replacing the imaging cartridge
3. Pressing the upper cover lock
release button, open the upper
cover.
4. Remove the old imaging cartridge from the printer.
5. T ak e a ne w imaging cartridge out
of the box.
Holding it with both hands, shake
it well in the direction of the
arrows.
Chapter 4Maintaining Your Printer
6. Pull the tab outward slowly until
the sealing tape is completely
removed.
4-3
Chapter 4Maintaining Your Printer
2. Replacing the imaging cartridge
7. Shake the imaging cartridge 4 or
5 times in the direction of the
arrows to distribute the toner
evenly.
8. Install the imaging cartridge
securely into the printer by slid
ing the pins on each side of the
cartridge along the grooves of the
cartridge guide.
9. Close the upper cover.
-
4-4
3. Cleaning Your Printer
Accumulated dust and lint on the inside and outside of the printer
impairs printer performance and print quality. Clean the printer at
regular intervals.
NOTE
Before starting the cleaning procedure, be sure to turn
the power switch off and unplug the power cord.
Use only a soft cloth. Do not use abrasives and corrosi ve
detergent.
CAUTION
The fusing section has become quite hot during
operation. Do not touch the area as it may cause
a burn.
Chapter 4Maintaining Your Printer
Fusing Section
External Cleaning
Wipe off dirt and stains around
the printer with a soft cloth damp
ened with a mild detergent.
-
4-5
3. Cleaning Your Printer
Internal Cleaning
1. Open the upper cover.
2. Remove the imaging cartridge.
Chapter 4Maintaining Your Printer
NOTE
Whenever you remove the imaging cartridge from the printer,
immediately cover it with a cloth
to prevent light from striking it.
3. Clean the window glass of the
print head unit using a dry soft
cloth.
4-6
Chapter 5
Solving Printer Problems
Chapter 5Solving Printer Problems
5--1
Chapter 5Solving Printer Problems
5-0
