Minolta KD-300Z User's Guide

GB/

Thank you for purchasing this Konica product. Digital Revio KD-300Z is a digital camera equipped with a 3.34 megapixel CCD for high quality digital photography. Before using the camera, please read this User’s Manual carefully and follow its instructions to assure proper use.

Wir danken Ihnen für das Vertrauen, das Sie Konica mit dem Kauf dieses Produkts bewiesen haben. Bei der Digital Revio KD-300Z handelt es sich um eine Digitalkamera, deren CCD-Element mit 3,34 Mio. Pixeln arbeitet, so dass Digitalaufnahmen von höchster Qualität erzielt werden. Bitte lesen Sie diese Anleitung vor Inbetriebnahme der Kamera aufmerksam durch, damit Sie alle Funktionen optimal nutzen können, und befolgen Sie alle Anweisungen, um einen fehlerfreien Betrieb zu gewährleisten.

Contents

Please purchase “Secure Digital (SD) Memory Cards” or “Multi-Media Cards*” (MMC) for use with this camera. These cards are referred to in these User’s Instructions as “Memory Cards.”

Names of Parts.......................... 4

* MultiMedia Card is a registered trademark of Infineon Technologies AG

(Germany), licensed to MMCA (MultiMediaCard Association).

Basic Preparations

Camera Basics

Camera Functions

Image Playback Basics

Advanced Image Playback and Delete Functions

Camera Setup Options

Loading and Recharging the

Battery Pack.............................. 9

Using the LCD Monitor when

Shooting .................................. 13

Selecting Flash Mode ............. 22

Macro and Landscape

Photography............................ 24

Using the Self-timer ................ 26

Setting Image Quality.............. 27

Exposure Compensation......... 29

Using Color Mode for B&W

and Sepia Images ................... 30

Displaying Images on the LCD

Monitor .................................... 42

“Thumbnail” Picture Review in

Forward/Reverse Direction ..... 45

Closeup Image Playback ........ 45

Displaying Exposure

Information .............................. 46

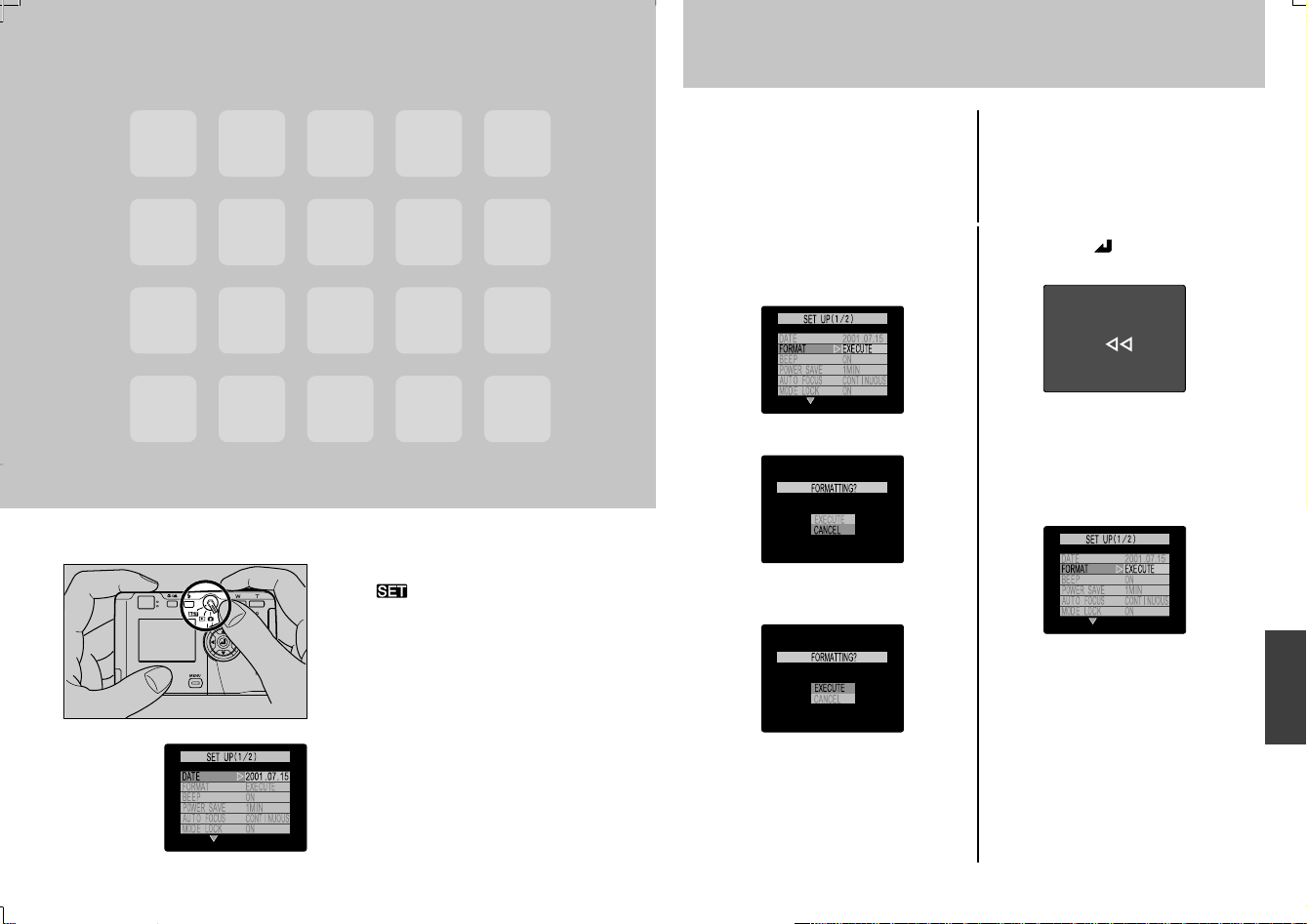

Formatting Memory Cards ........

Turning the Electronic Tone

ON/OFF ................................... 59

Setting Auto Power-Off........... 60

Selecting the Automatic

Loading and Removing Memory

Cards ....................................... 10

Recording Moving Images ...... 17

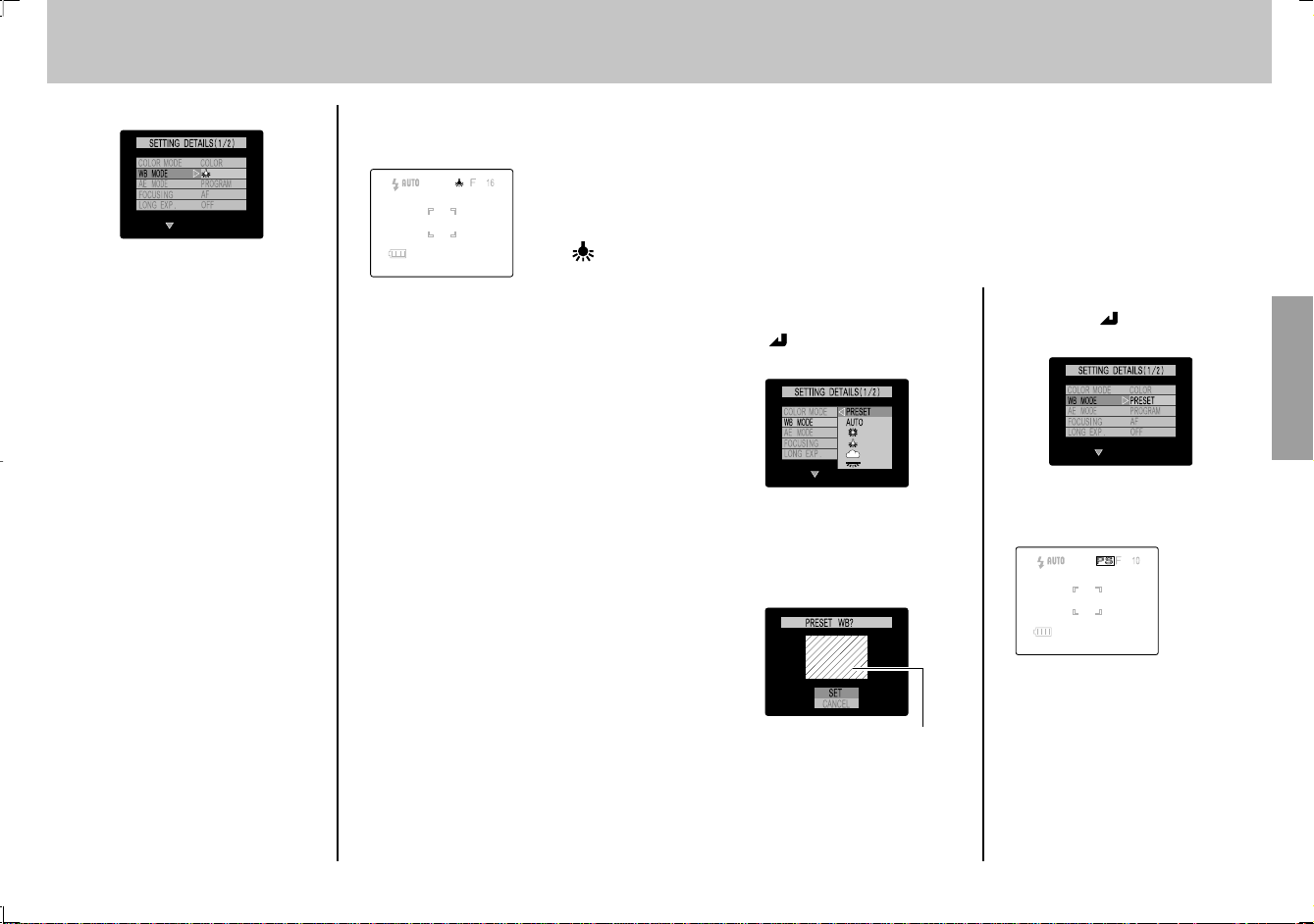

White Balance ......................... 31

Aperture-Priority

Photography............................ 34

Using Manual Focus ............... 35

Long Exposure Mode.............. 36

Increasing Exposure Sensitivity

to 2x, 4x................................... 38

Playing Movies ........................ 43

Multiple Image Display

(Index Display) ......................... 47

Erasure Prevention .................. 48

Erasing Individual Images ....... 49

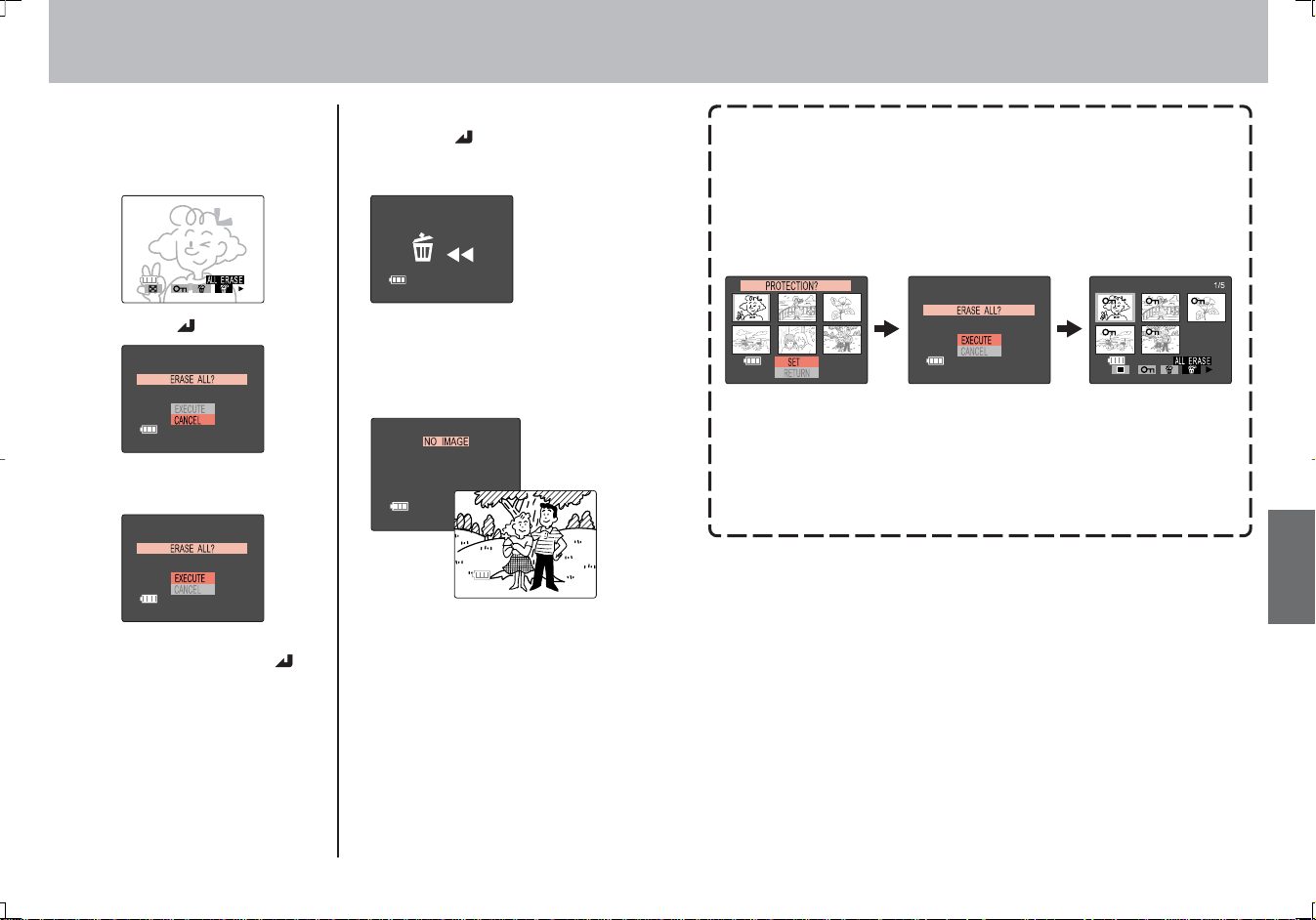

Erasing All Images................... 50

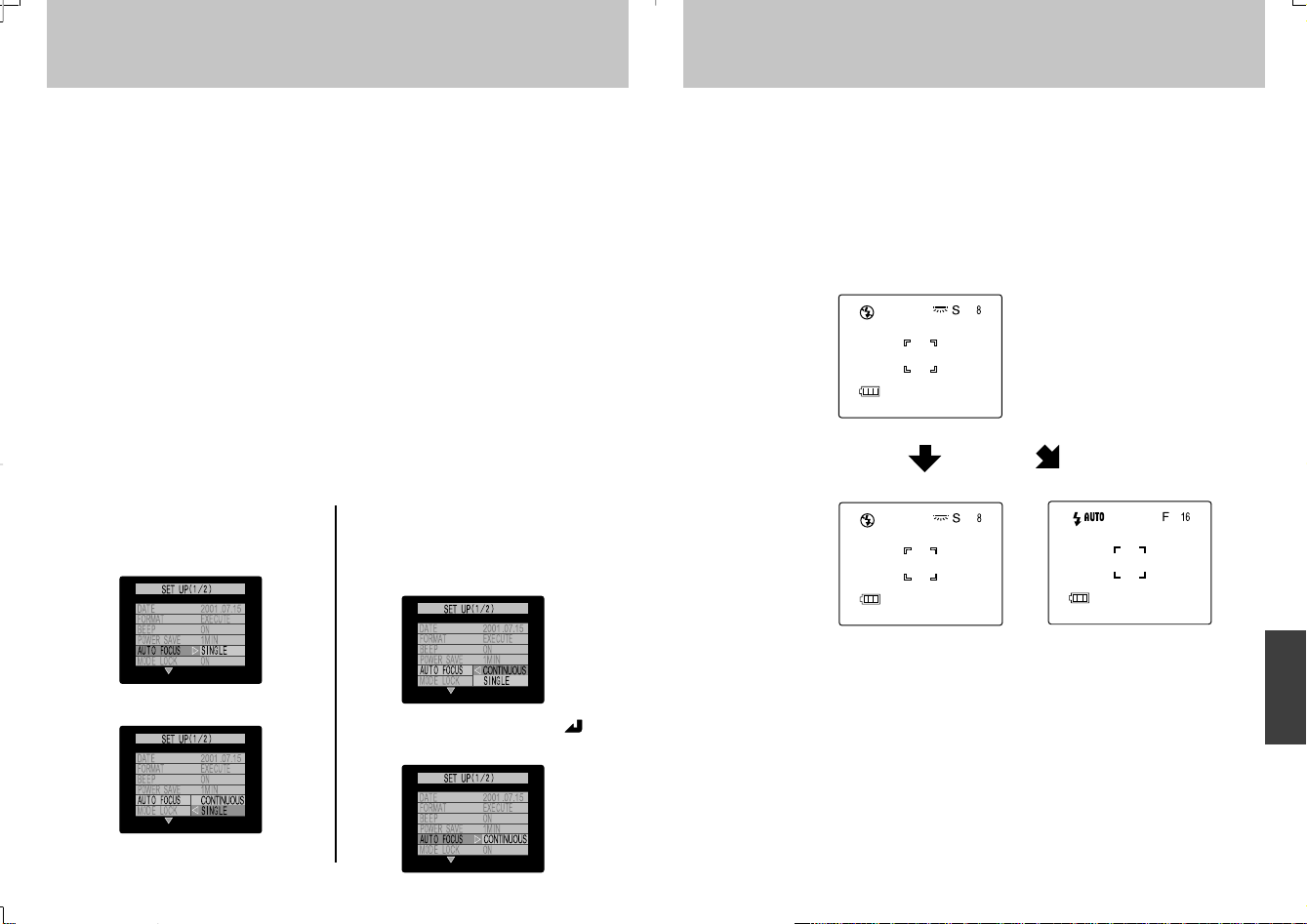

Focus Mode ............................. 62

Mode Lock ON/OFF................ 63

Digital Zoom ON/OFF ............. 65

Selecting the Display Language .....

Selecting the Video

Setting the Date ...................... 12

Using the Optical

Viewfinder................................ 18

Selecting the Metering

Mode........................................ 39

Other Functions....................... 41

Rotating Images ...................... 52

Automatic Playback ................ 53

Digital Print Order Format

(DPOF) Setting......................... 54

Output Mode ........................... 67

Creating a New Folder on the

Memory Card........................... 68

Returning Settings to their

Default Values.......................... 70

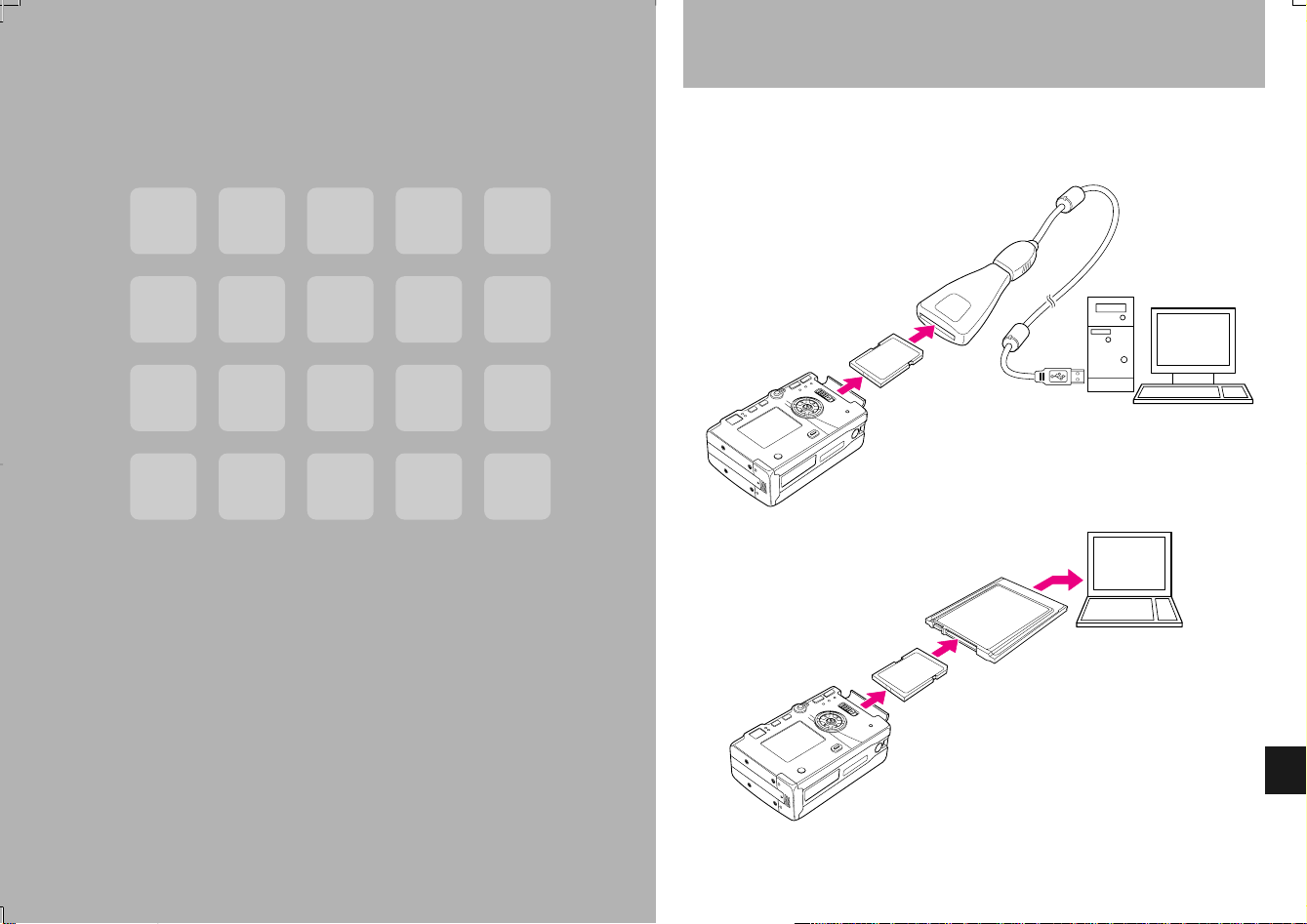

Transferring Images to Other Devices

Other Information

Computer................................. 73

LCD Monitor Operations ......... 76

Caution and Warning Symbols ..

Sending Images to a Printer ..... 74Transferring Images to a

Handling Precautions.............. 77

Troubleshooting ....................... 83

Specifications.......................... 87

Names of Parts

“ ” Macro/ Landscape mode button

(page 24)

Use this button to select Macro or Landscape mode.

“ ” Flash mode button

(page 22)

Use this button to select flash mode.

“DISPLAY” button

In the recording mode ( ), use this button to turn the LCD monitor ON/OFF.

“POWER” button

Use to turn camera power ON/OFF.

Shutter release button

Mode select lever

Use this lever to switch between record, playback, and setup modes.

“@” “#” “%” “ﬁ” buttons

Use to select items on each menu, and to select forward/ reverse playback modes.

“W” “T” Zoom buttons

Use to control the lens’s zoom setting (wide-angle to telephoto) when recording, and to enlarge images during playback.

“ ” button

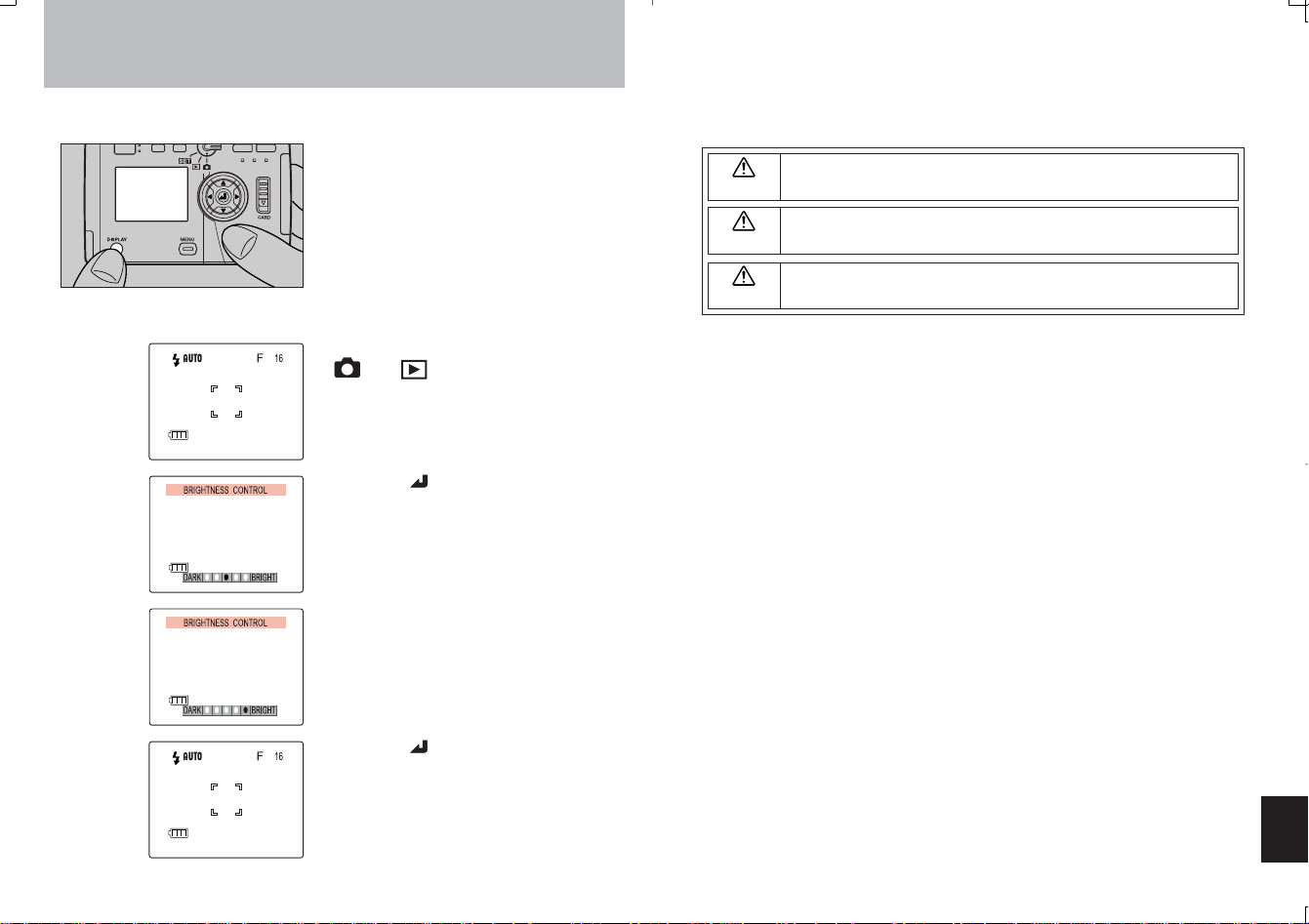

Use this button to adjust LCD screen brightness and to set items on menus.

“MENU” button

Use this button to display or turn off the menus in recording or playback mode.

Caution LED (red)

This LED is used to signal the charge status of the lithium ion battery, the charging status of the electronic flash, and the camera shake warning.

During Recording

Other

LCD monitor

Functions as viewfinder during recording, and displays images and menu information during the playback and setup modes.

Self-timer LED (red)

This LED flashes when using selftimer photography, and it lights steadily when recording moving images or playback and when using the setup mode.

Flash charging

Camera shake warning

During battery charging

Battery charging error

Flashes (about 2 times/sec)

Flashes (about 4 times/sec)

Lights steadily

Flashes

Standby LED (green)

This LED is used to indicate the infocus status and the completion of battery recharging.

Card access LED (orange)

This LED flashes to indicate that the camera is currently writing data to the memory card. ¶ Never open need to standardize

to cover or door, or remove the memory card when this LED is flashing.

Optical viewfinder

Light sensor

Lens and lens cover

Connector cover

Video output connector (page 16) Power supply input socket (page 9)

Battery pack compartment and cover

(page 9)

Flash

(page 18)

Strap lug (page 11)

Memory card door release

Memory card door

(page 10)

Tripod socket

Macro/Landscape mode (page 24) Flash mode (page 22) Metering mode (page 39) Focus mark (lights when focus is set)

Color mode (page 30) / White balance mode (page 31)

Image quality (page 27) Number of images recordable

Auto-Exposure mode (page 34) Sensitivity (page 38) Long time exposure (page 36) /

Exposure compensation value (page 29)

Digital zoom (page 15) Focusing scale (displayed only

during manual focus) (page 35)

Menu display during recording Data (page 12): Automatically displayed

for 3 seconds after power is turned ON. Battery indicator (page 9): Indicates

remaining battery capacity Self-timer (page 26): Displays the

number of seconds remaining until the self-timer releases the shutter.

Loading and Recharging the Battery Pack

Basic

Preparations

Open the battery compartment cover and insert the supplied battery pack.

¶ Be sure to insert the battery pack in

the correct direction; the camera will not operate if the battery pack is loaded incorrectly.

Connect the AC adapter to the camera and plug it into a household outlet to begin recharging.

Standby LED Caution LED

Full recharging requires approximately 5 hours.

During recharging, the caution LED will light steadily. When recharging is completed, the caution LED will go out and the standby LED will light.

Charge the battery pack in accordance with the battery indicator status shown on the LCD monitor.

Low

warning

Charge

required

Loading and Removing Memory Cards

Slide the memory card door release to open the card door.

Insert the memory card.

¶ Slide in the card until it stops with a

secure click.

¶ Be careful to insert the memory card in

the correct direction.

Close the memory card door.

Slide the memory card door release to open the card door, and pull out the memory card.

Write Protect Switch

(SD Memory Cards only)

SD Memory Cards are provided with a write-protect switch. When this switch is moved downward, further recording on the card is disabled, to

LOCK

protect any images and data already on the card. When in this status, no further images can be recorded on the card, and images already on the card cannot be erased.

The LCD monitor will display “WRITE PROTECT”.

Attach the supplied hand strap as shown.

Press the edge of the memory card in slightly before pulling out.

1110

Setting the Date

Follow these instructions to set the date, time, and calendar display mode:

Set the mode select lever to “ ”.

Press the “#” button.

The monitor will show the date/time setting display. Press the “@” and “#” buttons to change the setting item, and the “%” and “ﬁ” buttons to change the numerical values.

To cancel the setting operation: Press the “MENU” button; the setting contents will revert to those before the setting operation was begun.

To confirm the new setting data, press the “

” button.

This completes the operation, and the LCD monitor will return to the menu screen.

Camera

Basics

Using the LCD Monitor when Shooting

Use the LCD monitor to compose your pictures when particularly accurate composition is needed. The image recorded will be the same as that seen through the monitor .

1. Set the mode select lever to ” , then press the power

“ ON/OFF button to turn on camera’s power.

An electronic beep will be heard for several seconds, followed by the appearance of the LCD monitor.

Automatically displayed for 3 seconds, then turns off.

2. Hold the camera steadily with both hands as shown to avoid camera shake.

3. Compose your picture while watching through the LCD monitor.

Press the zoom buttons to range between telephoto and wideangle lens settings, thus enlarging or reducing the size of your subject. Press the “T” button to enlarge the subject, and the “W” button to reduce the size of the subject.

The magnification ratio is displayed on the screen.

4. Press the shutter release button to take the picture

1 Lightly depress the shutter

release button halfway (see page 16) to begin focusing; the focus mark will light and the electronic beep will be heard when focus is locked.

“Beep,

beep”

Blurry pictures are most often caused by camera shake. Find the position and stance that is most comfortable for you and allows you to hold the camera steadily. ¶ Rest the right index finger lightly

on the shutter release.

¶ Take care that the flash and lens

are not covered by your hand or fingers.

¶ Press the shutter release button

gently, without grasping the camera too tightly,

¶ Use the left hand to support the

camera firmly.

¶ Hold your elbows close to your

body and hold the camera steadily.

WT WT

Press the “T” button until the zoom function reaches the maximum telephoto setting; release your finger slightly, then press the button again. The digital zoom will further enlarge the subject in three steps (1.3x, 1.6x and 2x the maximum optical zoom value).

¶ Since electronic circuitry is used

to increase the magnification ratio, the results cannot be seen in the optical viewfinder. Always be sure the LCD monitor is turned ON when using the digital zoom function.

¶ Digital zoom cannot be used

when the LCD monitor is not turned ON.

¶ Digital zoom also cannot be

used when image quality is set to [T] or [ ]. If pictures are taken with digital zoom when image quality is set to [S] or [F], actual image quality will be equivalent to [N].

2 Press down further on the

shutter release button to take the picture; recording of the image begins when the electronic beep sound.

“Beep”

The LCD monitor will become momentarily

recorded image will be displayed.

dark, then the

3 The caution LED and card

access LED will flash while the camera is writing image data to the memory card.

Card access LED

Caution LED

1514

Recording Moving Images

¶ Wait until the caution LED has

stopped flashing before taking your next photograph .

¶ When the camera is in the “ ”

mode, setting the auto PowerSave function allows the camera to automatically enter the auto power-off (“power-save”) mode if left inactive for a set period of time. From this “sleep” state, the camera can be restored to its normal shooting condition by depressing the shutter button halfway, or by pressing one of the other function buttons. (For details, see page 60).

¶ Never open the memory card

door or remove a memory card while the card access LED is flashing, since the memory card may be damaged and data lost.

When the shutter release button is pressed down lightly, it will stops part way in its travel. In this semidepressed position, the camera automatically sets focus and exposure. When the shutter release button is pressed further down, the shutter is released and the image is recorded.

Not pressed

The camera can be connected to a television monitor to allow use of the screen as a large viewfinder.

When connected to a television monitor, the camera’s own built-in LCD monitor turns off, and the subject is displayed instead on the television screen. ¶ The camera’s built-in LCD

monitor turns off whenever a video cable is connected to the camera.

¶ Use a standard video cable to

connect the camera to the television.

This function allows you to record up to 15 seconds of simple movie images. The monitor display during movie recording is shown below:

1 Press the “MENU” button.

2 Select [ ], then press the

” button to set for movie

“ recording [

3 Press the shutter release

button to begin recording; fifteen seconds later the recording will end automatically.

This number indicates the remaining number of movies that can be

(each movie represents a maximum of 15 seconds of recording time).

¶ To stop recording before the 15

seconds has elapsed, press the shutter release button again.

recorded

<NOTE>

¶ The optical zoom can be used,

but the digital zoom (page 15) does not function during movie recording.

¶ To view movies on a computer,

installation of QuickTime 4.1 or later version is required.

Half-pressed

Fully depressed

1716

Using the Optical Viewfinder

Turning the LCD monitor off will help conserve battery power.

Turning LCD monitor OFF (page 76)

1. Set the mode select lever to ”, then press the

“ “POWER” button to turn power ON.

2. Press the “DISPLAY” button to

turn off the LCD monitor.

3. Hold the camera steadily as

shown to prevent camera shake.

Using the optical viewfinder to compose your picture.

¶ See <Hints for Holding the Camera

Steady> on page 14.

4. Look through the optical viewfinder while composing your image.

Press the “T” button to enlarge the subject, and the “W” button to reduce the size of the subject.

WT WT

When using the optical viewfinder, take note of the distance to your subject. As distance to the subject decreases, parallax (the difference between what you see in the viewfinder and the actual image recorded through the lens) increases. When accurate subject composition is required, use the LCD monitor to take your pictures.

¶ Parallax: see page 25.

5. Press the shutter release button to take the picture.

1 Lightly depress the shutter

button halfway to begin focusing; the focus mark will light and the electronic beep will be heard when focus is locked.

“Beep,

beep”

2 Press down further on the

shutter release button to take the picture; recording of the image begins when the electronic beep sound.

“Beep”

3 The caution LED and card

access LED will light while the camera is writing image data to the memory card.

Caution LED

Card access LED

¶ Your next picture can be taken

when the caution LED stops flashing.

1918

MEMO

Camera

Functions

This section introduces various functions available during image recording. Use them to enhance the range of your camera work.

When shooting with the LCD monitor turned OFF:

Note that the LCD monitor must be turned ON to set functions or to confirm previous settings.

Selecting Flash Mode

A variety of flash modes are available for different conditions.

About 90 cm

Camera

Usable flash range

About 2 meters

When sensitivity is normal

About 2.5 meters

Zoom set at wide

Zoom set at telephoto

When the “ ” button is pressed, the display changes as follows:

[

] Auto flash

mode (default):

[

] Red-eye reduction

auto-flash mode:

[ ] Fill-in flash mode:

[ ] Flash-off mode:

The camera automatically determines lighting conditions and switches between flash and available-light exposure as needed.

The flash fires twice to help reduce the “red-eye” phenomenon*.

In this mode, the flash fires regardless of surrounding light conditions. This mode provides fill-flash when shooting in a backlight environment or under strong sunlight when shadows are cast on the main subject.

In this mode the flash does not fire. This mode is effective when shooting an evening sunset or to preserve indoor mood.

1 Press the “ ” button to select

the desired flash mode.

Display appearance when the “red-eye reduction” mode is selected.

2 Press the shutter release

button to take the picture.

<NOTE>

¶ If the caution LED flashes when

the shutter release button is depressed halfway, it indicates that a slow shutter speed will be selected (low light conditions); in this case, use of a tripod is recommended to prevent camera shake.

¶ If the caution LED flashes when

the shutter release button is depressed halfway, it indicates that a slow shutter speed will be selected (low light conditions); in this case, use of a tripod is recommended to prevent camera shake.

* “Red-eye” Phenomenon: This phenomenon may occur when using flash to

photograph persons or pets under dark conditions. In some cases, the flash reflects against the retinas of the subject’s eyes, causing the pupils to appear red in the photograph.

2322

Macro and Landscape Photography

Use the macro and landscape shooting modes when photographing extremely close and distant subjects.

About 6 cm (zoom set at wide)

About 90 cm

Camera

Macro range Normal photography

Landscape range

Each time the “ ” button is pressed, the mode changes alternately as follows:

[No display] Normal mode

[

] Macro mode

] Landscape mode

Sharp images are produced when shooting subjects between 6 cm and 90 cm (at wideangle setting) from the camera.

Sharp images are produced of landscapes and other distant subjects.

1 Press the “ ” button

and select the desired mode.

Display appearance when the macro mode is selected.

2 Press the shutter release

button to take the picture.

When shooting in the macro mode, pressing the “ will permit macro flash photography.

Take care, however, since very close subjects may receive excessive exposure. In this case, use the exposure compensation function to compensate the exposure.

” button

<NOTE>

When shooting with the optical viewfinder (LCD monitor turned OFF), if the macro mode [ ] is selected, the LCD monitor will automatically turn ON when the shutter release button is depressed halfway.

Since parallax occurs when using the optical viewfinder for macro photography, we recommend that you use the LCD monitor to compose your photographs when shooting extreme closeups. * Parallax refers to the difference

between what is seen in the viewfinder and the actual image recorded through the camera’s taking lens.

View through optical viewfinder

Image actually recorded by camera

2524

Using the Self-Timer

Setting Image Quality (File Compression)

The self-timer is a convenient function when you wish to include yourself in your pictures, or to avoid camera shake when shooting closeups.

]: The shutter is released ten seconds after pressing the shutter

[

release button. Use this setting when you need time to enter the picture composition yourself.

]:The shutter is released 2 seconds after pressing the shutter

[

release button. Use this setting with a tripod during macro photography and during lengthy exposures to avoid camera shake.

1 Press the “MENU” button.

2 Press the “@” button to select

[

3 Press the “ ”button and

select the desired self-timer delay time [

] or [ ].

Display appearance when 10second delay is selected.

4 Press the “MENU” button to

turn off the MENU display.

5 With camera on tripod,

compose your picture and when ready, press the shutter release button.

¶ Follow the same procedure to return

to normal shooting mode.

Use this function to change the amount of file compression and thus image quality, and when shooting movies.

[N] Normal 1024 × 768 About 280 KB [F] Fine 2048 × 1536 About 1 MB [S] Super Fine 2048 × 1536 About 2 MB [T] TIFF-RGB (no compression) 2048 × 1536 About 9.1 MB

[ ] Movie 320 × 240

¶ When TIFF-RGB [T] is selected, color mode cannot be used to select B/W or

Sepia.

¶ Capacities are only given as general references. Actual file size will differ

depending on the color and other characteristics of the image photographed.

Quality Image Dimensions (Pixels) File Size

(Maximum 15 seconds)

1 Press the “MENU” button.

2 Press the “@” button to select

[

3 Press the “ ” button to select

the desired image quality or movie mode.

Display appearance when [N] (Normal) mode is selected.

4 Press the “MENU” button to

turn off the menu display.

5 Press the shutter release

button to take the picture.

2726

Exposure Compensation

For high image quality, select [S] or [F] compression; when taking pictures for viewing on a television monitor, select [F] or [N], and when taking pictures which will be used in small size on the Internet or other computer application, use [N]. When images are to be enlarged, or when image quality is particularly important, select [S] or the uncompressed [T] mode. Remember that the uncompressed TIFF-RGB [T] mode results in very large file sizes (approximately 9.1 MB), and requires high memory card capacity.

This function provides a range of compensation for exposure.

1 Press the “MENU” button.

2 Press the “@” or “#” button

and select [

” button to confirm the

the “

], then press

selection.

3 Press “%” or “ﬁ” button to

select the desired amount of exposure compensation, then press the “

” button to

confirm the selection.

Display appearance when +0.7 is selected.

4 Press the “MENU” button to

turn off the menu display.

5 Press the shutter release

button to take the picture.

+2.0

⋅ ⋅ ⋅

+0.7 % ﬁ +0.3 % ﬁ ±0.0 % ﬁ –0.3 % ﬁ –0.7 % ﬁ –1.0

⋅ ⋅ ⋅

–2.0

¶ During flash photography, exposure

compensation is limited to the range of ± 1.0 step, regardless of the value shown in the display.

Press the “%” button to increase the amount of exposure (+), and the “ﬁ” button to decrease exposure (–).

2928

Using Color Mode for B&W and Sepia Images

White Balance

In addition to the normal color picture mode, you can also take pictures in black and white (B/W) or sepia tone (Sepia).

¶ B/W and sepia picture modes cannot be selected when image quality is set

for uncompressed TIFF-RGB [T] format.

1 Press the “MENU” button.

2 Press the “#” button to select

3 Select [COLOR MODE], then

], then press the “ ”

[ button to confirm the selection.

press the “#” button.

4 Press the “%” or “ﬁ” button to

select either [SEPIA] or [B/W] mode.

5 Press the “@” button.

6 Press the “MENU” button

twice to turn off the menu display.

Display appearance when [SEPIA] mode is selected.

7 Press the shutter release

button to take the picture.

An image’s color will change depending on the kind of light source present. Select the white balance as follows to compensate for different light sources.

[AUTO]

[ [ [ [ [PRESET] Use this setting when you wish to set the white balance

(default) In this mode, the white balance is set automatically by

the camera. ] Bright sun ]Incandescent light bulbs (Tungsten)

] Cloudy weather

] Fluorescent light

manually. Instructions for setting the white balance can

be found on page 33.

1 Press the “MENU” button.

2 Press the “#” button and

select [ “

” button to confirm the

selection.

], then press the

3 Press “%” or “ﬁ” button to

select [WB MODE], then press the “#” button.

4 Press “%” or “ﬁ” button to

select the desired white balance mode ([

], or [ ]).

[

], [ ],

3130

5 Press the “@” button.

6 Press the “MENU” button

twice to turn off the menu display.

Display appearance when [ ] is selected.

7 Press the shutter release

button to take the picture.

Use this function to manually set the white balance value. It allows you to select what part of the subject you wish to serve as the standard for “white” in the final image. For more exacting settings, use of a piece of white paper or cardboard is recommended.

¶ Electronic zoom must be disabled when setting the preset white balance

value.

1 Select [PRESET], then press

” button to confirm

the “ selection.

2 Point the camera at the white

part of the subject or other material you wish to serve as the white standard in the image.

3 Press the “ ” button to set

the white balance.

4 Press the “MENU” button

twice to turn off the menu display.

Display appearance when [PRESET] is selected.

5 Press the shutter release

button to take the picture.

Make sure the white material fills up the entire screen as shown.

3332

Aperture-Priority Photography

By default, the camera uses a programmed automatic exposure mode which automatically sets both aperture and shutter speed in accordance with the available light. In the aperture-priority AE mode, you can manually fix the aperture at either F2.8 or F6.2 (values at the wide-angle setting), and the camera will automatically set the shutter speed for the correct exposure at that aperture.

1 Press the “MENU” button.

4 Press the “%” or “ﬁ” button to

select [F6.2] or [F2.8].

2 Press the “#” button to select

3 Press the “%” or “ﬁ” button to

], then press the “ ”

[ button to confirm the selection.

select [AE MODE], then press the “#” button.

5 Press the “@” button.

6 Press the “MENU” button

twice to turn off the menu display.

Display appearance when [F6.2] is selected.

7 Press the shutter release

button to take the picture.

Using Manual Focus

The camera is set by default to automatic focus (AF), but is can also be used with manual focus (MF) if desired. When MF is selected, a focusing scale is displayed on the screen; the user specifies the desired focusing distance.

1 Press the “MENU” button.

4 Press the “%” or “ﬁ”button to

select [MF] or [AF].

2 Press the “#” button to select

], then press the “ ”

[ button to confirm the selection.

3 Press the “%” or “ﬁ” button to

select [FOCUSING], then press the “#” button.

5 Press the “@” button.

6 Press the “MENU” button

twice to turn off the menu display.

Display appearance when [MF] is selected.

7 Press the “@” or “#” button to

specify the desired shooting distance on the focusing scale, then press the shutter release button to take the picture.

Accurate focusing may not be possible at subject distances of 0.9 m.

Long Exposure Mode (Time Exposure)

By extending the shutter speed (the time the shutter remains open during an exposure), you can photograph darker subjects like a night scene or a moody indoor scene. Long shutter speeds of 8, 4, and 2 seconds can be selected.

¶ To avoid camera shake, use of a tripod is recommended when using time

exposures.

1 Press the “MENU” button.

2 Press the “#” button to select

], then press the “ ”

[ button to confirm the selection.

3 Press the “%” or “ﬁ” button to

select [LONG EXP], then press the “#” button.

4 Press the “%” or “ﬁ” button to

select [8 SEC], [4 SEC], or [2 SEC].

5 Press the “@” button.

6 Press the “MENU” button

twice to turn off the menu display.

Display appearance when [4 SEC] is selected.

7 Press the shutter release

button to take the picture.

¶ The exposure compensation

[ ] function is disabled when using long exposures.

By pressing the “

” button, the red-eye reduction fill-in flash mode can also be selected together with long exposures.

This flash mode is effective when shooting pictures of human subjects against a sunset or night scene.

3736

Increasing Exposure Sensitivity to 2x, 4x

Selecting the Metering Mode

This camera is set by default to a standard sensitivity, but the sensitivity can be increased by a factor of 2x or 4x when desired. This allows you to fine-tune exposure for important scenes, or when lighting is somewhat insufficient.

1 Press the “MENU” button.

2 Press the “#” button to select

], then press the “ ”

[ button to confirm the selection.

3 Press the “%” or “ﬁ” button to

select [SENSITIVITY], then press the “#” button.

4 Press the “%” or “ﬁ” button to

select [X4], [X2], or [ST ANDARD].

5 Press the “@” button.

6 Press the “MENU” button

twice to turn off the menu display.

This function allows you to select from three types of light-meter operation. Select the mode that best suits your subject and type of photography.

[EVALUATION] Evaluative Metering (default):

[CENTER] Center-Weighted Metering:

[SPOT AREA] Spot Metering:

The evaluative metering method divides the entire screen area into areas and evaluates the amount of light striking the screen area, setting the optimum exposure for the available lighting conditions. This mode provides correct exposures for general photography and a wide variety of conditions with normal light and dark.

The center of the screen ( calculating correct exposure. This mode is optimum when you wish to emphasize the lighting conditions in the center part of the screen.

This mode calculates exposure based only on the light striking the small central spot ( you wish to set the exposure based on the light striking a small part of the subject.

Guideline for Light-Metering

) is given emphasis in

). Use this mode when

LCD monitor

Spot meter Center-weighted

meter

Display appearance when [X4] is selected.

7 Press the shutter release

button to take the picture.

3938

Other Functions

1 Press the “MENU” button.

2 Press the “#” button to select

3 Press the “%” or “ﬁ” button to

], then press the “ ”

[ button to confirm the selection.

select [METERING], then press the “#” button.

4 Press the “%” or “ﬁ” button to

select [SPOT AREA], [CENTER], or [EVALUATION].

5 Press the “@” button.

6 Press the “MENU” button

twice to turn off the menu display.

Display appearance when [SPOT AREA] is selected.

7 Press the shutter release

button to take the picture.

Camera focus and exposure are measured and locked when the shutter is depressed halfway. If you find that your focus is occasionally correct, particularly when shooting subjects located at the edge of the screen, use this feature in conjunction with the exposure mode to produce better focus results.

1 Point the center focus frame at

the subject you wish to be in clear focus and depress the shutter button halfway. The focus will be locked on the central subject.

2 While keeping the shutter

release button depressed halfway, move the camera to compose the subject as desired, then press the shutter the rest of the way down to take the picture.

Certain exposure symbols on the LCD monitor can be temporarily turned off if desired to avoid cluttering the screen.

¶ The flash mode, macro/landscape

mode, and self-timer mode symbols cannot be turned off.

For example, when the camera is set to the exposure conditions and functions shown in the accompanying illustration, pressing the “%” or “ﬁ” button will cause the symbols to disappear temporarily as shown.

Press the “%” or “ﬁ” button again to restore the symbols to the screen.

4140

Displaying Images on the LCD Monitor

Playing Movies


Playback

Basics

To prevent depletion of the battery, use the AC adapter when displaying images for an extended time.

¶ Confirm that a memory card

containing photographic images is loaded in the camera.

Set the mode select lever to “ ” and turn camera power ON.

The image will be displayed on the LCD monitor. To display images in the order they were taken, press the “#” button; to display images in the reverse order, press the “@” button.

To play movies, press the “%” button and select [3], then begin the movie playback by pressing “

”.

Pause

Reverse playback

Frame-by-frame playback can be used during the pause mode.

Forward frame advance

Reverse frame advance

A television screen can be used to preview your photographs.

¶ When connected to a television

in this way, the LCD monitor turns off automatically.

4342

Advanced Image

Playback and

“Thumbnail” Picture Review in Forward/Reverse Direction

Thumbnail images of your pictures can be viewed quickly in succession in either the forward or reverse direction.

“Thumbnails” are reduced-size versions of the original images in your camera, and are displayed as follows:

1 Set the mode select lever to

”, then hold the “@” or

“ “#” button depressed.

2 In a few seconds, thumbnail

images of your recorded pictures will begin appearing in succession.

Delete Functions

Closeup Image Playback (2x)

Images can be enlarged to twice their original size during playback to focus on certain features when desired.

1 Display the image you wish to

enlarge.

2 Press the “T” button.

The central part of the photograph will be enlarged by 2x.

3 Use the “%”, “ﬁ”, “@”, and

“#” buttons to move the screen to the part of the image you wish to view.

¶ To change to a different

photograph, first press the “W” button to return to the original image size.

Displaying Exposure Information

Multiple Image Display (Index Display)

Information regarding the exposure conditions and functions set at time of exposure can be displayed.

1 Select and display the image

whose information you wish to see.

2 Press the “%” button.

Folder name and

Image file name

Date of exposure

Shutter speed

Aperture

3 Press the “%” button again to

turn off the information display.

¶ The “ﬁ” button can also be used to

select the information display.

Protect status

File size Image quality setting

DPOF setting contents: number of prints and date imprint ON/OFF

Exposure compensation

This function allows you to display six small images at a time on the LCD monitor, providing a quick way to find and index your pictures. This feature can be used in conjunction with other functions on the playback menu.

1 Press the “MENU” button.

2 Press the “ ” button.

Multiple image playback.

3 Use the “%”, “ﬁ”, “@”, and

“#” buttons to move to the desired picture.

4 Press the “ ” button to

display the selected picture normally.

During use of multiple image display, pressing the “MENU” button will allow simultaneous use of other playback functions (see page 48-51, 53-55). Use the “#” and “@” buttons to select the desired playback function.

¶ Individual images cannot be

selected when the menu is displayed. To select an image, press the “MENU” button to turn off the menu first.

¶ The image rotation function

cannot be used together with multiple image display.

4746

Erasure Prevention (Image Protect Function)

Erasing Individual Images

This function can be used to place a protective lock on individual pictures, preventing the inadvertent erasure of important images on your memory cards. This function is particularly convenient when used when erasing multiple images, or using the all-erase function (page 50).

1 Press the “MENU” button.

Press the “#” or “@” button to select [PROTECT].

2 Press the “ ” button.

3 Press the “@” or “#” button to

select the picture you wish to protect.

4 Press the “ ” button to

confirm the selection and complete the operation.

¶ To unprotect an image, repeat the

above procedure.

To continue by placing protection on other images, repeat steps 3-

4. To cancel or interrupt the function,

select [RETURN], followed by the “

” button, or else press the

“MENU” button.

¶ After setting the protect function,

you can confirm your selections by displaying the information screen (page 46), or by using the multiple image display function (page 47)

and looking for the lock mark [ ] on the image.

1 Press the “MENU” button.

Press the “#” or “@” button to select [ERASE].

2 Press the “ ” button.

3 Press the “@” or “#” button to

select the picture you wish to erase.

4 Press the “%” button to select

[EXECUTE].

5 Press the “ ” button to

confirm the selection and erase the image.

¶ When an image is erased, the next

image on the card will be displayed automatically.

To erase other images, repeat steps 3-5.

To cancel or interrupt the function, select [CANCEL], followed by the “

” button, or else press the

“MENU” button.

4948

Erasing All Images

1 Press the “MENU” button.

Press the “#” or “@” button to select [ALL ERASE].

2 Press the “ ” button.

3 Press the “%” button to select

[EXECUTE].

¶ To cancel the operation, select

[CANCEL], followed by the “ ” button.

4 Press the “ ” button to

confirm the selection and erase all images on the card.

Display during the all-erase operation.

5 When all images have been

erased, the message [NO IMAGE] will be displayed; if a protected image is present, it will be displayed.

Simultaneous use of the all-erase function and image protect function is a convenient way to quickly erase multiple images from a memory card, while leaving other images on the card. Example: Out of 30 images on a memory card, you wish to leave 5 while erasing all the others.

¶ Multiple image display is shown.

First, use the “image protect” function to prevent the erasure of the five desired images.

Next, use the “all erase” function.

Only the five protected images remain; all others are erased from the memory card.

5150

Rotating Images

Automatic Playback (Slide Show)

Images can be rotated 90° to either right or left.

¶ This function cannot be used during multiple image display.

1 Press the “MENU” button.

Press the “#” or “@” button to select [ROTATE].

2 Press the “ ” button.

3 Press the “@“ or “#” button to

select the picture you wish to rotate.

4 Press the “%” or “ﬁ” button to

select [

90°] or [ 90°]

5 Press the “ ” button to

confirm the selection and rotate the image.

¶ To cancel or end the operation,

select [RETURN], followed by “ ”, or press the “MENU” button.

This function plays back images automatically at set intervals.

1 Press the “MENU” button.

Press the “#” or “@” button to select [AUTO PLAY].

2 Press the “ ” button. Use the

“%”, ﬁ”, @”, and #” buttons to select the interval and start frame.

Select the playback interval from [MINIMUM], [10 SEC], [15 SEC] or [30 SEC].

Slide show starts.

Operation is canceled and returns to menu screen.

Selects the start frame. [THIS FRAME]: Slide show will begin from the image frame displayed immediately before this operation was begun. [FIRST FRAME]: Slide show will begin from the first image recorded on the memory card.

3 With [START] selected, press

“#” or the “

” button to begin the slide show playback. Images will be played back in order, beginning with the selected start frame.

4 To end the slide show, press

the “MENU” button.

5352

Digital Print Order Format (DPOF) Setting

Digital Print Order Format (DPOF) is a format used when printing out digital photographs on a home printer or by a commercial printing service. The function is a simple way of specifying the number of copies to be printed, the need for date imprinting, and so on. Before using this function, confirm that your home photo printer or commercial photo printing service supports DPOF. When printing on a home printer, be sure to read and follow the operating instructions for your home printer.

DPOF setting data is stored on the memory card separately from the image files.

1 Display the image you wish to

set the DPOF for.

2 Press the “MENU” button.

Use the “#” button to select [PRINT].

3 Press the “ ” button.

Press to cancel the PRINT and INDEX setting contents.

Select index print ON/OFF.

Set number of prints, and date imprint ON/OFF.

4 Press the “#” button to display

the print submenu.

Select date imprint ON/OFF.

Specify number of prints.

5 After completing all settings,

select [RETURN] and press the

” button.

“

6 To print an index sheet, press

[INDEX], followed by “#”, [SET UP INDEX PRINT], and the “ button.

7 Select [RETURN] and press

” button to complete

the “ settings.

Index print ON/OFF Total number of prints selected

¶ To confirm the number of

prints set for each individual picture, use the information screen (page 46).

<NOTE>

¶ Since DPOF data is preserved as

part of the overall memory of the memory card, setting may not be possible if the memory card has insufficient remaining space.

¶ Do not use a personal computer

to delete or modify DPOF image

”

data on a memory card.

¶ When submitting a memory card

to a commercial photo printing service for printing, first use the information screen (page 46) to confirm the number of prints desired for each image.

¶ Any pictures taken after setting

the DPOF for an index print will not be included on the index print. To include the new pictures, set the index print option once again.

5554

Formatting Memory Cards

Formatting a memory card prepares the card for use, and erases all previously taken images and other data. Care should be taken when using the formatting function, since reformatting a memory card will also result in the loss of “protected” images.

¶ When SD Memory Cards are set to write protect, formatting is not possible.

Camera Setup

Options

1. Set the mode select lever to ”, and turn camera power

“ ON.

2. The setup menu will be

displayed.

1 Press the “ﬁ” button and

select [FORMAT].

2 Press the “#” button.

3 Press the “%” button to select

[EXECUTE].

4 Press the “ ” button to begin

formatting.

¶ Formatting cannot be canceled after

it begins.

5 The setup function menu will

appear to indicate completion of formatting.

5756

Turning the Electronic Tone ON/OFF

Image erasing and memory card formatting functions differ in the following ways:

Photographed images are recorded on the memory card in data folders and files as shown.

Single-Picture Erase

¶ When the single file

PICT0001.jpg is erased.

All Erase Format

¶ All image files and

folder structures are erased. New folders must be created.

The electronic beeping tone heard when the shutter button is pressed can be set to ON or OFF as desired.

¶ Warning beeps and the operating sound made when power is turned ON

cannot be disabled.

1 Press the “%” or “ﬁ” button to

select [BEEP].

2 Press the “#” button.

3 Using the “%” or “ﬁ” button,

set the beep to [OFF] or [ON].

4 Press the “@” button (or “ ”

button) to complete the setting.

5958

Selecting Auto Power-Off (Power-Save Function)

When this function is selected, the camera’s power will automatically turn off if the camera is inactive for a set period of time. The auto power-OFF function can be set to turn the camera off after 6 minutes, 2 minutes, or 1 minute of inactivity, or not at all (power stays on indefinitely).

1 Press the “%” or “ﬁ” button to

select [POWER SAVE].

2 Press the “#” button.

3 Using the “%” or “ﬁ” button,

select [6 MIN], [2 MIN], [1 MIN] or [NO PWR OFF].

¶ Setting the function to [NO PWR

OFF] disables the auto-off function,

and the camera will not turn off by itself.

4 Press the “@” button (or “ ”

button) to complete the setting.

When using the camera in the “ ” mode, the auto power-off setting will cause the camera to respond as noted:

1. When [POWER SAVE] is set to [1 MIN], [2 MIN] or [6 MIN]:

With this setting, if the camera is left inactive for more than the specified period of time, it will automatically enter the sleep mode for two minutes, after which the power will turn off. During the two-minute power-save sleep period, the camera can be quickly restored to its original shooting mode by depressing the shutter button halfway, or by pressing one of the other function buttons. After the two minutes have expired, the camera’s power will automatically turn off.

2. When [POWER SAVE] is set to [NO PWR OFF]:

With this setting, when the camera is left inactive for more than six minutes, it automatically enters the sleep mode. (In this case, the camera remains in the sleep mode indefinitely, without the power turning off.) To restore the camera to its normal shooting mode, depress the shutter button halfway, or press one of the other function buttons.

1 MIN

2 MIN

2 MIN 2 MIN 2 MIN

6 MIN 2 MIN6 MIN NO PWR

OFF

6 MIN

Power on and camera in ready but inactive state. Sleep mode; camera operation stops with lens in

extended position, but function can be restored by pressing shutter button halfway, or by pressing other function button.

Power OFF.

6160

Selecting the Automatic Focus Mode

Mode Lock ON/OFF

This function allows you to set the auto focus format to either [CONTINUOUS] (the automatic focus mechanism operates continuously when the camera is turned on), or [SINGLE] (the auto focus mechanism operates only when the shutter release button is depressed halfway). The relationship between the two modes, power consumption, and the lag time between shutter press and actual image recording is as noted below. Select the mode most appropriate to your needs and style of photography.

[CONTINUOUS]: So long as the camera is in recording mode, the auto focus mechanism operates continuously to focus the lens. Since the focus motor is operating continuously, less time is needed to begin image recording when the shutter release button is pressed, but power consumption is greater.

[SINGLE] (default): The focus motor only begins operating when the shutter release button is depressed halfway. As a result, somewhat longer time is required to begin image recording after the shutter release button is depressed, but less battery power is consumed.

1 Press the “ﬁ” button to select

[AUTO FOCUS].

2 Press the “#” button.

3 Use the “ﬁ” button to select

either [CONTINUOUS] or [SINGLE].

4 Press the “@” button (or “ ”

button) to complete the setting.

When enabled, this function preserves the camera mode functions set when the camera power is turned OFF. As a result, the same mode settings are restored when the power is next turned ON. When this function is disabled, any mode functions previously set will be returned to their default values when the power is turned OFF and then turned ON again.

Flash: No Flash

Before power is turned OFF:

After power is turned ON:

When mode lock is enabled, the function modes set when the camera was turned off are restored when the camera is turned on again.

Image Quality: Super Fine White Balance mode: Fluorescent

When mode lock is disabled, all function modes are returned to their default values when the power is turned on again. (For default values, see page 71, <Functions and Contents of Default Values>.)

6362

Digital Zoom ON/OFF

1 Press the “ﬁ” button to select

[MODE LOCK].

2 Press the “#” button.

3 Press the “ﬁ” button and

select either [ON] or [OFF].

4 Press the “@” button (or “ ”

button) to complete the setting.

This function allows the digital zoom function to be set to ON or OFF. When ON, pressing the “T” button will first cause the lens to zoom to its maximum optical telephoto setting; when pressed again, the digital zoom function will operate to further extend the telephoto range (see page 15). When disabled, only the optical zoom function will operate.

1 Press the “%” or “ﬁ” button to

select [DIGITAL ZOOM].

2 Press the “#” button.

3 Use the “%” or “ﬁ” button to

select [OFF] or [ON].

4 Press the “@” button (or “ ”

button) to complete the setting.

6564

Selecting the Display Language

Selecting the Video Output Mode

The camera’s display language can be set to either English or Japanese.

1 Press the “%” or “ﬁ” button to

select [LANGUAGE].

2 Press the “#” button.

3 Use either the “%” or “ﬁ”

button to select [ (Japanese) or [ENGLISH]

4 Press the “@” button (or “ ”

button) to complete the setting.

When traveling overseas, differences in television standards may make it impossible to view pictures normally on local television monitors. In this case, use this function to select the television standard of the locality in which you are using the camera.

¶ The camera’s default value is NTSC.

]

1 Press the “%” or “ﬁ” button to

select [VIDEO OUT].

2 Press the “#” button.

3 Use either the “%” or “ﬁ”

button to select [PAL] or [NTSC]

4 Press the “@” button (or “ ”

button) to complete the setting.

6766

Creating a New Folder on the Memory Card (Resetting File Numbers)

This function is used to create a new folder on the memory card for the storage of new image data. When new images are added to the folder, their file names will begin again from 0001. This is convenient when you wish to keep photographs filed separately for separate shooting scenes, etc.

Before reset:

Images are stored as files named with consecutive numbers.

After reset:

A new folder is created, and subsequent photographs are stored there, beginning again with the file name PICT0001.jpg.

1 Press the “%” or “ﬁ” button to

select [FILE NO.].

2 Press the “#” button.

3 Press the “%” button to select

[EXECUTE].

4 Press the “ ” button to

complete the setting.

6968

Returning Settings to their Default Values

This function is used to restore the default values of recording mode settings made with mode lock ON, and setup mode values (excluding [DATE], [VIDEO OUT] and [

1 Press the “%” or “ﬁ” button to

select [MODE RESET].

LANGUAGE]).

3 Press the “%” or “ﬁ” button to

select [EXECUTE].

2 Press the “#” button.

4 Press the “@” button (or “ ”

button) to complete the setting.

“ ” Recording Mode:

Flash: Automatic

flash

Macro/Landscape: OFF Self-Timer: OFF Exposure Compensation: OFF Long Exposure: OFF Image quality: F Color mode: COLOR White balance mode: AUTO AE mode: PROGRAM Sensitivity: STANDARD Focusing: AF (auto

focus)

Metering: EVALUATION

“ ” Mode:

Beep: ON Auto focus: SINGLE Mode lock: ON Digital Zoom: ON Power Save: 2 MIN

”/“ ” Modes:

“

BRIGHTNESS CONTROL: Normal

7170

Transferring Images to a Computer

By using SD memory card reader or commercially available card adapter, images can be transferred to a computer, where they can be further copied, manipulated, and deleted.

¶ SD MEMORY CARD READER

(DR-CR1)

Transferring

Images to Other

Devices

Remove memory card from camera.

Insert in card reader.

Insert adapter with memory card into computer’s card drive.

Remove memory card from camera.

Insert memory card in card adapter.

¶ Manipulation of image data contents is performed on the computer.

Sending Images to a Printer

Images can be transferred directly to a printer for printing in accordance with the DPOF setting data (see page 54).

¶ This function operates only with printers which support DPOF modes. For

detailed operation information, consult the instruction manual for your printer.

Remove memory card from camera.

Insert memory card into printer.

Insert memory card in card adapter.

Other

Information

LCD Monitor Operations

In the recording mode, the LCD monitor can be turned ON/OFF by pressing the “DISPLAY” button.

¶ To conserve power, it is recommended

that the monitor be turned off whenever not being actually used.

Caution and Warning Symbols

These Operating Instructions feature the following caution and warning symbols to indicate items of special importance. Be sure to read the contents of these warnings carefully, and use the features correctly.

This symbol indicates procedures which may result in injury to the

CAUTION

WARNING

DANGER

user, or physical damage to the product if not followed properly. This symbol indicates handling procedures which may result in

death or personal injury if not followed properly.

This symbol indicates procedures which have a high likelihood of resulting in death or serious personal injury if not followed properly.

Slide the mode select lever to the

” or “ ” position.

“

Press the “

” button.

Press the “@” or “#” button and adjust the monitor brightness as desired.

Press the “

” button or wait three seconds for the display to return to its previous status.

¶ Monitor brightness cannot be adjusted

when the camera is connected to a television monitor.

Handling Precautions

¶ This camera is not designed to be waterproof, and cannot be used in the rain

or under water. If the camera should inadvertently be exposed to water, it should be taken quickly to a Konica Service Center for inspection.

¶ Fingerprints or smudges on the camera’s lens or light sensors may adversely

affect the precision of the camera. If soiling occurs, use a piece of clean chamois or commercially available lens tissue to gently wipe away the smudge. Do not apply excessive pressure or touch the lens with any rough material. An air blower or lens brush may be used to remove loose dust or dirt from the lens.

¶ Clean the camera body by wiping with soft cloth. Never use benzene, thinner,

or other volatile solvents or cleansers, since such substances will damage the body materials.

¶ Do not remove the SD memory card or Multi-Media Card (MMC) while the card

access LED is flashing.

¶ Interference may occur in recorded or played back images when the camera is

used in areas subject to strong electromagnetic interference (e.g., near a television set or stereo speakers).

¶ Do not direct the camera lens directly toward the sun when shooting, since

the CCD element may be damaged.

¶ Dropping the camera may cause damage to internal parts even though the

camera may appear superficially undamaged. Always take the camera to a Konica Service Center for inspection if it is dropped.

¶ Do not subject the LCD monitor to strong pressure or impact, nor press it with

a pointed object, since the glass screen and other parts may be damaged.

¶ Do not attempt to touch the insides of the memory card slot, since damage or

malfunction may result.

7776

CAUTION

WARNING

¶ Clean the camera well after using it at the beach or other

locations subject to large concentrations of sand or dust. Salt air may promote corrosion of metal components and damage or short circuits in electronic parts, causing the camera to emit smoke or catch fire. Sand inside the camera may result in internal damage and operating malfunctions.

¶ If the camera is brought quickly from a cold place to a warm

room, condensation may form on the lens and internal parts. Such condensation may result in damage or short circuits in electronic parts, causing the camera to emit smoke or catch fire. Whenever possible, avoid subjecting the camera to sudden changes in temperature, and if condensation occurs, turn off the camera power quickly and leave it off until all condensation is gone.

¶ This camera is a precision electronic instrument, and should be

protected from impacts and falls that might cause damage to internal parts or the shorting of circuitry.

¶ When taking the camera overseas or using it to record

important events, check its operating condition and take test pictures beforehand to confirm proper operation.

¶ If camera or batteries become hot, emit smoke or a burning

smell, or display other abnormal symptoms, remove them from the camera immediately to prevent fire. When handling the batteries, take precautions to avoid being burned.

¶ This camera includes high-voltage circuitry; if the camera’s

electronic flash is damaged as the result of an impact or being dropped, do not touch the internal parts of the flash since you may receive a strong electric shock.

¶ Never attempt to disassemble or modify the camera, since you

may receive a severe electric shock.

¶ Do not operate the electronic flash at close proximity to a

person’s eyes (especially those of an infant), since eye damage may result.

¶ Do not look through the camera directly at the sun or other

strong light source, since your eyesight may be damaged.

¶ Do attempt to take pictures while driving or walking, particularly

when looking through the viewfinder or at the LCD monitor, since you may cause an accident.

¶ When taking pictures, remain aware of your surroundings and

what is happening around you.

¶ Do not place the camera in places that may be exposed to high temperatures

for extended periods of time (the beach in summer, a closed car under bright sun, etc.). Such high temperatures may cause adverse affects or damage to the camera, batteries, or memory cards.

¶ Remove the batteries before storing the camera for extended periods of time,

to prevent battery leakage and resulting damage.

¶ Store the camera in a well-ventilated location, avoiding damp or

dusty areas, drawers or boxes containing mothballs, or in laboratories or other locations where chemicals are handled.

CAUTION

Exposure to such chemical fumes can result in damage to the camera’s circuitry, resulting in short circuits and causing the camera to emit smoke or catch fire.

¶ Do not allow the battery pack to come in contact with seawater,

rain, or other source of moisture, since it may emit heat or smoke, catch fire, or expose the user to electric shock.

¶ Do not attempt to use or recharge a wet battery pack, since it

may emit heat or smoke, catch fire, or expose the user to electric shock.

¶ Keep battery packs out of the reach of infants or small children,

to prevent injury.

¶ Do not throw battery packs or subject them to strong impacts,

CAUTION

since the battery may be damaged, resulting in leakage of battery fluid.

¶ Battery packs are designed for use at normal room temperature

(20°C plus or minus 5°C). Battery capacity and usable battery time reduced if the battery is exposed to extreme temperature conditions such as in summer, winter, or when left in a hot car, etc. Exposing the battery to such conditions may also shorten the service lifetime of the battery.

¶ When not using the battery pack, store it in a dry location.

This camera may fail to operate if exposed to very strong electromagnetic waves or static electricity. In this case, remove the batteries and reinsert them again to reset the camera’s circuits.

7978

WARNING

DANGER

¶ Do not place battery pack in microwave oven or other high-

voltage contained, since it may cause the battery to leak fluid, emit heat or smoke, catch fire, or explode.

¶ Do not use a leaking battery pack. Battery fluid is corrosive and

may cause personal injury if it comes in contact with human skin. If battery fluid touches your skin, wash it off quickly with clean water.

¶ Do not use a broken or ruptured battery pack, since it may emit

heat or smoke, catch fire, or expose the user to electrical shock.

¶ Do not recharge or store the battery pack in locations near open

flame, sources of high heat, or flammable gas, since the battery may generate heat, emit smoke, catch fire or explode.

¶ Do not allow any metal object to contact and short-circuit the

plus and minus terminals of the battery pack.

¶ Do not store battery pack together with keys, necklaces, coins or

other metal objects, since the objects may contact the battery terminals and cause a short-circuit.

¶ Do not heat the battery pack, and never dispose of an old

battery pack in fire, since it may emit smoke, catch fire, or explode.

¶ Do not attempt to disassemble or modify the battery pack, since

it may emit heat or smoke, catch fire, and corrosive battery fluid may splash in eyes, resulting in blindness. In the event that your eyes are exposed to battery fluid, flush eyes with copious amounts of clean water and seek medical care immediately.

¶ This battery pack has been designed for exclusive use with the

accompanying camera. The battery pack must be installed in the camera during recharging. Do not attempt to use the battery pack for any application other than that for which it was designed, and do not attempt to recharge it using any commercial recharger, since the battery may generate heat or smoke, catch fire, or explode.

Lithium-Ion Battery Pack.

Please recycle after use.

For best performance, we recommend the use of genuine Konica accessories. Konica is not responsible for any accidents or damage caused by the use of accessories made by other manufacturers or fashioned by the user.

Photographs taken of professional performances, exhibitions, displays, or copyrighted materials may be used only for your own personal enjoyment, and only with the consent of the copyright holders. Other use may constitute violation of applicable copyright laws. Be aware that some performances, exhibitions, or displays may impose restrictions on photographic or other recording even when the purpose of such recordings are personal enjoyment.

¶ To display photos on a television set, use a set equipped with video input

connectors.

¶ Turn off the camera’s power in prohibited locations such as airplanes or

hospitals. Use of the camera in such locations may cause surrounding electronic devices to malfunction.

¶ Prolonged use may cause the AC adapter to feel warm; this is normal and not

a malfunction.

¶ When not using AC power for an extended period, disconnect the AC adapter

from its power outlet as a safety precaution. Before disconnecting the AC adapter from power outlet, first disconnect the connector plug from the camera body.

¶ When using the AC adapter with battery pack installed in the camera, turn the

camera power off before connecting or disconnecting the AC adapter.

¶ This AC adapter has been designed for exclusive use with the accompanying

camera. To prevent danger of fire or electric shock, do not attempt to use it with any appliance other than the one for which it was designed.

¶ Use only the designated AC adapter with this camera. The use of

other adapters may cause accidents or fire hazard.

¶ Do not subject the cord to unreasonable twisting, bending, or

CAUTION

stretching, and never attempt to patch the cord to extend its length.

¶ Do not connect or disconnect the AC adapter with wet hands,

since you may receive an electric shock.

8180

CAUTION

¶ Grasp the body of the adapter when connecting and

disconnecting it from a power outlet, and similarly grasp the connector plug when connecting and disconnecting it from the camera body. Pulling on the cords may cause internal breakage of the wires, resulting in fire or electric shock.

¶ If you observe any damage to the AC adapter, broken wires, or

faulty connector contacts, discontinue use and consult your place of purchase or Konica Service Center as soon as possible.

Troubleshooting

Function

Symptom Cause Remedy

“0” appears as the number of images recordable.

The memory card has insufficient free memory available.

Insert a new memory card, or erase unneeded images on the current card.

¶ Never use the AC adapter when it is incompletely connected to a

power outlet. Faulty contacts may cause abnormal heating, fire, or electrical shock.

¶ Do not tamper with the cord or subject it to excessive force, since

the cord may be damaged, resulting in fire or electrical shock. If the cord is so damaged as to expose the wire core, discontinue use immediately and consult your place of purchase or Konica Service Center .

¶ Due to the danger of electric shock, do not attempt to open the

AC adapter’s cover, or to disassemble, repair, or modify the adapter.

¶ Do not use the adapter when the plug is covered with dust, or do

WARNING

not bring pieces of metal near it, since current may travel through the dust and metal and cause a fire or electric shock. If dust collects on the adapter plug, disconnect it from the electrical outlet and clean away the dust before using.

¶ If the adapter emits smoke or abnormal odors, or if you drop or

damage the adapter, discontinue use and consult your place of purchase or Konica Service Center, since continued use may result in fire hazard.

¶ Do not connect the AC adapter to any source of power other

than a household AC outlet for which it is rated. Using the adapter with other voltages or ratings may cause the hazard of fire or electrical shock.

* The SD logo is a registered trademark. * QuickTime and the QuickTime logo are trademarks used under license.

QuickTime is a trademark registered in the United States and other countries.

* All brand and product names are the registered trademarks or trademarks of

their respective owners.

Record-

ing

The LCD monitor displays “Card has not been inserted”

The LCD monitor displays “Card Error”.

“WRITE PROTECT” appears on the LCD monitor .

Card access LED flashes.

Caution LED flashes slowly.

Caution LED flashes rapidly.

The number of images recordable does not change when a picture is taken.

Green LED flashes.

Focus mark flashes.

No memory card is loaded.

The inserted memory card has been formatted on a different camera or information device.

The write protect switch is activated (SD memory card).

Image data is being written to the memory card.

The flash is charging.

Camera shake warning, indicating that a slow shutter speed has been selected.

The file size of the recorded image was very small.

Focus is not locked on subject (shutter will operate).

Insert a memory card.

Reformat the memory card on the camera (see page

57).

Release the write protect switch, or insert a different memory card.

Remove your finger from the shutter release button and wait for the flashing to stop.

Use a tripod or other means to stabilize the camera.

File size and number of pictures recordable differ depending on the image quality setting and subject conditions; not a malfunction.

Use the focus lock function (page 41) to lock the focus on a part of the subject with higher contrast before final composition of the image.

8382

Function

Record-

ing

Playback

Symptom Cause Remedy

LCD doesn’t appear.

Images appear with severe visual noise.

Images do not appear on the television monitor .

“Card Error” appears in LCD monitor.

“No Image” is displayed on LCD monitor .

Setting of power-save function may cause camera to enter sleep mode when it is inactive for set period.

A strong magnet or other electromagnetic generator is located too near the camera or television set.

The camera is not correctly connected to the television set.

The video output mode selected doesn’t match that of the television standard.

The memory card contains image data of a non-compatible file format.

The memory card format is noncompatible with the camera.

Memory card is not loaded correctly.

Nothing is recorded on the memory card.

Press shutter button halfway , or press other function button to return camera to normal operating condition. Since camera response differs depending on the setting of the Power-Save function, consult p. 61 for details.

Move the camera away from the magnet or electromagnetic field.

Confirm your connections are correct.

Set the video output mode to match the television standard (page 67).

View the images with a computer.

Remove the memory card and reload it correctly.

Insert a memory card with recorded image data.

Function

Playback

Erasing

Recharg-

ing

Other

Symptom Cause Remedy

Image cannot be rotated or set for DPOF.

Image cannot be erased; “ ” mark appears.

Image cannot be erased

The number of images recordable didn’t change when an image was erased.

Can’t recharge the camera.

Can’t recharge the camera. Or it is canceled midway through. Caution LED flashes slowly.

Nothing appears on the LCD monitor.

Nothing appears on the LCD monitor .

The write protect switch is set (SD memory card).

The image is protected. Release the image protect

Image data was recorded on a different camera or device.

The size of the erased image file was very small.

No lithium ion battery pack is loaded.

Ambient temperature is too high or too low, causing the charger’s protect circuits to operate and interrupt the recharging function.

Battery power is depleted, or no battery pack is loaded.

The auto-off function has operated to turn power off (page 60).

Release the SD memory card’ s write pr otect lock (page 11).

function (page 48).

The image cannot be erased normally by the camera. The card can be reformatted to erase all images.

File size and number of pictures recordable differ depending on the image quality mode and subject conditions; not a malfunction.

Insert the battery pack into the camera.

Ambient temperature during recharging should be between +10°C and +30°C. (In practice, a range of +5°C

- +40°C is possible, but the recharging time may become somewhat longer).

Insert the lithium ion battery pack into the camera and recharge if necessary.

Press the main power switch again to turn power ON.

“Card has not been inserted” is displayed on LCD monitor .

Memory card is not loaded.

Load memory card into camera.

8584

Specifications

Function

Other

Symptom Cause Remedy

The camera feels hot.

“ERROR-xx” appears in the LCD monitor.

ERROR-99 appears in monitor .

Large power consumption occurs during use of the LCD monitor; the camera may feel warm when the LCD monitor is used for a long period of time.

Very rarely, a strong external electrostatic field may cause the camera to stop operating.

Camera has become overheated due to being left in closed car or other environmental conditions.

This in itself is not a malfunction, but the camera should be allowed to cool before continuing use.

Remove the lithium ion battery pack and load it once again, then turn on the power.

ERROR-99 will continue to appear until the camera's internal temperature cools. Turn power OFF and set camera in shaded location until it cools.

Type: Digital still camera with record, playback, and erase

modes. Recording medium: SD Memory Card, Multi-Media Card (MMC) Recording Capacity (Guideline) and Image Dimensions in Pixels: (when using 16MB SD Memory Card, all pictures taken in the same mode).

Super Fine: About 7-9 (2048 × 1536 pixels) Fine: About 15-19 (2048 × 1536 pixels) Normal: About 54-64 (1024 × 768 pixels) TIFF-RGB (non-compressed): About 1 (2048 × 1536 pixels) Movies (15 seconds each): About 3 (320 × 240 pixels)

Image Format: Complies with JPEG standard (Exif ver 2.1), DCF

Standard (Design rule for Camera File systems),

supports DPOF. CCD Sensor: 1/1.8” square-pixel interlace readout system CCD with

3,340,000 pixels gross, 3,240,000 effective. Lens: f=7.8 mm - 15.6 mm (35 mm camera equivalent about

38 mm - 76 mm), F2.8-3.5 Focusing Range (measured from front lens surface): About 90 cm - infinity ∞

In Macro Mode: About 6 cm - 90 cm (at wide-angle

setting)

About 35 cm - 90 cm (at telephoto lens setting) Exposure Control/Metering Method: CCD multi-area evaluation, center-

weighted, and spot metering. Control Method: Programmed AE, Aperture-Priority AE, Long Exposure

modes. Exposure Compensation: +2.0 EV to -2.0 EV (in 1/3 steps) Aperture Control: automatic, or manually settable to F2.8 or F6.2. Automatic Exposure Linkage Range: LV6 to LV16 White Balance: Automatic, manual (preset), outdoor (daylight/clouds),

indoor (Tungsten/Fluorescent). Shutter: CCD electronic shutter and programmed electronic

shutter with independent aperture control (1 sec-1/2000

sec, 2 sec, 4 sec, 8 sec). Focusing control: Video feedback auto-focusing (single AF, continuous AF

modes), and manual focusing. Viewfinder: True image zoom viewfinder Flash: Built-in flash, recycling time about 6 seconds (on full

battery charge, at room temperature, based on our

testing standards). Flash range about 90 cm - 2.5

meters (at wide-angle setting).

8786

Recording Modes: Flash modes (auto flash, red-eye reduction, fill-in flash,

flash-off, red-eye reduction forced flash*); macro recording mode, landscape recording mode; color modes (color, B/W, sepia); white balance (Auto, daylight, tungsten, cloudy, fluorescent, preset); AE modes (programmed, F2.8; F6.2); focus (AF/MF); longexposure (OFF/2 sec/4 sec/8 sec); sensitivity (standard/ 2×/4×); metering modes (evaluation; center-weighted; spot). * Settable during long-exposure

Playback modes: Multiple image display; protect; erase* (single image); all

erase* (erases all images in folder \DCIM); image rotation (right/left 90°); slide show; DPOF setting. * Note that files (and folders) recorded on other

manufacturer’s cameras and devices cannot be erased by this camera.

Setup modes: Date; memory card format; electronic tone ON/OFF;

auto power off setting function ON/OFF and time setting (time until camera power turns off automatically); AF mode selection (continuous or single-image); mode lock ON/OFF (preserves mode setting data); digital zoom ON/OFF; display language setting (Japanese/ English); video output standard (NTSC/PAL); file number reset; default reset.

LCD monitor: Built-in, 1.5” 110,000-pixel polysilicon TFT color LCD

monitor; size: 521×218 pixels.

LCD monitor display: Remaining battery capacity; recording mode settings

(flash mode, macro/landscape mode, white-balance mode, AE mode, focus, long-exposure, sensitivity, metering mode); number of images recordable, digital zoom setting (×1.3, ×1.6, ×2.0), date (appears for 3 seconds after power is turned on only), focus frame, SD memory card write protect status (appears only when write protect is enabled); image recorded (still/movie); playback mode setting (multi-image, protect, erase, allerase, rotate, slide-show, DPOF setting); setup mode (date, format, electronic tone, auto-off, AF mode, mode lock, digital zoom, display language, video output, file number reset, default reset).

Self-timer LED (red): lights to indicate self-timer operation, recording

completed. Card access LED (orange): lights when writing to memory card. Standby LED (green): lights to indicate focus display, battery recharging

completed. Caution LED (red): lights to indicate flash charging, camera-shake warning,

lithium ion battery pack recharging and malfunction.

Output mode: NTSC/PAL composite video signal selectable Input/output connector: video output connector (3.5 mm minijack); exter nal

power input connector.

Power: 3.6V lithium ion battery pack, dedicated AC adapter Recharging time: about 5 hours (at +10°C - +30°C) Battery capacity Number of images recordable: (using 50% flash, Fine (reference): Mode):

LCD monitor ON: 140

LCD monitor OFF: 170

Continuous playback time: about 50 minutes (using

LCD monitor)

(All values assume full battery charge, room

temperature, based on our testing standards).

<Other>

Ambient operating temperature: 0°C - 45°C Dimensions: 87(W)×55(H)×30(D) mm (not including protruding parts) Weight: About 165 g (not including memory card or battery

pack)

* All descriptions and specifications are subject to change without notice.

8988

FCC Statement:

Declaration of Conformity

Trade name: Konica Model: Digital Revio KD-300Z Responsible party: KONICA PHOTO IMAGING, INC. Address: 725 Darlington Avenue Mahwar, NJ 07430, U.S.A. Telephone number: 201-574-4000

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help. ¶ Shielded cables must be used for this equipment to comply with the

relevant FCC regulation.

¶ The user is cautioned that changes and modifications made to the

equipment without approval of the manufacturer could void the user’s authority to operate this equipment.

CANADA ONLY

Industry Canada’s Compliance Statement: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Bitte besorgen Sie sich im Fachhandel “Secure Digital Memory Cards” (SD-Speicherkarten) oder “MultiMedia Cards*” (MMC) für den Gebrauch mit dieser Kamera. In dieser Anleitung werden die Karten beider Ausführungen unter dem allgemeinen Begriff “Speicherkarten” zusammengefasst.

* “MultiMedia Card” ist ein eingetragenes Warenzeichen von Infineon

Technologies AG (Deutschland), das unter Lizenz an MMCA (MultiMedia Card Associatoon) vergeben ist.

9190

Minolta KD-300Z User's Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
