Page 1
FrameMaker Ver.5.5(PC) MAINTENANCE SCHEDULE OPTION FOR Di350
98.11.16

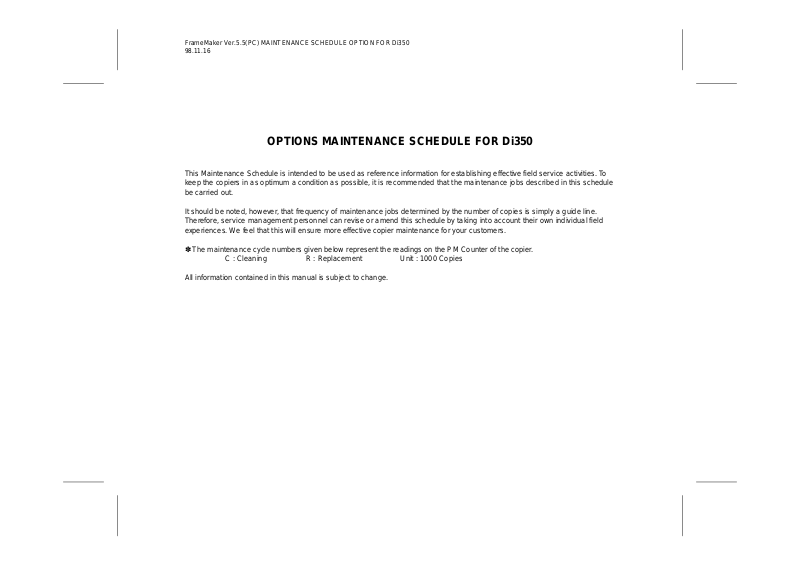

OPTIONS MAINTENANCE SCHEDULE FOR Di350
This Maintenance Schedule is intended to be used as reference information for establishing effective field service activities. To
keep the copiers in as optimum a condition as possible, it is recommended that the maintenance jobs described in this schedule
be carried out.
It should be noted, however, that frequency of maintenance jobs determined by the number of copies is simply a guide line.
Therefore, service management personnel can revise or amend this schedule by taking into account their own individual field
experiences. We feel that this will ensure more effective copier maintenance for your customers.
✽
The maintenance cycle numbers given below represent the readings on the PM Counter of the copier.
C : Cleaning R : Replacement Unit : 1000 Copies
All information contained in this manual is subject to change.
Page 2
FrameMaker Ver.5.5(PC) MAINTENANCE SCHEDULE OPTION FOR Di350
98.11.16
AF-6/AF-7
PM Parts
Maintenance Cycle (K)
CR
Parts No. QTY Reference Page
Separator Roller Assy 30 100 1166-1084-01 1 D-2
Take-Up Roller 30 — — 1 —
Auxiliary Roller 30 — — 1 —
Feed Roller 30 — — 1 —
Turnover Roller 30 — — 3 —
Exit Roller 30 — — 4 —
Document Scanning Position Roller 30 — — 1 —
Document Empty Sensor 100 — — 1 —
Registration Sensor 100 — — 1 —
NOTE
1.During regular maintenance visit, clean or replace parts as necessary.
2.K=1,000 originals
Page 3
FrameMaker Ver.5.5(PC) MAINTENANCE SCHEDULE OPTION FOR Di350
98.11.16
AFR-14
PM Parts
Document Pick-Up Roller (
Document Take-Up Roller (
Document Separator Pad (
✽
)
✽
)
✽
)
Maintenance Cycle (K)
CR
Parts No. QTY Reference Page
30 120 4490-3504-01 2 D-2
30 120 4490-3505-02 2 D-2
30 120 4490-3447-01 2 D-2
Document Transport Belt 30 — — 1 —
Registration Drive Roller 30 — — 1 —
Registration Driven Roller 30 — — 1 —
Turnover Roller 30 — — 1 —
Turnover Roll 30 — — 4 —
Exit Roller 30 — — 1 —
Exit Roll 30 — — 4 —
Registration Sensor 120 — — 2 —
NOTE
1.Replace the parts mar ked with
✽
at the same time.
2.During regular maintenance visit, clean or replace parts as necessary.
3.K=1,000 originals (fed through AFR-14)
Page 4
FrameMaker Ver.5.5(PC) MAINTENANCE SCHEDULE OPTION FOR Di350
98.11.16
PF-106
PM Parts
Paper Take-Up Roll 1
Paper Take-Up Roll 2
Roll with torque limiter
Feed Roll
Separator Roll
Torque Limiter Assy.
✽
✽
✽
Vertical T ransport Roller
Vertical T ransport Roll
Maintenance Cycle (K)
CR
❍
❍
❍
❍
❍
300 4496-3001-02 1 D-3
300 4496-3046-01 2 D-3
—— 1 D-6
200 4496-3013-02 1 D-5
200 4496-3045-01 1 D-5
— 200 4496-0152-01 1 D-5
❍
❍
—— 1 D-6
—— 2 D-6
NOTE
1.The contents of the PM list are subject to change without notice.
2.K=1,000 sheets of paper
3.Clean the mechanism when a paper take-up or transport failure occurs.
4.Replace the parts mar ked with ✽ at the same time.
Parts No. QTY Reference Page
Page 5
FrameMaker Ver.5.5(PC) MAINTENANCE SCHEDULE OPTION FOR Di350
98.11.16
PF-108
PM Parts
Paper Take-Up Roll
Vertical T ransport Roller
Vertical T ransport Roll
Maintenance Cycle (K)
CR
❍
❍
❍
120 4498-3332-01 2 D-1
—— 1 D-1
—— 2 D-1
Parts No. QTY Reference Page
NOTE
1.The contents of the PM list are subject to change without notice.
2.K=1,000 sheets of paper
3.Clean the mechanism when a paper take-up or transport failure occurs.
4.Replace the expansion cassette when the number of sheets of paper that have fed through it reaches 120K.
PF-110
PM Parts
Paper Take-Up Roll
Vertical T ransport Roller
Vertical T ransport Roll
Maintenance Cycle (K)
CR
❍
❍
❍
120 4498-3332-01 2 D-1
—— 1 D-1
—— 2 D-1
Parts No. QTY Reference Page
NOTE
1.The contents of the PM list are subject to change without notice.
2.K=1,000 sheets of paper
3.Clean the mechanism when a paper take-up or transport failure occurs.
4.Replace the expansion cassette when the number of sheets of paper that have fed through it reaches 120K.
Page 6
FrameMaker Ver.5.5(PC) MAINTENANCE SCHEDULE OPTION FOR Di350
98.11.16
AD-10
PM Parts
Duplex Unit Transport Roller
1 and 2
Duplex Unit Transport Roll
1 and 2
Exhaust Vent area 60 — — 1 D-2
Maintenance Cycle (K)
CR
✽ ❍
✽ ❍
—— 2 D-1
—— 4 D-1
Parts No. QTY Reference Page
NOTE
1.The contents of the PM list are subject to change without notice.
2.“✽” means to clean the mechanism when a paper transport failure occurs.
3.K=1,000 sheets of paper.
JS-200/OT-100
PM Parts
Exit Roller 300 — — 1 D-1
Maintenance Cycle (K)
CR
Parts No. QTY Reference Page
NOTE
1.The contents of the PM list are subject to change without notice.
2.K=1,000 sheets of paper.
Page 7
FrameMaker Ver.5.5(PC) MAINTENANCE SCHEDULE OPTION FOR Di350
98.11.16
FN-100/FN-500
PM Parts
Maintenance Cycle (K)
CR
Parts No. QTY Reference Page
Each Roller and Roll 300 — — — —
NOTE
1.K=1,000 sheets of paper
2.During regular maintenance visit, empty Punch Scrap Box as necessary.
Page 8
FrameMaker Ver.5.5(PC) MAINTENANCE SCHEDULE OPTION FOR Di350
98.11.16
Copyright
1999 MINOLTA Co., Ltd.
Printed in Japan
Use of this manual should
be strictly supervised to
avoid disclosure of
confidential information.
Issued for Di350 and other Models.
MINOLTA Co., Ltd.
4490-7993-11 99022400
