FrameMaker Ver.5.5(PC) Di350 MAINTENANCE SCHEDULE
98.11. 9

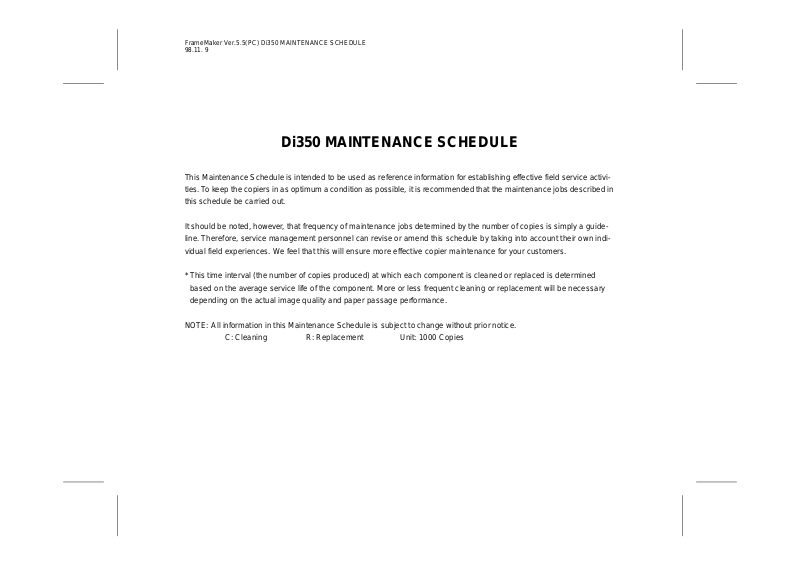

Di350 MAINTENANCE SCHEDULE
This Maintenance Sch edu l e is inte nded to be used as reference information for establishing effective field service activities. To keep the copiers in as optimum a condition as possible, it is recommended that the maintenance jobs described in
this schedule be carried out.
It should be noted, however, that frequency of maintenance jobs determined by the number of copies is sim pl y a guideline. Therefore, service managem ent personnel can revise or amend thi s sc hedule by taking into account their own ind ividual field experiences. We feel that this will ensure more effective copier maintenance for your customers.
* This time interval (the number of copies produced) at which each com ponent is cleaned or repl ac ed is determined
based on the average serv ice l ife of the component. More or less frequent cleaning or repla cement will be necessary
depending on the actual im age quality and paper passag e performance.
NOTE: All information in thi s M ai nt enance Schedule is subjec t to change without prior not ice.
C: Cleaning R: Replacement Unit: 1000 Copies
Page 2
FrameMaker Ver.5.5(PC) Di350 MAINTENANCE SCHEDULE
98.11. 9
■ PAPER TAKE-UP/TRANSPOR T SECTION K=1,000 copies
PM Parts
Paper Take-Up Roll - 120 1164-3001-01 1 D-10
Paper Dust Remover 60 120 1165-0756-01 1 D-10
Side Cover 60 - - - D-11
Duplex Unit Cover 60 - - - D-11
Maintenance Cycle (K)
Clean Replace
Parts No. QTY
Reference
Page
■ OPTICAL SECTION
PM Parts
Mirrors/Lens 120 - - - D-16
Scanner Rails/Bushing s 60 - - - D-15
Original Glass 60 - - 1 D-16
Maintenance Cycle (K)
Clean Replace
Parts No. QTY
Reference
Page
■ IMAGE TR ANSFER SECTION
PM Parts
Image Transfer Roller - 150 1164-0335-01 1 D-23
Comb Electrode 60 - - 1 D-23
Pre-Image Transfer Guide Plate 60 - - 1 D-24
Maintenance Cycle (K)
Clean Replace
Parts No. QTY
Reference
Page
■ DEVELOPING SECTION
PM Parts
Imaging Cartridge - 72 - 1 D-25
Maintenance Cycle (K)
Clean Replace
Parts No. QTY
Reference
Page
■ TONER HOPPER UNIT
PM Parts
Ozone Filter - 100
*1: Except Europe
*2: Europe
Maintenance Cycle (K)
Clean Replace
Parts No. QTY
1165-2031-01 *1
1165-2032-01 *2
1D-24
Reference
Page
Page 3
FrameMaker Ver.5.5(PC) Di350 MAINTENANCE SCHEDULE
98.11. 9
■ FUSING SECTION K=1,000 copies
PM Parts
Fusing Unit - 300 - 1 D-26
Maintenance Cycle (K)
Clean Replace
Parts No. QTY
Reference
Page
Page 4
FrameMaker Ver.5.5(PC) Di350 MAINTENANCE SCHEDULE
98.11. 9
Copyright
1999 MINOLTA Co., Ltd.
Printed in Japan
Use of this manual should
be strictly supervised to
avoid disclosure of
confidential information.
MINOLTA Co., Ltd.
1171-7993-11 99022400
