Page 1
+

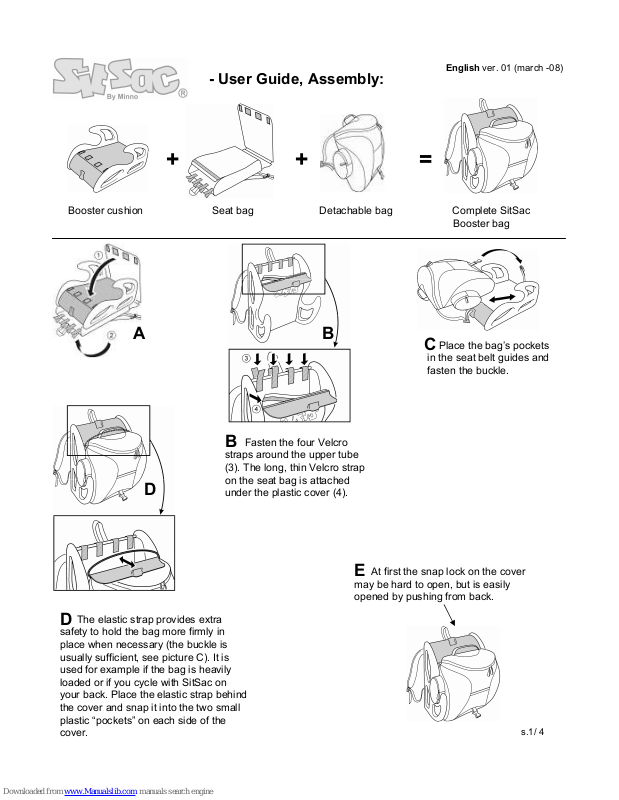

A B
Place the bag’s pockets
in the seat belt guides and
fasten the buckle.
E
=
The elastic strap provides extra
safety to hold the bag more firmly in
place when necessary (the buckle is
usually sufficient, see picture C). It is
used for example if the bag is heavily
loaded or if you cycle with SitSac on
your back. Place the elastic strap behind
the cover and snap it into the two small
plastic “pockets” on each side of the
cover.
+
s.1/ 4
D
Fasten the four Velcro
straps around the upper tube
(3). The long, thin Velcro strap
on the seat bag is attached
under the plastic cover (4).
- User Guide, Assembly:
English ver. 01 (march -08)
C
D
B
At first the snap lock on the cover
may be hard to open, but is easily
opened by pushing from back.
Booster cushion Seat bag Detachable bag Complete SitSac
Booster bag
Page 2
s.2/4
- User Guide
English ver. 01 (march -08)
How to use the SitSac booster cushion in cars and buses:
1. SitSac is ECE-approved by the Swedish Road Administration, group 2-3 for
children weighing 15-36 kg (app. 4-12 years).
2. The SitSac booster cushion is designed to be used in cars or buses,
together with 3-point seat-belts, approved according to ECE regulation
no.16 or other equivalent standards.
3. The EU legislation states that children up to 135 cm must use a child seat or
booster cushion when travelling in cars or buses equipped with 3-point
safety-belts. For further information go to www.childcarseats.org.uk.
4. SitSac is prepared for use as a booster cushion by detaching the small
backpack, detachable bag, as shown in figures I-II (see diagrams on page 3).
5. Gather the carrying straps under the seat when placing the booster cushion
on the car or bus seat. (figure III).
6. Pull the waist-belt (dashed) (figure IV) over the legs by guiding it under the
seat-belt guides on the side of the booster cushion.
7. Tighten the seat-belt as much as possible without inflicting any discomfort
on the child.
8. Make sure the seat-belt is outstretched and not twisted
9. After a collision or heavy braking where SitSac is subjected to large forces,
the booster cushion must be replaced with a new one.
10. The user must not modify or in any other way alter the booster cushion. The
labels are also important for the safety and must not be removed.
11. The SitSac booster cushion must always be used together with the SitSac
seat bag. The seat bag is a part of the ECE-approved design and the sit
cushion must not be replaced by any other sit cushion other than those
recommended by the SitSac manufacturer.
12. Do not expose the booster cushion to strong sunlight or severe cold for
longer periods as this may affect the quality of the plastic. The plastic may
also be unpleasantly warm or cold to sit on. During hot summer days the
booster cushion should be covered if left in the car for several hours.
13. Loose objects, e.g. the SitSac detachable bag, should be stowed so that
they can not cause any harm in the event of a collision or heavy braking.
14. The plastic cover on the top of the bag should be closed when the child is
travelling in the car and remain closed throughout the journey.
Producer: Minno AB, Fiskhamnsgatan 10, 5 tr. SE-414 55 Göteborg
Page 3
- Use as booster cushion in cars or buses
I
Gather the carrying straps
under the seat and place the
booster cushion on the car or
bus seat.
IV
s.3/4
Release the buckle and pull
the detachable bag away from
the seat belt guides.
ECE R44-04
UNIVERSAL 15-36 kg
NR. 04190
E
5
II III
English ver. 01 (march -08)
NOTICE:
This is a “Universal” child restraint. It is approved to ECE regulation No. 44, 04
series of amendments, for general use in vehicles and will fit most, but not all, car
seats.
A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a “Universal” child restraint for this
age group.
This child restraint has been classified as ”Universal” under more stringent
conditions than those which applied to earlier designs which do not carry this notice.
If in doubt, consult either the child restraint manufacturer or the retailer.
Page 4
s.4/4
Producer: Minno AB, Fiskhamnsgatan 10, 5 tr. SE-414 55 Göteborg
English ver. 01 (march -08)
- Booster bag, product information:
About SitSac booster bag
SitSac booster bag is a new, unique backpack for children from 4 to 12 years, with an integrated ECE
approved booster cushion, so that children easily can bring along their own booster cushion where it is
needed. SitSac is a complement to car child seats with a backrest, which often are installed in the
family car, but which are bulky to move or carry around. With SitSac children can always travel safely
on bus trips as well as when travelling in vehicles other than the family car. The straps are adjustable
so that adults can also carry the backpack, especially for younger children, from 4 to 5 years. A few
tips on when to use your SitSac:
To ride safely in car pools to training and other leisure activities.
When riding with grandparents. They won’t have to buy additional booster cushions for their cars.
As a school bag. The protected pocket holds A4 sized books and documents.
On bus trips with the school or sports club. An increasing number of buses are equipped
with 3-point safety belts.
In the rental car on vacation abroad. SitSac can also be carried as hand luggage on most flights.
To get a better view in the cinema, theatre or restaurant.
Washing instructions
A zipper permits the sit cushion to be removed for separate washing. Wash with similar colours
in 30 degrees, do not tumble dry, drip dry.
Help us improve SitSac!
We would be grateful to know if you are satisfied with your SitSac, or if you have ideas on how to
improve SitSac and make it even better. New models, colours etc.? Please contact us with your
ideas and suggestions.
Consumer complaints
In the event of an inherent fault/malfunction on the product it may be returned against receipt in
accordance with National Consumer Protection Act (In most of UK and Ireland within six years from
the date of purchase, in Scotland within five years). Inherent faults can be manufacturing faults or
other product faults arising before the purchase of the product. Faults caused by neglect or incorrect
usage are not subject to compensation upon customer complaint. Incorrect use (also see page 2)
includes, for example:
Unauthorized alteration of the product – you must not loosen screws or the like.
Negligence, for example, deformation of the booster cushion caused by an adult placing their knee
on the cushion to reach for something, or other obvious carelessness during the use of the product.
SitSac is designed to be deformed in the event of a collision or other accident through the absorption
of forces in a favourable way in order to save the child. After a collision or accident the booster
cushion must be discarded.
