MiniMax® NT Series Heater’s Outdoor Vent Kit
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING
Before installing this product, read and follow all warning notices and instructions accompanying this heater kit.
Failure to follow safety warnings and instructions can result in severe injury, death, or property damage.
Call 1-800-831-7133 for additional free copies of these instructions.
Important Notice
Attention Installer.
This manual contains important information about the installation, operation and safe use of this
product. This information should be given to the owner/operator of this equipment.
Pentair Pool Products
1620 Hawkins Ave., Sanford, NC 27330 • (919) 774-4151
10951 West Los Angeles Ave., Moorpark, CA 93021 • (805) 523-2400
Rev. A 7-15-03 1 P/N 472142

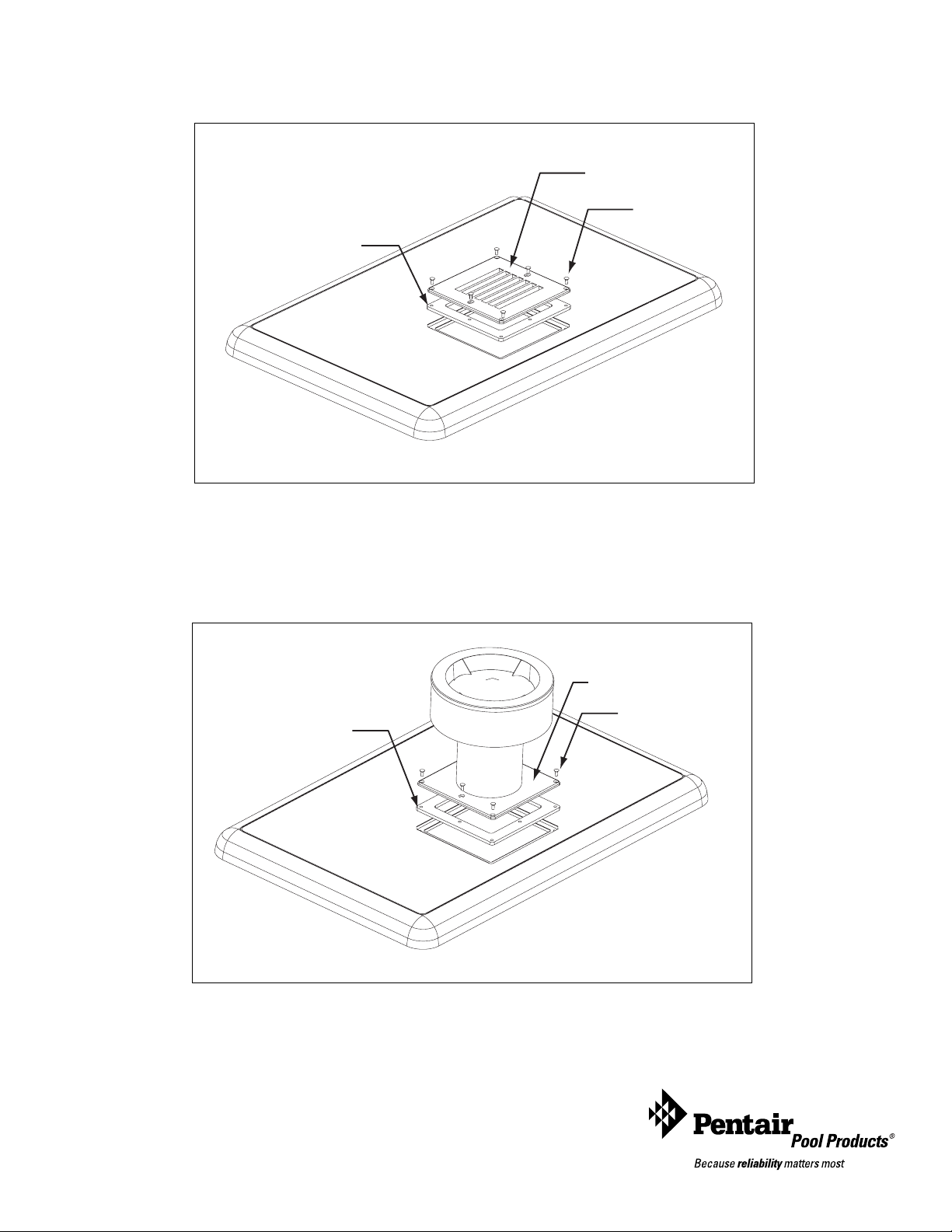

1. Remove the six (6) retaining screws from the old exhaust grill and discard the screws, gasket, and exhaust grill as
shown in Figure 1.
EXHAUST GRILL
SCREWS (6)
GASKET
Figure 1.
2. Install the Outdoor Vent Kit, (P/N 460424), as shown in Figure 2. Make sure the holes in the gasket, metal flange
of the main vent assembly, and heater cover are aligned before securing into place using the six (6) screws provided
in the Outdoor Vent Kit.
METAL FLANGE
SCREWS (6)
GASKET
Figure 2.
SAVE THESE INSTRUCTIONS
Pentair Pool Products
1620 Hawkins Ave., Sanford, NC 27330 • (919) 774-4151
10951 West Los Angeles Ave., Moorpark, CA 93021 • (805) 523-2400
P/N 472142 2 Rev. A 7-15-03
