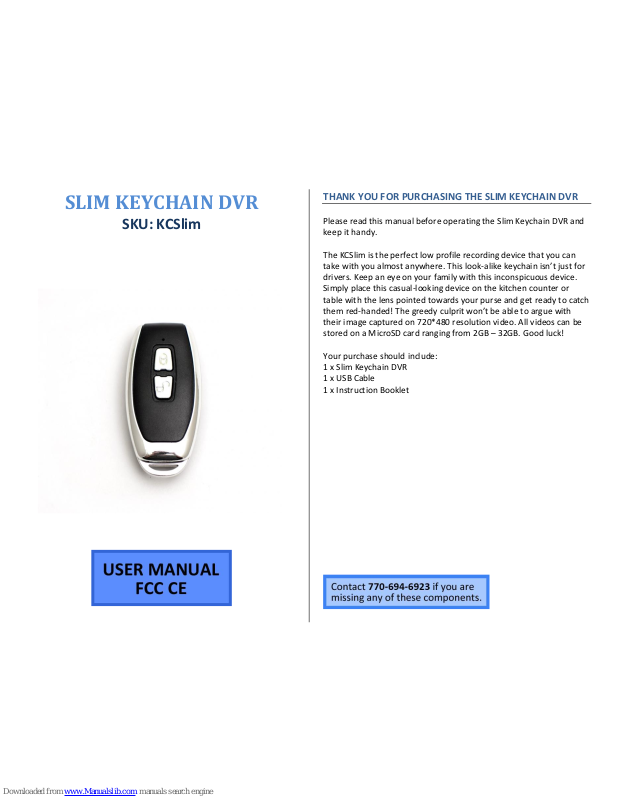

Mini Gadgets KCSlim User Manual

SLIM KEYCHAIN DVR

SKU: KCSlim

THANK YOU FOR PURCHASING THE SLIM KEYCHAIN DVR

Please read this manual before operating the Slim Keychain DVR and keep it handy.

The KCSlim is the perfect low profile recording device that you can take with you almost anywhere. This look-alike keychain isn’t just for drivers. Keep an eye on your family with this inconspicuous device. Simply place this casual-looking device on the kitchen counter or table with the lens pointed towards your purse and get ready to catch them red-handed! The greedy culprit won’t be able to argue with their image captured on 720*480 resolution video. All videos can be stored on a MicroSD card ranging from 2GB – 32GB. Good luck!

Your purchase should include: 1 x Slim Keychain DVR 1 x USB Cable 1 x Instruction Booklet

GET FAMILIAR WITH YOUR SLIM KEYCHAIN DVR

OPERATING THE SLIM KEYCHAIN DVR

IMPORTANT NOTICE: Allow the device to charge 4 – 6 hours before using.

HOW TO CHARGE THE DEVICE

1. Connect the keychain to your computer using the USB cable  The orange indicator light (might look yellow to some)

will continuously blink while charging

 The indicator light will turn solid when fully charged

HOW TO TURN THE DEVICE ON AND OFF

1. Insert a MicroSD card

2. Press and hold the Power Button for 3 seconds  The orange (yellow) indicator light will turn on

o The device is in standby mode

3. Press and hold the Power Button for 2 seconds  The indicator light will blink three times and then turn

off

o The device is now turned off

HOW TO RECORD VIDEO

1. Insert a MicroSD card

2. Ensure the device is in standby mode

3. Press and hold the Camera Button for 2 seconds  The orange (yellow) indicator light will blink three

times and then turn off

o The device is recording live video

4. Press and hold the Camera Button for 2 seconds  The indicator light will blink rapidly and then turn solid

o The device is back in standby mode

HELPFUL TIP: The device records video at 10-minute intervals

Microphone

Camera Lens

Indicator

Light

Camera

Button

Power

Button

USB Port

MicroSD

Card Slot

HOW TO RECORD USING MOTION DETECTION

1. Insert a MicroSD card

2. Ensure the device is in standby mode

3. Press the Power Button once  The orange (yellow) indicator light will blink three

times and then turn off

o The device is now in motion detection mode

 When the camera detects motion, the indicator will

blink once and start recording

4. Press the Power Button once  The indicator light will turn solid

o The device is back in standby mode

HOW TO TAKE PHOTOGRAPHS

1. Insert a MicroSD card

2. Ensure the device is in standby mode

3. Press the Camera Button once  The orange (yellow) indicator light will turn off for

about three seconds and then turn back on

o The device has taken a photograph

HOW TO RESET THE TIME/DATE STAMP

1. Insert a MicroSD card

2. Connect the device to your computer using the USB cable

3. Open the “Removable Disk” drive

4. Open the text file “TAG”

5. Edit year-month-day to match the current date

6. Edit the time in military format to match the current time

7. Save the text file

8. Safely disconnect the device from your computer

RETRIEVE THE FILES TO YOUR PC

1. Plug the device into your PC using the USB cable

2. Locate “Removable Disk” inside the (My) Computer folder  AutoPlay Removable Disk > Open folder to view files

Or…

 Go to Start > Computer > Removable Disk

3. Open the Removable Disk drive

4. Open the DCIM folder

5. Open the 100MEDIA folder to view videos

6. Open the PHOTO folder to view photos

7. Double click the file you want to view  VLC Player is recommended for watching videos

TROUBLESHOOTING

THE DEVICE WON’T TURN ON

 Charge the device for at least 4 hours before the first use  Make sure the charging cable is securely inserted into the

device and into the power source

THE DEVICE ISN’T CHARGING

 Replace the battery or charging cable  If you are charging via a wall power source, you may need to

charge via your PC. The AC adapter might be bad

THE INDICATOR LIGHT IS BLINKING AND THEN TURNING OFF WHEN I TRY TO TURN ON THE KEYCHAIN

 You need to insert a MicroSD card into the device

THE DEVICE HAS CRASHED

 You need to reset the device

o Press the Power Button and Camera Button at the

same time

MY COMPUTER DOESN’T RECOGNIZE THE DEVICE

 Unplug the device from your PC and reboot the device  Unplug the device from your PC and reboot your PC  Try using a different USB slot on your PC  Replace the USB cable

THE SOUND OR VIDEO IS UNCLEAR

 The device needs charging
