Mini Gadgets CCDVR32 User Manual

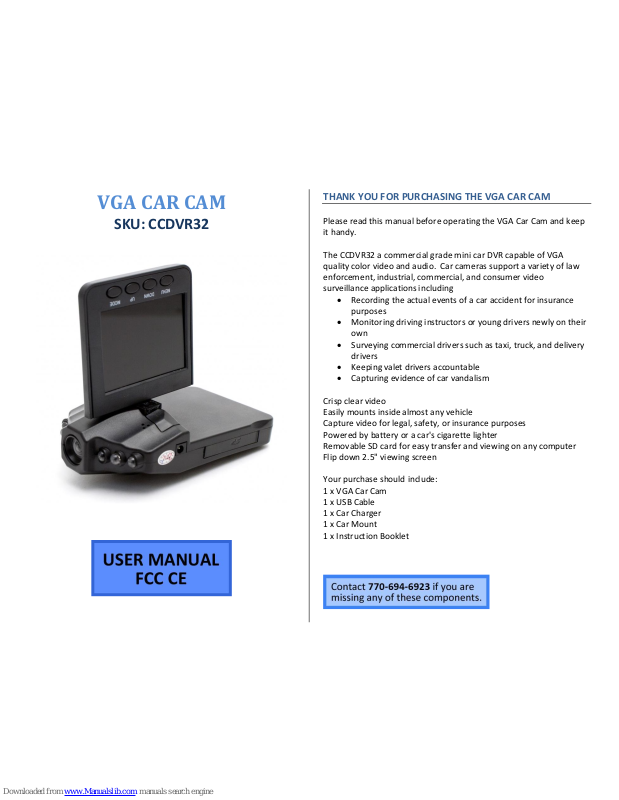

VGA CAR CAM

SKU: CCDVR32

THANK YOU FOR PURCHASING THE VGA CAR CAM

Please read this manual before operating the VGA Car Cam and keep it handy.

The CCDVR32 a commercial grade mini car DVR capable of VGA quality color video and audio. Car cameras support a variety of law enforcement, industrial, commercial, and consumer video surveillance applications including

 Recording the actual events of a car accident for insurance

purposes

 Monitoring driving instructors or young drivers newly on their

own

 Surveying commercial drivers such as taxi, truck, and delivery

drivers

 Keeping valet drivers accountable  Capturing evidence of car vandalism

Crisp clear video Easily mounts inside almost any vehicle Capture video for legal, safety, or insurance purposes Powered by battery or a car's cigarette lighter Removable SD card for easy transfer and viewing on any computer Flip down 2.5" viewing screen

Your purchase should include: 1 x VGA Car Cam 1 x USB Cable 1 x Car Charger 1 x Car Mount 1 x Instruction Booklet

GET FAMILIAR WITH YOUR VGA CAR CAM

Camera

Lens

Power

Button

USB Port

MicroSD

Card Slot

Viewing

Screen

Record Button

Removable Back

for Battery

OPERATING THE VGA CAR CAM

IMPORTANT NOTICE: Allow the device to charge 4 – 6 hours before using.

HOW TO CHARGE THE DEVICE USING YOUR COMPUTER

1. Remove the backing and insert the battery into the back of

the device

2. Plug the USB cable into the USB port on the device

3. Plug the USB cable into the USB port on your computer  The blue and red indicator light will turn on while

charging

 The red indicator light will turn off when charging is

complete

IMPORTANT NOTICE: Car cameras are designed to run off of constant power. The internal battery should not be relied upon for extended recording. The purpose of the battery is to make sure the most recent files are saved in case of an accident where the unit would normally lose power.

HOW TO CHARGE THE DEVICE USING YOUR CAR

1. Insert the car charger into the car charging port of the device

2. Insert the car charger into the charging port of your vehicle

HOW TO TURN ON THE DEVICE

1. When connected to your vehicle the device will automatically

turn on when the vehicle is turned on

2. If not connected to your vehicle press and hold the power

button until the device turns on

 The blue indicator light will flash while the device is on

HOW TO TURN OFF THE DEVICE

1. When connected to your vehicle the device will automatically

turn off when the vehicle is turned off

2. If not connected to your vehicle press the power button again  The blue indicator light will turn off

HOW TO RECORD VIDEO

1. The device automatically starts recording video once it is

turned on

2. To stop recording, press the record button

HOW TO TAKE PHOTOS

1. Press the mode button once to enter photo mode

2. Press the record button  The screen will turn off and then back on

o Your photo has been saved

HOW TO PREVIEW AND DELETE YOUR VIDEO/PHOTO

1. Press the mode button twice to enter preview mode

2. Use the down/up keys to view your files

 Press the record button to watch videos  Press the record button to zoom in on photos

3. Press the menu button to delete your video/photo

4. Press the record button to confirm  You can then choose to delete one or all of your files

RETRIEVE THE FILES TO YOUR PC

1. Plug the device into your PC using the USB cable or remove

the MicroSD Card and insert it into the MicroSD Card slot on your computer

2. Locate “Removable Disk” inside the (My) Computer folder  AutoPlay Removable Disk > Open folder to view files

Or…

 Go to Start > Computer > Removable Disk

3. Open the Removable Disk drive

4. Open the ADR folder

5. Double click the file you want to view  VLC Player is recommended for watching videos

TROUBLESHOOTING

THE DEVICE WON’T TURN ON

 Charge the device for at least 4 hours before the first use  Make sure the charging cable is securely inserted into the

device and into the power source

THE DEVICE ISN’T CHARGING

 Replace the battery or charging cable

THE DEVICE HAS CRASHED

 You need to reset the device

MY COMPUTER DOESN’T RECOGNIZE THE DEVICE

 Unplug the device from your PC and reboot the device  Unplug the device from your PC and reboot your PC  Try using a different USB slot on your PC  Replace the USB cable

THE SOUND OR VIDEO IS UNCLEAR

 The device needs charging
