In today’s server environments IT managers are faced with increasingly elaborate
hardware mixes, high-density rack installations, as well as complex server and user
profiles, and the need for 24/7 uptime and maximum scalability. These complexities
call for a comprehensive and unified management system – a system that is more
than just another KVM switch. Minicom answers this call, and presents the innovative
DX matrix system, designed for advanced multi-functional, unified out-of-band
management based on state-of-the-art CAT5 technology.
The DX matrix system combines four
major functions in one unified solution:
• KVM switching and control
• Serial control
• Power management
• User management
The DX system unifies these four functions using AIM
AIM (Advanced Integrated Manager), is a LINUX based, innovative
embedded program that supplies advanced management functionality in a
hardware-only solution.
AIM combines the management of all four major functions within a single intuitive,
Windows-like interface, for truly unified administration of your server environment.
The DX matrix system gives you a highly secure, integrated, flexible and supremely
scalable solution for 24/7 BIOS-level control and management of high-density
mission critical server environments through:
• Unified, One-stop, local and remote control.
• Revolutionary embedded management functionality in a pure hardware solution.
• High-level security.
• Multi-functional, multi-user, multi-platform matrix solution.
• Seamless cascading.
• State-of-the-art CAT5 all-the-way technology.
• Maximum business value & ROI.
One-stop Local and Remote Control
The DX system manages all KVM and Serial equipment centrally, eliminating
redundant management effort, and saving you time and money in your corporate
high-density server environment. And through flexible remote IP access, the DX
system enables you to control your server installation from anywhere in the world,
at any time, further reducing overhead and administration costs.

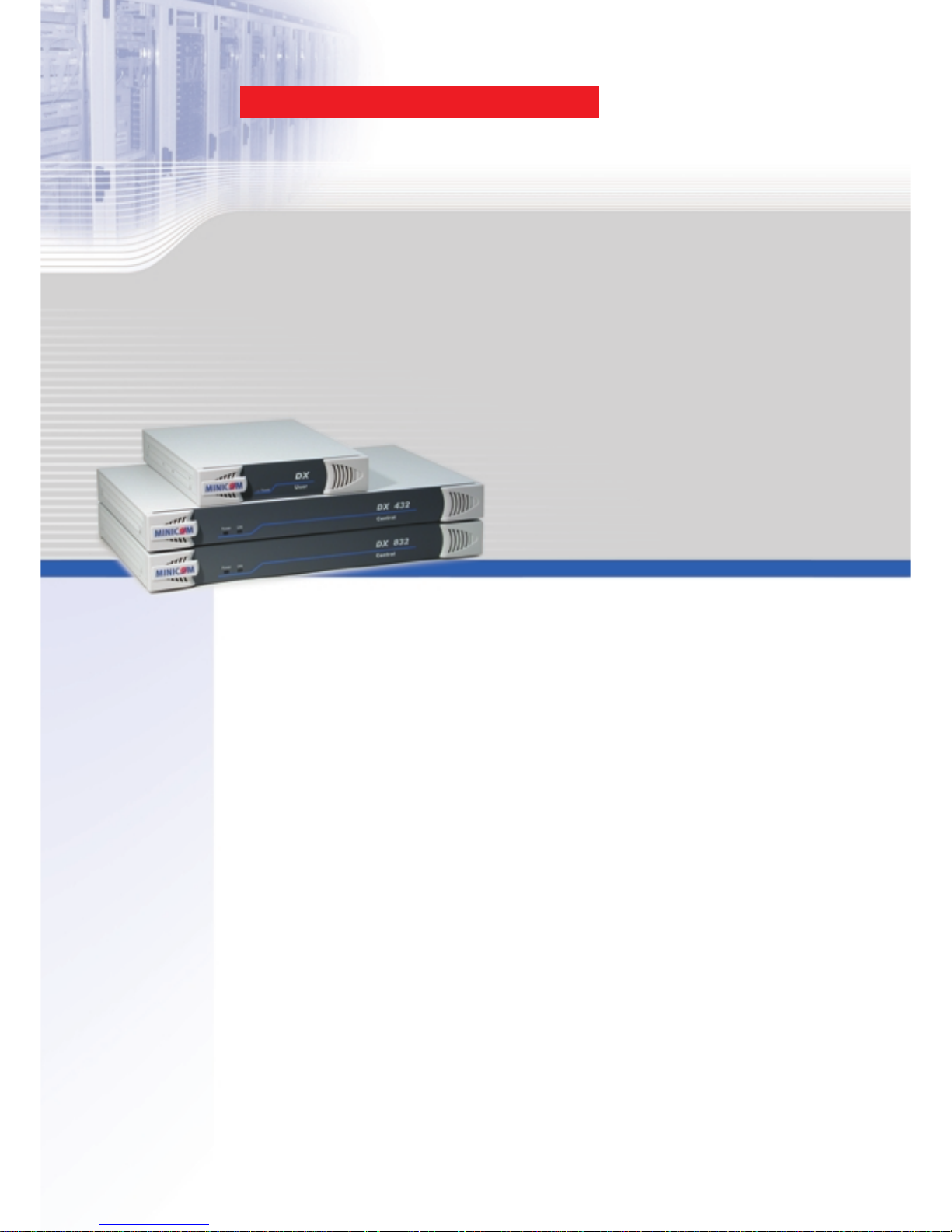

YOUR SOLUTION FOR CENTRALIZED
KVM & SERIAL MANAGEMENT
The Minicom DX Matrix System
Page 3
Powerful Management
Minicom revolutionizes out-of-band management with
the power of AIM. Using AIM, your server environment
benefits from out-of-band BIOS level access combined
with advanced management functionality in a pure
hardware solution. AIM enhances and simplifies your
administration capabilities through:
• Intuitive, Windows-like GUI replacing the
traditional OSD.
• Comprehensive management of all KVM and
Serial hardware in the data center.
• Multi-layer user administration.
• Multi-level security access control.
Multi-Functional, Multi-User
and Multi-Platform
The growing server environment and its ever-increasing
data requirements call for a clutter-free, powerful and
centralized multi-functional matrix solution. The DX matrix
system is the optimal solution for the server environment
challenge, meeting today’s needs and preparing for future
scalability. Features include:
• Non-blocking control of multiple users for thousands
of servers.
• Mixed multi-platform support: PS/2, SUN, USB and RS232.
• Flexible remote IP access: fit the IP mix to your needs and
add IP users as your business grows.
• Built-in local computer access at every user station.
• CAT5 all-the-way technology, from server to user.
Seamless Cascading
The DX system’s seamless cascade of additional switch
layers allows you to add multiple servers that are
monitored and controlled from the same interface,
regardless of their physical connection. Minicom’s
embedded AIM solution automatically recognizes
the additional layers of DX systems, streamlining
setup of additional switches. There is no single point
of failure - system settings and parameters are saved
on all DX central units. With seamless cascading,
your DX system grows with your needs while keeping
the same straightforward management approach.
High-Level Security
Security is key to your server environment’s performance.
The DX system’s multiple layer security protection
with user-name and password authentication includes
up to 32 user profiles for hundreds of users,
and 4 levels of user access rights for increased
protection. In addition, DX’s innovative
technology includes double authentication
of access rights through port and server
recognition, for an exceptionally
secure system.

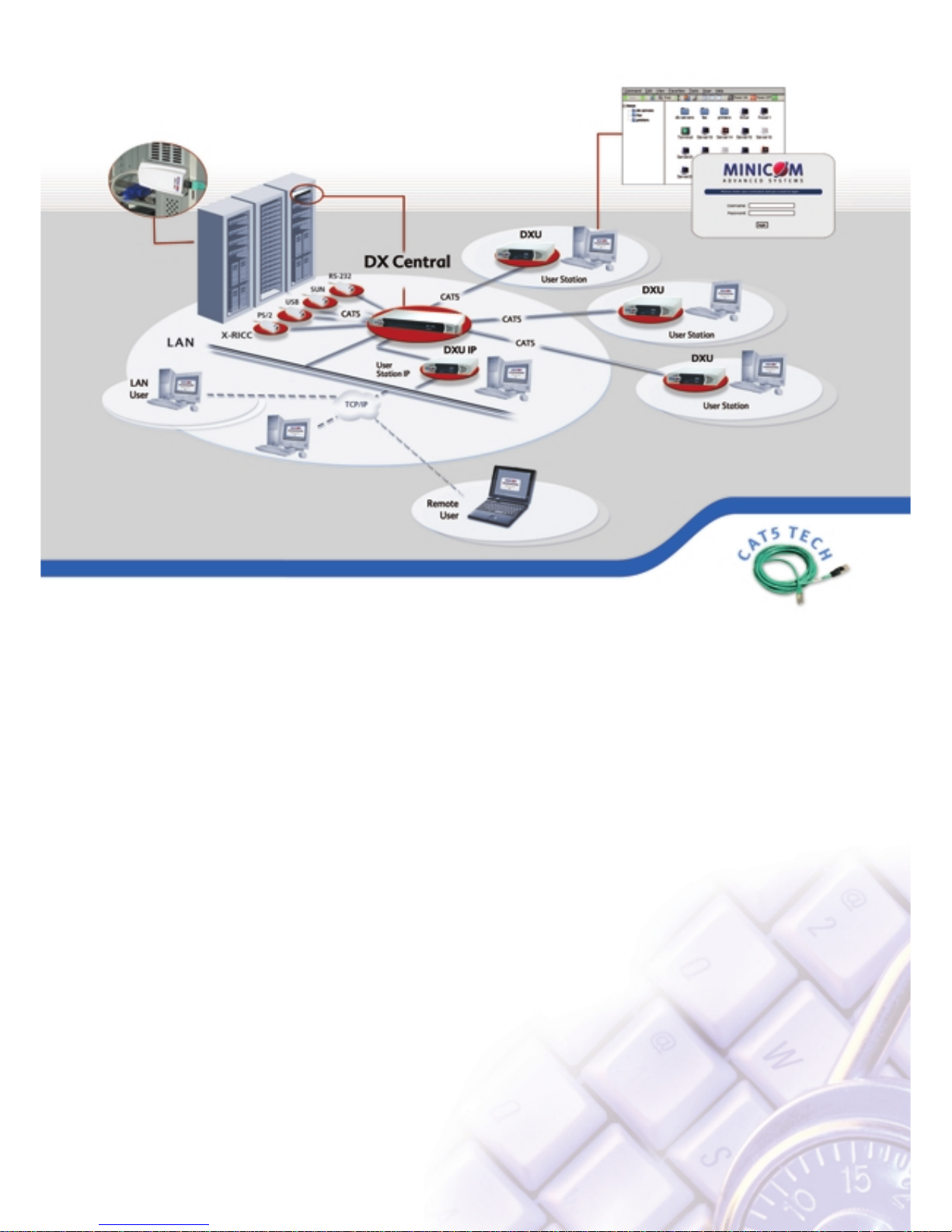

Application Diagram
Page 4
Authorized Reseller:
5D020091

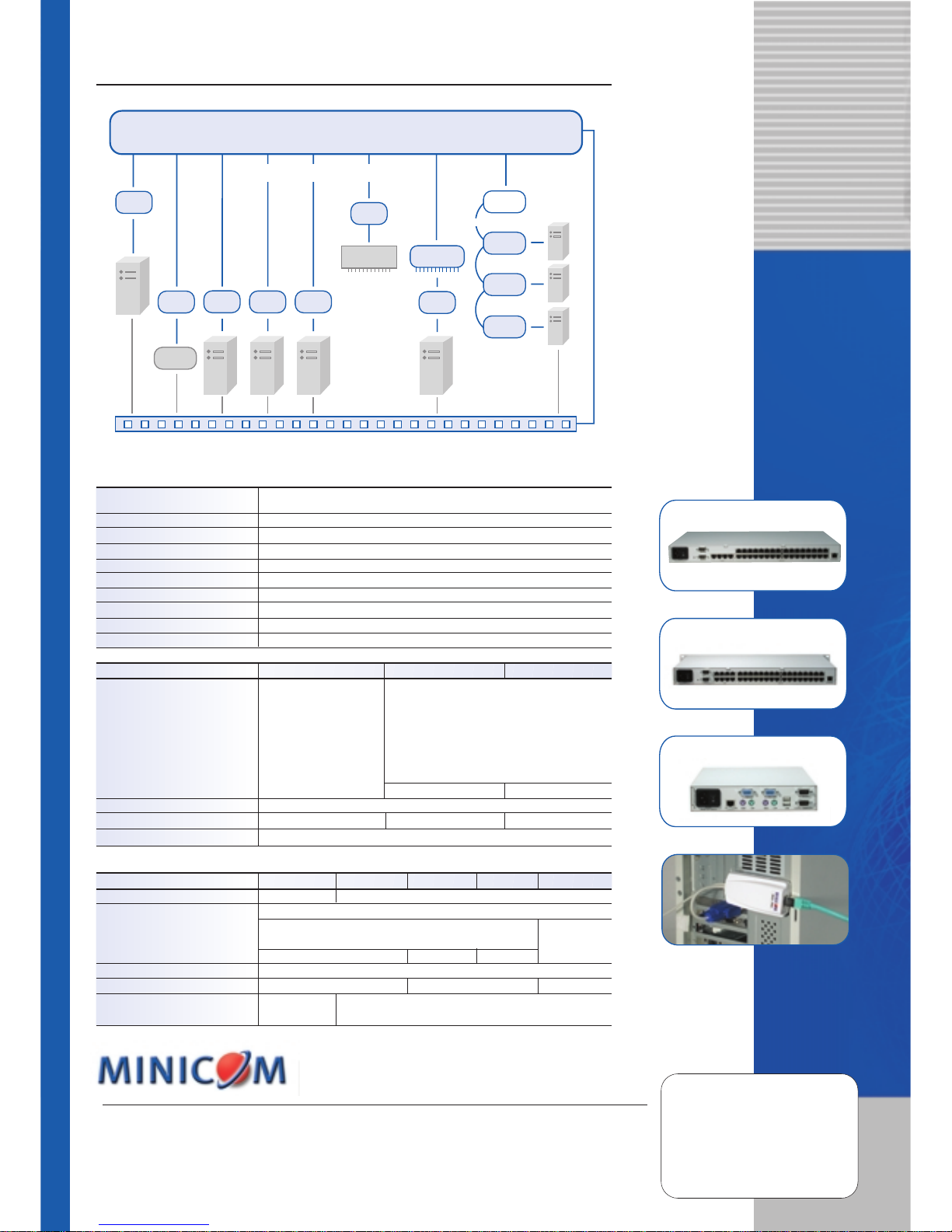

System Sepcifications:
Operating systems
DOS, Windows (3x, 9x,ME, NT4, 2000, XP, 2003 Server and later), Linux, UNIX, HP UX,
QNX, SGI, FreeBSD, BeOS, Open VMS, Novell 3.12-6, Solaris, Java Desktop System
Resolution 1600 X1200 @ 75Hz
User to server distance 200m/660ft
System Cable CAT5, CAT6, CAT7
Operating temp. 0ºC to 40ºC / 32ºF to 104ºF
Storage temp. -40ºC to 40ºC/-40ºF to 104ºF
Security Password, multiple-user profiles
Management AIM (Advanced Integrated Manager), RS-232 Control software
Mouse Support PS/2, Wheel mouse, 5-button mouse, Microsoft intellimouse
Warranty 3 Years
DX Central Unit DX User Unit DXU IP
Cables/Connectors Computer Ports-32 RJ 45 System - RJ45
Users Port - 4/8 RJ45 Local Console and CPU KVM + Serial
Serial Ports - 2 X DB9 Video - HDD15
LAN - RJ45 Keyboard / Mouse - MiniDin6
Power Serial - 2 X DB9
Power
2XUSB (Future Application)
LAN - RJ45
Rack Mountable Yes
Dimensions 43.2x27x4cm / 17x11x1.6” 21.6x27x4 / 8.5x11x1.6” 43.2x27x4 / 17x11x1.6”
Power Consumption 100-250 VAC 50/60 Hz
RICC PS/2 X RICC PS/2 X RICC SUN X RICC USB X RICC RS232
Server to DX Central Distance 10m/33ft 100m/330ft
Cables/Connectors System - RJ45
Video - HDD15
Keyboard/Mouse Power - Jack
MiniDin6 MiniDin8 USB
Rack Mountable Yes
Power Supplay From Keyboard From USB Power Adapter
Dimensions 24x91x41mm /
24x91x41mm / 1.05x3.58x1.77”
0.94x3.58x1.61”
DX 8x32
DX User (2:1)
DX 4x32
DX Options
POWER TOWER
International HQ
Jerusalem, Israel
Tel: +972 2 535 9666
Fax: +972 2 535 9693
[email protected]
North American HQ
New Jersey, USA
Tel: (toll free) 888 486 2154
Tel: +1 908 486 2100
Fax: +1 908 486 7788
[email protected]
Europe HQ
Dübendorf, Switzerland
Tel: +41 18238000
Fax: +41 1 8238005
[email protected]
Italy
Rome, Italy
Tel: +39 06 820 97902
Fax: +39 06 820 97903
[email protected]
X-RICC
X-RICC
RICC
PS/2
X-RICC
RS-232
X-RICC
SUN
X-RICC
PS/2
X-RICC
LEGACY KVM
SWITCH
DX-CENTRAL
X-RICC
SPECTER
DX
SPECTER
PS/2
ROUTER
SPECTER
SUN
SPECTER
USB
CAT5/6/7
X-RICC
USB
CAT5
DX CENTRAL
