Mini-Circuits TVA-R5-13A User Manual
Coaxial
RF Instrument Amplifier
TVA-R5-13A+
50Ω 0.50 to 1000 MHz
The Big Deal
• High output power, +34 dBm
• High Gain, 38 dB
• High reverse isolation, 80 dB
• Built-in 110V/220V AC power supply
CASE STYLE: PJ2059-2
• Thermally self-protected
• 100% burn-in at +25˚C, 48 hrs.
Product Overview
Mini-Circuits’ TVA-R5-13A+ instrument amplifier provides high output power and high gain across the 0.50 to1000 MHz
frequency range, covering popular communications bands including AM, FM, TV, cellular and more. The amplifier features
a built-in 110/220V power supply, making it easy to use in most lab environments. This model features thermal selfprotection, preventing damage to the amplifier and providing added reliability. It comes housed in a light-weight aluminum
alloy case (15.35 x 8.27 x 3.25”) ideal for bench-top use with N-Type connectors. 2 N-male to SMA-female adapters come
included for the user’s convenience.
Feature Advantages
High output power, +34 dBm at 1 dB compression
High gain, 38 dB
High reverse isolation, 80 dB
Built-in 110V/220V power supply
Thermally-self-protected
marked
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
Supports high power test applications such as EMI, maximum power handling, and reliability testing.
38 dB gain allows the TVA-R5-13A+ to be driven to full output power with most commercially available
signal generators.
Protects signal sources from load, preventing potential damage and performance variation due to load
pulling.
Operating from a standard AC line power supply, the TVA-R5-13A+ can be powered from 110 to 220V,
making the amplifier versatile for use in most lab environments.
A built-in sensing feature signals the unit to power off when the amplifier reaches its maximum rated
operating temperature, preventing damage to the equipment and providing added reliability.
Meets conformity standards for sale within the European Economic Area (EEA).
®
Mini-Circuits
www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Page 1 of 3
Coaxial
A B C D
WT.
15.35 8.27 3.25 3.09
GRAM
389.89 210.06 82.55 78.49 3870
+RoHS Compliant
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications
RF Instrument Amplifier
TVA-R5-13A+
50Ω 0.50 to 1000 MHz
Features
• Instrument model with built-in power supply, 110V/220V operation
• High output power, 34dBm typ.
• High Gain, 38 dB typ.
• High reverse isolation, 80 dB typ.
• 100% burn-in at +25°C, 48 hrs
• Thermally self-protected, LED indicator
• Protected by US Patent 5,101,171
• marked
Applications
Connectors Model
N-Type
N Male - SMA Female Adapter
• Lab use
• Wideband test instrumentation

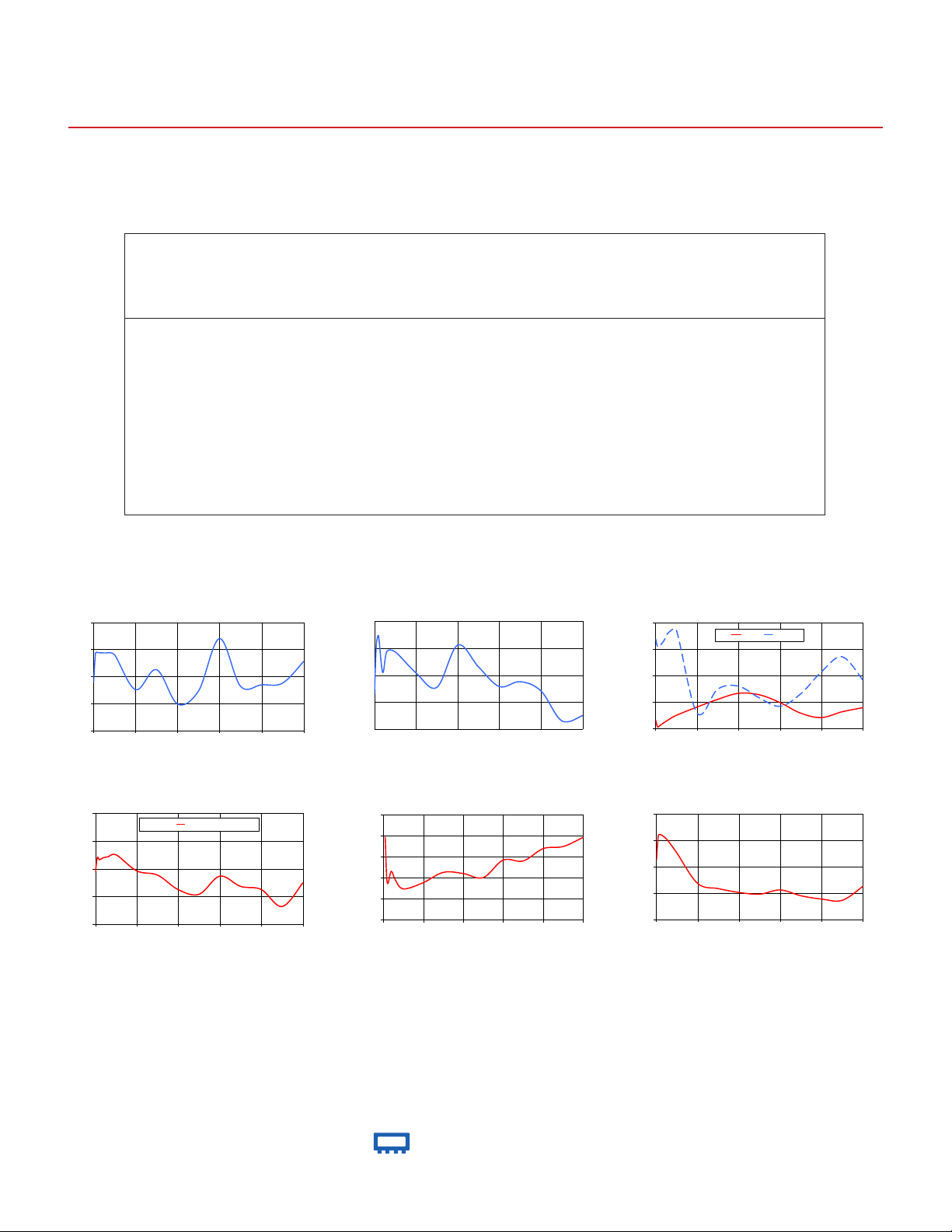

Electrical Specications at 25°C, unless otherwise noted
Parameter Condition (MHz) Min Typ. Max. Units
Frequency Range 0.50 — 1000 MHz
Gain 0.50 - 1000 34 38 — dB
Gain Flatness 0.50 - 1000 — ±1.4 ±2.2 dB
Output Power at 1dB compression 0.50 - 1000 +31 +34 — dBm
Noise Figure 0.50 - 1000 — 10 — dB
Output third order intercept point 0.50 - 1000 — +42 — dBm
Input VSWR 0.50 - 1000 — 1.5 — :1
Output VSWR 0.50 - 1000 — 2.5 — :1
AC Supply 47 - 63 Hz 85 110/220 265 V
Open load is not recommended, potentially can cause damage. With no load derate max input power by 20 dB
Note: Keep area adjacent to the airvents clear to allow free air flow.
Generic photo used for illustration purposes only
CASE STYLE: PJ2059-2
TVA-R5-13A+
NM-SF50+ (2 Included)
Outline Drawing
Maximum Ratings
Parameter Ratings
Mini-Circuits
POWER
TEMP
FAN
R
XX-XXXX MHz
Operating Temperature 0°C to 55°C
TUO FRNI FR
Storage Temperature -40°C to 70°C
Input RF Power (no damage) +7 dBm
Permanent damage may occur if any of these limits are exceeded.
CC
~ LINE
110/115 : 50/60 Hz
230/245 : 50/60 Hz
Outline Dimensions ( )
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
inch
mm
®
Mini-Circuits
www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
REV. A
M153640
ED15032404
TVA-R5-13A+
200820
Page 2 of 3
