X-Cell Ion-X2

Reference Guide

Version 1.0

Revision Date: 08/22/2007

XCell Ion-X2 Reference Guide

For More Information contact:

Miniature Aircraft USA

31713 Long Acres Drive
Sorrento, FL 32776 USA
Phone [phone]
Fax [phone]
Email: [e-mail]

Page 2 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

Table Of Contents

REVISIONS TO THIS MANUAL......................................................................................................................................................... 5

ERRATA.................................................................................................................................................................................................. 5

I. INTRODUCTION...............................................................................................................................................................................7

II. PARTS REFERENCES..................................................................................................................................................................... 7

2.1 MAIN CHASSIS ........................................................................................................................................................................... 7

2.1.1 - Left Frame Assembly - Parts.................................................................................................................................................. 8

2.1.2 – Landing Gear Mounts - Parts................................................................................................................................................ 9

2.1.3 Right Frame Assembly - Parts............................................................................................................................................... 10

2.1.4 Constant Drive with Single Gear - Parts................................................................................................................................ 11

2.1.5 Double Gear Constant Drive – Exploded View...................................................................................................................... 12

2.1.6 Constant Drive with Double Gear - Parts.............................................................................................................................. 13

2.1.7 Main Drive Train - Parts........................................................................................................................................................ 14

2.2 LANDING GEAR ....................................................................................................................................................................... 15

2.3 MOTOR DRIVE.......................................................................................................................................................................... 16

2.3.1 Motor Mount - Parts............................................................................................................................................................... 18

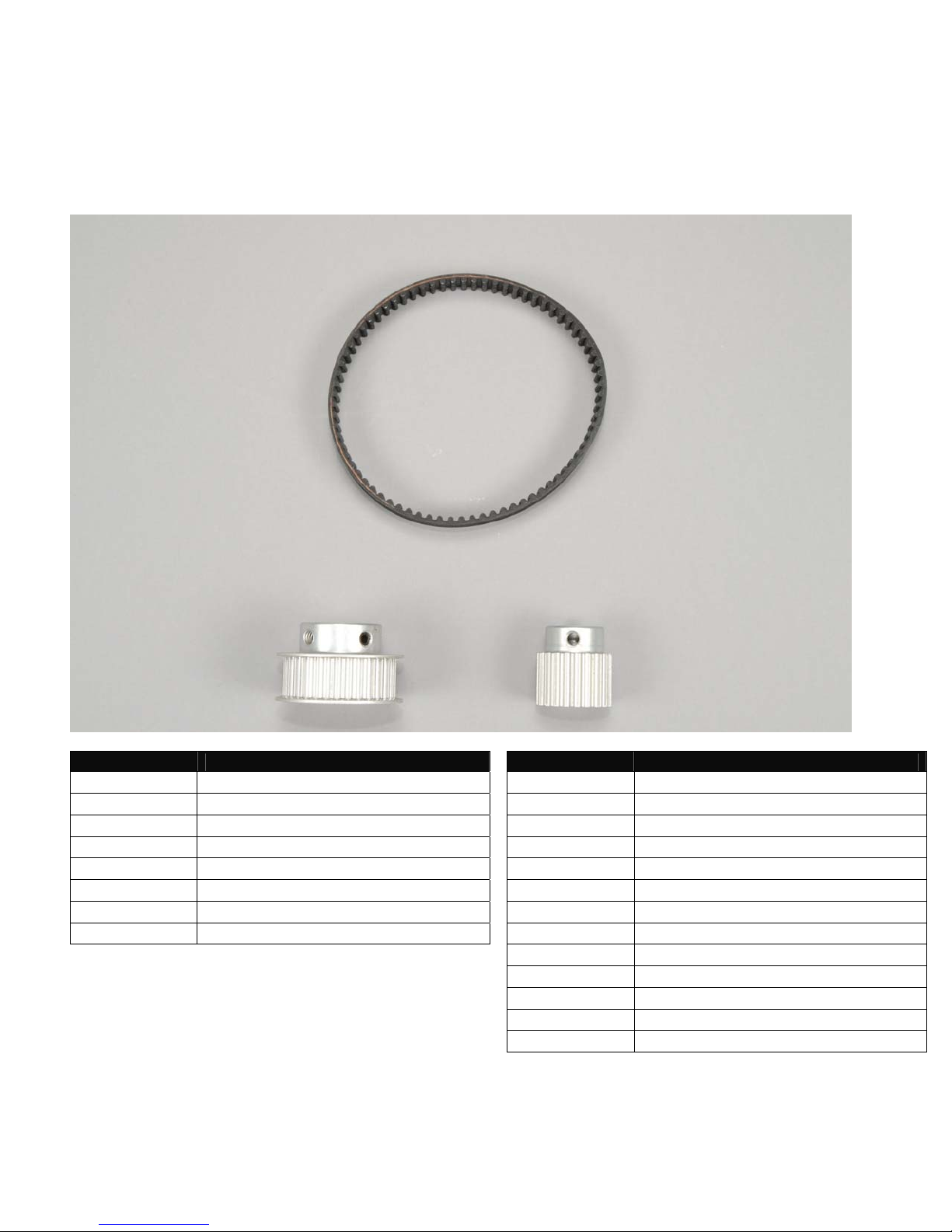

2.3.2 Primary Drive - Parts............................................................................................................................................................. 19

2.4 CONTROL SYSTEM................................................................................................................................................................... 20

2.4.1 Bellcranks - Parts................................................................................................................................................................... 20

2.4.2 Swashplate/Washout Mixer - Parts ........................................................................................................................................ 22

2.4.3 Pitch Servo - Parts ................................................................................................................................................................. 24

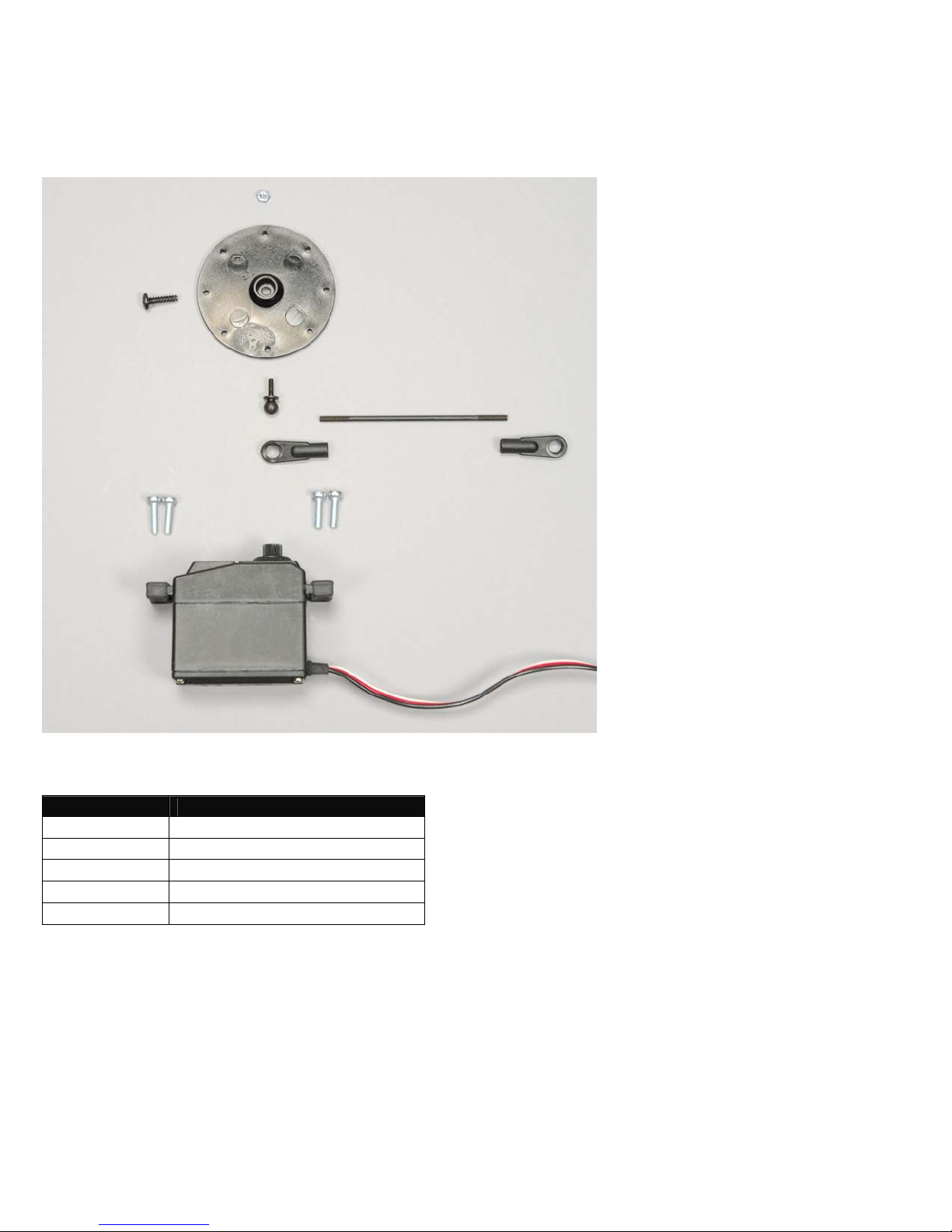

2.4.4 Elevator Servo - Parts............................................................................................................................................................ 25

2.4.5 Aileron Servo - Parts.............................................................................................................................................................. 26

2.4.6 Rudder Servo - Parts.............................................................................................................................................................. 27

2.4.7 Control Rods - Parts............................................................................................................................................................... 28

2.5 CANOPY ................................................................................................................................................................................... 29

2.6 ROTOR HEAD ........................................................................................................................................................................... 30

2.6.1 Head Block #0844A Exploded View....................................................................................................................................... 30

2.6.2 Head Block Assembly- Parts.................................................................................................................................................. 31

2.6.3 Bell Mixer Assembly - Parts................................................................................................................................................... 32

2.6.4 Blade Arm Assembly - Parts................................................................................................................................................... 33

2.6.5 Flybar Control Assembly - Parts............................................................................................................................................ 34

2.6.6 Rotor Head Control Rods - Parts........................................................................................................................................... 35

2.7 TAIL ROTOR............................................................................................................................................................................. 36

2.7.1 Tail Rotor Hub Assembly - Parts............................................................................................................................................ 36

2.7.2 Tail Rotor Pitch Control Assembly – Parts............................................................................................................................ 37

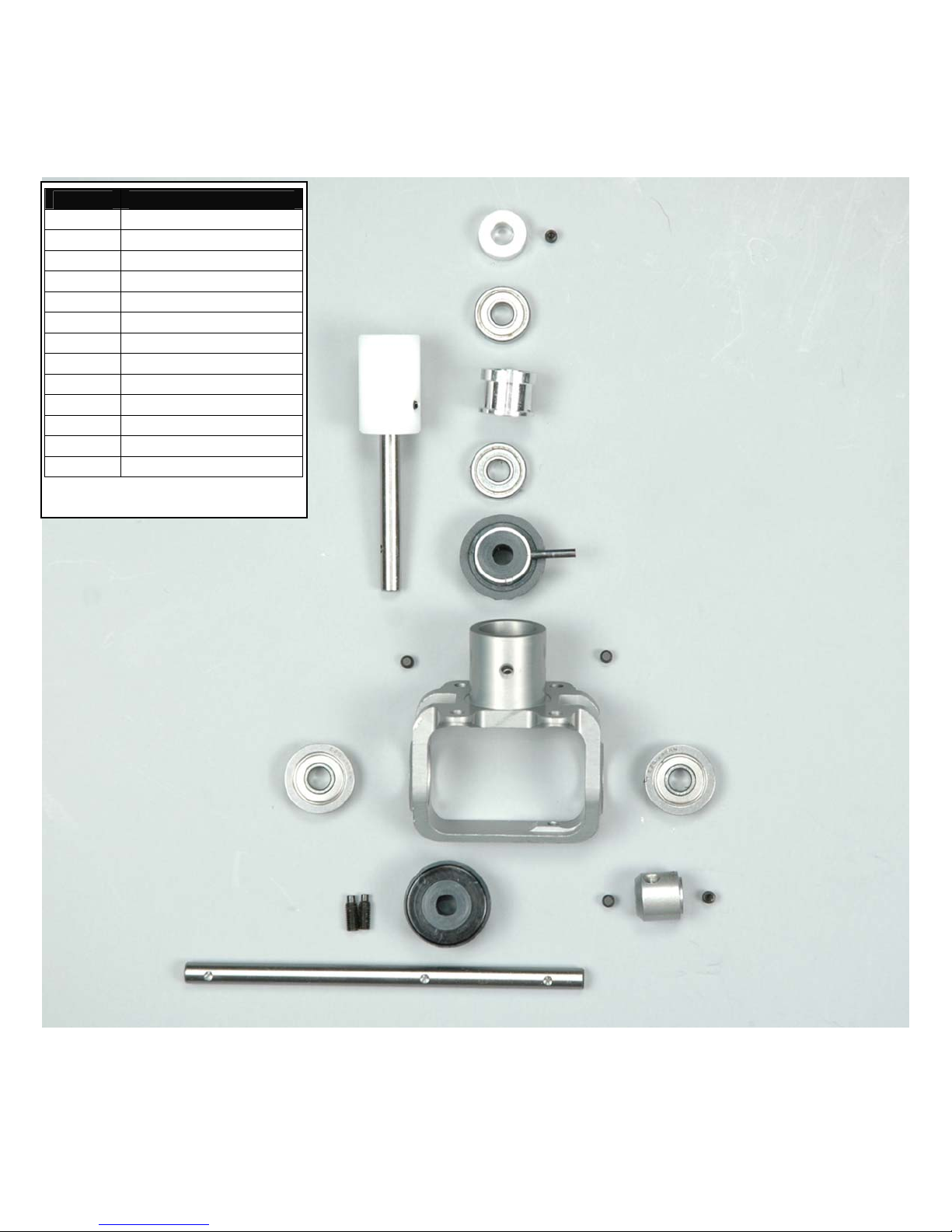

2.7.3 Tail Rotor Gearbox #123-95 Exploded View......................................................................................................................... 38

2.7.4 Tail Rotor Control Bellcrank - Parts...................................................................................................................................... 39

2.8 TAIL BOOM .............................................................................................................................................................................. 40

2.8.1 Tail Rotor Mount Assembly - Parts........................................................................................................................................ 40

2.8.2 Tail Boom/Boom Mount/Torque Tube.................................................................................................................................... 41

2.8.3 Horizontal Fin Mount Assembly – Parts................................................................................................................................ 42

2.8.4 Tail Rotor Control Rod Support Assembly - Parts................................................................................................................. 43

2.8.5 Tail Rotor Control Rod Assembly - Parts............................................................................................................................... 43

2.8.6 Tail Boom Supports Assembly – Parts ................................................................................................................................... 44

III. FASTENER GUIDE.................................................................................................................................................................. 45

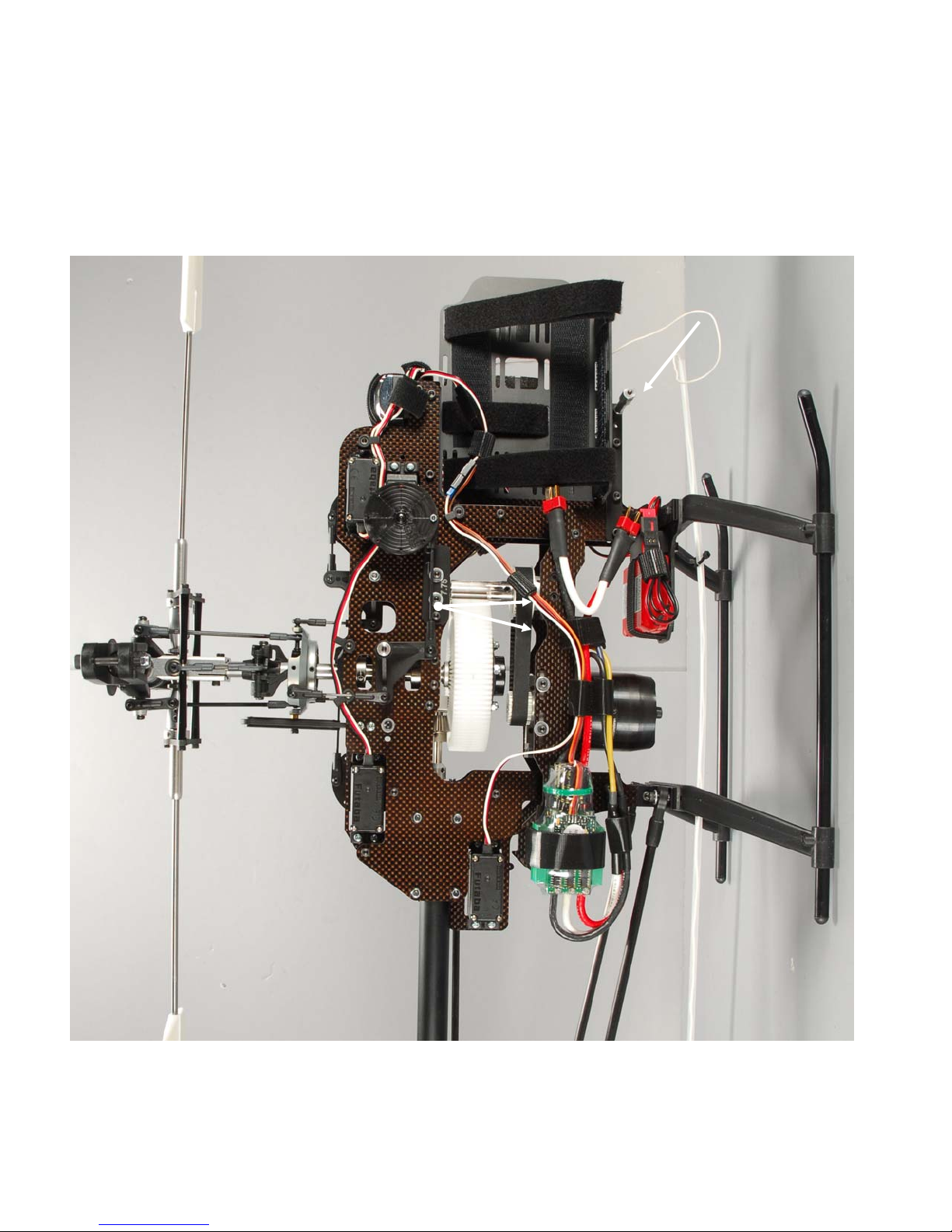

IV. MODEL VIEWS........................................................................................................................................................................ 48

V. GEAR RATIOS......................................................................................................................................................................... 53

5.1 Available Drive Ratios – Sorted by Motor Pulley Size........................................................................................................ 53

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 3 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

5.2 Available Drive Ratios – Sorted by Primary Pulley Size..................................................................................................... 56

Page 4 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

Revisions to this Manual

R1.0

• 08/22/07 – Initial Release

For the most current version of this manual, please refer to www.miniatureaircraftusa.com, visit the Ion-

2

helicopter kit and download the Reference Guide

X

Errata

R1.0

• None reported

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 5 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

This page intentionally left blank

Page 6 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

I. Introduction

• This document contains an overview of the various parts assemblies, their assembly order and part
numbers.

• For complete assembly instructions, reference the Assembly Guide for this model.

II. Parts References

The part lists are organized by major component categories

2.1 Main Chassis

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 7 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.1.1 - Left Frame Assembly - Parts

#124-138

#0060-1

#115-20

#124-14

#0109

#124-130

#0032 (2)

#0874-1

Left Frame Assembly Parts

#0060-1

#0061

#0061 (2)

#0063 (2)

#124-144

#0062 (2)

#0019

#0009

#124-140

#0003 (2)

#120-08

#127-65

#0061 (3)

#115-20

#124-168

#0060-1

#0061 (2)

#0169

#0060-1

#115-20

#0061 (2)

#120-12

#0061 (3)

#124-142

#0061 (2)

#124-136

#124-134

#124-13

#0019

#126-55

Page 8 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

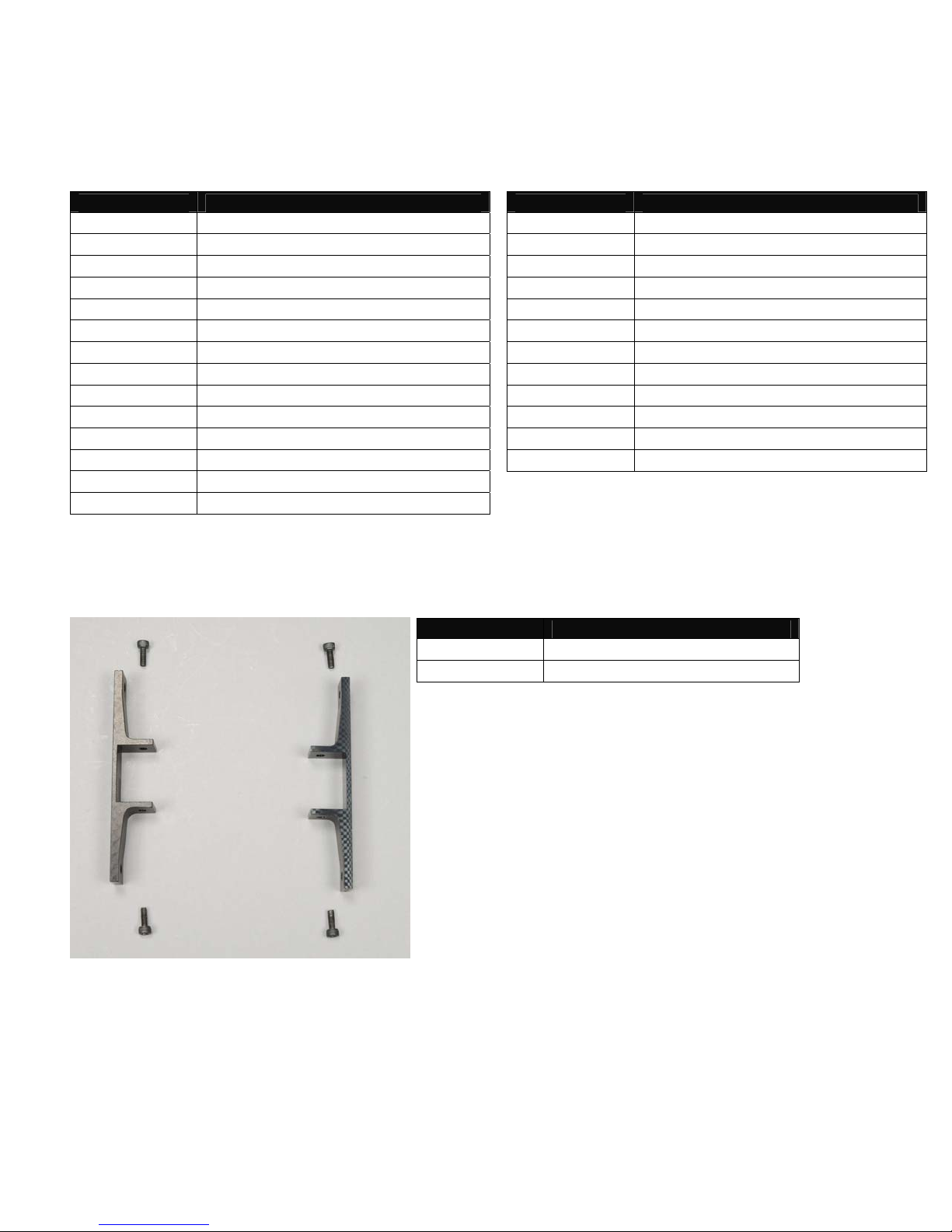

Part # Description

0003 M3 Washer – Large
0009 M3 Washers – Small
0019 M3 Locknut
0032 M2.5 x 9.5 Phillips Screw
0060-1 M3 x 6 Socket Bolt
0061 M3 x 8 Socket Bolt
0062 M3 x 10 Flat Head Bolt
0063 M3 x 10 Socket Bolt
0109 M3 x 8 Threaded Ball
0169 Bellcrank Stud
0874-1 Swashplate Guide
115-20 Frame Spacer
120-8 Lower Main Shaft Bearing Block
120-12 Upper Main Shaft Bearing Block

Part # Description

124-13 Lower Canopy Stud
124-14 Upper Canopy Stud
124-130 C/F Left Main Frame
124-134 G-10 Battery Main Plate
124-136 G-10 Battery Base Plate
124-138 Vertical Rear Channel
124-140 Vertical Front Channel
124-142 Horizontal Upper Channel
124-144 Battery Base Channel
124-168 7.75:1 Left Upper Ratio Plate
126-55 Gyro Mounting Channel
127-65 Bearing Block w/M6 Bearing

2.1.2 – Landing Gear Mounts - Parts

#0063 #0063

#115-40 #115-40

#0063

#0063

Part # Description

0063 M3 x 10 Socket Bolt
115-40 Landing Gear Mounts

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 9 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.1.3 Right Frame Assembly - Parts

#124-132

#0032 (2)

#124-14

#0060-1 #0060-1

#0061

#0060-1 (3)

#0061

#0061 (2)

#0061

#0169

#124-166

#0003 (2)

#0061

#0060-1 (4)

#124-146

#0060-1 (3)

#124-13

Part # Description

0003 M3 Washer – Large
0032 M2.9 x 9.5 Phillips Screw
0060-1 M3 x 6 Socket Bolt
0061 M3 x 8 Socket Bolt
0063 M3 x 10 Socket Bolt
0109 M3 x 8 Threaded Ball
0169 Bellcrank Stud
124-14 Upper Canopy Stud
124-13 Lower Canopy Stud
124-132 C/F Right Main Frame
124-146 G-10 Canopy Mount Extension
124-166 7.75:1 Right Upper Ratio Plate

#0063 (2)

#0060-1

#0061 (3)

Page 10 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.1.4 Constant Drive with Single Gear - Parts

#0866-5

#0866-10

#0057

#0866-12

#0866-13

#0866-11

#0840-6

#0866-11

#0866-6

#0088-2 (Qty 8)

#0865-93 for 7.75

#0866-4

#0866-10

#0088 (Qty 4)

Part # Description

0057 M4 x 4 Socket Set Screw
0088 M3 x 8 Flat Head Bolt
0088-2 M3 x 6 Flat Head Bolt
0840-6 M3 x 20 Steel Dowel Pin
0865-93 93 tooth main gear
0866-4 Lower Autorotation Hub Assembly
0866-5 70 Tooth Crown Gear
0866-6 Crown Gear Mount
0866-10 M14 x 20 x .2 Shim
0866-11 14mm Teflon O-Ring
0866-12 Auto Retaining Ring
0866-13 M14 x 20 x .1 Shim

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 11 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.1.5 Double Gear Constant Drive – Exploded View

#008x

#0865-93

#008x

#0866-4

#008x

#008x

Part # Description

0019 M3 Locknut
008x M3 x 20 Flat Head Bolt
0865-93 93 tooth main gear

Lower Autorotation

0866-4

Hub Assembly
124-161 Secondary 93 tooth gear
124-174 Gear Ring Spacer

#124-161

#0019

#124-174

#0019

#0019

#124-174

#0019

Page 12 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.1.6 Constant Drive with Double Gear - Parts

#0866-6

#0866-5

#0866-10

#0866-11

#0057

#0866-13

#0088-2 (Qty 8)

#124-169

#0866-10

#0866-11

Pre-Assembled

#0866-12

#0840-6

Part # Description

0057 M4 x 4 Socket Set Screw
0088-2 M3 x 6 Flat Head Bolt
0840-6 M3 x 20 Steel Dowel Pin
0866-5 70 Tooth Crown Gear
0866-6 Crown Gear Mount
0866-10 M14 x 20 x .2 Shim
0866-11 14mm Teflon O-Ring
0866-12 Auto Retaining Ring
0866-13 M14 x 20 x .1 Shim
124-169 Assembled Ultimate Autorotation Unit

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 13 of 59

This document may not be distributed without permission of Miniature Aircraft USA

2.1.7 Main Drive Train - Parts

#0057 (2)

XCell Ion-X2 Reference Guide

#120-12

#0875-1

#0059-1

#124-38

#0057 (2)

#123-87

#120-9

#0232

#0866-12

#0875-1

#0059-1

#120-8

#0866-15

#0057

#0840-6

Part # Description

0057 M4 x 4 Socket Set Screw
0059-1 M2.5 x 6 Socket Bolt
0232 15 tooth Spur Gear
0840-6 M3 x 20 Steel Dowel Pin
0866-12 Auto Retaining Ring

Part # Description

120-8 Lower Main Shaft Bearing Block
120-9 5mm Input Shaft w/Coupler
120-12 Upper Main Shaft Bearing Block
123-87 5mm Collar

124-138 Vertical Rear Channel
0866-15 Main Shaft
0875-1 Main Shaft Collars

Page 14 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

2.2 Landing Gear

XCell Ion-X2 Reference Guide

#127-54A

#0058-1

#124-152

#0003 #0019

#127-53

#0058-1

#127-54A

#127-54

#0872-8

#0003

#0872-8

#115-40

#127-54

Part # Description

0003 M3 Washer
0019 M3 Locknuts
0058-1 M4 x 6 Socket Set Screw
0073 M3 x 20 Socket Bolt
0077 M3 x 30 Socket Bolt
0872-8 Boom Support End
115-40 Landing Gear Mounts
124-150 Control Plate G-10
124-152 C/F Reinforcement Plate
127-53 Struts
127-54 Skids
127-54A Skid Plugs (black)

#127-53

#0077

#0019

#0003

#127-54A
#0058-1

#124-150

#0058-1

#127-54A

#0073

#115-40

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 15 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.3 Motor Drive

#0273

#124-172

#124-170

#0057

#0057

#124-2xx

#127-63 (2)

#0058

#0058

#127-63 (2)

#0075 #0075

#0073

#0061
#0061

#0003

#0063

#0063

#0003

#0073

#0075

#124-154

#0061

#0586-16 #0586-16

#0061

#0063

#0586-17

#0063

#0273

#124-160

#124-158

#124-159

#124-157

#0061

#0061

#0586-17

#0063

#0063

#0073

#0061
#0061

#0003

#0003

#124-156

#0063

#0063

#0073
#0075

#127-63 (2)

#0083/#0084

#127-63 (2)

Page 16 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

Part # Description

0003 M3 Washer – Large
0032 M2.5 x 9.5 Phillips Screw
0057 M4 x 4 Socket Set Screw
0058 M4 x 5 Socket Set Screw
0061 M3 x 8 Socket Bolt
0063 M3 x 10 Socket Bolt
0073 M3 x 20 Socket Bolt
0075 M3 x 25 Socket Bolt
0083 M4 x 25 Socket Bolt
0084 M4 x 35 Socket Bolt
0273 M6 x .011” Shim
0586-16 Short Corner Block
0586-17 Long Corner Block
124-154 C/F Left Belt Drive Plate
124-156 C/F Right Belt Drive Plate
124-157 C/F Belt Tension Adjustment Plate
124-158 C/F Motor Mount
124-159 Belt Tension Adjustment Block
124-2xx Primary Drive Pulley
124-170 6mm shaft/double gear
124-172 12 tooth pinion gear (double gear)
124-160 Bearing Plate – 7.75
127-63 M8 x 14 Spacers

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 17 of 59

This document may not be distributed without permission of Miniature Aircraft USA

2.3.1 Motor Mount - Parts

#0078-5 (4)

#0009 (4)

#0004 (1)

XCell Ion-X2 Reference Guide

#124-2xx

#0063 (4)

Part # Description

0004 M4 Washer
0009 M3 Washer – Small
0058 M4 x 5 Socket Set Screw
0063 M3 x 10 Socket Bolt
0078-5 M4 x 10 Socket Bolt
124-2xx Drive Pulley

#0058 (2)

Page 18 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

2.3.2 Primary Drive - Parts

Drive Belt (ratio dependent)
#124-xxx - xxmm
#124-xxx - xxmm
1 belt

XCell Ion-X2 Reference Guide

#124-2xx
Drive Pulley (ratio dependent)
1 pulley

Part # Description

#124-228 Primary Drive 6mm - 28 tooth
#124-220 Primary Drive 6mm – 30 tooth
#124-232 Primary Drive 6mm – 32 tooth
#124-234 Primary Drive 6mm – 34 tooth
#124-236 Primary Drive 6mm – 36 tooth
#124-238 Primary Drive 6mm – 38 tooth
#124-240 Primary Drive 6mm – 40 tooth
#124-244 Primary Drive 6mm – 44 tooth

#124-2xx
Drive Pulley (ratio dependent)
1 pulley

Part # Description

#124-216 Motor Drive - 6mm – 16 tooth
#124-216-8 Motor Drive – 8mm – 16 tooth
#124-217 Motor Drive - 6mm – 17 tooth
#124-217-8 Motor Drive – 8mm – 17 tooth
#124-218 Motor Drive - 6mm – 18 tooth
#124-218-8 Motor Drive – 8mm – 18 tooth
#124-219 Motor Drive - 6mm – 19 tooth
#124-219-8 Motor Drive – 8mm – 19 tooth
#124-220 Motor Drive - 6mm – 20 tooth
#124-220-8 Motor Drive – 8mm – 20 tooth
#124-222 Motor Drive - 6mm – 22 tooth
#124-222-8 Motor Drive – 8mm – 22 tooth
124-xxx Drive Belt

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 19 of 59

This document may not be distributed without permission of Miniature Aircraft USA

2.4 Control System

2.4.1 Bellcranks - Parts

XCell Ion-X2 Reference Guide

#0112

Aileron

#0169

#0169

#0171

#124-148

#0051

#0159

#0159

#0159

#0105

#0099

#0009

#122-28

#0159

#124-22

#0167

Elevator

#0105

#0113

#0009 (2)

#0112

#0167

#0159

#0107

#0159

#0597-3

#0009

Pitch

#0171

#0051

Page 20 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

#0019

XCell Ion-X2 Reference Guide

Part # Description

0009 M3 Washer
0051 M3 x 3 Socket Set Screw
0019 M3 Locknut
0099 M3 x 30 Phillips Bolt
0105 M3 x 4.5 Threaded Ball
0107 M3 x 6 Threaded Ball
0112 M3 x 9.4 Threaded Ball
0113 M3 x 10.5 Double Threaded Ball
0159 M3 x 7 x 3 Ball Bearing
0167 Bellcrank
0169 Bellcrank Stud
0171 M3 Collar
0597-3 .187” x .182” Brass Spacer
122-28 .187” x .080” Brass Spacer
124-22 .187” x .298” Brass Spacer
124-148 Modified Bellcrank

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 21 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.4.2 Swashplate/Washout Mixer - Parts

#0109

#0869

#106-08

#0221

#0097 #0097

#106-08

#0159

#0597-2

#106-07

#0869

#0109

#0159

#106-08

#0219

#0107

#0159

#0109

#0133

#0369

#0112

#0217

#106-07

#0597-2

#0159

#0221

#0133

#106-08

#0107

#0133

#0369

#0133

#0112

#0597-4

#0065

#0159

#0109

#0369

#0107

#0133

#0133

Page 22 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

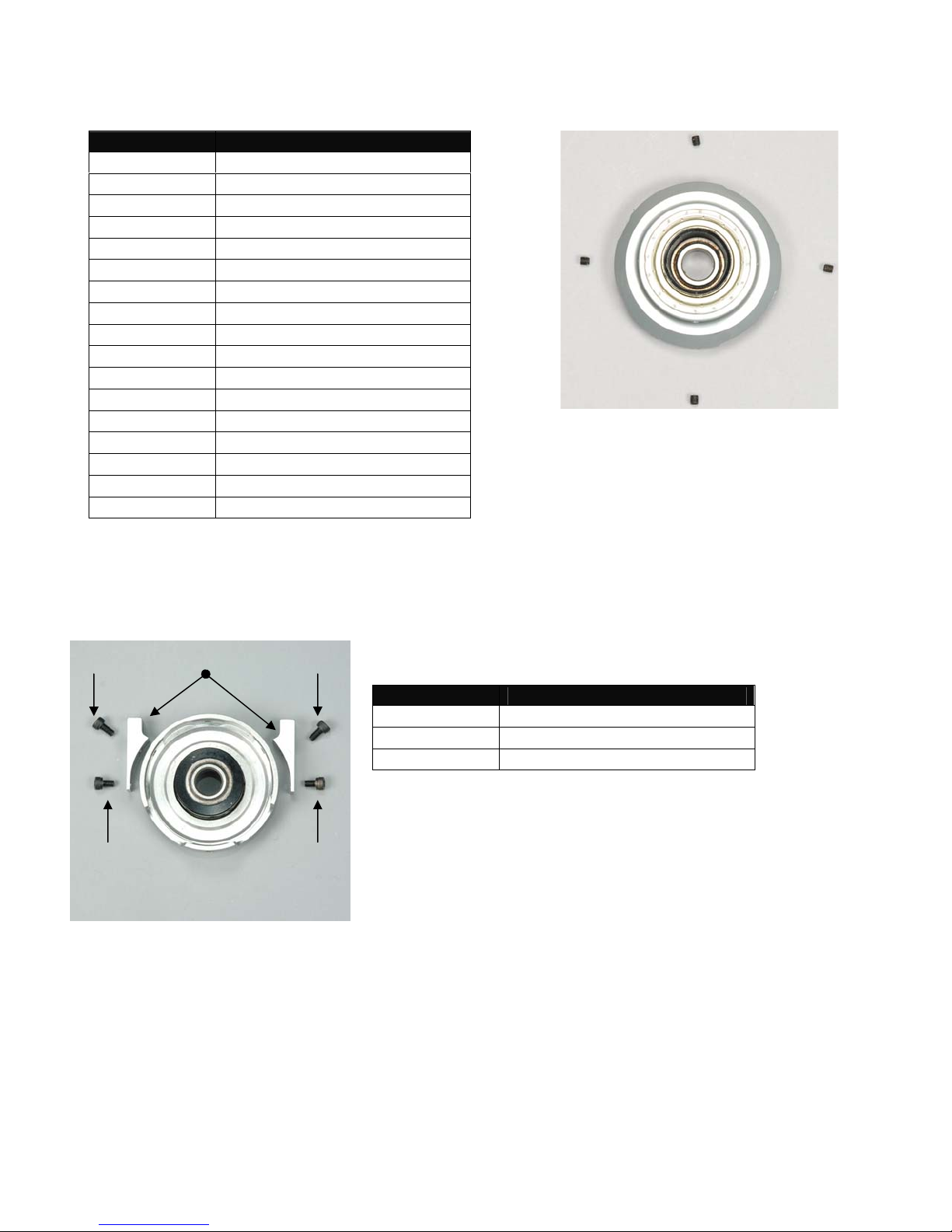

Part # Description

0051 M3 x 3 Socket Set Screw
0065 M3 x 12 Socket Bolt
0097 M3 x 22 Phillips Bolt
0107 M3 x 6 Threaded Ball
0109 M3 x 8 Threaded Ball
0112 M3 x 9.4 Threaded Ball
0133 Ball Links – Long
0159 M3 x 7 x 3 Ball Bearings
0217 Swashplate
0219 Wash-Out Hub
0221 Wash-Out Arms
0369 M2 x 35 Threaded Rods
0869 Wash-Out Links
0597-2 .187” x .135” Brass Spacer
0597-4 .187” x .215” Brass Spacer
106-07 M2 x 16 Pivot Pin
106-08 M2 Circlip

#0051

#0051

#0051

#0051

Optional 140° Swashplate Parts

#0060-1

#0060

#0217-6

#0060-1

#0060

Part # Description

0060 M3 x 5 Socket Bolt
0060-1 M3 x 6 Socket Bolt
0217-6 140° Swashplate Arms

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 23 of 59

This document may not be distributed without permission of Miniature Aircraft USA

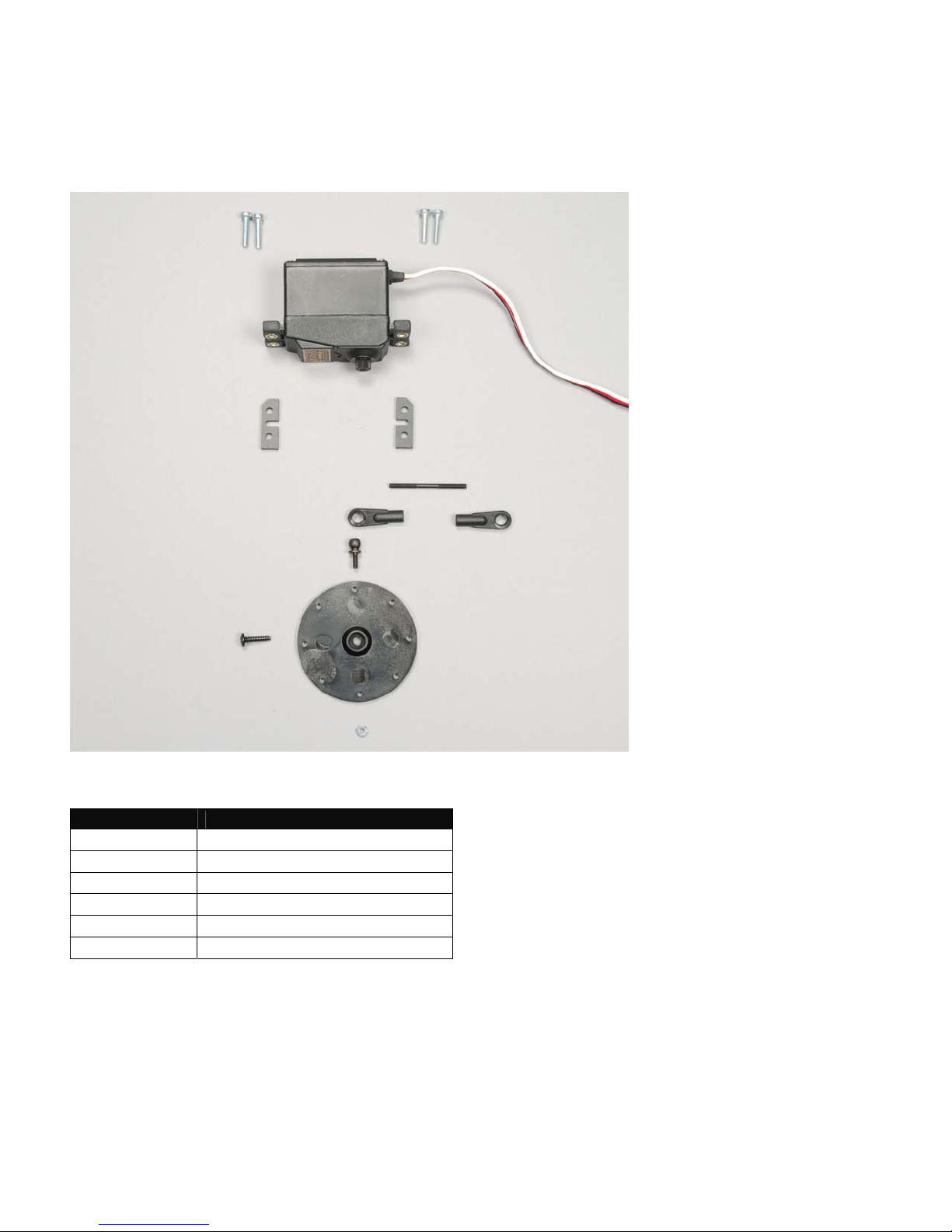

2.4.3 Pitch Servo - Parts

XCell Ion-X2 Reference Guide

#0015

#0103

#0133 #0133

#0038 (2)

#0038 (2)

Part # Description

0015 M2 Hex Nut
0038 M2.5 x 8 Phillips Bolt
0103 M2 x 5 Long Threaded Ball
0133 Ball Link – Long
0367 M2 x 60 Control Rod

#0367

Page 24 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

2.4.4 Elevator Servo - Parts

Parts Relationship

XCell Ion-X2 Reference Guide

#0039 (2)

#0560-1 #0560-1

#0337

#0133 #0133

#0103

#0039 (2)

#0015

Part # Description

0015 M2 Hex Nut
0039 M2.5 x 10 Phillips Bolt
0103 M2 x 5 Long Threaded Ball
0133 Ball Link – Long
0337 M2 x 30 Control Rod
0560-1 Servo Spacer – G10

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 25 of 59

This document may not be distributed without permission of Miniature Aircraft USA

2.4.5 Aileron Servo - Parts

#0038 (2) #0038 (2)

XCell Ion-X2 Reference Guide

#0133

#0367

#0133

#0103

#0015

Part # Description

0015 M2 Hex Nut
0038 M2.5 x 8 Phillips Bolt
0103 M2 x 5 Long Threaded Ball
0133 Ball Link – Long
0367 M2 x 60 Control Rod

Page 26 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

2.4.6 Rudder Servo - Parts

#0039-1 (2) #0039-1 (2)

XCell Ion-X2 Reference Guide

#0575-1

#0015 #0103

Part # Description

0015 M2 Hex Nut
0039-1 M2.5 x 14 Phillips Bolt
0103 M2 x 5 Long Threaded Ball
0575-1 Plastic Servo Blocks

#0575-1

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 27 of 59

This document may not be distributed without permission of Miniature Aircraft USA

2.4.7 Control Rods - Parts

Servo Control Rod Lengths

#0367

XCell Ion-X2 Reference Guide

#0133

C2

#0133

#0337

44 mm - 120° Swashplate

E1

12 mm

#0133

#0369

#0133

#0133

#0369

#0133

#0369

#0133

#0133

C1

20 mm

C1

20 mm

Pitch
Control
Rods

Aileron
Control
Rods

#0133

E2

7 mm

#0133

44 mm - 120° Swashplate

#0133

Elevator
Control
Rods

Part # Description

0133 Ball Link – Long
0337 M2 x 30 Control Rod
0367 M2 x 60 Control Rod
0369 M2 x 35 Threaded Rods

Page 28 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

#0133

#0367

C2

Rods Print Actual Size

Lengths Based on Futaba Servos

2.5 Canopy

#124-98

XCell Ion-X2 Reference Guide

#115-94

#106-22

#124-99

#115-94

#106-22

Part # Description

106-22 Rubber Grommet – Large
115-94 Rubber Grommet – Small
122-99 Canopy Knob
122-98 Canopy
122-99 Decal Sheet – Ion-X

#122-99

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 29 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.6 Rotor Head

2.6.1 Head Block #0844A Exploded View

#126-89

#126-86

#0844-1

#840-33 #0283 #0840-xx

#0840-27

#0283

Part # Description

0283 Flanged bearing
0840-27 Washout driver pins
0840-33 M3 button head bolt
0840-xx Flanged spacer
0844-1 Head block
126-86 Flybar support extension
126-89 Flybar support

Page 30 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.6.2 Head Block Assembly- Parts

#0065

#0509-1

#0113

#0597-1

#0844-A

#0067

Part # Description

0065 M3 x 12 socket bolt
0067 M3 x 14 socket bolt
0113 Double threaded ball
0509-1 Head button
0597-1 M3 x 3.2 brass spacer
0844A Head block Assembled

#0113

#0597-1

#0067

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 31 of 59

This document may not be distributed without permission of Miniature Aircraft USA

2.6.3 Bell Mixer Assembly - Parts

#106-02

#0597-3

#123-26

XCell Ion-X2 Reference Guide

#120-18

#0115

#106-02

#0562-1

#0093

#0112

Part # Description

0093 M3 x 18 Phillips Bolt
0112 M3 x 9.4 Threaded Ball
0115 M3 x 10.5 Threaded Ball
0562-1 M3 x .003” Shim
0597-3 .187” x .126” Brass Spacer
106-02 M3 x 7 x 3 Flanged Bearing
120-18 Main Blade Grips
123-26 Aluminum Bell Mixer

Page 32 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

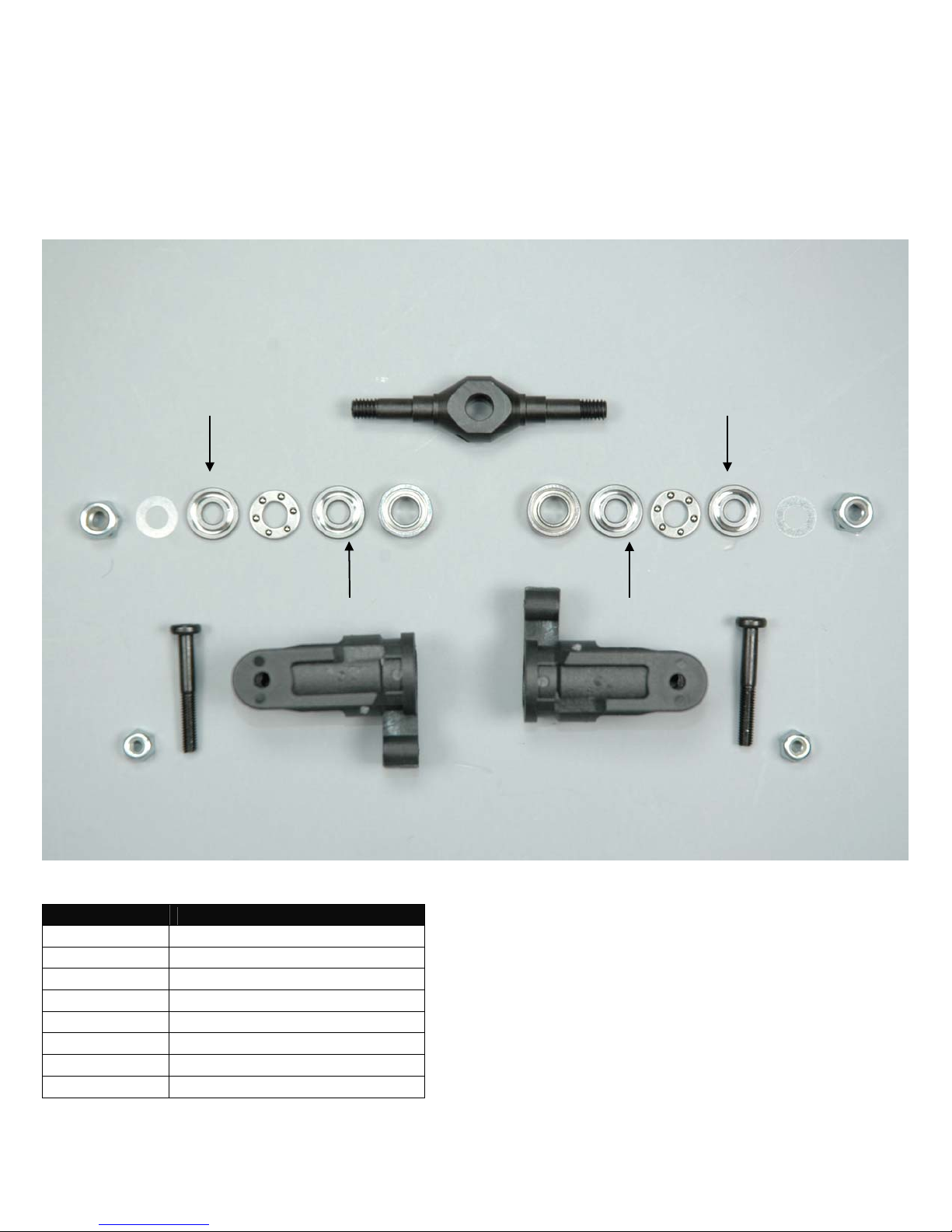

2.6.4 Blade Arm Assembly - Parts

#120-5

#0319

#0844-12

#0324

#0848-2

#0331

#0319

Part # Description

0023 M5 Locknut
0082-1 M5 x 45 Socket Bolt
0086 M5 x 12 Flanged Socket Bolt
0319 M8 x 16 Ball Bearing
0324 M10.5 x 15.9 x .90 Shim
0331 M8 x 13 x .50 Shim
0840-10 M8 x 12 x .70 Shim
0844-12 90D Dampers
0848-2 Circlip
0840-12 Thrust Bearing
120-5 Head Axle
127-38 C/F M5 x 15 x 1.5 Washer

#0840-10

#0840-12

#127-138

#0086

#0082-1

#0023

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 33 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.6.5 Flybar Control Assembly - Parts

#0052 (2)

#0133-1

#0063

#0049-3 (3)

#0063

#0566-1

#126-88 #126-88

#126-88

#0053-5

#0053-5

#0555-1

#0555-1

#126-88

#0133-1

#0052 (2)

#126-90 #126-90

#0063

#0049-3 (3)

#0063

#0871-7

Part # Description

0049-3 M2 x 8 Socket Bolt
0052 M3 x 6 Socket Set Screw
0053-5 M3 x 16 Socket Set Screw
0063 M3 x 10 Socket Bolt
0133-1 Ball Link – Grey
0555-1 M3 Control Ball
0566-1 Flybar
0871-7 Flybar Paddles
126-88 Threaded Flybar Spacers
126-90 C/F Angled Flybar Arms

Page 34 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.6.6 Rotor Head Control Rods - Parts

Bell Mixer
Control
Rods

#0133-1

#121-6

Bell Mixer
Flybar
Control

Control

Rods
Rods

#0135

#0312

#0135

#0133-1

61 mm 61 mm

#0133-1

#0133-1

#0121-4

#0135

#0312

9 mm

#0135

#0133-1

#121-6

B

#0133-1

Part # Description

0133-1 Ball Link – Grey
0135 Ball Link – Short
0312 M2 x 10 Threaded Rod
121-4 M3 x 30 Control Rod
121-6 M3 x 75 Control Rod

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 35 of 59

This document may not be distributed without permission of Miniature Aircraft USA

#0121-4

#0133-1

9 mm

F

B

Rods Print Actual Size

#0133-1

XCell Ion-X2 Reference Guide

2.7 Tail Rotor

2.7.1 Tail Rotor Hub Assembly - Parts

Small
Inside
Diameter

#0446-4 #0446-4

#0021 #0021

#0097

#0019 #0019

#0457 #0457 #120-39

Large
Inside
Diameter

#0873-1

#122-65

#120-39

#0873-1

Large
Inside
Diameter

Small
Inside
Diameter

#0097

Part # Description

0019 M3 Locknut
0021 M4 Locknut
0097 M3 x 22 Phillips Bolt
0446-4 M4 x .003” Shim
0457 Thrust Bearing
0873-1 Blade Grips
120-39 M5 x 10 x 4 Ball Bearings
122-65 Tail Rotor Hub

Page 36 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.7.2 Tail Rotor Pitch Control Assembly – Parts

#0439

#0101

#0437

#0439

#120-14

#0015 #0015

#0859-16 #0859-16

#0049 (2)

#0049 (2)

#0435

#0443 (2)

Part # Description

0015 M2 Hex Nut
0049 M2 x 10 Socket Bolt
0101 M2 x 5 Threaded Ball – Short Thread
0435 Brass Slider
0437 Pitch Control Ring
0439 M6 X 10 x 2.5 Ball Bearing
0443 M6 Retaining Ring
0859-16 Pitch Links
120-14 Pitch Yoke

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 37 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.7.3 Tail Rotor Gearbox #123-95 Exploded View

Part # Description

00 M3 dog point set screw
0051 M3 socket set screw
0425 M6 ball bearing
0432 M6 Collar
115-11 M6 flanged bearing
122-70 Shim
123-78 T/R open gearbox
123-79 T/R input shaft
123-80 Bearing spacer
123-81 T/R shaft
123-87 M6 collar
123-97 T/R input gear
123-98 T/R output gear

#0432

#123-79

#0051

#0425

#123-80

#0425

#123-97
(includes pin)

#123-81

#115-11

#122-70
Shim

#0051

#123-78

#123-98
Includes
Dog point
screws

#0051

#115-11

#0051

#123-87

Page 38 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.7.4 Tail Rotor Control Bellcrank - Parts

#123-95

#0159

#0097

#0159

#0597-3

#0445

Part # Description

0015 M2 Hex Nut
0019-1 M3 Locknut – Thin
0097 M3 x 22 Phillips Bolt
0103 M2 x 5 Threaded Ball
0159 M3 x 7 x 3 Ball Bearing
0445 Bellcrank
0597-3 .184” x .125” Brass Spacer
123-95 Assembled Gear Box

#0015

#0019-1

#0103

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 39 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.8 Tail Boom

2.8.1 Tail Rotor Mount Assembly - Parts

#0061

#0009

#124-180

#0032

#0032

#123-86A

#123-86B

#0063 (2)

#0063 (2)

#0017 (2)

#0017 (2)

#0016

#0017

#0017

#0017

#0017

#0016

#0063

#0063

#0063

#0063

#0009
#0061

Page 40 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

Part # Description

0009 M3 Washer
0016 M3 Serrated Lockwasher
0017 M3 Hex Nut
0032 M2.9 x 9.5 Phillips Screw
0061 M3 x 8 Socket Bolt
0063 M3 x 10 Socket Bolt
123-86A T/R and Fin Mount – Right
123-86B T/R Mount – Left
124-180 Vertical Fin

2.8.2 Tail Boom/Boom Mount/Torque Tube

#120-15

#0077

#0077

#0077

#0867-15

Part # Description

0019 M3 Locknut
0077 M3 x 30 Socket Bolt
0186 Boom Clamps
0867-15 Torque Tube
120-15 Tail Boom – 33” Aluminum

#0077

#0186

#0186

#0019 (2)

#0019 (2)

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 41 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.8.3 Horizontal Fin Mount Assembly – Parts

#0019

#0003

#0065

#0870-2

#124-182

Part # Description

0003 M3 Washer
0019 M3 Locknut
0027 M2.2 x 9.5 Phillips Screw
0065 M3 x 12 Socket Bolt
0870-2 Rear Boom Support Mount
124-182 Horizontal Fin

#0027

#0027

Page 42 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

2.8.4 Tail Rotor Control Rod Support Assembly - Parts

Parts Relationship

Part # Description

0015 M2 Hex Nut
0020 M2.5 Locknut
0039 M2.5 x 12 Phillips Bolt
0043 M2 x 10 Slotted Bolt

#0043

#0477

0477 T/R Guide Support
0868-4 Teflon Heat Shrink
0868-5 Push Rod Guide
0868-14 T/R Push Rod

#0020

#0015

#0868-4

#0868-5

#0039

#0868-14

2.8.5 Tail Rotor Control Rod Assembly - Parts

#133-1

#121-5

#0868-14

#133-1

#0868-14

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 43 of 59

This document may not be distributed without permission of Miniature Aircraft USA

#121-5

Part # Description

0133-1 Ball Link – Grey
0868-14 T/R Pushrod
121-5 M3 x 42 Control Rod

XCell Ion-X2 Reference Guide

2.8.6 Tail Boom Supports Assembly – Parts

#0077

#0081

#0003

#0872-7 #0872-7

#0003

#0019

#0019

#0003

#0872-7 #0872-7

#0003

#0048 #0048

#0870-2

#0048 #0048

#0004

#0004

#0872-9

#0872-9

#0077

#0081

Part # Description

0003 M3 Washer
0004 M4 Washer - Small
0019 M3 Locknut
0048 M3.5 x 25 Socket Set Screw
0077 M3 x 30 Socket Bolt
0081 M4 x 16 Socket Bolt
0870-2 Rear Boom Support Mount
0872-7 Boom Support Ends
0872-9 Tail Boom Support Rods

Page 44 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

III. Fastener Guide

The next two pages contains a list of all of the threaded fasteners in th is kit. They will print at
actual size. If it is not clear what the part number of a fastener is, simply find the fastener on the
chart and match its part number and description

XCell Ion-X2 Reference Guide

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 45 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

Fasteners – Washers, Nuts, Small Bolts, Set Screws

Part # Description Actual Size
0003 M3 Washer (Large) ---------------------

0004 M4 Washer (Small)---------------------

0009 M3 Washer (Small) ---------------------
0015 M2 Hex Nut -----------------------------

0016 M3 Serrated Lockwasher ---------------
0017 M3 Hex Nut -----------------------------

0019 M3 Locknut -----------------------------
0019-1 M3 Locknut – Thin ----------------------

0020 M2.5 Locknut ---------------------------
0021 M4 Locknut -----------------------------

0023 M5 Locknut -----------------------------
0027 M2.2 x 9.5 Phillips Screw --------------

0032 M2.5 x 9.5 Phillips Screw---------------
0038 M2 x 8 Phillips Bolt ---------------------

0039 M2 x 10 Phillips Bolt -------------------
0039-1 M2.5 x 14 Phillips Bolt -----------------

0043 M2 x 10 Slotted Bolt -------------------
0048 M3.5 x 25 Socket Set Screw -----------

0049-3 M2 x 8 Socket Bolt ---------------------
0049 M2 x 10 Socket Bolt --------------------

0051 M3 x 3 Socket Set Screw --------------
0052 M3 x 6 Socket Set Screw --------------
0053-5 M3 x 16 Socket Set Screw -------------

0056 M3 x 5 Dog Point Set Screw -----------
0057 M4 x 4 Socket Set Screw --------------

0058 M4 x 5 Socket Set Screw --------------
0058-1 M4 x 6 Socket Set Screw --------------

Page 46 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

Fasteners – Threaded Bolts

Part # Description Actual Size
0059-1 M2.5 x 6 Socket Bolt -------------------

0061 M3 x 8 Socket Bolt ---------------------
0060-1 M3 x 6 Socket Bolt ---------------------

0061 M3 x 8 Socket Bolt ---------------------
0062 M3 x 10 Flat Head Socket Bolt --------

0063 M3 x 10 Socket Bolt --------------------
0065 M3 x 12 Socket Bolt --------------------

0073 M3 x 20 Socket Bolt --------------------
0075 M3 x 25 Socket Bolt --------------------

0077 M3 x 30 Socket Bolt --------------------
0078-5 M4 x 10 Socket Bolt --------------------
0081 M4 x 16 Socket Head Bolt -------------
0082-1 M5 x 45 Socket Head Bolt -------------

0083 M4 x 25 Socket Head Bolt -------------
0084 M4 x 35 Socket Bolt --------------------

0086 M5 x 12 Flanged Socket Bolt ----------

0088-2 M3 x 6 Flat Head Socket Bolt ----------

0093 M3 x 18 Phillips Bolt -------------------

0097 M3 x 22 Phillips Bolt -------------------

0099 M3 x 30 Phillips Bolt -------------------

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 47 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

IV. Model Views

The following pages include frame bolt maps to help identify bolt locations as well as photos of
completed Ion-X2

Page 48 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

#0060-1

XCell Ion-X2 Reference Guide

#0063

#0061

#0060-1

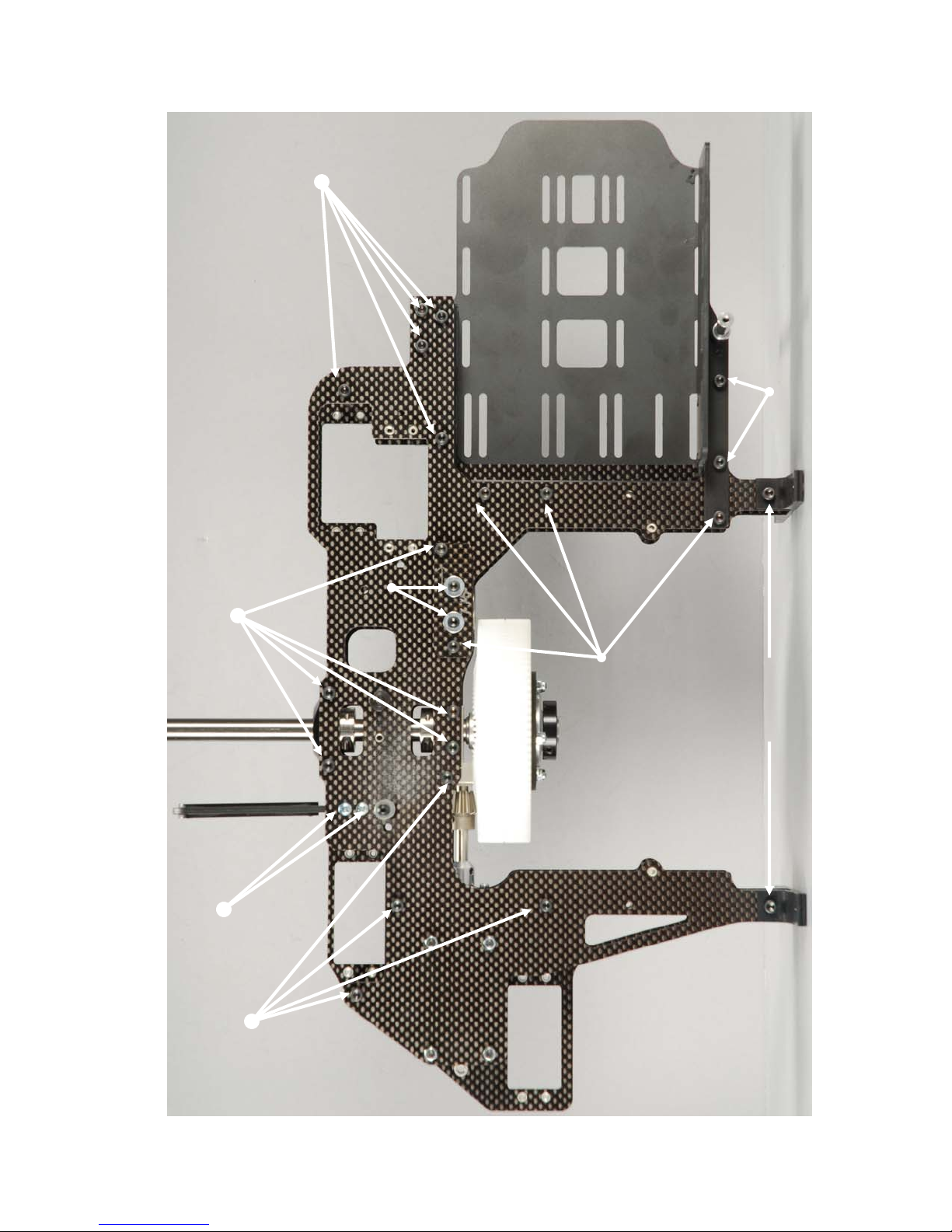

Frame Bolt Map – Right View

#0032

#0060-1

#0061 #0061

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 49 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

#0060-1

Frame Bolt Map – Left View

#0061

#0061

#0061

#0063

#0060-1

#0077

Page 50 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 51 of 59

This document may not be distributed without permission of Miniature Aircraft USA

Completed Model – Right View

XCell Ion-X2 Reference Guide

Completed Model – Left View

Page 52 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

V. Gear Ratios

5.1 Available Drive Ratios – Sorted by Motor Pulley Size

Main

Gear/
Pinion

Pulley Combo 90/12 92/12 93/12 95/12 100/12
Motor Primary 7.5 7.66 7.75 7.91 8.33

16 28 13.12
16 30 14.06
16 32 15.00
16 34 15.93
16 36 16.87
16 38 17.81
16 40 18.75
16 44 20.62

17 28 12.35
17 30 13.23
17 32 14.11
17 34 15.00
17 36 15.88
17 38 16.76
17 40 17.64
17 44 19.41

18 28 11.66
18 30 12.50
18 32 13.33
18 34 14.16
18 36 15.00
18 38 15.83
18 40 16.66
18 44 18.33

19 28 11.05
19 30 11.84
19 32 12.63
19 34 13.42
19 36 14.21
19 38 15.00

Main
Gear/
Pinion

13.40

14.36

15.32

16.27

17.23

18.19

19.15

21.06

12.61

13.51

14.41

15.32

16.22

17.12

18.02

19.82

11.91

12.76

13.61

14.46

15.32

16.17

17.02

18.72

11.28

12.09

12.90

13.70

14.51

15.32

Main
Gear/
Pinion

13.56 13.84 14.57

14.53 14.83 15.61

15.50 15.82 16.66

16.46 16.80 17.70

17.43 17.79 18.74

18.40 18.78 19.78

19.37 19.77 20.82

21.31 21.75 22.90

12.76 13.02 13.72

13.67 13.95 14.70

14.58 14.88 15.68

15.50 15.82 16.66

16.41 16.75 17.64

17.32 17.68 18.62

18.23 18.61 19.60

20.05 20.47 21.56

12.05 12.30 12.95

12.91 13.18 13.88

13.77 14.06 14.80

14.63 14.94 15.73

15.50 15.82 16.66

16.36 16.69 17.58

17.22 17.57 18.51

18.94 19.33 20.36

11.42 11.65 12.27

12.23 12.48 13.15

13.05 13.32 14.02

13.86 14.15 14.90

14.68 14.98 15.78

15.50 15.82 16.66

Main
Gear/
Pinion

Main
Gear/
Pinion

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 53 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

19 40 15.78
19 44 17.36

20 28 10.50
20 30 11.25
20 32 12.00
20 34 12.75
20 36 13.50
20 38 14.25
20 40 15.00
20 44 16.50

22 28 9.54
22 30 10.22
22 32 10.90
22 34 11.59
22 36 12.27
22 38 12.95
22 40 13.63
22 44 15.00

28 16 4.28
28 17 4.55
28 18 4.82
28 19 5.08
28 20 5.35
28 22 5.89

30 16 4.00
30 17 4.25
30 18 4.50
30 19 4.75
30 20 5.00
30 22 5.50

32 16 3.75
32 17 3.98
32 18 4.21
32 19 4.45
32 20 4.68
32 22 5.15

34 16 3.52
34 17 3.75

16.12

17.73

10.72

11.49

12.25

13.02

13.78

14.55

15.32

16.85

9.74

10.44

11.14

11.83

12.53

13.23

13.92

15.32

4.37

4.65

4.92

5.19

5.47

6.01

4.08

4.34

4.59

4.85

5.10

5.61

3.83

4.06

4.30

4.54

4.78

5.26

3.60

3.83

16.31 16.65

17.94 18.31

10.85 11.07

11.62 11.86

12.40 12.65

13.17 13.44

13.95 14.23

14.72 15.02

15.50 15.82

17.05 17.40

9.86 10.06

10.56 10.78

11.27 11.50

11.97 12.22

12.68 12.94

13.38 13.66

14.09 14.38

15.50 15.82

4.42

4.70

4.98

5.25

5.53

6.08

4.13

4.39

4.65

4.90

5.16

5.68

3.87

4.11

4.35

4.60

4.84

5.32

3.64

3.87

4.52

4.80

5.08

5.36

5.65

6.21

4.21

4.48

4.74

5.00

5.27

5.80

3.95

4.20

4.44

4.69

4.94

5.43

3.72

3.95

17.53

19.29

11.66

12.49

13.32

14.16

14.99

15.82

16.66

18.32

10.60

11.35

12.11

12.87

13.63

14.38

15.14

16.66

4.76

5.05

5.35

5.65

5.95

6.54

4.44

4.72

4.99

5.27

5.55

6.10

4.16

4.42

4.68

4.94

5.20

5.72

3.92

4.16

Page 54 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

34 18 3.97
34 19 4.19
34 20 4.41
34 22 4.85

4.05

4.28

4.50

4.95

4.10

4.33

4.55

5.01

4.18 4.41

4.42 4.65

4.65 4.90

5.11 5.39

36 16 3.33
36 17 3.54
36 18 3.75
36 19 3.95
36 20 4.16
36 22 4.58

3.40

3.61

3.83

4.04

4.25

4.68

3.44

3.65

3.87

4.09

4.30

4.73

3.51 3.70

3.73 3.93

3.95 4.16

4.17 4.39

4.39 4.62

4.83 5.09

38 16 3.15
38 17 3.35
38 18 3.55
38 19 3.75
38 20 3.94
38 22 4.34

3.22

3.42

3.62

3.83

4.03

4.43

3.26

3.46

3.67

3.87

4.07

4.48

3.33 3.50

3.53 3.72

3.74 3.94

3.95 4.16

4.16 4.38

4.57 4.82

40 16 3.00
40 17 3.18
40 18 3.37
40 19 3.56
40 20 3.75
40 22 4.12

3.06

3.25

3.44

3.63

3.83

4.21

3.10

3.29

3.48

3.68

3.87

4.26

3.16 3.33

3.36 3.54

3.55 3.74

3.75 3.95

3.95 4.16

4.35 4.58

44 16 2.72
44 17 2.89
44 18 3.06
44 19 3.23
44 20 3.40
44 22 3.75

2.78

2.95

3.13

3.30

3.48

3.83

2.81

2.99

3.17

3.34

3.52

3.87

2.87 3.02

3.05 3.21

3.23 3.40

3.41 3.59

3.59 3.78

3.95 4.16

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 55 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

5.2 Available Drive Ratios – Sorted by Primary Pulley Size

Main

Gear/

Pinion
Pulley Combo 90/12 92/12 93/12 95/12 100/12
Motor Primary 7.5 7.66 7.75 7.91 8.33

28 16 4.28
30 16 4.00
32 16 3.75
34 16 3.52
36 16 3.33
38 16 3.15
40 16 3.00
44 16 2.72

28 17 4.55
30 17 4.25
32 17 3.98
34 17 3.75
36 17 3.54
38 17 3.35
40 17 3.18
44 17 2.89

28 18 4.82
30 18 4.50
32 18 4.21
34 18 3.97
36 18 3.75
38 18 3.55
40 18 3.37
44 18 3.06

28 19 5.08
30 19 4.75
32 19 4.45
34 19 4.19
36 19 3.95
38 19 3.75
40 19 3.56
44 19 3.23

Main
Gear/
Pinion

4.37

4.08

3.83

3.60

3.40

3.22

3.06

2.78

4.65

4.34

4.06

3.83

3.61

3.42

3.25

2.95

4.92

4.59

4.30

4.05

3.83

3.62

3.44

3.13

5.19

4.85

4.54

4.28

4.04

3.83

3.63

3.30

Main
Gear/
Pinion

4.42

4.13

3.87

3.64

3.44

3.26

3.10

2.81

4.70

4.39

4.11

3.87

3.65

3.46

3.29

2.99

4.98

4.65

4.35

4.10

3.87

3.67

3.48

3.17

5.25

4.90

4.60

4.33

4.09

3.87

3.68

3.34

Main
Gear/
Pinion

4.52

4.21

3.95

3.72

3.51

3.33

3.16

2.87

4.80

4.48

4.20

3.95

3.73

3.53

3.36

3.05

5.08

4.74

4.44

4.18

3.95

3.74

3.55

3.23

5.36

5.00

4.69

4.42

4.17

3.95

3.75

3.41

Main
Gear/
Pinion

4.76

4.44

4.16

3.92

3.70

3.50

3.33

3.02

5.05

4.72

4.42

4.16

3.93

3.72

3.54

3.21

5.35

4.99

4.68

4.41

4.16

3.94

3.74

3.40

5.65

5.27

4.94

4.65

4.39

4.16

3.95

3.59

Page 56 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

28 20 5.35
30 20 5.00
32 20 4.68
34 20 4.41
36 20 4.16
38 20 3.94
40 20 3.75
44 20 3.40

28 22 5.89
30 22 5.50
32 22 5.15
34 22 4.85
36 22 4.58
38 22 4.34
40 22 4.12
44 22 3.75

16 28 13.12
17 28 12.35
18 28 11.66
19 28 11.05
20 28 10.50
22 28 9.54

16 30 14.06
17 30 13.23
18 30 12.50
19 30 11.84
20 30 11.25
22 30 10.22

16 32 15.00
17 32 14.11
18 32 13.33
19 32 12.63
20 32 12.00
22 32 10.90

16 34 15.93
17 34 15.00
18 34 14.16
19 34 13.42
20 34 12.75

5.47

5.10

4.78

4.50

4.25

4.03

3.83

3.48

6.01

5.61

5.26

4.95

4.68

4.43

4.21

3.83

13.40

12.61

11.91

11.28

10.72

9.74

14.36

13.51

12.76

12.09

11.49

10.44

15.32

14.41

13.61

12.90

12.25

11.14

16.27

15.32

14.46

13.70

13.02

5.53

5.16

4.84

4.55

4.30

4.07

3.87

3.52

6.08

5.68

5.32

5.01

4.73

4.48

4.26

3.87

5.65 5.95

5.27 5.55

4.94 5.20

4.65 4.90

4.39 4.62

4.16 4.38

3.95 4.16

3.59 3.78

6.21 6.54

5.80 6.10

5.43 5.72

5.11 5.39

4.83 5.09

4.57 4.82

4.35 4.58

3.95 4.16

13.56 13.84 14.57

12.76 13.02 13.72

12.05 12.30 12.95

11.42 11.65 12.27

10.85 11.07 11.66

9.86 10.06 10.60

14.53 14.83 15.61

13.67 13.95 14.70

12.91 13.18 13.88

12.23 12.48 13.15

11.62 11.86 12.49

10.56 10.78 11.35

15.50 15.82 16.66

14.58 14.88 15.68

13.77 14.06 14.80

13.05 13.32 14.02

12.40 12.65 13.32

11.27 11.50 12.11

16.46 16.80 17.70

15.50 15.82 16.66

14.63 14.94 15.73

13.86 14.15 14.90

13.17 13.44 14.16

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 57 of 59

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

22 34 11.59

16 36 16.87
17 36 15.88
18 36 15.00
19 36 14.21
20 36 13.50
22 36 12.27

16 38 17.81
17 38 16.76
18 38 15.83
19 38 15.00
20 38 14.25
22 38 12.95

16 40 18.75
17 40 17.64
18 40 16.66
19 40 15.78
20 40 15.00
22 40 13.63

16 44 20.62
17 44 19.41
18 44 18.33
19 44 17.36
20 44 16.50
22 44 15.00

11.83

17.23

16.22

15.32

14.51

13.78

12.53

18.19

17.12

16.17

15.32

14.55

13.23

19.15

18.02

17.02

16.12

15.32

13.92

21.06

19.82

18.72

17.73

16.85

15.32

11.97 12.22

17.43 17.79

16.41 16.75

15.50 15.82

14.68 14.98

13.95 14.23

12.68 12.94

18.40 18.78

17.32 17.68

16.36 16.69

15.50 15.82

14.72 15.02

13.38 13.66

19.37 19.77

18.23 18.61

17.22 17.57

16.31 16.65

15.50 15.82

14.09 14.38

21.31 21.75

20.05 20.47

18.94 19.33

17.94 18.31

17.05 17.40

15.50 15.82

12.87

18.74

17.64

16.66

15.78

14.99

13.63

19.78

18.62

17.58

16.66

15.82

14.38

20.82

19.60

18.51

17.53

16.66

15.14

22.90

21.56

20.36

19.29

18.32

16.66

Page 58 of 59 Copyright Miniature Aircraft USA Created: 8/25/2007

This document may not be distributed without permission of Miniature Aircraft USA

XCell Ion-X2 Reference Guide

Created: 8/25/2007 Copyright Miniature Aircraft USA Page 59 of 59

This document may not be distributed without permission of Miniature Aircraft USA
