MINEW TECHNOLOGIES MS88SF2 User Manual

BT 5.0 Module MS88SF2 Specification

BLE* Module Specification

Model: MS88SF2

Version: V1.0

* Low energy Bluetooth 4.0 and above

1) The Bluetooth trade mark is owned by the Bluetooth SIG Inc. USA.

2) All other trademarks listed herein are owned by their respective owners.

3) All specifications are subject to change without notice.

TEL: [phone] EMAIL: [e-mail] URL: www.minewtech.com Page 1

BT 5.0 Module MS88SF2 Specification

Overview

The BLE module MS88SF2 is designed based on nRF52840 SoC, it is a compact and very small size
Bluetooth 5.0 module with metal cover shield.

The BLE module MS88SF2 is highly integrated that contains all the necessary components from radio to
different antenna and a completely implemented Bluetooth protocol stack.

Features

• Frequency: 2400 to 2483 MHz

• Max. Output power: +8dBm

• Single power supply: 1.8 – 3.9V

• Range: 10-60 meters (BER<0.1%, open space)

• Chip: nRF52840 (Nordic)

• GPIO Quantity: 24

• 1MB Flash and 256kB RAM

• Module size: 23.2 x 17.4 x 2.0 mm

• ARM Cortex-M4F processor

• Metal shielding with marking

• Supports USB data interface

• PCB antenna types

• Operating Temperature range: -25 to 85 degree Celsius

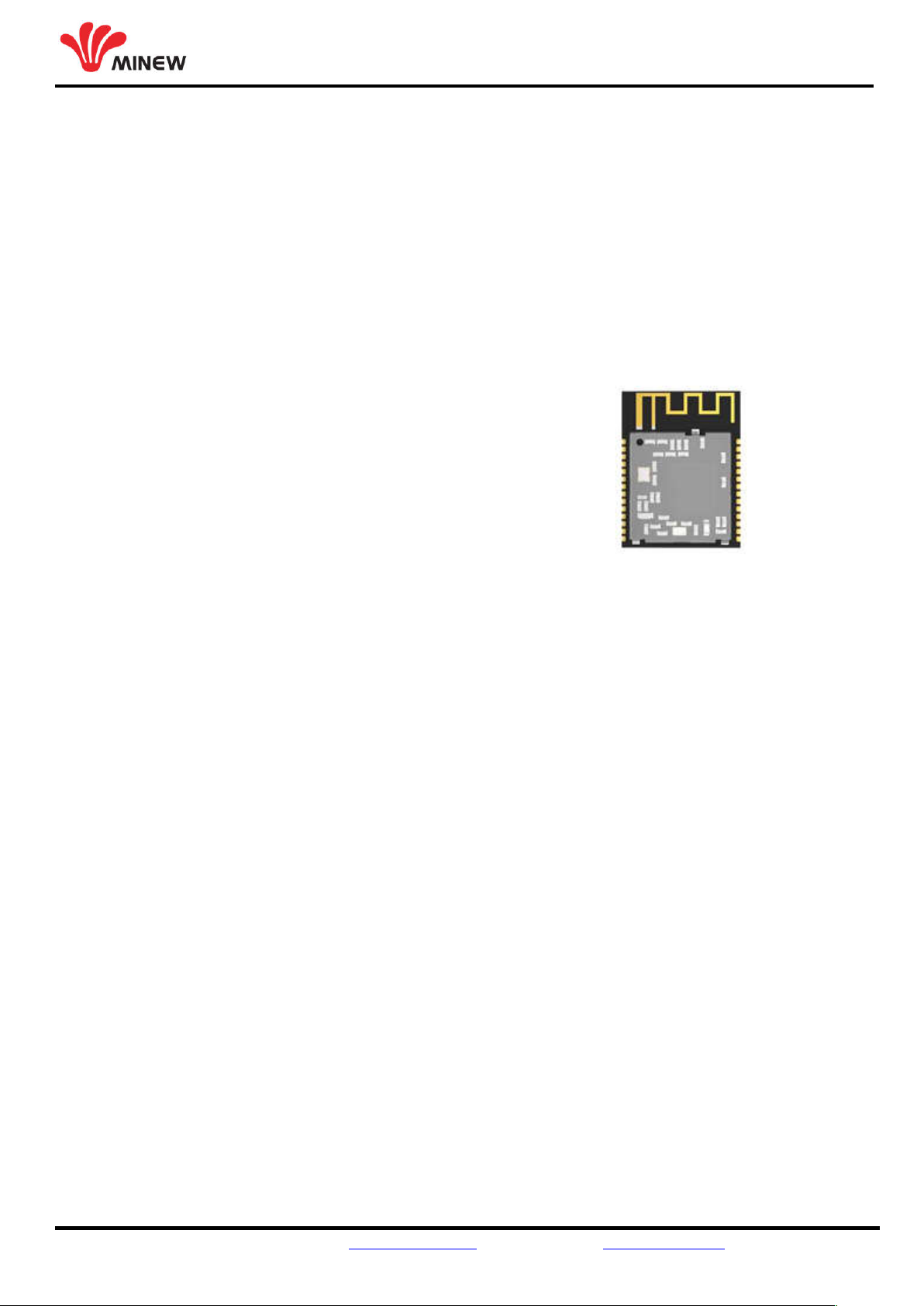

MS88SF2

Certifications

• CE Certification

• FCC Certification (FCCID: 2ABU6-MS88SF2)

Applications

• Cycle computer

• Heart rate monitor

• Blood pressure monitor

• Blood glucose meter

• Weighing machine

• Thermometer

• Mobile accessories

• Sports and fitness sensors

• Remote controllers / Toys

• Key fobs and wrist band

• 3D glasses and gaming controller

TEL: [phone] EMAIL: [e-mail] URL: www.minewtech.com Page 2

BT 5.0 Module MS88SF2 Specification

RST

Digital I/O

Configurable as system RESET pin

1. Pin Assignment and Description

1.1 Pin assignment

1.2 Pin description

Symbol Type Description

VCC/VDDH Power Power supply

GND/GND1 Power Ground

SWDIO Digital I/O

SWCLK Digital input Hardware debug and flash programming I/O

P0.02 - P0.31

P1.00 - P1.15

ANT Antenna output External antenna

System reset (active low). Hardware debug and flash programming I/O

programming I/O.

Digital I/O General purpose I/O pin

D+ Digital I/O USB D+

D- Digital I/O USB D-

TEL: [phone] EMAIL: [e-mail] URL: www.minewtech.com Page 3

BT 5.0 Module MS88SF2 Specification

2. Electronic Characteristic

2.1 Absolute maximum ratings

Symbol Min Max Unit Condition

VCC 1.7 3.9 V Input DC voltage at VCC pin

ANT +10 dBm Input RF power at antenna pin at receiver

Note: The module is not protected against overvoltage or reserved voltages. If necessary, voltage spikes

exceeding the power supply voltage specification must be limited to values within the specified
boundaries by using appropriate protection devices.

2.2 Maximum ESD ratings

Parameter Max Unit Remarks

4 KV Human body model

ESD Sensitivity

750 V Charged device model
+/- 8 KV ESD indirect contact discharge

2.3 Operating temperature range

Parameter Min Max Unit
Storage temperature -40 85 ℃

Operating temperature -40 85 ℃

2.4 Current consumption

Parameter Min Max Unit Remark

Receiving current 4.8 mA standard mode

Transmission power 4.9 mA transmission power at 0dbm

Sleeping current 1 uA power mode 3

2.5 RF performance

Parameter Min Typical Max Unit

Receiver input sensitivity -103 dBm
Output power -20 0 +8 dBm

TEL: [phone] EMAIL: [e-mail] URL: www.minewtech.com Page 4

BT 5.0 Module MS88SF2 Specification

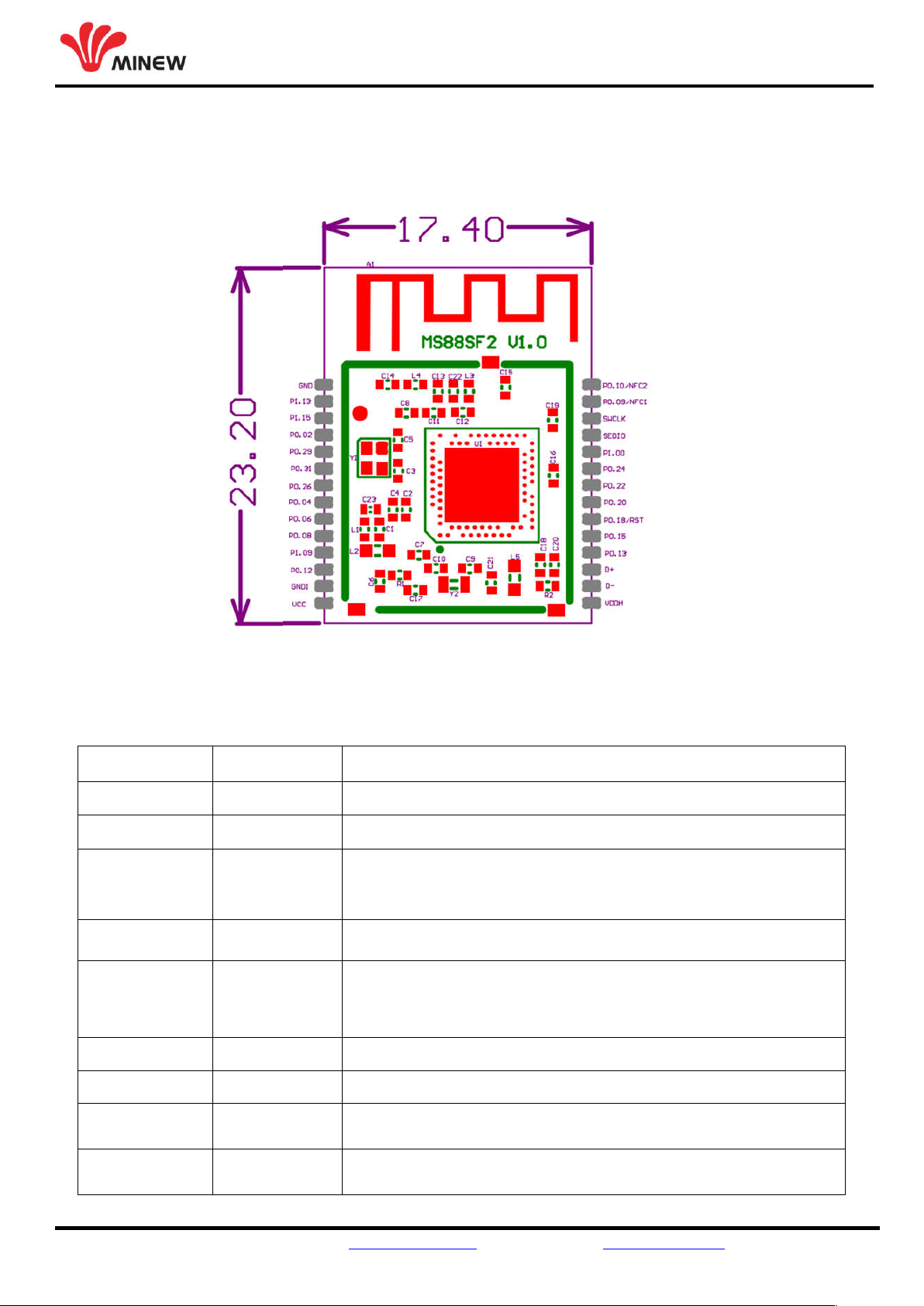

3. Physical Dimension

4. Layout and Soldering Considerations

Unit: mm

Unit: mm

To make sure wireless performance is at its best condition, please layout the module on the carrier board
as below instructions.

4.1 Carrier board under the antenna area of the module like the picture;

4.2 Keep out enough area for the antenna area;

4.3 Reflow profiles are to be selected according to standard manufacturing process;

4.4 The soldering temperature should be less than 206℃;

4.5 The module should be placed far away other low frequency and digital circuits;

4.6 The MS50 series modules contain highly sensitive electronic circuitry and are Electrostatic Sensitive
Devices (ESD). Handling the MS88 series modules without proper ESD protection may destroy or
damage them permanently.

*PCB: It’s the mother board / carrier board.

Recommended Layout for the Carrier Board

TEL: [phone] EMAIL: [e-mail] URL: www.minewtech.com Page 5

BT 5.0 Module MS88SF2 Specification

5. USB Data Interface

Please refer to the specification of nRF52840 to know more.

6. Package

Details Tray Carton

Quantity (module) 80 pcs 4000 pcs / 50 trays

Net Weight 40.0g 4.5Kg

Gross Weight 75.0g 9.5Kg

Size 20 x 18 x 5 cm 32 x 23 x 40 cm

7. Ordering information

Ordering number Description

306030063 MS88SF2, nRF52840 BT 5.0 Module, PCB Antenna

<END>

TEL: [phone] EMAIL: [e-mail] URL: www.minewtech.com Page 6
