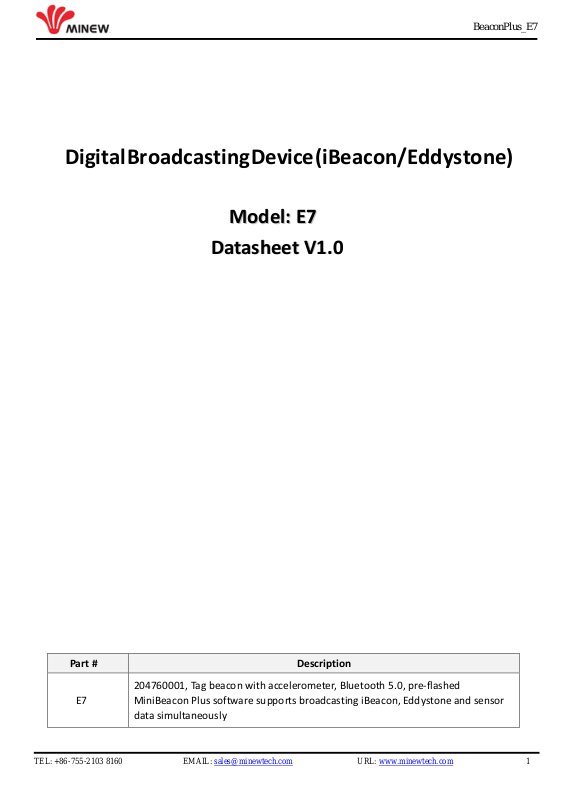

MINEW TECHNOLOGIES E7 User Manual

E8 TagBeacon

BeaconPlus_E7

Digital Broadcasting Device (iBeacon/Eddystone)

MMooddeell:: EE77

DDaattaasshheeeett VV11..00

Part #

Description

E7

204760001, Tag beacon with accelerometer, Bluetooth 5.0, pre-flashed
MiniBeacon Plus software supports broadcasting iBeacon, Eddystone and sensor
data simultaneously

TEL: [phone] EMAIL: [e-mail] URL: www.minewtech.com 1

E8 TagBeacon

BeaconPlus_E7

E7 BeaconPlus

The BeaconPlus E7 is a new generation beacon that loaded Bluetooth 5.0 hardware platform and
MiniBeacon Plus intelligence software.

E7 has a smart rotatable housing that makes the coin battery replaceable; it is designed to IP67 waterproof
device that can work under the water.

Moreover, E7 can advertise standard iBeacon, Eddystone (UID,URL,TLM) and sensor data simultaneously or
programmed by end user themselves via configuration app.

FEATURE

- IP67 waterproof;

- Replaceable coin battery 1000mAh

- Advertising iBeacon & Eddystone & Sensor data

- Unique MAC address (ITU)

- Bluetooth 5.0 chipset nRF52 series

- The max. 100 meters advertising distance

- Hidden power ON/OFF push button

APPLICATION

- Indoor location

- Retail promotion

- Activity monitoring

- Inventory tracking

ACCESSORY

- Double side adhesive tape

CONFIGURATION TOOL

- BeaconSET+ (IOS & Android)

ACTIVATE E7

- Open the rotatable housing;

- Pressing “push button” and keeping on 3 seconds;

- The LED lights on 5 seconds, then E7 starts broadcasting;

CERTIFICATION

- iBeacon MFi License (iBC-14-00582)

- FCC Regulation (FCC Part 15.)

- CE Regulations (Included EN300328/301489/60950/62479)

TEL: [phone] EMAIL: [e-mail] URL: www.minewtech.com 2

E8 TagBeacon

BeaconPlus_E7

Item

Value

Remarks

Case Color

white

Other colors can be customized

Battery Model

1 x CR2477

3.0V, 1000mAh

Operation Voltage

1.8-3.6V

DC

Transmission Current

5.3mA (peak current)

Tested at 0dBm transmission power

Transmission Range

100 meters

Maximum

Waterproof level

IP67

Tested at 1 meter water

Antenna

50ohm

On board / PCB Antenna

Size

Φ39 x 15.5mm

39mm diameter, 15.5mm height

Type

Item

Default Settings

iBeacon

UUID (16 bytes)

E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity)

Major (2 bytes)

0

Minor (2 bytes)

0

Eddystone
Instance ID @UID

random (10 bytes)

Namespace ID @UID

random (6 bytes)

URL

https://www.minewtech.com

Base
Parameters

Measured Power

-59 (0xC5)

Radio Tx power

6 (0dBm)

Adv. Interval

9(900mS)

Beacon ID

random, it is MAC address of beacon actually.

Beacon Name

PLUS

Connectable

yes (it is configuration mode)

Password

minew123 (Allowing only 8 characters)

Extra

Function

Reset factory

available

Power off

available

Modify password

available

Remove password

available

Update firmware

available

ELECTRONIC PARAMETER

PARAMETER SETTING

Each E7 BeaconPlus has been pre-configured in the factory before the shipment. Here below is given the
main parameters and default settings.

TEL: [phone] EMAIL: [e-mail] URL: www.minewtech.com 3

E8 TagBeacon

BeaconPlus_E7

Item

Version

File Name

Date

Datasheet

V1.0

E7 BeaconPlus Datasheet

5th February, 2018

Instruction

V1.0

E7 BeaconPlus Configuration Instruction

5th March, 2018

SDK

V1.0

Both iOS and Android

28th December, 2017

Details

Box

Carton

Quantity (E7)

20pcs

200pcs

Net Weight

0.4Kg

4.0Kg

Gross Weight

0.5Kg

5.7Kg

Size

31 x 11 x 8 cm

32 x 23 x 40 cm

TECHNICAL DOCUMENT

PACKING INFORMATION

Firmware Flash

1. J-LINK Programmer Kit;

2. Programming ports definition;

Please contact MINEW sales team to ask more related information if needed.

DECLARATION

The contents of this datasheet are subject to change without prior notice for further improvement. Minew
team reserves the right to explain all the terms of this datasheet.

<END>

TEL: [phone] EMAIL: [e-mail] URL: www.minewtech.com 4
