1. Overview

G1 is a Bluetooth 5.0 low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or
apps. The G1 gateway collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices, and
then sends to the local server or remote cloud server by HTTPs / MQTT/mbed (ARM) protocol with SSL
and TLS certification over Wi-Fi / Ethernet / Cellular. The subsequent version G1 Gateway will also
implement the connection with BLE devices. This product is a science fiction with a color lamp ring on
the top. It can be fixed by sticker or screw thread.

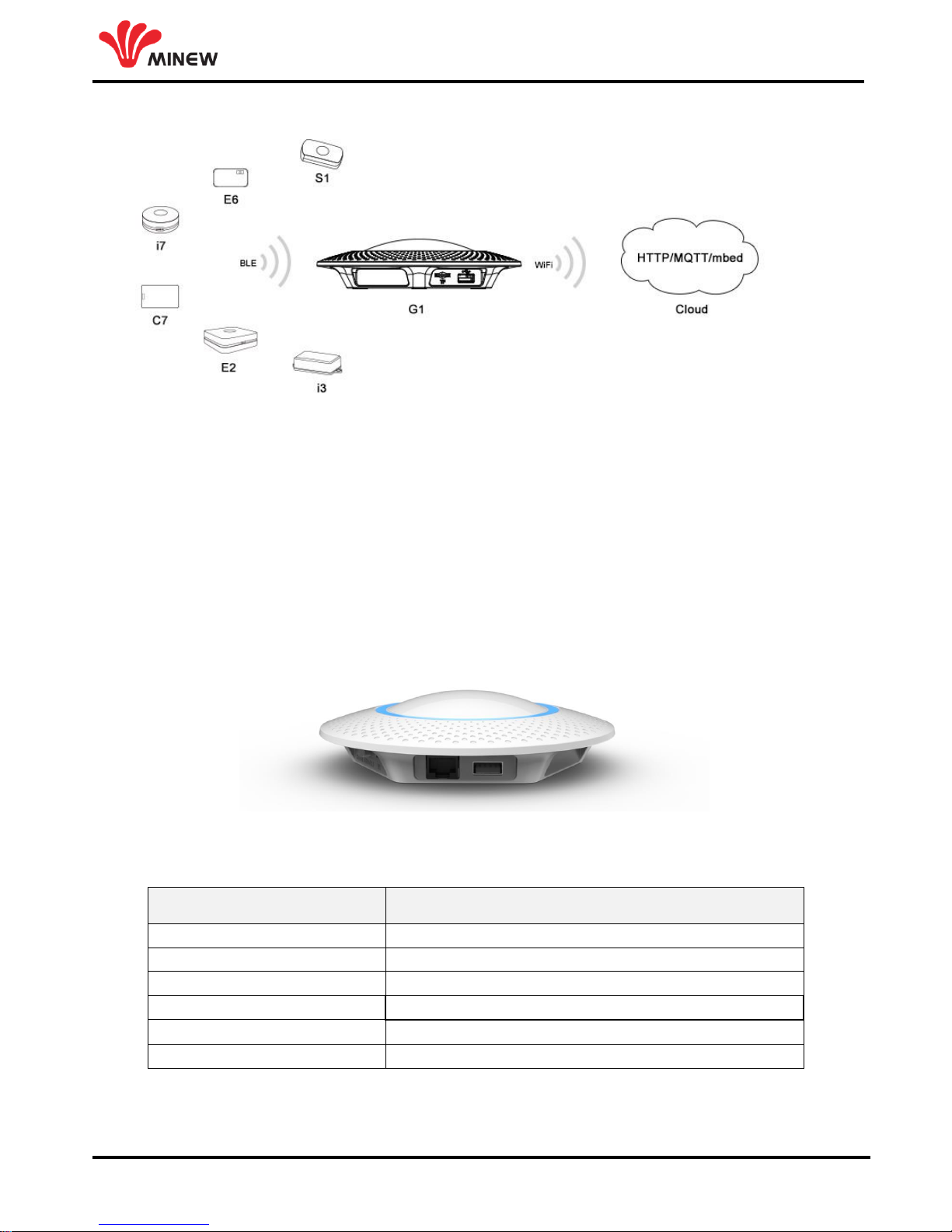

Outside View

Internal Structure

Email: [e-mail] SHENZHEN MINEW TECHNOLOGIES CO LTD Page 3

BLE 5.0 & WiFi Gateway Specification

2. Features

General:

● 1A @ DC 5.0V input, micro-USB

● 10/100 Ethernet, POE (802.3af)

● Firmware upgrade OTA

● Multiple data transportation protocols

Local server: TCP / UDP

Remote serer / Cloud: HTTP/MQTT/mbed(ARM) with SSL and TLS certification

● Operating temperature: -15℃ to 55℃

WIFI:

● Wifi module based on the Mediatek MT7628 580MHz 32-bit Application Processor

● 2T2R 2.4 GHz with 300 Mbps PHY data rate,802.11b/g/n WiFi

● Two USB 2.0 Host Connectors and one TF Card slot

● 128M bytes 16-bit DDR2 RAM

● 16M bytes SPI NOR Flash

● RGB LED strip as the status indicator

● OpenWrt 15.05, Linux distribution for embedded devices.

BLE:

● BLE module based on the Nordic's nRF52832 with ARM® Cortex®-M4 64MHz 32-bit processor

● At least Bluetooth 4.0(Only Bluethooth Low Energy)

3. Typical Application

● iBeacon / Eddystone / other BLE tag receiver

● BLE sensor reader / receiver

● Asset tracking

● Access control management

● Advertisement promotion

● Indoor location and position

● Industrial automation
