Minelab ‘GP 3000’
4901-0036 Version 1.2
!
I

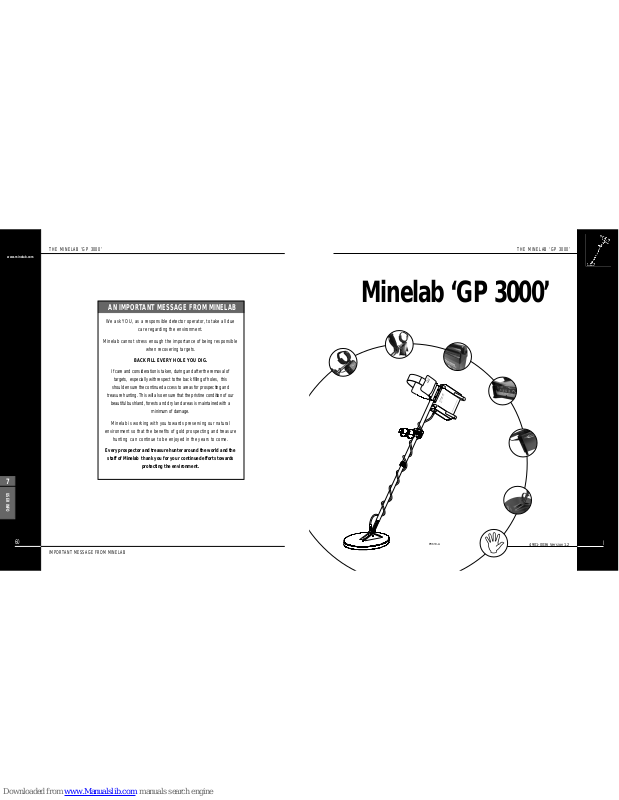

AN IMPORTANT MESSAGE FROM MINELAB
We ask YOU, as a responsible detector operator, to take all due
care regarding the environment.
Minelab cannot stress enough the importance of being responsible
when recovering targets.
BACKFILL EVERY HOLE YOU DIG.
If care and consideration is taken, during and after the removal of
targets, especially with respect to the back filling of holes, this
should ensure the continued access to areas for prospecting and
treasure hunting. This will also ensure that the pristine condition of our
beautiful bushland, forests and dry land areas is maintained with a
minimum of damage.
Minelab is working with you towards preserving our natural
environment so that the benefits of gold prospecting and treasure
hunting can continue to be enjoyed in the years to come.
Every prospector and treasure hunter around the world and the
staff of Minelab thank you for your continued efforts towards
protecting the environment.
IMPORTANT MESSAGE FROM MINELAB
60
USER INFO
7
P0610-A
G
P
3
0
0
0
Page 2
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
© Minelab Electronics Pty Ltd
This document contains proprietary information which is protected by
copyright. Apart from any use as permitted under the Copyright Act
1968, no part may be reproduced by any process without written
permission from Minelab Electronics Pty Ltd, 118 Hayward Avenue,
Torrensville, SA 5031, Australia.
WARNING. This document contains Minelab Electronics Pty Ltd
rights, technical data or restricted rights data, or both. Patents and
trademarks apply.
Since there may be a range of options available in this detector type,
equipment may vary according to the model or items ordered with
your detector. Certain descriptions and illustrations may differ (in this
manual) from the exact model that you purchased. In addition,
Minelab reserve the right to respond to ongoing technical progress by
introducing changes in design, equipment and technical features at
any time.
II
take care
The ‘GP 3000’ is a high quality electronic instrument. It has been designed for
professional gold prospecting use and the electronics circuitry is encased in a
rugged housing. Take care of your detector in the following way:
Keep the detector clean and dry. It is very important to keep all electrical connectors clean and dry.
The control box is not waterproof, even though it has been designed to be water-resistant. Take
care to avoid it becoming wet.
The coil is water resistant and may be used in rain or wet conditions. The coil is not waterproof. Do not
immerse the coil in water.
Regularly replace such items as teardrop washers and skidplates to give long life to your detector.
Do not expose the detector to high temperatures or leave it in the sun for longer than is necessary.
Shading will help protect it. Do not leave the detector in a closed vehicle, especially in the sun.
The coil housing will eventually wear through if you scrub the ground with it while searching. Use of a
replaceable skid plate will help to protect your coils.
To prevent dirt entering between the coil and the skidplate, silk tape, e.g. Leukosilk®, which is available from
chemists, may be used. The use of some other tapes, e.g. insulation tape, may result in some loss of
sensitivity.
The control box and coil should not come into contact with petrol or other oil-based liquids. If any part of the
detector comes into contact with corrosive substances, including salt or salt water, it should be washed with
fresh water.
Clean the detector with a damp cloth using a mild soap detergent. Do not use solvents.
DETECTOR CARE AND SAFETY
DETECTOR CARE AND SAFETY
59
USER INFO
7
Page 3
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
INTRODUCTION.................................................................................................................... 1
About this manual ..................................................................................................................................... 2
Introducing the Minelab ‘GP 3000’........................................................................................................... 3
ASSEMBLY............................................................................................................................ 5
Unpacking your ‘GP 3000’ [easy reference] .......................................................................................... 6
List of pre-assembled sections and parts................................................................................................. 7
Complete assembly instructions.............................................................................................................. 8
BATTERY.............................................................................................................................. 13
Battery and charging ..............................................................................................................................14
CONTROLS.......................................................................................................................... 17
Detector sounds [easy reference].......................................................................................................... 18
Control functions: rear panel .................................................................................................................. 19
Control functions: front panel.................................................................................................................. 23
OPERATION......................................................................................................................... 27
Quick start instructions [easy reference]............................................................................................... 28
Detailed operating instructions................................................................................................................29
Ground balancing ...................................................................................................................................33
Iron discrimination ..................................................................................................................................35
Level Ajust Control ................................................................................................................................. 37
contents
3
4
2
1
5
III
58
USER INFO
7
Page 4
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
TABLE OF CONTENTS
contents
6
DETECTING TECHNIQUES ............................................................................................... 39
Detecting techniques...............................................................................................................................40
Prospecting techniques .......................................................................................................................... 42
Identifying target signals.........................................................................................................................43
Recovering the target ............................................................................................................................. 45
USER INFORMATION......................................................................................................... 49
Technical specifications for the Minelab ‘GP 3000’............................................................................... 50
Troubleshooting....................................................................................................................................... 51
Service repair form................................................................................................................................. 52
Warranty .................................................................................................................................................53
Accessories............................................................................................................................................ 54
Glossary of common terms ...................................................................................................................55
Detector care and safety ........................................................................................................................ 59
An important message from Minelab ..................................................................................................... 60
7
IV
Salt The presence of high salt content in the ground being searched will
have a similar but different effect on the metal detector ground
balance as does mineralisation.
Salt content causes a negative (-) response rather than the positive (+)
response of laterite soils. The detector needs to therefore use different filtering
techniques to overcome this effect.
Search Coil The search coil is the circular plate which is swept across the ground
surface during detecting. It transmits electromagnetic signals into the
ground and receives the response.
Search Pattern The search pattern is the area of ground underneath the coil which
is being scanned. Depending on the style of coil (Double D or
Monoloop) and the Coil mode being operated in (Double D/M/Cancel)
different coils will have a different shaped area being covered by each
sweep.
Threshold The continuous audible level of sound emitted by the detector is
referred to as the Threshold. This threshold hum is the background
sound made as the detector operates. Threshold can be set
anywhere between silent and loud, but a soft, audible level is
normally suggested.
Target Response The electro-magnetic effect generated by the metal target under the
influence of the TX field.
Target Signal The audio signal (or change in threshold) caused by the presence of
a metal target as the coil passes across it.
Tracking The function of Automatic Ground Balance where the ‘GP 3000’
makes continuous adjustments to the ground balance to compensate
for changes in the mineralisation of the ground.
TX TX refers to the transmit signals or electromagnetic pulses, sent into
the ground by the coil.
GLOSSARY OF COMMON TERMS
57
USER INFO
7
Page 5
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
1
Introduction
The ‘GP 3000’ incorporates new
technological advances and control
functions which have resulted in a
detector that combines stable and
effective ground balancing with
depth and sensitivity.
1
INTRODUCTION
1
GLOSSARY OF COMMON TERMS
56
USER INFO
7
Halo Effect After a metal object has remained undisturbed in the soil for a
considerable amount of time, a diffusion occurs around the object.
This has the effect of the object appearing to the detector to be a
larger size.
Hot Rocks A hot rock is an individual rock which has a particularly high degree
of mineralisation as compared to the average ground around it. Due
to this high difference, the detector does not have the opportunity to
ground balance on the individual rock so therefore gives a false signal.
Interference Electricity or radio waves in the area being detected can cause
instability or chattering of the detectors threshold.
The types of interference commonly occur due to power lines,
underground cables, radar, other detectors or climatic conditions like
thunderstorms.
Mineralised Ground Most ground contains certain minerals which can cause false signals
to be given by a detector. Heavily mineralised ground requires
different ground processing than does neutral or lightly mineralised
ground (see Ground Balance).
Ground containing heavy salt concentrations require entirely
different processing again (see salt).
Monoloop Coils Monoloop coils are the style of coil where the multiple strands of
wire are wound in a single loop around the circumference of the coil.
The field of search of Monoloop coils tend to be cone shaped.
Non - Ferrous Metals Metals not containing significant levels of iron. Non-ferrous metals
are non-magnetic such as Gold, Silver, Copper, Brass, Lead or
Aluminium.
Pinpoint The method of locating the precise location of a target prior to
digging. Pinpointing uses the design of the search coil windings to
determine the exact position of the detected target.
RX RX refers to the response or electromagnetic field which is received
back by the coil and is used by the control box circuitry to detect a
metal item in the ground.
Page 6
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
ABOUT THIS MANUAL
This manual is designed to introduce the detector’s features. It gives you step-by-step
directions for everything from assembling and adjusting your detector, to basic and
advanced detector use.
1. INTRODUCTION
Basic overview of the ‘GP 3000’ and
this User’s Manual.
2. ASSEMBLY
This chapter provides details and
instructions on assembling and
adjusting the ‘GP 3000’.
3. BATTERY
The ‘GP 3000’ is powered by a
rechargeable battery pack. This
chapter provides details on battery
installation, use and performance.
4. CONTROLS
This chapter is designed to
familiarize you with the various
features of the ‘GP 3000’ control
panel. A few minutes spent reading
this chapter will be a worthwhile
preliminary to basic or advanced
detecting.
5. DETECTOR OPERATION
However experienced you are at
using a metal detector, it is important
that you read this.
6. DETECTOR TECHNIQUES
Once you are comfortable with the
basic detector use, there are a few
techniques you should be aware of.
7. USER INFORMATION
This chapter provides a glossary of
terminology, user guides, technical
specifications, warranty and repair
details and troubleshooting tips.
ABOUT THIS MANUAL
!
2
INTRODUCTION
1
GLOSSARY OF COMMON TERMS
Control Box The control box encloses the electronic circuitry of the detector. The
control box originates the TX (transmit) signals sent by the coil and
interprets the RX (receive) signals detected by the coil. All user
selectable functions (knobs & switches) are located on the front and
rear panels of the control box.
Discrimination The ability of a metal detector to estimate if a located target is made
from ferrous metal (iron or steel) or non-ferrous metal (non-magnetic).
Double D Coils Double D coils are coils that have two windings of wire that overlap
in the shape of two D's (one reversed). The characteristics of a
Double D coil are stability, especially in heavily mineralised ground,
good depth and sensitivity and a very thorough search pattern.
Electromagnetic Field Commonly called the 'signal from the coil'. An electromagnetic field is
generated within the wire windings of the search coil and this field is
pulsed or sent into the ground. The presence of a metal target in the
ground will disturb the pattern of this field and this disturbance is
registered by the receive system of the detector and indicated to the
operator by an audible target signal "beep".
False Signal False signals are signals, which sound similar to target signals but
are caused by other factors. Common causes for false signals are
incorrect ground balance, hot rocks, signals caused by knocking the
coil on obstacles, etc. With experience, the operator will learn
methods to minimise false signals and to hear subtle differences
between target signals and false signals.
Ferrous Metals Metals composed of or containing iron. A ferrous item is one which is
attracted to a magnet and is predominantly or completely made of iron or
steel.
Ground Balance The ability of the metal detector to compensate for the effects of
ground mineralisation. The ‘GP 3000’ has "automatic ground balance".
When it is used in Tracking mode it continually compensates for
changes in the ground mineralisation.
GLOSSARY OF COMMON TERMS
55
USER INFO
7
Page 7
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
The Minelab ‘GP 3000’ utilises “Dual Voltage Technology” (DVT),
which is based upon the Bi-polar technology used in our military
range.
Here are some features of the ‘GP 3000’:
• NEW Low-Noise circuitry
• NEW battery harness
• NEW “Smart Point” diagnostic port
• DVT technology for optimum depth and sensitivity in all soil
types
• Long-life 12A/hr Gel Cell battery
• Selectable Tx (transmit) modes (Soil Switch) for optimum
performance in different soil conditions
• Selectable Rx (receive) modes (Coil Switch) for greater
sensitivity and less susceptibility to interference
• Heavy Duty Bungy Strap
Like its predecessor, the ‘GP extreme’, the ‘GP 3000’ can handle
heavily mineralised and salty ground conditions with greater ease
than previous detectors, which effectively opens up NEW detecting
areas. The new Low-Noise circuitry found in the ‘GP 3000’ results
in a smoother threshold, enhancing your ability to hear faint signals
caused by small and deep targets. This allows you to revisit old
“worked-out” areas, and find the gold others have missed.
Minelab wished to thank you for purchasing our most advanced
gold detector ever, and are confident the ‘GP 3000’ will lead you to
success in your quest for gold and treasure.
INTRODUCING THE MINELAB ‘GP 3000’
INTRODUCING THE MINELAB ‘GP EXTREME’
3
INTRODUCTION
1
ACCESSORIES
ACCESSORIES
Search coils
The ‘GP 3000’ is supplied with the ‘GP 3000’ 1100 and
‘GP 3000’ 1800 coils. These coils have been specially designed
to take advantage of the new technology and features of this
detector. In addition to this there are also a number of other size coils
will become available in the near future.
These range from smaller coils which give greater sensitivity to small
targets and are lighter and manouverable in heavy vegetation, up to
larger coils which give greater depth. See your Minelab retailer for
the full range.
In some circumstances, other Double D and Monoloop coils will
work on the ‘GP 3000’, however there are limitations which will
mean that a number of the new benefits of the DVT will not work
properly. In some cases the use of coils not designed for the
‘GP 3000’ will cause the detector to be unstable and noisy.
Batteries
Spare 12A/hr batteries can be an advantage, especially if travelling
into the outback.
A smaller light-weight battery is also available from Minelab. This is
rated at 4.5A/hr and gives approx. 3 - 4 hours running time per charge.
The weight of this battery is 968g.
Corporate clothing
Minelab also has a range of good quality clothing, e.g. caps, shirts
and jackets available. Ask your local dealer for details.
54
USER INFO
7
P0500-A
e
x
t
r
e
m
e
G
P
Page 8
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
Minelab is always interested in your opinions so if you have any questions or comments
regarding the ‘GP 3000’ or any other Minelab product, please feel free to contact us via your local
Authorized Minelab dealer, or write to us:
Minelab International Limited
Laragh, Bandon
Co. Cork
IRELAND
email: minelab@minelab.ie
tel: + 353 (23) 52101
Contact Minelab
Minelab Electronics Pty Ltd
PO Box 537 Torrensville Plaza
South Australia 5031
AUSTRALIA
email: ho@minelab.com.au
tel: + 61 (8) 8238 0888
Visit our site on the World Wide Web: http://www.minelab.com for the latest information
on Minelab products and services.
Minelab USA
2700 E Patrick Lane, Suite 11
Las Vegas, Nevada 89120
UNITED STATES OF AMERICA
email: minelab@minelabusa.com
tel: + 1 (702) 891 8809
"
4
INTRODUCTION
1
The ‘GP 3000’ control box has a 2 year warranty covering parts and
labour. Refer to your warranty card for details.
The ‘GP 3000’ 1100 and 1800 coils have a warranty for one year
against malfunction. Refer to either your supplier or Minelab directly
for service.
The commencement of the warranty is the date of purchase.
The Minelab warranty does not cover damage caused by accident,
misuse, neglect, alteration, modifications or unauthorised service.
For specific details of the Minelab warranty please refer to the
Product Warranty card.
It is the responsibility of the owner to pay all transport costs for the
detector to Minelab.
The repaired detector will be returned to the owner freight free.
NOTE This warranty is not transferable or valid unless the
enclosed warranty registration card is returned to Minelab
Electronics Pty. Ltd. or an authorised Minelab Electronics
Pty. Ltd. regional distributor within 14 days of the original
purchase.
WARRANTY
Repairs
In the unfortunate circumstance
that the detector needs to be
returned to Minelab for service,
please fill out the Minelab Service
Repair Form (or a photocopy of
the same) and enclose
it with the detector.
Please supply as much detail
about the fault as possible. This
will assist our service engineers
to rectify the problem
quickly and efficiently.
WARRANTY
53
USER INFO
7
Page 9
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
2
Assembly
This chapter provides details and
instructions on assembling and
adjusting the ‘GP 3000’.
5
ASSEMBLY
2
Today’s Date ___________________________________________________________________________
______________________________________________________________________________________
Detector Model _______________________ Serial No. ________________________________________
Purchased From ________________________________________________________________________
Purchase Date__________________________________________________________________________
Faulty Part(s): __________________________________________________________________________
______________________________________________________________________________________
Description of Fault: _____________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
Owner’s Name__________________________________________________________________________
Address _______________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
Phone Day ( )______________________ Home ( ) _______________________________________
Fax ( )_____________________________ Email ____________________________________________
SERVICE REPAIR FORM
SERVICE REPAIR FORM
If necessary, use the space provided overleaf to continue your description of the fault.
52
USER INFO
7
Page 10
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
The ‘GP 3000’ as shipped
UNPACKING YOUR ‘GP Extreme’
Figure 2.1 Contents of the ‘GP 3000’ pack.
easy reference
A.11” Double D Coil with Skid Plate and
Fibreglass Lower Shaft
UNPACKING YOUR ‘GP 3000’
6
ASSEMBLY
2
TROUBLESHOOTING
Use the following table to check for suggested solutions to problems.
No sound Turn Threshold control fully clockwise.
Turn Volume control clockwise.
Check power cable and connections.
Check headphones.
Check battery.
Threshold but no target signal. Check coil is connected.
Try testing different coils.
Random noises. Check for other detectors interfering.
Retune using Tuning button.
Charge the battery.
Set Coil to Cancel.
Re-ground balance.
Check for thunderstorm build-up.
Battery will not charge using vehicle Check for power to cigarette lighter socket in vehicle.
charger. Check 10 amp fuse in charger plug.
Battery not holding charge. Try alternative charger.
Check power cable.
Very noisy threshold. Check for interference and re-tune.
Try detecting in a different location.
Set Coil to Cancel.
FAULT SUGGESTION
If you need to return your detector to Minelab for service, please supply as many details as possible about
the fault. This will enable our service engineers to rectify the fault quickly and efficiently.
Return the detector in a cardboard box for protection along with the Service Repair Form supplied in this manual.
Please supply your name, address and phone number along with purchase date and serial number when
sending detector parts for repair.
TROUBLESHOOTING
Table 7.2 Troubleshooting
51
USER INFO
7
P0611-A
G
P
3
0
0
0
G
P
3
0
0
0
H.
G.
C.
B.A.
I.
D. E.
J.
F.
K.
L.
M.
Page 11
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com

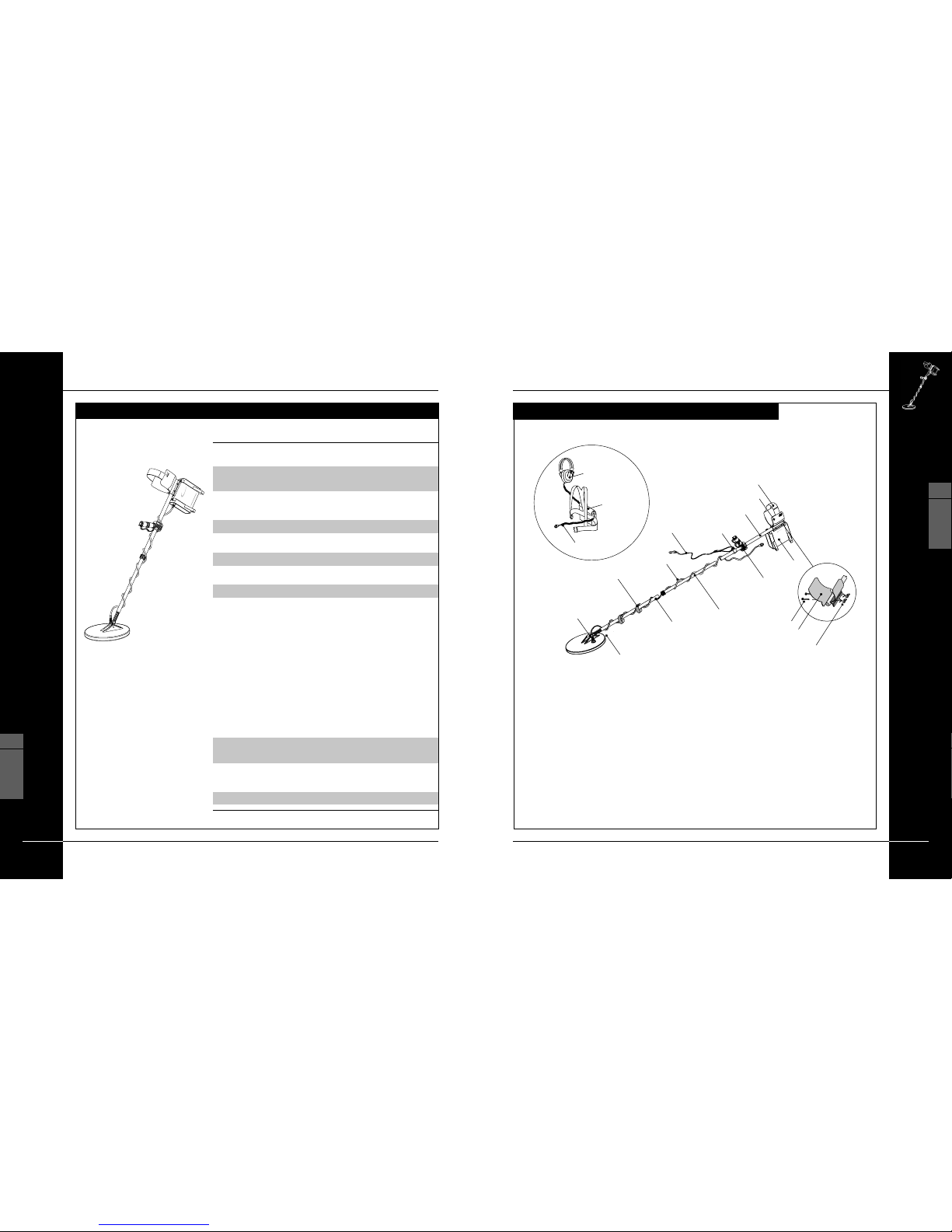

ASSEMBLY AND LIST OF P ARTS
PRE-ASSEMBLED SECTIONS
Figure 2.2 Pre-assembled sections and parts list
A. Lower Shaft Assembly
1. 11”Double D Coil
2. Coil Cable
3. Skid Plate
4. Fibreglass Lower Shaft
5. Nylon Nut & Bolt
6. Teardrop Washers
B. Intermediate Shaft Assembly
7. Intermediate Shaft
C. Upper Shaft Assembly
8. Upper Shaft
9. Handle with Wrist Strap
10.Control Box
11.Armrest Parts (2)
12.Nylon Bolt (2)
13.Nylon Nut (2)
14.Arm Straps (2)
15.Armrest Cover
D. Headphones
16.Headphones
E. Battery and Battery Pack
17.Battery
18.Battery Pack
19.Battery Power Cable
F. Extras
20.Velcro Cable Straps (3)
21.Bungy Cord
22.Bungy Knuckle
7
ASSEMBLY
2
TECHNICAL SPECIFICATIONS
Length Maximum 1300mm
Minimum 1100mm
Weight Complete with 11” coil 2400g
(exluding battery)
Configuration Shaftmount
Transmit Freq. Bi-level Pulse Induction
Technology Dual Voltage Technology (DVT)
Ground Rejection Automatic ground balance
Search Mode Motion detector
Controls Power (On/Off) 2 pos. switch
Boost (Shallow/N/Deep) 3 pos. switch
Threshold 1 turn control
Volume 1 turn control
Signal 1 turn control
Tone 1 turn control
Tune push switch
Level Adjust 1 turn control
Iron Discriminate (All Metal/Disc) 2 pos. switch
Soil (Sensitive/N/Salt) 3 pos. switch
Coil (Double D/M/Cancel) 3 pos. switch
Balance (Fixed/Tracking) 2 pos. switch
Audio Output 6.35mm (1/4") headphone socket
Headphones Supplied
Coil (standard) Extreme 1100 (Double D)
Extreme 1800 (Double D)
Battery 6VDC 12A/hr sealed lead acid 14-15hrs
Patents Apply
Note: In the interest of product improvement, Minelab reserves the right to make changes without notice.
TECHNICAL SPECIFICATIONS
The ‘GP extreme’
Table 7.1 Technical specifications
50
USER INFO
7
P0500-A
e
x
t
r
e
m
e
G
P
G
P
3
0
0
0
P0614-A
Extreme 1100 Coil (1)
& Skid Plate (3)
Tear-drop Washers(5)
Nylon Nut & Bolt (6)
Velcro Cable
Straps (20)
Fibreglass
Lower Shaft (4)
Battery Power
Cable (19)
Intermediate
Shaft (7)
Coil Cable (2)
Upper Shaft (8)
Handle with
Wrist Strap (9)
Armrest Parts (11)
Nylon Nuts (13)
Battery (17) &
Battery Pack (18)
Headphones (16)
Bungy Cord (21) Bungy Knuckle (22)
Arm Strap (14)
Armrest Cover (15)
Control Box (10)
Nylon Bolts (12)
Page 12
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
7
User Info
This chapter provides a glossary of
terminology, user guides, technical
specifications, warranty and repair
details and troubleshooting tips.
49
USER INFO
7
You will need to assemble the ‘GP 3000’ from
all the various components, here are detailed
assembly instructions.

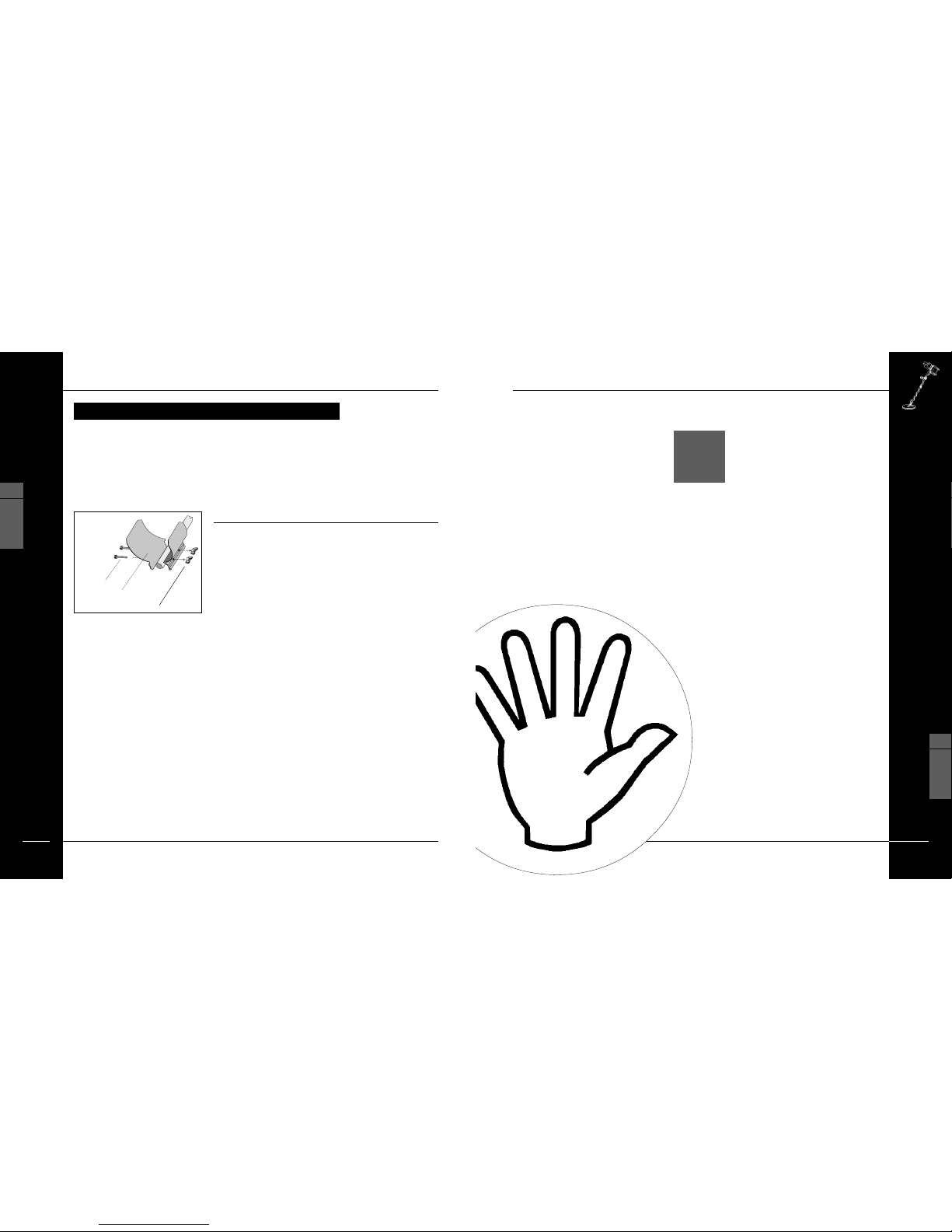

Assembling and fitting the armrest
Figure 2.3, refer also Figure 2.2
STEP 1 Place the two armrest halves (11) on either side of the upper
shaft (8) and ensure that the bolt holes are aligned.
STEP 2 Slide the two nylon bolts (12) through the bolt holes and
screw the nylon wing nuts (13) onto the bolts by a couple of
turns.
STEP 3 Slide the ‘T’ section on top of the control box (10) into the
armrest with the battery plug at the rear. Tighten the nylon
wing nuts by hand.
STEP 4 Attach the arm rest straps (14) using the press studs on both
sides of the arm rest.
STEP 5 Push the arm rest straps (14) through the slots in the
neoprene arm rest cover (15) and then push the cover over
the arm rest (11).
COMPLETE ASSEMBLY INSTRUCTIONS
COMPLETE ASSEMBLY INSTRUCTIONS
Figure 2.3 Armrest assembly
8
ASSEMBLY
2
P0511-A
Nylon Bolts (12)
Armrest Parts (11)
Nylon Nuts (13)
Page 13
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
Attaching the handle and bungy cord
Figure 2.4, refer also Figure 2.2
STEP 1 Slide the handle (9) onto the other end of the upper shaft (8)
and set it to a comfortable position. Tighten the two screws in
the base of the handle with a small flat tipped screwdriver
to hold the handle in position.
STEP 2 Slide the bungy cord knuckle (22) of the bungy cord onto the
upper shaft (8).
Assembling the Intermediate and Upper shaft sections
Figure 2.5, refer also Figure 2.2
STEP 1 Slide the intermediate shaft (7) into the end of the upper shaft
(8) and snap into place.
STEP 2 Check that the coil (1) has a skid plate (3) attached.
STEP 3 Check that the coil pivot end of the lower fibreglass shaft (4)
has two teardrop washers (5) installed.
NOTE The washers should always be full thickness
and should be replaced regularly as they wear out and
allow the coil to become loose.
STEP 4 Push the lower fibreglass shaft (4) into the mounting brackets
on the coil and ensure that the spring clip at the rear of the
fibreglass shaft faces the rear of the coil.
Attaching the coil
Figure 2.5
STEP 1 Line up the holes in the coil with the pivot end of the
fibreglass shaft (4).
STEP 2 Push the nylon bolt through the holes and fit the nylon wing
nut then tighten by hand.
NOTE Do not over tighten the nut as the coil housing
may be crushed or damaged.
COMPLETE ASSEMBLY INSTRUCTIONS
Figure 2.4 Handle and bungy cord
Figure 2.5 The coil pivot end of the lower
fibreglass shaft
9
ASSEMBLY
2
48
DETECTING
6
Handle with
Wrist Strap (9)
Bungy Cord (21)
Bungy Knuckle (22)
P0512-A
Extreme 1100 Coil (1)
& Skid Plate (3)
Tear-drop Washers(5)
Nylon Nut & Bolt (6)
P0513-A
Page 14
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
COMPLETE ASSEMBLY INSTRUCTIONS
Securing and connecting the coil cable
NOTE Always ensure that the control box is turned off
completely before connecting or disconnecting the coil.
STEP 1 Wind the coil cable around the shaft and plug the coil
connector into the coil socket on the control box. Check that
the cable is wound firmly around the shaft without strain,
leave enough slack at the bottom of the cable near the coil to
allow for adjusting the angle of the coil without placing strain
on the coil cable.
STEP 2 Fasten the cable into position using the Velcro straps
provided (20).
Fitting and connecting the battery pack
Figure 2.6
STEP 1 Fit the battery (17) into the back pack pouch (18).
STEP 2 Connect the headphones (16) and the power cable (19) to
the appropriate sockets in the cap of the battery.
STEP 3 Put on the back pack (18).
If the coil cable is able to move
around, especially near the coil, it
will be ‘seen’ by the detector and
cause random noises which may be
confusing.
HINT
Use only the 6v DC battery
supplied
CAUTION
Attaching the lower fibreglass shaft
Figure 2.2
STEP 1 Slide the lower fibreglass shaft (4) into the intermediate shaft (7).
STEP 2 Adjust shaft length and coil angle for a comfortable position.
Minelab recommends that the shaft length be set to give a
comfortable sweep length of approximately 2 meters. The
lower fibreglass shaft can be set into position by locating the
spring clip into the holes provided in the intermediate shaft
and hand tightening the locking nut at the end of the
intermediate shaft.
10
ASSEMBLY
2
Salty Environments
The ‘GP 3000’ will find objects at greater depth in salty environments.
However, the interfering signals caused by highly concentrated salt
may not be able to be completely 'balanced out' if using automatic
ground balance alone.
HINT Change Soil switch to Salt setting for salty environments.
To use the salt setting, you will have to use the specially designed ‘GP
3000’ range of coils.
RECOVERING THE TARGET
47
DETECTING
6
Page 15
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
COMPLETE ASSEMBLY INSTRUCTIONS
STEP 4 Ensure that the power switch on the control box is switched
off and plug the connector on the power cable (19) into the
battery connector plug on the control box. This cable
connects the battery and headphones to the detector.
Adjust for your own comfort
STEP 1 Adjust the bungy cord (21) from the knuckle (22) on the shaft
to correct length to take some of the weight when prospecting.
STEP 2 Adjust the hand strap on the handle (9) for your own comfort.
Figure 2.6 The ‘GP 3000’ battery assembly
11
ASSEMBLY
2
RECOVERING THE TARGET
STEP 9 Keep halving the pile which has the target.
STEP 10 If it is still difficult to find the target, place the detector on the
ground with the coil horizontal.
STEP 11 Take a handful of the diggings and pass over the coil.
Your hands and wrists must be free of any metallic
jewellery and watches.
STEP 12 If there is no signal, place the handful carefully in a new pile
and repeat with another handful.
NOTE Always refill any holes before leaving, and scatter
leaves, etc. to restore the area to its original condition. Any
rubbish you recover should be taken away with you and
disposed of properly.
Recovering Deep Targets
The ‘GP 3000’ has depth capabilities that will surprise both new and
experienced prospectors. If the target appears to be buried deeply, it
should help to use the following technique:
STEP 1 Use the cross sweeping method to locate the target accurately.
STEP 2 Dig a hole large enough to insert the coil, approx. 100mm deep.
STEP 3 Keep testing the target location as you dig deeper.
STEP 4 T ake care that the target is not in the wall of the hole. You may
dig past it. Try pinpointing again to check your hole is in the
correct position.
REMEMBER Removing rubbish and refilling holes will help metal
detector users maintain a good reputation. This should lead to more
areas being readily accessible for prospecting.
When the object has been
recovered, it may be worthwhile
sweeping the hole again to
ensure that there are no other
targets.
If you find an object in a
particular location, search the
surrounding area very carefully. It
is likely that there are more
objects nearby.
If you hear a target signal, keep
searching until you find the
object; it is there and may be
valuable
HINT
46
DETECTING
6
6 Volt Battery (17)
Headphones (16)
Battery Pouch (18)
Power Cable to Detector (19)
P0503-A
Page 16
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
12
ASSEMBLY
2
#
RECOVERING THE TARGET
When you are sure of the location of the target, it is
necessary to dig a small hole to recover it. In order to
preserve the environment, the hole should be as
small as possible. Always replace the soil and grass
which is removed.
It is essential to carry at least one of the following digging tools with you
when searching:
• small, strong digging spade
• pick
• shovel
• and crowbar (for very deep objects in hard ground).
STEP 1 Before digging, clear the area of loose surface material and
check that the target signal is still there. If it is not, the target
should be amongst the surface material.
STEP 2 If the target signal is still present, dig to a depth of approx.50mm.
STEP 3 If the target cannot be seen, sweep the coil over the hole.
STEP 4 If the target signal is not heard, then the target should be in
the pile just dug.
STEP 5 Check that there are no objects buried in the soil under the pile.
STEP 6 Take care when you dig, as damaging a nugget may reduce
its value. Start digging approx.100mm in front of the target
to reduce the chance of damage.
STEP 7 Pile the diggings carefully as it may be necessary to
search them.
STEP 8 If the target is located in the soil which was removed, sweep
the coil over the pile and pinpoint its exact position.
RECOVERING THE TARGET
45
DETECTING
6
Page 17
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
3
Battery
The ‘GP 3000’ is supplied with a 6v DC
rechargable battery pack plus both mains
and vehicle chargers. This chapter
provides details on battery installation,
use and performance.
13
BATTERIES
3
IDENTIFYING TARGET SIGNALS
Pinpointing
To find an object, and reduce the size of the hole required to remove
it from the ground, it is necessary to pinpoint the exact location of the
object.
If a target is heard, first confirm it by setting an accurate ground balance
and then pinpointing. To ground balance, the coil should be passed
around the area of the target, making sure that the target is not detected

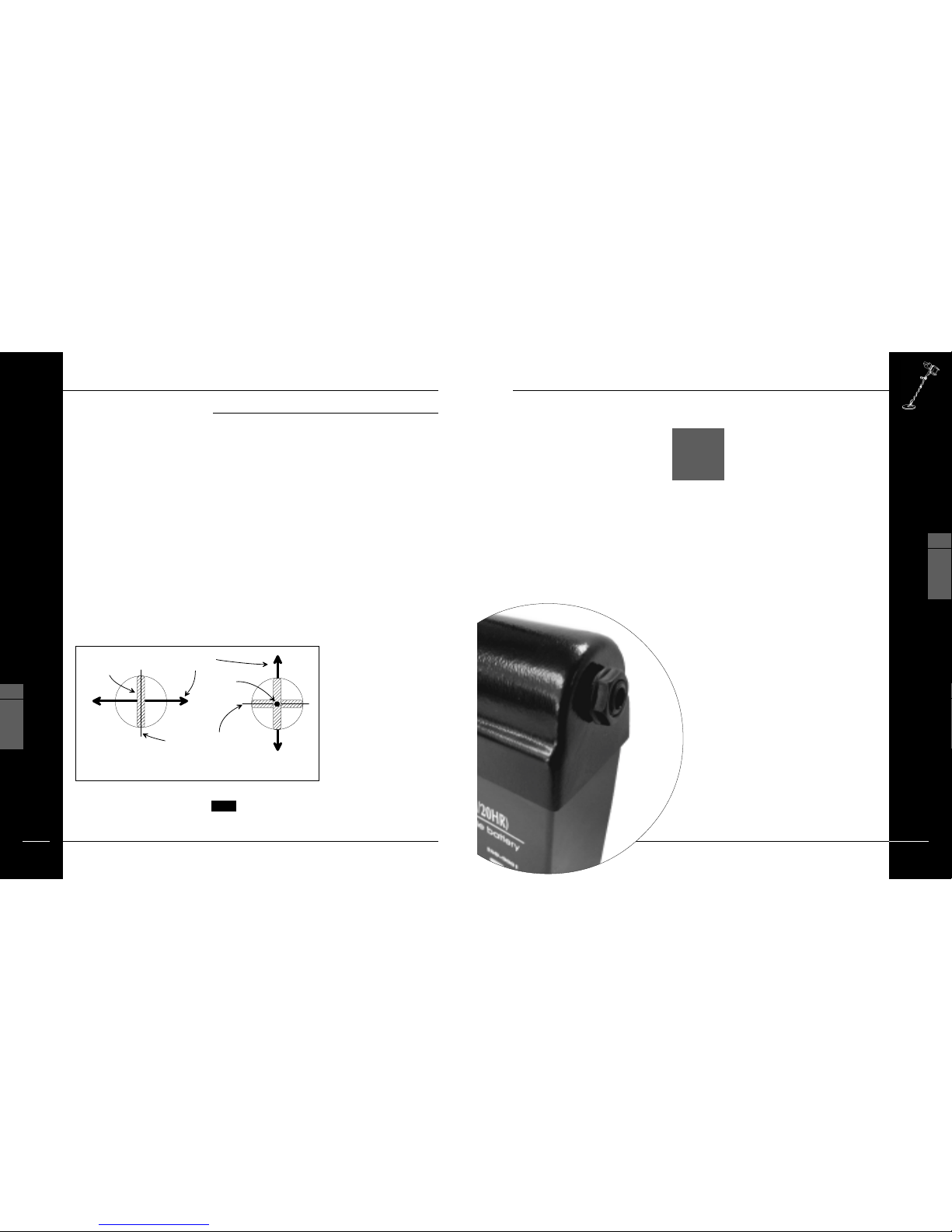

(keep the coil away from where the target is)
While the coil is moving around the area of the target, change
Balance to Fixed. This will give a very accurate 'ground balance'
on this area. One of the pinpointing techniques may then be used.
When a target is detected, sweep the general area with the coil,
taking note of where the strongest signal is received.
By shortening the length of the sweep it should be possible to draw
an imaginary line in the ground where the strongest signal is located.
Line up the target at 90° from the initial direction and repeat
the process. The object is located where the two imaginary lines cross
(see Figure 6.4).
Figure 6.4 Pinpointing technique
NOTE Pinpointing will not locate a target in the centre of the
coil if operating with the Coil switch set to M (Mono) or
Cancel.
44
DETECTING
6
IMAGINARY LINE
OF STRONGEST SIGNAL
SWEEP
DIRECTION
SWEEP COIL AT 90 DEG
TO PREVIOUS SWEEP
EXACT
LOCATION
OF TARGET
P0173-A
TARGET COULD BE
ANYWHERE IN THIS
AREA
Page 18
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
BATTERIES AND CHARGING
The Battery
The 6v DC rechargeable battery should provide enough power to
operate the detector for 14-15 hrs, when fully charged.
The battery may be recharged at any time during the discharge cycle.
It is very important to fully charge the battery before storage.
Do not leave a battery fully discharged for longer than one day.
CAUTION Never use a 12v DC battery because this would
damage the detector. This damage is not covered by
warranty.
Low Battery Indication
If battery level drops below the desired power to give full function, a
series of signal pulses are given at 0.5 second intervals.
Charging the battery
STEP 1 Turn the detector Off before disconnecting the battery.
STEP 2 Disconnect the battery cable from the detector and connect
to the appropriate charger.
Battery Chargers
Two types of battery chargers (Mains and 12v Vehicle Charger)
are supplied.
BATTERY AND CHARGING
Do not leave the mains charger
on for extended periods because
reduced battery life may result.
Caution
When charging, the battery must
be kept in an upright position.
Important
14
BATTERIES
3
IDENTIFYING TARGET SIGNALS
IDENTIFYING TARGET SIGNALS
Metallic targets will usually give a 'solid' sounding signal when the coil is swept across
the object from any direction. Ground noises usually give a broad uneven signal when the
coil is swept from different directions. A metallic target generally produces a short,
sharp and mostly symmetrical signal.
If you are not sure if the sound is ground noise or a target signal,
you need to investigate.
Scrape a shallow hole about 70-100mm deep over the suspected
target. Sweep the coil over the hole at the original ground level.
Do not dip the coil into the hole. If the signal has decreased in
volume or is less defined, it is probably ground noise.
If the signal remains the same or becomes louder, it is likely a
metallic target. If you are still not sure, make the hole deeper and
repeat the process. You may also notice that mineral noises are
often experienced from one direction only, on the return swing it is
no longer there.
A 'halo effect', which may be built up around a buried metal object,
makes the object appear to be larger to the detector than it actually
is. This will be reduced once the target is disturbed from its position
in the ground (e.g. a small object, detected at a substantial depth,
may be more difficult to detect once recovered from the ground.
If the object is reburied, the 'halo effect' will disappear)
HINT Do not try to eliminate what might appear to be a faint,
isolated ground noise by balancing the detector because you may
be 'balancing out' the target response from a deeply buried metallic
target.
43
DETECTING
6
Page 19
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
BATTERIES AND CHARGING
Mains Battery Charger
The mains battery charger will charge the battery from local mains (AC)
power outlets.
STEP 1 Connect the mains charger to a mains outlet.
STEP 2 Switch the mains outlet on.
Check the charger nameplate; it should be rated at 500mA
or1000mA. The 500mA charger will recharge a completely flat
battery in approximately 20 hours. The 1000mA charger will
recharge a completely flat battery in approximately 10 hours.
Partially discharged batteries require a shorter period to recharge.
Allow approximately 1.5 to 2 hours charging for each hour the
battery was in use if using a 500mA charger and about 0.5 to 0.75
hours for each hour usage on a 1000mA charger.
Vehicle Battery Charger
The vehicle battery charger will charge the battery from the cigarette
lighter socket of most motor vehicles.
STEP 1 Connect the charger to the cigarette lighter socket and turn
the ignition switch to Accessories.
This supplies 12v DC power to the cigarette lighter socket. This voltage
is converted by the charger to charge the detector battery. A red LED
indicator will flash while the battery is charging. When the battery is flat
the LED may flash fast enough so as to appear constantly on. As the
battery charges, the LED will flash at a slower rate.
STEP 2 Leave the battery to charge for approx. 10 hours using this charger.
If the battery voltage of your vehicle drops below 11v, the charger will
stop operating. Therefore the battery charger should not flatten the
vehicle battery.
Check that your vehicle battery is in good condition before camping
in remote areas.
Run your engine above idle speed for at least 30 minutes each day
to keep your vehicle battery charged.
The Vehicle Battery Charger is
designed for use with vehicles
which have a negative earth
electrical system.
Most cars manufactured after 1970
should have negative earth electrical
system.
Connecting the charger to a vehicle
with a positive earth system will
cause the fuse in the cigarette lighter
plug to blow and the LED indicator
will not light.
Caution
15
BATTERIES
3
PROSPECTING TECHNIQUES
The ‘GP 3000’ has superior ground balancing and it is possible to find quite large
objects near the surface in well-worked areas where other detectors have been unable to
cope with the high degree of mineralisation and / or salt. Therefore the user should dig all
target signals, even in previously detected areas.
Very sudden or large changes in the mineralisation of an area may
produce a signal from the detector.
In the Victorian goldfields, a response may be received from a
concentration of orange/reddish dyke material or clay. In the loamy
conditions of Western Australia, a pocket of dark orange/reddish
colouration may produce a sudden signal change.
If detecting areas of extremely variable mineralisation, detecting with
the contours rather than across the changes will often stabilise the
effect.
In some ground (particularly heavily mineralised areas) the
operator may need to sweep the coil 1 or 2 cm above the ground.
This should give a more stable threshold and less ground noise.
Charcoal may sometimes produce signals, similar to a metallic
object, when close to the surface. Charcoal is usually created by
farmers burning off tree stumps or by bushfires.
When the charcoal under the surface is disturbed, the signal will
vanish.
If in doubt, scrape away some soil above the suspect signal; if the
signal gets stronger, it is likely to be a target. Dig it!
PROSPECTING TECHNIQUES
Keep the coil as close to the
ground as possible.
Listen very carefully - this is
more important than looking.
SLOW DOWN! Do not rush, take
your time.
For Maximum Gold Recovery
42
DETECTING
6
Page 20
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
16
BATTERIES
3
DETECTING TECHNIQUES
Covering the search area
Figure 6.2 and Figure 6.3
• As the user moves forward slowly, the search pattern should
resemble a snaking path.
• To ensure that the ground is thoroughly searched, approach
the area from 3 different directions.
Overlap each sweep
• Each sweep of the coil should overlap the area covered by the
previous sweep to ensure a full coverage of the area being
searched.
• Be aware of the search pattern of the coil being used and
overlap sweeps to take this pattern into account.
• See also Pinpointing Technique, pages 43 and 44.
41
DETECTING
6
P0530-A
A
B
C
P0531-A
Figure 6.2 Search path
Figure 6.3 Search area from 3 directions
Page 21
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com

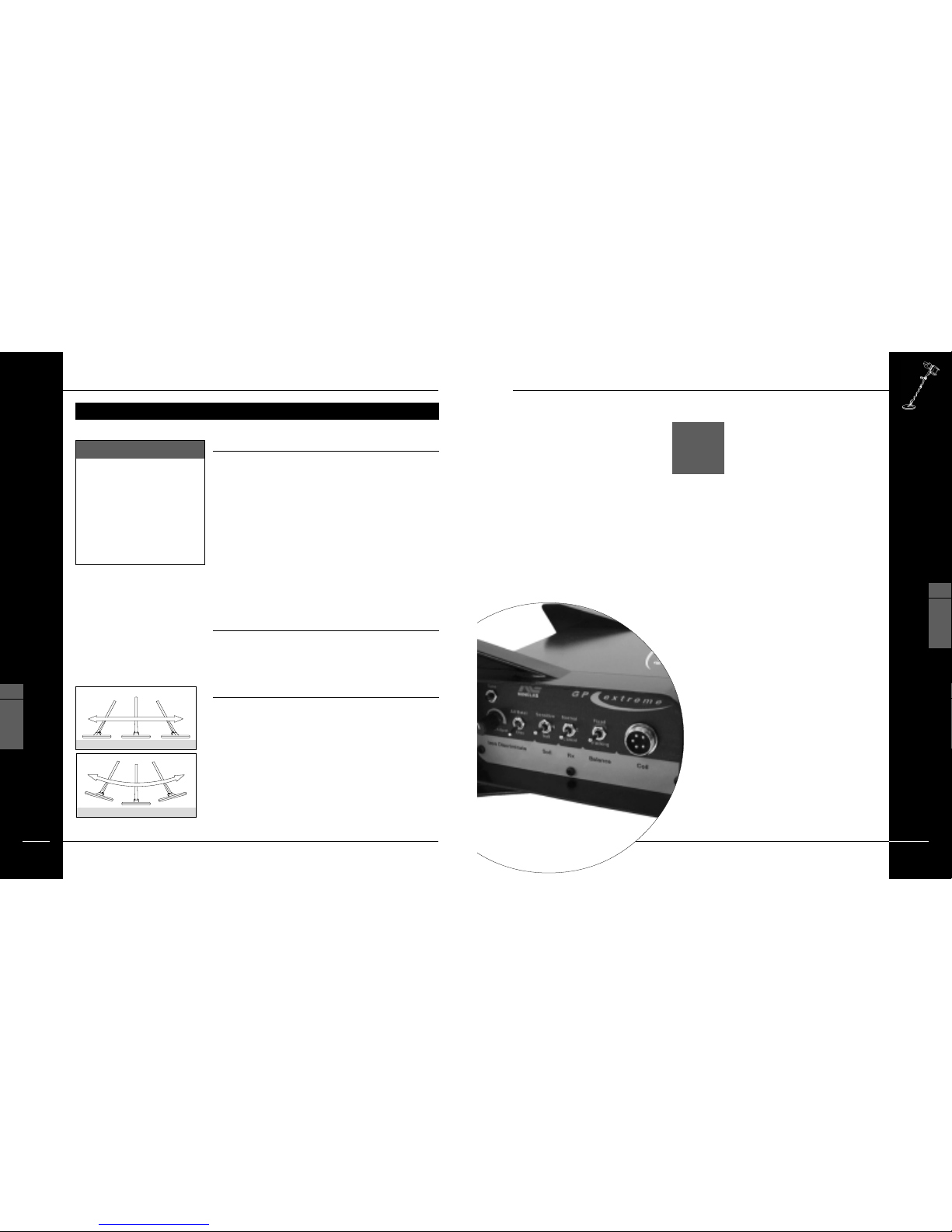

4
Controls
It is important to familiarise yourself with
the features of the ‘GP 3000’ control
panel. A few minutes spent reading this
chapter will be a worthwhile preliminary
to detecting.
17
4
CONTROLS
Some user tips:
• The battery should be worn in the backpack supplied. This places
the battery at the furthest practical distance from the coil.
• Ensure that you do not set the shaft length too short.
• If the coil is too close to your body it might detect your pick, the
battery or any other metal which you are carrying. If false
signals are occurring as you sweep the coil, check that they are
not produced by any metal that you are carrying.
• Move the coil closer, and then further away from your body, in
order to check if the signals are coming from items such as your
pick or battery. If they are, you must increase the distance
between the coil and these items.
Motion detection
The ‘GP 3000’ is a 'motion' detector. Therefore the
detector must be moving over a target to detect it.
Parallel Sweeping Procedure
Figure 6.1
• The coil should be swept over the ground in a side-to-side
sweeping motion.
• While sweeping the coil, it is important to keep it parallel to, and
at the same height from, the ground at all times. Lightly skidding
the coil across the ground can sometimes help in this, depending
on mineralisation.
• Do not raise the coil at the ends of each sweep as this will
reduce the detection depth and may cause false signals.

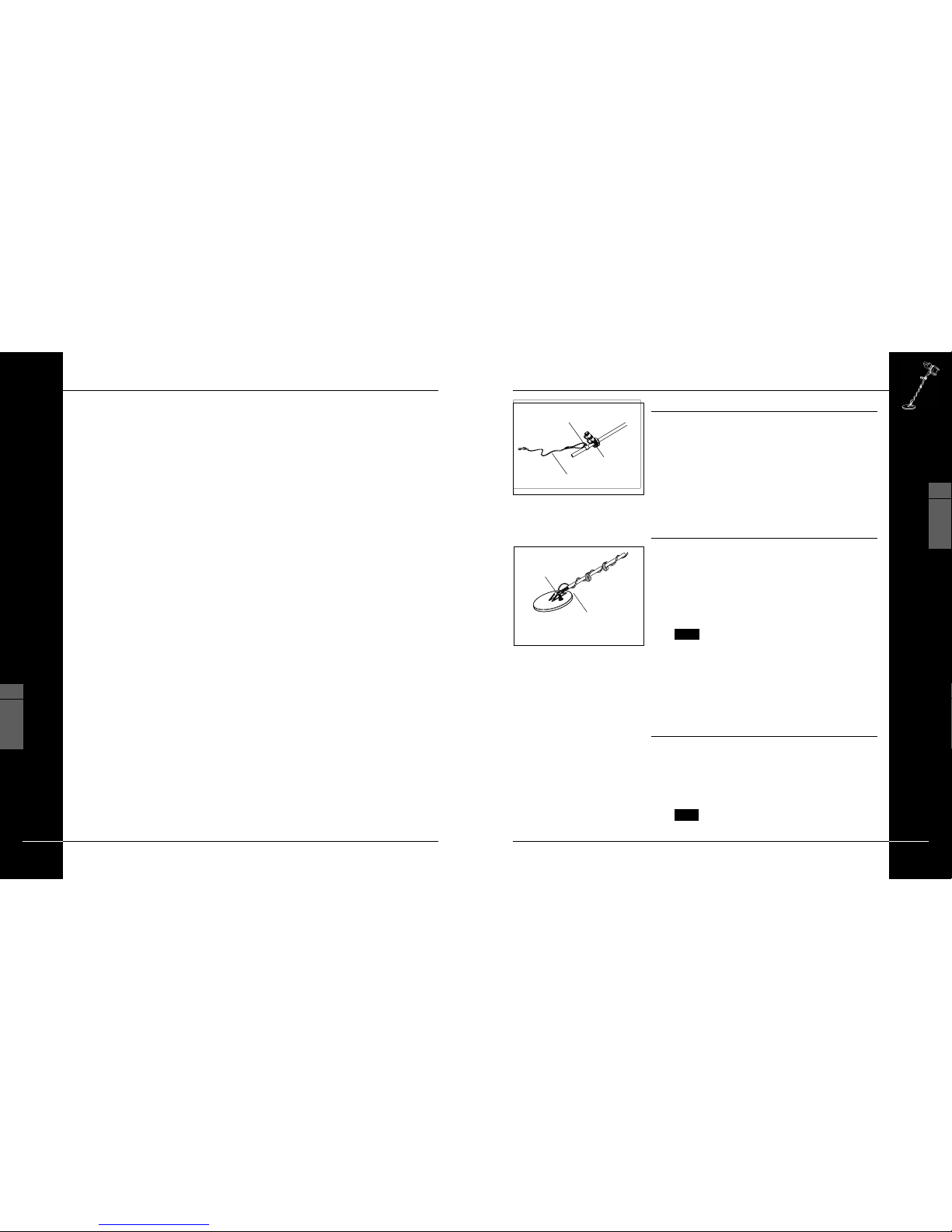

DETECTING TECHNIQUES
DETECTING TECHNIQUES
Figure 6.1 Parallel Sweeping
Check your footwear
Note: When detecting, do not wear
steel cap boots or shoes with
metal eyelets!
$
40
DETECTING
6
P0265-A
CORRECT
INCORRECT
Page 22
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com

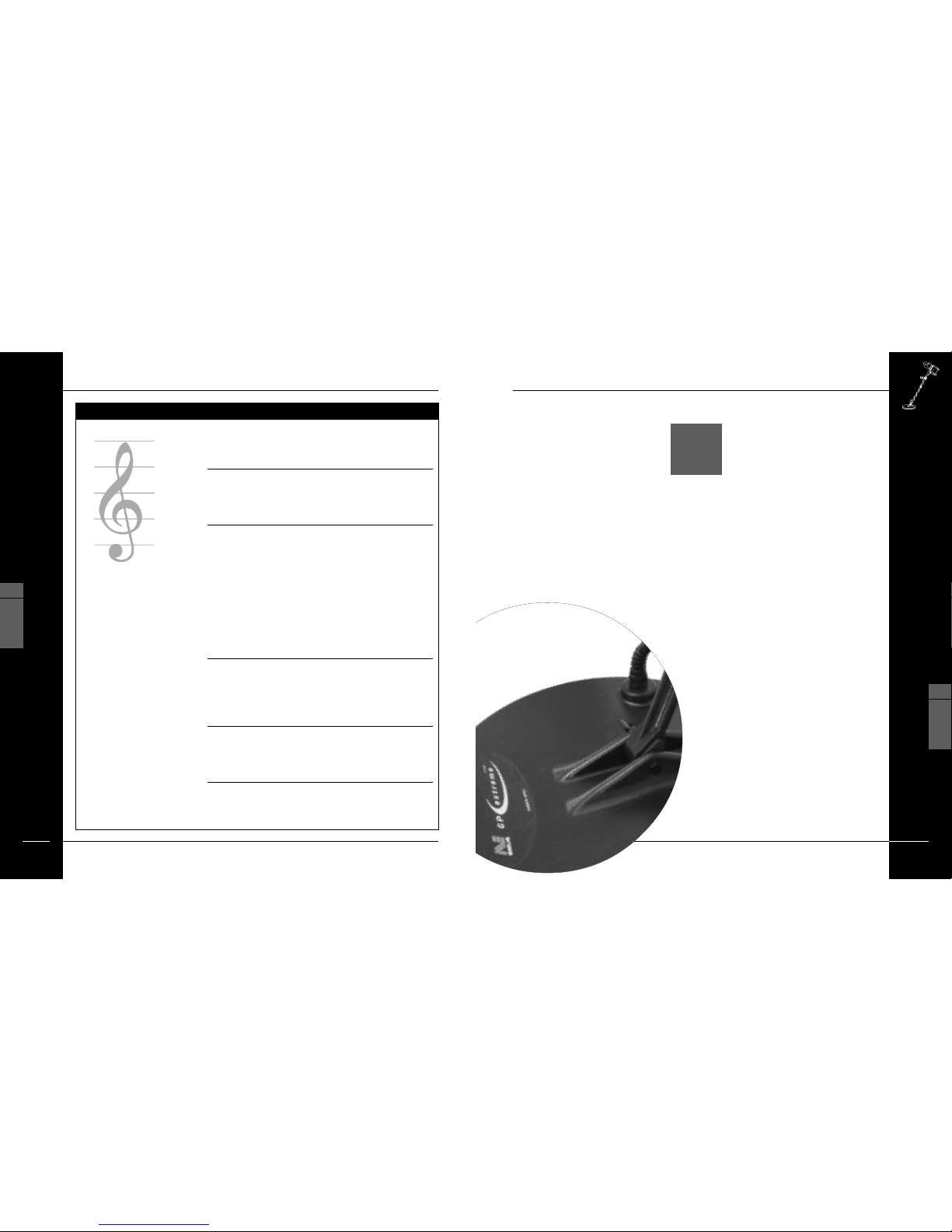

6
Detecting Techniques
Hints and techniques for better detecting
and happy prospecting that will help you
to utilise the power of your ‘GP 3000’
with DVT.
39
DETECTING
6
easy reference

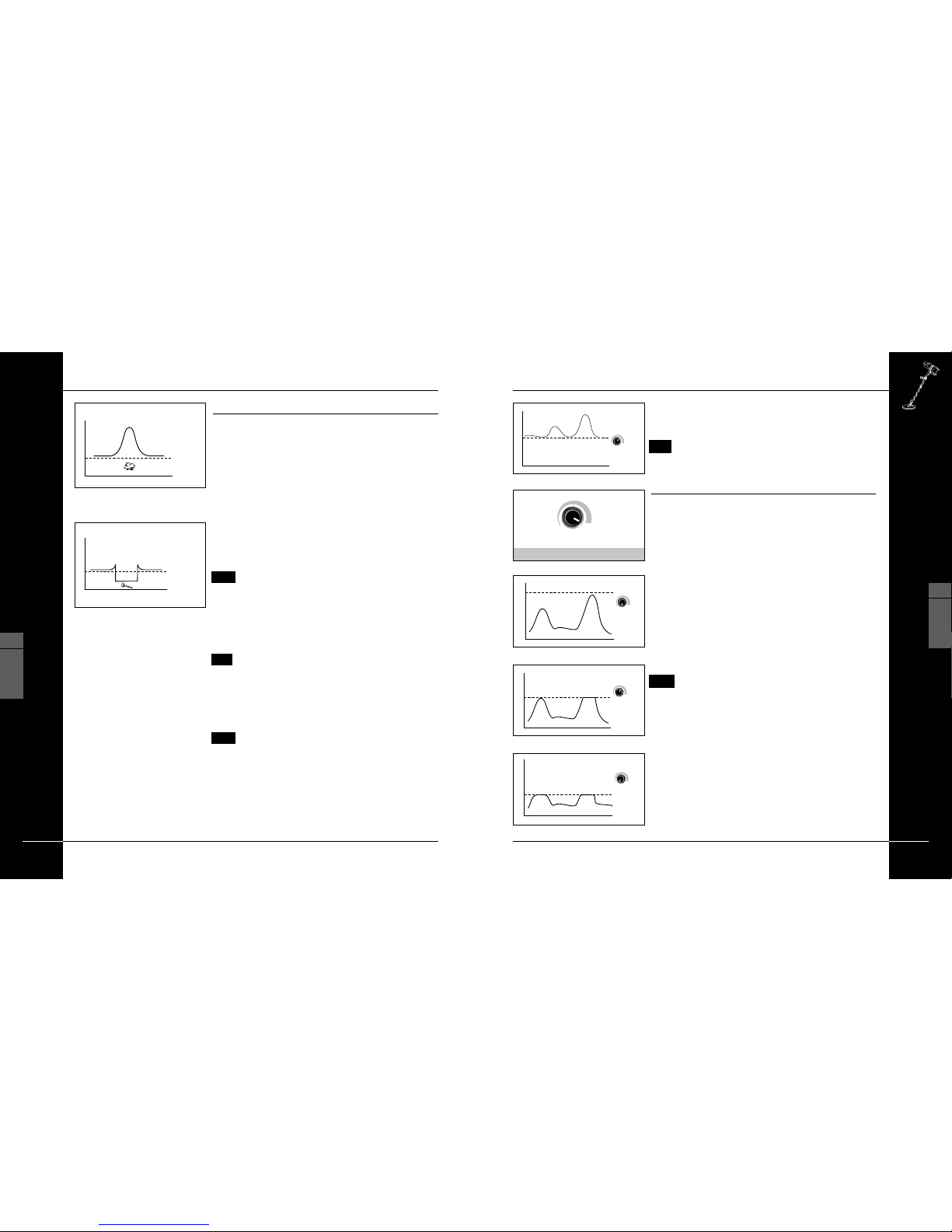

DETECTOR SOUNDS
Threshold and Tone
This is the background sound produced by the detector. The level
is set using the Threshold control. The tone of the threshold is
set using the Tone control.
Target Signal
This is the abrupt change of the tone and volume of the threshold
sound when a target is detected.
• The maximum level is set by the Volume control.
• The amount of tone variation is set by the Signal control.
• If the tone falls first and then rises, as the coil is passed
over a target, this generally indicates a small target.
• If the tone rises first and then falls, as the coil is passed
over a target, this generally indicates a large target.
Ground Noise
These are irregular noises that are difficult, or impossible, to pinpoint
when moving the coil over the ground. Ground noise is caused by
the changing chemistry or 'mineralisation' of the ground. When the
Balance switch is set to Tracking these effects are greatly reduced.
Tune Indication
An initial beep sounds then, while the detector is testing the range of
frequencies for the most stable, the threshold may become more quiet
or chattery. Once selection is complete three sharp ‘beeps’ are given.
Low Battery Indication
If the battery level drops below the desired power to give full function,
a series of signal pulses are given at 0.5 second intervals.
DETECTOR SOUNDS
18
CONTROLS
4
Page 23
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com

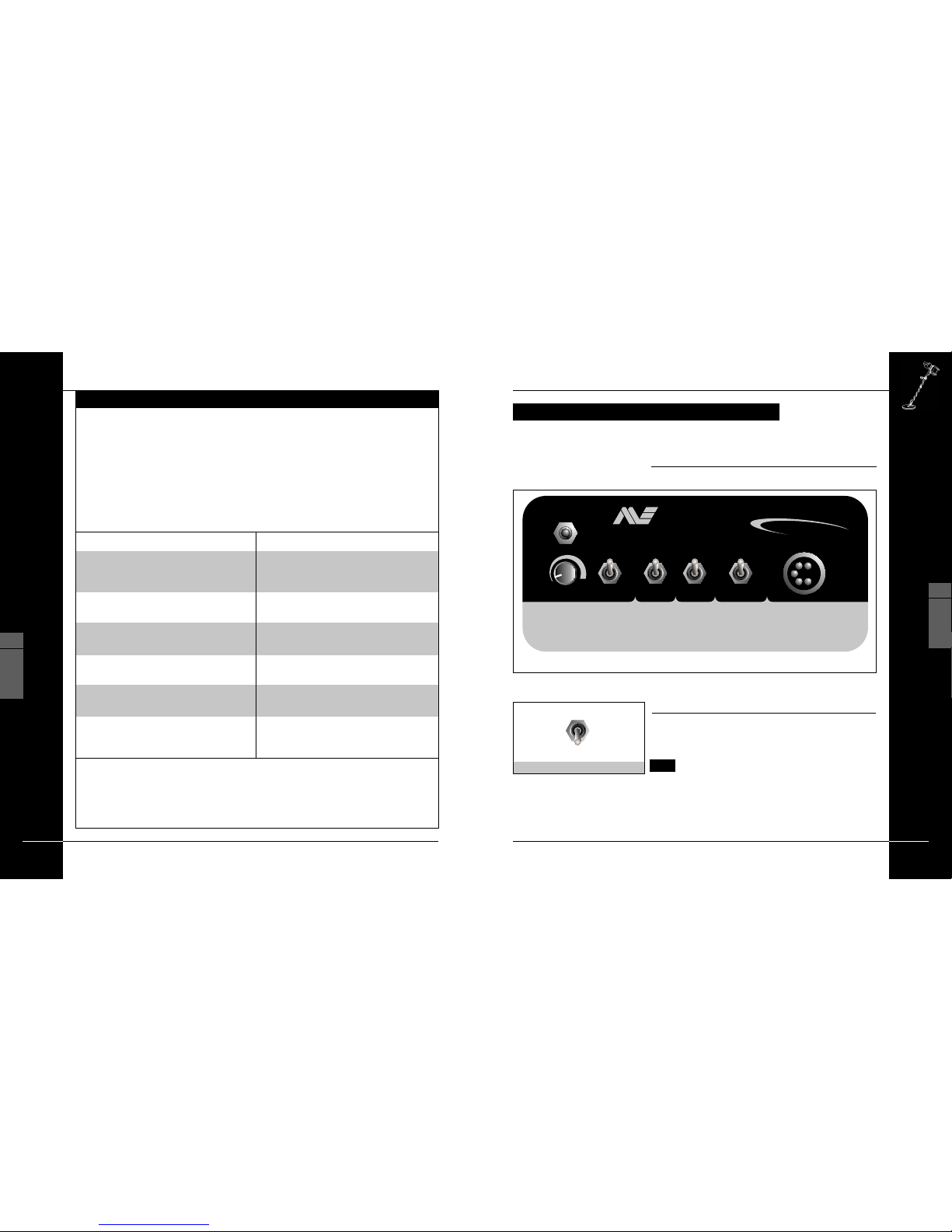

Power (On/Off)
Figure 4.2
This switch turns the power from the battery to the detector On
and Off.
NOTE Always switch the detector Off before connecting or
disconnecting the coil or battery pack and when not in use.
CONTROL FUNCTIONS
Figure 4.1 Rear Panel
There are two control panels: the rear panel and the front panel.
CONTROL FUNCTIONS
Rear Panel
Figure 4.1
Figure 4.2 Power (On/Off) switch
Power
19
4
CONTROLS
IRON DISCRIMINATION
easy reference
DISCRIMINATION CONTROL USING LEVEL ADJUST
MIN (FULLY ANTI-CLOCKWISE)
Most iron objects are discriminated, but a
few small iron objects will be accepted as
non-ferrous.
Detect more rubbish, but less likely to
cancel a gold nugget.
Suggested for areas with large amounts
of ferrous rubbish.
Only very strong target responses will
trigger discrimination action.
Tracking is more likely to balance out
weak target responses.
A medium to strong target response should
pause the tracking mode but weak responses
may be mistaken for ground mineralisation.
MAX (FULLY CLOCKWISE)
Almost all iron objects are discriminated, but
a few small non-ferrous items will also be
ignored.
Detect less rubbish, but may mistake a
nugget for ferrous rubbish
Suggested for areas with small amounts
of ferrous rubbish
Both strong and medium target responses
will trigger discrimination action
Tracking is less likely to balance out weak
target responses.
A weak target response should pause the
tracking mode.
38
OPERATION
5
Off
On
P0518-A
Balance
N
CoilSoilIron Discriminate Coil Connector
Cancel
Double D
M
Salt
Sensitive
N
Disc
All Metal
Level Adjust Tracking
Fixed
MINELAB
Tune
N
N
N
P0613-A
GP3000
Page 24
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com

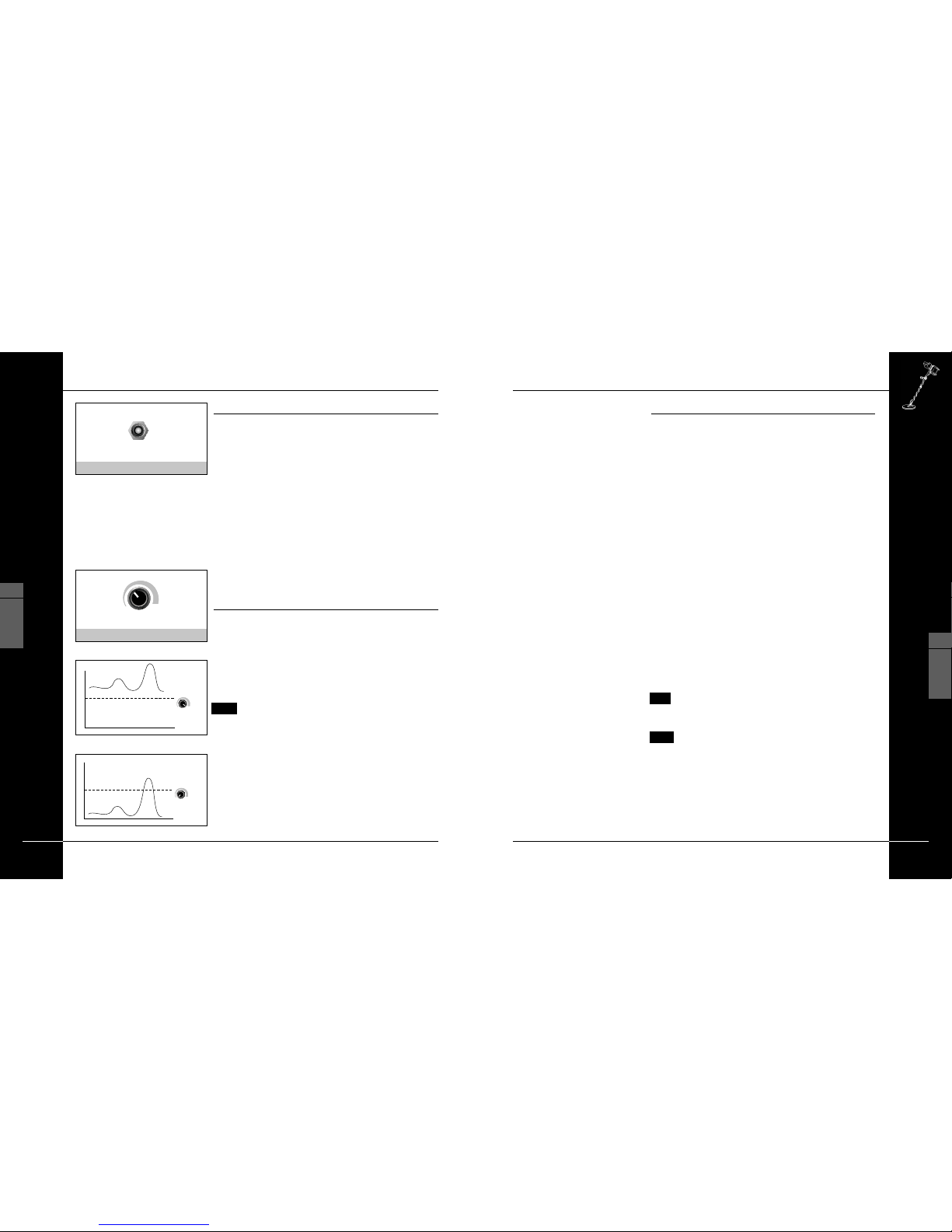

CONTROL FUNCTIONS
Boost (Shallow/N/Deep)
Figure 4.3
Enhances the signals produced by different types of targets.
• Shallow enables target signals, from small objects close to
the surface of the ground to be amplified. This allows for
easier detection. This setting is best suited for 'quiet' ground.
• N (Normal) may be used for normal detecting conditions.
This setting responds to all signals without boosting.
• Deep may be used when searching for large targets at
greater depth in 'noisy' ground. Random soil signals are
smoothed, making small changes in the audio signal from
large deep targets easier to hear. This may mask some
signals from very small targets near the surface.
Threshold
Figure 4.4
Adjusts the background audio signal or 'threshold' level.
The Threshold control should be set just above the point where
the threshold is just audible and stable.
This level should not be at a level where prolonged use may be
irritating. Ideally it should be a smooth, gentle hum.
NOTE Small targets or large deep targets may not produce a
distinct target signal, but may cause only a small variation in
the threshold level. If the threshold level is set too high or
too low, these very small variations may be missed.
In Figures 4.5 - 4.7, the dotted line represents the level at which
the audio output becomes audible; signals cannot be heard if
they are below the dotted line.
If the threshold level is set too high then small variations in audio
signal might not be discernible above the threshold level (Figure 4.5).
An example of this would be to hear a whisper within a crowded
noisy room.
Figure 4.5 Threshold control too low
Figure 4.6 Threshold control too high
Figure 4.3 Boost switch
Figure 4.4 Threshold control
20
CONTROLS
4
Level Adjust Control
Level Adjust gives the user the ability to select the sensitivity and
likelihood of a target being discriminated as ferrous when used in
the Disc mode.
This may also affect how the detector responds to ground
mineralisation compared to metal targets when used in Disc. Mode.
There is usually some overlap between signals from useful targets
and some types of iron rubbish. The user may set Level Adjust to
select the amount of discrimination between two extremes:
• (Fully anti-clockwise). All targets detected, but some iron will
give a normal signal (as per Figure 5.4).
• (Fully clockwise) Little iron detected, but some small
non-ferrous targets potentially mistaken as ferrous.
Turning the control anti-clockwise increases the strength of a signal
required for iron discrimination to be activated.
The Level Adjust also affects the Tracking mode.
When set fully clockwise, it is unlikely the detector will 'balance out'
genuine targets, but some ground noise may still give false signals.
When set fully anti-clockwise, the detector will 'balance out' ground
noise effectively, but some faint, weak target signals may be missed
after repeated sweeps of the coil.
HINT It is usually best to dig out all targets and only use the
discrimination function in areas where a large amount of rubbish
makes the digging of everything impractical.
NOTE Discrimination functions will only work with strong,
positive target responses. Weak responses will give normal
'all metal' type signals.
IRON DISCRIMINATION
37
OPERATION
5
Boost
Deep
Shallow
N
P0519-A
Audio
P0520-A
Threshold
P0509-A
Louder
Audible Signal
Small
Target
No Sound
TooHigh
Large
Target
P0532-A
Louder
Audible Signal
Small
Target
No Sound
Large
Target
TooLow
Page 25
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
CONTROL FUNCTIONS
If the threshold level is set too low there is no audible background
signal and small target signals will not go above the threshold of
audibility (Figure 4.6).
HINT A soft audible headphone signal which is comfortable to
listen to for extended periods is recommended (Figure 4.7).
Volume
Figure 4.8
Sets a maximum limit on the loudness of the target signal
obtained from a large target. Refer to Figures 4.9 - 4.11. The
dotted line in these figures represents the level of volume set by
the volume control.
• If the Volume is set to maximum (fully clockwise), the target
signal is unaltered and proportional to the target size and depth
(see Figure 4.9).
• If the Volume control is turned down to half way, the target
signal is unaltered for a small target, but is limited for a
bigger target (see Figure 4.10).
• If the Volume were to be turned down close to minimum, it
potentially will limit all signals to such a degree that most
targets will be lost (see figure 4.11).
NOTE Threshold should be reset after adjusting the Volume level.
Figure 4.8 Volume control
Figure 4.9 Maximum volume
Figure 4.7 Threshold control just right
Figure 4.11 Minimum volume
Figure 4.10 Mid-range volume
21
4
CONTROLS
IRON DISCRIMINATION
Iron Discriminate
Figures 5.4, 5.5
Iron discrimination with the ‘GP 3000’ is the silencing or ‘blanking’ of the
threshold which occurs when the detector determines a target is
comprised of ferrous metal.
There is no discrimination when Iron Discrimination is set to All
Metal. Targets will cause the tone and volume of the threshold to
vary. These variations convey no consistent information about the
type of metal detected.
Iron discrimination operates when Iron Discriminate is set to Disc.
Objects must produce sufficiently strong target responses for the detector
to successfully discriminate. Fortunately, most iron rubbish is located near
the surface and should produce the required strong signal response.
NOTE When Disc is used, small or deeper targets, whether
ferrous or non-ferrous, will produce a normal target signal.
If a target response is too weak for the detector to discriminate, it will
internally change to the all metal mode. As soon as the target response
becomes strong enough, the detector will resume discrimination.
Pinpointing is best performed using All Metal.
HINT When a target has been located using Disc, the coil should
be rapidly passed back and forth over the target centre several
times. Remember to set Balance to Fixed for this.
The coil should always be passed smoothly over the surface of the
ground, while maintaining the coil height above the ground. This is
especially important when attempting to discriminate a target.
NOTE Discrimination will give the best results when used in
combination with the specially designed ‘GP 3000’ coils.
When detecting a piece of iron, a normal target signal should be
heard until the detector determines that the object is ferrous.
At this point, the signal will 'blank'.
The strength of the target response required for discrimination to
occur may be altered by using Level Adjust.
Figure 5.4 A normal signal on a non-ferrous
target.
Figure 5.5 Discrimination target signal on a
ferrous target.
36
OPERATION
5
P0533-A
Louder
Audible Signal
Small
Target
No Sound
Large
Target
Just Right
P0514-A
Louder
Normal Signal
P0514-B
Louder
“Disc” Ferrous
Response Blanking
Audio
P0521-A
Volume
Louder
Maximum
P0508-A
P0534-A
Louder
Mid-range
P05035-A
Louder
Minimum
Page 26
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com

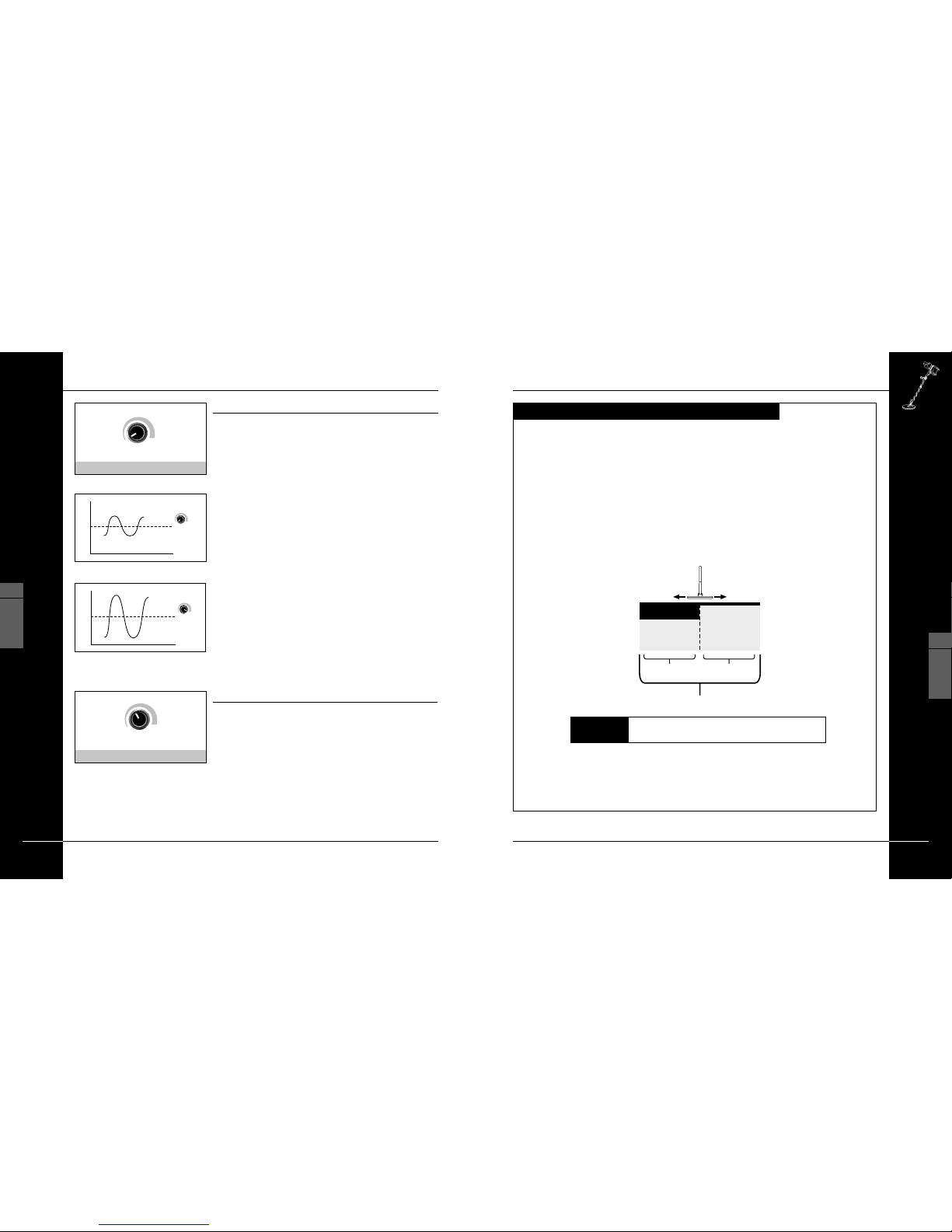

Tone
Figure 4.15
Adjusts the tone of the threshold. The user may set this to the
preferred tone, e.g. the tone at which the operator’s hearing is
most sensitive.
At minimum position, threshold is set at a low tone. Turning
clockwise increases the tone to higher pitch.
Signal Pitch
Figure 4.12
Adjusts the pitch response of the target signal.
In Figures 4.13 and 4.14 the curving line represents the high/low
pitch response to a target. The dotted line represents the
threshold tone.
• At minimum position the high/low pitch variance to a target is
reduced.
• At maximum position the high/low pitch variance to a target is
increased.
CONTROL FUNCTIONS
Figure 4.12 Signal control
Figure 4.13 Reduced pitch variance
Figure 4.14 Increased pitch variance
Figure 4.15 Tone control
22
CONTROLS
4
IRON DISCRIMINATION
IRON DISCRIMINATION
Discrimination is the ability of a detector to distinguish between different types of
metal objects and to assist the user in identifying a target.
Some goldfields are littered with 'rubbish', e.g. metal objects which are of little
value and are an annoyance to detector users.
The ‘GP 3000’ is capable of rejecting many iron objects while still detecting
non-ferrous metals. The ability of the detector to discriminate ferrous targets
means that, while detecting in littered goldfields, much of the iron rubbish may be
ignored, with a high probability that valuable targets will not be missed.
Figure 5.3 Discrimination levels
P0507-A
35
OPERATION
5
Audio
P0522-A
Signal
P0510-A
High
Tone
Minimum
Low
Tone
P0536-A
High
Tone
Maximum
Low
Tone
Audio
P0523-A
Tone
Ground
Surface
Double "D" Coil
"Disc" mode
Normal Audio
Normal Audio
Signal is more steady as coil passes over target
Target signal blanks as coil passes over target
NOTE: The above zoning is only a stylistic example of how the Discrimination mode works.
The above areas are not determined by depth but by the strength of signal.
Ferrous:
Ferrous
Audio Blanking
Non-Ferrous:
Non-Ferrous
Target Signal:
P0507-A
Page 27
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
Front Panel
Figure 4.16
Figure 4.16 Rear Panel
CONTROL FUNCTIONS
Tune
Figure 4.17
Reduces the effects of electromagnetic interference from sources
such as power lines, radio transmitters and other metal
detectors.
Automatic tuning is started by pressing and releasing the Tune switch.
The tuning process takes approx. 60 sec. and completion is
indicated by three sharp ‘beeps’.
Figure 4.17 Tune control
23
4
CONTROLS
GROUND BALANCING
Ground Balancing Procedure
Figure 5.2
• Move the coil up and down between 20mm and 100mm
above the ground and, while moving the coil, change
Balance from Fixed to Tracking.
• The fast ground balance takes only 5 sec. after switching to
Tracking. Therefore, it is important to be moving the coil as the
switch is changed.
• Keep moving the coil until all ground noise has stopped. A
persistent signal may indicate a target in the ground.
• If this occurs, then move the coil to a new location and repeat
the procedure.
• When there is no longer a change in the threshold, while the
coil is being raised and lowered, the detector is 'ground
balanced'.
• When the detector has been ground balanced, the user may
select either Fixed or Tracking for detecting.
If the ground is mineralised or variable, use Tracking.
If the ground is very 'mild', use Fixed and switch back to Tracking
temporarily if the threshold becomes noisy. Do not test a target by
switching to Tracking when the coil is above it.
HINT It may useful to repeat the ground balance procedure if
ground conditions change rapidly.
Figure 5.2 Setting the ground balance
34
OPERATION
5
20 - 100mm
P0506-A
P0524-A
Tune
Balance
N
CoilSoilIron Discriminate Coil Connector
Cancel
Double D
M
Salt
Sensitive
N
Disc
All Metal
Level Adjust Tracking
Fixed
MINELAB
Tune
N
N
N
P0613-A
GP3000
Page 28
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
CONTROL FUNCTIONS
Iron Discriminate (All Metal/Disc)
Figure 4.18
Selects between discrimination or to turn off the discrimination
altogether (All Metal).
In All Metals, the detector will give varying volume and pitch
signals but this information does not indicate the type of metal in
the object.
In Disc, a strong response from a ferrous (iron) object will cause
the threshold to be 'blanked' or silenced.
NOTE If the target response is too weak for accurate
discrimination, the detector will give a normal target signal.
Level Adjust
Figure 4.19
Level adjust gives the user the ability to select the sensitivity
and likelihood of a target being ferrous or non-ferrous.
It also affects how the detector recognises mineral effects in the
ground, as opposed to metal targets, when 'ground balancing'.
NOTE It is important that you read pages 37 and 38 in
Chapter 5 for more information.
Soil (Normal/Sensitive/Salt)
Figure 4.20
Optimises the detector for different soil conditions and targets by
changing the signal processing.
• N (Normal) may be used in all areas, including areas with
highly mineralised soil. This position has very good sensitivity
to a wide range of nugget sizes and is the most versatile of
the three positions.
Figure 4.18 All Metal/Disc switch
Figure 4.19 Level Adjust control
Figure 4.20 Soil (Normal/Sensitive/Salt)
switch
24
CONTROLS
4
GROUND BALANCING
GROUND BALANCING
The ground contains not only sand, but also many different chemicals,
minerals and salts. These extra materials are referred to as ground
mineralisation.
This ground mineralisation may often produce a sound from the detector,
known as 'ground noise'.
The ‘GP 3000’ has the ability to cancel out the effects of ground
mineralisation. This minimises ground noise and retains maximum
sensitivity to metal targets. Cancelling the effects of ground mineralisation
is referred to as 'ground balancing'. This ensures that target signals from
objects, such as gold, are not confused with interfering ground noise.
The ‘GP 3000’ has automatic ground balancing. This continually adjusts
to minimise the effects of ground mineralisation when Balance is set to
Tracking.
The ‘GP 3000’ may be operated with fixed ground balance or
automatic ground balance.
• When Balance is set to Fixed, the ground balance remains at
the current level.
• When Balance is changed from Fixed to Tracking, the detector
begins to automatically ground balance through a two stage process.
The first stage is a very rapid adjustment to the ground
mineralisation. This only lasts for 5 sec. so coil movement should be
at the same time as Balance is changed from Fixed to Tracking.
The second stage continues to adjust to the ground mineralisation,
but at a greatly reduced speed.
This adjustment continues all the time that Balance is set to Tracking.
While in Tracking mode, the detector usually stops ground balancing
when a target signal is detected. However, a weak target response
may not be recognised as a target if the coil is repeatedly passed
over an object and it may be 'balance
d out'. For this reason
Balance should be changed to Fixed when pinpointing a target.
HINTS
Use ‘Tracking’ in areas with very
high ground noise for best results.
If ‘Balance’ is changed to ‘Fixed’,
the detector will no longer adjust
to changes in ground
mineralisation, but will stay fixed at
the level previously calculated
while in ‘Tracking’ mode.
Change from ‘Tracking’ to ‘Fixed’
when pinpointing a potential
target.
NOTE
The Level Adjust control also
effects the Tracking mode by
altering the detectors perception of
what is ground noise and what is a
weak target (see pages 37 and 38).
33
OPERATION
5
Iron Discriminate
All Metal
Disc
P0525-A
Iron Discriminate
P0526-A
Level Adjust
Soil
Salt
Sensitive
N
P0527-A
Page 29
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
Coil Double D/M/Cancel
Figure 4.21
Changes the sensitivity and search pattern of the coil to allow the
‘GP 3000’ range of coils to become multi-versatile coils with different
characteristics to suit different environments. This is achieved by
altering the pattern of transmit (TX) and receive (RX) fields of the coil
and how the control box interprets the response.
• Double D can be used in most areas of medium to very high
mineralisation, being the most able to cope with ground
noise. It is also excellent for pinpointing targets as the
response is strongest from the centre of the coil.
• M (Mono) may be used in most locations of low to medium
mineralisation and for locating small nuggets with Soil switch
set to Sensitive. Pinpointing is not centred in the middle of
the coil, but to one side and may give a complex signal when
the target is very close to the coil.
• Cancel may be used in areas with very high electrical
interference where the Tune function has difficulty selecting a
quiet operational frequency (e.g.: near power lines, electric
fences or under poor atmospheric conditions).
CONTROL FUNCTIONS
Figure 4.21 Rx (Receive) switch
• Sensitive may be used when searching for small nuggets,
especially in areas with highly mineralised soil. The extra
stability allows the coil to be used closer to the ground in
areas of excessive ground noise. Sensitive may not work
well if the ground is salty.
This setting may also reduce the depth at which large
nuggets are likely to be found.
• Salt may be used in areas containing high salt content, be
they neutral or heavily mineralised. In highly mineralised
areas without salt, this setting may be less sensitive than
Normal or Sensitive to small nuggets.
25
4
CONTROLS
Sometimes it may not be possible to remove the effects of
interference completely by using the Tune control alone.
Once the detector has been tuned for a particular location, it should not
require readjustment unless conditions change or new interference is
introduced, e.g. other detectors being used in the same area. If the
interference persists after tuning, consider using the Coil switch set to
Cancel position.
Boost (Shallow/N/Deep)
Boost selects the type of processing and filtering applied to the
detector signals.
• N (Normal) may be used for general detecting conditions. This
does not boost any signals.
• Shallow boosts signals from small targets close to the surface.
This makes faint target signals easier to hear. This setting may
also boost any ground noise, therefore Shallow is well suited
for 'quiet' ground conditions.
• Deep may be used when searching for large targets at depth.
This smooths the threshold and target signals from small targets,
making small changes in threshold easier to hear.
Selection of the more suitable position should be after considering
both target size/depth and ground conditions.
NOTE When Boost is changed, Threshold may also need to
be adjusted.
External amplifiers may be used in addition to the Boost switch,
provided that they have loudness limiters built in. This prevents loud
signals becoming unpleasant or dangerous to the user's hearing.
DETAILED OPERATING INSTRUCTIONS
32
OPERATION
5
Rx
Cancel
Normal
E
P0528-A
Page 30
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
Pinpoint in Cancel will again be to one side of centre and
signals may be complex if target is close to the coil. This setting
will limit sensitivity to deep targets.
NOTE Coils not specifically designed for the ‘GP 3000’ may
behave erratically or be ineffective in either M (Mono) or
Cancel modes.
Minlab Monoloop coils can be used on the GP 3000 with excellent
results. When using a Monoloop coil on the GP 3000 we would
recommend you operate the coil switch in M (mono) position.
Balance (Fixed/Tracking)
Figure 4.21
The ‘GP 3000’ may be operated with fixed ground balance or
automatic ground balance.
• When Balance is set to Fixed, the ground balance remains at
the current level.
• When Balance is changed from Fixed to Tracking, the
detector begins to automatically ground balance through a
two stage process that is described on page 33.
To obtain the best performance from your detector, it is important to
know how different ground conditions affect the detecting process.
See “Ground Balancing” on page 33 for more detailed information.
Figure 4.22 Balance (Fixed/Tracking) switch
26
CONTROLS
4
DETAILED OPERATING INSTRUCTIONS
M (Mono) changes the way the coil transmits and receives its signals.
Operating in mono, the coil has some of the characteristics of a
Monoloop coil. Use of Mono will often increase the sensitivity of the
detector but may also be a little more unstable in heavily mineralised
ground. Pinpointing will be off to the left of centre.
Cancel changes the electromagnetic field of the coil so that it is
particularly stable in areas of electrical interference. This position is
ideal in areas where the operator wants to detect close to suburbia
or under power lines etc.
Set the Tune control
Figure 5.1
Tuning should be done initially with the Coil switch in Double D or in
M (Mono). If the interference is still severe after completing the tuning
operation, change the Coil switch to Cancel and then re-tune detector
again.
• Hold the detector at waist height and the coil vertical.
• Keeping the coil vertical, slowly move it through a half-circle
around your body.
• Listen for an increase in interference as you move the coil.
• When the interference is loudest, stop moving the detector, hold
it motionless in that position and momentarily press the Tune
switch.
The detector will then scan through the available range of
transmission frequencies and automatically select the frequency
that results in the greatest reduction of noise from
electromagnetic interference.
• The end of tuning process (which takes approx. 60 sec.) is
announced by three beeps.
NOTE While the detector is selecting the preferred
frequency, the coil must be kept motionless and clear of
metal objects.
Figure 5.1 The tuning process
IMPORTANT
When tuning detector in close
proximity to other detectors, each
operator needs to take turns
tuning. Do not try to tune two
detectors at one time.
31
OPERATION
5
Balance
Tracking
Fixed
P0529-A
P0517-A
“beep, beep, beep”
60
sec
Tune
Page 31
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
5
Operation
However experienced you are at using a
metal detector, it is important that you
read this chapter to understand how to
use the ‘GP 3000’ to its full capacity.
27
OPERATION
5
DETAILED OPERATING INSTRUCTIONS
Set the Tone control
Adjust the Tone control until the threshold is at a comfortable tone for
your hearing. Interpretation of the target signals involves
understanding the difference between the rising and falling tone
and volume of the threshold in response to different targets.
HINT Setting Tone to a high pitch may be more fatiguing, but is
more suitable for identifying the faintest target signals.
Set the Signal control
The human hearing is sensitive to changes in tone, so the operator
is more likely to hear a target signal when both the volume and the
tone change rather than volume alone.
The Signal control gives the operator the ability to choose between a
target signal that has a large variance of tone, or one which has less
variation.
High variance can give the operator more signal definition to interpret,
however in highly mineralised ground this high variance of signal may
cause confusion and a lower setting is preferred.
Soil switch
Use this switch to optimise the detector's ability to detect in different
ground conditions (see page 24 for full description).
Coil switch
Selection of different positions of this switch, changes the
electromagnetic field of the coil thus giving better performance in
certain environments (see page 25 for more information).
Double D has the coil operate in a conventional Double D search
pattern with all the same advantages and disadvantages.
IMPORTANT
You will need to
re-ground balance every time you
select a new position for either the
‘Soil’ or ‘Coil’ switches.
30
OPERATION
5
Page 32
THE MINELAB ‘GP 3000’THE MINELAB ‘GP 3000’
www.minelab.com
QUICK START INSTRUCTIONS (EASY REFERENCE)
easy reference
STEP 1 Set Coil switch to Double D.
STEP 2 Set Soil switch to N (Normal).
STEP 3 Set Balance switch to Fixed.
STEP 4 Set Iron Discriminate switch to All Metals.
STEP 5 Set Boost to N (Normal) for general detecting.
STEP 6 Set Volume to maximum, and Signal to 2 o’clock.
STEP 7 Turn Power switch on.
STEP 8 Adjust the Threshold control so that a faint sound is heard through the
headphones.
STEP 9 Adjust the Threshold Tone to suit your hearing.
STEP 10 To tune the detector, hold at waist height with the shaft horizontal. Keep the
coil vertical.
STEP 11 Slowly move coil around your body through a half-circle until the noise
from interference is loudest.
STEP 12 Hold this position, keep the coil motionless and push the Tune switch once
to start the tuning function.
STEP 13 Tuning takes approximately 60 seconds. A series of three beeps will
indicate that the optimum frequency has been selected.
STEP 14 For Discrimination, change the Iron Discriminate switch to Disc and
set Level Adjust to the middle of its range.
STEP 15 Set the Ground Balance by moving the coil up and down. While coil is in
motion, change Balance switch from Fixed to Tracking.
STEP 16 Once ground balance has been acheived switch back to Fixed.
STEP 17 The detector is now ready for operation.
QUICK START INSTRUCTIONS
28
OPERATION
5
DETAILED OPERATING INSTRUCTIONS
Turn the ‘GP 3000’ On
Hold the coil away from the ground and metal objects and switch
Power to On.
NOTE When the ‘GP 3000’ is turned Off, important
information (e.g. tuning frequency and ground balance) is
saved in internal memory.
If detection recommences in the same location, the user
should not have to re-tune or re-ground balance the
detector.
Set the Volume Control
Volume should be set so that target signals are clear and easy to
hear but loud signals are not uncomfortable to your hearing.
Set the Volume by passing the coil across a large target and adjusting
volume to a comfortable level. Now test a very small target at this level.
Set the Threshold control
Adjust the Threshold control until the threshold is just audible through
the headphones.
NOTE Small surface objects, as well as large deep objects,
will produce very small changes in the threshold. It is
important to set the Threshold control correctly to ensure
that these targets are heard. Experiment with known targets
to assist in setting all controls to suit your hearing.
DETAILED OPERATING INSTRUCTIONS
HINT
Take time to read this manual
thoroughly to obtain the best
performance from your new
‘GP 3000’ detector.
29
OPERATION
5
Loading...
