Page 1
F3 COMPACT
Revision 02
Part No: 4901-0103
OPERATIONS MANUAL
Page 2
WARNING
THIS DOCUMENT CONTAINS INTELLECTUAL PROPERTY,
TECHNICAL AND PROPRIETARY DATA AND INFORMATION
AND OTHER MATERIAL OWNED SOLELY BY MINELAB
ELECTRONICS PTY LIMITED. THIS MATERIAL MUST NOT
BE USED WITHOUT THE PRIOR WRITTEN PERMISSION OF
MINELAB ELECTRONICS PTY LTD.
© Minelab Electronics Pty Ltd. All Rights Reserved.
This document is protected by copyright. Apart from any use
permitted under the Australian Copyright Act 1968 (Cth) or other
applicable laws, any unauthorised use, appropriation or reproduction
of this document or any part of it is strictly prohibited. No part of
this document may be used or reproduced by any means or by
any process, in any form, without the prior written permission of
the copyright owner Minelab Electronics Pty Ltd of 118 Hayward
Avenue, Torrensville, SA 5031, Australia.
Page 3
F3 COMPACT Operations Manual
1
Table of Contents
1. Introduction ......................................................................................3
2. General Description and Preparation .............................................5
2.1 Mine Detecting Set 5
2.2 F3 COMPACT Main Components 6
2.3 F3 COMPACT Preparation 8
3. Functional Description .................................................................. 13
3.1 Functional Controls and Displays 13
3.1.1 On/Off Knob ................................................................. 13
3.1.2 Sensitivity Knob ............................................................ 14
3.1.3 Ground Balance/Audio Reset Button ........................... 15
3.1.4 Noise Cancel Button .................................................... 15

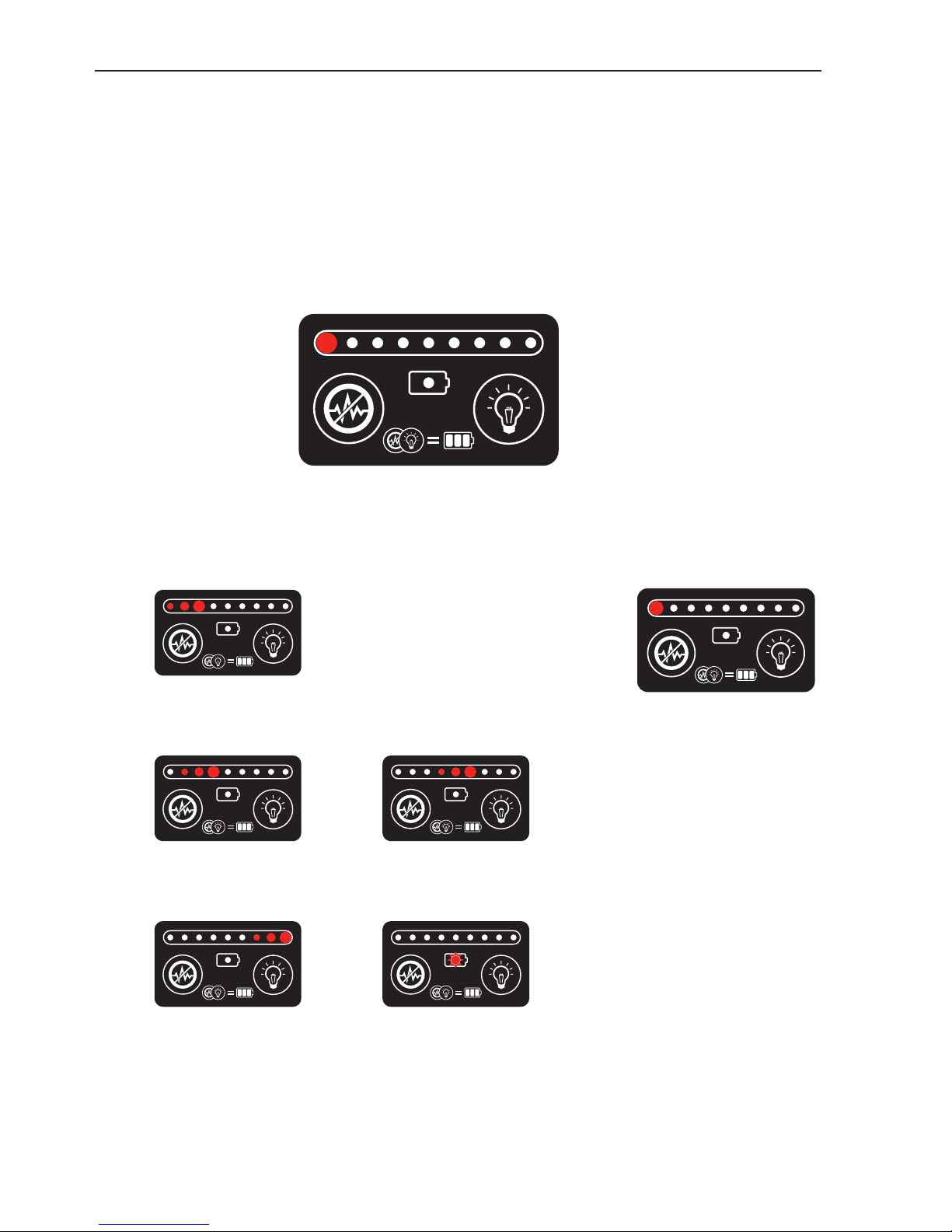

3.1.5 LED Display .................................................................. 16
3.1.6 Battery Status ............................................................... 17
3.1.7 Earset Socket ............................................................... 17
3.2 Functional Tones 18
3.3 Test Piece – Functional Test 19
4. Operating Procedures .................................................................... 21
4.1 Introduction 21
4.2 Standard Procedure 22
4.2.1 STEP 1 Switch ON .......................................................22
4.2.2 STEP 2 Ground Balance ..............................................23
4.2.3 STEP 3 Test Piece ........................................................ 24
4.3 Optional Procedures 26
4.3.1 Noise Cancel ................................................................26
4.3.2 Audio Reset .................................................................. 27
4.4 Sweeping Procedure 29
Page 4
2
F3 COMPACT Operations Manual
4.5 Pinpointing Procedure 30
4.5.1 STEP 1 Mapping the Target ..........................................30
4.5.2 STEP 2 Determine Centre of Target ............................. 32
4.6 Multiple Targets 33
4.6.1 STEP 1 Mapping the Target ..........................................33
4.6.2 STEP 2 Determining the Centre of Target ....................34
4.7 Operating Multiple Detectors in Close Proximity 34
4.8 Completion of Operations 35
5. Care and Troubleshooting .............................................................37
5.1 Routine Care 37
5.2 Troubleshooting 38
6. Specifications ................................................................................. 39
Page 5
F3 COMPACT Operations Manual
3
1. Introduction
Since 1996, Minelab has designed, developed and manufactured its
range of detectors to meet the requirements of mine and unexploded
ordnance clearance operations throughout the world. Through
its patented and unique technology, Minelab has emphasised
equipment capability and operator safety in its products.
The F3 COMPACT is a lightweight, compact detector that includes
a uniquely designed mechanical platform thereby providing superior
ergonomics.
The F3 COMPACT incorporates patented bipolar technology that
enhances Minelab’s renowned and highly successful Multi-Period
Sensing (MPS) technology. Through MPS, the sensitivity of a
detector remains consistent regardless of the mineralised content
of soil. Bipolar technology also helps to eliminate the possibility of
initiating a magnetic influence mine. Combined with ‘static coupling’
the F3 COMPACT does not require motion to detect a target thereby
making pinpointing techniques fast and accurate.

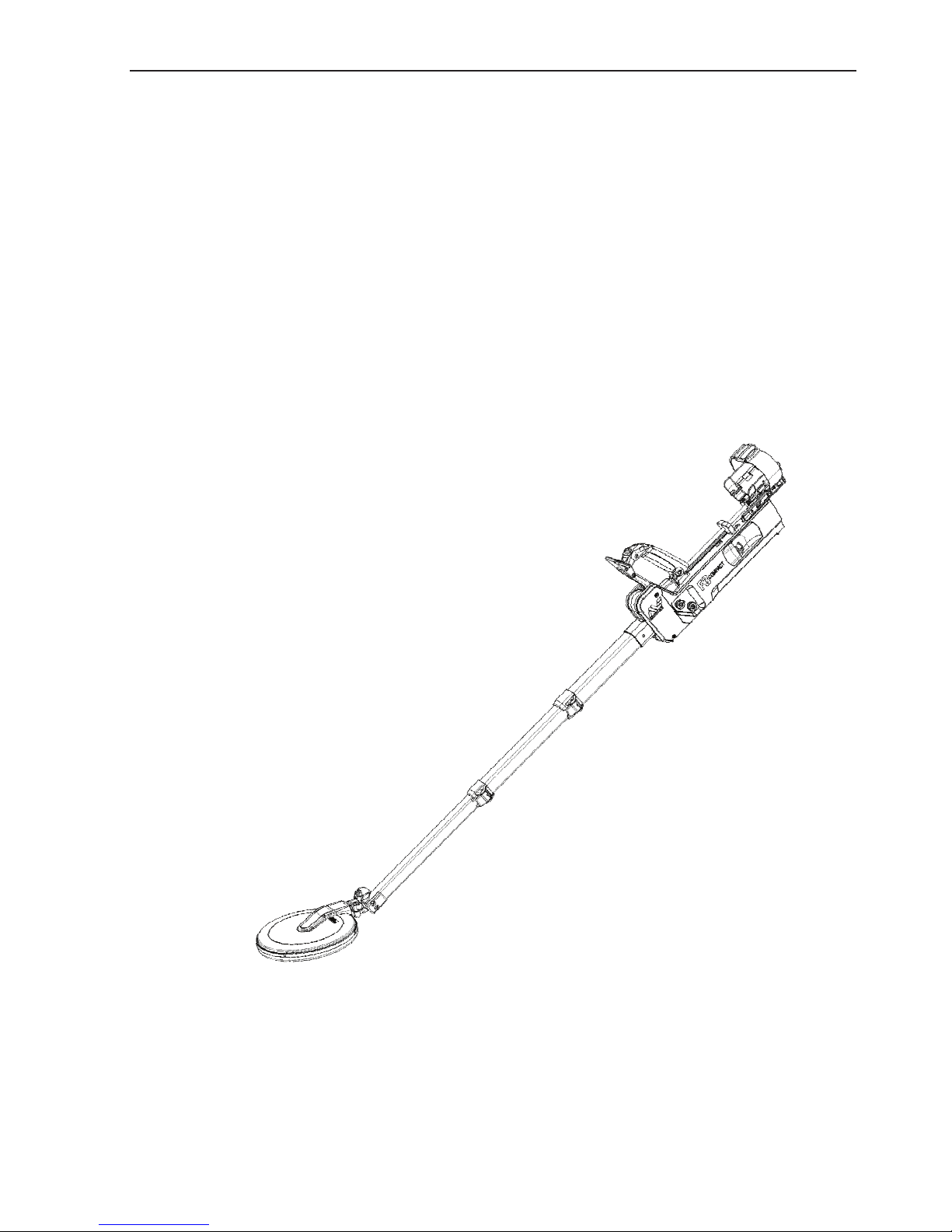

Figure 1: F3 COMPACT mine detector
Page 6
4
F3 COMPACT Operations Manual
The F3 COMPACT is a robust detector that is extremely simple
to operate. When working in an environment that includes highly
mineralised ground or electrical interference from overhead power
lines or other sources, simple and quick semi-automatic procedures
can be initiated by an operator resulting in the detector continuing to
perform at maximum capability.
The F3 COMPACT incorporates several safety features such as
Low Battery and System Fault warnings, audible confirmation at
the completion of specific operational procedures, and continuous
microprocessor controlled internal self-testing. The inclusion of a
Test Piece provides the operator with a quick and easy check to
ensure that the detector is working at its operational capability.
The F3 COMPACT also provides a visual indication of detection via
a Light Emitting Diode (LED) display. Sensitivity and volume settings
can be changed through seven preset selections. If required, the F3
COMPACT can be programmed to user initiated customised volume
and sensitivity selections using Minelab’s configuration software.
Components of the F3 COMPACT are manufactured within tightly
controlled parameters so that they can be interchanged in the field
without any requirement for calibration.
The F3 COMPACT is designed to satisfy MIL STD 810G.
NOTE
Although the F3 COMPACT can withstand immersion to a depth of
three metres for short periods of time, it is NOT designed for use as
an underwater detector.
Page 7
F3 COMPACT Operations Manual
5
2. General Description and Preparation
2.1 Mine Detecting Set
The F3 COMPACT is supplied as a mine detecting set (Figure 2)
comprising:
• Hard Case (optional)
• Detector
• Soft Carry Bag
• Earset (Speaker On and
Speaker Off variants)
Figure 2: F3 COMPACT mine detecting set
The optional Hard Case permits the stowage of the detector inside
the Soft Carry Bag and provides protection for the detector when in
transit or placed in storage.
The Soft Carry Bag allows the operator to comfortably carry the
detector when use of the Hard Case is impractical. The Soft Carry
Bag is not suitable for use when transporting the detector by
road or air. For added protection during road or air transport, it is
recommended that the detector be packed in the Hard Case.
F3 COMPACT
Mine Detector
12 seconds
Audio
Reset
45 seconds...
60cm
(24”)
1
2
3
15cm
(6”)
60cm
(24”)
4903-0047-1
• Operations Manual
• Field Guide
• Test Piece
• Four C-Cell Batteries
(Alkaline or Rechargeable)
Page 8
6
F3 COMPACT Operations Manual
2.2 F3 COMPACT Main Components
Figure 3 identifies the main components of the F3 COMPACT.
Battery
Compartment
Armrest
Armrest Strap
Earset
Connector
Handle
Assembly
Shaft Hinge
Controls
Main Body
Upper Shaft
Middle Shaft
Lower Shaft
Skid Plate
Coil Pivot Assembly
Coil
Lower Camlock
Upper Camlock
Test Piece
Figure 3: F3 COMPACT main components
Battery Compartment – contains 4 x C cell alkaline or
rechargeable batteries. A battery map is provided to indicate correct
alignment of batteries when inserted into the compartment.
Armrest and Strap – provided for operator comfort when the F3
COMPACT is used for prolonged periods. The Armrest can be
extended for operator comfort.
Page 9
F3 COMPACT Operations Manual
7
Test Piece – conveniently stowed on the Armrest to allow the
operator to ensure the detector is working at its operational
capability.
Earset Connector – provides connection for the Earset and also
the programming cable when using the configuration software to
customise volume and sensitivity settings.
Main Body – waterproof housing containing the detector electronics
and batteries.

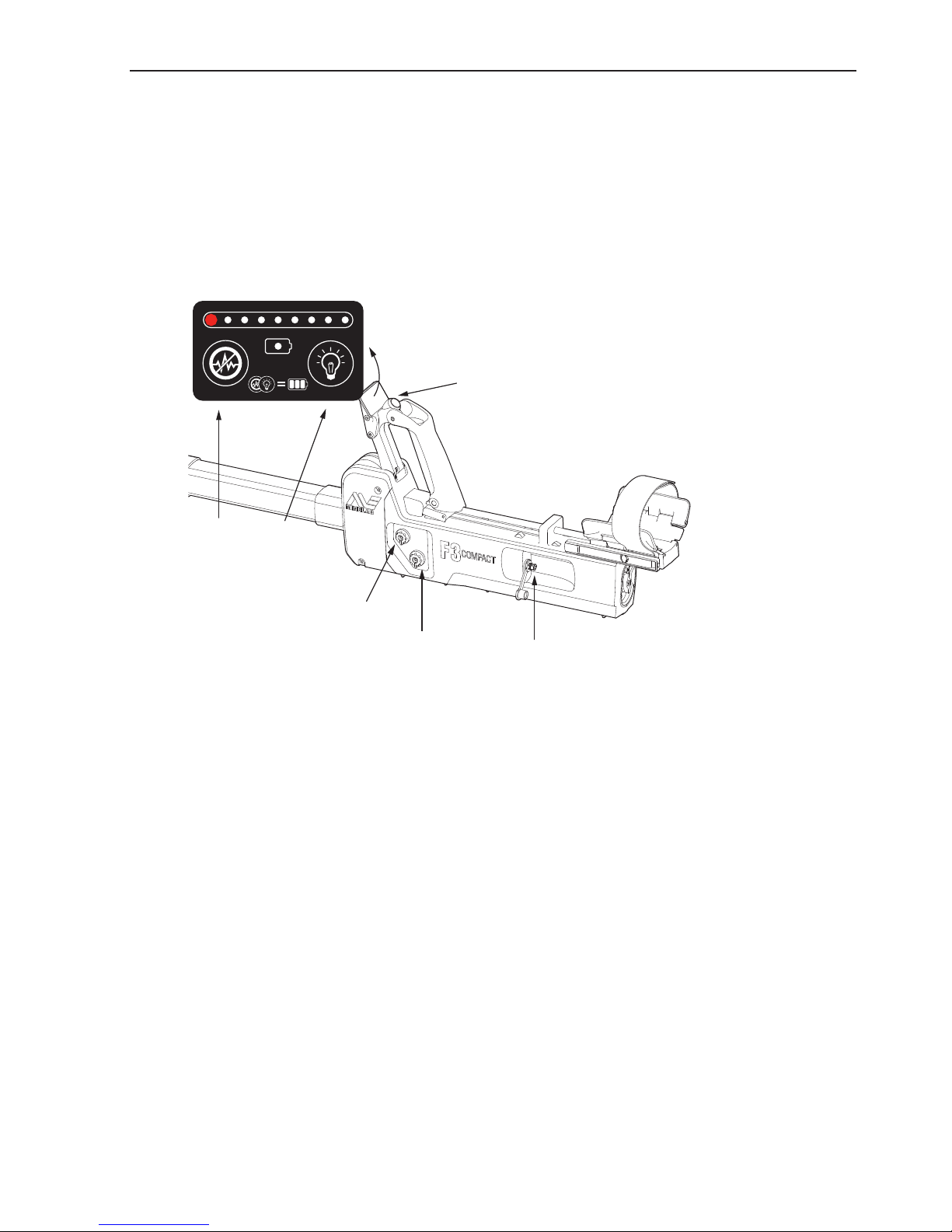

Handle Assembly – collapsible handle that also contains Ground
Balance/Audio Reset button, LED display, LED On/Off button, Noise
Cancel button and Battery Low LED indicator.
Controls – On/Off and Volume/Sensitivity selection knobs – both
controls cannot be accidentally rotated.
Shaft Hinge – pivot point for unfolding or folding the shafts. The
hinge is only locked in position when the Handle Assembly is in its
deployed position.
Upper, Middle, Lower Shafts – carbon fibre shafts that are
adjustable for operator comfort and for changes in demining
positions.
Upper and Lower Camlocks – self-cleaning locking mechanisms to
secure middle and lower shafts.
Coil Pivot Assembly – permits the tilt and rotation of the coil and
provides a tension screw for adjustment as required.
Coil – waterproof enclosed coil to eliminate possible interference
from vegetation; can be rotated 180 degrees. The mono loop design
ensures consistent sensitivity around the entire circumference, and
across the complete surface of the coil.

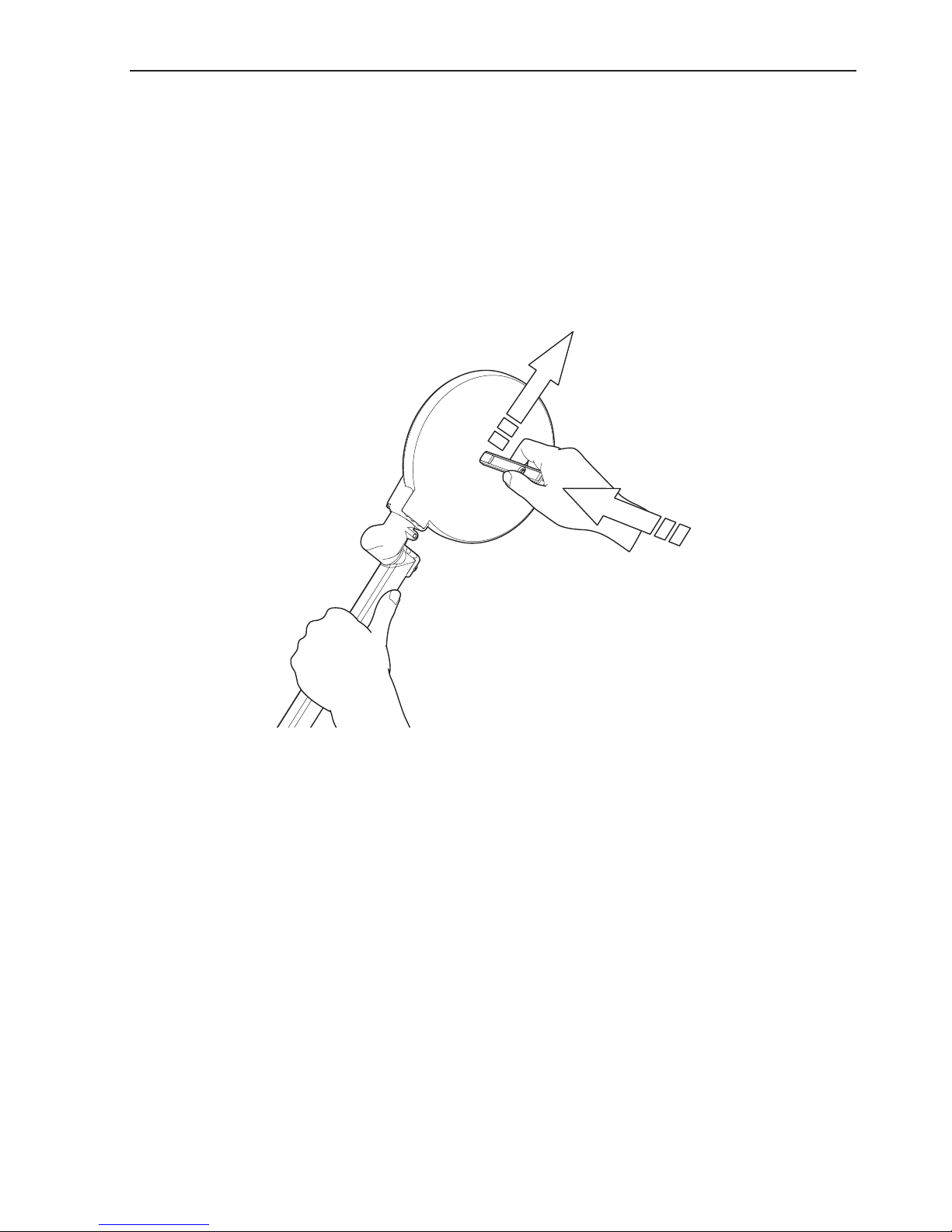

Skid Plate – removable disk that protects and prolongs the life of the
coil thereby reducing maintenance costs.
Page 10
8
F3 COMPACT Operations Manual
2.3 F3 COMPACT Preparation
To prepare the detector for use, conduct the following procedure:
a. Open the Hard Case and/or Soft Carry Bag.
b. Remove the F3 COMPACT and inspect for obvious signs of
damage. If damage is evident, report to the supervisor/team
leader.
c. Unlock the Battery Compartment Lid by twisting the Battery
Lock Lever counter clockwise one-quarter turn. Once unlocked,
pull the lid away from the Battery Compartment (the lid will stay
attached by a tether as shown in Figure 4).
d. Using the battery map located on the side of the Main Body,
insert four C cell batteries. Taking care not to snag or trap the
tether, replace the Battery Compartment Lid and rotate the
Battery Lock Lever clockwise one-quarter turn. If the batteries are
inserted incorrectly, the F3 COMPACT will fail to function when
switched on.
e. Using Figure 5 as a guide, unfold and adjust the F3 COMPACT.
Figure 4: Removing the Battery Compartment Lid
NOTE
The F3 COMPACT requires 4 C cell batteries for operation. Use only
high quality alkaline or rechargeable batteries. Minelab recommends
that only rechargeable batteries with a capacity of 4000 mAH or
greater be used with the F3 COMPACT. Rechargeable batteries
have specific charge/discharge maintenance requirements, which
should be strictly followed to ensure maximum battery life.
Page 11
F3 COMPACT Operations Manual
9
1 2
3 4
5
Page 12
10
F3 COMPACT Operations Manual
A
B
6
7 8
Figure 5: Guide to unfolding and adjusting the F3 COMPACT
NOTE
When the Handle Assembly is locked into position (Frame 3), it will
also lock the Upper Shaft in position. To unlock the Handle Assembly
and to allow the Upper Shaft to rotate when repacking the detector,
gently but firmly impact the base of the palm against the top of the
handle behind the LED display.
f. Extend the Lower and Middle Shafts to suit the selected demining
position as shown in Figure 6.
Page 13
F3 COMPACT Operations Manual
11
Figure 6: F3 COMPACT in the standing, kneeling or prone positions
g. Undo the dust caps from the Earset plug and Earset socket on the
detector. Gently hold the Earset by the rubber collar using thumb
and index finger, the raised double arrow should be uppermost
(see Figure 7). Align the plug with the Earset socket and firmly
slide the collar onto the socket.
Figure 7: Connecting the Earset
Page 14
12
F3 COMPACT Operations Manual
NOTE
The Earset connector is waterproof and must be connected and
disconnected from the Earset socket by holding the rubber collar.
Do not attempt to connect or disconnect the Earset by pushing or
pulling on the strain relief or wire at the rear of the rubber collar.
The F3 COMPACT is now ready for use. Refer to Chapter 3 for
Functional Description, and Chapter 4 for Operating Procedures.
To repack the F3 COMPACT, this preparation procedure should be
reversed.
Page 15
F3 COMPACT Operations Manual
13
3. Functional Description
3.1 Functional Controls and Displays
For ease of use, all controls and displays for the F3 COMPACT are
located on the Handle Assembly and Main Body. Figure 8 illustrates
the location of all controls.

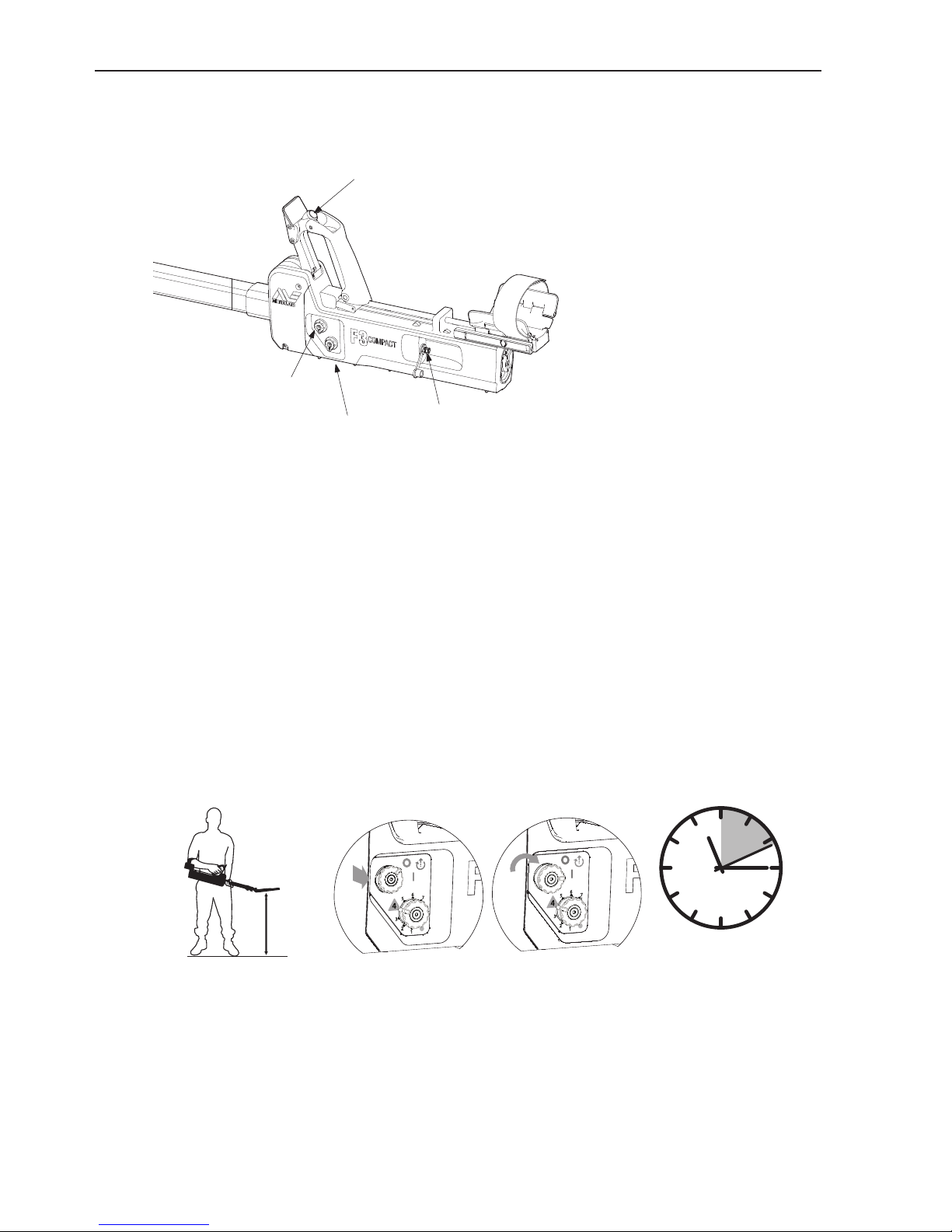

Figure 8: F3 COMPACT controls
3.1.1 On/Off Knob
To switch the F3 COMPACT on, gently pull up the On/Off Knob and
rotate clockwise. Once in the On position release the knob back to
the locked position (refer Figure 9).
When switched on, the F3 COMPACT completes a series of internal
start-up functions including initialisation of the microprocessor and
self-tests, which check internal power supplies, transmitter etc.
Internal diagnostics take approximately 12 seconds to complete,
during which the operator will hear a series of rising tones (known as
the Start-Up Tones).
Earset
Socket
On/Off
Knob
Sensitivity
Knob
Ground Balance/
Audio Reset Button
LED
On/Off
Button
Noise
Cancel
Button
Page 16
14
F3 COMPACT Operations Manual
On completion of the Start-Up Tones the F3 COMPACT emits a low
steady tone known as the Threshold Tone, which confirms to the
operator that the F3 COMPACT is functioning correctly.
During operation, continuous internal self-testing continues and an
alarm tone is triggered on detection of any fault condition (refer to
section 3.2 for a description of the alarm tones).
To turn the F3 COMPACT off, pull up the On/Off Knob and rotate
counter-clockwise to the Off position. Release the switch back to the
locked position.

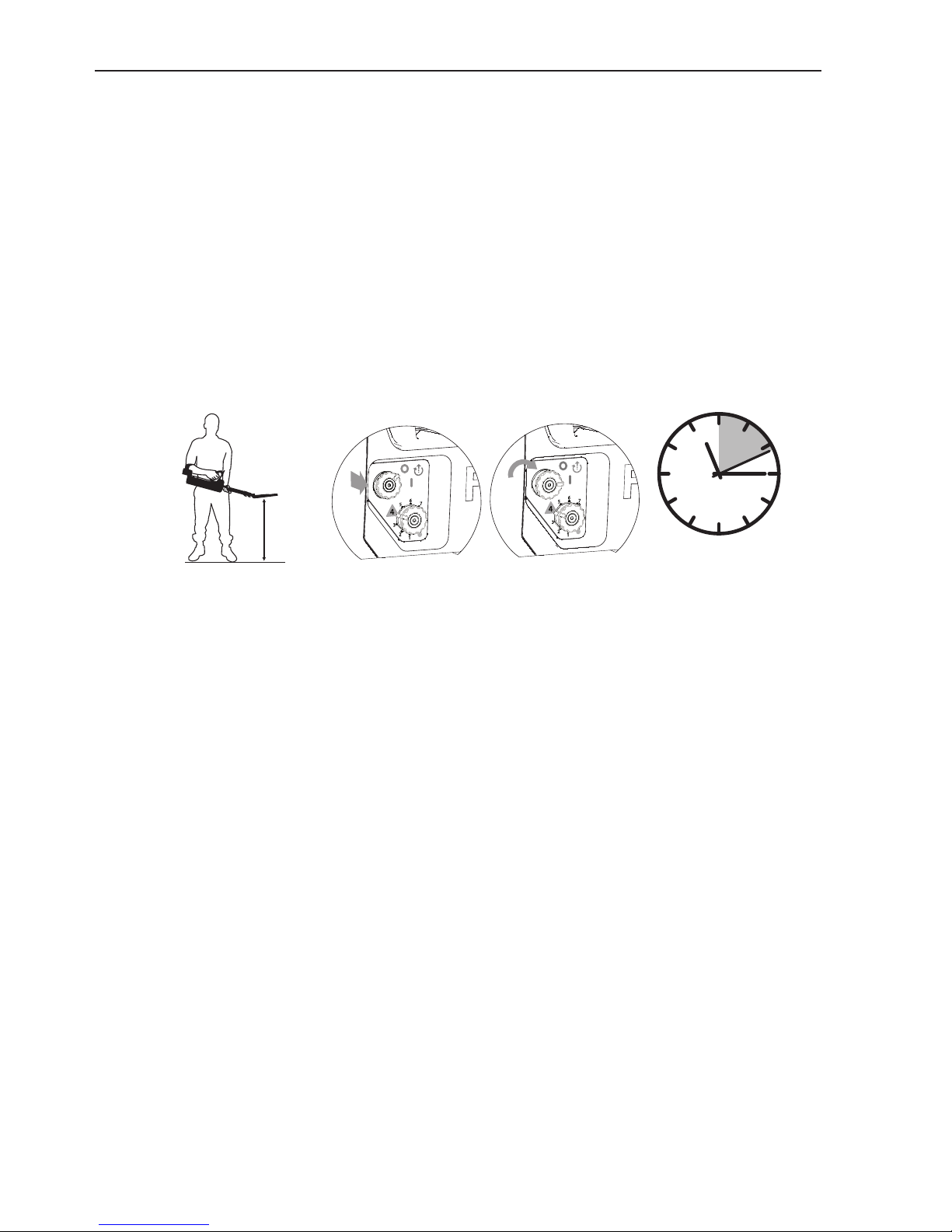

Figure 9: Switching on the detector
3.1.2 Sensitivity Knob
The F3 COMPACT can be operated using seven preset volume
and sensitivity settings. Position 4 is the default position and should
always be selected when switching on the detector and conducting
the Test Piece procedure (refer to section 4.2.3).
The Yellow Dot on the decal indicates the position that, when
selected, permits the detector to be customised for specific Volume
and Sensitivity selections. To customise the detector, Minelab
supplied configuration software and cables are required. The
detector is shipped with a factory preset for the Yellow Dot selection;
this makes the detector operate as if it was performing at a capability
greater than Position 4.
60cm
(24 in)
12 seconds
Page 17
F3 COMPACT Operations Manual
15
* WARNING *
When detecting minimum metal mines or targets with low metal
signatures, the F3 COMPACT should not be used on a selection
lower than the default setting (Position 4). Where possible,
Free From Explosive targets should be buried at the required
detection depth. Sensitivity options (Positions 4 to 7) should
then be tested to determine the most suitable sensitivity to
ensure detection of the target.
3.1.3 Ground Balance/Audio Reset Button
Easily identifiable as the Green Button located on top of the Handle
Assembly, this dual action button carries out the following functions:
a. Ground Balance. A key feature of the F3 COMPACT is its ability
to detect metallic mines in all ground conditions. False alarms due
to mineralised (magnetic/lateritic) soils are automatically removed
through the Ground Balance procedure.
b. Audio Reset. On occasion, the Threshold Tone may become
louder than normal. Holding the coil stationary over a metallic
object or over mineralised ground for an extended period of time
may cause this. Also, if the detector is being used in the kneeling
position (shafts retracted), any movement of the coil relative to the
shaft may cause the Threshold Tone to increase. The Threshold
Tone can be returned to the normal volume level using the Audio
Reset procedure (refer to section 4.3.2).
3.1.4 Noise Cancel Button
Interference from electrical motors, lights, power lines and other
detectors can occasionally cause the Threshold Tone to vary in
pitch and volume. When this occurs, the ability of an operator to
distinguish targets may be degraded.
Using the Noise Cancel function, the operator can initiate an
automatic frequency scanning sequence, as a result the F3
COMPACT will select an operating frequency that minimises the
effects of interference.
Page 18
16
F3 COMPACT Operations Manual

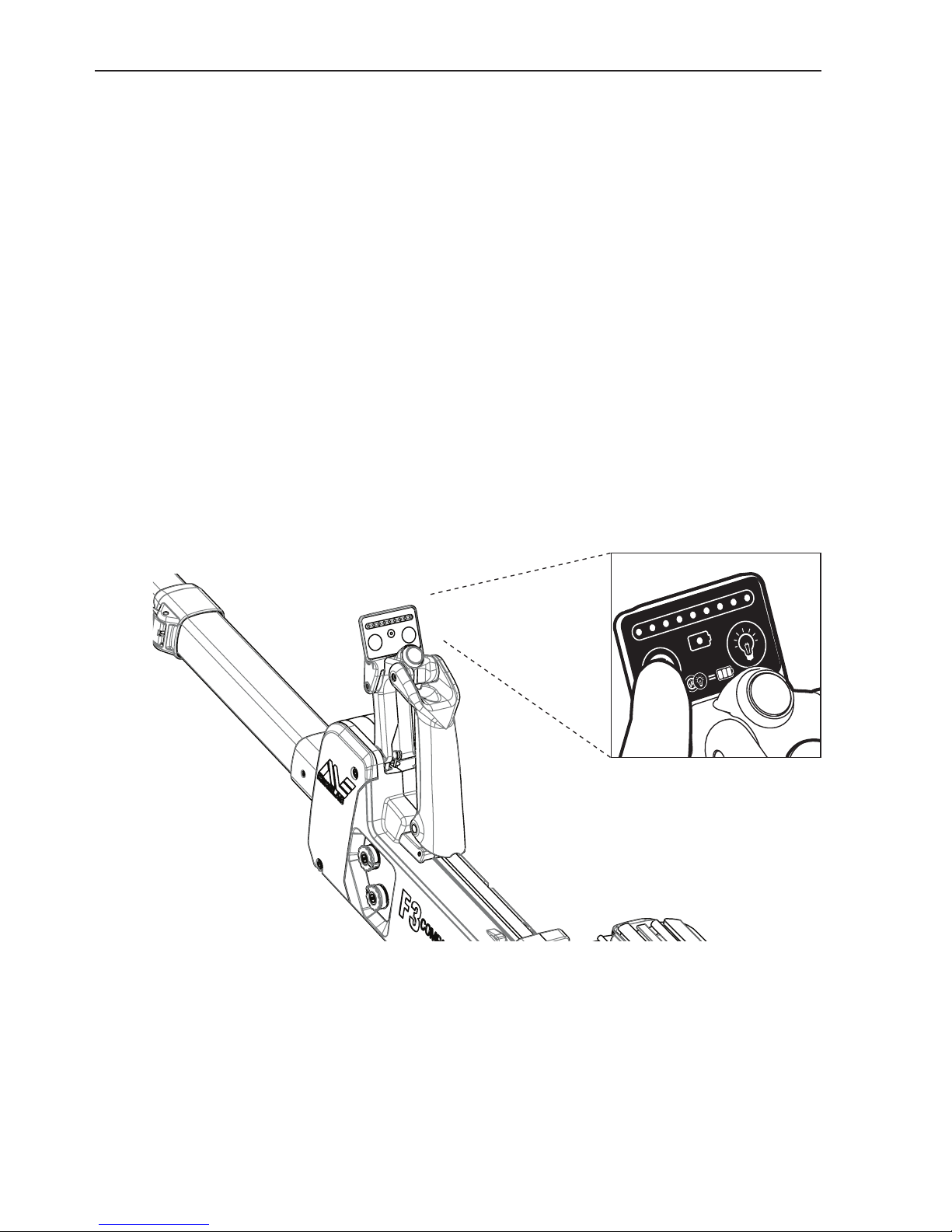

3.1.5 LED Display
A display of nine red LEDs provides a visual indication of target size
and proximity. The display can be switched On and Off by pressing
the LED On/Off button.
When the LED display is switched on, a minimum, of one LED will
illuminate representing the Threshold Tone (see Figure 10).
Figure 10: LED Display with no target response
Other typical illuminations of the LED display, including Battery Low
Alarm LED are illustrated in Figure 11.
Figure 11: Typical LED responses
Test Piece Procedure
Up to three LEDs illuminated
Small/deep target
response
Large/shallow
target response
Medium target
response
No target
Threshold tone
only
Low battery alarm
No target
Threshold tone
only
Page 19
F3 COMPACT Operations Manual
17
NOTE
The LED display will always be off when the detector is first switched
on.
3.1.6 Battery Status
Provided that the LED display is switched on, battery status can be
checked at anytime by pressing and holding down the Noise Cancel
button and then pressing and immediately releasing the LED On/
Off button. Once completed the LED display will indicate the battery
status for a period of three seconds.
3.1.7 Earset Socket
The F3 COMPACT has an internal speaker located inside the Main
Body, however, it can also be fitted with an Earset via the Earset
Socket. The procedure for connecting the Earset is described in
section 2.3.g.
A standard humanitarian demining Earset (Earset Speaker On)
permits the F3 COMPACT’s internal speaker to continue to function
even when the Earset is connected.
For military countermine applications, an Earset that mutes the F3
COMPACT’s internal speaker when the Earset is connected is available
(Earset Speaker Off). The Earset Speaker Off is identified by a short
length of green tubing located at the rear of the Earset plug.
* WARNING *
Minelab strongly recommends that an operator always wears an
Earset when using the F3 COMPACT detector.
Page 20
18
F3 COMPACT Operations Manual
3.2 Functional Tones
The F3 COMPACT emits tones that vary in pitch and volume to alert
the operator to targets, automatic detector functions or equipment
alarm conditions. The following table summarises the tones that an
F3 COMPACT can produce.
Tones Event Description
Start-Up Internal diagnostic checks
when the F3 COMPACT is
switched on
Four or five rising tones
over 12 seconds.
Threshold Signifies correct operation of
detector
Steady low volume
continuous tone.
Ground
Balance
Indicates successful
Ground Balance procedure
completed
One fast high pitched
double beep.
Target Indicates metal target
detected
Increases volume
(compared to Threshold
Tone) and high or low pitch
depending on target metal
composition and depth.
Battery Low Indicates batteries do not
have enough charge to
continue detection
High pitched fast
continuous oscillating tone
PLUS blinking Battery Low
LED provided the LED
display is switched on.
Equipment
Fault
Indicates failure of detector
component
Low pitched slow
oscillating tone (ee-aww,
ee-aww).
Coil Fault Indicates coil not connected
or not receiving sufficient
current
Low pitched double tone
every five seconds.
Noise Cancel Indicates Noise Cancel
procedure is occurring
Two single beeps followed
by 45 seconds of short
double beeps finishing with
four single beeps.
Default
Sensitivity
Selected
Confirms to operator that
Sensitivity knob is at Position
4 (Default) when the detector
is switched on or Position 4
is selected when the detector
is in use
Double high pitched beep.
Page 21
F3 COMPACT Operations Manual
19
Tones Event Description
Default
Sensitivity Not
Selected
Indicates that the default
sensitivity is not selected
when detector is switched on
Single low pitched beep
if sensitivity lower than
default (Position 4) and
single high pitched beep
if sensitivity higher than
default.
Changing
Sensitivity
Indicates of increasing or
reducing sensitivity
When increasing sensitivity
a single high pitched
beep. When decreasing
sensitivity a single low
pitched beep.
Table 1: Functional tones
NOTE
Electronics within the F3 COMPACT ensure that its performance
remains consistent as the charge state of the batteries begins to
reduce. When the batteries can no longer supply the necessary
power to sustain correct performance of the detector, a Battery Low
Alarm will alert the operator.
3.3 Test Piece – Functional Test
The F3 COMPACT is supplied with a Test Piece designed to confirm
that the detector is working to correct specifications. The sensitivity
of the detector should be checked with the Test Piece when the
Sensitivity Knob is at Position 4 (default). In some instances, a user
may prefer to use inert mines or targets as test pieces because they
represent the local threat. Minelab recommends that the detector
always be first tested with the supplied Test Piece before local test
pieces are used for testing.
* WARNING *
When Battery Low Alarm occurs the operator must immediately
STOP demining operations. The F3 COMPACT should be
switched off and new or recharged batteries inserted into the
Battery Compartment.
Page 22
20
F3 COMPACT Operations Manual
NOTE
When switched on, maximum sensitivity is available 30 seconds
after the Threshold Tone commences. Do not test the detector with
the Test Piece until 30 seconds after the Threshold Tone begins.
* WARNING *
The Test Piece functional test must be conducted with the
Sensitivity Knob set to Position 4 (Default) and should be
conducted whenever the detector is switched on to conrm
correct functionality of the detector.
NOTE
After switching on the detector, the LEDs will always be disabled
unless the LED On/Off button is pressed.
If an Earset Speaker OFF is connected to the detector, the LED
display will be automatically disabled for tactical reasons. However,
if required the LED display can be enabled by pressing the LED On/
Off button.
Page 23
F3 COMPACT Operations Manual
21
4. Operating Procedures
4.1 Introduction
The F3 COMPACT is designed to ensure that operation of the
detector is as simple as possible. Additionally, the F3 COMPACT is
extremely capable, robust and safe to use, eliminating the need for
lengthy training requirements. This chapter describes procedures
for safe and effective operation of the F3 COMPACT. Where these
procedures contravene local Standard Operating Procedures,
local procedures should take precedence provided that all Minelab
recommended safety procedures are followed.
Figure 12: F3 COMPACT detector
Page 24
22
F3 COMPACT Operations Manual
4.2 Standard Procedure
Figure 13: F3 COMPACT controls
After unpacking the F3 COMPACT and preparing it for use as
described in chapter 2, complete the following THREE step standard
procedure.
4.2.1 STEP 1 Switch ON
a. Hold the coil at least 600 mm (24 ins) from the ground, and away
from any metallic objects. Ensure Sensitivity is set to Position 4
(default) and then turn the detector on by lifting and rotating the
On/Off knob clockwise.
Figure 14: Switching on the detector
The F3 COMPACT will emit a series of four or five rising tones over
12 seconds (internal diagnostic checks occurring). At the completion
of the Start-Up Tones a low volume Threshold Tone will remain
audible.
Earset
Socket
On/Off
Knob
Sensitivity
Knob
Ground Balance/
Audio Reset Button
60cm
(24 in)
12 seconds
Page 25
F3 COMPACT Operations Manual
23
b. If the Threshold Tone is steady continue with STEP 2. If the
Threshold Tone is noisy or uneven when the coil is stationary,
perform a Noise Cancel (section 4.3.1).
c. If the Threshold Tone is steady but seems louder than normal
when the coil is away from the ground and metallic targets,
perform an Audio Reset (section 4.3.2).
4.2.2 STEP 2 Ground Balance
Ensure this procedure is carried out on ground free of metal and hold
the coil about 150 mm (6 ins) above the ground.
a. Press down and hold the Ground Balance button. Slowly lower
the coil directly to the ground then lift the coil up again 150 mm
(6 ins). Refer to Figure 15.
b. Continue to slowly lower and raise the coil until the ‘Ground
Balance OK’ tone is heard. (‘Ground Balance OK’ tone consists of
a short high-pitched double beep).
c. Release the Ground Balance button.
Figure 15: Ground Balance procedure
NOTES
Movement of the coil during the entire Ground Balance procedure
should be slow, continuous and smooth and each down and up
movement should take 3 to 4 seconds.
150mm
(6 in)
Beep
Beep
Page 26
24
F3 COMPACT Operations Manual
If the Ground Balance OK tone is not heard within 20 seconds of
starting the procedure, release the Ground Balance button and
repeat this procedure. If there is metal in the ground under the coil
whilst Ground Balancing, the detector will not Ground Balance
correctly. Move the detector and repeat the Ground Balance over
ground that is free of metallic objects.
After the Ground Balance procedure is completed the detector will
automatically cancel interference from the ground under the coil. If
ground conditions change (changing mineralisation in the ground)
this procedure may need to be repeated.
For operator training purposes, once Ground Balance has been
successfully completed, the detector can be made to ‘forget’ the
Ground Balance conditions by pressing and holding the Ground
Balance button for five seconds. This will allow the operator
to practise the Ground Balance procedures against the same
mineralised ground.
4.2.3 STEP 3 Test Piece
Ensure the operator’s hands and arms are free of metallic objects
(watches, rings etc), and that no other metallic objects are near the coil.
a. Remove the Test Piece from its stowed position on the Armrest
by extending the Armrest and rotating the Test Piece clockwise.
Hold the Test Piece above the middle of the coil with the end
containing metal AWAY from the coil.
b. Move the Test Piece towards the centre of the coil until it lightly
touches the surface then move it sideways off the coil (the
Test Piece should be moved slowly and smoothly during this
procedure).
A faint but clear response (change in Threshold Tone volume and
pitch) should be heard indicating the sensitivity of the detector is
correct.
With the LED display enabled, the Test Piece Procedure will result in
the illumination of at least one additional LED
Page 27
F3 COMPACT Operations Manual
25
NOTE
Maximum sensitivity is only available 30 seconds after the Threshold
Tone commences. Do not test the detector with the Test Piece until
30 seconds after the Threshold Tone begins. If the Test Piece cannot
be heard, conduct an Audio Reset and recheck. If the Test Piece
fails to be detected the detector must be considered faulty and must
not be used.
Figure 16: Test Piece procedure
NOTE
The Test Piece not only ensures that the sensitivity of the detector
is correct but also gives the operator an example of how a minimum
metal mine might sound when deeply buried; for example Type 72A
at 15 cm. (Sensitivity knob set to Position 4)
Page 28
26
F3 COMPACT Operations Manual
4.3 Optional Procedures
If after Step ONE the Threshold Tone is not low and steady, conduct
one or both of the following procedures:
a. Noise Cancel (see 4.3.1)
b. Audio Reset (see 4.3.2)
4.3.1 Noise Cancel
If the Threshold Tone is noisy or uneven when the coil is stationary,
conduct Noise Cancel as follows:
a. Holding the coil stationary and at least 600 mm (24 ins) above
the ground press and immediately release the Noise Cancel
button. (see Figure 17)
Noise Cancel will commence with two single beeps followed by 45
seconds of sharp double beeps, finishing with four single beeps.
Figure 17: Noise Cancel
During the 45 seconds, the detector scans the environment
searching for any electrical interference. Once detected, the F3
COMPACT will automatically select a different operating frequency
to eliminate or reduce the interference.
Page 29
F3 COMPACT Operations Manual
27
NOTE
The detector cannot be used for clearing operations during Noise
Cancel. The coil should not be moved during this procedure nor
should metallic objects be brought near the coil.
4.3.2 Audio Reset
Whenever the Threshold Tone sounds louder than normal perform
the Audio Reset procedure as follows:
a. Hold the coil away from any metallic objects. Press and
immediately release the Ground Balance button (green button
located on top of the handle).
Within two seconds the Threshold Tone will return to its correct level.
(see Figure 18).

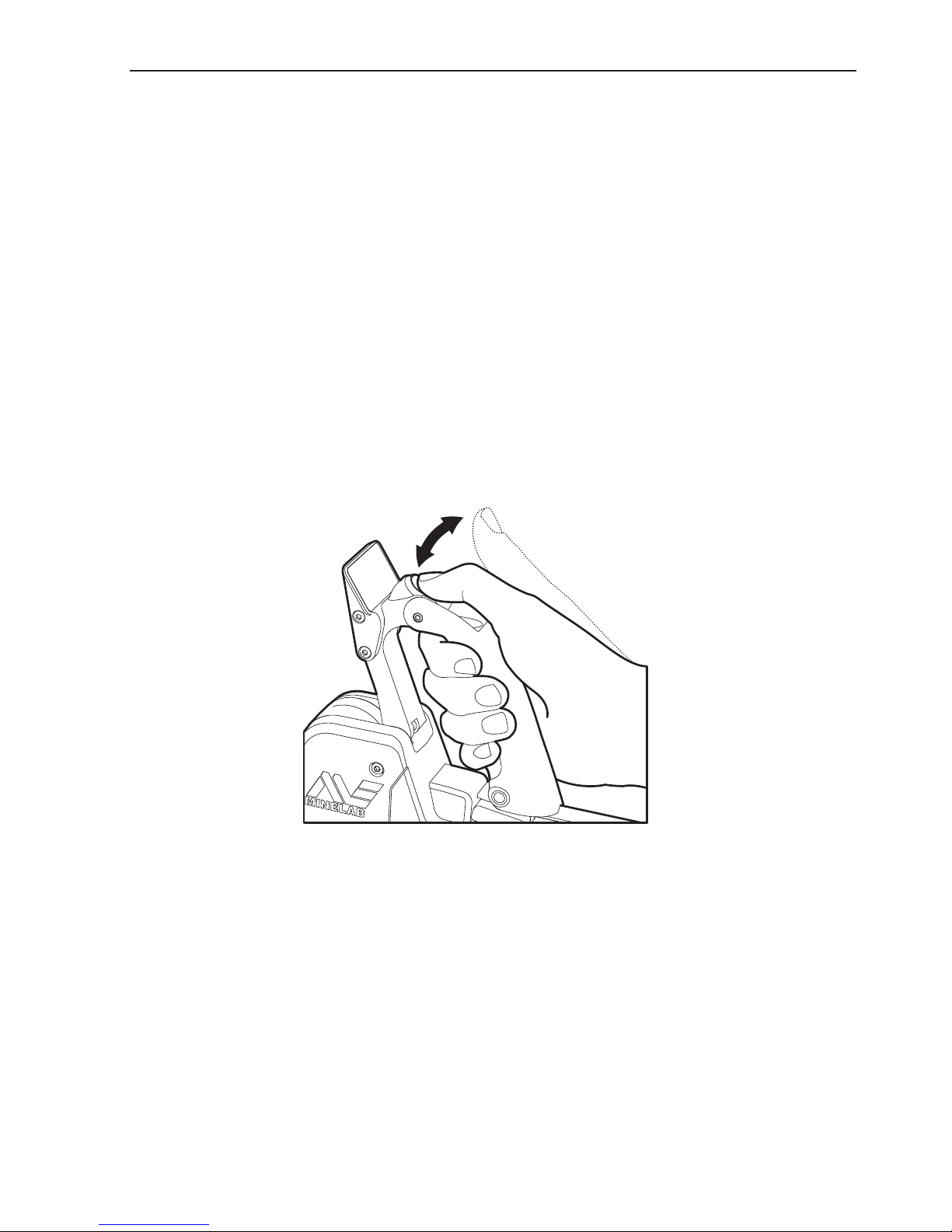

Figure 18: Audio Reset
NOTES
The detector cannot be used for clearing operations during the Audio
Reset procedure.
If the Audio Reset button is held too long, the detector will
commence the Ground Balance procedure.
Page 30
28
F3 COMPACT Operations Manual

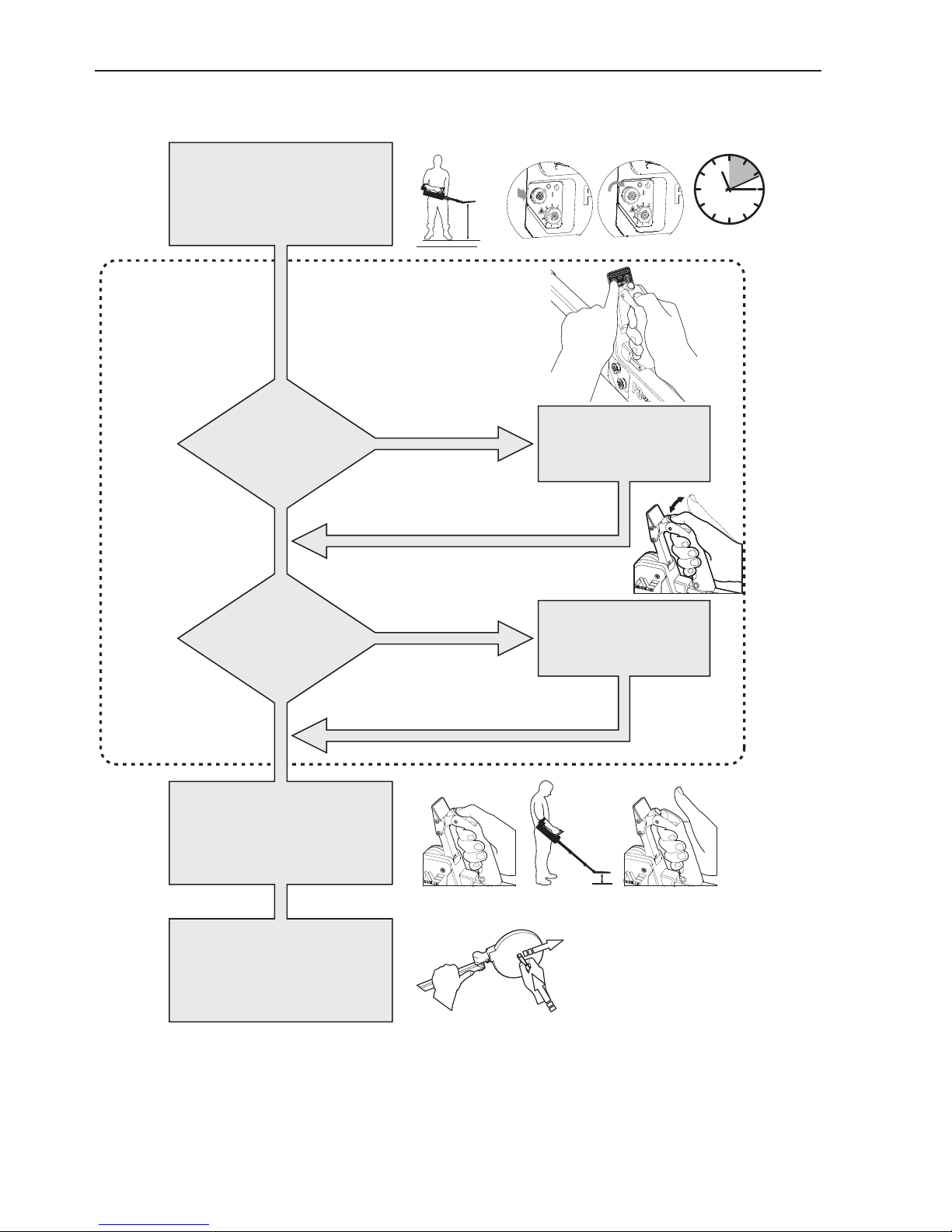

Figure 19: Standard and optional procedures
STEP 1
SWITCH ON
STEP 2
GROUND BALANCE
STEP 3
TEST PIECE
NOISE
CANCEL
AUDIO
RESET
Threshold
Noisy/Uneven
Threshold
Louder than
Normal
Optional
Procedure
150mm
(6 in)
Beep
Beep
YES
YES
NO
NO
60cm
(24 in)
12 seconds
60cm
(24 in)
12 seconds
Page 31
F3 COMPACT Operations Manual
29
Noise Cancel and Audio Reset procedures can be performed any
time the Threshold Tone becomes noisy, uneven or rises in volume.
Once Noise Cancel and/or Audio Reset are complete, continue
with Standard Procedure steps 2 and 3. Figure 19 illustrates this
sequence. Once completed, the F3 COMPACT can commence
operations in compliance with local Standard Operating Procedures.
Having completed STEPS 1, 2 and 3 the F3 COMPACT remembers
the Ground Balance setting even after the detector has been
switched off.
After Noise Cancel is completed the F3 COMPACT remembers the
frequency selected to minimise interference, even if the detector is
switched off.
4.4 Sweeping Procedure
The F3 COMPACT should be swept with a smooth even motion at a
speed of 0.6 m/s (2 ft/s). If the detector is swept too fast or too slow,
small or deep targets may be missed. The coil should always be kept
at the same height above the ground with care taken to ensure that
the coil is not inadvertently raised at the end of each sweep (see
Figure 20).
Mine Lane
Direction of
Movement

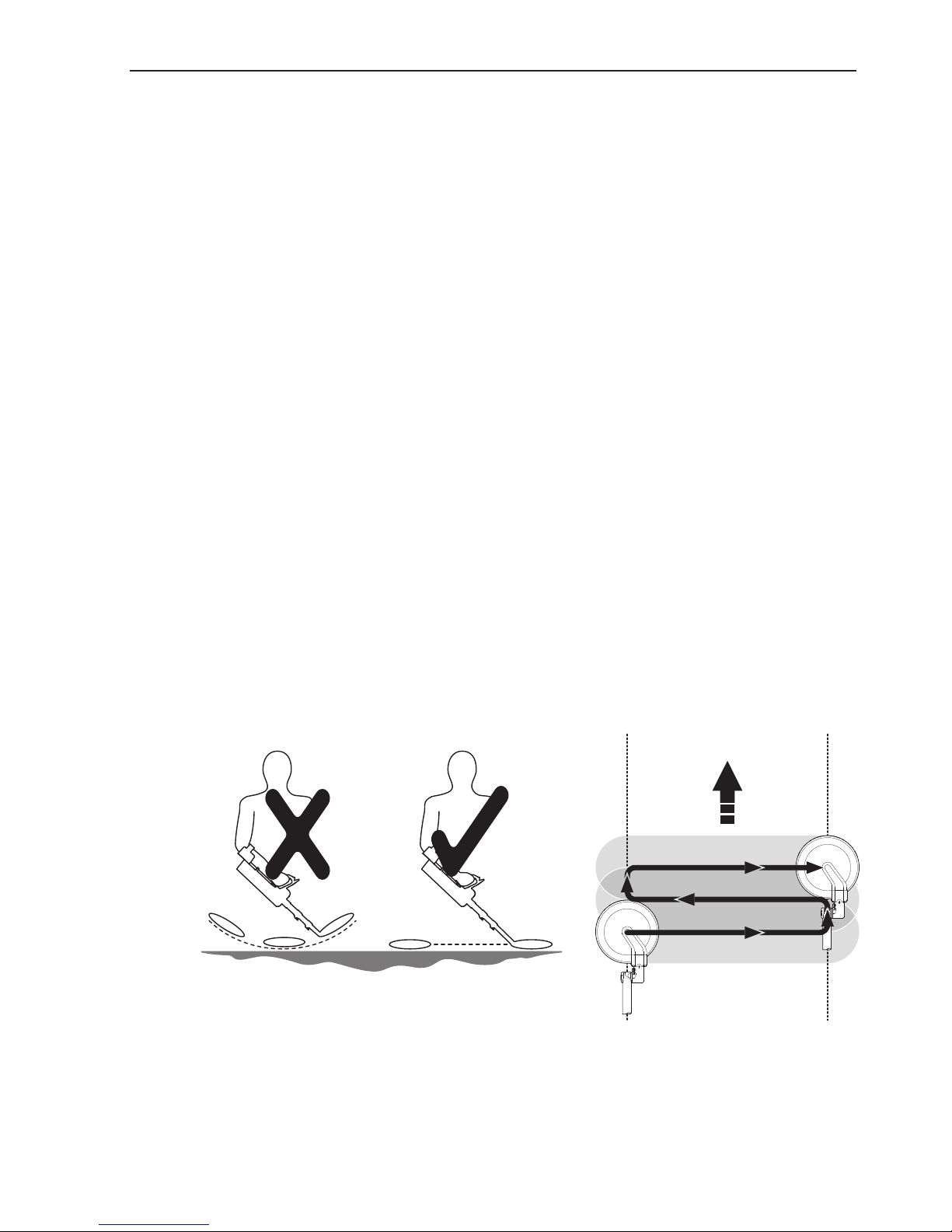

Figure 20: Sweeping procedure
Page 32
30
F3 COMPACT Operations Manual
Depth of detection depends on target distance from the coil, not
depth of the target under the ground. Therefore, the coil should be
swept as close to the ground as possible to maximise detection
depth (local Standard Operating Procedures take precedence).
When a target is initially detected, an operator should stand in place
and continue to sweep the F3 COMPACT beyond the target in an
attempt to find clear ground. In doing so the operator will:
a. Immediately gain an impression of the size of the target prior to
commencing the pinpointing procedure; and
b. Confirm the target is not in close proximity to a second target
thereby avoiding a possible booby trap.
NOTE
Minelab recommends a half coil (100 mm/4 inches) overlap on
successive sweeps as an operator moves forward in a mine lane.
4.5 Pinpointing Procedure
The design of the F3 COMPACT makes pinpointing accurate and
fast. The F3 COMPACT’s mono loop coil means there are no gaps
in sensitivity around the coil’s circumference or across its surface.
Pinpointing is conducted by first mapping the target and then finding
its centre.
4.5.1 STEP 1 Mapping the Target
Having detected a target using the sweeping procedure and obtained
a rough idea of its size and location, the precise location of the
target can be ‘mapped’ using the F3 COMPACT’s ‘Edge Detection’
technique.
Edge detection makes use of the coil’s consistent sensitivity around
its circumference to detect the area of a target. To conduct edge
detection, the coil should approach the target location from a variety
of angles as shown in Figure 21.
As the coil approaches the target, the Threshold Tone will change
indicating that coil is in close proximity to the target.
Page 33
F3 COMPACT Operations Manual
31
At the change of the Threshold Tone, the operator should mentally
mark the position on the ground, move the coil away, and approach
the target from another angle.
This process continues until the operator achieves a mental picture
of the target area.

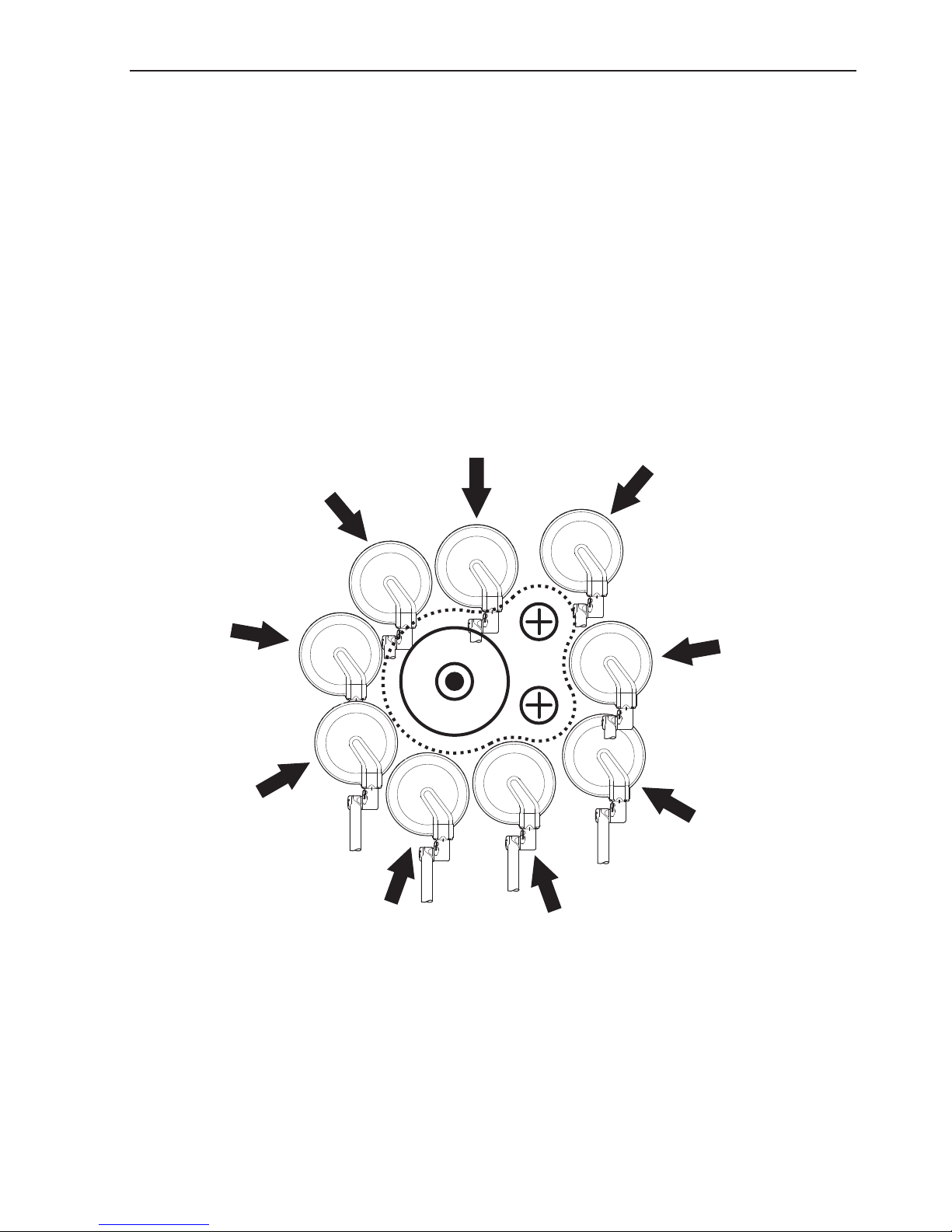

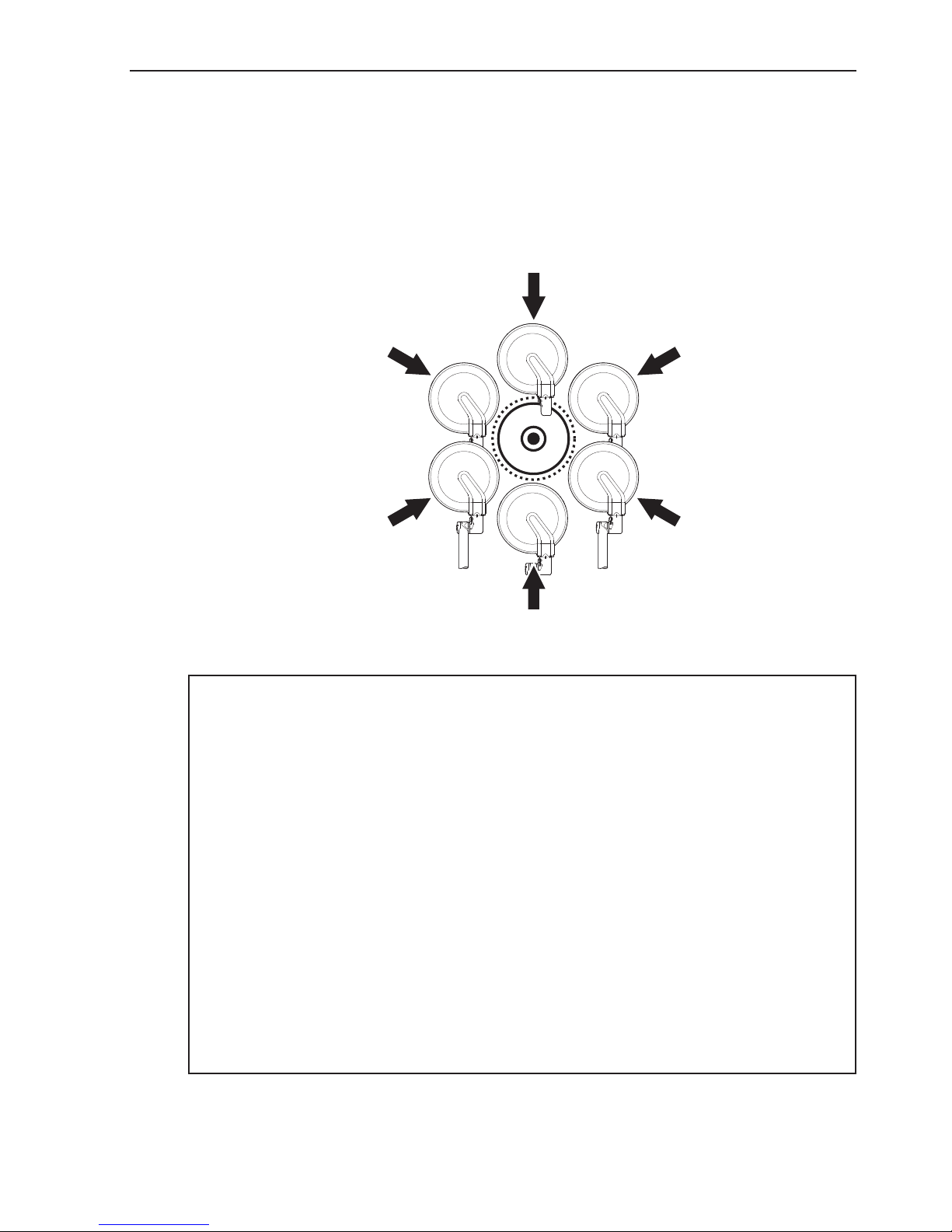

Figure 21: Mapping the target
* WARNING *
Extreme care must be taken when mapping the target to ensure
that the coil does not touch the ground (or any exposed parts of
the mine) or snag on any previously undetected trip wires.
For large minimum metal anti-tank mines, it is possible that the
area mapped out may be less than the actual area of the mine.
After an initial detection, if the coil is repeatedly swept over
a small deeply buried target, the response may fade. If this
occurs, move the coil away from the target and perform an
Audio Reset procedure (section 4.3.b) then return to the target
location and continue with the pinpointing procedure.
Page 34
32
F3 COMPACT Operations Manual

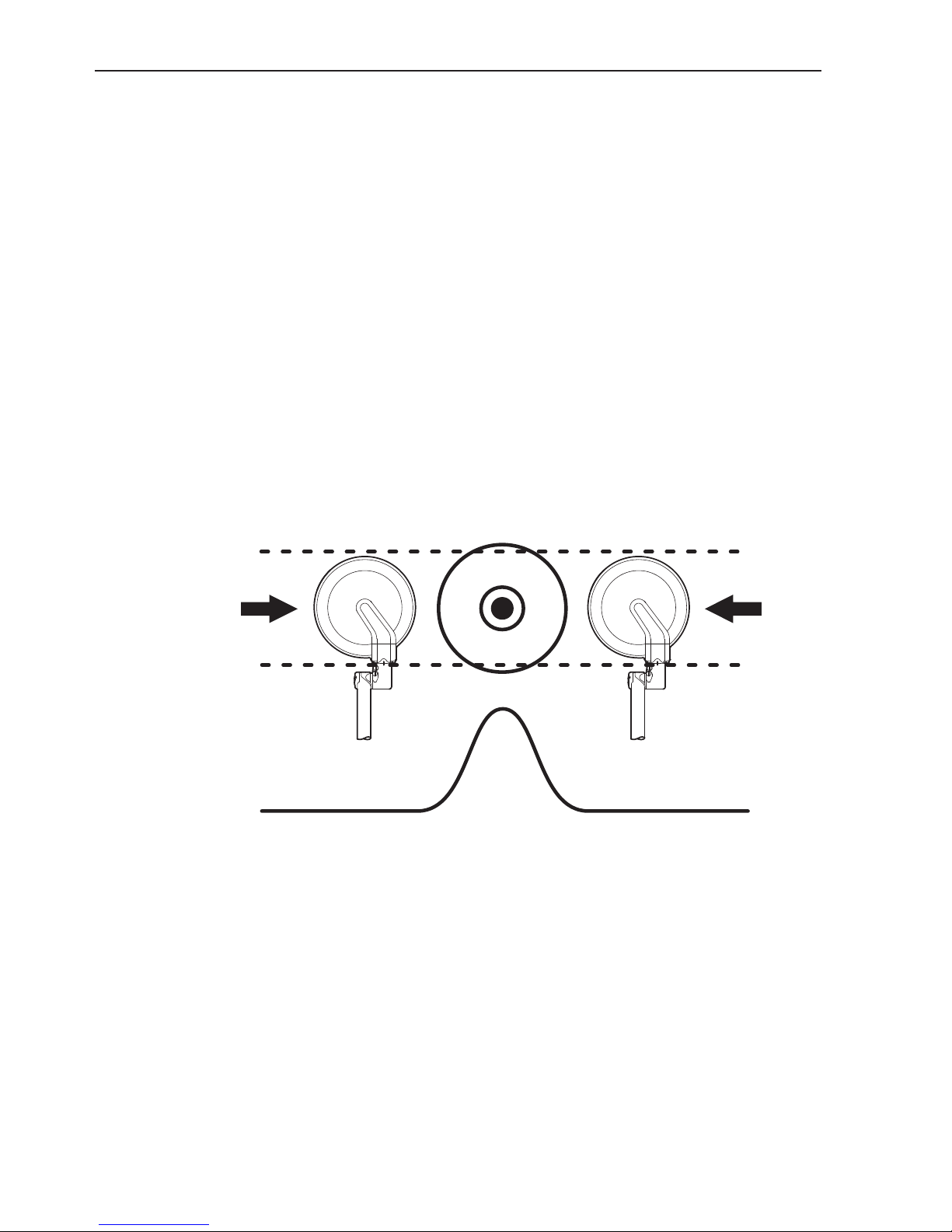

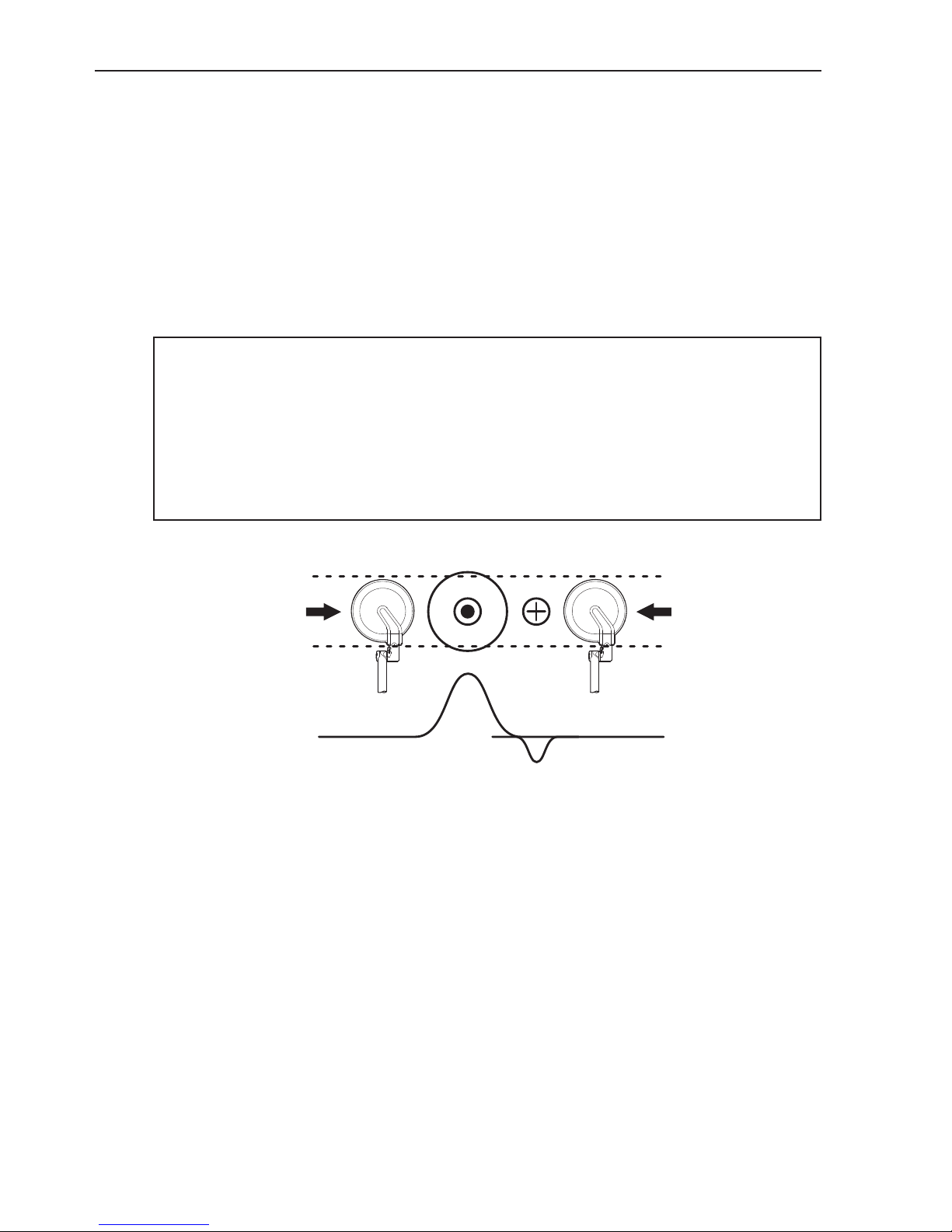

4.5.2 STEP 2 Determine Centre of Target
In Step 1, the area of a target was determined. If the metal in the
target is sufficiently small, the area mapped will also be small and
therefore it is a relatively simple matter to pinpoint the centre of the
target.
To determine the centre, for larger targets, the coil should be
slowly moved across the mapped area. As the coil approaches the
centre of the target, the threshold tone will increase to a maximum
volume (pitch may be high or low depending on the composition of
the metal). Where maximum volume is achieved, the coil can be
considered to be above the centre of the target.
Once confirmed, local Standard Operating Procedures should be
followed to mark the target.
Figure 22: Determine target centre
NOTE
An operator can confirm that the centre of a target has been
located by moving the coil slightly in any direction, and returning
to the centre. In doing so the volume of the Threshold Tone should
decrease from maximum, as the coil leaves the centre, and return to
maximum as the coil returns to the centre.
Maximum Volume
Page 35
F3 COMPACT Operations Manual
33
4.6 Multiple Targets
There may be occasions when an operator will encounter multiple
targets. For example, small anti-personnel mines may be laid in
a cluster, or a large anti-tank mine may be surrounded by smaller
anti-personnel mines or booby-traps. Regardless, the pinpointing
procedure for the F3 COMPACT can be used to effectively map a
suspicious area.
4.6.1 STEP 1 Mapping the Target
Using the procedure described in section 4.5.1, an area enclosing
the multiple targets can be mapped.
Figure 23: Mapping multiple targets
NOTE
To an experienced operator the shape of the mapped area can
indicate whether multiple targets may be present.
Page 36
34
F3 COMPACT Operations Manual
4.6.2 STEP 2 Determining the Centre of Target
The pitch of the Threshold Tone will rise or fall depending on the
combination of metals or the composition of metal in a mine. This
means that, in some instances, experienced operators may be able
to identify one mine against another (see Figure 24).
By slowly moving the coil across the mapped area, it may be
possible to detect tonal differences indicating multiple targets.
Figure 24: Multiple targets
4.7 Operating Multiple Detectors in Close Proximity
On occasion it may be necessary to operate F3 COMPACT
detectors in close proximity. In normal circumstances, an F3
COMPACT detector can operate as close as two metres (seven
feet) to another without suffering excessive mutual interference. To
achieve this minimum operating distance between detectors, Noise
Cancel must be conducted as follows:
a. With all other detectors switched off, switch on the first detector
and perform Noise Cancel as described in section 4.3.1.
* WARNING *
The volume from a large target may mask that
of a small target if the small target is located very
close to the large target.
Page 37
F3 COMPACT Operations Manual
35
b. Once Noise Cancel is finished on the first detector, leave it
switched on. Ensure that the second detector is at least two
metres away and switch it on. Conduct Noise Cancel using the
Noise Cancel button of the second detector.
c. Continue this process for all detectors being used in close
proximity.

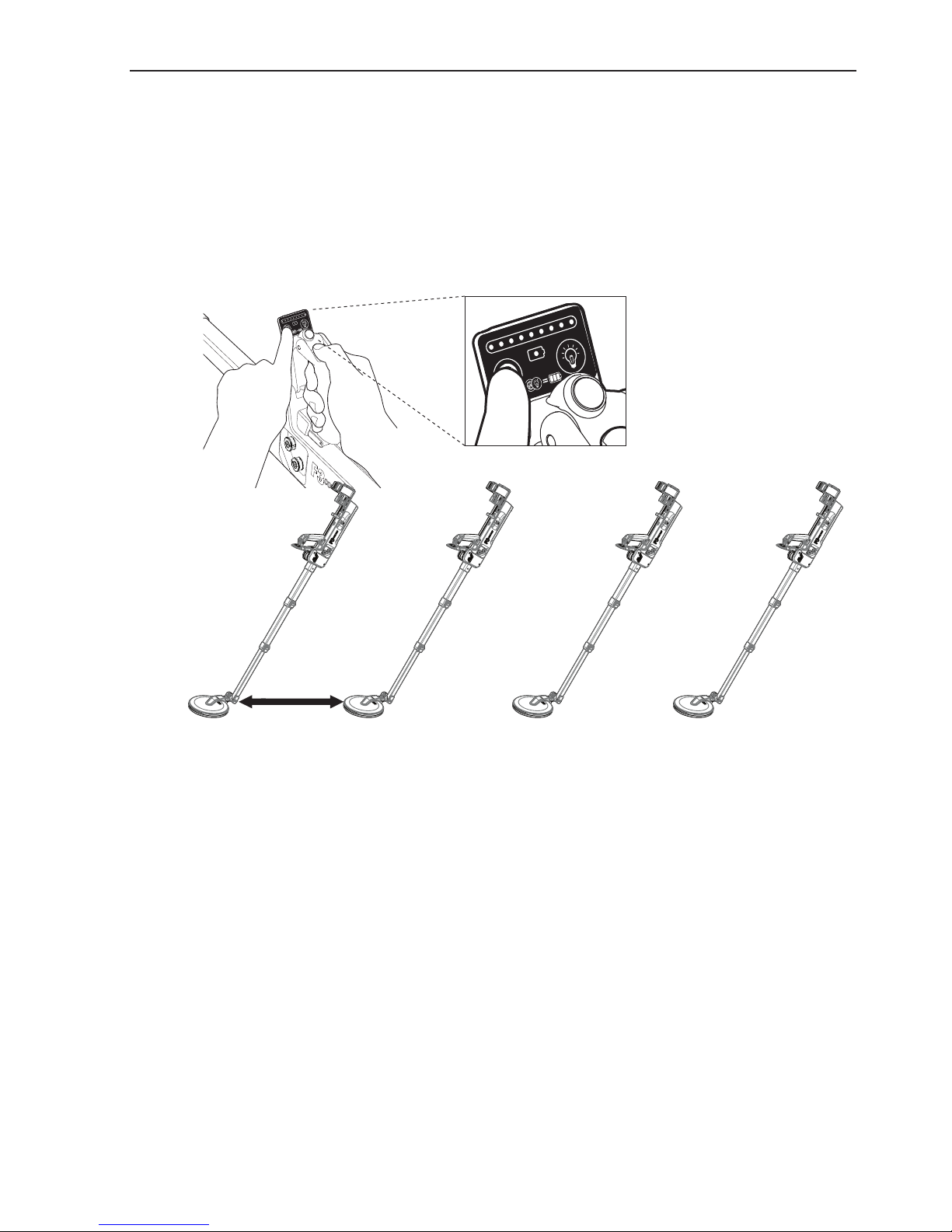

Figure 25: Operating detectors in close proximity
4.8 Completion of Operations
At the completion of operations, the F3 COMPACT should be
checked with the Test Piece before switching off to ensure
satisfactory performance before being packed away. Once
completed:
a. Turn the detector off.
b. Clean the detector and inspect for any signs of damage.
c. Remove the batteries from the Battery Compartment and stow in
Soft Carry Bag.
2 metres
Noise Cancel
Page 38
36
F3 COMPACT Operations Manual
d. Disconnect the Earset.
e. Retract the Middle and Lower Shafts rotating the coil to the
stowed position.
f. Collapse Handle and pivot the retracted shafts securing in
position with the Armrest Strap.
g. Stow the detector in the Soft Carry Bag and Hard Case if
available.
h. Check all components are accounted for (especially the Test
Piece and Earset) and are correctly packed.
Page 39
F3 COMPACT Operations Manual
37
5. Care and Troubleshooting
5.1 Routine Care
The F3 COMPACT is designed for lasting use in harsh operating
environments, however, proper care and maintenance will ensure
long-term reliability. Key to ensuring the durability of the F3
COMPACT is the correct stowage of the detector whenever it is not
in use. Additionally, operators of F3 COMPACT detectors should be
aware of the following:
a. During rest periods, wherever possible, the detector should be
sheltered from direct sun, rain, snow etc.
b. On completion of operations, with the F3 COMPACT fully
extended, all shafts should be wiped with a damp cloth to remove
any dirt or dust before collapsing the shafts.
c. Do not use solvents to clean the F3 COMPACT. If any part of the
detector comes into contact with corrosive substances (including
salt water), wash the detector with clean fresh water and dry with
a clean cloth.
d. Ensure the F3 COMPACT is dry before stowing in the Soft Carry
Bag.
e. Ensure the batteries are removed from the Battery Compartment
before stowing the detector.
f. The Skid Plate is designed to protect the coil and may require
replacement after long periods of use. There is no requirement
to remove the Skid Plate to clean the inside during routine
maintenance. To replace the Skid Plate, remove the original using
fingers to lever it from the coil, then push the replacement Skid
Plate onto the coil (see Figure 26).

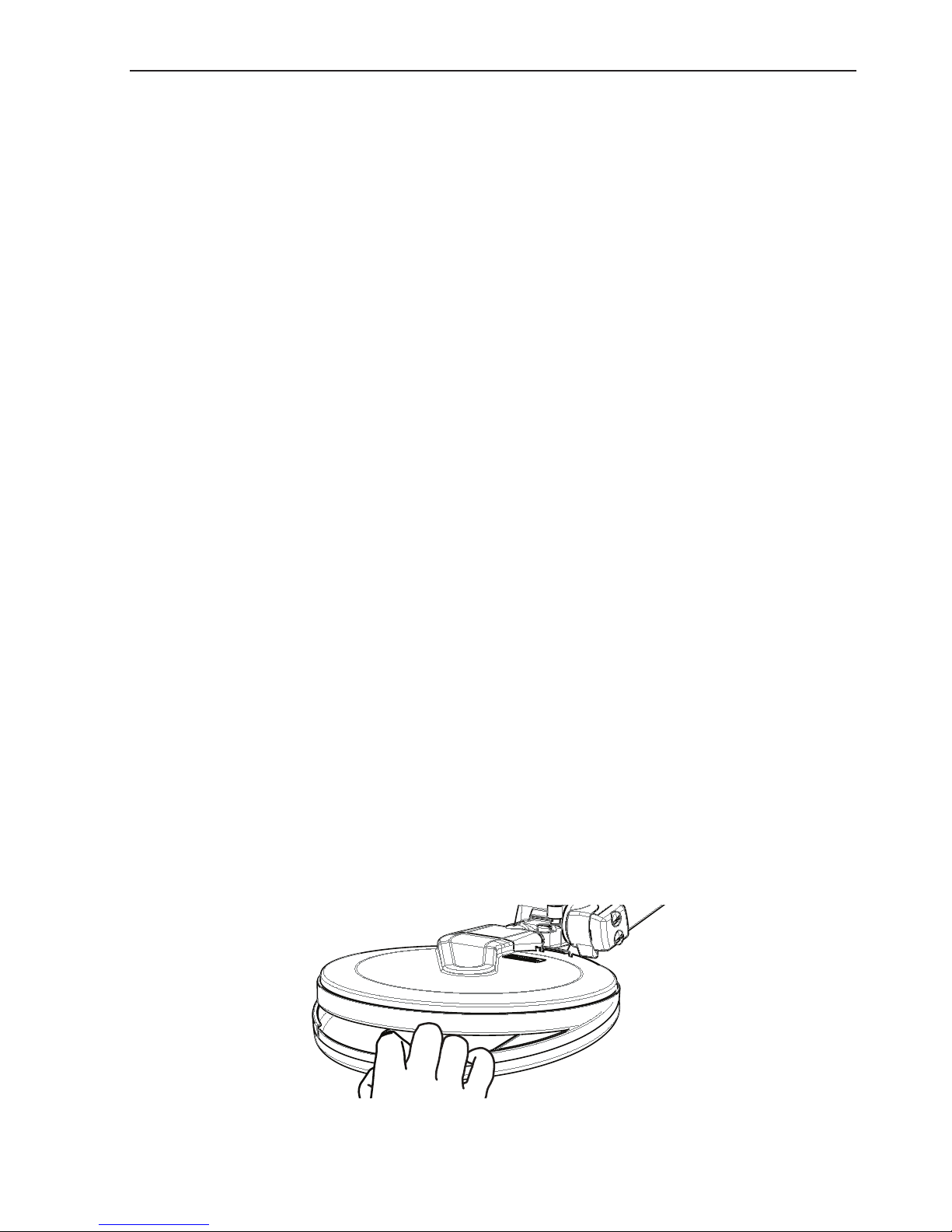

Figure 26: Replacing the Skid Plate
Page 40
38
F3 COMPACT Operations Manual
5.2 Troubleshooting
Table 2 provides several troubleshooting procedures in response to
a variety of possible problems.
Problem Recommended Procedure
F3 COMPACT will not switch on1. Check batteries have been inserted
correctly into the Battery Compartment, or
2. Replace batteries.
After switching on there is a
very loud noise
1. Conduct Audio Reset
After switching on the
Threshold Tone varies in
pitch and volume with the
coil stationary
1. Conduct Noise Cancel
2. Move away from noise source
There is no sound from the
Earset
1. Disconnect and reconnect the Earset, or
2. Try a known serviceable Earset (if this
solves the problem, the original Earset may
be faulty, if this does not solve the problem,
the Earset socket may be faulty)
There is no sound from the
Speaker
1. Switch off and on, or
2. Disconnect Earset, Switch off and on
Cannot hear the Test Piece. 1. Ensure that the detector has been turned
on for at least 30 seconds.
2. Ensure the sensitivity of the detector is set
at Position 4.
3. Conduct Audio Reset
Table 2: Troubleshooting
Page 41
F3 COMPACT Operations Manual
39
6. Specifications
Length
Operating Length 1490 mm/59 ins – 950 mm/37 ins
Weight
Operating weight with
batteries (complete)
2.57 kg/5.7 lbs
Operating weight without
batteries
2.40 kg/5.3 lbs
Shipping weight (in hard
case with batteries)
7.4 kg/16.3 lbs
Transmission
Pulse Induction Bipolar Multi-Period Sensing
Output
Audio Internal Loudspeaker
Earset (various configurations available)
Visual 9 LED Display
Data Output RS-232 (bidirectional)
Environmental
Temperature (Operating) -30 deg C to 60 deg C
-22 deg F to 140 deg F
Temperature (Storage) -30 deg C to 80 deg C
-22 deg F to 176 deg F
Environmental Endurance To MIL STD 810G
Page 42
40
F3 COMPACT Operations Manual
Batteries
Alkaline 4 x C cell LR14
Rechargeable 4 x NiCad or NiMh C cell minimum 4000 mAh
capacity
Battery Reverse Polarity
Protection
Yes
Patents and Trademarks
Patents and trademarks may apply to this product.
Patents: www.minelab.com/patentmarking
Disclaimer
As a world leader in metal sensing technology, Minelab strives to
continually improve its product range. Minelab reserves the right to
introduce changes to the design, technical features and accessories
of this product.
Page 43
Page 44
Contact Details:
Minelab Electronics Pty Ltd
tel: +61 8 8238 0888
Minelab Americas Inc
tel: +1 630 401 8150
Minelab International Limited
tel: +353 21 423 2352
email: countermine@minelab.com.au
www.minelab.com
Loading...
