Signum 3 Ex

Intended Use

Signum® 3 is a precise and rugged

complete scale that gives you reliable weighing results�

The Signum

includes models with monolithic technology, using the principle of electromagnetic force compensation�

These compact industrial scales oer

the following special features:

– Rugged and durable Minebea Intec

quality

– Flexible options for display unit instal-

lation

– Wide range of conguration options for

customized operation – Variety of optional data interfaces – Optional IP65 protection from dust and

jets of water ( SIWXS***-06: IP 43 ) – High quality workmanship and materi-

als – Various application programs – Available in weighing capacities

between 0�6kg and 35kg;

choice of resolutions available for each

capacity

®

Series of compact scales

Range of Models

Signum

SIWXSDCP models: – Monolithic weighing system – Resolutions up to 350,000d

SIWXSBBP models: – Monolithic weighing system – Resolutions up to 620,000d

®

Supreme

Signum® Supreme featuring a stainless steel

housing

SIWXSDCS/SIWXSBBS models: – Monolithic weighing system – Resolutions up to 610,000d

Explanation of Symbols

The following symbols are used in the

text:

§ Denotes general operating instructions

$ special instructions for exceptional

cases

> Describes the outcome of an operating

step

! Indicates a hazard

Technical Advice on Applications/

Hotline Phone: +49�40�67960444 Fax: +49�40�67960474

E-mail: technical�support�hh

@minebea-intec�com

– Preload values can be dened (for

equipment installed on the scale)

– Display can be decoupled from the

weighing technology

– Use in potentially explosive atmo-

spheres, zones 1 /21

( SIWXS***-06: Ex Zone 1 )

Additional features include:

– large keys with positive click action – Numeric and alphabetic input – Large backlit 14-segment display

Advantages in routine weighing tasks:

– Fast response times – Independence from location of platform

installation

– Designation of weight values with up to

4 lines of alphanumeric text

– Security through password protection

Signum 3 Ex

3

Getting Started

Warning and

SafetyInstructions

Signum scales comply with the

European Council Directives as well as international regulations and standards for electrical equipment, electromagnetic compatibility, and thestipulated safety requirements�

§ Read these operating instructions

thoroughly before using your scale� That way you will prevent damage to the equipment�

! Please observe the safety instructions,

of these operating instructions!

! The display and control unit may

only be opened by authorized service technicians who have been trained by Minebea Intec and who follow Minebea Intec’ standard operating procedures for maintenance and repair work�

! Make absolutely sure to unplug the

display and control unit from the power supply before you connect or disconnect any electronic peripheral devices to or from the interface port�

! The requirements pertaining to

applicable installation regulations must be followed when using electrical equipment in systems and environmental conditions with increased safety requirements�

– Disconnecting the ground conductor

isprohibited

– Note on installation:

The operator shall be responsible for any modifications to Minebea Intec equipment and for any connections of cables or equipment not supplied by Minebea Intec and must check and, if necessary, correct these modifications and connections� Information on operational quality is available on request from Minebea Intec (in line with norms pertaining to immunity)�

$ If there is visible damage to the

equipment or power cord, disconnect the system from the power supply and secure it against further use�

– Connect only Minebea Intec accessories

and options, as these are optimally designed for use with your Signum scale�

$ Do not unnecessarily expose the device

to aggressive chemical vapors or to extreme temperatures, moisture, shocks, or vibration�

– Clean your Signum scale only

in accordance with the cleaning instructions (see “Care and Maintenance”)�

$ If you have any problems with your

Signum scale: Contact your local Minebea Intec oce, dealer or service center

�

IP Protection:

– The IP43 (or optional IP65) protection

rating for the display and control unit is ensured only if the rubber gasket is installed and all connections are fastened securely (including the caps onunused sockets)� The system and equipment must be installed and tested by a certied technician�

– If you install an interface port after

setting up your Signum, keep the protective cap(s) in a safe place to be used for protecting the interface port when not in use, or prior to shipment� Do not leave the interface port uncovered�

Please observe the safety instructions,

drawing 36953-750-16 in the appendix of these operating instructions!

If you are not using a particular

connector, replace the cap to protect the data interface from vapors, moisture and dust or dirt�

Using the Equipment in Legal

Metrology:

– If the scale is to be verified, make sure

to observe the applicable regulations regarding verification�

– If any of the verification seals are

damaged, make sure to observe the national regulations and standards applicable in your country in such cases� In some countries, the equipment must be re-verified�

Getting Started

Unpacking the Scale

§ After unpacking the equipment, please

check it immediately for any external damage�

$ If you detect any damage, proceed as

directed in the chapter entitled “Care and Maintenance" under “Safety inspection�"

$ Save the box and all parts of the

packaging for any future transport� Unplug all connected cables before packing the equipment�

Equipment Supplied – Complete scale – Operating instructions – Special accessories as listed on the bill

of delivery, if ordered

Installation Choose a location that is not subject

tothe following negative influences: – Heat (heater or direct sunlight) – Drafts from open windows and doors – Extreme vibrations during weighing – Extreme humidity

Acclimatization Moisture in the air can condense on

cold surfaces whenever the equipment

is moved to a substantially warmer

place� Allow the device to acclimatize

for about 2 hours at room temperature,

leaving it unplugged from the power

supply�

Equipment Not In Use

Switch o the equipment when not in

use�

4

Signum 3 Ex

Getting Started

Installing the Display and Control Unit

The following options are available for installing the display and control unit:

(the pictures depict the SIW*DCP model)

§ Fastening the display and control unit to the weighing platform:

§ Guide the display and control unit onto the retainer bracket�

§ Level the weighing platform (see page 7)�

– Attached to the weighing platform – On the YDH01P column: optional for the DCP model – On the YDH02P column: optional for the BBP model – On the YDH0xCWS column: optional for the DCS model – On the YDH02S column: optional for the BBS model

Operating the display and control unit separately:

§ Turn the weighing platform over and place it on a soft surface to avoid damaging the

weighing system�

§ Remove the display and control unit retainer bracket�

§ Take the cable out of the cable channel�

§ Turn the weighing platform right-side up and place it so that it rests on its feet�

§ Level the weighing platform (see page 7)�

Installing the display and control unit on the YDH01P column:

§ Turn the weighing platform over and place it on a soft surface to avoid damaging the

weighing system�

§ Remove the display and control unit retainer bracket�

§ Take the cable out of the cable channel�

§ Use the four hexagonal screws provided (M4+8) to attach the column to the weighing

platform (back panel facing downward)�

§ Turn the weighing platform right side up and place it so that it rests on its feet�

§ Loosen the two locking bolts at the top of the column to facilitate installation of the

display and control unit�

§ Use the three hexagonal screws (M4x8) to attach the display and control unit to the top

of the column�

§ Adjust the display and control unit to the desired angle and secure it there�

– This is done by tightening the locking bolts on the top of the column�

Signum 3 Ex

5

Getting Started

1

3

1

2

Getting Started

§ A recessed space is provided in the scale base, accessed from the bottom of the scale,

for any excess length of cable (connecting cable between display and control unit and weighing platform)�

§ Guide the connecting cable along the channel on the bottom of the weighing platform�

§ Use the cable clamps provided to ax the cable that connects the display and control

unit to the weighing platform to the bottom of the column�

§ Turn the weighing platform right-side up and place it so that it rests on its feet�

§ Attach the cable retainer to ax the cable connecting the display and control unit to

weighing platform to the back of the column�

SIWXSBBS Installing the Display and Control Unit:

§

1 Slide the bracket under the weighing platform

§

2 Press up into the openings�

§

3 Pull the bracket forward to lock into place�

§ Hang the display and control unit on the bracket

3

§ Please observe the Verication of Intrinsic Safety, 36953-750-60 when connecting other

electrical equipment to the Signum 3�

6

Signum 3 Ex

2

Connecting the Device to AC Power

! Before startup, make sure that the power cable is properly connected to the power supply�

Inparticular, the protective conductor must be connected to the housing of the adapter�

Connect all devices via their equipotential bonding conductor terminals to the equipotential

bonding conductor� Installation must be carried out properly by trained personnel and according to commonly accepted technical standards�

! The system should only be operated for the first time when it is certain that the area is not

potentially explosive� If deviations are evident during startup due to transport damage, the system should be disconnected from the power supply and Service should be contacted (nodisplay, no backlighting despite weight value display, no reproducibility of the weight value, no stability in the display, etc�)

! YPS02-X�� Pressure-enclosed Adapter:

– Both cables should be laid fixed – Flexible cabling with screws available upon request

! Check the supply voltage/frequency and plug design�

– If they do not match: Contact your supplier

! Use only an original AC adapter:

– YPS02-Z�� or YPSC01-Z (for use outside of explosion-risk areas only) – YPS02-X�� or YPSC01-X (for use inside explosion-risk areas)

! When operating a scale in an explosive area:

– Follow all current standards and regulations for the installation of devices in the explosive

area�

– Device installation in Zone 1 should be carried out by trained personnel and checked

properly�

! Connect devices to a central equipotential bonding conductor before operation:

Warm-up Time

To deliver precise results, the scale must warm up for at least 30 minutes after initial

connection to the power supply� Only after this time will the scale have reached the required operating temperature�

Using a verified scale in legal metrology:

$ Make sure to allow the analyzer to warm up for at least 24 hours after initial connection to the

power supply�

Leveling the Weighing Platform

Purpose: – To compensate for unevenness at the place of installation – To ensure that the equipment is placed in a perfectly horizontal position for consistently

reproducible weighing results

Always level the weighing platform again any time after it has been moved to a different

location�

§ Level the weighing platform using the four leveling feet� Turn the feet until the air bubble is

centered in the level indicator�

§ Check to ensure that all leveling feet rest securely on the work surface�

> Each of the leveling feet must support an equal load�

Signum 3 Ex

7

General View of the Equipment

Info

n

Scale

#

Zero

0

Tare

T

Function

Fn

Print

ISO- Test

On

Standby

Resolution

x10

NET

B/G

CF

Clear

Function

Toggle

Reference

REF

OK

Signum2

A

10 9 8 7

16 15

17 18 19

1

2

3 4

5

6

Zero

0

Tare

T

Function

Fn

Print

ISO- Test

On

Standby

Signum1

A

Anzeige und Tastatur

1 Anzeige

(Detailabbildung siehe Kapitel »Bedienkonzept«)

2 Ein-/Ausschalttaste (Standby)

3 Waagenwechseltaste

(Wägeplattform wechseln)

4 Nullstelltaste

5 Tarataste

6 Funktionstaste (Brutto/Netto

umschalten)

7 Justieren oder Kalibrieren starten

8 Drucktaste (Datenausgabe)

9 Einheit umschalten auf

10-fach höhere Auflösung

10 Bruttowert (Nettowert plus Tara)

Nettowert (Bruttowert minus Tara)

11 Speichertaste

12 Identifiertasten zur Eingabe

von Bedienerkennungen

13 Alphanumerische Tastatur

14 Umschalten Anwendungsprogramm/

Anwendungs spezifische Informationen

15 Anzeige von Applikationen und

Tarahandwerten

16 Umschalttaste

(Funktion anwendungsabhängig)

17 Übernahmetaste

(Funktion anwendungsabhängig)

18 Referenzwerttaste

(Funktion anwendungsabhängig)

19 Taste zum Löschen

(Funktion anwendungsabhängig)

Gerätedarstellung

Signum®1

Signum

®

2

8

7

1

2

4

5

6

General View of the Equipment

17 18

Signum

®

3

19

Signum 3

1

2

3 4

5

6

BBP DCP

20

21

BBS DCS

20

21

On

Standby

n

Scale

0

Zero

#

Display and Keypad

16

1 Display

15 14

2 3

1

4 5 6

987

0

.

CF

REF

Clear

Function

A

OK

Reference

T

Fn

Function

Tare

Toggle

ISOTest

Info

Print

Resolution

Mem

ID

B/G

x10

NET

13

12 11

10 9 8 7

21

20

21

20

(for details, see the chapter entitled “Operating Concept")

2 On/Off key (Standby)

3 Keys with no function

4 Zero key

5 Tare key

6 Function key unit conversion

7 Start calibration or adjustment

8 Print key (data output)

9 Toggle unit between normal and

10-fold higher resolution

10 View gross value (net value plus tare)

View net value (gross value minus tare)

11 Product Data Memory

12 ID key for entering the operator ID

13 Numerical keypad

14 Toggle between application program

and application-specic information

15 Display of applications and manual

tare values

16 Toggle key

(function depends on application)

17 OK key

(function depends on application)

18 Reference value key

(function depends on application)

19 Clear function key

(function depends on active application)

Back Panel

20 RS-232C interface “COM1" (standard)

21 Power supply connection

8

Signum 3 Ex

Operating Concept

Keypad Signum

If a key is inactive, this is indicated as

– The message “------" is displayed for

Signum

Congure the display and control unit

®

minimum of keys� These keys have one function in the measuring mode and another in the menu� Some of the keys have one function when pressed briey, and another when pressed and held for longer than 2 seconds�

follows when it is pressed:

2seconds� The display then returns to the previous screen content�

to calculate and display weight values and to mark weighing products�

rst, using the operating menu to setup the desired application program (printer settings, etc�)� Then you can begin weighing�

3 is operated using a

®

3 uses application programs

Signum 3

CF

On

Standby

n

Scale

#

Signum 3 operating panel

Function

0

Zero

A

Input

Keypad Input

Labeled Keys Some keys have a second function,

activated by pressing and holding the key for over 2 seconds� Whether a key function is available depends on the operating state and operating menu settings�

e On/O

(in Standby mode, standby is displayed)�

n No function

Clear

®

REF

Reference

T

Tare

�

OK

Fn

Function

2 3

1

4 5 6

987

0

.

Toggle

ISOTest

Info

Print

x10

Resolution

ID

B/G

NET

Mem

d ID key (for entering operator ID)

K Toggles unit between normal and

10-fold higher resolution

L Net-gross value key

w Toggles between display modes

within an application program

r Lets you modify reference values

( – Zero the scale

– Cancel calibration/adjustment

) – Tare the scale:

k Toggles (depending on settings)

between the rst and second weight unit

J Start calibration or adjustment

p – To print: Press the key less than

2sec�

– Prints GMP footer:

Press longer than 2 seconds�

D Toggles to available application

O Saves a value or starts an application

program

R Saves a value to the product data

memory

Press the key less than 2 sec� -

Product Data Memory list will be displayed� Enter ID from new product memory beforehand and then press longer than 2 sec� Application values will be saved inthe new product ID�

Signum 3 Ex

9

Operating Concept

I Displays applications and manual

tare values:

Immediately closes information display: I press and hold longer than 2 seconds� The information is displayed in succession�

c – Quits an application or deletes an

input character

0, 1, 2�� 9, . Enters numbers, letters and other

characters

Numeric Input Using the Keypad

§ Enter numbers (one digit at a time): Press 0, 1, 2�� 9

§ Saving Input:

press the corresponding key�

For example, press ) to save manual tare input�

$ To delete a digit:

Press the c key

Input Through the

DigitalControl Port

You can connect a remote hand switch

or foot switch to the input control line for use with all application programs� Assign one of the following functions to this switch in the Setup menu, under Device parameters - Control input (ctrl io):

CTRL IO

CTRL INP

8

8�4 Universal IN … … …

CTRL OUT

For a detailed list of menu items, please see

the chapter entitled “Configuration�”

Loading a Tare Value from

the Weighing Platform

To save the weight on the weighing

platform as a tare weight: Press the ) key

10

Signum 3 Ex

Display Modes

Taraspeicherbelegung, verrechnete Werte, Kennzeichnung der aktiven Wägeplattform

pt Hinweis auf Tara-Handeingabe

(über Barcodeleser) bei Tara- Informationen

wp1 Anzeige der aktiven Wägeplattform

bei Anschluss von 2 Wägeplatt- formen. Anzeige blinkt bei isoCal- Justieranforderung der Wägeplatt- form

Applikative Piktogramme

Zur Eingabe und Darstellung von Detail- informationen, z.B. für die aktivierte Anwendung.

A „Zählen“ / Neutrales Messen B „Prozentwägen“

V „Mittelwertbildung“ (Tierwägen)

H „Kontrollwägen“ W „Klassieren“

Drucken

Applikative Piktogramme

Vorzeichen/ Stillstand

Bargraph

Messwertzeile

Zählen: Referenzoptimierung/ Autom. Summieren

aktiv

Speicher

Wägebereiche der Waage

Tarabelegung

Einheit

Verrechnete Werte

Batteriebetrieb

GMP-Protokoll aktiv

Applikative Referenzen (Nummernanzeige)

Datentransfer

There are two basic display modes:

– Normal operation (weighing mode)

– Unit operating state “Setup”

(Configuration)�

Weighing Mode: Display of

Measured and Calculated Values

Application, Printing and

BatterySymbols:

The application symbol indicates the

selected program, for example:

Z Counting application P Printing mode active

p GMP printing mode active

Bar Graph The bar graph shows the percentage of

the weighing platform’s capacity that is “used up” by the load on the scale (gross value)�

0%

Lower load limit

100% Upper load limit

The following symbols indicate tolerance

levels for checkweighing (calculated bar graph):

Bar graph showing 10%

Minimum for

Target value for

Maximum for

Plus or Minus Sign

+ or - for weight value or calculated

value, U when the weighing platform is zeroed or tared (veried models only)

Line for Weight Values This field shows weight values,

calculated values and input characters�

Unit and Stability: When the weighing system reaches

stability, the weight unit or calculation unit is displayed here�

Tare in Memory, Calculated Values

Meaning of Symbols:

intervals

“checkweighing"

Data in Tare Memory, Calculated Values, Designation of the Active Weighing Platform

pt Indicates manual taring for tare

information

wp1 Display of the active weighing

platform when 2 platforms are connected� The symbol ashes to prompt adjustment of the weighing platform, if the isoCAL function is active�

Application Symbols For input and display of detailed information; e�g�, for the selected application�

Z Counting / Neutral measurement

L Weighing in Percent

V Averaging (animal weighing)

O Checkweighing

Classication

Checkweighing toward zero

s Totalizing

R Net total

W Calculated value (not valid in

legal-for-trade applications)

NET Net value (gross value minus tare)

B/G Gross value (net value plus tare)

Signum 3 Ex

11

13

4

5

6 7

8 9

10

11

12131415

16

17

18

19

20

Appl. 1 Appl. 2 Appl. 3

2

Taraspeicherbelegung, verrechnete Werte, Kennzeichnung der aktiven Wägeplattform

pt Hinweis auf Tara-Handeingabe

(über Barcodeleser) bei Tara- Informationen

wp1 Anzeige der aktiven Wägeplattform

bei Anschluss von 2 Wägeplatt- formen. Anzeige blinkt bei isoCal- Justieranforderung der Wägeplatt- form

Applikative Piktogramme

Zur Eingabe und Darstellung von Detail- informationen, z.B. für die aktivierte Anwendung.

A „Zählen“ / Neutrales Messen B „Prozentwägen“

V „Mittelwertbildung“ (Tierwägen)

H „Kontrollwägen“ W „Klassieren“

Operating Concept

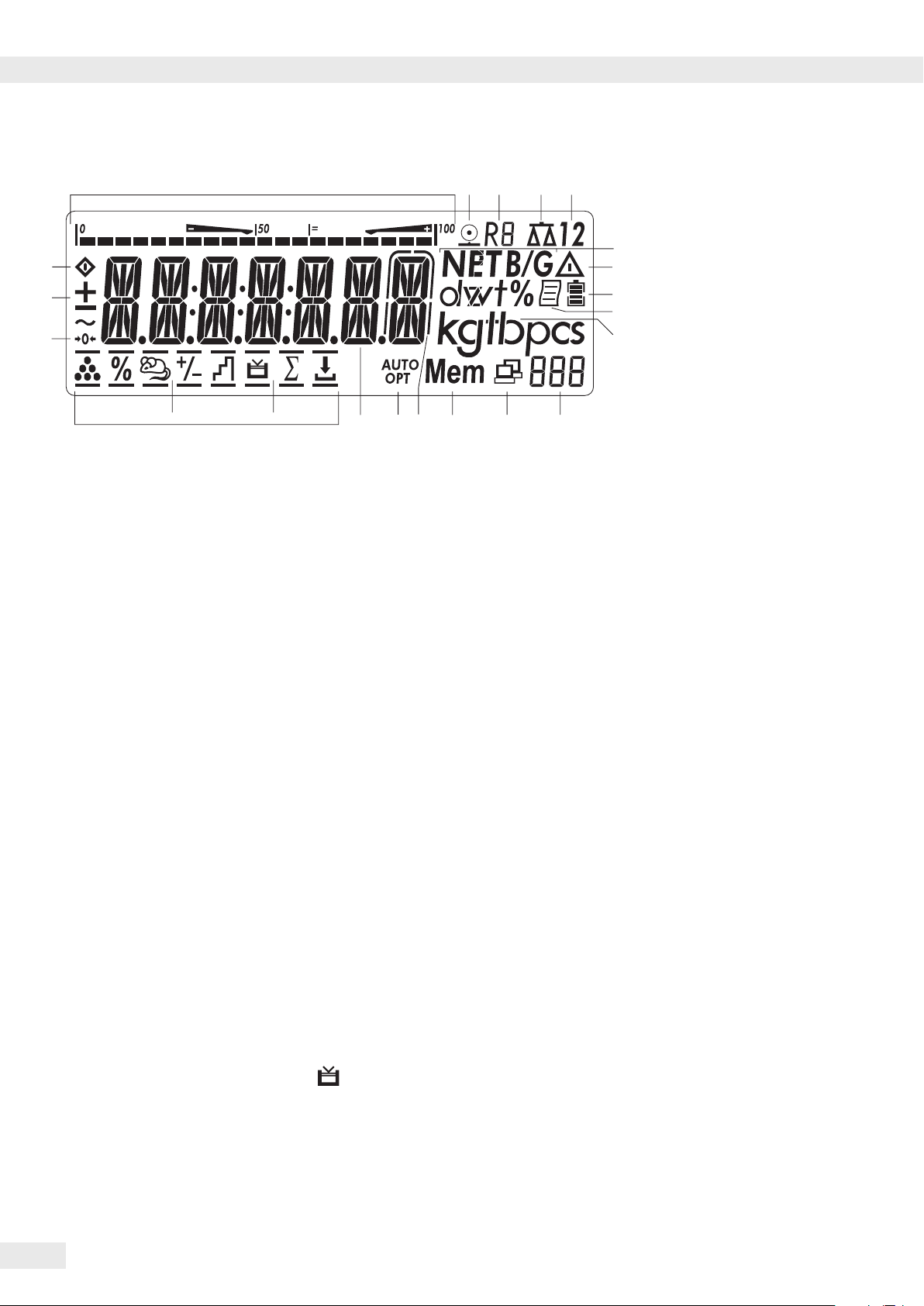

Display in Weighing Mode The illustration above depicts all of the main display elements and symbols that can be shown during weighing�

1� Bar graph – Shows the percentage of the

weighing platform’s capacity that is“used up” by the load on the scale (gross value), or

– Shows the weight value in

relation to a target value (with the Checkweighing or Classification application)

2� Symbol for current print job

3� Displays the active range on multiple-

range scales

4� No second weighing platform possible

5� Weighing platform 1 only

6� Net/Gross value on the main display

(with tare in memory or preset tare)

7� Identies the value on the main

display as calculated (value not valid in legal metrology)

8� Charge level indication of rechargeable

battery not active

(Rechargeable battery not integrated)

9� GMP-compliant printing in progress

10� Weight unit of the value displayed

11� Numeric display; e�g�, showing

reference value

12� Symbol indicating data transfer

– Interface initialized – Flashes during data transfer

13� Product Data Memory symbol

14� In legal metrology, on equipment with

e = d, the digit shown with a border must not be taken into account

15� Auto/Opt – Auto: Depending on the weight

– Opt: Automatic optimization has

16� Weight value or calculated value

17� Application symbols for the

Application 1:

Z

Counting / Neutral measurement

L Weighing in Percent

V Averaging (animal weighing)

O Application 2: Checkweighing

Classication

value, a reaction is triggered inthe application

taken place for the Counting application

(maindisplay)

applications:

Checkweighing toward zero;

Manually batching toward zero

Application 3:

s Totalizing

R Net total

Verified models only: 18� The zero-setting symbol is displayed

after the active scale or weighing platform has been zeroed

19� Plus or minus sign of the value

displayed

20� Busy symbol indicates that an internal

process in progress

Saving Data in Weighing Mode

All of the application parameters saved (e�g�, reference values) remain in memory and are still available after

®

– Signum

– you return to the originally selected

application from a second one (e�g�, when you switch from Averaging back to Counting, all parameters saved for Counting are available)

has been switched off and on

12

Signum 3 Ex

1 4 2 5 6 7 3 4

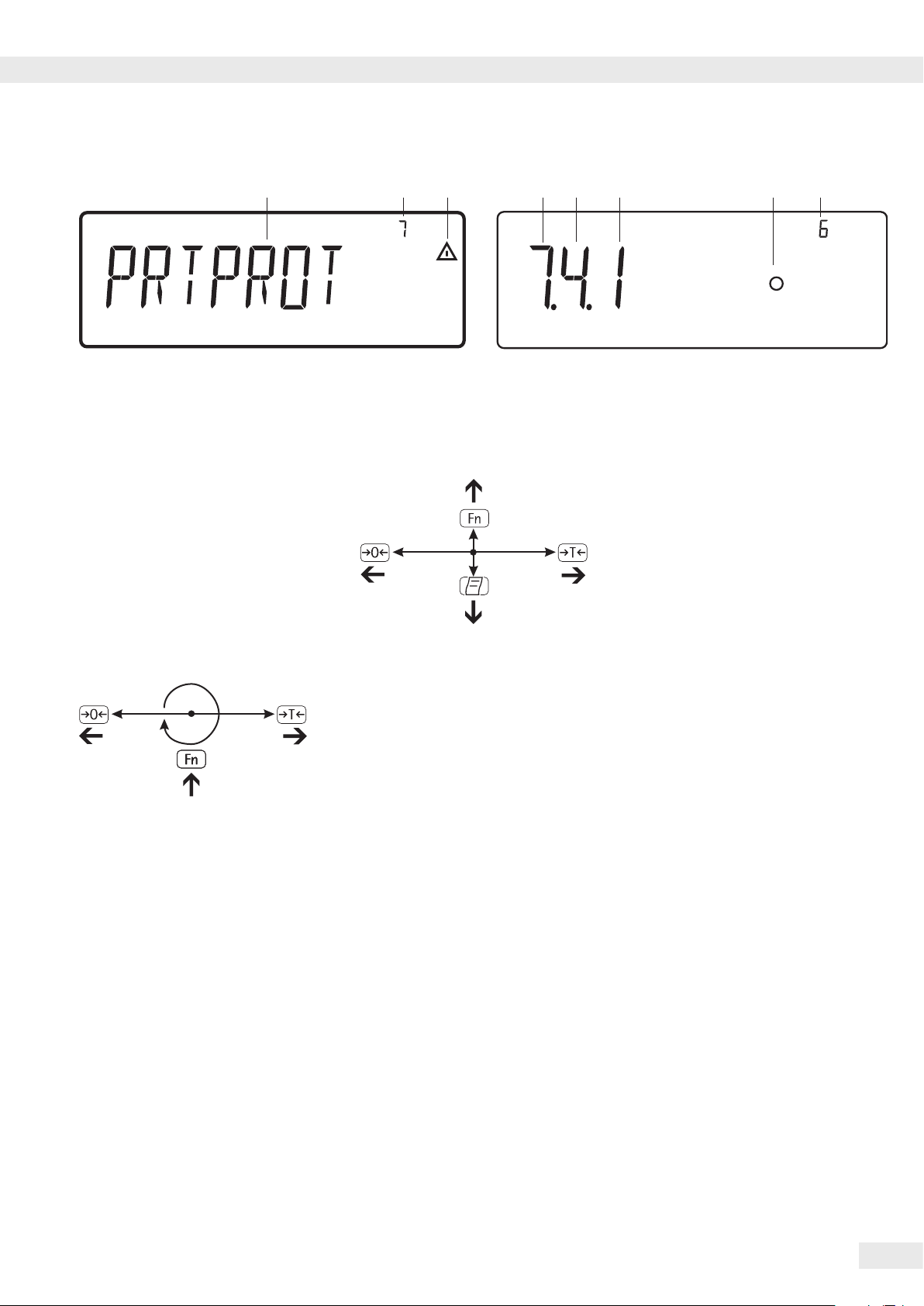

Setup Menu Display: Text Menu (Example) Setup Menu Display: Numeric operating menu (example)

Menu Operating Concept

The keys below the display are used to navigate and make entries in the device menu�

Opening the Menu

Press the e key to switch the device o and then on again; while all segments are displayed, press the ) key briey�

Navigating the Menu

( Exit the active submenu and return

to the next higher menu level (back)�

) – Press briey:

Select and save a menu item�

– Press longer than 2 seconds:

exit the menu�

k Show the next item on the same

menu level (the display scrolls through all items in series)�

p Print the menu settings starting

from the current position, or print Info data�

Alphanumeric Input in the Menu

( – Press briey:

Activate character to the left of the currently active character (when rst character is active: exit the input mode without saving changes)

– Press longer than 2 seconds: Exit

the input mode without saving changes

) – Press briey:

Conrm currently active character and move 1 position to the right (after the last character: save input)

– Press longer than 2 seconds:

Save current input and display themenu item

k – Cursor in rst position, no

characters entered yet: Delete character(s) and enter 0

– Change the displayed character;

scroll backwards (sequence: 0�� 9, decimal point, minus sign, Z _ A, space)

p – Cursor in rst position, no

characters entered yet: Delete character(s) and enter a space

– Change the displayed character;

scroll backwards (sequence: space, A _ Z, minus sign, decimal point, 9 _ 0 )

Numeric input in the Signum

operating menu

Enter values (date and time, etc�)

usingthe 10-key numeric keypad

®

Menu Display

The illustration above depicts all of the

main display elements and symbols that can be shown in the Setup menu�

1 Selected menu item at text level

(e�g�printer for setting the connected

printer) 2 Note that other submenus are available 3 Currently active setting 4 Menu history (note at highest menu

level in the Setup menu) 5 First level in the Setup menu 6 Second level in the Setup menu 7 Third level in the Setup menu

Saving Menu Settings

The parameters selected in the

operating menu remain saved after

youswitch off the Signum You can block access to Setup in the

device menu by assigning a password�

This will prevent unauthorized changes

to selected menu parameters�

®

�

Signum 3 Ex

13

Error Messages

– If a key is inactive, “-------” and|or

“Nofunction” is displayed briefly (2sec�)

– Temporary errors are displayed for

2seconds in the weight value/result line via an error code (e�g�, Inf 09); fatal errors (e�g�, Err 101) are displayed continuously until “Reset" is used�

Error codes are described in detail under

“Error Codes”�

Data Output

Printer You can connect a strip or label printer to

®

Signum at the press of a key or automatically� Printout formats are user-denable� You can also congure separate summarized printouts, and print a list of the active menu settings� See section “Conguring Printouts”�

3� You can have printouts output

Digital Input/Output Interface + Optional I/O

The digital input/output interface is supported by the “Checkweighing" and “Classification" application programs�

Checkweighing The output device has a number of control functions� Four data outputs transfer signals for “less than,” “equal to,” “greater” and “set�” You can define whether the outputs are always active or are activated only at stability, only within the checkweighing range, only within the checkweighing range at stability, orswitched off�

Saving Data

Signum® 3 saves all application parameters (e�g� reference values) when the device is turned o or you switch between application programs� You can assign a password to prevent unauthorized users from changing settings in the “Device parameters” menu under:

setup u-code

see “Conguration”

Classification Four data outputs transfer information on the class of the load (Class 1, 2, 3, 4 or 5) and indicate when the minimum load is exceeded (Set)� You can define whether the outputs are always active, activated only at stability, or off� See “Application: Classification” in the enclosed “Basic Application Programs” manual for details�

Communication Interface

You can define a number of parameters for this SBI interface (print command, time-dependent autoprint, ID codes)� Seesection “Data Interface”�

14

Signum 3 Ex

Configuration

Conguration

You can congure the device by

selecting parameters in the Setup menu� These are divided into the following

groups (rst menu level): – Application parameters – Fn key function – Device parameters – Device-specic information – Language

When used in legal metrology, not all

parameters can be accessed�

Factory-set parameters are identied by

an “*” in the operating menu list�

You can choose from ve languages for

the display of information:

– German – English (factory setting) – English with U�S� date/time – French – Italian – Spanish

“Info”

Language Settings

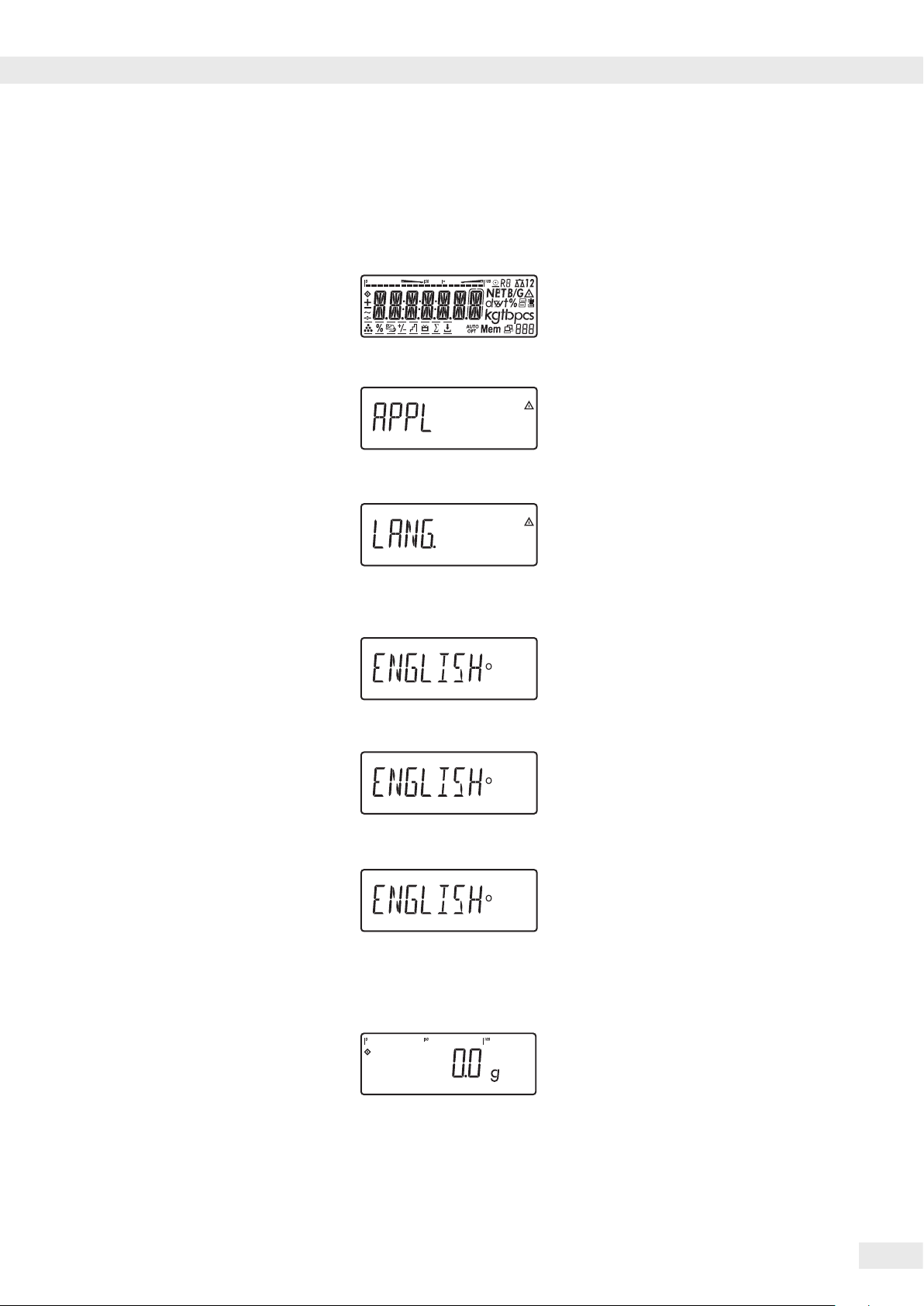

Example: Selecting “US Mode" for the language

Turn on the device

e

) While all segments are lit, press the

)key

The rst item in the main menu is shown

APPL

k Switch to the LANG menu item (press k

repeatedly until LANG is shown)

) Select LANG to open the submenu for

setting the language

Printing parameter settings:

§ Press the p key in Setup

Scope of printout: Depends on the position in Setup

The currently active language is shown

k

Switch to the US MODE menu item (press

k repeatedly until US MODE is displayed)

) Save the menu item

( Exit this menu level and congure other

settings as desired, or

) Press and hold to exit the menu

Signum 3 Ex

15

Configuration

Protecting Setup With a User Password Example: Assign a password to protect the application program settings APPL and the device parameters SETUP from unauthorized changes

(in this example,: AB2)

e 1�) Switch on Signum

®

) 2�) While all segments are lit,

press the ) key

The rst item in the main

menu is shown: APPL

k 3) Select the SETUP menu item

(press the k key repeatedly until SETUP is displayed)

) 4�) Select the SETUP device

parameter

p, p, p 9�) Enter the second character

using the p and k keys (in this example: B)

) 10�) Save the character

k, k, k

, 11�) Enter the third character

using the p and k keys (in this example: 2)

) 12�) Conrm the password

k 5�) Select the CODE menu item

(press k repeatedly until

U-CODE is displayed)

) 6�) Select the menu item

userpassword

p, p 7�) Enter the rst character

using the p and k keys (in this example: A)

) 8�) Save the character

( 13�) Exit this menu level and

congure other settings as desired, or

) 14�) Exit menu, press and hold

the ) key

To delete a password:

Overwrite the old password with the new password, or enter a space as the password and press the ) key to conrm

16

Signum 3 Ex

Operating Menu Overview

Taraspeicherbelegung, verrechnete Werte, Kennzeichnung der aktiven Wägeplattform

pt Hinweis auf Tara-Handeingabe

(über Barcodeleser) bei Tara- Informationen

wp1 Anzeige der aktiven Wägeplattform

bei Anschluss von 2 Wägeplatt- formen. Anzeige blinkt bei isoCal- Justieranforderung der Wägeplatt- form

Applikative Piktogramme

Zur Eingabe und Darstellung von Detail- informationen, z.B. für die aktivierte Anwendung.

A „Zählen“ / Neutrales Messen B „Prozentwägen“

V „Mittelwertbildung“ (Tierwägen)

H „Kontrollwägen“ W „Klassieren“

Configuration

In the Setup menu, you can congure the display and control unit to meet your individual requirements� User data can be entered and pre-set parameters selected�

1st Level 2nd Level Meaning Display Display

Menu levels are identified by texts, and numeric codes identify the individual settings�

Menu

appl Select and congure application programs

s / totaliz Totalizing

W / weigh. Basic weighing function

Z / count. Counting application Z nm / neutr.m Neutral measurement

V / anim.wg Averaging (animal weighing)

O / check.wg Checkweighing

/ class. Classication:

L / perc.wg Weighing in percent R / net tot Net-total formulation

Fn-key Dene the function of the k key

off No function

2.unit Display 2nd Unit sqmin Display the minimum permissible sample quantity

1

)

Setup Customizing Signum

wp-1 com1 Settings for the RS232, RS485, RS422 interfaces

ctrl in Function setting for universal input (control line)

prtprot Printout settings utilit Additional function settings time Time settings Date Date settings u-code User password to protect settings sqmin User: – Display

– Include SQmin in GMP printout clr.leg.s Clear alibi memory (only in service mode) leg.s.per Alibi memory retention period

Info Display device-specic information (service date, serial number, etc�) Lang Language selection for calibration, adjustment and GMP printouts

deutsch German english English us mode English with U�S� date|time franc French ital Italian espanol Spanish

1

) Only active when minimum sample quantity has been entered by Service and menu item: SQMIN: DISPLAY: ON

®

to user requirements

Signum 3 Ex

17

Configuration

Operating Menu

* Factory setting

Menu

appl Application programs

appl1

W / weigh. Basic Weighing Function

Z / count. Counting

3�6� Minimum load for initialization 3�6�1* 1 digit 3�6�2 2 digits 3�6�3 5 digits 3�6�4 10 digits 3�6�5 20 digits 3�6�6 50 digits 3�6�7 100 digits 3�6�8 200 digits 3�6�9 500 digits 3�6�10 1000 digits

3�9� Resolution for calculation of reference value 3�9�1* Display accuracy 3�9�2 Display accuracy + 1 decimal place 3�9�3 Display accuracy + 2 decimal places 3�9�4 Internal resolution

3�11� Parameter for saving weight values 3�11�1* With stability 3�11�2 With increased stability

3�12� Average piece weight updating 3�12�1 O 3�12�3* Automatic

18

Signum 3 Ex

appl appl 1

3�6� Minimum load for initialization Numeric menu similar to Counting

3�9� Reference value calculation resolution 3�9�1* Display accuracy 3�9�2 Display accuracy + 1 decimal place 3�9�3 Display accuracy + 2 decimal places 3�9�4 Internal resolution

3�10� Decimal places in displayed result 3�10�1* None 3�10�2 1 decimal place 3�10�3 2 decimal places 3�10�4 3 decimal places

3�11� Parameter for saving weight values 3�11�1* With stability 3�11�2 With increased stability

Znm / neutr.m Neutral measurement

Configuration

V / anim.wg Averaging (animal weighing)

3�6� Minimum load threshold for automatic start Numeric menu similar to Counting

3�18� Start of averaging 3�18�1* Manually 3�18�2 Automatic

3�19� Animal activity 3�19�1 0�1% of animal/object 3�19�2 0�2% of animal/object 3�19�3 0�5% of animal/object 3�19�4 1% of animal/object 3�19�5 2% of animal/object 3�19�6 5% of animal/object 3�19�7 10% of animal/object 3�19�8 20% of animal/object 3�19�9 50% of animal/object 3�19�10 100% of animal/object

3�20� Results printout 3�20�1* Manually 3�20�2 Automatic

3�21� Static display of result after load removed 3�21�1* Display is xed until unload threshold reached 3�21�2 Fixed display until the c key is pressed

Signum 3 Ex

19

Configuration

appl appl 1

3�6� Minimum load for initialization Numeric menu similar to Counting

3�9� Reference value calculation resolution 3�9�1* Display accuracy 3�9�2 Display accuracy + 1 decimal place 3�9�3 Display accuracy + 2 decimal places 3�9�4 Internal resolution

3�10� Decimal places in displayed result 3�10�1* None 3�10�2 1 decimal place 3�10�3 2 decimal places 3�10�4 3 decimal places

3�11� Parameter for saving weight values 3�11�1* With stability 3�11�2 With increased stability

3�15� Display of calculated values 3�15�1 * Residue 3�15�2 Loss

L / perc.wg Weighing in percent

appl 2

O / check.wg Checkweighing

4� 2� Checkweighing range 4�2�1* 30 to 170% 4�2�2 10% to infinity

4� 3� Control output for SET as: 4�3�1* Output “SET" 4�3�2 Process control systems ready to operate

4� 4� Activation of outputs 4�4�1 Off 4�4�2 Always on 4�4�3 On at stability 4�4�4* On within checkweighing range 4�4�5 On at stability within checkweighing range

4� 5� Parameter input 4�5�1 * Min�, max�, target value 4�5�2* Only target value with percent limits 4�5�3 Set point with free limits percent 4�5�4 Set point; Min, Max value as relative weights to the set point

4� 6� Automatic printing 4�6�1* Off 4�6�2 On 4�6�3 Only values within tolerance 4�6�4 Only values outside tolerance

4� 7� Checkweighing toward zero 4�7�1* Off 4�7�2 On

20

Signum 3 Ex

appl

Taraspeicherbelegung, verrechnete Werte, Kennzeichnung der aktiven Wägeplattform

pt Hinweis auf Tara-Handeingabe

(über Barcodeleser) bei Tara- Informationen

wp1 Anzeige der aktiven Wägeplattform

bei Anschluss von 2 Wägeplatt- formen. Anzeige blinkt bei isoCal- Justieranforderung der Wägeplatt- form

Applikative Piktogramme

Zur Eingabe und Darstellung von Detail- informationen, z.B. für die aktivierte Anwendung.

A „Zählen“ / Neutrales Messen B „Prozentwägen“

V „Mittelwertbildung“ (Tierwägen)

H „Kontrollwägen“ W „Klassieren“

appl 2

/ class. Classication

3�6� Minimum load for initialization Numeric menu similar to Counting

4�3� Control output for SET as: 4�3�1* Output “SET" 4�3�2 Process control systems ready to operate 4�7� Activation of outputs 4�7�1 O 4�7�2 Always on 4�7�3* On at stability 4� 8� Number of classes 4�8�1* 3 classes 4�8�2 5 classes 4� 9� Parameter input 4�9�1* Weight values 4�9�2 Percentage values 4�10� Automatic printing 4�10�1* O 4�10�2 On

Off

Configuration

appl 3 net tot

3�6� Minimum load for initialization Numeric menu similar to Counting

3�17� Individual/Component printout when saved 3�17�1 Automatic printing o 3�17�2* Print the entire standard print conguration every time with the O key 3�17�3* Print the entire standard print conguration once with the O key

Net total (2nd tare memory)

Signum 3 Ex

21

Configuration

totaliz Totalizing

3�6� Minimum load for initialization Numeric menu similar to Counting

3�16� Autosave mode 3�16�1* O 3�16�2 On 3�17� Individual/Component printout when saved 3�17�1 Automatic printing o 3�17�2 * Individual printout of an item with the O key 3�22� Source of values for data saved automatically 3�22�1* Application 1 3�22�2 Application 2 3�23� Saved value 3�23�1* Net 3�23�2 Calculated 3�23�3 Net and Calculated

Off

SETUP ctrl io

8�4� Function for external key (universal)

8�4�1* Trigger p key function 8�4�2 Trigger p key function (press and hold) 8�4�3 Trigger ) key function 8�4�4 Trigger 0 key function 8�4�5 Trigger k key function 8�4�6 Trigger n key function 8�4�7 Trigger O key function 8�4�8 Combined zero/tare function 8�4�9 Trigger ( key function 8�4�10 Trigger e key function 8�4�11 Trigger c key function 8�4�12 Trigger l key function 8�4�13 Trigger D key function

22

Signum 3 Ex

appl

a.tare

3� 7� Automatic taring: 1st weight tared 3�7�1* O 3�7�2 On

m.weigh

3� 5� Minimum load for automatic taring and automatic printing 3�5�1* 1 digit 3�5�2 2 digits 3�5�3 5 digits 3�5�4 10 digits 3�5�5 20 digits 3�5�6 50 digits 3�5�7 100 digits 3�5�8 200 digits 3�5�9 500 digits 3�6�10 1000 digits

a.start

Configuration

3�8� Automatic start of applications when you switch on the device with most recently

3�8�1 Automatic (On) 3�8�2 * Manual (O )

saved application data

sel.cf

3�24� Selective deleting with the c key 3�24�1 * Deletes all applications 3�24�2 Deletes only selected applications

Tare-f.

3�25� Tare function 3�25�1 Can add a preset tare if tare value is available; however no tare function possible 3�25�2 When a preset tare is entered, the tare value is deleted; however, tare function activation is possible

def.app

9�1� Factory settings for all application programs 9�1�1 Yes 9�1�2 * No

Signum 3 Ex

23

Configuration

fn-key Key assignment k

OFF * k key

2nd unit Display the 2nd unit

sqmin Display the minimum permissible sample quantity

Setup Device Parameters

A password prompt is displayed if a password is configured

(Display designation of this menu level: 1 )

1�1� Adapting the scale to ambient conditions (lter adjustment) 1�1�1 Very stable 1�1�2 * Stable 1�1�3 Unstable 1�1�4 Very unstable

1�2� Application lter 1�2�1 * Final readout 1�2�2 Filling mode 1�2�3 Low ltering 1�2�4 Without ltering

1�3� Stability range 1�3�1 4 digit 1�3�2 1�3�3 1 digit 1�3�4 * 2 digits 1�3�5 4 digits 1�3�6 8 digits

1�4� Stability delay 1�4�1 Without delay 1�4�2 Short delay 1�4�3 Average delay 1�4�4 Long delay

1�5� Taring 1�5�1 Without stability 1�5�2 * After stability

1�6� Autozero 1�6�1 On 1�6�2 O

1�7� Weight unit 1 1�7�1 Gram / o 1�7�2 * Gram /g 1�7�3 Kilogram /kg 1�7�4 Carat /ct 1�7�5 Pound /lb 1�7�6 Ounces /oz 1�7�7 Troy ounces /ozt 1�7�8 Tael Hongkong /tlh 1�7�9 Tael Singapur /tls 1�7�10 Tael Taiwan /tlt 1�7�11 Grain /GN 1) 1�7�12 Pennyweight /dwt 1�7�14 Parts per Pound //lb 1�7�15 Tael China /tlc 1�7�16 Momme /mom 1�7�17 Austrian carats /K 1�7�18 Tola /tol 1�7�19 Baht /bat 1�7�20 Mesghal /MS 1�7�21 Tons /t 1�7�22 Pound: Ounces

1�8� Display accuracy 1 1�8�1 * All digits 1�8�2 Reduced by 1 decimal place for load change 1�8�14 10-fold increased resolution 1�8�15 Increase resolution by 2 scale intervals 1�8�16 Increase resolution by 1 scale interval

1) = Not available on equipment verified for use in legal metrology

3) = Only active when minimum sample quantity has been entered by Service and menu item: SQMIN:DISPLAY:ON

4) = Factory setting for use in legal metrology

wp-11 Weighing platform 1

4

) 1 digit

1

)

1

)

1

)

1

)

1

)

2

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

3

)

24

Signum 3 Ex

Configuration

Setup

wp-1

1

1�9� Calibration and Adjustment 1�9�1 * Ext� calibration/adjustment; default weight 1�9�3 External calibration/adjustment; weight can be selected under menu item 1�18�1 1�9�4 Internal adjustment (models with built-in motorized calibration weight only) 1�9�8 Set preload 1�9�9 Clear preload 1�9�10

J

key locked

1�10� Calibration/Adjustment sequence 1�10�1 Calibration with automatic adjustment 1�10�2 * Cal� then manually adjust

1�11� Zeroing range 1�11�1 1 percent/max� cap� 1�11�2 * 2 percent/max� cap�

1�12� Initial zero point range 1�12�1 * Factory setting (depending on the model type) 1�12�2 2 percent/max� cap� 1�12�3 * 5 percent/max� cap�

1�13� Tare/zero at power on: 1�13�1 * On 1�13�2 O, load previous tare values 1�133 Only zero at power on

1�15� Adjustment prompt for connected IS weighing platform 1�15�1* O 1�15�2 Adjustment prompt W ashes on the display

1

1�16� External adjustment 1�16�1 * Activated 1�16�2

1�17� Calibration weight unit 1�17�1 * Gram 1�17�2 Kilogram 1�17�4

2

) Blocked

1

) Pound

)

3

)

1�18� Entering adjustment weight 1�18�1 External user adjustment weight (enter value, e�g�: 10,000 kg)

3

3� 1� Weight unit 2 3�1�1 Gram / o

)

1

) 3�1�2 Gram /g 3�1�3 * Kilogram /kg 3�1�4 Carat /ct 3�1�5 Pound /lb 3�1�6 Ounces /oz 3�1�7 Troy ounces /ozt 3�1�8 Tael Hongkong /tlh 3�1�9 Tael Singapur /tls 3�1�10 Tael Taiwan /tlt 3�1�11 Grain /GN 3�1�12 Pennyweight /dwt 3�1�14 Parts per Pound //lb 3�1�15 Tael China /tlc 3�1�16 Momme /mom 3�1�17 Austrian carats /K 3�1�18 Tola /tol 3�1�19 Baht /bat 3�1�20 Mesghal /MS 3�1�21 Tons /t 3�1�22 Pound: Ounces

3�2� Display accuracy 2 3�2�1 * All digits

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

1

)

3�2�2 Reduced by 1 decimal place for load change 3�2�14 10-fold increased resolution 3�2�15 Increase resolution by 2 scale intervals 3�2�16 Increase resolution by 1 scale interval

3

3�3� Weight unit 3

3�4� Display accuracy 3

): Parameters, see 3�1 “ Weight unit 2”

1

): Parameters, see 3�2 “Display accuracy 2”

9�1� Restore factory settings in WP1 numeric menu 9�1�1 Yes 9�1�2 * No

1

) = Not available on instruments veried for use in legal metrology 2) = Factory setting on instrument veried for use in legal metrology 3) = Menu depends on weighing platform

model

Signum 3 Ex

25

Configuration

Setup

Com1 2 Interface 1

(Display designation of this menu level: 2)

datProt Data printout

sbi * (For RS232 or RS422 ) SBI standard version

5�1� Baud rate 5�1�1 150 Baud 5�1�2 300 Baud 5�1�3 600 Baud 5�1�4 * 1200 Baud 5�1�5 2400 Baud 5�1�6 4800 Baud 5�1�7 9600 Baud 5�1�8 19200 Baud

5�2� Parity 5�2�2 Space 5�2�3 * Odd 5�2�4 Even 5�2�5 None

5�3� Numberofstopbits 5�3�1 * 1 stop bit 5�3�2 2 stop bits

5�4� Handshake mode 5�4�1 Software handshake 5�4�3 * Hardware handshake, 1 character after CTS

5�6� Numberofdatabits 5�6�1 * 7 databits 5�6�2 8 databits

6�1� Data output (manual/automatic) 6�1�1* Manual without stability 6�1�2 Manual after stability 6�1�4 Automatic output without stability 6�1�5 Automatic with stability 6�1�7 Protocol printout for computer (PC) 6�1�8 Protocol printout without stability for computer (PC)

off* O

2

)

3

)

* Factory setting

1

) = Menu depends on weighing platform

2

) = Not with setting 5� 6� 2 (8 bit)

3

) = Not with setting 5� 6� 1 (7 bit)

26

Signum 3 Ex

Configuration

Setup Com1

datProt

sbi

6�3� Time-dependent automatic data output 6�3�1 * 1 display update 6�3�2 2 display updates 6�3�4 10 display updates 6�3�7 100 display updates

7�2� Data output: Line format 7�2�1 For raw data: 16 characters 7�2�2 * For other applications: 22 characters

9�1� Restore factory settings in COM1 numeric menu: SBI 9�1�1 Yes 9�1�2 * No

xbpi-232 (For RS232 or RS422 ) XBPI-232

xbpi-485 (For RS485 ) XBPI-485

2

*

* Factory setting

Signum 3 Ex

27

Configuration

Setup

Com1

2

datProt

SMA ( COM1 RS232 or RS422 ) SMA interface function

5�1� Baud rate 5� 1� 1 150 Baud 5� 1� 2 300 Baud 5� 1� 3 600 Baud 5� 1� 4 1200 Baud 5� 1� 5 2400 Baud 5� 1� 6 4800 Baud 5� 1� 7 * 9600 Baud 5� 1� 8 19200 Baud

5�2� to 5�6� Numeric menu similar to SBI

Printer ( COM1 RS232 or RS422 ) Printer conguration

5�1� Baud rate 5�1�4 * 1200 Baud 5�1�5 2400 Baud 5�1�6 4800 Baud 5�1�7 9600 Baud 5�1�8 19200 Baud 5�2� Parity 5�2�2 Space 5�2�3 * Odd 5�2�4 Even

YDP20 YDP20

5�3� Numberofstopbits 5�3�1 * 1 stop bit 5�3�2 2 stop bits

5�4� Handshake mode 5�4�1 Software handshake 5�4�3 * Hardware handshake, 1 character after CTS

YDP14IS YDP14IS

line* Strip printer label Label printer

* Factory setting

28

Signum 3 Ex

Configuration

Setup

Com1

2

Printer

Uni-pri Universal interface

5�1� Baud rate 5�1�1 150 Baud 5�1�2 300 Baud 5�1�3 600 Baud 5�1�4 1200 Baud 5�1�5 2400 Baud 5�1�6 4800 Baud 5�1�7 * 9600 Baud 5�1�8 19200 Baud

5�2� Parity 5�2�2 Space 5�2�3 * Odd 5�2�4 Even 5�2�5 * None 2)

5�3� Numberofstopbits 5�3�1 * 1 stop bit 5�3�2 2 stop bits

5�4� Handshake mode 5�4�1 * Software handshake 5�4�3 Hardware handshake, 1 character after CTS

5�6� Numberofdatabits 5�6�1 7 databits 5�6�2 * 8 databits

YDP05/4* YDP05, YDP04IS

line * Strip printer label Label printer

lab ff Label printer with manual feed

yam01is

yDP21 YDP21 Memory

yam01is YAM01IS external data memory

3

) YAM01IS as electronic memory for print data

3

) ( COM1 RS232 or RS422 ) Veriable data memory

* Factory setting

1) = Not with setting 5� 6� 2 (8 bit)

2) = Not with setting 5� 6� 1 (7 bit)

3) = Only if no alibi memory is active

Signum 3 Ex

29

Configuration

Setup

(Display designation of this menu level: 7 )

7� 4� Header and ID header input

7� 4� 1 (empty) Header line 1 (max� 20 characters); example: “MEYER’S” 7� 4� 2 (empty) Header line 2 (max� 20 characters); example: “STEEL” 7� 4� 3 (ID 1) ID code name for ID 1 (max� 20 characters) 7� 4� 4 (ID 2) ID code name for ID 2 (max� 20 characters) 7� 4� 5 (ID 3) ID code name for ID 3 (max� 20 characters) 7� 4� 6 (ID 4) ID code name for ID 4 (max� 20 characters)

7� 5� Quantity of individual printout, interface 1 7� 5� 1 * 1 printout

7� 5� 2 2 printouts

prtprot

7

Printouts

7� 6� Conguration list, interface 1

blank

form-fe dat/tim time gmphead gmpfoot trans.no ID1 ID2 ID3 ID4 net gross tare tare2 headr. 1 headr. 2 sn scale

7� 7� Conguration list, components, interface 1 blank `` sn scale

7� 8� Conguration list, total, interface 1 blank

---------- form-fe dat/tim time glphead glpfoot trans.no ID1 ID2 ID3 ID4 headr. 1 headr. 2 sn scale

-------

2

)

2

)

* Factory setting

30

Signum 3 Ex

Configuration

Setup prtprot

7�13� GMP-compliant printouts 7�13�1* O 7�13�3 On

7�14� Date/Time 7�14�1 * Date/Time block with time 7�14�2 * Date/Time block without time

7�15� Automatic printing at stability 7�15�1 * One-time auto print at stability o 7�15�2 One-time auto print at stability on

7�16� Flex print 7�16�1* OFF 7�16�2 ON

7�17� Decimal separator 7�17�1 * Period 7�17�2 Comma

7�18� Printout of Alibi and product data memory 7�18�1�1 * Select all data records 7�18�1�2 Print the number of data records selected under 7�18�2 7�18�2 Select quantity: 1* to 255

9�1� Restore factory settings in numeric menu for printout data protocol 9�1�1 Yes 9�1�2 * No

* Factory setting

7

Signum 3 Ex

31

Configuration

Setup

utilit

(Display designation of this menu level: 8 )

8� 3� Keypad 8�3�1 * All accessible 8�3�2 All blocked 8�3�3 Numeric keypad 8�3�4 Toggle weighing platform 8�3�5 Zero 8�3�6 Tare 8�3�7 FN 8�3�8 isoTEST 8�3�9 Print 8�3�10 x10 8�3�11 Toggle gross/net 8�3�12 CF 8�3�13 Ref 8�3�14 OK 8�3�15 Toggle 8�3�16 Info 8�3�17 D 8�3�18 ID 8�3�19 Mem

8

Operation

8� 7� Automatic shuto of display and control unit

8�7�1 Automatic shuto acc� to menu item 8 9� 8�7�2 * No automatic shuto

8� 8� Display lighting 8�8�1 On 8�8�2 O 8�8�3 Automatic shuto acc� to menu item 8 9�

8�9� Timer 8�9�1 * After 1 + 1 minute not in use (after 1 min�: warning displayed 2) for 1 minute) 8�9�2 After 2 + 2 minutes not in use (after 2 min�: warning displayed 2) for 2 minutes) 8�9�3 After 5 + 5 minutes not in use (after 5 min�: warning displayed 2) for 5 minutes)

8�12� Show geographical data before calibration/adjustment 8�12�1 * No 8�12�2 Yes

9�1� Restore factory settings in numeric operating menu 9�1�1 Yes 9�1�2 * No

* Factory setting

1

) Multiple selections possible

2

) Warning information: symbol “ W “ ashing (all simultaneously)

32

Signum 3 Ex

Setup

time Time

Format: e�g� 10�07�41 (hours�minutes�seconds)

date Date

Format: 01�05�02 (day�month�year); U�S� mode: (month�day�year)

u-code User password

Set, change and delete password here (max� 8 characters): e�g� 12345678

sqmin

9

Display

No * (sqmin-s: For service only: Ye s

Enter the min� sample quantity)

Print in GLP header No * Ye s

Info Device-specic information

Service Service information

10.04.02

1

Service date

Configuration

term Indicator

SIWXSBBP-3-3-H 10405355 00-37-2B S3 207.171214 52 1 50

8.91

3

5

Geographical latitude (in degrees) 1)

6

Geographical altitude (in meters) 1)

7

Acceleration of gravity m/s 1)

1

2

Software version

Model type

Serial number

4

Application version

Flex -Inf Flex print

applset 1 File name id 123 2 ID v 123 3 Version

2

)

2

)

2

)

Lang. Language for adjustment and GMP printouts

deutsch German english * English u.s. mode English with U�S� date/time franc. French ital. Italian Espanol Spanish

* Factory setting

1

) Output: either latitude and altitude or acceleration of gravity (depends on the input before verification)

2

) These three parameters are shown for each le loaded�

Signum 3 Ex

33

Operation

Weighing

Weighing W The basic weighing function is always

accessible and can be used alone or in combination with application programs, such as Counting, Checkweighing, Weighing in Percent, etc�

Characteristics – Zeroing (

– Store the weight on the platform as tare

by pressing )

– Use the numeric keys to enter a tare

weight (press ) to save)

– Tare container weight automatically

– Delete tare values by entering 0

(press ) to save)

– Press k to toggle between: – 1st and 2nd weight unit – Display value and min� sample

quantity “SQmin"

Press K to toggle between: – 10-fold increased resolution (display max� 5 seconds) Toggle L Net: – Gross or net value

You can congure the k key function

in the Setup menu via:

Fn key

– Individual ID codes for weight values

– Print weight value – Manually, by pressing p – Automatically

(see “Data Output”)

– GMP printout

(see “Data Output”)

– Restore factory settings by selecting the

menu setting:

Appl: (Application)

Appl: def.app: 9.1

Automatic Taring The first weight on the scale that

exceeds the preset minimum load is stored in the tare memory at stability� The values for subsequent loads are stored as weight values� The scale returns to the initial state when the load is less than 50% of the minimum load� Configure in Setup under:

Appl: (Application)

Appl a.tare

Minimum Load To tare container weights automatically,

you need to set a minimum load in the Setup menu, under:

Appl:(Application) Appl: m.weigh

10 setting levels are available for

selection� They are dened in scale intervals:

1 digit (no minimum load) 2 digits 5 digits 10 digits 20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

Example: if the scale interval is 1 g and

the minimum load is set to 1000 digits (=1000 scale intervals), a load of at least 1000 g is required for autotaring�

Automatic Printing The rst weight value that exceeds the

minimum load is printed� Operating menu setting:

setup:

prtprot: (Printout)

7.15. (Once at stability)

Device Parameters

Keypad The keypad can be blocked�

Operating menu setting:

setup:

utilit: (Operating parameter)

8.3. (Keypad: blocking keys)

The following settings are available: – 8.3.1. (All keys available) – 8.3.2. (All keys blocked except e and

M)

– 8.3.3. (All alphanumeric keys blocked) – 8.3.4 - 8.3.19 (Specied keys blocked

(see the menu under “Conguration” for options))

Display You can have the display backlighting

shut off automatically when not in use� Operating menu setting:

setup:

utilit:

8.8. (Display lighting)

Automatic Shutdown Operating menu setting:

setup:

utilit:

8.7. (Automatic shuto of indicator)

Timer There are three timer settings:

two, four or ten minutes:

setup:

utilit:

8.9. (Timer)

34

Signum 3 Ex

Operation

Example : Switch on the device, zero the scale, tare the container weight, place sample in the container, toggle display to gross weight or to second weight unit or 10-fold resolution, print results

1�) Switching on the scale

e

All display elements appear

(display check)

Display with no load on scale

2�) Zero the scale

(

Display with no load on scale

3�) Place container on weighing

forapprox� 1 second

platform

Display with tared scale and

6�) Toggle display; depending on

L

the gross weight (in this

or

filled container

configuration, display shows

example, 50 g for container + 120�2 g substrate)

k

display in 2nd weight unit (in this example kg)

or

K

Display in 10-fold higher

resolution

Container weight is displayed

4�) Tare the scale

)

Display (net) when tared with

5�) Fill the container (in this example 120�2 g)�

container

7�)

display returns automatically after 5 seconds)

8�) Print results

p

EISENSCHMIDT Bovenden

24.02.2017 15:10

--------------------

G# + 170.2 g T + 50.0 g N + 120.2 g

--------------------

Return to previous display

(if10-fold resolution is shown,

Signum 3 Ex

35

Operation

Example: Tare the scale by placing a container on the weighing platform

1�) Switch on the scale�

e

2�) Place empty container on the

3�) Tare the scale�

)

The automatic self-test runs� When the weight readout is shown, the scale is ready to operate and automatically set to zero� With no load on the platform, you can zero the weighing platform at any time by pressing (�

platform�

Note: If the automatic tare function is enabled, you do not need to press the ) key� The tare weight is saved automatically when you place the container on the platform�

Example: Numeric input of tare weight, print the results

1�) Switch on the scale�

e

250

3�) Save the tare weight

)

4�) Place the sample (in this

2�) Enter the tare weight in the

The automatic self-test runs� When the weight readout is shown, the scale is ready to operate and automatically set to zero� With no load on the platform, you can zero the weighing platform at any time by pressing (�

current weight unit using the keypad (in this example, 250g)�

example, 2 kg) in its container on the scale�

Wait until a zero value is

displayed together with the NET symbol (net weight)�

4�) Place sample on the platform

Wait until the weight unit

symbol is displayed (indicating stability) and then read o the weight value

Read the result�

5�) Toggle the display from net

L

togross weight values� The display shows the gross weight (in this example, 250 g for the container plus 2000 g for the sample)�

L 6�) Toggle to the previous display�

p 7�) Print the results�

--------------------

G# + 2.250 kg T + 0.000 kg PT2 + 0.250 kg N + 2.000 kg

--------------------

36

Signum 3 Ex

Example: Weighing with variable tare values, printing results, deleting tare values

Operation

1�) Switch on the scale�

e

2�)

3�) Tare the scale

)

The automatic self-test runs� When the weight readout is shown, the scale is ready to operate and automatically set to zero� With no load on the platform, you can zero the weighing platform at any time by pressing (�

Place empty container

onthe platform�

Note: If the automatic tare function is enabled, you do not need to press the ) key� The tare weight is saved automatically when you place the container on the platform�

Read the net weight�

7�) Print the results�

p

G# + 6.433 kg T + 4.183 kg PT2 + 0.250 kg N + 2.000 kg

--------------------

8�) Clear the tare memory:

0

9�) Save the value (0) entered

)

10�) Print the results�

p

Enter a zero (“0”) using the keypad�

(tarevalues are cleared; the display shows the gross value)�

Wait until a zero value is

4�) Place packaged sample in

250

6�) Save the package weight�

)

5�) Enter the tare weight

displayed together with the NET symbol (net weight)�

the container (2nd tare value)�

of the packaging in the current weight unit using the keypad (in this example, 250 g)�

The package tare is added to the container tare�

G# + 6.433 kg T + 0.000 kg N + 6.433 kg

--------------------

Signum 3 Ex

37

Operation

SIW*DCP/AC:

SIWSDCS:

SIW*BBP:

SIWSBBS:

SIW*DCP/AC:

SIWSDCS:

SIW*BBP:

SIWSBBS:

SIW*DCP/AC:

SIWSDCS:

SIW*BBP:

SIWSBBS:

SIW*DCP/AC:

SIWSDCS:

SIW*BBP:

SIWSBBS:

Calibration and Adjustment

Purpose Perform calibration to determine the

difference between the weight value displayed and the actual weight on the platform� Calibration does not entail making any changes within the weighing equipment�

During adjustment, the difference

between the measured value displayed and the true weight of a sample is corrected, or is reduced to an allowable level within maximum permissible error limits�

Configuration for Use in Legal

Metrology

Configuration of the weighing

instrument for use in legal metrology isset by a switch� The switch is located on the back of the weighing platform and covered by a protective cap�

Using a Verified Scale in Legal Metrology in the EU: The Type-Approval Certicate for veried scales is only valid for nonautomatic weighing instruments� For automatic operation with or without additional, integrated equipment, please follow the applicable national regulations for the installation location�

Calibration Switch

Verification access switch

Calibration

switch

SIWX*DCP

SIWX*DCS

SIWX*BBP

Characteristics Which of the following features are

available depends on the connected weighing platform� These features are congured in the Setup menu:

– External calibration/adjustment blocked

in veried weighing instruments

– External calibration/adjustment with

the default weight value or standard weight (not available on veried instruments):

setup

wp-1

1.9.: Calibration and Adjustment

– Specify the weight for external

calibration/adjustment:

setup wp-1

1.18.: (enter adjustment weight)

– Block the J key to prevent use of the

functions described above:

setup wp-1

1.9.: (Block key 1�9�10)

– Calibrate rst; then adjust automatically

or manually (not for veried weighing instruments):

setup wp-1

1.10.: Calibration/adjustment sequence

§ Before use in legal metrology, the

scale should be adjusted via the internal adjustment equipment at the installation location: see the “Internal Adjustment" section in this chapter�

$ The temperature range (°C) listed on

the ID label should not be exceeded during operation�

For Servicing: External Adjustment for Veried Scales of Accuracy Class K and l

– External adjustment is blocked in legal

metrology (switch cover is sealed)

– External adjustment only possible by

removing the seal

If the seal is broken, the validity of verification will become void and you must have your scale re-verified�

Using a Verified Scale in Legal Metrology with Internal Adjustment Equipment:

§ Before use in legal metrology, the

“internal adjustment" function should be carried out at the installation location�

SIWX*BBS

§ Switch on the left for use in legal

metrology

– Block external or enable calibration/

adjustment:

setup wp-1

1.16.: (External adjustment)

38

Signum 3 Ex

Operation

SIWX Models:

Internal Adjustment

Veried versions or with option E7

In the Setup menu (setup: :

wp-1:

1�9�) “internal adjustment” (setup: wp-1: 1�9�4) must be congured�

setup

wp-1

1� 9� Calibration and

1�9�1 * Ext� calibration/

1�9�3 External calibra-

1�9�4 Internal calibra-

1�9�8 Set preload 1�9�9 Clear preload 1�9�10 J key locked

1�10� Calibration/

1�10�1 Calibration with

1�10�2 * Calibration with

Adjustment

adjustment; default weight

tion/adjustment; weight can be selected under menu item 1�18�1

tion/adjustment (models with built-in motorized calibration weight only)

Adjustment sequence

automatic adjustment�

manual adjustment

Setting the Preload

Setup Information

! It is only possible to set a preload when

the menu access switch is open�

– The J key must be allocated to the

Set preload function (menu item 1�9�8)�

! After setting a preload, close the menu

access switch and reallocate the original function back to the J key (e�g� external calibration/adjustment with user-dened weights) under menu item 1�9�

Clearing the Preload

Setup Information

! It is only possible to clear a preload

when the menu access switch is open�

– The “Clear Preload" function must be

allocated to the J key�

! After clearing a preload, close the

menu access switch and reallocate the original function back to the J key (e�g�external calibration/adjustment with user-dened weights) under menu item 1�9�

* = Factory setting

The scale housing has a built-in motorized calibration weight�

The calibration/adjustment procedure is performed as follows:

§ Select calibration/adjustment: Press the

J key

> The internal calibration weight is loaded

automatically

> The scale is adjusted/calibrated

> In the Setup menu (

Setup: wp-1:

1�10�) If parameter 1�10�1 is selected in Setup, the scale is adjusted automatically

> In the Setup menu (

Setup: wp-1:

1�10�) If parameter 1�10�2 is selected in Setup, the internal adjustment can be stopped without adjusting the scale

> The internal adjustment weight is

unloaded from the scale

> ISO/GMP-compliant record: see page 91

Signum 3 Ex

39

Operation

Preparation

§ Open the Setup menu: Press the )key

§ Switch on the scale: Press the e key $ Select weighing platform 1 “WP1":

§ While all segments are lit, press the

Pressthe ) key or

)key

§ Select Setup: Press the k key repeat-

edly until Setup is displayed

Setup

wp-1

1�9� Calibration and Adjustment 1�9�1 * Ext� calibration/adjustment; default weight 1�9�3 External calibration/adjustment; weight can be selected under menu item 1�18�1 1�9�4 Internal calibration/adjustment (models with built-in motorized calibration weight only) 1�9�8 Set preload 1�9�9 Clear preload 1�9�10 J key locked

1�10� Calibration/Adjustment sequence 1�10�1 Calibration with automatic adjustment 1�10�2 * Calibration with manual adjustment

1�11� Zeroing range 1�11�1 1 percent/max� cap� 1�11�2 * 2 percent/max� cap�

1

1�12� Initial zero point range 1�12�1 Factory setting (depending on the model type) 1�12�2 2 percent/max� cap� 1�12�3 * 5 percent/max� cap�

1�13� Tare/zero at power on: 1�13�1 * On 1�13�2 O, load previous tare values 1�13�3 Only zero at power on

1�16� External adjustment 1) 1�16�1 * Activated 1�16�2 2) Blocked

1�17� Adjustment weight unit 1�17�1 Gram 1�17�2 * Kilogram 1�17�3 Pound 1)

1�18� Entering adjustment weight 1�18�1 External user adjustment weight (enter value, e�g�: 10,000g)

§ Save the settings with the ) key and exit Setup: Press the ( key several times�

1

) Not available on scales veried for use in legal metrology

2

) = Factory setting for use in legal metrology

* Factory Settings

40

Signum 3 Ex

40

Example: External calibration and manual adjustment with default weights (weighing parameters: factory settings)

1�) Zero the scale�

(

The dierence between the

J 2�) Start calibration (e�g�, when

adjustment prompt ashes

WPsymbol)�

Operation

weight value and the true weight of the sample will be displayed with plus/minus signs�

c.ext.def appears

seconds�

You are prompted to place the

required weight on the platform (e�g�, 10,000 g)�

3�) Position the calibration/

adjustment weight on the weighing platform�

for two

Ext. calibration A printout will be generated if Targ. + 10000 g the process is cancelled using Diff. + 1 g the ( key�

J 4�) Activate calibration/adjust-

ment (press the ( key to cancel)�

The adjustment weight is dis-

played once adjustment isnished�

-------------------- A GMP-compliant printout is

24.02.2017 10:15 generated� Typ SIWX Ser.no. 12345678 Vers. S3 207.171214 BVers. 00-37-2B

-------------------Ext. Calibrate Targ. + 10000 g Diff. + 1 g Ext. adjustment Diff. + 0 g

--------------------

24.02.2017 10:15 Name:

-------------------

Signum 3 Ex

41

Operation

SQmin Function

Purpose To display the allowable minimum sam-

ple quantity “SQmin” (sample quantity minimum) in accordance with the United States Pharmacopoeia (USP)� According to USP guidelines, the uncertainty of measurement may not exceed 0�1 % of the sample quantity when substances are weighed with the highest degree of accuracy for volume determination� This additional function ensures that weighing results are within defined tolerance limits corresponding to the requirements of your quality assurance system�

Requirements The scale must be set up by a service

technician to be able to use the SQmin function� The technician will determine the permitted minimum sample quantity and load this to your scale using the guidelines of your QA system� These settings cannot be changed by the user� He or she will document this setting via a “Weighing module test as per USP” certificate in which the measurements and min� sample quantity are logged� The SQmin function ensures that the weighing results correspond to USP guidelines�

SQmin Display * No Yes

Print in * No GLP header Yes

* = Factory setting

See also the chapter on “Conguration”: Operating Menu

§ Save the settings with the ) key and exit Setup: Press the ( key several times�

Characteristics – Displaying the minimum sample qual-

ity: The value is shown in the text line for 4seconds after the k key is pressed�

– If the minimum sample quantity has

not been reached: Symbol displayed: ! Weight values are marked with a “ inthe printout�

– GLP header: The minimum sample

quantity entered for SQmin can be included on the printout�

Parameter Factory Setting Display: SQmin Off

Print in GLP header: Off

!”

42

Signum 3 Ex

Example Determining sample weights while monitoring the minimum sample quantity (in this example, SQmin: 100 g)

Settings (different from the factory settings): Setup: Equipment: SQmin: Display: on

Step Press key (or action) Display/Printout

Operation

1� Switch on the scale and enter settings as above

2� Place the container for the sample on the scale and tare

3� Measure the weight of a sample Place the sample on the scale (here: If the minimum sample quantity

has not been reached)

4� Print weight value

5� Measure the weight of another sample Place the sample on the scale (here: If the minimum sample quantity

has been exceeded)

6� Print weight value

7� Display value of minimum sample k

quantity for 4 seconds

e

)

p | N + 90.0 ! |

p | N + 110.0 g |

8� Weigh other samples as desired

Signum 3 Ex

43

Operation

Individual ID codes

(identifiers)

You can assign codes (such as

product name, batch number, etc�) foridentification of measured values onall application programs�

Characteristics

– Assign up to four ID codes�

– Assign both a name and a value to each

ID code�

– Displaying individual IDs: d key

– The name is left-justied and the value

is right-justied on the printout� If the entire code is too long for one line, additional lines are printed�

– Enter ID code names in Setup under: setup: The name can have a max� of 20

prtprot: 7.4.

characters� No more than 11 characters are displayed during input; all 20 characters are printed�

Factory settings for the ID code names

ID1:

ID1

ID2:

ID2

ID3:

ID3

ID4:

ID4

Factory settings for the ID code values No default values set�

– Enter up to 40 characters for the value

of the ID code� Press the d key to activate the input mode�

– Individual characters of the ID can be

deleted using the c key�

– If both the name and value elds are

empty, no ID code is printed�

– In the Setup program, you can

congure when and whether ID codes are printed (see: Conguring Printouts page 81)�

44

Signum 3 Ex

Operation

Example: Enter ID code names� For ID codes 1 and 2, enter “Batch no�” and “Cust�” as names�

1) Turn on the device�

e

2) While all segments are lit,

)

The rst item in the main

3) Select the setup menu item

k

4) Select the Setup menu

)

5) Select the prtprot menu

press the ) key

menu is shownAPPL

for the ID code settings (press k repeatedly until setup is displayed)

item for the ID code settings (press k repeatedly until prtprot is displayed)

10) Save the character

)

11) Enter additional letters as

After entering the last letter,

– Open the 7.4.4 ID2 name

k

– Repeat starting with step 8

12) Exit this menu level and

(

13) Press and hold to exit the

)

described above�

save the input by pressing the ) key

menu item

congure other settings as desired, or

menu

6) Select level 7�

)

7) Press the ) key until 7.4.1

)

– Select the 7.4.3 ID1 name

k

8) Press the ) key to enable

)

p, p, p, p

9) 1� Enter the rst character

appears in the display�

menu item (press the key until prtprot appears in thedisplay)

alphanumeric input�

using the p and k keys (in this example: c)

Example: Enter ID code values� The value “123” should be entered for ID code 1�

1) Activate input of ID code

d

123

� � �

5)

•

2) Enter the value for ID code 1

values�

(in this example:

123)�

Exit after ID4 using the

dkey

Signum 3 Ex

45

Operation

Application Programs

Applications 1 - 3: Overview

Application

Signum 3

2 3

1

Basic weighing

4 5 6

Averaging (Animal Weighing) Send print job/data record to peripheral device Label printer Counting Totalizing

0

.

Checkweighing Batching/Counting to target value Product data memory

Function

Zero Tare Date/time

On

Standby

n

Scale

#

0

Zero

CF

REF

Clear

Reference

Function

T

Tare

A

OK

Fn

Function

Toggle

ISOTest

Info

Print

x10

Resolution

ID

B/G

NET

ID codes (4 codes, 40 characters each)

The following table shows how the application programs can be combined� Each row represents one combination� The basic weighing function is available at all times; it does not need to be combined with a computational function� Select programs one after the other: Toggle using the D key

Application 1 (Basic Function) Application 2 (Monitoring Function) Application 3 (Cumulative-value Function)

Counting – Totalizing Counting Checkweighing Totalizing Counting Checkweighing – Counting Classification –

Neutral Measurement – Totalizing Neutral Measurement Checkweighing Totalizing Neutral Measurement Checkweighing – Neutral Measurement Classification –

Animal Weighing – Totalizing Animal Weighing Checkweighing Totalizing Animal Weighing Checkweighing – Animal Weighing Classification –

Weighing in Percent – Totalizing Weighing in Percent Checkweighing Totalizing Weighing in Percent Checkweighing – Weighing in Percent Classification –

– – Net-total formulation

– Checkweighing Totalizing

987

Mem

46

Signum 3 Ex

Counting Application Z

With the Counting application, you can

determine the number of parts which each have approximately equal weight�

Characteristics – Save the reference weight “wRef” from

the weighing platform

– Enter the reference sample weight

“wRef” using the keypad

– Enter the reference sample quantity

“nRef” using the keypad

– Automatic average piece weight

updating

– Activate Info mode with the I key

– Toggle the display between quantity

and weight using the W key

– Dene the level of accuracy (display

resolution) applied when a calculated reference sample quantity is saved

– Automatic taring of container weight�

Congured in Setup under:

(Autotare 1st weight)

APPL: A.Tare

– Automatic initialization when the

scale is switched on� The indicator is initialized with the most recently used values for reference sample quantity “nRef” and reference sample weight “wRef�” Congured in Setup under:

(Start app� with last values)

APPL: A.start

– Exit application, delete parameters: The value of the reference sample

weight in the reference memory remains active until it is deleted, overwritten or the application is changed using the ckey� The reference sample weight also remains saved after the scale is turned o�

You can assign dierent functions to the c key for deleting applications�

When you clear applications, you can

delete either the data stored for all applications or just selected data stored for the active application� Configured in Setup under:

APPl: sel.cf�

(Sel�

CF function key c in

applications)

– Tare function:

1) If you store a tare (weight value) by pressing the ) key, you can later enter a tare value manually� The tare value you enter is added to the stored tare value� Setting: menu code 3�25�1 (factory setting)

2) A tare value entered manually overwrites a stored tare value (weight value)� If you enter a tare value manually, a tare value (weight value) stored later overwrites the manually entered value� Setting: Menu code 3�25�2 Configured in Setup under: Appl: tare. f: 3.25.

– Restore factory default settings�

Configured in Setup under:

APPL: def.app: 9.1.

Before the quantity on the platform can be calculated, the average piece weight (reference sample weight) must be entered in the application� There are three ways to enter this value in the program:

– Calculation: – Place the number of parts dened as

the reference sample quantity on the weighing platform and calculate the average piece weight by pressing the O key

– Alternatively, using the r key, you

can place any number of parts on the weighing platform, enter the number of parts using the keypad, and then calculate the average piece weight by pressing the

O key

How the reference weight is calculated

depends on the application setting for resolution� The value is either rounded o in accordance with the display resolution, or saved with 10-fold or 100-fold resolution, or with the maximum internal resolution of the weighing platform�

– Entering a reference sample weight

(i�e�, the weight of one piece) using the keypad and saving it with the

O key

After initialization, you can use the

connected weighing platform to count parts�

The initial application values remain

active until deleted by pressing the ckey or until overwritten by a new value� They remain saved after the scale is switched o�

Signum 3 Ex

47

Counting Application Z

Preparation

§ Turn scale on: Press the e key

§ While all segments are lit, press the

)key

§ Select Setup: Press the k key

repeatedly until appl is displayed

§ Conrm appl: Press the ) key

§ Select the Counting application:

Press the k key repeatedly and

conrm with the ) key

Counting application parameters

3�6� Minimum load for initialization 3�6�1* 1 digit 3�6�2 2 digits 3�6�3 5 digits 3�6�4 10 digits 3�6�5 20 digits 3�6�6 50 digits 3�6�7 100 digits

3�6�8 200 digits 3�6�9 500 digits 3�6�10 1000 digits

3�9� Resolution for

calculation of reference value 3�9�1* Display accuracy 3�9�2 Display accuracy + 1

decimal place

3�9�3 Display accuracy + 2

decimal places

3�9�4 Internal resolution

3�11 Parameter for saving weight values 3�11� 1* With stability 3�11� 2 With increased

stability

3�12� Average piece weight updating 3�12�1 O 3�12�3* Automatic

Parameter for Saving Weight Values The weight on the platform is saved as

a reference value when the platform has stabilized� “Stability” is defined as the point at which the fluctuation of a measured value lies within a defined tolerance range� The narrower the tolerance range, the more stable the platform is at “stability”�

In Setup menu: appl1: count: 3.11. You can dene whether the value is saved when “standard stability” is reached, or only at “increased stability” (narrower tolerance range)� If you select “increased stability,” the value saved for average piece weight will be more accurate and the results more reproducible, but the response time of the weighing platform might be longer�

Accuracy of Average Piece Weight

Calculation

The resolution applied for calculating

the reference weight is dened in Setup under:

Appl1

: count: 3.9.

The resolution for calculating the reference weight is increased if “+1 decimal place,” “+2 decimal places” or “Internal resolution” is selected� With the “+1 decimal place” setting, the net value is determined to one additional decimal place (i�e�, display accuracy x 10); “+2 decimal places” increases display accuracy + 100, and so on up tothe maximum resolution available�

Minimum Load The minimum load required for

initialization of the weighing platform is configured in Setup under: appl1:

Once the limit is exceeded by the load,

initialization can begin� If the load on platform is too light, thefollowing will occur when you try tosave a value:

– Error code Inf 29 appears, – The weighing platform is not initialized – The preset reference sample quantity is

saved

The minimum load required for

automatic taring of the container weight on the platform (rst weight) iscongured in Setup under:

appl

: m.weigh: 3.5.

You can choose from the following

10levels for this setting:

1 digit 2 digits 5 digits 10 digits 20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

The “digits” here refer to the scale

intervals in the connected weighing platform� If the interval of the connected platform is 1 g, for example, and 1000 digits are required, you must place at least 1000 g (= 1000 intervals) on the weighing platform for initialization�

* = Factory setting

§ Save the settings with the ) key and

exit Setup: Press the ( key several times�

48

Signum 3 Ex

Average Piece Weight Updating

nn + 22 · n

In Setup menu:

appl1: count: 3.12.

You can dene whether or not the

reference sample weight is updated automatically during weighing� The reference sample weight is updated automatically only when the following 6criteria are met:

1� The menu item must be set to 3.12.3

inSetup�

2� The current piece count exceeds the

original piece count by at least two�

3� The current piece count is less than

twice the original piece count (does not apply for the rst updating operation if the piece count is entered using the keypad)

4� The current piece count is less than

1000�

Bereich für Stück-

gewichtsoptimierung

Referenzstückzahl „alt“

Aufgelegte

Stückzahl

5� The internally calculated piece count

(such as 17�24 pcs) diers by less than ±0�3 pcs from the nearest whole number (in this example: 17)

6� The weighing platform is stable in

accordance with the parameter dened for saving weights�

If automatic average piece weight

updating is selected in the Setup menu and the piece count (pcs) is displayed, the Auto symbol is displayed below the bar graph� If the reference sample weight has been updated since you began weighing, the text line shows the “optimized” code (opt.)� During an updating operation, 0pt and the updated piece count are displayed briey in the measured value line�

The new reference sample weight and reference sample quantity are saved�

Signum 3 Ex

49

Counting Application Z

Example: Determining the number of uncounted parts� Settings (dierent from the factory settings): Setup: Application 1: Counting Setup: Device Parameters: Printout: PRTPROT: 7�6 then select the menu line items of your choice (see “Conguration” for options)

r

Neutral Measurement Application Z

5�) Start calculation of the

reference sample weight

1�) Place empty container on the

2�) Tare the scale�

)

3�) Place a number of parts in the

platform�

Note: If the automatic tare function is enabled, you do not need to press the ) key to tare the platform; the tare weight is saved automatically when you place the container on the platform�

container for the reference quantity (in this example, 20pcs)�

Set the number of reference

parts using r: 1, 2, 5, 10, 20, etc�

Start the reference sample

weight calculation using the O key�

If the weight is too light,

reduce the minimum load setting or increase the reference sample quantity setting in the main display Inf 29 and the number of parts in the container�

6�) Add a quantity of uncounted

parts to the container

Read the result

20

using r : 1, 2, 5, 10, 20, etc�

50

4�) Enter the number of parts

using the keypad or

Signum 3 Ex

Opt is displayed if automatic

7�) Print the results

p

nRef + 38 pcs see: Conguring Printouts

wRef + 0.003280 kg G# + 0.373 kg T + 0.248 kg N + 0.125 kg

Qnt 38 pcs

--------------------

reference sample updating is enabled�

nM

Neutral Measurement Application Z nM

With this application you can use your

weighing platform to measure the length, surface and volume of parts that have roughly the same specic weight� The o symbol is displayed asthe weight unit�

Characteristics – Save the reference weight “wRef” from

the weighing platform

– Enter the reference weight “wRef” using

the keypad

– Enter the calculation factor “nRef”

using the keypad

– Activate Info mode with the I key

– Toggle the display between

measurement and weight using the wkey

– The level of accuracy (display

resolution) can be set when the calculated reference weight is applied

– Automatic taring of container weight�

Configured in Setup under:

Appl: a.tare: 3.7. – Automatic initialization when the

scale is switched on� The indicator is initialized with the most recently used calculation factor “nRef” and reference weight “wRef�” Configured in Setup under:

Appl: a.start: 3.8.

– Exit application, delete parameters: The value of the reference sample

weight in the reference memory remains active until it is deleted, overwritten or the application is changed using the ckey� The reference sample weight also remains saved after the scale is turned o�

You can assign dierent functions to

the c key for deleting applications�

When you clear applications, you can

delete either the data stored for all applications or just selected data stored for the active application� Congured in Setup under:

Appl: sel.cf: 3.24.

(Sel� CF function key c in applications)

– Tare function:

1) If you store a tare (weight value) by pressing the ) key, you can later enter a tare value manually� The tare value you enter is added to the stored tare value� Setting: menu code 3�25�1 (factory setting)

2) A tare value entered manually overwrites a stored tare value (weight value)� If you enter a tare value manually, a tare value (weight value) stored later overwrites the manually entered value� Setting: Menu code 3�25�2 Congured in Setup under:

Appl

: tare. f: 3.25.

– Restore factory default settings�

Configured in Setup under:

Appl: def.app: 9.1.

In order to calculate the length, surface or volume of a given sample, the average weight of a reference quantity of the sample must be known (in the example below, the reference is 1 meter of electrical cable)� There are three ways to enter the reference weight in the program:

– Calculation: – Place the reference quantity (dened

by the calculation factor) on the connected weighing platform and calculate the reference sample weight by pressing the O key

– Place any amount of the sample

material on the connected weighing platform, enter the calculation factor through the keypad, and press the Okey to calculated reference sample weight�

How the reference weight is calculated

depends on the application setting for resolution� The value is either rounded o in accordance with the display resolution, or saved with 10-fold or 100fold resolution, or with the maximum internal resolution of the weighing platform�

– Enter the reference weight (i�e�, the

weight of one meter of electrical cable) using the keypad and press

O to save

it�

The initial application values remain

active until deleted by pressing the ckey or until overwritten by a new value� They remain saved after the scale is switched o�

Preparation

§ Turn scale on: Press the e key

§ While all segments are lit, press the )key

§ Select Setup: Press the k key

repeatedly until appl is displayed

§ Conrm appl: Press the ) key

§ Select the Neutral Measurement

application:

Press the k key repeatedly and

conrm with the ) key

Neutral Measurement Application Parameters

3�6� Minimum load for initialization 3�6�1* 1 digit 3�6�2 2 digits 3�6�3 5 digits 3�6�4 10 digits 3�6�5 20 digits 3�6�6 50 digits 3�6�7 100 digits

3�6�8 200 digits

3�6�9 500 digits 3� 6�10 1000 digits

3�9� Reference value calculation

resolution 3�9�1* Display accuracy 3�9�2 Display accuracy

+ 1 decimal place

3�9�3 Display accuracy

+ 2 decimal places

3�9�4 Internal resolution

3�10� Decimal places in displayed result 3�10�1* None 3�10�2 1 decimal place 3�10�3 2 decimal places 3�10�4 3 decimal places

3�11� Parameter for saving weight values 3�11�1* With stability 3�11�2 With increased stability

* = Factory setting

§ Save the settings with the ) key and

exit Setup: Press the ( key several times�

Signum 3 Ex

51

nM

Neutral Measurement Application Z

Parameter for Saving Weight Values The reference weight is saved when the

scale has stabilized� “Stability” is defined as the point at which the fluctuation of a measured value lies within a defined tolerance range� The narrower the tolerance range, the more stable the platform is at “stability”�

In Setup menu:

appl1

:

Neutr.M:3.11. You can dene whether the value is saved when “standard stability” is reached, or only at “increased stability” (narrower tolerance range)� If you select “increased stability”, the reference weight saved will be more accurate and the results more reproducible, but the response time of the weighing platform might be longer�

Accuracy Level for Calculation of

Reference Value

The resolution applied for calculating

the reference weight is defined in Setup under:

appl1

:

Neutr.M: 3.9.

The resolution for calculating the reference weight is increased if “+1 decimal place,” “+2 decimal places” or “Internal resolution” is selected� With the “+1 decimal place” setting, the net value is determined to one additional decimal place (i�e�, display accuracy x 10); “+2 decimal places” increases display accuracy x 100, and so on up to the maximum resolution available�

Decimal Places in Displayed Result

In neutral measurement, not only whole

numbers but also decimal numbers (for example, 1�25 o electrical cabling) can be displayed� The number of decimal places displayed in neutral measurement is congured in Setup under:

appl1

:

Neutr.M: 3.10.

Minimum Load The minimum load required for

initialization of the weighing platform is configured in Setup under:

appl1

:

Neutr.M: 3.6. Once the limit is exceeded by the load, initialization can begin� If the load on platform is too light, the following will occur when you try to save a value:

– Error code Inf 29 appears, – A warning signal is emitted (double-

beep) – The weighing platform is not initialized – The preset calculation factor is saved

The minimum load required for

automatic taring of the container

weight on the platform (rst weight)

iscongured in Setup under: appl

You can choose from the following

1 digit 2 digits 5 digits 10 digits 20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

The “digits” here refer to the scale

: m.weigh: 3.5.

10levels for this setting:

intervals in the connected weighing

platform� If the interval of the

connected platform is 1 g, for example,

and 1000 digits are required, you

must place at least 1000 g (= 1000

intervals) on the weighing platform for

initialization�

52

Signum 3 Ex

Example: Measuring 25 m of electrical cable� Settings (dierent from the factory settings): Setup: Application 1: Neutral Measurement Setup: Printout, PRTPROT 7�6� then select the menu line items of your choice

nM

1�) Place empty container on the

2�) Tare the scale�

)

248

4�) Save the value entered as the

O

3�) Enter the weight of 1 meter of

platform�

Note: If the automatic tare function is enabled, you do not need to press the ) key to tare the platform; the tare weight is saved automatically when you place the container on the platform

cable using the keypad (in this example, 248 g)

reference weight

5�) Place the desired amount

Read the result

6�) Print the results

p

nRef + 1 o see: wRef + 0.248 kg Conguring Printouts

G# + 6.794 kg T + 0.541 kg N + 6.253 kg

Qnt 25 o

--------------------

ofcable in the container

Signum 3 Ex

53

Averaging (Animal Weighing) Application V

With the Averaging application, you

can use your weighing platform for calculating weights as the average of a number of individual weighing operations� These individual operations are also known as “subweighing operations�”

This function is used to determine

weights under unstable ambient conditions or for weighing unstable samples (such as live animals)�

Characteristics

– Averaging started manually or auto-

matically� Configured in Setup under:

appl1: anim.wg: 3.18.

With manual start selected, the

averaging routine begins when you press a key (provided the start conditions are met)� With automatic start selected, averaging begins when you place the first load on the platform (provided the start conditions are met)�

– Enter the number of subweighing

operations using the keypad

– Info mode

– Toggle the display from “result of last

measurement” to “current weight” by pressing the

– Autmatic printout configured in Setup

under:

Appl1:

anim.wg: 3.20.

– Automatic taring of container weight�

Configured in Setup under:

appl1:

anim.wg

– Automatic start of averaging when

the scale is turned on and a sample placed on the platform (provided start conditions are met)� Configured in Setup under:

Appl: a.start: 3.8.

– Exit application, delete parameters:

The number of measurements remain in memory until it is deleted, overwritten or the application is changed using the c key� The number of measurements also remains saved after the scale is turned o�

You can assign dierent functions to

the c key for deleting applications�

When you clear applications, you can

delete either the data stored for all applications or just selected data stored for the active application� Congured in Setup under:

w key

: 3.7.

Appl: sel.cf: 3.24.

(Sel� CF function key c in

applications)

– Tare function:

If you store a tare (weight value) by

pressing the ) key, you can later

enter a value manually� The tare value

you enter is added to the stored tare

value�

Setting: menu code 3�25�1 (factory

setting)

A tare value entered manually

overwrites a stored tare value (weight

value)� If you enter a tare value

manually, a tare value (weight value)

stored later overwrites the manually

entered value� Setting: menu code

3�25�2

Congured in Setup under: Signum

Appl: tare. f: 3.25.

– Restore factory default settings�

Configured in Setup under:

Appl: DEF.App: 9.1.

A number of subweighing operations are required to form the basis for calculation of an average weight� You can enter the desired number of subweighing operations using the keypad�

The number you enter is active until

it is overwritten by another number� It also remains in memory when you switch to a dierent application program, or turn o the scale�

There are three ways to start the

averaging routine:

– Manual start with preset number of

sub-weighing operations:

Place the sample on the platform and

®

2

press the O key

– Manual start with user-dened number

of subweighing operations:

Place the sample on the platform

and enter the number of weighing operations using the keypad� Press the r key to save the number entered and begin weighing

– Automatic start with preset number of

subweighing operations:

Measurement begins when you place

the rst sample on the platform, provided the start conditions are met�

54

Signum 3 Ex

Averaging (Animal Weighing) Application V

Preparation

§ Turn scale on: Press the e key

§ While all segments are lit, press the )key

§ Select Setup: Press the k key

repeatedly until appl is displayed

§ Conrm appl: Press the ) key

§ Select the Animal Weighing application:

Press the k key repeatedly and

conrm with the ) key

Application Parameters: Animal Weighing

3� 6� Minimum load for start 3�6�1* 1 digit 3�6�2 2 digits 3�6�3 5 digits 3�6�4 10 digits 3�6�5 20 digits 3�6�6 50 digits 3�6�7 100 digits

3�6�8 200 digits

3�6�9 500 digits 3�6�10 1000 digits

3�18� Start of averaging 3�18�1* Manually 3�18�2 Automatic

3�19� Animal activity 3�19�1 0�1% of animal/object 3�19�2* 0�2% of animal/object 3�19�3 0�5% of animal/object 3�19�4 1% of animal/object 3�19�5 2% of animal/object 3�19�6 5% of animal/object 3�19�7 10% of animal/object 3�19�8 20% of animal/object 3�19�9 50% of animal/object 3�19�10 100% of animal/object

3�20� Auto printout of results 3�20�1* Off 3�20�2 On

3�21� Static display of result after load

removed

3�21�1* Display is xed until

unload threshold reached

3�21�2 Fixed display until the

c key is pressed

Minimum Load The minimum load required for

initialization of the averaging routine isconfigured in Setup under:

appl1

:

anim.wg: 3.6. Setting a minimum load for averaging can be especially useful if you congure automatic start of measurement�

The minimum load required for

automatic taring of the container weight on the platform (first weight), or for automatic printout of results, isconfigured in Setup under:

appl: a.tare: 3.5.

You can choose from the following

10levels for this setting:

1 digit 2 digits 5 digits 10 digits 20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

The “digits” here refer to the scale

intervals in the connected weighing platform� If the interval of the connected platform is 1 g, for example, and 1000 digits are required, you must place at least 1000 g (= 1000 intervals) on the weighing platform to start the averaging routine�

Starting the Measurements The averaging routine does not begin

until the fluctuation in weight value remains below a defined threshold over three consecutive measurements� The tolerance limit is defined as a percentage of the animal or object weight (for example, 0�1%, 0�2%, ��, 50%, 100%), configured in Setup under:

appl1

:

anim.wg: 3.19.

If the “Averaging” parameter is set to

2%, for example, and the animal or object weighs 10 kg, measurement does not begin until the uctuation in weight value remains below 200 g during three consecutive measurements�

Display A calculated average value is shown

continuously on the main display� The! Symbol (indicating a calculated value) is also displayed�

You can toggle between this display to

a readout of the current weight on the platform by pressing the w key�

In the Setup menu, under:

appl1

:

anim.wg: 3.21.

you can select “Display is static until

unload threshold reached” to have the display switch automatically to the weight readout when you unload the weighing platform (i�e�, when the load is less than half the minimum load)� The result of the most recent averaging operation is not saved�

If you select “Display is static until

the c key is pressed,” the calculated average remains displayed even after the weighing platform is unloaded, until you press the c key to begin anew measurement�

* = Factory setting

§ Save the settings with the ) key and exit Setup: Press the ( key several times�

Signum 3 Ex

55

Averaging (Animal Weighing) Application V

Example: Measuring the weight of one mouse� Settings (different from the factory settings): Setup: Application 1: Animal Weighing Setup: Printout; PRTPROT 7�6 then select the menu line items of your choice

Place empty container on the

1�) Tare the scale�

)

2�) Place 1st animal in container

platform�

Note: If the automatic tare function is enabled, you do not need to press the ) key to tare the platform; the tare weight is saved automatically when you place the container on the platform�

The averaging routine does

Read o the result of

5�) Print the results�

p

mDef + 20 see chapter T + 0.292 kg Conguring Printouts x-Net + 0.183 kg

--------------------

When you unload the

not begin until the uctuation in weight value remains below a dened threshold over three consecutive measurements� The number of subweighing operations remaining is shown in the numeric display�

averaging

Note: If automatic printout of results is enabled, you do not need to press the p key� The results are printed automatically�

weighing platform, the display switches to the weightreadout automatically, unless configured otherwise in Setup� The weighing instrument is ready for the next measurement�

20

r

56

3�) Enter the number of

subweighing operations using the keypad (in this example, 20 measurements)�

4�) Save the value entered and

begin averaging

Signum 3 Ex

Weighing in Percent

Application L

With the Weighing in Percent

application, you can use your weighing platform to obtain weight readouts in percent which are in proportion to a reference weight� L is displayed as the weight unit�

Characteristics – Save the current weight value as

reference weight “pRef ”

– Enter the reference weight “Wxx%” for

100% using the keypad

– Enter the reference percentage “pRef”

using the keypad

– Display result as loss (difference) or

residue

– Display up to 3 decimal places�

Configured in Setup under:

appl1:

Perc.wg: 3.10.

– Activate Info mode with the I key – Toggle the display between percent and

weight using the w key�

– Automatic taring of container weight�

Congured in Setup under:

appl: a.tare: 3.7.

– Automatic initialization when the

scale is switched on� The application is initialized with the most recently saved data� Congured in Setup under:

appl: a.start: 3.8.

– Exit application, delete parameters:

The value of the reference weight in the memory remains active until it is deleted, overwritten or the application is changed using the c key� The value also remains saved after the scale is turned o�

– You can assign dierent functions to

thec key for deleting applications�

When you clear applications, you can

delete either the data stored for all applications or just selected data stored for the active application� Congured in Setup under:

Appl: sel.cf: 3.24.

(Sel� CF function key c in applications)

– Tare function:

1) If you store a tare (weight value) by pressing the ) key, you can later enter a tare value manually� The tare value you enter is added to the stored tare value� Setting: menu code 3�25�1 (factory setting)

2) A tare value entered manually overwrites a stored tare value (weight value)� If you enter a tare value manually, atare value (weight value) stored later overwrites the manually entered value� Setting: menu code 3�25�2 Congured in Setup under: Appl: tare. f: 3.25.

– Restore factory default settings�

Configured in Setup under:

appl: def.app: 9.1.

To determine the weight of a sample

relative to a reference weight, you need to dene the reference percentage value� There are three ways to enter this value in the application program:

– Calculation: – Place the reference quantity (dened

by the reference percentage) on the connected weighing platform and press the

O key to initialize the application�

– Place any amount of the sample

material on the connected weighing platform, enter the reference percentage through the keypad, and press the rkey to initialize the application�

How the reference weight is calculated

depends on the application setting that denes “Accuracy for saving weights”� The value is either rounded o in accordance with the display resolution, or saved with 10-fold or 100-fold resolution, or with the maximum internal resolution of the weighing platform�

– By entering the reference weight for

100% using the keypad and pressing the O key to initialize the application�

The initialization data remains valid

until deleted by pressing the c key or until overwritten by a new value� They remain saved after the Signum

®

is

switched o�

Weighing in Percent Application L

Preparation

§ Turn scale on: Press the e key

§ While all segments are lit, press the )key

§ Select Setup: Press the k key

repeatedly until appl is displayed

§ Conrm appl: Press the ) key

§ Select the Weighing in Percent

application:

Press the k key repeatedly and

conrm with the ) key

Weighing in Percent Application Parameters

3� 6� Minimum load for initialization 3�6�1* 1 digit 3�6�2 2 digits 3�6�3 5 digits 3�6�4 10 digits 3�6�5 20 digits 3�6�6 50 digits 3�6�7 100 digits

3�6�8 200 digits

3�6�9 500 digits 3�6�10 1000 digits

3� 9� Reference value calculation

3�9�1* Display accuracy 3�9�2 Display accuracy

3�9�3 Display accuracy

3�9�4 Internal resolution

3�10� Decimal places in displayed result 3�10�1* None 3�10�2 1 decimal place 3�10�3 2 decimal places 3�10�4 3 decimal places

3�11 3�11�1* With stability 3�11�2 With increased stability

3�15� Display of calculated values 3�15�1* Residue 3�15�2 Loss

* = Factory setting

§ Save the settings with the ) key and exit Setup: Press the ( key several times�

resolution

+ 1 decimal place

+ 2 decimal places

Parameter for saving weight values

Signum 3 Ex

57

Weighing in Percent Application L

Parameter for Saving Weight Values The reference weight is saved when the

scale has stabilized� “Stability” is defined as the point at which the fluctuation of a measured value lies within a defined tolerance range� The narrower the tolerance range, the more stable the platform is at “stability”�

In Setup menu:

Appl1:

Perc.wg: 3.11.

You can dene whether the value is

saved when “standard stability” is reached, or only at “increased stability” (narrower tolerance range)� If you select “increased stability”, the reference weight saved will be more accurate and the results more reproducible, but the response time of the weighing platform might be longer�

Accuracy of Average Piece Weight

Calculation

The resolution applied for calculating

the reference weight is dened in Setup under:

Appl1

:

Perc.wg: 3.9.

The resolution for calculating the

reference weight is increased if “+1 decimal place,” “+2 decimal places” or “Internal resolution” is selected� With the “+1 decimal place” setting, the net value is determined to one additional decimal place (i�e�, display accuracy x 10); “+2 decimal places” increases display accuracy x 100, and so on up tothe maximum resolution available�

Display of Results With the Weighing in Percent

application, the result can be displayed as a remainder or loss� Configured in Setup under:

Appl1:

Perc.wg: 3.15.

Minimum Load The minimum load required for

initialization of the weighing platform is congured in Setup under:

Appl1

:

Perc.wg: 3.6.

Once the limit is exceeded by the load,

initialization can begin� If the load on platform is too light, the following will occur when you try to save a value:

– Error code Inf 29 appears, – The weighing platform is not initialized – The preset reference percentage is saved

The minimum load required for

automatic taring of the container weight on the platform (rst weight) iscongured in Setup under:

appl

:m.weigh: 3.5.

You can choose from the following

10levels for this setting:

1 digit 2 digits 5 digits 10 digits 20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

The “digits” here refer to the scale

intervals in the connected weighing platform� If the interval of the connected platform is 1 g, for example, and 1000 digits are required, you must place at least 1000 g (= 1000 intervals) on the weighing platform for initialization�

Equations: Residue = (current weight –

100% weight) / * 100

Loss = (current weight –

100% weight) / 100% weight * 100

58

Signum 3 Ex

Example: Weighing in 100% of a sample material�

Settings (different from the factory settings): Setup: Application 1: Weighing in percent Setup: Printout, PRTPROT 7�6, then select the menu line items of your choice

1�) Place empty container on the

2�) Tare the scale�

)

3�) Add reference material in

platform�

Note: If the automatic tare function is enabled, you do not need to press the ) key to tare the platform; the tare weight is saved automatically when you place the container on the platform

accordance with reference percentage (in this example, 85 g)

If the weight is too light,

Reduce the minimum load

5�) Continuing filling the

6�) Print the results

p

anerror code is shown in themain display Inf 29

setting

container until the target amount is reached (in this example, 100%)

4�) Begin calculation of reference

O

weight� The calculation is based on the active net weight value and the reference percentage entered

pRef + 20 % see wRef + 0.085 kg Conguring Printouts

G# + 1.080 kg T + 0.675 kg N + 0.423 kg

Prc + 100 %

-------------------

Signum 3 Ex

59

Checkweighing Application O

With the Checkweighing application,

you can check whether the sample on the weighing platform matches a target value or lies within a given tolerance range� Checkweighing also makes it easy to fill sample materials to a specified target weight�

Characteristics

– Enter the nominal or target weight (set

point) and the tolerance range delimiters either using the keypad or by saving the weight value of a load on the platform�

– Enter the tolerance limits as absolute

values (Target, Min and Max) or via the target value as percentage deviation with user-dened percent limits or withrelative limits�

Congured in the menu under:

Appl 2:

check.wg: 4.5.

– The target value can be taken over

as a weighed value from a weighing platform, and the upper and lower tolerance limits are dened as a percentage deviation from the target value (setting code 4�5�2)� The deviation percentage can be changed using the r key: 0�1%, 0�2%, 0�5%, 1%, 1�5%, 2%, 3%, 5% or 10%�

– The target value, lower tolerance limit

(minimum) and upper tolerance limit (maximum) can be applied as weighed values from the weighing platform�

– Target value and tolerance limits

checked during input; values must conform to: upper limit > target > lowerlimit > 1 digit�

– Checkweighing range: either 30% to

170% of the target, or from 10% to infinity�

– Results are shown on main display on

the bar graph, as well as sent to control output ports for further processing�

– Toggle the main display between weight

and tolerances limits by pressing the w key� If the weight in the readout is outside the tolerance range, “LL” (too low) or “HH” (too high) is displayed�

– Activate Info mode with the I key

– Automatic printout congured in Setup

under:

Appl 2

:

check.wg: 4.6.

– Automatic taring of container weight�

Congured in Setup under: Appl

a.tare

: 3.7.

:

– Automatic initialization when you

switch on the scale with most recently saved application data� Congured in Setup under:

appl

: a.start: 3.8.

– You can assign dierent functions to

the c key for deleting applications� When you clear applications, you can delete either the data stored for all applications or just selected data stored for the active application� Congured in Setup under:

Appl

: sel.cf: 3.24.

(Sel� CF function key c in applications)

– Tare function:

1) If you store a tare (weight value) by pressing the ) key, you can later enter a tare value manually� The tare value you enter is added to the stored tare value� Setting: menu code 3�25�1 (factory setting)

2) A tare value entered manually overwrites a stored tare value (weightvalue)� If you enter a tare value manually, atare value (weight value) stored later overwrites the manually entered value� Setting: menu code 3�25�2 Congured in Setup under: Appl: tare. f: 3.25.

– Restore factory default settings�

Configured in Setup under: Appl: def.app: 9.1.

Checkweighing entails comparing the

current weight value to a defined target value� You can enter the value for this target using the keypad, or by saving the weight value indicated� You can also define upper and lower tolerance limits based on this target� You can do this by:

– Entering absolute values using the

keypad or placing the desired amount of weight on the platform and saving the value, or

– by entering each value as a percentage of

thetarget weight

The initialization data remains valid until

deleted by pressing the c key or until overwritten by a new value� They remain saved after the scale is switched o�

Preparation

§ Turn scale on: Press the e key

§ While all segments are lit, press the ) key

§ Select Setup: Press the k key repeatedly

until Setup is displayed

§ Open the Setup menu: Press the ) key

§ Select the Checkweighing application:

Press the k key repeatedly and conrm

with the ) key

Application parameters: Checkweighing

4�2� Checkweighing range 4�2�1* 30 to 170% 4�2�2 10% to innity

4�3� Control output for SET as: 4�3�1* Output “SET” 4�3�2 Ready to operate

4�4� Activation of outputs 4�4�1 O 4�4�2 Always on 4�4�3 On at stability 4�4�4* On within checkweighing range 4�4�5 On at stability within

checkweighing range

4�5� Parameter input 4�5�1 Min, max, target value,

absolute values

4�5�2* Only target value with percent

limits

4�5�3 Target value with free percent

limits

4�5�4 Target value; min, max values

as relative weights to target value

4�6� Automatic printing 4�6�1* Off 4�6�2 On 4�6�3 Only values within tolerance 4�6�4 Only values outside tolerance

4�7� Checkweighing toward zero 4� 7� 1* Off 4�7� 2 On

* = Factory setting

§ Save the settings with the ) key and exit Setup: Press the ( key several times�

60

Signum 3 Ex

Application 2: Checkweighing O

Kontrollbereich

Gleich

Set

Kleiner

Betriebsbereit

Größer

Set

Kontrollbereich

Gleich

Betriebsbereit

Kleiner

Größer

Minimum Load The minimum load required for

automatic taring of the container weight on the platform (rst weight), or for automatic printout of results, iscongured in Setup under:

Appl

: m.weigh: 3.5.

You can choose from the following

10levels for this setting:

1 digit (no minimum load) 2 digits 5 digits 10 digits 20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

The “digits” here refer to the scale

intervals in the connected weighing platform� If the interval of the connected platform is 1 g, for example, and 1000 digits are required, you must place at least 1000 g (= 1000 intervals) on the weighing platform to activate autotaring or autoprint�

Display The result of a measurement is shown

either as a weight value or in relation to the target�

– Weight display The measured value line always shows

the weight value, even if it lies outside the tolerance range�

The bar graph is displayed with symbols

indicating lower limit, target and upper limit� Weights are shown logarithmically up to the lower tolerance limit, and linearly beyond that point�

Digital I|O Interface The Checkweighing application

supports the digital input|outputinterface�

There are 4 control lines, or outputs,

which are activated as follows (see also the diagram below):

– Lighter – Equal – Heavier – Set

In Setup menu:

Appl 2:

check.wg: 4.4.

you can define whether these control

ports are

– off – always on – activated at stability – on within the checkweighing range – on at stability within checkweighing

range

The “SET” output normally changes its

voltage level when the load is near the target weight� Alternatively, you can assign the “Ready for use” function to this port� Configured in Setup under:

Appl 2:

check.wg: 4.3.

This enables you to, for example,

connect a simple indicator for weighing or calculation results�

All data output ports have a high

voltage level when:

– The application has not been initialized – The weighing instrument is not at

stability and one of the “at stability ��” parameters is selected

– The weight is not within checkweighing

range

Sollgewicht

30 %

Unterer

Grenzwert

Digital I|O Interface – “SET” control output: set – port lines: always on

Sollgewicht

30 %

Unterer

Grenzwert

170%

Oberer

Grenzwert

170%

Oberer

Grenzwert

– Relation to target value

As “Weight display” above, with the

exception that:

– LL appears in the main display if the

weight value is less than the lower limit

– HH is shown on the main display if

the weight value is higher than the upper tolerance limit

Digital I|O Interface – “SET” control output: set – port lines: within the checkweighing

range

Output port specifications: – When not in use, the voltage level is

high: >3�7 V/+4 mA

– When activated, the voltage level is low:

<0�4 V/–4 mA

! The data outputs are not protected

from short circuits�

Signum 3 Ex

61

Application 2: Checkweighing O

Example: 1 Checkweighing samples with a target weight of 1250 g and a tolerance range from -10 g to +30 g Settings (different from the factory settings): Setup: Application 2: Checkweighing Setup: Printout, PRTPROT: 7�6, then select the menu line items of your choice

1�) Begin input of target and

O

2�) Place a sample with the

3�) Save target value

O

1240

4�) Enter value for lower limit

tolerance values

targetweight (in this example, 1250g) on the platform

(inthis example, 1240 g)

1280

Save the value for the

O

7�) Weigh samples

8�) Printing results

p

Setp + 1.250 kg Target Min + 1.240 kg Minimum Max + 1.280 kg Maximum

G# + 1.256 kg Gross weight T + 0.000 kg Tare weight N + 1.256 kg Net weight

Lim + 0.48 % Percentage of deviation from

W.Diff+ 0.006 kg Absolute deviation from target

-------------------

* When displayed in relation to

6�) Enter value for the upper limit

(in this example, 1280 g)

upperlimit

Note: If automatic printout of results is enabled, you do not need to press the pkey� The results are printed automatically�

target*

target value: If the weight is lighter than the lower limit, the display shows: LL

5�) Save value for the lower limit

O

62

Signum 3 Ex

If the weight is heavier than

the upper limit, the display shows: HH

Checkweighing Toward Zero Application

Example: 2 Checkweighing samples with a target weight of 1250 g and a tolerance range from -10 g to +30 g Settings (dierent from the factory settings): Setup: Application 2: Checkweighing toward zero (parameter 4� 7� 2) Setup: Printout, PRTPROT 7�6, then select the menu line items of your choice

1�) Begin input of target and

O

2�) Place a sample with the target

3�) Save target value

O

1240

4�) Enter value for lower limit

tolerance values

weight (in this example, 1250g) on the platform

(inthis example, 1240 g)

1280

Save the value for the upper

O

7�) Weigh samples

8�) Printing results

p

Setp + 1.250 kg Target Min + 1.240 kg Minimum Max + 1.280 kg Maximum

G# + 1.256 kg Gross weight T + 0.000 kg Tare weight N + 1.256 kg Net weight

Lim + 0.48 % Percentage of deviation from

W.Diff+ 0.006 kg Absolute deviation from target

-------------------

* When displayed in relation to

6�) Enter value for the upper limit

(in this example, 1280 g)

limit

Note: If automatic printout of results is enabled, you do not need to press the p key� The results are printed automatically�

target*

target value: If the weight is lighter than the lower limit, the display shows: LL

5�) Save value for the lower limit

O

If the weight is heavier than

the upper limit, the display shows: HH

Signum 3 Ex

63

Classification Application W

Classication

Application W

With the Classification application, you

can determine whether the weight of a given sample lies within the limits of a defined weight class�

Characteristics – Classification with 3 or 5 weight classes�

Configured in Setup under:

Appl 2:

– Enter the upper limits of weight classes

using the keypad or by saving weight values from a load on the platform

– Enter the upper limits of weight classes

as absolute values or as a percentage of deviation from the upper limit of Class1 Congured in the menu under:

Appl 2:

– Activate Info mode with the I key

– Toggle the main display between

classication display and weight display by pressing the w key�

– Automatic printout congured in Setup

under:

Appl 2:

– Automatic taring of container weight�

Congured in Setup under:

appl: a.tare: 3.7.

– Automatic initialization when you

switch on the scale with most recently saved application data� Congured in Setup under:

appl: a.start: 3.8.

You can assign dierent functions to

the c key for deleting applications�

When you clear applications, you can

delete either the data stored for all applications or just selected data stored for the active application� Congured in Setup under:

Appl: sel.cf: 3.24.

(Sel� CF function key c in applications)

– Tare function:

1) If you store a tare (weight value) by pressing the ) key, you can later enter a tare value manually� The tare value you enter is added to the stored tare value� Setting: menu code 3�25�1 (factorysetting)

2) A tare value entered manually overwrites a stored tare value (weightvalue)� If you enter a tare value manually, a tare value (weight value) stored later overwrites the manually entered value� Setting: menu code 3�25�2 Congured in Setup under: Appl:

W:: 3.25.

– Restore factory default settings�

Configured in Setup under:

appl: def.app: 9.1.

To use the Classication application, you

need to enter the delimiters that separate one class from another�

Limits between the individual weigh

classes are required for the classication� The lower limit of Class 1 is dened by the preset minimum load� The other classes are congured by dening their upper limits� There are two ways to enter the delimiters for classes 1 through 3 (or5):

– By saving the weight value indicated: Each upper limit value, with the

exception of the highest class, is entered using the keypad or by saving the weight

value of a load on the weighing platform� – By entering a percentage: The upper value of Class 1 is entered

using the keypad or by saving the

value indicated� Upper limits for the

other classes are dened by entering a

percentage of deviation from the upper

limit of Class 1, using the keypad� Example: Enter 100 g as the upper limit

of Class 1� Then enter 15%� When working with 3 classes, this yields

the following weight classes: Class 0: up to the minimum load Class 1: >minimum load - 100 g Class 2: >100 g – 115 g Class 3: >115 g - maximum load When working with 5 classes, this yields

the following weight classes: Class 0: up to the minimum load Class 1: >minimum load - 100 g Class 2: >100 g – 115 g Class 3: >115 g – 130 g Class 4: >130 g – 145 g Class 5: >145 g - maximum load

The initialization data remains valid

until deleted by pressing the c key or until overwritten by a new value� They remain saved after the scale is switched o�

Preparation

§ Turn scale on: Press the e key

§ While all segments are lit, press the )key

§ Select Setup: Press the k key

repeatedly until appl is displayed

§ Conrm appl: Press the ) key

§ Select the Classication application:

Press the k key repeatedly and conrm with the ) key

Classification Application Parameters

3�6� Minimum Load for Initialization

and Defining the Class 1 Lower

Limit 3�6�1* 1 digit 3�6�2 2 digits 3�6�3 5 digits 3�6�4 10 digits 3�6�5 20 digits 3�6�6 50 digits 3�6�7 100 digits

3�6�8 200 digits 3�6�9 500 digits 3�6�10 1000 digits

4�3� Control output for SET as: 4�3�1* Output “SET” 4�3�2 Process control systems

ready to operate

4�7� Activation of outputs 4�7�1 Off 4�7�2 Always on 4�7�3* On at stability

4�8� Number of classes 4�8�1* 3 classes 4�8�2 5 classes

4�9� Parameter input 4�9�1* Weight values 4�9�2 Percentage values

4�10� Automatic printing 4�10�1* Off 4�10�2 On

* = Factory setting

§ Save the settings with the ) key and

exit Setup: Press the ( key several

times�

64

Signum 3 Ex

Minimum Load

Klasse

123

Mindestlast

Maximallast

Set

Klasse 3

Betriebsbereit

Klasse 1

Klasse 2

Klasse

12345

Mindestlast

Maximallast

Set

Klasse 1/2

Klasse 4/5

Betriebsbereit

Klasse 2/3/4

The minimum load for the first class

isconfigured in Setup under:

class

: 3.6.

Once the limit is exceeded by the load,

initialization can begin�

Once the application is initialized, a

weight value below the minimum load is designated Class 0; no class is displayed�

The minimum load required for

automatic taring of the container weight on the platform (first weight), or for automatic printout of results, isconfigured in Setup under:

Appl: m.weigh: 3.5.

Digital I|O Interface The Classification application supports

the digital input/output-interface�

There are 4 control lines, or outputs,

which are activated as follows (see also the diagram below):

– With 3 classes: – Class 1 – Class 2 – Class 3 – Set – With five classes: – Classes 1/2 – Classes 2/3/4 – Classes 4/5 – Set

You can choose from the following

10levels for this setting:

1 digit 2 digits 5 digits 10 digits 20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

The “digits” here refer to the scale

intervals in the connected weighing platform� If the interval of the connected platform is 1 g, for example, and 1000 digits are required, you must place at least 1000 g (=1000 intervals) on the weighing platform for the rst class to activate autotaring or autoprint�

Display The result of a given measurement is

shown as either a weight value or a class number�

In Setup menu:

Appl 2:

you can define whether these control

ports are

– off – always on – activated at stability

The “SET” output normally changes

its voltage level when the current weight exceeds the minimum load� Alternatively, you can assign the “Ready for use” function to this port� Configured in Setup under:

Appl 2:

Digital I|O Interface Control lines when working with 3 classes

– Weight display: The current weight is shown in the

measured value line and the current class in the text line�

– Display of classes: The current class is shown in the

measured value line, and the current weight in the text line�

Digital I|O Interface Control lines when working with 5 classes

Signum 3 Ex

65

Example:

+

Defining three classes� Settings (different from the factory settings): Setup: Application 2: Classification Setup: Printout, PRTPROT 7�6, then select the menu line items of your choice

1�) Begin input of class delimiters

O

110

3�) Save the upper limit for

O

130

5�) Save the upper limit for

O

2�) Enter the upper limit for

Class1 using the keypad (inthis example, 110 g)

Class1

4�) Enter the upper limit for

Class2 using the keypad (inthis example, 130 g)

Class2

6�) Place the sample on the

Read the result

7�) Printing results

p

Lim1 + 0.110 kg see chapter: wRef + 0.130 kg Conguring Printouts G# + 0.118 kg T + 0.000 kg N + 0.118 g

Class 2

-------------------

weighing platform

Note: If automatic printout of results is enabled, you do not need to press the p key� The results are printed automatically�

66

Signum 3 Ex

Totalizing Application s

With the Totalizing application, you

can add weight values to the totalizing memory� In addition to weight values, the number of separate values added to memory is also saved (transaction counter)�

Characteristics – Totalize up to 999 individual weights

Save values automatically: – Simultaneous saving of net values

and calculated values (if available)� Congured in Setup under: Appl 3: totaliz: 3.16.

– Save weight values and calculated

values from either Application 1 (for example, Counting, Weighing in Percent) or Application 2 (Checkweighing)� Congured in Setup under:

Appl 3: totaliz: 3.22.

– Current transaction number displayed in

the text line (indicating the transactions already added)

– Weighing in up to a dened target,

with the totalization memory content + current weight displayed in the text lines

– Save weight values manually or

automatically

– Activate Info mode with the I key

– Automatic printout when value saved

– Automatic taring of container weight�

Configured in Setup under:

appl: a.tare: 3.7.

– Incomplete totalizing routines saved

in battery-backed memory after

®

Signum

3 is switched o� Configured

in Setup under:

Appl: a.start: 3.8.

– You can assign dierent functions to

the c key for deleting applications�

When you clear applications, you can

delete either the data stored for all applications or just selected data stored for the active application� Congured in Setup under:

Appl: sel.cf: 3.24.

(Sel� CF function key c in applications)

– Tare function:

1) If you store a tare (weight value) by pressing the ) key, you can later enter a tare value manually� The tare value you enter is added to the stored tare value� Setting: menu code 3�25�1 (factory setting)

2) A tare value entered manually overwrites a stored tare value (weightvalue)� If you enter a tare value manually, atare value (weight value) stored later overwrites the manually entered value� Setting: menu code 3�25�2 Congured in Setup under:

Appl

: tare.f: 3.25.

– Restore factory default settings�

Configured in Setup under:

Appl: def.app: 9.1.

The Signum has a totalizing memory

for totalizing individual net and gross values� Weight values can be saved to the totalizing memory either manually or automatically� In Setup under:

Appl 3:

totaliz: 3.16.

– Save value manually by pressing the

O key�

The value taken from the active

platform is added to the value already saved in totalization memory and the transaction counter value is increased by one�

When a value is added manually, the

program does not check whether the platform has been unloaded since the last time the O key was pressed�

– Value saved automatically when the

weighing platform is stable and the dened minimum load is exceeded�

If the dened minimum load is not

exceeded, you can save the item manually by pressing the O key�

Regardless of these settings, the current

value cannot be saved automatically unless the platform is unloaded before the next sample is placed on it� The weighing platform is considered to be unloaded when the load is less than 50% of the minimum load�

The number of items added to memory

is displayed in the text line�

Press the

c key to clear the totalizing

memory� A printout is automatically generated�

With 2 weighing platforms connected,

you can add values from both platforms to the totalizing memory� The displayed result is accurately calculated in the active weight unit�

Example: When you add 1243 g

(determined on a weighing platform with three decimal places) to 1400 g (determined on a platform with 1decimal place), the display shows 2643 g�

Signum 3 Ex

67

Totalizing Application s

Preparation

§ Turn scale on: Press the e key

§ While all segments are lit, press the )key

§ Select Setup: Press the k key

repeatedly until appl is displayed

§ Conrm appl: Press the ) key

§ Select the Totalizing application:

Press the k key repeatedly and

conrm with the ) key

Totalizing Application Parameters

3� 6� Minimum load for autosave 3�6�1* 1 digit 3�6�2 2 digits 3�6�3 5 digits 3�6�4 10 digits 3�6�5 20 digits 3�6�6 50 digits 3�6�7 100 digits

3�6�8 200 digits

3�6�9 500 digits 3�6�10 1000 digits

3�16� Autosave mode 3�16�1* Off 3�16�2 On

3�17� Individual/Component printout

when saved 3�17�1 Automatic printing o 3�17�2* Print the entire standard

print conguration every time with the O key

3�22� Source of values for data saved

automatically 3�22�1* Application 1 3�22�2 Application 2

3�23� Saved value 3�23�1* Net 3�23�2 Calculated 3�23�3 Net and Calculated

* = Factory setting

§ Save the settings with the ) key and

exit Setup: Press the ( key several

times�

Minimum Load The minimum load required for

automatic taring of the container weight on the platform (first weight) isconfigured in Setup under:

Appl: m.weigh: 3.5.

The minimum amount that a

component must weigh before it can be saved in totalizing memory iscongured in Setup under:

appl 3

:

totaliz: 3.6.

You can choose from the following

10levels for this setting:

1 digit 2 digits 5 digits 10 digits 20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

The “digits” here refer to the scale

intervals in the connected weighing platform� If the interval of the connected platform is 1 g, for example, and 1000 digits are required, you must place at least 1000 g (=1000 intervals) on the weighing platform for autotaring (only with the “Autotare rst weight” option selected)�

Printout In Setup menu:

appl 3:

totaliz: 3.17.

You can congure whether a printout

isgenerated manually by pressing the p key or automatically when a weight value is stored in the totalizing memory�

If you select the 3.17.1 menu item,

printouts can only be generated manually by pressing the p key (single printout)�

If the 3.17. 2. menu item is selected

(Print one component), the component record is printed�

68

The total data record is printed when

you clear the totalizing memory (bypressing the c key)�

Signum 3 Ex

Example: Totalizing weight values� Settings (dierent from the factory settings): Setup: Application 3: Totalizing Setup: Printout, PRTPROT 7�6 Setup: Device Parameters: Printout: Printer 1: Select “Component log: Auto printout”, then select the menu line items of your choice PRT PROT: 7�7� Setup: Printout: Printer 1: Select “Total data record: Printout as per CF key,” then select the menu line items of your choice PRTPROT: 7�8�

Totalizing Application s

1�) Place the first weight on the

Weight value is displayed

2�) Store rst weight value in

O

G# + 0.250 kg Component weight is printed T + 0.000 kg automatically (congured N + 0.250 kg component log) n 1

The transaction counter value

weighing platform

totalizing memory

is increased by one�

4�) Place the second weight

Weight value is displayed

5�) Store second weight value in

O

G

# + 1.346 kg Component weight is printed T + 0.346 kg automatically (congured N + 1.000 kg component log) n 2

The transaction counter value

onthe weighing platform

totalizing memory

is increased to two

3�) Remove the rst weight from

the weighing platform

6�) Toggle display between

W

7�) End totalizing

c

*G + 1.346 g Component weight is printed *N + 1.250 g automatically (congured n 2 component log)�

-------------------

individual value and total

Signum 3 Ex

69

Net-total Formulation Application R

Net-total Formulation

Application R

Net-total Formulation Application R

With this application, you can weigh in

different components up to a defined total� Each component is saved in the net-total memory�

Characteristics – Weigh in up to 999 components in

series

– Net total formulation cannot be

combined with a level 1 or level 2 application

– Current component number displayed

in the text lines (indicating the component to be added)

– Toggle the display from “component

mode” to “additive mode” by pressing the w key�

– Component mode: Display the weight

of the component currently on the platform (for 1 second after it is saved; then the platform is tared)

– Additive mode: Display the weight of

all components on the platform (after it is saved, the net weight of the last component added is displayed briey)

– Automatic taring of container weight�

Configured in Setup under:

Appl: a.tare: 3.7.

– Restore factory default settings�

Congured in Setup under:

Appl: def.app: 9.1.

– Activate Info mode with the I key

– Automatic component printout when it

is saved� Congured in Setup under:

appl 3:

Net Tot: 3.17.

If the 3.17.2 menu item is selected,

theentire component record is printed� If the 3.17.3 menu item is selected, the following items are generated only once for the rst component: Blank line, date, time, ID1 through ID4, header lines 1 and 2� For subsequent components, each “component” item (“Comp xx”) is followed by a blank line�

70

Signum 3 Ex

Preparation

§ Turn scale on: Press the e key

§ While all segments are lit, press the )key

§ Select Setup: Press the k key

repeatedly until appl is displayed

§ Conrm appl: Press the ) key

§ Selecting the Net-total Formulation

Application:

Press the k key repeatedly and

conrm with the ) key

Net-total Formulation Application

Parameters

3�6� Minimum load for autosave 3�6�1* 1 digit 3�6�2 2 digits 3�6�3 5 digits 3�6�4 10 digits 3�6�5 20 digits 3�6�6 50 digits 3�6�7 100 digits

3�6�8 200 digits

3�6�9 500 digits 3�6�10 1000 digits

3�17� Individual/Component printout

when saved 3�17�1 Automatic printing o 3�17�2* Print the entire standard

print conguration every time with the O key

3�17�3* Print the entire standard

print conguration once with the O key

* = Factory setting

§ Save the settings with the ) key and

exit Setup: Press the ( key several times�

Minimum Load The minimum amount that a

component must weigh before it can besaved in net-total memory is congured in Setup under: appl 3 Net Tot: 3.6.

Once the limit is exceeded by the load,

the value can be saved� If the load on platform is too light, the following will occur when you try to save a value:

– Error code Inf 29 appears, – The weight is not saved

The minimum load required for

automatic taring of the container weight on the platform (rst weight) iscongured in Setup under: Appl: m.weigh: 3.5.

You can choose from the following

10levels for this setting:

1 digit 2 digits 5 digits 10 digits 20 digits 50 digits 100 digits 200 digits 500 digits 1000 digits

The “digits” here refer to the scale

intervals in the connected weighing platform� If the interval of the connected platform is 1 g, for example, and 1000 digits are required, you must place at least 1000 g (= 1000 intervals) on the weighing platform for saving�

Signum 3 Ex

71

Example: Weighing in 3 components of a formulation recipe� Settings (different from the factory settings): Setup: Application 3: Net total Setup: Printout, PRT PROT: 7�7� Printer 1: Select “Component log: Auto printout”, then select the menu line items of your choice Setup: Printout; PRT PROT: 7�8 Printer 1: Select “Total data record: Printout as per CF key,” then select the menu line items of your choice

1�) Place empty container on the platform

Net-total Formulation Application R

2�) Tare the scale�

)

Prompt to fill and save the first component is shown

3�) Add the first component to the container (in this example: 1100 g)

The weight of the first component is displayed

4�) Save the rst component weight

O

Note: If the automatic tare function is enabled, you do not need to press the ) key to tare the platform; the tare weight is saved automatically when you place the container on the platform

Cmp001+ 1.100 kg The component record is printed automatically

72

Signum 3 Ex

The weighing platform is tared

and the component counter value is increased by one� Prompt to ll and save the second component is shown

8�) Add the third component

to the container until the desired target is reached (inthis example: 2000 g)

5�) Add the second component

The weight of the second

6�) Save the second component

O

Cmp002+ 0.525 kg The component record

The weighing platform is tared

7�) Toggle to the “additive mode”,

w

The value displayed equals the

tothe container (in this example: 525 g)

component is displayed

weight

isprinted automatically

and the component counter value is increased by one� Prompt to ll and save the third component is shown

to display the total weight of all components

weight of components added up to now plus the current weight on the platform�

The total weight is displayed

9�) Save the third component

O

Cmp003+ 0.375 kg The component record is

The component counter

10�) End weighing-in operation

c

Results are printed

n + 3 Number of components Tot.cp+ 2.000 kg Content of component

Cont.T+ 0.296 kg Content of tare memory

-------------------

weight

printed automatically

value is increased by one� Prompt to ll and save the fourth component is shown

automatically (congured total data record)

memory

(container weight)

Signum 3 Ex

73

Examples of Application Combinations

Example: “Portioning” (counting, checkweighing with totalizing)

Settings (dierent from the factory settings): Setup: Application parameters: Application 1: Counting (count) Setup: Application parameters: Application 2: Checkweighing (check.wg) Setup: Application parameters: Application 3: Totalizing: Saved value: Net + Calculated (3.23.3) Setup: Application parameters: Application 3: Totalizing: Autosave: On (3.16.2) Setup: Application parameters: Application 3: Totalizing: Source of data: Application 2 (3.22.2) Setup: Printout: PRT PROT 7�8� Printer 1: “Total: Print printout when FN pressed,” then select the menu line items of your choice (x.xx.x)

1�) Switch on the scale and enter settings as above

e

2�) Delete any data from previous operation

c

Examples of Application Combinations

3�) Place empty container on the platform�

4�) Tare the scale�

)

5�) Place a number of parts in the container for the reference quantity (in this example, 10 pcs)

Note: If the automatic tare function is enabled, you do not need to press the ) key to tare the platform; the tare weight is saved automatically when you place the container on the platform

6�) Start calculation of reference sample weight

O

74

Signum 3 Ex

If the weight is too light,

anerror code is shown in themain display

Inf 29

Reduce the minimum load

7�) Toggle to Checkweighing

D

8�) Initialize Checkweighing

O

100

9�) Enter target value, minimum

setting or increase the reference sample quantity setting and the number of parts in the container

and maximum (in this example, target 100 pieces, minimum 100 pieces, maximum 102 pieces)

O

100

11�) Add desired number of

pieces

The number of pieces is

saved automatically saved

12�) Unload the scale: Remove the samples

13�) Perform further counting

operations as desired

O

102

O

10�) Toggle to Totalizing

D

14�) Toggle display from

w

15�) End the portioning options

c

-------------------nRef + 10 pcs Congured printout: Total wRef + 0.001000 kg Setp + 100 pcs Min + 100 pcs Max + 102 pcs

n 6 *N + 0.600 kg Total + 600 pcs

--------------------

individual value to total

and print the nal evaluation

Signum 3 Ex

75

Configuring Printouts

Conguring

Printouts

Purpose You can congure individual printout

formats for each application� Using the total data record for Totalizing and Net total formulation applications, you can dene which parameters are printed using the c key�

In the “Print parameters” Setup menu,

single, component and total data records can be congured, which contain the available print items for the respective applications� This should be carried out after setting the applications since some data in the printout is application-dependent�

Characteristics – Quantity and extent of printout lists: 6 lists each with a max� length of 30

print items

- Single printout Printer 1

- Component printout Printer 1

- Total data printout Printer 1

- Single printout Printer 2

- Component printout Printer 2

- Total data printout Printer 2

– Single, component and total data

records can be configured separately

– Print single printout: p key Auto printout of application when

Setup menu is activated:

– Animal weighing (averaging)

– Checkweighing

– Classification – Print component printout:

Totalizing/Net-total formulation with the O key (Setup: Application 3: Totalizing: Printout: Component printout)

– Print total data printout:

For selected application Totalizing/ Net-total formulation with c key

– When switching to another application

in Setup, only the applicationdependent printout lists are deleted� The other printout lists remain saved�

– Print items can be deleted individually:

Press and hold the ( key

– Print items “Form Feed” for record

footer: Move to the next label start for printer type: YDP04IS, setting “Label, manual form feed”

– ISO/GLP/GMP-compliant printout:

The Setup menu conguration under “ISO/GMP-compliant printout” is also active for congured printouts�

Preparation

§ Turn scale on: Press the e key

§ While all segments are lit, press the )key

§ Select Setup menu: Press the k key

repeatedly until setup is displayed

§ Select “Cong� printout:” Press the )key

§ Press the k key repeatedly until

prtpot is displayed

§ Press the ) key

prtprot

(see page 35 for a detailed menu list)

7 7�4 Header and ID header input 7�5 Interface quantity 7�6 Standard interface 7�7 Component interface 7�8 Result interface

7�13 ISO/GMP 7�14 Date without time 7�15 Automatic printout after

stability 7�16 Flex print 7�17 Decimal separator 9 9�1 Factory settings

– The rows of the printout list can be

called up and activated individually� Example: see under Conguration, menu item 7�6

– The print selection set as active appears

with the left selection bar on the display, e�g� gross, tare, net�

§ Extend printout, press the ) key, the

selection bar now appears on the right of the display�

§ Select print items using the k key

§ Apply the desired print items by

pressing the ) key

§ Press the ( key to change the print

selection set as active� The selection bar appears on the left�

The required print item is set as active

and appears in the printout�

�

– Print items can be deleted individually

from the active printout selection: Pressand hold the ( key

§ Save the settings with the ) key and exit Setup: Press the ( key several times�

Additional Functions Printing the “Selec tion” and “List”

Settings

– LIST: Output of the current printout

list

SELECT: Print currently selectable items

§ When the select bar is on LIST or SELECT:

Press the p key

> Printout (example)

Indiv.Prt List ==================== Net (N) Gross (G#) Tare Tare (T2/PT2) Piece count ====================

etc�

76

Signum 3 Ex

Example:

blank

Standard printout for data output from the Counting application

Settings (dierent from the factory settings): Applications: Application 1: Counting Then access Setup: Printout: Printer 1: “Individual: print by pressing p”

§ Select Setup menu: Press the k key repeatedly until setup is displayed

§ Select “Cong� printout:” Press the ) key

§ Press the k key repeatedly until prtpot is displayed

§ Press the ) key

k

1�) Press the ) key until 7.4

)

appears in the display

)

Configuring Printouts

7�) Press the k key until

------- appears in the display

8�) Press the ) key to apply

the selection

2�) Press the k key until 7.6

k

3�) Press the ) key to display

)

4�) Press the ) key to go to the

)

First printout list of selection

5�) Press the ) key to add the

)

Or

6�) Press the k key to go to

k

appears in the display

the list of print items (active print selection)

selection list

list

displayed print item from the selection list to the list of print items�

the possible print items in the selection list� Selection of available print items, see setup: prtprot (Settings)

9�) Press the k key until

k

10�) Press the ) key to apply

)

11�) Selecting additional printout

12�) To complete the selection

(

13�) Press and hold the )key

14�) Carry out weighing and then

15�) Press the p key to print

p

-------------------- Printout example wRef + 0.4000 g

ref.-gew appears in the display

the selection

items: see previous steps

of print items, press the (key until appl appears in the display

(2–3 sec) to switch to weighing mode

print

the results

Signum 3 Ex

77

Product Data Memory

Purpose The product data memory stores initialization data and user data (product and tare values)�

Characteristics

– The product data memory has 100

memory cells for product or tare values� – For example, you can store 80 sets of

application data and 20 tare values�

– Each memory cell is uniquely identied

by a number up to three digits�

– The product data memory can be used

with the following applications: Application level 1 –

weigh.

–

count.

–

neutr.m

–

anim.wg

–

perc.wg

Application level 2

–

check.wg

– class.

– Data records can be created, overwritten

and individually deleted

– Data remains stored when the scale is

switched off

Functions

Saving product data (in this example, in the Counting application):

§ Initialize the application�

§ Enter a memory number and press and

hold the R key (min� 2 seconds)�

Saving preset tare values:

§ Allocate preset tare memory�

§ Enter a memory number and press and

hold the t key (min� 2 seconds)�

Activation of saved product or tare values:

§ Enter a memory number and press the

R key�

Displaying information for a specific product or tare value:

§ Enter a memory number and press

theI key�

§ Use the k key to select between

wRef (average piece weight) and nRef(quantity)�

§ Use the ) key to scroll the displayed

value to the right�

§ Activate the displayed memory by

pressing the R key�

§ Delete the displayed memory by pressing and holding the c key (min�2 seconds)�

§ Exit the mode by pressing the c key�

Displaying information for all product or tare memories:

§ Press the R key to display the rst memory number�

§ Press the k key to scroll through in lexical order (e�g� 1, 3, 333, 4, ��)�

§ Press the R key to activate the selected memory number�

§ Display the saved product values using the I key�

§ Press and hold the c key (at least for 2 seconds) to delete the selected memory number�

§ Exit the mode by pressing the c key�

Deleting a specific memory number:

§ Enter a memory number and press and hold the c key�

Example: Using the Counting application with astored average piece weight� Settings (dierent from the factory settings): Setup: Application parameters: Application: Counting

(Count.)

Saving the average piece weight:

§ Initialize the application�

§ Determine the average piece weight

using one of the methods described above�

§ Enter the memory cell number using

the keypad, and press and hold the Rkey (min� 2 Seconds)�

Loading the average piece weight or reference sample quantity:

§ Enter the memory cell number and

press the I key�

§ Use the k key to select between

wRef (average piece weight) and nRef(quantity)�

§ Use the ) key to scroll the displayed

value to the right�

§ Activate the displayed memory by

pressing the R key�

§ Delete the displayed memory by pressing and holding the c key (min�2 seconds)�

§ Exit the mode by pressing the c key�

Overwriting data in memory cell:

§ To save a new average piece weight in a memory cell already in use, enter the desired memory cell number using the keypad and press and hold the R key (min� 2 seconds)� The previous average piece weight is overwritten�

Deleting an average piece weight:

§ Enter the memory cell number of the average piece weight to be overwritten and press the I key�

§ Delete the displayed value by pressing and holding the c key (min� 2seconds)�

78

Signum 3 Ex

Data Interface

Purpose

Signum -3-Ex scales have an intrinsically safe data interface which can be connected to a computer (or any other peripheral device) using a barrier (e�g� YDI05-Z)� You can use a computer to change, start and/or monitor functions of weighing instruments and application programs� The data interface is also used for the control lines of the “Checkweighing” application program�

! Warning when using pre-wired connecting cables:

Cables purchased from other manufacturers often have pin assignments that are not permissible for use with Minebea Intec devices� Be sure to check the pin assignments against the chart in this manual before connecting the cable, and disconnect any lines identified differently from those specified by Minebea Intec� Failure to do so may cause malfunction, damage or even completely ruin your weighing system and/or peripheral device(s)�

Features

Type of interface: Serial interface

Interface operating mode: full duplex, (RS485 half duplex)

Level: RS232, RS485, RS422

Transmission rate: 150, 300, 600, 1200, 2400, 4800, 9600 and 19200 baud

Parity: Space, uneven, even, without

Character transmission: Start bit, 7-bit ASCII, parity, 1 or 2 stop bits

Handshake: For 2-wire interface: Software (XON/XOFF) For 4-wire interface:

Hardware (CTS/DTR)

Operating mode: SBI, XBPI*, SMA, various printers

Network address**: 0, 1, 2, …, 30, 31

SBI output format: 16 or 22 characters Printout of application data: Output of a configurable printout * XBPI communication mode: Always 9600 baud, 8-bit, odd parity, 1 stop bit ** Network address is only relevant for the XBPI mode

Factory Setting of the Parameters:

Depends on the device configured; for example: “SBI” setting

Transmission rate: 1200 baud

Parity: Odd

Stop bits: 1 stop bit

Handshake: Hardware handshake, 1 character after CTS

Operating mode: SBI

Network address: 0

Print (manual/automatic) Manual after stability

Cancel automatic printing: Not possible

Time-dependent automatic

printout:

Tare after individual printout: Off

Line format: For other apps�/GLP (22 characters)

After 1 display update

Signum 3 Ex

79

Data Interface

Steckerbelegungsplan

Schnittstellenbuchse:

14 polige Rundbuchse mit Schraubverbindung

Pinbelegung

Plattform: Zenerbarriere (Ausgang im sicheren Bereich)

YDI01-Z, YDI02-Z, YDI03-Z:

Steckerbelegungsplan

Schnittstellenbuchse:

14 polige Rundbuchse mit Schraubverbindung

Pinbelegung

Plattform: Zenerbarriere (Ausgang im sicheren Bereich)

YDI01-Z, YDI02-Z, YDI03-Z:

Steckerbelegungsplan

Schnittstellenbuchse:

14 polige Rundbuchse mit Schraubverbindung

Pinbelegung

Plattform: Zenerbarriere (Ausgang im sicheren Bereich)

YDI01-Z, YDI02-Z, YDI03-Z:

Pin Assignment Chart RS232

COM1 female connectors:

Round socket with screw lock hardware for model SIWXSDC / SIWXSBB

G

M

H

J

N

K

F

E

O

D

C

L

B

A

Front view

COM1 pin assignments Round plug, 14-pin

Pin A: Clear to send (CTS) Pin B: Pin C: Pin D: Control Output: “set” Pin E: Control output: “equal” Pin F: Control output: “lighter” Pin G: Control output: “heavier” Pin H: Pin J: Data input (RxD) Pin K: Data output (TxD) Pin L: Pin M: Signal GND Pin N: Data terminal ready (DTR) Pin O: Universal switch input

Pin Assignment Chart RS422

COM1 female connectors:

Round socket with screw lock hardware for model SIWXSDC / SIWXSBB

G

M

H

J

N

K

F

E

O

D

C

L

B

A

Front view

COM1 pin assignments Round plug, 14-pin

Pin A: Signal GND Pin B: Clear to send (DTR-) Pin C: Clear to send (DTR+) Pin D: Pin E: Data terminal ready (CTS-) Pin F: Data terminal ready (CTS+) Pin G: Data output (RxD+) Pin H: Pin J: Signal GND Pin K: Data input (TxD-) Pin L: Pin M: Data output (RxD-) Pin N: Data input (TxD+) Pin O: -

Pin Assignment Chart RS485

COM1 female connectors:

Round socket with screw lock hardware for model SIWXSDC / SIWXSBB

G

M

H

J

N

K

F

E

O

D

C

L

B

A

Front view

COM1 pin assignments Round plug, 14-pin

Pin A: Pin B: Pin C: Pin D: Control Output: “set” Pin E: Control output: “equal” Pin F: Control output: “lighter” Pin G: Control output: “heavier” Pin H: Pin J: Data input (RxD-TxD-P) Pin K: Data output (RxD-TxD-N) Pin L: Pin M: Signal GND Pin N: Pin O: Universal switch input

Attention: Verication of Intrinsic Safety� Drawing 36953-750-60 must be observed!

80

Signum 3 Ex

Data Interface

Conguring the Data Interface

as a COM Port ( datprot,

when com1 is not RS485 )

You can congure the interface as a

COM port in either COM1 or UniCOM, “Data Protocol” (datprot) menu item�

SBI communication This is a simple ASCII interface� Data output is congured under menu

items 6�1 and 6�3:

– Manual output of displayed value with

or without stability (menu items 6�1�1 and 6�1�2)

– Automatic output of displayed value

with or without stability (menu items 6�1�4 and 6�1�5) at intervals dened by display updates� The number of display intervals is set in menu item 6�3�

– Output of a congurable printout�

Output is linked to the “Printouts” menu item prtprot), (see page 81 “Conguring Printouts”)

If you do not activate and congure a

user-denable data record, the printout simply contains the current value displayed on the display and control unit (weight with unit, calculated value, alphanumeric display)�

SMA communication

Standardized communications protocol

of the Scale Manufacturers Association

Data Input Format (Commands)

You can connect a computer to your scale to send commands controlling weighing instrument functions and applications via the interface port� All commands use the same data input format� They start with the ESC character (ASCII 27) and end with a carriage return (CR; ASCII 13) and a line feed (LF; ASCII

10)� The total length of a command is anywhere from 4 characters (1 command character between the start and end described above) to a max� of 7 characters (4 command characters)�

The commands listed in the following table must each be supplemented with ESC �� CR LF� Example: The command character for output is “P” (“output to Port”)� To trigger this command, send the string: “ESC P CR LF”�

Command Meaning K Weighing mode 1 L Weighing mode 2 M Weighing mode 3 N Weighing mode 4 O Lock keys P Send display value

to data interface R Release keys T Taring and zeroing

(Combined Tare function) f3_ Zero (see also the “kZE_”

command) f4_ Tare without zeroing

(see also “kT_” command) kF1_ F1: Trigger k key function kF2_ F2: Trigger c key function kF3_ F3: Trigger r key function kF4_ F4: Trigger O key function kF5_ F5: Trigger w key function kF6_ F6: Trigger I key function kF7_ d key * kF8_ D key * kF9_ R key kF10_ J key kF11_ K key kF12_ L key kCF_ CF: Trigger c key function kP_ Trigger p key function

Print at printer interface kT_ Trigger T key function

(Tare)

Command Meaning kNW_ Trigger n key function

(toggle the weighing platform)**

kZE_ Trigger ( key function (Zero) a6_ Write the next stable weighing

value to the alibi memory a7_ Write a stable weighing

value previously requested by ESC to the alibi memory when SB output mode 6�1�8 is active� The transaction number is returned� Only eective with setting Protocol printout without stability (6�1�8)

x1_ Output model designation of

active scale Example: “SIWXSDCP-3-16-H«

x2_ Output serial number of active scale, Example: “0012345678”

x3_ Output software version of active scale, Example: “00-20-04”

x4_ Output software version of indicator, example: “00-37-2B”

x9_ Output serial number of indicator

x10_ Output model of indicator, example: “SIWSDCP-3-35-H”

x12_ Output Max load of the current scale

x13_ Output Min load of the current scale

x14_ Output Max load of the current weighing range of the current scale

x15_ Output Min load of the current weighing range of the current scale

z1_ Input: printout header 1 z2_ Input: printout header 2 txx��x_ xx��x: Input text for main display�

Length of corresponding input

z3xxx_��z6xxx Input: ID 1-6

The ASCII code for the “underline” character (“_”) is 95 decimal�

Format for entering printout header lines: “ESC z x a �� a _ CR LF” with x = 1 or 2 and a �� a: 1 to 20 characters for headerx, followed by the underline, CR and LF characters�

Signum 3 Ex

81

Data Interface

Data Output Format

Each line in a print job can contain up to 22 characters (up to 20 printable characters plus two control characters)� The first 6characters, called the “data header”, identify the subsequent value� You can suppress the header under menu item 7�2 in the “Printouts” menu; in this case, the print job has up to 16 characters (up to 14 printable characters plus two control characters)�

Examples:

+ 235 pcs without Header Qnt + 235 pcs with Header

Display segments that are not activated are output as spaces� Values with no decimal point are output without a decimal point�

Data Output Format with 16 Characters (without Data Header)

Normal Operation:

Pos� 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

+ * A A A A A A A A * E E E CR LF

or – * A A A A A A A A * E E E CR LF

or * * * * * * * * * * * * * * CR LF

+-: Plus or minus sign *: Space A: Digit or letter (max� 7 characters plus decimal point) E: Unit symbol CR: Carriage return LF: Line feed

Special Codes:

Pos� 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

* * * * * * – – * * * * * CR LF

or * * * * * * H * * * * * * CR LF

or * * * * * * * H H * * * * * CR LF

or * * * * * * * L * * * * * * CR LF

or * * * * * * * L L * * * * * CR LF

or * * * * * * * C * * * * * * CR LF

(1-3 letters followed by 2-0 spaces)

Error Message:

Pos� 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

* * * E r r * * # # * * * * CR LF

or * * * E r r * # # # * * * * CR LF

*: Space #: Error code number (2 or 3 digits)

Example (output of weight value of +1255�7 g):

Pos� 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

+ * * * 1 2 5 5 � 7 * g * * CR LF

Position 1: Plus +, or minus – or space Position 2: Space Positions 3-10: Weight value with decimal point� leading zeros are

output as spaces� Position 11: Space Positions 12-14: Characters for unit of measure or space Position 15: Carriage return Position 16: Line feed

Data Output Format with 22 Characters (withDataHeader)

Normal Operation:

Pos� 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

K K K K K K + * A A A A A A A A * E E E CR LF

or K K K K K K - * A A A A A A A A * E E E CR LF

or * * * * * * * * * * * * * * * * * * * * CR LF

K: ID code character, right-justified with spaces +-: Plus or minus sign *: Space A: Digit or letter (max� 7 characters plus decimal point) E: Unit symbol (1 to 3 letters followed by 2-0 spaces) CR: Carriage return LF: Line feed

*: Space – –: Final readout H: Overload HH: Overload in checkweighing L: Underweight LL: Underweight in checkweighing C: Adjustment

82

Signum 3 Ex

Special Codes:

Pos� 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

S t a t * * * * * * * * – – * * * * * * CR LF

or S t a t * * * * * * * * * H * * * * * * CR LF

or S t a t * * * * * * * * * H H * * * * * CR LF

or S t a t * * * * * * * * * L * * * * * * CR LF

or S t a t * * * * * * * * * L L * * * * * CR LF

or S t a t * * * * * * * * * C * * * * * * CR LF

*: Space – –: Final readout H: Overload HH: Overload in checkweighing L: Underweight LL: Underweight in checkweighing C: Adjustment

Data Interface

Error Message:

Pos� 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

S t a t * * * * * E r r * * # # * * * * CR LF

or S t a t * * * * * E r r * # # # * * * * CR LF

*: Space

#: Error code number (2 or 3 digits)

ID Code Characters:

Character K Meaning

G# Gross value N Net value T Application tare memory 1 T2 Application tare memory 2 Diff Dierence from adjustment value Targ. Exact adjustment weight value Nom. Exact adjustment weight for SBI printout nRef Reference sample quantity pRef Reference percentage wRef Reference piece weight Qnt Result from Counting (piece count) and

NeutralMeasurement applications

mDef Target value for animal weighing x-Net Animal weighing results Setp Target value for checkweighing Diff.W. Absolute deviation (e�g�, in kg) in Checkweighing Lim Deviation in % in Checkweighing Max Upper tolerance for checkw� Min Lower tolerance for checkw� Stat Status Classx Classication Limx Class limit D Percentage (as loss) Prc Percentage (as residue) Wxx% Reference percentage weight Cmpxxx Component xxx Cont.T Contents of the tare memory

in Net-total Formulation S-Comp Total of initial weighings

for Net-total Formulation

PT2 Preset tare n Transaction counter *G Sum of gross weights

in Totalizing *N Sum of net weights

in Totalizing

Ser.no. Serial number of the platform or indicator

Example (output of weight value of +1255�7 g):

Pos� 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

G # * * * * + * * * 1 2 5 5 � 7 * g * * CR LF

Positions 1-6: ID code, right-justified with spaces Position 7: Plus +, or minus - or space Position 8: Space Positions 9-16: Weight value with decimal point�

leading zeros are output as spaces� Position 17: Space Positions 18-20: Characters for unit of measure or space Position 21: Carriage return Position 22: Line feed

!

If the weight value is output with 10-fold increased resolution,

this value may not be printed or saved in a weighing instrument operated in legal metrology in SBI operation� In this case, the unit symbol is not included with output�

Conguring the Data Interface as a Printer Port

(printer,

You can connect either a strip or label printer to Signum® using

abarrier like YDI05-Z (see proof of intrinsic safety, drawing 36953-750-60)� Congure the COM1 interface as a printer port under the “Printer” menu item�

There are several actions that generate the command for outputting

data to the printer port:

– Pressing the pkey� If the operating menu is active, all menu

settings under the active menu level are printed�

– Upon receipt of the “Esc k P _” SBI command� For details, see the

section entitled “Data Input Format” in this chapter�

– In some applications, pressing a given key (e�g�, to save a value

or start a routine) also generates a print command� In this case, acongurable printout is generated with application-specic data�

The P and b symbols are displayed when data is being output to

the printer port�

when com1 is not RS485)

Signum 3 Ex

83

Data Interface

Automatic Data Output (SBI)

You can have the weight readout printed automatically1)�

This printout can be generated after a certain number of display updates function is dependent on the stability of the scale update frequency depends on both the scale model and the operating status�

Examples:

N + 153.00 g Net weight Stat Display blank Stat L Display underweight Stat H Display overload

“Data output” setting:

1) 3

2

)� You can also congure whether or not the auto-print

) “Automatic, without stability”

or “Automatic, with stability”� Factory setting: Manual data output after stability; i�e�, automatic data output function o�

) Time-dependent automatic data output:

Interval: 1, 2, 10 or 100 display updates Factory setting: 1 display update

3

)� The display

84

Signum 3 Ex

Data Interface

GMP-compliant

Printouts

When the corresponding menu item is

active, the printout is bracketed by a GMP header and a GMP footer (GMP: “Good Manufacturing Practice”)� The GMP header precedes the rst measured result� The GMP footer is printed after the last result in a series of measurements (“GMP-compliant printout always for several application results,” menu item 7�13�3)� To end a series of measured results, press and hold the case, the A symbol is displayed after the GMP header is printed and remains in the display until the GMP footer is printed�

A GMP-compliant printout is generated

automatically at the conclusion of calibration/adjustment, linearization routines, as well as when you set or clear a preload�

p key� In this

Three examples of GMP headers and one example of a footer are shown in the following�

Weighing platform WP 1:

------------------- Dash line

14.01.2017 09:43 Date/time Type SIWX Signum Ser.no. 12345678 Signum Vers. S3 207.171214 Software version Application BVers. 00-37-2B Software version Basic software

------------------- Dash line

GMP footer:

------------------- Dash line

14.01.2017 9:45 AM Date/time Name: Field for signature Space line

------------------- Dash line

®

Type

®

Serial no�

Signum 3 Ex

85

Error Messages

Error messages are shown in the main display� Error messages are shown permanently� Information messages are shown for 2 seconds�

After this the program automatically returns to the weighing mode�

Display Solution

Err 101 Release key or

contact your local Minebea Intec Service Center

Err 320 Contact your local Service Center Err 340 Turn the scale o and then on again

If the error code is still displayed: Contact your local Service Center

Err 341 Leave the device connected to power for

at least 10 hrs�

Err 343 Contact your local Service Center

Inf 01 Set output format correctly

inf 02 Unload the scale rst then zero

then tare using the ) key

inf 03 Allow to warm up again and repeat the

Inf 06 Contact your local Minebea Intec Service

inf 07 Contact your local Service Center for

inf 08 Check your conguration to ensure that

Inf 09 Zero the scale�

inf 10 The data stored for the application

inf 22 Place a heavier weight on the platform

Inf 23 Contact your local Service Center inf 29 Reduce min� load

(under Application, menu item 3�6)

inf 71 None

inf 72 None

Inf 73 Contact your local Service Center inf 74 None

Inf 98 Contact your local Service Center Inf 99 Contact your local Service Center NO WP Contact your local Service Center

Flashing ! Setting the time

Cause Key is stuck

Key pressed whilst switching on Operating program memory faulty Incorrect operating parameter (EEPROM)

RAM has lost data Battery is empty

Loss of data in the memory area for transaction numbers in external alibi memory

Data output not compatible with output format

Adjustment condition was not met e�g� not tared or weighing pan loaded

Adjustment could not be completed within a certain time

Built-in adjustment weight defective

Function not allowed in scales veried for use in legal metrology

The load on the scale is too heavy to zero the readout

Taring is not possible when the scale gross weight is zero

Tare key is blocked when there is data in the tare memory

Error in storing reference value, weight is too low

Error in initializing an application Minimum load not reached

Cannot store the current weight value (e�g�, control limits too low or too high)

Cannot store the current weight value (e�g� transaction counter maximum reached)

Data not found or unreadable Function is blocked

(e�g�, menu is locked) No weighing platform connected No weighing platform connected No weighing platform connected Battery defective or time changed

adjustment process

Center

information on changing settings

“Zero at power on” (1�12) is set�

program must be deleted before taring�

Care and Maintenance / Recycling

Inf 54/L

Inf 55/H

86

Signum 3 ExSignum 3

The load plate is not on the weighing platform

The load exceeds the capacity of the weighing platform

Place the load plate on the platform

Unload the weighing platform

Care and

Disposal

Maintenance

Service Regular servicing by a Minebea Intec

technician will extend the service life of your equipment and ensure its continued weighing accuracy� Minebea Intec offers its customers service contracts with regular maintenance intervals ranging from 1 month to 2 years�

The frequency of the maintenance

intervals depends on the operating conditions and user’s tolerance requirements�

Cleaning

! Unplug the system from the power

supply and unplug any data cables connected to the scale�

§ Clean the scale with a cloth lightly

moistened with soap solution�

§ Wipe down the scale with a soft,

moistcloth after cleaning�

! Make sure that no liquid enters the

scale�

! Do not use aggressive cleaning agents

(solvents or similar)�

Cleaning the Stainless Steel Surfaces All stainless steel parts should be

cleaned at regular intervals� Remove the stainless steel load plate and thoroughly clean it separately� Use a damp cloth or sponge to clean stainless steel parts on the scale� You can use any commercially available household cleaning agent that is suitable for use on stainless steel� Stainless steel should be cleaned simply by rubbing� Then clean the load plate thoroughly, making sure to remove all residues� Use a damp cloth or sponge to clean stainless steel parts on the scale� After this, let the device dry� For additional protection, protective oil may be applied�

! Only use solvents for cleaning stainless

steel parts�

Corrosive Environment $ Remove all traces of corrosive

substances from the scale on a regularbasis�

Replacing the Dust Cover > Replace damaged dust covers�

§ Place the new dust cover on the display

and control unit and press it over the edge of the front and rear side of the device until it is xed in place�

Safety Inspection If there is any indication that safe operation of the scale is no longer warranted, disconnect the system from the supply voltage and secure it against further use� For example, asafe operation is no longer warranted if the AC adapter has visible damage or is no longer working� Moreover, safety inspections are required – The equipment has been stored

for a relatively long period under unfavorable conditions

– The equipment has been subjected

torough handling during shipment� In this case, notify the Minebea Intec Service Center�

Maintenance and repair work may be performed only by authorized service technicians who have access to the required maintenance manuals and instructions and who have participated in the corresponding training

The duration and number of regular safety inspections should be determined by a qualified Minebea Intec service technician based on specific ambient and operating conditions (once a year at the minimum)�

! The seals on the device indicate that

the device may only be opened and maintained by authorized specialist personnel, so that the correct and safe operation of the device is ensured and the guarantee remains valid� If the verication seals are damaged, the equipment must be re-veried�

If the packaging is no longer needed, it can be disposed of by local waste disposal authorities� The packaging is made of environmentally friendly materials that can be used as secondary raw materials�

The equipment, including accessories and batteries, should not be disposed ofas regular household waste� EU legislation requires its Member States to collect electrical and electronic equipment and dispose of it separately from other unsorted municipal waste with the aim of recycling it�

In Germany and several other countries, Minebea Intec itself assumes responsibility for the return and conformant disposal of its electronic and electrical products� Such equipment may not be thrown out with household waste or brought to collection centers run by local public disposal operations – not even by small commercial operators�

For disposal in Germany and in the other member nations of the European Economic Area (EEA), please contact our local service technicians or our Service Center in Bovenden, Germany:

Minebea Intec Bovenden GmbH & Co. KG Leinetal 2

D-37120 Bovenden, Germany

WEEE-Reg.-Nr. DE58091735

In countries that are not members of the European Economic Area (EEA) or where no Minebea Intec subsidiaries or dealerships are located, please contact your local authorities or a commercial disposal operator� Prior to disposal and/or scrapping of the equipment, any batteries should be removed and disposed of in local collection boxes� Minebea Intec will not take back equipment contaminated with hazardous materials (ABC contamination) – either for repair or disposal� Detailed information with service addresses for returning your device for repair or disposal can be found on our website

(www�minebea-intec�com) or requested from a Minebea Intec Service Center�

Signum 3 Ex

87

General Specifications

Digital protective interface according to EN45501

Data interface bidirectional RS-232C interface with control output (standard equipment)

Additional data interface optional

Display 14-segment backlit display

Weighing platform housing: Aluminum die-casting, display unit stainless steel Protection class according to EN60529 IP65 (SIWXSBBP-06*: IP43)

Temperature range –10°C to +40°C +10°C to +30°C (SIWS��-�CE)

Power supply via AC adapter YPS02-Z�� or YPSC01-Z respectively (for installation outside of the hazardous area

only) or YPS02-X�� or YPSC01-X respectively (also for installation within the hazardous areas of the zones 1 and 21)� 100–240 V AC (+/–10 %), 50–60 Hz battery operation via external rechargeable battery YRB02-X

Interference emission acc� to EN61326+A1 Class B (IEC 61326+A1)

Defined immunity to interference acc� to EN61326+A1, industrial environment (IEC61326+A1)

Electrical safety acc� to EN61010-1 (IEC 1010-1), EN60950 (IEC 950)

Specifications

Signum® Model Designator

Model type Sensor Platform Material/ Application Weighing Display Veriable/ technology dimensions design level capacity resolution veried (kg) models

Example SIWXS: SIWXSDCP-3-16-H SIWX S BB S 6 35

3

) = SIWXS: “Supreme,: monolithic weighing system

4

) = painted

5

) = stainless steel

3

) DC P4) -3 06 S

5

) 3 H

88

Signum 3 ExSignum 3

Model-specific Data

Weighing Data Signum® Supreme SIWXSBBP / BBS Non-veriable models

Weighing capacity (kg) 0�620** 3�1 6�1 Readability (g) 0�001 0�01 0�01 Resolution code -H -H -H Calibration weight 500 2000 5000

value (in grams) Accuracy class E2 E1 E2

Verifiable/verified models Type EC type approval no� Weighing capacity (kg) Readability (g) Verication scale

interval e (g) Resolution code Calibration weight

value (in grams) Accuracy class * not SIWXSBBS

For all models Preload (kg) 0 3 3 Repeatability (g) 0�001 0�01 0�01 Linearity (g) 0�002 0�02 0�02 Ambient temperature (for use in legal metrology only) +10°C…�+30°C

Resolutions for Signum Non-veriable (type) Verified at factory (type)

-H Resolution > 100,000 d

®

Supreme

Signum 3 Ex

89

Model-specific Data

Weighing Data Signum® Supreme SIWXSDCP/S ( * models not available for SIWSDCS) Non-verifiable models

Weighing capacity (kg) 6 35 Readability (g) 0�1 0�1 Resolution code -S -H Calibration weight value 5,000 10,000

(in grams) Accuracy class F2 F1

Verifiable/verified models Type EC type approval no� Weighing capacity (kg) Readability (g) Verification scale interval e (g) Resolution code Calibration weight value

(in grams) Accuracy class

Dimensions

For all models Preload (kg) 5 5 Repeatability (g) 0�08 0�08

(verified models acc� to EN45501) Linearity (g) 0�2 0�2

(verified models acc� to EN45501) Ambient temperature (for use in legal metrology only) +10°C…�+30°C

Resolutions for Signum® Supreme Non-verifiable (type) Verified at factory (type)

-S Resolution > 60,000 d

-H Resolution > 100,000 d

90

Signum 3 Ex

Signum 3

Dimensions (Scale Drawings)

415

±2

45

132.5

+10

240

350

95

165

55

168

Standard-Version:

Mit integriertem Akku:

453.5

+20

24.5

SIWRDCP | SIWADCP | SIWSDCP:

SIWXSDCP:

45

+10

132.5

168

55

240

350

±2

415

165

SIWSDCS:

SIWXSDCS:

370

148

55

150

238 30SW

304

360

124.5

8M x1

260

31

237.5 5

192 80

41.5

7

30

95

25

150.5

All dimensions are given in millimeters

165.5

70

25

120

Signum 3 Ex

91

45ca.

500

±5

ca.

23714

152

205

±2

206

35Ø

85

+5

146

+5

165±2Ø

500

ca.

152

116 ...121

SIWXSBBP 620g

Dimensions (Scale Drawings)

All dimensions are given in millimeters

Dimensions

SIWXSBBP 3/6kg

23

85 ...90

45ca.

194 182

206

35Ø

194

182

23714

±2

205

±5

92

Signum 3 Ex

Dimensions (Scale Drawings)

SIWXSBBS:

+5

123

182

205

250

+5

117

158

ca. 45

279

±5ca. 456

34.5

182

215

All dimensions are given in millimeters

Signum 3 Ex

93

Accessories

ATEX Zone 20/1/21/2/22 Safe Area: YPSC01-Z

YP

SC01-X Associated Intrinsically Safe (AIS)

to connect to ATEX Zone 20/1/21/2/22

FM Class I,II,III Div 1,2 Safe Area: YP

S02-ZKR

YPS02-XUR AIS to connect to

C

SA Class I,II,III Div 1,2 FM /CSA Class I,II,III Div 1,2

YP

S02-XKR

ATEX Zone 20/1/21/2/22 Safe Area: YPS02-XV24

YP

S02-XV24 AIS to connect to

ATEX Zone 20/1/21/2/22

ATEX Zone 20/1/21/2/22 FM Class I,II,III Div 1,2

YR

B02-X

ATEX Zone 20/1/21/2/22 Safe Area: YPSC01-Z

YP

SC01-X Associated Intrinsically Safe (AIS)

to connect to ATEX Zone 20/1/21/2/22

FM Class I,II,III Div 1,2 Safe Area: YP

YPS02-XUR AIS to connect to

C

SA Class I,II,III Div 1,2 FM /CSA Class I,II,III Div 1,2

YP

S02-XKR

ATEX Zone 20/1/21/2/22 Safe Area: YPS02-XV24

YP

S02-XV24 AIS to connect to

ATEX Zone 20/1/21/2/22

Accessories

Power Supply:

Order No�

AC adapter, for use in explosive atmospheres ATEX YPSC01-X 100 -240 V AC FM (US) YPS02-XUR CSA YPS02-XKR

AC adapter outside explosive atmospheres ATEX YPSC01-Z 100 -240 V AC FM/CSA YPS02-ZKR

AC adapter outside explosive atmospheres 24 V DC ATEX YPS02-XV24

External rechargeable battery for installation in ATEX, FM, CSA YRB02-X explosive atmospheres

94

Signum 3 Ex

Zener Barrier:

Configuration Example Signum® 3 Ex Supreme - ATEX

Configuration Example Signum® 3 Ex Supreme - FM

100- 240V

YDI05-Z with A25

e.g. Printer YDP14IS-OCE

M57 (3 m)

RS232

Order No�

Ex interface converter YDI05-Z

Printer for Installation in Non-hazardous Area:

Order No�

Verifiable data printer with date/time and statistics functions with LCD display YDP21 Strip|label printer, 60 mm paper width YDP05 Strip|label printer, 108 mm paper width YDP14IS-0CEUV Thermal transfer printer, 108 mm paper width YDP14IS-EUVTH

Software:

Order No�

SNLE Minebea Intec Nice Label Express YAD02IS WinScale YSW03 SartoCollect YSC02 Minebea Intec GMP Connect YSW03-0001 Minebea Intec OPC Server 6289OPC

Configuration FM

YPS02-XUR

incl.

(3m)

incl.

(3m)

incl. (0.2m)

FM class 1 | safe area

Configuration ATEX

YPSC01-X

N9 (3m)

100- 240V

N1 (3m)

incl. (0.2m)

COM 1 RS422

M54 (x m)

YDI05-Z with A25

M57 (3 m)

RS232

M57 (3 m)

RS232

e.g. Printer YDP14IS-OCE

ATEX zone 1/21 | safe area

Signum 3 Ex

95

Mechanical Accessories:

Order No�

Column for BBP model, aluminum, height 400 mm YDH02P Column for BBS model, stainless steel, height 400 mm YDH02S Column for DCP model, aluminum, height 500 mm YDH01P Column for DCS model, stainless steel, height 330 mm YDH01CWS Column for DCS model, stainless steel, height 500 mm YDH02CWS Column for DCS model, stainless steel, height 750 mm YDH03CWS Wall mounting bracket for the display, stainless steel YDH01CIS Wall mounting bracket for the display, stainless steel, tiltable indicator YDH02CIS Kit for installation in control panel YAS03MI

Other: Order No�

Round plug for individual cable assembly, 14-pin, IP65 69Y03166

Declaration of Conformity

“Installation”, a service offered by Minebea Intec

“Installation” service in Germany Our “Installation” service package provides the following services:

– Installation – Commissioning – Inspection – Instruction

If the installation of the weighing instrument is to be carried out by Minebea Intec, please request this service from a customer service employee�

Re-verification in Germany Scale verification for legal metrology is valid until the end of the calendar year after next� If the scale is used for fill level control in accordance with legislation on prepackaging, verification is valid until the end of the following calendar year� Re-verification must currently be carried out by a weights and measures official� Re-verification should be requested in good time from the local Weights and Measures office� As appropriate, please observe allstatutory amendments�

Subsequent Verifications within European Countries The expiration date of the verication depends on the national regulations of the country in which the weighing instrument is used� For information on verication and legal regulations currently applicable in your country, and to obtain the names of the persons to contact, please contact your local Minebea Intec oce, dealer, or Service Center�

Further information concerning “verication” can be obtained from ourcustomer service centers�

96

Signum 3 Ex
