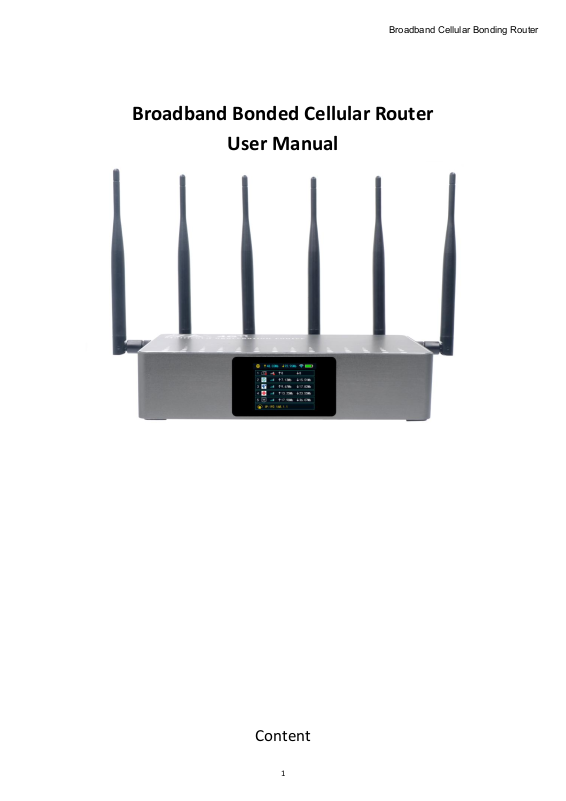

Broadband Bonded Cellular Router
User Manual
Content
Broadband Cellular Bonding Router
2
1. Introduction....................................................................................................3
2. Feature............................................................................................................3
3. Specification...................................................................................................3
4. Panel Description............................................................................................4
5. Connection Diagram.......................................................................................5
6. How to login the M4…………………………………………………………………………………..6
Broadband Cellular Bonding Router
3
Product
Model #
Mine-M4
Cellular Network Mode
TDD-LTE，FDD-LTE，DC-HSPA+/HSPA+/HSPA/UMTS，TD-SCDMA
Operator
Depends on customer’s request
LAN
1000mb/s
WAN
1000mb/s
WiFi Frequency
2.4GHz，5.8GHz
LCD Screen
Indicate cellular speed
Interfaces
4xPCI-E, 3xRJ45, 4xSIM
Wi-Fi
WIFI
802.11b/g/n 300M bps
WIFI Range
30Meters
Power
Voltage & Current
12V DC 2A
1. Introduction
Video streaming is quite bandwidth intensive and it was always difficult to stream and broadcast live events over the cellular
network with 3G live streaming or 4G (LTE) live streaming techniques without good compression and good signal strength.
Thanks to recent technology advancements, cellular-based systems offer broadcasters and video professionals the flexibility to
broadcast live events in areas that are well covered by 3G or 4G networks. A portable bonded cellular transmitter, coupled
with a high-gain cellular antenna array, improves signal resilience and the quality of the live video transmission, providing
users with a robust solution for covering live events, such as a marathon or a cycling race, from a motorcycle. By enabling
broadcasters and video professionals to broadcast news on the go more efficiently, cellular-based systems dramatically change
how the industry covers remote events in a way that was not possible even a few years ago.
2. Feature
* Bonded up to 253 3G/4G/LTE/Wi-Fi Connections
* Low Bit Rate Requirement
* low Latency
* Continuously seeks the best possible mobile network
* Remote (web-based) management
* Integrated with Social Media live streaming
3. Specification
Broadband Cellular Bonding Router
4
Power Consumption
5W
Lithium Battery
Capacity
20000MA
Working Duration
8-10h
Other Spec
Protocol
TCP/IP、UDP、FTP、HTTP etc
Management
web
Net Weight
1.2kg
Product Dimension
240*145*30mm
Working Temperature
-10°C~~~40°C
Storage Temperature
-40°C~~~70°C
4. Panel Description
5. Connection Diagram
Mode 1:
Broadband Cellular Bonding Router
5
Mode 2:
6. How to login the M4 control panel?
a. Ensure the LAN1 or LAN2 port of M4 connect with your pc directly or via a switch, keep your PC IP with the M4 in same
6
LAN, that is your PC IP should be 192.168.11.*, such as 192.168.11.5
Or just connect the M4 WiFi, then login to
b. open http://192.168.11.1 by browser,
Broadband Cellular Bonding Router
Broadband Cellular Bonding Router
7
When all settled, the SIM card still can’t get network, maybe you need to setup the APN per your SIM provider,
Loading...
