NXTCam v4 User Guide
What is NXTCam
NXTCam is a real-time image processing engine. Think of
it as a vision sub-system with on-board processor and a
protocol interface that is accessible through a standard
NXT sensor port. This interface provides high-level,
post-processed information of the image NXTCam sees.
The processed information contains the bounding box
coordinates of the objects of interest in view of NXTCam,
in line tracking mode, this information contains
coordinates of line segments.
NXTCam does not send the image itself to NXT, however connecting NXTCam to a
PC with USB cable, and using a Viewer and Configuration software, you can see the
image on the PC.
NXTCam-v4 is compatible with NXTCam-v3 software and libraries.
NXTCam Specs
• Track up to 8 different colorful objects at 30 frames/second
• Configure the NXTCam using USB interface on Windows XP, Windows Vista.
• Supports two tracking modes: Object tracking and Line tracking.
• Provide real-time tracked object statistics (number of objects, color of
objects, bounding box coordinates or line coordinates) through a standard
NXT sensor port.
• Tracked image resolution of 88 x 144 pixels at 30 frames/second
• Perform full-resolution (176 x 144) pixels color image dumps to PC via USB
port.
• Maximum power consumption (42 mA at 4.7 V)
• Uses NXT compatible I2C protocol for communications.
• Supports Auto Detecting Parallel Architecture (ADPA) for NXT sensor bus.
This means that NXTCam can coexist with LEGO or third party digital
sensor on the same NXT port. ADPA support enables user to employ several
sensors on the same port without the need of external sensor multiplexer,
reducing the overall size without compromising the functionality.
What you will need before using NXTCam
Connector Cables
mindsensors.com 1/14
For runtime operations (on the robot, in autonomous mode), the NXTCam connects
to NXT on a sensor port using a standard connector cable that comes with NXT (the
one with jacks similar to phone jacks).
For offline operations (for programming and configurations), NXTCam connects to
PC using mini-USB cable. (This is in addition to the cable
you would use to connect NXT to your PC). Adjacent
picture shows the mini-USB connector you would need on
your USB cable, this connector is commonly used for
digital cameras. If you need to acquire a cable separately, it should be a ‘5 wire’
cable.
USB Driver installation
In order for NXTCam to work properly, you will need to install USB drivers for your
operating system. Currently support exists for:
Windows XP (i386 and AMD processors)
Windows Vista (i386 and AMD processors)
Mac OS X v10.4.10 (PowerPC G4)
Download the drivers and installation instructions from following location:
http://www.mindsensors.com/NXTCam_Driver_Installation.htm
Viewer and Configuration Software
To see the picture that’s in the field of view of NXTCam, capture that picture for
analysis and configure the Colormaps for onboard processing, you will need to install
and use Viewer and Configuration software on your PC.
Download Viewer and Configuration software for your operating system from
following location:
For MS-Windows XP/Vista: http://nxtcamview.sourceforge.net/ (developed by Paul
Tingey)
For Mac (10.5 or order):
http://www.mindsensors.com/index.php?
module=documents&JAS_DocumentManager_op=viewDocument&JAS_Document_id=
53
For Mac 10.6 or newer:
http://www.mindsensors.com/index.php?
module=documents&JAS_DocumentManager_op=viewDocument&JAS_Document_id=
180
For Linux:
https://github.com/jgraef/aNXTCam (developed by Janosch Gräf)
Programming Environment(s)
mindsensors.com 2/14
NXTCam is supported for use in NXT-G using a custom block. Download the block
from following URL: http://www.mindsensors.com/NXTCam_NXT-G_Block.htm
This block provides functionality for tracking objects based on the Colormaps
downloaded on NXTCam.
Follow the installation instructions provided at this URL to install the block.
Note: While using with NXT-G, ensure to use firmware version 1.05.
LeJOS API’s are available at:
http://lejos.sourceforge.net/p_technologies/nxt/nxj/api/lejos/nxt/NXTCam.html
RobotC API’s are available at:
http://www.mindsensors.com/index.php?
module=documents&JAS_DocumentManager_op=viewDocument&JAS_Document_id=
50
NXC/NBC Library functions are available at:
http://www.mindsensors.com/index.php?
module=documents&JAS_DocumentManager_op=viewDocument&JAS_Document_id=
57
Connecting NXTCam
Wiring for NXTCam
NXTCam may be connected to any of the sensor ports of NXT using standard NXT
connector cable. In your program, select the appropriate port number to which
NXTCam is connected.
WARNING
Do not connect the NXTCam to any motor port, as the voltage applied by the motor
port may damage the electronics of NXTCam.
During offline operations, such as programming and configuration, NXTCam must be
connected to PC (using USB cable) as well as NXT (using standard NXT connector
cable) while NXT is powered ON.
During runtime (or autonomous) operations on NXT, the USB connection to PC must
be removed.
NOTE: While NXTCam is connected to NXT as well as PC, the PC communication
takes priority over any other communication.
In other words, while NXTCam is connected to PC as well as NXT, if you run a
program on NXT, it will not be able to talk to NXTCam.
Mounting NXTCam on your contraption
The holes on the NXTCam enclosure are designed for tight fit of
Technic pins (or axles) with ‘’ cross section. The holes however
are not designed for repeated insertions/removals of these pins.
mindsensors.com 3/14
To mount NXTCam v2 on your contraption we suggest that you use two dark gray
‘Technic Axle 3 with Stud’ as shown.
Insert axles from the front (lens side) of the NXTCam and secure with a bushing on
the back or mount it on your contraption directly.
Alternately, you may use blue ‘Technic Axle Pin with Friction’, as shown.
While disassembling contraption, leave the axles and/or pins on NXTCam.
LED on NXTCam
The LED on NXTCam blinks initially when NXTCam is booting up
(when power is connected through USB port or NXT Sensor port).
During the normal operation the LED may blink occasionally.
Configuring NXTCam Colormaps using NXTCamView
What’s a Colormap?
The objects of interest are recognized by NXTCam by matching the stored color
values with the captured image. To do that, color values of the objects of interest
need to be stored in NXTCam’s memory. These color values are known as Colormaps.
NXTCam can store up to 8 Colormaps and provide processed information of the
objects matching those Colormaps.
Default Object Colormap
The NXTCam is shipped with a default Colormap to track a light source (white light).
Download a test program or write a test program, and try tracking a light source.
Objects of interest
Below are screen dumps of NXTCamView software, showing objects of interests and
their tracking information.
mindsensors.com 4/14
The top left window in the picture below shows the field of view of NXTCam.
The objects of interest from this view are the red and blue pens. In the object
tracking mode, the bounding box coordinates are returned, as shown:
mindsensors.com 5/14
In line tracking mode, beginning point and end point coordinates of a line
representing the object are returned. In the following picture, the bounding
boxes are drawn for the line coordinates received from NXTcam:
To pick Colormap values of your objects of interest and to store them on NXTCam
using the NXTCamView software, please follow these steps:
1. Download, install and start NXTCamView on your PC.
2. Ensure the two NXTCam drivers (USB-to-Serial and NXTCam) have been
installed on your PC.
3. Ensure the NXTCam is plugged into one of your PCs USB ports.
4. In NXTCamView, setup communications to the NXTCam via Tools\Options.
Often only the COMPort needs to be set.
5. Connect to your NXTCam.
6. Capture an image (or two) to check the focus and lighting conditions.
7. Select some colors to track by clicking on the image you captured. Colors are
shown as ranges of red, green and blue (min/max values of each). You can
add or remove colors from a range by holding down the "CTRL" key or
"SHIFT-CTRL" keys while clicking.
8. Upload the color ranges into the NXTCam.
9. Test your colors in the Tracking window to see what object blobs are
returned.
10. Disconnect NXTCamView from your NXTCam.
mindsensors.com 6/14
Also watch a demo video ‘Capture and Select’ at following URL:
http://nxtcamview.sourceforge.net/DemoScreenCam.htm
Tips on using NXTCam in your environment
Object Colors in Line Tracking Vs Object Tracking Modes
In the object tracking mode, you can track objects comprising of 8 distinct colors.
While selecting colors, avoid any overlap between colors of different objects.
In line tracking mode, only the first color from the Colormap is used, and it is
recommended to limit the number of colors to one.
Lighting conditions
The NXTCam is designed to operate under white fluorescent light. If you notice
reddish image color, which tends to happen when your environment has lot of
ambient Infrared light, try to find the source of Infrared light and reduce it by
replacing it with fluorescent light.
For advanced operations it is possible to change color gain, brightness and contrast
of NXTCam by manipulating the I2C register values.
Focus
As a factory default, NXTCam lens is set for optimal focus between 2 and 4 feet.
The lens is screwed in it’s holder and it is designed to be tight to prevent accidental
rotation and loss of focus. To refocus the lens, gently turn the lens from the holder,
capture images and see if the new focus is satisfactory. Do not apply excessive
force, as it may damage the lens. For better grip while turning lens, you may wrap a
rubber-band around the exposed threads of the lens. To check the focus, you can
use Viewer software and perform a 'capture' to see the new focus results.
Updating your Colormap
Human eye (and brain) is conditioned to adapt to ambient light conditions and see.
Whereas based on ambient light, the colors of objects appear different to a camera
CCD. In other words, a blue ball in your laboratory lighting conditions will appear to
be a different shade of blue in Gymnasium lighting. Considering this aspect, ensure
to update your NXTCam Colormap based on your final lighting conditions.
Selecting Colors of your Target Object for Colormap
Due to angle of light and shadows cast on the object, to
NXTCam, the object appears to be a mix of dark and
light shades. In choosing color for your colormap, try to
select the lighter shade of your object’s colors. If with
lighter shades you have trouble tracking darker shades,
then select complete range of colors.
mindsensors.com 7/14
Changing the I2C Address
The factory default I2C address of NXTCam is 0x02.
This address can be changed. To set an address different from default address,
send sequence of following commands on the command register:
0xA0, 0xAA, 0xA5, <new I2C address>
Note: Send these commands with no break/read operation in between. This new
address is effective immediately. Please note down your new address for future
reference.
Alternately, you can download device scan and address change programs from
following URLs, and change them to suit your needs:
RobotC:
http://www.mindsensors.com/index.php?
module=documents&JAS_DocumentManager_op=viewDocument&JAS_Document_id=
18
NXC: http://www.mindsensors.com/index.php?
module=documents&JAS_DocumentManager_op=viewDocument&JAS_Document_id=
52

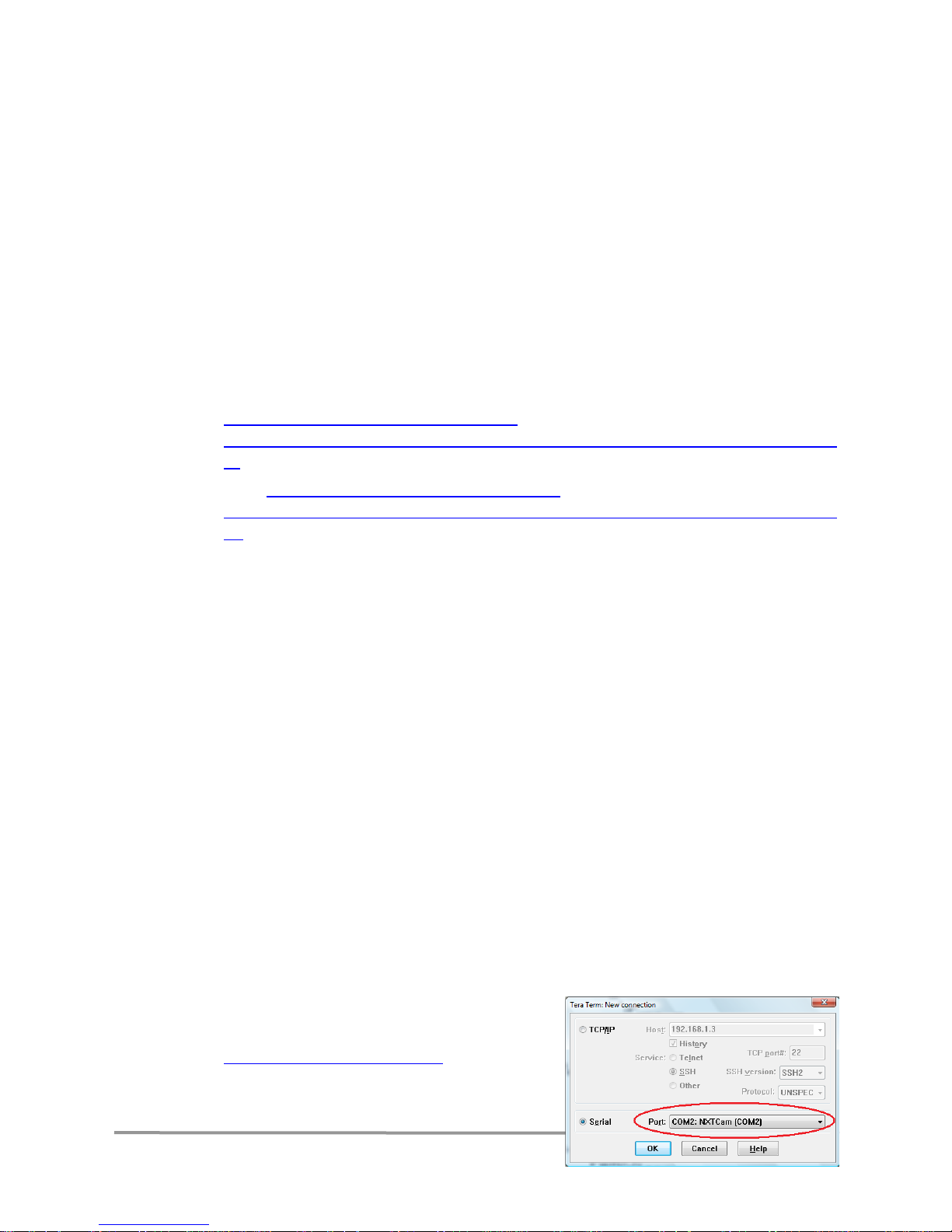

Troubleshooting NXTCam communication
Troubleshooting NXTCam communication with your PC
To ensure USB drivers are installed properly, follow these steps:
1. Ensure to install the USB drivers as mentioned in this document.
2. Connect the NXTcam using a USB cable to your computer.
3. From Start menu -> Right click on Computer, select 'Properties', select
'Hardware' tab, and select the 'Device Manager'.
4. Expand the 'Universal Serial Bus Controller' entry.
5. You should see 'NXTCam' listed.
6. In the same Device Manager, Expand ‘Ports (COM & LPT) entry.
7. You should see a COM port listed for NXTCam (this is the COM port you
should use for your viewer software configuration).
To ensure actual USB communication, follow these steps:
Install TeraTerm from following URL:
http://ttssh2.sourceforge.jp/
mindsensors.com 8/14
Select NXTCam port from the list provided.
Setup Baud Rate as shown:
1. In the main terminal window, just press
<enter>
You should get a response from NXTCam
as ‘NCK’
2. In the same window, type:
GV<enter>
You should get a response from NXTCam
as ‘NXTcam V n.n’ (where n.n is your NXTcam version number)
Alternately, you can use Hyperterminal (on Windows XP)
3. Connect the NXTcam using a USB cable to your computer.
4. Run Hyperterminal: Start -> All Programs -> Accessories -> Communication ->
Hyper Terminal
5. Give a name for the configuration, say ‘mynxtcam’.
6. In the next dialog box specify:
Connect Using: <NXTCam COM Port> (the port you noted from Ports (Com
and LPT) entry in Device Manager)
7. Click OK.
8. In next window Specify:
Bits per second: 115200
Data bits: 8
Parity: None
Stop bits: 1
Flow Control: None
9. Click OK.
10. In the main terminal window, just press <enter>
You should get a response from NXTCam as ‘NCK’
11. In the same window, type:
GV<enter>
You should get a response from NXTCam as ‘NXTcam V n.n’ (where n.n is
your NXTcam version number)
Troubleshooting ‘Time-out’ error
While using NXTCam-v4 on PC (with NXTCamView), if you get ‘Search Error: The
operation has timed out’, NXTCam-v4 AVR firmware may be corrupted.
mindsensors.com 9/14
As a feature of NXTCam-v4, the firmware is designed to be re-writable, but
sometimes due to unknown reason it writes itself and corrupts.
In this case, the firmware needs be re-written by following procedure in section
'How to change Firmware of AVR Mega 8 processor' of 'Advanced Programming
Guide'.
Troubleshooting NXTCam communication with your NXT
Ensure to install NXT-G blocks for NXTCam as mentioned above in the document.
1. Connect your NXT to your PC using it’s standard USB cable.
2. Connect your NXTCam to NXT Port 1 using standard NXT sensor cable.
3. Run NXT-G software on your computer.
4. Power on the NXT.
5. Start a New Program (say Untitled-1), and from Advanced Block Palette,
drag and drop the NXTCam block in it.
6. Click on the block, and examine the bottom left corner of NXT-G window
(where block control
panel is located).
7. You should see
NXTCam version
number shown in the
bottom left corner,
as shown in the
adjacent picture.
8. If the NXTCam is not connected correctly to your NXT, this status will
indicate ‘No Device’. If that happens, ensure the port and Address in your
program match to what’s on NXTCam.
Reference Information
Open Source Software and Hardware
NXTCam is based on AVRcam, and is Open Source using GNU license. We encourage
you to improve the source code and features and inform us the changes for inclusion
in future releases. Visit following URL for Advanced Programming Resources and
related docs.
http://www.mindsensors.com/index.php?
module=pagemaster&PAGE_user_op=view_page&PAGE_id=129
I2C Operations
Pins used: SDA(1), GND(2), SCL(3), +5V(4)
Following table lists the register definitions and setup commands:
Commands Action
mindsensors.com 10/14
ASCII Hex
A 0x41 Sort tracked objects by size
B 0x42 Select Object tracking mode
C 0x43 Write to image sensor Registers
Use CAUTION when using command C since this can
stop NXTCam from working properly. In case this
happens, please power off your NXTCam and power
it on again.
D 0x44 Disable Tracking
E 0x45 Enable Tracking
G 0x47 Get the Color map from NXTCam Engine
H 0x48 Read data from the image sensor Registers
I 0x49 Illumination on (Future)
L 0x4C Select Line tracking mode
N 0x4E Set ADPA mode ON (setting stored in NVRAM)
O 0x4F Set ADPA mode Off (default) (setting stored in
NVRAM)
P 0x50 Ping NXTCam Engine
R 0x52 Reset NXTCam Engine
S 0x53 Send the color map to NXTCam Engine
T 0x54 Illumination Off
U 0x55 Sort tracked objects by color
V 0x56 Get NXTCam Engine firmware version No,
Read resulting string at 0x42 (12 bytes).
X 0x58 Do not Sort tracked objects
While programming in NXC, you can use the API function NXTCam_SendCommand ()
to send the command to NXTCam. While using NXT-G block, most of the essential
commands are enumerated in ‘Operation’.
Colormap Reference
More information about Colormap Structure and how they are constructed is
available in document: NXTCam-v3-Colormap-Reference.pdf at following URL:
http://www.mindsensors.com/index.php?
module=documents&JAS_DocumentManager_op=viewDocument&JAS_Document_id=
45
mindsensors.com 11/14
I2C Registers:
The NXTCam appears as a set of few registers as follows.
Register Read Write Comments
0x00-0x07 Software version –
(Vn.nn)
-
0x08-0x0f Vendor Id –
mndsnsrs
-
0x10-0x17 Device ID –
NXTCam
-
0x41 - Command This register is command register. A
command written here will be executed.
0x42 Number of objects detected - Shows how many objects are being tracked.
Zero indicates that there are no objects being
tracked.
0x43 1st object color - This is the first object color as per the
sorting method selected.
0x44
1
1st object - X upper left Upper left X coordinate of first object
0x45 1st object - Y upper left Upper left Y coordinate of first object
0x46 1st object - X lower right Lower right X coordinate of first object
0x47
2
1st object - Y lower right Lower right Y coordinate of first object
0x48 2nd object color
0x49-0x4C 2nd object co-ordinates
0x4D 3rd object color
0x4E-0x51 3rd object co-ordinates
0x52 4th object color
0x53-0x56 4th object co-ordinates
0x57 5th object color
0x58-0x5B 5th object co-ordinates
0x5C 6th object color
0x5D-0x60 6th object co-ordinates
1
In case of line tracking mode, these are coordinates of beginning and end points of the line.
2
This repeats for all 8 objects. Please note that object position and coordinate are overwritten if new object is detected, otherwise previous value is
retained.
mindsensors.com 12/14
Register Read Write Comments
0x61 7th object color
0x62-0x65 7th object co-ordinates
0x66 8th object color
0x67-0x6A 8th object co-ordinates
0x6B No. of registers to Read No. of registers to Write This is the number of registers you need to
read or write from NXTCam image sensor
0x6C 1st image sensor register
Address
1st image sensor register
Address
0x6D
3
1st image sensor register
Data
1st image sensor register
Data
1st register Data read from image sensor or
written to image sensor
……………………….. ………………………………………….. ……………………………
0x7A 8th image sensor register
Address
8th image sensor register
Address
0x7B 8th image sensor register
Data
8th image sensor register
Data
0x80
4
Color map data Red 0 Color map data Red 0 0x80 – 0xAF - These registers are used for
Colormap data reading and writing
0x80 Color map data Red 0 Color map data Red 0
3
If you need to read image sensor register 0x00 (i.e. 1 register) then follow this:
Write 0x01 to register 0x6B, Write 0x00 to register 0x6C
Run command ‘H’
Results will be stored in register 0x6D
If you need to write to image sensor register 0x00 (i.e. 1 register) then follow this:
Write 0x01 to register 0x6B, Write 0x00 to register 0x6C, Write data to register 0x6D
Run command ‘C’
4
If you need to read Colormap data from NXTCam engine, then follow this:
Run command ‘G’
Read registers 0x80 – 0xAF.
If you need to write Colormap data to NXTCam engine, then follow this:
Write your color map data in registers 0x80 – 0xAF,
Run command ‘S’
mindsensors.com 13/14
Register Read Write Comments
0x81 Color map data Red 1 Color map data Red 1
0x82 Color map data Red 2 Color map data Red 2
0x83 Color map data Red 3 Color map data Red 3
0x84 Color map data Red 4 Color map data Red 4
0x85 Color map data Red 5 Color map data Red 5
0x86 Color map data Red 6 Color map data Red 6
0x87 Color map data Red 7 Color map data Red 7
..................... ………………………………………………. ……………………………………
0x8F Color map data Red 15 Color map data Red 15
0x90 Color map data Green 0 Color map data Green 0
0x91 Color map data Green 1 Color map data Green 1
..................... ………………………………………………. ……………………………………
0x9F Color map data Green 15 Color map data Green 15
0xA0 Color map data Blue 0 Color map data Blue 0
0xA1 Color map data Blue 1 Color map data Blue 1
..................... ………………………………………………. ……………………………………
0xAF Color map data Blue 15 Color map data Blue 15
mindsensors.com 14/14
Loading...
