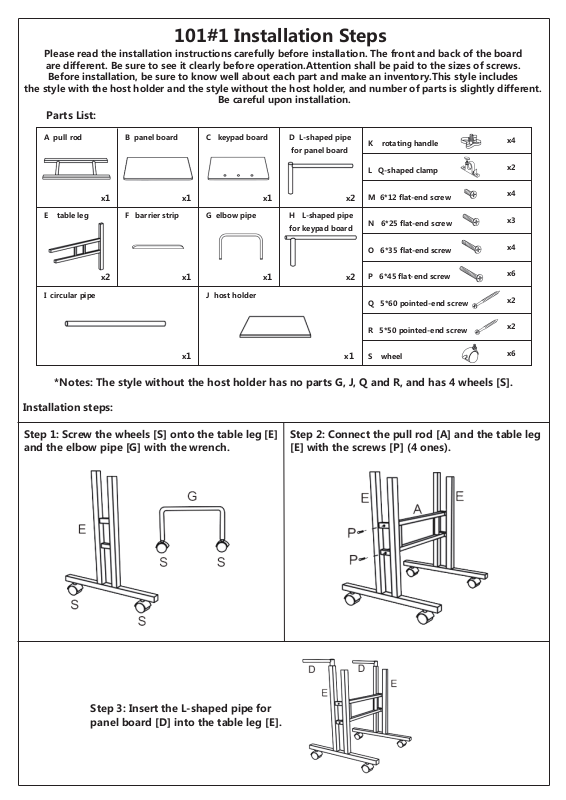

101#1 Installation Steps
Please read the installation instructions carefully before installation. The front and back of the board
are different. Be sure to see it clearly before operation.Attention shall be paid to the sizes of screws.
Before installation, be sure to know well about each part and make an inventory.This style includes
the style with the host holder and the style without the host holder, and number of parts is slightly different.
Be careful upon installation.

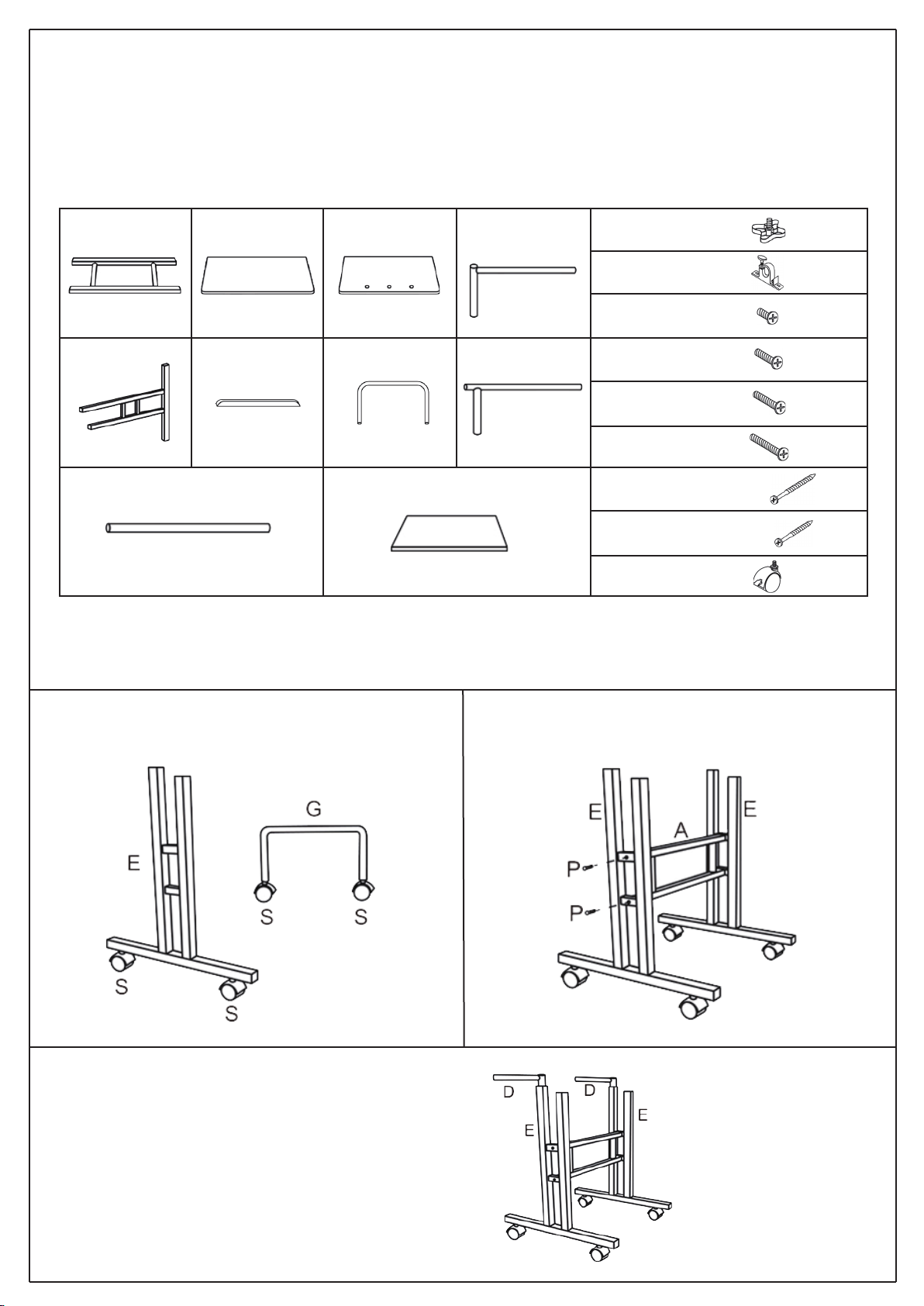

Parts List:
A pull rod
x1
E table leg
x2
I circular pipe
*Notes: The style without the host holder has no parts G, J, Q and R, and has 4 wheels [S].
Installation steps:
B panel board
F barrier strip
C keypad board
x1
G elbow pipe
x1
J host holder
x1
D L-shaped pipe
for panel board
x1
H L-shaped pipe
for keypad board
x1
K rotating handle
L Q-shaped clamp
M 6*12 flat-end screw
x2
N 6*25 flat-end screw
O 6*35 flat-end screw
P 6*45 flat-end screw
x2
Q 5*60 pointed-end screw
R 5*50 pointed-end screw
S wheel
x1
x4
x2
x4
x3
x4
x6
x2
x2
x6
Step 1: Screw the wheels [S] onto the table leg [E]
and the elbow pipe [G] with the wrench.
Step 3: Insert the L-shaped pipe for
panel board [D] into the table leg [E].
Step 2: Connect the pull rod [A] and the table leg
[E] with the screws [P] (4 ones).
Page 2

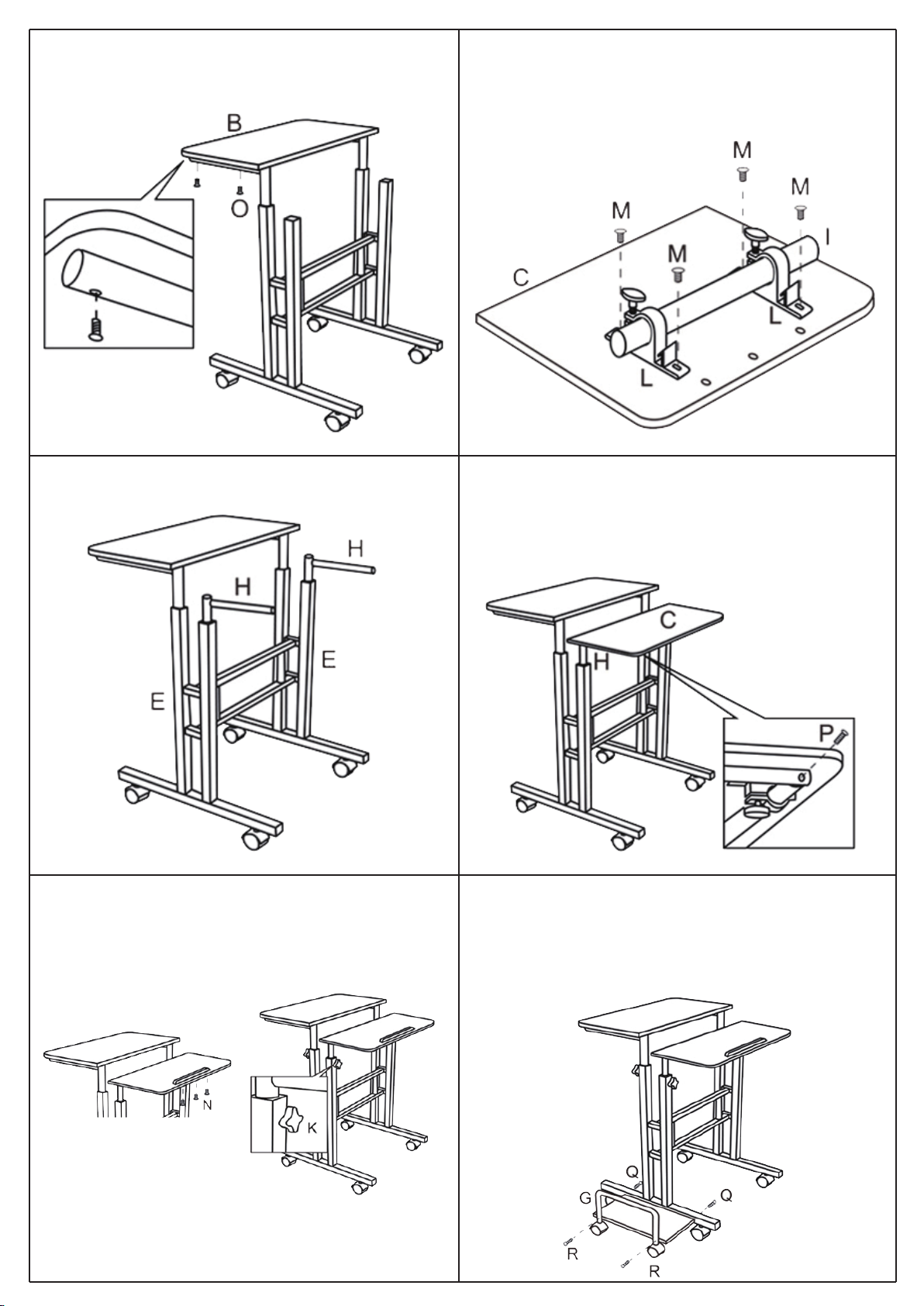

Step 4: Connect the panel board [B] and the
L-shaped pipe [D] with the screws [O] (4 ones).
Step 5: Unscrew the rotating handles of the
Q-shaped clamp [L], fit them into the circular pipe
[I],and connect the keypad board [C] and the
Q-shaped clamp [L] with the screws [M] (4 ones).
Step 6: Insert the L-shaped pipe for keypad
board [H] into the table leg [E].
Step 8: Connect the barrier strip [F] and the
keypad board [C] with the screws [N] (3 ones),
and screw the rotating handle [K] into
corresponding place.
Step 7: Connect the circular pipe [I] and the
L-shaped pipe [H] with the screws [P] (2 ones).
Step 9: Connect the host holder [J], the elbow
pipe [G] and the table leg [E] with the screws [Q]
(2 ones) and the screws [R] (2 ones). The
installation is completed.
Notes: The table leg uses 6mm screws. The elbow pipe
uses 5mm screws.
