MindMobile BLE301i User Manual
類別:
Type
BLE301i (BTA-065EX) User Manual
MindMobile 3-in-1 Bluetooth Car Charger
文件編號：
Doc. #
MT/WD02-20-113
版本/修改狀態 Version/Changes: A/0 頁次 Pages:
1/7
此資料中的全部信息是華聯電電子(深圳)有限公司的智慧財產. 請保密併遵守相關的保密協議. 未經同意擅自流傳或拷貝者, 我們將依法追述不法使用者.
All information, and any attachments hereby, contain legally privileged and/or confidential information. It is the property of MegaTrend Electronics Co., Ltd.
Unless it's agreed by MegaTrend Electronics Co., Ltd, we reserve the legal rights against any dissemination, distribution, copying and use of the inform ation
contained.

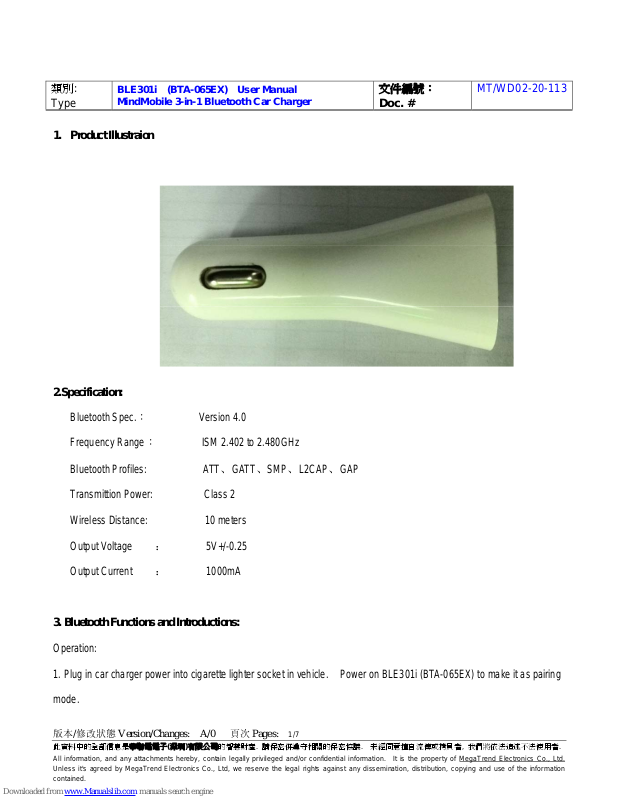

1. Product Illustraion
2.Specification:
Bluetooth Spec.： Version 4.0
Frequency Range： ISM 2.402 to 2.480GHz
Bluetooth Profiles: ATT、GATT、SMP、L2CAP、GAP
Transmittion Power: Class 2
Wireless Distance: 10 meters
Output Voltage ： 5V+/-0.25
Output Current ： 1000mA
3. Bluetooth Functions and Introductions:
Operation:
1. Plug in car charger power into cigarette lighter socket in vehicle. Power on BLE301i (BTA-065EX) to make it as pairing
mode.
類別:
Type
BLE301i (BTA-065EX) User Manual
MindMobile 3-in-1 Bluetooth Car Charger
文件編號：
Doc. #
MT/WD02-20-113
版本/修改狀態 Version/Changes: A/0 頁次 Pages:
2/7
此資料中的全部信息是華聯電電子(深圳)有限公司的智慧財產. 請保密併遵守相關的保密協議. 未經同意擅自流傳或拷貝者, 我們將依法追述不法使用者.
All information, and any attachments hereby, contain legally privileged and/or confidential information. It is the property of MegaTrend Electronics Co., Ltd.
Unless it's agreed by MegaTrend Electronics Co., Ltd, we reserve the legal rights against any dissemination, distribution, copying and use of the inform ation
contained.
2. Serach APP store and find the software CarFinder and installed it into your phone.
3. Turn on the Bluetooth icon of your phone and operate the CarFiner APP software to pair up with BLE301i . When pairing
is done, BLE301i will come up with green LED on. However, if the pairing procedure between your phone and BLE301i
couldn’t be completed within 15 sec. and failed the pairing, the red LED is on and beeps 6 times as alert.
4. When your phone connection to BLE301i is out of max.10m transmission distance, BLE301i will beep for 6 times to alert
you the connection is out of range, you’ll see the red LED flash fast.
5. When BLE301i disconnection/without power on or with power supply plug in again, if there’s disconnection between
your phone and BLE301i within 15 sec., you will hear the beeps for 6 times with red LED on. But, if the connection
resume to work, you’ll see the green LED is on.
6. See the example of illustration as followings, download CarFinder APP from APP store, clic once to enter the map mode
of the software. The blue spot/pin showing where your phone is located.
類別:
Type
BLE301i (BTA-065EX) User Manual
MindMobile 3-in-1 Bluetooth Car Charger
文件編號：
Doc. #
MT/WD02-20-113
版本/修改狀態 Version/Changes: A/0 頁次 Pages:
3/7
此資料中的全部信息是華聯電電子(深圳)有限公司的智慧財產. 請保密併遵守相關的保密協議. 未經同意擅自流傳或拷貝者, 我們將依法追述不法使用者.
All information, and any attachments hereby, contain legally privileged and/or confidential information. It is the property of MegaTrend Electronics Co., Ltd.
Unless it's agreed by MegaTrend Electronics Co., Ltd, we reserve the legal rights against any dissemination, distribution, copying and use of the inform ation
contained.
7. Power on /Plug in BLE301i into cigarette lighter in vehicle. First, you have to turn on Bluetooth icon of your phone,
click the map options into pairing mode. Click again the phone screen pull down to search Bluetooth device, upon the
searched device come up as followings ID – your APP and phone connection is completed and works now.
Click the handset makes
it into searching mode
