Mindeo MD6600 User Manual

MD6600 Handheld Image Scanner

User Manual

Version: MD6600_UM_EN_V1.1.3

i

Notice

Ensure that the optional DC adapter works at +5 VDC, especially for the RS-232 interface

cable.

1. All software, including firmware, furnished to the user is on a licensed basis.

2. The right is reserved to make changes to any software or product to improve reliability, function, or

design.

3. The material in this manual is subject to change without notice.

4. A standard packing includes a scanner, a USB cable and a quick guide. Accessories include a stand,

a RS-232 cable, and a 5 VDC adaptor.

ii

iii

1 Specifications

1-1 Technical specifications

Dimensions

Height × Width × Depth：90 mm × 62.8 mm × 153 mm

Weight

132 g, without cable

Cable

Straight 2.0 m

Connector Type

RJ-45 phone jack connector

Case Material

PC+TPU

Exit Window Material

Tempered glass

Indicator

Beeper, LED

Interface Supported

RS-232, USB Keyboard, USB virtual COM

Operating Mode

Hand-held, Auto-detection

Programming Method

Manual (reading special barcode)

Firmware Upgrade

Online

Input Voltage

5 ± 0.25 VDC

Current

Standby: 160 mA , Scanning: 300 mA (Max:480 mA)

Image Size

1280 × 800 pixels

Light Source

Illumination : 5000 K , white LED

Aiming: 525 nm peak wavelength, green LED

Imager Field of View

Horizontal: 41°, vertical: 28°

Scanning Angle

±70°, ±75°, 360° (skew, pitch, roll)

Print Contrast

20% minimum reflective difference

Decoding Capability

1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code

39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5),

Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11

(USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, Telepen, GS1 DataBar

(formerly RSS) variants

2D: PDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, MicroQR Code,

MicroPDF417

Minimum Resolution

HD：1D（Code 39）： 3mil

SR：1D（Code 128）： 4mil

Decoding Depth

High Density Series Standard Range Series

3 mil Code39 (3 chars)

25 mm – 50 mm /

4 mil Code39 (9 chars)

10 mm – 90 mm 30 mm – 90 mm

5 mil Code39 (3 chars)

5 mm – 115 mm 20 mm – 120 mm

13 mil UPC (6 chars)

0 mm – 250 mm 0 mm – 280 mm

20 mil Code39 (1 char)

15 mm – 340 mm 15 mm – 430 mm

6.7 mil PDF417 (20 chars)

10 mm – 100 mm 15 mm – 120 mm

10 mil QR (20 chars)

0 mm – 155 mm 0 mm – 165 mm

10 mil DM (20 chars)

0 mm – 160 mm 0 mm – 165 mm

20 mil QR (20 chars)

0 mm – 270 mm 0 mm – 340 mm

Temperature

-10° to 50°C (14° to 122°F), operating; -20° to 70°C (-4° to 158°F), storage

Humidity

5% to 95% (non-condensing)

Safety

Photobiological Safety: EN62471

EMC: EN55032

2

ESD Protection: EN55024

RF Immunity: IEC61000-4-3, 10 V/m

Immunity: 0~100,000 lux

Sealing: IP52

Drop Resistance: Withstands multiple 2.0 m drops to concrete

3

1-2 Default setting for each barcode

Code type

Read

enable

Check digit

verification

Check digit

transmissio

Min. code

length

Proprietary

code ID

AIM

code ID

UPC-A

√ √ √

(12)2

A

]Em

UPC-E

√ √ √

(8)2

D

]Em

UPC-E1

- √ √

(8)2

D

]Em

EAN-13

√ √ √

(13)2

A

]Em

EAN-8

√ √ √

(8)2

C

]Em

ISBN (Bookland EAN)

√ √ √

(13)2

B

]Em

Code 39

√ - - 1 M

]Am

Interleaved 2 of 5

√ - - 6 I

]Im

Industrial 2 of 5

- - - 4 H

]Im

Matrix 2 of 5

√ - - 6 X

]Im

Codabar

√ - - 4 N

]Fm

Code 128

√ √ - 1 K

]Cm

UCC/EAN 128

√ √ - 1 K

]Cm

ISBT 128

√ √ - 1 K

]Cm

Code 93

√ √ - 1 L

]Gm

Code 11

- √ - 4 V

-

MSI/Plessey

- - - 4 O

]Mm

UK/Plessey

- √ - 1 U

]Mm

China Post

√ - -

(11)2

T

]Im

China Finance

- - -

(10)2 Y -

Telepen

√ √ - 1 P

]Em

GS1 DataBar

√ - -

(16)2

R

]em

GS1 DataBar

Truncated3

√ - -

(16)2

R

]em

GS1 DataBar Limited

√ - -

(16)2

R

]em

GS1 DataBar Expanded

√ - - 1 R

]em

PDF417

√ - - - p

]Lm

MicroPDF417

p

]Lm

DataMatrix

√ - - - d

]dm

QR code

√ - - - q

]Qm

MicroQR Code

- - - - q

]Qm

Han Xin Code

- - - - h

]Xm

Aztec Code

- - - - a

]zm

Note: 1The settings for ISBN/ISSN and EAN-13 must be the same except the code ID.

2 Fixed-length barcodes.

3The settings for GS1 DataBar Truncated and GS1 DataBar must be the same.

4

2 Get started

2-1 Dimensions

5

2-2 Parts of the scanner

Figure 2-1

① LED

② Beeper

③ Scan window

④ Trigger

⑤ Release-hole of the cable

⑥ Cable interface port

6

2-3 Cable connector pin-outs descriptions

The scanner provides a RJ-45 cable connector.

Figure 2-2 Cable connector interface pin-outs

The pin-outs descriptions in Table 2-1 apply to the cable connector on the scanner and are for reference

only.

Table 2-1 Cable connector pin-outs descriptions

RS232

USB

1

Power (+5V)

2

Reserved

3

Ground

4

+3.3V

( for interface auto selection purpose)

Ground

(for interface auto selection purpose)

5

TxD

Reserved

6

RxD

Reserved

7

Reserved

8

Reserved

9

CTS

D-

10

RTS

D+

Note: Voltage level of all RS232 Pin-outs (RxD, TxD, CTS and RTS) is 0V for logic low and 3.3V for logic

high.

7

2-4 Installation and uninstallation of cable

Note: If any of the below operation is incorrect, turn off the power immediately and check the scanner for

any improper connections. Go through all steps again.

2-4-1 Installation - USB

The scanner attaches directly to a USB host, and is powered by it. No additional power supply is

required.

1. Refer to Figure 2-3, connect the USB interface cable to the bottom of the scanner.

2. Plug the series A connector in the USB host, or an available port of the terminal.

3. Windows will automatically detect the USB device.

Figure 2-3

2-4-2 Installation - RS-232

1. Connect the RS-232 interface cable to the bottom of the scanner.

2. Connect the other end of the interface cable to the serial port on the host. Tighten the two screws to

secure the connector to the port.

3. If the host does not have power supply (on PIN 9), connect the external power supply (DC adapter)

to the RS-232 cable.

Figure 2-4

8

2-4-3 Uninstallation of cable

Figure 2-5

Remove the interface cable:

1. Find the release-hole.

2. Insert a thin wire into the hole and pull out the cable gently.

2-5 Assembling the stand

Note: The stand is an optional accessory.

9

2-6 Auto-detection

Note: The stand is an optional accessory.

1. To scan a bar code, present the bar code and ensure that the scan angle from the scan window can

cover the symbol.

2. Upon successful decode, the scanner beeps and the LED lights.

3. When the scanner stops scanning, the present bar code must be removed to active next scanning.

Figure 2-6

The scanner offers 2 methods to enable/ disable Auto-detection quickly.

10

3 Programming

3-1 Example 1: Single-parameter setting by scanning 1D barcodes

Important notes:

1. During the process of programming, LED is lighting to indicate the programming correctness. LED

will go off if any incorrect programming operation performed.

2. After each successful programming, LED will go off and the scanner will beep twice.

3. Throughout the programming barcode menus, the factory default settings are indicated with

asterisks (*).

Two programming modes have been provided as bellows:

❶ Single-scan setting

 Scan the appropriate Single-scan setting (e.g. %0101D00%) according to the user‘s demand.

Example: To set Flow control to be XON/XOFF. Steps: Scan the following barcode.

❷ Multiple-scan setting

 Step 1. Scan the Option barcode barcode (e.g. %0101M%) according to the user‘s demand.  Step 2. To the right of the option barcode, the necessary alphanumeric inputs are listed. Scan

two alphanumeric entries from 0 to 9 or A to F, refer to

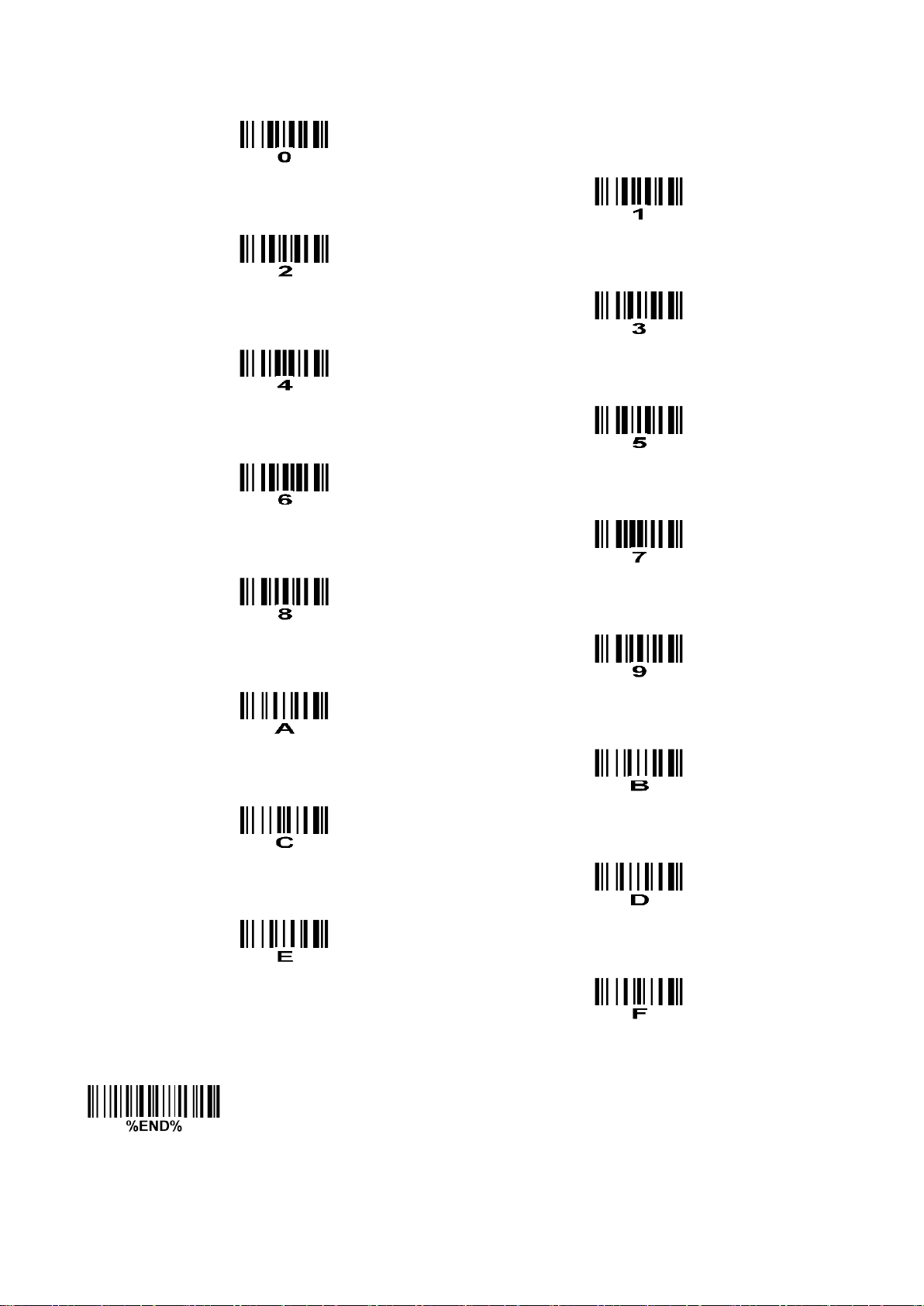

10 Configuration alphanumeric entry

barcode

.

 Step 3. Repeat Step 2, if more user parameters input are required.  Step 4. Scan the %END% barcode, listed on the lower left hand corner of each parameter

setting part.

Example: To set Flow control to be XON/XOFF.

Steps: Referring to

3-6 RS-232 interface

, scan the following barcodes in order.

11

3-2 Example 2: Multiple-parameter setting by scanning a QR code barcode

User can customize a QR code to set multiple parameters. The scanner can set multiple parameters by

scanning this single QR code barcode.

1. The data format of the QR code barcode is as following.

% Parameter set 1 % Parameter set 2 % Parameter set N %

···

Note that:

 <Option barcode index> means the corresponding 4 digits of Option barcode.  <D/H> means “D” or “H” character. D means that the type of alphanumeric entry is decimal; and H

means that the type of alphanumeric entry is hexadecimal.

 <Alpha. entries> is a character string with various length of 2, 4, or other values.

Example: Set 0401->03 (decimal); 8002->0D0A (hexadecimal); 8202->01 (decimal). The customized

QR code barcode contents and symbol are as following.

%0401D03%8002H0D0A%8202D01%

2. Notes of making QR code barcode

The model is chosen as M2. Other requirements, e.g. ECC level, Start mode, etc, are not specified.

Other notes

 The contents of a QR code barcode can include several same <Option barcode index> associated

with same or different <Alpha. entries>. In the case of with different <Alpha. entries>, the latest

<Alpha. entries> is the valid one.

 If any one of the parameter settings is invalid, the total setting is failed. The invalid setting can be

caused by one of the following problems: invalid <Option barcode index>, invalid type of <D/H>,

invalid type, length or value range of <Alpha. entries>, etc.

12

3-3 Operate the scanner by receiving command via UART

Note:

1- The information in this chapter is provided for the scanner with RS232 cable or USB cable.

2- If the scanner is with USB cable, the setting of USB device type must be set as “USB virtual COM”.

Please refer to 3-6 USB interface.

3- Please read 3-7 Scan mode & some global settings about the setting of Scan mode in details.

UART parameter should be set as below:

(1) Baud rate: 9600 bps;

(2) Data bits: 8 bits;

(3) Stop bit: 1 bit;

(4) Parity check bit: None;

(5) Flow control: None.

Guide of control command: all commands are sent by UART

1) Start command: “0x16 0x54 0x0D”

When the scanner received the above command, it will start barcode scanning following the setting of

Scan mode.

2) Stop command: “0x16 0x55 0x0D”

If the Scan mode is set as “Alternate continue” or “Continue”, and the scanner received the above

command, it will stop barcode scanning and act as in an idle mode.

13

3-4 Interface selection

This scanner supports interfaces such as RS-232 serial wedge and USB interface. In most of the cases,

simply selecting an appropriate cable provided by the manufacturer will work for a specific interface.

Interface selection:

Auto detection- By setting this function, the scanner will automatically detect the RS-232 interface or

USB interface for user.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Interface selection

Auto detection

(RS-232/USB)

00*

*

14

3-5 RS-232 interface

Host type:

Standard- The scanner is connected to a standard RS-232 interface.

OPOS/JPOS- The scanner is connected to a POS terminal which may be necessary to install the

OPOS/JPOS driver to be compatible with the manufacturer's scanner. The OPOS/JPOS driver is

provided by the scanner manufacturer; please contact the scanner manufacturer for the instruction.

Flow control:

None-The communication only uses TxD and RxD signals without any hardware or software

handshaking protocol.

RTS/CTS- If the scanner wants to send the barcode data to host computer, it will issue the RTS signal

first, wait for the CTS signal from the host computer, and then perform the normal data communication.

If there is no replied CTS signal from the host computer after the timeout duration, the scanner will

issue an error indication. By setting (Host idle: Low RTS) or (Host idle: High RTS), the scanner can be

set to match the Serial Host RTS line.

XON/XOFF- An XOFF character turns the scanner transmission off until the scanner receives an XON

character.

ACK/NAK- After transmitting data, the scanner expects either an ACK (acknowledge) or NAK (not

acknowledge) response from the host. When a NAK is received, the scanner transmits the same data

again and waits for either an ACK or NAK. After three unsuccessful attempts to send data when NAKs

are received, the scanner issues an error indication and discards the data.

Inter-character delay: This delay is inserted after each data character transmitted.

Response delay: This delay is used for serial communication of the scanner when it waits for a

handshaking acknowledgment from the host.

15

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Host type

Standard

00*

*

OPOS/JPOS

01

Flow control

None

00*

*

RTS/CTS

(Host idle: Low RTS)

01

RTS/CTS

(Host idle: High RTS)

02

XON/XOFF

03

ACK/NAK

04

Inter-character delay

0 ms

00*

*

5 ms

01

10 ms

02

20 ms

03

40 ms

04

80 ms

05

Response delay

00-99 (100 ms)

00-99

00*

*

Baud rate

300

00

600

01

1200

02

2400

03

4800

04

9600

05*

*

16

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

19200

06

38400

07

57600

08

115200

09

Parity bit

None

00*

*

Odd

01

Even

02

Data bit

8 bits

00*

*

7 bits

01

Stop bit

One bit

00*

*

Two bits

01

17

3-6 USB interface

USB device type:

HID keyboard– By setting, the scanner is used as a USB HID keyboard emulation device.

HID keyboard for Apple Mac– By setting, the scanner is compatible with Apple Mac.

USB virtual COM– By setting, the scanner emulates a regular RS232-based COM port. If a Microsoft

Windows PC is connected to the scanner, a driver is required to install on the connected PC. The

driver will use the next available COM Port number. The driver and the installation guide can be found

in the associated CD and on the manufacturer’s website. A Windows-based software COM_Text is

recommended to display the barcode data in text format. COM_Text emulates some kind of serial-key

typing.

Note: When changing USB Device Type, the scanner automatically restarts.

Simple COM Port Emulation- Please contact the manufacturer for the instruction.

HID for OPOS/JPOS- The scanner is connected to a POS terminal which may be necessary to install

the OPOS/JPOS driver to be compatible with the manufacturer's scanner. The OPOS/JPOS driver is

provided by the scanner manufacturer; please contact the scanner manufacturer for the instruction.

Keyboard layout: The scanner supports different national keyboard layouts. Commonly an appropriate

encoding system must be selected. Please refer to Character encoding system of

3-7 Scan mode &

some global settings

for details.

Inter-character delay: This delay is inserted after each data character transmitted. By selecting, the user can change the output speed of the scanner to match the speed of the host USB communication port.

Numeric key:

Alphabetic key- The scanner will output code result as alphabetic key.

Numeric key- The scanner will output code result as pressing numeric keypad ( ‘0’, ‘1’, ‘2’, ‘3’, ‘4’, ‘5’, ‘6’, ‘7’, ‘8’, ‘9’, ‘.’, ‘+’, ‘-‘, ‘/’, ‘*’ only).

Alt + keypad- The scanner will output code result as pressing Alt+ numeric key (on keypad). Note that

the Num Lock control key must be ON. This setting can be specially adapted for use with different

national keyboard layout.

USB function code: It can support the output and prohibition of non-printable-characters, as well as

the output and prohibition of function codes corresponding to non-printable-characters.

18

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha.

entry

USB device type

HID keyboard

00*

*

HID keyboard for Apple Mac

01

USB virtual COM

02

Simple COM Port Emulation

03

HID for OPOS/JPOS

04

Keyboard layout

USA

00*

*

Turkish F

01

Turkish Q

02

French

03

Italian

04

Spanish

05

Slovak

06

Denmark

07

Japanese

08

German

09

Belgian

10

Russian

11

Czech

12

Taibun

13

Hungary

14

Swiss German

15

19

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha.

entry

Portugal

16

Character encoding

system

Refer to

3-7 Scan mode & some global settings

.

Inter-character delay

0 ms

00*

*

5 ms

01

10 ms

02

20 ms

03

40 ms

04

60 ms

05

Numeric key

Alphabetic key

00*

*

Numeric keypad

01

Alt + keypad

02

GBK

03

BIGS

04

TAIBUN

05

USB function code

Output non-printing characters

00

Output function codes corresponding to

non-printable-characters.

01

Prohibition output of non-printable-character

03

20

3-7 Scan mode & some global settings

Scan mode:

Good-read off-The trigger button must be pressed once to activate scanning. The light source of

scanner stops scanning when there is a successful reading or no code is decoded after the Stand-by

duration elapsed.

Momentary-The trigger button acts as a switch. Press button to activate scanning and release button

to stop scanning. The light source of scanner stops scanning when there is a successful reading or

no code is decoded after the Stand-by duration elapsed.

Good-read on-The trigger button must be pressed once to activate scanning. The light source of

scanner stops scanning when no code is successful decoded after the Stand-by duration elapsed.

Auto-detection- Good-read on – By setting Enable, the scanner will start operating if any nearby object

has been detected. The scanner stops scanning when no code is successful decoded after the

Stand-by duration elapsed. Once the scanner stops scanning, the present object must be removed to

enable Auto-detection.

Auto-detection- Good-read off – By setting Enable, the scanner will start operating if any nearby object

has been detected. The scanner will stop scanning when there is a successful reading or no code is

decoded after the Stand-by duration elapsed. Once the scanner stops scanning, the present object

must be removed to enable Auto-detection.

Barcode detection: In image auto-induction mode, barcode detection means that the scanner detects an

object similar to a barcode to trigger decoding, such as text, graphics, barcodes, and so on.

Barcode detection delay: The barcode detection delay means that the detection function is enabled

when no object is detected within the set delay.

Same barcode delay time for 1D symbols: This feature is activated only when the Scan mode is in

alternate or continuous mode. Once a 1D barcode has been scanned and output successfully, the optics

module’s lights must be off or moved away from the barcode beyond delay time to active a next

scanning on the same barcode.

Same barcode delay time for 2D symbols: This feature is activated only when the Scan mode is in

alternate or continuous mode. Once a 2D barcode has been scanned and output successfully, the optics

module’s lights must be off or moved away from the barcode beyond delay time to active a next

scanning on the same barcode.

Double confirm: If it is enabled, the scanner will require a several times of same-decoded-data to confirm

a valid reading.

Global Max./Min. code length for 1D symbol: These two lengths are defined as the valid range of

decoded 1D barcode data length. Make sure that the minimum length setting is no greater than the

maximum length setting, or otherwise the labels of the symbol will not be readable. In particular, the

same value can be set for both minimum and maximum reading length to force the fixed length barcode

decoded.

Notes:

1. Please set the max./min. length for individual barcode in later sections, if special demand is

requested.

21

2. The number of check digits is included in max./min. code length.

3. These two settings have no effect on the symbols with fixed-length, e.g. UPC-A, UPC-E, EAN-13,

EAN-8 and China Post.

Global G1-G6 string selection: The scanner offer one or two string group for ALL symbols. By setting

one or two digits to indicate which string group you want to apply. You may refer to 3-41 G1-G6 & C1-C3

& FN1 substitution string setting and 3-41 G1-G4 string position & Code ID position.

Example: Group 1 → set 01 or 10. Group 2 and 4 → set 24 or 42.

All valid settings include 00, 01, 02, 03, 04, 05, 06, 10, 11, 12, 13, 14, 15, 16, 20, 21, 22, 23, 24, 25, 26,

30, 31, 32, 33, 34, 35, 36, 40, 41, 42, 43, 44, 45, 46, 50, 51, 52, 53, 54, 55, 56, 60, 61, 62, 63, 64, 65 and

66.

Element amendment: If it is enabled, the scanner can read the barcode comprised with bars and spaces

in different scale.

Character output restraint:

Printable character only- If this option is selected, the scanner will output the printable characters only,

i.e. in ASCII from 20H to 7EH.

Alphanumeric character only- If this option is selected, the scanner will output the alphanumeric

characters only, i.e. “A”-“Z”, “a”-“z”, “0”-“9”.

Decoder optimization: If it is enabled, the scanner will optimize the decoder with error correction. This

function is not effective for all types of barcodes.

Data output delay in continue-scan mode: If it is enabled, in the continue-scan mode, the scanner can

store the data while continue-scanning. The scanner will output the data after the predefined delay

elapsed. The maximum storage of data is 1000 characters. If this parameter is set to be “00”, the

scanner will not store data. And if the parameter is set to be “FF”, the scanner will output data after

stopping scanning.

Character encoding system: A character encoding system consists of a code that pairs each character

from a given repertoire. Common examples include Morse code, the Baudot code, the ASCII and

Unicode. If the data received does not display with the proper characters, it may be because the

barcode being scanned was created using a character encoding system that is different from the one the

host program is expecting. Try alternate options to find the proper one.

Complete data output before next decode attempt: This setting is active only when USB device type is

set as “HID keyboard” or “HID keyboard for Apple Mac”, refer to 3-6 USB interface. If it is enabled, the

scanner will not start next decode attempt until previous data output is completed.

Sleep mode: If it is enabled, the scanner will go to sleep when no code is successful decoded after the

Sleep mode delay elapsed.

Sleep mode delay: When no code is successful decoded beyond this time, the scanner will go to sleep.

22

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Scan mode

Good-read off

00

Momentary

01*

*

Good-read on

04

Auto-detection- Good-read on

06

Auto-detection- Good-read off

07

Barcode detection

Disable*

00*

*

Enable

01

Barcode detection delay

Always detection

00

5 seconds

01

10 seconds

02

30 seconds

03

60 seconds

04

Never detection

05*

*

Standby duration

4 seconds

00*

*

8 seconds

01

16 seconds

02

24 seconds

03

30 seconds

04

1 minute

05

1.5 minutes

06

2 minutes

07

5 minutes

08

23

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

7 minutes

09

10 minutes

10

15 minutes

11

20 minutes

12

30 minutes

13

45 minutes

14

1 hour

15

Same barcode delay time for

1D symbol

00-FF16 (50 ms)

00-FF16

00

08*

*

Same barcode delay time for

2D symbol

00-FF16 (50 ms)

00-FF16

00 08*

*

Double confirm

00-09 (00: no )

00-09

00*

*

Global max. code length for

1D symbol

04-99

99*

*

Global min. code length for

1D symbol

01-99

04*

*

Global G1-G6 string selection

00-66

00* * Element amendment

Disable

00

24

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Enable

01*

*

Character output restraint

None

00*

*

Printable character only

01

Alphanumeric character only

02

Decoder optimization

Disable

00

Enable

01*

*

Data output delay in

continue-scan mode

00-99 (100 ms)

FF (Never)

00-FF16

00*

*

Character encoding system

ASCII

00*

*

UTF-8

01

Windows-1251

02

Simplified Chinese

03

Traditional Chinese

04

Windows-1250

05

KOI8R

06

Japanese

07

Complete data output before

next decode attempt

Disable

00*

*

Enable

01

Sleep mode

Disable

00

Enable

01*

*

Sleep mode delay

1 second

00

5 seconds

01

25

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

10 seconds

02

30 seconds

03

60 seconds (1 minute)

04

300 seconds (5 minutes)

05*

*

600 seconds (10 minutes)

06

1800 seconds (30 minutes)

07

3600 seconds (1 hour)

08

10800 seconds (3 hours)

09

26

3-8 Indication

Power on alert: After power-on the scanner will generate an alert signal to indicate a successful self-test.

LED indication: After each successful reading, the LED above the scanner will light up to indicate a good

barcode reading.

Beeper indication: After each successful reading, the scanner will beep to indicate a good barcode

reading, and its beep tone duration is adjustable.

Beep tone duration: This parameter can be adjusted for a good reading upon favorite usage.

Volume of beeper: This parameter can be adjusted for different level of the volume of the beeper.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Power on alert

Disable

00

Enable

01*

*

LED indication

Disable

00

Enable

01*

*

Beeper indication

Disable

00

Enable

01*

*

Beep tone duration

01-09 (10 ms )

01-09

05*

*

Volume of beeper

Low

00

Middle

01

High

02*

*

27

3-9 Decode illumination and decode aiming pattern

Decode illumination mode: Enable illumination causes the scanner to turn on the illumination to aid

decoding. Disable illumination to turn off illumination for the scanner during decoding. Better quality

images could be obtained with illumination support. The effectiveness of the illumination decreases as

the distance to the target increases.

Decode aiming pattern: When this option is enabled, the scanner will project the aiming pattern during

the code capture.

Level of decode illumination: This parameter can be adjusted for different level of decode illumination.

Illumination mode of Auto-detection:

Always off- Illumination LED will be always turned off.

Enable illumination in low light conditions- In low light conditions, the scanner will turn on illumination

LED automatically to ensure normal work. While in other light conditions, the illumination LED will be

turned off automatically.

Always on- Illumination LED will be always turned on.

Note: This function is only valid in Auto-detection mode.

28

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. Entry

Decode illumination mode

Always Off

00

Always On

01

Flashing

02

Always On when reading

03*

*

Decode aiming pattern

Always Off

00

Always On

01

On before reading

02

On when reading

03*

*

Level of decode illumination

Disable decode illumination

00

Low

01

Middle

02*

*

High

03

Illumination mode of

Auto-detection

Always off

00

Enable illumination in low

light conditions

01*

*

Always on

02

29

3-10 Other settings

1D symbols read: A global setting of 1D symbols readability.

2D symbols read: A global setting of 2D symbols readability.

Vertical centering read: By setting Enable, the scanner reads only the barcode centered by the aimer in

vertical direction. However, the scanner will read either one of two barcodes which are positioned

horizontally. See example below.

Mobile screen read: By setting enable, the scanner can read barcodes on a mobile screen better.

However, this will slow the reading speed of normal barcodes a little bit.

30

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

1D symbols read

Follow respective 1D

symbol setting

00*

*

All 1D OFF

01

2D symbols read

Follow respective 2D

symbol setting

00*

*

All 2D OFF

01

All 2D ON

02

Only PDF417 ON

03

Only QR code ON

04

Only Data Matrix ON

05

Only MaxiCode ON

06

Only Aztec Code ON

07

Only Han Xin Code ON

08

Vertical centering read

Disable

00*

*

Enable

01

Mobile screen read

Disable

00

Enable

01*

*

31

Note 1 : The instruction of calibrating the aimer in vertical centering direction

1. Scan the barcode on this page. The scanner will give three musical short beeps to indicate entering

calibration mode.

2. Press the trigger of the scanner while maintaining the distance of about 15cm between the scan

window of the scanner and this paper. After a few seconds, the scanner will give three short beeps

to indicate a successful calibration, or a long beep to indicate a failed calibration.

3. If the calibration is failed in step 2, please repeat the steps 1-2. If it is not succeed after a multiple

times of calibration, please contact your local dealer or the manufacturer for further instruction.

32

Note 2 : Scan barcode or send command to enter upgrade mode

Scan barcode to enter upgrade mode

Send command to enter upgrade mode

Send command 0x16 0x4D 0x0D 0x25 0x4E 0x4D 0x55

0x47 0x44 0x2E by USB virtual COM or RS232 COM.

33

3-11 UPC-A

Read:

Format

System character

Data digits (10 digits)

Check digit

Check digit verification: The check digit is optional.

Check digit trans.: By setting Enable, check digit will be transmitted.

Code ID setting: Code ID is a one-or-two-character string used to represent the symbol upon a

succeeding reading. If you want application to transmit Code ID, you must set Code ID transmission to

be enabled. Refer to

3-41 String transmission

.

Insertion group selection: Refer to Global insertion group selection of

3-7 Scan mode & some global

settings

.

Supplement digits: The Supplement digits barcode is the supplemental 2 or 5 characters.

Format

System character

Data digits (10 digits)

Check digit

Supplement digits 2 or 5

Truncation/Expansion:

Truncate leading zeros- The leading “0” digits of UPC-A data characters can be truncated when the

feature is enabled.

Expand to EAN-13- It extends to 13-digits with a “0” leading digit when the feature is enabled.

Truncate system character- The system character of UPC-A data can be truncated when the feature is

enabled.

Add country code- The country code (“0” for USA) can be added when the feature is enabled.

34

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00

Enable

01*

*

Check digit trans.

Disable

00

Enable

01*

*

Code ID setting

00-FF

16

(ASCII)

00-FF16

<A>*

*

Insert group selection

00-44

00*

Supplement digits

None

00*

*

2 digits

01

5 digits

02

2 or 5 digits

03

Truncation/Expansion

None

00*

*

Truncate leading zeros

01

Expand to EAN-13

02

Truncate system character

03

Add country code

04

35

3-12 UPC-E

Read:

Format

System character “0”

Data digits (6 digits)

Check digit

Check digit verification: The check digit is optional and made as the sum of the numerical value of the

data digits.

Check digit trans.: By setting Enable, check digit will be transmitted.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Supplement digits:

Format

System character “0”

Data digits (6 digits)

Check digit

Supplement digits 2 or 5

Truncation/Expansion:

Truncate leading zeros- Refer to Truncation/Expansion of

3-11 UPC-A

.

Expand to EAN-13- It extends to 13-digits with “0” digits when the feature is set to be enabled.

Example: Barcode “0123654”,

Output: “0012360000057”.

Expand to UPC-A- It extends to 12-digits when the feature is set to be enabled.

Truncate system character- The system character “0” of UPC-E data can be truncated when the

feature is enabled.

36

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00

Enable

01*

*

Check digit trans.

Disable

00

Enable

01*

*

Code ID setting

00-FF

16

(ASCII)

00-FF16

<D>*

*

Insert group selection

00-44

00*

*

Supplement digits

None

00*

*

2 digits

01

5 digits

02

2 or 5 digits

03

Truncation/Expansion

None

00*

*

Truncate leading zeros

01

Expand to EAN-13

02

Expand to UPC-A

03

Truncate system character

04

37

3-13 UPC-E1

Read:

Format

System character “1”

Data digits (5 digits)

Check digit

Check digit verification: The check digit is optional and made as the sum of the numerical value of the

data digits.

Check digit trans.: By setting Enable, check digit will be transmitted.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Supplement digits:

Format

System character “1”

Data digits (5 digits)

Check digit

Supplement digits 2 or 5

Truncation/Expansion:

Expand to EAN-13- It extends to 13-digits with “0” digits when the feature is set to be enabled.

Expand to UPC-A- It extends to 12-digits when the feature is set to be enabled.

Truncate system character- The system character “1” of UPC-E1 data can be truncated when the

feature is enabled.

38

Multiple-scan setting

Single-scan setting Option barcode

Option

Alpha. entry

Read

Disable

00*

*

Enable

01

Check digit verification

Disable

00

Enable

01*

*

Check digit trans.

Disable

00

Enable

01*

*

Code ID setting

00-FF

16

(ASCII)

00-FF16

<D>*

*

Insert group selection

00-44

00*

*

Supplement digits

None

00*

*

2 digits

01

5 digits

02

2 or 5 digits

03

Truncation/Expansion

None

00*

*

Expand to EAN-13

02

Expand to UPC-A

03

Truncate system character

04

39

3-14 EAN-13 (ISBN/ISSN)

Read:

Format

Data digits (12 digits)

Check digit

Check digit verification: The check digit is optional and made as the sum of the numerical value of the

data digits.

Check digit transmission: By setting Enable, check digit will be transmitted.

EAN-13 code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Supplement digits:

Format

Data digits (12 digits)

Check digit

Supplement digits 2 or 5

ISBN/ISSN conversion: The ISBN (International Standard Book Number, or Bookland EAN) and ISSN

(International Standard Serial Number) are two kinds of barcode for books and magazines. The ISBN is

10 digits with leading “978” and the ISSN is 8 digits with leading “977” of the EAN-13 symbol.

Example:

Barcode “9780194315104”, Output: “019431510X”.

Barcode “9771005180004”, Output: “10051805”.

ISBN/ISSN code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

40

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00

Enable

01*

*

Check digit transmission

Disable

00

Enable

01*

*

EAN-13 code ID setting

00-FF16

(ASCII)

<A>*

*

Insert group selection

00-44

00*

*

Supplement digits

None

00*

*

2 digits

01

5 digits

02

2 or 5 digits

03

ISBN/ISSN conversion

Disable

00*

*

Enable

01

ISBN/ISSN code ID setting

00-FF16

(ASCII)

00-FF16

<B>*

*

41

3-15 EAN-8

Read:

Format

Data digits (7 digits)

Check digit

Check digit verification: The check digit is optional and made as the sum of the numerical value of the

data digits.

Check digit trans.: By setting Enable, check digit will be transmitted.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Supplement digits:

Format

Data digits (7 digits)

Check digit

Supplement Digits 2 or 5

Truncation/Expansion: Refer to Truncation/Expansion of

3-11 UPC-A

.

42

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00

Enable

01*

*

Check digit trans.

Disable

00

Enable

01*

*

Code ID setting

00-FF

16

(ASCII)

00-FF16

<C>*

*

Insert group selection

00-44

00*

*

Supplement digits

None

00*

*

2 digits

01

5 digits

02

2 or 5 digits

03

Truncation/Expansion

None

00*

*

Truncate leading zero

01

Expand to EAN-13

02

43

3-16 Code 39 (Code 32, Trioptic Code 39)

Read:

Format

Start character (*)

Data digits (variable)

Check digit (optional)

End character (*)

Check digit verification: The check digit is optional and made as the sum module 43 of the numerical

value of the data digits.

Check digit transmission: By setting Enable, check digit will be transmitted.

Max./Min. code length: Each symbol has own max./min. code length. If both setting of max./min. code length are “00”s, the setting of global max./min. code length is effective. The length is defined as to the actual barcode data length to be sent. Label with length exceeds these limits will be rejected. Make sure that the minimum length setting is no greater than the maximum length setting, or otherwise all the labels of the symbol will not be readable. In particular, you can see the same value for both minimum and maximum reading length to force the fixed length barcode decoded.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Start/End transmission: The start and end characters of Code 39 are “*”s. You can transmit all data

digits including two “*”s.

“*” as data character: By setting Enable, “*” can be recognized as data character.

Convert Code 39 to Code 32: Code 32 is a variant of Code 39 used by the Italian pharmaceutical

industry. Note that Code 39 must be enabled in order for this parameter to function.

Format of Code 32

“A” (optional)

Data digits (8 digits)

Check digit

Code 32 Prefix “A” transmission: By setting Enable, the prefix character “A” can be added to all Code 32

barcodes.

Trioptic Code 39 read: Trioptic Code 39 is a variant of Code 39 used in the marking of magnetic tapes

and computer cartridges. Trioptic Code 39 symbols always contain six characters.

Format

Start character ($)

Data digits (6 digits)

End character ($)

Trioptic Code 39 Start/End transmission: The start and end characters of Trioptic Code 39 are “$”s. You

can transmit all data digits including two “$”s.

44

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00*

*

Enable

01

Check digit transmission

Disable

00*

*

Enable

01

Max. code length

00-99

99*

*

Min. code length

00-99

01*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<M>*

*

Insert group selection

00-44

00*

*

Format

Standard

00*

*

Full ASCII

01

Start/End transmission

Disable

00*

*

Enable

01

“*” as data character

Disable

00*

*

Enable

01 Convert Code 39 to Code 32

Disable

00*

*

45

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Enable

01

Code 32 Prefix “A” transmission

Disable

00*

*

Enable

01

Trioptic Code 39 read

Disable

00*

*

Enable

01

Trioptic Code 39 Start/End

transmission

Disable

00*

*

Enable

01

46

3-17 Interleaved 2 of 5

Read:

Format

Data digits (Variable)

Check digit (optional)

Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data

digits. There are two optional check digit algorithms: the specified Uniform Symbol Specification (USS)

and the Optical Product Code Council (OPCC).

Check digit transmission: By setting Enable, check digit will be transmitted.

Max./Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

47

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00*

*

USS

01

OPCC

02

Check digit transmission

Disable

00*

*

Enable

01

Max. code length

00-99

99*

*

Min. code length

00-99

06*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<I>*

*

Insert group selection

00-44

00*

*

48

3-18 Industrial 2 of 5 (Discrete 2 of 5)

Read:

Format

Data digits (variable)

Max./Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Multiple-scan setting

Single-scan setting Option barcode

Option

Alpha. entry

Read

Disable

00*

*

Enable

01

Max. code length

00-99

99*

*

Min. code length

00-99

04*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<H>*

*

Insert group selection

00-44

00*

*

49

3-19 Matrix 2 of 5

Read:

Format

Data digits (variable)

Check digit (optional)

Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data

digits.

Check digit transmission: By setting Enable, check digit will be transmitted.

Max./Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00*

*

Enable

01

Check digit transmission

Disable

00*

*

Enable

01

Max. code length

00-99

99*

*

Min. code length

00-99

06*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<X>*

*

Insert group selection

00-44

00*

*

50

3-20 Codabar

Read:

Format

Start

Data digits (variable)

Check digit (optional)

End

Check digit verification: The check digit is made as the sum module 16 of the numerical values of all data

digits.

Check digit transmission: By setting Enable, check digit will be transmitted.

Max./Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Start/End type: Codabar has four pairs of Start/End pattern, you may select one pair to match your

application.

Start/End transmission: Refer to Start/End transmission of

3-16 Code 39

.

Start/End character equality: By setting Enable, the start and end character of a Codabar barcode must

be the same.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00*

*

Enable

01

Check digit transmission

Disable

00*

*

Enable

01

Max. code length

00-99

99*

*

Min. code length

00-99

04*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<N>*

*

51

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Insert group selection

00-44

00*

*

Start/End type

ABCD/ABCD

00*

*

abcd/abcd

01

ABCD/TN*E

02

abcd/tn*e

03

Start/End transmission

Disable

00*

*

Enable

01

Start/End character equality

Disable

00*

*

Enable

01

52

3-21 Code 128

Read:

Format

Data digits (variable)

Check digit (optional)

Check digit verification: The check digit is made as the sum module 103 of all data digits.

Check digit transmission: By setting Enable, check digit will be transmitted.

Max./Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Truncate leading zeros: The leading “0” digits of Code 128 barcode characters can be truncated when

the feature is enabled.

53

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00

Enable

01*

*

Check digit transmission

Disable

00*

*

Reserved

01

Max. code length

00-99

99*

*

Min. code length

00-99

01*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<K>*

*

Insert group selection

00-44

00*

*

Truncate leading zeros

Disable

00*

*

All leading “0”s

01

Only the first “0”

02

54

3-22 UCC/EAN 128

Read:

Format

Data digits (variable)

Check digit (optional)

Check digit verification: The check digit is made as the sum module 103 of all data digits.

Check digit transmission: By setting Enable, check digit will be transmitted.

Max. /Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Truncate leading zeros: Refer to Truncate leading zeros of

3-23 Code 128

.

55

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00

Enable

01*

*

Check digit transmission

Disable

00*

*

Reserved

01

Max. code length

00-99

99*

*

Min. code length

00-99

01*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<K>*

*

Insert group selection

00-44

00*

*

Truncate leading zeros

Disable

00*

*

All leading “0”s

01

Only the first “0”

02

56

3-23 ISBT 128

Read:

Format

“=” or “&”

Data digits (variable)

Check digit (optional)

Check digit verification: The check digit is made as the sum module 103 of all data digits.

Check digit transmission: By setting Enable, check digit will be transmitted.

Max./Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00

Enable

01*

*

Check digit transmission

Disable

00*

*

Reserved

01

Max. code length

00-99

99*

*

Min. code length

00-99

01*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<K>*

*

Insert group selection

00-44

00*

*

57

3-24 Code 93

Read:

Format

Data digits (variable)

2 check digits (optional)

Check digit verification: The check digit is made as the sum module 47 of the numerical values of all data

digits.

Check digit transmission: By setting Enable, check digit will be transmitted.

Max./Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Check digit verification

Disable

00

Enable

01*

*

Check digit transmission

Disable

00*

*

Enable

01

Max. code length

00-99

99*

*

Min. code length

00-99

01*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<L>*

*

Insert group selection

00-44

00*

*

58

3-25 Code 11

Read:

Format

Data digits (variable)

Check digit 1 (optional )

Check digit 2 (optional)

Check digit verification: The check digit is presented as the sum module 11 of all data digits.

Check digit transmission: By setting Enable, check digit 1 and check digit 2 will be transmitted upon your

selected check digit verification method.

Max./Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

59

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00*

*

Enable

01

Check digit verification

Disable

00

One digit

01*

*

Reserved

02

Reserved

03

Check digit transmission

Disable

00*

*

Enable

01

Max. code length

00-99

99*

*

Min. code length

00-99

04*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<V>*

*

Insert group selection

00-44

00*

*

60

3-26 MSI/Plessey

Read:

Format

Data digits (variable)

Check digit 1 (optional)

Check digit 2 (optional)

Check digit verification: The MSI/Plessey has one or two optional check digits. There are three

methods of verifying check digits, i.e. Mod 10, Mod 10/10 and Mod 10/11. The check digit 1 and check

digit 2 will be calculated as the sum module 10 or 11 of the data digits.

Check digit transmission: By setting Enable, check digit 1 and check digit 2 will be transmitted upon your

selected check digit verification method.

Max./Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

61

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00*

*

Enable

01

Check digit verification

Disable

00*

*

1 digit (Mod 10)

01

2 digit (Mod 10/10)

02

2 digit (Mod 10/11)

03

Check digit transmission

Disable

00*

*

Enable

01

Max. code length

00-99

99*

*

Min. code length

00-99

04*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<O>*

*

Insert group selection

00-44

00*

*

62

3-27 UK/Plessey

Read:

Format

Data digits (variable)

2 check digits (optional)

Check digit verification: The UK/Plessey has one or two optional check digits. The check digit 1 and

check digit 2 will be calculated as the sum module 10 or 11 of the data digits.

Check digit transmission: By setting Enable, check digit will be transmitted.

Max./Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00*

*

Enable

01

Check digit verification

Disable

00

Enable

01*

*

Check digit transmission

Disable

00*

*

Enable

01

Max. code length

00-99

99*

*

Min. code length

00-99

01*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<U>*

*

Insert group selection

00-44

00*

*

63

3-28 China Post

Read:

Format

11 Data digits

Max. /Min. code length: Refer to Max./Min. code length of

3-16 Code 39

. The code length of China Post is 11. Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Max. code length

00-99

11*

*

Min. code length

00-99

11*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<T>*

*

Insert group selection

00-44

00*

*

64

3-29 China Finance

Note: This type of barcode is not Omni-directionally decodable. The encodable character set includes

numeric 0 to 9. Among the symbol of 0 to 9, 0 and 2, 4 and 9, 5 and 8, 6 and 7, have the symmetrical

pattern; the pattern of 1 and 3 is symmetrical.

Read:

Format

10 Data digits

Max./Min. code length: Refer to Max./Min. code length of

3-16 Code 39

.

Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data

digits.

Leading character 5/6/7/8/9 converted to A/B/C/D/E: By setting, leading character 5/6/7/8/9 can be converted to A/B/C/D/E. Leading character assignment: By setting, only the barcode with the assigned leading character can be output. Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00*

*

Enable

01

Max. code length

00-99

10*

*

Min. code length

00-99

10*

*

Check digit verification

Disable

00*

*

Reserved

01

Leading character 5/6/7/8/9

converted to A/B/C/D/E

Disable

00

Enable

01*

*

Only 5 converted to A

02

Only 6 converted to B

03

65

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Only 7 converted to C

04

Only 8 converted to D

05

Only 9 converted to E

06

Leading character assignment

Disable

00

Assigned to 0

01*

*

Assigned to 5 (A)

02

Assigned to 6 (B)

03

Assigned to 7 (C)

04

Assigned to 8 (D)

05

Assigned to 9 (E)

06

Assigned to 1

07

Assigned to 2

08

Assigned to 3

09

Assigned to 4

10

Code ID setting

00-FF16

(ASCII)

00-FF16

<Y>*

*

Insert group selection

00-44

00*

*

66

3-30 GS1 DataBar (GS1 DataBar Truncated)

GS1 DataBar Truncated is structured and encoded the same as the standard GS1 DataBar format, except its height is reduced to a 13 modules minimum; while GS1 DataBar should have a height greater than or equal to 33 modules. Read:

Format

16 Data digits

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Conversion:

UCC/EAN 128- Refer to Code ID transmission of

3-41 String transmission

, ]Cm will be identified as AIM ID. UPC-A or EAN-13- Barcode beginning with a single zero as the first digit has the leading “010” stripped and the barcode reported as EAN-13. Barcode beginning with two or more zeros but not six zeros has the leading “0100” stripped and the barcode reported as UPC-A.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<R>*

*

Insert group selection

00-44

00*

*

Conversion

None

00*

*

UCC/EAN 128

01

UPC-A or EAN-13

02

67

3-31 GS1 DataBar Limited

Read:

Format

16 Data digits

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Conversion: Refer to Conversion of

3-30 GS1 DataBar (GS1 DataBar Truncated)

.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<R>*

*

Insert group selection

00-44

00*

*

Conversion

None

00*

*

UCC/EAN 128

01

UPC-A or EAN-13

02

68

3-32 GS1 DataBar Expanded

Read:

Format

Data characters (variable)

Code ID setting: Refer to Code ID setting of

3-11 UPC-A

.

Insertion group selection: Refer to Insertion group selection of

3-11 UPC-A

.

Conversion:

UCC/EAN 128- Refer to Code ID transmission of

3-41 String transmission

, ]Cm will be identified as AIM

ID.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

Max. code length

00-99

99*

*

Min. code length

00-99

01*

*

Code ID setting

00-FF16

(ASCII)

00-FF16

<R>*

*

Insert group selection

00-44

00*

*

Conversion

None

00*

*

UCC/EAN 128

01

69

3-33 PDF417

Read:

Format

Data characters (variable)

Multiple-scan setting

Single-scan setting Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

70

3-34 QR Code

Read:

Format

Data characters (variable)

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

71

3-35 Data Matrix

Read:

Format

Data characters (variable)

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00

Enable

01*

*

72

3-36 Han Xin Code

Note: The support for this feature is available with customized firmware version.

Read:

Format

Data digits (variable)

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00*

*

Enable

01

73

3-37 Aztec Code

Read:

Format

Data digits (variable)

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00*

*

Enable

01

74

3-38 MicroQR Code

Note: The support for this feature is available with customized firmware version.

Read:

Format

Data digits (variable) Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00*

*

Enable

01

75

3-39 MicroPDF417 Code

Note: The support for this feature is available with customized firmware version.

Read:

Format

Data digits (variable) Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Read

Disable

00*

Enable

01

*

76

3-41 G1-G6 & C1-C3 & FN1 substitution string setting

Format of barcode data transmission:

Prefix

Code name

Preamble

Code ID

Code length

Code data

Code ID

Postamble

Suffix

Suffix string setting: The <enter > key is represented in different ASCII when it is applied by different OS. For a Windows/DOS OS, <enter> is represented as <CR><LF> (0x0D 0x0A); for an Apple MAC OS, <enter> is represented as <CR> (0x0D); for a Linux/Unix OS, <enter> is represented as <LF> (0x0A). Prefix/Suffix/Preamble/Postamble string setting: They are appended to the data automatically when a barcode is decoded. Example: Add a symbol of “$” as a prefix for all symbols. Steps:

1) Scan the option barcode of Prefix string setting.

2) Use the ASCII table to find the value of $→24.

3) Scan 2 and 4 from the barcode on the last page.

4) Scan END barcode. Scanning steps: Scan the following barcodes in order.

Insert G1/G2/G3/G4 string setting: The scanner offers 4 positions and 4 character strings to insert

among the symbol.

Example: Set G1 string to be “AB”.

Original code data

“1 2 3 4 5 6”

Output code data

“1 2 A B 3 4 5 6”

Steps:

1) Scan the option barcode of Insert G1 string setting.

2) Use the ASCII table to find the value of A→41, B→42.

3) Scan 4, 1 and 4, 2 from the barcode on the last page.

4) Scan END barcode.

5) Refer to

3-41 G1-G4 string position & Code ID position

.

6) Refer to

3-7 Scan mode & some global settings

.

77

Testing barcode:

FN1 substitution string setting: The FN1 character (0x1D) in an UCC/EAN128 barcode, or a Code 128 barcode, or a GS1 DataBar barcode can be substituted with a defined string.

Truncate leading G5 string setting: By setting, a defined leading character or string can be truncated.

Also a single character can be un-defined.

Repeat of a G5 character setting: While G5 is set as a single defined/un-defined character, G5 can also

be set to be repeated. This setting is ignored when the truncate number is more than the barcode data

characters. The option of “FF” for this setting is not active while the option of Truncate leading G5 string

setting is “00”.

Example: Truncate all leading zeros for all symbols.

Original code data

“0 0 0 1 2 3 4 5 6”

Output code data

“1 2 3 4 5 6”

Steps: scan the following data in order.

Testing barcode:

Truncate ending G6 string setting: By setting, a defined ending character or string can be truncated. Also

a single character can be un-defined.

Repeat of a G6 character setting: While G5 is set as a single defined/un-defined character, G6 can also be set to be repeated. This setting is ignored when the truncate number is more than the barcode data characters. The option of “FF” for this setting is not active while the option of Truncate ending G6 string setting is “00”. Single character C1/C2 replacement: By setting, a defined character in the data string can be replaced by another defined character. The C1 and C2 replacement can be applied simultaneously.

Example: Replace all the “A” character in a data string with “B” character.

Original code data

“1 2 3 A 5 A”

Output code data

“1 2 3 B 5 B”

Steps: scan the following barcodes in order. The ASCII value for “A” is 41, and the ASCII value for “B” is

42.

78

Testing barcode:

Multiple characters C3 replacement: By setting, a number of defined characters in the data string can be replaced by other defined characters. The maximum number of characters to replace is 11.

Example: Replace all the “A” character in a data string with “B” character; replace “C” with “D”; replace

“E” with “F”.

Original code data

“1 2 3 A 4 C 5 6 E 7 8”

Output code data

“1 2 3 B 4 D 5 6 F 7 8”

Steps: scan the following barcodes in order. The ASCII value for “A” is 41, for “B” is 42, for “C” is 43, for “D” is “44”, for “E” is 45, and for “F” is 46.

Testing barcode:

79

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. Entry

Prefix string setting

0-22 characters

00-FF16

None

00*

*

Suffix string setting

0-22 characters

00-FF16

<ENTER>

0D0A*

Preamble string setting

0-22 characters

00-FF16

None

00*

*

Postamble string setting

0-22 characters

00-FF16

None

00*

*

Insert G1 string setting

0-22 characters

00-FF16

None

00*

*

Insert G2 string setting

0-22 characters

00-FF16

None

00*

*

Insert G3 string setting

0-22 characters

00-FF16

None

00*

*

Insert G4 string setting

0-22 characters

00-FF16

None

00*

*

FN1 substitution string setting

0-4 characters

00-FF16

<SP>

20*

*

Truncate leading G5 string setting

A un-defined character

00

1-22 defined characters

01-7F16

<0>

30*

*

80

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. Entry

Repeat of a G5 character setting

Once

01*

*

Defined times

01-22

Un-defined times (All)

FF

Truncate ending G6 string setting

A un-defined character

00

1-22 defined characters

01-7F16

<0>

30*

*

Repeat of a G6 character setting

Once

01*

*

Defined times

01-22

Un-defined times (All)

FF

Single character C1 replacement

<0000>

0000*

0000-FFFF

16

Single character C2 replacement

<0000>

0000*

0000-FFFF

16

Multiple characters C3 replacement

-

0000*

-

81

3-41 G1-G4 string position & Code ID position

Format of barcode data transmission:

Prefix

Code name

Preamble

Code ID

Code length

Code data

Code ID

Postamble

Suffix

Insert G1/G2/G3/G4 string position: The scanner offers 4 positions to insert strings among the symbol. In

case of the insertion position is greater than the length of the symbol, the insertion of string is not

effective.

Code ID position: It is allowed to select different positions of code ID placement.

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Insert G1 string position

00-99

00*

*

Insert G2 string position

00-99

00*

*

Insert G3 string position

00-99

00*

*

Insert G4 string position

00-99

00*

*

Code ID position

Before code data

00*

*

After code data

01

82

3-42 String transmission

Note: The information in this chapter is closely related to the chapter of String setting.

Format of barcode data transmission:

Prefix

Code name

Preamble

Code ID

Code length

Code data

Code ID

Postamble

Suffix

Prefix transmission: By setting Enable, prefix will be appended before the data transmitted.

Suffix transmission: By setting Enable, suffix will be appended after the data is transmitted.

Code name transmission: By setting Enable, code name will be transmitted before code data.

Preamble transmission: By setting Enable, preamble will be appended before the data transmitted.

Postamble transmission: By setting Enable, postamble will be appended after the data is transmitted.

Code ID transmission: Code ID can be transmitted in the format of either Proprietary ID or AIM ID. Refer

to

1-2 Default setting for each barcode

.

Code length transmission: The length of code data string can be transmitted before the code data when

Enable is selected.

Case conversion: The characters within code data or the whole output string can be set in either upper

case or lower case.

FN1 substitution transmission: The scanner supports a FN1 substitution feature for USB and RS-232

interface. The replacement string of FN1 can be chosen by user (see

3-41 G1-G6 & C1-C3 & FN1

substitution string setting

).

All-non-printable-character string transmission with string setting: By setting enable, all string settings,

e.g. Preamble transmission or Insert G1 string setting, are active for an all-non-printable-character string.

Here a non-printable character means a character with ASCII value between 0x00 to 0x1F.

Transmit the first N data characters only: The scanner supports to only transmit the first N data

characters of a barcode. The number of N can be set as a digit between 1 and 99.

Transmit the last N data characters only: The scanner supports to only transmit the last N data

characters of a barcode. The number of N can be set as a digit between 1 and 99.

83

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

Prefix transmission

Disable

00*

*

Enable

01

Suffix transmission

Disable

00

Enable

01*

*

Code name transmission

Disable

00*

*

Enable

01

Preamble transmission

Disable

00*

*

Enable

01

Postamble transmission

Disable

00*

*

Enable

01

Code ID transmission

Disable

00*

*

Proprietary ID

01

AIM ID

02

Code length transmission

Disable

00*

*

Enable

01

Case conversion

Disable

00*

*

Upper (data only)

01

Lower (data only)

02

Upper (whole string)

03

Lower (whole string)

04

FN1 substitution transmission

Disable

00*

*

84

Multiple-scan setting

Single-scan setting

Option barcode

Option

Alpha. entry

USB

01

RS-232

02

USB/RS-232

03

All-non-printable-character string

transmission with string setting

Disable

00*

*

Enable

01

Transmit the first N data characters

only

All

99*

*

01-99

Transmit the last N data characters

only

All

99*

*

01-99

85

4 Maintenance

Cleaning the scan window is the only maintenance required. A dirty window may affect scanning

accuracy.

1. Do not allow any abrasive material to touch the window.

2. Remove any dirt particles with a damp cloth.

3. Wipe the window using a tissue moistened with water.

4. Do not spray water or other cleaning liquids directly into the window.

5. Use a piece of soft and dry cloth when cleaning the scanner.

86

5 Barcode representing non-printable character

Notes to make the following barcode:

1. According to different barcode printing software, the method of printing following barcode is different.

2. If using CODESOFT software, firstly read the information through “Help→Index→Code128→Special

input syntax”. Also refer to ASCII table. For example, if we wish to make “F1” barcode, select

“Code128”, then select “CODE A” type, and input “{DC1}” as data.

Up ↑

Down ↓

Left ←

Right →

Page Up

Page Down

Backspace

Tab

Home

End

Enter

Insert

Delete

F1

F2

F3

F4

F5

F6

F7

F8

F9

F10

Esc

F11

F12

87

6 ASCII Table

for keyboard wedge

for RS-232

H

L

0 1 0

1

0

Null

NUL

DLE 1 Up

F1

SOH

DC1

2

Down

F2

STX

DC2 3 Left

F3

ETX

DC3 4 Right

F4

EOT

DC4

5

PgUp

F5

ENQ

NAK

6

PgDn

F6

ACK

SYN 7

F7

BEL

ETB

8

Bs

F8

BS

CAN 9 Tab

F9

HT

EM A

F10

LF

SUB

B

Home

Esc

VT

ESC C End

F11

FF

FS D Enter

F12

CR

GS

E

Insert

Ctrl+

SO

RS F Delete

Alt+

SI

US

Notes: The 2nd and the 3rd columns above are used for keyboard wedge only.

H

L

2 3 4 5 6

7 0

SP 0 @ P `

p

1 ! 1 A Q a q 2 “ 2 B R b r 3 # 3 C S c s

4 $ 4 D T d t 5 % 5 E U e u 6 & 6 F V f v

7 ‘ 7 G W g w 8 ( 8 H X h x 9 ) 9 I Y i y

A * : J Z j z B + ; K [ k { C , < L \ l |

D - = M ] m } E . > N ^ n ~ F / ? O _ o DEL

Example: ASCII “A” = “41”.

88

7 Test barcode

UPC-A

UPC-E

UPC-E1

(Default setting: Disable)

EAN-13

ISBN/ISSN

EAN-8

Code 39

Interleaved 2 of 5

Industrial 2 of 5

(Default setting: Disable)

Matrix 2 of 5

89

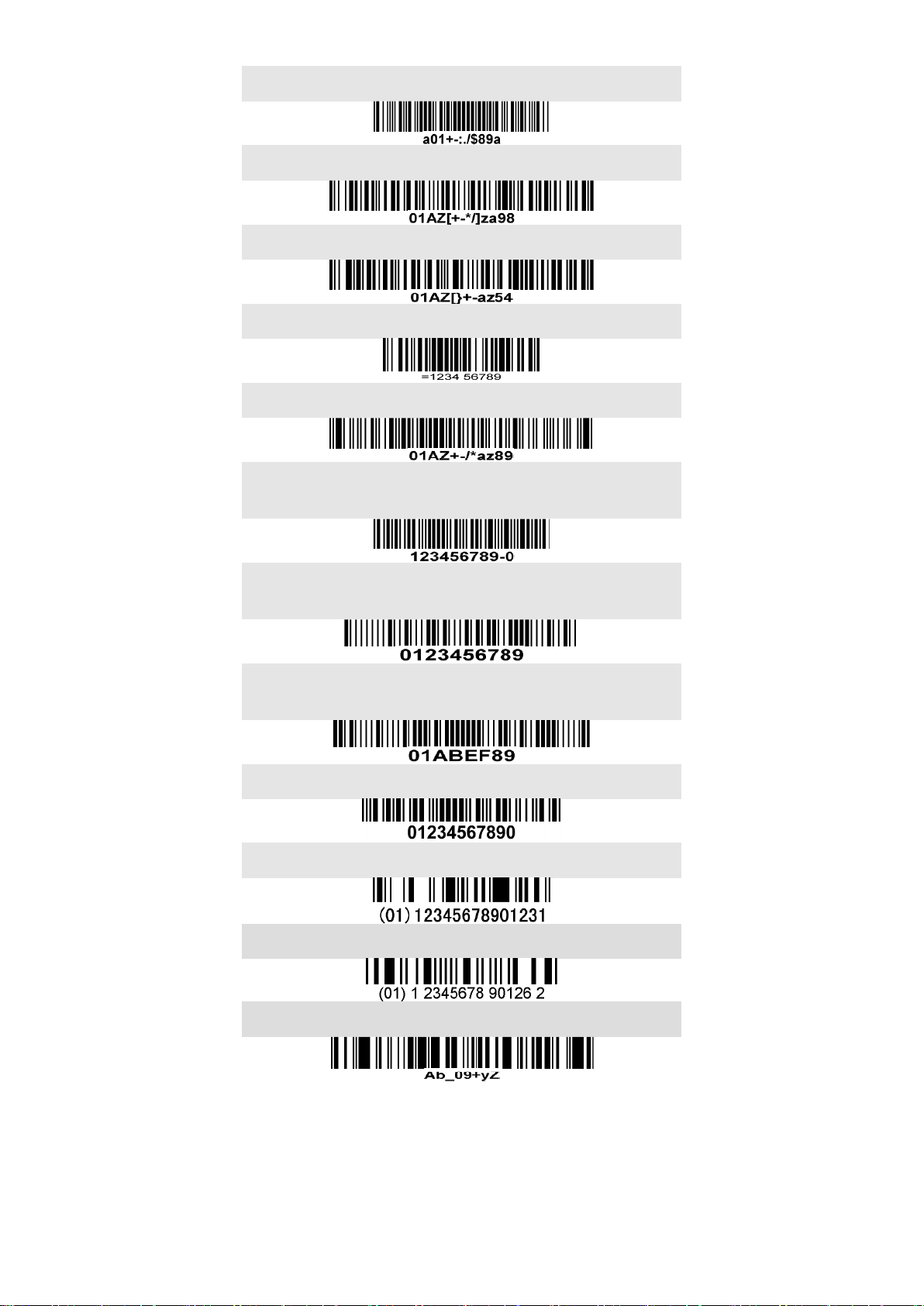

Codabar

Code 128

UCC/EAN 128

ISBT 128

Code 93

Code 11

(Default setting: Disable)

MSI/Plessey

(Default setting: Disable)

UK/Plessey

(Default setting: Disable)

China Post

GS1 DataBar (GS1 DataBar Truncated)

GS1 DataBar Limited

GS1 DataBar Expanded

90

PDF417

12=890ab-+%xyz

QR code

1234567890ABCD-+()&*%^@#$!XYZ

Data Matrix

123890abc-+=&*%^!mdo

Aztec Code

(Default setting: Disable)

12345678901234567890

Han Xin Code

(Default setting: Disable)

1234567890Hanxin

Micro QR Code

(Default setting: Disable)

0123456789MicroQR

91

8 Return default parameters & list firmware version

WARNING: Default value initialization

If you wish to return the scanner to all the factory

default settings, scan the barcode above.

Firmware version list

If you wish to display the firmware version, scan

the barcode above.

92

9 Configuration alphanumeric entry barcode

To finish parameter setting, please scan the bar code below.

Mindeo MD6600 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

1 Specifications

1-1 Technical specifications

1-2 Default setting for each barcode

2 Get started

2-1 Dimensions

2-2 Parts of the scanner

2-3 Cable connector pin-outs descriptions

2-4 Installation and uninstallation of cable

2-4-1 Installation - USB

2-4-2 Installation - RS-232

2-4-3 Uninstallation of cable

2-5 Assembling the stand

2-6 Auto-detection

3 Programming

3-1 Example 1: Single-parameter setting by scanning 1D barcodes

3-2 Example 2: Multiple-parameter setting by scanning a QR code barcode

3-3 Operate the scanner by receiving command via UART

3-4 Interface selection

3-5 RS-232 interface

3-6 USB interface

3-7 Scan mode & some global settings

3-8 Indication

3-9 Decode illumination and decode aiming pattern

3-10 Other settings

Note 1 : The instruction of calibrating the aimer in vertical centering direction

Note 2 : Scan barcode or send command to enter upgrade mode

3-11 UPC-A

3-12 UPC-E

3-13 UPC-E1

3-14 EAN-13 (ISBN/ISSN)

3-15 EAN-8

3-16 Code 39 (Code 32, Trioptic Code 39)

3-17 Interleaved 2 of 5

3-18 Industrial 2 of 5 (Discrete 2 of 5)

3-19 Matrix 2 of 5

3-20 Codabar

3-21 Code 128

3-22 UCC/EAN 128

3-23 ISBT 128

3-24 Code 93

3-25 Code 11

3-26 MSI/Plessey

3-27 UK/Plessey

3-28 China Post

3-29 China Finance

3-30 GS1 DataBar (GS1 DataBar Truncated)

3-31 GS1 DataBar Limited

3-32 GS1 DataBar Expanded

3-33 PDF417

3-34 QR Code

3-35 Data Matrix

3-36 Han Xin Code

3-37 Aztec Code

3-38 MicroQR Code

3-39 MicroPDF417 Code

3-41 G1-G6 & C1-C3 & FN1 substitution string setting

3-41 G1-G4 string position & Code ID position

3-42 String transmission

4 Maintenance

5 Barcode representing non-printable character

6 ASCII Table

7 Test barcode

8 Return default parameters & list firmware version

9 Configuration alphanumeric entry barcode
