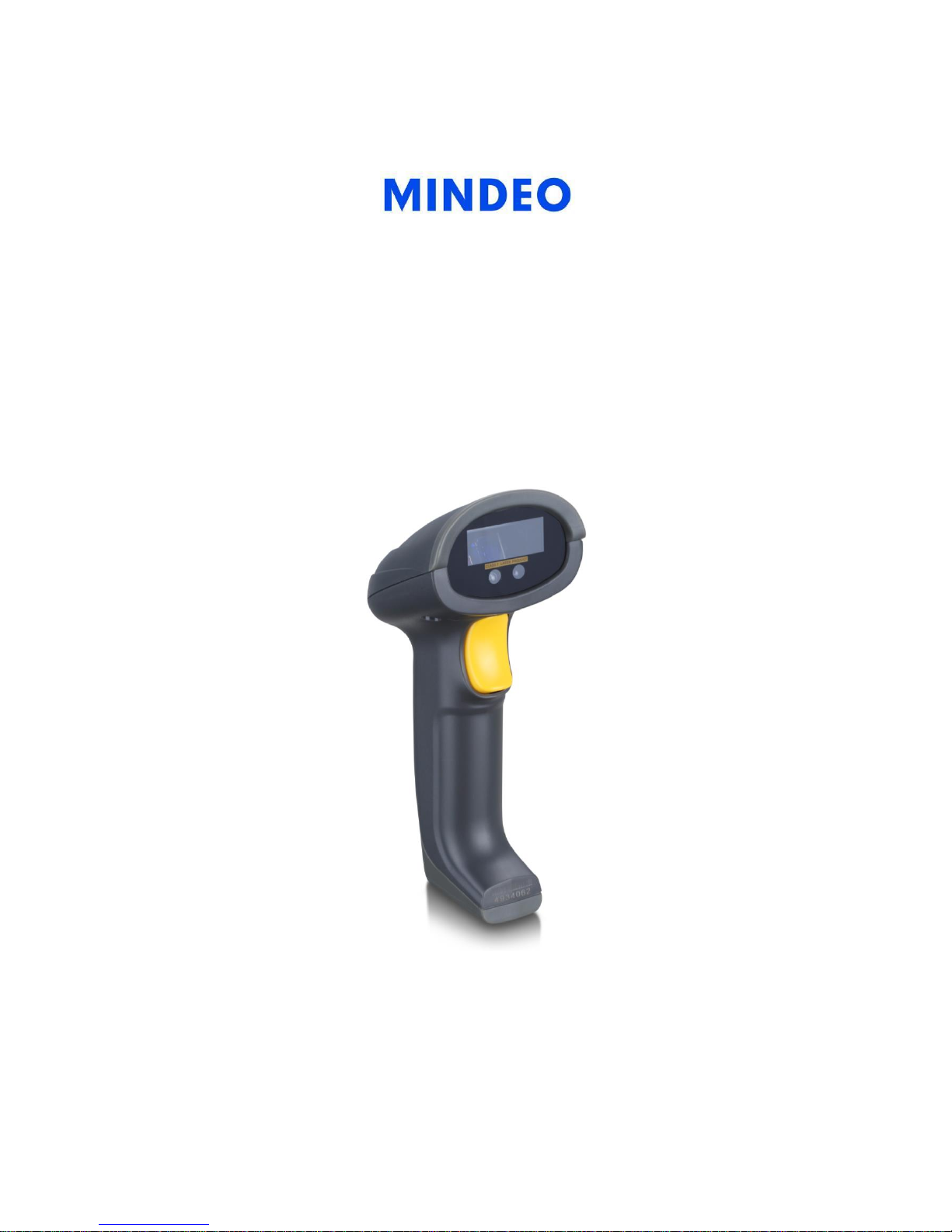

MD20xx Laser Barcode Scanner
User Manual
Version: MD20xx_UM_EN_V1.1.3
Page 2
Page 3
i
Notice
Ensure that the optional DC adapter works at +5V, especially for the RS-232 interface cable.
Make sure you carefully read the following information to ensure that your barcode scanner is able to
perform at the designed level.
1. All software, including firmware, furnished to the user is on a licensed basis.
2. The right is reserved to make changes to any software or product to improve reliability, function, or
design.
3. The material in this manual is subject to change without notice.
4. A standard packing includes a scanner, a USB cable and a CD (or a user manual). Accessories
include a stand, a 5V adaptor and a RS-232 cable.
5. The Auto-detection is an optional accessory.
6. Different firmware version have the different functions, please make sure you get the right version.
Page 4
ii
Page 5
iii
Contents
Notice ............................................................................................................................................... i
Contents .......................................................................................................................................... iii
1 Specifications ................................................................................................................................ 1
1-1 Technical specifications ................................................................................................................ 1
1-2 Default settings for various types of barcode ............................................................................... 2
1-3 Decode zone ................................................................................................................................. 3
2 Get started .................................................................................................................................... 4
2-1 Electrical interface/Pin assignment............................................................................................... 4
2-2 Dimensions ................................................................................................................................... 5
2-3 Parts of the scanner ...................................................................................................................... 6
2-4 Introduction to installation ............................................................................................................. 7
2-4-1 Installation - RS-232 ........................................................................................................... 7
2-4-2 Installation - USB ................................................................................................................ 7
2-4-3 Remove the interface cable ............................................................................................... 8
2-5 Assembling the stand ................................................................................................................... 8
2-6 Scanning ....................................................................................................................................... 9
2-7 Auto-detection ............................................................................................................................... 9
3 Parameter menus ........................................................................................................................ 11
3-1 Introduction ................................................................................................................................. 11
3-2 Example: configure scanner ....................................................................................................... 12
3-3 RS232 interface .......................................................................................................................... 14
3-4 USB interface .............................................................................................................................. 17
3-5 Scan trigger mode & some global settings ................................................................................. 20
3-6 Indication ..................................................................................................................................... 26
3-7 UPC-A ......................................................................................................................................... 28
3-8 UPC-E ......................................................................................................................................... 30
3-9 UPC-E1 ....................................................................................................................................... 32
3-10 EAN-13 (ISBN/ISSN) ................................................................................................................ 34
3-11 EAN-8 ....................................................................................................................................... 36
3-12 Code 39 (Code 32, Trioptic Code 39) ...................................................................................... 38
3-13 Interleaved 2 of 5 ...................................................................................................................... 41
3-14 Industrial 2 of 5 ......................................................................................................................... 43
3-15 Matrix 2 of 5 .............................................................................................................................. 44
3-16 Codabar .................................................................................................................................... 46
3-17 Code 128 .................................................................................................................................. 48
3-18 UCC/EAN 128 ........................................................................................................................... 50
3-19 ISBT 128 ................................................................................................................................... 52
3-20 Code 93 .................................................................................................................................... 54
Page 6
iv
3-21 Code 11 .................................................................................................................................... 56
3-22 MSI/Plessey .............................................................................................................................. 58
3-23 UK/Plessey ............................................................................................................................... 60
3-24 China Post ................................................................................................................................ 62
3-25 Telepen ..................................................................................................................................... 63
3-26 GS1 DataBar (GS1 DataBar Truncated) .................................................................................. 65
3-27 GS1 DataBar Limited ................................................................................................................ 66
3-28 GS1 DataBar Expanded ........................................................................................................... 67
3-29 G1-G4 & FN1 substitution string setting ................................................................................... 68
3-30 G1-G4 string position & Code ID position ................................................................................ 71
3-31 String transmission ................................................................................................................... 72
4 Barcode representing non-printable character ............................................................................... 74
5 ASCII table.................................................................................................................................. 75
6 Test chart .................................................................................................................................... 76
7 Return default parameters & firmware version ............................................................................... 78
8 Quick setting to enable/ disable Auto-detection ............................................................................. 79
9 Configuration alphanumeric value barcode (as Para. value)........................................................... 80
Page 7
1
1 Specifications
1-1 Technical specifications
Table 1-1 Technical specifications @25°C
Input voltage
5 VDC ± 0.25 V
Power
150 mW (Standby); 525 mW (Operating); 850 mW (Max.)
Current
30 mA (Standby); 105 mA (Operating); 170 mA (Max.)
Laser
630-650 nm laser diode
Decoding rate
200 times/sec
Scanning angle
±60°, ±65°, ±42° (Skew, Pitch, Roll)
Print contrast
25% minimum reflection difference
Decode capability
UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code
39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2
of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128,
ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post,
Telepen, GS1 DataBar (formerly RSS) variants
Indicator
Beeper, LED
Interface supported
RS-232, USB Keyboard, USB virtual COM
Operating mode
Hand-held, Auto-detection (Optional accessory)
Dimensions
Height × Width × Depth：76 mm × 66.5 mm × 168 mm
Weight
121 g, without cable
Cable
Straight 2.0 m
Connector type
RJ-45 phone jack connector
Case material
ABS
Exit window material
PC
Temperature
0° to 50°C (32° to 122°F), Operating; -40° to 60°C (-40° to 140°F), Storage
Humidity
5% to 95% (non-condensing)
Programming method
Manual (reading special barcode)
Program upgrade
Online
Decoding depth
& Min. element width
(1 mil = 0.0254 mm)
3 mil: 27 - 65 mm
4 mil: 27 - 60 mm
5 mil: 18 - 132 mm
10 mil: 10 - 320 mm
13 mil: 16 - 380 mm
15 mil: 13 - 500 mm
20 mil: 19 - 620 mm
30 mil: 25 - 770 mm
Safety
Laser safety: EN60825-1, Class 1
EMC: EN55022, EN55024
Electrical safety: EN60950-1
Drop resistance: 30+ times 2.0 m (6.5 ft) drops to concrete
Protection class: IP50
Page 8
2
1-2 Default settings for various types of barcode
Table 1-2 Default settings
Code type
Read
enable
Check digit
verification
Check digit
transmission
Min. code
length
Proprietary
code ID
AIM
code ID
UPC-A
√ √ √
(12)2
A
]Em
UPC-E
√ √ √
(8)2
D
]Em
UPC-E1
√ √ √
(8)2
D
]Em
EAN-13
√ √ √
(13)2
A
]Em
EAN-8
√ √ √
(8)2
C
]Em
ISBN/ISSN1
√ √ √
(13)2
B
]Em
Code 39
√ - - 1 M
]Am
Interleaved 2 of 5
√ - - 6 I
]Im
Industrial 2 of 5
(Discrete 2 of 5)
- - - 4 H
]Im
Matrix 2 of 5
√ - - 6 X
]Im
Codabar (NW7)
√ - - 4 N
]Fm
Code 128
√ √ - 1 K
]Cm
UCC/EAN 128
√ √ - 1 K
]Cm
ISBT 128
√ √ - 1 K
]Cm
Code 93
√ √ - 1 L
]Gm
Code 11 (USD-8)
- √ - 4 V
-
MSI/Plessey
- - - 4 O
]Mm
UK/Plessey
√ √ - 1 U
]Mm
China Post
√ - -
(11)2
T
]Im
Telepen
√ √ - 1 P
]Em
GS1 DataBar
√ - -
(16)2
R
]em
GS1 DataBar Truncated3
√ - -
(16)2
R
]em
GS1 DataBar Limited
√ - -
(16)2
R
]em
GS1 DataBar Expanded
√ - - 1 R
]em
Note:
1
The settings for ISBN/ISSN and EAN-13 must be the same except the code ID.
2 Fixed-length barcodes.
3The settings for GS1 DataBar Truncated and GS1 DataBar must be the same.
Page 9
3
1-3 Decode zone

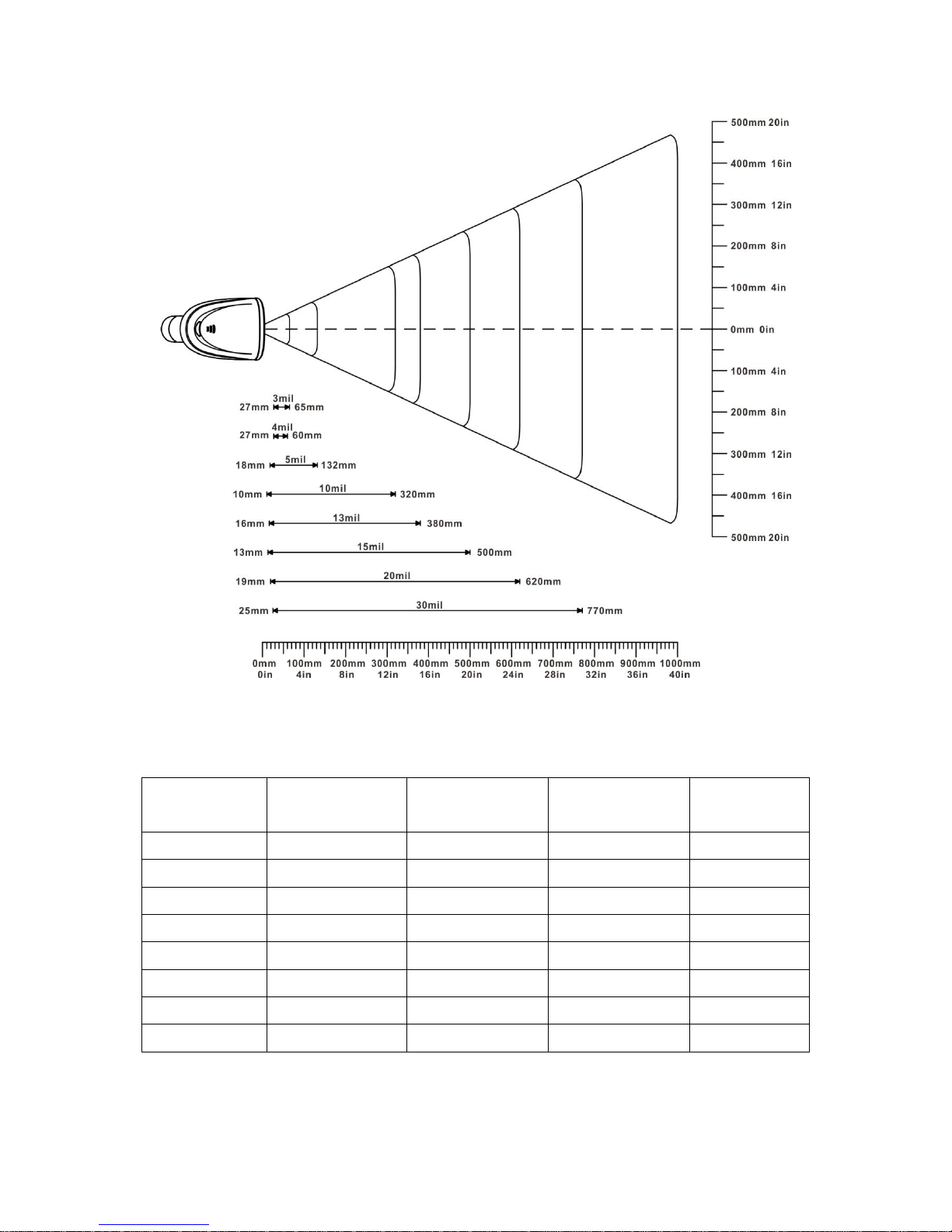

Figure 1-1 Decode zone @25°C, scan angle: 55°
Table 1-3 Description of barcode patterns applied in Figure 1-1
Resolution
Barcode type
Wide-narrow
element ratio
Barcode content
Contrast
3 mil
Code39
2.5：1
123
80%
4 mil
Code39
2.5：1
123456789
80%
5 mil
Code39
2.5：1
123
80%
10 mil
Code39
2.5：1
123
80%
13 mil
100%UPC
-
123456
80%
15 mil
Code39
2.5：1
1
80%
20 mil
Code39
2.5：1
1
80%
30 mil
Code39
2.5：1
EF
80%
Page 10
4
2 Get started
2-1 Electrical interface/Pin assignment
The scanner provides a RJ-45 cable connector.

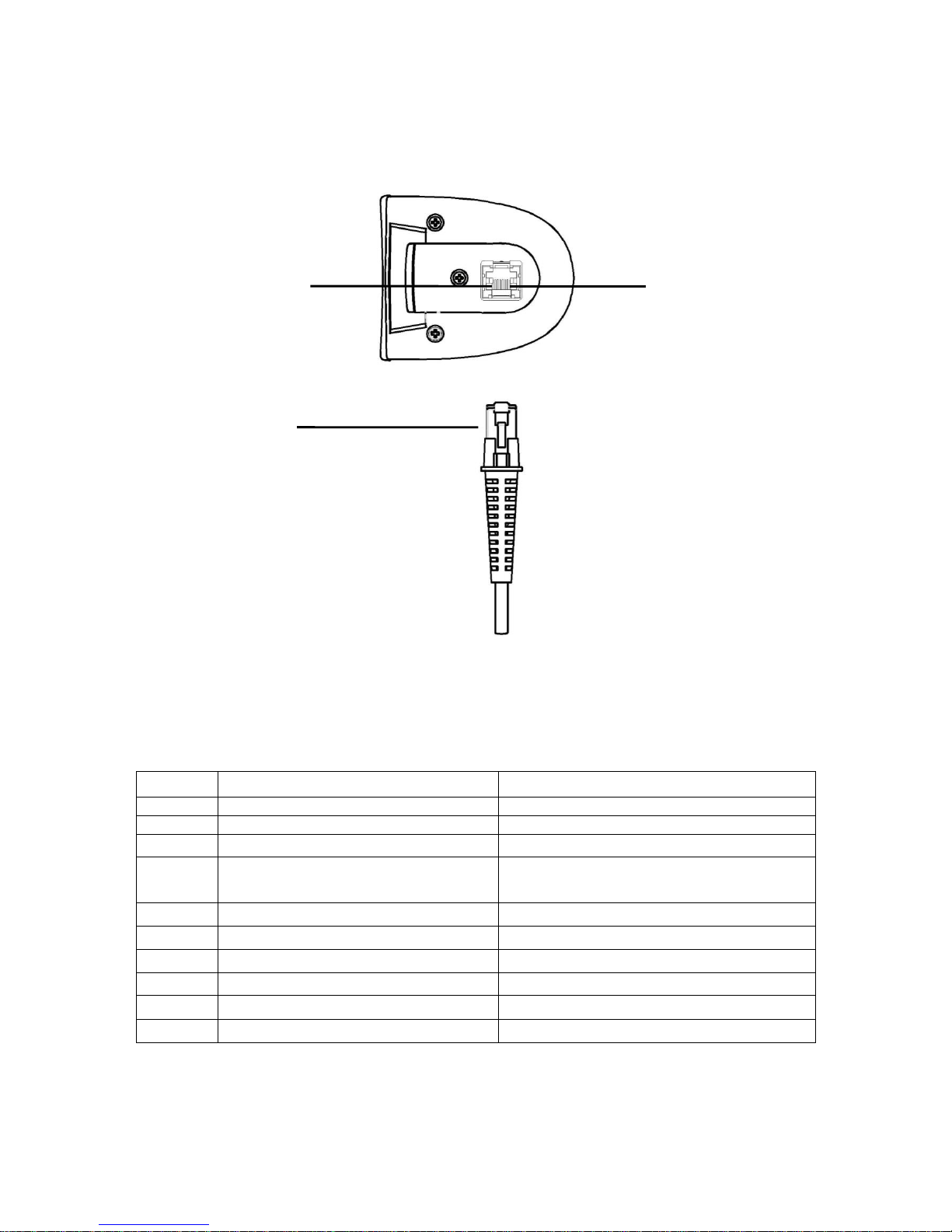

Figure 2-1 Electrical interface/Pin
Table 2-1 lists the pin assignments of the scanner.
Table 2-1 Electrical interface/Pin assignment
Pin
RS232 cable
USB cable
1
Power(+5V)
Power(+5V)
2
Reseved
Reseved
3
Ground
Ground
4
+3.3V
(for interface auto selection purpose)
Ground
(for interface auto selection purpose)
5
TxD
Reserved
6
RxD
Reserved
7
Ground (Shell)
Ground (Shell)
8
TRIGGER
TRIGGER
9
CTS
D-
10
RTS
D+
Note: Voltage level of all RS232 Pin-outs (RXD, TXD, CTS and RTS) is 0V for logic low level and 3.3V
for logic high level. A transceiver (max232) PCB is designed inside the RS232 cable, and it can achieve
signal transition between TTL and RS232.
Pin 10
Pin 1
Cable connector
Page 11
5
2-2 Dimensions

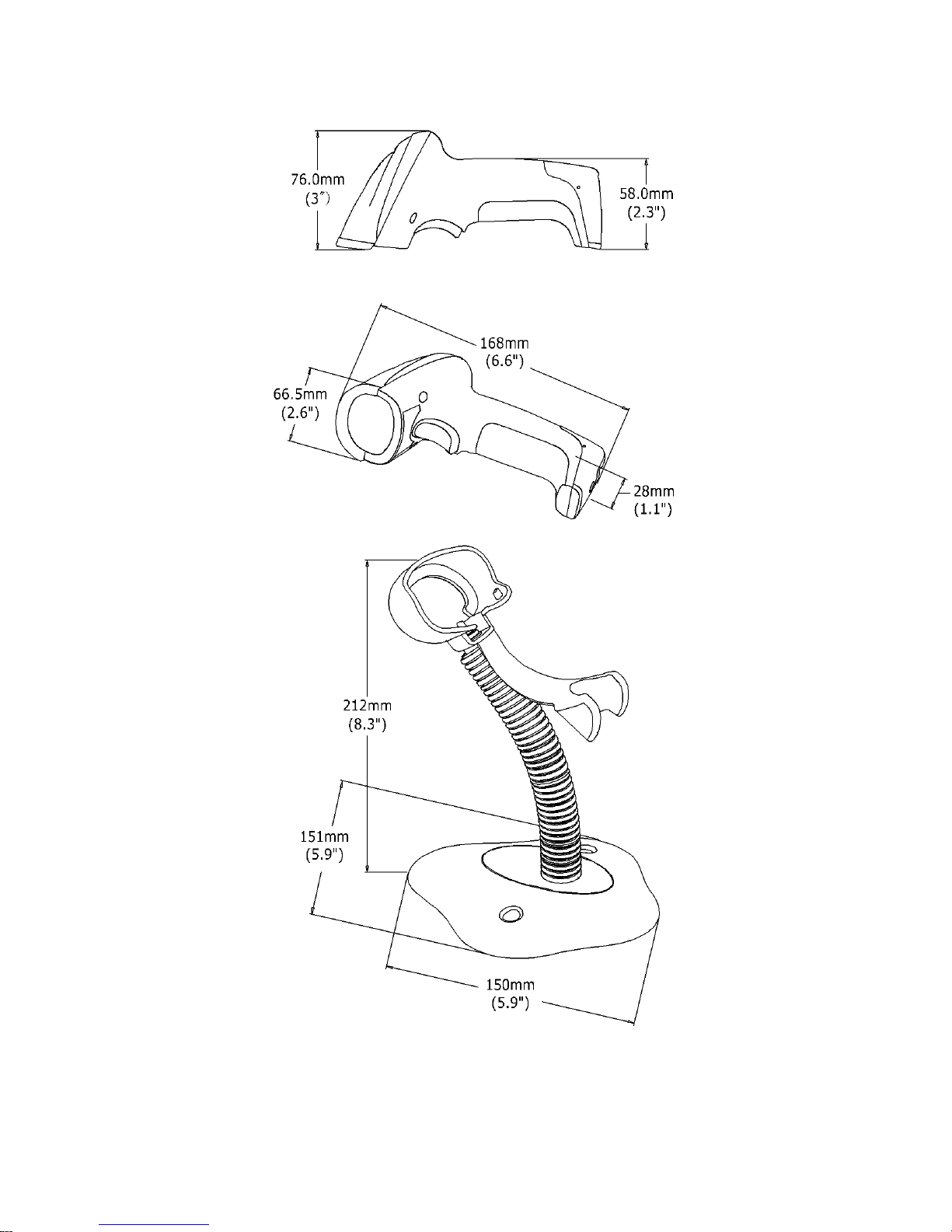

Figure 2-2 Dimensions
Page 12
6

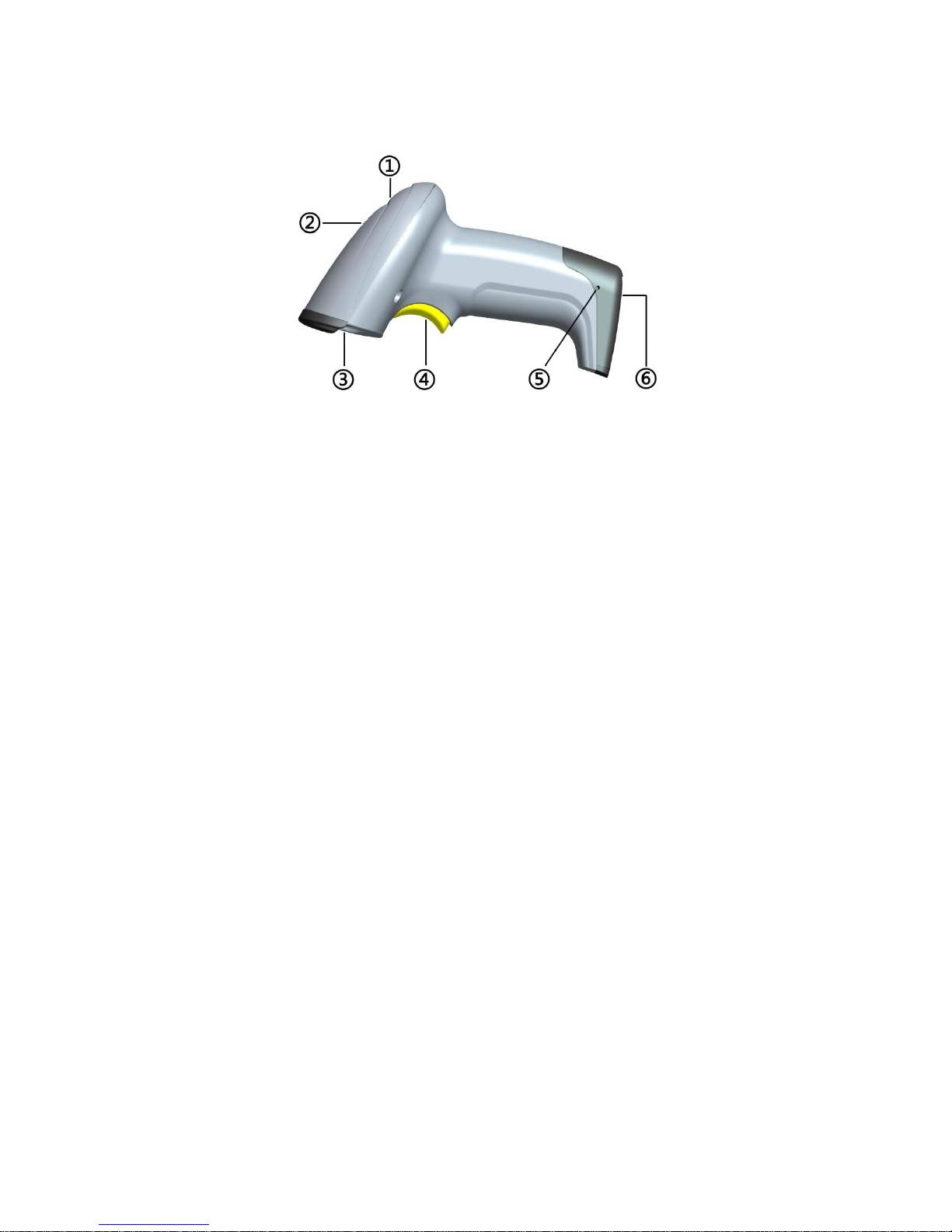

2-3 Parts of the scanner
Figure 2-3 Parts of the scanner
① LED
② Beeper
③ Exit window
④ Trigger
⑤ Release-hole of the cable
⑥ Cable interface port
Page 13
7
2-4 Introduction to installation
Note: If any of the below operation is incorrect, turn off the power immediately and check the scanner for
any improper connections. Go through all steps again.
2-4-1 Installation - RS-232
1. Connect the RS-232 interface cable to the bottom of the scanner.
2. Connect the other end of the interface cable to the serial port on the host. Tighten the two screws
to secure the connector to the port.
3. If the host does not have power supply (on PIN 9), connect the external power supply (DC 5V
adapter) to the RS-232 cable.

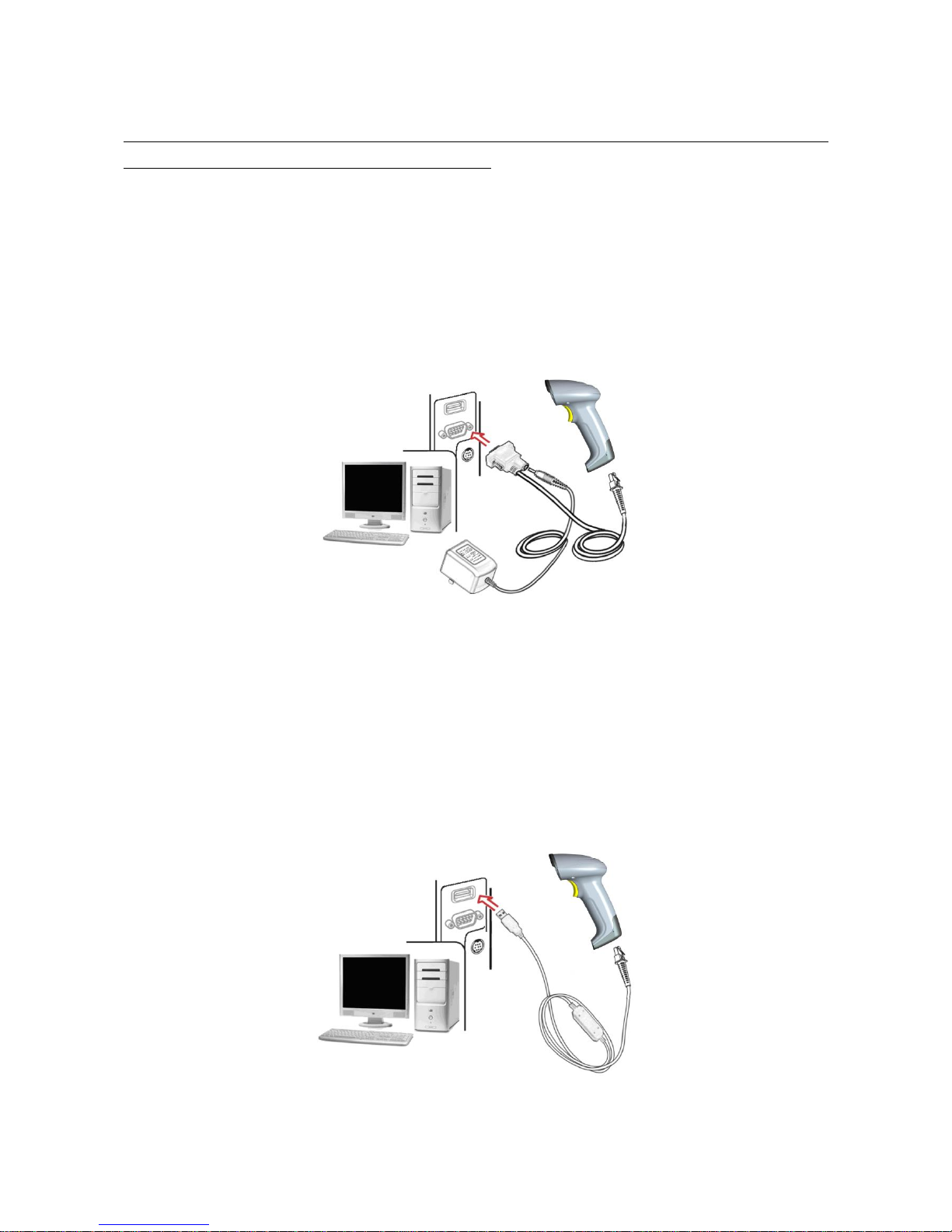

Figure 2-4 Installation - RS-232
2-4-2 Installation - USB
The scanner attaches directly to a USB host, and is powered by it. No additional power supply is
required.
1. Refer to Figure 2-5, connect the USB interface cable to the bottom of the scanner.
2. Plug the series A connector in the USB host, or an available port of the terminal.
3. Windows will automatically detect the USB device.
Figure 2-5 Installation - USB
Page 14
8

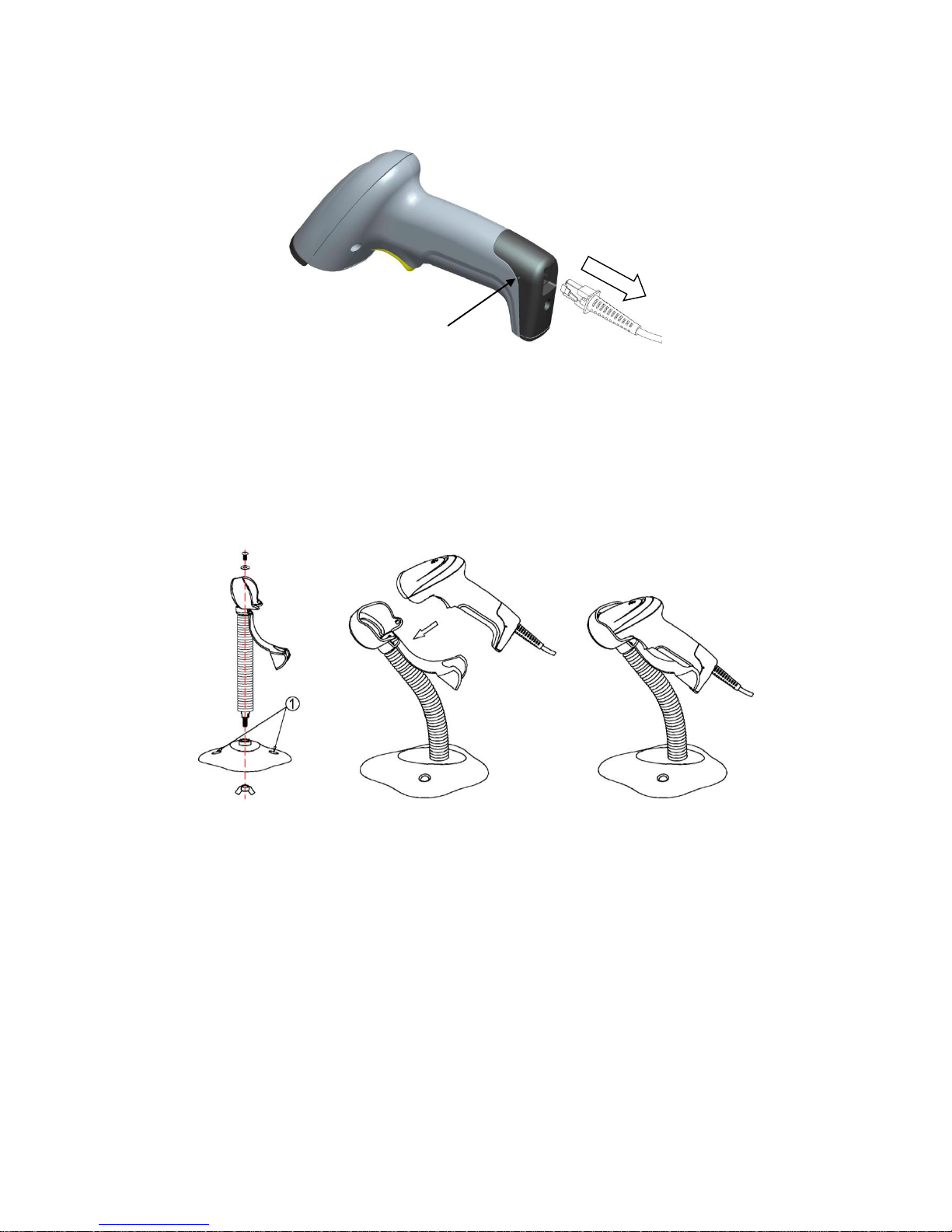

2-4-3 Remove the interface cable
Figure 2-6
1. Find the release-hole.
2. Insert a thin wire into the hole and pull out the cable gently.

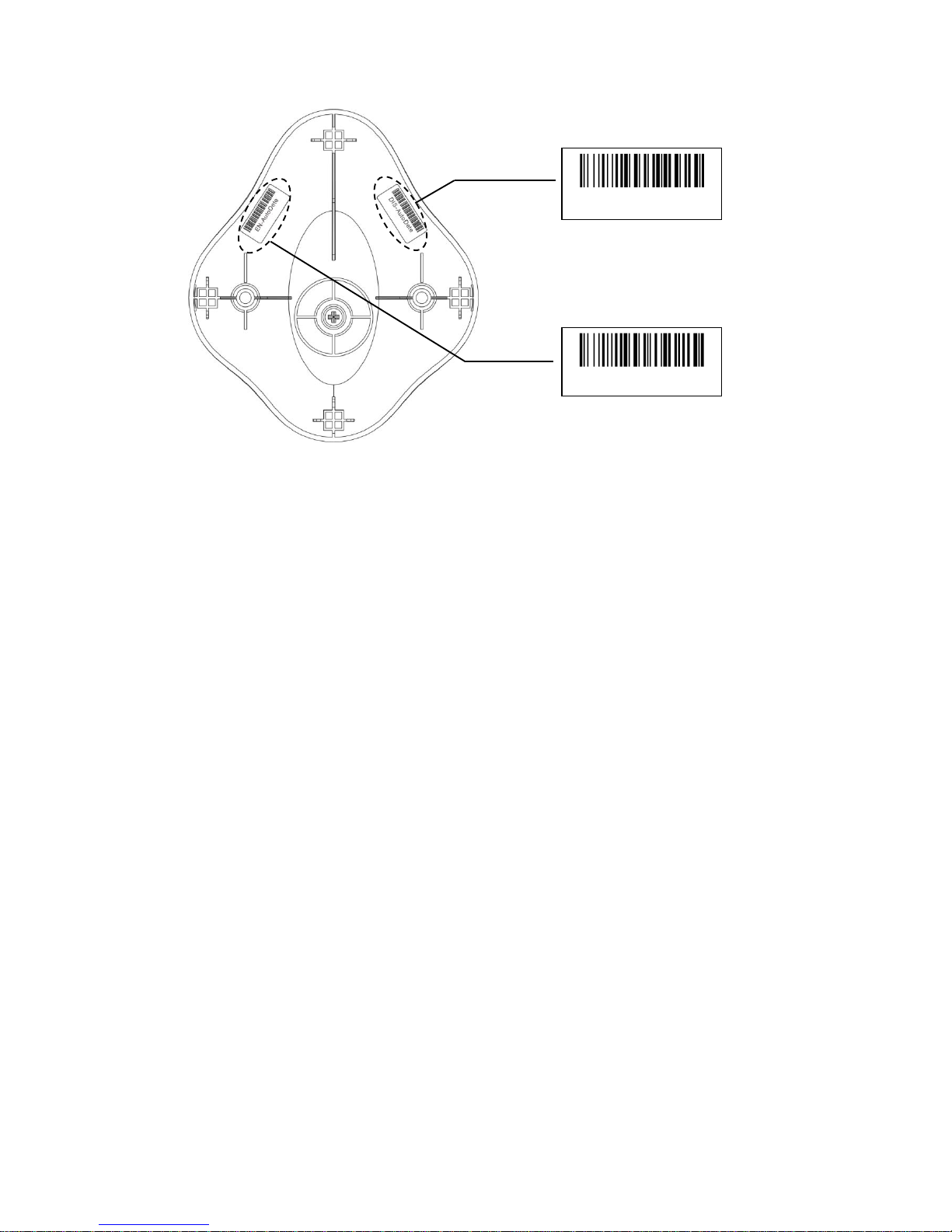

2-5 Assembling the stand
Note: The stand is an optional accessory.
1. See the figure above, tighten the screws.
2. Bend the neck to the desired position for scanning.
3. Screw mounting: Screw one #10 wood screw into each screw-mount-hole until the base of the stand
is secured.
4. Tape mounting: ①Peel the paper liner off one side of each piece of tape and place the sticky
surface over each of the three rectangular tape holders. ②Peel the paper liner off the exposed
sides of each piece of tape and press the stand on a flat surface until it is secure.
Page 15
9
2-6 Scanning

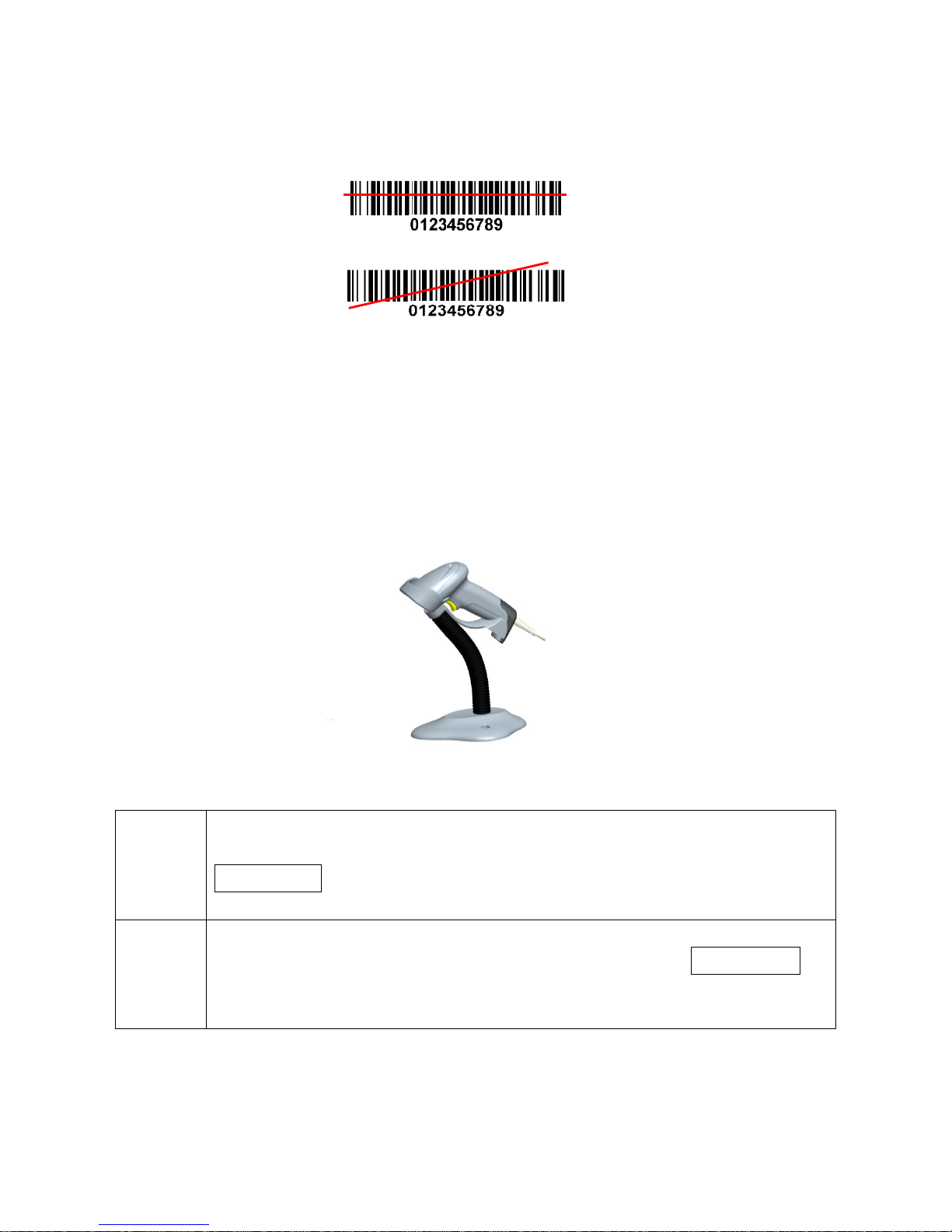

When the scanner is scanning, ensure the laser beam crosses every bar and space of the barcode. See
Figure 2-7.
√
×
Figure 2-7
2-7 Auto-detection
Note: Auto-detection and stand are optional accessories.
1. To scan a barcode, present the bar code and ensure the scan line crosses every bar and space of
the symbol.
2. Upon successful decode, the scanner beeps and the LED lights.
3. When the laser light is off, the present bar code must be removed to active next scanning.
Figure 2-8
The scanner offers 2 methods to enable/ disable Auto-detection quickly.
Method 1
Scan the barcode “EN-AutoDete” on the stand to enable Auto-detection.
Scan the barcode “DIS-AutoDete” on the stand to disable Auto-detection. Note: The
Scanning mode will switch to momentary.
See Figure 2-9.
Method 2

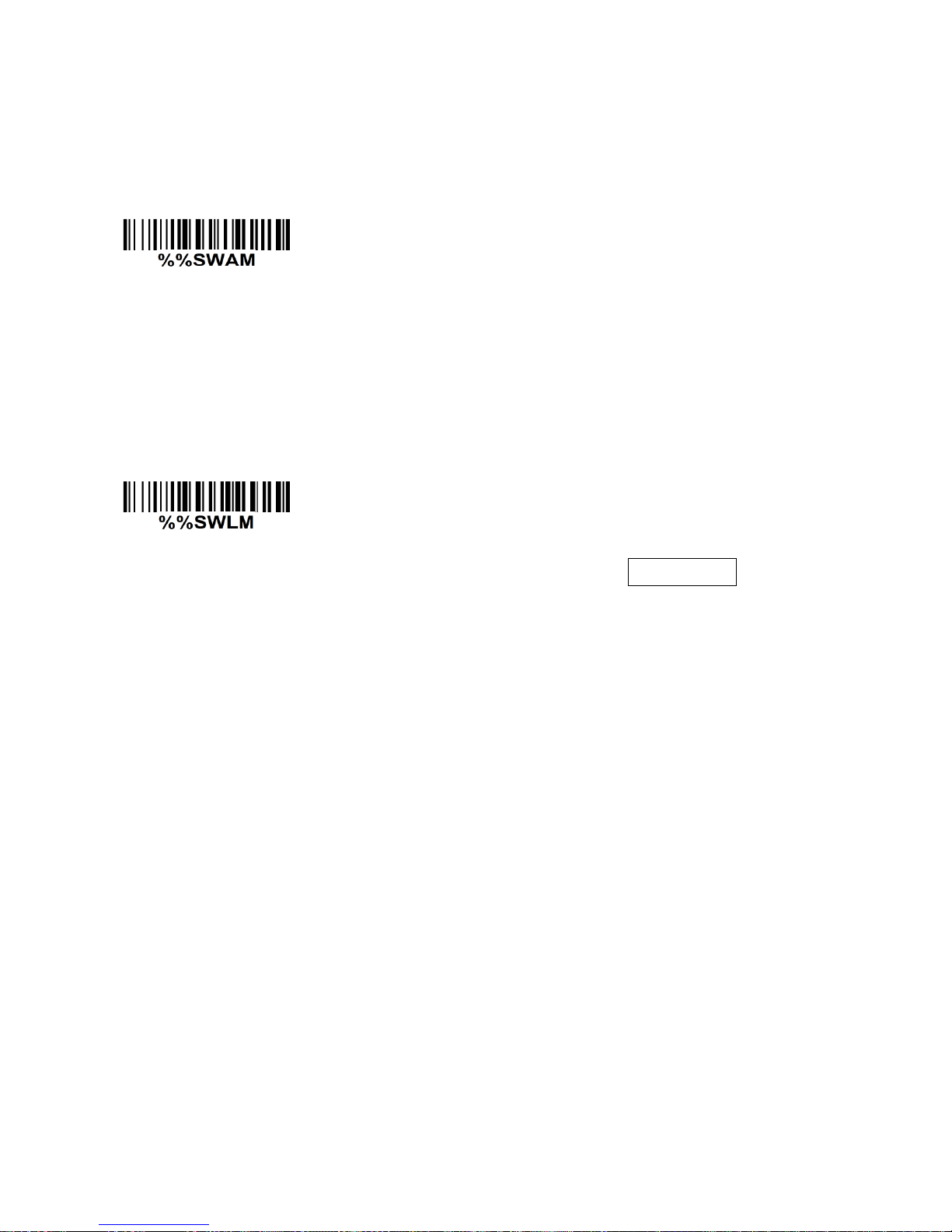

Scan the barcode “%%SWAM” to enable Auto-detection.
Scan the barcode “%%SWLM” to disable Auto-detection. Note: The Scanning mode will
switch to momentary.
See
8 Quick setting to enable/ disable Auto-detection
.
Page 16
10
Figure 2-9
DIS-AutoDete
EN-AutoDete
Page 17
11
3 Parameter menus
3-1 Introduction
This section describes the programmable parameters, provides barcodes for programming.
The scanner is shipped with the factory default settings as described in this chapter. These
factory-default-settings values are stored in flash memory and are preserved even when the scanner is
powered down. Changes to the factory default values can be stored as custom defaults. These values
are also stored in flash memory and are preserved even when the scanner is powered down.
There are two methods to change the parameter values as described following.
Scan the appropriate barcodes as the example shown in
3-2 Example: configure scanner
. The new
values replace the existing memory values.
Referring to

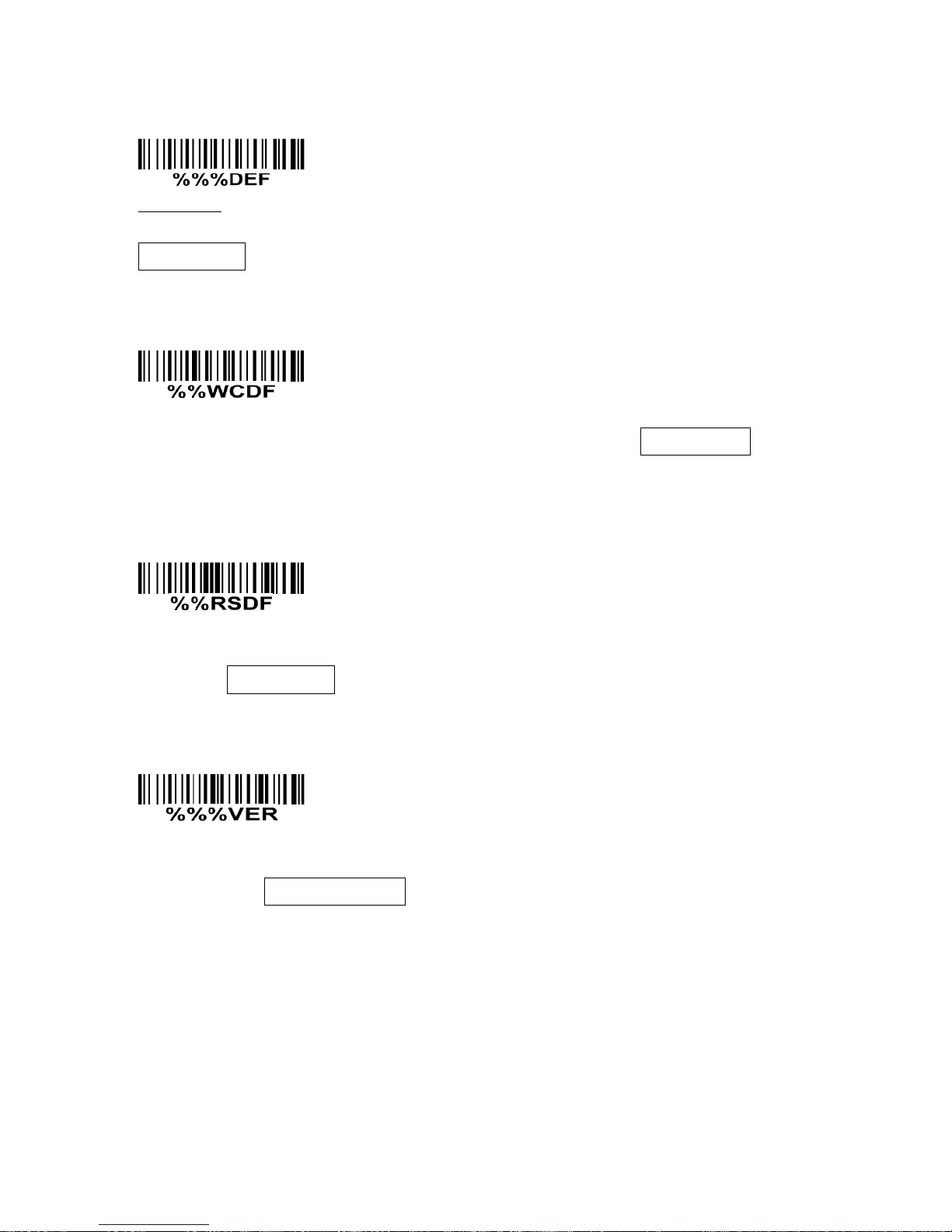

7 Return default parameters & firmware version
, scan the Write to customer’s default
setting (%%WCDF) barcode to set the new values as custom defaults. The factory default or
custom default parameter values can be recalled by scanning the manufacture default setting
(%%%DEF) barcode, or the Restore customer’s default setting (%%RSDF) barcode.
Page 18
12

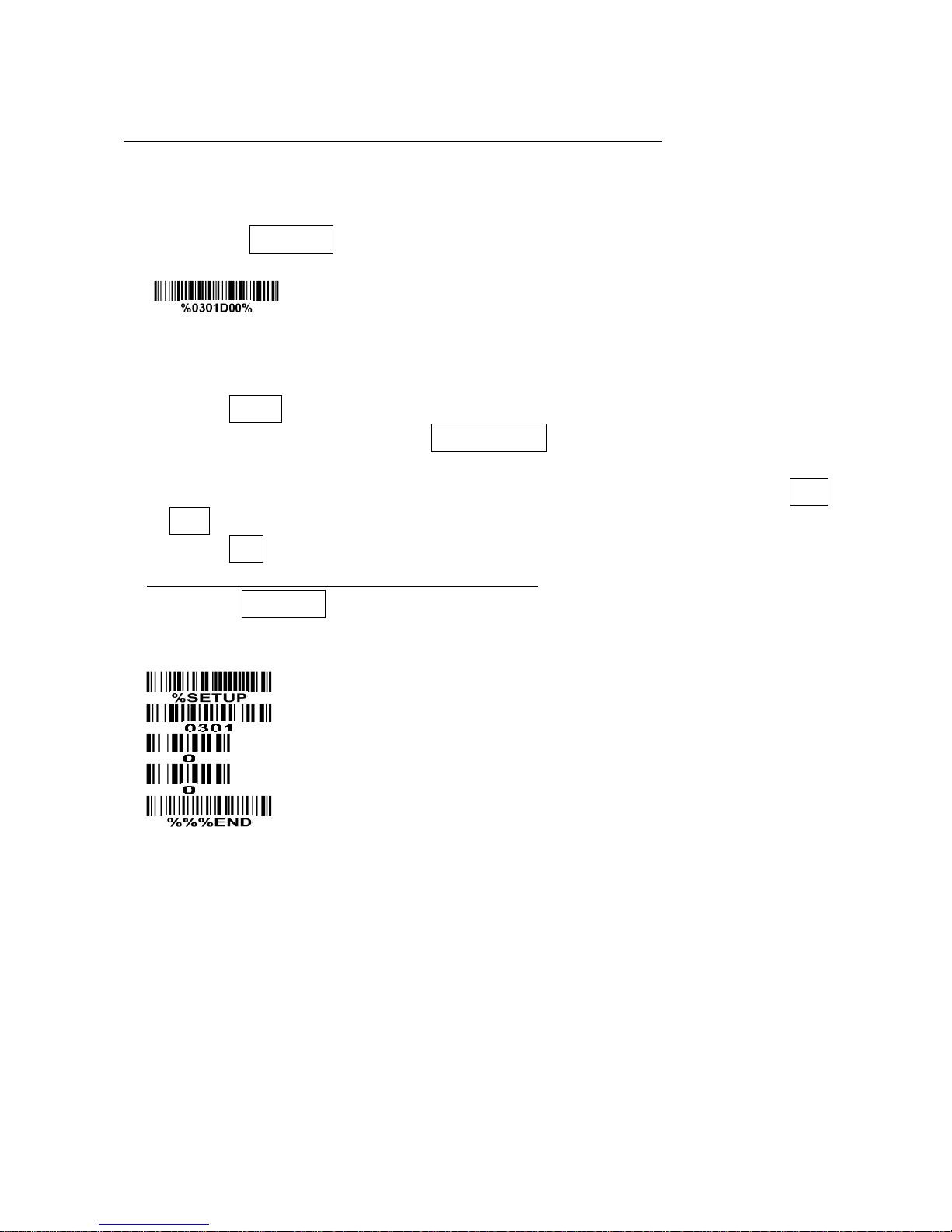

3-2 Example: configure scanner
Note: The factory default settings are indicated with asterisks (*) in this manual.
1、Single-scan setting
Scan the appropriate Single-scan setting barcode according to the user’s demand.
Example: Set Flow control to be none.
Steps: Scan the following barcode.
2、Multiple-scan setting
The steps of configuration are:
a) Scan the SETUP barcode on the parameter setting part.
b) Enter the option mode by scanning the Parameter name barcode.
c) To the right of the option barcode, the necessary alphanumeric inputs are listed. Scan these
alphanumeric entries (see
9 Configuration alphanumeric value barcode)
individually as Para.
Value.
d) Scan the END barcode, listed on the bottom of each parameter setting part.
Notes that only one parameter can be setup at each time.

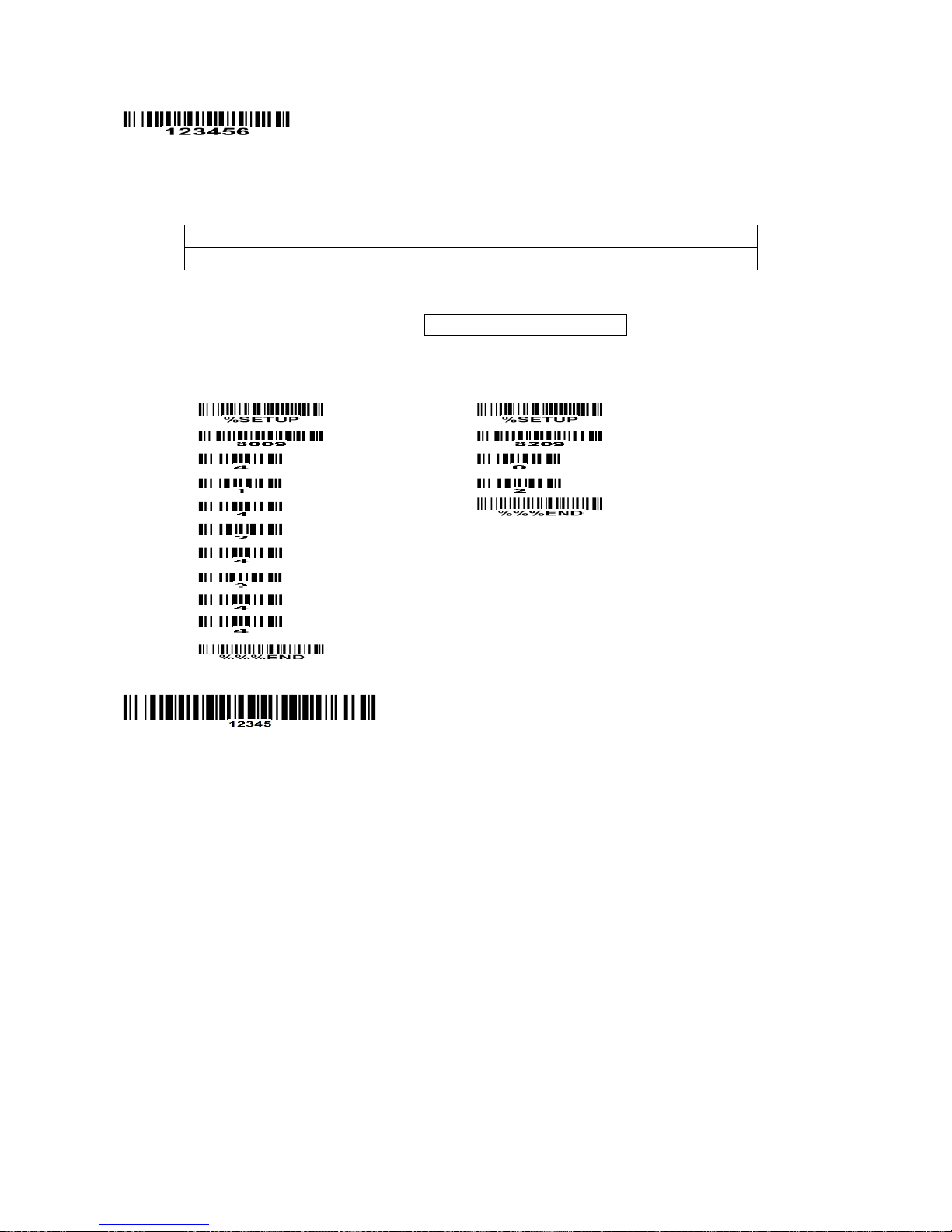

Example: Set Flow control to be none.
Steps: Scan the following barcodes in order.
Page 19
13

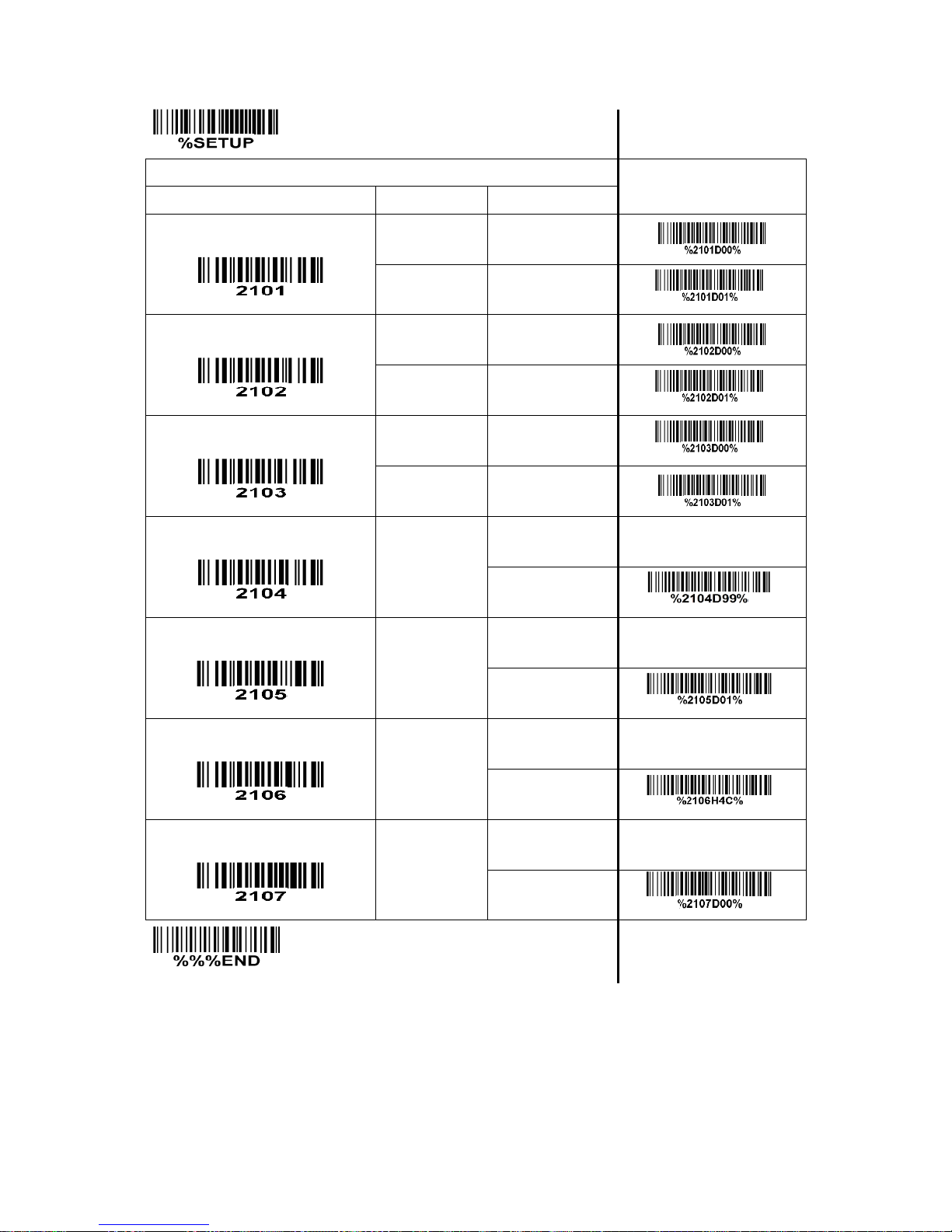

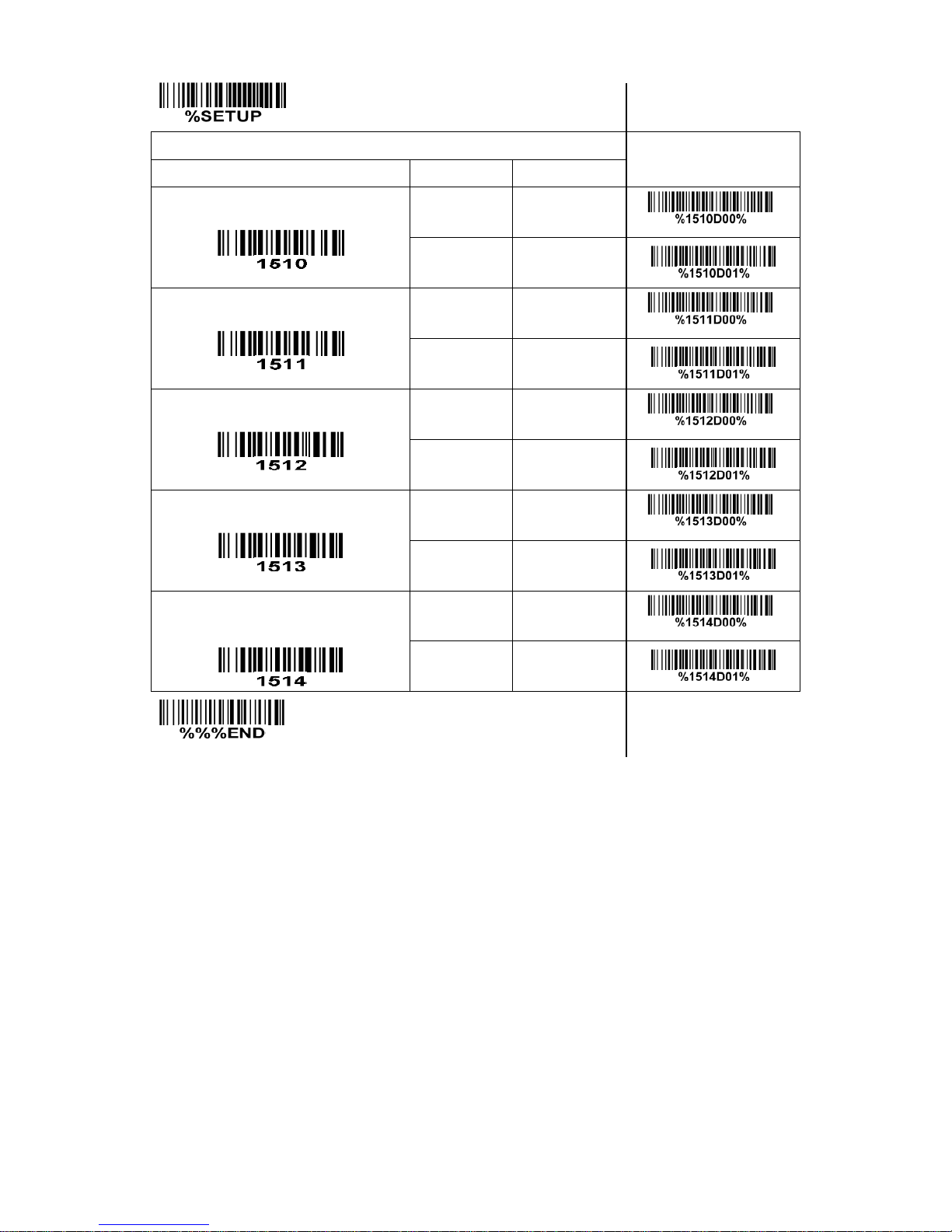

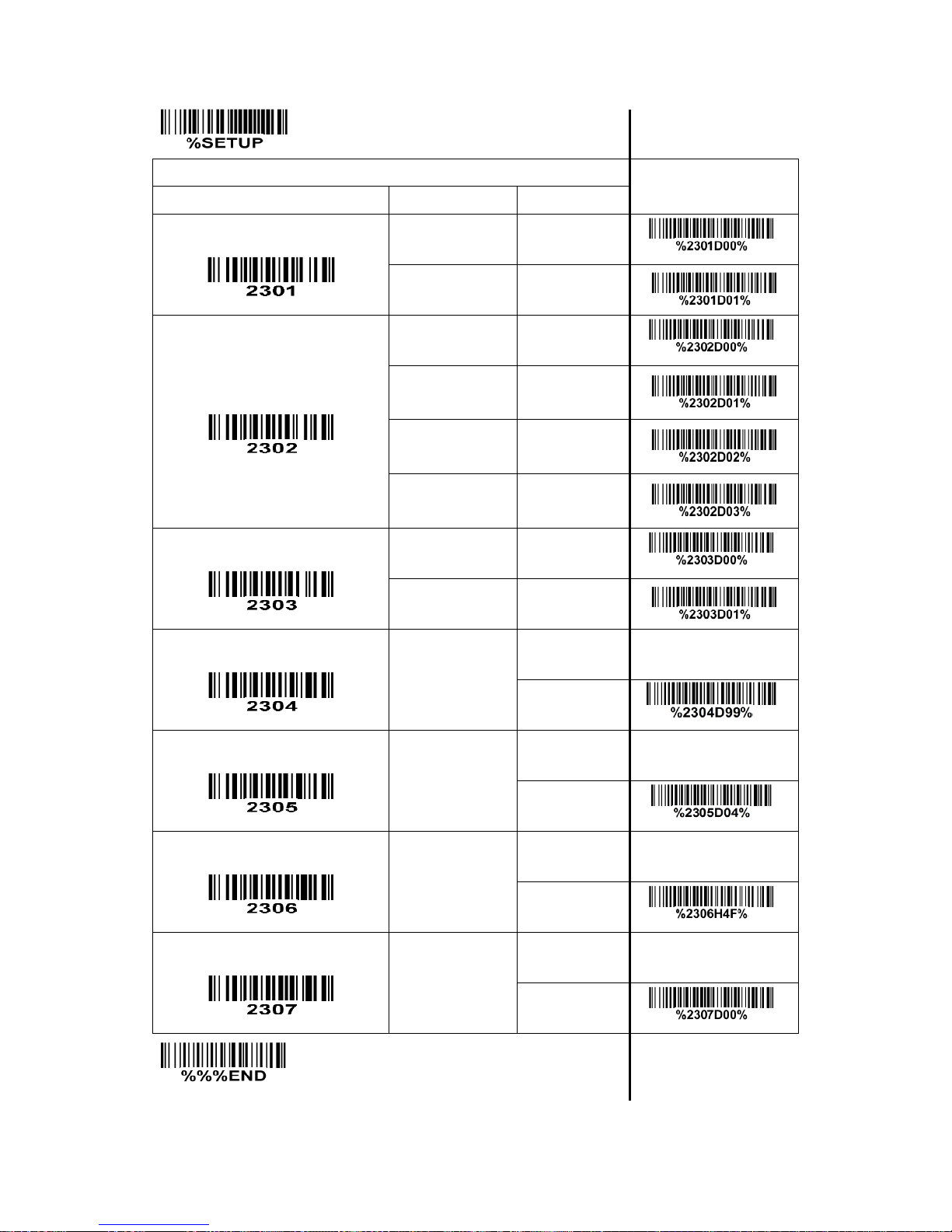

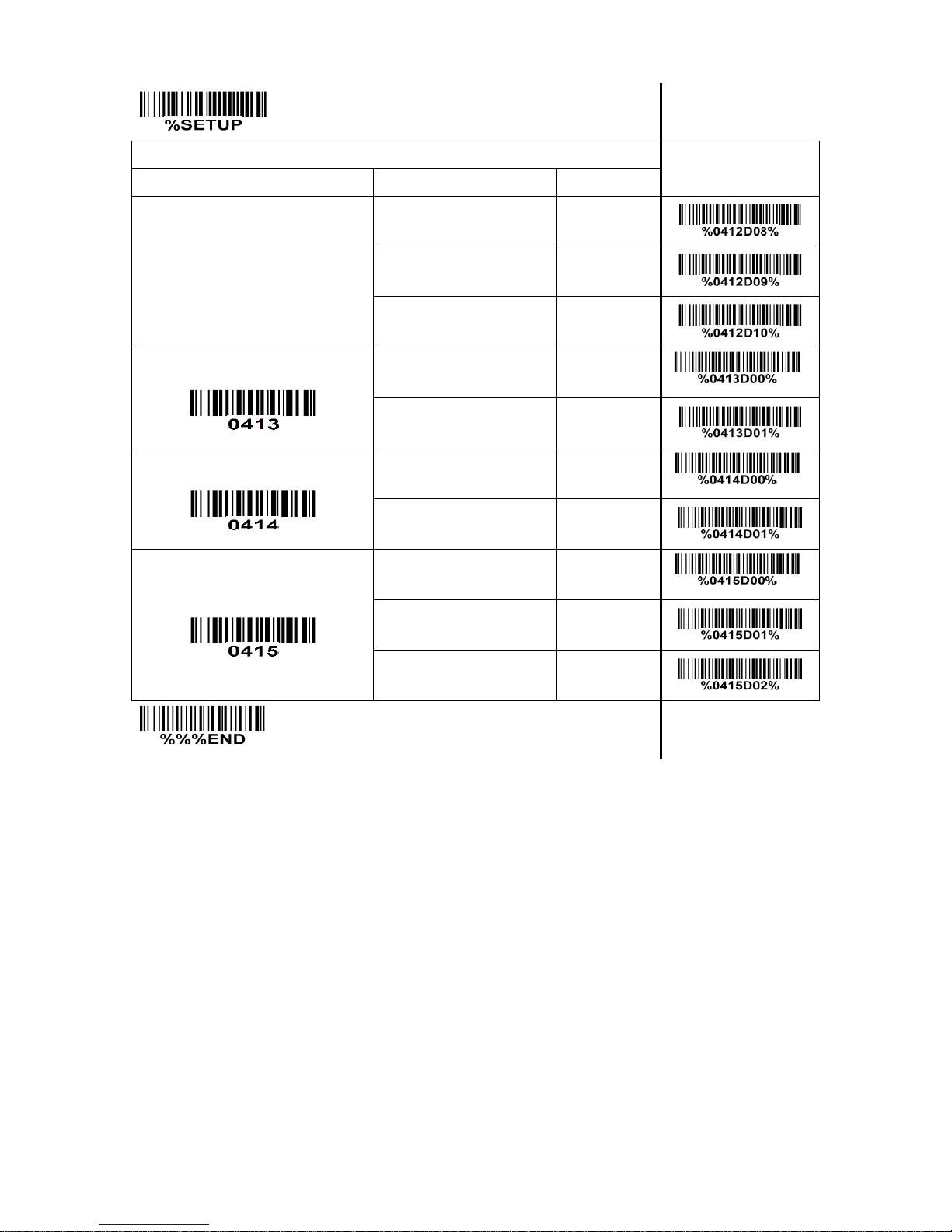

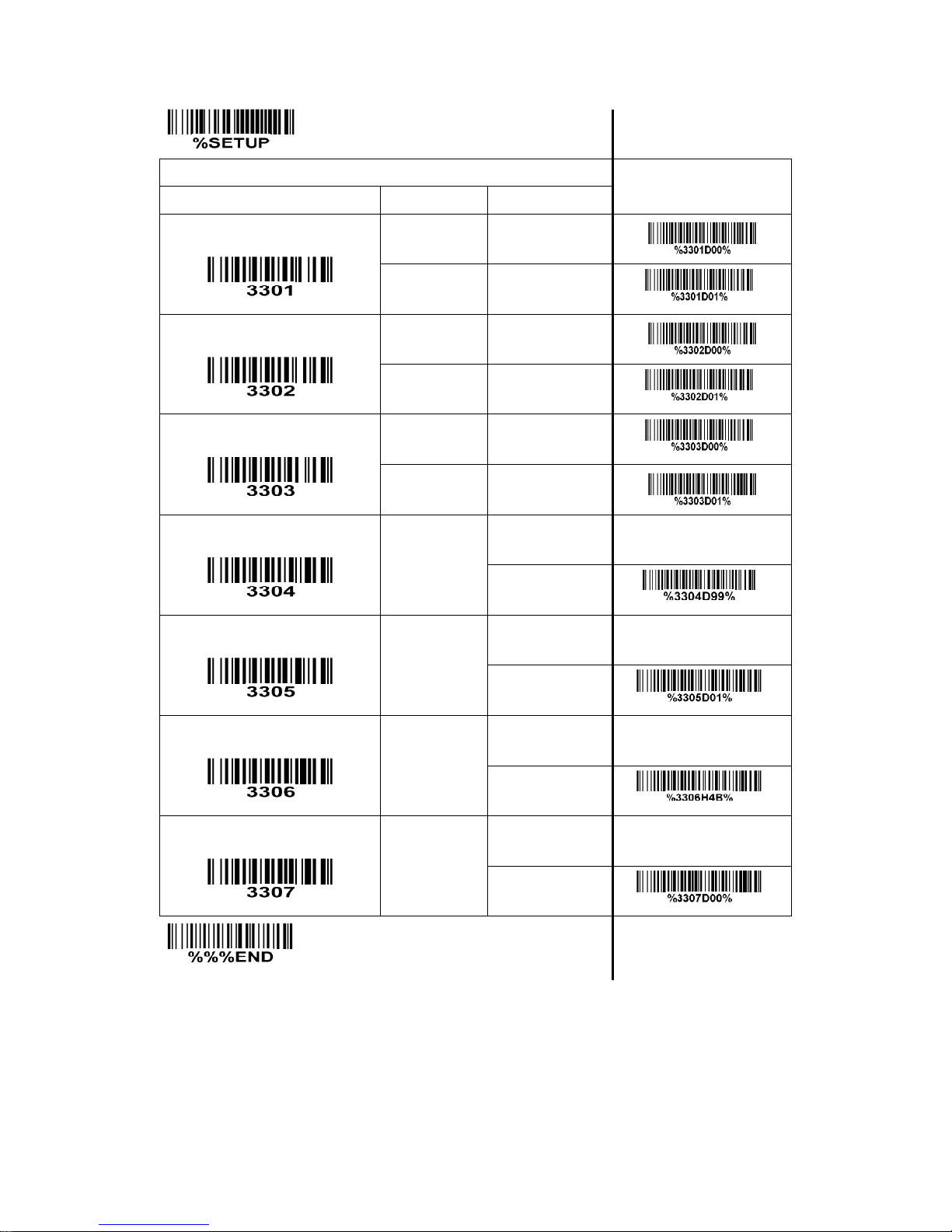

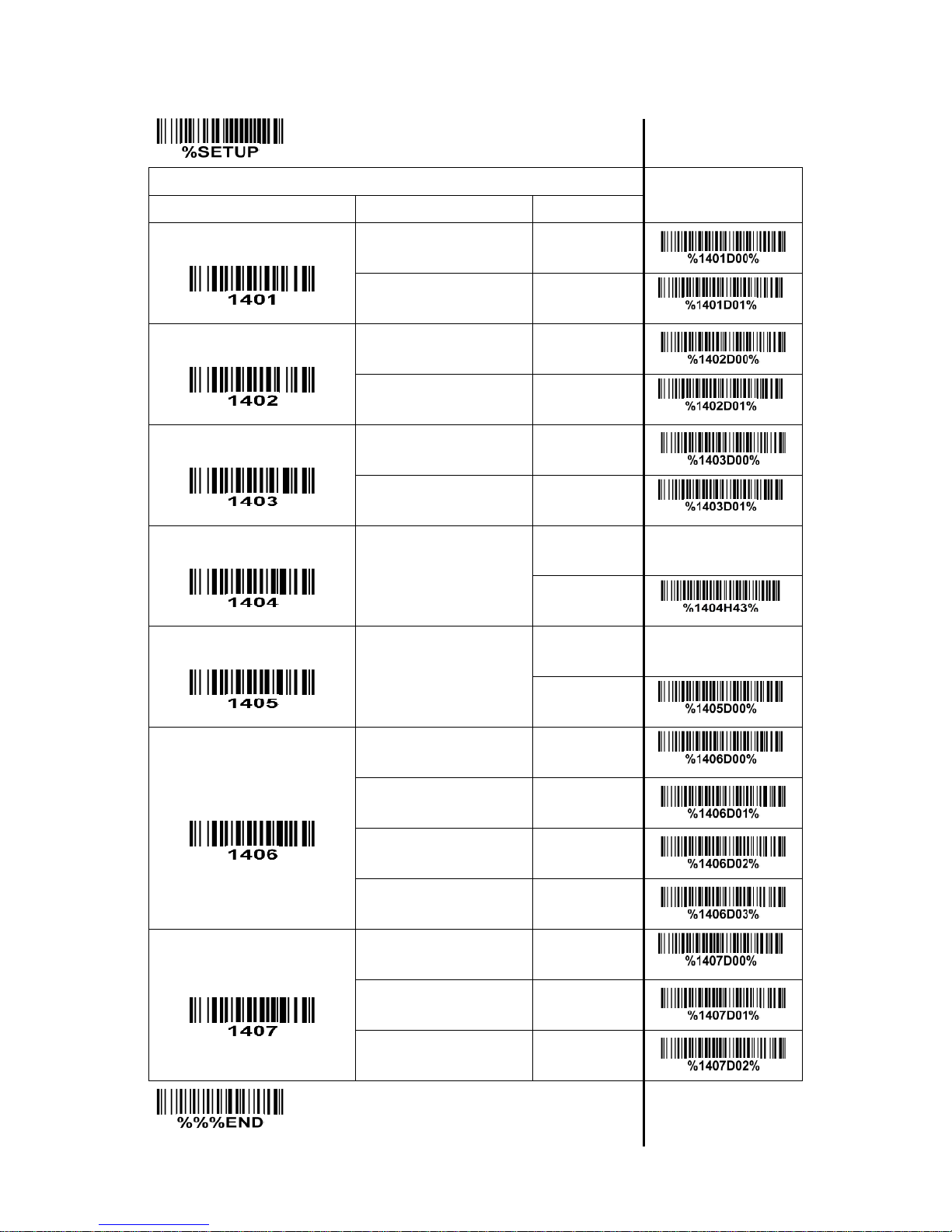

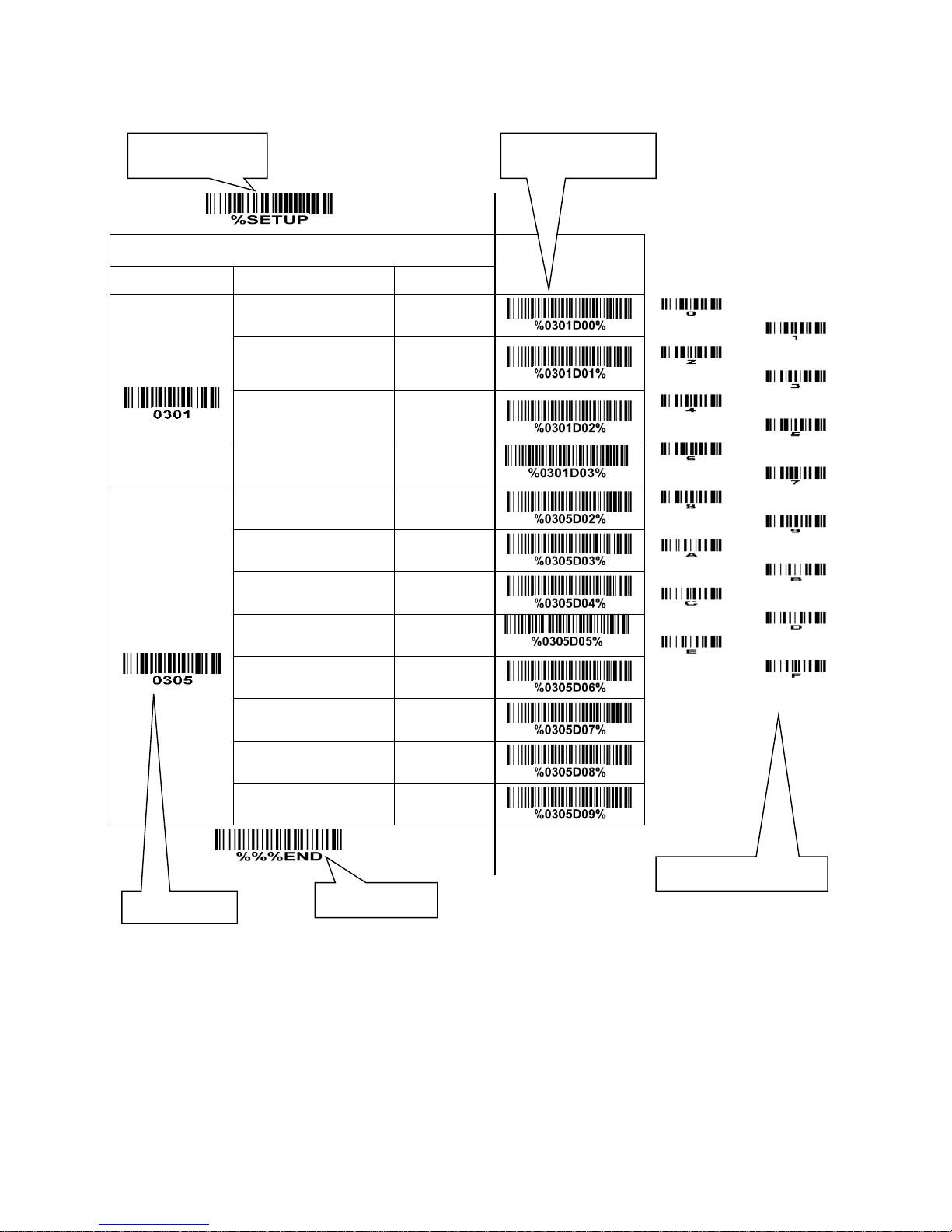

SETUP

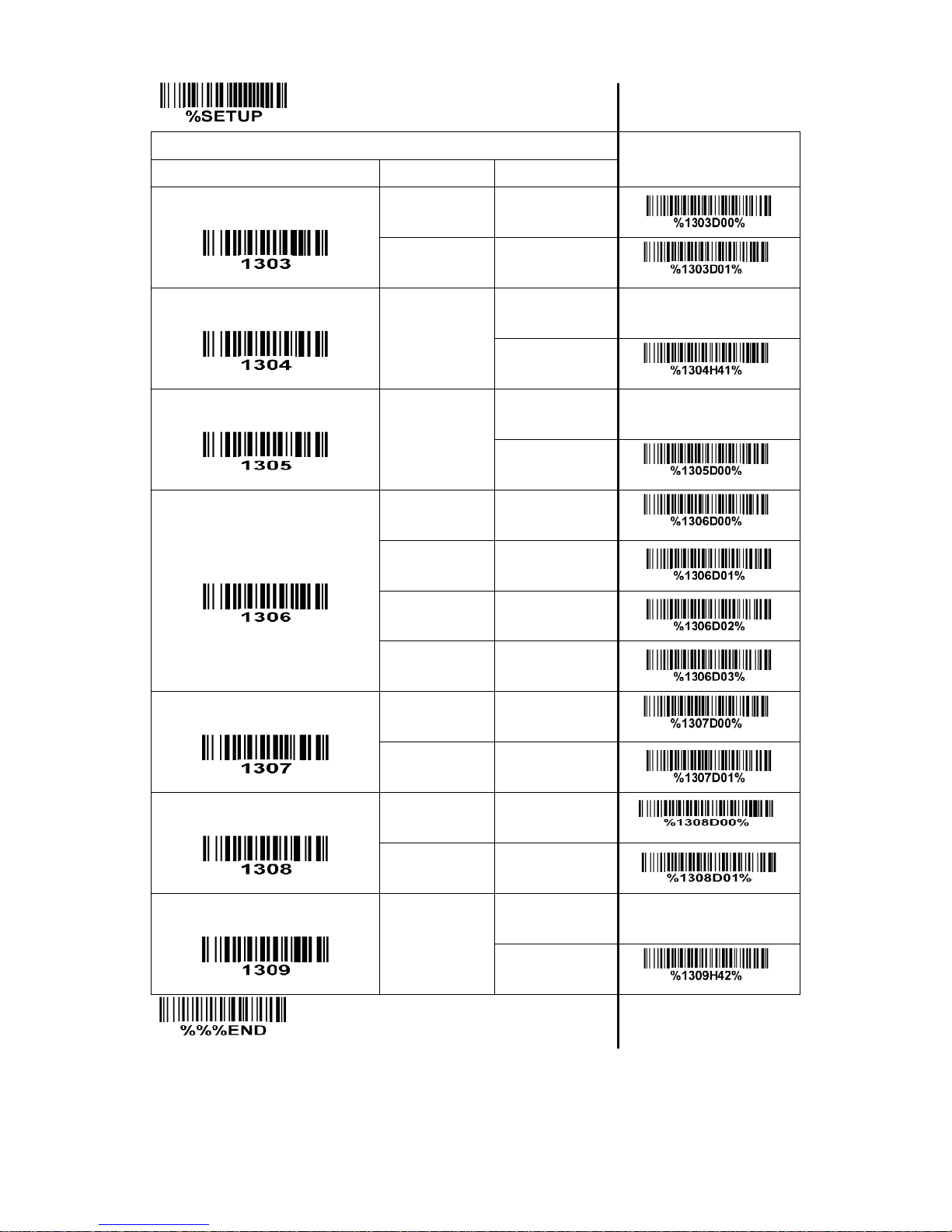

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Flow control
None
00
RTS/CTS
(Host idle: Low RTS)
01
RTS/CTS
(Host idle: High CTS)
02
ACK/NAK
03*
*
Baud rate
1200
02
2400
03
4800
04
9600
05*
*
19200
06
38400
07
57600
08
115200
09
END
Figure 4-4
Single-scan setting
SETUP barcode
Option barcode
END barcode
Alphanumeric entries
Page 20
14
3-3 RS232 interface
Flow control:
None- The communication only uses TXD and RXD signals without any hardware or software
handshaking protocol.
RTS/CTS- If the scanner requests to send the barcode data to host computer, it will issue the RTS
signal first, wait for the CTS signal from the host computer, and then perform the normal data
communication. If there is no replied CTS signal from the host computer after the Response delay
timeout, the scanner will issue an error indication. By setting (Host idle: Low RTS or Host idle: High
RTS), the scanner can be set to match the Serial Host RTS line.
ACK/NAK- If Decode data packet format is set to Packeted, after barcode data transmitted, the
scanner expects either an ACK (acknowledge) or NAK (not acknowledge) response from the host.
When a NAK is received, the scanner transmits the same data again and waits for either an ACK or
NAK. After three unsuccessful attempts to send data when NAK are received, the scanner issues an
error indication and discards the data.When the scanner finishes receiving the command from host, it
will send ACK/NAK to host.
Note: If Decode data packet format is set to Raw, the scanner will not wait for ACK/NAK after
transmitting decoded data completely.
Response delay: This delay is the time that the scanner waits for a handshaking acknowledgment (NAK
or ACK) from the host.
Inter-character delay: This delay is the time that the scanner transfer the each character interval.
Host-character delay: This delay is the time that the scanner waits for the host to send the next character
in serial communication.
Decoded data packet format:
Raw- Scanner sends raw decoded data directly.
Packeted- The decoded data is sent in data packet.
Page 21
15

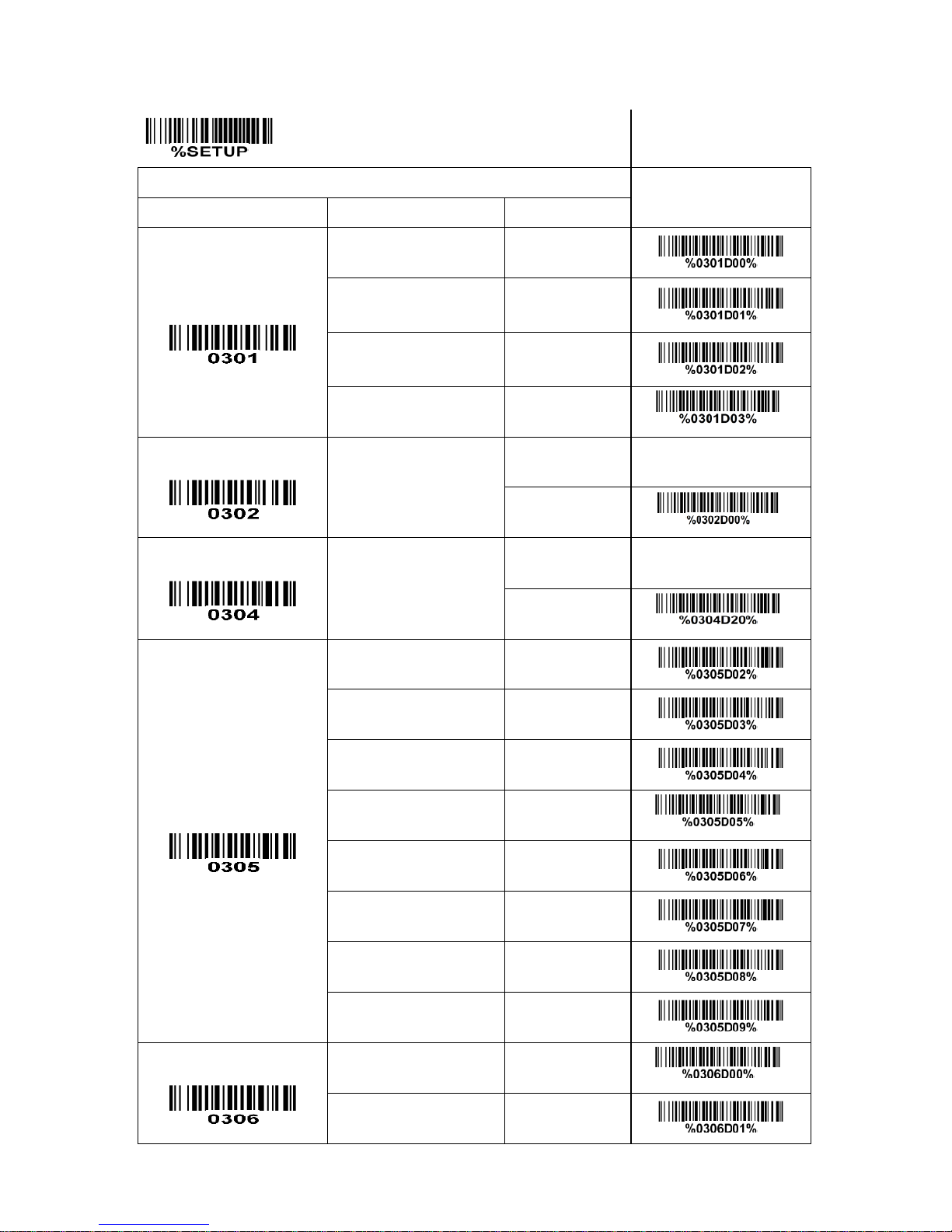

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Flow control
None
00
RTS/CTS
(Host idle: Low RTS)
01
RTS/CTS
(Host idle: High RTS)
02
ACK/NAK
03*
*
Inter-character delay
00-99 (1ms)
00-99
00*
*
Response delay
01-99 (100 ms)
01-99
20*
*
Baud rate
1200
02
2400
03
4800
04
9600
05*
*
19200
06
38400
07
57600
08
115200
09
Parity
None
00*
*
Odd
01
Page 22
16
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Even
02
Data bit
8 bits
00*
*
Stop bit
1 bit
00*
*
2 bits
01
Host-character delay
01-99 (10ms)
01-99
20*
*
Decoded data packet
format
Raw
00*
*
Packeted
01
END
Page 23
17
3-4 USB interface
USB device type:
HID keyboard– By setting, the scanner is used as a USB HID keyboard emulation device.
USB virtual COM– By setting, the scanner emulates a USB virtual COM device. If a Microsoft
Windows PC is connected to the scanner, a driver is required to install on the connected PC. The
driver will use the next available COM Port number. The driver and the installation guide can be found
in the associated CD and on the manufacturer’s website. A Windows-based software COM_Text is
recommended to display the barcode data in text format. COM_Text emulates some kind of serial-key
typing.
While emulating as a USB virtual COM, the scanner will send the data in data packet format if the
Decode data packet format is Packeted (see
3-3 RS232 Interface)
. The scanner also follows the Flow
control (see
3-3 RS232 Interface)
flow control, if it is set ACK/NAK.
Note: After changing USB Device Types, the scanner will restart automatically.
Keyboard layout: The scanner supports different national keyboard layouts.
Inter-character delay: This delay is inserted after each data character transmitted.
Numeric key:
Alphabetic key- The scanner will output code result as alphabetic key.
Numeric key- The scanner will output code result as pressing numeric keypad ( ‘0’, ‘1’, ‘2’, ‘3’, ‘4’, ‘5’,
‘6’, ‘7’, ‘8’, ‘9’, ‘.’, ‘+’, ‘-‘, ‘/’, ‘*’ only).
Alt + keypad- The scanner will output code result as pressing Alt+ numeric key (on keypad). Note that
the Num Lock control key must be ON. This setting can be specially adapted for use with different
national keyboard layout.
Page 24
18

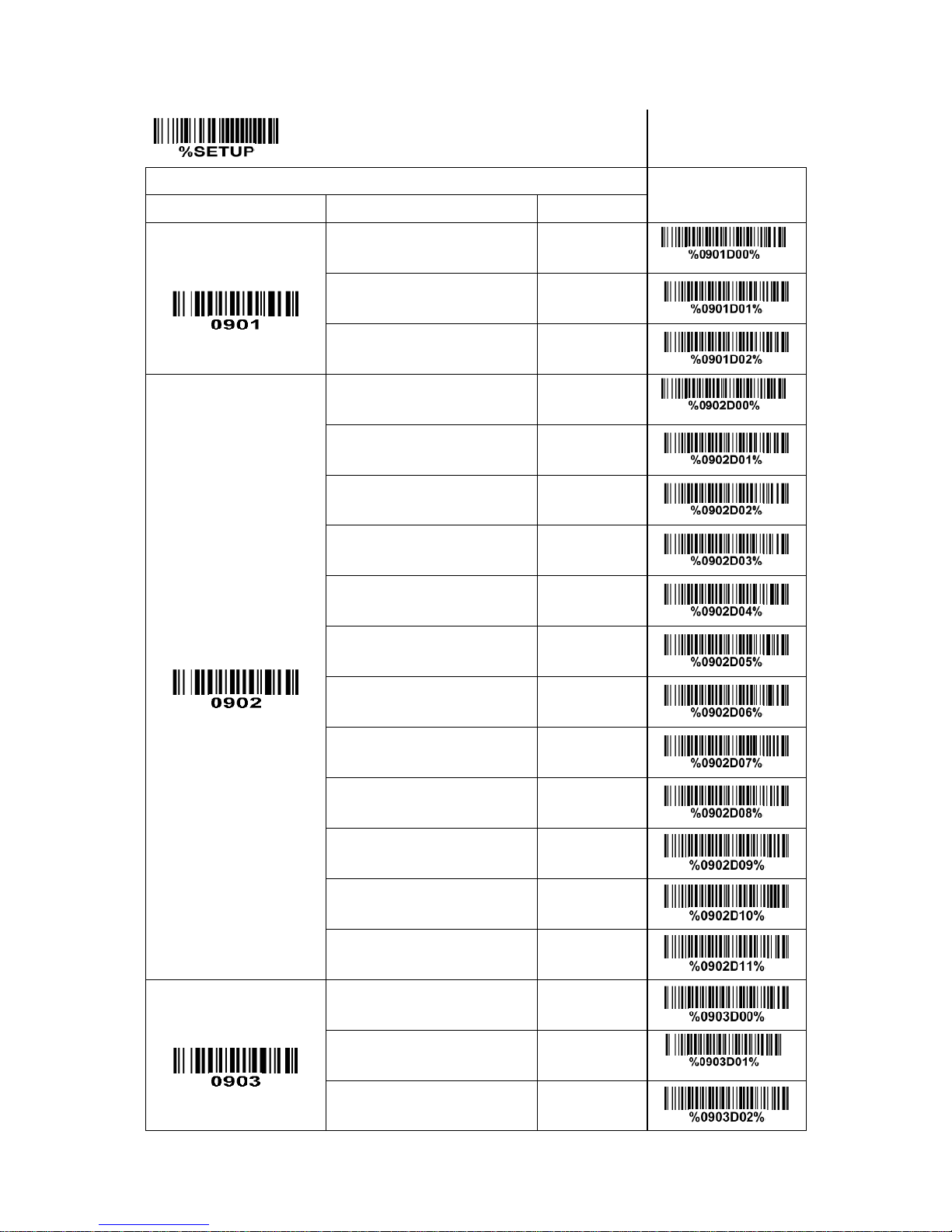

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
USB device type
HID keyboard
00*
*
HID keyboard for Apple Mac
01
USB virtual COM
02
Keyboard layout
USA
00*
*
Turkish F
01
Turkish Q
02
French
03
Italian
04
Spanish
05
Slovak
06
Denmark
07
Japanese
08
German
09
Belgian
10
Russian
11
Inter-character delay
0 ms
00
5 ms
01*
*
10 ms
02
Page 25
19

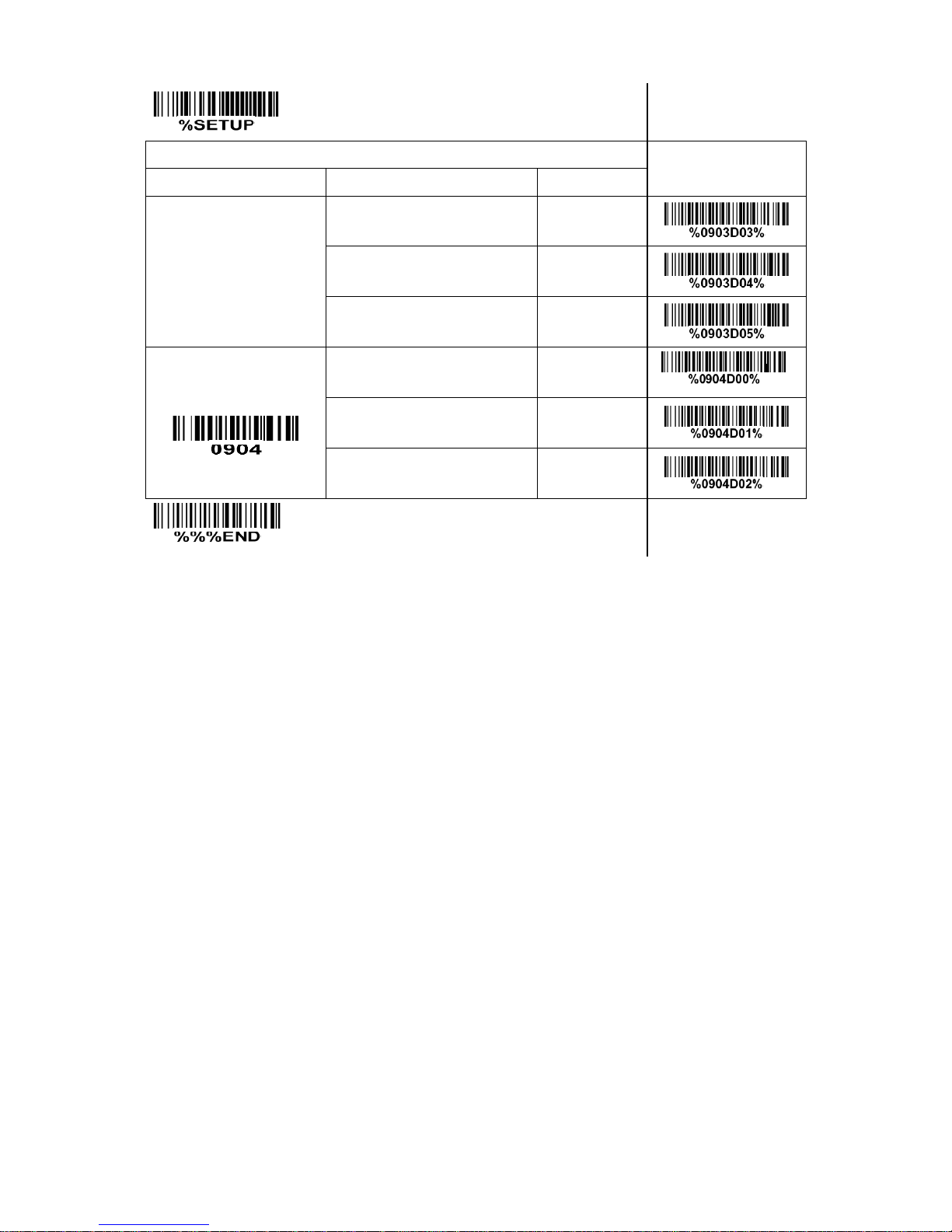

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
20 ms
03
40 ms
04
60 ms
05
Numeric key
Alphabetic key
00*
*
Numeric keypad
01
Alt + keypad
02
END
Page 26
20
3-5 Scan trigger mode & some global settings
Scanning mode:
Good-read off-The trigger button must be pressed once to activate scanning. The light source of
scanner stops scanning when there is a successful reading or no code is decoded after the Stand-by
duration elapsed.
Momentary-The trigger button acts as a switch. Press button to activate scanning and release button
to stop scanning. The light source of scanner stops scanning when there is a successful reading or
no code is decoded after the Stand-by duration elapsed.
Alternate continue-The trigger button acts as a toggle switch. Press button to activate or stop
scanning.
Continue-The scanner always keeps scanning, and it does not matter when the trigger button is
pressed or duration is elapsed.
Timeout off-The trigger button must be pressed once to activate scanning. The light source of
scanner stops scanning when no code is successful decoded after the Stand-by duration elapsed.
Auto-detection- By setting Enable, the scanner will start operating if any nearby object has been
detected. The laser light of scanner stops scanning when there is a successful reading or no code is
decoded after the Stand-by duration elapsed. Once the laser light stops scanning, the present object
must be removed to enable Auto-detection.
Note: Restoring the default settings by the host command or scanning the barcode that will not affect
the scanning mode settings.
Standby duration: The duration time for a single scanning attempt.
Same barcode delay time: If a barcode has been scanned and output once successfully, the laser beam
must be off or moved away from the barcode beyond delay time to active next scanning the same
barcode. When this feature is set to be “0xFF”, then the delay time is indefinite.
Multiple confirm: If this parameter is set to be larger than zero, the scanner will require several
successful reads of same-decoded-data to confirm a valid reading. The number of successful reads can
be different according to different types of barcode. As the number of Multiple confirm gets larger, the
scanner’s aggressiveness decreases. The number of successful reads required for different types of
barcode is listed below, which is related to the parameter of Multiple confirm.
Page 27
21
Table 4-1 The number of successful reads (n)
Barcode type
Multiple confirm (m)
m=0
m=1
m=2
m>=3
EAN-13, EAN-8, UPC-A, Code93, China Post, UK Plessey
n=2
n=3
n=4
n=m+1
UPC-E, Codabar, Interleaved 2/5, Code39, Industry2/5, Matrix
2/5, Code11, MSI Plessey, UPC-E1
n=3
n=4
n=4
n=m+1
UCC/EAN128, Code128, GS1 DataBar, GS1 DataBar Limited,
GS1 DataBar Expand, ISBT 128
n=1
n=2
n=3
n=m+1
Global Max./Min. code length: These two lengths are defined as the valid range of decoded barcode
data length. Make sure that the minimum length setting is no greater than the maximum length setting,
otherwise the labels of the symbol will not be readable. In particular, the same value can be set for both
minimum and maximum reading length to force the fixed length barcode decoded.
Notes:
1. Please set the max./min. length for individual barcode in later sections, if special demand is
requested.
2. The number of check digits is included in max./min. code length.
3. These two settings have no effect on the symbols with fixed-length, e.g. UPC-A, UPC-E, EAN-13,
EAN-8 and China Post.
Global G1-G4 string selection: The scanner offer one or two string group for all symbols. By setting one
or two digits to indicate which string group you want to apply. You may refer to
3-29 G1-G4 & FN1
substitution string setting
and
3-30 G1-G4 string position & Code ID position
.
Example: Group 1 → set 01 or 10. Group 2 and 4 → set 24 or 42.
All valid settings include 00, 01, 02, 03, 04, 10, 11, 12, 13, 14, 20, 21, 22, 23, 24, 30, 31, 32, 33, 34, 40,
41, 42, 43, and 44.
Setting value
Description
00
None
01、10、11
Only insert Group 1
02、20、22
Only insert Group 2
03、30、33
Only insert Group 3
04、40、44
Only insert Group 4
12、21
Insert Group 1 first, then insert Group 2
13、31
Insert Group 1 first, then insert Group 3
14、41
Insert Group 1 first, then insert Group 4
23、32
Insert Group 2 first, then insert Group 3
24、42
Insert Group 2 first, then insert Group 4
34、43
Insert Group 3 first, then insert Group 4
Element amendment: If it is enabled, the scanner can read the barcode comprised with bars and spaces
in different scale.
Page 28
22
Character output restraint:
Disable- the scanner will output all the barcode data .
Printable character only- If this option is selected, the scanner will output the printable characters only,
i.e. in ASCII from 20H to 7EH.
Alphanumeric character only- If this option is selected, the scanner will output the alphanumeric
characters only, i.e. “A”-“Z”, “a”-“z”, “0”-“9”.
Decoder optimization: If it is enabled, the scanner will optimize the decoder with error correction. This
function is not effective for all types of barcodes.
Scan angle: If narrow angle (40°) is selected, the decode rate is 1 time/scan; if wide angle (55°) is
selected, the decode rate is 0.5 time/scan.
Auto-sleep delay: After responding to the host’s requirement, the scanner will automatically enter deep
sleep state within Auto-sleep delay time. The scanner will be awakened while the SCAN button is
pressed or a command WAKEUP (0x00) is received again.
“No read” response: If it is enabled, while the scanner receives the STOP_DECODE command or fails to
decode a barcode within the Stand-by duration time, “NR” will be transmitted as decode data.
Deep sleep:
Disable- When Stand-by duration is elapsed, the scanner will enters normal sleep state. Any external
interrupt can wake up the scanner. It is not necessary to send a command WAKEUP (0x00) before
sending any other commands.
Enable- When Stand-by duration is elapsed, the scanner will enters sleep state deeply, and the
supply current will drop to be 0.9mA. And at this case, it is necessary to send a command WAKEUP
(0x00) and delay for 15ms, before sending any other commands.
Character encoding system: A character encoding system consists of a code that pairs each character
from a given repertoire. Common examples include Morse code, the Baudot code, the ASCII and
Unicode. If the data received does not display with the proper characters, it may be because the barcode
being scanned was created using a character encoding system that is different from the one the host
program is expecting. Try alternate options to find the proper one.
Page 29
23

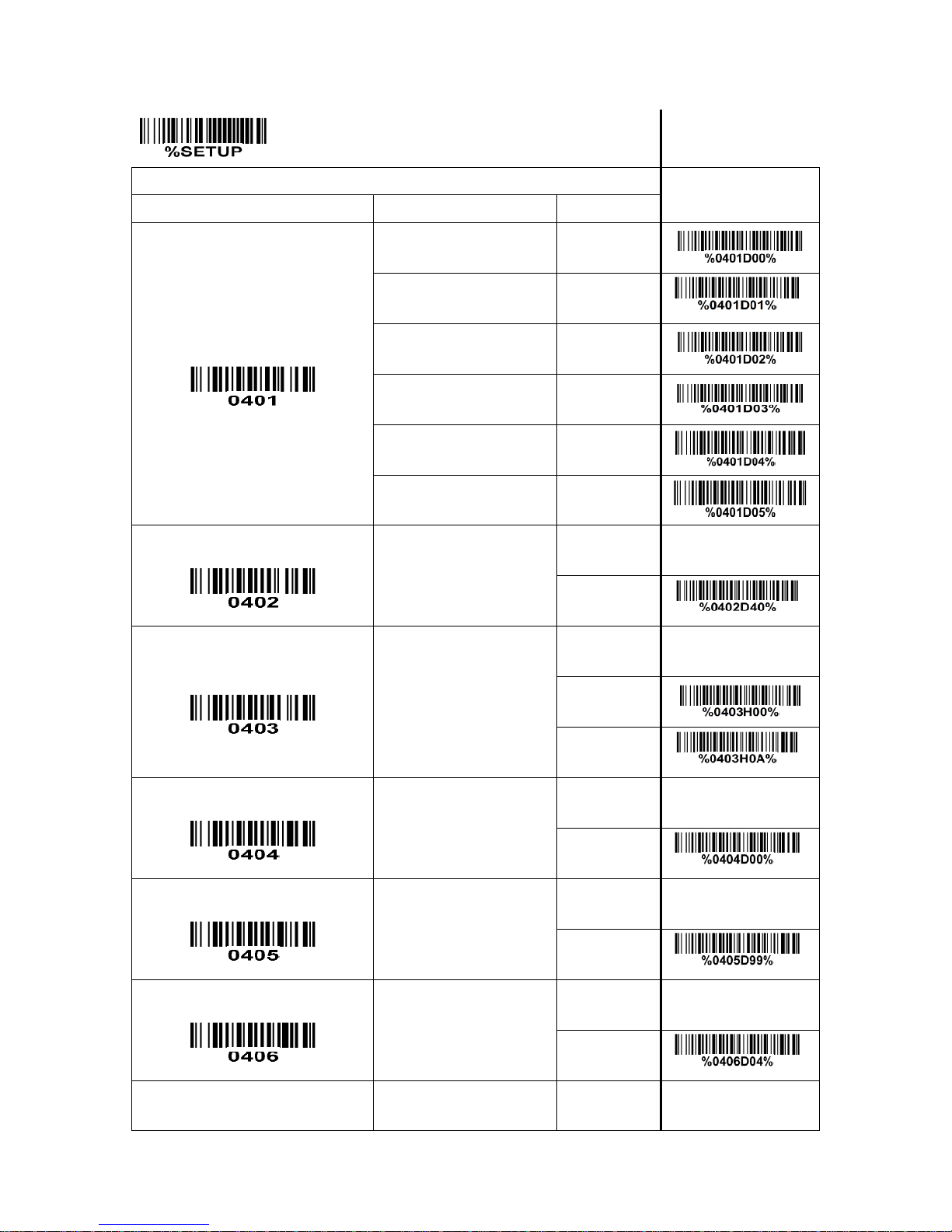

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Scanning mode
Note 1
Good-read off
00
Momentary
01*
*
Alternate continue
02
Continue
03
Timeout off
04
Auto-detection
03
Standby duration
01-99 (100ms)
01-99
40*
*
Same barcode delay time
00-FF16(100ms)
(00: None)
00-FF16
00 0A*
*
Double confirm
00-09
(00: None)
00-09
00*
*
Global max. code length
04-99
04-99
99*
*
Global min. code length
01-99
01-99
04*
*
Global G1-G4 string selection
00-44
00-44
Page 30

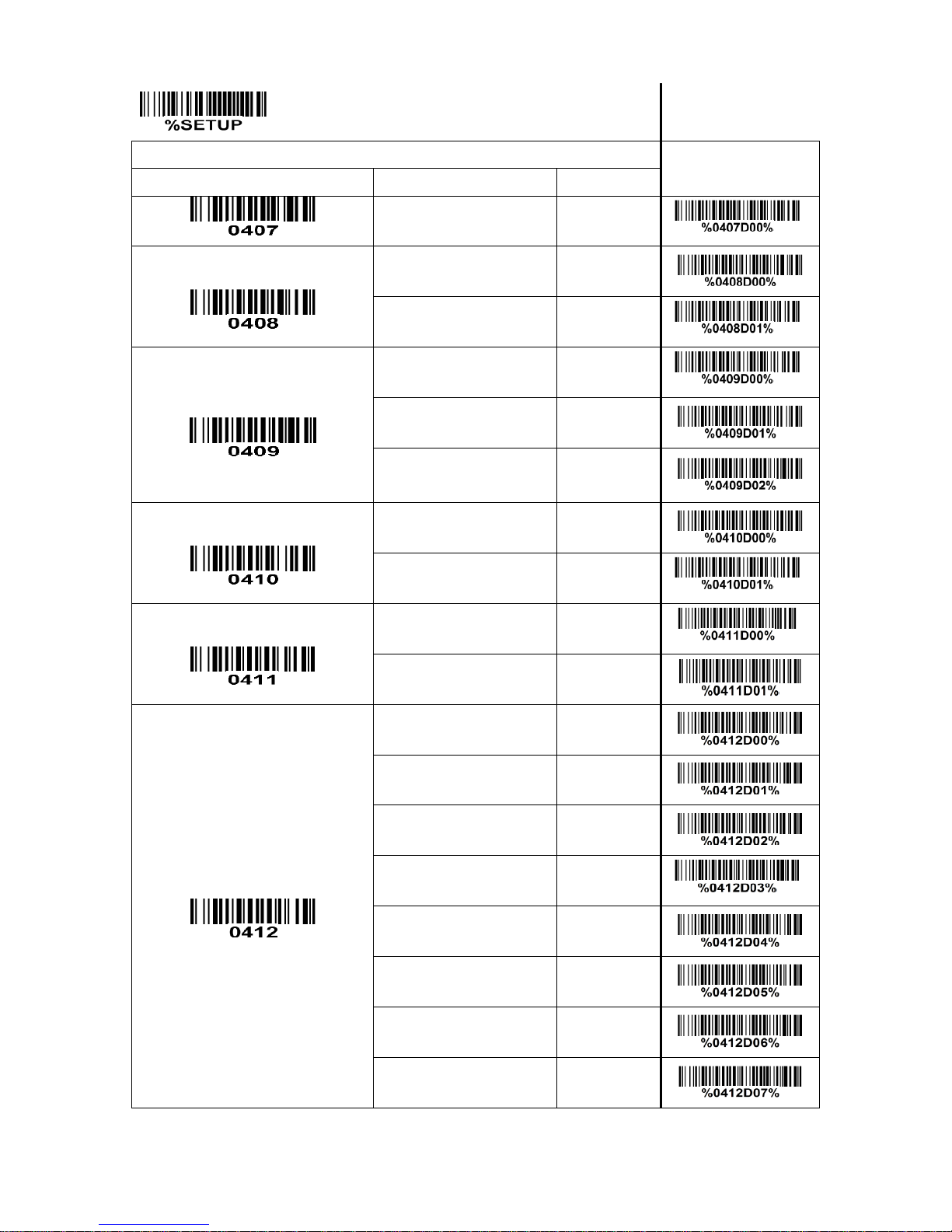

24
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
(00: None)
00*
*
Element amendment
Disable
00
Enable
01*
*
Character output restraint
Disable
00*
*
Printable character only
01
Alphabetic & Numeric
only
02
Decoder optimization
Disable
00
Enable
01*
*
Scan angle
Wide (56°)
00*
*
Narrow (40°)
01
Auto-sleep delay
Note 2
1 second
00
5 seconds
01
10 seconds
02
30 seconds
03*
*
1 minute
04
3 minutes
05
10 minutes
06
30 minutes
07
Page 31
25
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
1 hour
08
3 hours
09
Never
10
“No read” response
Disable
00*
*
Enable
01
Deep sleep
Disable
00*
*
Enable
01
Character encoding system
ASCII
00*
*
UTF-8
01
Windows-1251
02
END
Note 1: This configure will not be changed when the scanner scans load default setting barcode.
Note 2: The tolerance is ±20%.
Page 32
26
3-6 Indication
Power on alert: After power-on or restart, the scanner will generate alert signal (Beeper beeping and
LED flashing).
LED indication: When the scanner decodes successfully, the LED will glitter.
Beeper indication: After each successful reading, the scanner will beep to indicate a good barcode
reading, and its beep tone duration is adjustable.
Beep tone duration: This parameter can be adjusted for a good reading upon favorite usage.
Volume of beeper: This parameter can be adjusted for different level of the volume of the beeper.
Frequency of beeper: This parameter can be adjusted for different level of the frequency of the beeper.
Page 33
27

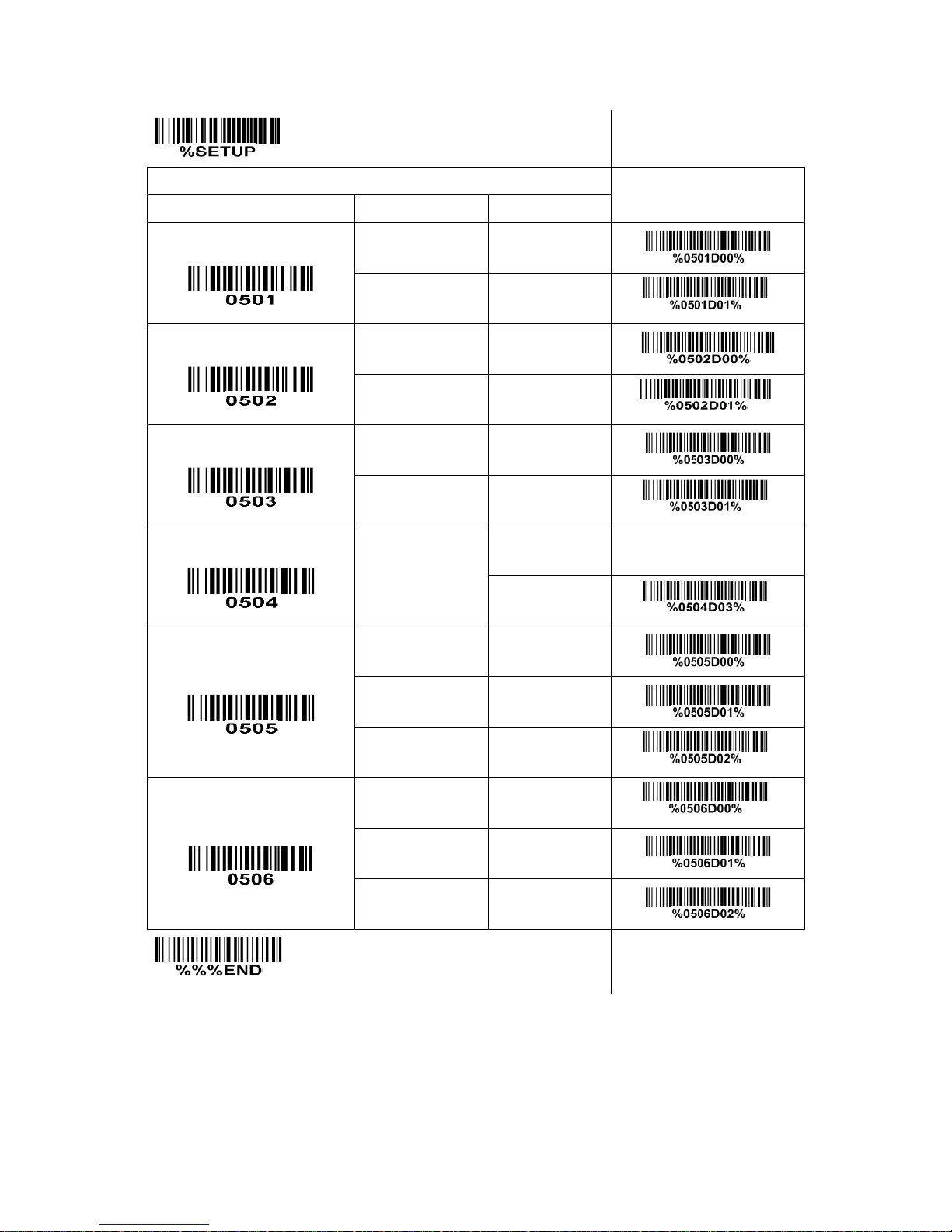

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Power on alert
Disable
00
Enable
01*
*
LED indication
Disable
00
Enable
01*
*
Beeper indication
Disable
00
Enable
01*
*
Beep tone duration
01-09 (25 ms)
01-09
03*
*
Volume of beeper
Low
00
Middle
01
High
02*
*
Frequency of beeper
2.7KHz
00*
*
2.5KHz
01
2.3KHz
02
END
Page 34
28

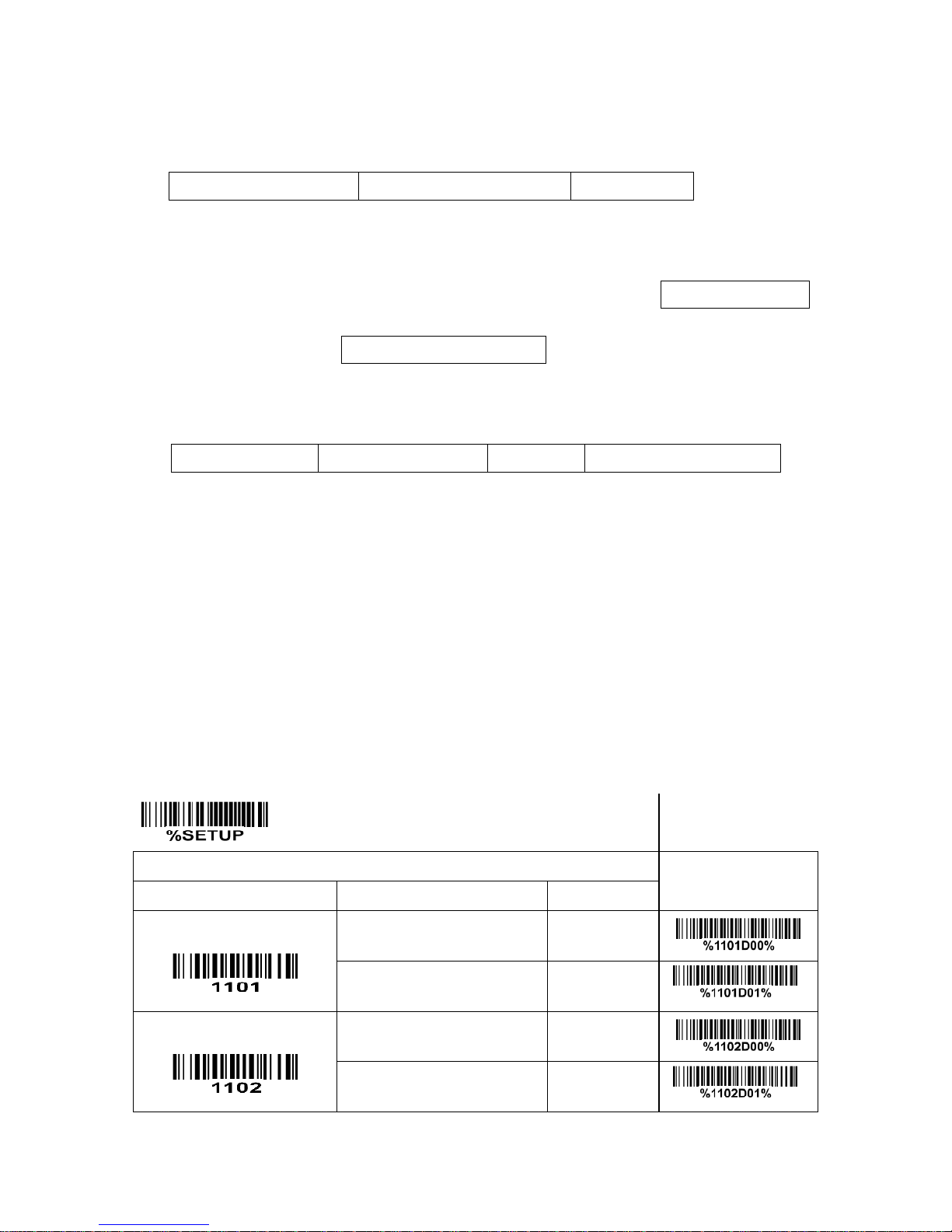

3-7 UPC-A
Read:
Format
System character
Data digits (10 digits)
Check digit
Check digit verification: The check digit verification is optional.
Check digit trans.: By setting Enable, check digit will be transmitted.
Code ID setting: Code ID is a one-or-two-character string used to represent the symbol upon a
succeeding reading. If you want application to transmit Code ID, you must set Code ID transmission to
be enabled. Refer to
3-31 String transmission
.
Insert group selection: Refer to Global G1-G4 string selection of
3-5 Scan trigger mode & some global
settings
.
Supplement digits: The Supplement digits barcode is the supplemental 2 or 5 characters.
Format
System character
Data digits (10 digits)
Check digit
Supplement digits 2 or 5
Truncation/Expansion:
Truncate leading zeros- The leading “0” digits of UPC-A data characters can be truncated when the
feature is enabled.
Expand to EAN-13- It extends to 13-digits with a “0” leading digit when the feature is enabled.
Truncate system character- The system character of UPC-A data can be truncated when the feature is
enabled.
Add country code- The country code (“0” for USA) can be added when the feature is enabled.
Ink Spreading Canceling: If enabled, the scanner can more easily read the UPC-A barcode printed with
ink spreading. But it may cause the scanner to decode some well-printed UPC-A barcode wrongly.
Please ask the advice from the support engineer of the manufacturer before applying this function.
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Page 35
29

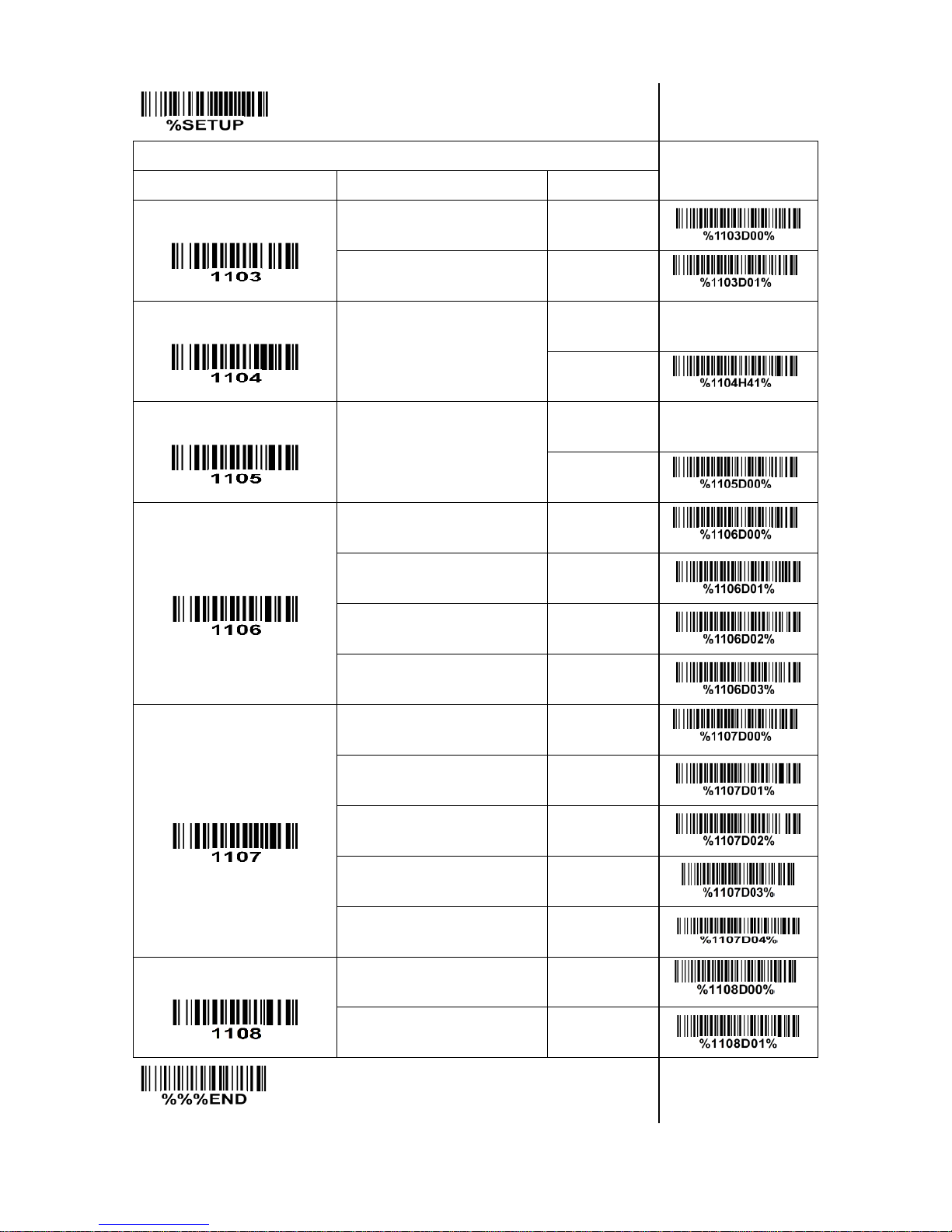

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Check digit trans.
Disable
00
Enable
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF
16
<A>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Supplement digits
None
00*
*
2 digits
01
5 digits
02
2 or 5 digits
03
Truncation/Expansion
None
00*
*
Truncate leading zeros
01
Expand to EAN-13
02
Truncate system character
03
Add country code
04
Ink Spreading Canceling
Disable
00*
*
Enable
01
END
Page 36
30

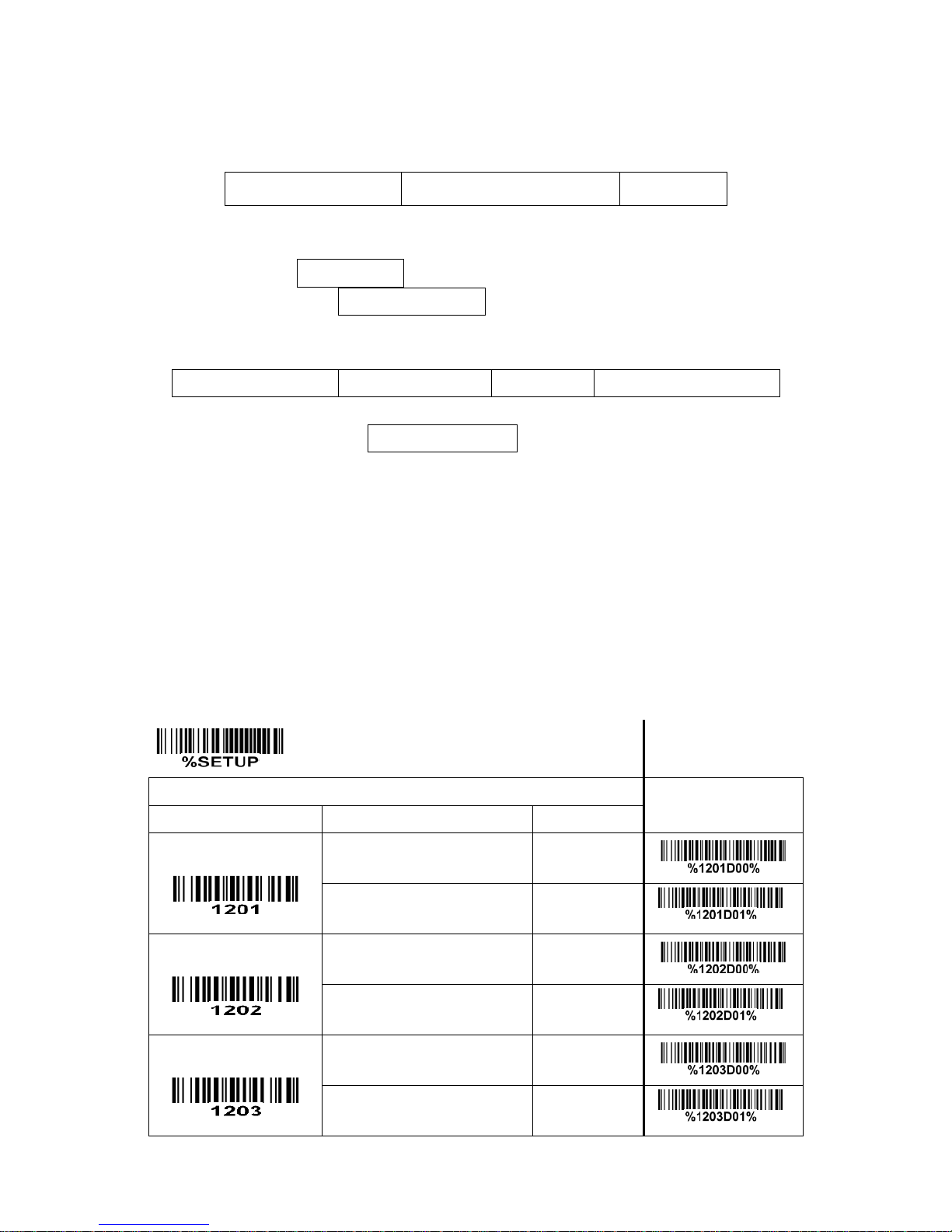

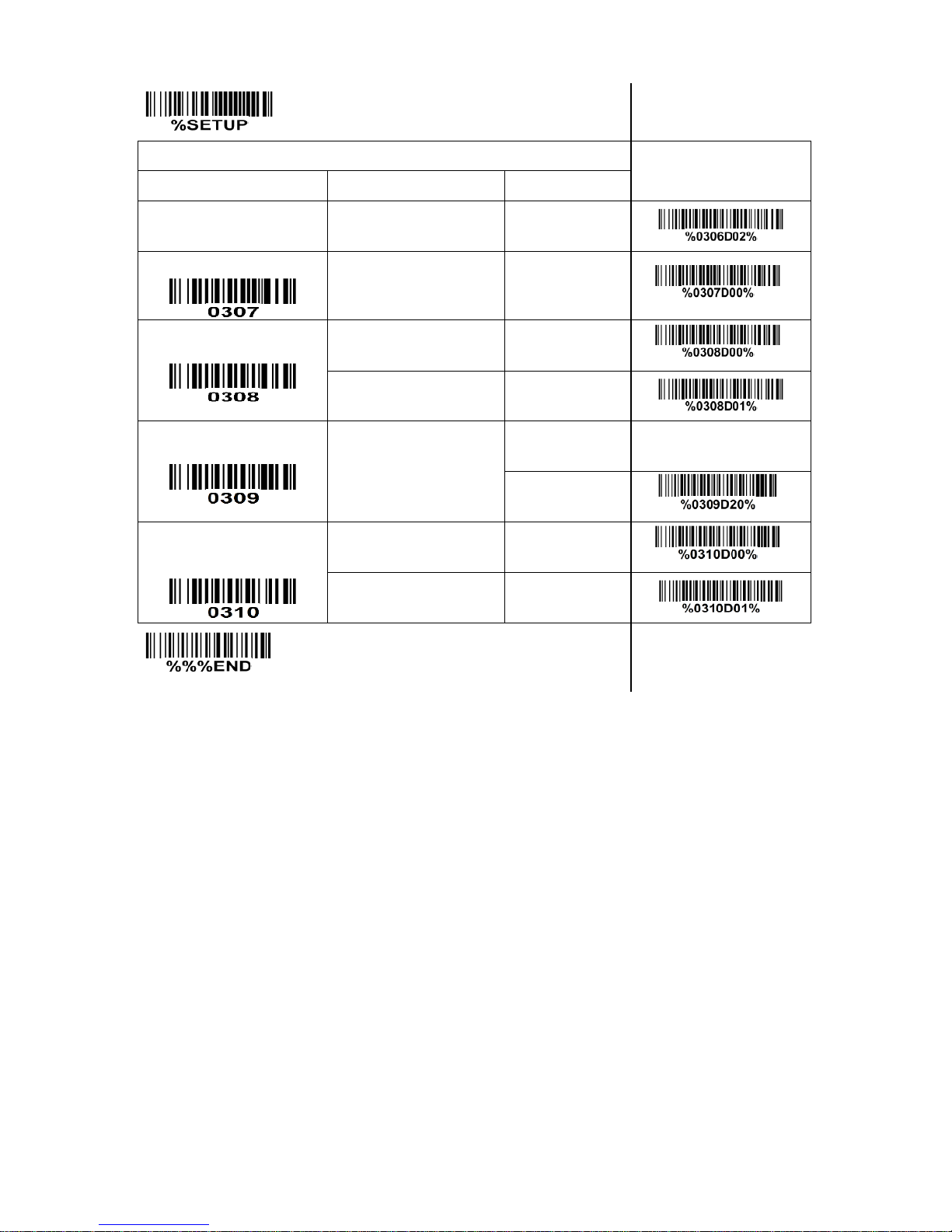

3-8 UPC-E
Read:
Format
System character “0”
Data digits (6 digits)
Check digits
Check digit verification: The check digit verification is optional.
Check digit trans.: By setting Enable, check digit will be transmitted.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Supplement digits:
Format
System character “0”
Data digits (6 digits)
Check digit
Supplement digits 2 or 5
Truncation/Expansion:
Truncate leading zeros - Refer to Truncation/Expansion of
3-7 UPC-A
.
Expand to EAN-13 - It extends to 13-digits with “0” digits when the feature is set to be enabled.
Example: Barcode “01236547”, Output: “0012360000057”.
Expand to UPC-A - It extends to 12-digits when the feature is set to be enabled.
Example: Barcode “01236547”,
Output: “012360000057”.
Truncate system character - The system character “0” of UPC-E data can be truncated when this
feature is enabled.
Add country code - The country code (“0” for USA) can be added when the feature is enabled.
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00
Enable
01*
*
Page 37
31
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Code ID setting
00-FF16
(ASCII)
00-FF16
<D>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Supplement digits
None
00*
*
2 digits
01
5 digits
02
2 or 5 digits
03
Truncation/Expansion
None
00*
*
Truncate leading zeros
01
Expand to EAN-13
02
Expand to UPC-A
03
Truncate system character
04
Add country code
05
END
Page 38
32

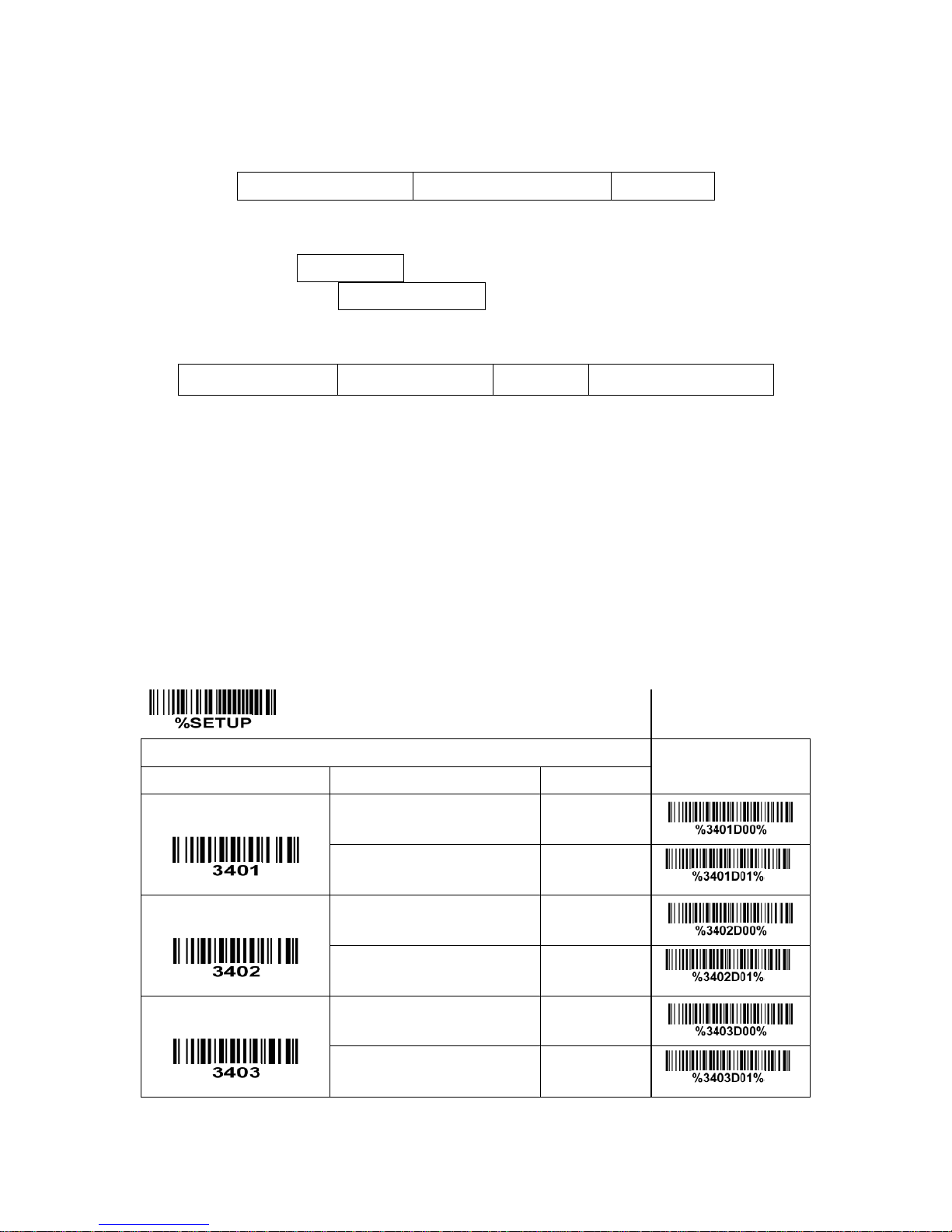

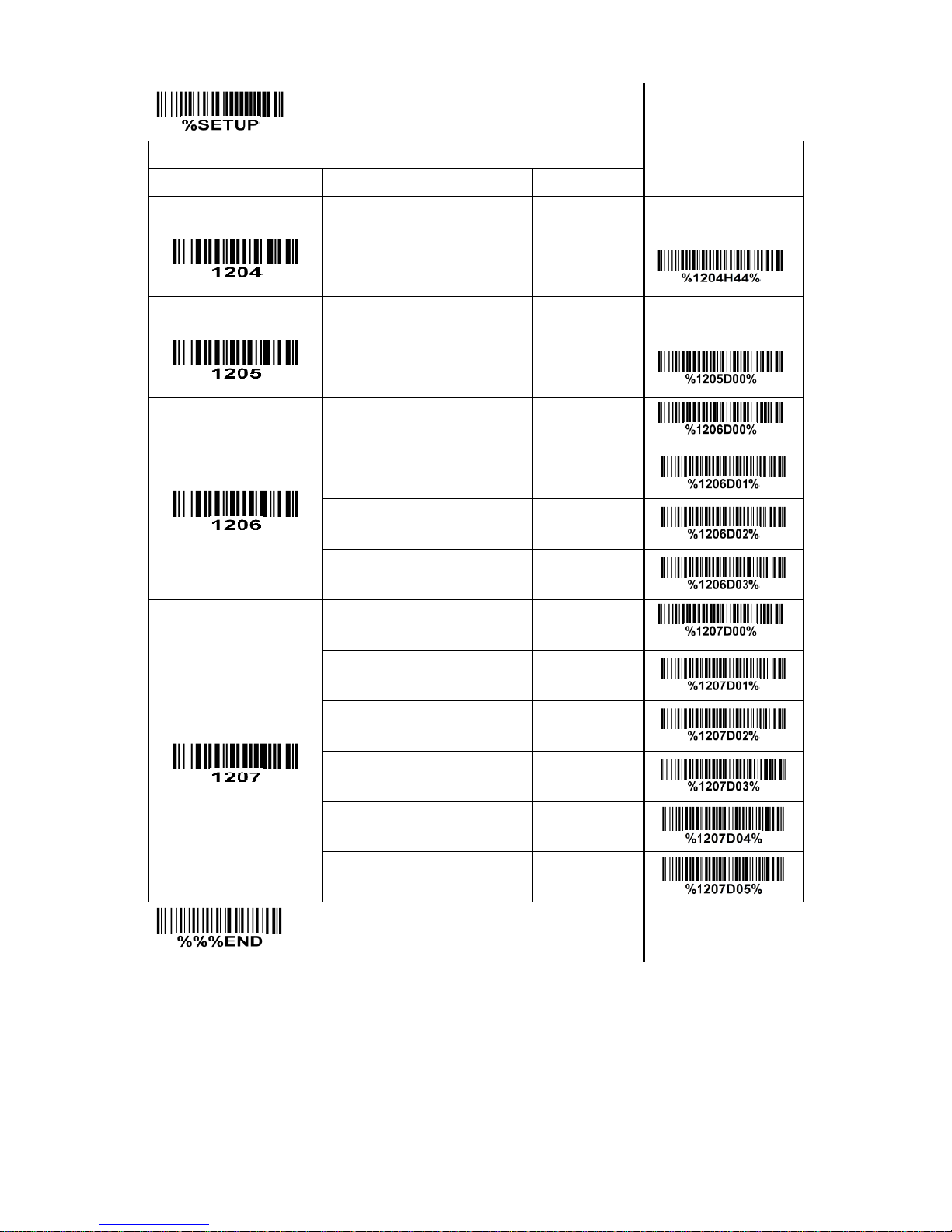

3-9 UPC-E1
Read:
Format
System character “1”
Data digits (6 digits)
Check digits
Check digit verification: The check digit verification is optional.
Check digit trans.: By setting Enable, check digit will be transmitted.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Supplement digits:
Format
System character “1”
Data digits (6 digits)
Check digit
Supplement digits 2 or 5
Truncation/Expansion:
Expand to EAN-13 - It extends to 13-digits with “0” digits when the feature is set to be enabled.
Example: Barcode “11236597”, Output: “0112365000097”.
Expand to UPC-A - It extends to 12-digits when the feature is set to be enabled.
Example: Barcode “11236597”, Output: “112365000097”.
Truncate system character - The system character “1” of UPC-E1 data can be truncated when the
feature is enabled.
Add country code - The country code (“0” for USA) can be added when the feature is enabled.
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00
Enable
01*
*
Page 39
33

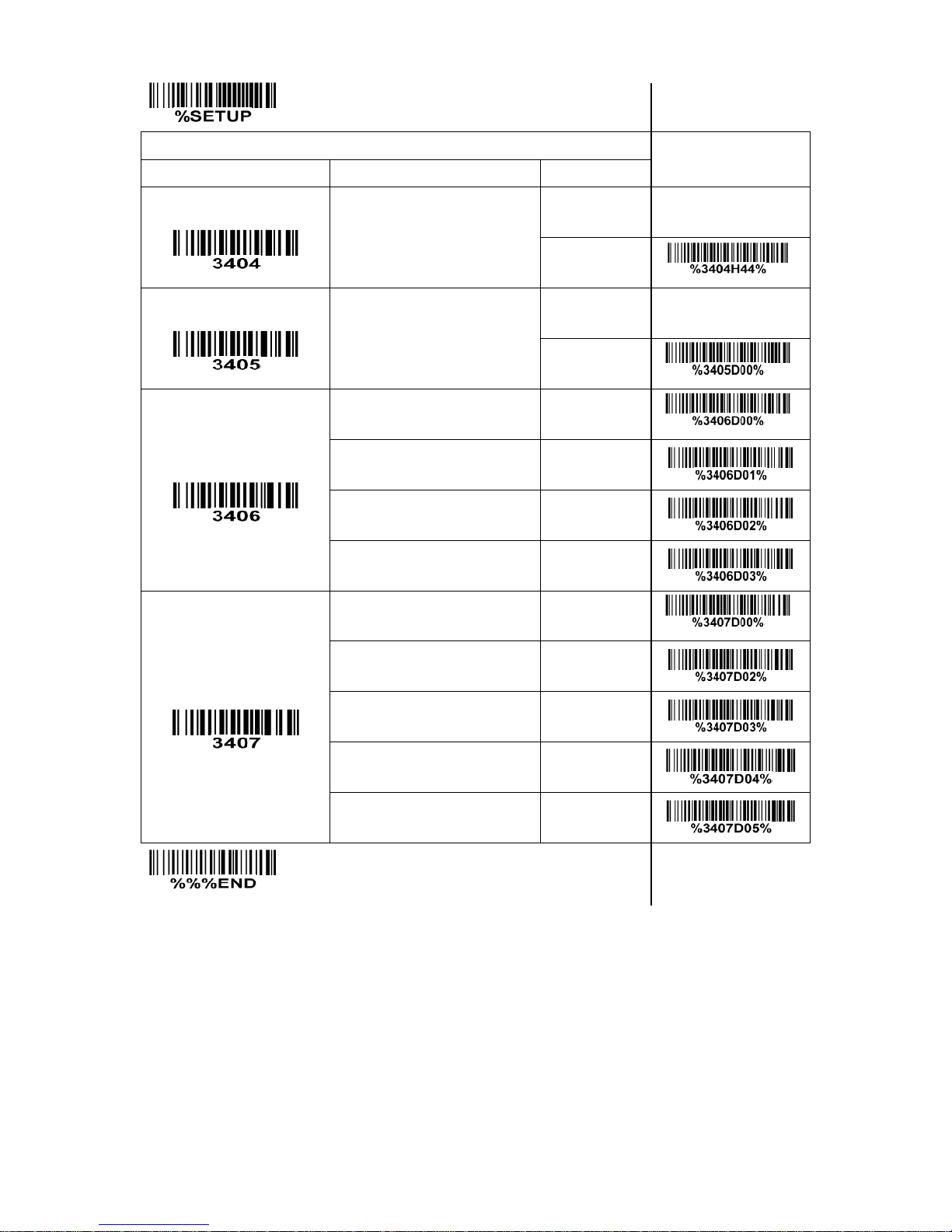

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Code ID setting
00-FF16
(ASCII)
00-FF16
<D>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Supplement digits
None
00*
*
2 digits
01
5 digits
02
2 or 5 digits
03
Truncation/Expansion
None
00*
*
Expand to EAN-13
02
Expand to UPC-A
03
Truncate system character
04
Add country code
05
END
Page 40
34

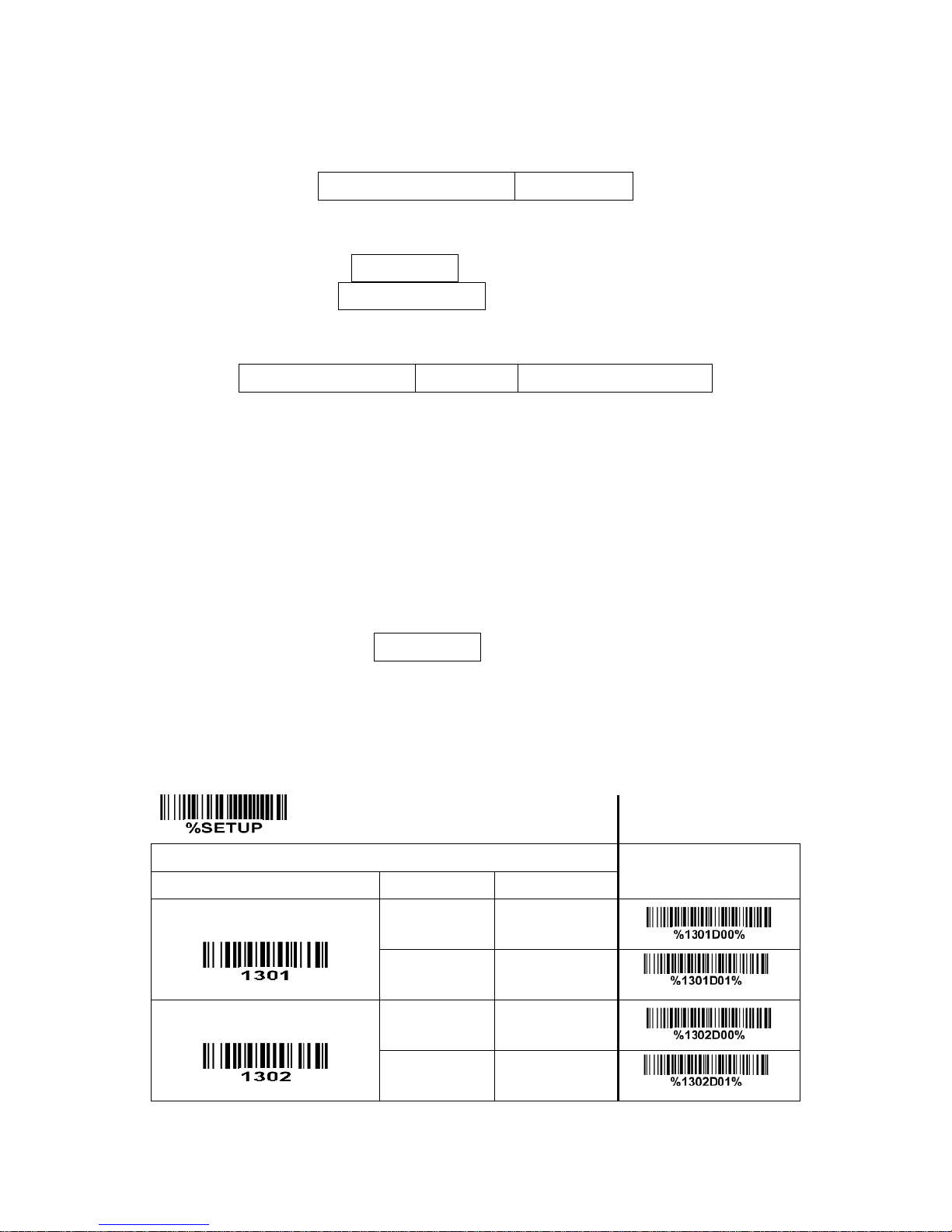

3-10 EAN-13 (ISBN/ISSN)
Read:
Format
Data digits (12 digits)
Check digit
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, check digit will be transmitted.
EAN-13 code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Supplement digits:
Format
Data digits (12 digits)
Check digit
Supplement digits 2 or 5
ISBN/ISSN conversion: The ISBN (International Standard Book Number) and ISSN (International
Standard Serial Number) are two kinds of barcode for books and magazines. The ISBN is 10 digits with
leading “978” and the ISSN is 8 digits with leading “977” of the EAN-13 symbol.
Example:
Barcode “9780194315104”, Output: “019431510X”.
Barcode “9771005180004”, Output: “10051805”.
Ink Spreading Canceling: If enabled, the scanner can more easily read the EAN-13 barcode printed with
ink spreading. But it may cause the scanner to decode some well-printed EAN-13 barcode wrongly.
Please ask the advice from the support engineer of the manufacturer before applying this function.
ISBN/ISSN code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Page 41
35
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Check digit transmission
Disable
00
Enable
01*
*
EAN-13 code ID setting
00-FF16
(ASCII)
00-FF16
<A>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Supplement digits
None
00*
*
2 digits
01
5 digits
02
2 or 5 digits
03
ISBN/ISSN conversion
Disable
00*
*
Enable
01
Ink Spreading Canceling
Disable
00*
*
Enable
01
ISBN/ISSN code ID setting
00-FF16
(ASCII)
00-FF16
<B>*
*
END
Page 42
36
3-11 EAN-8
Read:
Format
Data digits (7 digits)
Check digit
Check digit verification: The check digit verification is optional.
Check digit trans.: By setting Enable, check digit will be transmitted.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Supplement digits:
Format
Data digits (7 digits)
Check digit
Supplement Digits 2 or 5
Truncation/Expansion: Refer to Truncation/Expansion of
3-7 UPC-A
.
Page 43
37
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00
Enable
01*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<C>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Supplement digits
None
00*
*
2 digits
01
5 digits
02
2 or 5 digits
03
Truncation/Expansion
None
00*
*
Truncate leading zero
01
Expand to EAN-13
02
END
Page 44
38
3-12 Code 39 (Code 32, Trioptic Code 39)
Read:
Format
Start character(*)
Data digits (variable)
Check digit (optional)
End character(*)
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Each symbol has own max./min. code length. If both setting of max./min. code
length are “00”s, the setting of global max./min. code length is effective. The length is defined as to the
actual barcode data length to be sent. Label with length exceeds these limits will be rejected. Make sure
that the minimum length setting is no greater than the maximum length setting, otherwise all the labels of
the symbol will not be readable. In particular, you can see the same value for both minimum and
maximum reading length to force the fixed length barcode decoded. Refer to
3-5 Scan trigger mode &
some global settings
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Start/End transmission: The start character and end character of Code 39 are “*”s. You can transmit all
data digits including two “*”s.
“*” as data character: By setting Enable, “*” can be recognized as data character.
Convert Code 39 to Code 32: Code 32 is a variant of Code 39 used by the Italian pharmaceutical
industry. Note that Code 39 must be enabled in order for this parameter to function.
Format of Code 32
“A” (optional)
Data digits (8 digits)
Check digit
Code 32 Prefix “A” transmission: By setting Enable, the prefix character “A” can be added to all Code 32
barcodes.
Trioptic Code 39 read: Trioptic Code 39 is a variant of Code 39 used in the marking of magnetic tapes
and computer cartridges. Trioptic Code 39 symbols always contain six characters.
Format of Trioptic Code 39
Start character ($)
Data digits (6 digits)
End character ($)
Trioptic Code 39 Start/End transmission: The start character and end character of Trioptic Code 39 are
“$”s. You can transmit all data digits including two “$”s.
Page 45
39

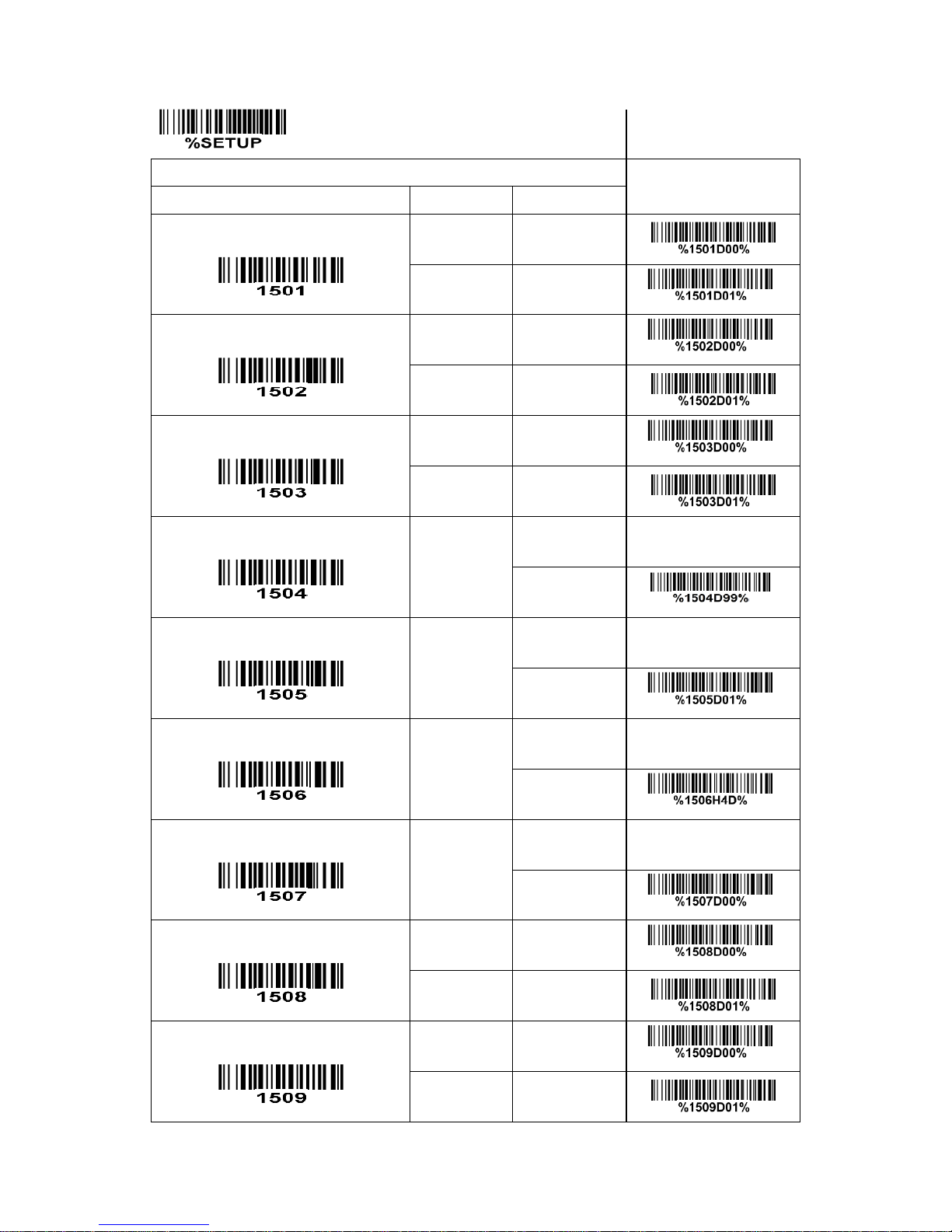

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00*
*
Enable
01
Check digit transmission
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<M>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Format
Standard
00*
*
Full ASCII
01

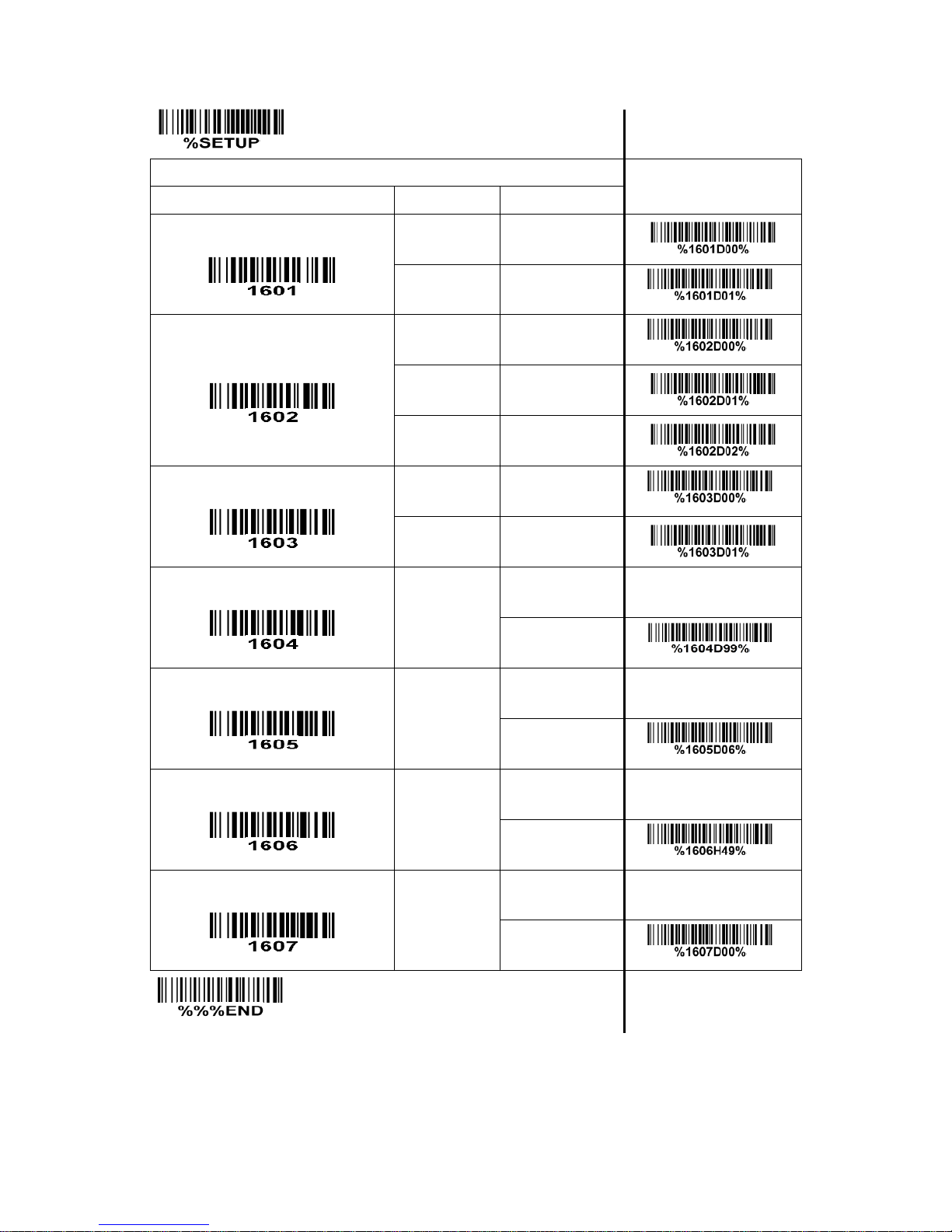

Start/End transmission
Disable
00*
*
Enable
01
Page 46
40
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
“*” as data character
Disable
00*
*
Enable
01
Convert Code 39 to Code 32
Disable
00*
*
Enable
01
Code 32 Prefix “A” transmission
Disable
00*
*
Enable
01
Trioptic Code 39 read
Disable
00*
*
Enable
01
Trioptic Code 39 Start/End
transmission
Disable
00*
*
Enable
01
END
Note 1: If Trioptic Code 39 is set Enable, Code 39 is forced Enable.
Note 2: If Code 39 is set Disable, Trioptic Code 39 is forced Disable.
Page 47
41
3-13 Interleaved 2 of 5
Read:
Format
Data digits (variable)
Check digit (optional)
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Page 48
42
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00*
*
USS
01
OPCC
02
Check digit transmission
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
06*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<I>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
END
Page 49
43

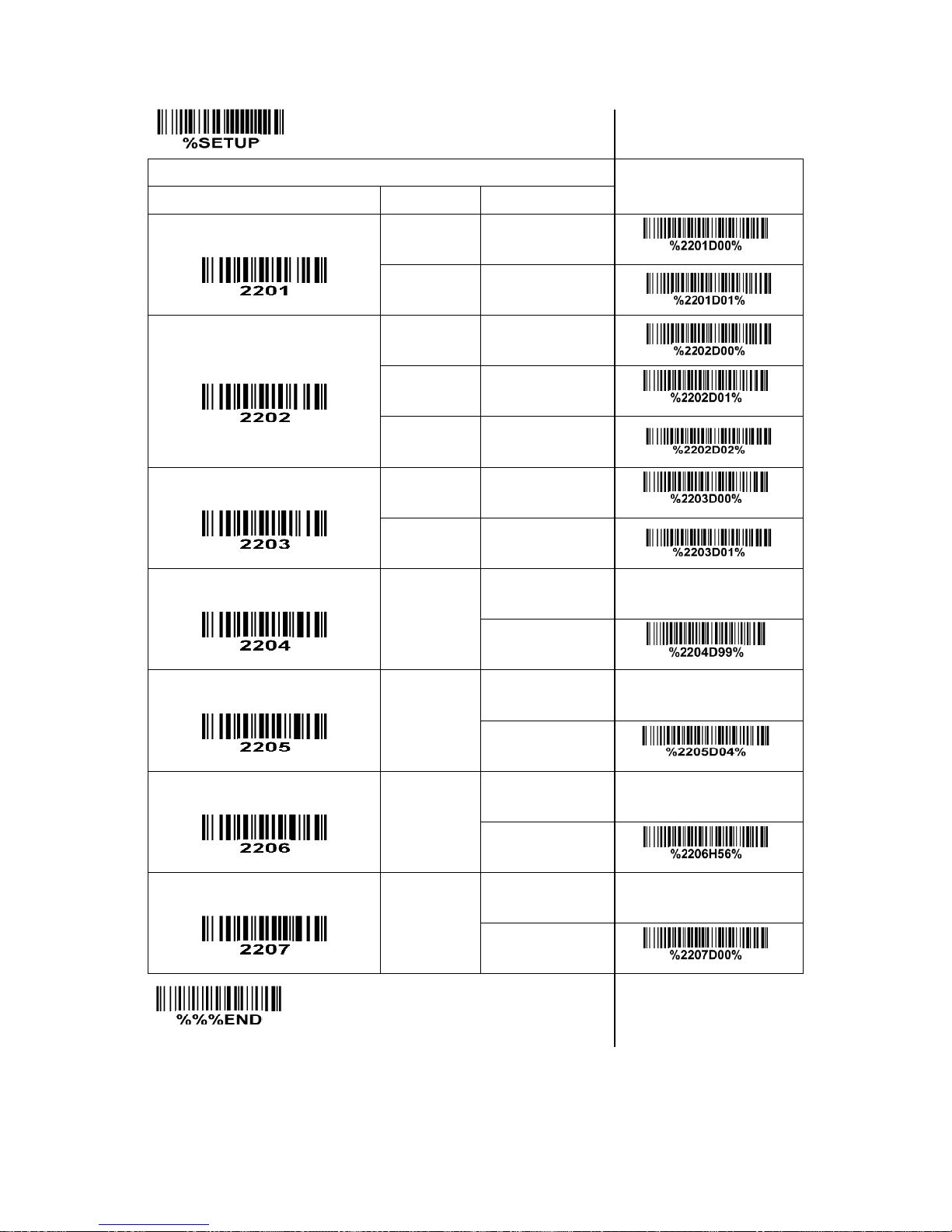

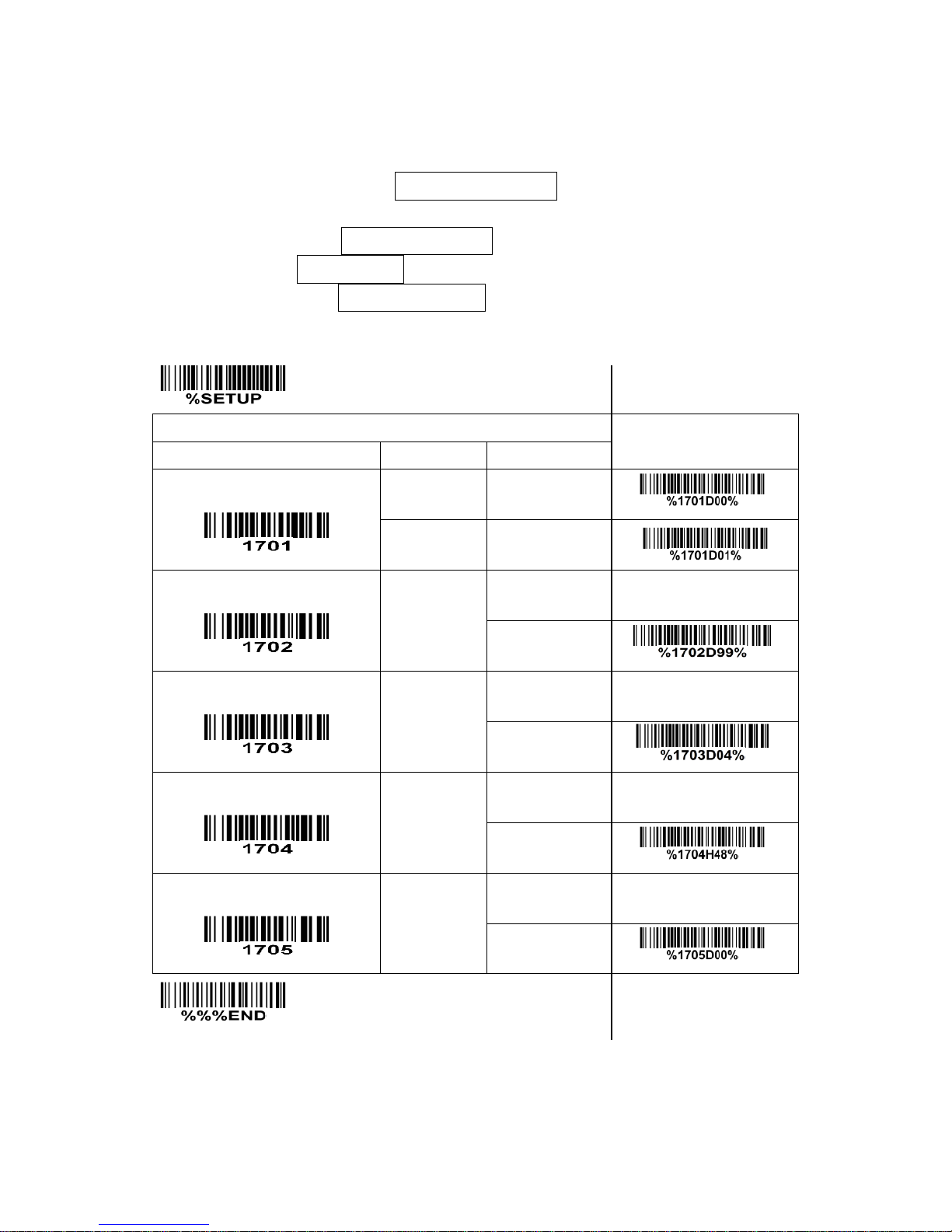

3-14 Industrial 2 of 5
Read:
Format
Data digits (variable)
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
04*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<H>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
END
Page 50
44
3-15 Matrix 2 of 5
Read:
Format
Data digits (variable)
Check digit (optional)
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Page 51
45
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00*
*
Enable
01
Check digit transmission
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
06*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<X>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
END
Page 52
46

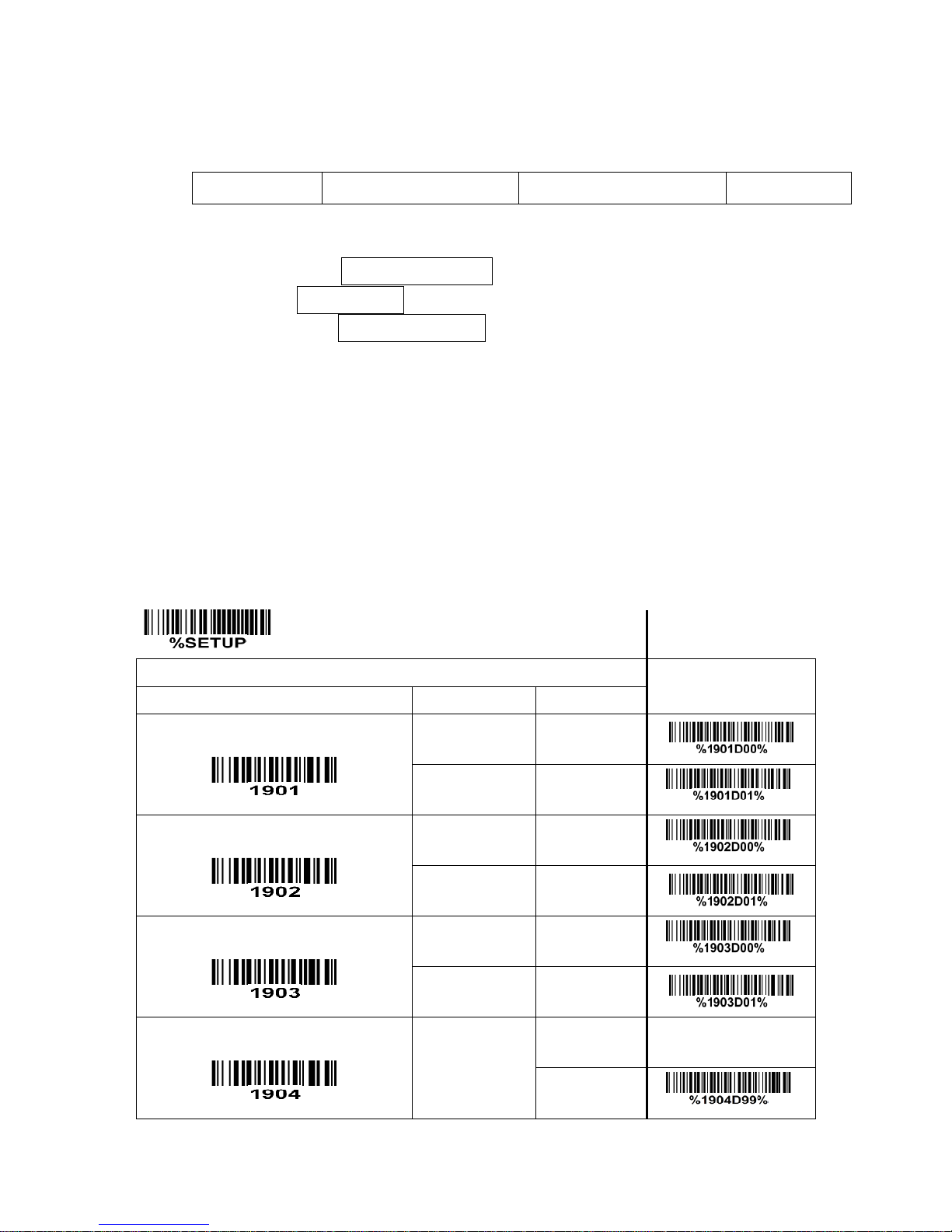

3-16 Codabar
Read:
Format
Start character
Data digits (variable)
Check digit (optional)
End character
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Start/End type: Codabar has four pairs of Start/End pattern; you may select one pair to match your
application.
Start/End transmission: By setting Enable, the start and end character of a Codabar barcode will be
transmitted.
Start/End character equality: By setting Enable, the start and end character of a Codabar barcode must
be the same.
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00*
*
Enable
01
Check digit transmission
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
99*
*
Page 53
47

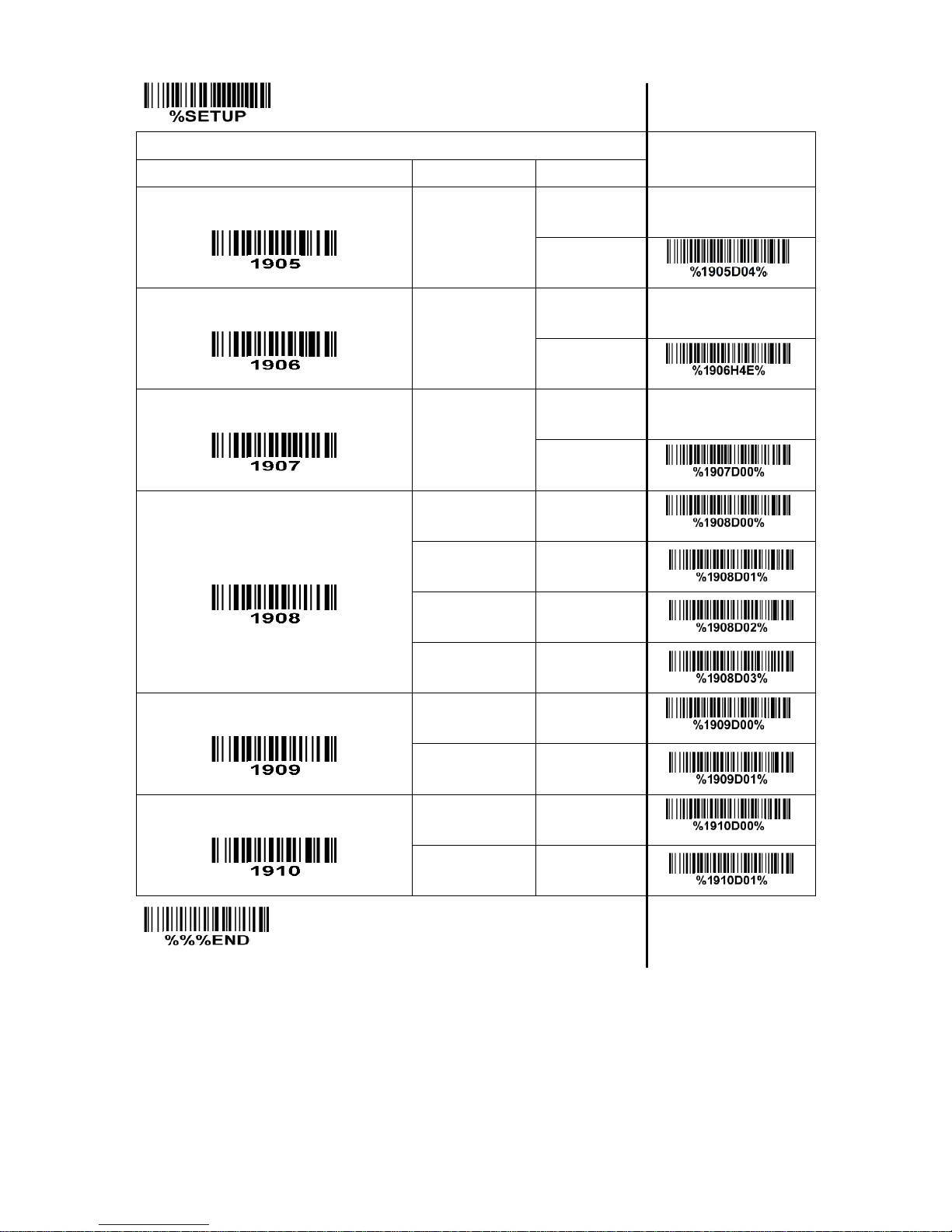

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Min. code length
00-99
00-99
04*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<N>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Start/End type
ABCD/ABCD
00*
*
abcd/abcd
01
ABCD/TN*E
02
abcd/tn*e
03
Start/End transmission
Disable
00*
*
Enable
01
Start/End character equality
Disable
00*
*
Enable
01
END
Page 54
48
3-17 Code 128
Read:
Format
Data digits (variable)
Check digit (optional)
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Truncate leading zeros: The leading “0” digits or all “0” digits of Code 128 barcode characters can be
truncated when the feature is enabled.
Page 55
49

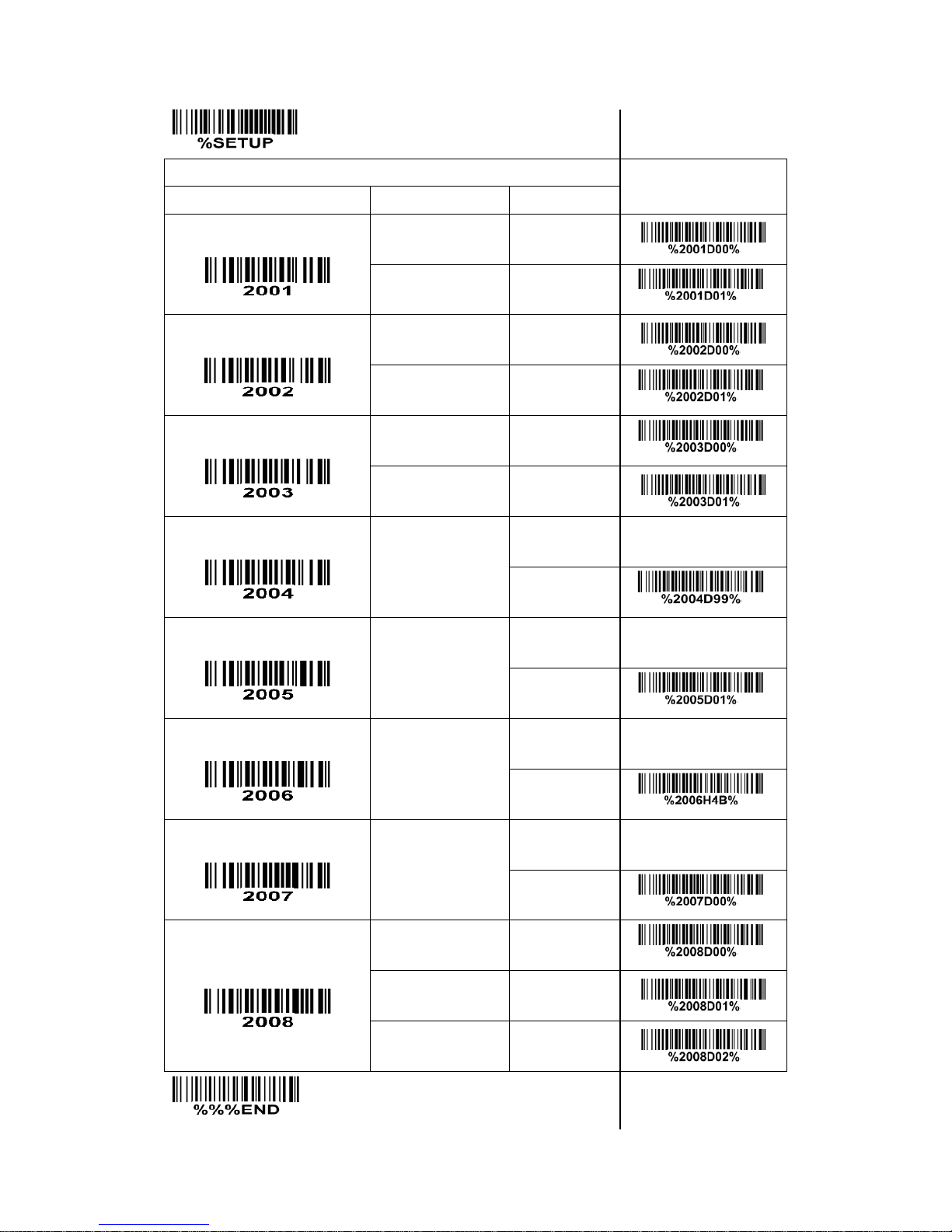

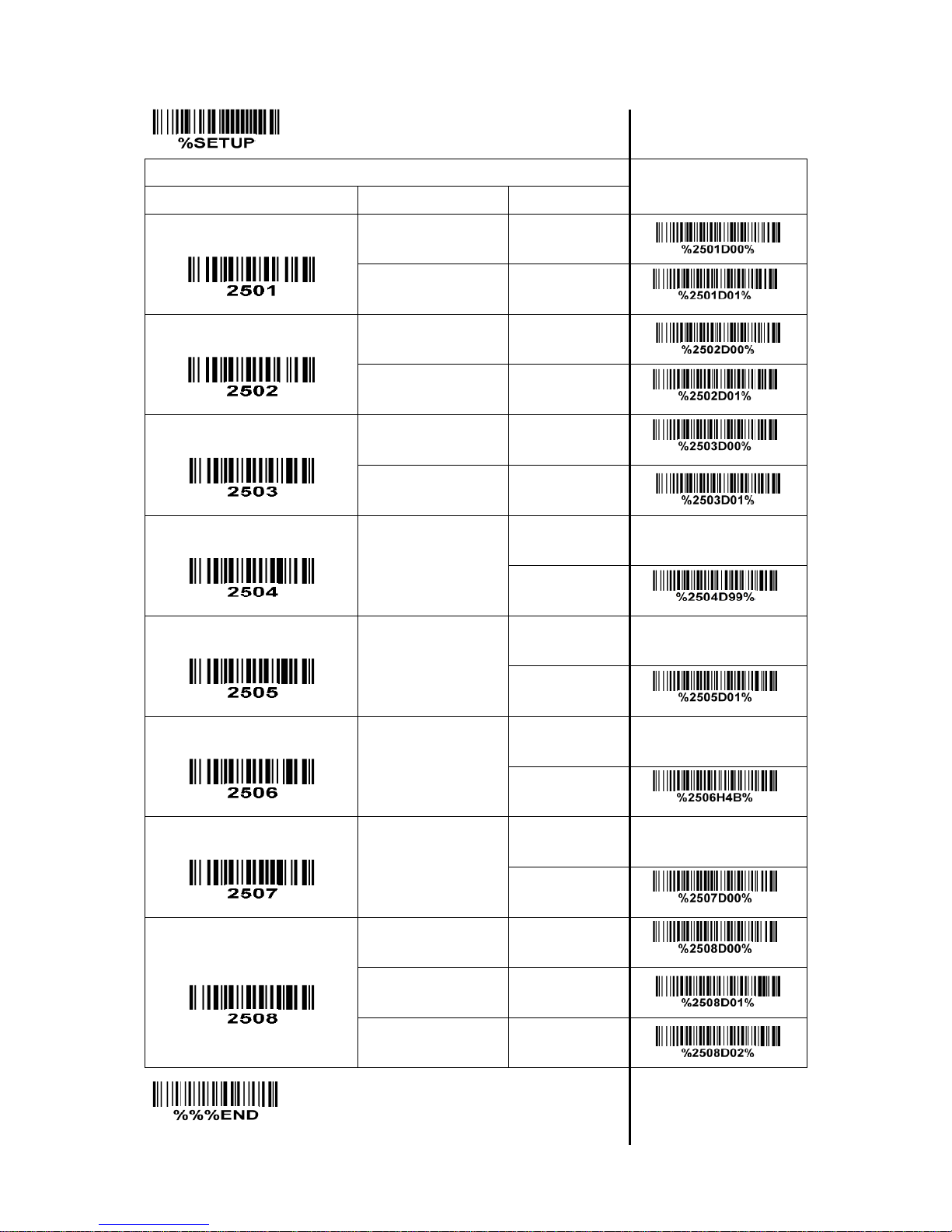

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit transmission
Disable
00*
*
Reserved
01
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<K>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Truncate leading zeros
Disable
00*
*
All leading “0”s
01
Only the first “0”
02
END
Page 56
50

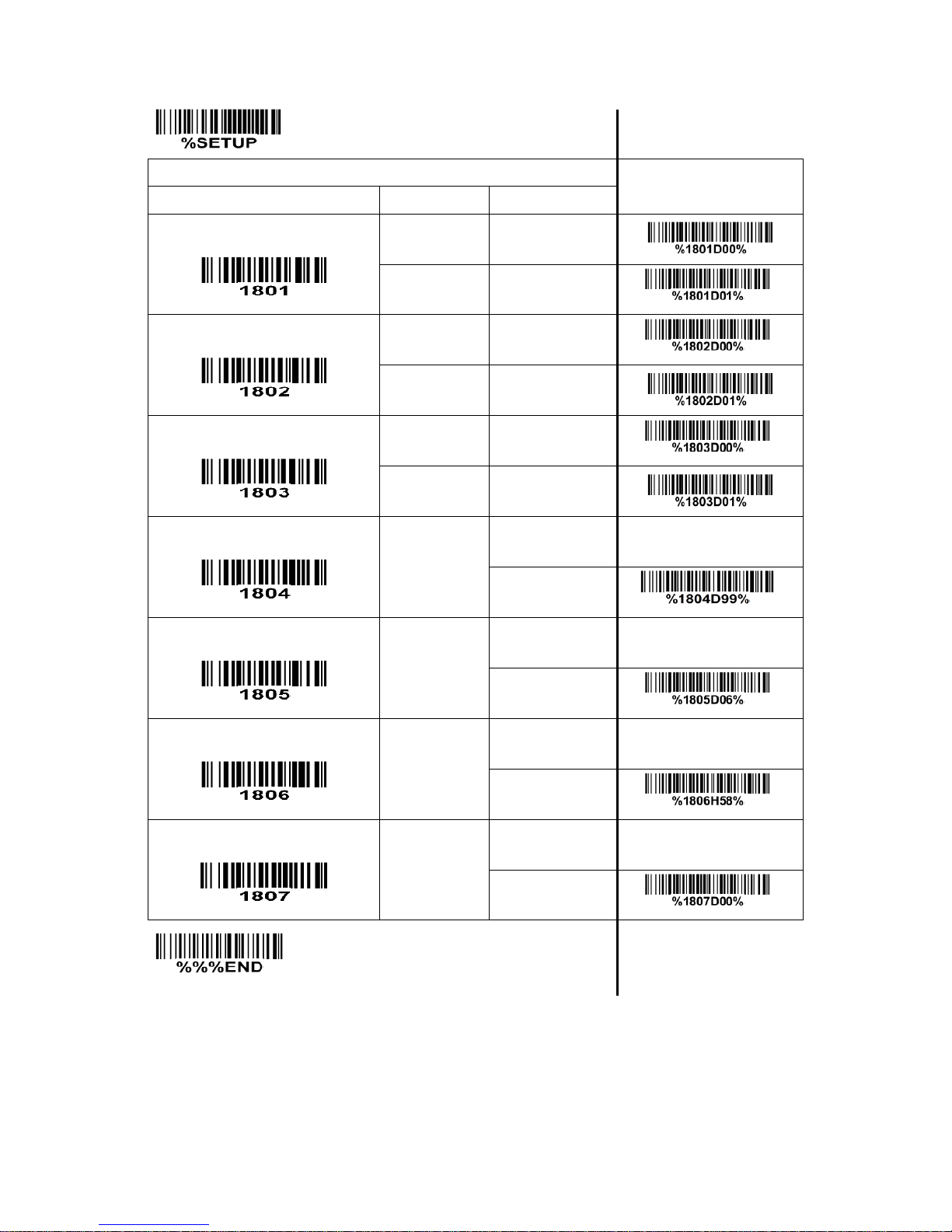

3-18 UCC/EAN 128
Read:
Format
Data digits (variable)
Check digit (optional)
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max. /Min. code length: Refer to Max. /Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Truncate leading zeros: The leading “0” digits or all “0” digits of UCC/EAN 128 barcode characters can
be truncated when the feature is enabled.
Page 57
51
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit transmission
Disable
00*
*
Reserved
01
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<K>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Truncate leading zeros
Disable
00*
*
All leading “0”s
01
Only the first “0”
02
END
Page 58
52
3-19 ISBT 128
Read:
Format
Start character(“=” or “&”)
Data digits (variable)
Check digit (optional)
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Page 59
53
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit transmission
Disable
00*
*
Reserved
01
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<K>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
END
Page 60
54
3-20 Code 93
Read:
Format
Data digits (variable)
2 check digits (optional)
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Page 61
55
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit transmission
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<L>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
END
Page 62
56
3-21 Code 11
Read:
Format
Data digits (variable)
1 or 2 check digits (optional)
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, 1 or 2 check digits will be transmitted upon the selected
check digit verification method.
Max./Min. code length: Refer to Max./Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Page 63
57
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00*
*
Enable
01
Check digit verification
Disable
00
One digit
01*
*
Two digits
02
Check digit transmission
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
04*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<V>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
END
Page 64
58
3-22 MSI/Plessey
Read:
Format
Data digits (variable)
1 or 2 check digits (optional)
Check digit verification: The MSI/Plessey has one or two optional check digits. There are three methods
to verify check digits, i.e. Mod10, Mod10/10 and Mod 11/10. 1 or 2 check digits will be calculated as the
sum module 10 or 11 of the data digits.
Check digit transmission: By setting Enable, 1 or 2 check digits will be transmitted upon the selected
check digit verification method.
Max./Min. code length: Refer to Max./Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Page 65
59
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00*
*
Enable
01
Check digit verification
Disable
00*
*
1 digit
(Mod 10)
01
2 digits
(Mod 10/10)
02
2 digits
(Mod 11/10)
03
Check digit transmission
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
04*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<O>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
END
Page 66
60
3-23 UK/Plessey
Read:
Format
Data digits (variable)
2 check digits (optional)
Check digit verification: The UK/Plessey has two optional check digits. The check digit 1 and check digit
2 will be calculated as the sum module 10 or 11 of the data digits.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Page 67
61

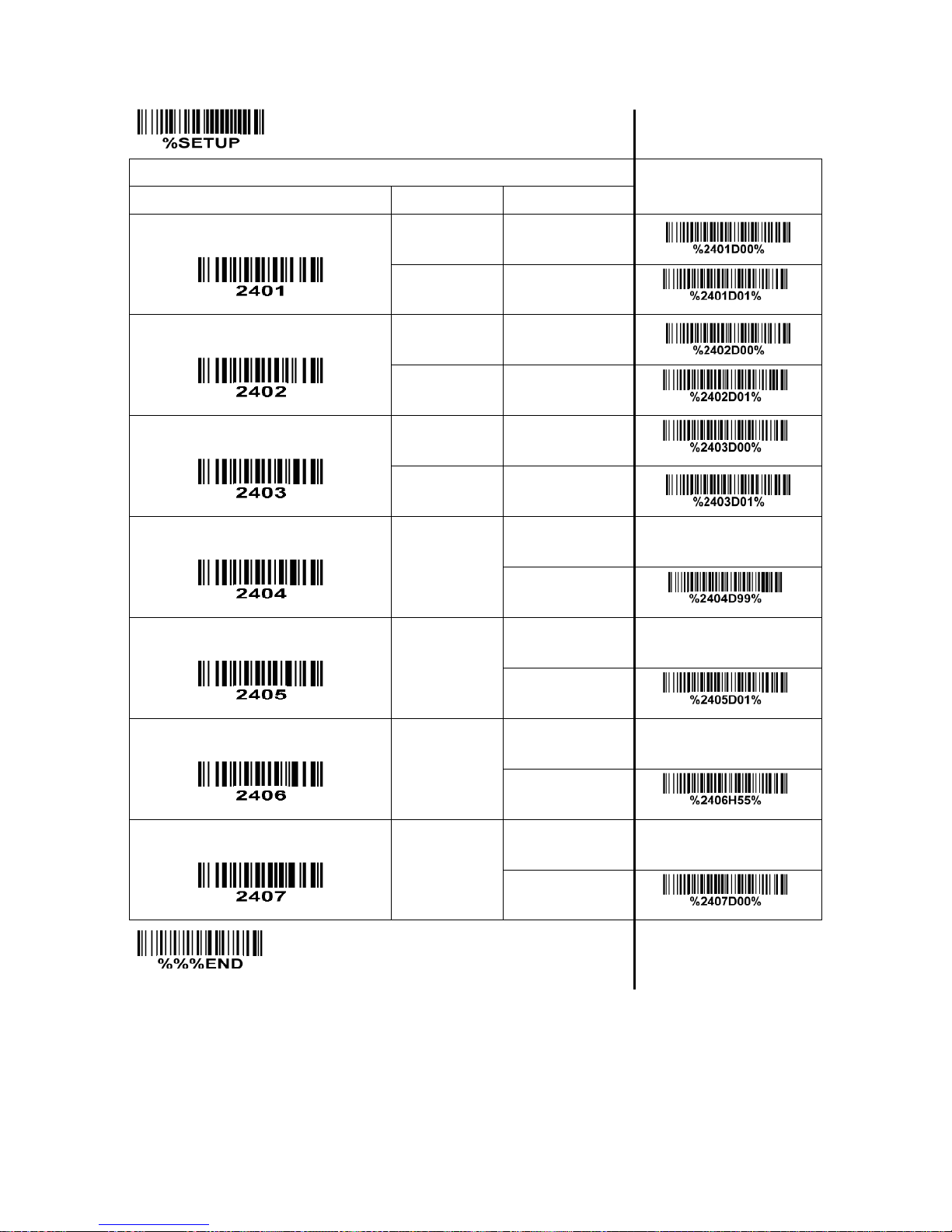

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit transmission
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<U>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
END
Page 68
62

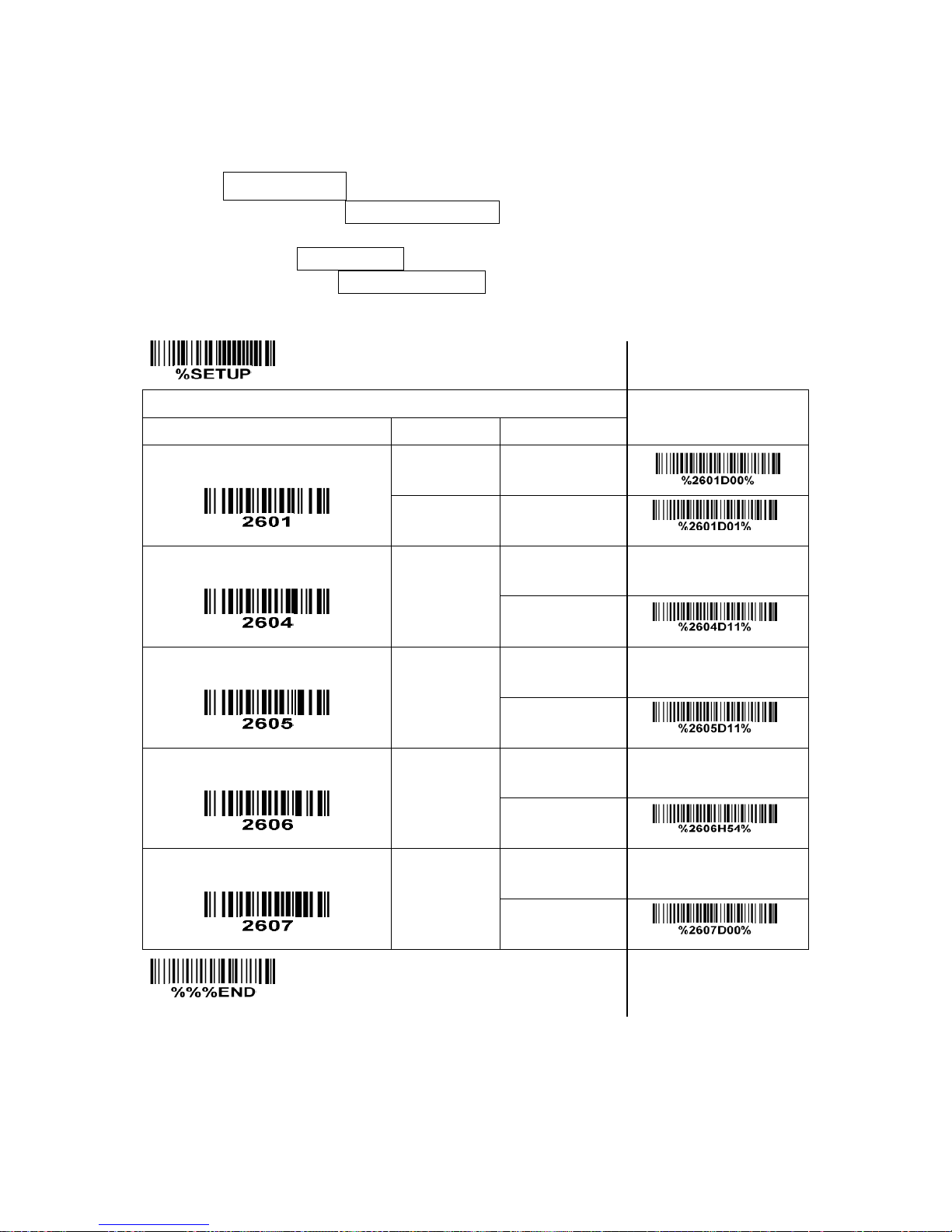

3-24 China Post
Read:
Format
11 Data digits
Max. /Min. code length: Refer to Max. /Min. code length of
3-12 Code 39
. The code length of China Post
is 11.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Max. code length
00-99
00-99
11*
*
Min. code length
00-99
00-99
11*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<T>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
END
Page 69
63
3-25 Telepen
Read:
Format
Start character (_)
Data digits (variable)
Check digit
End character (z)
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of
3-12 Code 39
.
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insertion group selection: Refer to Insertion group selection of
3-7 UPC-A
.
Encode character set type: Two options. Same Telepen symbol, with different option, is associated
with different data output.
Alphanumeric- Supports both letters and numbers within the data source.
Numeric- Supports only numbers within the data source and ignores all letters.
Page 70
64

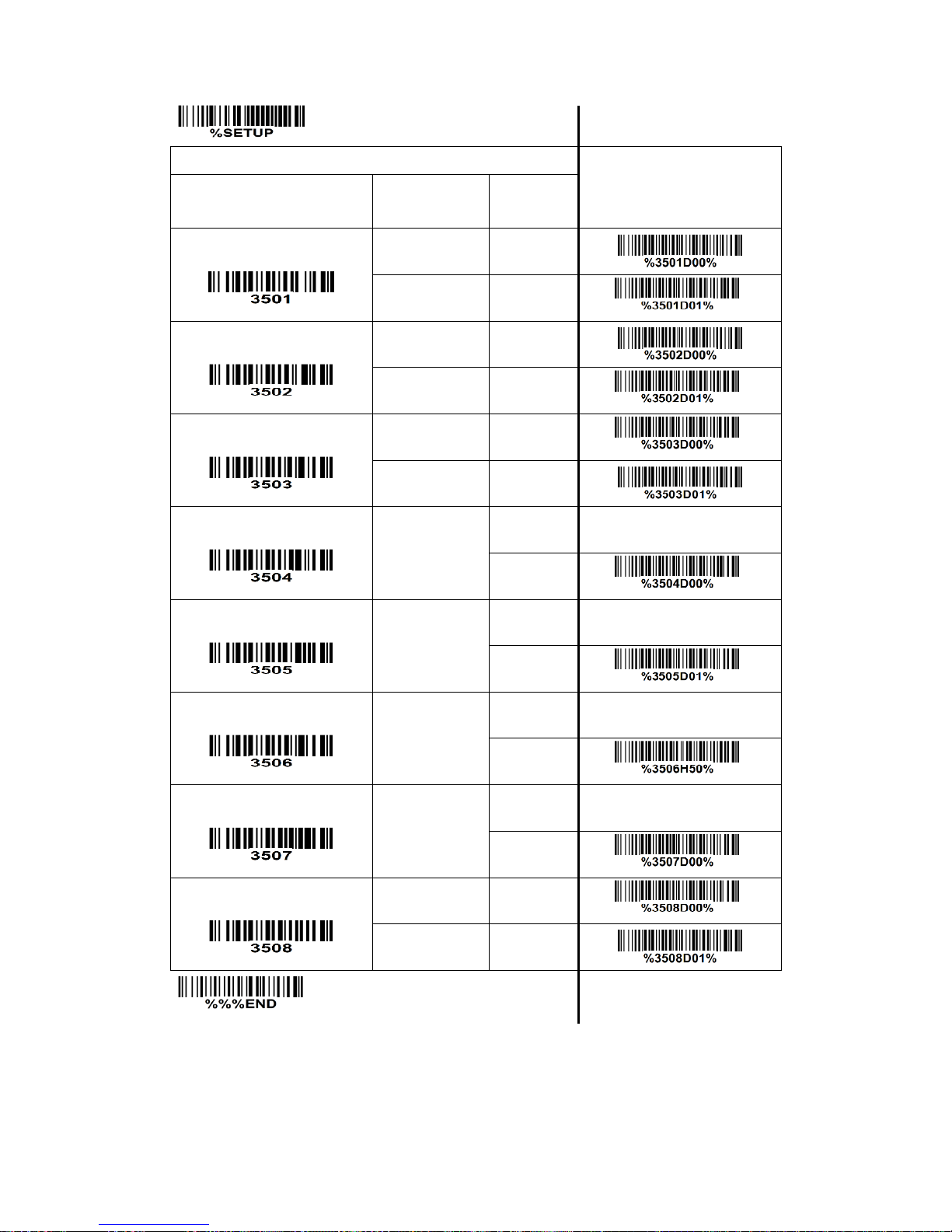

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha.
entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit transmission
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF16
00-FF16
<P>*
*
Insertion group selection
00-66
00-66
00*
*
Encode character set type
Alphanumeric
00*
*
Numeric
01
END
Page 71
65
3-26 GS1 DataBar (GS1 DataBar Truncated)
GS1 DataBar Truncated is structured and encoded as the same as the standard GS1 DataBar format,
except its height is reduced to a 13 modules minimum; while GS1 DataBar should have a height greater
than or equal to 33 modules.
Read:
Format
16 Data digits
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Conversion:
UCC/EAN 128- Refer to Code ID transmission of
3-31 String transmission
, ]Cm will be identified as
AIM ID.
UPC-A or EAN-13- Barcode beginning with a single zero as the first digit has the leading “010”
stripped and the barcode reported as EAN-13. Barcode beginning with two or more zeros but not six
zeros has the leading “0100” stripped and the barcode reported as UPC-A.

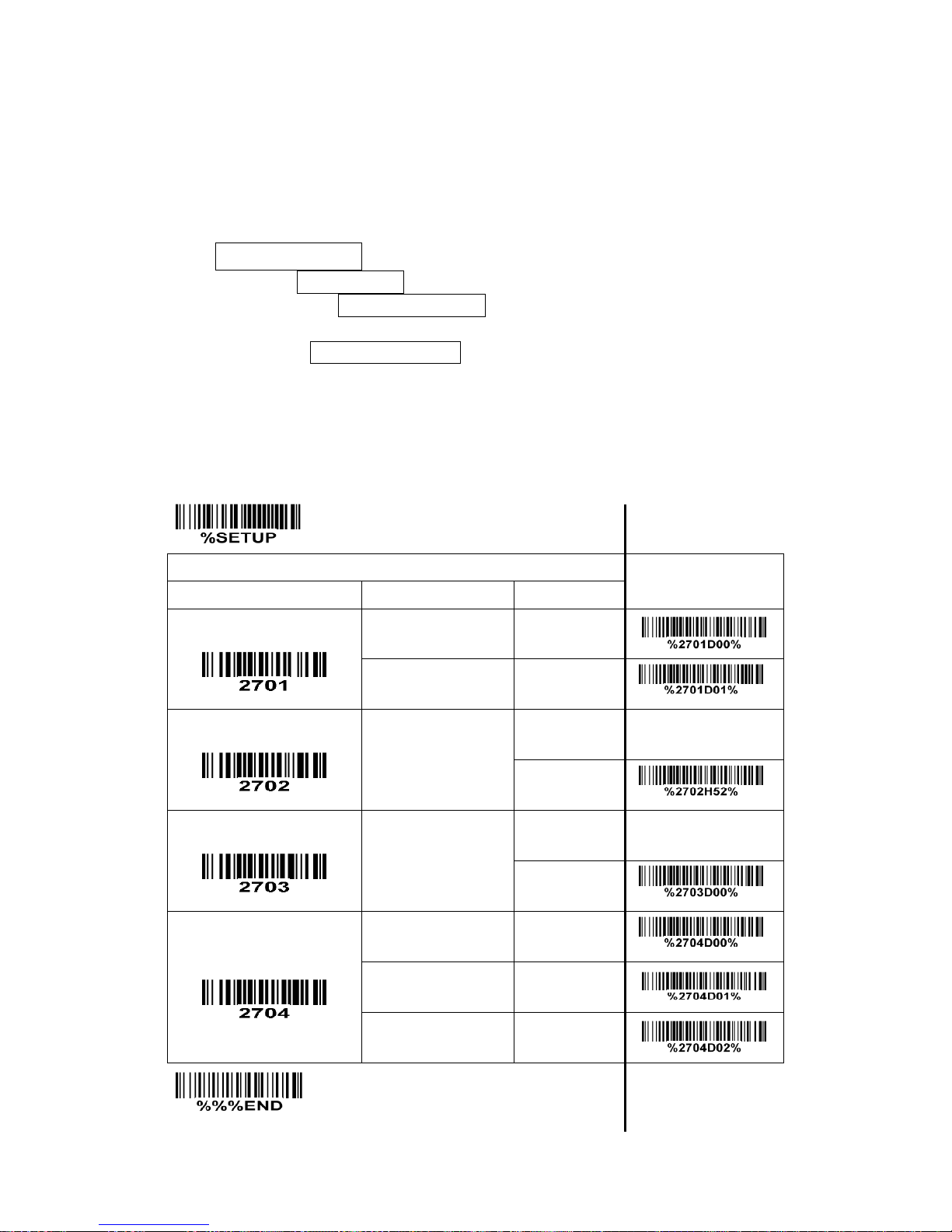

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<R>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Conversion
None
00*
*
UCC/EAN 128
01
UPC-A or EAN-13
02
END
Page 72
66
3-27 GS1 DataBar Limited
Read:
Format
16 Data digits
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Conversion: Refer to Conversion of
3-26 GS1 DataBar (GS1 DataBar Truncated)
.

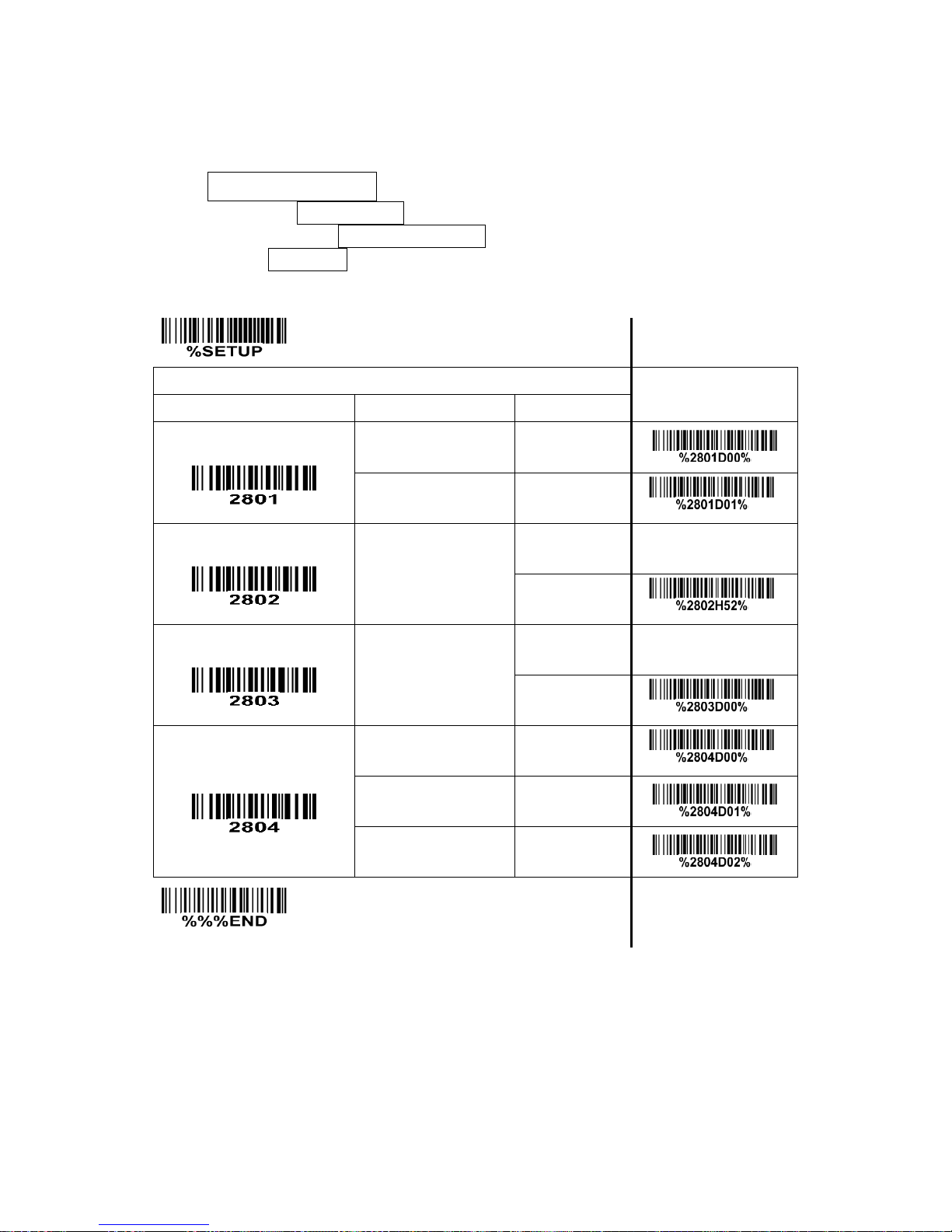

SETUP
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<R>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Conversion
None
00*
*
UCC/EAN 128
01
UPC-A or EAN-13
02
END
Page 73
67
3-28 GS1 DataBar Expanded
Read:
Format
Data characters (variable)
Code ID setting: Refer to Code ID setting of
3-7 UPC-A
.
Insert group selection: Refer to Insert group selection of
3-7 UPC-A
.
Conversion:
UCC/EAN 128- Refer to Code ID transmission of
3-31 String transmission
, ]Cm will be identified as
AIM ID.

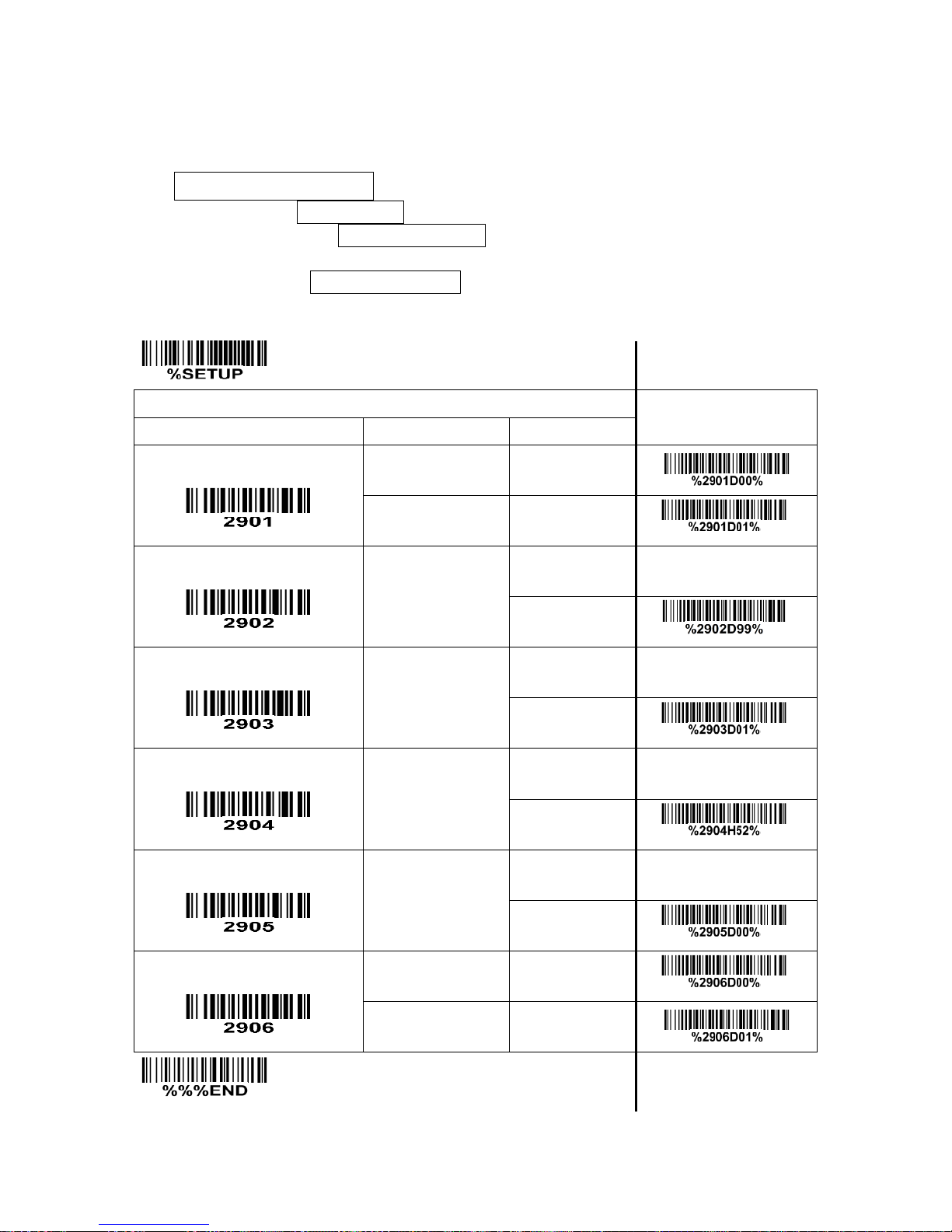

SETUP
Multiple-scan setting
Single-scan setting
Option bar code
Option
Alpha. value
Read
Disable
00
Enable
01*
*
Max. code length
00-99
00-99
99*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF16
(ASCII)
00-FF16
<R>*
*
Insert group selection
00-44
(00: None)
00-44
00*
*
Conversion
None
00*
*
UCC/EAN 128
01
END
Page 74
68

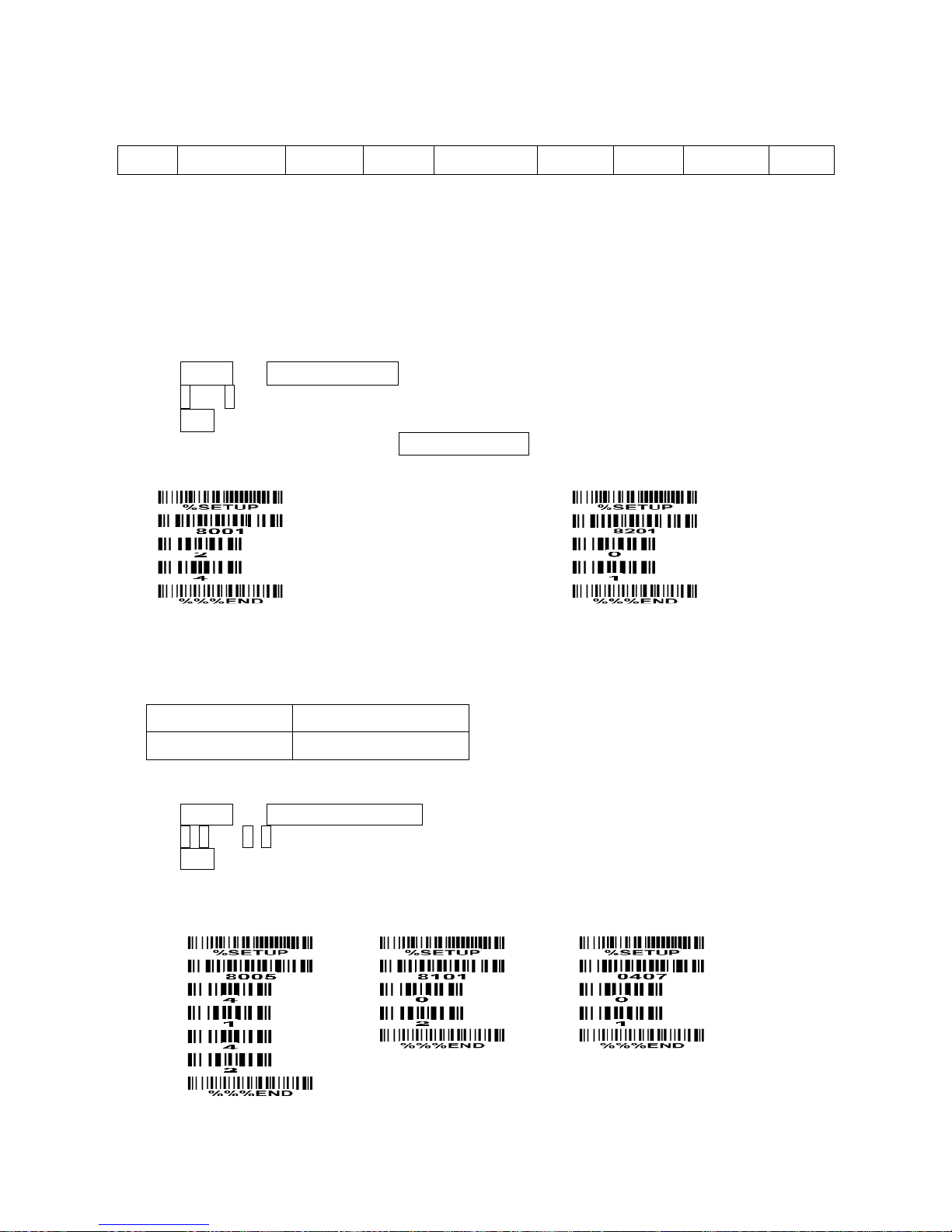

3-29 G1-G4 & FN1 substitution string setting
Format of barcode data transmission:
Prefix
Code name
Preamble
Code ID
Code length
Code data
Code ID
Postamble
Suffix
Suffix string setting: The <enter > key is represented in different ASCII when it is applied by different OS.
For a Windows/DOS OS, <enter> is represented as <CR><LF> (0x0D 0x0A); for an Apple MAC OS,
<enter> is represented as <CR> (0x0D); for a Linux/Unix OS, <enter> is represented as <LF> (0x0A).
Prefix/Suffix/Preamble/Postamble string setting:
They are appended to the data automatically when a barcode is decoded.
Example: Add a symbol of “$” as a prefix for all type of barcode.
Steps:
1) Look up in the ASCII table to find the value of $→24.
2) Scan SETUP and Prefix string setting barcode.
3) Scan 2 and 4 barcode.
4) Scan END barcode.
5) Refer to
3-31 String transmission
, set Prefix transmission to be Enable.
Scanning steps: Scan the following barcodes in order.
Insert G1/G2/G3/G4 string setting: The scanner offers 4 positions and 4 character strings to insert
among the barcode data string.
Example: Set G1 string to be “AB”.
Original code data
“1 2 3 4 5 6”
Output code data
“1 2 A B 3 4 5 6”
Steps:
1) Look up in the ASCII table to find the value of A→41, B→42.
2) Scan SETUP and Insert G1 string setting barcode “8005”.
3) Scan 4, 1 and 4, 2 barcode.
4) Scan END barcode.
5) Refer to
3-30 G1-G4 string position & Code ID position
.
6) Refer to
3-5 Scan trigger & some global settings
.
Page 75
69
Testing barcode:
FN1 substitution string setting: The FN1 character (0x1D) in an UCC/EAN128 barcode, or a Code 128
barcode, or a GS1 DataBar barcode can be substituted with a defined string.
Example: Set FN1 substitution string to be “ABCD”.
Original code data (hexadecimal)
“31 1D 32 1D 33 1D 34 1D 35”
Output code data (hexadecimal)
“31 41 32 42 33 43 34 44 35”
Steps:
1) Set FN1 substitution string to be ABCD.
2) Refer to
3-31 String transmission
, enable FN1 substitution transmission.
In this example, because the interface of the scanner is RS232, so set “8209” to 02.
Scanning steps: Scan the following barcodes in order.
Testing barcode:
Page 76
70

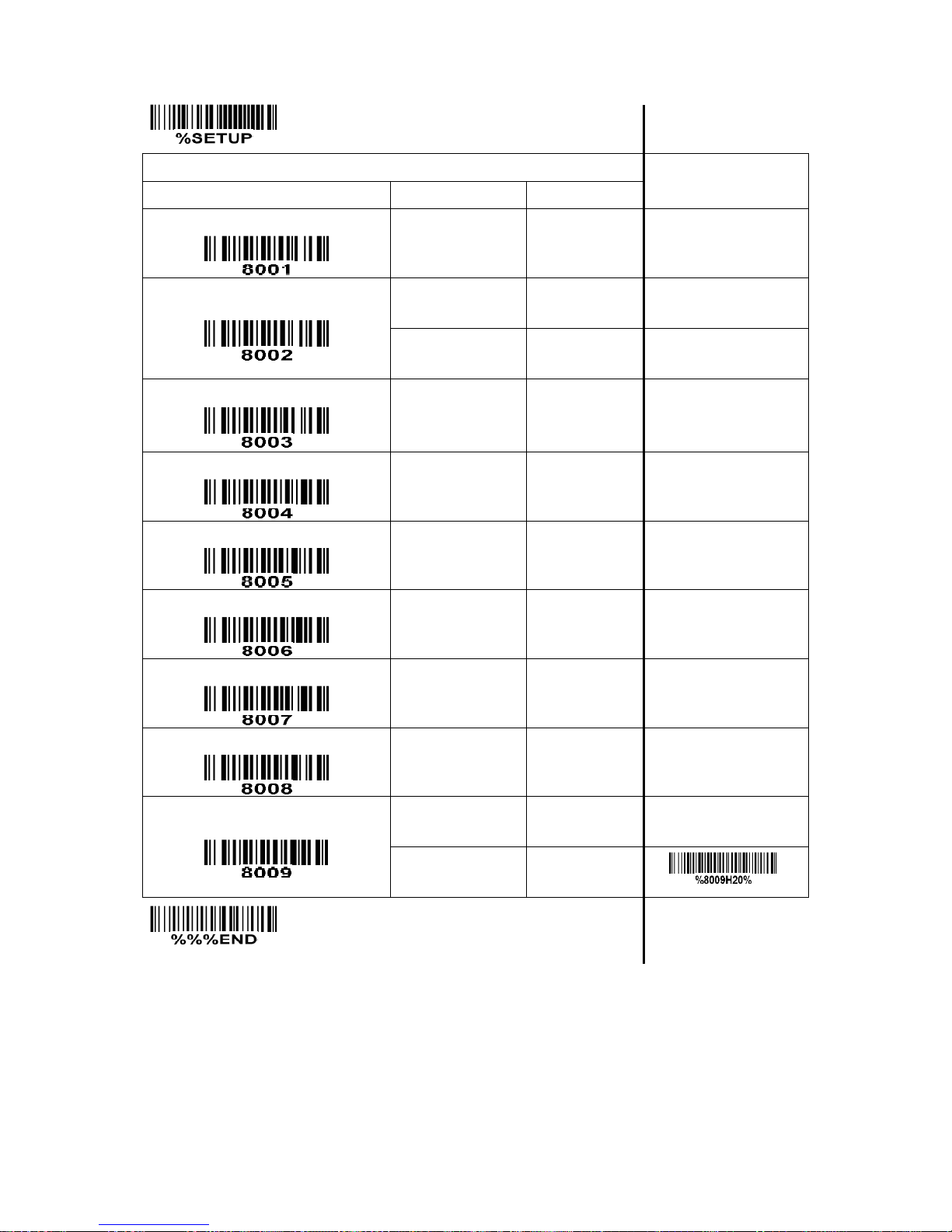

SETUP Multiple-scan setting
Single-scan setting
Option bar code
Option
Alpha. value
Prefix string setting
0-22 characters
(Default: None)
00-FF16
Suffix string setting
0-22 characters
00-FF16
<ENTER>
0D0A*
Preamble string setting
0-22 characters
(Default: None)
00-FF16
Postamble string setting
0-22 characters
(Default: None)
00-FF16
Insert G1 string setting
0-22 characters
(Default: None)
00-FF16
Insert G2 string setting
0-22 characters
(Default: None)
00-FF16
Insert G3 string setting
0-22 characters
(Default: None)
00-FF16
Insert G4 string setting
0-22 characters
(Default: None)
00-FF16
FN1 substitution string setting
0-4 characters
00-FF16
<SP>
20*
*
END
Page 77
71

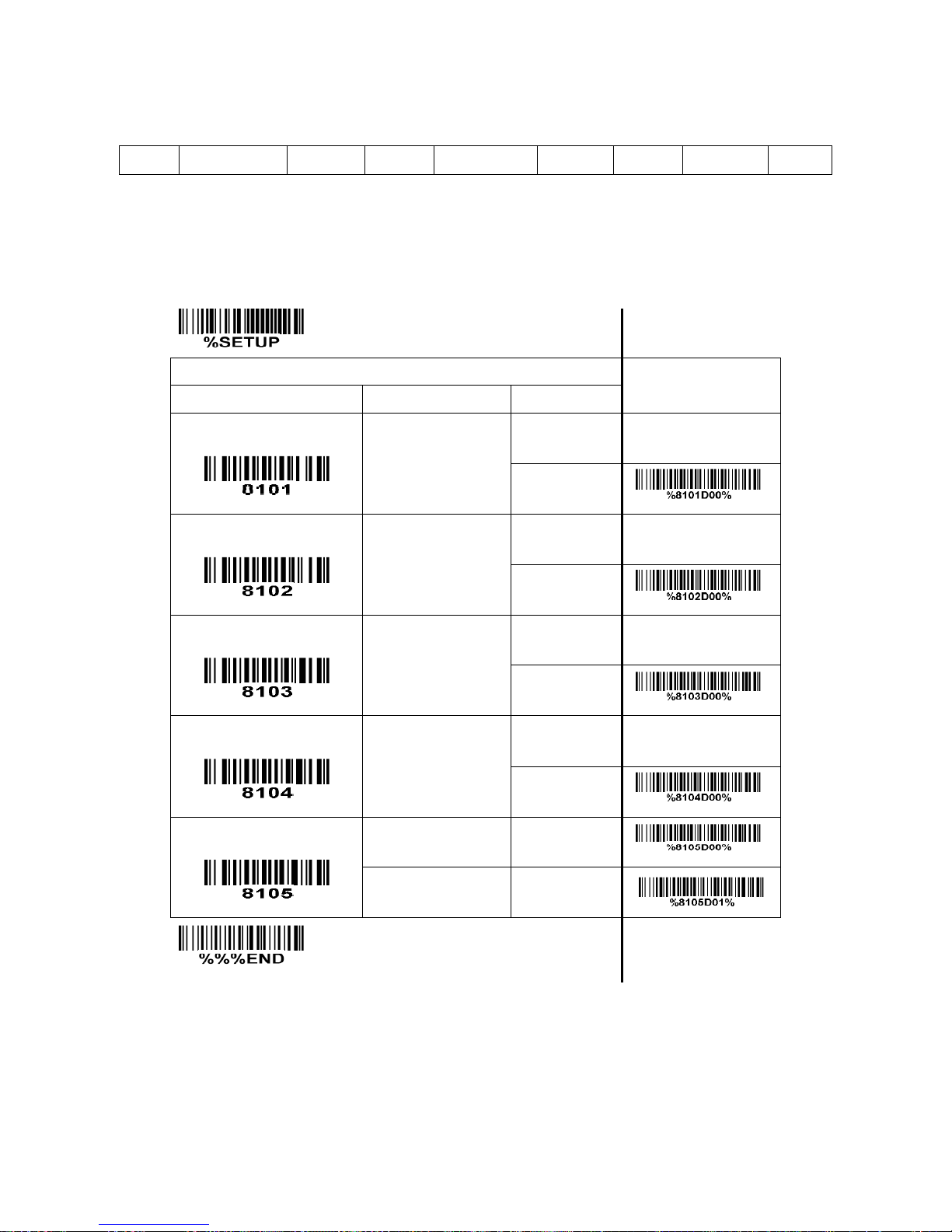

3-30 G1-G4 string position & Code ID position
Format of barcode data transmission:
Prefix
Code name
Preamble
Code ID
Code length
Code data
Code ID
Postamble
Suffix
Insert G1/G2/G3/G4 string position: The scanner offers 4 positions to insert strings among the symbol.
In case of the insertion position is greater than the length of the symbol, the insertion of string is not
effective.
Code ID position: It is allowed to select different positions of code ID placement.
SETUP
Multiple-scan setting
Single-scan setting
Option bar code
Option
Alpha. value
Insert G1 string position
00-99
00-99
00*
*
Insert G2 string position
00-99
00-99
00*
*
Insert G3 string position
00-99
00-99
00*
*
Insert G4 string position
00-99
00-99
00*
*
Code ID position
Before code data
00*
*
After code data
01
END
Page 78
72

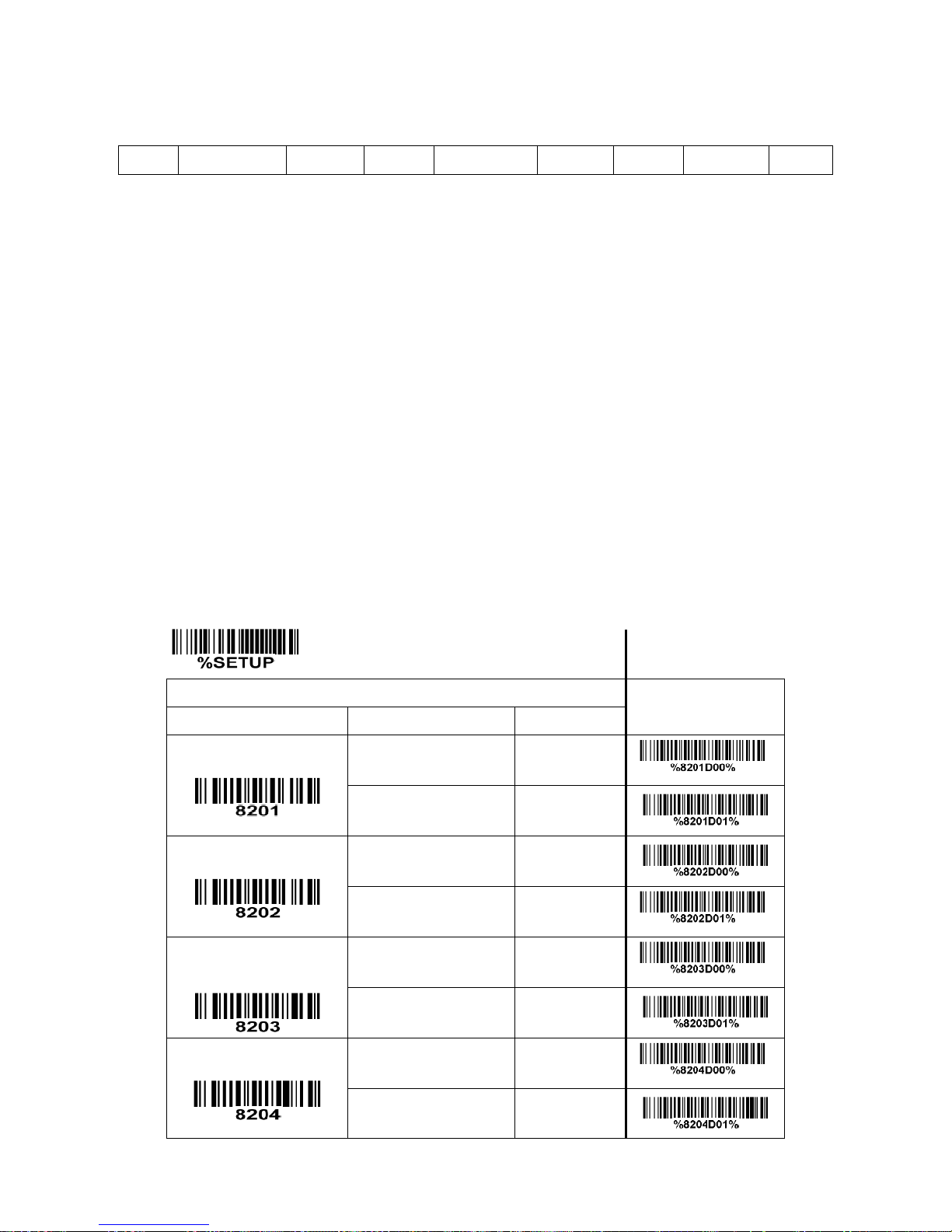

3-31 String transmission
Format of barcode data transmission:
Prefix
Code name
Preamble
Code ID
Code length
Code data
Code ID
Postamble
Suffix
Prefix transmission: By setting Enable, prefix will be appended before the data transmitted.
Suffix transmission: By setting Enable, suffix will be appended after the data is transmitted.
Code name transmission: By setting Enable, code name will be transmitted before code data.
Preamble transmission: By setting Enable, preamble will be appended before the data transmitted.
Postamble transmission: By setting Enable, postamble will be appended after the data is transmitted.
Code ID transmission: Code ID can be transmitted in the format of either Proprietary ID or AIM ID.
Refer to
1-2 Default settings for various types of barcode
.
Code length transmission: The length of code data string can be transmitted before the code data when
Enable is selected. The length is represented by a number with two digits.
Case conversion: The characters within code data or the whole output string can be set in either upper
case or lower case.
FN1 substitution transmission: The scanner supports a FN1 substitution feature for keyboard wedge,
USB and RS-232 interface. The replacement string of FN1 can be chosen by user (see
3-29 G1-G4 &
FN1 substitution string setting
).
SETUP
Multiple-scan setting
Single-scan setting
Option bar code
Option
Alpha. value
Prefix transmission
Disable
00*
*
Enable
01
Suffix transmission
Disable
00
Enable
01*
*
Code name
transmission
Disable
00*
*
Enable
01
Preamble transmission
Disable
00*
*
Enable
01
Page 79
73

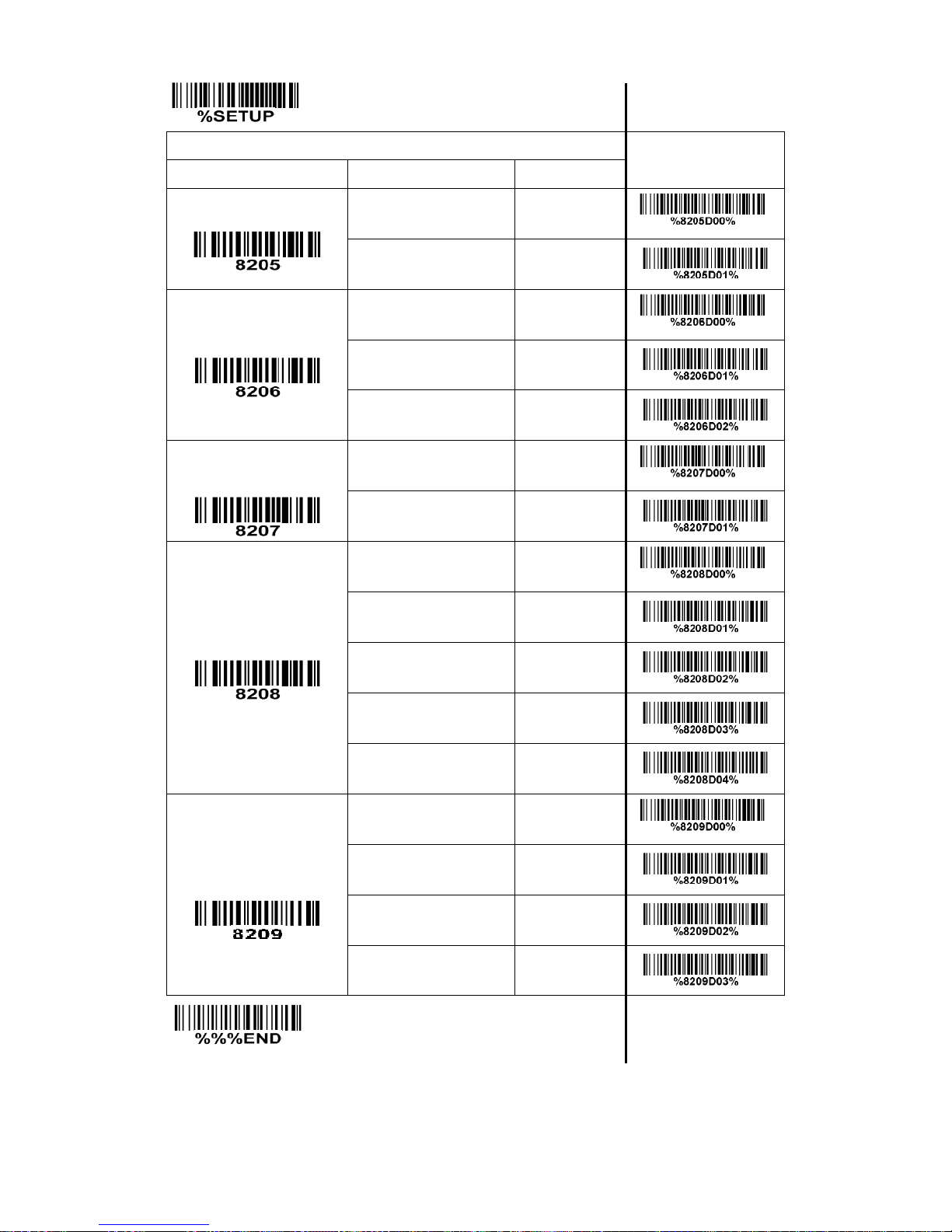

SETUP
Multiple-scan setting
Single-scan setting
Option bar code
Option
Alpha. value
Postamble transmission
Disable
00*
*
Enable
01
Code ID transmission
Disable
00*
*
Proprietary ID
01
AIM ID
02
Code length
transmission
Disable
00*
*
Enable
01
Case conversion
Disable
00*
*
Upper (data only)
01
Lower (data only)
02
Upper (whole string)
03
Lower (whole string)
04
FN1 substitution
transmission
Disable
00*
*
USB
01
RS232
02
USB/RS232
03
END
Page 80
74

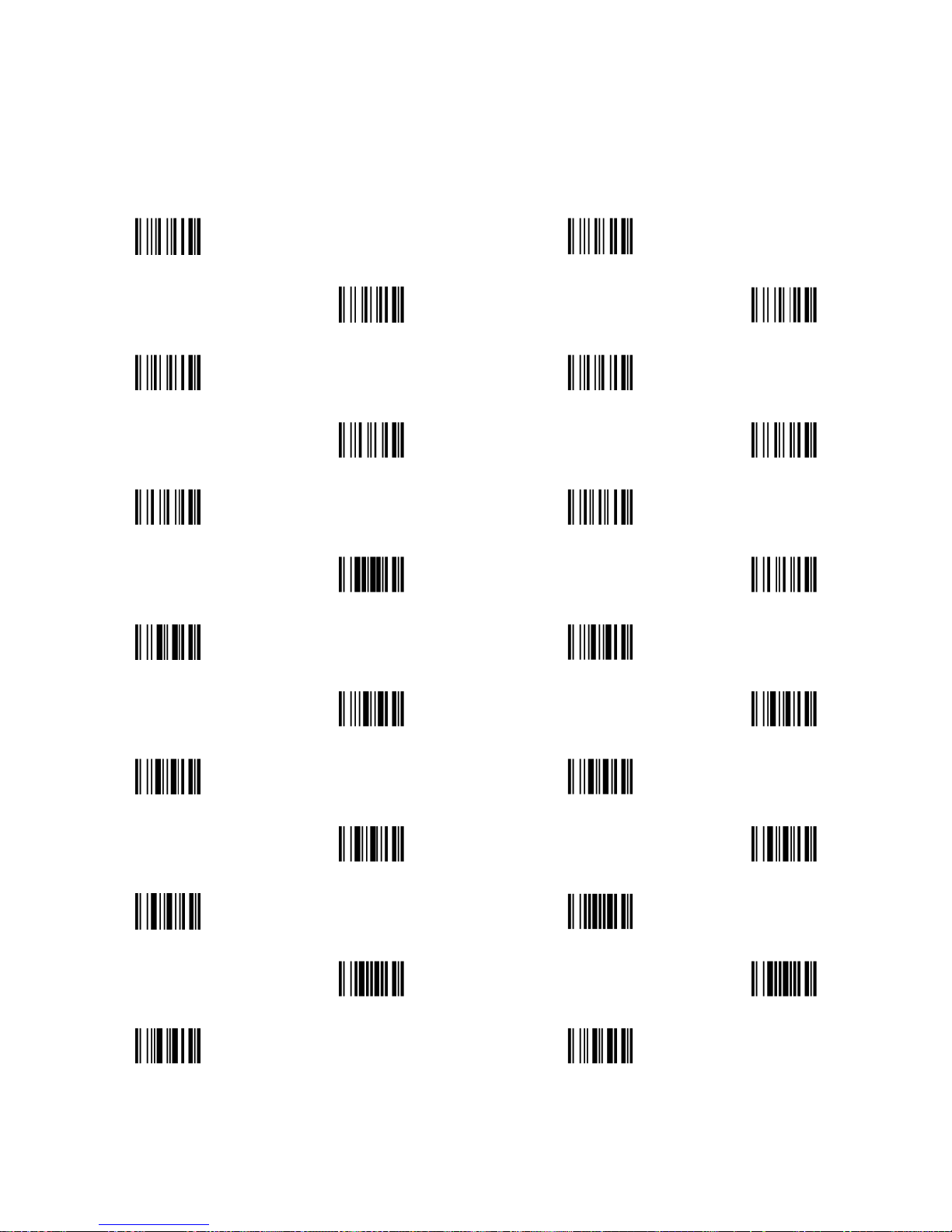

4 Barcode representing non-printable character
Notes to make the following barcode:
1. According to different barcode printing software, the method of printing following barcode is different.
2. If using CODESOFT software, firstly read the information through “Help→Index→Code128→Special input
syntax”. For example, if we wish to make “F1” barcode, select “code128”, then select “CODE A” type, and
input “{DOC1}” as data.
Up ↑
Down ↓
Left ←
Right →
Page Up
Page Down
Backspace
Tab
Home
End
Enter
Insert
Delete
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
Esc
F11
F12
Page 81
75
5 ASCII table
for keyboard wedge
for RS-232
H
L
0 1 0
1
0
Null
NUL
DLE 1 Up
F1
SOH
DC1
2
Down
F2
STX
DC2
3
Left
F3
ETX
DC3
4
Right
F4
EOT
DC4
5
PgUp
F5
ENQ
NAK
6
PgDn
F6
ACK
SYN 7
F7
BEL
ETB
8
Bs
F8
BS
CAN 9 Tab
F9
HT
EM A
F10
LF
SUB
B
Home
Esc
VT
ESC C End
F11
FF
FS D Enter
F12
CR
GS E Insert
Ctrl+
SO
RS
F
Delete
Alt+
SI
US
Notes: The 2nd and the 3rd columns above are used for keyboard wedge only.
H
L
2 3 4 5 6
7
0
SP 0 @ P `
p
1 ! 1 A Q a q 2 “ 2 B R b r 3 # 3 C S c s 4 $ 4 D T d t 5 % 5 E U e u 6 & 6 F V f
v
7 ‘ 7 G W g w 8 ( 8 H X h x 9 ) 9 I Y i y A * : J Z j
z
B + ; K [ k {
C , < L \ l | D - = M ] m } E . > N ^ n ~ F / ? O _ o
DEL
Example: ASCII “A” = “41”.
Page 82
76

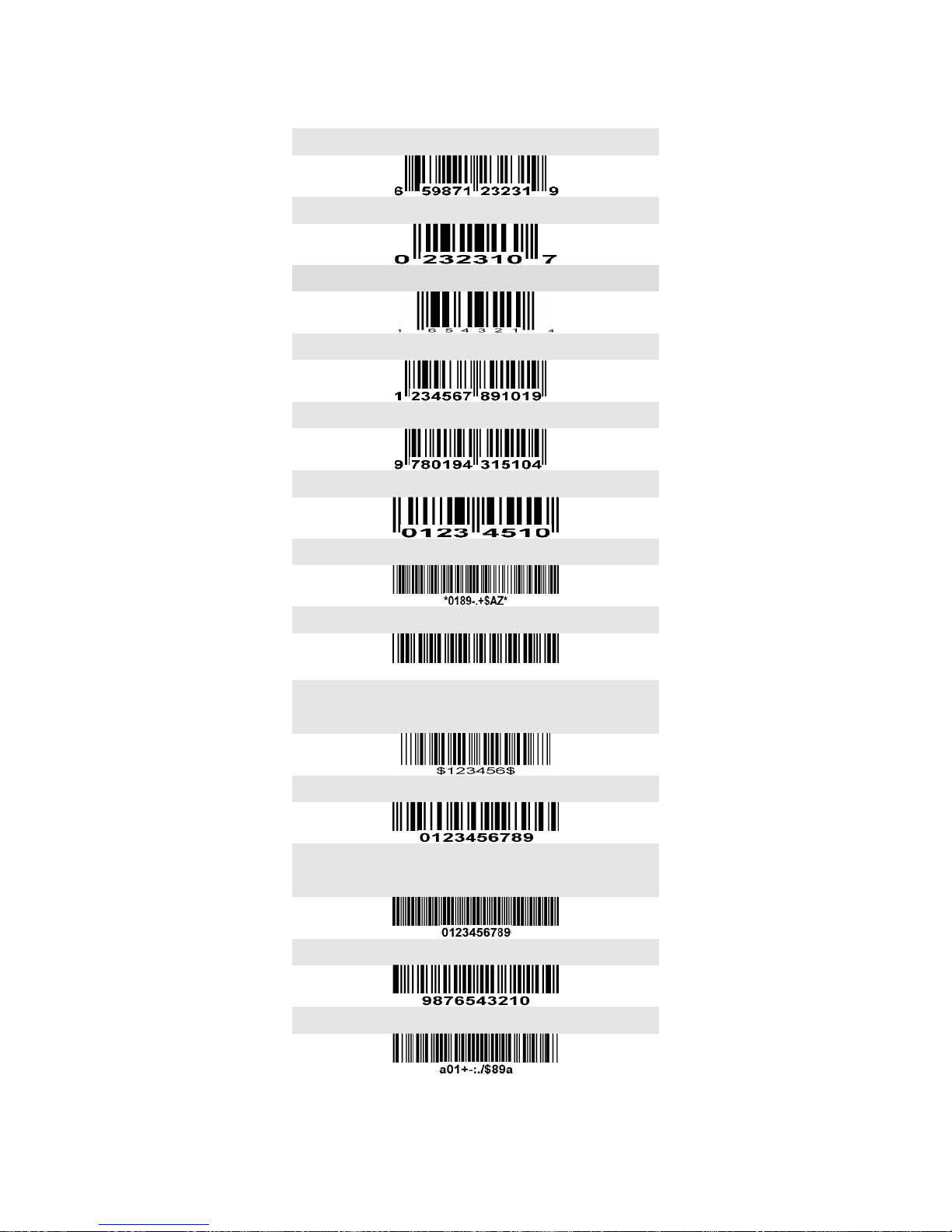

6 Test chart
UPC-A
UPC-E
UPC-E1
EAN-13
ISBN/ISSN
EAN-8
Code 39
Code 32
A908765439
Trioptic Code 39
(Default setting: Disable)
Interleaved 2 of 5
Industrial 2 of 5
(Default setting: Disable)
Matrix 2 of 5
Codabar
Page 83
77

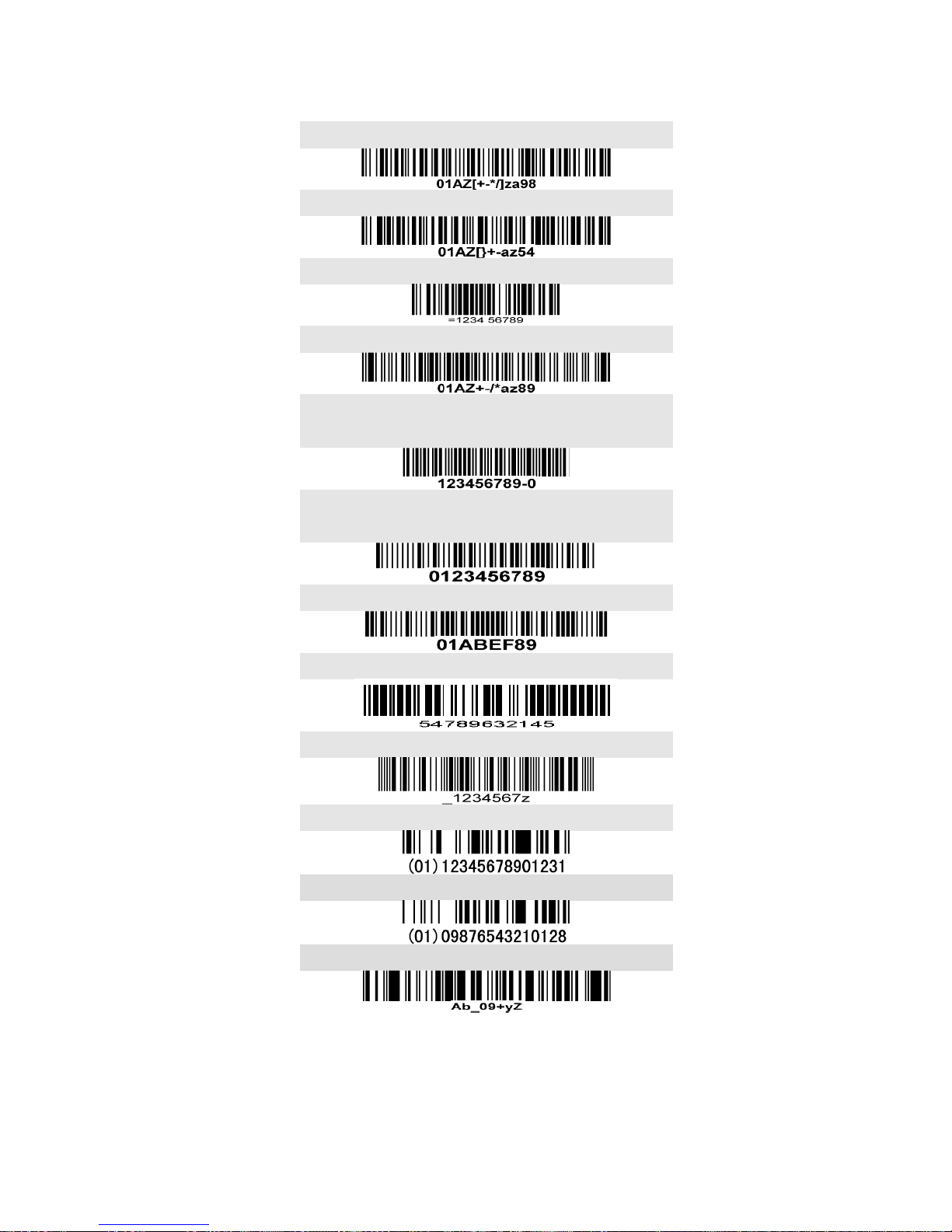

Test chart (continue)
Code 128
UCC/EAN 128
ISBT 128
Code 93
Code 11
(Default setting: Disable)
MSI/Plessey
(Default setting: Disable)
UK/Plessey
China Post
Telepen
GS1 DataBar (GS1 DataBar Truncated)
GS1 DataBar Limited
GS1 DataBar Expanded
Page 84
78
7 Return default parameters & firmware version
WARNING: Restore factory defaults
If you wish to return the scanner to all the factory default settings, scan the barcode above. But
Scanning mode remains unchanged.
Write to customer defaults
Write current parameter settings to the customer default settings. But Scanning mode remains
unchanged.
Restore customer defaults
Restore the customer default settings to current settings. If failed, restore the factory default
settings. But Scanning mode remains unchanged.
Firmware version list
If you wish to display the firmware version, scan the barcode above. If the interface is RS232 or USB
virtual COM, and Decode data format is set to packet, the firmware version will be packet and
transmitted.
Page 85
79
8 Quick setting to enable/ disable Auto-detection
Note: Auto-detection is an optional accessory.
Enable Auto-detection
If you wish to enable Auto-detection, scan the barcode above.
Disable Auto-detection
If you wish to disable Auto-detection, scan the barcode above. Note: The Scanning mode will switch to
momentary.
Page 86
80

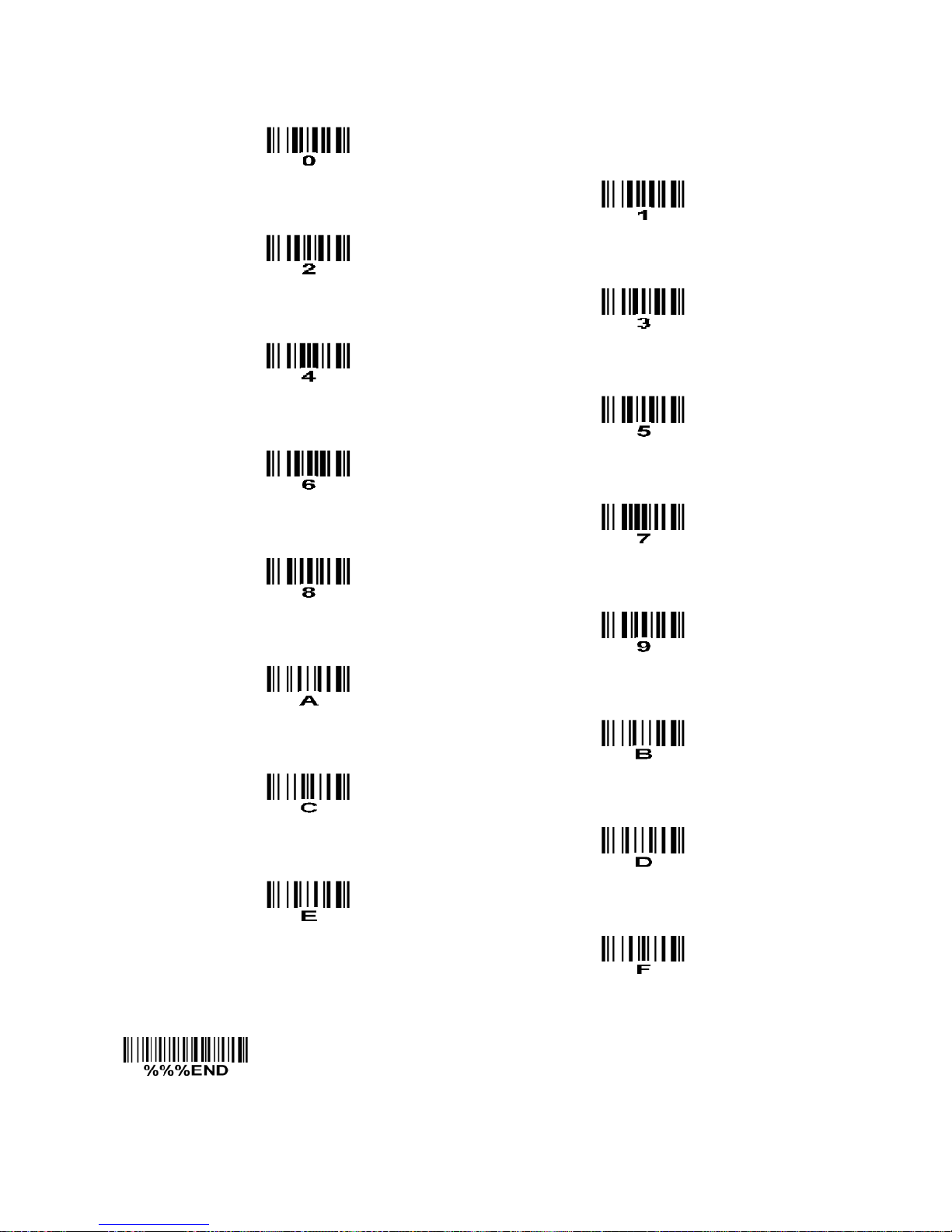

9 Configuration alphanumeric value barcode (as Para. value)
To finish parameter setting, please scan the bar code below.
Loading...
