ES4650 Embedded Image Scanner
User Manual
Version: ES4650_UM_EN_V1.1.1
Page 2
Page 3
i
Contents
1 Specifications ..................................................................................................................................... 1
1-1 Technical specifications ................................................................................................................ 1
1-2 Default setting for each barcode ................................................................................................... 3
2 Getting started .................................................................................................................................... 5
2-1 Parts of scanner ............................................................................................................................ 5
2-2 Electrical interface/Pin assignment of cable connector ................................................................. 6

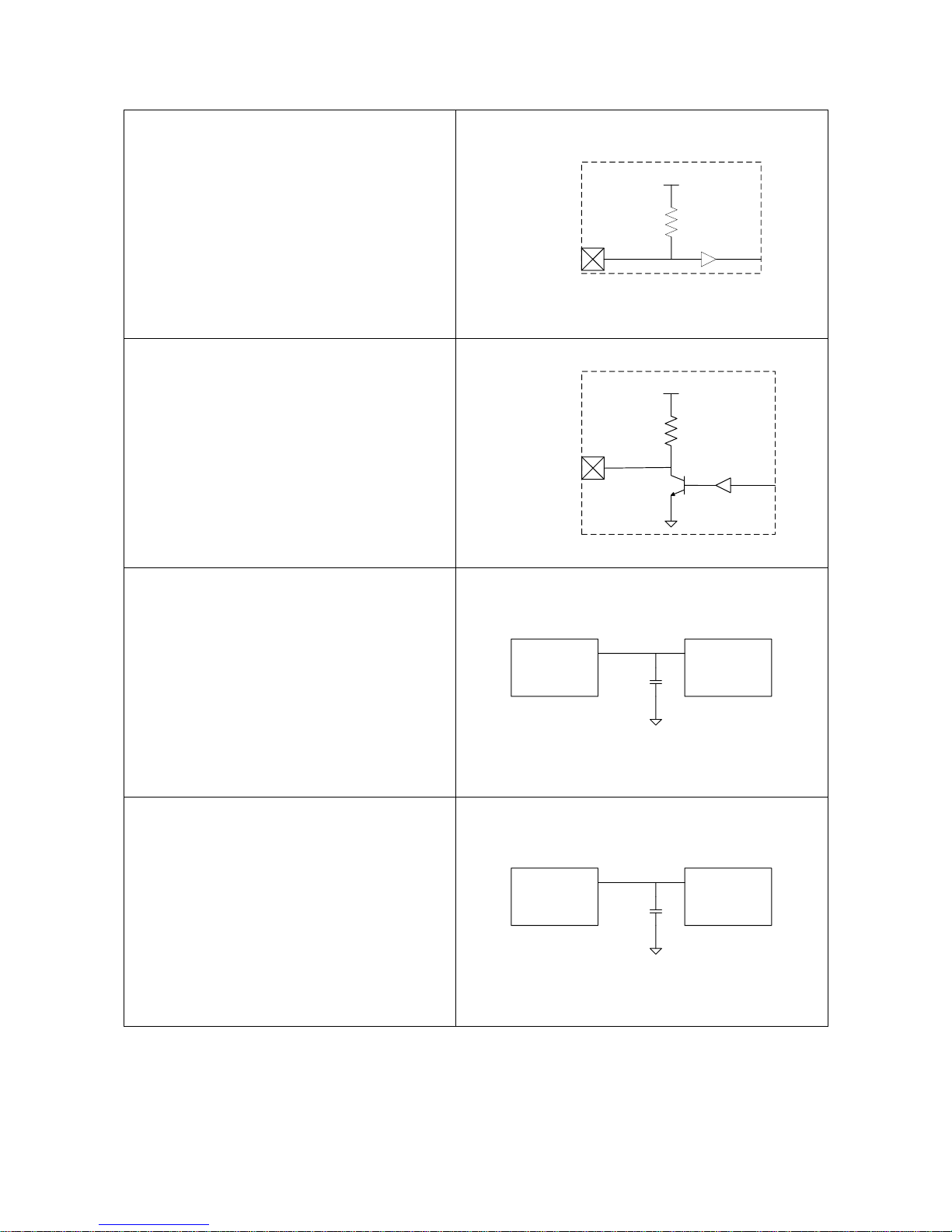

2-3 Typical input/output, LDO external, and DC/DC circuitries ........................................................... 8
2-4 Installation guide ........................................................................................................................... 9
2-4-1 Mounting .............................................................................................................................. 9

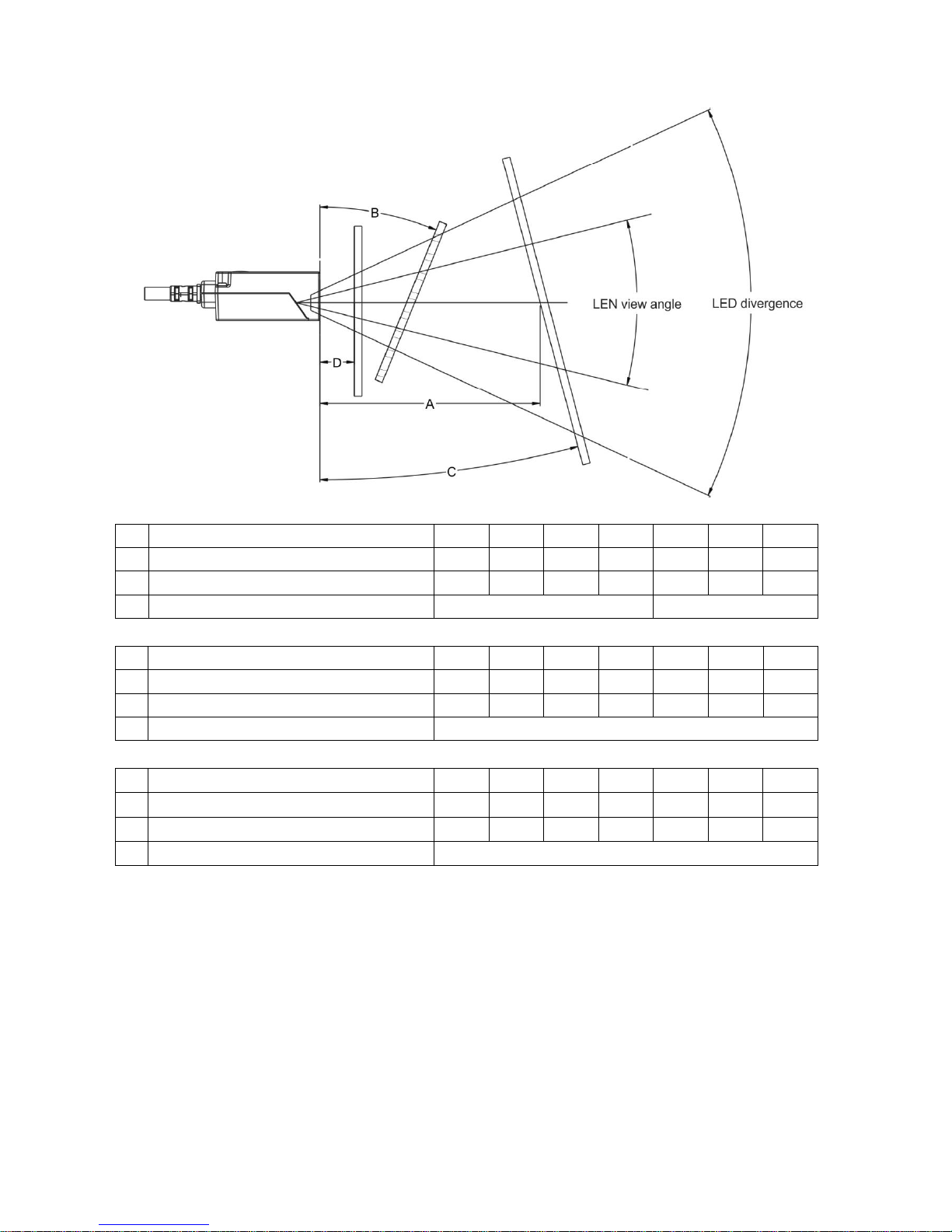

2-4-2 Scan window positioning .................................................................................................... 10
2-5 Notes of timing ............................................................................................................................ 11
2-5-1 Timing characteristics ......................................................................................................... 11

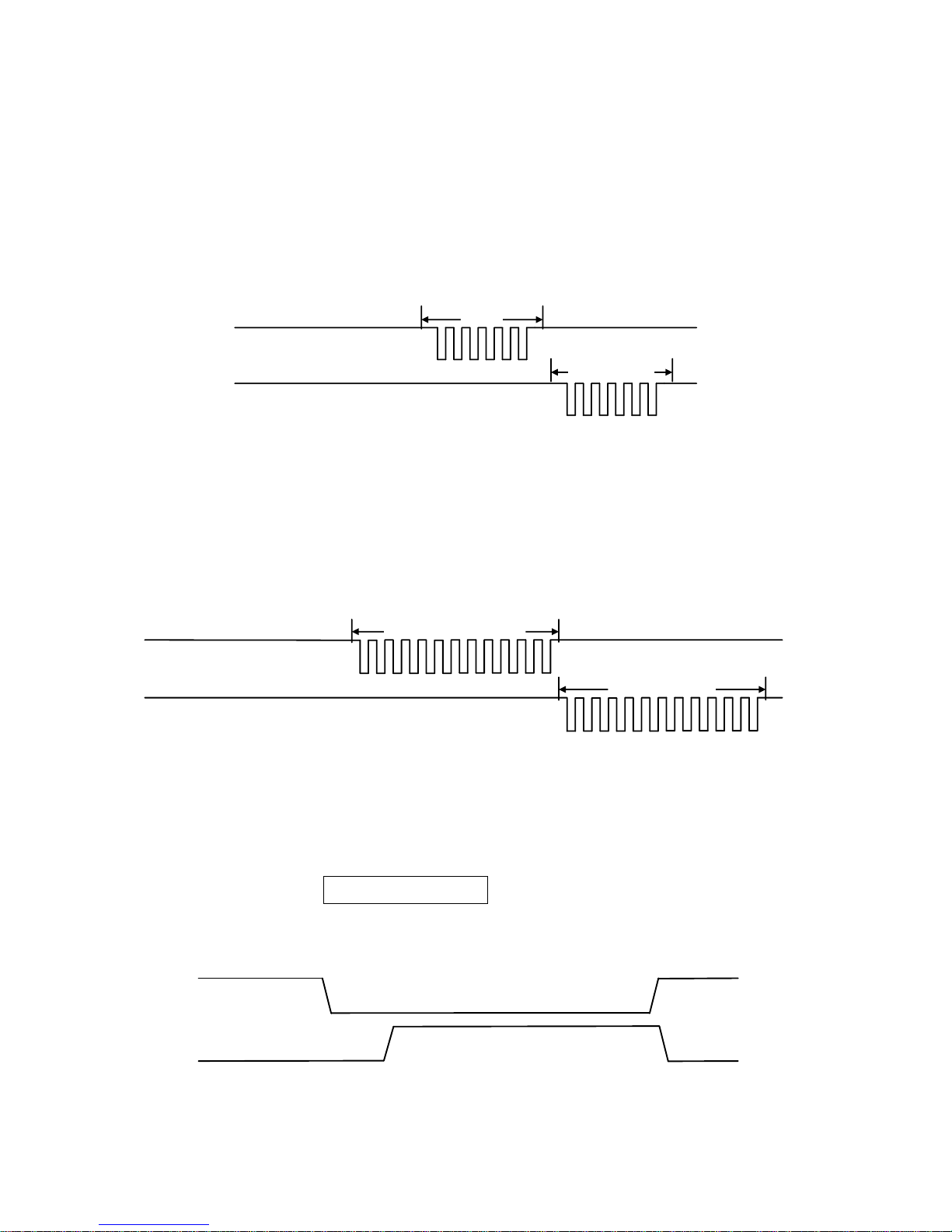

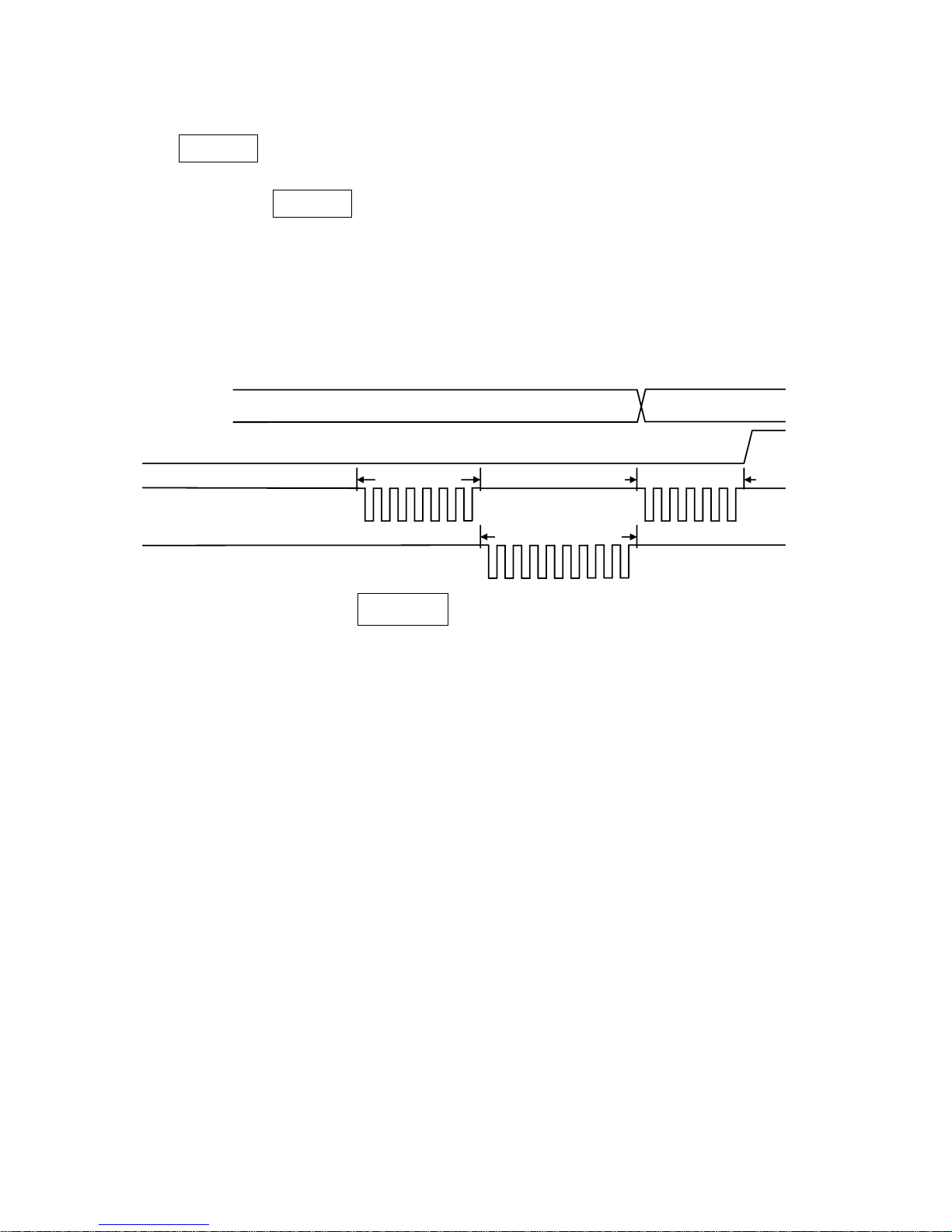

2-5-2 Timing waveforms .............................................................................................................. 11
2-6 Operation of Embedded Scanner ............................................................................................... 12
2-6-1 Beep ................................................................................................................................... 12
2-6-2 Request revision ................................................................................................................. 12
2-6-3 Decode by pulling down pin TRIG ...................................................................................... 12
2-6-4 Decode by commands ........................................................................................................ 13
3 Parameter menus ..............................................................................................................................14
3-1 Introduction ................................................................................................................................. 14

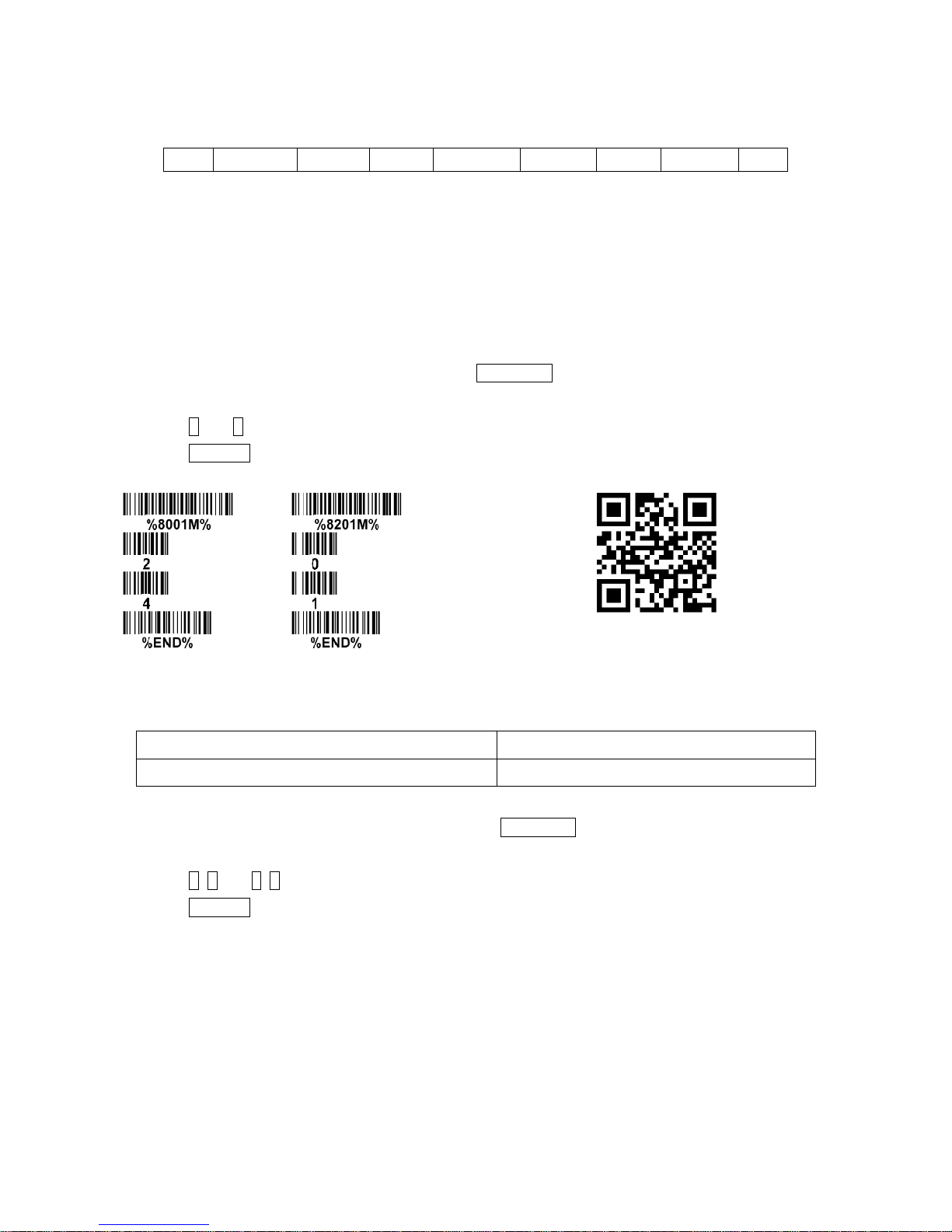

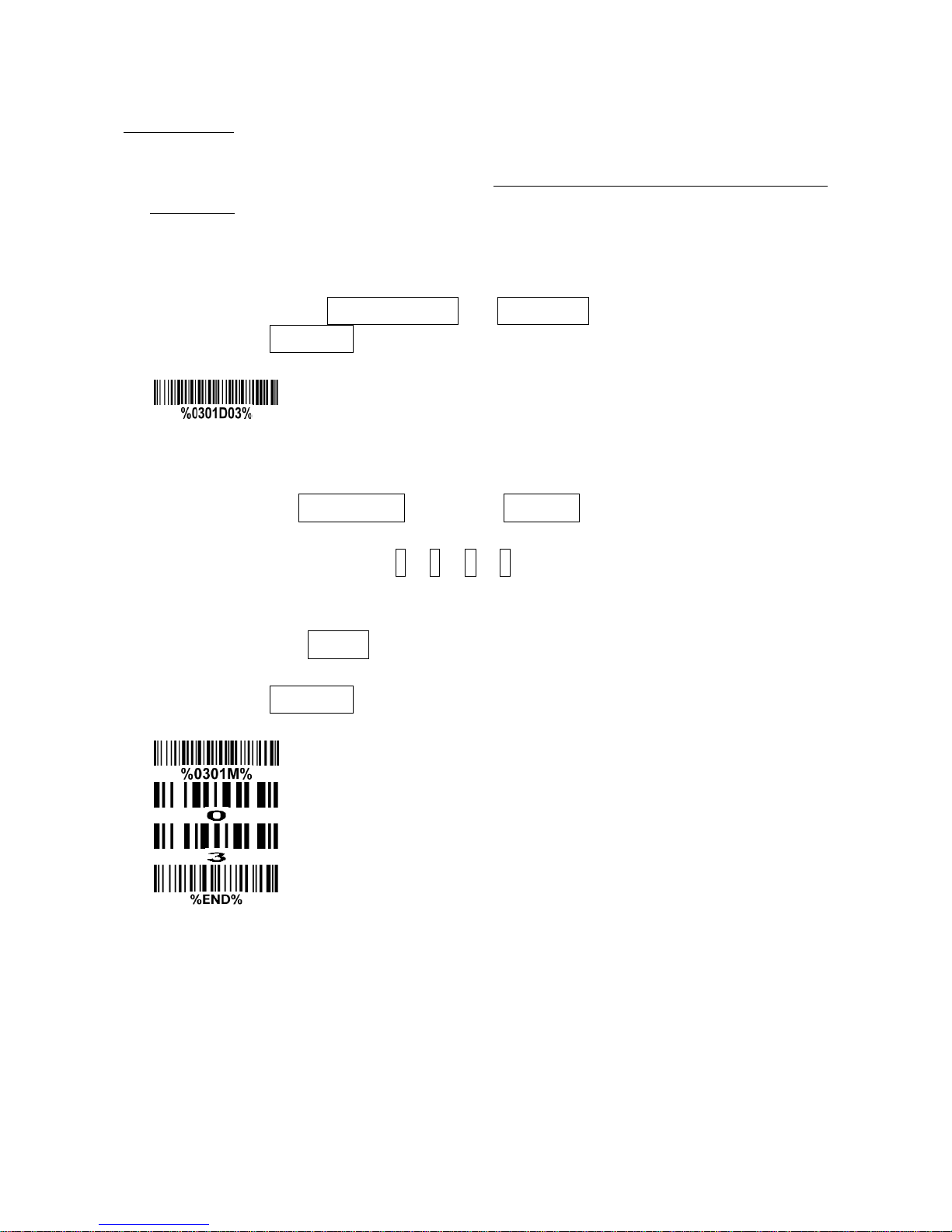

3-2 Example 1: Single-parameter setting by scanning 1D barcodes ................................................. 15
3-3 Example 2: Multiple-parameter setting by scanning a QR code barcode .................................... 16
3-4 RS-232 interface ......................................................................................................................... 17
3-5 USB interface .............................................................................................................................. 20
3-6 Scan mode & some global settings ............................................................................................. 23
3-7 Indication .................................................................................................................................... 29
3-8 Decode illumination mode and Decode aiming pattern ............................................................... 30
3-9 Single type of barcode, Multi-symbols, and Vertical centering read ............................................ 32

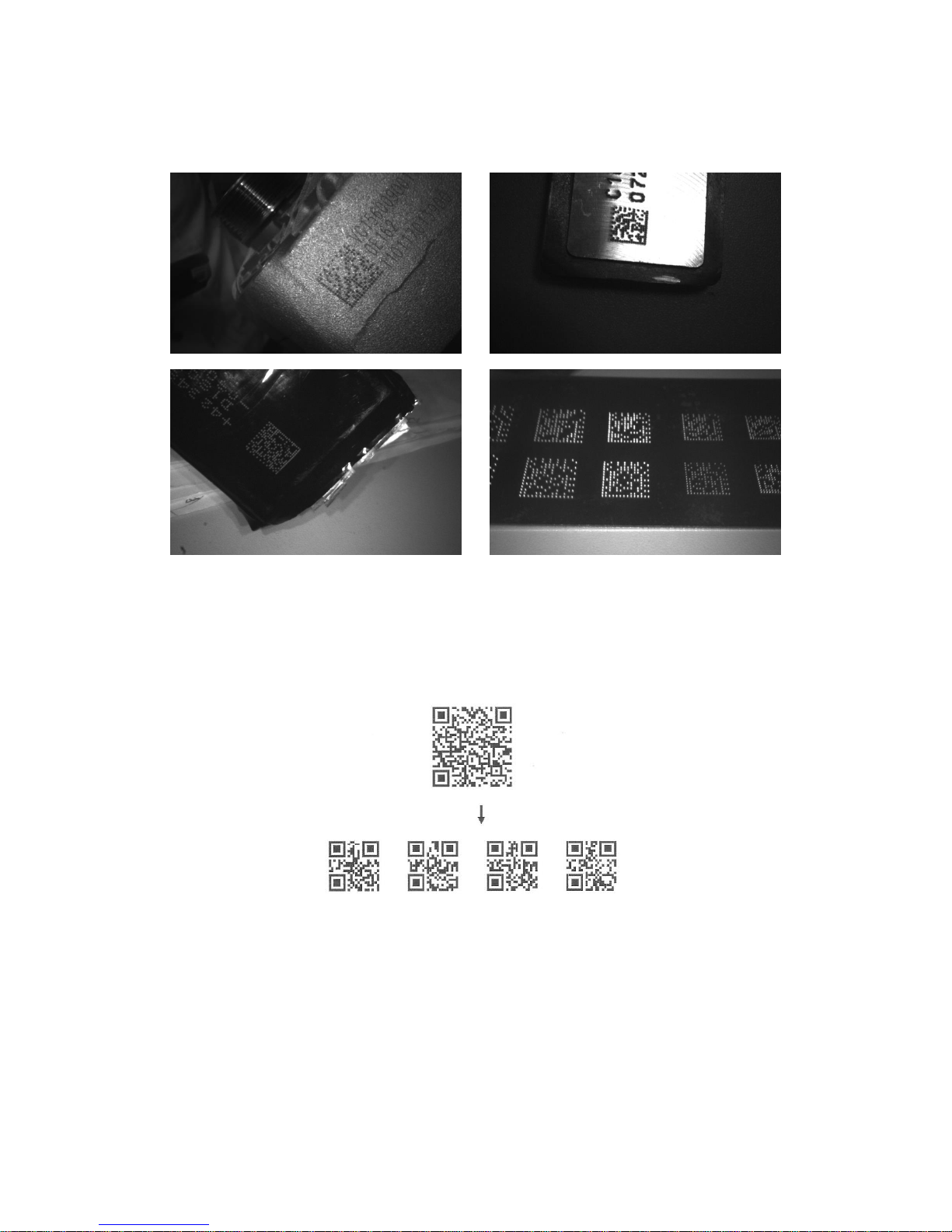

3-10 DPM, Structured append symbols, and Mobile screen read ..................................................... 35
3-11 UPC-A ....................................................................................................................................... 37
3-12 UPC-E ....................................................................................................................................... 39
3-13 UPC-E1 ..................................................................................................................................... 41
3-14 EAN-13 ..................................................................................................................................... 43
3-15 EAN-8 ....................................................................................................................................... 45
3-16 Code 39 (Code 32, Trioptic Code 39) ....................................................................................... 47
3-17 Interleaved 2 of 5 ...................................................................................................................... 50
3-18 Industrial 2 of 5 ......................................................................................................................... 52
3-19 Matrix 2 of 5 .............................................................................................................................. 53
3-20 Codabar .................................................................................................................................... 55
Page 4
ii
3-21 Code 128 .................................................................................................................................. 57
3-22 UCC/EAN 128 (GS1-128) ......................................................................................................... 59
3-23 ISBT 128 ................................................................................................................................... 61
3-24 Code 93 .................................................................................................................................... 63
3-25 Code 11 .................................................................................................................................... 65
3-26 MSI/Plessey .............................................................................................................................. 67
3-27 UK/Plessey ............................................................................................................................... 69
3-28 China Post ................................................................................................................................ 71
3-29 China Finance ........................................................................................................................... 72
3-30 Telepen ..................................................................................................................................... 75
3-31 GS1 DataBar (GS1 DataBar Truncated) ................................................................................... 77
3-32 GS1 DataBar Limited ................................................................................................................ 78
3-33 GS1 DataBar Expanded ........................................................................................................... 79
3-34 GS1 Composite......................................................................................................................... 80
3-35 PDF417 ..................................................................................................................................... 82
3-36 MicroPDF417 ............................................................................................................................ 83
3-37 QR Code ................................................................................................................................... 84
3-38 Data Matrix ............................................................................................................................... 85
3-39 Han Xin Code ........................................................................................................................... 86
3-40 Aztec Code ............................................................................................................................... 87
3-41 MicroQR Code .......................................................................................................................... 88
3-42 CodaBlock F Code .................................................................................................................... 89
3-43 GM code ................................................................................................................................... 90
3-44 G1-G6 & C1-C2 & FN1 substitution string setting ..................................................................... 91
3-45 G1-G4 string position & Code ID position ................................................................................. 96
3-46 String transmission ................................................................................................................... 97
4 Serial Communication Interface (SCI) .............................................................................................. 100
4-1 Programming command syntax ................................................................................................ 101
4-1-1 Single-parameter setting .................................................................................................. 101
4-1-2 Multiple-parameter setting ................................................................................................ 102
4-1-3 Query command syntax ................................................................................................... 102
4-1-4 Start Decode & Stop Decode ........................................................................................... 103
4-1-5 Return default parameters & firmware revision ................................................................ 103
4-1-6 Get Image......................................................................................................................... 104
4-1-7 Responses ....................................................................................................................... 104
4-2 Examples of setting and query commands ............................................................................... 105
5 Enable & Disable “NR” .................................................................................................................... 107
6 Enable & Disable configuration by scanning barcode ...................................................................... 108
7 Barcode representing non-printable character ................................................................................. 109
8 ASCII table ...................................................................................................................................... 110
9 Test symbols ................................................................................................................................... 111
Page 5
iii

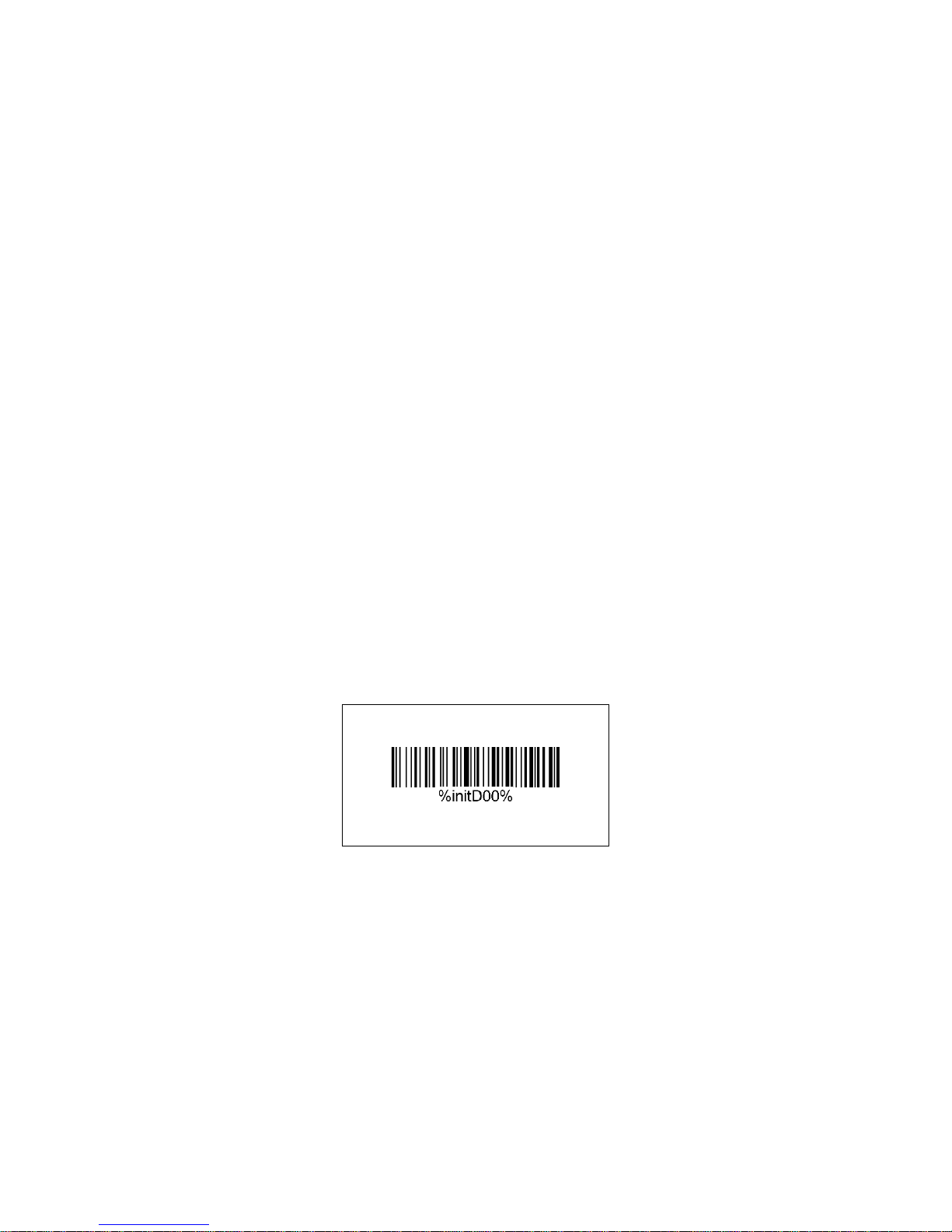

10 Return default parameters & firmware version ............................................................................... 116
11 Configuration alphanumeric entry barcode .................................................................................... 117
Page 6
iv
Notes about structure and electric circuit design
1. The embedded scanner must be electrically isolated.
2. Leave sufficient space to accommodate the maximum size of the embedded scanner.
Page 7
1
1 Specifications
1-1 Technical specifications

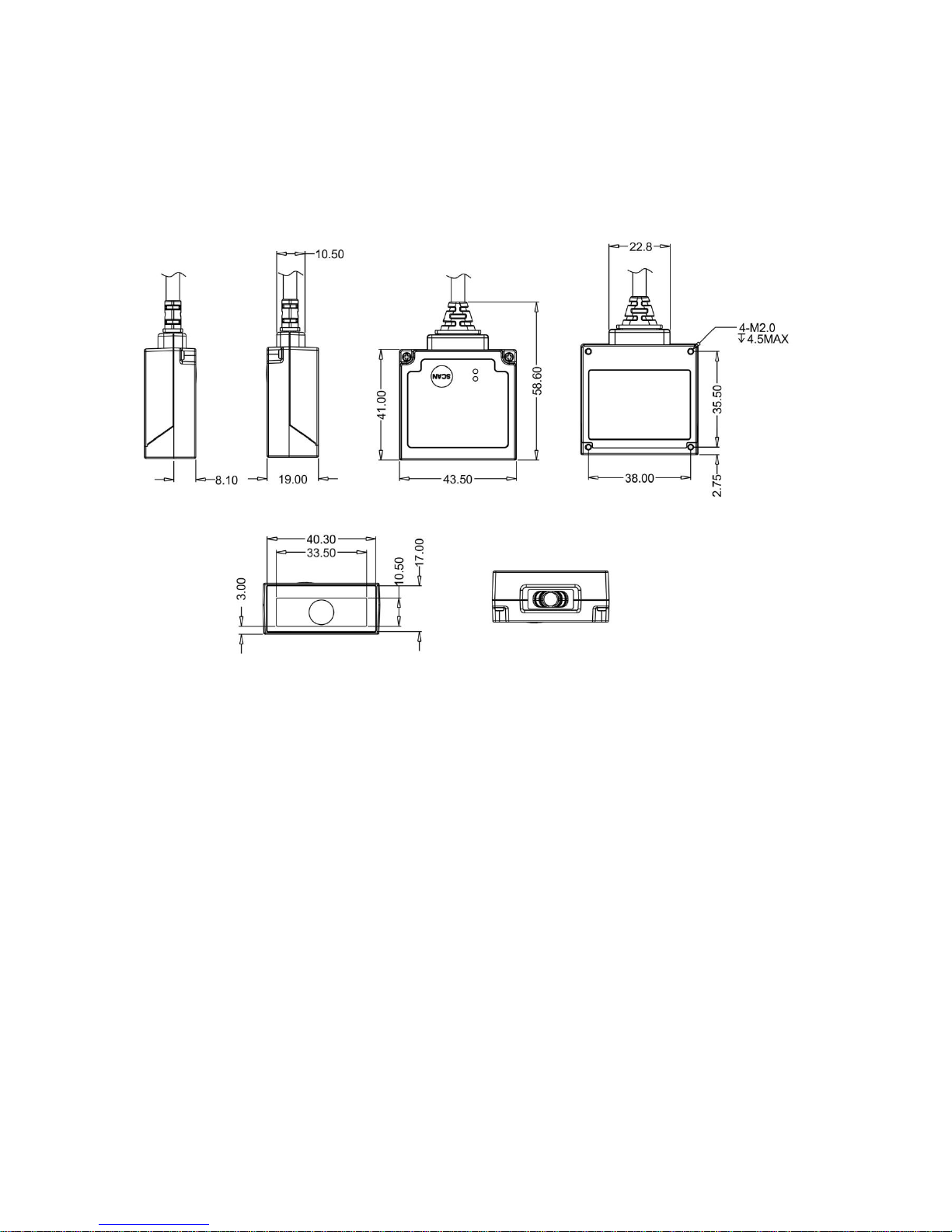

Dimensions
43.5 mm × 41.0 mm × 19.0 mm (Height × Width × Depth)
Weight
68 g (without cable)
Case Material
Zinc alloy
Scan Window Material
Tempered optical glass
Indicator Interface
Beeper
Interface Supported
RS-232 (3.3 V TTL-level), USB, USB virtual COM
Trigger Mode
Hand-held, Auto-detect, Command
Programming Method
Scanning special barcodes in sequence, or sending commands via RS-232 or USB virtual
COM interface
Firmware Upgrade
Online
Input Voltage
3.4 - 5.5 VDC
Current
105 mA (standby), 435 mA (scanning) @ 5 VDC
Image Size
1280 × 800 pixels
Scanner Field of View
Horizontal: 45°, Vertical: 28°
Scanning Angles
± 70°, ± 72°, 360° (Skew, Pitch, Roll)
Print Contrast
20% minimum reflective difference
Decoding Capability
1D:
UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39
full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,
Codabar (NW7), Code 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey,
UK/Plessey, UCC/EAN 128 (GS1-128), China Post, China Finance, Telepen, GS1 DataBar
(formerly RSS) variants
2D:
PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, GS1
Composite, MicroQR Code, CodaBlock F Code, GM code
Minimum Resolution
HD: 1D (Code 39): 3mil，2D (QR): 5mil
SR: 1D (Code 128): 4mil，2D (PDF417): 6.7mil
Decoding Depth
High desity (HD)
Standard range (SR)
3 mil Code 39 (3 chars)
5.5 cm - 8.3 cm
/
4 mil Code 128 (9 chars)
4.5 cm - 14.2 cm
9.0 cm - 16.0 cm
13 mil UPC (6 chars)
1.0 cm - 28.0 cm
1.2 cm - 35.0 cm
20 mil Code 39 (1 char)
4.0 cm - 38.0 cm
4.0 cm - 55.0 cm
5 mil QR (40 chars)
4.8 cm - 10.0 cm
/
6.7 mil PDF417 (20 chars)
3.0 cm - 16.0 cm
7.0 cm - 16.0 cm
10 mil QR (20 chars)
1.7 cm - 20.0 cm
2.5 cm - 19.0 cm
20 mil QR (20 chars)
2.0 cm - 32.0 cm
2.0 cm - 38.0 cm
Temperature
-20℃ to 50℃ (-4℉ to 122℉), operating; -20℃ to 70℃ (-4℉ to 158℉), storage
Humidity
5% to 95% (non-condensing)
Mechanical Vibration
IEC60064-2-6
Un-powered scanner withstands a random vibration along each of the X, Y and Z axes for a
Page 8
2
period of one hour per axis, define as follows:
20 Hz to 80 Hz
Ramp up to 0.04 G2/Hz at the rate of 3 dB/oct
80 Hz to 350 Hz
0.04 G2/Hz
350 Hz to 2000 Hz
Ramp down at the rate of 3 dB/oct
Mechanical Shock
IEC60064-2-27
Shock pulse: 0.5 ms, Maximal acceleration: 1500 G, Shock direction & time: ± X-axis, ±
Y-axis, ± Z-axis, 3 times for each direction, total of 18 times.
Safety
Photobiological Safety: EN62471:2008
EMC: EN55022
ESD Protection: EN55024, contact discharge: ± 4 KV, air discharge: ± 8 KV
Sealing: IP51
Drop Resistance: Withstands multiple 1.5 m (5 ft.) drops to concrete
RF Immunity: IEC61000-4-3, 10 V/m
Artificial Light Immunity: 100,000 Lux
Page 9
3
1-2 Default setting for each barcode
Code Type
Read
Enable
Check digit
Verification
Check digit
Transmission
Min. code
Length
Proprietary
Code ID
AIM
Code ID
UPC-A
√ √ √
(12)2
A
]Em
UPC-E
√ √ √
(8)2 D ]Em
UPC-E1
- √ √
(8)2 D ]X0
EAN-13
√ √ √
(13)2
A
]Em
EAN-8
√ √ √
(8)2 C ]E4
ISBN (Bookland EAN)
/ ISSN1
√ √ √
(13)2
B
]Em
Code 39
√ - - 1 M
]Am
Interleaved 2 of 5
√ - - 6 I
]Im
Industrial 2 of 5
- - - 4 H
]S0
Matrix 2 of 5
√ - - 6 X
]X0
Codabar
√ - - 4 N
]Fm
Code 128
√ √ - 1 K
]Cm
UCC/EAN 128
(GS1-128)
√ √ - 1 K
]Cm
ISBT 128
√ √ - 1 K
]Cm
Code 93
√ √ - 1 L
]Gm
Code 11
- √ - 4 V
]H3
MSI/Plessey
- - - 4 O
]Mm
UK/Plessey
- √ - 1 U
]Mm
China Post
√ - -
(11)2 T ]Im
China Finance
√ - -
(10)2 Y -
Telepen
√ √ - 1 P
]Em
GS1 DataBar
√ - -
(16)2
R
]em
GS1 DataBar
Truncated3
√ - -
(16)2
R
]em
GS1 DataBar Limited
√ - -
(16)2
R
]em
GS1 DataBar Expanded
√ - - 1 R
]em
GS1 Composite
4
- - - - y
]em
PDF417
√ - - - p
]Lm
MicroPDF417
- - - - p
]Lm
DataMatrix
√ - - - d
]dm
QR code
√ - - - q
]Qm
Han Xin Code
4
- - - - h
]X0
Aztec Code
- - - - a
]zm
MicroQR Code
4
- - - - q
]Qm
Page 10
4
Code Type
Read
Enable
Check digit
Verification
Check digit
Transmission
Min. code
Length
Proprietary
Code ID
AIM
Code ID
CodaBlock F Code
4
√ - - - c
]Om
GM code
4
√ - - - g
-
Note:
1
The settings for ISBN/ISSN and EAN-13 must be the same except the Code ID.
2 Fixed-length barcodes.
3 The settings for GS1 DataBar Truncated and GS1 DataBar must be the same.
4 The support for this feature is available with customized firmware version.
Page 11
5
2 Getting started
2-1 Parts of scanner

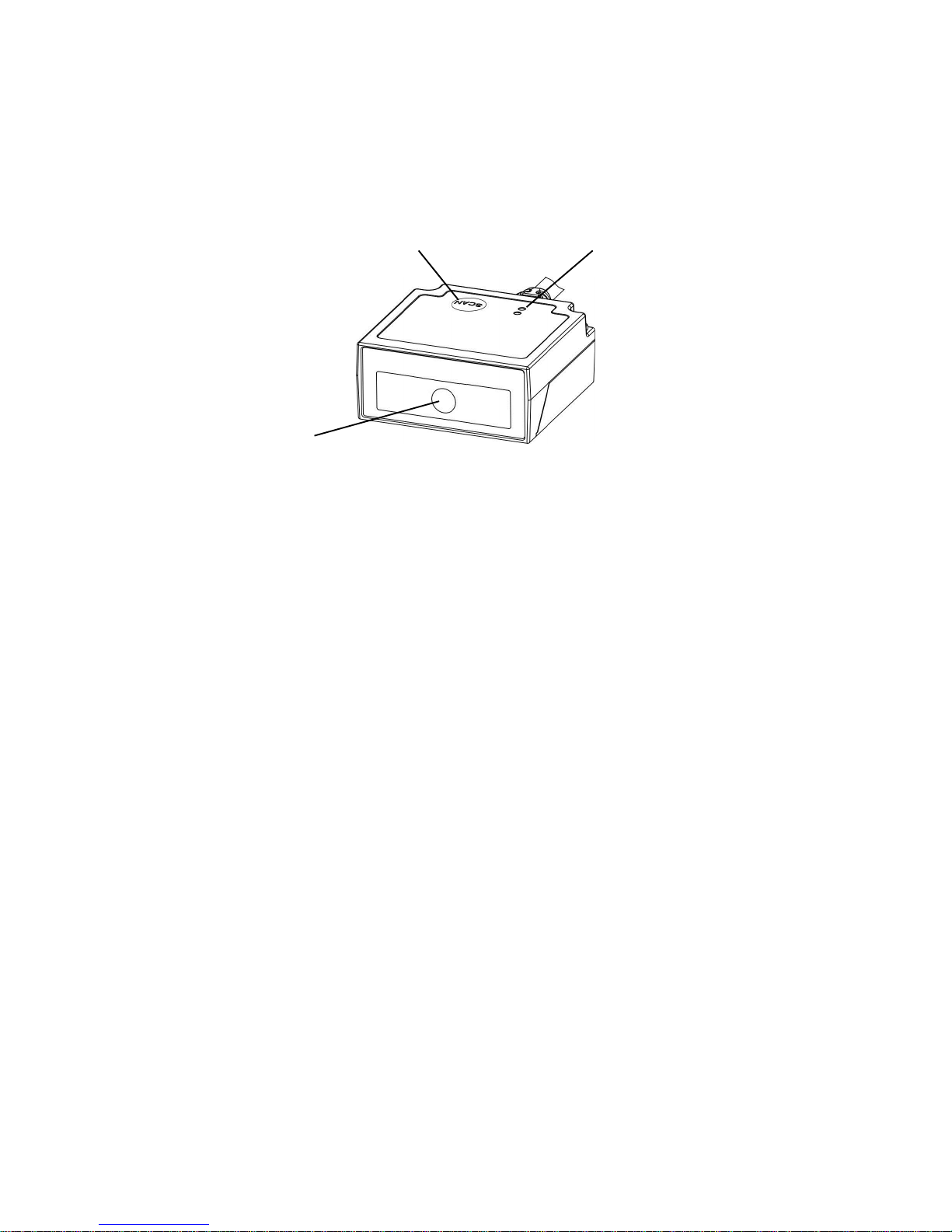

Figure 2-1 Appearance
Beeper
Trigger
CMOS sensor
Page 12
6
2-2 Electrical interface/Pin assignment of cable connector
The embedded scanner has a RJ-45 cable connector. Table 2-1 lists the pin assignments of the
embedded scanner.

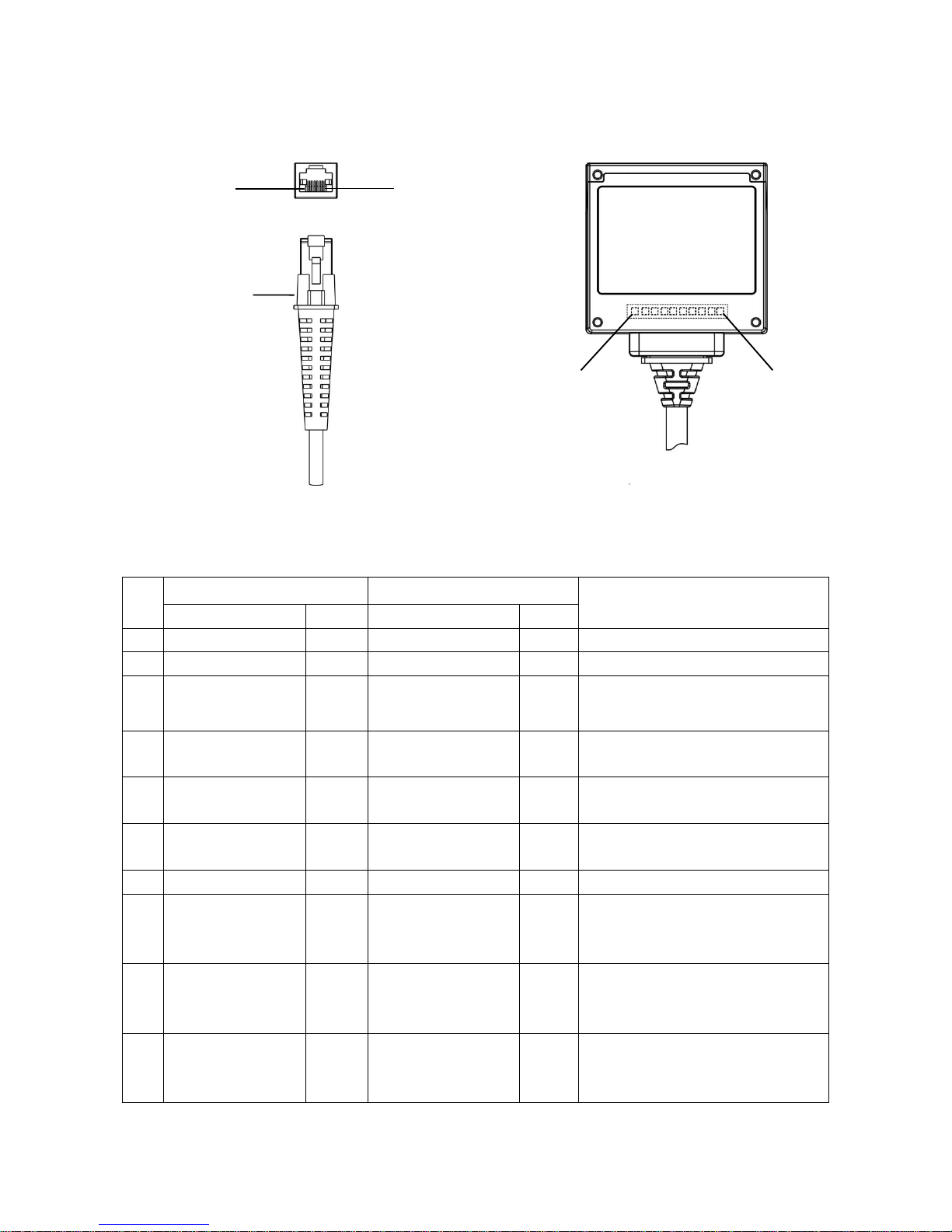

Figure 2-2 Electrical interface/Pin assignment
Table 2-1 Electrical interface/Pin assignment
Pin
No.
RS-232
USB
Descriptions
Pin/Signal Name
Type
Pin/Signal Name
Type 1 Power (5V)
Power
Power (5V)
Power
Power: +5 VDC
2
NC - NC
-
NC: No connection
3
Ground
Power
Ground
Power
Ground: 0V reference
4
3.3V (for interface
auto selection)
Input
Ground (for interface
auto selection)
Input
RS-232: Logic high level, 3.3V
USB: Logic low level, 0V reference
5
TXD
Output
NC
-
RS-232: Serial data transmit output port
(Transmitted data)
6
RXD
Input
NC
-
RS-232: Serial data receive input port
(Received data)
7
NC - NC
-
NC: No connection
8
TRIG
Input
TRIG
Input
Trigger.
Logic low level (activity): 0V
referenceLogic high level: 3.3V
9
CTS
Input
D-
-
RS-232: Handshaking line
(Clear-to-send).
USB: Negative differential line.
10
RTS
Output
D+
-
RS-232: Handshaking line
(Request-to-send).
USB: Positive differential line.
Note: Voltage level of all RS-232 Pin-outs (RXD, TXD, CTS and RTS) is 0V for logic low level and 3.3V for logic high
level.
PIN1
PIN10
Cable connector
PIN1
PIN10
Page 13
7
The embedded scanner has a TTL-level RS-232 interface to communicate with a host. RTS and CTS
are only used for hardware flow control and should be leaved unconnected or tied to VCC by 100K Ohm
resistors when they are not used.
The following diagram demonstrates the interconnection.
TXD
CTS
RTS
RXD Host TXD
Host CTS
Host RTS
Host RXD
Embedded
scanner
Host
Figure 2-3 Embedded scanner and Host interconnection via RS-232
D-
D+ D+
D-
Embedded
scanner
Host
Figure 2-4 Embedded scanner and host interconnection via USB
Page 14
8
2-3 Typical input/output, LDO external, and DC/DC circuitries
Input: each input IO pin is internally pulled up
by a 100K Ohm resistor (VCC=3.3V).
Min.
Max.
V
inL
-0.3V
0.7V
V
inH
2.4V
3.6V
100K
VCC
Embedded
scanner
INPUT
Output: each output port is an open-drain pad
with a 100K Ohm pull-up resistor and the
maximum sink current is 100 mA (VCC=3.3V).
100K
VCC
Embedded
scanner
OUTPUT
External LDO circuitry: it is recommended to
apply low noise LDO (Low Dropout Voltage)
regulators.
LDO
Regulator
Embedded
scanner
22u
External switching regulator circuitry:
Min.
Max.
Switching Frequency
1 MHz
-
Ripple V
P-P
-
50 mV
Switching
Regulator
Embedded
scanner
22u
Page 15
9
2-4 Installation guide
2-4-1 Mounting
(Units = mm)
Page 16
10
2-4-2 Scan window positioning
A
Scan Window Distance from Scanner (mm)
0 1 2 3 4 5 6
B
Max. Positive Angle
0°
0°
0°
0°
23°
23°
23°
C
Min. Negative Angle
0°
0°
0°
0°
23°
23°
23°
D
Placing the scan window vertically is feasible?
YES
NO
A
Scan Window Distance from Scanner (mm)
7 8 9
10
11
12
13
B
Max. Positive Angle
23°
24°
24°
24°
24°
25°
25°
C
Min. Negative Angle
23°
24°
24°
24°
24°
25°
25°
D
Placing the scan window vertically is feasible?
NO
A
Scan Window Distance from Scanner (mm)
14
15
16
17
18
19
20
B
Max. Positive Angle
25°
25°
24°
23°
23°
22°
21°
C
Min. Negative Angle
25°
25°
24°
23°
23°
22°
21°
D
Placing the scan window vertically is feasible?
NO
Note:
1) The scan window is transparent. (Recommended)
2) The scan window should be high transparent & non-colored glass.
3) If the thickness of the scan window is less than 3 mm, then different thickness of the scan window will not effect
the performance of the scanner.
Page 17
11

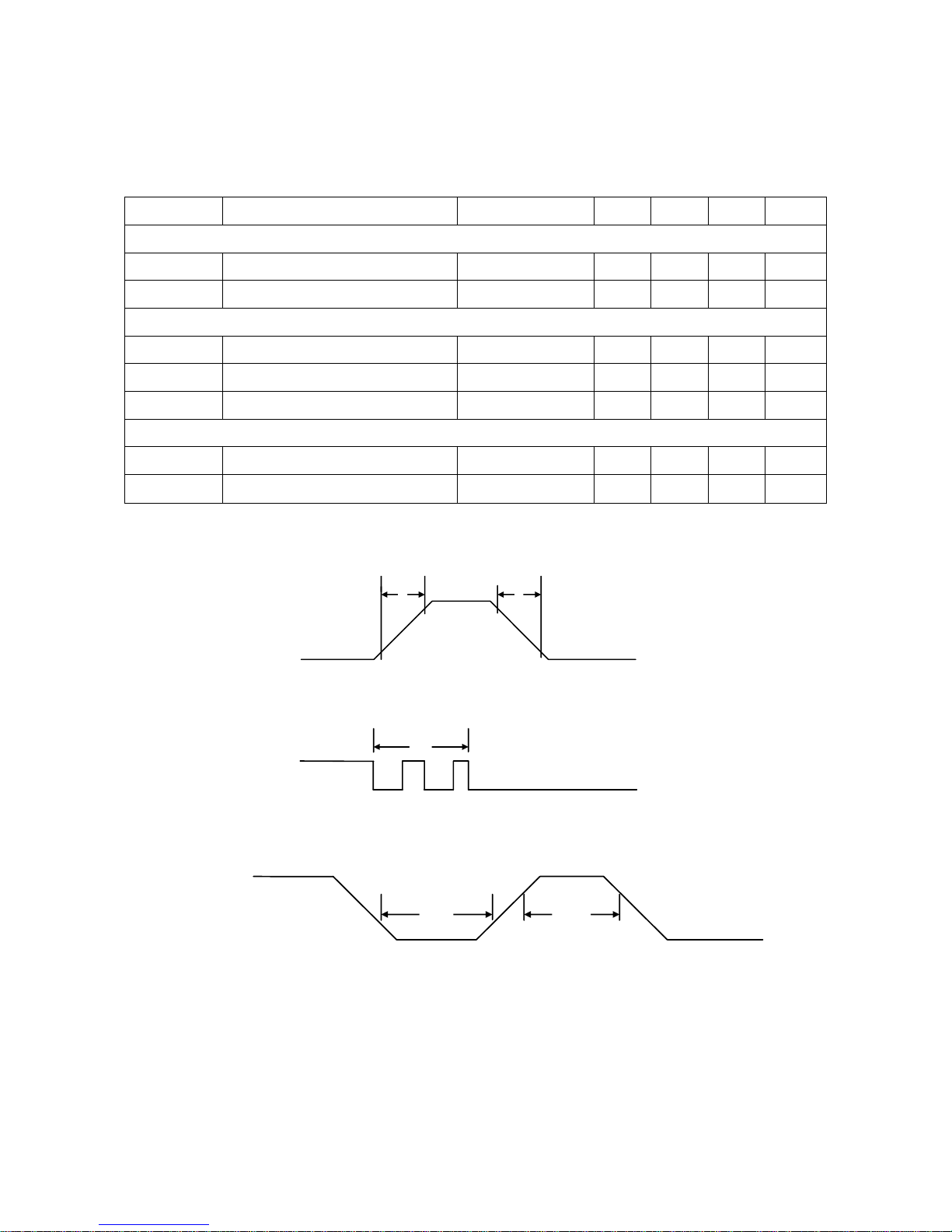

2-5 Notes of timing
2-5-1 Timing characteristics
Table 2-2 Timing characteristics
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Unit
General characteristics
tr
Low to high rise time
CL=50pf
1.0
us
tf
High to low fall time
CL=50pf
1.0
us
Trigger timing
t
trig_1
Trigger low level hold time
20
ms
t
trig_h
Trigger high level hold time
20
ms
t
dbt
Trigger de-bounce time
1.1
ms
Wake up timing
t
idle2fo
Idle to Operation
1 ms
t
stb2fo
Standby to Operation
7 ms
2-5-2 Timing waveforms
t
r
t
f
Figure 2-5 General characteristics
t
dbt
Figure 2-6 Trigger de-bounce timing
t
trig_l
t
trig_h
Figure 2-7 Hardware trigger timing
Page 18
12
2-6 Operation of Embedded Scanner
The following cases demonstrate how a host operates an embedded scanner quickly and easily.
2-6-1 Beep
1) Host sends a <BEL> (0x07) character.
2) After receiving <BEL> character, Embedded Scanner returns a <BEL> character and an <ACK>
(0x06) character, and then Embedded Scanner beeps.
RXD
(Host TXD)
TXD
(Host RxD)
<BEL>
<BEL><ACK>
Figure 2-8 Beep timing
2-6-2 Request revision
1) Host sends a Firmware Version list command (0x16, 0x4D, 0x0D, 0x25, 0x25, 0x25, 0x56,
0x45, 0x52, 0x2E).
2) After receiving the command, Embedded Scanner responds with firmware version.
RXD
(Host TXD)
TXD
(Host RXD)
REQUEST_REVISION
Firmware version
Figure 2-9 Request revision timing
2-6-3 Decode by pulling down pin TRIG
1) Host pulls down pin TRIG.
2) Then Embedded Scanner turns on LED illumination and starts decode. The LED illumination will
be turned off if either Scan standby duration expires or Embedded Scanner succeeds in
decoding.
TRIG
LED illumination
Figure 2-10 Pull down pin TRIG and start decode timing
Page 19
13
2-6-4 Decode by commands
1) Host sends a command (0x16, 0x4D, 0x0D, 0x30, 0x34, 0x30, 0x31, 0x44, 0x30, 0x35, 0x2E) to
set Scan mode to Host.
2) Then Embedded Scanner responses with the received command and a <ACK> (0x06) character,
and then change Scan mode to Host.
3) After receiving the <ACK> character, Host sends a START_DECODE command (0x16, 0x54,
0x0D).
4) Embedded Scanner turns on LED illumination to decode. The LED illumination will be turned off if
either Scan standby duration expires or Embedded Scanner succeeds in decoding. A
STOP_DECODE command (0x16, 0x55, 0x0D) can end decode process.
Scan mode
LED illumination
Set trigger mode
Set trigger mode <ACK>
Momentary
Host
START_DECODE
RXD
(Host TXD)
TXD
(Host RXD)
Figure 2-11 Change Scan mode and send command to decode timing
Page 20
14
3 Parameter menus
3-1 Introduction
This section describes the programmable parameters, to change the parameter values.
Refer to 3-2 Example 1: Single-parameter setting by scanning 1D barcodes and 3-3 Example 2:
Multiple-parameter setting by scanning a QR code barcode, scan the appropriate barcodes
included in this section, The new values replace the existing values.
To set the new values as custom default settings, scan the Write to Custom Defaults barcode.
The factory default settings or custom default settings can be recalled by scanning appropriate
barcodes, refer to 10 Return default parameters & firmware version.
Send parameters through the TTL-level RS-232 or USB virtual COM interface. Instructions of
programming and querying the embedded scanner are described in 4-1 Programming command
syntax.
Page 21
15
3-2 Example 1: Single-parameter setting by scanning 1D barcodes
Important notes:
1. After each successful programming, the embedded scanner will beep twice.
2. Throughout the programming barcode menus, the factory default settings are indicated with
asterisks (*).
Two programming modes have been provided as bellows:
❶ Single-scan setting
Scan the appropriate Single-scan setting (e.g. %0101D00%) according to the user‘s demand.
Example: To set Flow control to be XON/XOFF.
Steps: Scan the following barcode.
❷ Multiple-scan setting
Step 1. Scan the Option barcode barcode (e.g. %0101M%) according to the user’s demand.
Step 2. To the right of the option barcode, the necessary alphanumeric inputs are listed. Scan
two alphanumeric entries from 0 to 9 or A to F, refer to 11 Configuration alphanumeric entry
barcode.
Step 3. Repeat Step 2, if more user parameters input are required.
Step 4. Scan the %END% barcode, listed on the lower left hand corner of each parameter
setting part.
Example: To set Flow control to be XON/XOFF.
Steps: Scan the following barcodes in order.
Page 22
16

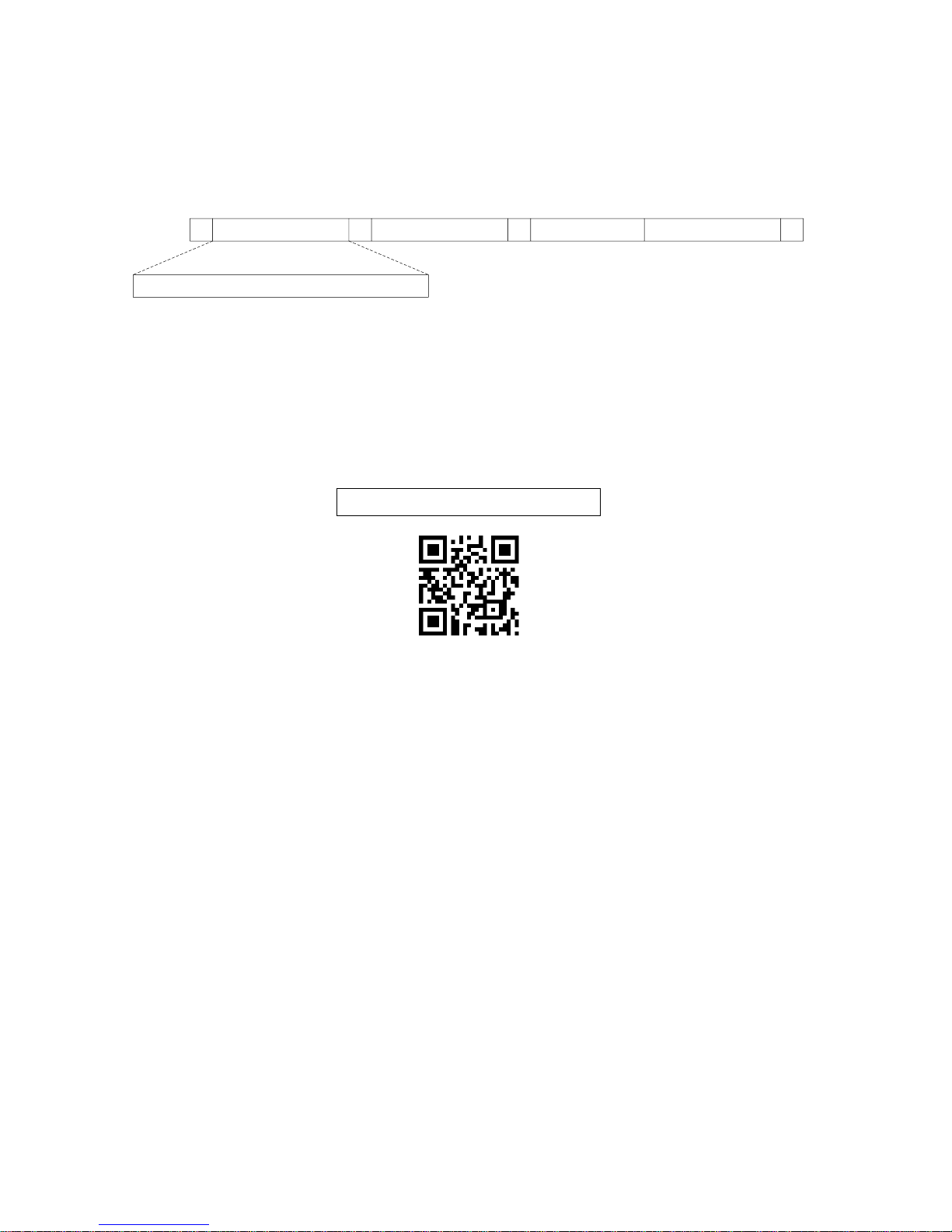

3-3 Example 2: Multiple-parameter setting by scanning a QR code barcode
User can customize a QR code barcode to set multiple parameters. The embedded scanner can set
multiple parameters by scanning this single QR code barcode.
1. The data format of the QR code barcode is as following.
% Parameter set 1 % Parameter set 2 % Parameter set N %
<Option barcode index><D/H><Alpha. entries>
···
Note that:
<Option barcode index> means the corresponding 4 digits of Option barcode.
<D/H> means “D” or “H” character. “D” means that the type of alphanumeric entry is decimal; and
“H” means that the type of alphanumeric entry is hexadecimal.
<Alpha. entries> is a character string with various length of 2, 4, or other values.
Example: Set 0401->03 (decimal); 8002->0D0A (hexadecimal); 8202->01 (decimal). The customized
QR code barcode contents and symbol are as following.
%0401D03%8002H0D0A%8202D01%
2. Notes of making QR code barcode
The model is chosen as M2. Other requirements, e.g. ECC level, Start mode, etc, are not specified.
3. Other notes
The contents of a QR code barcode can include several same <Option barcode index> associated
with same or different <Alpha. entries>. In the case of with different <Alpha. entries>, the latest
<Alpha. entries> is the valid one.
If any one of the parameter settings is invalid, the total setting is failed. The invalid setting can be
caused by one of the following problems: invalid <Option barcode index>, invalid type of <D/H>,
invalid type, length or value range of <Alpha. entries>, etc.
Page 23
17
3-4 RS-232 interface
Flow control:
None - The communication only uses TXD and RXD signals without any hardware or software
handshaking protocol.
RTS/CTS – If the embedded scanner wants to send the barcode data to the host, it will assert the
RTS signal first, and then waits for the CTS signal from the host to perform normal data
communication. If CTS is not asserted in Response delay, the embedded scanner will issue an error
indication.
Two-direction flow control - The embedded scanner asserts the RTS signal when it is OK for the
host to transmit. The host asserts CTS when it is OK for the device to transmit.
XON/XOFF – An <XOFF> character turns the embedded scanner’s transmission off unit the
embedded scanner receives an <XON> character.
ACK/NAK – After transmitting data, the embedded scanner expects either an <ACK> character
(acknowledge) or <NAK> character response from the host. When a <NAK> character is received,
the embedded scanner transmits the same data again and waits for either an <ACK> character or
<NAK> character. After three unsuccessful attempts to send data when <NAK> characters are
received the embedded scanner issues an error indication and discards the data.
Inter-character delay: This delay is inserted after each data character transmitted.
Response delay: This delay is used for serial communication of the embedded scanner when it waits
for a handshaking acknowledgment form the host.
Page 24
18

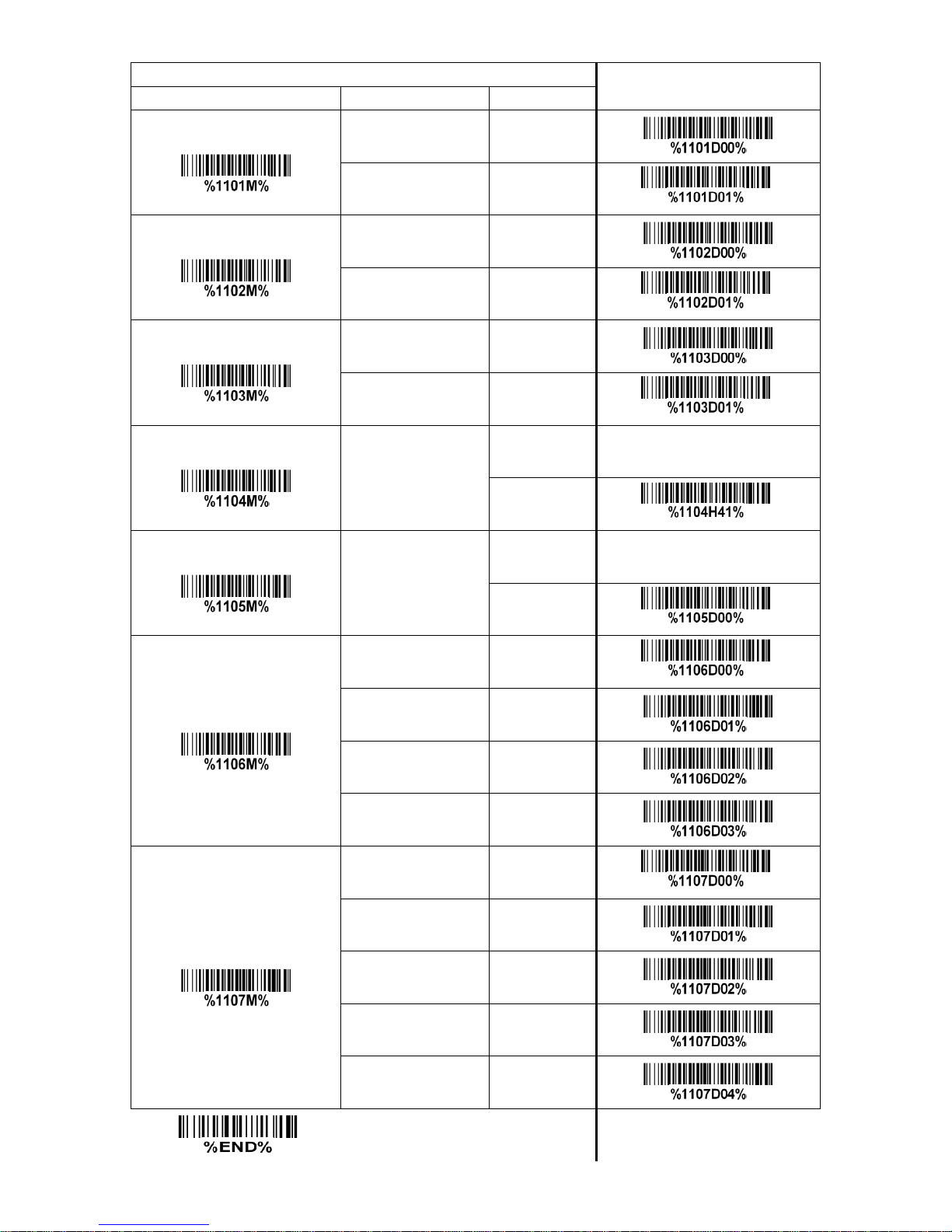

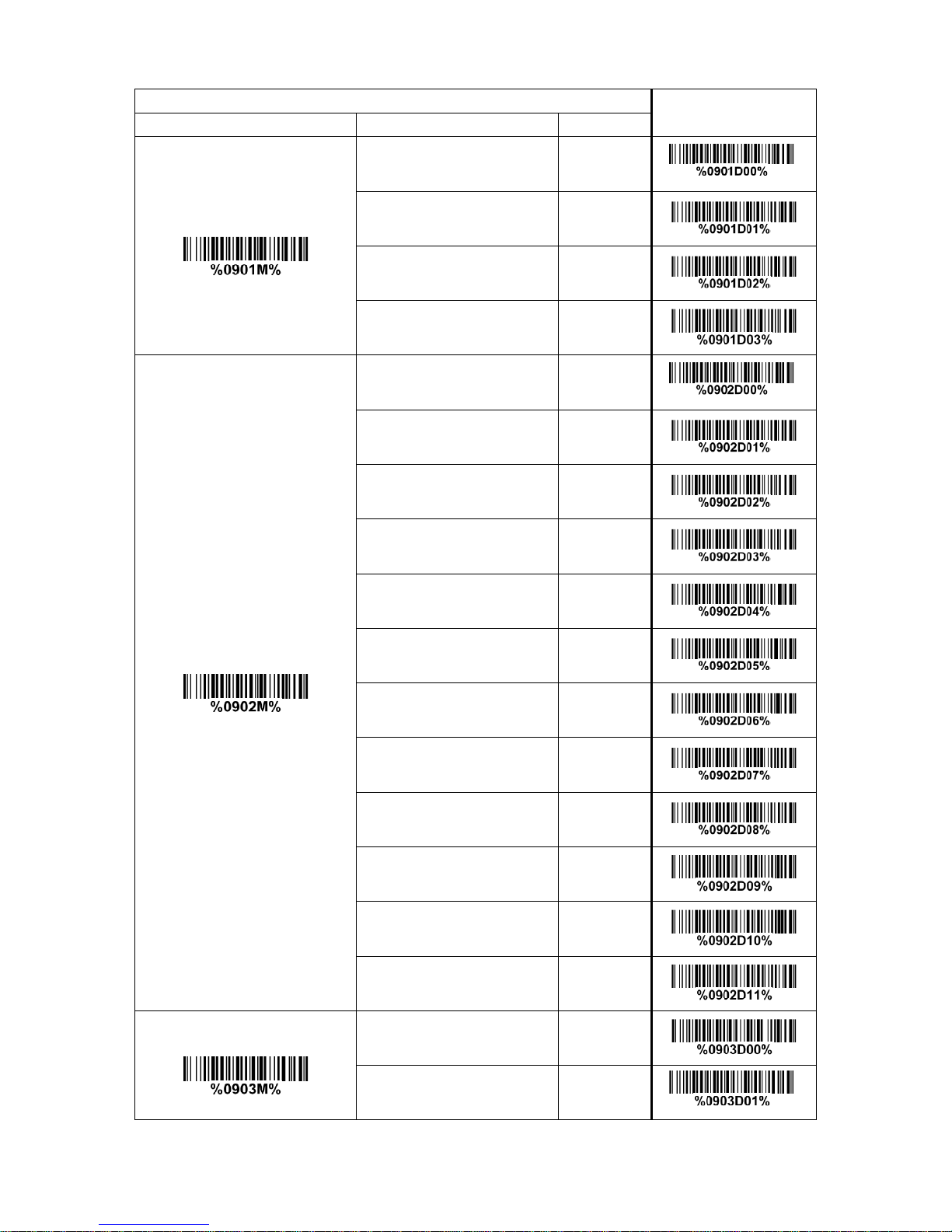

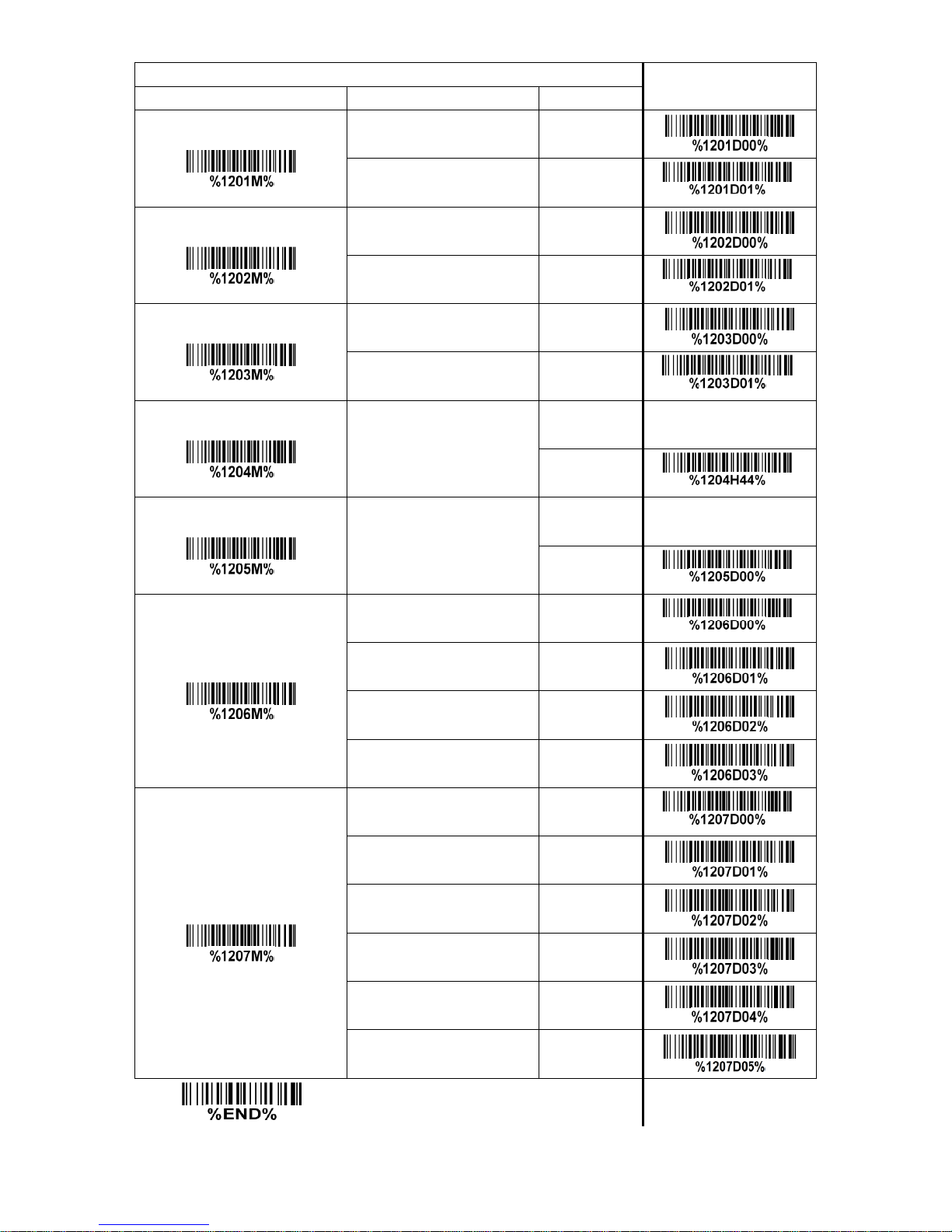

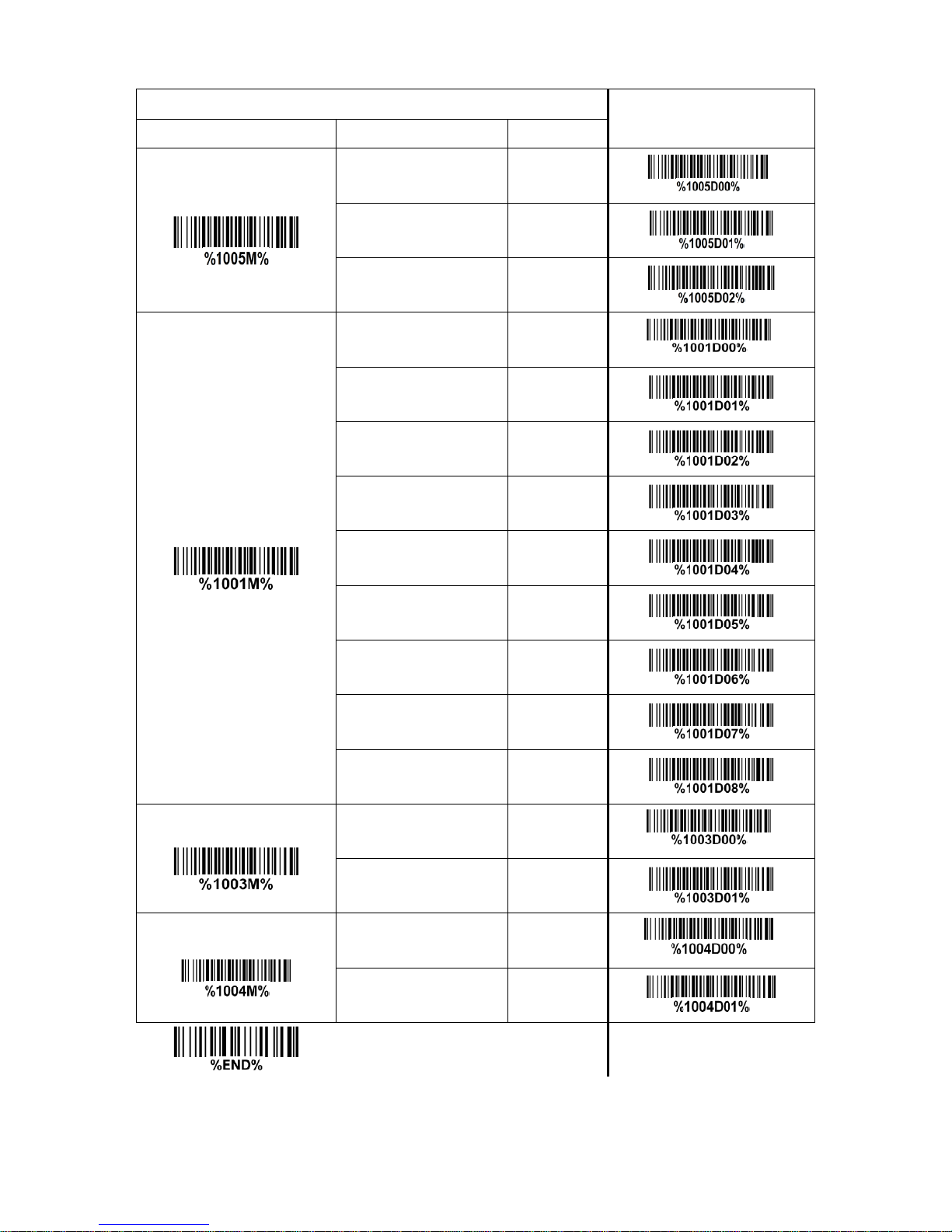

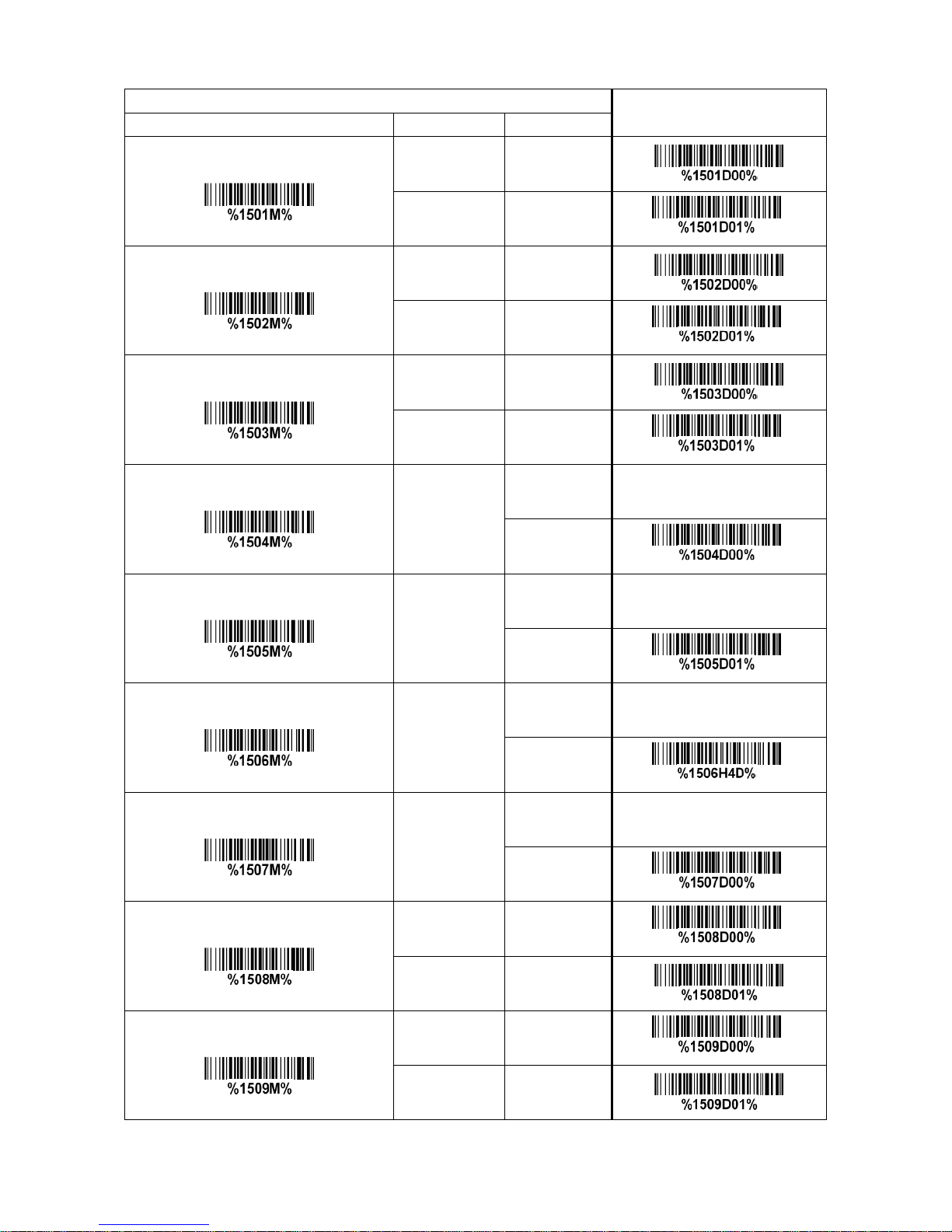

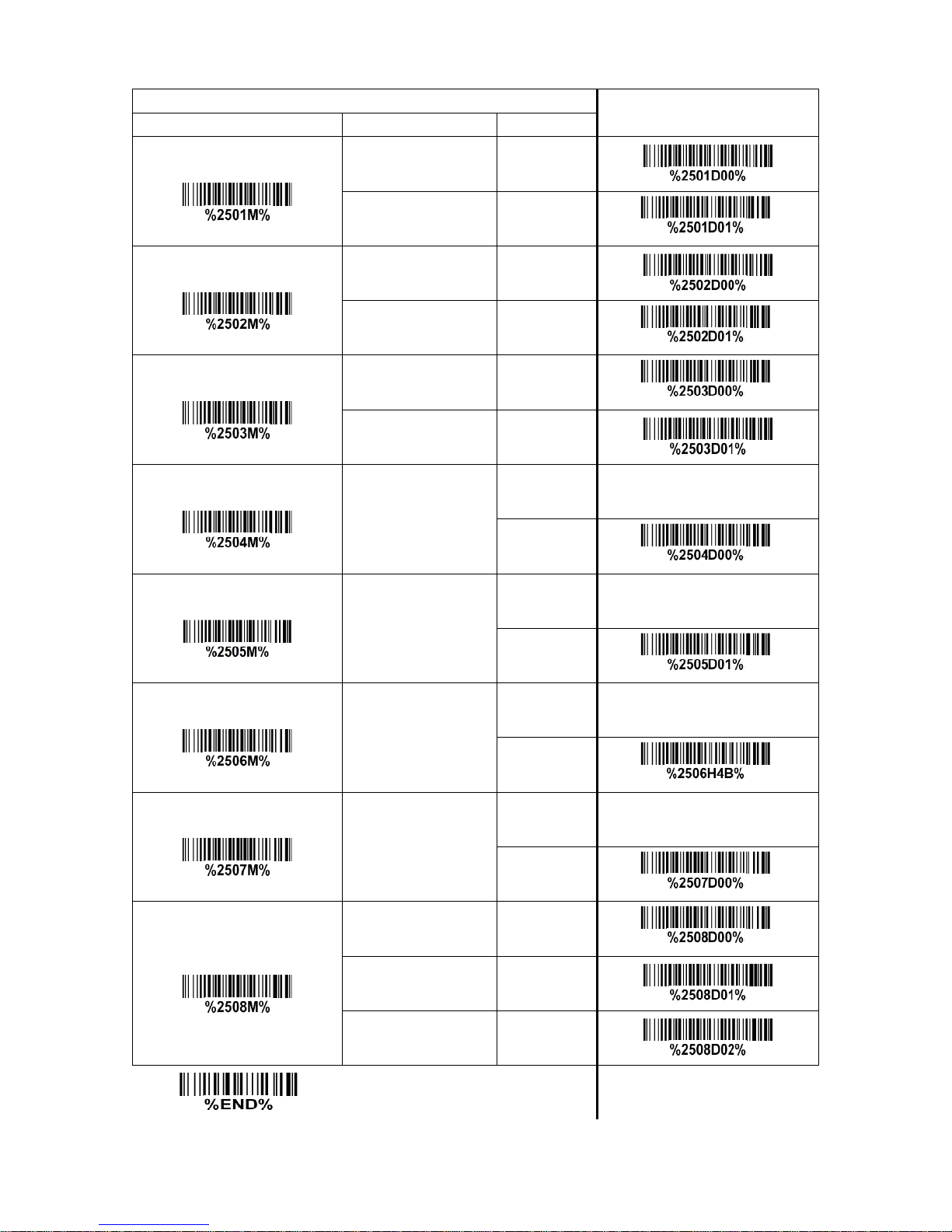

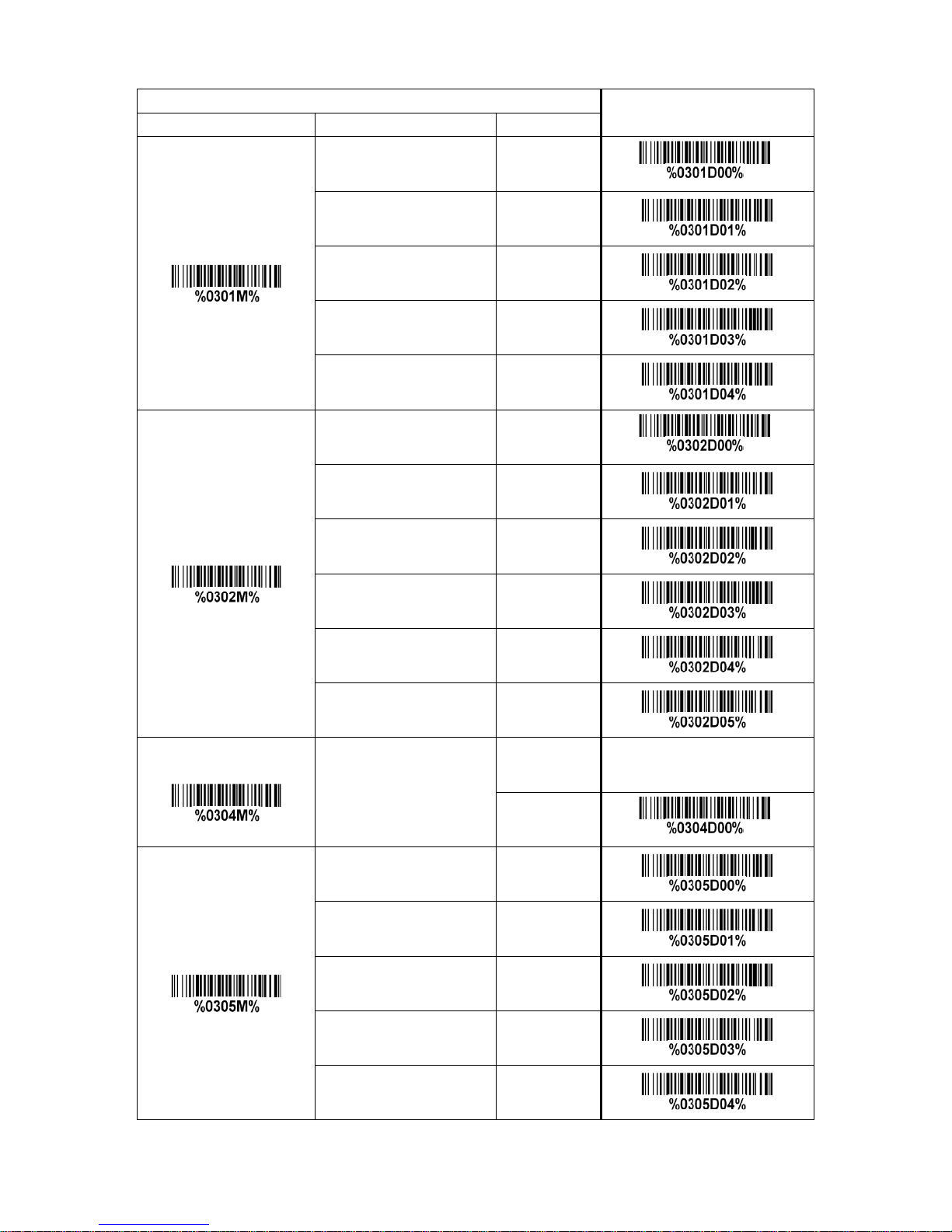

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Flow control
None
00*
*
RTS/CTS
01
Two-direction flow control
02
XON/XOFF
03
ACK/NAK
04
Inter-character delay
0 ms
00*
*
5 ms
01
10 ms
02
20 ms
03
40 ms
04
80 ms
05
Response delay
00-99
(100 ms)
00-99
00*
*
Baudrate
300
00
600
01
1200
02
2400
03
4800
04
Page 25

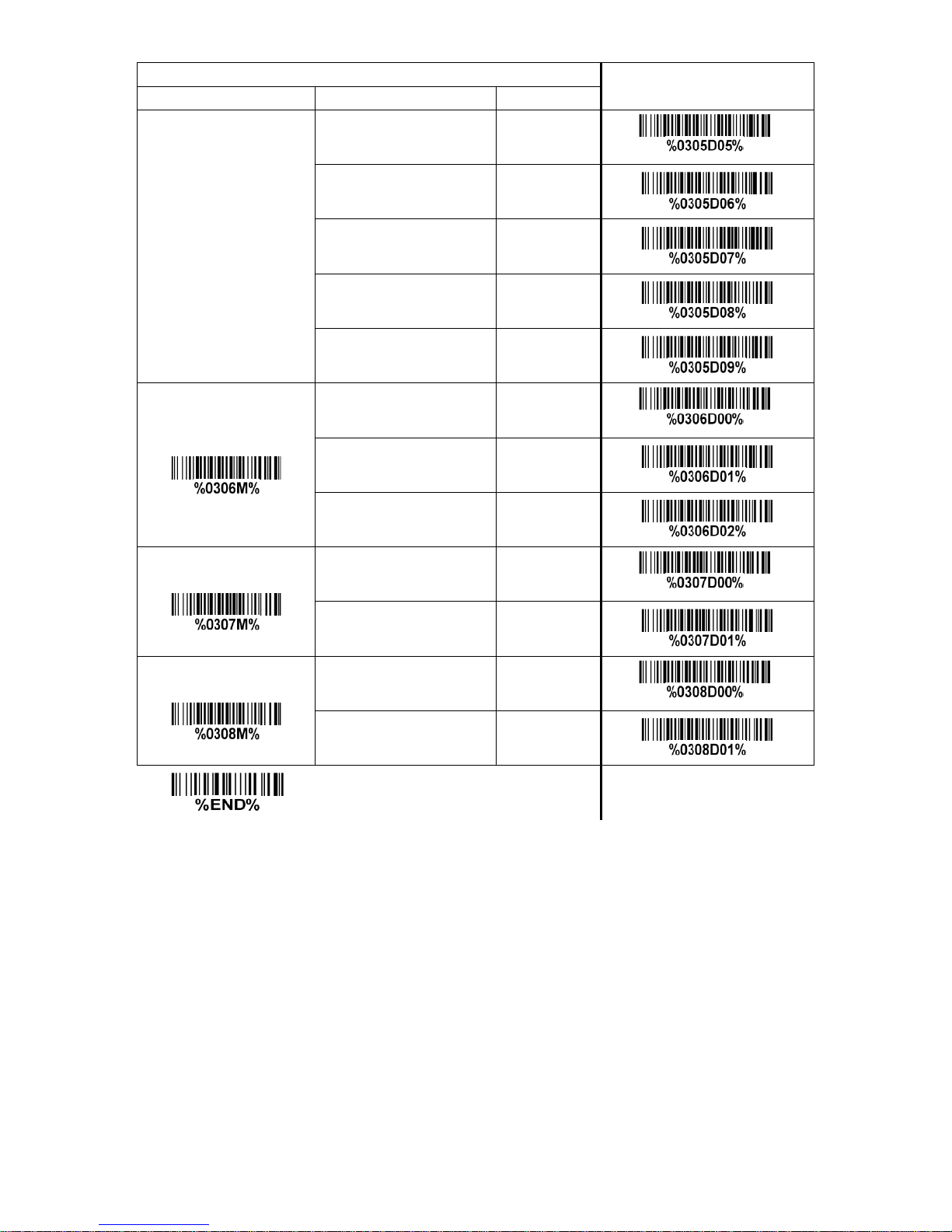

19
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
9600
05*
*
19200
06
38400
07
57600
08
115200
09
Parity bit
None
00*
*
Odd
01
Even
02
Data bit
8 bits
00*
*
7 bits
01
Stop bit
1 bit
00*
*
2 bits
01
Page 26
20
3-5 USB interface
USB device type:
HID keyboard – By setting, the embedded scanner is used as a USB HID keyboard emulation device.
USB virtual COM – By setting, the embedded scanner emulates a regular RS-232-based COM port. If
a Microsoft Windows PC is connected to the embedded scanner, a driver is required to install on the
connected PC. The driver will use the next available COM Port number. The driver and the installation
guide can be found in the associated CD and on the manufacturer’s website. A Windows-based
software COM_Text is recommended to display the barcode data in text format. COM_Text emulates
some kind of serial-key typing.
Simple COM Port Emulation - Please contact the manufacturer for the instruction.
Notes:
1) When change
USB Device Type
, the embedded scanner automatically restarts.
2)
USB Device Type
will be changed to USB virtual COM if
Scan Mode
is set as Host. Besides, the
change of
USB Device Type
from the USB virtual COM to others is forbidden when
Scan Mode
is Host.
Keyboard layout: The embedded scanner supports different national keyboard layouts.
Inter-character delay: This delay is inserted after each data character transmitted. By selecting, the user
can change the output speed of the embedded scanner to match the speed of the host USB
communication port.
Numeric key:
Alphabetic key - The embedded scanner will output code result as alphabetic key.
Numeric key - The embedded scanner will output code result as pressing numeric keypad ( ‘0’, ‘1’, ‘2’,
‘3’, ‘4’, ‘5’, ‘6’, ‘7’, ‘8’, ‘9’, ‘.’, ‘+’, ‘-‘, ‘/’, ‘*’ only).
Alt+ keypad - The embedded scanner will output code result as pressing Alt+ numeric key (on keypad).
Note that the Num Lock control key must be ON. This setting can be specially adapted for use with
different national keyboard layout.
Page 27
21
Multiple-scan setting
Single-scan setting
Option bar code
Option
Alpha. entry
USB device type
HID keyboard
00*
*
HID keyboard for Apple Mac
01
USB virtual COM
02
Simple COM Port Emulation
03
Keyboard layout
USA
00*
*
Turkish F
01
Turkish Q
02
French
03
Italian
04
Spanish
05
Slovak
06
Denmark
07
Japanese
08
German
09
Belgian
10
Russian
11
Inter-character delay
0 ms
00
5 ms
01*
*
Page 28
22

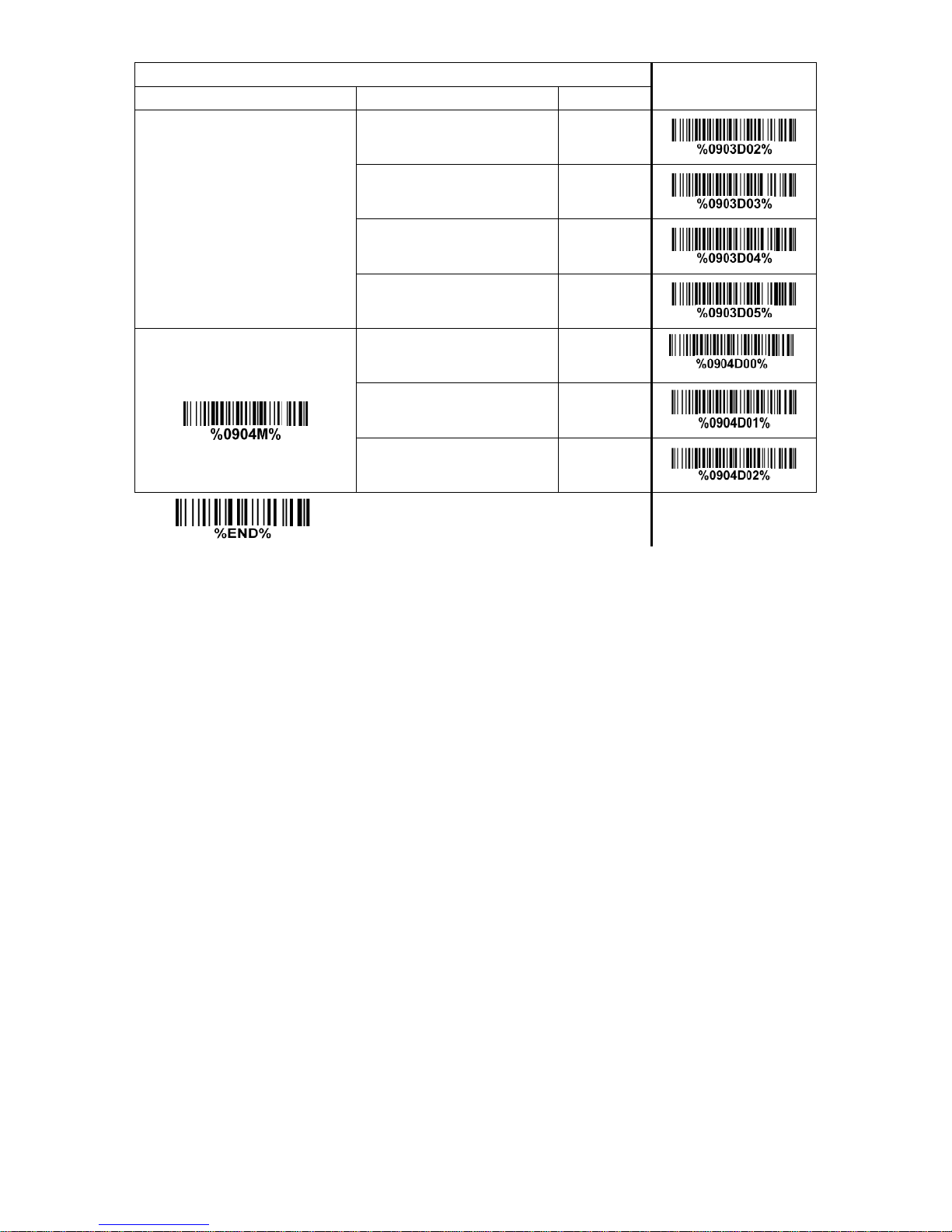

Multiple-scan setting
Single-scan setting
Option bar code
Option
Alpha. entry
10 ms
02
20 ms
03
40 ms
04
60 ms
05
Numeric key
Alphabetic key
00*
*
Numeric keypad
01
Alt + keypad
02
Page 29
23
3-6 Scan mode & some global settings
Scan mode:
Good-read off – The trigger pin must be pulled down once to activate scanning. The scanner stops
scanning when there is a successful reading or no code is decoded after the Scan standby duration
elapsed.
Momentary – Pin TRIG acts as a switch. Pull down pin TRIG to activate scanning and pull up the
trigger to stop scanning. The scanner stops scanning when there is a successful reading or no code
is decoded after the Scan standby duration elapsed.
Alternate – Pin TRIG acts as a toggle switch. Pull pin TRIG to activate or stop scanning.
Continuous – The embedded scanner always keeps scanning, and it does not matter when pin TRIG
is pulled down or Scan standby duration is elapsed.
Host – A START_DECODE command issues the triggering signal. In this mode, the embedded
scanner interprets an actual trigger pull as a Good-read off scanning option. There is a practical
application in 2-6-4 Decode by commands.
Good-read on – The trigger pin must be pulled down once to activate scanning. The scanner stops
scanning when no code is decoded after the Scan standby duration elapsed.
Auto-detection- Good-read off – By setting Enable, the scanner will start scanning if any nearby
object has been detected. The scanner will stop scanning when there is a successful reading or no
code is decoded after the Stand-by duration elapsed. Once the scanner stops scanning, the present
object must be removed to enable Auto-detection.
Auto-detection- Good-read on – By setting Enable, the scanner will start scanning if any nearby
object has been detected. The scanner stops scanning when no code is successful decoded after
the Stand-by duration elapsed. Once the scanner stops scanning, the present object must be
removed to enable Auto-detection.
Image auto-detection sensitivity: It is the sensitivity of scanner to ambient brightness change. Sensitivity
is expressed as a percentage value of ambient light change, in the range of 5% to 50%. The smaller the
percentage value, the higher the sensitivity, the easier the scanner will be triggered.
Same barcode delay time for 1D symbol: If a 1D barcode has been scanned and output once
successfully, the scanner must output the same barcode data beyond delay time. When this feature is
set to be “0xFF”, then the delay time is indefinite.
Same barcode delay time for 2D symbol: If a 2D barcode has been scanned and output once
successfully, the scanner must output the same barcode data beyond delay time. When this feature is
set to be “0xFF”, then the delay time is indefinite.
Double confirm: If it is enabled, the scanner will require a several times of same-decoded-data to confirm
a valid reading.
Global Max./Min. code length for 1D symbol: These two lengths are defined as the valid range of
decoded 1D barcode data length. Make sure that the minimum length setting is no greater than the
maximum length setting, or otherwise the labels of the symbol will not be readable. In particular, the
same value can be set for both minimum and maximum reading length to force the fixed length barcode
Page 30
24
decoded.
Notes:
1. Please set the max./min. length for individual barcode in later sections, if special demand is
requested.
2. The number of check digits is included in max./min. code length.
3. These two settings have no effect on the symbols with fixed-length, e.g. UPC-A, UPC-E, EAN-13,
EAN-8 and China Post.
Global G1-G6 string selection: The scanner offer one or two string group for all symbols. By setting one
or two digits to indicate which string group you want to apply. You may refer to 3-42 G1-G6 & C1-C3 &
FN1 substitution string setting and 3-43 G1-G4 string position & Code ID position.
Example: Group 1 → set 01 or 10. Group 2 and 4 → set 24 or 42.
All valid settings include 00, 01, 02, 03, 04, 05, 06, 10, 11, 12, 13, 14, 15, 16, 20, 21, 22, 23, 24, 25, 26,
30, 31, 32, 33, 34, 35, 36, 40, 41, 42, 43, 44, 45, 46, 50, 51, 52, 53, 54, 55, 56, 60, 61, 62, 63, 64, 65 and
66.
Element amendment: If it is enabled, the scanner can read the barcode comprised with bars and spaces
in different scale.
Character output restraint:
Printable character only- If this option is selected, the scanner will output the printable characters only,
i.e. in ASCII from 20H to 7EH.
Alphanumeric character only- If this option is selected, the scanner will output the alphanumeric
characters only, i.e. “A”-“Z”, “a”-“z”, “0”-“9”.
Decoder optimization: If it is enabled, the scanner will optimize the decoder with error correction. This
function is not effective for all types of barcode.
Data output delay in continue-scan mode: If it is enabled, in the continue-scan mode, the scanner can
store the data while continue-scanning. The scanner will output the data after the predefined delay
elapsed. The maximum storage of data is 1000 characters. If this parameter is set to be “00”, the
scanner will not store data. And if the parameter is set to be “FF”, the scanner will output data after
stopping scanning.
Character encoding system: A character encoding system consists of a code that pairs each character
from a given repertoire. Common examples include Morse code, the Baudot code, the ASCII and
Unicode. If the data received does not display with the proper characters (domestic language, e.g.
Chinese), it maybe because the barcode being scanned was created using a character encoding system
that is different from the one the host program is expecting. Try alternate options to find the proper one.
Complete data output before next decode attempt: This setting is active only when USB device type is
set as “HID keyboard” or “HID keyboard for Apple Mac”, refer to 3-5 USB interface. If it is enabled, the
scanner will not start next decode attempt until previous data output is completed.
Sleep mode: If it is enabled, the scanner will go to sleep when no code is successful decoded after the
Sleep mode delay elapsed.
Sleep mode delay: When no code is successful decoded beyond this time, the scanner will go to sleep.
Page 31
25

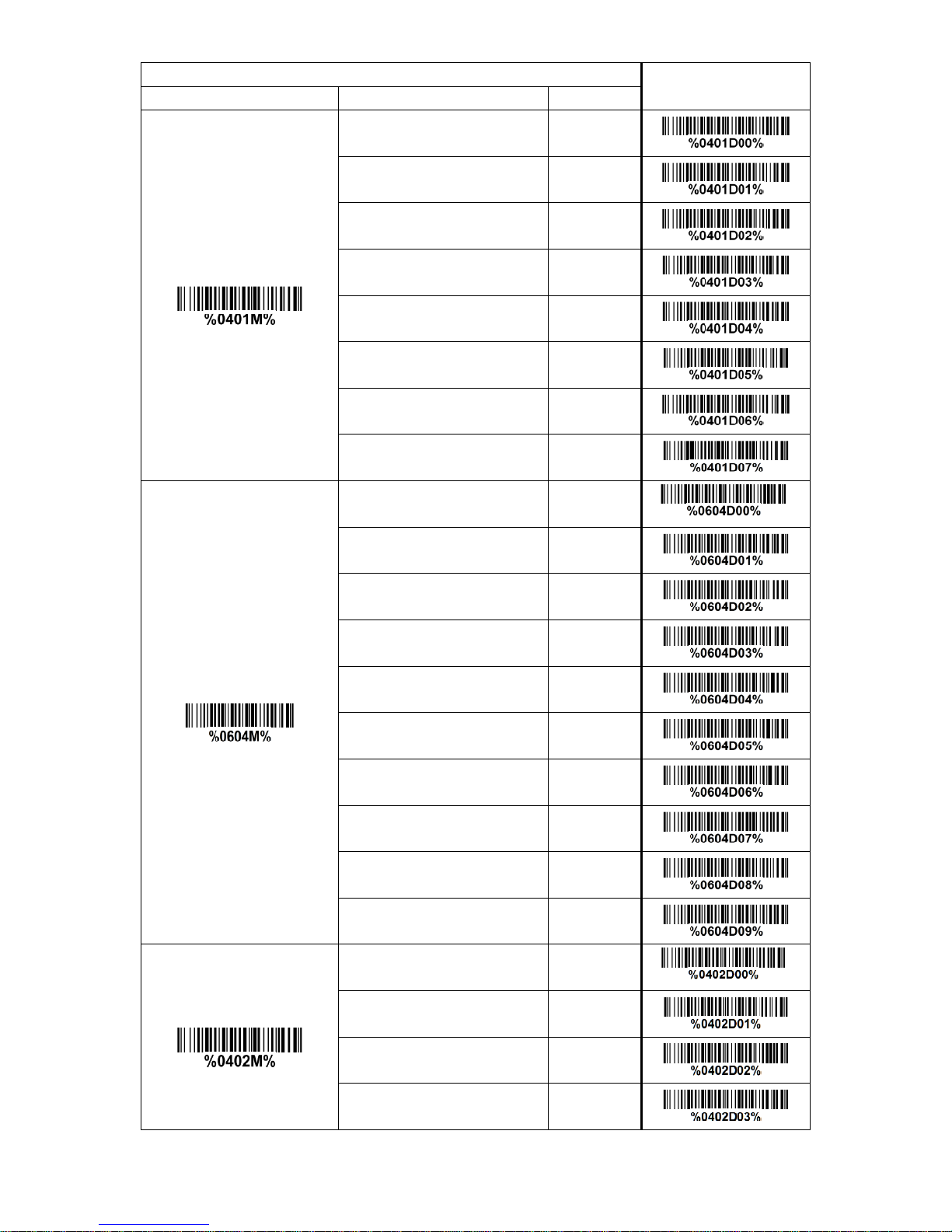

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Scan mode
Good-read off
00
Momentary
01
Alternate continue
02
Continue
03
Time-out off
04
Host
05
Auto-detection- Good-read on
06
Auto-detection- Good-read off
07
Auto-detection sensitivity
5%*
00*
*
10%
01
15%
02
20%
03
25%
04
30%
05
35%
06
40%
07
45%
08
50%
09
Standby duration
4 seconds
00*
*
8 seconds
01
16 seconds
02
24 seconds
03
Page 32
26

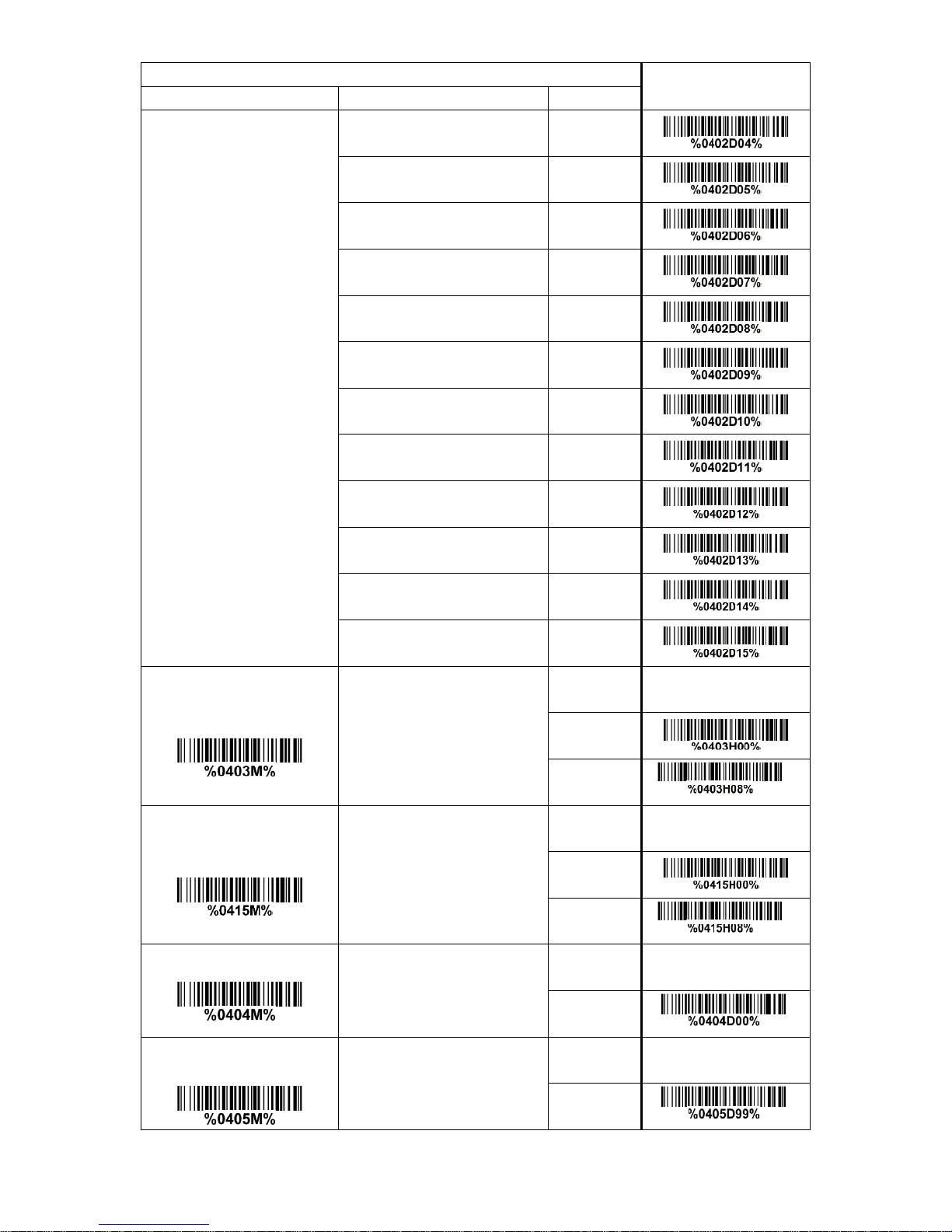

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
30 seconds
04
1 minute
05
1.5 minutes
06
2 minutes
07
5 minutes
08
7 minutes
09
10 minutes
10
15 minutes
11
20 minutes
12
30 minutes
13
45 minutes
14
1 hour
15
Same barcode delay time for
1D symbol
00-FF16 (50 ms)
00-FF16
00
08*
*
Same barcode delay time for
2D symbol
00-FF16 (50 ms)
00-FF16
00
08*
*
Double confirm
00-09 (00: no )
00-09 00*
*
Global max. code length for
1D symbol
04-99
04-99
99*
*
Page 33

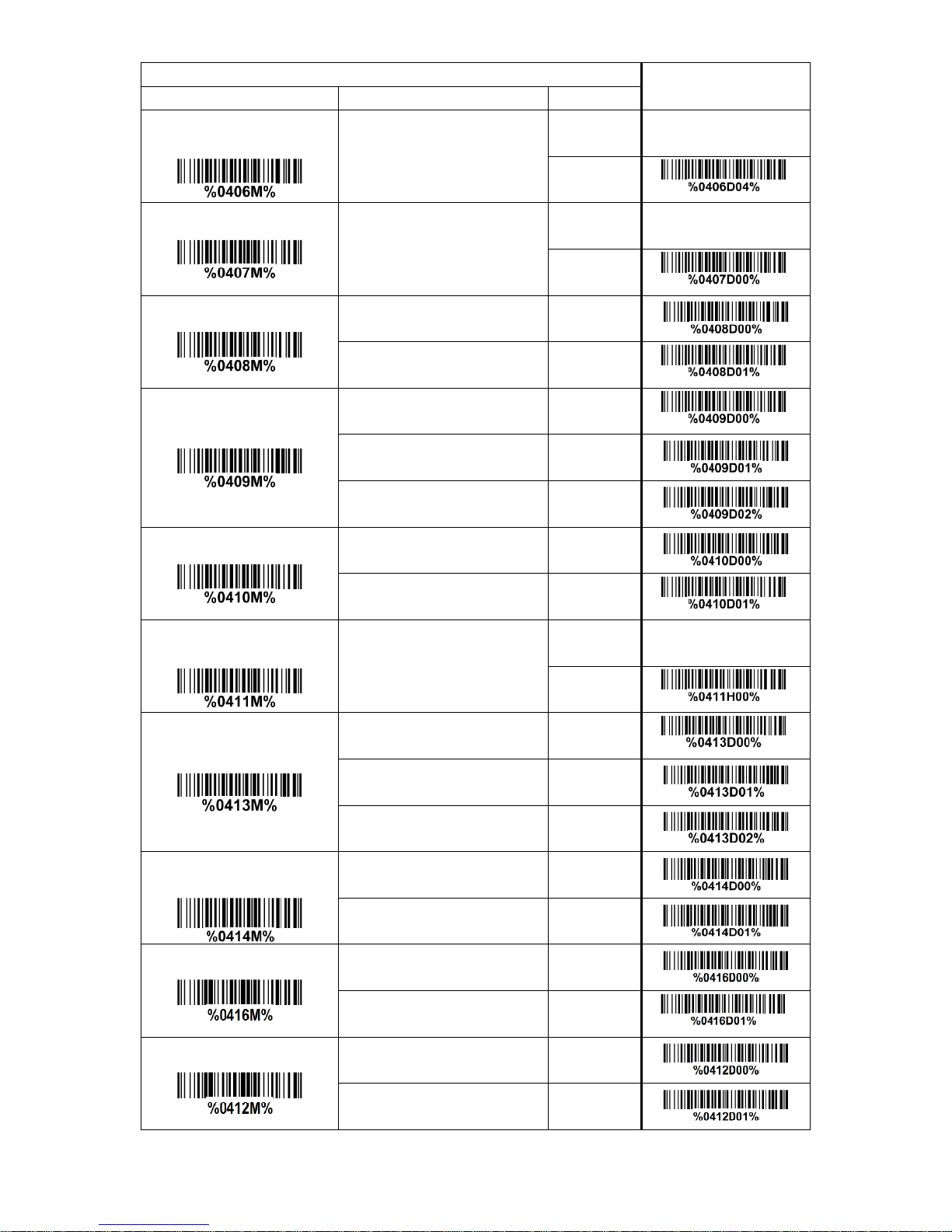

27
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Global min. code length for
1D symbol
01-99
01-99
04*
*
Global G1-G6 string selection
00-66
00-66
00*
*
Element amendment
Disable
00
Enable
01*
*
Character output restraint
None
00*
*
Printable character only
01
Alphanumeric character only
02
Decoder optimization
Disable
00
Enable
01*
*
Data output delay in
continue-scan mode
00-99 (100 ms)
FF (Never)
00-FF16
00*
*
Character encoding system
ASCII
00*
*
UTF-8
01
Windows-1251
02
Complete data output before
next decode attempt
Disable
00*
Enable
01
Sleep mode
Disable
00
Enable
01*
*
Sleep mode delay
1 second
00
5 seconds
01
Page 34
28
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
10 seconds
02
30 seconds
03
60 seconds (1 minute)
04
300 seconds (5 minutes)
05*
*
600 seconds (10 minutes)
06
1800 seconds (30 minutes)
07
3600 seconds (1 hour)
08
10800 seconds (3 hours)
09
Page 35
29
3-7 Indication
Power on alert: After power-on the embedded scanner will generate an alert signal to indicate a
successful self-test.
Beeper indication: After each successful reading, the embedded scanner will beep to indicate a good
barcode reading, and its beep tone duration is adjustable.
Beep on BEL Character: The embedded scanner will beep upon a <BEL> (0x07) character from the
host if it is enabled.

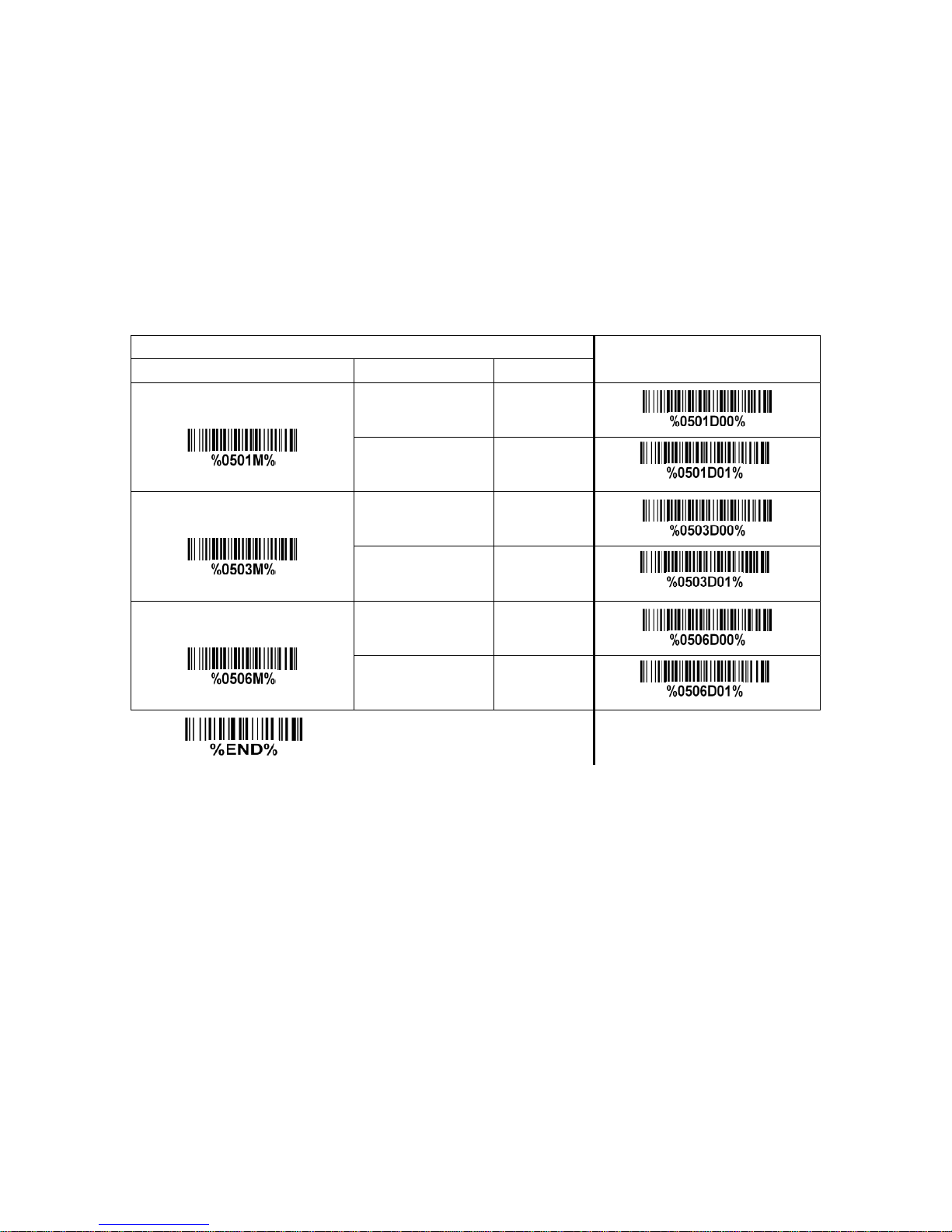

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Power on alert
Disable
00
Enable
01*
*
Beeper indication
Disable
00
Enable
01*
*
Beep on BEL Character
Disable
00
Enable
01*
*
Page 36
30
3-8 Decode illumination mode and Decode aiming pattern
Decode illumination mode: Enable illumination causes the embedded scanner to turn on the illumination
to aid decoding. Disable illumination to turn off illumination for the embedded scanner during decoding.
Better quality images could be obtained with illumination support. The effectiveness of the illumination
decreases as the distance to the target increases.
Decode aiming pattern: When this option is enabled, the embedded scanner will project the aiming
pattern during the code capture.
Level of decode illumination: This parameter can be adjusted for different level of decode illumination.
Illumination mode of Auto-detection:
Always off- Illumination LED will be always turned off.
Enable illumination in low light conditions- In low light conditions, the scanner will turn on illumination
LED automatically to ensure normal work. While in other light conditions, the illumination LED will be
turned off automatically.
Always on- Illumination LED will be always turned on (Default).
Note: This function is only valid in Auto-detection mode.
Page 37
31
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry

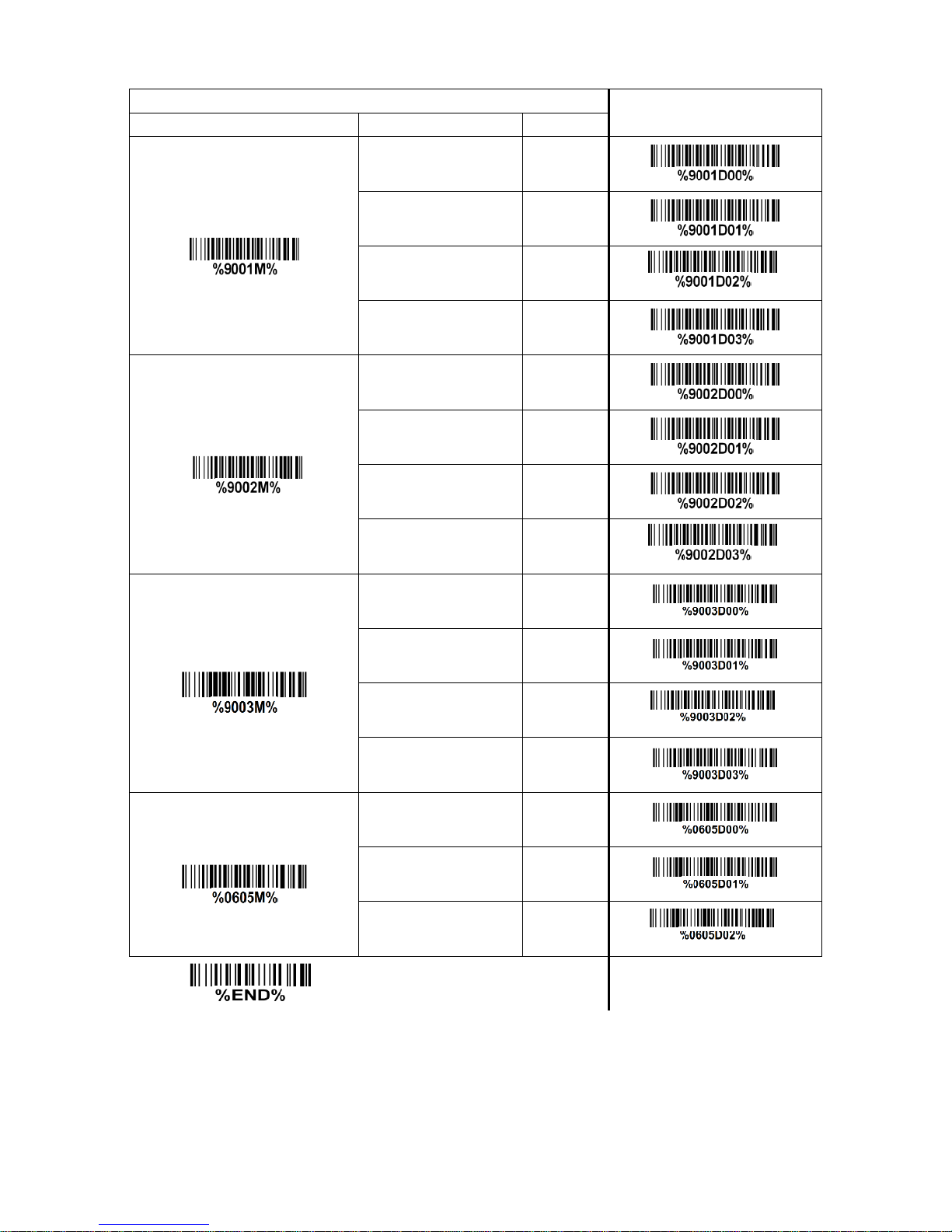

Decode illumination mode
Always Off
00
Always On
01
Flashing
02*
*
On when reading
03
Decode aiming pattern
Always off
00
Always on
01
On before reading
02
On when reading
03*
*
Level of decode illumination
Disable decode
illumination
00
Low
01
Middle
02*
*
High
03
Illumination mode of Auto-detection
Always off
00
Enable illumination in low
light conditions
01
Always on
02*
*
Page 38
32
3-9 Single type of barcode, Multi-symbols, and Vertical centering read
1D symbols read: A global setting of 1D symbols readability.
2D symbols read: A global setting of 2D symbols readability.
Multi-symbols read: By setting enable, the embedded scanner allows to read multiple symbols in one
image. By setting Disable, the embedded scanner will only read the symbol closest to the center area in
the image.
Vertical centering read: By setting enable, the embedded scanner reads only the barcode centered by
the aimer in vertical direction. However, the embedded scanner will read either one of two barcodes
which are positioned horizontally.
Page 39
33
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
1D symbols read
Follow respective 1D
symbol setting
00*
*
All 1D Disable
01
All 1D Enable
02
2D symbols read
Follow respective 2D
symbol setting
00*
*
All 2D Disable
01
All 2D Enable
02
Only PDF417 Enable
03
Only QR code Enable
04
Only Data Matrix Enable
05
Only MaxiCode Enable
06
Only Aztec Code Enable
07
Only Han Xin Code Enable
08
Multi-symbols read
Disable
00*
*
Enable
01
Vertical centering read
Disable
00*
*
Enable
01
Page 40
34
Note: The instruction of calibrating the aimer in vertical centering direction.
1. Scan the barcode (“%initD00%”) on this page. The embedded scanner will give three musical short
beeps to indicate entering calibration mode.
2. Press the trigger of the embedded scanner while maintaining the distance of about 15cm between
the exit window of the embedded scanner and this paper. After a few seconds, the embedded
scanner will give three short beeps to indicate a successful calibration, or a long beep to indicate a
failed calibration.
3. If the calibration is failed in step 2, please repeat the steps 1-2. If it is not succeed after a multiple
times of calibration, please contact your local dealer or the manufacturer for further instruction.
Page 41
35
3-10 DPM, Structured append symbols, and Mobile screen read
DPM format read: By setting Enable, the embedded scanner can read 2D symbols in DPM (Direct Park
Marking) format. Some barcodes in DPM format are shown below.
Structured append symbols read: By setting Enable, the embedded scanner will output data only when
all Structured Append symbols have been decoded. The symbol types which support Structured Append
include QR code, Aztec code, PDF417 and DataMatrix. The lower part of below figure shows an
example of four Structured Append symbols, with the same data as that in the upper QR code symbol.
Single symbol (above) and Structured Append series of symbols (below) encoding
“ABCDEFGHIJKMNOPQRSTUVWXYZ0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ”
Mobile screen read: By setting enable, the embedded scanner can read barcodes on a mobile screen
better. However, this will slow the reading speed of normal barcodes a little bit.
Page 42
36
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry

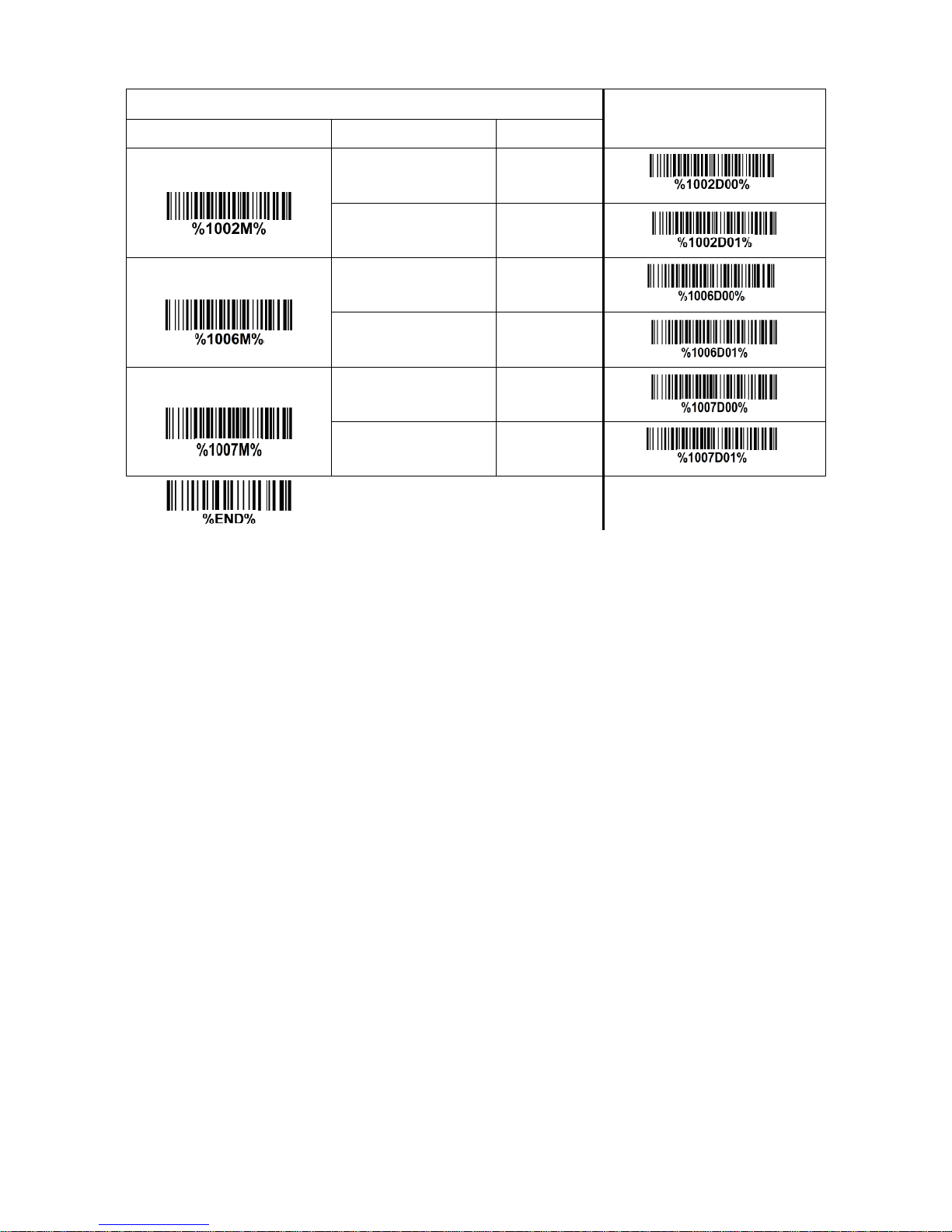

DPM format read
Disable
00*
*
Enable
01
Structured append symbols read
Disable
00*
*
Enable
01
Mobile screen read
Disable
00
Enable
01*
*
Page 43
37

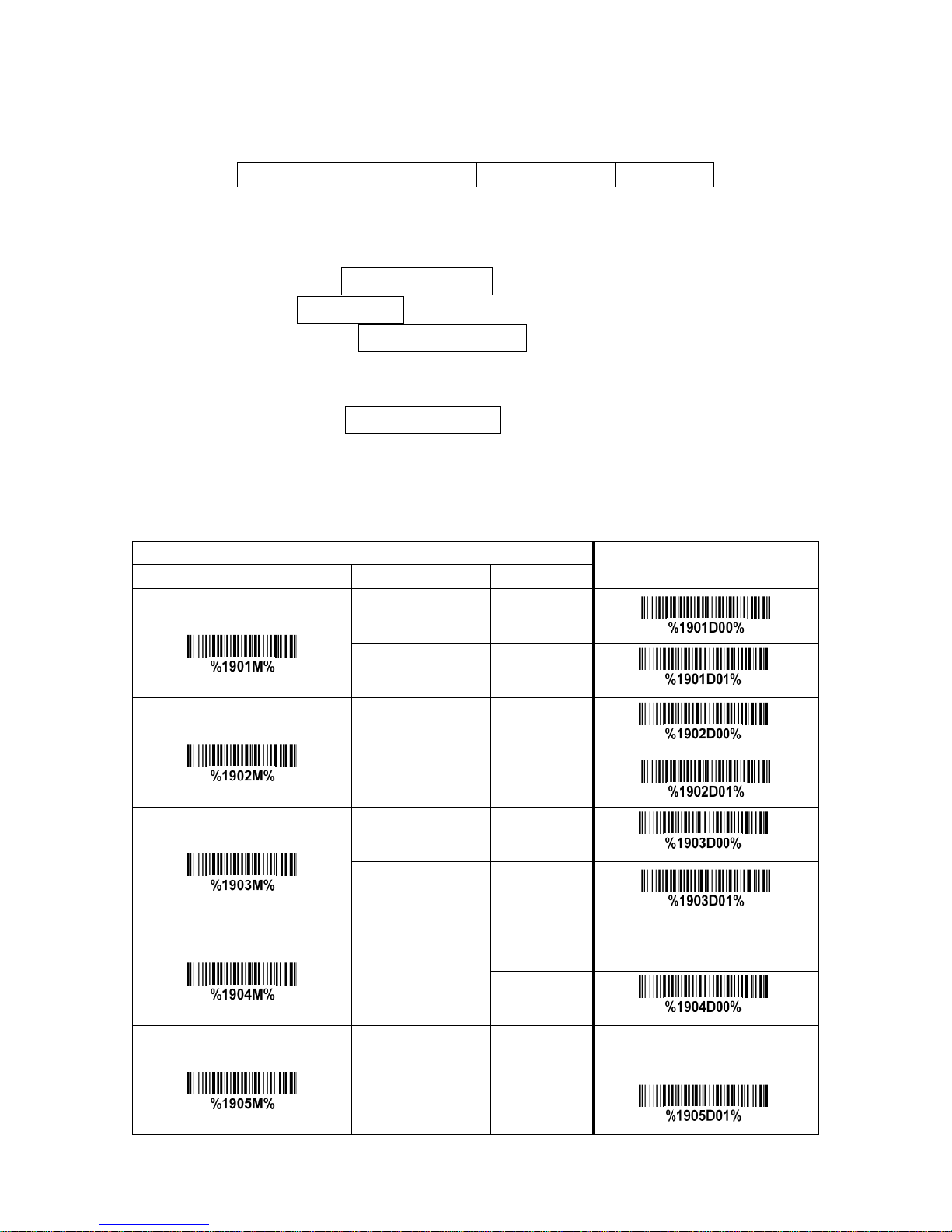

3-11 UPC-A
Read:
Format
System character
Data digits (10 digits)
Check digit
Check digit verification: The check digit is optional.
Check digit trans.: By setting Enable, check digit will be transmitted.
Code ID setting: Code ID is a one-two-character string used to represent the symbol upon a
succeeding reading. If you want application to transmit Code ID, you must set Code ID transmission to
be enabled. Refer to 3-46 String transmission.
Insertion group selection: Refer to Global insertion group selection of 3-6 Scan mode & some global
settings.
Supplement digits: The Supplement digits barcode is the supplemental 2 of 5 characters.
Format
System character
Data digits (10 digits)
Check digit
Supplement digits 2 of 5
Truncation/Expansion:
Truncate leading zeros - The leading “0” digits of UPC-A data characters can be truncated when the
feature is enabled.
Example: Barcode “001234567895”,
Output: “1234567895”.
Expand to EAN-13 - It extends to 13-digits with a “0” leading digit when the feature is enabled.
Example: Barcode “001234567895”,
Output: “0001234567895”.
Truncate system character - The system character of UPC-A data can be truncated when the
feature is enabled.
Example: Barcode “001234567895”,
Output: “01234567895”.
Add country code - The country code (“0” for USA) can be added when the feature is enabled.
Example: Barcode “001234567895”,
Output: “0001234567895”.
Page 44
38
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00
Enable
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<A>*
*
Insert group selection
00-66
00-66 00*
*
Supplement digits
None
00*
*
2 digits
01
5 digits
02
2 or 5 digits
03
Truncation/Expansion
None
00*
*
Truncate leading
zeros
01
Expand to EAN-13
02
Truncate system
character
03
Add country code
04
Page 45
39
3-12 UPC-E
Read:
Format
System character “0”
Data digits (6 digits)
Check digit
Check digit verification: The check digit is optional.
Check digit trans.: By setting Enable, check digit will be transmitted.
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Supplement digits:
Format
System character “0”
Data digits (6 digits)
Check digit
Supplement digits 2 of 5
Truncation/Expansion:
Truncate leading zeros - The leading “0” digits of UPC-E data characters can be truncated when the
feature is enabled.
Example: Barcode “00123457”,
Output: “123457”.
Expand to EAN-13 - It extends to 13-digits with a “0” leading digit when the feature is enabled.
Example: Barcode “00123457”,
Output: “0001234000057”.
Expand to UPC-A - It extends to 12-digits when the feature is set to be enabled.
Example: Barcode “00123457”,
Output: “001234000057”.
Truncate system character - The system character “0” of UPC-E data can be truncated when the
feature is enabled.
Example: Barcode “00123457”,
Output: “0123457”.
Add country code - The country code (“0” for USA) can be added when the feature is enabled.
Example: Barcode “00123457”,
Output: “000123457”.
Page 46
40
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00
Enable
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<D>*
*
Insert group selection
00-66
00-66
00*
*
Supplement digits
None
00*
*
2 digits
01
5 digits
02
2 or 5 digits
03
Truncation/Expansion
None
00*
*
Truncate leading zeros
01
Expand to EAN-13
02
Expand to UPC-A
03
Truncate system character
04
Add country code
05
Page 47
41
3-13 UPC-E1
Read:
Format
System character “1”
Data digits (6 digits)
Check digit
Check digit verification: The check digit is optional.
Check digit trans.: By setting Enable, check digit will be transmitted.
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Supplement digits:
Format
System character “1”
Data digits (6 digits)
Check digit
Supplement digits 2 of 5
Truncation/Expansion:
Expand to EAN -13 - It extends to 13-digits with “0” digits when the feature is enabled.
Example: Barcode “10012341”,
Output: “0100120000031”.
Expand to UPC-A - It extends to 12-digits when the feature is set to be enabled.
Example: Barcode “10012341”,
Output: “100120000031”.
Truncate system character - The system character “1” of UPC-E1 data can be truncated when the
feature is enabled.
Example: Barcode “10012341”,
Output: “0012341”.
Add country code - The country code (“0” for USA) can be added when the feature is enabled.
Example: Barcode “10012341”,
Output: “010012341”.
Page 48
42

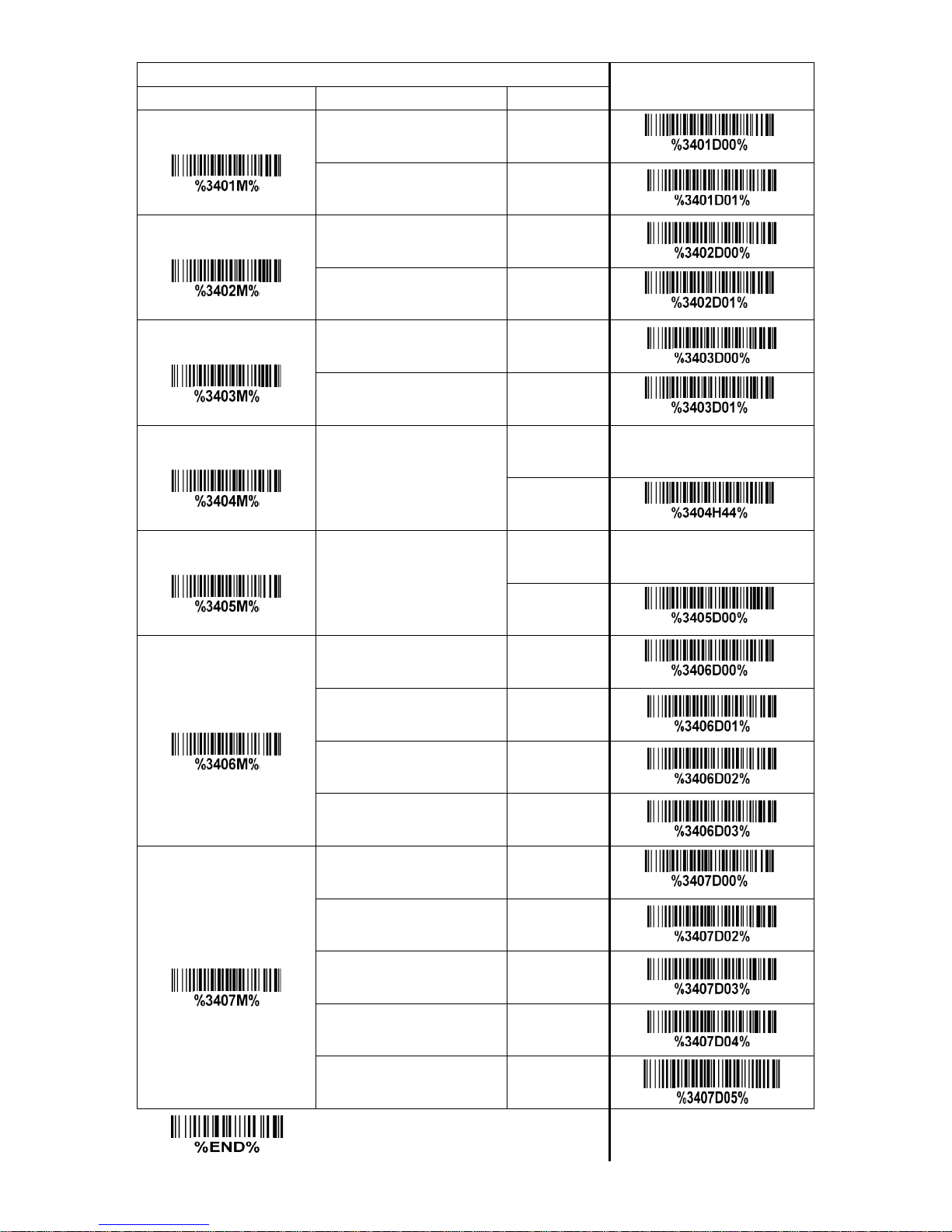

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00*
*
Enable
01
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00
Enable
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<D>*
*
Insert group selection
00-66
00-66 00*
*
Supplement digits
None
00*
*
2 digits
01
5 digits
02
2 or 5 digits
03
Truncation/Expansion
None
00*
*
Expand to EAN-13
02
Expand to UPC-A
03
Truncate system character
04
Add country code
05
Page 49
43

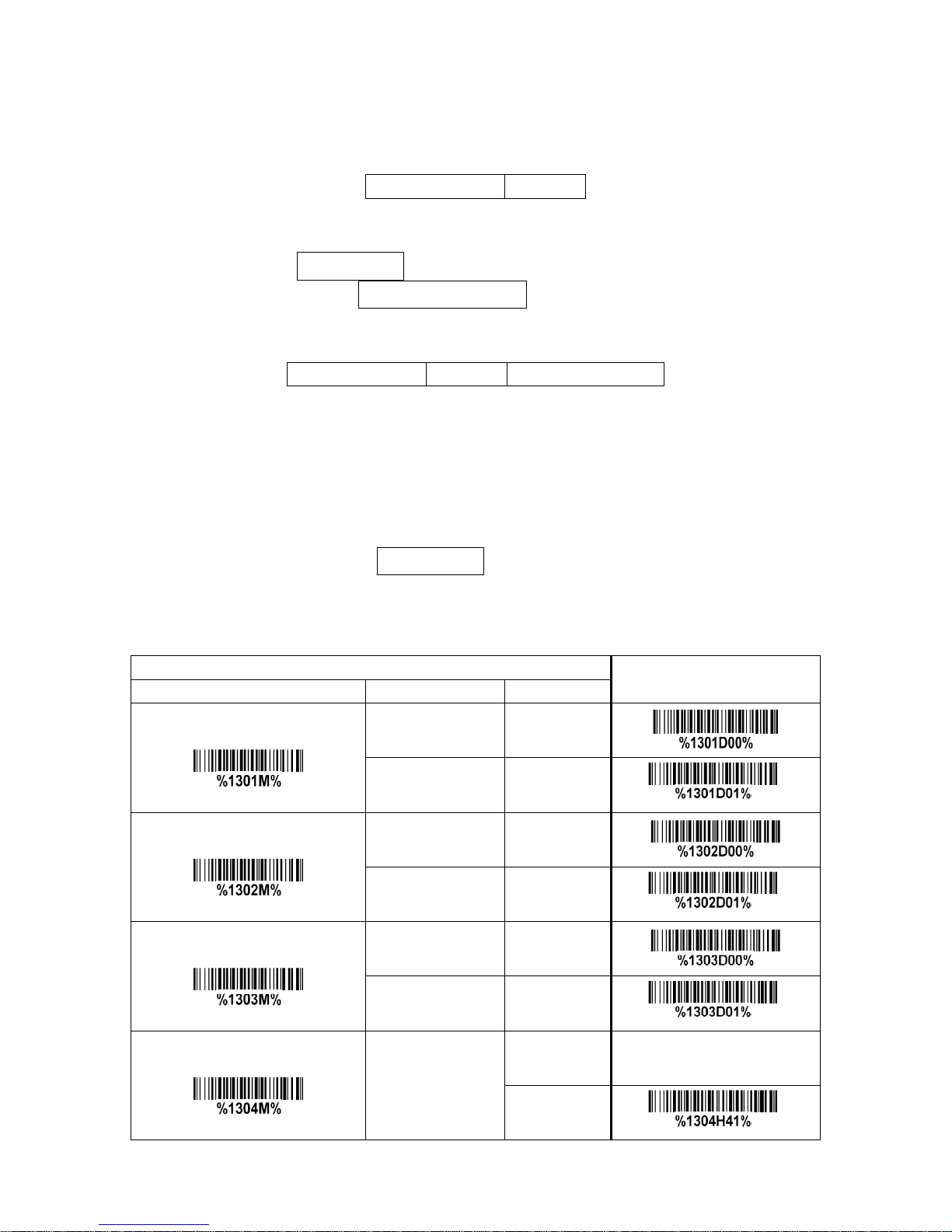

3-14 EAN-13
Read:
Format
Data digits (12 digits)
Check digit
Check digit verification: The check digit is optional.
Check digit trans.: By setting Enable, check digit will be transmitted.
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Supplement digits:
Format
Data digits (12 digits)
Check digit
Supplement digits 2 of 5
ISBN/ISSN conversion: The ISBN (international Standard Book Number, or Bookland EAN) and ISSN
(International Standard Serial Number) are two kinds of barcode for books and magazines. The ISBN
is 10 digits with leading “978” and the ISSN is 8 digits with leading “977” of the EAN-13.
Example:
Barcode “9780194315104”, Output: “019431510X”.
Barcode “9771005180004”, Output: “10051805”.
ISBN/ISSN Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00
Enable
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<A>*
*
Page 50
44

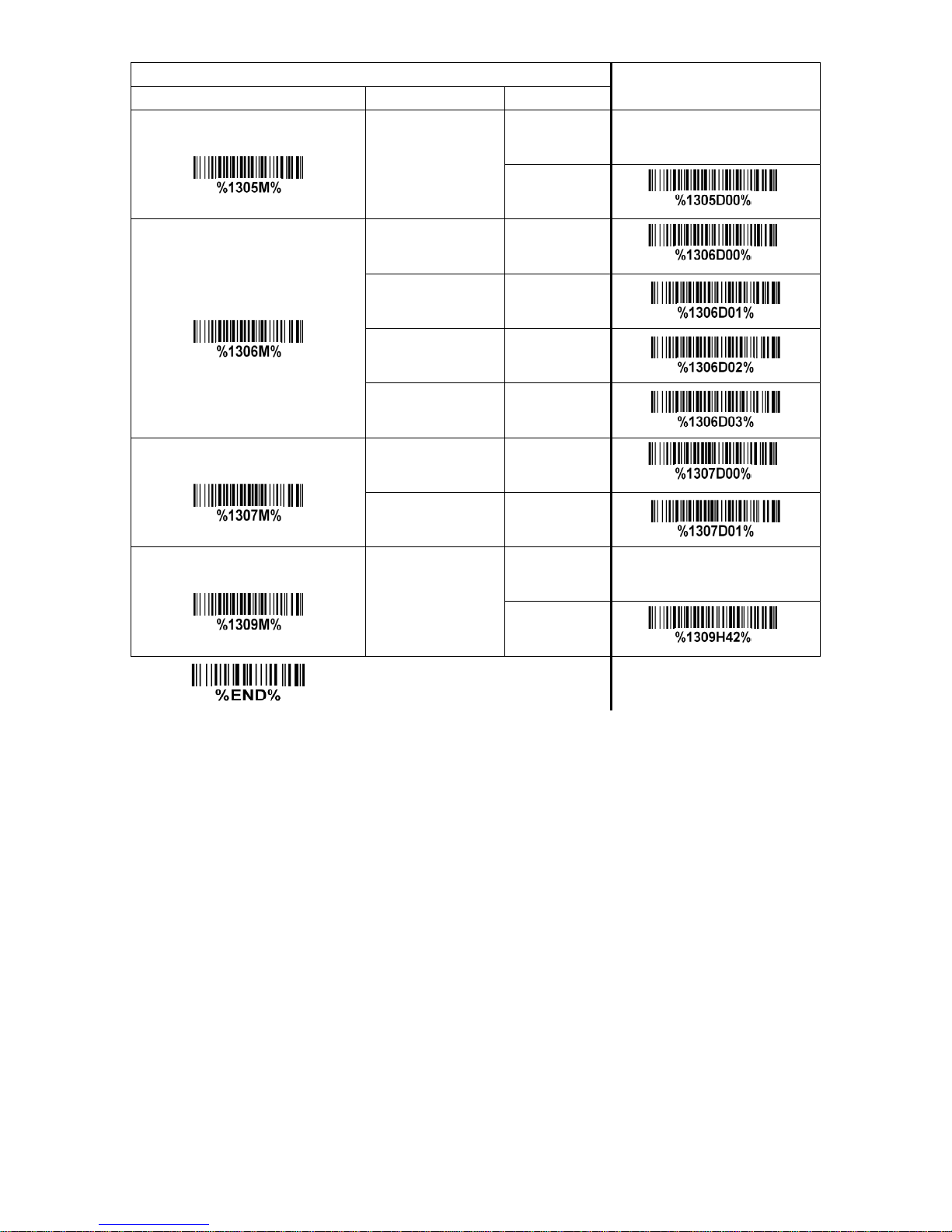

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Insert group selection
00-66
00-66
00*
*
Supplement digits
None
00*
*
2 digits
01
5 digits
02
2 or 5 digits
03
ISBN/ISSN conversion
Disable
00*
*
Enable
01
ISBN/ISSN Code ID setting
00-FF
16
(ASCII)
00-FF16
<B>*
*
Page 51
45
3-15 EAN-8
Read:
Format
Data digits (7 digits)
Check digit
Check digit verification: The check digit is optional.
Check digit trans.: By setting Enable, check digit will be transmitted.
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Supplement digits:
Format
Data digits (7 digits)
Check digit
Supplement digits 2 of 5
Truncation/Expansion: Refer to Truncation/Expansion of 3-11 UPC-A.
Page 52
46

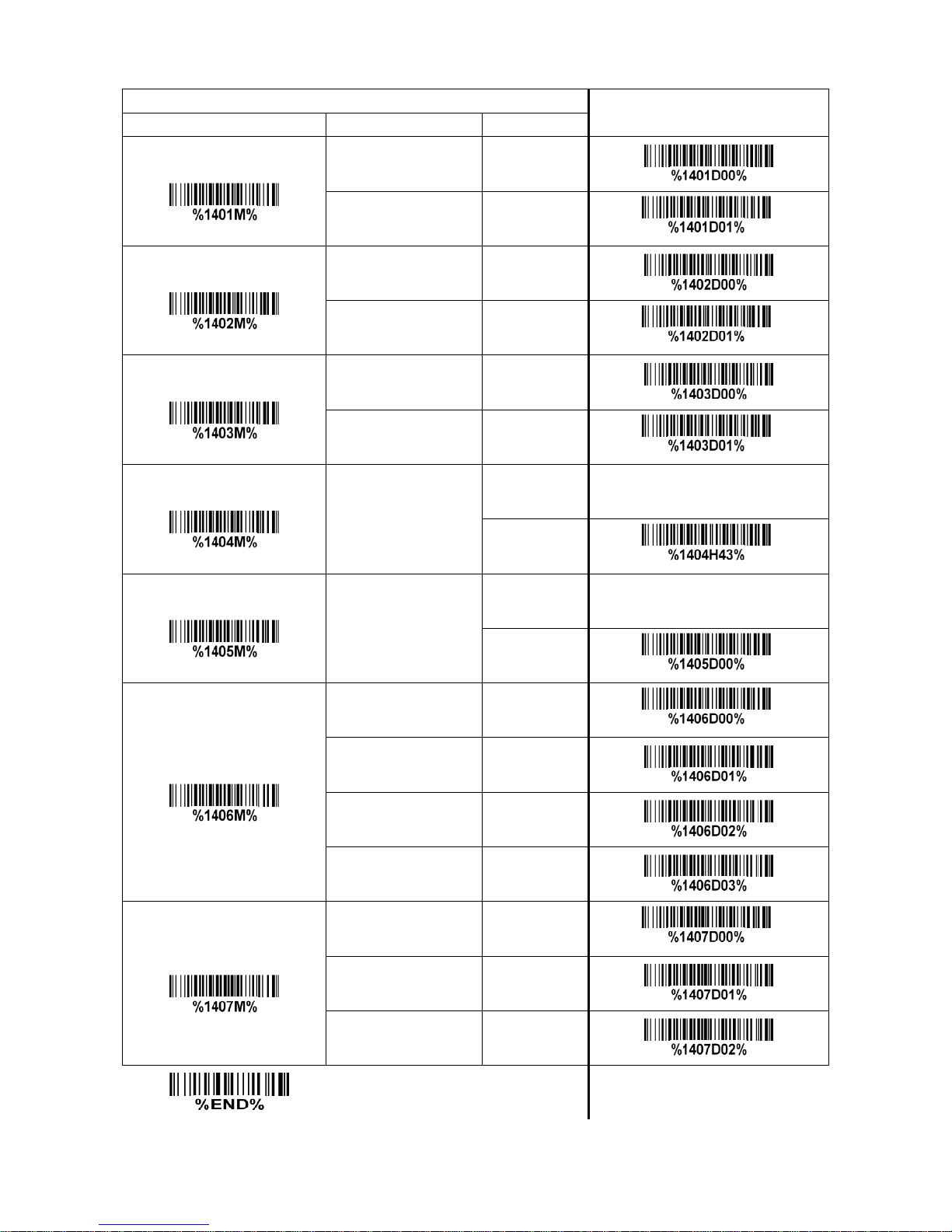

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00
Enable
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<C>*
*
Insert group selection
00-66
00-66
00*
*
Supplement digits
None
00*
*
2 digits
01
5 digits
02
2 or 5 digits
03
Truncation/Expansion
None
00*
*
Truncate leading zero
01
Expand to EAN-13
02
Page 53
47
3-16 Code 39 (Code 32, Trioptic Code 39)
Read:
Format
Start character(*)
Data digits (variable)
Check digit (optional)
End character(*)
Check digit verification: The check digit is optional and made as the sum module 43 of the numerical
value of the data digits.
Check digit trans.: By setting Enable, check digit will be transmitted.
Max./Min. code length: Each symbol has own max./min. code length. If both setting of max./min. code
length are “00”, the setting of global max./min. code length is effective. The length is defined as to the
actual barcode data length to be sent. Label with length exceeds these limits will be rejected. Make
sure that the minimum length setting is no greater than the maximum length setting or otherwise all
labels of the symbol will bet be readable. In particular, you can see the same value for both minimum
and maximum reading length to force the fixed length barcode decoded.
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Start/End transmission: The start and end characters of Code 39 are “*”. You can transmit all data
digits including two “*”.
“*” as data character: By setting Enable, “*” can be recognized as data character.
Convert Code 39 to Code 32: Code 32 is a variant of Code 39 used by the Italian pharmaceutical
industry. Note that code 39 must be enabled in order for this parameter to function.
Format of Code 32
“A”(optional)
Data digits (8 digits)
Check digit
Code 32 Prefix “A” transmission: By setting Enable, the prefix character “A” can be added to all Code
32 barcodes.
Trioptic Code 39 read: Trioptic Code 39 is a variant of Code 39 used in the marking of magnetic tapes
and computer cartridges. Trioptic Code 39 symbols always contain six characters.
Format
Start character(＄)
Data digits (8 digits)
End character(＄)
Trioptic Code 39 Start/End transmission: The start and end characters of Trioptic Code 39 are “＄”. All
data digits including two “＄” can be transmitted.
Page 54
48
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00
Enable
01*
*
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<M>*
*
Insert group selection
00-66
00-66
00*
*
Format
Standard
00*
*
Full ASCII
01
Start/End transmission
Disable
00*
*
Enable
01
Page 55
49

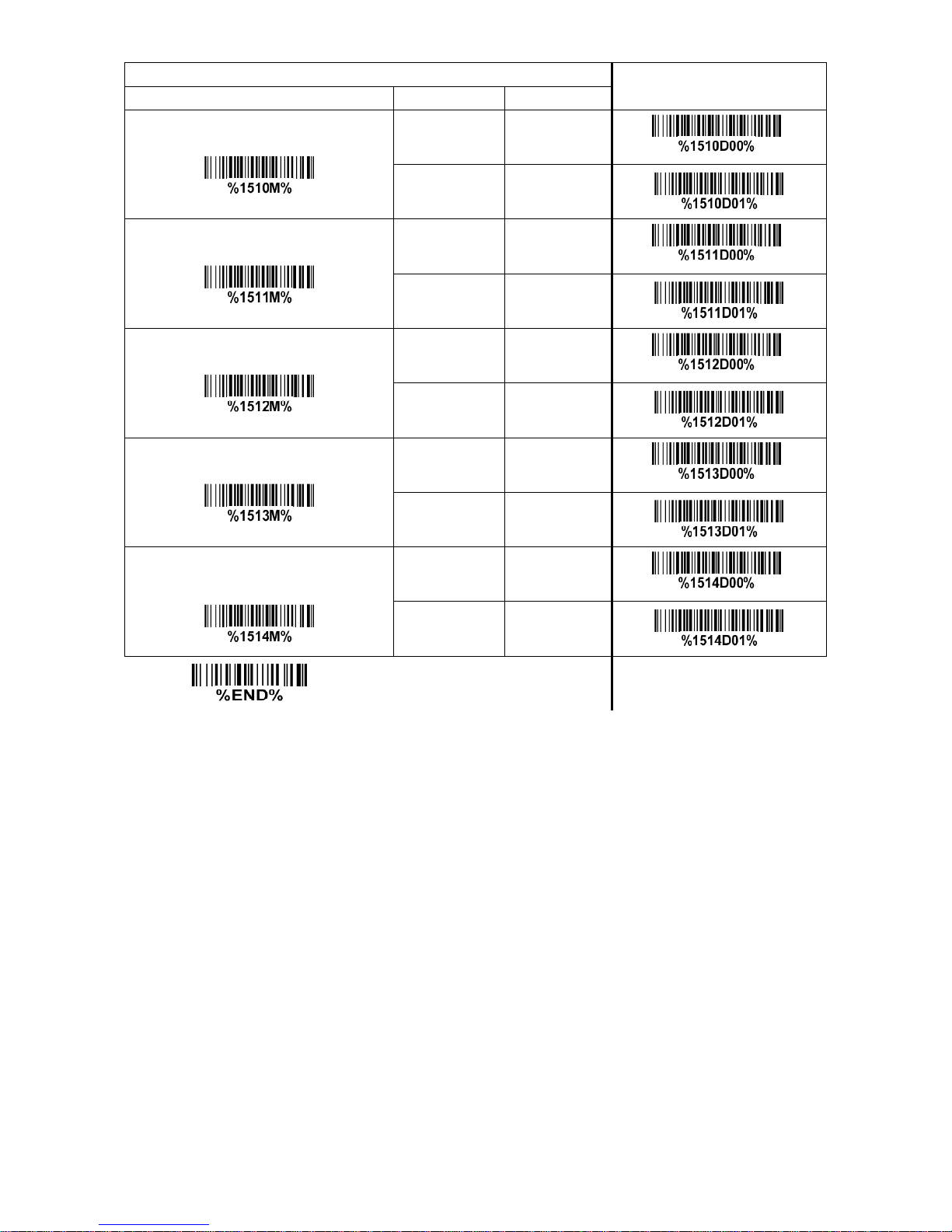

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
“*” as data character
Disable
00*
*
Enable
01
Convert Code 39 to Code 32
Disable
00*
*
Enable
01
Code 32 prefix “A” transmission
Disable
00*
*
Enable
01
Trioptic Code 39 read
Disable
00*
*
Enable
01
Trioptic Code 39
Start/End transmission
Disable
00*
*
Enable
01
Page 56
50
3-17 Interleaved 2 of 5
Read:
Format
Data digits (variable)
Check digit (optional)
Check digit verification: The check digit is made as the sum module 10 of the numerical value of the
data digits. There are two optional check digit algorithms: the specified Uniform Symbol Specification
(USS) and the Optical Product Code Council (OPCC).
Check digit trans.: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Page 57
51

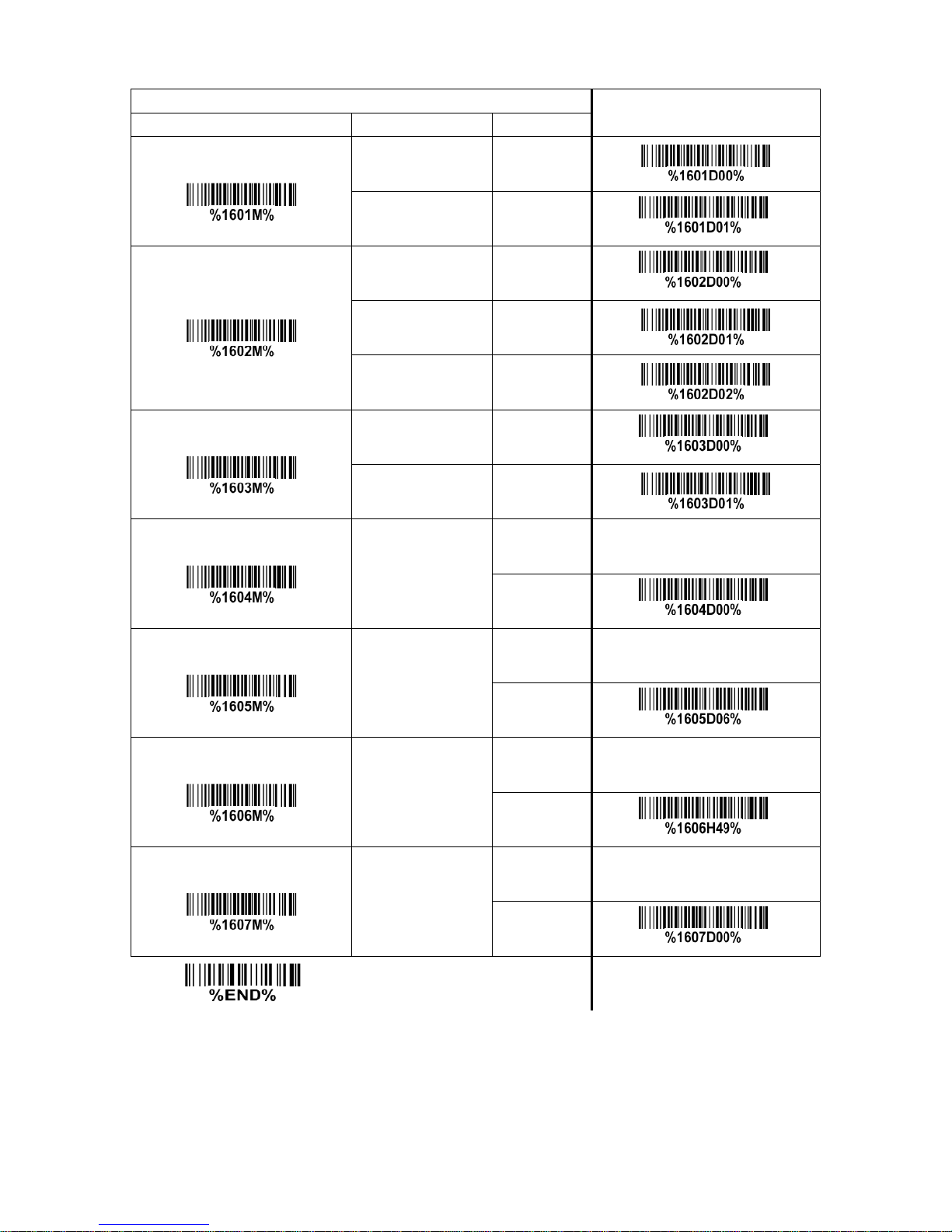

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00*
*
USS
01
OPCC
02
Check digit trans.
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
06*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<I>*
*
Insert group selection
00-66
00-66
00*
*
Page 58
52

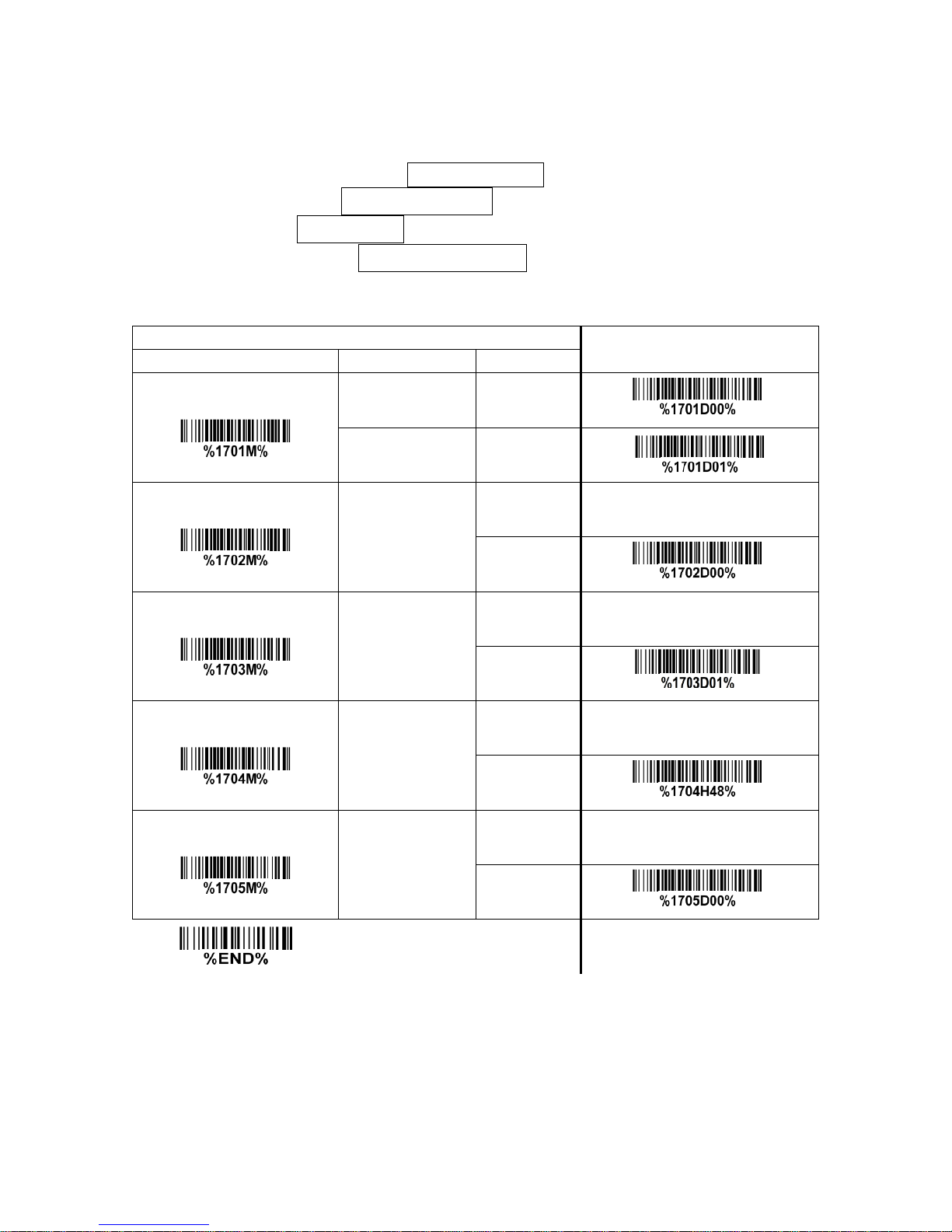

3-18 Industrial 2 of 5
Read:
Format
Data digits (variable)
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
00*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<H>*
*
Insert group selection
00-66
00-66
00*
*
Page 59
53
3-19 Matrix 2 of 5
Read:
Format
Data digits (variable)
Check digit (optional)
Check digit verification: The check digit is made as the sum module 10 of the numerical value of the
data digits.
Check digit trans.: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Page 60
54

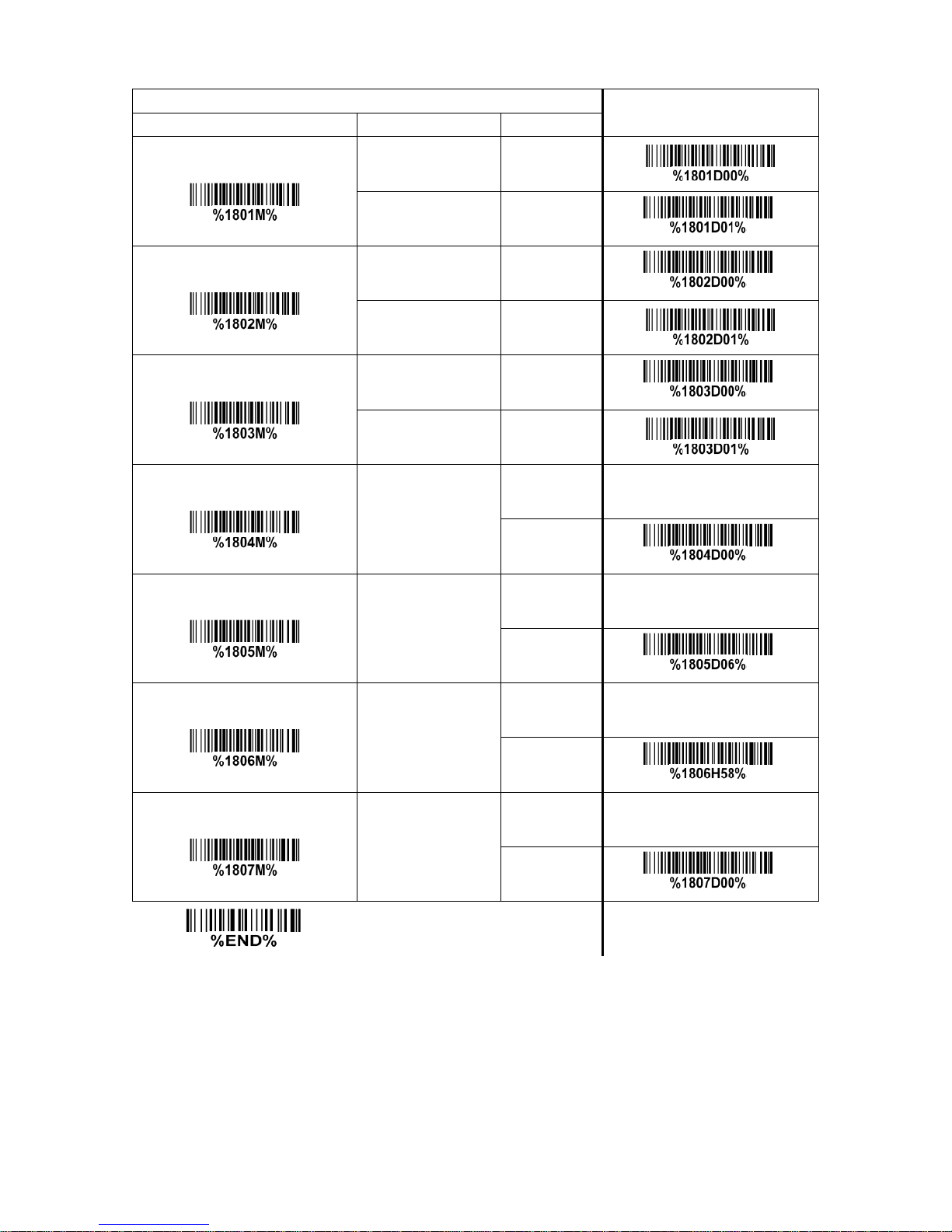

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00*
*
Enable
01
Check digit trans.
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
06*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<X>*
*
Insert group selection
00-66
00-66
00*
*
Page 61
55
3-20 Codabar
Read:
Format
Start character
Data digits (variable)
Check digit (optional)
End character
Check digit verification: The check digit is made as the sum module 16 of the numerical value of the
data digits.
Check digit trans.: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Start/End Type: Codabar has four pairs of Start/End Pattern; you may select one pair to match your
application.
Start/End transmission: Refer to Start/End transmission of 3-16 Code 39 (Code 32, Trioptic Code 39).
Start/End character equality: By setting Enable, the start and end character of a Codabar barcode
must be the same.
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00*
*
Enable
01
Check digit trans.
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
01*
*
Page 62
56

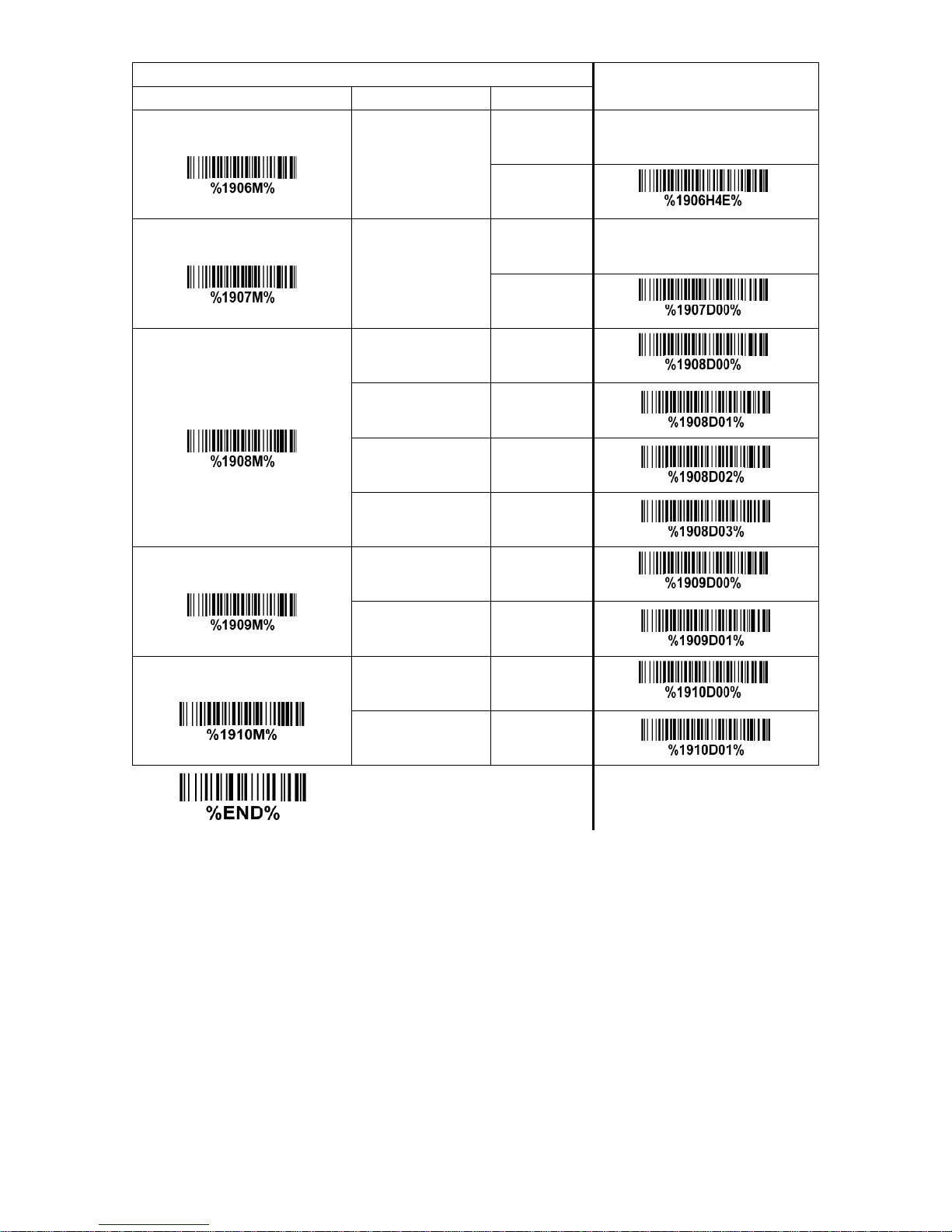

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Code ID setting
00-FF
16
(ASCII)
00-FF16
<N>*
*
Insert group selection
00-66
00-66
00*
*
Start/End type
ABCD/ABCD
00*
*
abcd/abcd
01
ABCD/TN*E
02
abcd/tn*E
03
Start/End transmission
Disable
00*
*
Enable
01
Start/End character equality
Disable
00*
*
Enable
01
Page 63
57
3-21 Code 128
Read:
Format
Data digits (variable)
Check digit (optional)
Check digit verification: The check digit is made as the sum module 103 of all data digits.
Check digit trans.: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Truncate leading zeros: The leading “0” digits of Code 128 barcode characters can be truncated when
the feature is enabled.
Page 64
58

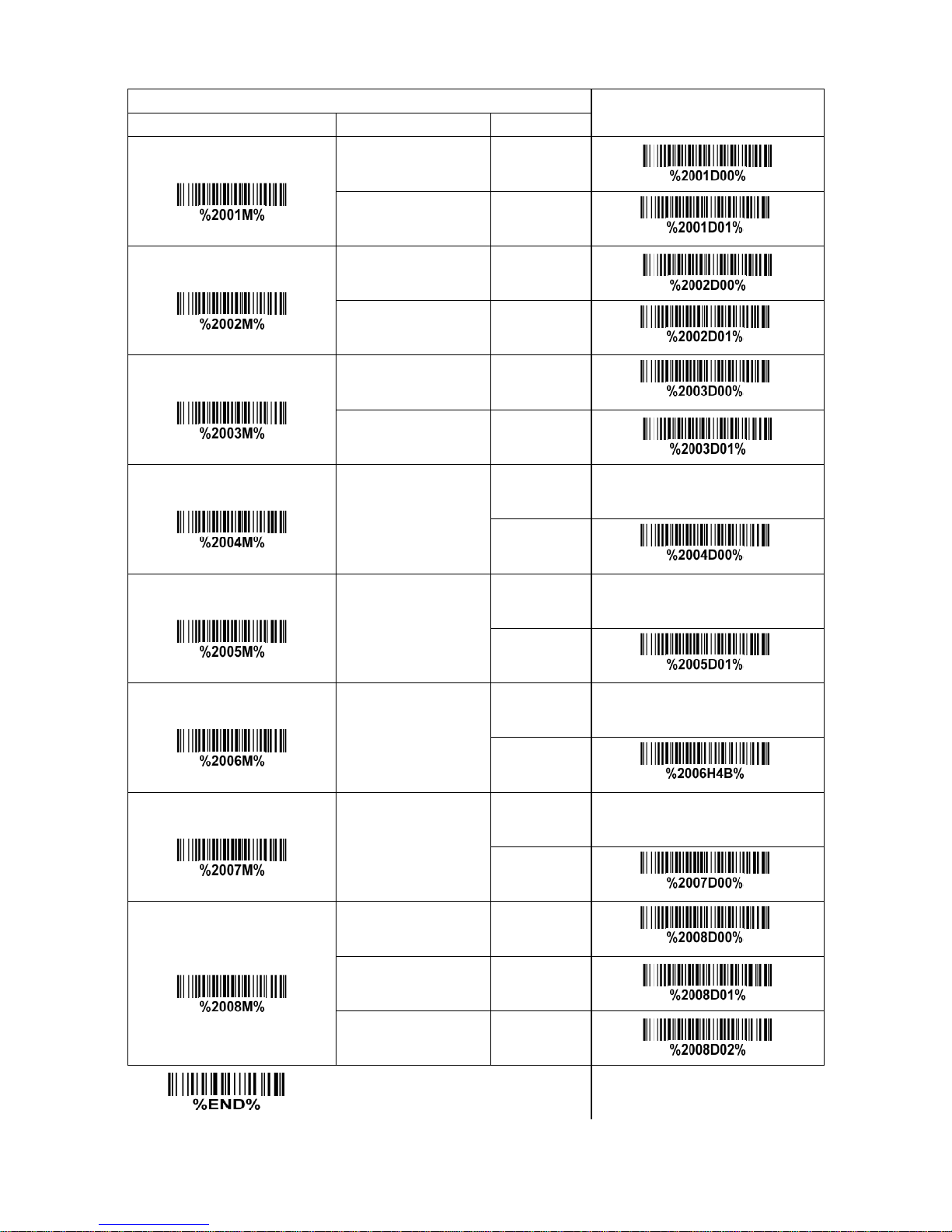

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<K>*
*
Insert group selection
00-66
00-66
00*
*
Truncate leading zeros
Disable
00*
*
All leading “0”
01
Only the first “0”
02
Page 65
59
3-22 UCC/EAN 128 (GS1-128)
Read:
Format
Data digits (variable)
Check digit (optional)
Check digit verification: The check digit is made as the sum module 103 of all data digits.
Check digit trans.: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Truncate leading zeros: Refer to Truncate leading zeros of 3-21 Code 128.
Page 66
60
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<K>*
*
Insert group selection
00-66
00-66
00*
*
Truncate leading zeros
Disable
00*
*
All leading “0”
01
Only the first “0”
02
Page 67
61
3-23 ISBT 128
Read:
Format
“=” or “&”
Data digits (variable)
Check digit (optional)
Check digit verification: The check digit is made as the sum module 103 of all data digits.
Check digit trans.: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Page 68
62

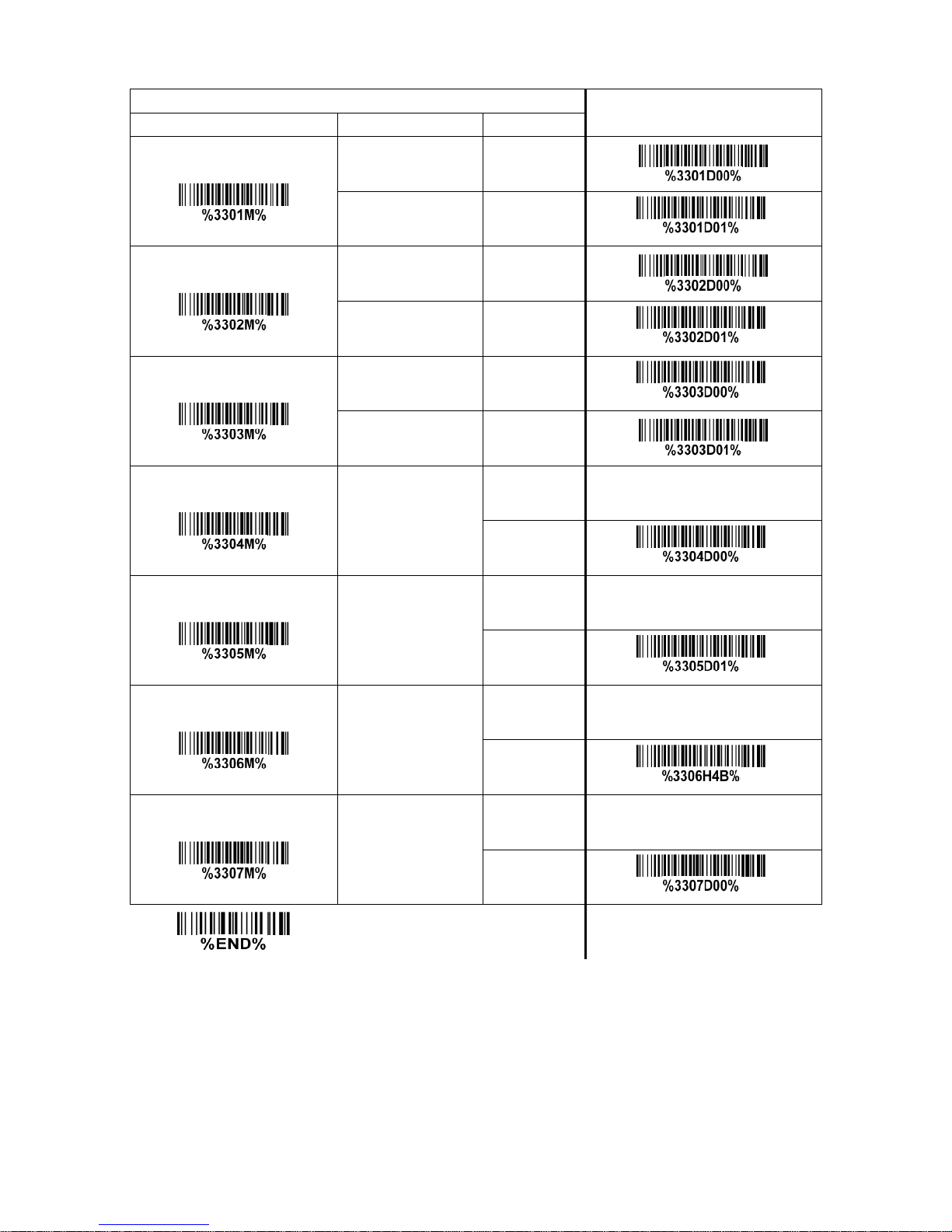

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00*
*
Enable
01
Max. code length
00-99
00-99 00*
*
Min. code length
00-99
00-99 01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<K>*
*
Insert group selection
00-66
00-66 00*
*
Page 69
63
3-24 Code 93
Read:
Format
Data digits (variable)
2 Check digit (optional)
Check digit verification: The check digit is made as the sum module 47 of all data digits.
Check digit trans.: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Page 70
64

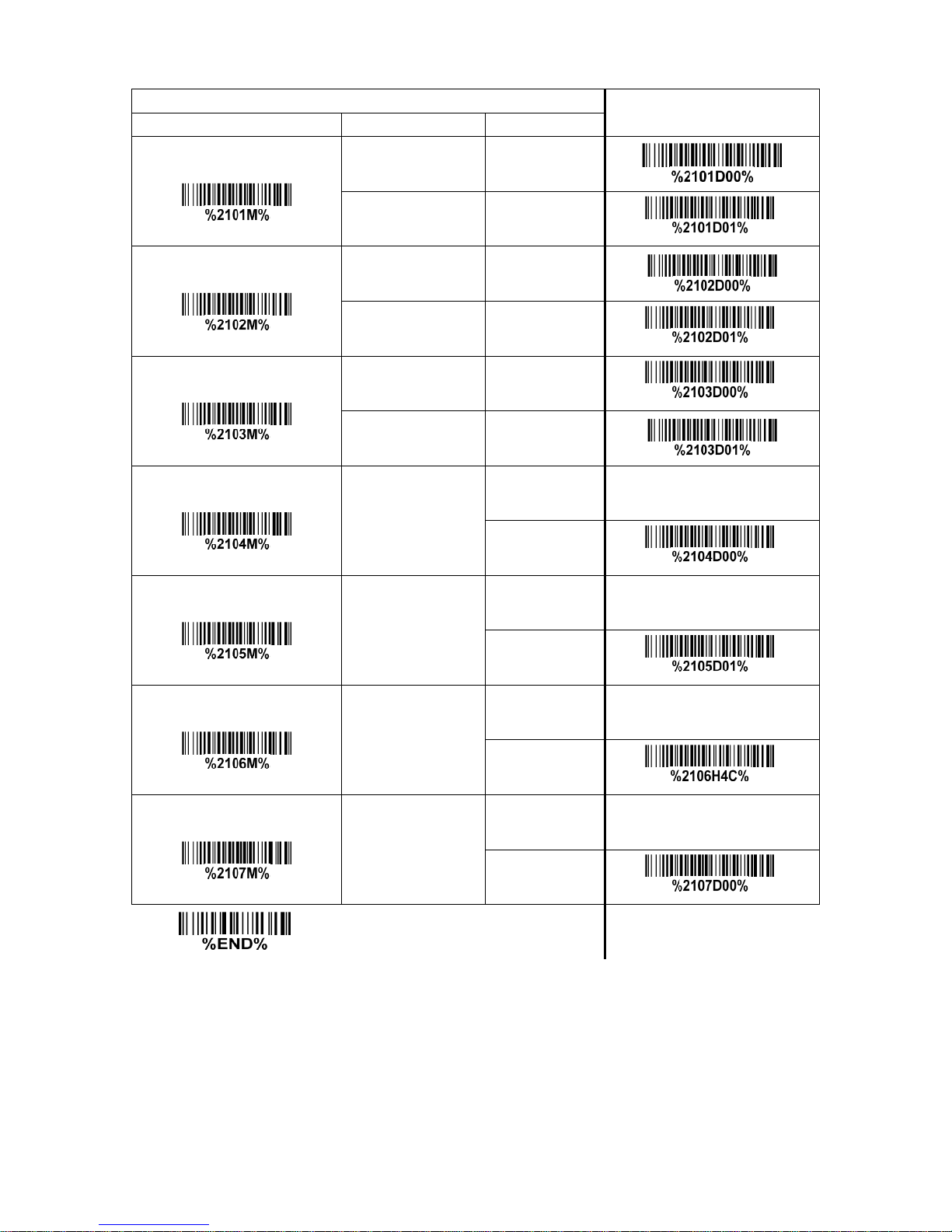

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00*
*
Enable
01
Max. code length
00-99
00-99 00*
*
Min. code length
00-99
00-99 01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<L>*
*
Insert group selection
00-66
00-66 00*
*
Page 71
65
3-25 Code 11
Read:
Format
Data digits (variable)
Check digit 1 (optional)
Check digit 2 (optional)
Check digit verification: The check digit is made as the sum module 11 of all data digits.
Check digit trans.: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Page 72
66

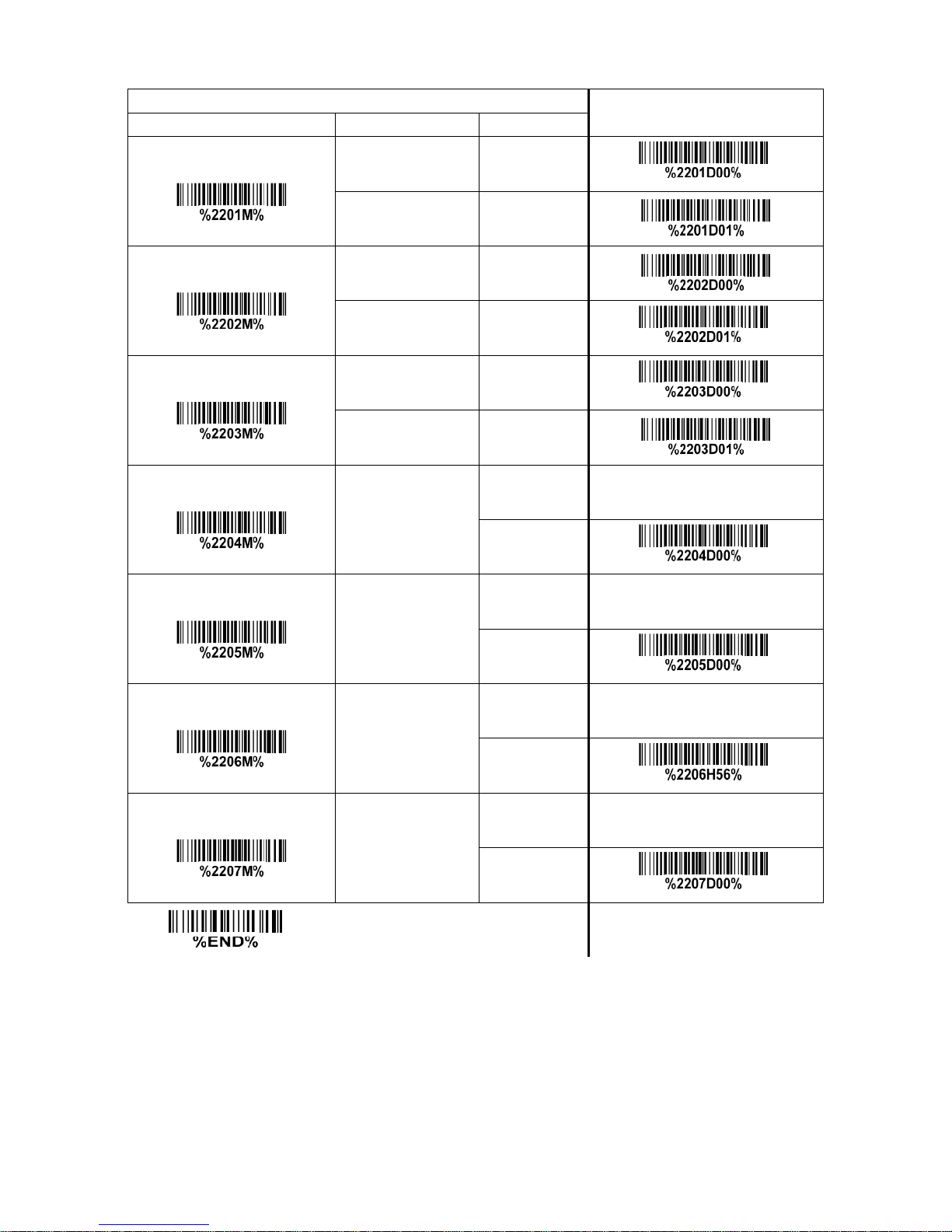

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00*
*
Enable
01
Check digit verification
Disable
00
1 digit
01*
*
Check digit trans.
Disable
00*
*
Enable
01
Max. code length
00-99
00-99 00*
*
Min. code length
00-99
00-99 00*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<V>*
*
Insert group selection
00-66
00-66 00*
*
Page 73
67
3-26 MSI/Plessey
Read:
Format
Data digits (variable)
Check digit 1 (optional)
Check digit 2 (optional)
Check digit verification: The MSI/Plessey has one or two optional check digits. There are three
methods of verifying check digits, i.e. Mod 10, Mod 10/10, and Mod 10/11. The check digit1 and check
digit 2 will be calculated as the sum module 10 or 11 of the data digits.
Check digit trans.: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Page 74
68

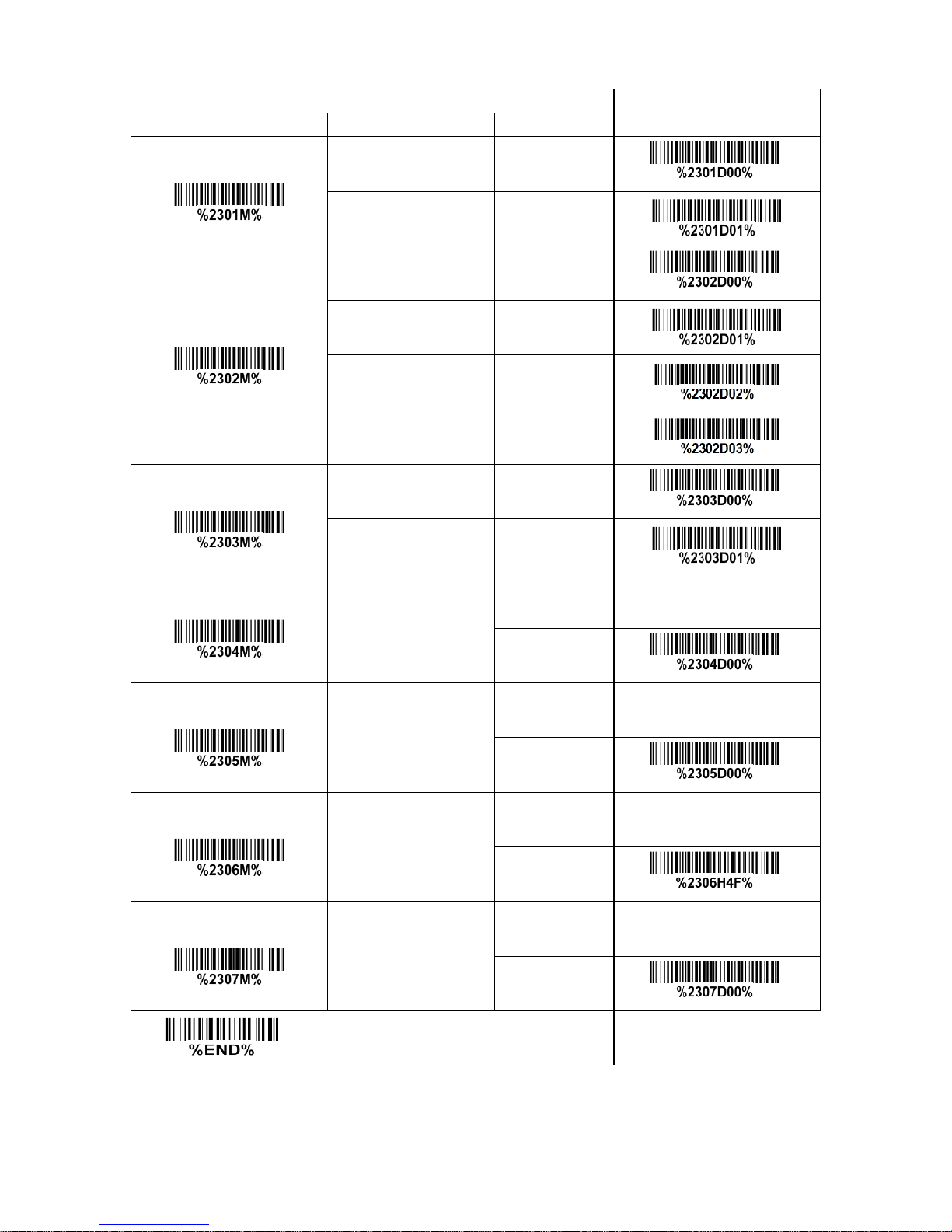

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00*
*
Enable
01
Check digit verification
Disable
00*
*
1 digit (Mod 10)
01
2 digits (Mod 10/10)
02
2 digits (Mod 10/11)
03
Check digit trans.
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
00*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<O>*
*
Insert group selection
00-66
00-66
00*
*
Page 75
69
3-27 UK/Plessey
Read:
Format
Data digits (variable)
2 Check digits (optional)
Check digit verification: The UK/Plessey has one or two optional check digits. The check digit 1 and
check digit 2 will be calculated as the sum module 10 or 11 of the data digits.
Check digit trans.: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Page 76
70

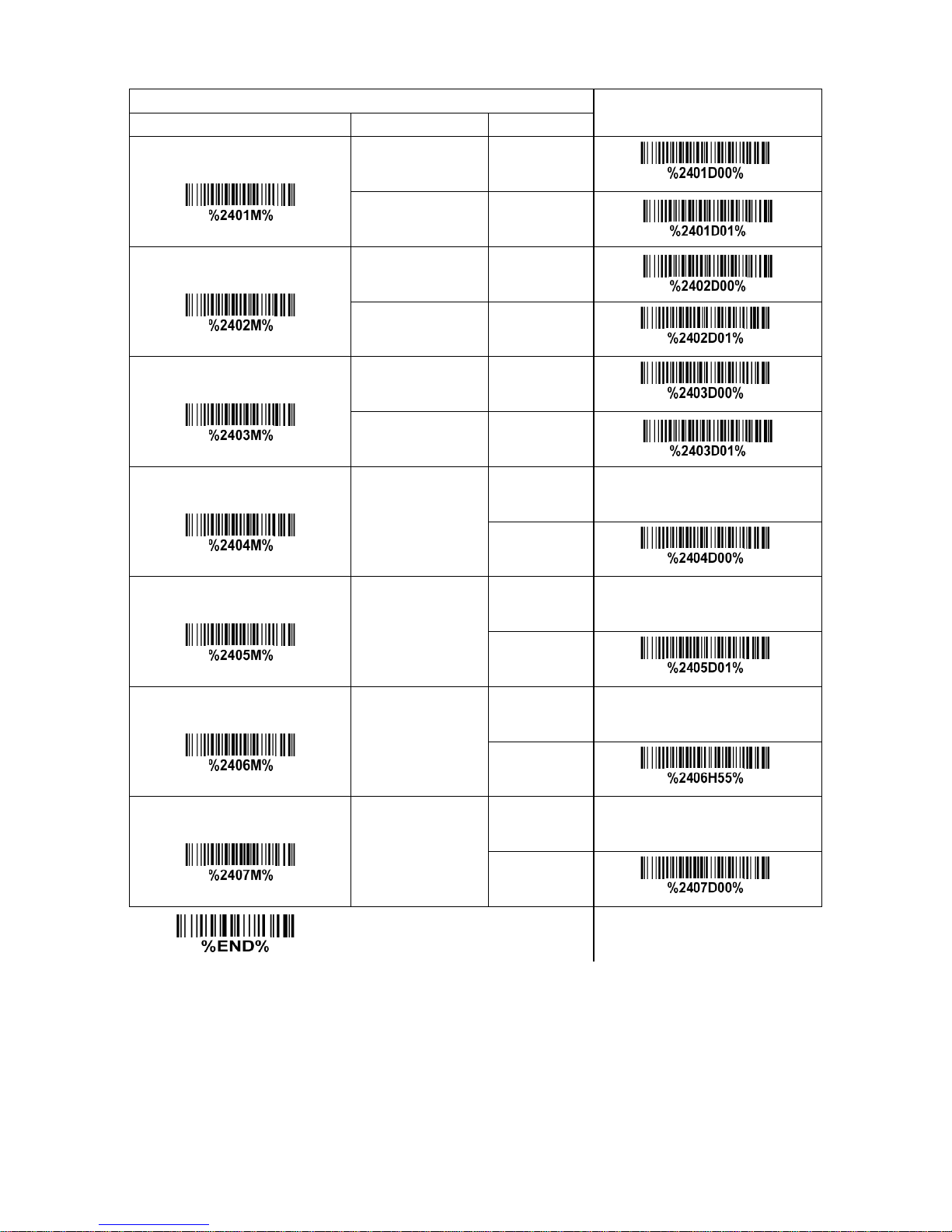

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00*
*
Enable
01
Check digit verification
Disable
00
Enable
01*
*
Check digit trans.
Disable
00*
*
Enable
01
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<U>*
*
Insert group selection
00-66
00-66
00*
*
Page 77
71
3-28 China Post
Read:
Format
11 Data digits
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.

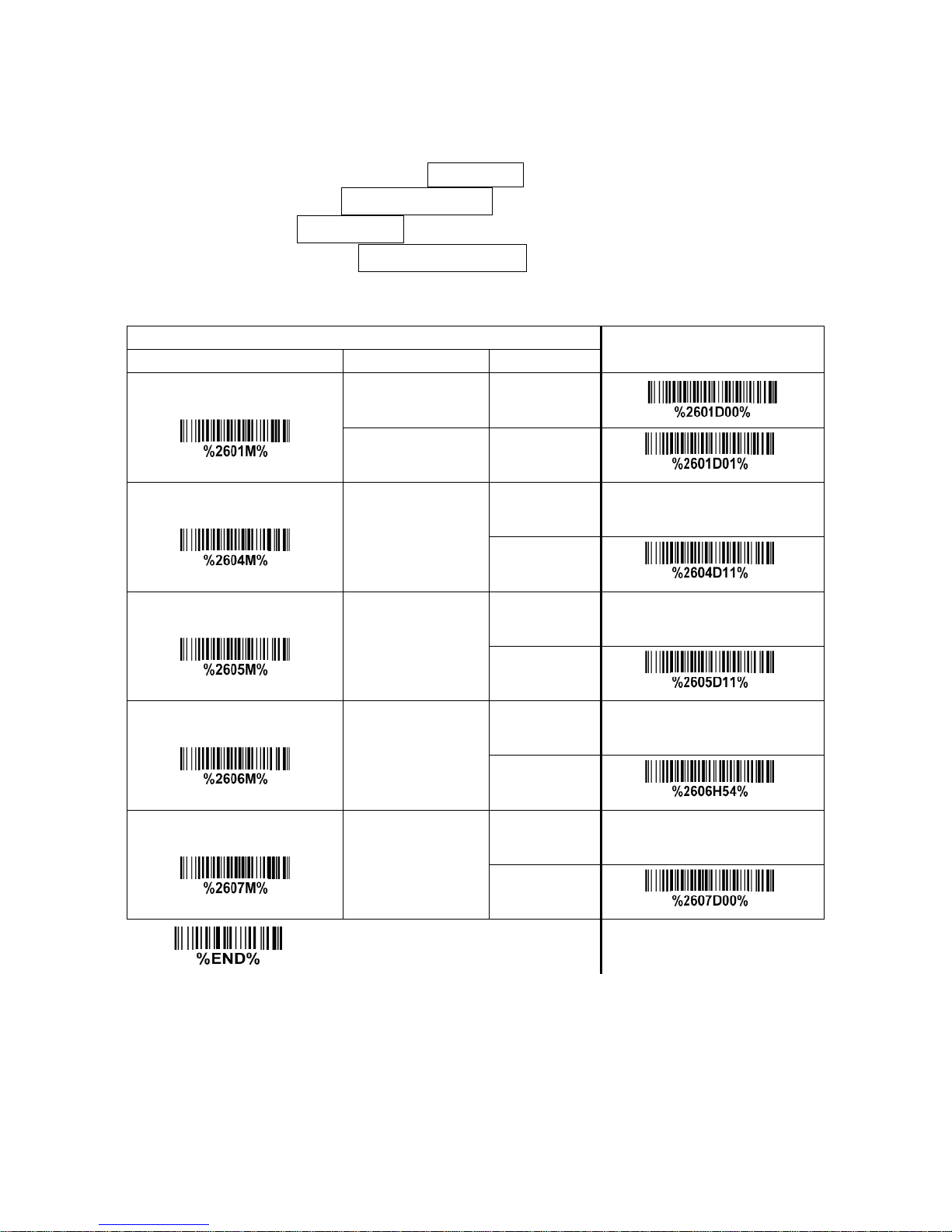

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Max. code length
00-99
00-99
11*
*
Min. code length
00-99
00-99
11*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<T>*
*
Insert group selection
00-66
00-66
00*
*
Page 78
72
3-29 China Finance
Note: this type of barcode is not Omni-Directionally decodable. The encodable character set includes
numeric 0 to 9. Among the symbol of 0 to 9, 0 to 2, 4 and 9, 5 and 8, 6 and 7, have the symmetrical
pattern; the pattern of 1 and 3 is symmetrical.
Read:
Format
10 Data digits
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Check digit verification: The check digit is calculated as the sum module 10 of the data digits.
Leading character 5/6/7/8/9 converted to A/B/C/D/E: By setting, leading character 5/6/7/8/9 can be
converted to A/B/C/D/E.
Leading character assignment: By setting, only barcode with the assigned leading character can be
output.
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Page 79
73

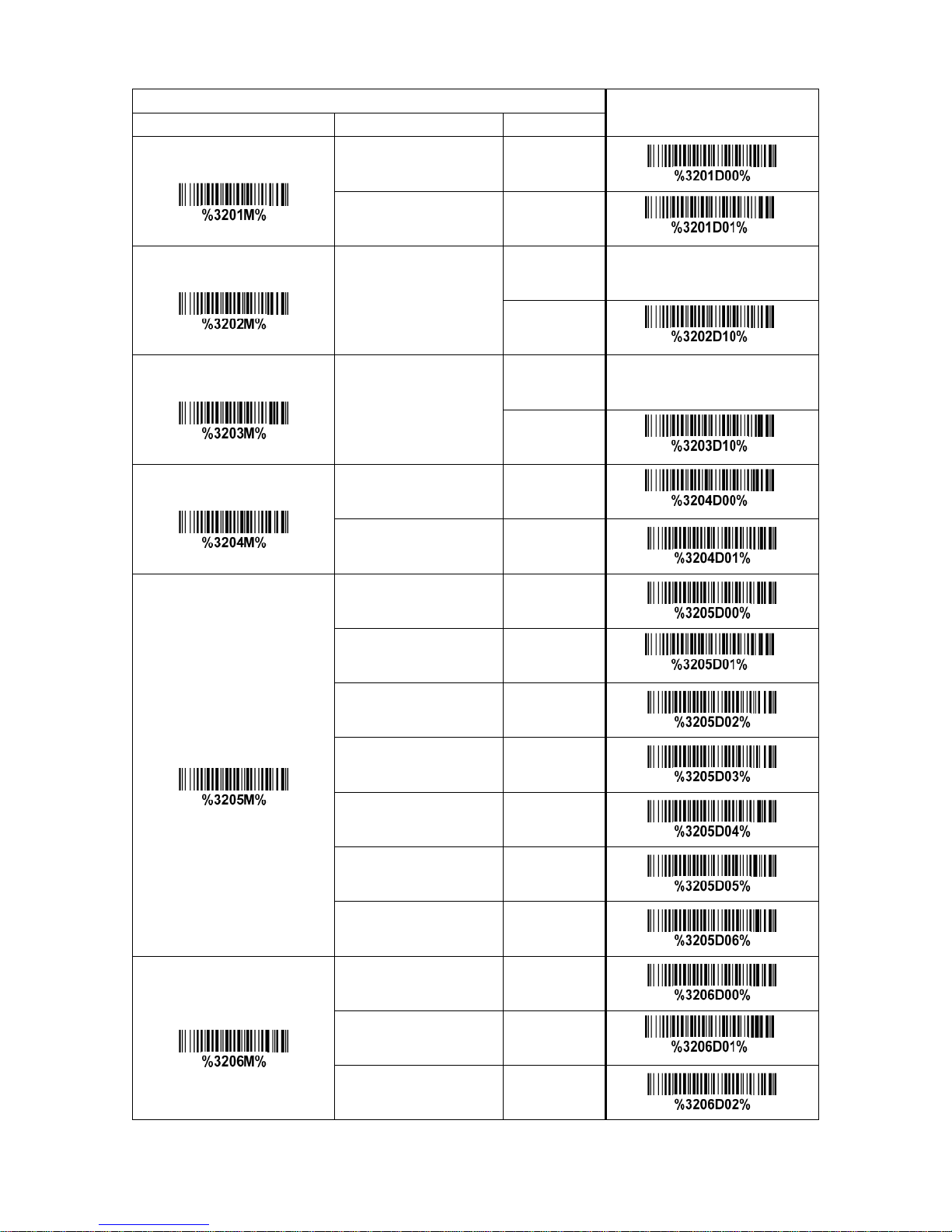

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Max. code length
00-99
00-99
10*
*
Min. code length
00-99
00-99
10*
*
Check digit verification
Disable
00*
*
Reserved
01
Leading character 5/6/7/8/9
converted to A/B/C/D/E
Disable
00
Enable
01*
*
Only 5 converted to A
02
Only 6 converted to B
03
Only 7 converted to C
04
Only 8 converted to D
05
Only 9 converted to E
06
Leading character assignment
Disable
00
Assigned to 0
01*
*
Assigned to 5(A)
02
Page 80
74

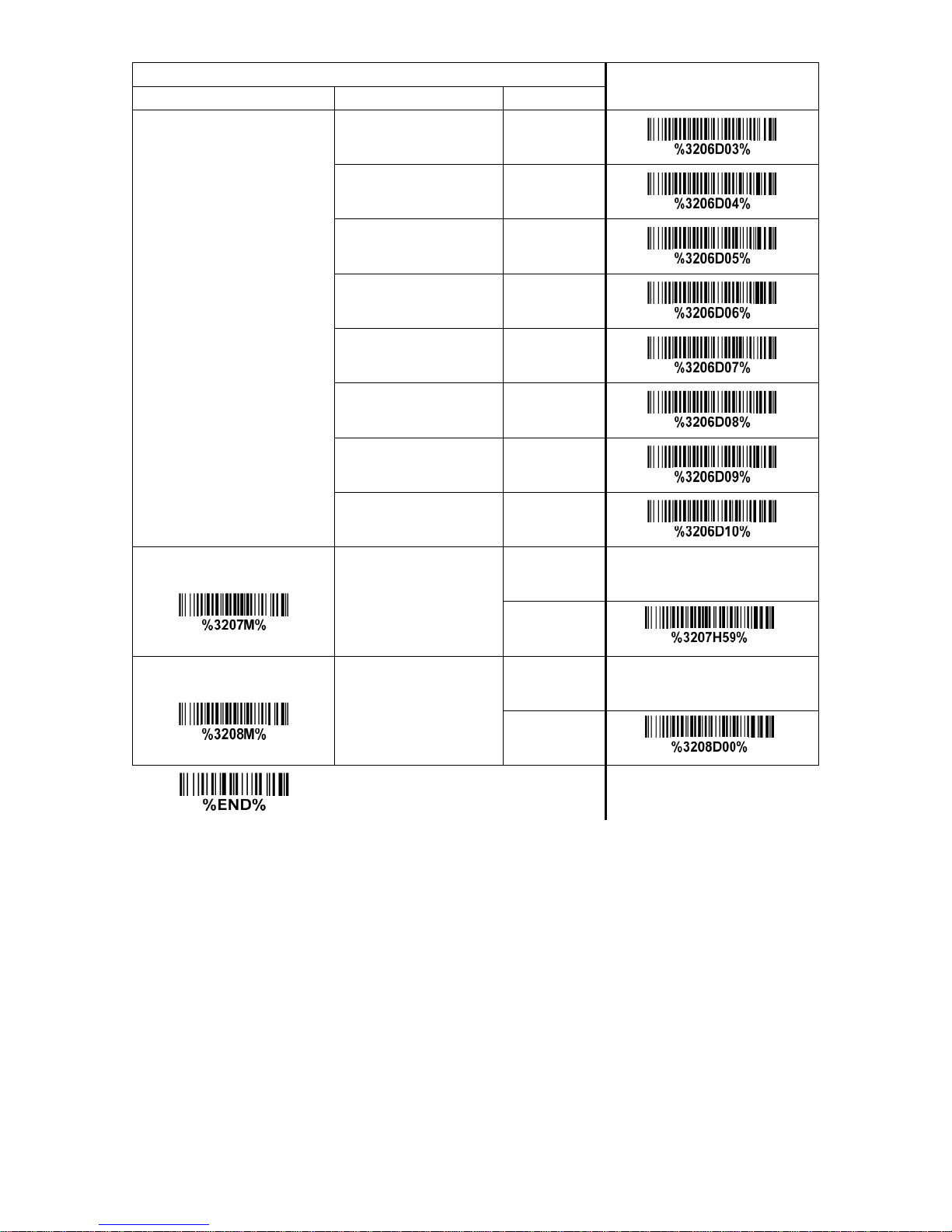

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Assigned to 6(B)
03
Assigned to 7(C)
04
Assigned to 8(D)
05
Assigned to 9(E)
06
Assigned to 1
07
Assigned to 2
08
Assigned to 3
09
Assigned to 4
10
Code ID setting
00-FF
16
(ASCII)
00-FF16
<Y>*
*
Insert group selection
00-66
00-66 00*
*
Page 81
75
3-30 Telepen
Read:
Format
Start character (_)
Data digits (variable)
Check digit
End character (z)
Check digit verification: The check digit verification is optional.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 3-16 Code 39 (Code 32, Trioptic Code 39).
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Encode character set type: Two options. Same Telepen symbol, with different option, is associated with
different data output.
Alphanumeric- Supports both letters and numbers within the data source.
Numeric- Supports only numbers within the data source and ignores all letters.
Page 82
76

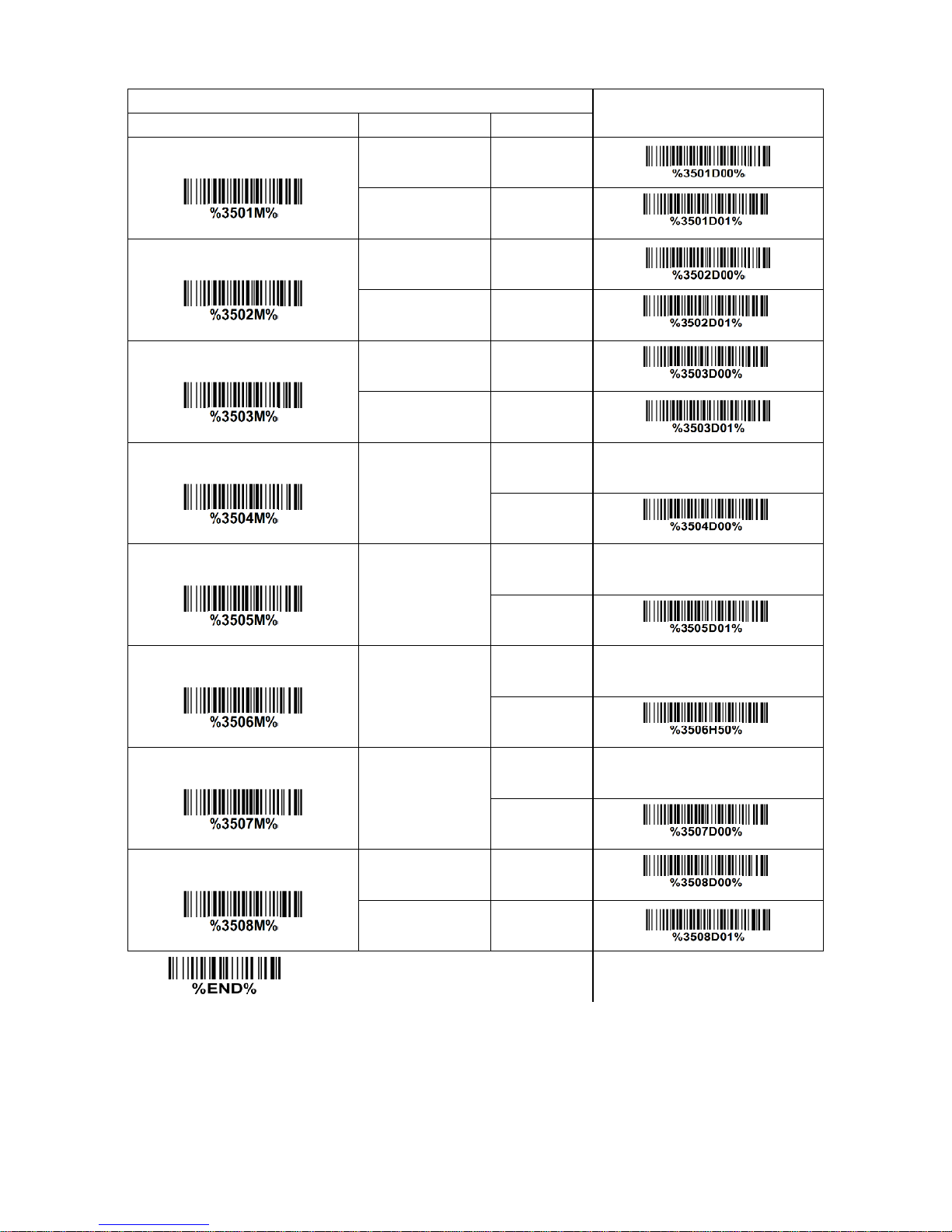

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Check digit verification
Disable
00
Enable
01*
*
Check digit transmission
Disable
00*
*
Enable
01
Max. code length
00-99
00-99 00*
*
Min. code length
00-99
00-99 01*
*
Code ID setting
00-FF16
00-FF16
P*
*
Insertion group selection
00-66
00-66
00*
*
Encode character set type
Alphanumeric
00*
*
Numeric
01
Page 83
77

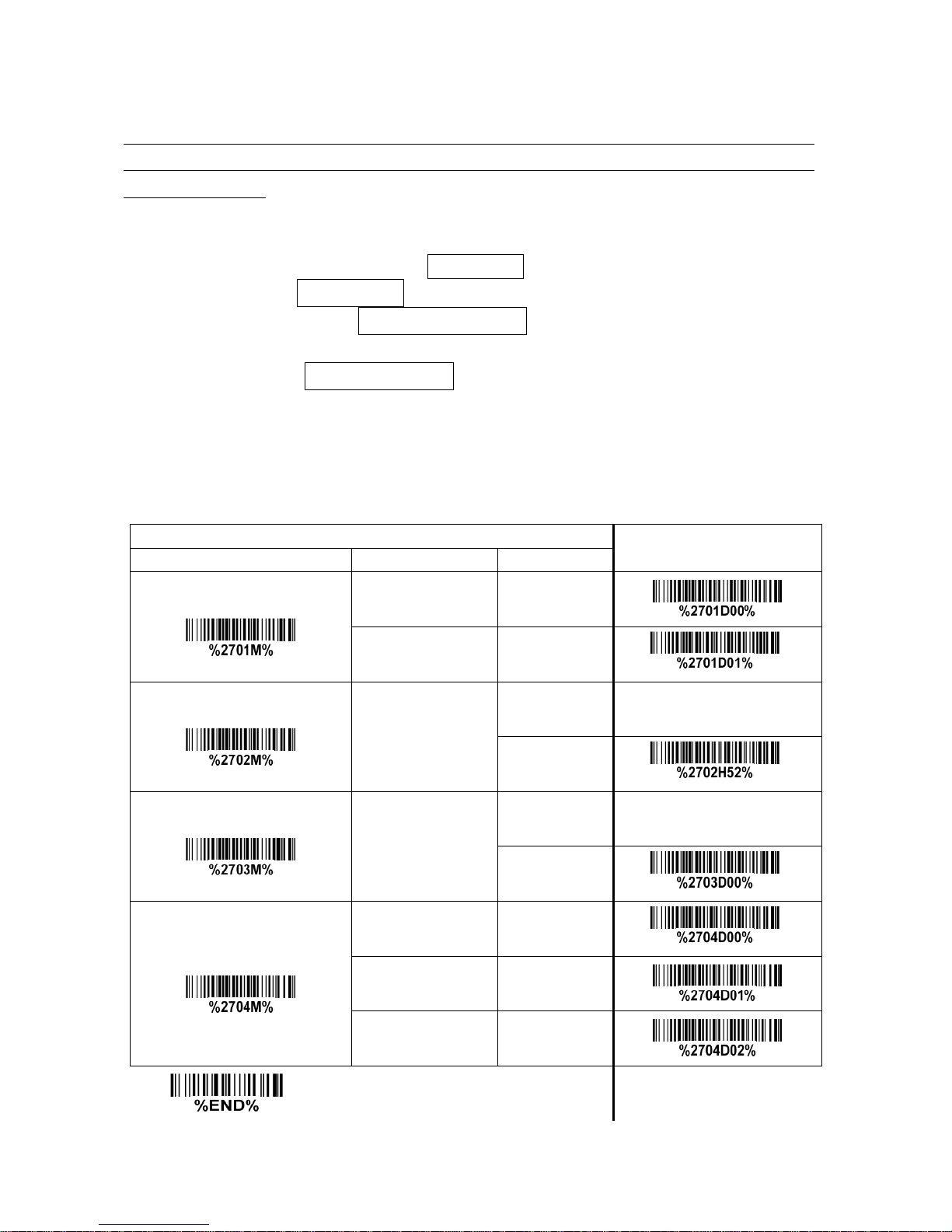

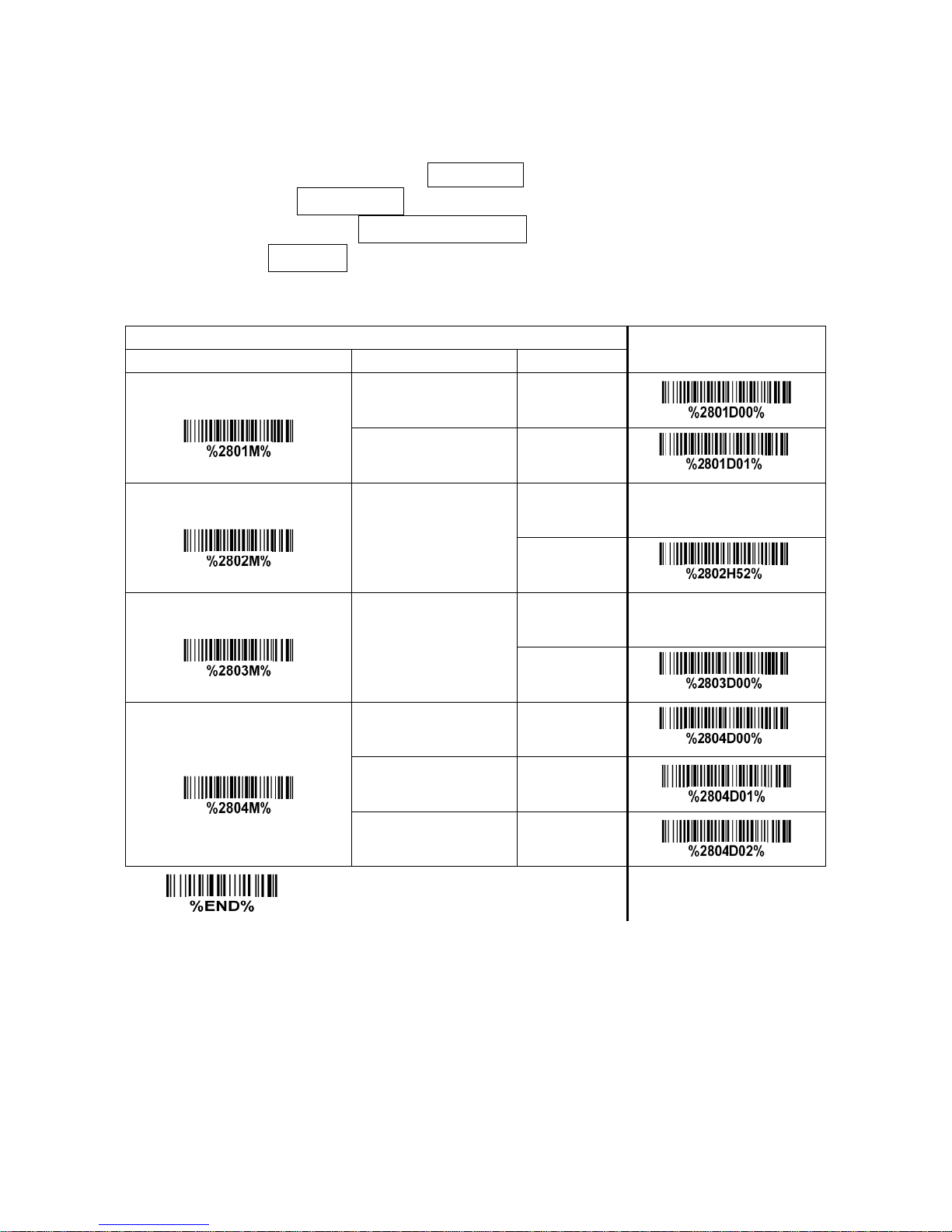

3-31 GS1 DataBar (GS1 DataBar Truncated)
GS1 DataBar Truncated is structured and encoded the same as the GS1 DataBar except that its
height is reduced to a 13 modules minimum; while GS1 DataBar should have a height greater than or
equal to 33 modules.
Read:
Format
16 Data digits
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Conversion:
UCC/EAN 128 - Refer to Code ID transmission of 3-46 String transmission, ]Cm will be identified as
AIM ID.
UPC-A or EAN-13 - Barcode beginning with a single zero as the first digit has the leading “010”
stripped and the barcode reported as EAN-13. Barcode beginning with two or more zeros but not six
zeros has the leading “0100” stripped and the barcode reported as UPC-A.
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<R>*
*
Insert group selection
00-66
00-66 00*
*
Conversion
None
00*
*
UCC/EAN 128
01
UPC-A or EAN-13
02
Page 84
78
3-32 GS1 DataBar Limited
Read:
Format
16 Data digits
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Conversion: Refer to Conversion of 3-31 GS1 DataBar (GS1 DataBar Truncated).
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<R>*
*
Insert group selection
00-66
00-66 00*
*
Conversion
None
00*
*
UCC/EAN 128
01
UPC-A or EAN-13
02
Page 85
79

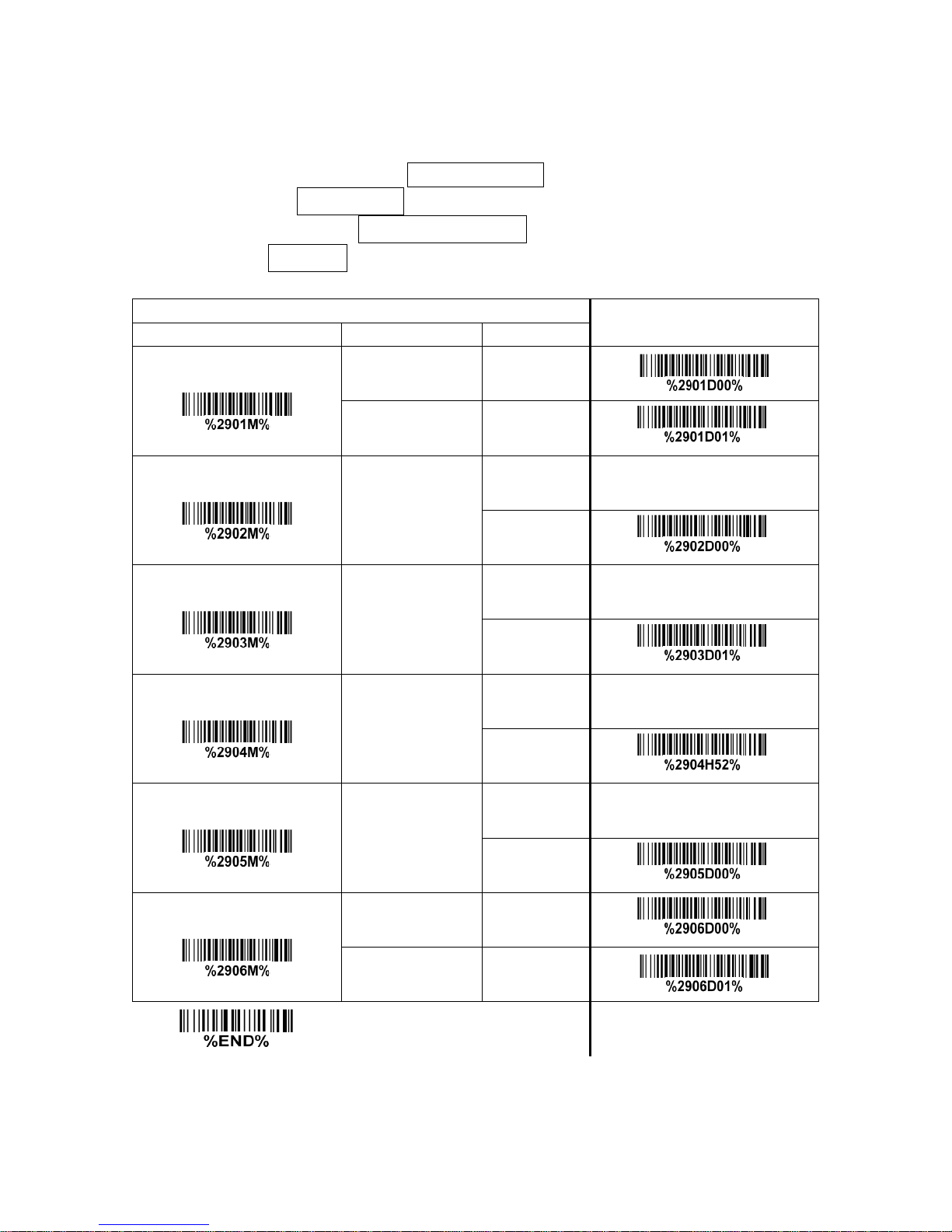

3-33 GS1 DataBar Expanded
Read:
Format
Data digits (variable)
Code ID setting: Refer to Code ID setting of 3-11 UPC-A.
Insertion group selection: Refer to Insertion group selection of 3-11 UPC-A.
Conversion: Refer to Conversion of 3-31 GS1 DataBar (GS1 DataBar Truncated).
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
01*
*
Code ID setting
00-FF
16
(ASCII)
00-FF16
<R>*
*
Insert group selection
00-66
00-66
00*
*
Conversion
None
00*
*
UCC/EAN 128
01
Page 86
80

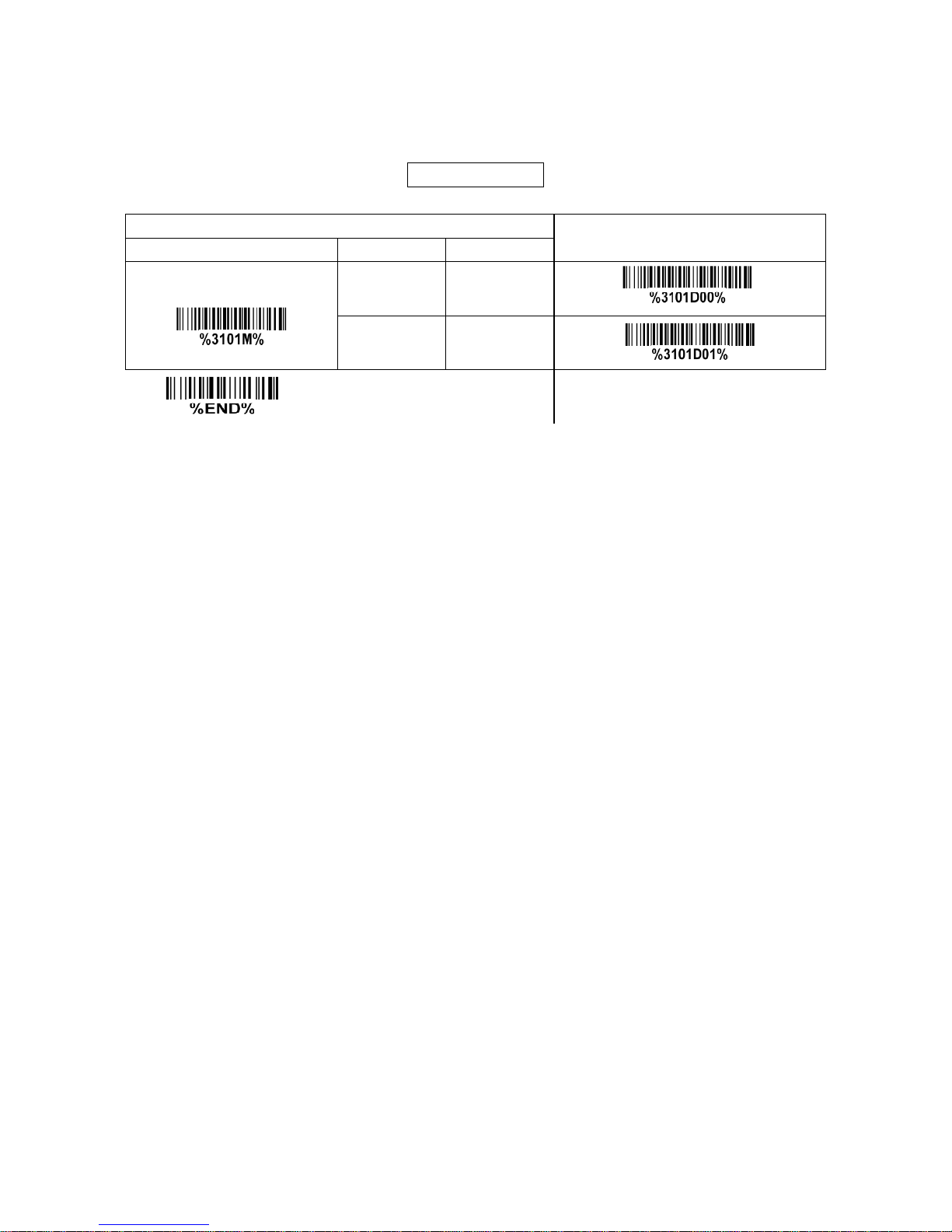

3-34 GS1 Composite
Note: The support for this feature is available with customized firmware version.
GS1 Composite symbol group consists of two components: a linear component, which encodes the
item’s primary data; and an adjacent 2D composite component, which contains supplementary data.
The linear component will be a traditional symbol of types: GS-128, EAN-8, EAN-13, UPC-A, UPC-E or
DataBar.
The composite component will be either a CC-A (encoding up to 56 digits), a CC-B (up to 338 digits) or a
CC-C (up to 2361 digits).

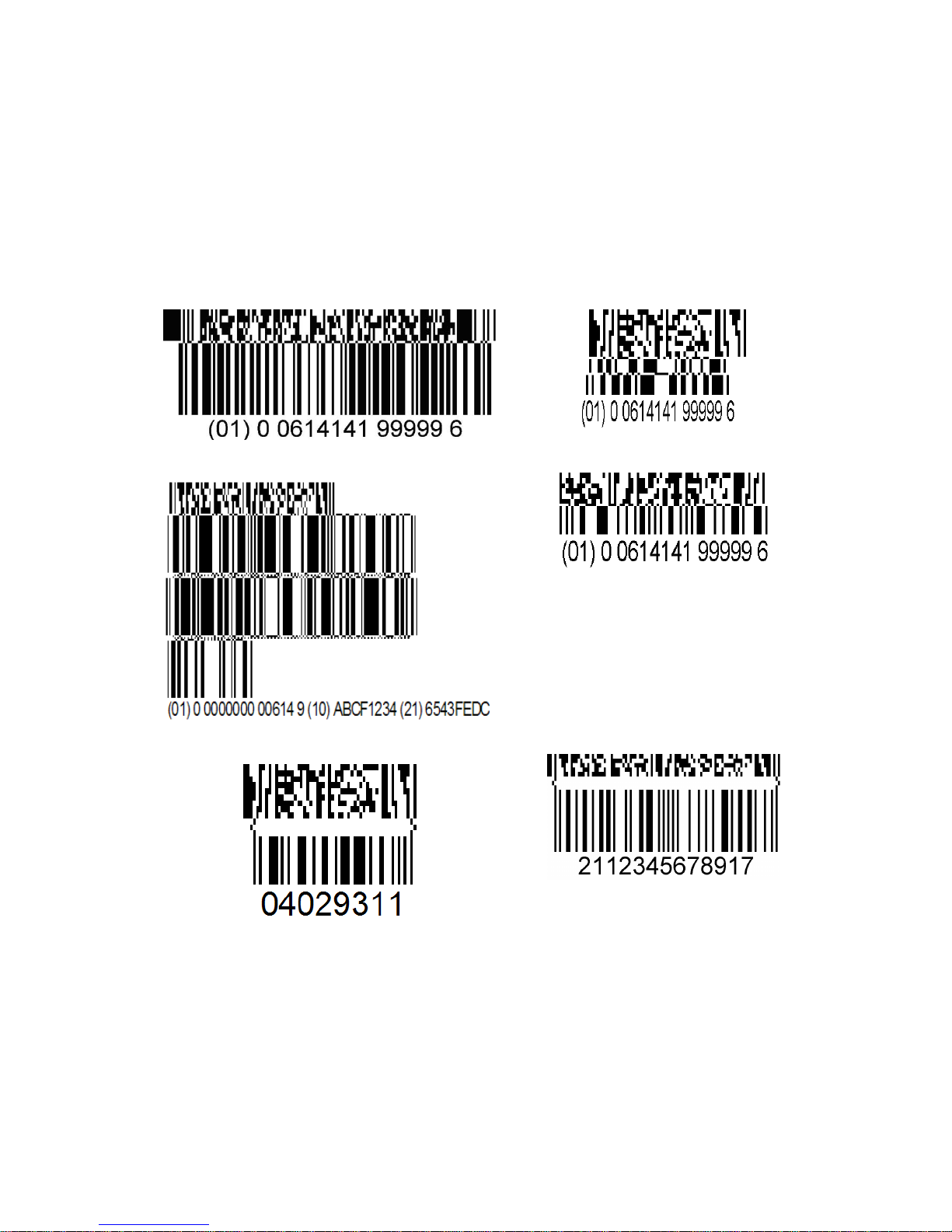

GS1-128 Composite
GS1 DataBar Stacked Composite
GS1 DataBar Expanded Stacked Composite
GS1 DataBar Composite
UPC-E Composite
EAN-13 Composite
GS1 composite version enabled:
Note 1- While this feature is enabled, the decode speed will be dropped. The more versions are
enabled, the more obvious influence.
Note 2- If the corresponding linear 1D barcode symbol is set disable, only 2D composite data will be
output after a success decode.
Note 3- While this feature is set disable, if the corresponding linear 1D barcode symbol is set enable,
only 1D data will be output after a success decode.
Note 4- For UPC/EAN Composite, if 2D composite component is failed to decode and 1D linear
Page 87
81
component is successful to decode, then only 1D data will be output.
Note 5- If both GS-128 and DataBar Composite are set Enable, both 1D and 2D components must
be successfully decoded to output both 1D and 2D data.
GS1-128 Composite, DataBar Composite - Two versions of GS1 Composite symbol are enabled.
GS1-128 Composite, DataBar Composite, UPC/EAN Composite - Three versions of GS1 Composite
symbol are enabled.

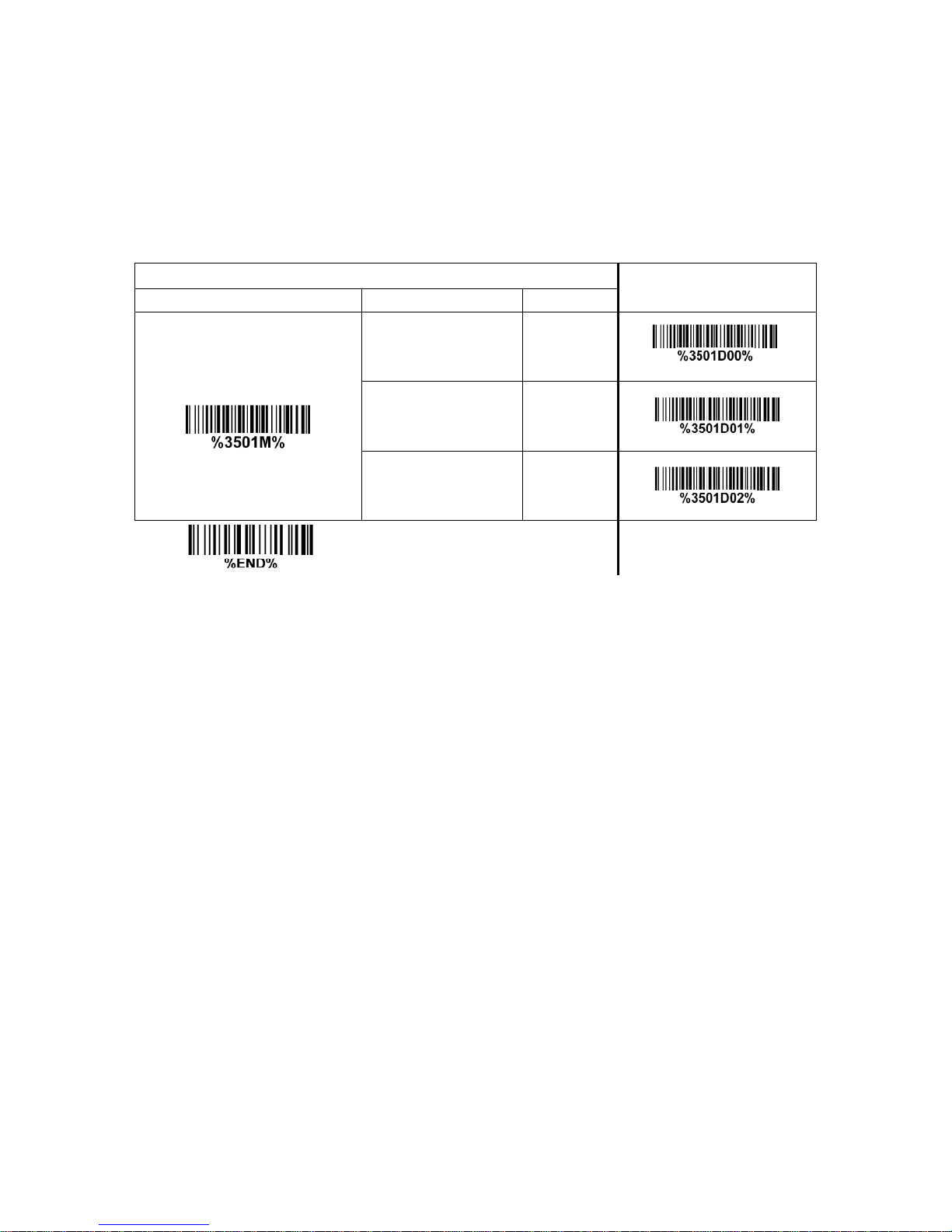

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
GS1 composite version enabled
None (Disable)
00*
*
GS1-128 Composite,
DataBar Composite
01
GS1-128 Composite,
DataBar Composite,
UPC/EAN Composite
02
Page 88
82

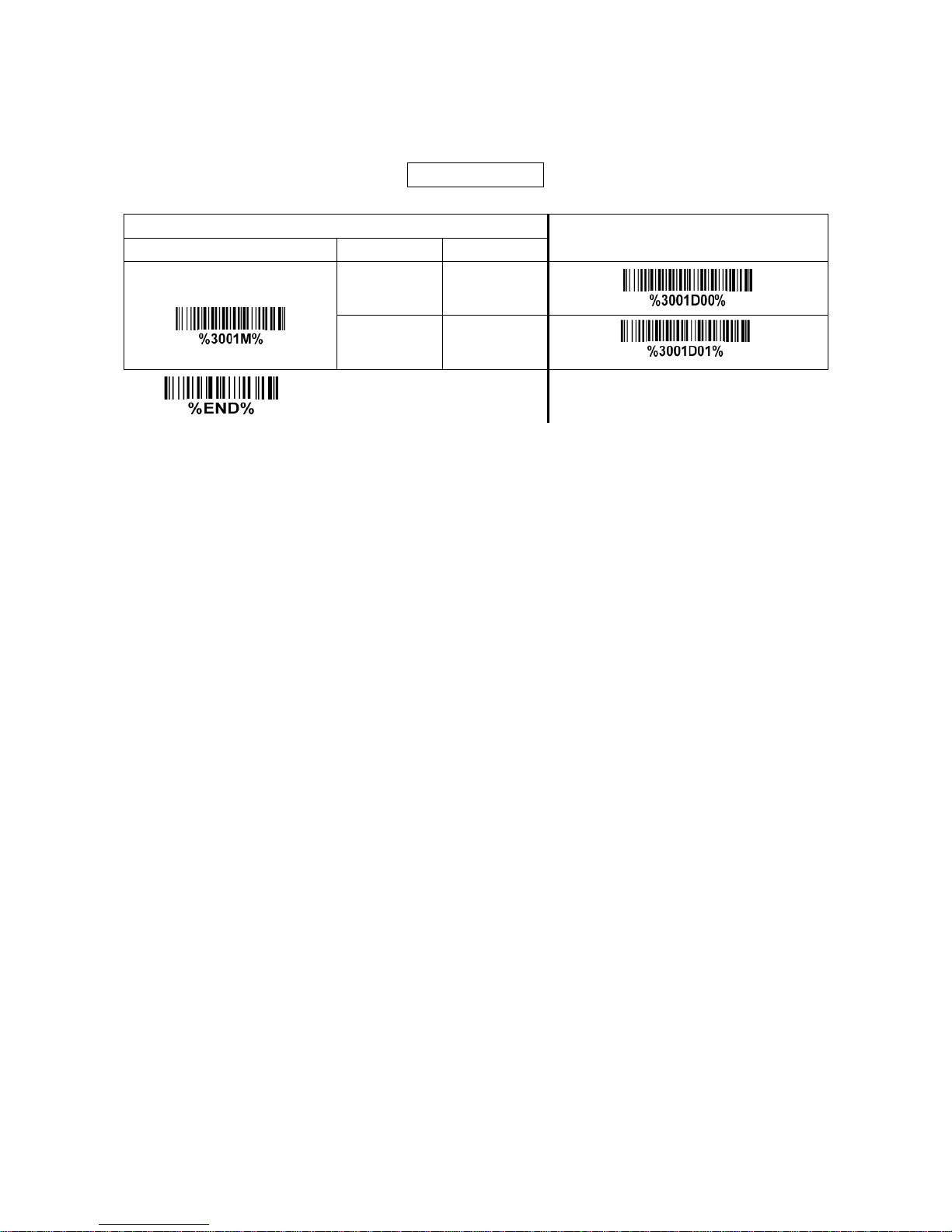

3-35 PDF417
Read:
Format
Data digits (variable) Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Page 89
83
3-36 MicroPDF417
Read:
Format
Data digits (variable) Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00*
*
Enable
01
Page 90
84
3-37 QR Code
Read:
Format
Data digits (variable)
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Page 91
85

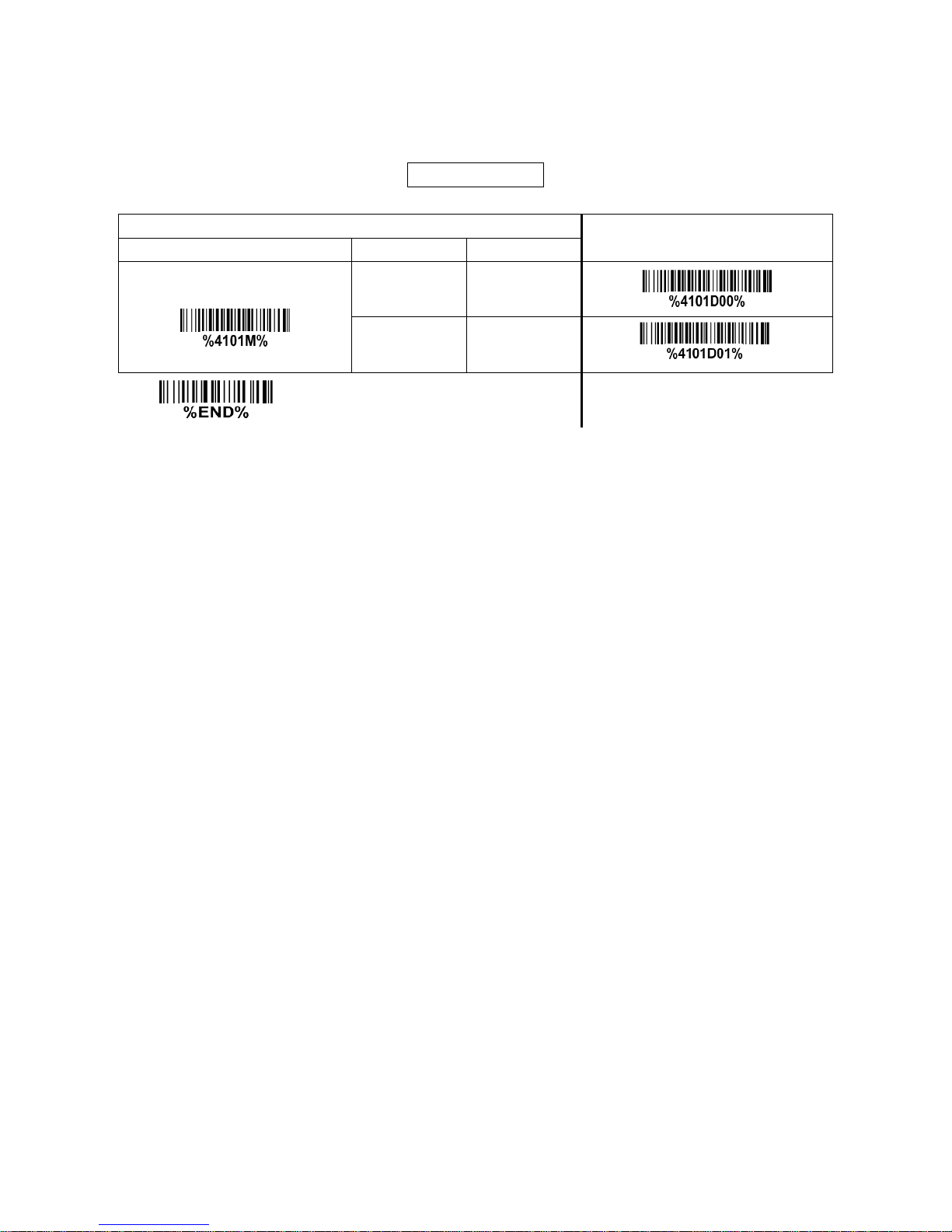

3-38 Data Matrix
Read:
Format
Data digits (variable)
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Page 92
86

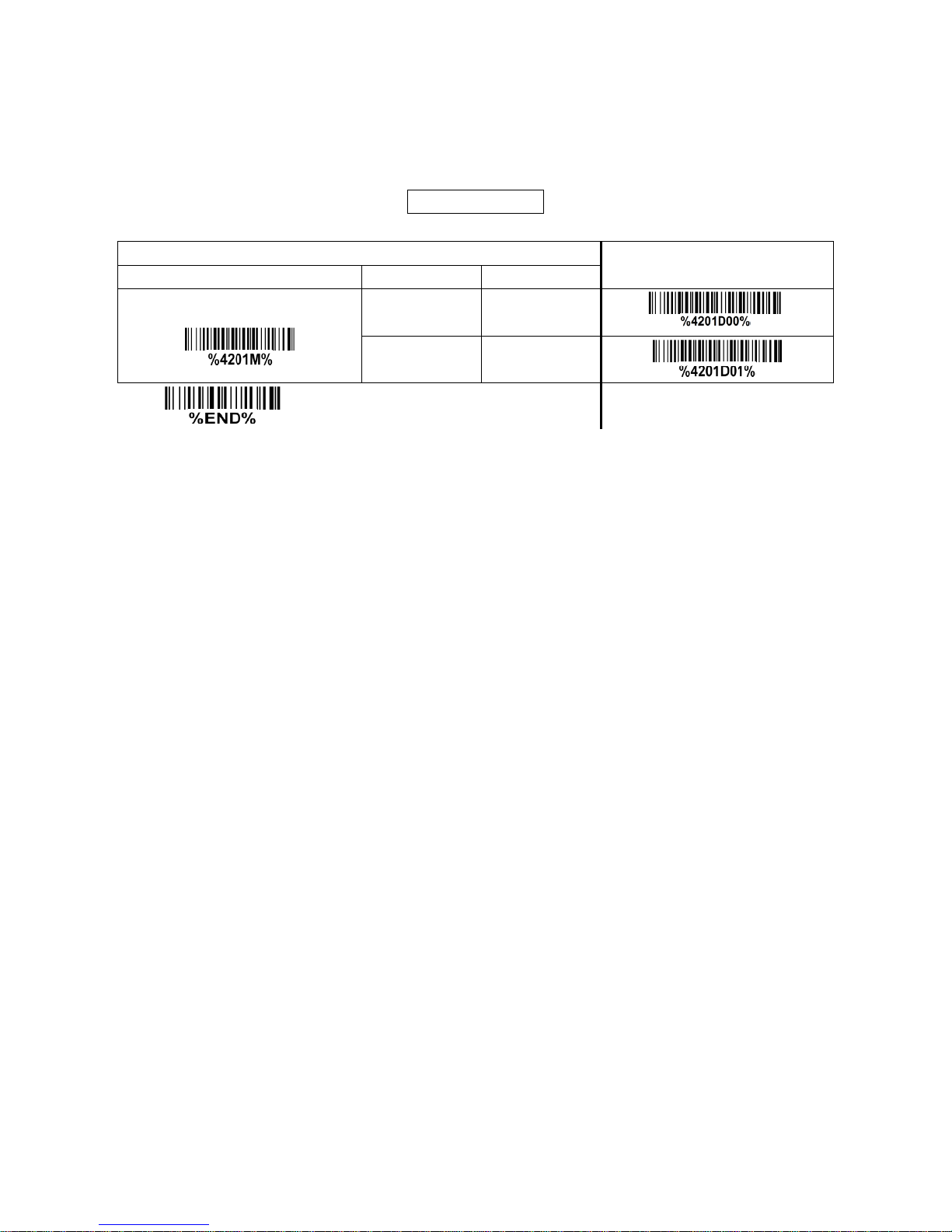

3-39 Han Xin Code
Note: The support for this feature is available with customized firmware version.
Read:
Format
Data digits (variable)
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00*
*
Enable
01
Page 93
87

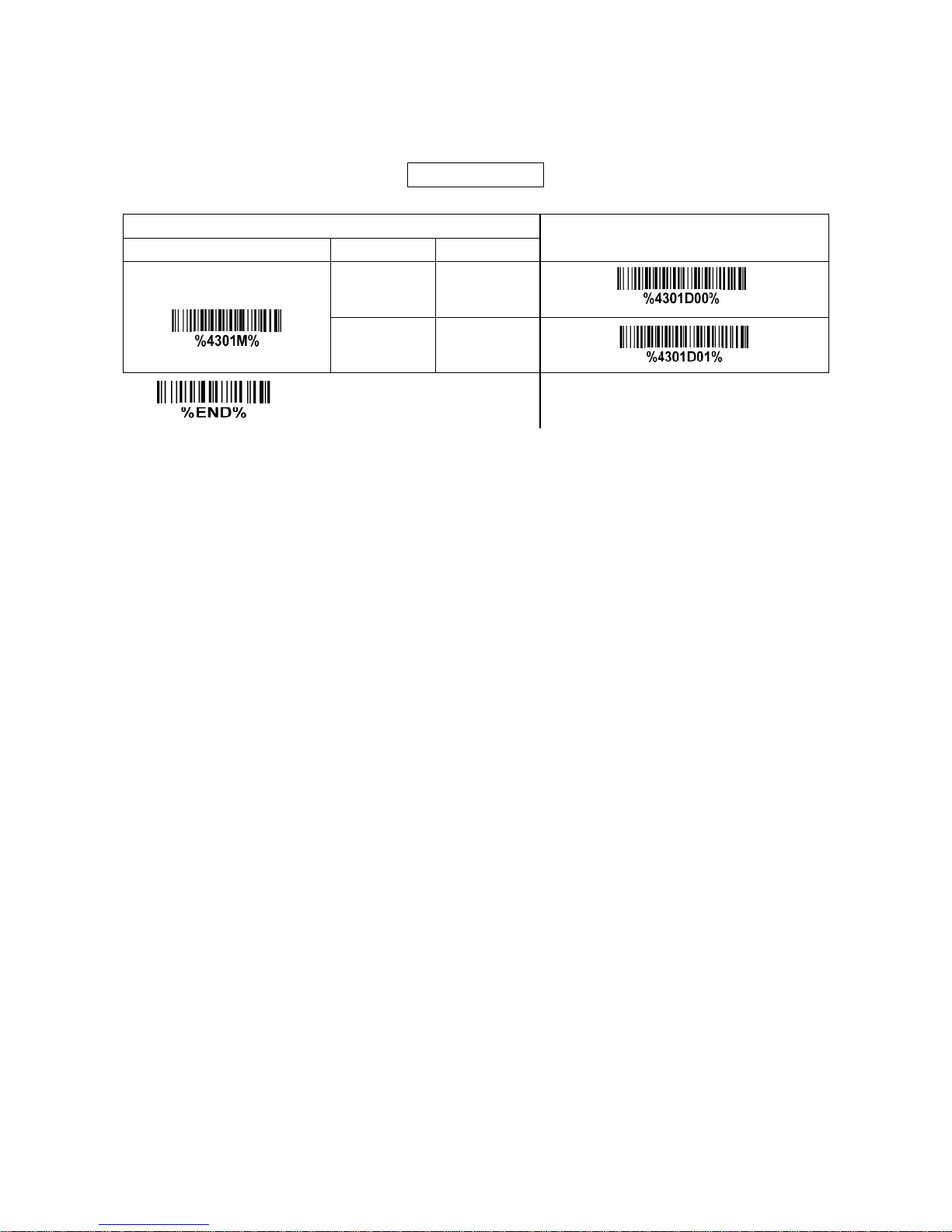

3-40 Aztec Code
Read:
Format
Data digits (variable)
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00*
*
Enable
01
Page 94
88

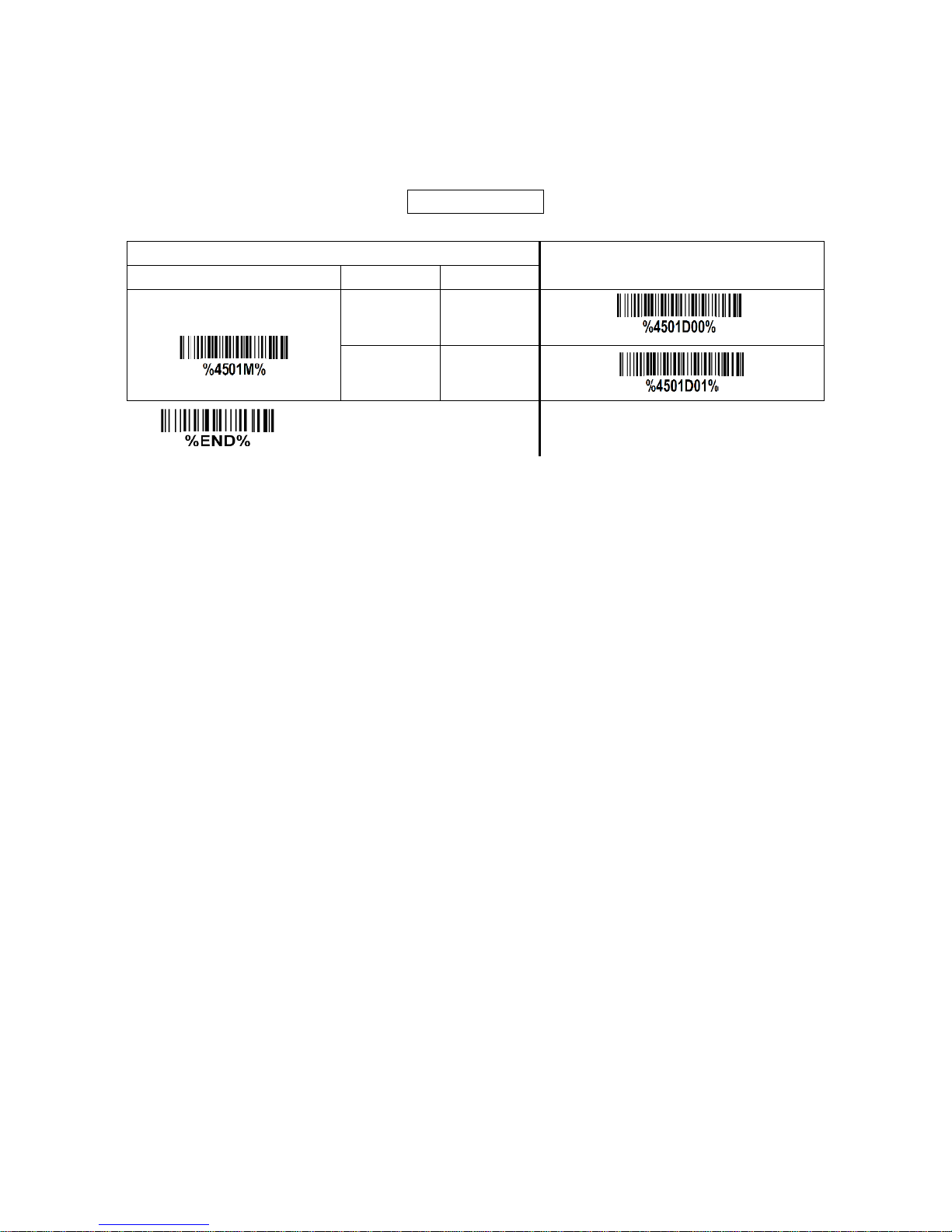

3-41 MicroQR Code
Note: The support for this feature is available with customized firmware version.
Read:
Format
Data digits (variable)
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00*
*
Enable
01
Page 95
89

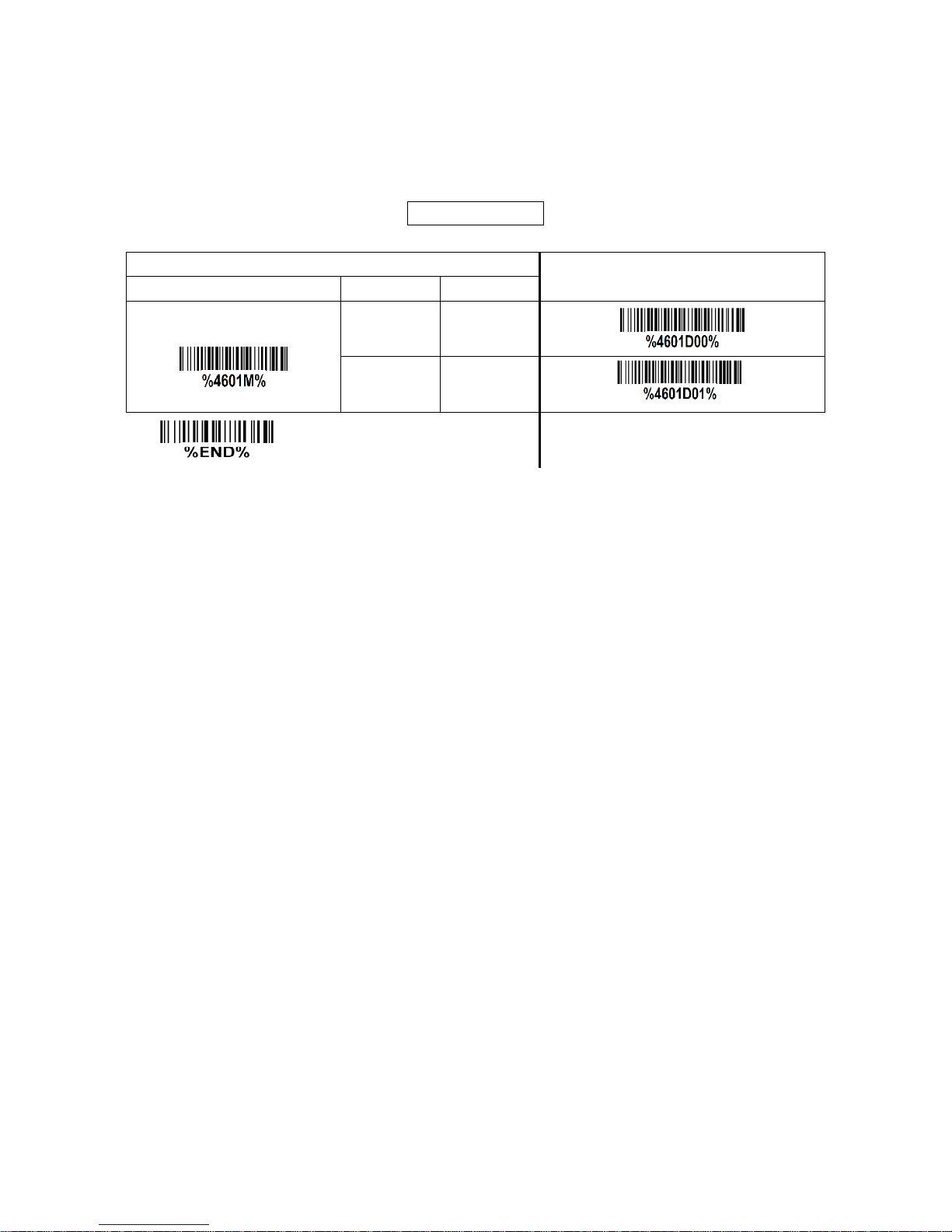

3-42 CodaBlock F Code
Note: The support for this feature is available with customized firmware version.
Read:
Format
Data digits (variable)
Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Page 96
90

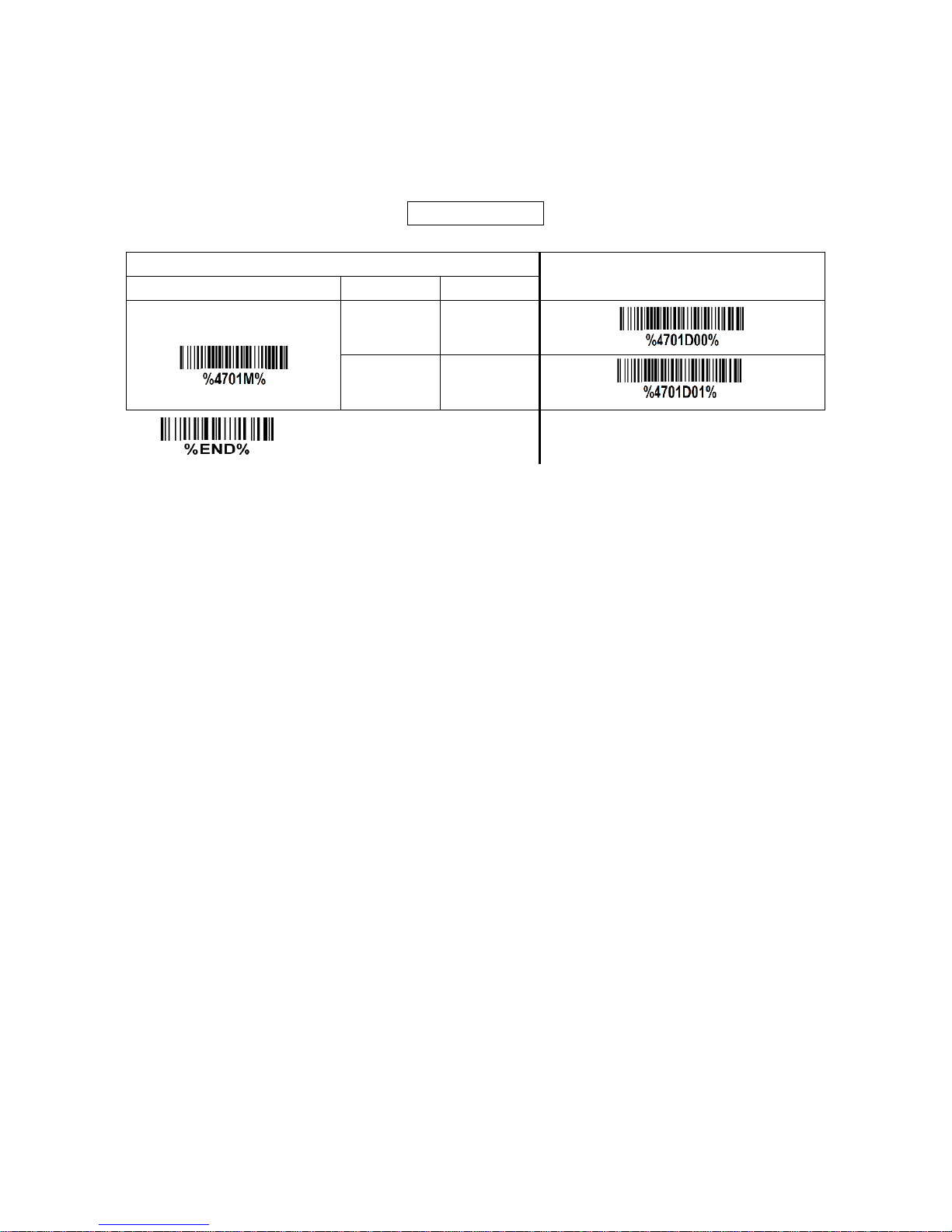

3-43 GM code
Note: The support for this feature is available with customized firmware version.
Read:
Format
Data digits (variable) Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Read
Disable
00
Enable
01*
*
Page 97
91
3-44 G1-G6 & C1-C2 & FN1 substitution string setting
Format of barcode data transmission:
Prefix
Code name
Preamble
Code ID
Code length
Code data
Code ID
Postamble
Suffix
Suffix string setting: The <enter> key is represented indifferent ASCII when it is applied by different OS.
For a Windows/DOS OS, <enter> is represented as <CR><LF> (0x0D 0x0A); for an Apple MAC OS,
<enter> is represented as <CR> (0x0D); for a Linux/Unix OS, <enter> is represented as <LF> (0x0A).
Prefix/Suffix/Preamble/Postamble string setting:
They are appended to the data automatically when a barcode is decoded.
Example: Add a symbol of “＄” as a prefix for all symbols.
Steps:
1) Scan the option barcode of Prefix string setting: %8001M%.
2) Use the 8 ASCII table to find the value of ＄ 24.
3) Scan 2 and 4.
4) Scan %END% barcode.
Scanning steps: Scan the following barcodes in order.
or
%8001H24%8201D01%
Insert G1/G2/G3/G4 string setting: The embedded scanner offers 4 positions and 4 character strings
to insert among a symbol.
Example: Set G1 string to be “AB”.
Original code data
“1 2 3 4 5 6”
Output code data
“1 2 A B 3 4 5 6”
Steps:
1) Scan the option barcode of Insert G1 string setting: %8005M%.
2) Use the ASCII table to find the value of A 41, B42
3) Scan 4, 1 and 4, 2.
4) Scan %END% barcode.
5) Refer to 3-45 G1-G4 string position & Code ID position.
6) Refer to 3-6 Scan mode & some global settings.
Page 98
92

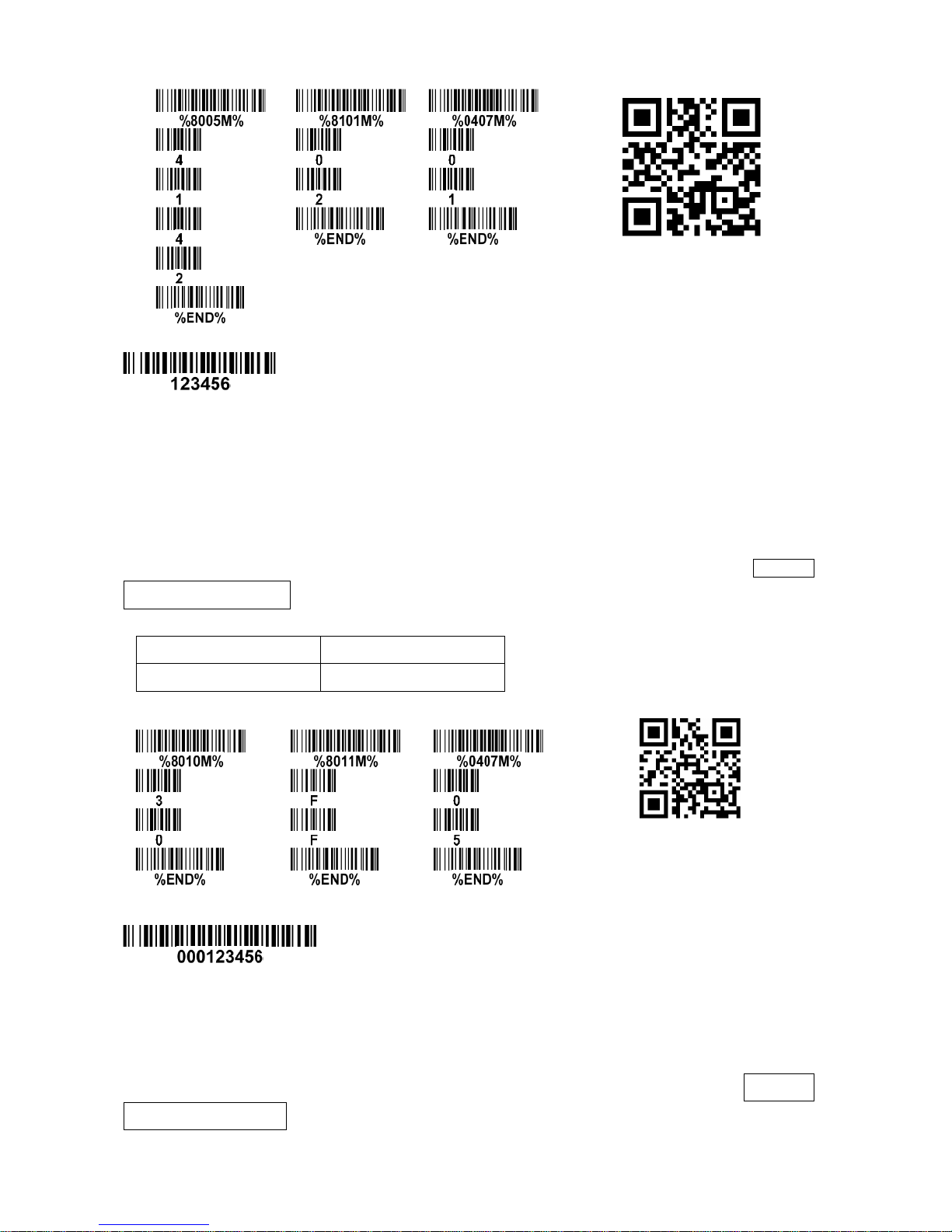

or
%8005H4142
%8101D02
%0407D01%
Testing barcode:
FN1 substitution string setting: The FN1 character (0x1D) in an UCC/EAN128 barcode, or a Code 128
barcode, or a GS1 DataBar barcode can be substituted with a defined string.
Truncate leading G5 string setting: by setting, a defined leading character or string can be truncated.
Also a single character can be un-defined.
Repeat of a G5 character setting: While G5 is set as a single defined or un-defined character, G5 can
also be set to be repeated. This setting is ignored when the truncated number is more than the
barcode data characters. The option of “FF” for this setting is not active while the option of Truncate
leading G5 string setting is “00”.
Example: Truncate all leading zeros for all symbols.
Original code data
“0 0 0 1 2 3 4 5 6”
Output code data
“1 2 3 4 5 6”
Steps: scan the following data in order.
or
%8010H30
%8011HFF
%0407D05%
Testing barcode:
Truncate ending G6 string setting: By setting, a defined ending character or sting can be truncated.
Also a single character can be undefined.
Repeat of a G6 character setting: while G6 is set as a single defined or undefined character, G7 can
also be set to be repeated. This setting is ignored when the truncated number is more than the
barcode data characters. The option of “FF” for this setting is not active while the option of Truncated
ending G6 string setting is “00”.
Single character C1/C2 replacement: By setting, a defined character in the data string can be replaced
Page 99
93
by another defined character. The C1 and C2 replacement are applied simultaneously.

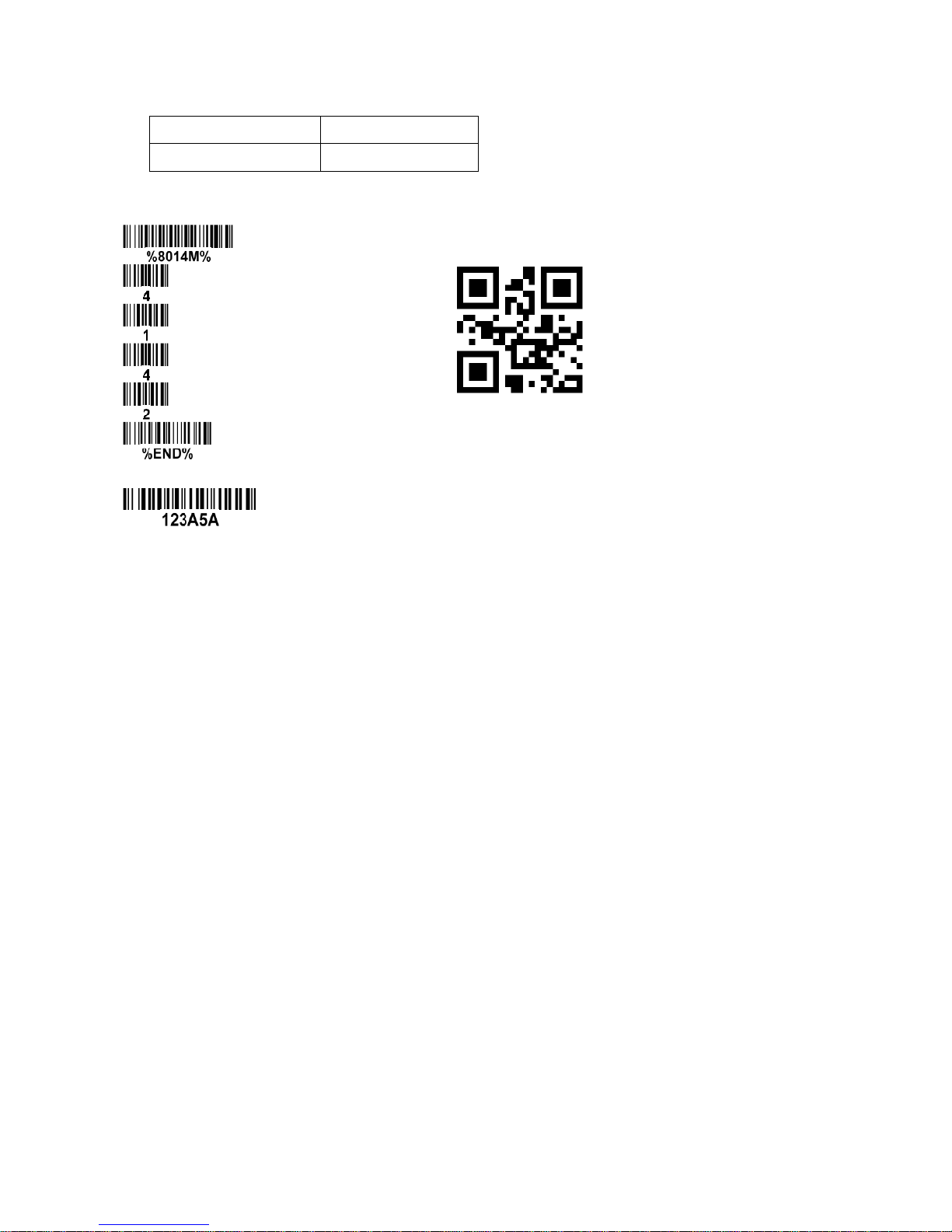

Example: Replace all the “A” character in a data string to be “B” character.
Original code data
“1 2 3 A 5 A”
Output code data
“1 2 3 B 5 B”
Steps: scan the following barcodes in order. The ASCII value for “A” is 41, and the ASCII value for “B”
is 42.
or
%8014H4142%
Testing barcode:
Page 100
94

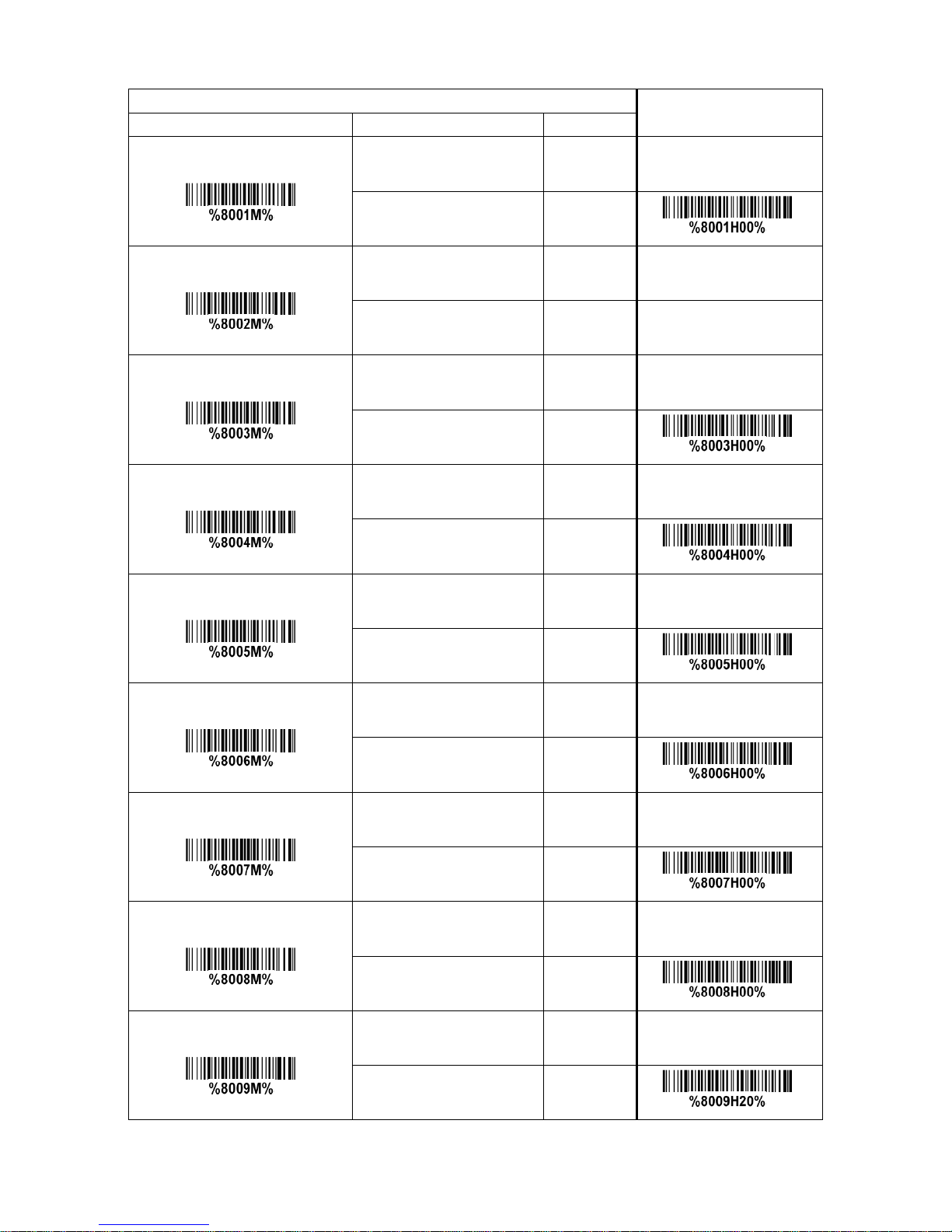

Multiple-scan setting
Single-scan setting
Option barcode
Option
Alpha. entry
Prefix string setting
0-22 characters
00-FF16
None
00*
*
Suffix string setting
0-22 characters
00-FF16
<ENTER>
0D0A*
Preamble string setting
0-22 characters
00-FF16
none
00*
*
Postamble string setting
0-22 characters
00-FF16
none
00*
*
Insert G1 string setting
0-22 characters
00-FF16
none
00*
*
Insert G2 string setting
0-22 characters
00-FF16
none
00*
*
Insert G3 string setting
0-22 characters
00-FF16
none
00*
*
Insert G4 string setting
0-22 characters
00-FF16
none
00*
*
FN1 substitution string setting
0-4 characters
00-FF16
<SP>
20*
*
Loading...
