Mindeo CR40 Quick Manual

Note: 1. More details refer to User Manual. 2. For better readability, please print this document with laser printer. 3. Version: CR40(BT)_QG_EN_V1.1.

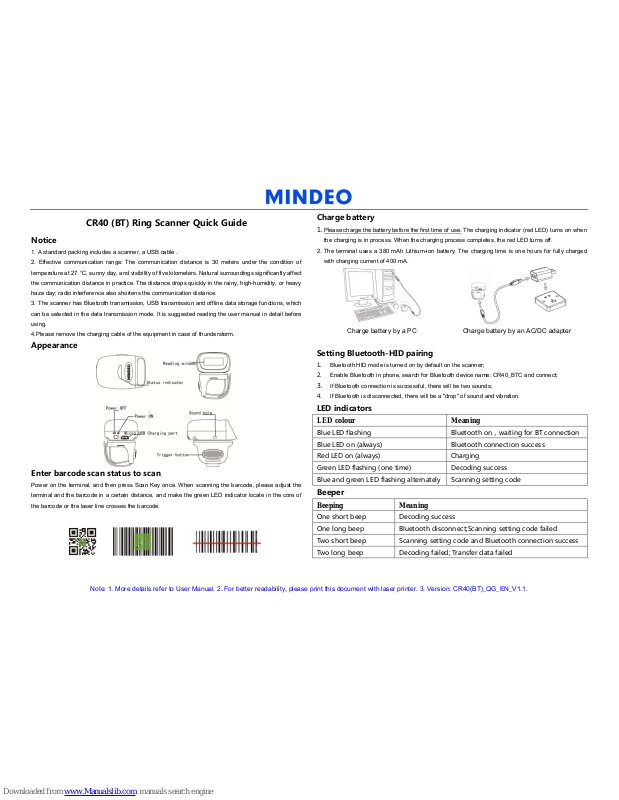

CR40 (BT) Ring Scanner Quick Guide

Notice

1. A standard packing includes a scanner, a USB cable .

2. Effective communication range: The communication distance is 30 meters under the condition of

temperature at 27 ℃, sunny day, and visibility of five kilometers. Natural surroundings significantly affect

the communication distance in practice. The distance drops quickly in the rainy, high-humidity, or heavy

haze day; radio interference also shortens the communication distance.

3. The scanner has Bluetooth transmission, USB transmission and offline data storage functions, which

can be selected in the data transmission mode. It is suggested reading the user manual in detail before

using.

4.Please remove the charging cable of the equipment in case of thunderstorm.

Appearance

Enter barcode scan status to scan

Power on the terminal, and then press Scan Key once. When scanning the barcode, please adjust the

terminal and the barcode in a certain distance, and make the green LED indicator locate in the core of

the barcode or the laser line crosses the barcode.

Charge battery

1. Please charge the battery before the first time of use. The charging indicator (red LED) turns on when

the charging is in process. When the charging process completes, the red LED turns off.

2. The terminal uses a 380 mAh Lithium-ion battery. The charging time is one hours for fully charged

with charging current of 400 mA.

Charge battery by a PC Charge battery by an AC/DC adapter

Setting Bluetooth-HID pairing

1. Bluetooth HID mode is turned on by default on the scanner;

2. Enable Bluetooth in phone, search for Bluetooth device name: CR40_BTC and connect;

3. If Bluetooth connection is successful, there will be two sounds;

4. If Bluetooth is disconnected, there will be a "drop" of sound and vibration.

LED indicators

LED colour Meaning

Blue LED flashing Bluetooth on，waiting for BT connection

Blue LED on (always) Bluetooth connection success

Red LED on (always) Charging

Green LED flashing (one time) Decoding success

Blue and green LED flashing alternately Scanning setting code

Beeper

Beeping Meaning

One short beep Decoding success

One long beep Bluetooth disconnect;Scanning setting code failed

Two short beep Scanning setting code and Bluetooth connection success

Two lo ng b eep Decoding failed; Transfer data failed

Note: 1. More details refer to User Manual. 2. For better readability, please print this document with laser printer. 3. Version: CR40(BT)_QG_EN_V1.1.

Common Setting

1. Scan mode

Good-read off Momentary

2.Data transfer mode

Bluetooth USB-HID

keyboard

USB virtual COM

Standard batch

3. Bluetooth mode

HID mode SPP mode

BLE slave BA2110

4. Standard batch data output mode

Bluetooth USB-HID

keyboard

5. Out-of-range batch

OFF ON

6.HID keyboard layout

USA Japanese

8.Common function barcodes

Scanner restore factory defaults Scanner firmware version

Bluetooth restore factory defaults Bluetooth firmware version

Bluetooth name Disconnect Bluetooth

Send batch data Delete batch data
