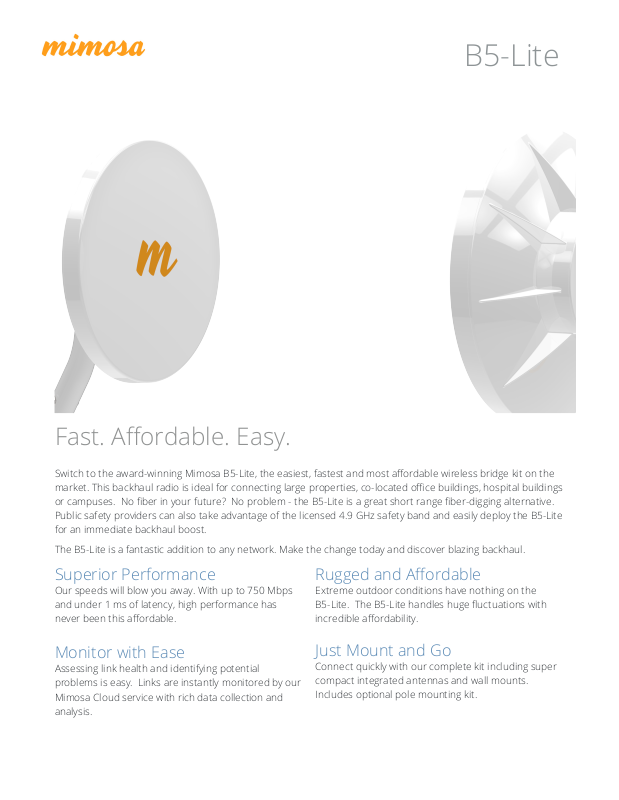

B5-Lite
Fast. Aordable. Easy.
Switch to the award-winning Mimosa B5-Lite, the easiest, fastest and most aordable wireless bridge kit on the
market. This backhaul radio is ideal for connecting large properties, co-located oce buildings, hospital buildings
or campuses. No ber in your future? No problem - the B5-Lite is a great short range ber-digging alternative.
Public safety providers can also take advantage of the licensed 4.9 GHz safety band and easily deploy the B5-Lite
for an immediate backhaul boost.
The B5-Lite is a fantastic addition to any network. Make the change today and discover blazing backhaul.
Superior Performance
Our speeds will blow you away. With up to 750 Mbps
and under 1 ms of latency, high performance has
never been this aordable.
Monitor with Ease
Assessing link health and identifying potential
problems is easy. Links are instantly monitored by our
Mimosa Cloud service with rich data collection and
analysis.
Rugged and Aordable
Extreme outdoor conditions have nothing on the
B5-Lite. The B5-Lite handles huge uctuations with
incredible aordability.
Just Mount and Go
Connect quickly with our complete kit including super
compact integrated antennas and wall mounts.
Includes optional pole mounting kit.
Mimosa - Data Sheet - Mimosa B5-Lite Backhaul
Technical Specications
Performance
• Max Throughput: 750+ Mbps
• Low Latency: Congurable to 5ms+
• Wireless Protocols: Auto-TDD/TDMA
Radio
• MIMO & Modulation: 2x2:2 MIMO
OFDM up to 256 QAM
• Bandwidth†: 20/40/80 MHz channels tunable to 5 MHz increments
• Frequency Range: 4900-6000 MHz
restricted by country of operation
(*new* US/FCC 5600-5650 support)
• Max Output Power: 23 dBm
• Sensitivity ( MCS 0 ):
• -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Antenna
• Gain: 20 dBi
• Beamwidth ( 3dB ): 14° (azimuth
and elevation)
• Cross-Polar Isolation: >20 dB
• Polarization: Dual 45° slant polar-
ization
Power
• Max Power Consumption: 15W
• System Power Method: Passive POE
• PoE Power Supply: Passive POE
compliant, 48-56 V Power over
Ethernet supply
Physical
• Dimensions:
Width: 153.31 mm (6.04”)
Diameter: 260.33 mm (10.25”)
• Weight: 0.72 Kg (1lbs 9oz)
• Enclosure Characteristics: Outdoor
UV stabilized plastic
• Wind Survivability: 200 km/h (125
mph)
• Wind Loading: 39 kg @ 160 km/h
(86 lbs @ 100 mph)
• Mounting: Single pole strap feed
point integrated into plastic back
plate with integrated curvature
for contact with mounting poles.
Azimuth and Elevation adjustability
only provided via J-mount elevation
adjustment and hose clamp loosened rotation on the pole.
Environmental
• Outdoor Ingress Protection Rating:
IP55
• Operating Temperature: -40°C to
+55°C (-40°F to 131°F)
• Operating Humidity: 5 to 100%
condensing
• Operating Altitude: 4420 m (14500’)
maximum
• Shock & Vibration: ETS 300-019-2-4
class 4M5
Features
• Gigabit Ethernet:
10/100/1000-BASE-T
• Management Services: Mimosa
cloud monitoring and management
SNMPv2 & Syslog legacy monitoring
HTTPS HTML 5 based Web UI
• Smart Spectrum Management:
Active scan monitors/logs ongoing
RF interference across channels (no
service impact)
Dynamic auto-optimization of
channel and bandwidth use
• Security: WPA2 + Mimosa 802.1x
Client
• QoS: Supports 4 pre-congured QoS
levels
Regulatory + Compliance
• Approvals: FCC Part 15.407and Part
90Y, IC RS210, CE, ETSI 301 893/302
502
• RoHS Compliance: Yes
• Safety: UL/EC/EN/ 60950-1 + CSA-
22.2
B5-Lite Azimuth Polar Plot
B5-Lite Elevation Polar Plot
† 4.9 GHz uses 20 MHz channel widths only (US only,
regulations vary by region)
Mimosa Networks, Inc. • www.mimosa.co • @gomimosa
©2016 Mimosa Networks, Inc. All rights reserved. The Mimosa logo is a registered trademark of Mimosa Networks, Inc. in the United States.
All other company names may be trade names or trademarks of their respective owners. 705-00004 Rev 7/16
