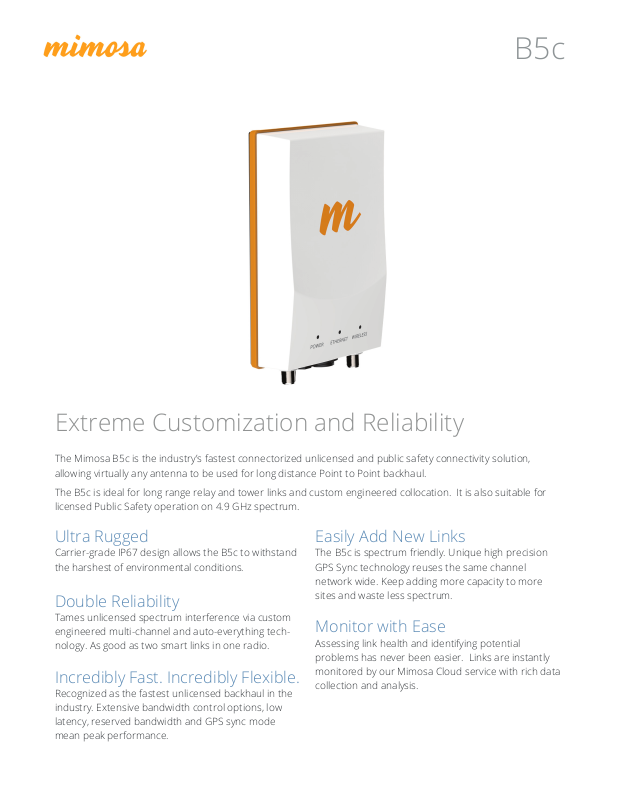

B5c
Extreme Customization and Reliability
The Mimosa B5c is the industry’s fastest connectorized unlicensed and public safety connectivity solution,
allowing virtually any antenna to be used for long distance Point to Point backhaul.
The B5c is ideal for long range relay and tower links and custom engineered collocation. It is also suitable for
licensed Public Safety operation on 4.9 GHz spectrum.
Ultra Rugged
Carrier-grade IP67 design allows the B5c to withstand
the harshest of environmental conditions.
Double Reliability
Tames unlicensed spectrum interference via custom
engineered multi-channel and auto-everything technology. As good as two smart links in one radio.
Incredibly Fast. Incredibly Flexible.
Recognized as the fastest unlicensed backhaul in the
industry. Extensive bandwidth control options, low
latency, reserved bandwidth and GPS sync mode
mean peak performance.
Easily Add New Links
The B5c is spectrum friendly. Unique high precision
GPS Sync technology reuses the same channel
network wide. Keep adding more capacity to more
sites and waste less spectrum.
Monitor with Ease
Assessing link health and identifying potential
problems has never been easier. Links are instantly
monitored by our Mimosa Cloud service with rich data
collection and analysis.
Mimosa - Data Sheet - Mimosa B5c Backhaul
Technical Specications
Performance
• Max Throughput:
Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
• Low Latency:
< 1 ms in Auto Mode
• Wireless Protocols:
TDMA, TDMA-FD
Radio
• MIMO & Modulation:
4x4:4 MIMO OFDM up to 256QAM
• Bandwidth*:
Single or Dual 20/40/80 MHz channels
• Frequency Range:
4900 - 6200 MHz restricted by country of operation (‘new’
US/FCC 5600-5650 support)
• Max Output Power:
30 dBm (2-stream)
27 dBm (4-stream)
• Sensitivity ( MCS 0 ):
-87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
• Max Power Consumption:
20W
• System Power Method:
48 V DC 802.3 at compliant power injectors
• System Lightning & ESD Protection:
6 kV
• PoE Power Supply:
Passive POE compliant, 48-56 V Power over Ethernet
supply with IEC61000-4-5 surge protection
Physical
• Dimensions:
Height - 267 mm (10.5”)
Width - 158 mm (6.2”)
Depth - 74 mm (3”)
• Weight: 1.6 kg (3.5 lbs)
• Enclosure Characteristics:
Outdoor UV stabilized plastic
Aluminum mounting panel
• Wind Survivability:
200 km/h (125 mph)
• Wind Loading:
9.89 kg @ 160 km/h (21.8 lbs @ 100 mph)
• Mounting:
Dual standard pole straps for 30 mm (1.18”) to 90 mm
(3.54”) OD pipes
• Connector Type:
Female Type N (x2), intended for use with dual
polarization antenna
Environmental
• Outdoor Ingress Protection Rating:
IP67
• Operating Temperature:
-40°C to +55°C (-40°F to 131°F)
• Operating Humidity:
5 to 100% condensing
• Operating Altitude:
4,420 m (14,500’) maximum
• Shock & Vibration:
ETS 300-019-2-4 class 4M5
Features
• Gigabit Ethernet:
10/100/1000-BASE-T
• Dual Link Operation:
2 independent dual-stream radios operating on noncontiguous frequencies
Automatic load balancing of trac across 4 total MIMO
streams with individual stream encoding up to 256 QAM
• Management Services:
Mimosa cloud monitoring and management SNMPv2 &
Syslog legacy monitoring HTTPS HTML 5 based Web UI
2.4 GHz 802.11b/g/n radio for local management access
• Smart Antenna Alignment:
Hands-free dedicated 2.4 GHz Wi-Fi management radio
alignment tool
• Smart Spectrum Management:
Active scan monitors/logs ongoing RF interference across
channels (no service impact)
Dynamic auto-optimization of channel and bandwidth
use
• Security:
128-bit AES PSK with hardware acceleration
• QoS:
Supports 4 pre-congured QoS levels
• GPS Location:
GNSS-1 (GPS + GLONASS)
• Collocation Synchronization:
1PPS GPS TX/RX synchronization for collocated cochannel radios
Adjustable up/downstream bandwidth ratio
Regulatory + Compliance
• Approvals:
FCC Part 15.407 and Part 90Y, IC RSS210 and RSS111, CE,
ETSI 301 893/302 502
• RoHS Compliance:
Yes
• Safety:
UL/EC/EN/ 60950-1 + CSA-22.2
* 4.9 GHz uses 20 MHz channel widths only (US only, regulations vary by region)
Mimosa Networks, Inc. • www.mimosa.co • @gomimosa
©2016 Mimosa Networks, Inc. All rights reserved. The Mimosa logo is a registered trademark of Mimosa Networks, Inc. in the United States.
All other company names may be trade names or trademarks of their respective owners. 705-00004 RevB 4/16
