MIMO UM-710S, UM-720S User Manual
04
|

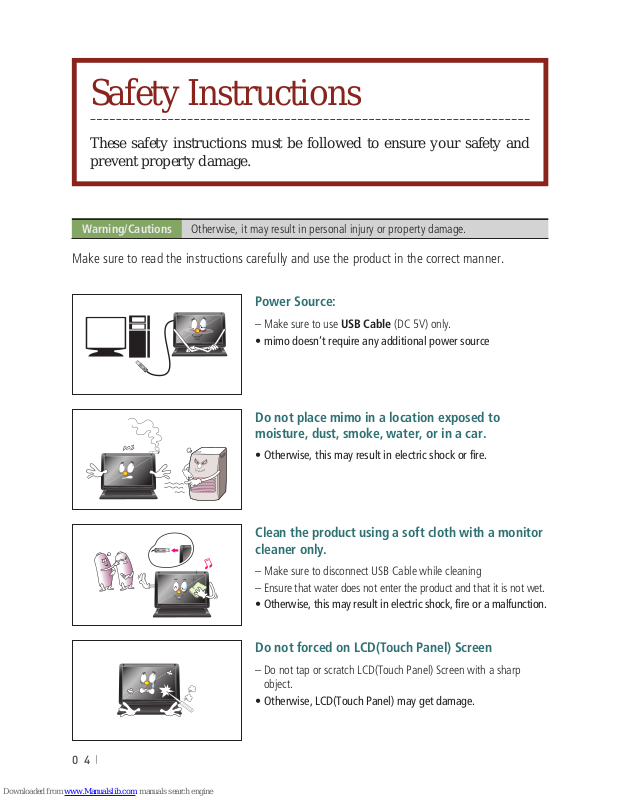

Safety Instructions
These safety instructions must be followed to ensure your safety and
prevent property damage.
Make sure to read the instructions carefully and use the product in the correct manner.
Otherwise, it may result in personal injury or property damage.
Warning/Cautions
Power Source:
– Make sure to use USB Cable (DC 5V) only.
• mimo doesn‘t require any additional power source
Do not place mimo in a location exposed to
moisture, dust, smoke, water, or in a car.
• Otherwise, this may result in electric shock or fire.
Clean the product using a soft cloth with a monitor
cleaner only.
– Make sure to disconnect USB Cable while cleaning
– Ensure that water does not enter the product and that it is not wet.
• Otherwise, this may result in electric shock, fire or a malfunction.
Do not forced on LCD(Touch Panel) Screen
– Do not tap or scratch LCD(Touch Panel) Screen with a sharp
object.
• Otherwise, LCD(Touch Panel) may get damage.
|
05
Product Input/Output Connectors
– Do not insert any metal, such as chopsticks, coins, pins and steel.
– If foreign material enters the product, disconnect the USB cable
and contact a Service Center.
Do not install mimo in an unstable location.
– Otherwise, it may fall and cause personal injury and/or damage
the product.
Ensure that users do not disassemble, repair or
modify the product themselves.
– If the product needs to be repaired, contact a Service Center.
If water enters the product, disconnect the USB and contact a Service Center.
This may result in a product malfunction, electric shock, or fire.
06
|
Product Features
• USB powered monitor with Touch Screen Panel(UM-720S only)
• Super Slim Foldable and Portable Design
• With only USB cable connection, a user may utilize mimo as Multiple
Input/Output device for Video Conference, Instant Messaging, News
and Stock casting.
Each model has different functions and features as listed Product Matrix below.
* Product Colors and Designs may vary upon each product and above listed specifications are subject to change without
prior notice.
Product Matrix
Model Name UM-710S UM-720S
Extension Monitor
Pivot
Touch Screen
Color
✔
✔
Black Color
White Color
✔
✔
✔
Black Color
White Color
Pivot Caution : mimo screen rotates one way only
Horizontal to Vertical: Clockwise
Vertical to Horizontal: Counter-Clockwise
Do not force to rotate the screen opposite way.
|
07
Package Contents
Please make sure the following items are included with your monitor.
Contact a local dealer to buy optional items.
UM-710S/UM-720S USB CABLE
User‘s Manual Install Disc
♦ Package Contents are subject to vary upon each model.
If any items are missing, contact your dealer.
08
|
Connections and Installation
※mimo requires USB connection only.
1
Standby on/off
LCD Brightness +/-
Buttons
System Requirements
• CPU : Intel Pentium/Celeron/AMD/K6/Athlon/Duron 1.2GHz or above
• RAM : 512MB RAM or above
• USB : at least one or more USB2.0 port
• HDD : 30MB HDD space above
• O/S : Windows 2000 SP4/XP SP2 32bit/Vista 32bit
Using the Software
With only USB cable connection, a user may operate mimo as a Extension monitor with
Touch Screen Panel(UM-720S only).
(For more detail functions and feature please refer to page 5 “Product Features”)
USB cap : USB mini B type connector inside
1
