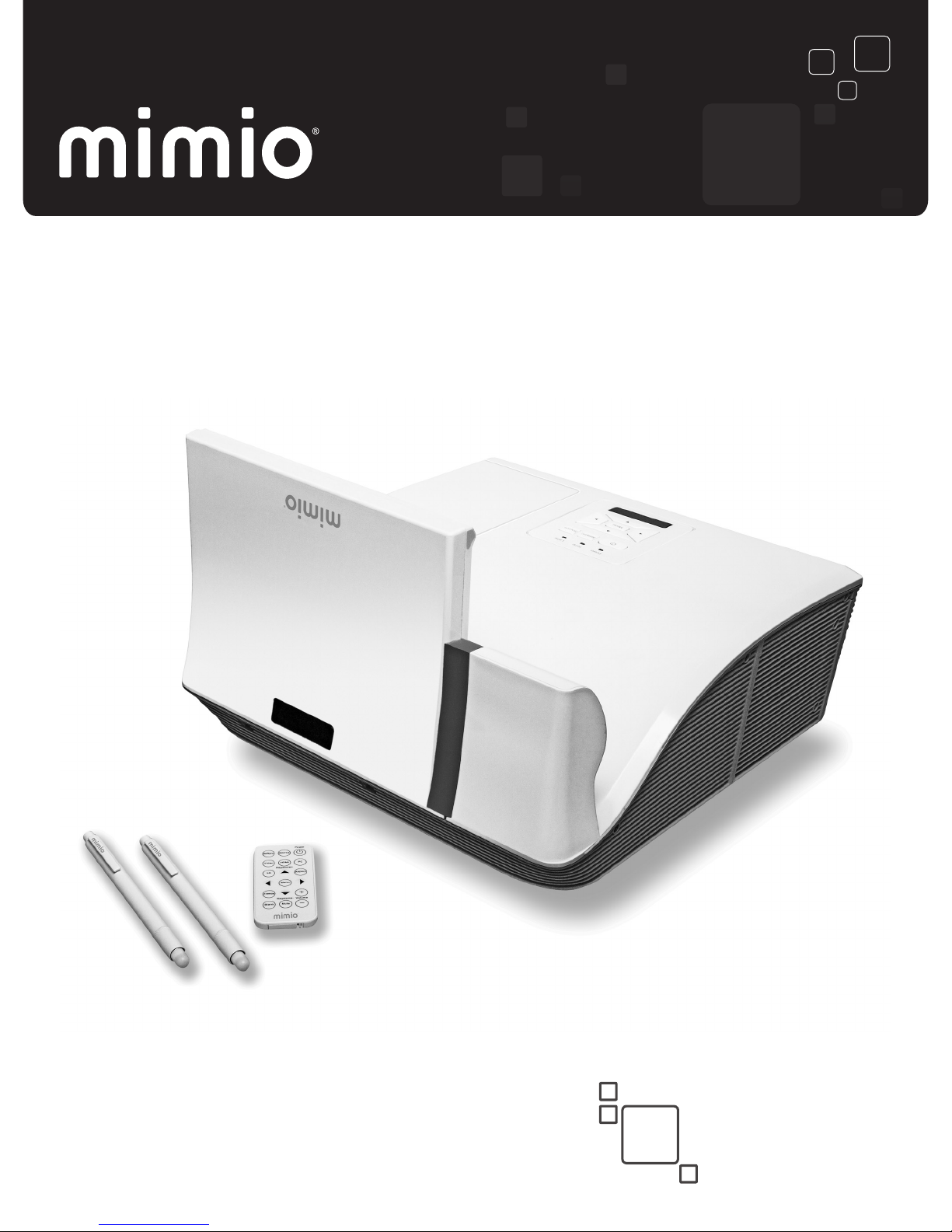

Page 1
MimioProjector
User Guide
mimio.com
Page 2
© 2013 Sanford, L.P. All rights reserved. Revised 1/17/2013.
No part of this document or the software may be reproduced or transmitted in any form
or by any means or translated into another language without the prior written consent
of Sanford, L.P.
Mimio, MimioClassroom, MimioTeach, MimioCapture, MimioVote, MimioView,
MimioHub, MimioBoard, MimioPad, MimioProjector, and MimioStudio are registered
marks in the United States and other countries. All other trademarks are the property of
their respective holders.
Page 3
Contents
About MimioProjector
What's Included 7
About MimioProjector 8
About the Control Panel 10
About the Remote Control 11
About the Connection Ports 13
Getting Started
Connecting the Projector 15
Connecting to a Computer 16
Connecting to a Video Source 17
Setting Up the Remote Control 18
Turning On the Power 19
Turning off the Power 20
Status Lights 21
Adjusting the Projected Image 22
Resizing the Projected Image 22
Focusing the Projected Image 22
Changing the Projector Settings
15
23
7
Navigating the Projector Menu 23
Adjusting the 3D Settings 26
3D 26
3D Invert 26
3D Format 26
1080p @24 26
Adjusting the Interactive Settings 27
Adjusting the Options 27
Logo 27
Logo Capture 28
Auto Source 28
Input 28
Auto Power Off 28
Lamp Setting 28
Lamp Hours Used (Normal) 28
Lamp Hours Used (ECO) 28
iii
Page 4
Lamp Life Reminder 28
Lamp Power Mode 29
Clear Lamp Hours 29
Dynamic Black 29
High Altitude 29
Filters Remind 29
Information 30
Adjusting the Picture 30
Color Mode 30
Wall Color 30
Brightness 30
Contrast 30
Sharpness 30
Saturation 31
Hue 31
Gamma 31
Color Temperature 31
Color Space 31
Adjusting the Screen 31
Aspect Ratio 31
Phase 32
Clock 32
Horizontal Position 32
Vertical Position 32
Digital Zoom 32
Vertical Keystone 32
Ceiling Mount 32
Adjusting the General Settings 33
Language 33
Menu Location 33
Closed Caption 33
VGA OUT (Standby) 33
Auto Screen (12V Out) 33
Test Pattern 34
Security 34
Setting the Password 34
Reset 34
Adjusting the Volume 35
Mute 35
iv
Page 5
Volume 35
Microphone Volume 35
Caring for MimioProjector
Replacing the Remote Control Battery 37

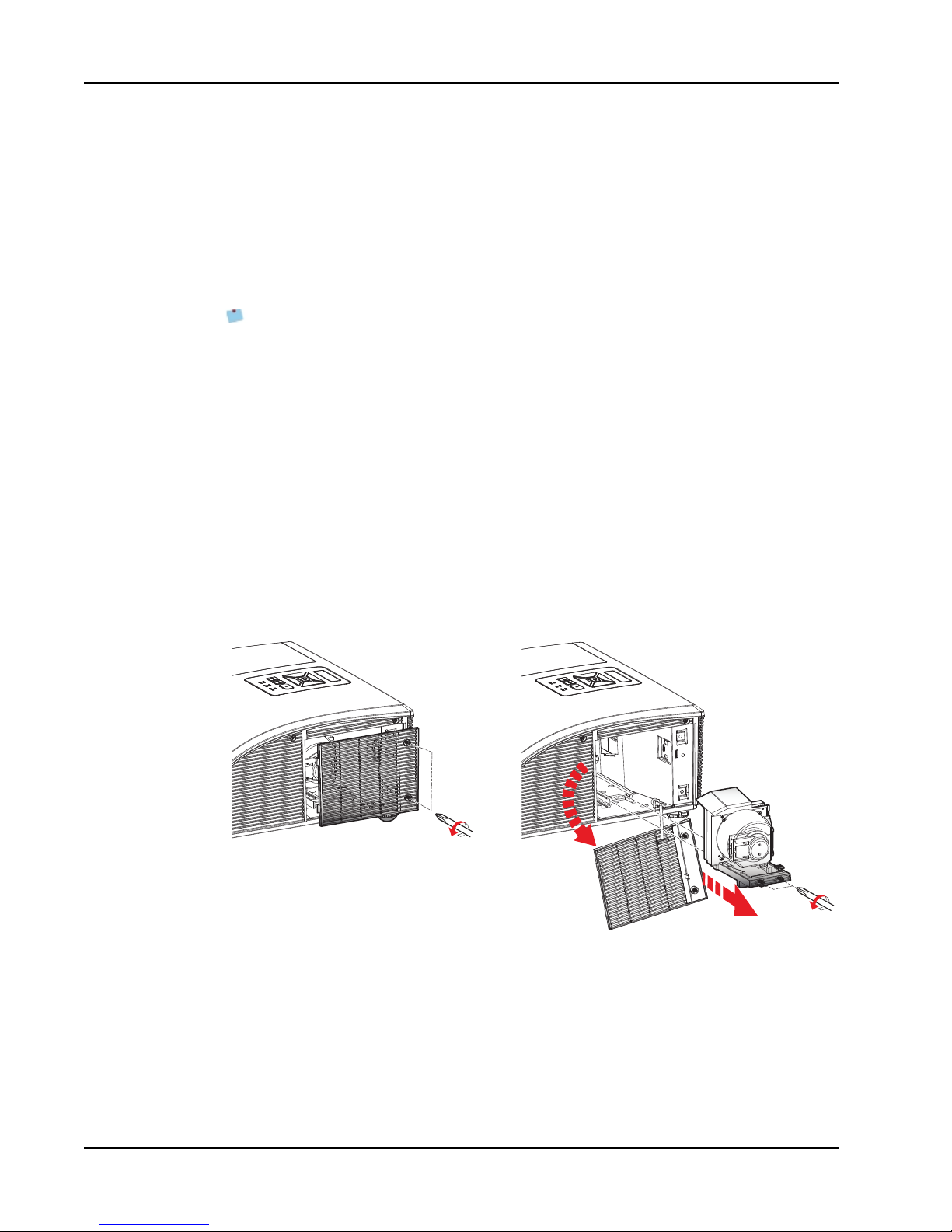

Replacing the Lamp 38
Cleaning the Dust Filters 39
Getting Help
General Troubleshooting 41
Projector stops responding to all controls 41
Lamp burns out or makes a popping sound 41
Image Troubleshooting 41
No image is displayed 41
A partial, scrolling, or incorrect image is displayed 41
The notebook computer display is not displaying an image 42
Image is unstable or flickering 42
Image has vertical flickering bar 42
Image is out of focus 42
Image is stretched when displaying 16:9 DVD image 42
Image is too small or too large 42
Image is displayed with slanted sides 43
Image is reversed 43
3D Troubleshooting 43
A blurry double image is displayed 43
Two images are displayed side-by-side 43
Image not displayed in 3D 43
Sound Troubleshooting 43
Remote Control Troubleshooting 43
Contacting Mimio 44
37
41
Compatibility Modes
VGA Analog 45
PC Signal 45
Extended Wide Timing 46
Component Signal 47
HDMI Digital 48
PC Signal 48
Extended Wide Timing 49
Video Signal 50
45
v
Page 6
HDMI 1.4a Mandatory 3D Timing - Video Signal 50
Technical and Environmental Information
51
Usage Notice 51
Warnings 51
Precautions 51
Regulation & Safety Notices 52
FCC Notice 52
Notice 52
Caution 52
Operating Conditions 53
Notice: Canadian Users 53
Remarque à L’intention des Utilisateurs Canadiens 53
Declaration of Conformity for EU countries 53
Projector Mount Saftey Notices 53
Environmental Information 54
Documentation Feedback 55
vi
Page 7

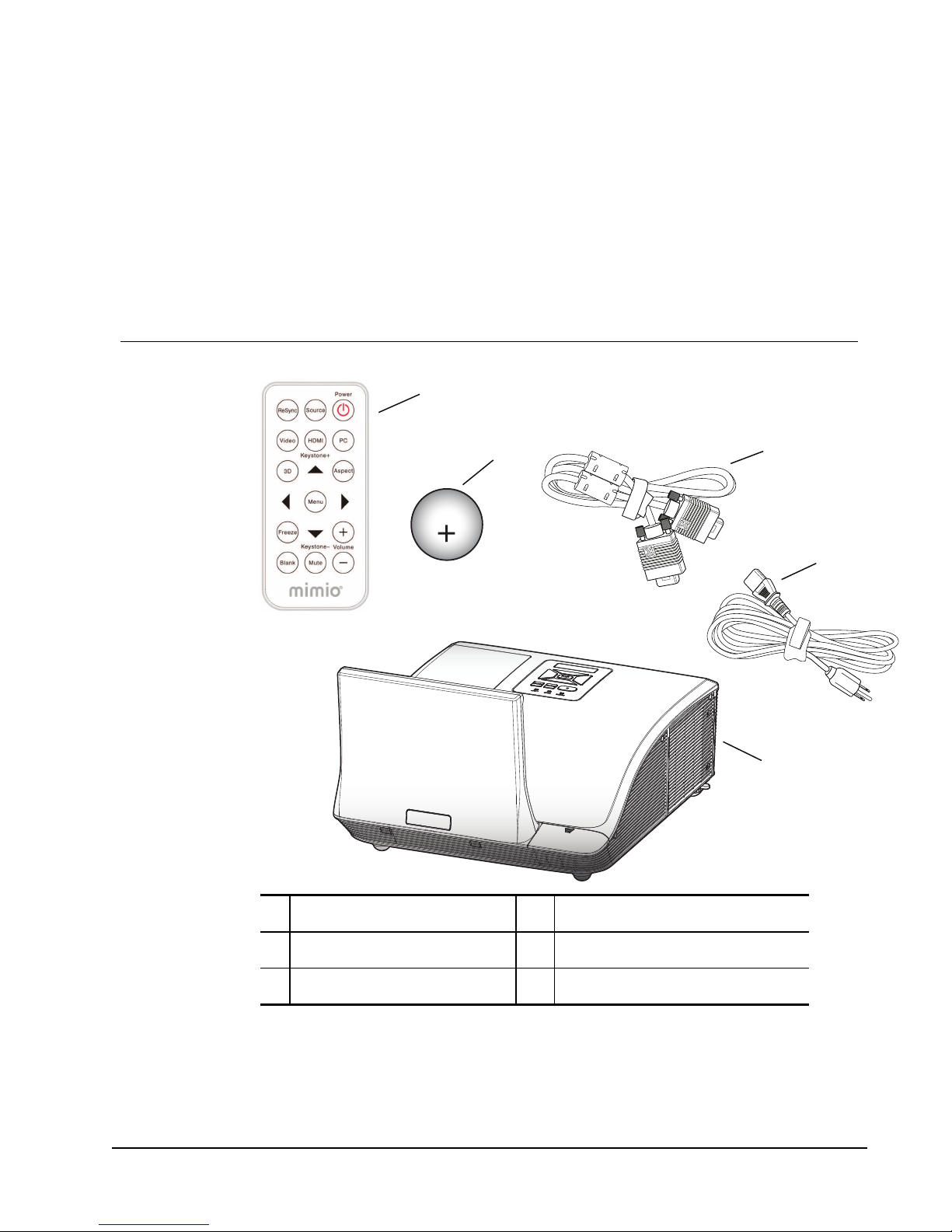

What's Included
CR2025
3V
1
2
3
4
5
The MimioProjector package contains the following items:
Chapter 1
About MimioProjector
1 Remote control 4 Power cord
2 Remote control battery 5 Projector with lens cap
3 VGA cable
If you are missing any of the items above, contact Customer Support.
7
Page 8
About MimioProjector
1
2
3
4
5
6
7
8
9
8
Front View
Back View
Bottom View

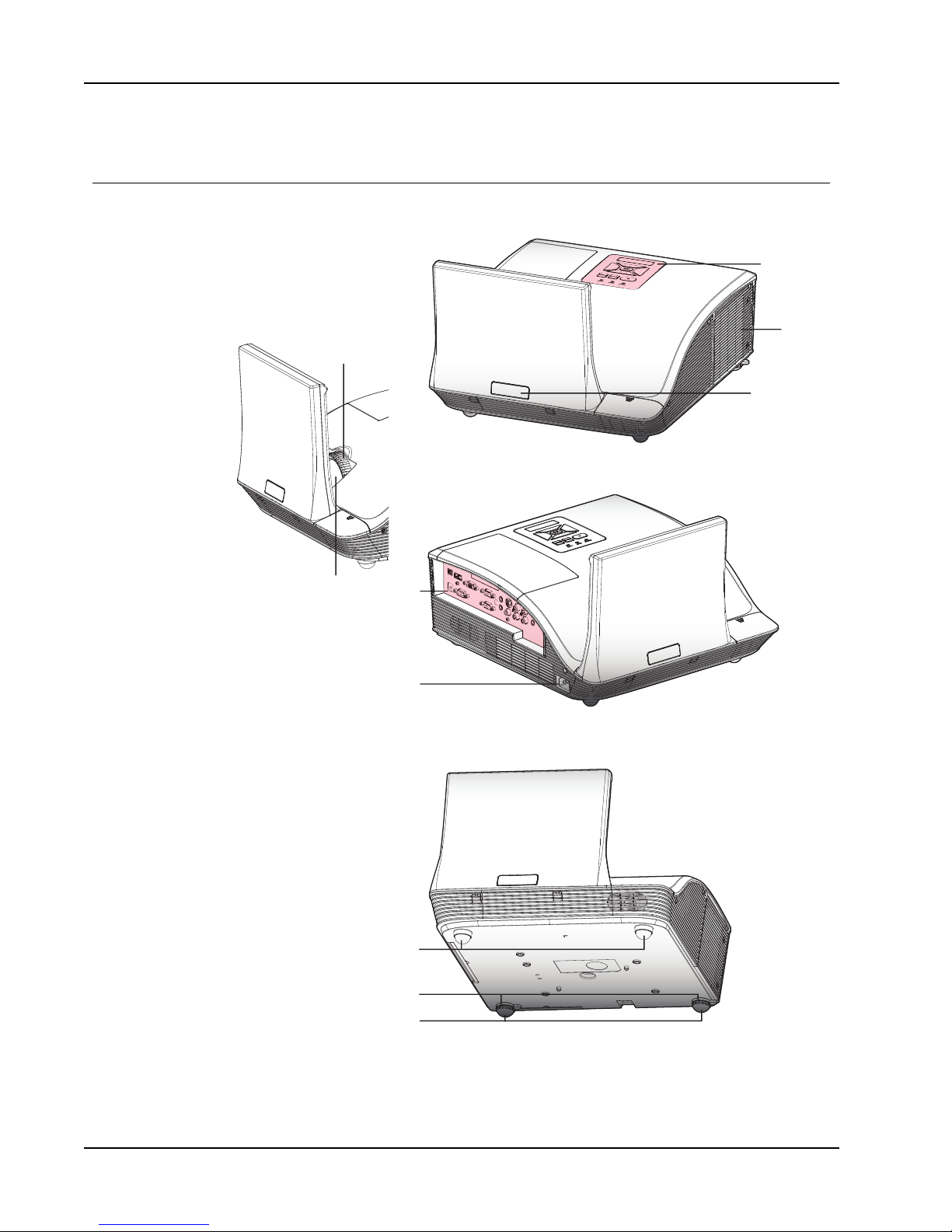

About MimioProjector
The following figure shows the major components of the MimioProjector.
8
Page 9
About MimioProjector
1 Focus ring 6 Input/Output connection ports
2 Lens 7 Power connector
3 Control panel 8 Elevator feet
4 Lamp cover 9 Elevator feet spacers
5 IR Receiver
9
Page 10
About MimioProjector
MENU
POWER TEMP LAMP
RESYNC
SOURCE
1
MENU
2
4
6
9
8
7
5
3

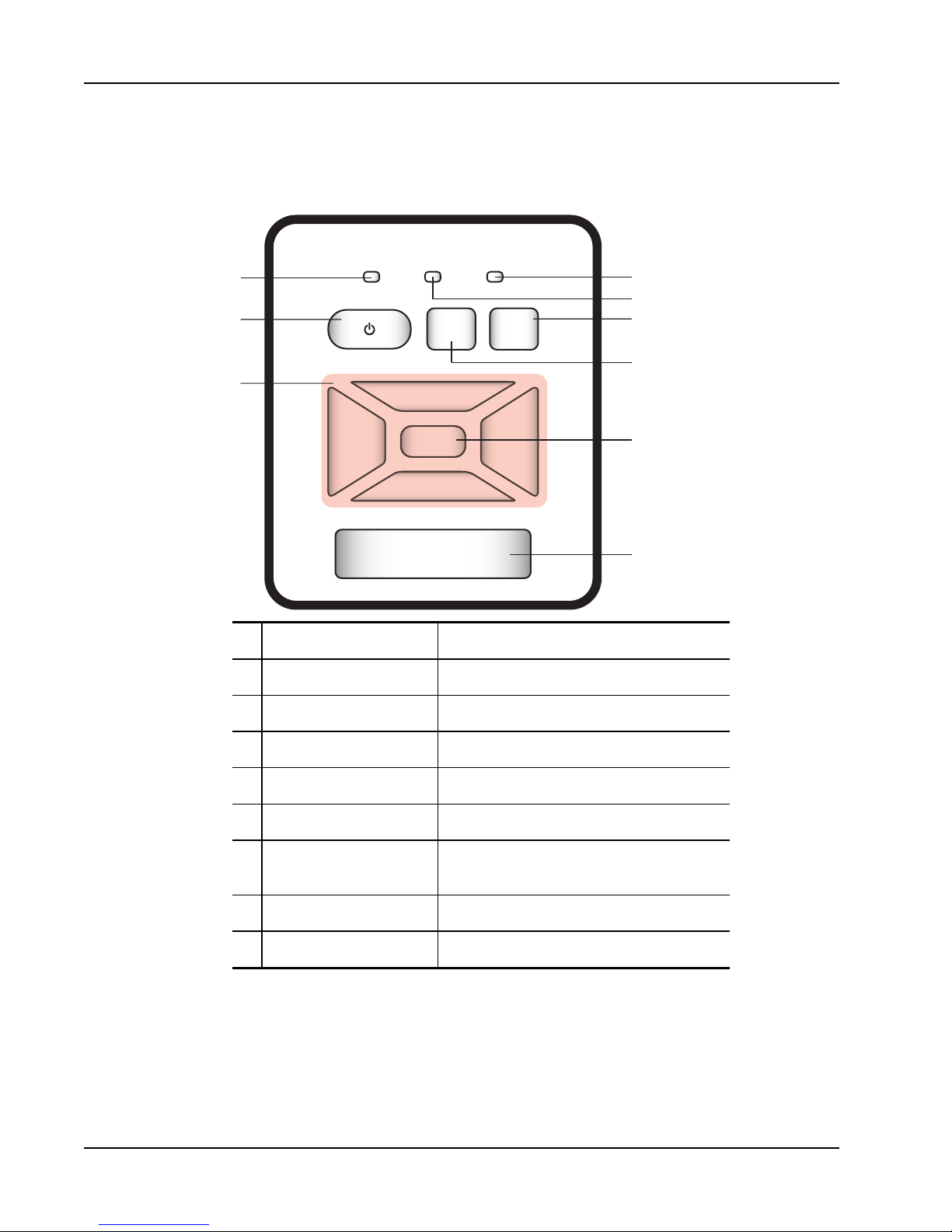

About the Control Panel
The following figure shows the components of the MimioProjector control panel.
1 Navigation keys Navigate through menus and make selections.
2 Power button Turn the projector on and off.
3 Power status light Indicates the power status of the projector.
4 Lamp status light Indicates the projector lamp status.
5 Temperature status light Indicates the projector temperature status.
6 Source button Select an input signal.
7 Resync button
8 Menu/Exit button Open the menu screen or exit a menu.
9 IR receiver
Automatically synchronize the PC analog timing
to the optimized condition.
10
Page 11
About the Remote Control
1
2
4
6
9
8
7
5
3
10
12
13
14
15
16
11

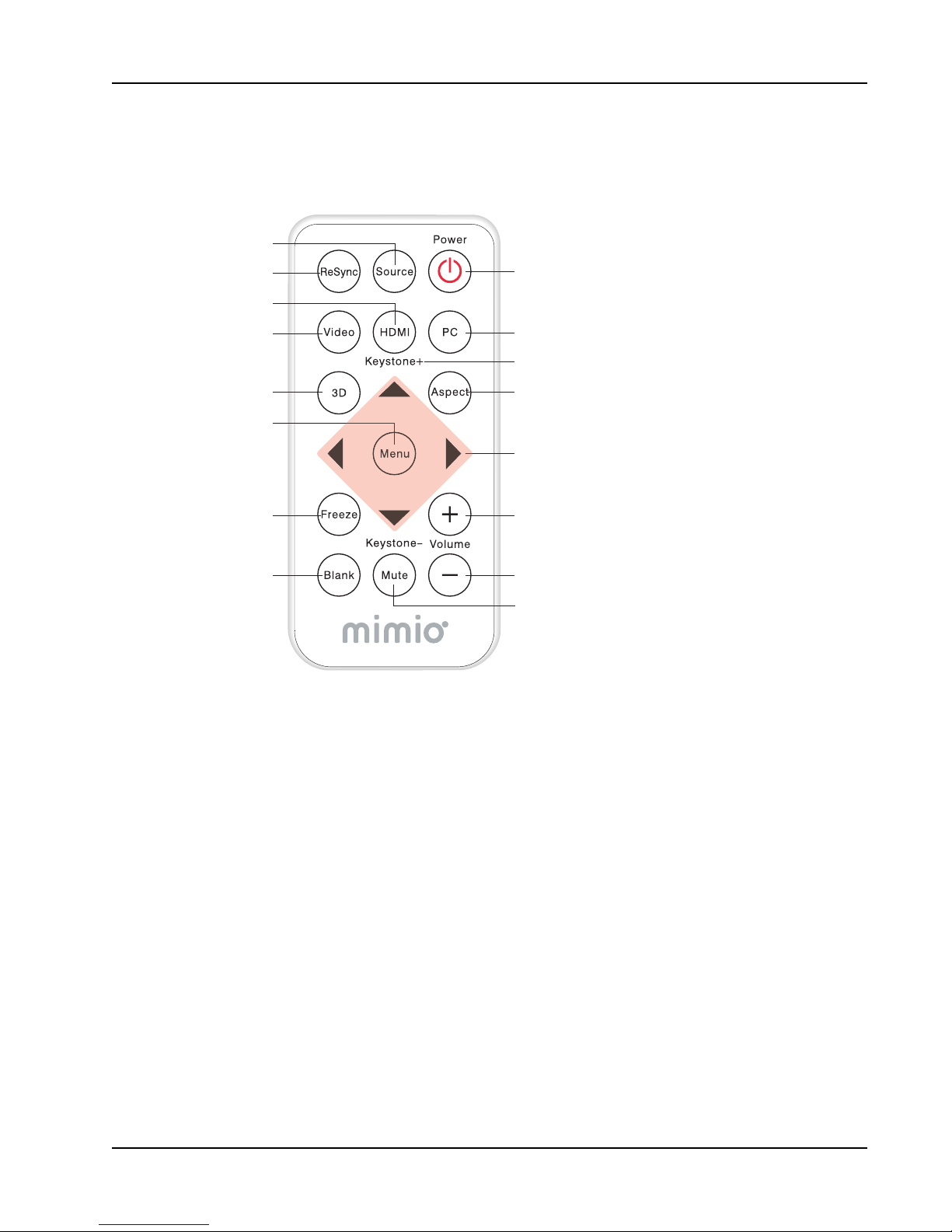

The following figure shows the components of the MimioProjector remote control.
About MimioProjector
11
Page 12
About MimioProjector
1 Source Select an input signal.
2 Resync Automatically synchronize the
PCanalog timing to the optimized
condition.
3 HDMI Switch to HDMIinput.
4 Video
Switch to Composite Video or SVideo input.
5 3D Turn on and off the 3D menu.
6 Menu Open the menu screen or exit a menu.
7 Freeze
Freeze or unfreeze the image on the
screen.
8 Blank Hide or show the screen image.
9 Power Turn the projector on or off.
PC Switch to VGA-A/VGA-B input.
10
11 Keystone /
12
Aspect ratio Select the desired aspect ratio.
Navigation keys Navigate through menus and make
13
Adjust image until the sides are
vertical.
selections.
Volume up Increase the audio volume.
14
15
Volume down Decrease the audio volume.
16
Mute Mute the audio.
12
Page 13

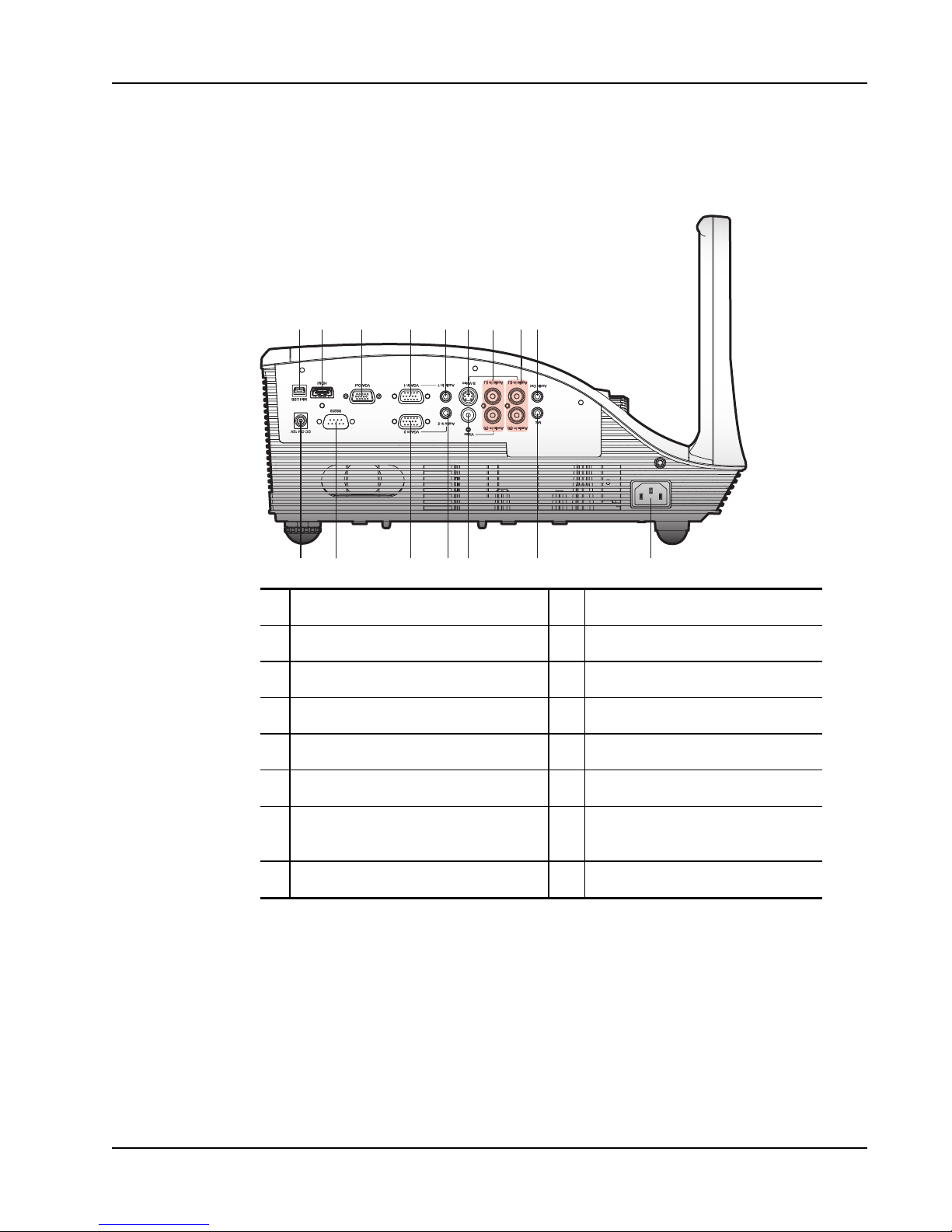

About the Connection Ports
1
2 4 6
987
5
3
10 11 12 13 14 15 16
The following figure shows the connection ports available on the MimioProjector .
About MimioProjector
1 Mini-USB 9 Audio output
2 HDMI 10 12V trigger relay (12V, 250mA)
3 VGA output 11 RS232
4 VGA in 1 12 VGA in 2
5 Audio in 1 (for VGA in 1) 13 Audio in 2 (for VGA in 2)
6 S-Video 14 Composite video input
Left/Right RCA audio input (for
7
composite video input)
8 Left/Right RCA audio input (for S-Video) 16 Power
15 3.5 mm microphone input
13
Page 14
This page intentionally left blank for double-sided printing.
14
Page 15
Review the following topics to install and start using your MimioProjector.
n Connecting the Projector
n Setting Up the Remote Control
n Turning On the Power
Connecting the Projector
You can connect MimioProjector to a computer or other video source..
n Connecting to a Computer
n Connecting to a Video Source
Chapter 2
Getting Started
15
Page 16
Getting Started
LAN
Power outlet
Audio output
+12V output
Notebook
Computer
Monitor
1
2
3 4 7
8
6
5
2
2
4
4

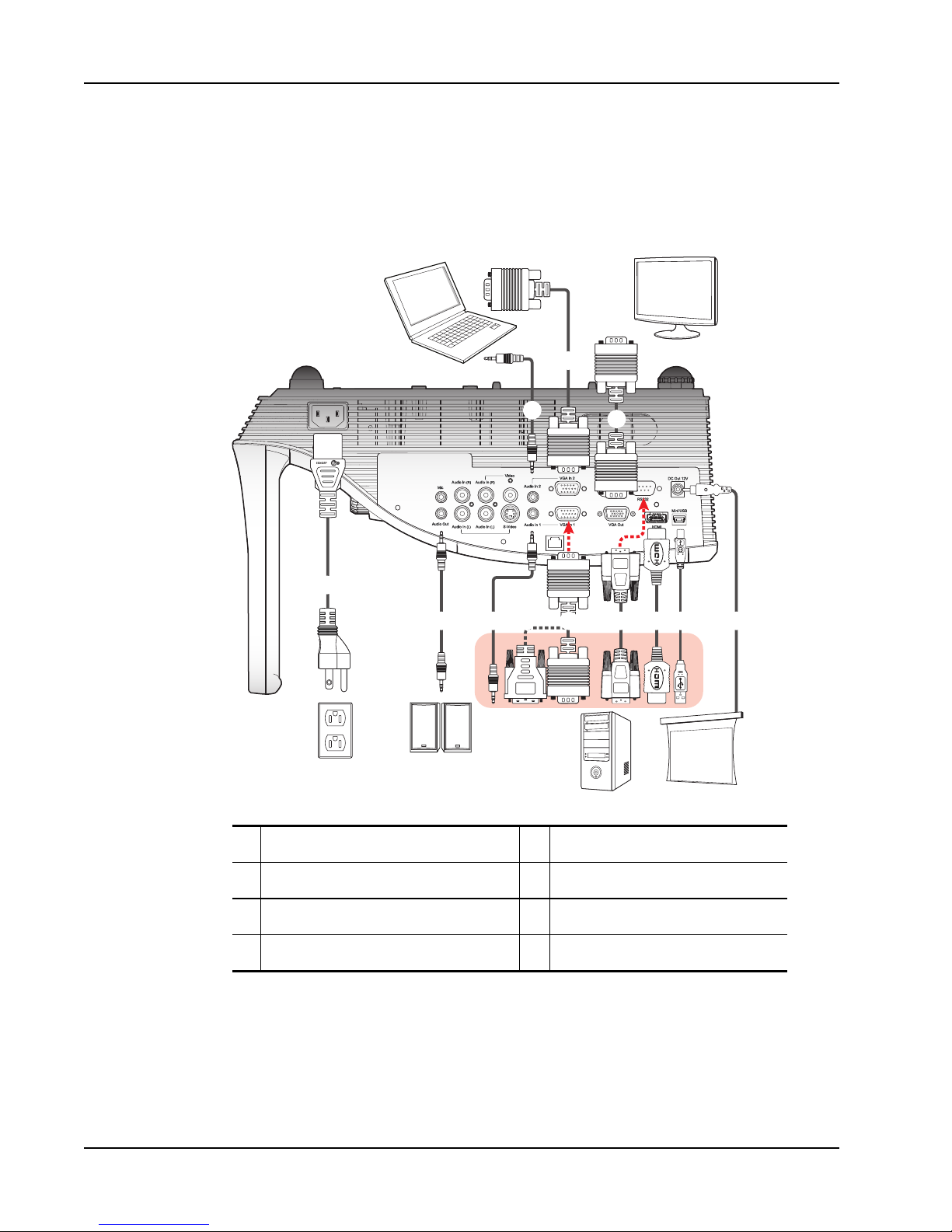

Connecting to a Computer
The following figure shows the connection methods available for connecting the
MimioProjector to a computer.
1 Power cord (included) 5 RS232 cable
2 Audio cable 6 HDMI cable
3 VGA to DVI-A cable 7 USB cable
4 VGA cable (included) 8 12V DC jack
16
Page 17
Connecting to a Video Source
Video output
DVD player, set-top box,
HDTV receiver
Power outlet
Audio output S-Video output
DVD player, set-top box,
HDTV receiver
+12V output
1 2
3
4
5
6
7
8
3 9 5
6
5

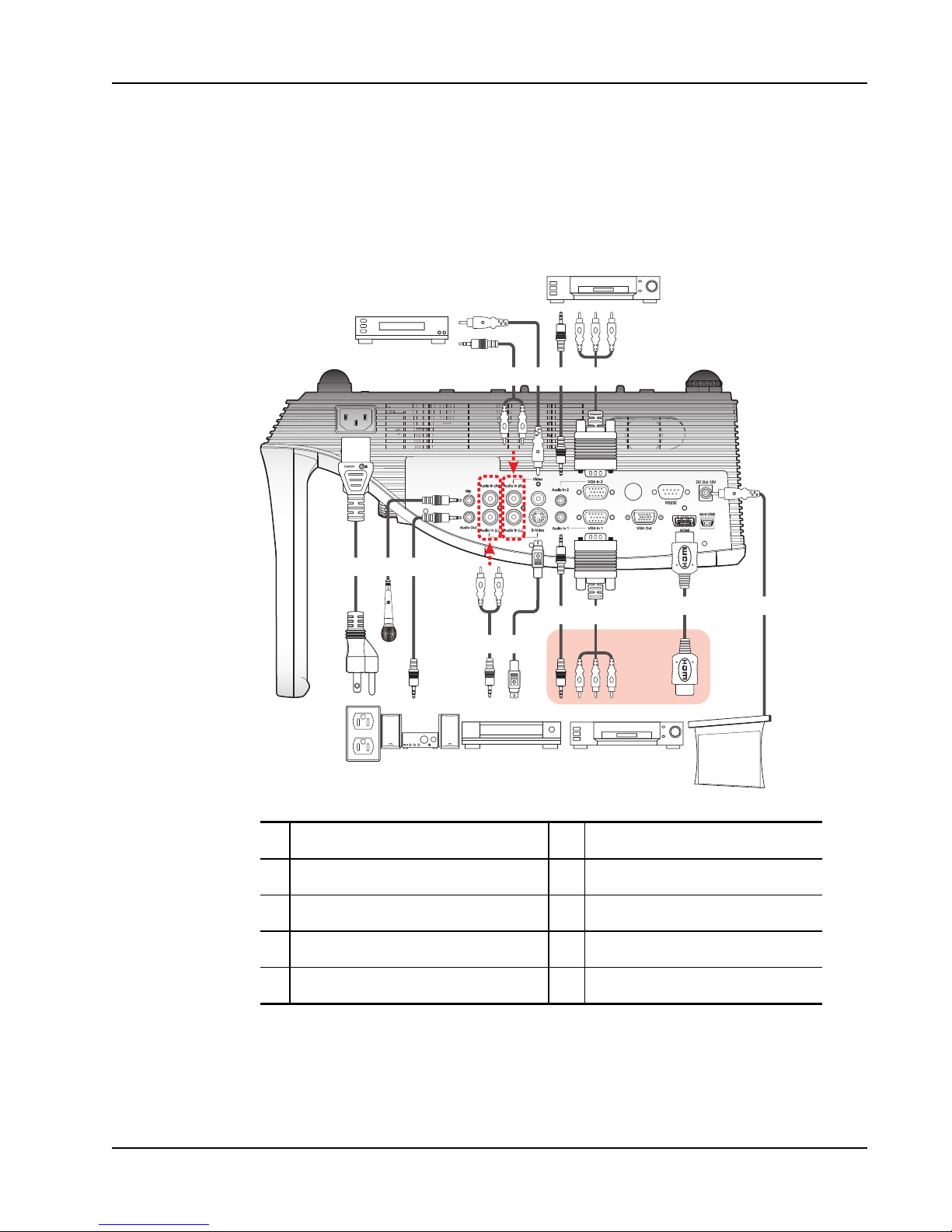

The following figure shows the connection methods available for connecting the
MimioProjector to a video source.
Connecting the Projector
1 Power cord (included) 6 VGA to HDTV (RCA) cable
2 Microphone cable 7 HDMI cable
3 Audio cable jack/RCA 8 12V DC jack
4 S-Video cable 9 Composite video cable
5 Audio cable
17
Page 18
Getting Started
3
V
O
L
T
S
CR2025
3
V
O
L
T
S
CR2025
M
3
V
O
L
T
S
CR2025

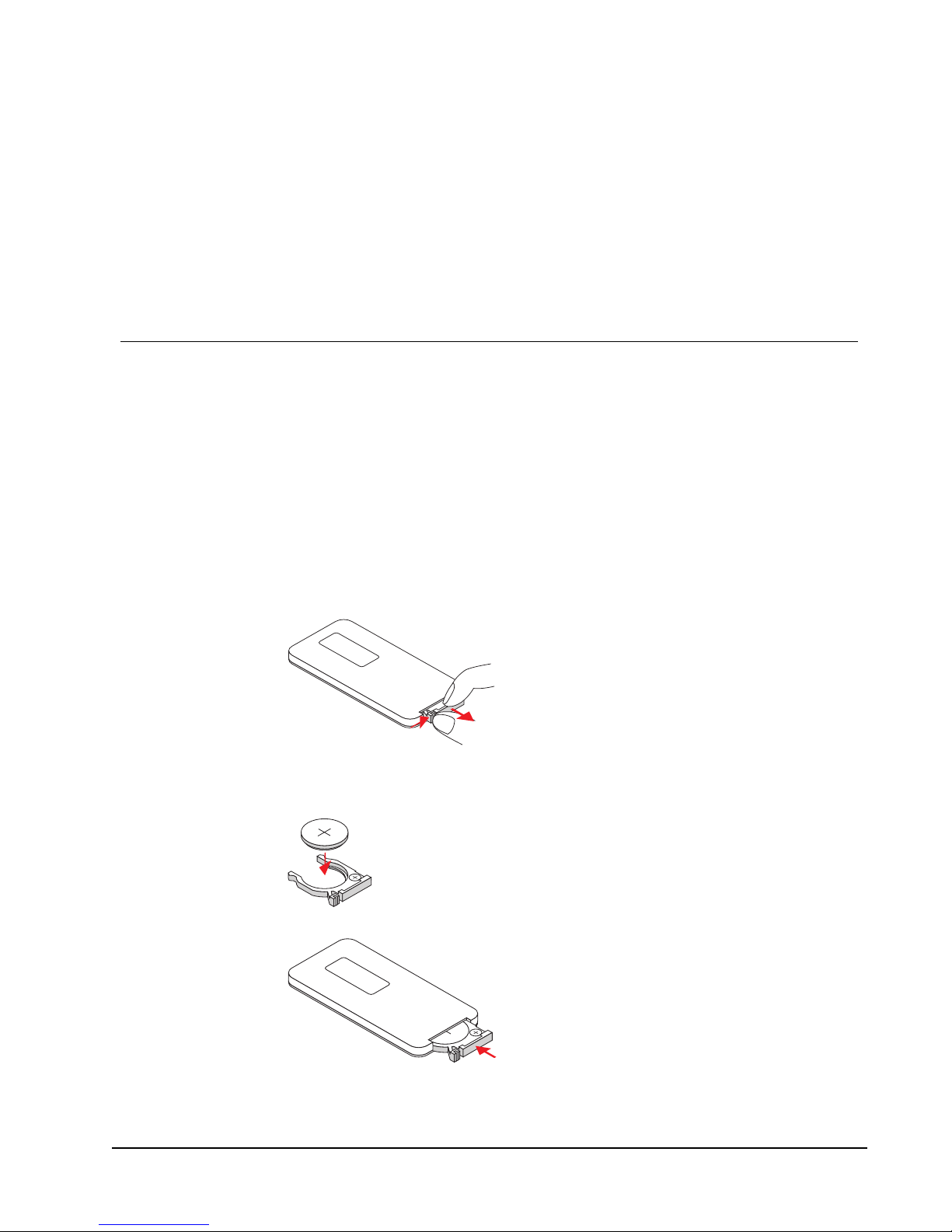

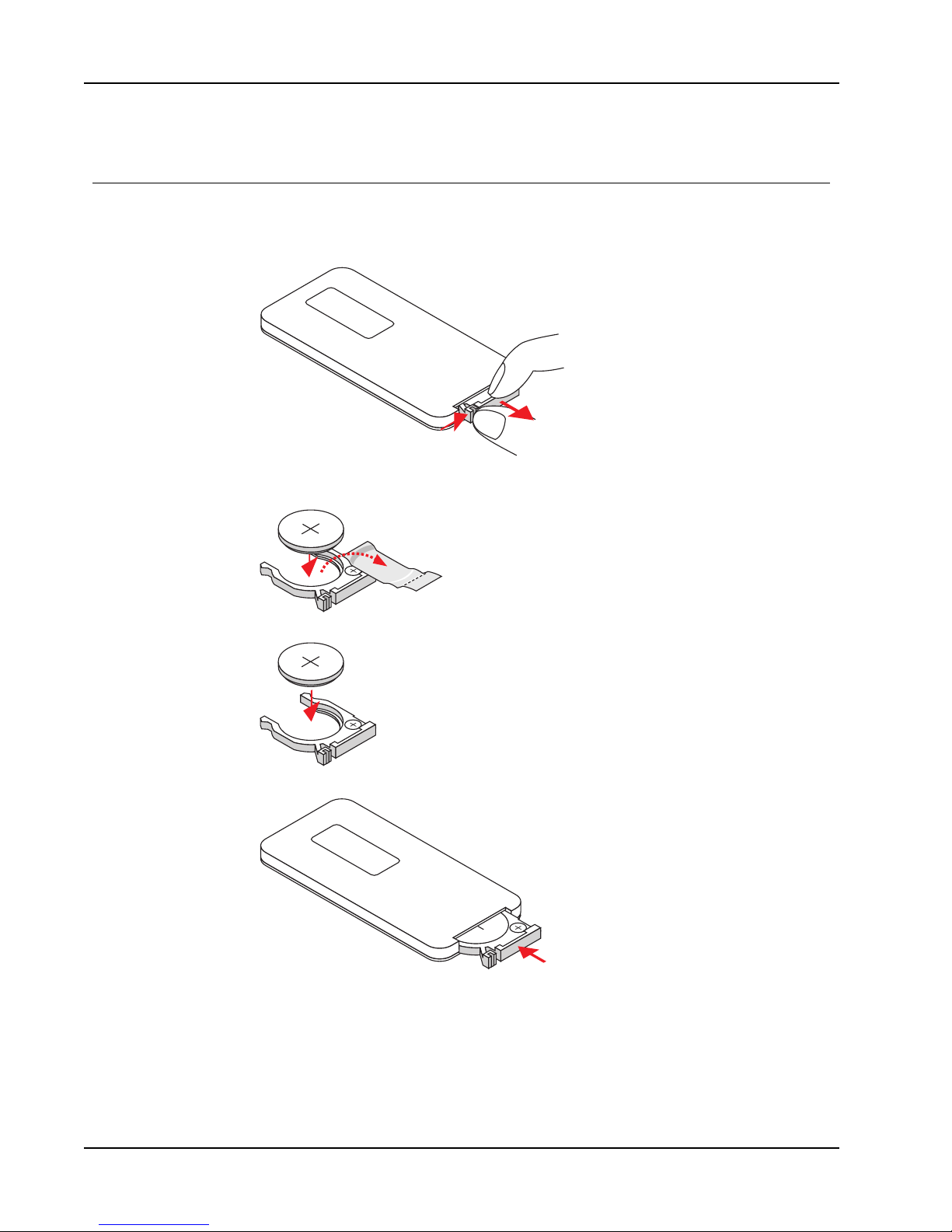

Setting Up the Remote Control
Before using the remote control for the first time, remove the transparent insulation tape.
To set up the remote control
1. Press firmly and slide the battery holder out of the battery compartment.
2. Remove the battery from the battery holder.
3. Remove the transparent insulation tape.
4. Replace the battery holder with the + polarity marking facing up as shown.
5. Slide the battery holder back into the battery compartment and press firmly.
18
Page 19
Turning On the Power
The projector has an auto-off feature which automatically turns the projector off when no
input signal is received by the projector for a set amount of time.
For information about setting the amount of time the projector will stay on before
automatically turning off , see Auto Power Off on page 28.
To turn the projector on
1. Securely connect the power cord and signal cable.
When connected, the Power status light turns red.
2.
Press on the control panel or on the remote control.
The Power status light turns blue.
3. Turn on the source that you want to display on the screen (computer, notebook, video
player, and so on).
The projector detects the source automatically and displays the source image.
4. If multiple sources are connected to the projector, press Source on the control panel or
on the remote control to switch between inputs.
Turning On the Power
19
Page 20
Getting Started
Turning off the Power
To turn the projector off
1.
Press on the control panel or on the remote control.
A confirmation message is displayed on the projector screen.
2.
Press again to turn the projector off.
The Power status light turns red and blinks rapidly. The projector fans continue to run
for approximately 10 seconds to ensure that the projector cools properly.
When the system is finished cooling, the fans turn off and the Power status light turns
solid red, indicating that the projector is in standby mode.
3. Unplug the power cord.
20
Page 21
Status Lights
Turning On the Power
Lamp status
Message
Power plug
Standby -- -- ON --
Power button ON -- -- -- ON
Cooling state -- --
Power button OFF
Cooling completed; Standby
mode
Firmware download ON ON ON --
Thermal sensor error
The following message is
displayed:
1. Make sure air inlets and
outlets are not blocked.
2. Make sure the
environment temperature
is under 40 degrees C
Fan lock error
The following message is
displayed:
The projector will switch off
automatically.
Lamp error
(lamp, lamp driver, color wheel)
light
Red
Flash ON to
OFF 100ms
-- -- ON --
-- ON -- ON
--
ON -- --
Temperature
status light
Red
Flash ON to
OFF 100ms
0.5 second H
(ON)
0.5 second L
(OFF)
flashing
Power status
light
Red
Flash ON to
OFF 100ms
0.5 second H
(ON)
0.5 second L
(OFF)
flashing
-- ON
Power status
light
Blue
--
--
ON
21
Page 22
Getting Started

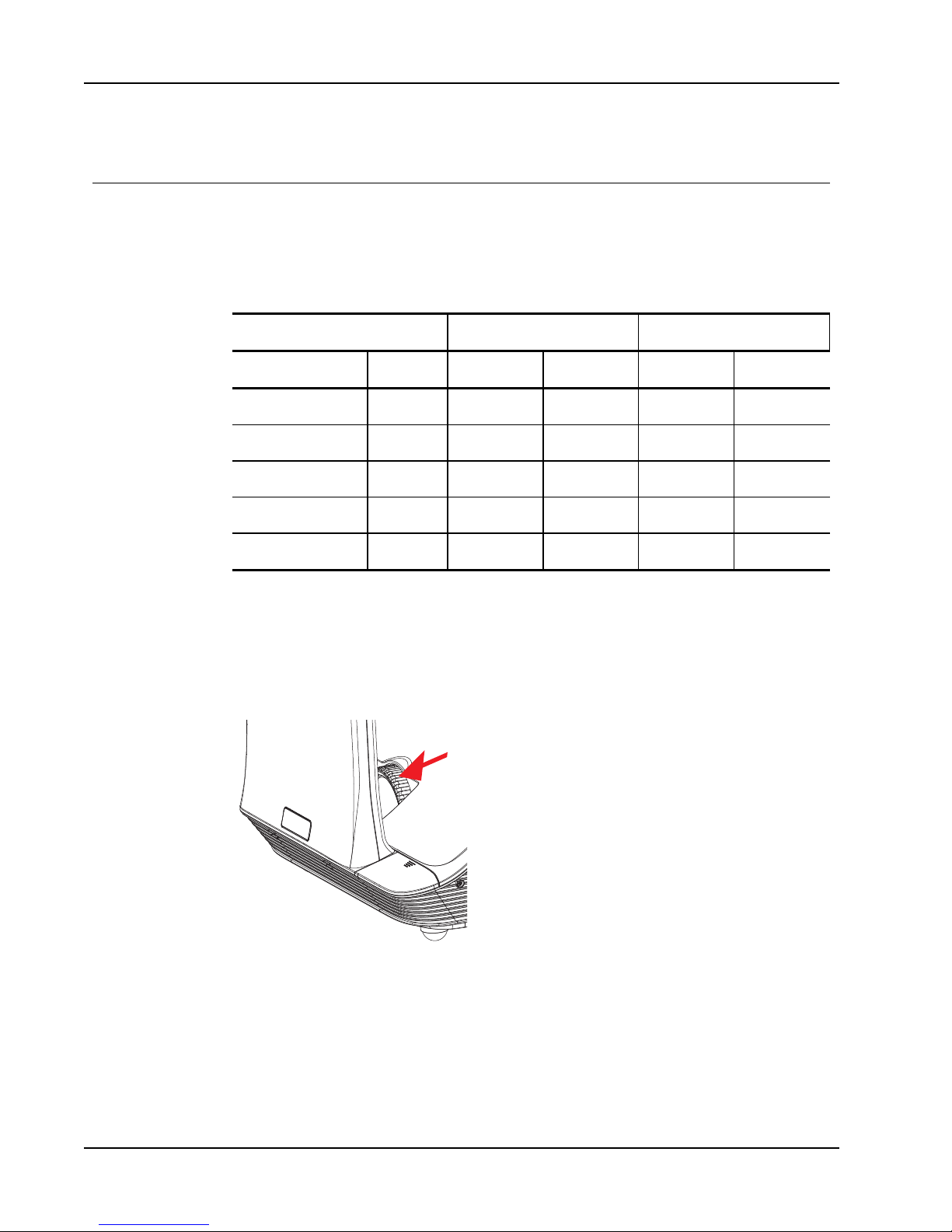

Adjusting the Projected Image
You can adjust the size and focus of the projected image.
Resizing the Projected Image
The size of the projected image depends on the distance of the projector from the screen.
The following table describes the general guidelines for projector distance from the screen.
Screen Size (16:10) Projection Distance (A) Projection Distance (B)
Diagonal (inch) mm Inch mm Inch mm
70 1778 20.4 517 7.2 182
80 2032 23.5 596 10.3 262
87.2 2215 25.8 655 12.6 320
90 2286 26.7 677 13.5 343
100 2540 29.9 759 16.7 424
Projection Distance A(mm) =Screen size (mm) x 0.296. Tolerance is around 3.1%.
For example, Projection Distance (655 mm) = Screen Size (2215 mm) x 0.296.
Focusing the Projected Image
Use the focus ring to adjust the focus of the projected image. Turn the ring until the image
is clear.
22
Page 23
Changing the Projector
You can adjust the projector image and change the projector settings using the projector
menus. The projector automatically detects the input source.
To change the projector settings
1. Press Menu on the control panel or on the remote control to display the projector main
menu.
2. Use the navigation keys to select the desired menu item.
3.
If the menu item has an arrow icon, , press ► to display the submenu for that
setting, and then use the navigation keys to select the desired menu item.
4. Press ◄ or ► to adjust the selected setting.
5. Press Menu to return to the previous menu or to exit the menu screen.
Navigating the Projector Menu
Chapter 3
Settings
The following table describes the structure of the projector menu and submenus.
Main Menu Submenu Settings
PICTURE Color Mode Brightest / PC / Movie / Game / User
Wall Color White / Light Yellow / Light Blue / Pink / Dark Green
Brightness 0~100
Contrast 0~100
Sharpness 0~31
Saturation 0~100
Hue 0~100
Gamma 0~3
Color Temp. Low / Mid / High
Color Space AUTO / RGB / YUV
23
Page 24
Changing the Projector Settings
Main Menu Submenu Settings
SCREEN Aspect Ratio AUTO / 4:3 / 16:9 / 16:10
SETTING Language English / Deutsch / Français / Italiano / Español /
Phase 0~31
Clock -50~50
H. Position -10~10
V. Position -10~10
Digital Zoom 1~10
V Keystone -20~20
Ceiling Mount Front / Front Ceiling / Rear / Rear Ceiling
Português / Polski / Русский / Svenska / Norsk / 简 体
中文 / 日 本 語 / 한 국 어 / Türkçe / 繁 體 中
文/Nederlands / ﻲﺑﺮﻋ
Menu Location
Closed Caption Off / CC1 / CC2 / CC3 / CC4
VGA Out (Standby) Off / On
Auto Screen(12V out) Off / On
Test Pattern Off / On
Security Off / On
Security
Change
Password
000000
Reset No / Yes
AUDIO Mute Off / On
Volume 0~32
Microphone Volume 0~32
24
Page 25
Main Menu Submenu Settings
OPTIONS Logo Default / User
Logo Capture
Auto source Off / On
Input HDMI / VGA-A / VGA-B / S-Video / COMPOSITE
Auto Power Off (min) 0~120
Navigating the Projector Menu
Lamp
Setting
Lamp
Hours
Used
(Normal)
Lamp
Hours
Used
(ECO)
Lamp
Off / On
Life
Reminder
Lamp
Power
ECO / Normal / Extreme Dimming
Mode
Clear
Lamp
No / Yes
Hours
Dynamic Black Off / On
High Altitude Off / On
Dust
Filter
Reminder
Filters
Remind
(Hour)
Cleaning
No / Yes
Up
Reminder
Information
Model Name / SNID / Source / Resolution / Software
Version / Color Space / Aspect Ratio
25
Page 26
Changing the Projector Settings
Main Menu Submenu Settings
3D AUTO / Off / On
3D Invert Off / On
3D
3D Format Frame Packing / Side-by-Side (Half) / Top and Bottom /
1080p @2496Hz /
INTERACTIVE Interactive Settings Off / IR Camera
Adjusting the 3D Settings
You can adjust the 3D settings for your projector.
3D
You can choose how the projector handles 3D images.
n Auto - select the 3D image automatically whenever an HDMI 1.4a 3D timing
identification signal is detected
n Off - turn off 3D functionality
n On - turn on 3D functionality
3D Invert
If you see a discrete or overlapping image while using DLP 3D glasses, you may need to
turn on this feature to get the best picture. This feature adjusts the left/right image sequence.
Frame Sequential / Field Sequential
144Hz
3D Format
When using 3D mode, select the 3D format that matches the format used by the input
source.
n Frame Packing - supports HDMI 1.4a 3D input signals
n Side-by-Side (Half) - supports HDMI 1.4a 3D input signals
n Top and Bottom - supports HDMI 1.4a 3D input signals
n Frame Sequential - supports DLP Link 3D input signals from VGA / HDMI connector
and HQFS 3D input signals from Composite/S-video connector
n Field Sequential - supports HQFS 3D input signals from Composite/S-video connector
1080p @24
Use this feature to select 96 or 144 Hz refresh rate as using 3D glasses in the 1080p @ 24
frame packing.
26
Page 27
Adjusting the Interactive Settings
Use this setting to turn on and off the Interactive Pen function.
n IR Camera - the Interactive Pen function is on
n Off - the Interactive Pen function is off
Before turning on Interactive, unplug the mini-USB cable that connects your computer to
the projector. After turning on Interactive, plug the mini-USB cable back in.
Notes
l This feature is only available when displaying images from HDMI/VGA input.
l This feature is not available when using 3D or Dynamic Black.
An external IR camera is required to use the Interactive feature. The IR camera must be
connected to the projector before the projector is mounted.

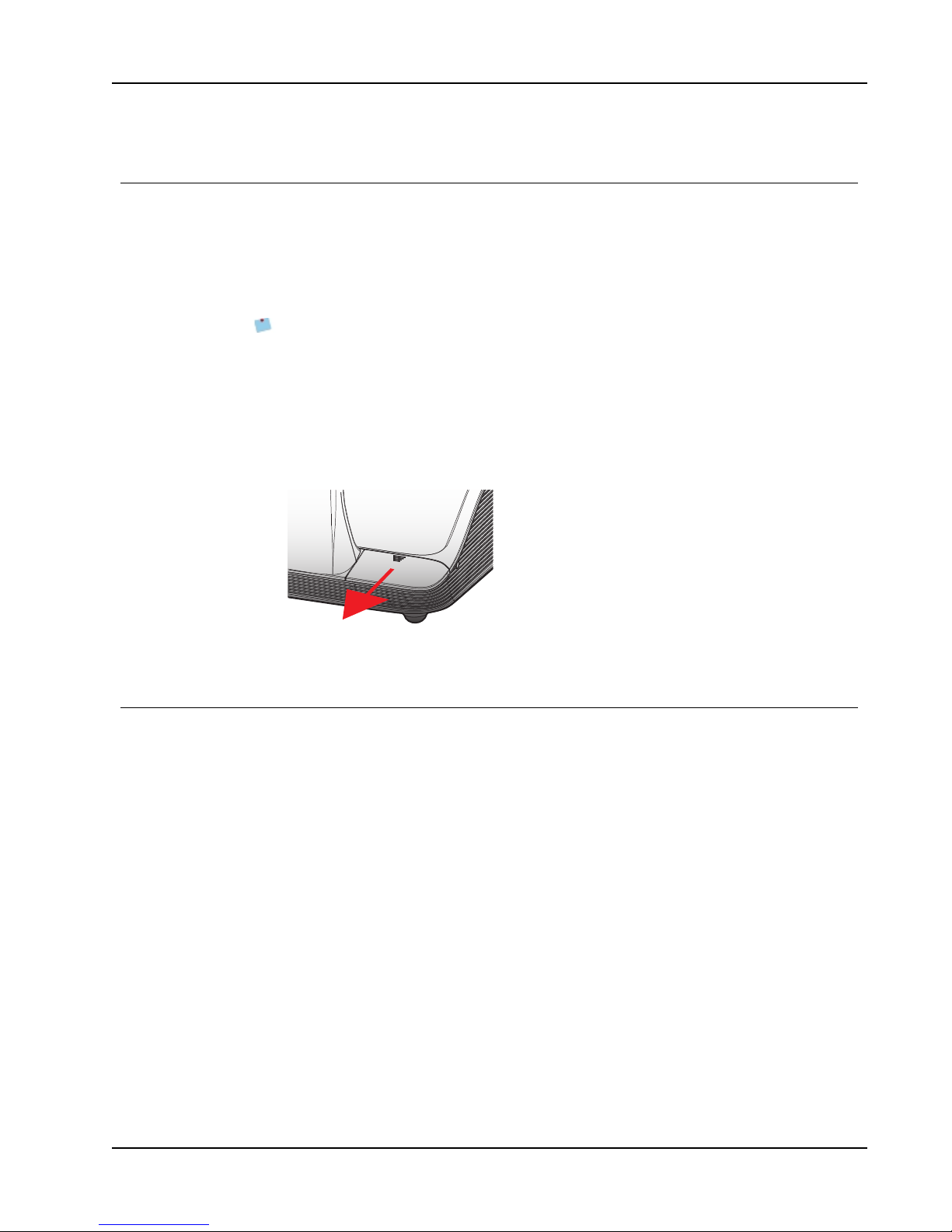

To connect the IR camera
1. Remove the camera connector cover from the projector.
Adjusting the Interactive Settings
2. Plug the camera into the camera connector.
Adjusting the Options
From the Options menu, you can change many of the projector settings as well as view the
projector information.
Logo
You can select the image to display on projector startup.
n Default- displays the default screen on projector startup
n User - displays an image of your choice on projector startup
See Logo Capture on page 28 for information on selecting an image.
27
Page 28
Changing the Projector Settings
Logo Capture
You can capture an image to display on projector startup.
Press ► to capture the image currently displayed on the screen.
Notes
l Ensure that the displayed image does not exceed the native resolution of the
projector (WXGA:1280x800).
l Logo Capture is not available when 3D is enabled.
l The aspect ratio should be set to Auto before using capturing an image.
Auto Source
Select how to handle searching for an input source when the projector loses signal from the
current input source.
n On - the projector searches for signals from other input sources when the current input
signal is lost
n Off - the projector searches only for a signal from the current input connection when the
current input signal is lost
Input
Auto Power Off
Lamp Setting
Lamp Hours Used (Normal)
Lamp Hours Used (ECO)
Lamp Life Reminder
Use this option to select the input types that the projector will search for.
1. From the Options menu, select Input, and then press ►.
2. Select the input that you do not want the projector to search for, and then press ► to
clear the check box for the selected input type.
The projector has an auto-off feature which automatically turns the projector off when no
input signal is received by the projector for a set amount of time.
You can set the amount of time the projector will stay on before automatically turning off .
View the amount of time the projector has been used in normal lamp power mode.
View the amount of time the projector has been used in ECO lamp power mode.
You can choose whether or not the projector displays a warning message when the lamp is
nearing end of life.
28
Page 29
Lamp Power Mode
Clear Lamp Hours
Dynamic Black
Adjusting the Options
The following lamp power modes are available:
n Normal - the projector lamp is at full brightness
n ECO - the projector lamp is dimmed to reduce power consumption, extending the life
of the lamp
n Extreme Dimming - the projector lamp is dimmed 30 percent to reduce power
consumption, extending the life of the lamp
Reset the lamp hours counter after replacing the projector lamp.
Use Dynamic Black to display the image with the optimum contrast by automatically
providing signal compensation to suit the currently displayed image.
Notes
l This feature is only available when the color mode is set to Movie.
l This feature is not available when using 3D or Interactive.
l Lamp Power Mode cannot be used with this feature.
High Altitude
Filters Remind
The fan power required varies depending on the altitude you are at. Set this option
appropriately to ensure that the projector cools properly.
n On - the built-in fans automatically run at a variable speed according to the internal
temperature of the projector
n Off - the built-in fans run at high speed
Select this option when using the projector at altitudes above 5000 feet/1524 meters.
You can set a time to be reminded to perform filter maintenance.
n Filters Remind (Hour) - Set the number of hours that pass before you are reminded to
clean the dust filters. The dust filters should be cleaned after every 500 hours of use.
Clean the filters more frequently if the projector is used in a dusty environment.
n Cleaning Up Reminder - Once you have cleaned or replaced the dust filters, reset the
timer to be reminded then next time the filters require maintenance.
29
Page 30
Changing the Projector Settings
Information
Display the following projector information:
n Model name
n SNID
n Source
n Resolution
Adjusting the Picture
Many settings are available for adjusting the picture displayed by the projector..
Color Mode
The following optimized color modes are available for viewing various types of images.
n Brightest - for brightness optimization
n PC - for viewing meeting presentations
n Movie - for viewing video content
n Game - for viewing game content
n User - for storing your manually configured settings
Wall Color
Select the wall color that the image is projected onto.The projector settings automatically
adjust to show the correct image tone, compensating for color deviation due to wall color.
n Software version
n Color space
n Aspect ratio
Brightness
Contrast
Sharpness
30
Adjust the brightness of the image.
Press ◄ to darken image.
Press ► to lighten the image.
The Contrast controls the difference between the lightest and darkest parts of the picture.
Adjusting the contrast changes the amount of black and white in the image.
Press ◄ to decrease the contrast.
Press ► to increase the contrast.
Adjust the sharpness of the image.
This setting is only supported when Movie is selected as the color mode.
Press ◄ to decrease the sharpness.
Press ► to increase the sharpness.
Page 31
Saturation
Hue
Gamma
Adjusting the Screen
Adjust the color saturation of the image. The saturation ranges from black and white to fully
saturated color.
This setting is only supported when Movie is selected as the color mode.
Press ◄ to decrease the amount of saturation in the image.
Press ► to increase the amount of saturation in the image.
Adjust the red and green color balance.
This setting is only supported when Movie is selected as the color mode.
Press ◄ to increase the amount of green in the image.
Press ► to increase the amount of red in the image.
Adjusts the representation of dark scenery. The greater the gamma value, the bright dark
scenery will appear.
Press ◄ to decrease the gamma value.
Press ► to increase the gamma value.
Color Temperature
At a higher color temperature, the image appears colder; at a lower color temperature, the
image appears warmer.
Color Space
Select the appropriate color matrix type; Auto, RGB, or YUV.
Adjusting the Screen
You can adjust the screen and display settings for the projector.
Aspect Ratio
The following aspect ratios are available for scaling the projected image.
n Auto - keeps the image the original width-to-height ratio and maximizes the image to
fit native horizontal or vertical pixels
n 4:3 - scales the image to fit the screen and displays using a 4:3 ratio
n 16:9- scales the image to fit the width of the screen and adjusts the height to display
the image using a 16:9 ratio
n 16:10 - scales the image to fit the width of the screen and adjusts the height to display
the image using a 16:10 ratio
31
Page 32
Changing the Projector Settings
Phase
Change the signal timing of the display to match the timing of the graphics card for your
computer. If the image appears unstable or flickers, use this setting to correct it.
Press ◄ to decrease the signal timing.
Press ► to increase the signal timing.
Clock
Change the display data frequency to match the frequency of the graphics card for your
computer. Adjust this setting only if the image appears to flicker vertically.
Press ◄ to decrease the data frequency.
Press ► to increase the data frequency.
Horizontal Position
Adjust the horizontal position of the projected image.
The range for this setting depends on the input source.
Press ◄ to move the image left.
Press ► to move the image right.
Vertical Position
Digital Zoom
Vertical Keystone
Ceiling Mount
Adjust the vertical position of the projected image.
The range for this setting depends on the input source.
Press ◄ to move the image down.
Press ► to move the image up.
Use this setting to zoom the projected image.
Press ◄ to reduce the size of the image.
Press ► to magnify the image on the projection screen.
Use this setting to adjust the vertical distortion of the image. If the image appears
trapezoidal, adjust this setting to make the image appear rectangular.
Press ◄ or ► to adjust the vertical distortion of the image.
Select the location of the ceiling mounted projector.
n Front - the image is projected straight onto the screen.
n Front Ceiling - the image turns upside down (default).
n Rear - the image appears reversed.
n Rear Ceiling - the image appears reversed and upside down.
32
Page 33
Adjusting the General Settings
You can adjust many of the general settings for your projector.
Language
Select the language to use when displaying the projector menus.
Menu Location
Select the location for the projector menu to display.
Top left
Top right
Center
Bottom left
Bottom right
Adjusting the General Settings
Closed Caption
The following closed caption options are available:
n Off
n CC1
n CC2
n CC3
n CC4.
VGA OUT (Standby)
You can enable VGA OUT connection to display the projector image on an additional
display.
Select On to enable VGA OUT connection.
Auto Screen (12V Out)
If you are using the projector with a powered screen, you can choose to automatically lower
and raise the screen when the projector is powered on and off.
n On - the screen lowers automatically when you turn the projector power on and raises
automatically when you turn the projector power off
n Off - the screen does not lower and raise automatically when you turn the projector
power on and off
33
Page 34
Changing the Projector Settings
Test Pattern
You can display a test pattern to test the image settings.
n On - show the test pattern
n Off - hide the test pattern
Security
You can choose to require a password to be entered each time the projector is turned on.
The following security settings are available:
n On - the user must enter a password in order to power on the projector
n Off - the user is not required to enter a password in order to power on the projector
Setting the Password
If the password is entered incorrectly 3 times, the projector automatically shuts down. If you
forget your password, contact Mimio Customer Support for assistance.
To set the password for the first time
1. From the Security menu, select Change Password, and then press ►.
2. Use the navigation keys to enter 000000 as the current password, and then press ►.
If the password is entered incorrectly 3 times, the projector automatically shuts
down.
3. Use the navigation keys to enter a new password, and then select ENTER to confirm.
The password must be six digits.
4. Use the navigation keys to enter the new password again, and then select ENTER to
confirm.
To change the password
1. From the Security menu, select Change Password, and then press ►.
2. Use the navigation keys to enter the current password, and then press ►.
If the password is entered incorrectly 3 times, the projector automatically shuts
down.
3. Use the navigation keys to enter a new password, and then select ENTER to confirm.
The password must be six digits.
4. Use the navigation keys to enter the new password again, and then select ENTER to
confirm.
Reset
Resetting the projector resets all projector settings to the factory defaults.
Select Yes to reset the projector.
34
Page 35
Adjusting the Volume
You can adjust the projector volume settings.
Mute
You can choose to mute the projector audio.
You can also press Mute on the remote control to turn mute on and off.
Volume
Use this setting to increase or decrease the speaker volume.
Press ◄ to decrease the volume.
Press ► to increase the volume.
You can also use the volume buttons on the remote control to adjust the volume.
Microphone Volume
Use this setting to increase or decrease the microphone volume.
Adjusting the Volume
Press ◄ to decrease the volume.
Press ► to increase the volume.
35
Page 36
This page intentionally left blank for double-sided printing.
36
Page 37
Caring for MimioProjector
3
V
O
L
T
S
CR2025
M
3
V
O
L
T
S
CR2025
Replacing the Remote Control Battery
To ensure safe operation, please observe the following precautions :
n Use only CR2025 type battery.
Using the incorrect battery type may cause explosion.
n Avoid contact with water or liquid.
n Do not expose the remote control to moisture or heat.
n Do not drop the remote control.
n If the battery leaks while inserted in the remote control, carefully wipe the case clean
and install new battery.
n Dispose of used battery according to battery instructions.
To replace the battery
1. Press firmly and slide the battery holder out of the battery compartment.
Chapter 4
2. Remove the old battery from the battery holder.
3. Insert a new battery into the battery holder with the + polarity marking facing up as
shown.
4. Slide the battery holder back into the battery compartment and press firmly.
37
Page 38
Caring for MimioProjector
1
2
3
4
Replacing the Lamp
The projector automatically detects the lamp life. When the lamp is nearing the end of life,
a warning is displayed on the screen.
When the warning appears, contact Mimio Customer Support to order a replacement lamp as
soon as possible. Make sure the projector is off and has cooled down for at least 60 minutes
before changing the lamp.
Notes
l The screws on the lamp cover and the lamp cannot be removed.
l The projector cannot be turned on while the lamp cover is removed.
l Do not touch the glass area of the lamp. Oils from your skin can cause the lamp to
shatter. Use a dry cloth to clean the lamp module if the lamp is accidentally
touched.
To remove the lamp module
1. Press the power button to turn off the projector.
2. Allow the projector to cool down for at least 60 minutes.
3. Unplug the power cord.
4. Using a screwdriver, loosen the two screws on the lamp cover.
5. Lift and remove the lamp cover.
6. Using a screwdriver, loosen the two screws on the lamp module.
7. Pull the lamp handle up and slowly and carefully remove the lamp module.
To insert the new lamp module
1. Slowly and carefully insert the lamp module into the lamp compartment and push the
lamp handle down.
2. Using a screwdriver, tighten the two screws on the lamp module.
3. Replace the lamp cover.
4. Using a screwdriver, tighten the two screws on the lamp cover.
5. Plug the power cord into a wall outlet.
38
Page 39
6. Press the power button to turn on the projector.
7. Clear the lamp hours. See Clear Lamp Hours on page 29for information about clearing
the lamp hours.
Cleaning the Dust Filters
The dust filters should be cleaned after every 500 hours of use. Clean the filters more
frequently if the projector is used in a dusty environment.
When the dust filters need to be cleaned, a warning is displayed on the screen.
When the warning appears, clean the dust filters as soon as possible. Make sure the
projector is off before cleaning the dust filters.
Notes
l The dust filters should be used in dusty environments.
l Properly maintaining the dust filters prevents overheating of the projector and
related damage.

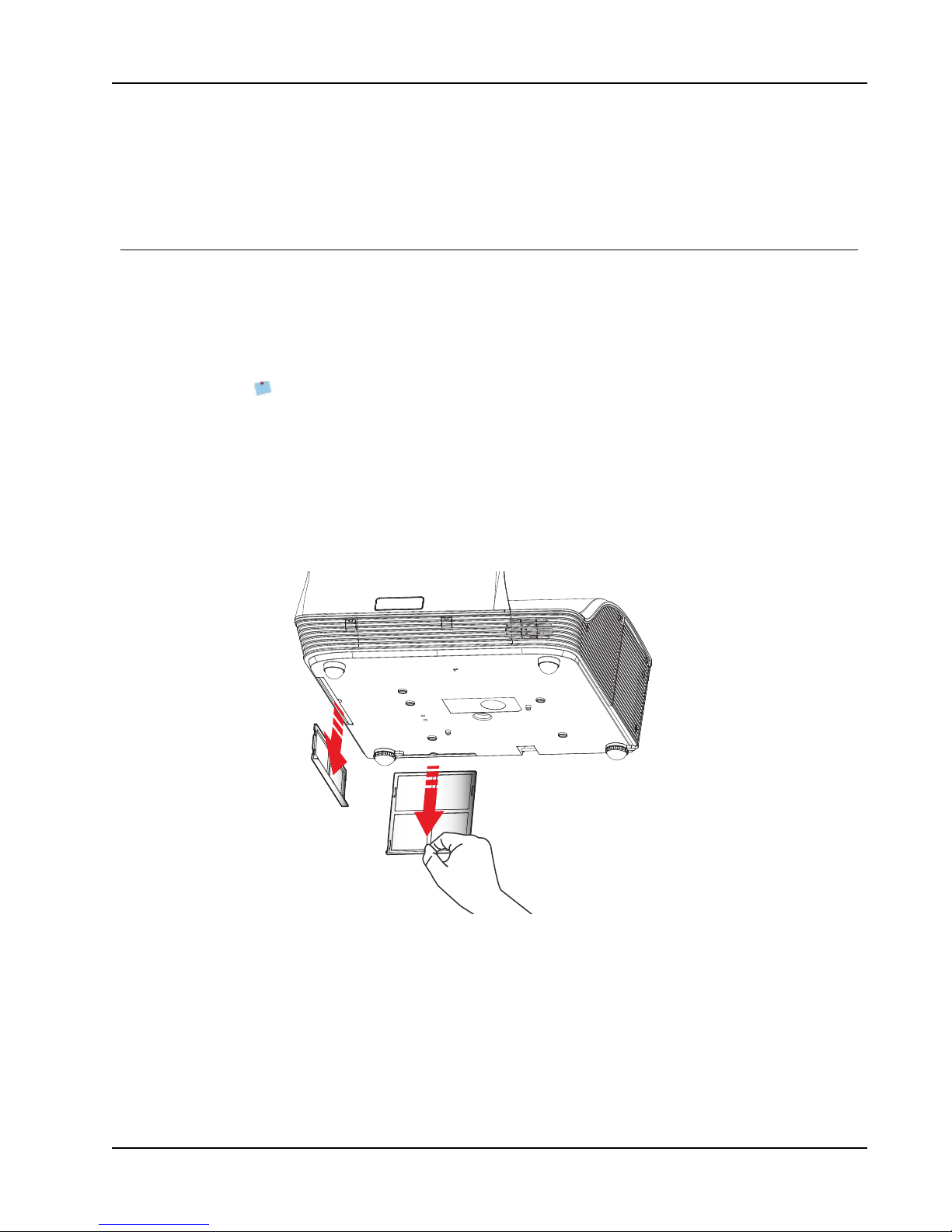

To clean the dust filters
1. Press the power button to turn off the projector.
2. Unplug the power cord.
3. Pull the latch and slowly and carefully remove the dust filters from the projector.
Cleaning the Dust Filters
4. Use a vacuum to clean the dust filters.
5. Slide the dust filters back into the projector.
6. Plug the power cord into a wall outlet.
7. Press the power button to turn on the projector.
8. Reset the filter maintenance reminder.
See Filters Remind on page 29 for information about resetting the filters reminder.
39
Page 40
This page intentionally left blank for double-sided printing.
40
Page 41
Review this chapter if you encounter a problem with your projector.
If you are unable to solve a problem, this chapter also describes how to contact Mimio
Technical Support.
General Troubleshooting
Review this section if you encounter a general problem with your projector.
Projector stops responding to all controls
1. Press the power button to turn the projector off.
2. Unplug the power cord.
3. After 20 seconds, or longer, plug the power cord back in.
4. Press the power button to turn the projector on.
Lamp burns out or makes a popping sound
When the lamp reaches end of life, it burns out and may make a loud popping sound.
The projector will not turn on again until the lamp module is replaced. For information
about replacing the lamp, see Replacing the Lamp on page 38.
Getting Help
Image Troubleshooting
Review this section if you encounter a problem with the projector image.
No image is displayed
n Ensure all cables and power connections are correctly and securely connected as
described in Connecting the Projector on page 15.
n Ensure the pins of connectors are straight and not broken.
n Ensure that the projection lamp is securely installed.
n Ensure that the Blank feature is turned off.
A partial, scrolling, or incorrect image is displayed
n Press ReSync on the remote control.
If you are using a computer as the input source, do the following:
1. Verify that the display resolution setting for your computer is set at 1080p or
lower.
Refer to the documentation for your computer for information about changing the
display resolution for your computer.
If you experience difficulty changing resolutions or your monitor freezes, restart
all equipment including the projector.
2. If you are using a notebook computer, press the keyboard buttons needed to toggle
the output setting.
Page 42
Notebook Brand Function Keys
Acer [Fn]+[F5]
Asus [Fn]+[F8]
Dell [Fn]+[F8]
Gateway [Fn]+[F4]
IBM/Lenovo [Fn]+[F7]
HP/Compaq [Fn]+[F4]
NEC [Fn]+[F3]
Toshiba [Fn]+[F5]
Mac Apple System Preference -> Display -> Arrangement -> Mirror display
The notebook computer display is not displaying an image
Some notebook computers may deactivate the screens when a second display device is
in use. Each has a different way to be reactivated. Refer to the documentation for your
computer for detailed information.
Image is unstable or flickering
n Adjust the Phase setting on the projector. See Phase on page 32 for information
about changing the Phase setting.
n Change the monitor color setting on your computer.
Image has vertical flickering bar
n Adjust the Clock setting on the projector. to make an adjustment. See Clock on
page 32 for information about changing the Clock setting.
n Check and reconfigure the display mode of your graphic card to make it compatible
with the projector.
Image is out of focus
n Adjust the focus ring on the projector lens.
n Make sure the projection screen is within the required distance.
Image is stretched when displaying 16:9 DVD image
n When you play anamorphic DVD or 16:9 DVD, the best image is displayed when
the projector is set to use 16: 9 format.
n If displaying a 4:3 format DVD title, set the projector to use 4:3 format.
If the image is still stretched, verify that the format setting on your DVD player is
set correctly.
Image is too small or too large
n Move the projector closer to or further from the screen.
n Adjust the aspect ratio setting on the projector. See Aspect Ratio on page 31for
information about adjusting the aspect ratio.
Page 43
Image is displayed with slanted sides
n If possible, reposition the projector so that the image is centered on the screen.
n Adjust the vertical keystone setting on the projector. See Vertical Keystone on
page 32 for information about adjusting this setting.
Image is reversed
Verify that the ceiling mount setting on the projector is set correctly. See Ceiling
Mount on page 32for information about adjusting this setting.
3D Troubleshooting
Review this section if you encounter a problem with 3D mode.
A blurry double image is displayed
Make sure the 3D feature is off. For information about turning off 3D, see 3D on page
26.
Two images are displayed side-by-side
Set the 3D format to Side-by-Side (Half). For information about changing the 3D
format, see 3D Format on page 26.
Image not displayed in 3D
n Make sure your 3D glasses are powered on.
n Make sure the batteries in the 3D glasses have sufficient charge.
n Set the 3D format to Side-by-Side (Half).
For information about changing the 3D format, see 3D Format on page 26.
Sound Troubleshooting
Review this section if you encounter a problem with the projector sound.
n If you are playing sound from an external source, make sure you have the audio
cable securely connected to the source device and the audio input on the projector.
n Make sure no external speakers are connected.
n Make sure the volume is not set to the minimum.
n Make sure the Mute feature is off.
Remote Control Troubleshooting
Review this section if you encounter a problem with the projector remote control.
n Make sure the operating angle of the remote control is within ±30° both
horizontally and vertically of one of the IR receivers on the projector.
n Make sure there are no obstructions between the remote control and the projector.
n Move to within 7 m (±0°) of the projector.
n Make sure the battery is inserted correctly.
n Replace the battery.
Page 44
Contacting Mimio
Mimio maintains an Internet Web site that offers support for MimioClassroom products.
In addition, Mimio’s Technical Support department is available by phone.
Web site: www.mimio.com
Phone: (877) 846-3721
Visit the Support section of our Web site at www.mimio.com to contact us by email.
Page 45
VGA Analog
PC Signal
Chapter 6
Compatibility Modes
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
VGA 640x480 60 31.5
640x480 67 35.0
640x480 72 37.9
640x480 75 37.5
640x480 85 43.3
640x480 120 61.9
IBM 720x400 70 31.5
SVGA 800x600 56 35.1
800x600 60 37.9
800x600 72 48.1
800x600 75 46.9
800x600 85 53.7
800x600 120 77.4
Apple, MAC II 832x624 75 49.1
XGA 1024x768 60 48.4
1024x768 70 56.5
1024x768 75 60.0
1024x768 85 68.7
1024x768 120 99.0
45
Page 46
Compatibility Modes
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
Apple, MAC II 1152x870 75 68.7
SXGA 1280x1024 60 64.0
1280x1024 72 77.0
1280x1024 75 80.0
QuadVGA 1280x960 60 60.0
1280x960 75 75.2
SXGA+ 1400x1050 60 65.3
UXGA 1600x1200 60 75.0
Extended Wide Timing
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
WXGA 1280x720 60 44.8
WSXGA+ 1680x1050 60 65.3
1280x800 60 49.6
1366x768 60 47.7
1440x900 60 59.9
46
Page 47
Component Signal
VGA Analog
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
480i 720x480(1440x480) 59.94(29.97) 15.7
576i 720x576(1440x576) 50(25) 15.6
480p 720x480 59.94 31.5
576p 720x576 50 31.3
720p 1280x720 60 45.0
1280x720 50 37.5
1080i 1920x1080 60(30) 33.8
1920x1080 50(25) 28.1
1080p 1920x1080 23.98/24 27.0
1920x1080 60 67.5
1920x1080 50 56.3
47
Page 48
Compatibility Modes
HDMI Digital
PC Signal
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
VGA 640x480 60 31.5
640x480 67 35.0
640x480 72 37.9
640x480 75 37.5
640x480 85 43.3
640x480 120 61.9
IBM 720x400 70 31.5
SVGA 800x600 56 35.1
800x600 60 37.9
800x600 72 48.1
800x600 75 46.9
800x600 85 53.7
800x600 120 77.4
Apple, MAC II 832x624 75 49.1
XGA 1024x768 60 48.4
1024x768 70 56.5
1024x768 75 60.0
1024x768 85 68.7
1024x768 120 99.0
48
Page 49
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
Apple, MAC II 1152x870 75 68.7
SXGA 1280x1024 60 64.0
QuadVGA 1280x960 60 60.0
SXGA+ 1400x1050 60 65.3
UXGA 1600x1200 60 75.0
Extended Wide Timing
HDMI Digital
1280x1024 72 77.0
1280x1024 75 80.0
1280x960 75 75.2
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
WXGA 1280x720 60 44.8
1280x800 60 49.6
1366x768 60 47.7
1440x900 60 59.9
WSXGA+ 1680x1050 60 65.3
49
Page 50
Compatibility Modes
Video Signal
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
480p 640x480 59.94/60 31.5
480i 720x480(1440x480) 59.94(29.97) 15.7
576i 720x576(1440x576) 50(25) 15.6
480p 720x480 59.94 31.5
576p 720x576 50 31.3
720p 1280x720 60 45.0
1280x720 50 37.5
1080i 1920x1080 60(30) 33.8
1920x1080 50(25) 28.1
1080p 1920x1080 23.98/24 27.0
1920x1080 60 67.5
1920x1080 50 56.3
HDMI 1.4a Mandatory 3D Timing - Video Signal
Modes Resolution V. Frequency [Hz] H. Frequency [Hz]
Frame Packing 720p 50 31.5
720p 59.94/60 15.7
1080p 23.98/24 15.6
Side-by-Side(Half) 1080i 50 31.5
1080i 59.94/60 31.3
Top and Bottom 720p 50 45.0
50
720p 59.94/60 37.5
1080p 23.98/24 33.8
Page 51
Usage Notice
Warnings
Chapter 7
Technical and
Environmental Information
This chapter contains technical information for the MimioProjector.
For product specifications and compliance information, visit the Documentation section of
the Support area of our Web site at www.mimio.com.
Follow all warnings, precautions, and maintenance as recommended in this user guide.
n Do not look into the projector lens when the lamp is on. The bright light may hurt and
damage your eyes.
n To avoid the risk of fire or electric shock, do not expose the projector to rain or
moisture.
n Do not open or disassemble the projector as this may cause electric shock.
n When replacing the lamp, allow the unit to cool down first. Follow the instructions as
described under Replacing the Lamp on page 38.
n The projector automatically detects the life of the lamp. Be sure to replace the lamp
when the projector displays the lamp warning message.
n After replacing the projector lamp, reset the lamp hours setting. See Clear Lamp Hours
on page 29 for information about resetting the lamp hours.
n When turning the projector power off, ensure that the cooling cycle completes before
disconnecting the power. Allow 10 seconds for the projector to cool down.
n Do not block the light path between the light source and the lens with any object.
Doing so could cause the object to catch on fire.
n Do not look into or point the laser pointer on your remote control into any person's
eyes. Laser pointers can cause permanent damage to eyesight.
Precautions
n Turn off and unplug the power plug from the AC outlet before cleaning the product.
n Use a soft dry cloth with mild detergent to clean the display housing.
n Disconnect the power plug from the AC outlet if the product is not being used for a
long period of time.
51
Page 52
Technical and Environmental Information
Do not do the following
n Clean the lens.
n Block the ventilation slots and openings on the unit.
n Use abrasive cleaners, waxes, or solvents to clean the unit.
n Use under the following conditions:
l In extremely hot, cold, or humid environments.
l Ensure that the ambient room temperature is between 5°C - 40°C.
l Ensure relative humidity is a maximum of 80%, non-condensing.
l In areas susceptible to excessive dust and dirt.
l Near any appliance generating a strong magnetic field.
l In direct sunlight.
Regulation & Safety Notices
This section lists the general notices of your projector.
FCC Notice
This device has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This device generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
Notice
Caution
However, there is no guarantee that interference will not occur in a particular installation. If
this device does cause harmful interference to radio or television reception, which can be
determined by turning the device off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
n Reorient or relocate the receiving antenna.
n Increase the separation between the device and receiver.
n Connect the device into an outlet on a circuit different from that to which the receiver
is connected.
n Consult the dealer or an experienced radio/television technician for help.
Shielded cables All connections to other computing devices must be made using shielded
cables to maintain compliance with FCC regulations.
Changes or modifications not expressly approved by the manufacturer could void the user’s
authority, which is granted by the Federal Communications Commission, to operate this
projector.
52
Page 53
Operating Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Notice: Canadian Users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à L’intention des Utilisateurs Canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Declaration of Conformity for EU countries
n EMC Directive 2004/108/EC (including amendments)
n Low Voltage Directive 2006/95/EC
n R & TTE Directive 1999/5/EC (if product has RF function)
Projector Mount Saftey Notices
Projector Mount Saftey Notices
Read these warnings carefully and use the product as intended.
n The manufacturer shall not be legally responsible for any equipment damage or personal
injury caused by incorrect installation or operation.
n The wall mount is designed for easy installation and removal. The manufacturer shall
not be liable for damage to equipment or personal injuries arising from human factors or
acts of God, such as earthquake or typhoon.
n The wall mount must be installed by professional personnel only.
n To avoid any hazard caused by falling objects, a minimum of two persons are needed to
install or remove the wall mount.
n Maintain ample space around the projector to ensure good ventilation.
n To ensure safety and avoid any accident, investigate the structure of the wall and select
an appropriate and durable location for the product before installing.
n The wall must have load-carrying capability to sustain more than four times the total
weight of the projector and the wall mount. Also make sure the wall has enough
strength to withstand earthquakes and other shocks.
n Check the areas around the installation location carefully.
l Do not install the product in an area subject to high temperature, humidity, or
contact with water.
l Do not install the product near air conditioner vents.
l Do not install the product in a location subject to dust or fumes.
l Do not install the product on slanted surfaces; install only on vertical walls.
l Do not install the product in an area subject to vibrations or shocks.
53
Page 54
Technical and Environmental Information
l Do not install the product in an area subject to direct exposure to bright light; doing
so may cause eye fatigue when viewing the display panel.
n Do not modify any accessory or use broken parts. Contact Mimio Customer Support
with any questions.
n Tighten all screws, but do not apply excessive torque to any screw. Excessive torque
may break or damage the screw or screw threads.
n The wall mount is rated for a maximum load of 15 Kg (33 Ibs.).
n Do not hang or place any objects on the wall mount other than the projector.
n Drill holes and screws remain in the wall once the projector and wall mount are
removed. Stains may occur after extended use.
Environmental Information
The equipment that you bought has required the extraction and use of natural resources for
its production. It may contain hazardous substances for the health and the environment.
In order to avoid the dissemination of those substances in our environment and to diminish
the pressure on the natural resources, we encourage you to use the appropriate take-back
systems.
Those systems will reuse or recycle most of the materials of your end life equipment in a
sound way.
The crossed-bin symbol marked on your device invites you to use those systems.
If you need more information on the collection, reuse and recycling systems, please contact
your local or regional waste administration.
You can also contact Mimio for more information on the environmental performances of our
products.
54
Page 55
Documentation Feedback
We are constantly working to produce the highest quality documentation for our products.
We welcome your feedback. Send us your comments or suggestions about our online Help,
printed, or PDF manuals.
Please include the following information with your feedback:
n Product name and version number
n Type of document: printed manual, PDF, or online Help
n Topic title (for online Help) or page number (for printed or PDF manuals)
n Brief description of content (for example, step-by-step instructions that are inaccurate,
information that requires clarification, areas where more detail is needed, and so on)
n Suggestions for how to correct or improve the documentation
We also welcome your suggestions for additional topics you would like to see covered in
the documentation.
Send email feedback to:
Documentation Feedback
Please keep in mind that this email address is only for documentation feedback. If you have
a technical question, please contact Customer Service.
55
Page 56
This page intentionally left blank for double-sided printing.
56
Loading...
