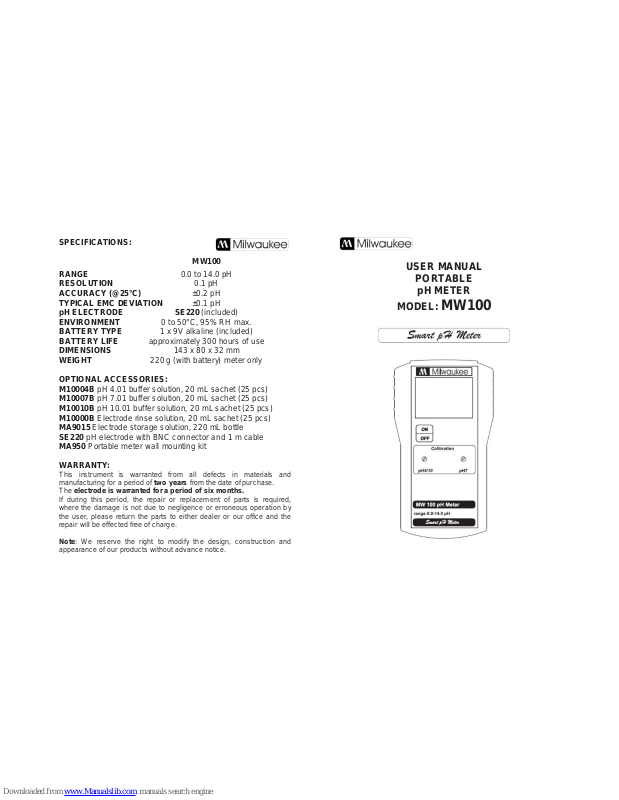

Milwaukee MW100 User Manual

SPECIFICATIONS:

MW100
RANGE 0.0 to 14.0 pH

RESOLUTION 0.1 pH
ACCURACY (@25°C) ±0.2 pH
TYPICAL EMC DEVIATION ±0.1 pH
pH ELECTRODE SE220 (included)
ENVIRONMENT 0 to 50°C, 95% RH max.
BATTERY TYPE 1 x 9V alkaline (included)
BATTERY LIFE approximately 300 hours of use
DIMENSIONS 143 x 80 x 32 mm
WEIGHT 220 g (with battery) meter only

OPTIONAL ACC E SSOR IES:

M10004B pH 4.01 buffer solution, 20 mL sachet (25 pcs)
M10007B pH 7.01 buffer solution, 20 mL sachet (25 pcs)
M10010B pH 10.01 buffer solution, 20 mL sachet (25 pcs)
M10000B Electrode rinse solution, 20 mL sachet (25 pcs)
MA9015 Electrode storage solution, 220 mL bottle
SE220 pH elec trode with BNC c onn ector and 1 m cabl e
MA950 Portable m et er w all m ou nti ng kit

WARRANTY:

This instrument is warranted from all defects in materials and
manufacturing for a period of two years from the date of purchase.
The electrode is warranted for a period of six months.
If during this period, the repair or replacement of parts is required,
where the damage is not due to ne gligence or err oneous operation b y
the user, please r eturn the parts to either dealer or our office and the
repair will be effected free of charge.

Note: We reserve the right to modify the design, construction and
appearance of our products without advance notice.

USER MANUAL

PORTABLE

pH METER

MODEL:

MW100

OPERATION:

• The meter is s uppl i ed c ompl ete wit h a
9V battery. Slide off the battery
compart ment cover on the back of the
meter. I nst all the b att ery int o th e b at ter y
clip connector while observing polarity.

• Always remove the electrode
protective cap before taking any
measur emen t. If the elec tr ode has been
left dr y, soak th e tip (bottom 2.5 cm) in
rinse solution (M10000B) for a few
minutes to reactivate it.

• Connect the pH electrode to the BNC socket on the top of
the meter.

• Make sure that the meter has been calibrated before taking
any measurements (see Calibration Procedure).

• Immerse the tip (2.5 cm) of the pH electrode into the sample.

• Turn the instrument on by pressing the ON/OFF key.

• Allow the reading to stabilize before taking measurements.

• After measurements, switch the meter off and store the
electrode with a few drops of storage solution
(MA9015) in the protective cap.

CALIBRATION PROCEDURE:

• Remove the protective cap from the electrode.

• Rinse tip off with distil l ed w at er or a sm all
quantit y of pH 7.

• Immerse the electrode tip into a new sachet
of pH7 c ali brati on s olution and all ow th e reading
to stabilize.

• Adjust the pH7 (OFFSET) calibration trimmer to

display "7.0 pH".

• Open a n ew sach et of pH4 c alibrati on solution
and use a small quantity to rinse the electr od e.

• Immerse the electrode tip ins i d e the pH4 sachet
and allow the reading to stabilize.

• Adjust the pH4/pH10 (SLOPE) calibration
trimmer to read "4.0 pH".

• The calibration is now complete and the
meter is r ead y t o tak e me as urements.

• It is s ugges ted th e met er be c alibr ated at least
once a month, after a prolonged period of
inactivity, and after electr od e r epl ac em en t.

BATTERY REPLACEMENT:

When th e battery bec omes weak the meter
will display " ".
When th e low batt ery in dicat or app ears, the
battery has only about 50 hours of working
time left. A low battery will result in
unreli able measur em en ts .
Prompt battery replacement is required.
Batter y repl acem ent m ust only tak e place in
a non-h azardous ar ea using an alk aline 9V
battery.
Turn the meter off, slide the battery
compart m ent cover loc ated at t h e rear of the
meter off and repl ace the 9V bat ter y wi th a
new one. Mak e sure the batt ery c ontacts are f ully engaged in
the con nect or, s eat th e batt ery in its c ompar tm ent an d r eplac e
the cover.
