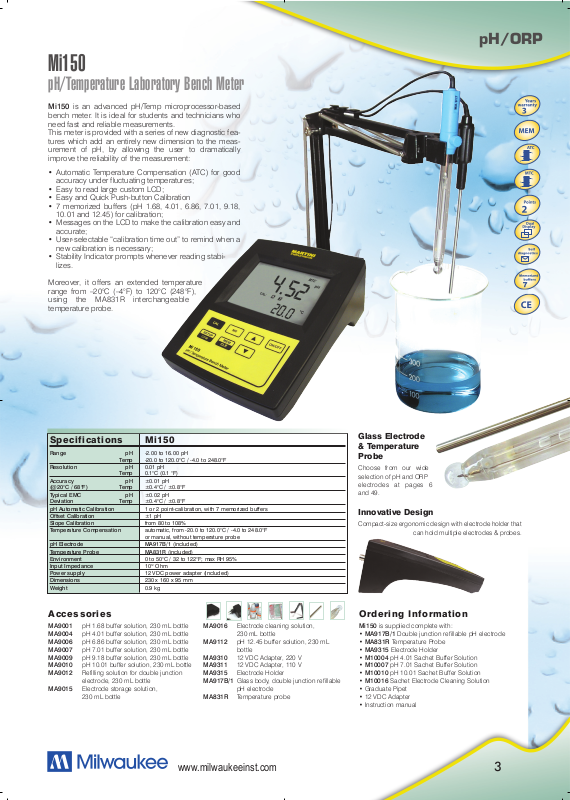

Milwaukee Mi150 User Manual

3

www.milwaukeeinst.com

pH/ORP

Mi150 is an advanced pH/Temp microprocessor-based
bench meter. It is ideal for students and technicians who
need fast and reliable measurements.
This meter is provided with a series of new diagnostic fea­tures which add an entirely new dimension to the meas­urement of pH, by allowing the user to dramatically
improve the reliability of the measurement:

• Automatic Temperature Compensation (ATC) for good
accuracy under fluctuating temperatures;

• Easy to read large custom LCD;

• Easy and Quick Push-button Calibration

• 7 memorized buffers (pH 1.68, 4.01, 6.86, 7.01, 9.18,

10.01 and 12.45) for calibration;

• Messages on the LCD to make the calibration easy and
accurate;

• User-selectable “calibration time out” to remind when a
new calibration is necessary;

• Stability Indicator prompts whenever reading stabi­lizes.

Moreover, it offers an extended temperature
range from –20°C (–4°F) to 120°C (248°F),
using the MA831R interchangeable
temperature probe.

Specifications Mi150

Range pH -2.00 to 16.00 pH

Temp -20.0 to 120.0°C / -4.0 to 248.0°F

Resolution pH 0.01 pH

Temp 0.1°C (0.1 °F)
Accuracy pH ±0.01 pH
(@20°C / 68°F) Temp ±0.4°C / ±0.8°F
Typical EMC pH ±0.02 pH
Deviation Temp ±0.4°C / ±0.8°F
pH Automatic Calibration 1 or 2 point-calibration, with 7 memorized buffers
Offset Calibration ±1 pH
Slope Calibration from 80 to 108%
Temperature Compensation automatic, from -20.0 to 120.0°C / -4.0 to 248.0°F

or manual, without temperature probe

pH Electrode MA917B/1 (included)
Temperature Probe MA831R (included)
Environment 0 to 50°C / 32 to 122°F; max RH 95%
Input Impedance 1012Ohm
Power supply 12 VDC power adapter (included)
Dimensions 230 x 160 x 95 mm
Weight 0.9 kg

Accessories

MA9001 pH 1.68 buffer solution, 230 mL bottle
MA9004 pH 4.01 buffer solution, 230 mL bottle
MA9006 pH 6.86 buffer solution, 230 mL bottle
MA9007 pH 7.01 buffer solution, 230 mL bottle
MA9009 pH 9.18 buffer solution, 230 mL bottle
MA9010 pH 10.01 buffer solution, 230 mL bottle
MA9012 Refilling solution for double junction

electrode, 230 mL bottle

MA9015 Electrode storage solution,

230 mL bottle

MA9016 Electrode cleaning solution,

230 mL bottle

MA9112 pH 12.45 buffer solution, 230 mL

bottle

MA9310 12 VDC Adapter, 220 V
MA9311 12 VDC Adapter, 110 V
MA9315 Electrode Holder
MA917B/1 Glass body, double junction refillable

pH electrode

MA831R Temperature probe

Ordering Information

Mi150 is supplied complete with:

• MA917B/1 Double junction refillable pH electrode

• MA831R Temperature Probe

• MA9315 Electrode Holder

• M10004 pH 4.01 Sachet Buffer Solution

• M10007 pH 7.01 Sachet Buffer Solution

• M10010 pH 10.01 Sachet Buffer Solution

• M10016 Sachet Electrode Cleaning Solution

• Graduate Pipet

• 12 VDC Adapter

• Instruction manual

Mi150

pH/Temperature Laboratory Bench Meter

Glass Electrode
& Temperature
Probe

Choose from our wide
selection of pH and ORP
electrodes at pages 6
and 49.

Innovative Design

Compact-size ergonomic design with electrode holder that

can hold multiple electrodes & probes.
