Milwaukee M18 WDV Operator's Manual

Download

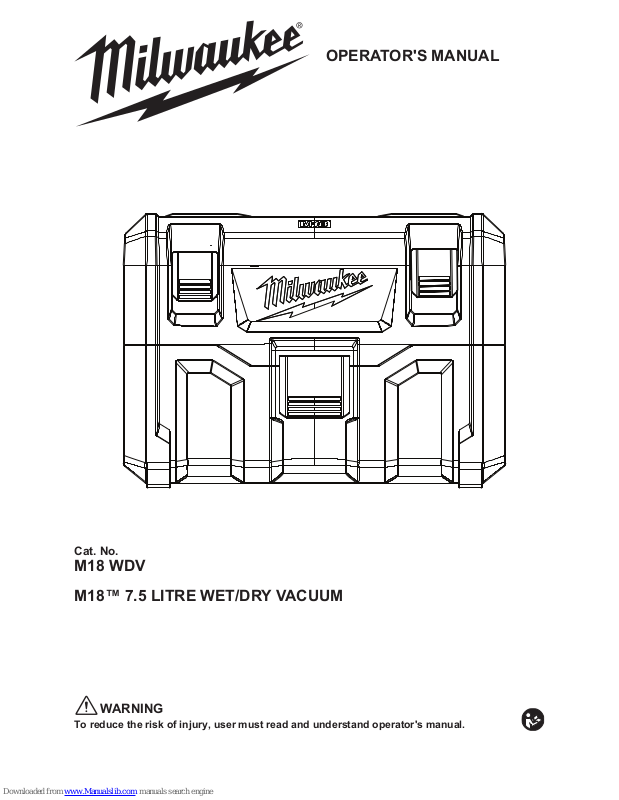

Page 1

Cat. No.

M18 WDV

M18™ 7.5 LITRE WET/DRY VACUUM

OPERATOR'S MANUAL

To reduce the risk of injury, user must read and understand operator's manual.

WARNING

Page 2

WORK AREA SAFETY

•

ELECTRICAL SAFETY

• Wear electrically insulated footwear, such as

rubber boots, when vacuuming wet material.

• Do not handle battery pack or vacuum with wet hands.

• Store indoors. Do not expose to rain.

PERSONAL SAFETY

• STAY ALERT. Watch what you are doing and use common sense. Do not use vacuum when you are

alcohol or medication causing diminished control.

• The operation of a vacuum can result in foreign objects being blown into eyes, which can result in

eye damage. Always wear safety goggles or glasses with side shields when operating vacuum.

• Wear a face or dust mask tsud ni gnikrow nehw situations. Dust particles can harm your lungs.

• Avoid accidental starting. Ensure the switch is in the off-position before inserting battery pack.

Inserting battery pack in vacuum that has the switch on invites accidents.

• Do not overreach. Keep proper footing and bal- ance at all times. This enables better control of the

vacuum in unexpected situations.

• Never stand on vacuum or use as a step stool.

•

of body away from openings and moving parts.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

USE AND CARE

•

installed.

•

liquids such as gasoline or use in areas where they may be present.

• Do not pick up anything that is burning or smok- ing such as cigarettes, matches, or hot ashes.

• Do not pick up soot, cement, plaster or drywall

particles that may affect the performance of the motor or be exhausted back into the air.

• To reduce the risk of health hazards from vapors or dust, do not vacuum toxic, carcinogenic or other hazardous materials such as asbestos,

arsenic, barium, beryllium, lead, pesticides or other health endangering materials.

•

WARNING

Some dust created by

power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other

masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending

on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are

• Use special care when emptying heavily loaded tanks.

• To avoid spontaneous combustion, empty tank after each use.

• Do not leave vacuum unattended when battery pack is installed. Remove battery pack when not

in use and before servicing.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,

• Maintain vacuum. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the vacuum's operation. If damaged, have the vacuum repaired before use. Many accidents are caused

by poorly maintained tools.

•

BATTERY PACK USE AND CARE

•

battery packs. Use of any other battery packs may

• Turn off all controls before removing battery pack.

• Before using the battery pack or charger read

the operator’s manuals, and any labels on the battery pack, charger and vacuum.

•

manufacturer. A charger that is suitable for one

used with another battery pack.

• When battery pack is not in use, keep it away from other metal objects like paper clips, coins,

IMPORTANT SAFETY INSTRUCTIONS

WARNING

WHEN USING AN ELECTRICAL VACUUM, BASIC

PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS BEFORE USING VACUUM. FOR HOUSEHOLD USE ONLY. BEFORE USING THE VACUUM, READ THIS OPERATOR’S MANUAL, BATTERY PACK AND CHARGER OPERATOR’S MANUALS, AND ALL LABELS ON THE VACUUM, BATTERY PACK, AND CHARGER.

Keep work area clean and well lit. Cluttered or

dark areas invite accidents.

Vacuums have motors and other parts that can produce sparks during normal use. Do not use

within 9 metres (30 ft) of areas where explosive materials may be present (such as gasoline pumps and places where liquids like paint thinners, cleaners, solvents, etc. are stored).

Do not use in the presence of explosive dust, liquids or vapors. Do not use where oxygen or anesthetics are used. Do not allow to be used as a toy. Close attention

is necessary when used by or near children.

Use extra care when using on stairs.

Maintain labels and nameplates. These carry

important information. If unreadable or missing, contact a MILWAUKEE

service facility for a

replacement.

Page 3

FUNCTIONAL

DESCRIPTION

1. Battery compartment latches

2. Motor housing

3. Tank

4. Tank latches (front and back)

5. Accessory storage areas

6. Switch

7. Blower port

8. Vacuum inlet

9. Battery bay

10. Intake port

11. Adaptor

keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together

• Do not use damaged battery pack or vacuum. If battery pack or vacuum are not working as they should, have been dropped, damaged, left outdoors,or dropped into water, return them to a service center.

SERVICE

• Have repair person using only identical replacement parts. This will ensure that the safety of the power

tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised service providers.

SPECIFIC SAFETY RULES

•Before using the vacuum, read this operator’s

manual, your battery pack and charger operator’s manuals, and all labels on the vacuum, battery pack, and charger.

•

SYMBOLOGY

Volts

Direct Current

Read operator's manual

Wear eye protection

SPECIFICATIONS

Cat. No. ..................................................M18 WDV

Volts.............................................................. 18 DC

Battery Type

................................................. M18™

Charger Type................................................M18™

Air Flow.................................1,274 L/min (45 CFM)

Suction.......................................813mm (32") H2O

Capacity.....................................7.5 Litre (2 Gallon)

Recommended Ambient

Operating Temperature....................-17°C to 51°C

(0°F to 125°F)

Never use vacuum without tank and filter properly installed. Never use water to clean filter. Tap clean or blow dirt off with compressed air. Wear ear protectors. Exposure to noise can

cause hearing loss.

Regulatory Compliance Mark (RCM). Product meets applicable regulatory requirements.

Class III appliance

Ingress Protection............................................IP54

ADDITIONAL BATTERY SAFETY

RULES

WARNING

To reduce the risk of fire, personal injury, and

product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or allow a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

READ AND SAVE ALL INSTRUCTIONS

FOR FUTURE USE

ADDITIONAL SAFETY WARNINGS

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

•

Page 4

OPERATION

WARNING

and injury, do not use

To reduce the risk of injury, wear safety goggles or glasses with side shields. Empty tank before use.

pick-up operations.

Starting and Stopping Vacuum

To turn on the vacuum, push the switch to the ON (I) position. To turn off the vacuum, push the switch to the OFF (O) position.

Wet Pick-Up Operation

1. Remove ALL dirt and debris found in the tank.

2. Remove the filter. Ensure that the float cage remains in place.

Float cage

3. Turn on the vacuum and begin pick-up.

4. Turn off the vacuum immediately upon completing a wet pick-up job or when tank is full and ready to be emptied.

NOTE: If suction shuts off, turn off the vacuum immediately and empty the tank.

5. Remove the battery pack.

6. Raise the hose to drain any excess liquid into the tank.

7. Remove motor housing and pour liquid waste into a suitable drain.

8. Clean the interior of the tank and pick-up accessories periodically, more often when used to pick up wet, sticky materials. Use warm, soapy water.

Automatic Suction Shut-Off

seats itself against a seal at the intake of the motor, shutting off suction. When this happens, the motor will develop a higher than normal pitch noise and the suction is drastically reduced. If this occurs, turn off the vacuum immediately. Failure to turn off unit after

damage to the motor. To continue use, empty the liquid waste from the tank. NOTE: If the vacuum is accidentally tipped over, it could lose suction. Turn off the vacuum and return

normal position.

Storage

Before storing your vacuum, empty and clean the

pack.

ASSEMBLY

WARNING

To reduce the risk of injury, always remove

the battery pack before removing the tank.

CAUTION

of the vacuum is largely

Do not clean with water. Remove from tank and tap clean or blow off with compressed air.

Removing/Inserting the Battery

To remove the battery, push in the release buttons and pull the battery pack away from the tool.

WARNING

Always remove battery pack before changing

or removing accessories.

To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place.

Removing/Installing the Filter

only.

1. Remove the battery pack. Close and latch the battery compartment.

2. Release the tank latches and lift off the motor

4. Empty all debris from the tank.

5. T compressed air.

7. Replace the motor housing and secure both latches.

Pick-Up/Blower

The vacuum can be used for debris pick-up or as a blower, depending on the port used.

1. For the debris pick-up

Installing/Removing the Adaptor

The adaptor is supplied, it can be used if necessary.

1. Remove the vacuum inlet.

, insert the large end of the hose into the intake port of the motor housing, lining up the tabs on the hose with the notches in

2. To use as a blower, insert the large end of hose

into the blower port of the motor housing, lining up the tabs on the hose with the notches in the

WARNING

Only use accessories spe cif ical ly rec om-

mended for this tool. Others may be hazardous.

Installing/Removing the Accessories

To install the nozzles, hoses or extensions, push the accessory onto the vacuum inlet.

To remove the filter, turn it 13 mm (1/2") counter clockwise and pull it off of the motor housing/float cage.

NOTE: Never use water to clean filter.

To install the filter, slide it over the float cage. Line up the filter tabs with the motor housing notches and turn it 13 mm (1/2") clockwise to lock in place.

To install the adaptor:

2. Place the adaptor on the hose. Rotate the adaptor counterclockwise to install.

1. Rotate the adaptor clockwise to remove.

To remove the adaptor:

2. Place the vacuum inlet on the hose.

Page 5

MAINTENANCE

WARNING

Maintaining Tool

WARNING

Cleaning

Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household deter-

combustible solvents around tools.

Repairs

For repairs, return the tool, battery pack and charger to the nearest service center.

ACCESSORIES

WARNING

Use only recommended accessor i es. Others

may be hazardous.

To reduce the risk of injury, always unplug

the charger and remove the battery pack from the charger or tool before performing any maintenance. Never disassemble the tool, battery pack or charger. Contact a

MILWAUKEE

service facility for ALL repairs.

Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may affect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE

service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a

MILWAUKEE® service facility for inspection.

If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work properly, return the tool, charger and battery pack, to a MILWAUKEE® service facility for repairs.

For a complete listing of accessories, go online to milwaukeetools.com.au / milwaukeetools.co.nz or contact a distributor.

To reduce the risk of personal injury and

damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to flow inside them.

Page 6

Page 7

Page 8

For a list of MILWAUKEE® dealers, guarantee or service agents please contact MILWAUKEE

Customer Service or visit our website. (Australia Toll Free Telephone Number 1300 645 928) (New Zealand Toll Free Telephone Number 0800 279 624) or visit www.milwaukeetools.com.au / www.milwaukeetools.co.nz.

Milwaukee Electric Tool Corporation

13135 West Lisbon Road, Brookfield, Wisconsin U.S.A. 53005

Milwaukee Tool (Australia)

21 Kelletts Road, Rowville, VIC 3178

Melbourne, Australia

Milwaukee Tool (New Zealand)

2 Landing Drive, Mangere

Auckland, 2022, New Zealand

Professionally Made in China for Milwaukee Tool (Australia) / Milwaukee Tool (New Zealand)

Printed in China

WARRANTY - AUSTRALIA and NEW ZEALAND

SERVICE - AUSTRALIA and NEW ZEALAND

MILWAUKEE®prides itself in producing a premium quality product that is Nothing But Heavy Duty®.

Your satisfaction with our products is very important to us! If you encounter any problems with the operation of this tool, please contact your authorised MILWAUKEE® dealer.

Please refer to Australian and New Zealand warranty supplied with tool. This warranty applies only to product sold in Australia and New Zealand.
