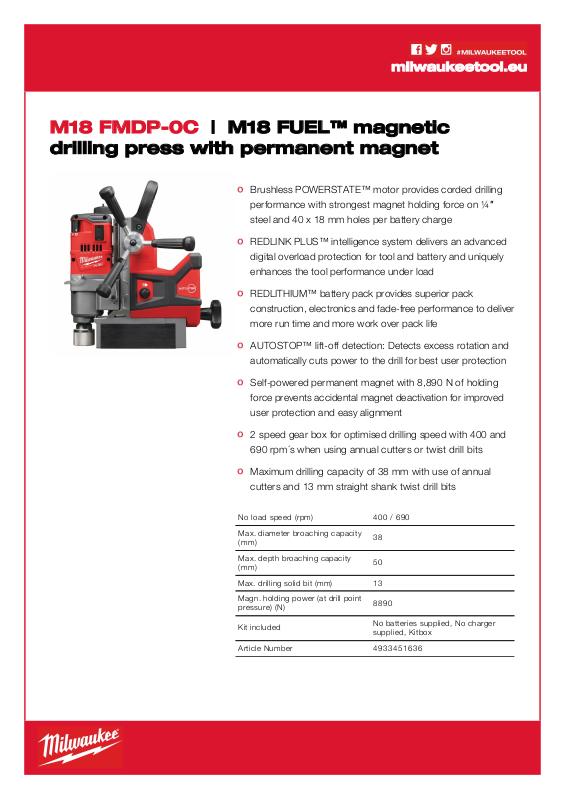

M18 FMDP-0C | M18 FUEL™ magnetic

drilling press with permanent magnet

No load speed (rpm) 400 / 690

Max. diameter broaching capacity (mm)

Max. depth broaching capacity (mm)

Max. drilling solid bit (mm) 13

Magn. holding power (at drill point pressure) (N)

8890

Kit included

No batteries supplied, No charger supplied, Kitbox

Article Number 4933451636

Brushless POWERSTATE™ motor provides corded drilling performance with strongest magnet holding force on ¼″ steel and 40 x 18 mm holes per battery charge

REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load

REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life

AUTOSTOP™ lift-off detection: Detects excess rotation and automatically cuts power to the drill for best user protection

Self-powered permanent magnet with 8,890 N of holding force prevents accidental magnet deactivation for improved user protection and easy alignment

2 speed gear box for optimised drilling speed with 400 and 690 rpm´s when using annual cutters or twist drill bits

Maximum drilling capacity of 38 mm with use of annual cutters and 13 mm straight shank twist drill bits
