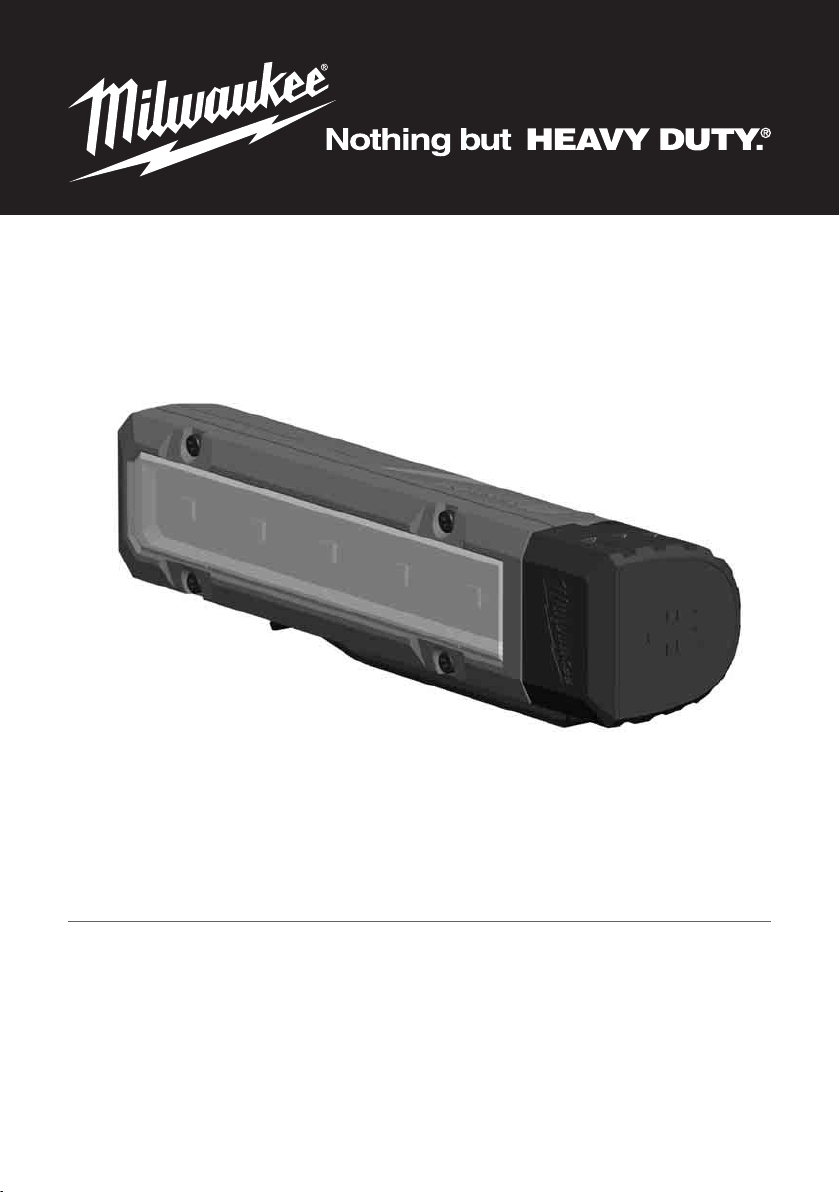

Page 1
FL-LED
Original instructions
Page 2
Text section with Technical Data, important Safety
7
and Working Hints and description of Symbols
8
5
ON
OFF
4
6
2 3
Page 3
1
1
2
3
2
+
-
+
-
3
OFF
4 5
Page 4
1
2
6 7
Page 5
TECHNICAL DATA BATTERY LAMP
Rated Power input ..................................................................
Lighting time
Mode High ...........................................................................
Mode Low ............................................................................
Luminus fl ux
Mode High ...........................................................................
Mode Low ............................................................................
Colour rendering index (CRI)..................................................
Colour temperature.................................................................
Battery voltage........................................................................
Battery type ............................................................................
Weight according EPTA-Procedure 01/2014 ..........................
Protection class ......................................................................
FL-LED
.............................4 W
.............................5 h
...........................16 h
.........................300 lm
.........................100 lm
...........................80
.......................4000 K
.............................3 V (2x1,5V)
.................LR6 / AA
......................0,122 kg
........................... IP 54
WARNING Read all safety warnings, instructions,
illustrations and specifi cations provided with this power
tool. Failure to follow all instructions listed below may result
in electric shock, fi re and/or serious injury.
Save all warnings and instructions for future reference.
SAFETY INSTRUCTIONS BATTERY LAMP
Warning: Do not direct the light beam at persons or animals
and do not stare into the light beam yourself (not even from
a distance). Staring into the light beam may result in serious
injury or vision loss.
Don‘t use this tool in wet areas .
The light source of this luminaire is not replaceable; when
the light source reaches its end of life the whole luminaire
shall be replaced.
SAFETY INSTRUCTIONS BATTERY
This tool is designed to be powered by 2 LR6 / AA batteries
properly inserted into the instrument. Do not attempt to use
with any other voltage or power supply.
Do not leave batteries within the reach of children.
Do not mix new and used batteries. Do not mix brands (or
types within brands) of batteries.
Do not mix rechargeable and non-rechargeable batteries.
Install batteries according to polarity (+ / –) diagrams.
Properly dispose of used batteries immediately.
Battery acid may leak from damaged batteries under extreme
load or extreme temperatures. In case of contact with battery
acid wash it off immediately with soap and water. In case of eye
contact rinse thoroughly for at least 10 minutes and
immediately seek medical attention.
SPECIFIED CONDITIONS OF USE
The Battery Lamp is intended to be used light independent
use away from mains supply.
Do not use this product in any other way as stated for
normal use.
MAINTENANCE
The light source contained in this luminaire shall only be
replaced by the manufacturer or his service agent or a
similar qualifi ed person.
Use only Milwaukee accessories and spare parts. Should
components need to be replaced which have not been
described, please contact one of our Milwaukee service
agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered.
Please state the machine type printed as well as the six-digit
No. on the label and order the drawing at your local service
agents or directly at: Techtronic Industries GmbH,
Max-Eyth-Straße 10, 71364 Winnenden, Germany.
SYMBOLS
CAUTION! WARNING! DANGER!
Please read the instructions carefully before
starting the machine.
Do not stare at the operating light source.
Class III electrical protection.
Do not dispose electric tools, batteries/
rechargeable batteries together with household
waste material.
Electric tools and batteries that have reached the
end of their life must be collected separately and
returned to an environmentally compatible
recycling facility.
Check with your local authority or retailer for
recycling advice and collection point.
European Conformity Mark
British Confomity Mark
Ukraine Conformity Mark
EurAsian Conformity Mark
ENGLISH
98
Page 6
10 11
Page 7
Copyright 2020
Techtronic Industries GmbH
Max-Eyth-Str. 10
71364 Winnenden
Germany
+49 (0) 7195-12-0
www.milwaukeetool.eu
Techtronic Industries (UK) Ltd
Fieldhouse Lane
Marlow Bucks SL7 1HZ
UK
(10.20)
4100 4701 06
