SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS

CATALOG NO.

EXAMPLE:

Component Parts (Small #) Are Included

00

0

When Ordering The Assembly (Large #).

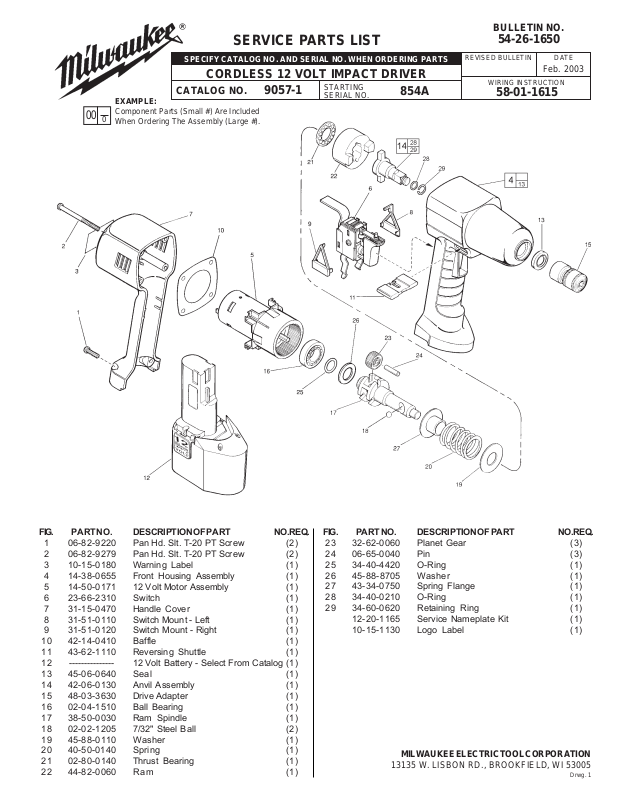

SERVICE PARTS LIST

CORDLESS 12 VOLT IMPACT DRIVER

9057-1

STARTING
SERIAL NO.

854A

BULLETIN NO.

54-26-1650

REVISED BULLETIN DATE

Feb. 2003

WIRING INSTRUCTION

58-01-1615

FIG. PART NO. DESCRIPTION OF PART NO.REQ.

1 06-82-9220 Pan Hd. Slt. T-20 PT Screw (2)
2 06-82-9279 Pan Hd. Slt. T-20 PT Screw (2)
3 10-15-0180 Warning Label (1)
4 14-38-0655 Front Housing Assembly (1)
5 14-50-0171 12 Volt Motor Assembly (1)
6 23-66-2310 Switch (1)
7 31-15-0470 Handle Cover (1)
8 31-51-0110 Switch Mount - Left (1)

9 31-51-0120 Switch Mount - Right (1)
10 42-14-0410 Baffle (1)
11 43-62-1110 Reversing Shuttle (1)
12 --------------- 12 Volt Battery - Select From Catalog (1)
13 45-06-0640 Seal (1)
14 42-06-0130 Anvil Assembly (1)
15 48-03-3630 Drive Adapter (1)
16 02-04-1510 Ball Bearing (1)
17 38-50-0030 Ram Spindle (1)
18 02-02-1205 7/32" Steel Ball (2)
19 45-88-0110 Washer (1)
20 40-50-0140 Spring (1)
21 02-80-0140 Thrust Bearing (1)
22 44-82-0060 Ram (1)

FIG. PART NO. DESCRIPTION OF PART NO.REQ.

23 32-62-0060 Planet Gear (3)
24 06-65-0040 Pin (3)
25 34-40-4420 O-Ring (1)
26 45-88-8705 Washer (1)
27 43-34-0750 Spring Flange (1)
28 34-40-0210 O-Ring (1)
29 34-60-0620 Retaining Ring (1)

12-20-1165 Service Nameplate Kit (1)
10-15-1130 Logo Label (1)

MILWAUKEE ELECTRIC TOOL CORPORATION

13135 W. LISBON RD., BROOKFIELD, WI 53005

Drwg. 1
