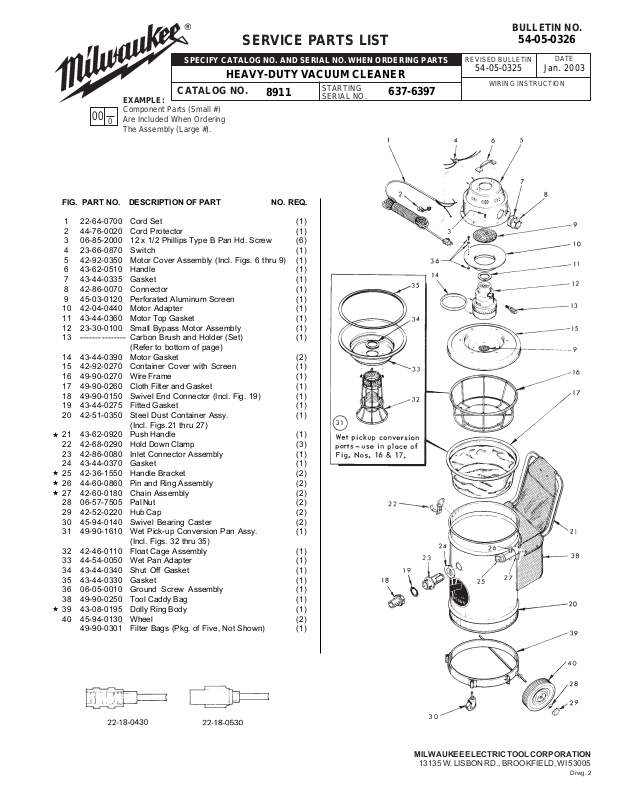

Milwaukee 8911 User Manual
SERVICE PARTS LIST
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
HEAVY-DUTY VACUUM CLEANER
EXAMPLE:
CATALOG NO.
00
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 22-64-0700 Cord Set (1)
2 44-76-0020 Cord Protector (1)
3 06-85-2000 12 x 1/2 Phillips Type B Pan Hd. Screw (6)
4 23-66-0870 Switch (1)
5 42-92-0350 Motor Cover Assembly (Incl. Figs. 6 thru 9) (1)
6 43-62-0510 Handle (1)
7 43-44-0335 Gasket (1)
8 42-86-0070 Connector (1)
9 45-03-0120 Perforated Aluminum Screen (1)
10 42-04-0440 Motor Adapter (1)
11 43-44-0360 Motor Top Gasket (1)
12 23-30-0100 Small Bypass Motor Assembly (1)
13 --------------- Carbon Brush and Holder (Set) (1)
14 43-44-0390 Motor Gasket (2)
15 42-92-0270 Container Cover with Screen (1)
16 49-90-0270 Wire Frame (1)
17 49-90-0260 Cloth Filter and Gasket (1)
18 49-90-0150 Swivel End Connector (Incl. Fig. 19) (1)
19 43-44-0275 Fitted Gasket (1)
20 42-51-0350 Steel Dust Container Assy. (1)
21 43-62-0920 Push Handle (1)
22 42-68-0290 Hold Down Clamp (3)
23 42-86-0080 Inlet Connector Assembly (1)
24 43-44-0370 Gasket (1)
25 42-36-1550 Handle Bracket (2)
26 44-60-0860 Pin and Ring Assembly (2)
27 42-60-0180 Chain Assembly (2)
28 06-57-7505 Pal Nut (2 )
29 42-52-0220 Hub Cap (2)
30 45-94-0140 Swivel Bearing Caster (2)
31 49-90-1610 Wet Pick-up Conversion Pan Assy. (1)
32 42-46-0110 Float Cage Assembly (1)
33 44-54-0050 Wet Pan Adapter (1)
34 43-44-0340 Shut Off Gasket (1)
35 43-44-0330 Gasket (1)
36 06-05-0010 Ground Screw Assembly (1)
38 49-90-0250 Tool Caddy Bag (1)
39 43-08-0195 Dolly Ring Body (1)
40 45-94-0130 Wheel (2)
49-90-0301 Filter Bags (Pkg. of Five, Not Shown) (1)
Component Parts (Small #)
Are Included When Ordering
0
The Assembly (Large #).
(Refer to bottom of page)
(Incl. Figs.21 thru 27)
(Incl. Figs. 32 thru 35)
8911
STARTING
SERIAL NO.
637-6397
BULLETIN NO.
54-05-0326
REVISED BULLETIN
54-05-0325
WIRING INSTRUCTION
DATE
Jan. 2003
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
