Milwaukee 6180-20 User Manual
OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR
Catalog No.
No de Cat.
Número de Catálogo
6180-20
HEAVY-DUTY 14" ABRASIVE CUT-OFF MACHINE
EXTRA ROBUSTE TRONÇONNEUSE 355 mm (14") À DISQUE ABRASIF
SIERRA TRONZADORA ABRASIVA DE 355 mm (14"), HEAVY DUTY
TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S MANUAL.
AFIN DE RÉDUIRE LE RISQUE DE BLESSURES, L'UTILISATEUR DOIT LIRE ET BIEN COMPRENDRE LE
MANUEL DE L'UTILISATEUR.
PARA REDUCIR EL RIESGO DE LESIONES, EL USUARIO DEBE LEER Y ENTENDER EL MANUAL DEL
OPERADOR.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
WORK AREA
1. Keep work area clean and well lit. Cluttered, dark work areas
invite accidents.
2. Avoid dangerous environments. Do not use your power tool in
rain, damp or wet locations or in the presence of explosive atmospheres (gaseous fumes, dust or flammable materials). Remove
materials or debris that may be ignited by sparks.
3. Keep bystanders away. Children and bystanders should be kept
at a safe distance from the work area to avoid distracting the operator and contacting the tool or extension cord.
4. Protect others in the work area from debris such as chips and
sparks. Provide barriers or shields as needed.
5. Make workshop child proof with padlocks, master switches, or
by removing starter keys.
ELECTRICAL SAFETY

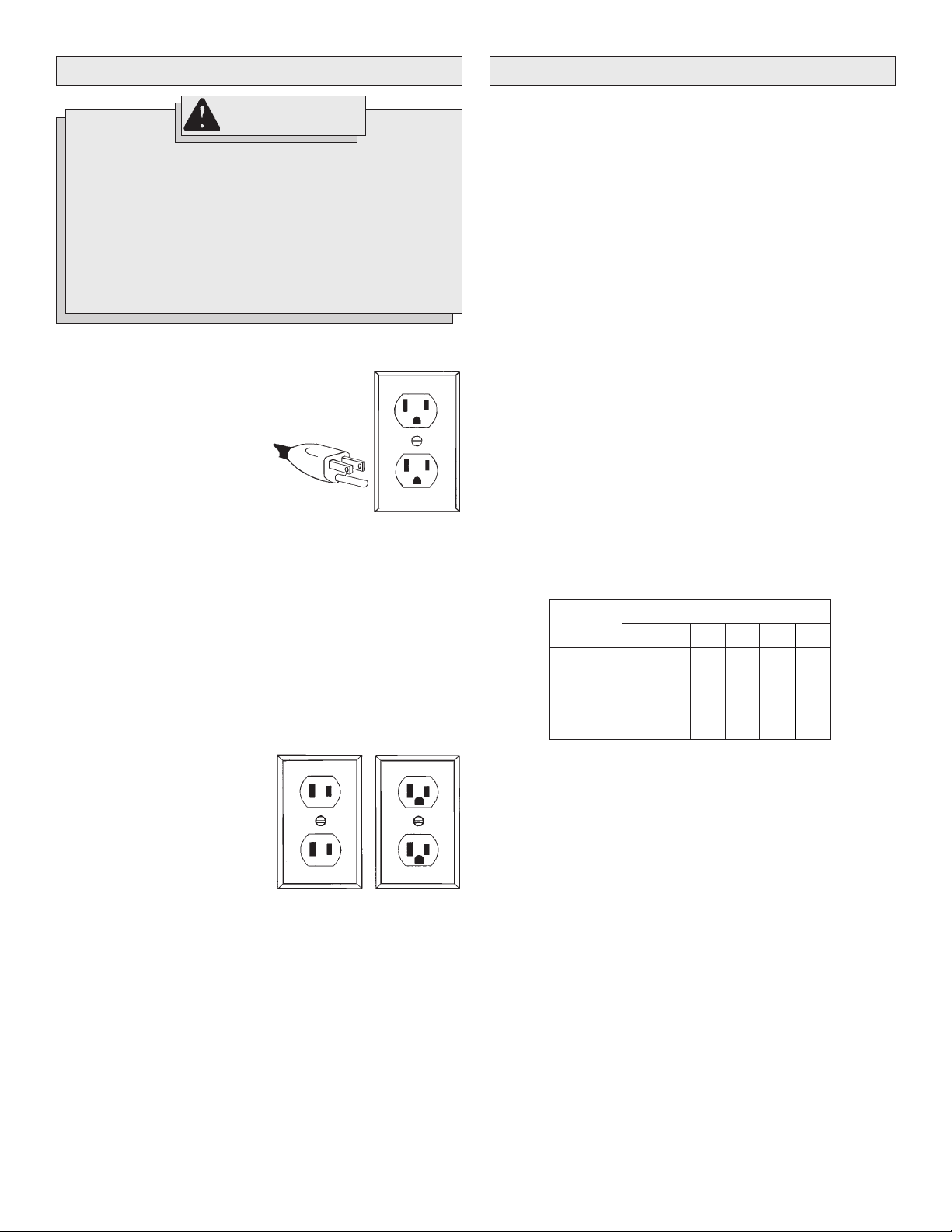

6. Grounded tools must be plugged into an outlet properly
installed and grounded in accordance with all codes and
ordinances. Never remove the grounding prong or modify the plug
in any way. Do not use any adaptor plugs. Check with a qualified
electrician if you are in doubt as to whether the outlet is properly
grounded. If the tool should electrically malfunction or break down,
grounding provides a low resistance path to carry electricity away
from the user.
7. Double insulated tools are equipped with a polarized plug
(one blade is wider than the other). This plug will fit in a
polarized outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact a
qualified electrician to install a polarized outlet. Do not
change the plug in any way. Double insulation eliminates the
need for the three wire grounded power cord and grounded power
supply system.
8. Guard against electric shock. Prevent body contact with
grounded surfaces such as pipes, radiators, ranges and refrigerators. When making blind or plunge cuts, always check the work area
for hidden wires or pipes. Hold your tool by insulated nonmetal
grasping surfaces. Use a Ground Fault Circuit Interrupter (GFCI) to
reduce shock hazards.
9. Do not expose to rain or use in damp locations.
10. Do not abuse the cord. Never use the cord to carry the tools
or pull the plug from an outlet. Keep cord away form heat,
oil, sharp edges or moving parts. Replace damaged cords
immediately. Damaged cords increase the risk of electric shock.
PERSONAL SAFETY
11. Know your power tool. Read this manual carefully to learn your
power tool’s applications and limitations as well as potential hazards associated with this type of tool.
12. Stay alert, watch what you are doing, and use common sense
when operating a power tool. Do not use tool while tired or
under the influence of drugs, alcohol, or medication. A mo-
ment of inattention while operating power tools may result in serious
personal injury.
13. Dress properly. Do not wear loose clothing or jewelry. Wear a
protective hair covering to contain long hair. These may be caught in
moving parts. When working outdoors, wear rubber gloves and
insulated non-skid footwear. Keep hands and gloves away from
moving parts.
14. Reduce the risk of unintentional starting. Be sure your tool is
turned off before plugging it in. Do not use a tool if the power switch
does not turn the tool on and off. Do not carry a plugged-in tool with
your finger on the switch.
15. Remove all adjusting keys and wrenches. Make a habit of
checking that adjusting keys, wrenches, etc. are removed from the
tool before turning it on.
16. Do not overreach. Maintain control. Keep proper footing and
balance at all times. Maintain a firm grip. Use extra care when using
tool on ladders, roofs, scaffolds, etc.
17. Use safety equipment. Everyone in the work area should wear
safety goggles or glasses with side shields complying with
current safety standards. Everyday eyeglasses only have impact
resistant lenses. They are not safety glasses. Wear hearing protection during extended use and a dust mask for dusty operations. Hard
hats, face shields, safety shoes, etc. should be used when specified or necessary. Keep a fire extinguisher nearby.
18. Keep guards in place and in working order.
19. Never stand on tool. Serious injury could occur if the tool is tipped
or if the cutting tool is unintentionally contacted.
20. Keep hands away from all cutting edges and moving parts.
TOOL USE AND CARE
21. Secure work. Use a clamp, vise or other practical means to hold
your work securely, freeing both hands to control the tool.
22. Do not force tool. Your tool will perform best at the rate for which
it was designed. Excessive force only causes operator fatigue,
increased wear and reduced control.
23. Use the right tool. Do not use a tool or attachment to do a job for
which it is not recommended. For example, do not use a circular
saw to cut tree limbs or logs. Do not alter a tool.
24. Unplug tool when it is not in use, before changing accessories or
performing recommended maintenance.
25. Store idle tools. When not in use, store your tool in a dry, secured
place. Keep out of reach of children.
26. Never leave the tool running unattended. Turn power off. Do
not leave the tool until it comes to a complete stop.
27. Check for damaged parts. Inspect guards and other parts be-
fore use. Check for misalignment, binding of moving parts, improper
mounting, broken parts and any other conditions that may affect
operation. If abnormal noise or vibration occurs, turn the tool off
immediately and have the problem corrected before further use. Do
not use a damaged tool. Tag damaged tools “DO NOT USE” until
repaired. A guard or other damaged part should be properly repaired
or replaced by a MILWAUKEE service facility. For all repairs, insist
on only identical replacement parts.
page 2
28. Use proper accessories. Consult this manual for recommended
accessories. Using improper accessories may be hazardous. Be
sure accessories are properly installed and maintained. Do not defeat a guard or other safety device when installing an accessory or
attachment.
29. Maintain tools carefully. Keep handles dry, clean and free from
oil and grease. Keep cutting edges sharp and clean. Follow instructions for lubricating and changing accessories. Periodically inspect
tool cords and extension cords for damage. Have damaged parts
repaired or replaced by a MILWAUKEE service facility.
30. Maintain labels & nameplates. These carry important informa-
tion. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.
31. Tool service must be performed only by qualified repair
personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury.
32. When servicing a tool, use only identical replacement parts.
follow instructions in the maintenance section of this
manual. Use of unauthorized parts or failure to follow maintenance
instructions may create a risk of shock or injury.
SERVICE
SPECIFIC SAFETY INSTRUCTIONS - ABRASIVE CUT-OFF MACHINES
WARNING!
To reduce the risk of injury, avoid inhalation of dust generated by grinding and cutting operations.
Exposure to dust may cause respiratory ailments. Use approved NIOSH or OSHA respirators, safety
glasses or face shields, gloves and protective clothing. Provide adequate ventilation to eliminate dust,
or to maintain dust level below the Threshold Limit Value for nuisance dust as classified by OSHA.
WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paint
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
Wheel Instructions
1. Use only the edge (not the sides) of the wheel for cutting. Do not
allow the wheel to twist or bind.
2. Keep hands and body away from the rotating wheel. Do not wear
loose clothing when using this tool.
3. Store cut-off wheels with care. Do not drop them or subject them to
excessive heat, cold or humidity.
4. Make sure that all wheel flanges and other mounting hardware are
in good condition and are always used properly. Defective or missing parts may cause damage to the wheel. Always use mounting
flanges supplied with the tool.
5. Cutting with a damaged wheel is very hazardous. After installing a
new wheel, leave the tool unplugged and rotate the wheel by hand
to see if it is uneven, warped, or cracked. If so, discard the wheel
and replace it with a new one. Do not use a wheel that has been
dropped; impact may result in breakage.
6. Before starting a cut, step out of line of the wheel and make a trial
run to confirm that the wheel is in good condition. Trial run periods
are:
When replacing a cut-off wheel — over 3 minutes.
When starting routine work — over 1 minute.
7. Never try to remove or clamp the workpiece to the tool while the cutoff wheel is rotating.
8. Before installing a cut-off wheel, always inspect it for cracks. Visually check resinoid and rubber-bonded wheels for cracks. Replace
cracked wheel immediately.
9. Always check maximum operating speed established for wheel
against machine speed. Do not exceed the maximum operating speed
that is marked on the wheel.
10. Do not force a wheel onto the machine or alter the size of the arbor
hole. Do not use a wheel that fits the arbor too loosely. If the wheel
doesn't fit the machine, get one that does.
11. Do not attempt to install toothed blades on this tool because it is not
designed for this type of blade.
12. Do not overtighten FIXTEC nut. Hand tighten only.
Machine Instructions
1. Start cutting only after the motor has reached full speed.
2. Release switch immediately if the cut-off wheel stops rotating or if
the motor sounds like it is straining.
3. Keep flammable and fragile objects away from this tool. Do not allow
cut-off sparks to contact the operator's hands, face or feet.
4. Place the tool securely on a flat, level surface.
5. Always use the tool with the proper voltage specified on the tool's
nameplate.
6. Never touch a short cut-off piece until it cools.
7. Never attempt to cut material larger than the rated capacity listed in
“Specifications”.
8. Never stand in line with the wheel while cutting. Always stand to the
side.
9. Always keep guards in place.
10. Always start the cut gently. Do not bump or bang a wheel to start a
cut.
11. Never make any freehand cuts. Always place the workpiece
between the vise and fence when making cuts.
page 3

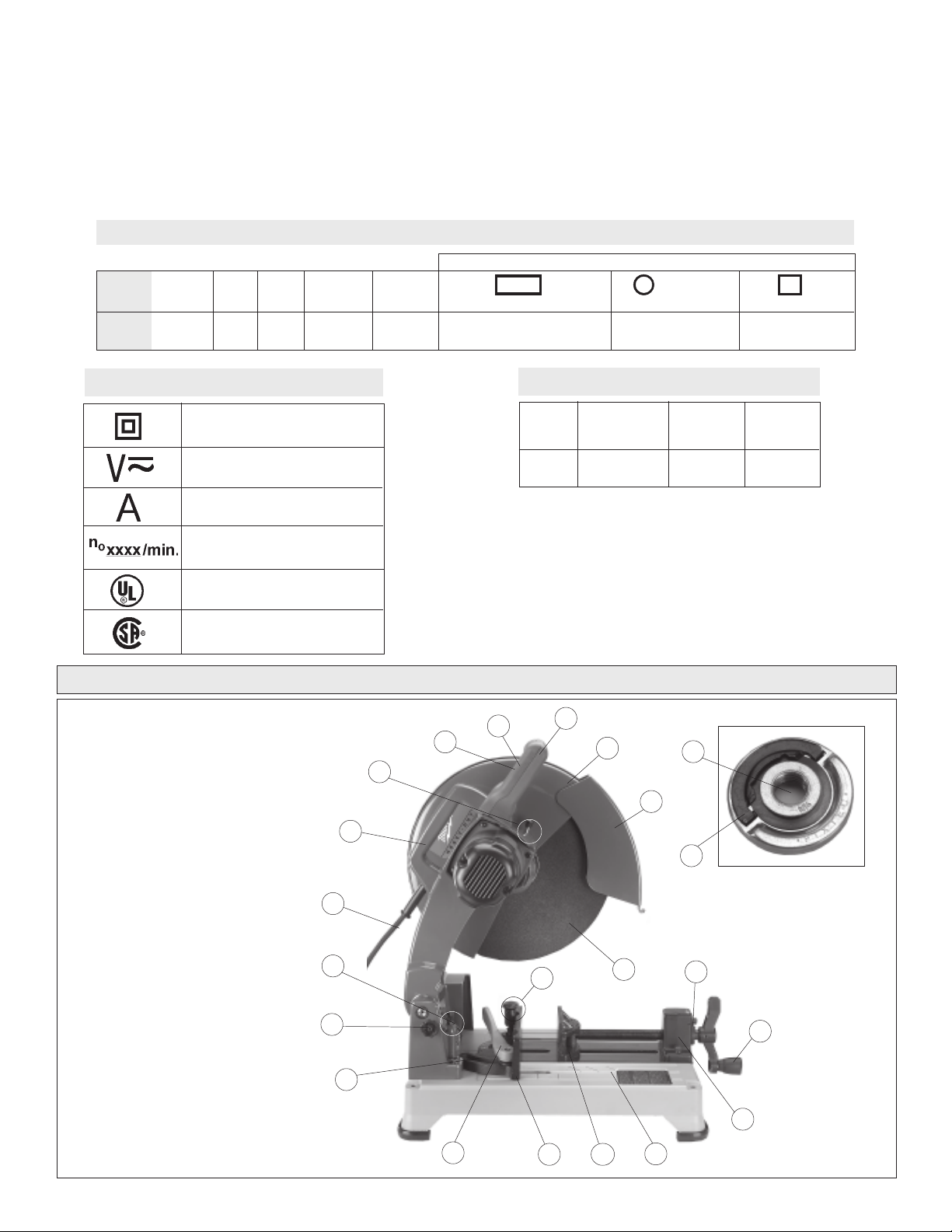

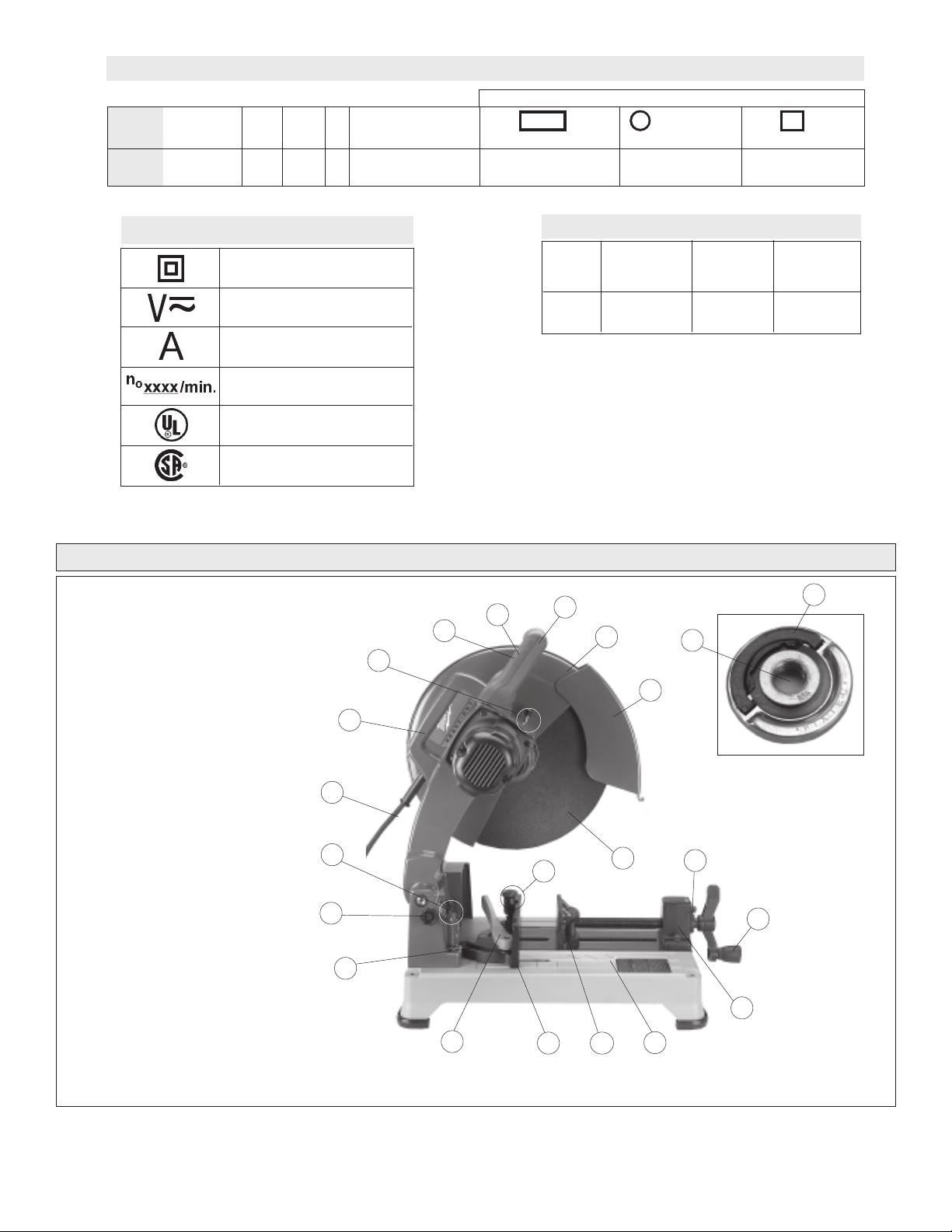

Cut-Off Machine Specifications
Workpiece Configurations (Cross-Section)
Cat.
Wheel
No.
6180-20
Size
14"
Symbology
Double Insulated
Volts Alternating Current/
Direct Current
Amps
No Load Revolutions per Minute
(RPM)
Underwriters Laboratories, Inc.
Canadian Standards Association
1. Trigger
2. Lock-out hole (not shown)
3. Handle
4. Stationary guard
5. Moveable guard
6. FIXTEC nut
7. Hinged latch
8. Abrasive cut-off wheel
9. Quick release lever
10. Vise handle
11. Vise
12. Base
13. Vise plate
14. Quick adjust fence
15. Spring loaded fence bolt
16. Fence lock lever
17. Angle indicator
18. Transport lock
19. Depth adjustment bolt
20. Cord
21. Transport handle
22. Spindle lock lever
RPM
3900
Volts
AC/DC
120
20
19
18
Arbor
15
Hole Size
1"
Rectangular Stock
4" x 7-1/2"
Amps
FUNCTIONAL DESCRIPTION
1
22
21
17
16
O.D. Pipe
5-3/8"
Square Tubing
5" x 5"
Cut-Off Wheel Specifiactions
Wheel
Size
14"
2
3
15
14
Min.
Wheel RPM
Rating
4300
4
8
13
Wheel
Thickness
3/32"
6
5
9
12
Arbor
Hole
Size
1"
7
10
11
page 4
GROUNDING EXTENSION CORDS
WARNING!
Improperly connecting the grounding wire can result in the
risk of electric shock. Check with a qualified electrician if you
are in doubt as to whether the outlet is properly grounded.
Do not modify the plug provided with the tool. Never remove
the grounding prong from the plug. Do not use the tool if the
cord or plug is damaged. If damaged, have it repaired by a
MILWAUKEE service facility before use. If the plug will not
fit the outlet, have a proper outlet installed by a qualified
electrician.
Grounded Tools:
Tools with Three Prong Plugs
Tools marked “Grounding Required”
have a three wire cord and three
prong grounding plug. The plug must
be connected to a properly grounded
outlet (See Figure A). If the tool should
electrically malfunction or break
down, grounding provides a low resistance path to carry electricity
away from the user, reducing the risk
of electric shock.
The grounding prong in the plug is connected through the green wire
inside the cord to the grounding system in the tool. The green wire in the
cord must be the only wire connected to the tool's grounding system and
must never be attached to an electrically “live” terminal.
Your tool must be plugged into an appropriate outlet, properly installed
and grounded in accordance with all codes and ordinances. The plug
and outlet should look like those in Figure A.
Double Insulated Tools:
Tools with Two Prong Plugs
Tools marked “Double Insulated” do
not require grounding. They have a
special double insulation system
which satisfies OSHA requirements
and complies with the applicable
standards of Underwriters Laboratories, Inc., the Canadian Standard
Association and the National Electrical Code. Double Insulated tools may
be used in either of the 120 volt outlets shown in Figures B and C.
Fig. A
Fig. B
Fig. C
Grounded tools require a three wire extension cord. Double insulated
tools can use either a two or three wire extension cord. As the distance
from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a
serious drop in voltage, resulting in loss of power and possible tool
damage. Refer to the table shown to determine the required minimum
wire size.
The smaller the gauge number of the wire, the greater the capacity of the
cord. For example, a 14 gauge cord can carry a higher current than a 16
gauge cord. When using more than one extension cord to make up the
total length, be sure each cord contains at least the minimum wire size
required. If you are using one extension cord for more than one tool, add
the nameplate amperes and use the sum to determine the required minimum wire size.
Guidelines for Using Extension Cords
• If you are using an extension cord outdoors, be sure it is marked
with the suffix “W-A” (“W” in Canada) to indicate that it is acceptable
for outdoor use.
• Be sure your extension cord is properly wired and in good electrical
condition. Always replace a damaged extension cord or have it
repaired by a qualified person before using it.
• Protect your extension cords from sharp objects, excessive heat
and damp or wet areas.
Recommended Minimum Wire Gauge
Nameplate
Amperes
8.1 - 12
12.1 - 15
15.1 - 20
* Based on limiting the line voltage drop to five
volts at 150% of the rated amperes.
for Extension Cords*
25'
0 - 5
5.1 - 8
16
16
14
12
10
Extension Cord Length
100'
50'
16
16
14
12
10
75'
16
14
12
10
10
14
12
10
10
150'
12
10
--
--
--
--
200'
12
--
--
--
--
READ AND SAVE ALL INSTRUCTIONS FOR
FUTURE USE.
page 5

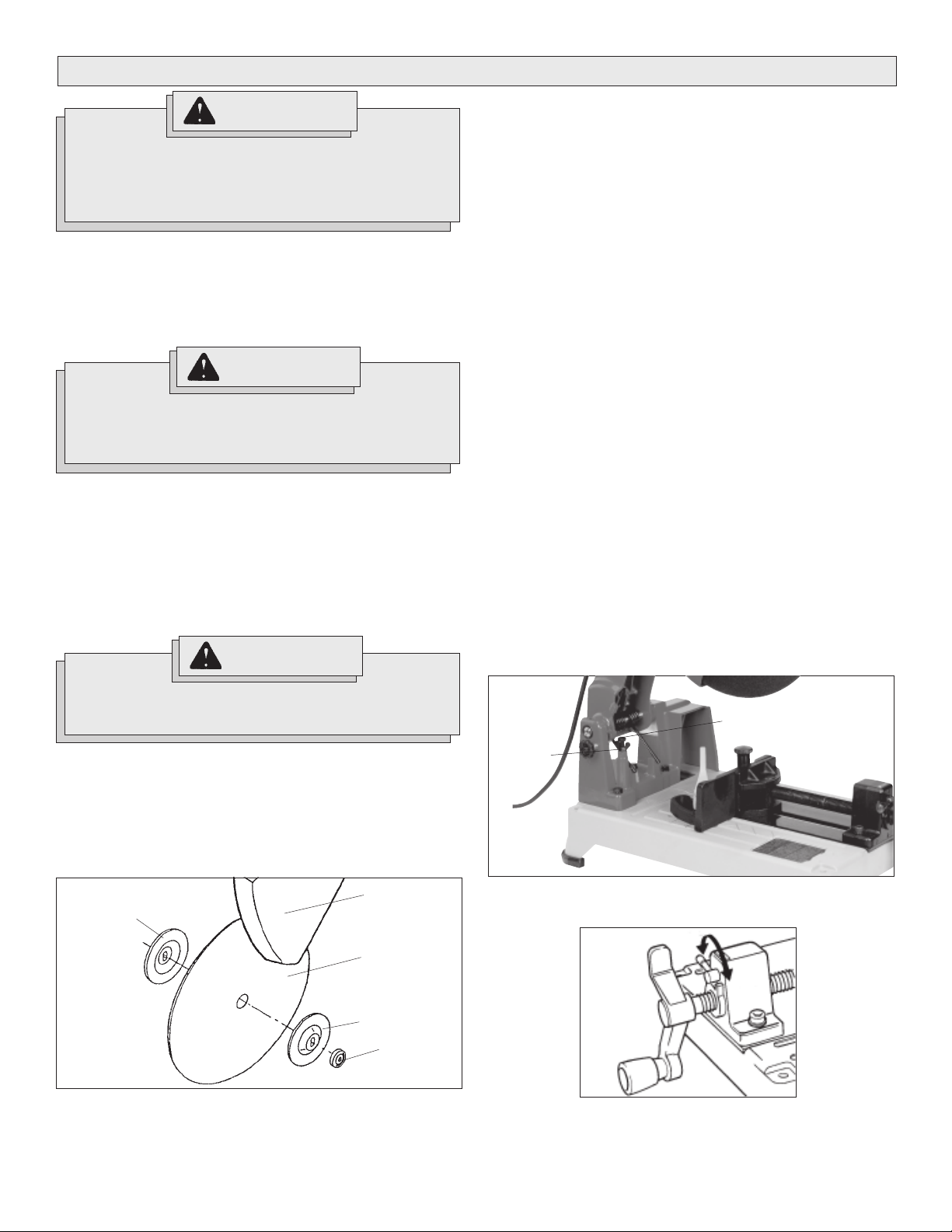

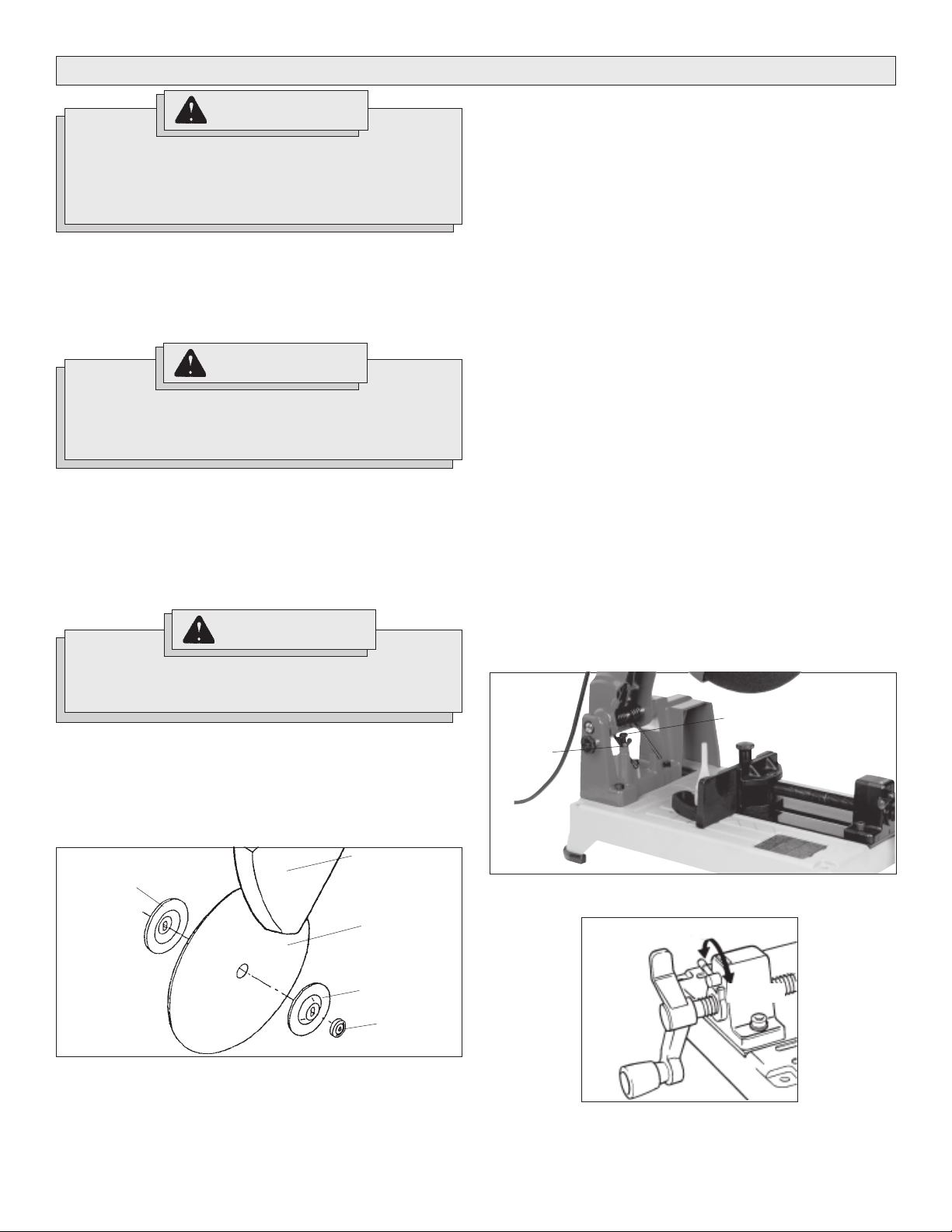

OPERATION
WARNING!
To reduce the risk of injury, always unplug tool before
attaching or removing accessories. Use only specifically
recommended accessories. Others may be hazardous.
Using the Transport Lock
The transport lock secures the handle for transporting and storing the
tool. To release the transport lock, push down the handle and pull out the
transport lock. To lock the transport lock, push down the handle and
push in the transport lock.
WARNING!
To reduce the risk of injury, do not use the FIXTEC nut on any
other tool. The FIXTEC nut is specifically designed for this
application and may be hazardous when used on other tools.
Using the FIXTEC Nut
The FIXTEC nut allows for wheel changes without tools. To use the
FIXTEC nut, pull out the hinged latch and spin off the nut. To replace the
nut, hand tighten the nut until it is secure. Do not over tighten the nut. This
may damage the wheel and the flanges. When the nut is tight, snap the
hinged latch back into position. Make sure the hinged latch is down
before using the tool.
WARNING!
To reduce the risk of injury, use only the proper TYPE 1
wheels made for this machine. DO NOT USE TOOTHED BLADES.
Removing and Installing Cut-Off Wheels (Fig. 1)
The cut-off machine is supplied with the abrasive cut-off wheel
installed. MILWAUKEE recommends using only MILWAUKEE 14"
Abrasive Cut-Off Wheels, 3/32" wide with this tool. Before operating the
tool, make sure the wheel is in good condition as described in the
“Specific Safety Instructions - Abrasive Cut-Off Machines”.
3. Pull back the moveable portion of the guard to expose the wheel arbor
and FIXTEC nut.
Press down the spindle lock lever and loosen the FIXTEC nut
(counterclockwise).
4. Remove the FIXTEC nut, outer flange and cut-off wheel.
5. Check the two (2) wheel flanges to be sure they are in good condition. Remove any nicks or burrs, which could cause uneven cutting
pressure and result in wheel damage.
6. Install the cut-off wheel, outer flange and FIXTEC nut
(Fig. 1).
7. Press down the spindle lock lever while tightening the FIXTEC nut
(clockwise).
NOTE: Hand tighten the FIXTEC nut firmly, but do not use excessive
pressure. Overtightening the FIXTEC nut may damage the wheel and
flanges. Do not use any tool to tighten the FIXTEC nut. Hand tighten
only.
8. Check the wheel for free rotation after installation.
9. Allow the moveable portion of the guard to return to its original
position.
10. Before starting a cut, step back and out of line from the tool wheel
and make a trial run to confirm that the wheel is in good condition.
When replacing a cut-off wheel, run the tool for over 3 minutes.
When starting routine work, run the tool for over 1 minute.
Adjusting the Depth of Cut (Fig. 2)
Use the depth adjustment to change the depth of cut. When adjusted
properly, the depth adjustment bolt prevents the cut-off wheel from
contacting the surface under the base during cutting.
Cut-off wheels wear down as they are used and the depth of cut may
need to be increased.
1. To adjust the depth of cut, loosen the wing nut.
2. Turn the depth adjustment bolt to achieve the desired depth of cut.
3. Tighten the wing nut.
Fig. 2
Depth adjustment bolt
Fig. 1
Inner flange
To change wheels:
1. Unplug tool.
2. Release the transport lock.
page 6
Moveable portion of guard
Abrasive cut-off
wheel
Outer flange
FIXTEC nut
Wing nut
Using the Quick Release Lever (Fig. 3)
Fig. 3
1. To release the quick release lever, rotate the lever fully to the left.
2. To lock the quick release lever, rotate the lever fully to the right.
Release
Lock

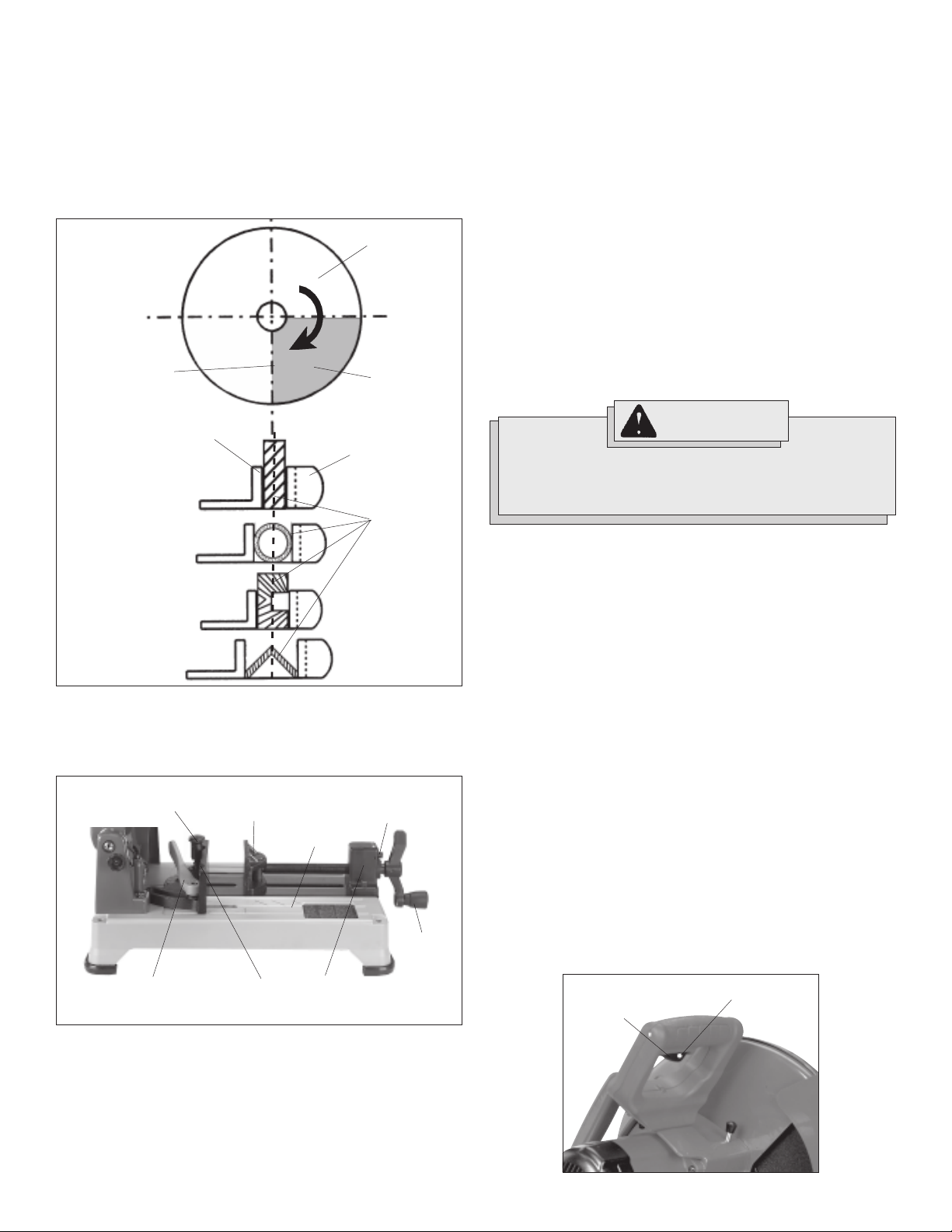

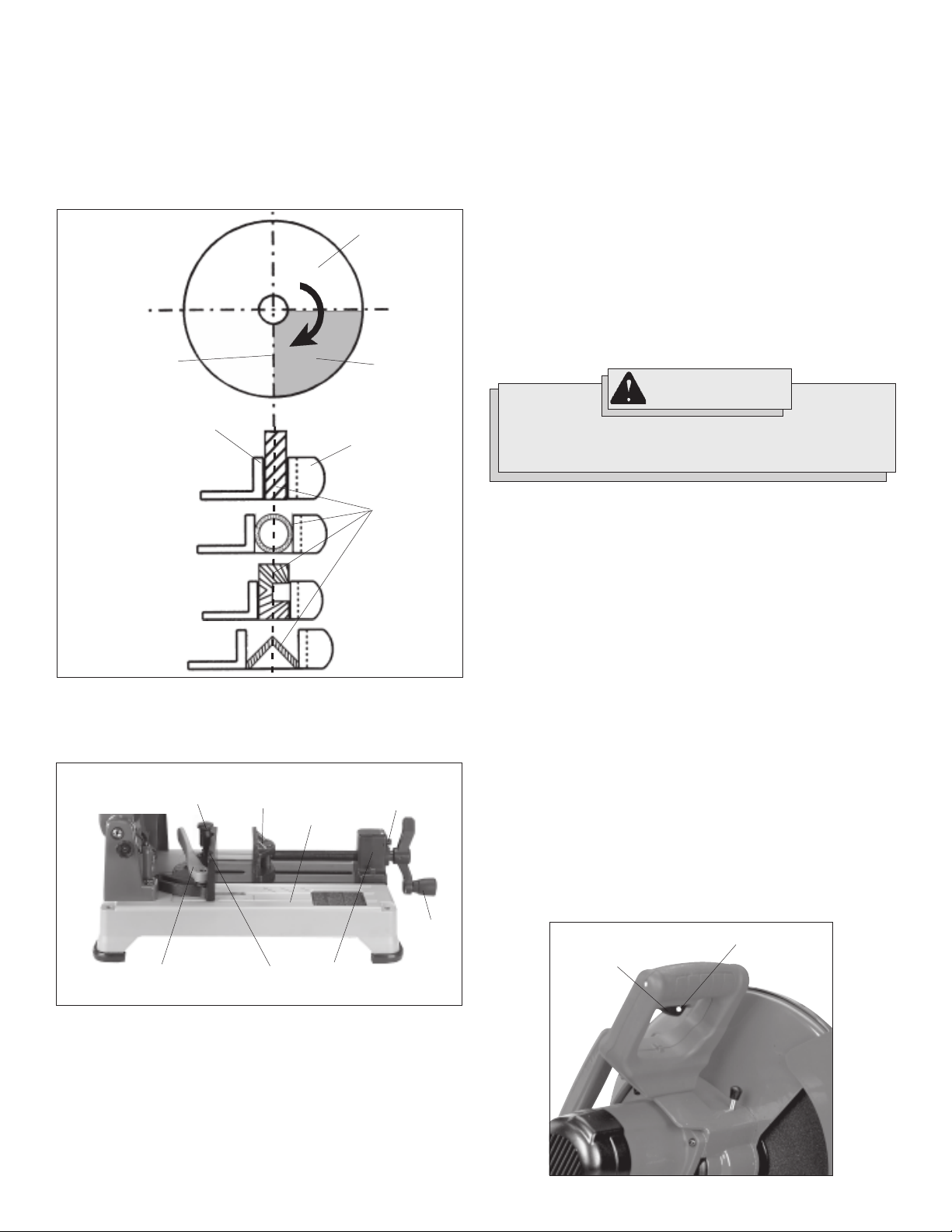

Supporting the Workpiece and Adjusting the Vise and Fence
System (Figs. 4 & 5)
The adjustable vise and fence system holds the workpiece in the desired position. The vise plate and fence can be moved backward or
forward and can be adjusted to any angle between 90° and 45°.
When adjusting the system, the vise and fence should be positioned so
the centerline of the wheel hub is in line with or behind the centerline of
the workpiece, toward the rear of the tool (Fig. 4). The workpiece should
be resting flush with the base of the cut-off machine.
Fig. 4
Center
line of
hub
Quick adjust
fence
A.
Cut-off wheel
Preferred
cutting
area
Vise plate
6. Adjust the vise plate by moving the vise handle in or out as needed
to fit the workpiece.
7. Rotate the quick release lever to the right to the “lock” position. This
will engage the threads and lock the vise. To completely lock the
vise, turn the vise handle clockwise until the workpiece is properly
secured.
Selecting a Workpiece
The MILWAUKEE Abrasive Cut-Off Machine is designed to cut steel and
concrete. It is not recommended for cutting wood or plastic. Do not
attempt to install a toothed blade on the tool.
Starting and Stopping the Tool
1. Plug in the tool.
2. Stand out of the line of the wheel.
3. To start the tool, pull the trigger.
4. To stop the tool, release the trigger.
WARNING!
To reduce the risk of injury or damage to the tool, do not use
the spindle lock lever to stop the spindle while the tool is
in use or is coasting after shut-off.
Workpiece
B.
C.
D.
To adjust the vise and fence system for a particular workpiece:
1. Rotate the quick release lever fully to the left to the “release”
position. This will disengage the vise from the threads (Fig. 5).
Fig. 5
Spring loaded
fence bolt
Fence lock
lever
Vise plate
Quick adjust
fence
Base
Vise
types
Quick release
lever
Vise
handle
Making a Cut
1. Unplug the tool.
2. Select a cutting angle and position the fence and vise assembly as
needed, see “Supporting the Workpiece and Adjusting the Vise and
Fence System”.
3. Place the workpiece flat on top of the cut-off machine base. Position
the thinnest section of the workpiece facing up.Turn the vise handle
clockwise until the vise assembly holds the workpiece firmly in
place.
NOTE: Make sure the quick release lever is fully rotated to the “lock”
position.
4. Plug in the tool, stand out of the line of the wheel and pull the trigger.
Allow the motor to reach full speed. Slowly lower the wheel into the
workpiece.
NOTE: Always start the cut gently; do not bang or bump a wheel
when starting the cut. For the safest and most efficient cutting,
make sure that the centerline of the blade hub is in line with or behind
the centerline of the workpiece, toward the rear of the tool (Fig 4).
5. When the cut is complete, raise the wheel completely from the
workpiece before releasing the trigger and allowing the motor to
stop.
Using the Lock-out Hole (Fig. 6)
Insert a padlock through the trigger hole to prevent the tool from starting
unintentionally.
Fig. 6
Trigger
Lock-out hole
2. Loosen the fence lock lever that holds the fence firmly in place.
3. Push down the spring loaded fence bolt and move the quick adjust
fence into one of the three positions provided.
4. Release the spring loaded fence bolt. When properly engaged, the
fence should click into position. If the fence is not fully engaged into
position, manually move it back and forth until it clicks into place. If
the fence does not click into place, repeat step 3.
5. Adjust the fence to the desired angle and tighten the fence lock
lever.
page 7
MAINTENANCE
ACCESSORIES
WARNING!
To reduce the risk of injury, always unplug your tool before
performing any maintenance. Never disassemble the tool or
try to do any rewiring on the tool's electrical system. Contact
a MILWAUKEE service facility for ALL repairs.
Maintaining Tools
Keep your tool in good repair by adopting a regular maintenance program. Before use, examine the general condition of your tool. Inspect
guards, switches, tool cord set and extension cord for damage. Check
for loose screws, misalignment, binding of moving parts, improper mounting, broken parts and any other condition that may affect its safe operation. If abnormal noise or vibration occurs, turn the tool off immediately
and have the problem corrected before further use. Do not use a damaged tool. Tag damaged tools “DO NOT USE” until repaired
(see “Repairs”).
Under normal conditions, relubrication is not necessary until the motor
brushes need to be replaced. After six months to one year, depending on
use, return your tool to the nearest MILWAUKEE service facility for the
following:
• Lubrication
• Brush inspection and replacement
• Mechanical inspection and cleaning (gears, spindles, bearings,
housing, etc.)
• Electrical inspection (switch, cord, armature, etc.)
• Testing to assure proper mechanical and electrical operation
WARNING!
To reduce the risk of injury, always unplug the tool before
attaching or removing accessories. Use only specifically
recommended accessories. Others may be hazardous.
For a complete listing of accessories refer to your MILWAUKEE Electric
Tool catalog or go on-line to www.milwaukeetool.com. To obtain a
catalog, contact your local distributor or a service center.
WARNING!
To reduce the risk of injury, electric shock and damage to the
tool, never immerse your tool in liquid or allow a liquid to flow
inside the tool.
Cleaning
Clean dust and debris from vents. Keep the tool handles clean, dry and
free of oil or grease. Use only mild soap and a damp cloth to clean your
tool since certain cleaning agents and solvents are harmful to plastics
and other insulated parts. Some of these include: gasoline, turpentine,
lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia
and household detergents containing ammonia. Never use flammable or
combustible solvents around tools.
Repairs
If your tool is damaged, return the entire tool to the nearest service
center.
page 8
FIVE YEAR TOOL LIMITED WARRANTY
Every MILWAUKEE tool is tested before leaving the factory and is warranted to be free from defects in material and workmanship. MILWAUKEE
will repair or replace (at MILWAUKEE’s discretion), without charge, any
tool (including battery chargers) which examination proves to be defective in material or workmanship from five (5) years after the date of
purchase. Return the tool and a copy of the purchase receipt or other
proof of purchase to a MILWAUKEE Factory Service/Sales Support
Branch location or MILWAUKEE Authorized Service Station, freight pre-
paid and insured. This warranty does not cover damage from repairs
made or attempted by other than MILWAUKEE authorized personnel,
abuse, normal wear and tear, lack of maintenance, or accidents.
Battery Packs, Flashlights, and Radios are warranted for one (1) year
from the date of purchase.
THE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN ARE
EXCLUSIVE. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY
INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES, INCLUDING
LOSS OF PROFITS.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, OR CONDITIONS, WRITTEN OR ORAL, EXPRESSED OR IMPLIED FOR
MERCHANTABLILITY OR FITNESS FOR PARTICULAR USE OR PURPOSE.
This warranty gives you specific legal rights. You may also have other
rights that vary from state to state and province to province. In those
states that do not allow the exclusion of implied warranties or limitation
of incidental or consequential damages, the above limitations or exclusions may not apply to you. This warranty applies to the United States,
Canada, and Mexico only.
Loading...
