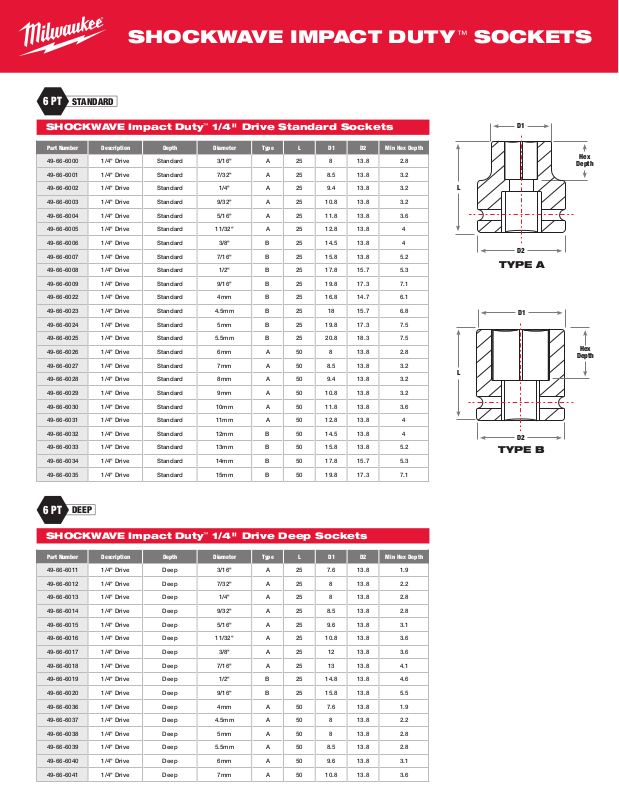

6 PT
SHOCKWAVE IMPACT DUT Y™ SOCKETS
STANDARD
SHOCKWAVE Impact Duty™ 1/4" Drive Standard Sockets
Part Number Description Depth Diameter Type L D1 D2 Min Hex Depth
49-66-6000 1/4" Drive Standard 3/16" A
49-66-6001 1/4" Drive Standard 7/32" A 25 8.5 13.8 3.2
49-66-6002 1/4" Drive Standard 1/4" A 25 9.4 13.8 3.2
49-66-6003 1/4" Drive Standard 9/32" A 25 10.8 13.8 3.2
49-66-6004 1/4" Drive Standard 5/16" A 25 11.8 13.8 3.6
49-66-6005 1/4" Drive Standard 11/32" A 25 12.8 13.8 4
49-66-6006 1/4" Drive Standard 3/8" B 25 14.5 13.8 4
49-66-6007 1/4" Drive Standard 7/16" B 25 15.8 13.8 5.2
49-66-6008 1/4" Drive Standard 1/2" B 25 17.8 15.7 5.3
49-66-6009 1/4" Drive Standard 9/16" B 25 19.8 17.3 7.1
49-66-6022 1/4" Drive Standard 4mm B 25 16.8 14.7 6.1
49-66-6023 1/4" Drive Standard 4.5mm B 25 18 15.7 6.8
49-66-6024 1/4" Drive Standard 5mm B 25 19.8 17.3 7.5
49-66-6025 1/4" Drive Standard 5.5mm B 25 20.8 18.3 7.5
49-66-6026 1/4" Drive Standard 6mm A 50 8 13.8 2.8
49-66-6027 1/4" Drive Standard 7mm A 50 8.5 13.8 3.2
49-66-6028 1/4" Drive Standard 8mm A 50 9.4 13.8 3.2
49-66-6029 1/4" Drive Standard 9mm A 50 10.8 13.8 3.2
49-66-6030 1/4" Drive Standard 10mm A 50 11.8 13.8 3.6
49-66-6031 1/4" Drive Standard 11mm A 50 12.8 13.8 4
49-66-6032 1/4" Drive Standard 12mm B 50 14.5 13.8 4
49-66-6033 1/4" Drive Standard 13mm B 50 15.8 13.8 5.2
49-66-6034 1/4" Drive Standard 14mm B 50 17.8 15.7 5.3
49-66-6035 1/4" Drive Standard 15mm B 50 19.8 17.3 7.1
25 8 13.8
2.8
D1
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B
DEEP
6 PT
SHOCKWAVE Impact Duty™ 1/4" Drive Deep Sockets
Part Number Description Depth Diameter Type L D1 D2 Min Hex Depth
49-66-6011
49-66-6012 1/4" Drive Deep 7/32" A 25 8 13.8 2.2
49-66-6013 1/4" Drive Deep 1/4" A 25 8 13.8 2.8
49-66-6014 1/4" Drive Deep 9/32" A 25 8.5 13.8 2.8
49-66-6015 1/4" Drive Deep 5/16" A 25 9.6 13.8 3.1
49-66-6016 1/4" Drive Deep 11/32" A 25 10.8 13.8 3.6
49-66-6017 1/4" Drive Deep 3/8" A 25 12 13.8 3.6
49-66-6018 1/4" Drive Deep 7/16" A 25 13 13.8 4.1
49-66-6019 1/4" Drive Deep 1/2" B 25 14.8 13.8 4.6
49-66-6020 1/4" Drive Deep 9/16" B 25 15.8 13.8 5.5
49-66-6036 1/4" Drive Deep 4mm A 50 7.6 13.8 1.9
49-66-6037 1/4" Drive Deep 4.5mm A 50 8 13.8 2.2
49-66-6038 1/4" Drive Deep 5mm A 50 8 13.8 2.8
49-66-6039 1/4" Drive Deep 5.5mm A 50 8.5 13.8 2.8
49-66-6040 1/4" Drive Deep 6mm A 50 9.6 13.8 3.1
49-66-6041 1/4" Drive Deep 7mm A 50 10.8 13.8 3.6
1/4" Drive Deep
3/16" A 25 7.6 13.8 1.9

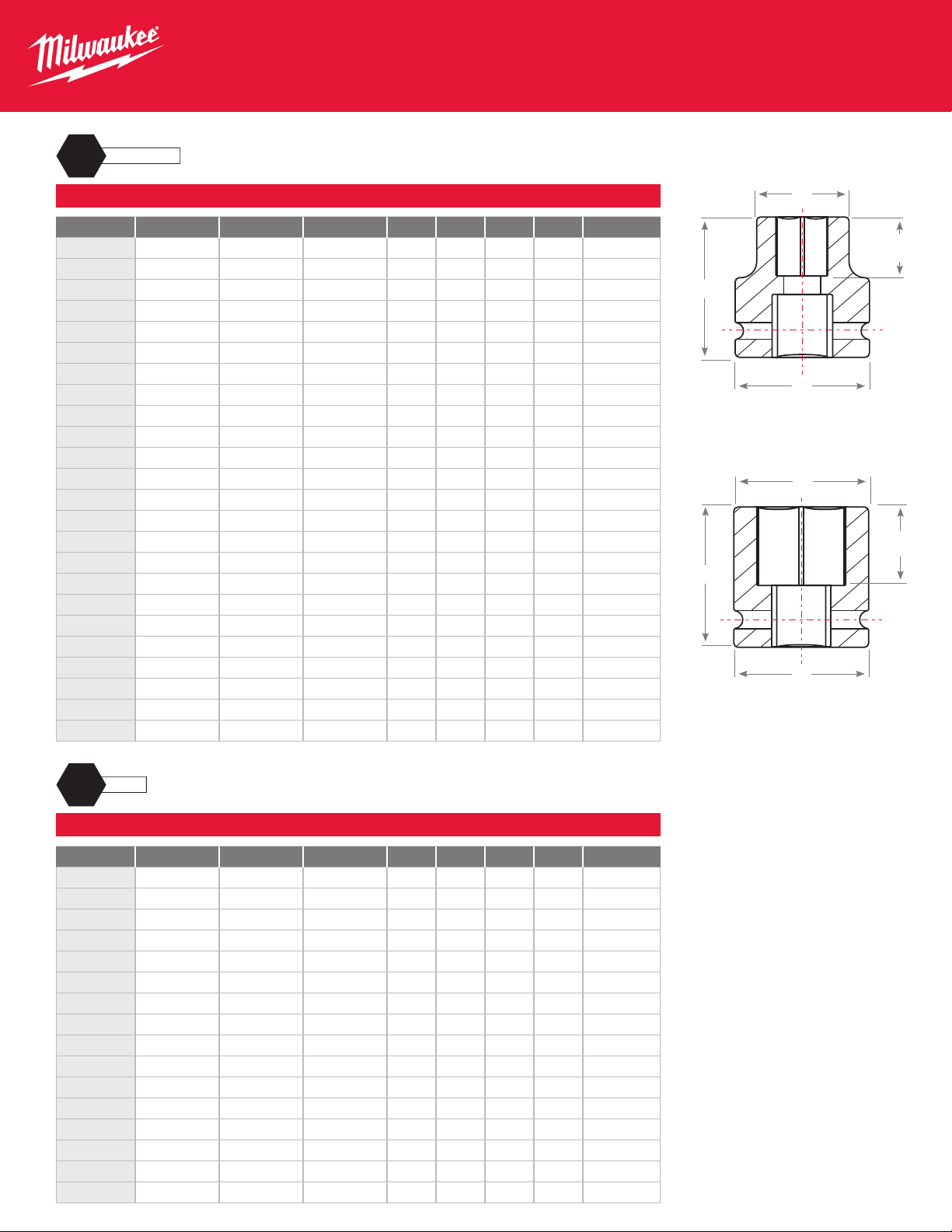

Page 2

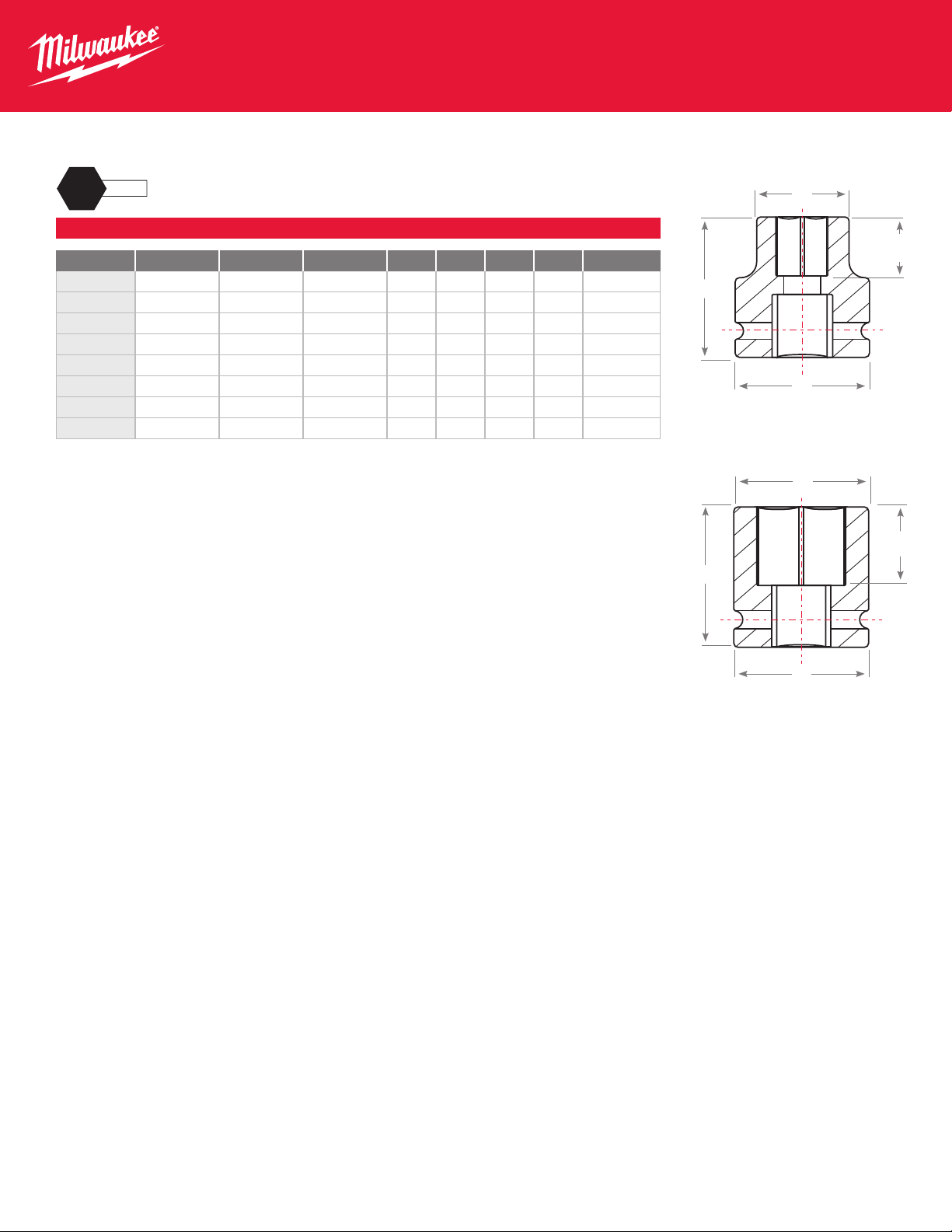

CONTINUED
6 PT
DEEP
SHOCKWAVE IMPACT DUT Y™ SOCKETS
D1
SHOCKWAVE Impact Duty™ 1/4" Drive Deep Sockets
Part Number Description Depth Diameter Type L D1 D2 Min Hex Depth
49-66-6042 1/4" Drive Deep 8mm A 50 12 13.8 3.6
49-66-6043 1/4" Drive Deep 9mm A 50 13 13.8 4.1
49-66-6044 1/4" Drive Deep 10mm B 50 14.8 13.8 4.6
49-66-6045 1/4" Drive Deep 11mm B 50 15.8 13.8 5.5
49-66-6046 1/4" Drive Deep 12mm B 50 16.8 14.7 6.1
49-66-6047 1/4" Drive Deep 13mm B 50 18 15.7 6.8
49-66-6048 1/4" Drive Deep 14mm B 50 19.8 17.3 7.5
49-66-6049 1/4" Drive Deep 15mm B 50 20.8 18.3 7.5
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B

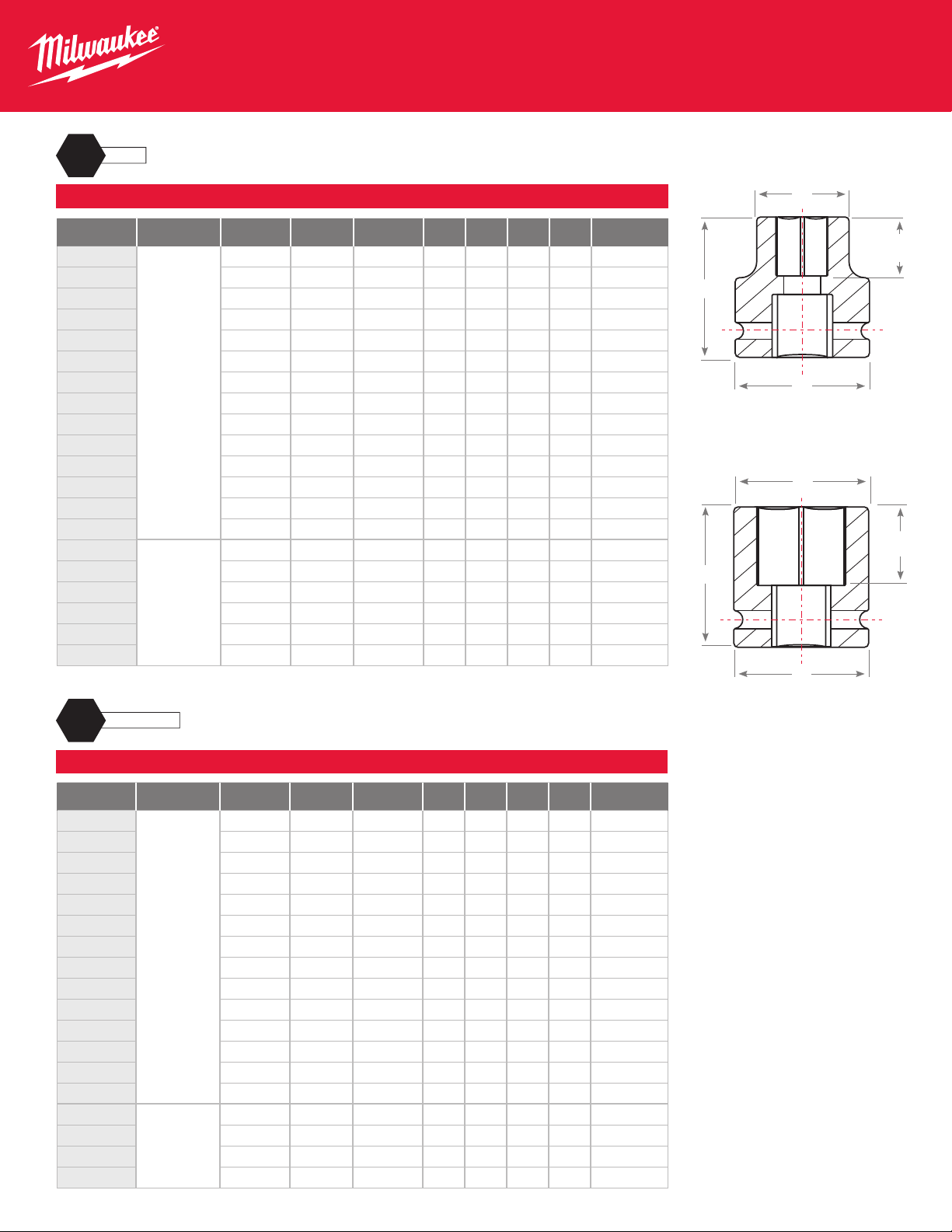

Page 3

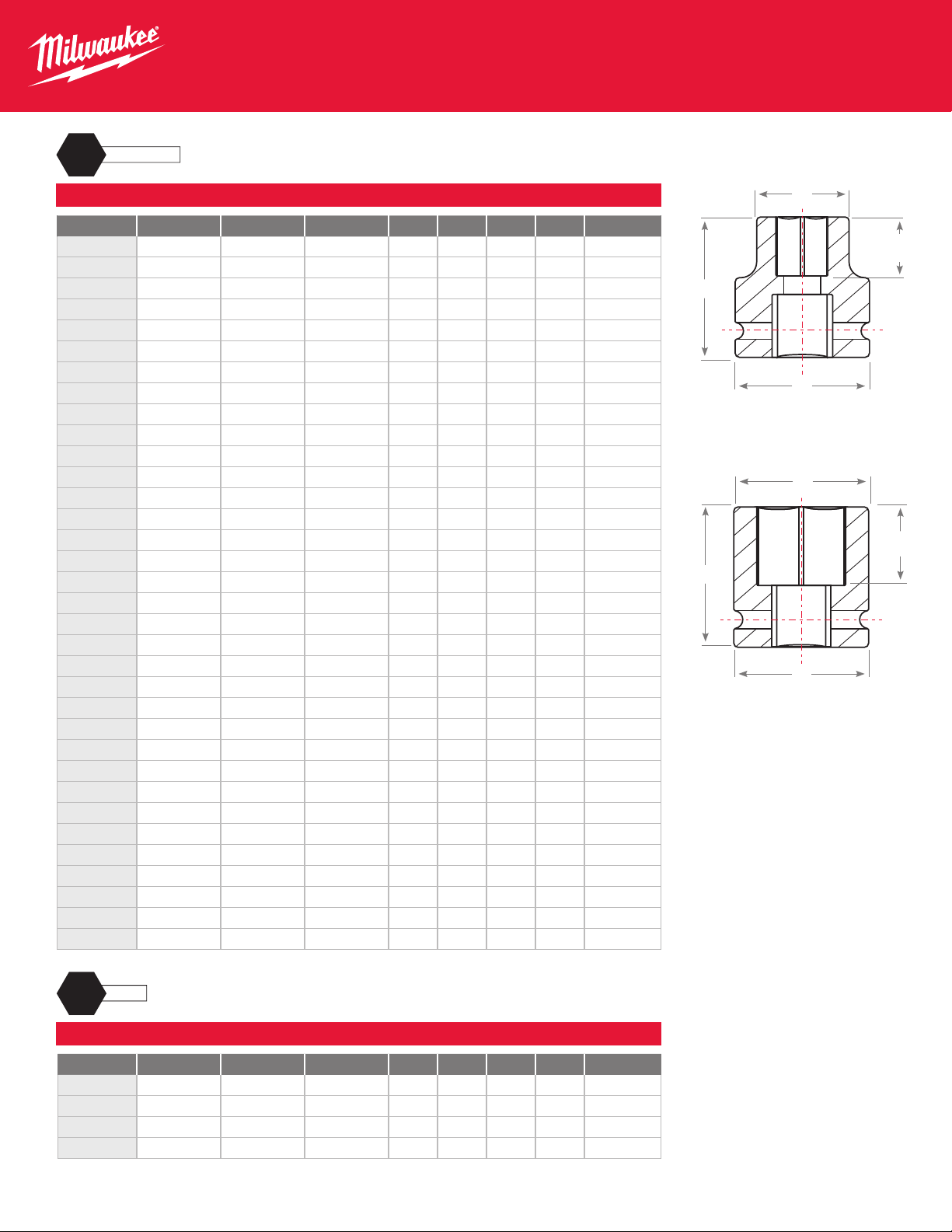

6 PT
SHOCKWAVE IMPACT DUT Y™ SOCKETS
STANDARD
SHOCKWAVE Impact Duty™ 3/8" Drive Standard Sockets
Part Number Description Depth Diameter Type L D1 D2 Min Hex Depth
49-66-6100 3/8" Drive Standard 1/4" A 32 12 18.8 3.3
49-66-6101 3/8" Drive Standard 9/32" A 32 12.6 18.8 3.7
49-66-6102 3/8" Drive Standard 5/16" A 32 12.8 18.8 3.6
49-66-6103 3/8" Drive Standard 11/32" A 32 13.8 18.8 4
49-66-6104 3/8" Drive Standard 3/8" A 32 15 18.8 4
49-66-6105 3/8" Drive Standard 7/16" A 32 16.9 18.8 5.2
49-66-6106 3/8" Drive Standard 1/2" A 32 19.5 20.7 5.3
49-66-6107 3/8" Drive Standard 9/16" A 32 20.5 21.8 6.3
49-66-6108 3/8" Drive Standard 5/8" B 32 23.8 23 7.1
49-66-6109 3/8" Drive Standard 11/16" B 34 24.8 23 8.1
49-66-6110 3/8" Drive Standard 3/4" B 34 27 23 9
49-66-6111 3/8" Drive Standard 13/16" B 34 29.8 23 11.2
49-66-6112 3/8" Drive Standard 7/8" B 34 31.8 23 12.1
49-66-6113 3/8" Drive Standard 15/16" B 34 33.8 23 13
49-66-6114 3/8" Drive Standard 1" B 34 35.8 23 13.9
49-66-6130 3/8" Drive Standard 6mm B 34 29.8 23 11.7
49-66-6131 3/8" Drive Standard 7mm B 34 31.6 23 12.5
49-66-6132 3/8" Drive Standard 8mm B 34 31.8 23 12.7
49-66-6133 3/8" Drive Standard 9mm B 34 33.8 23 13.9
49-66-6134 3/8" Drive Standard 10mm A 65 12 18.8 3.3
49-66-6135 3/8" Drive Standard 11mm A 65 12.6 18.8 3.7
49-66-6136 3/8" Drive Standard 12mm A 65 12.8 18.8 3.6
49-66-6137 3/8" Drive Standard 13mm A 65 13.8 18.8 4
49-66-6138 3/8" Drive Standard 14mm A 65 15 18.8 4
49-66-6139 3/8" Drive Standard 15mm A 65 16.9 18.8 5.2
49-66-6140 3/8" Drive Standard 16mm A 65 19.5 20.7 5.3
49-66-6141 3/8" Drive Standard 17mm A 65 20.5 21.8 6.3
49-66-6142 3/8" Drive Standard 18mm B 65 23.8 23 7.1
49-66-6143 3/8" Drive Standard 19mm B 65 24.8 23 8.1
49-66-6737 3/8" Drive Standard 20mm B 65 27 23 9
49-66-6144 3/8" Drive Standard 21mm B 65 29.8 23 11.2
49-66-6145 3/8" Drive Standard 22mm B 65 31.8 23 12.1
49-66-6146 3/8" Drive Standard 23mm B 65 33.8 23 13
49-66-6147 3/8" Drive Standard 24mm B 65 35.8 23 13.9
D1
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B
DEEP
6 PT
SHOCKWAVE Impact Duty™ 3/8" Drive Deep Sockets
Part Number Description Depth Diameter Type L D1 D2 Min Hex Depth
49-66-6115 3/8" Drive Deep 1/4" A 32 10.5 18.8 3.1
49-66-6116 3/8" Drive Deep 9/32" A 32 12.6 18.8 3.6
49-66-6117 3/8" Drive Deep 5/16" A 32 13.9 18.8 3.6
49-66-6118 3/8" Drive Deep 11/32" A 32 14.5 18.8 4.1

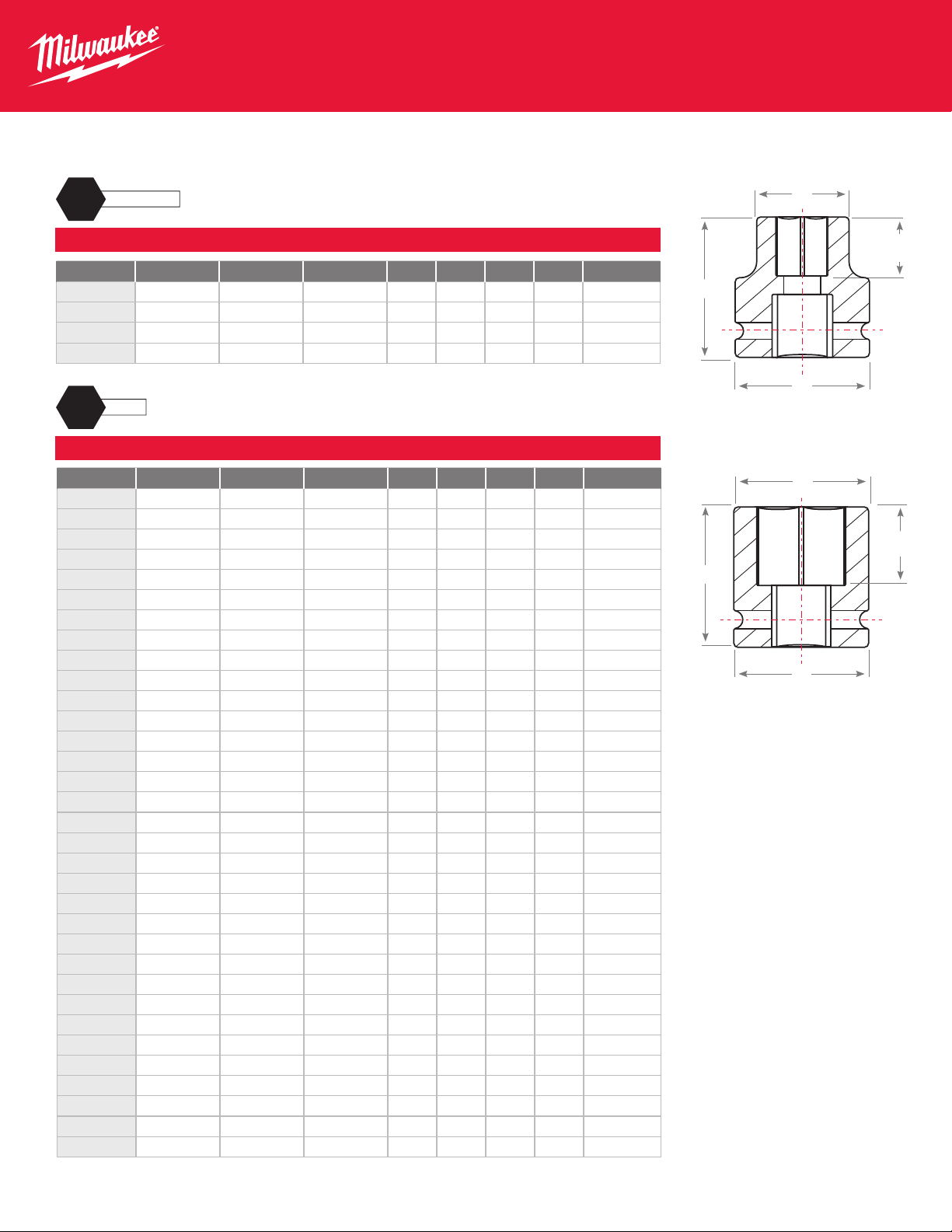

Page 4

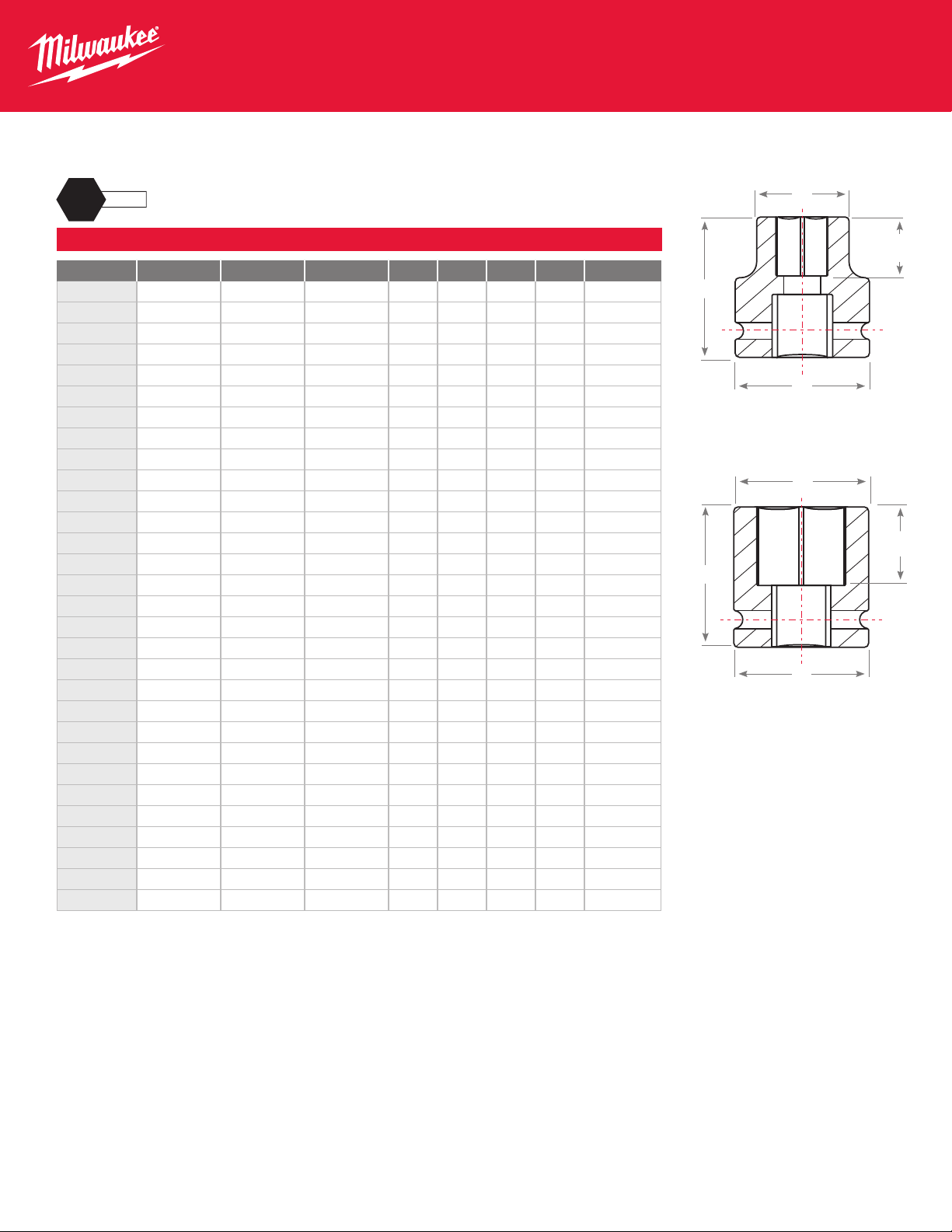

CONTINUED
SHOCKWAVE IMPACT DUT Y™ SOCKETS
DEEP
6 PT
SHOCKWAVE Impact Duty™ 3/8" Drive Deep Sockets
Part Number Description Depth Diameter Type L D1 D2 Min Hex Depth
49-66-6119 3/8" Drive Deep 3/8" A 32 15.8 18.8 4.6
49-66-6120 3/8" Drive Deep 7/16" A 32 16.9 18.8 5.5
49-66-6121 3/8" Drive Deep 1/2" A 32 18.2 18.8 6.1
49-66-6122 3/8" Drive Deep 9/16" A 32 19.5 21.8 6.8
49-66-6123 3/8" Drive Deep 5/8" A 32 20.5 21.8 8.4
49-66-6124 3/8" Drive Deep 11/16" A 32 21.8 21.8 8.4
49-66-6125 3/8" Drive Deep 3/4" B 32 23.8 23 9.6
49-66-6126 3/8" Drive Deep 13/16" B 34 24.8 23 9.6
49-66-6127 3/8" Drive Deep 7/8" B 34 25.8 23 10.2
49-66-6128 3/8" Drive Deep 15/16" B 34 27.6 23 11
49-66-6129 3/8" Drive Deep 1" B 34 27.8 23 11
49-66-6148 3/8" Drive Deep 6mm A 65 10.5 18.8 3.1
49-66-6149 3/8" Drive Deep 7mm A 65 12.6 18.8 3.6
49-66-6150 3/8" Drive Deep 8mm A 65 13.9 18.8 3.6
49-66-6151 3/8" Drive Deep 9mm A 65 14.5 18.8 4.1
49-66-6152 3/8" Drive Deep 10mm A 65 15.8 18.8 4.6
49-66-6153 3/8" Drive Deep 11mm A 65 16.9 18.8 5.5
49-66-6154 3/8" Drive Deep 12mm A 65 18.8 18.8 6.1
49-66-6155 3/8" Drive Deep 13mm A 65 19.5 21.8 6.8
49-66-6156 3/8" Drive Deep 14mm A 65 20.5 21.8 8.4
49-66-6157 3/8" Drive Deep 15mm A 65 21.8 21.8 8.4
49-66-6158 3/8" Drive Deep 16mm B 65 23.8 23 9.6
49-66-6159 3/8" Drive Deep 17mm B 65 24.8 23 9.6
49-66-6160 3/8" Drive Deep 18mm B 65 25.8 23 10.2
49-66-6161 3/8" Drive Deep 19mm B 65 27.6 23 11
49-66-6738 3/8" Drive Deep 20mm B 65 27.8 23 11
49-66-6162 3/8" Drive Deep 21mm B 65 29.8 23 11.7
49-66-6163 3/8" Drive Deep 22mm B 65 31.6 23 12.5
49-66-6164 3/8" Drive Deep 23mm B 65 31.8 23 12.7
49-66-6165 3/8" Drive Deep 24mm B 65 33.8 23 13.9
D1
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B

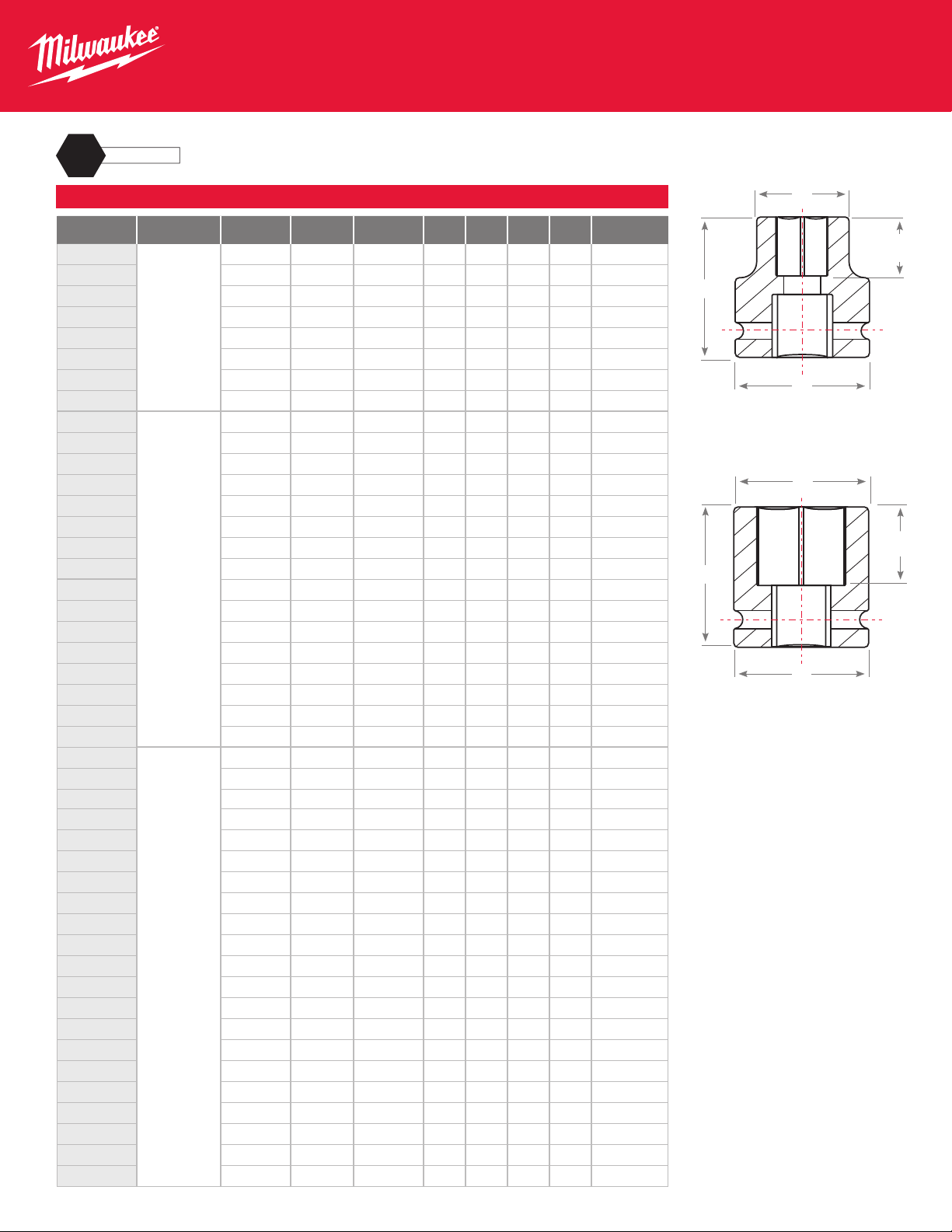

Page 5

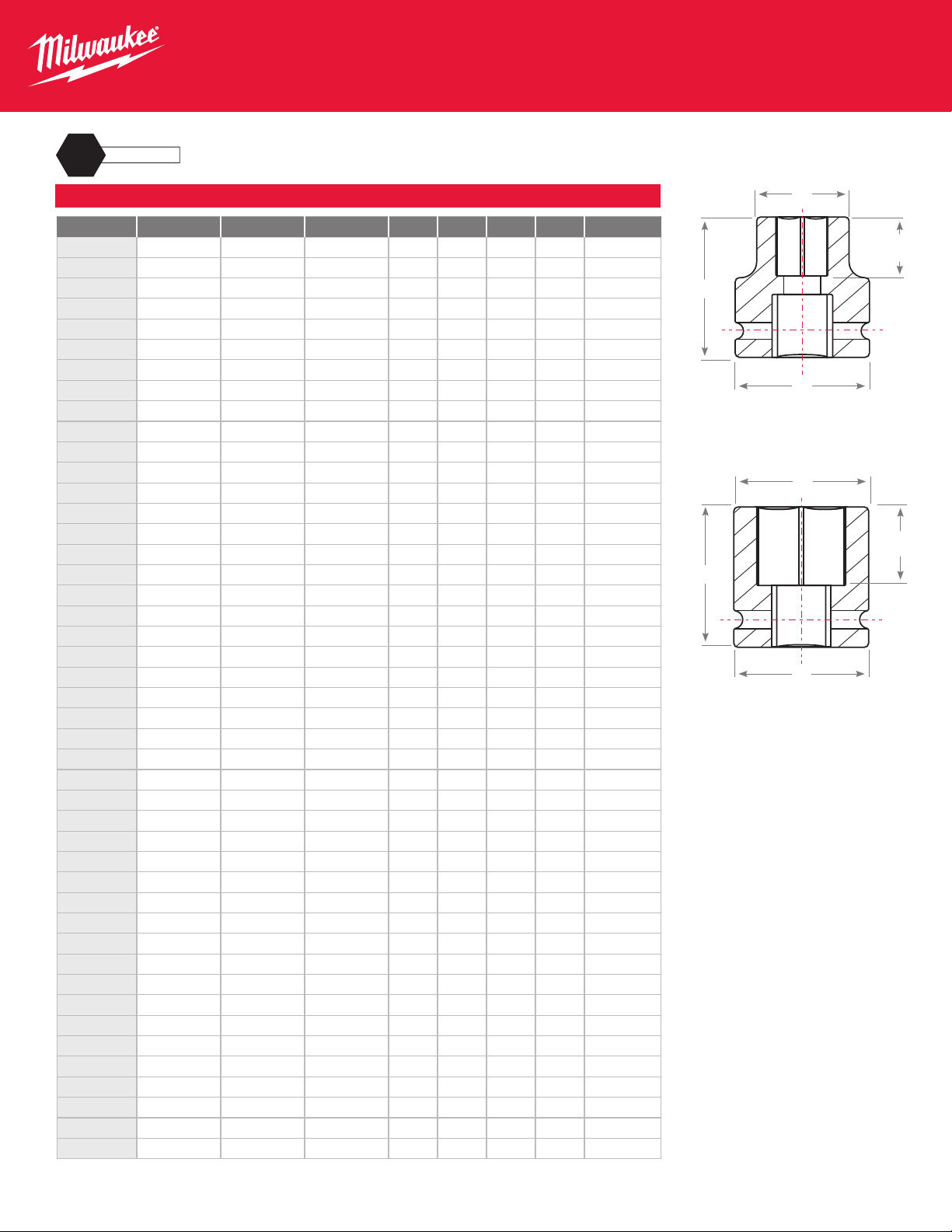

6 PT
SHOCKWAVE IMPACT DUT Y™ SOCKETS
STANDARD
SHOCKWAVE Impact Duty™ 1/2" Drive Standard Sockets
Part Number Description Depth Diameter Type L D1 D2 Min Hex Depth
49-66-6200 1/2" Drive Standard 3/8" A 38 17.5 24.8 4
49-66-6201 1/2" Drive Standard 7/16" A 38 18 24.8 5.2
49-66-6202 1/2" Drive Standard 1/2" A 38 20 24.8 5.3
49-66-6203 1/2" Drive Standard 9/16" A 38 22 24.8 6.3
49-66-6204 1/2" Drive Standard 5/8" A 38 24 24.8 7.1
49-66-6205 1/2" Drive Standard 11/16" A 38 26 29.8 8.1
49-66-6206 1/2" Drive Standard 3/4" A 38 28 29.8 9
49-66-6207 1/2" Drive Standard 13/16" A 38 29.8 29.8 10.6
49-66-6208 1/2" Drive Standard 7/8" B 38 31.8 30 12.2
49-66-6209 1/2" Drive Standard 15/16" B 40 33.8 30 12.4
49-66-6210 1/2" Drive Standard 1" B 42 35.8 30 12.4
49-66-6211 1/2" Drive Standard 1-1/16" B 42 37.8 30 12.4
49-66-6212 1/2" Drive Standard 1-1/8" B 42 39.8 30 16.1
49-66-6213 1/2" Drive Standard 1-3/16" B 44 40 30 16.1
49-66-6214 1/2" Drive Standard 1-1/4" B 44 43.8 30 16.1
49-66-6215 1/2" Drive Standard 1-5/16" B 48 46 32.7 19
49-66-6216 1/2" Drive Standard 1-3/8" B 48 48 36 19
49-66-6217 1/2" Drive Standard 1-7/16" B 48 50 37 19
49-66-6218 1/2" Drive Standard 1-1/2" B 48 52 40 21.5
49-66-6219 1/2" Drive Standard 1-9/16" B 48 54 44 21.5
49-66-6240 1/2" Drive Standard 8mm B 42 39.8 30 15.4
49-66-6241 1/2" Drive Standard 9mm B 42 42 30 16.7
49-66-6242 1/2" Drive Standard 10mm B 44 42.8 30.5 16.7
49-66-6243 1/2" Drive Standard 11mm B 44 43.8 32.5 17
49-66-6244 1/2" Drive Standard 12mm B 44 43.8 32.5 18.3
49-66-6245 1/2" Drive Standard 13mm B 44 46.8 32.5 18.1
49-66-6246 1/2" Drive Standard 14mm B 48 46.8 35.8 20
49-66-6247 1/2" Drive Standard 15mm B 48 49.8 35.8 20
49-66-6248 1/2" Drive Standard 16mm B 48 50 36.8 20
49-66-6249 1/2" Drive Standard 17mm A 78 17.5 24.8 4
49-66-6250 1/2" Drive Standard 18mm A 78 18 24.8 5.2
49-66-6251 1/2" Drive Standard 19mm A 78 20 24.8 5.3
49-66-6252 1/2" Drive Standard 20mm A 78 22 24.8 6.3
49-66-6253 1/2" Drive Standard 21mm A 78 24 24.8 7.1
49-66-6254 1/2" Drive Standard 22mm A 78 26 29.8 8.1
49-66-6255 1/2" Drive Standard 23mm A 78 28 29.8 9
49-66-6256 1/2" Drive Standard 24mm A 78 29.8 29.8 10.6
49-66-6257 1/2" Drive Standard 25mm B 78 31.8 30 12.2
49-66-6258 1/2" Drive Standard 26mm B 78 33.8 30 12.4
49-66-6259 1/2" Drive Standard 27mm B 78 35.8 30 12.4
49-66-6260 1/2" Drive Standard 28mm B 78 37.8 30 12.4
49-66-6261 1/2" Drive Standard 29mm B 78 39.8 30 16.1
49-66-6262 1/2" Drive Standard 30mm B 78 40 30 16.1
49-66-6263 1/2" Drive Standard 31mm B 78 43.8 30 16.1
49-66-6264 1/2" Drive Standard 32mm B 78 46 32.7 19
D1
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B
Page 6
CONTINUED
SHOCKWAVE IMPACT DUT Y™ SOCKETS
STANDARD
6 PT
SHOCKWAVE Impact Duty™ 1/2" Drive Standard Sockets
Part Number Description Depth Diameter Type L D1 D2 Min Hex Depth
49-66-6265 1/2" Drive Standard 33mm B 78 48 36 19
49-66-6266 1/2" Drive Standard 34mm B 78 50 37 19
49-66-6267 1/2" Drive Standard 35mm B 78 52 40 21.5
49-66-6268 1/2" Drive Standard 36mm B 78 54 44 21.5
DEEP
6 PT
SHOCKWAVE Impact Duty™ 1/2" Drive Deep Sockets
Part Number Description Depth Diameter Type L D1 D2 Min Hex Depth
49-66-6220 1/2" Drive Deep 3/8" A 38 15 24.8 4.2
49-66-6221 1/2" Drive Deep 7/16" A 38 16.3 24.8 4.1
49-66-6222 1/2" Drive Deep 1/2" A 38 17.5 24.8 4.6
49-66-6223 1/2" Drive Deep 9/16" A 38 18 24.8 5.5
49-66-6224 1/2" Drive Deep 5/8" A 38 19 24.8 6.1
49-66-6225 1/2" Drive Deep 11/16" A 38 20 24.8 6.8
49-66-6226 1/2" Drive Deep 3/4" A 38 22 24.8 8.4
49-66-6227 1/2" Drive Deep 13/16" A 38 23 24.8 8.4
49-66-6228 1/2" Drive Deep 7/8" A 38 24 24.8 9.6
49-66-6229 1/2" Drive Deep 15/16" A 38 26.2 29.8 9.6
49-66-6230 1/2" Drive Deep 1" A 38 27 29.8 10.2
49-66-6231 1/2" Drive Deep 1-1/16" A 38 28 29.8 11.1
49-66-6232 1/2" Drive Deep 1-1/8" A 38 29.3 29.8 11.5
49-66-6233 1/2" Drive Deep 1-3/16" A 38 30 30 11.7
49-66-6234 1/2" Drive Deep 1-1/4" B 38 31.8 30 12.5
49-66-6235 1/2" Drive Deep 1-5/16" B 40 33.8 30 12.7
49-66-6236 1/2" Drive Deep 1-3/8" B 40 34.2 30 13.9
49-66-6237 1/2" Drive Deep 1-7/16" B 42 35.8 30 14
49-66-6238 1/2" Drive Deep 1-1/2" B 42 37 30 14.6
49-66-6239 1/2" Drive Deep 1-9/16" B 42 38.2 30 15.8
49-66-6269 1/2" Drive Deep 8mm A 78 15 24.8 4.2
49-66-6270 1/2" Drive Deep 9mm A 78 16.3 24.8 4.1
49-66-6271 1/2" Drive Deep 10mm A 78 17.5 24.8 4.6
49-66-6272 1/2" Drive Deep 11mm A 78 18 24.8 5.5
49-66-6273 1/2" Drive Deep 12mm A 78 19 24.8 6.1
49-66-6274 1/2" Drive Deep 13mm A 78 20 24.8 6.8
49-66-6275 1/2" Drive Deep 14mm A 78 22 24.8 8.4
49-66-6276 1/2" Drive Deep 15mm A 78 23 24.8 8.4
49-66-6277 1/2" Drive Deep 16mm A 78 24 24.8 9.6
49-66-6278 1/2" Drive Deep 17mm A 78 26.2 29.8 9.6
49-66-6279 1/2" Drive Deep 18mm A 78 27 29.8 10.2
49-66-6280 1/2" Drive Deep 19mm A 78 28 29.8 11.1
49-66-6281 1/2" Drive Deep 20mm A 78 29.3 29.8 11.5
D1
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B
Page 7

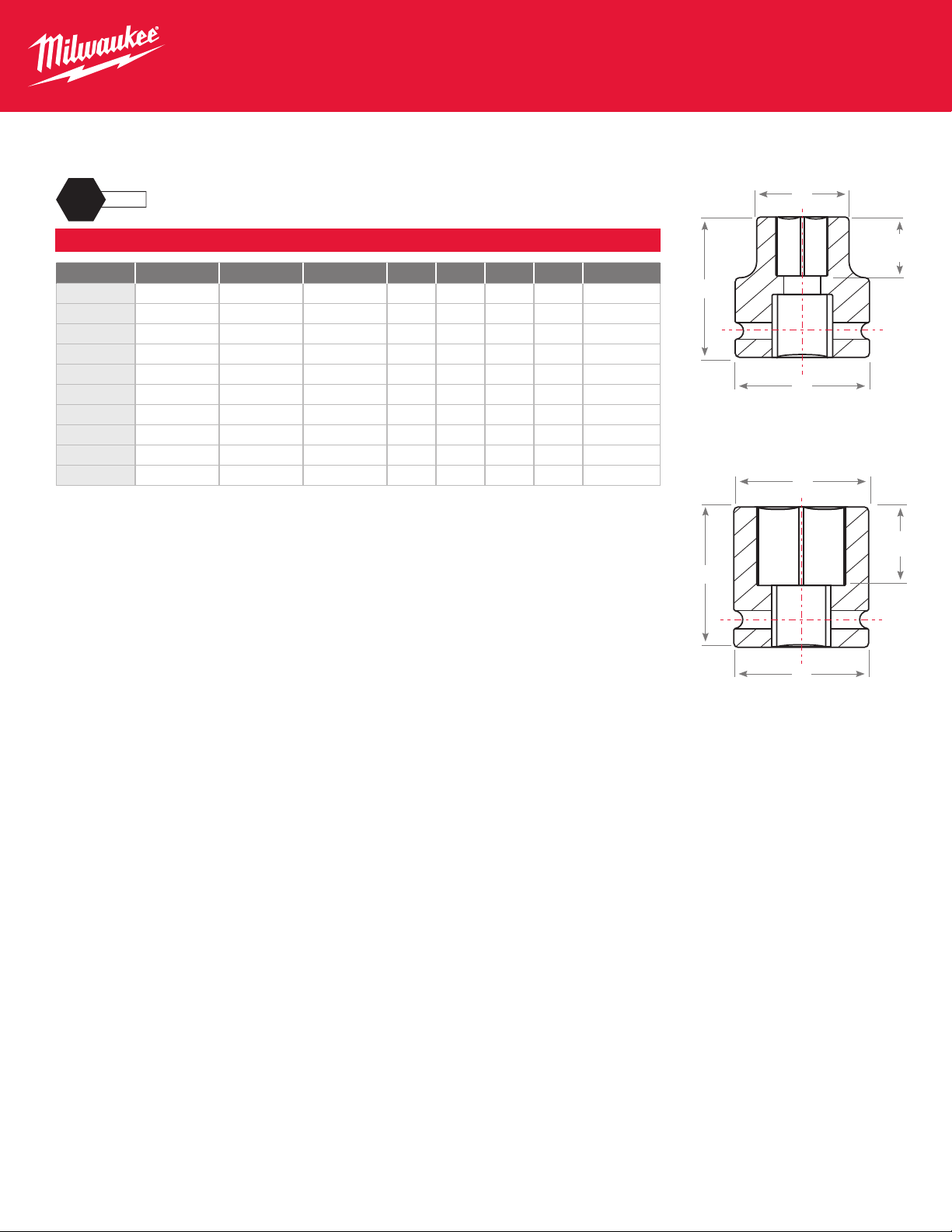

CONTINUED
SHOCKWAVE IMPACT DUT Y™ SOCKETS
DEEP
6 PT
SHOCKWAVE Impact Duty™ 1/2" Drive Deep Sockets
Part Number Description Depth Diameter Type L D1 D2 Min Hex Depth
49-66-6282 1/2" Drive Deep 21mm A 78 30 30 11.7
49-66-6283 1/2" Drive Deep 22mm B 78 31.8 30 12.5
49-66-6284 1/2" Drive Deep 23mm B 78 33.8 30 12.7
49-66-6285 1/2" Drive Deep 24mm B 78 34.2 30 13.9
49-66-6286 1/2" Drive Deep 25mm B 78 35.8 30 14
49-66-6287 1/2" Drive Deep 26mm B 78 37 30 14.6
49-66-6288 1/2" Drive Deep 27mm B 78 38.2 30 15.8
49-66-6289 1/2" Drive Deep 28mm B 78 39.8 30 15.4
49-66-6290 1/2" Drive Deep 29mm B 78 42 30 16.7
49-66-6291 1/2" Drive Deep 30mm B 78 42.8 30.5 16.7
D1
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B
Page 8
6 PT
SHOCKWAVE IMPACT DUT Y™ SOCKETS
STANDARD
SHOCKWAVE Impact Duty™ 3/4" Drive Standard Sockets
Part Number
49-66-6300
49-66-6301 3/4" Drive Standard 5/8" A 53 29.9 41.4 7.1
49-66-6302 3/4" Drive Standard 11/16" A 53 30.7 41.4 8.1
49-66-6303 3/4" Drive Standard 3/4" A 53 32 41.4 9
49-66-6304 3/4" Drive Standard 13/16" A 53 34.9 41.4 10.6
49-66-6305 3/4" Drive Standard 7/8" A 53 36 41.4 12.2
49-66-6306 3/4" Drive Standard 15/16" A 53 38 41.4 12.4
49-66-6307 3/4" Drive Standard 1" A 53 40 41.4 12.4
49-66-6308
49-66-6309 3/4" Drive Standard 1-1/8" B 53 44.2 44.2 16.1
49-66-6310 3/4" Drive Standard 1.3/16" B 53 46 44.2 16.1
49-66-6311 3/4" Drive Standard 1-1/4" B 53 48 44.2 16.1
49-66-6312 3/4" Drive Standard 1-5/16" B 57 51 44.2 18.8
49-66-6313 3/4" Drive Standard 1-3/8" B 57 52 44.2 18.8
49-66-6314 3/4" Drive Standard 1-7/16" B 57 54.8 44.2 18.8
49-66-6315
49-66-6316
49-66-6317 3/4" Drive Standard 1-5/8" B 58 59 44.2 21.5
49-66-6318 3/4" Drive Standard 1-11/16" B 58 65 44.2 24.6
49-66-6319 3/4" Drive Standard 1-3/4" B 62 65 44.2 24.9
49-66-6320 3/4" Drive Standard 1-13/16" B 62 66 44.2 25.1
49-66-6321 3/4" Drive Standard 1-7/8" B 65 68 44.2 27
49-66-6322 3/4" Drive Standard 1-15/16" B 65 69.8 44.2 27.2
49-66-6323
49-66-6356
49-66-6357 3/4" Drive Standard 19mm B 58 63 44.4 25.4
49-66-6358 3/4" Drive Standard 20mm B 62 65 44.4 24.3
49-66-6359 3/4" Drive Standard 21mm B 62 65.2 44.4 24.9
49-66-6360 3/4" Drive Standard 22mm B 62 66.2 44.4 28.6
49-66-6361 3/4" Drive Standard 23mm B 62 68 44.4 26
49-66-6362 3/4" Drive Standard 24mm B 65 69 44.4 26.5
49-66-6363 3/4" Drive Standard 25mm B 65 72 44.4 27.1
49-66-6364 3/4" Drive Standard 26mm B 65 72 44.4 29.8
49-66-6365 3/4" Drive Standard 27mm B 70 84 44.4 33.2
49-66-6366 3/4" Drive Standard 28mm A 90 27 41.4 6.3
49-66-6367 3/4" Drive Standard 29mm A 90 29.9 41.4 7.1
49-66-6368 3/4" Drive Standard 30mm A 90 30.7 41.4 8.1
49-66-6369 3/4" Drive Standard 31mm A 90 32 41.4 9
49-66-6370 3/4" Drive Standard 32mm A 90 34.9 41.4 10.6
49-66-6371 3/4" Drive Standard 33mm A 90 35 41.4 12.2
49-66-6372 3/4" Drive Standard 34mm A 90 38 41.4 12.4
49-66-6373 3/4" Drive Standard 35mm A 90 40 41.4 12.4
49-66-6374 3/4" Drive Standard 36mm A 90 40.5 44.2 12.4
49-66-6375 3/4" Drive Standard 37mm A 90 44.2 44.2 16.1
49-66-6376 3/4" Drive Standard 38mm B 90 46 44.2 16.1
Optional
Retaining Ring
49-66-6743
49-66-6744
49-66-6744
Description Depth Diameter Type L D1 D2 Min Hex Depth
3/4" Drive Standard 9/16" A 53 27 41.4 6.3
3/4" Drive Standard 1-1/16" A 53 40.5 44.2 12.4
3/4" Drive Standard 1-1/2" B 57 56 44.2 21.5
3/4" Drive Standard 1-9/16" B 58 58 44.2 21.5
3/4" Drive Standard 2" B 65 72 44.2 27
3/4" Drive Standard 17mm B 58 63 44.4 25.4
D1
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B
Page 9

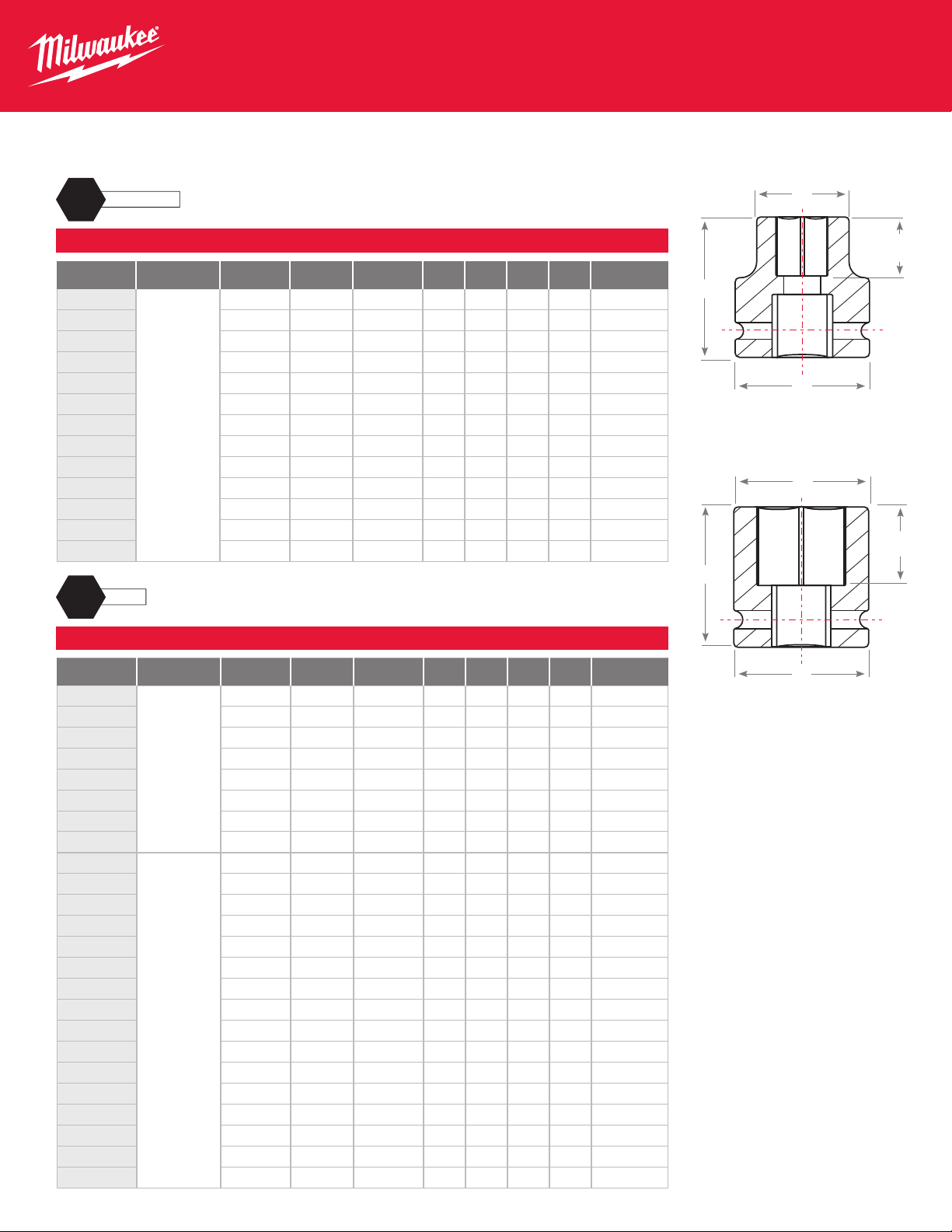

CONTINUED
SHOCKWAVE IMPACT DUT Y™ SOCKETS
STANDARD
6 PT
SHOCKWAVE Impact Duty™ 3/4" Drive Standard Sockets
Part Number
49-66-6377
49-66-6378 3/4" Drive Standard 40mm B 90 51 44.2 18.8
49-66-6379 3/4" Drive Standard 41mm B 90 52 44.2 18.8
49-66-6380 3/4" Drive Standard 42mm B 90 54.8 44.2 18.82
49-66-6381 3/4" Drive Standard 43mm B 90 56 44.2 21.5
49-66-6382 3/4" Drive Standard 44mm B 90 58 44.2 21.5
49-66-6383 3/4" Drive Standard 45mm B 90 59 44.2 21.5
49-66-6384 3/4" Drive Standard 46mm B 90 65 44.2 24.6
49-66-6385 3/4" Drive Standard 47mm B 90 65 44.2 24.9
49-66-6386 3/4" Drive Standard 48mm B 90 66 44.2 25.1
49-66-6387 3/4" Drive Standard 49mm B 90 68 44.2 27
49-66-6388 3/4" Drive Standard 50mm B 90 69.8 44.2 27.2
49-66-6392 3/4" Drive Standard 60mm B 90 72 44.2 27
DEEP
6 PT
Optional
Retaining Ring
49-66-6744
Description Depth Diameter Type L D1 D2 Min Hex Depth
3/4" Drive Standard 39mm B 90 48 44.2 16.1
SHOCKWAVE Impact Duty™ 3/4" Drive Deep Sockets
Part Number
49-66-6332
49-66-6333 3/4" Drive Deep 5/8" A 53 33 44 11.1
49-66-6334 3/4" Drive Deep 11/16" A 53 34 44 11.5
49-66-6335 3/4" Drive Deep 3/4" A 53 35 44 11.7
49-66-6336 3/4" Drive Deep 13/16" A 53 36 44 12.5
49-66-6337 3/4" Drive Deep 7/8" A 53 37.6 44 12.7
49-66-6338 3/4" Drive Deep 15/16" A 53 38 44 13.9
49-66-6339 3/4" Drive Deep 1" A 53 40.5 44 14
49-66-6340
49-66-6341 3/4" Drive Deep 1-1/8" A 53 41 44 15.8
49-66-6342 3/4" Drive Deep 1-3/16" B 53 45.2 44 16.3
49-66-6343 3/4" Drive Deep 1-1/4" B 53 46 44 16.7
49-66-6344 3/4" Drive Deep 1-5/16" B 53 46 44 16.7
49-66-6345 3/4" Drive Deep 1-3/8" B 53 47 44 17.8
49-66-6346 3/4" Drive Deep 1-7/16" B 57 48 44 18.3
49-66-6347 3/4" Drive Deep 1-1/2" B 57 50 44 19.1
49-66-6348 3/4" Drive Deep 1-9/16" B 57 51 44 20
49-66-6349 3/4" Drive Deep 1-5/8" B 57 52 44 20.1
49-66-6350 3/4" Drive Deep 1-11/16" B 57 53.5 44 22.3
49-66-6351 3/4" Drive Deep 1-3/4" B 57 54.8 44 20.4
49-66-6352 3/4" Drive Deep 1-13/16" B 57 58 44 22.3
49-66-6353 3/4" Drive Deep 1-7/8" B 57 58 44 21.5
49-66-6354 3/4" Drive Deep 1-15/16" B 58 59.5 44 22.8
49-66-6355 3/4" Drive Deep 2" B 58 59.5 44.4 24.9
Optional
Retaining Ring
49-66-6743
49-66-6744
Description Depth Diameter Type L D1 D2 Min Hex Depth
3/4" Drive Deep 9/16" A 53 30 44 9.6
3/4" Drive Deep 1-1/16" A 53 40.8 44 14.6
D1
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B
Page 10

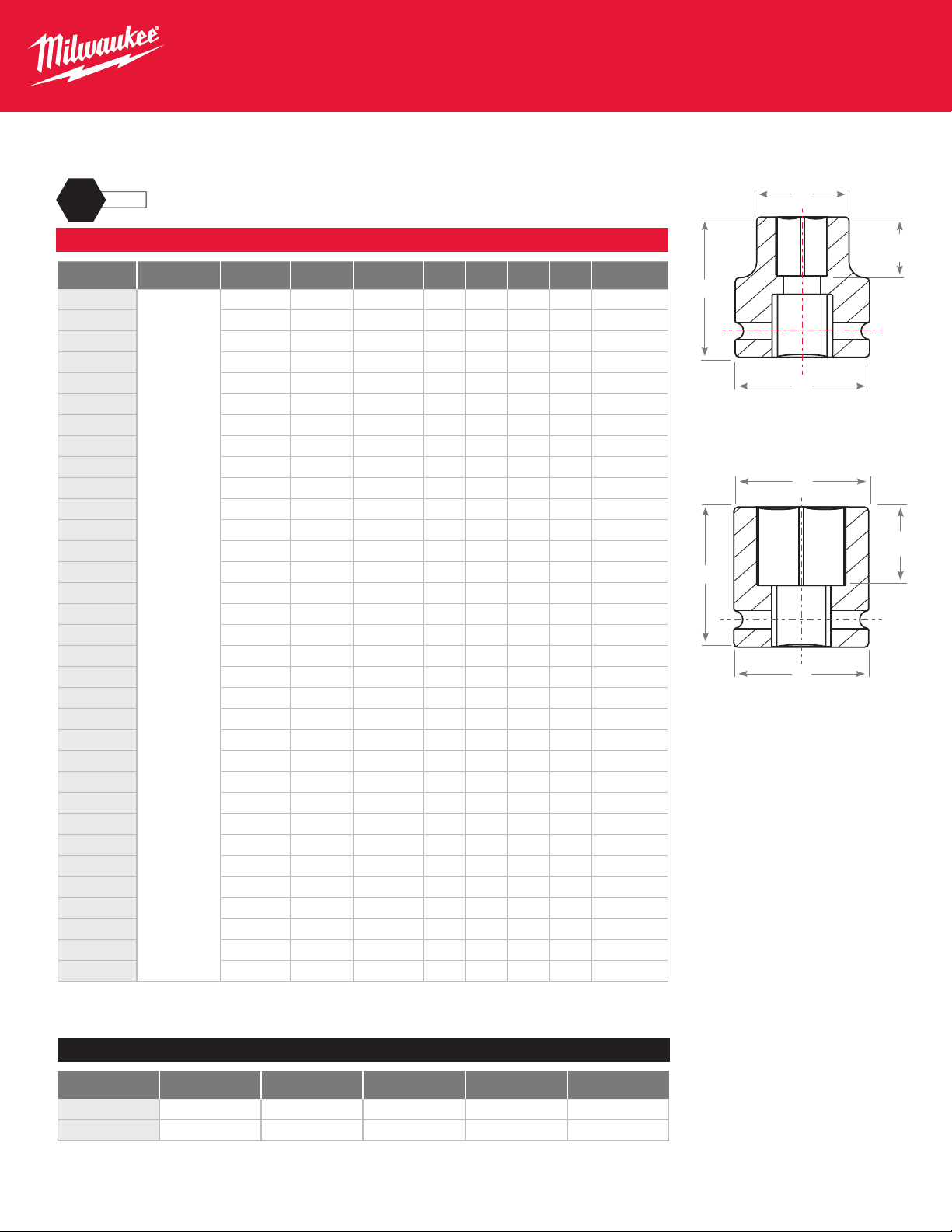

CONTINUED
SHOCKWAVE IMPACT DUT Y™ SOCKETS
DEEP
6 PT
SHOCKWAVE Impact Duty™ 3/4" Drive Deep Sockets
Part Number
49-66-6393
49-66-6394 3/4" Drive Deep 19mm A 90 33 44 11.1
49-66-6395 3/4" Drive Deep 20mm A 90 34 44 11.5
49-66-6396 3/4" Drive Deep 21mm A 90 35 44 11.7
49-66-6397 3/4" Drive Deep 22mm A 90 36 44 12.5
49-66-6398 3/4" Drive Deep 23mm A 90 37.6 44 12.7
49-66-6399 3/4" Drive Deep 24mm A 90 38 44 13.9
49-66-6400 3/4" Drive Deep 25mm A 90 40.5 44 14
49-66-6401 3/4" Drive Deep 26mm A 90 40.8 44 14.6
49-66-6402 3/4" Drive Deep 27mm A 90 41 44 15.8
49-66-6403 3/4" Drive Deep 28mm B 90 45.2 44 16.3
49-66-6404 3/4" Drive Deep 29mm B 90 46 44 16.7
49-66-6405 3/4" Drive Deep 30mm B 90 46 44 16.7
49-66-6406 3/4" Drive Deep 31mm B 90 47 44 17.8
49-66-6407 3/4" Drive Deep 32mm B 90 48 44 18.3
49-66-6408 3/4" Drive Deep 33mm B 90 50 44 19.1
49-66-6409 3/4" Drive Deep 34mm B 90 51 44 20
49-66-6410 3/4" Drive Deep 35mm B 90 52 44 20.1
49-66-6411 3/4" Drive Deep 36mm B 90 53.5 44 22.3
49-66-6412 3/4" Drive Deep 37mm B 90 54.8 44 20.4
49-66-6413 3/4" Drive Deep 38mm B 90 58 44 22.3
49-66-6414 3/4" Drive Deep 39mm B 90 58 44 21.5
49-66-6415 3/4" Drive Deep 40mm B 90 59.5 44 22.8
49-66-6416 3/4" Drive Deep 41mm B 90 59.5 44.4 24.9
49-66-6417 3/4" Drive Deep 42mm B 90 63 44.4 25.4
49-66-6418 3/4" Drive Deep 43mm B 90 63 44.4 25.4
49-66-6419 3/4" Drive Deep 44mm B 90 65 44.4 24.3
49-66-6420 3/4" Drive Deep 45mm B 90 65.2 44.4 24.9
49-66-6421 3/4" Drive Deep 46mm B 90 66.2 44.4 28.6
49-66-6422 3/4" Drive Deep 47mm B 90 68 44.4 26
49-66-6423 3/4" Drive Deep 48mm B 90 69 44.4 26.5
49-66-6424 3/4" Drive Deep 49mm B 90 72 44.4 27.1
49-66-6425 3/4" Drive Deep 50mm B 90 72 44.4 29.8
Optional
Retaining Ring
49-66-6744
Description Depth Diameter Type L D1 D2 Min Hex Depth
3/4" Drive Deep 17mm A 90 30 44 9.6
D1
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B
Retaining Rings
Part Number Drive Size SAE Range MM Range OD ID
49-66-6743 3/4" Drive 9/16" – 1" – 45.6 35.7
49-66-6744 3/4" Drive 1-1/16" – 2" 17mm – 60mm 48.5 38.7
Page 11
6 PT
SHOCKWAVE IMPACT DUT Y™ SOCKETS
DEEP
SHOCKWAVE Impact Duty™ 1" Drive Deep Sockets
Part Number
49-66-6502
49-66-6503 1" Drive Deep 15/16" A 90 40 54 12.5
49-66-6504 1" Drive Deep 1" A 90 41 54 12.5
49-66-6505 1" Drive Deep 1-1/16" A 90 42 54 12.5
49-66-6506 1" Drive Deep 1-1/8" A 90 46 54 16.1
49-66-6507 1" Drive Deep 1-3/16" A 90 49 54 16.1
49-66-6508 1" Drive Deep 1-1/4" A 90 52 54 16.1
49-66-6509 1" Drive Deep 1-5/16" A 92 54 54 18.8
49-66-6510 1" Drive Deep 1-3/8" A 92 54 54 18.8
49-66-6511 1" Drive Deep 1-7/16" B 92 57 54 18.8
49-66-6512 1" Drive Deep 1-1/2" B 92 58 54 21.5
49-66-6513 1" Drive Deep 1-9/16" B 92 59 54 21.5
49-66-6514 1" Drive Deep 1-5/8" B 92 61 54 21.5
49-66-6515
49-66-6516
49-66-6517 1" Drive Deep 1-13/16" B 95 68 57.1 25.2
49-66-6518 1" Drive Deep 1-7/8" B 95 69 57.1 27
49-66-6519 1" Drive Deep 1-15/16" B 95 71 57.1 27
49-66-6520 1" Drive Deep 2" B 95 73 57.1 27
49-66-6521 1" Drive Deep 2-1/4" B 100 83 60.3 32.4
Optional
Retaining Ring
49-66-6745
49-66-6746
Description Depth Diameter Type L D1 D2 Min Hex Depth
1" Drive Deep 7/8" A 90 39 54 12.2
1" Drive Deep 1-11/16" B 95 64 54 24.6
1" Drive Deep 1-3/4" B 95 68 57.1 24.9
D1
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B
STANDARD
6 PT
SHOCKWAVE Impact Duty™ 1" Drive Standard Sockets
Part Number
49-66-6592
49-66-6593 1" Drive Standard 28mm A 58 45.2 54 16.3
49-66-6594 1" Drive Standard 29mm A 58 48 54 16.7
49-66-6595 1" Drive Standard 30mm A 62 49 54 16.7
49-66-6596 1" Drive Standard 31mm A 62 51 54 17.8
49-66-6597 1" Drive Standard 32mm A 62 52 54 18.3
49-66-6598 1" Drive Standard 33mm A 62 54 54 19.1
49-66-6599 1" Drive Standard 34mm A 62 54 54 20
49-66-6600 1" Drive Standard 35mm A 62 54 54 20.1
49-66-6601 1" Drive Standard 36mm B 65 55.3 54 22.3
49-66-6602 1" Drive Standard 38mm B 65 58 54 22.3
49-66-6603 1" Drive Standard 40mm B 65 60 54 22.8
49-66-6604 1" Drive Standard 41mm B 70 61 54 24.9
49-66-6605 1" Drive Standard 42mm B 70 64 54 25.4
49-66-6606
49-66-6607 1" Drive Standard 50mm B 75 73 58.6 29.8
49-66-6608 1" Drive Standard 52mm B 80 75 58.6 29.8
49-66-6609 1" Drive Standard 54mm B 80 78 58.6 31
Optional
Retaining Ring
49-66-6745
49-66-6746
Description Depth Diameter Type L D1 D2 Min Hex Depth
1" Drive Standard 27mm A 58 45.2 54 15.8
1" Drive Standard 46mm B 75 68 58 28.6
Page 12

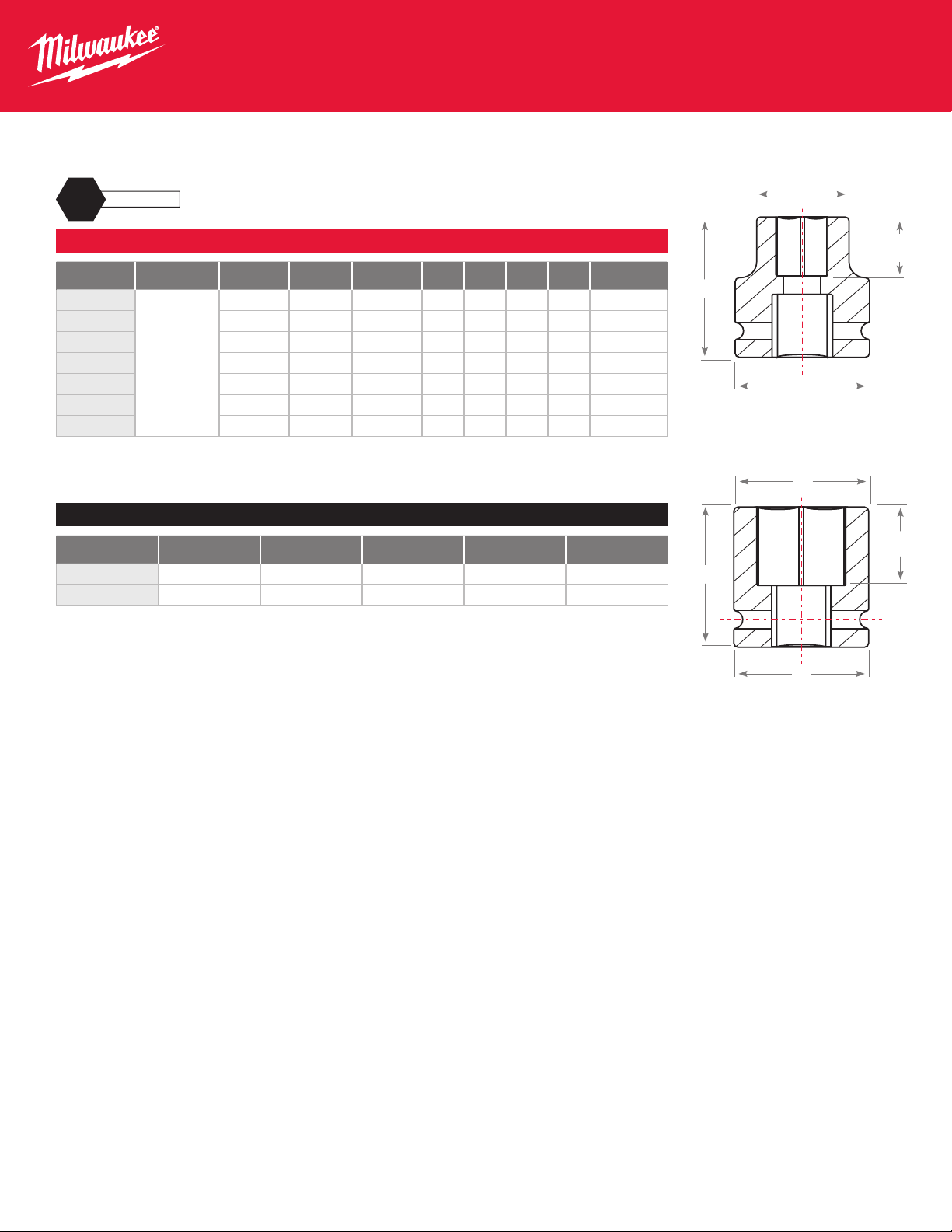

CONTINUED
SHOCKWAVE IMPACT DUT Y™ SOCKETS
STANDARD
6 PT
SHOCKWAVE Impact Duty™ 1" Drive Standard Sockets
Part Number
49-66-6610
49-66-6611 1" Drive Standard 56mm B 83 82 58.6 33.6
49-66-6612 1" Drive Standard 58mm B 83 83 58.6 33.6
49-66-6613 1" Drive Standard 60mm B 87 86 58.6 35
49-66-6614 1" Drive Standard 65mm B 90 92 58.6 35
49-66-6615 1" Drive Standard 67mm B 90 93 58.6 35
49-66-6616 1" Drive Standard 70mm B 93 97 58.6 35
Optional
Retaining Ring
49-66-6746
Description Depth Diameter Type L D1 D2 Min Hex Depth
1" Drive Standard 55mm B 83 82 58.6 33.6
Retaining Rings
Part Number Drive Size SAE Range MM Range OD ID
49-66-6745 1" Drive 7/8" – 1-11/16" 27mm – 42mm 56.6 46.9
49-66-6746 1" Drive 1-3/4" – 2-1/4" 46mm – 70mm 62.2 52.5
D1
Hex
Depth
L
D2
TYPE A
D1
Hex
Depth
L
D2
TYPE B
Loading...
