Page 1

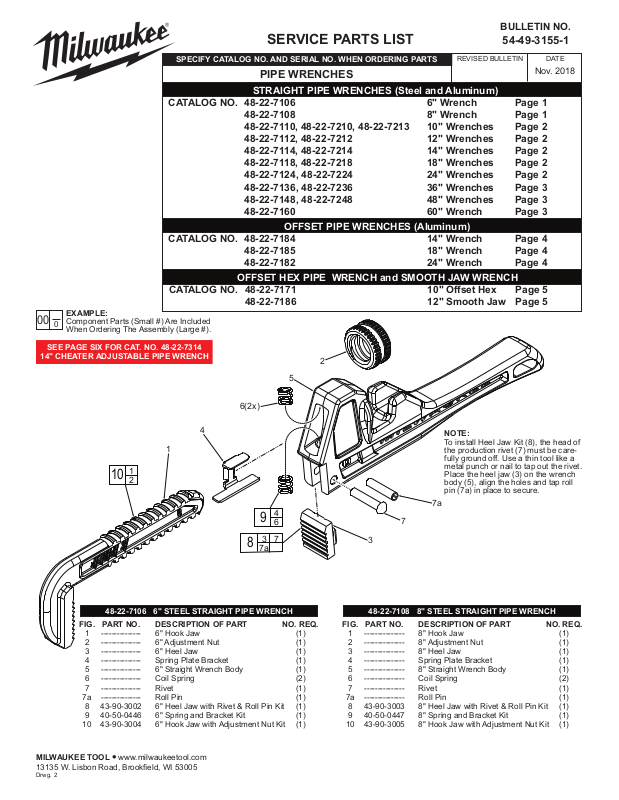

SERVICE PARTS LIST
BULLETIN NO.
54-49-3155-1
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
EXAMPLE:
00
Component Parts (Small #) Are Included
0
When Ordering The Assembly (Large #).
SEE PAGE SIX FOR CAT. NO. 48-22-7314
14" CHEATER ADJUSTABLE PIPE WRENCH
REVISED BULLETIN
PIPE WRENCHES
STRAIGHT PIPE WRENCHES (Steel and Aluminum)
OFFSET PIPE WRENCHES (Aluminum)
OFFSET HEX PIPE WRENCH and SMOOTH JAW WRENCH
2
5
DATE
Nov. 2018
6(2x)
4
1
1
10
2
4
9
6
3 7
8
7a
48-22-7106 6" STEEL STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 6" Hook Jaw (1)
2 --------------- 6" Adjustment Nut (1) 3 --------------- 6" Heel Jaw (1) 4 --------------- Spring Plate Bracket (1) 5 --------------- 6" Straight Wrench Body (1) 6 --------------- Coil Spring (2) 7 --------------- Rivet (1) 7a --------------- Roll Pin (1) 8 43-90-3002 6" Heel Jaw with Rivet & Roll Pin Kit (1) 9 40-50-0446 6" Spring and Bracket Kit (1) 10 43-90-3004 6" Hook Jaw with Adjustment Nut Kit (1)
NOTE:
To install Heel Jaw Kit (8), the head of the production rivet (7) must be care-
fully ground o󰀨. Use a thin tool like a
metal punch or nail to tap out the rivet. Place the heel jaw (3) on the wrench body (5), align the holes and tap roll pin (7a) in place to secure.
7a
7
3
48-22-7108 8" STEEL STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 8" Hook Jaw (1)
2 --------------- 8" Adjustment Nut (1) 3 --------------- 8" Heel Jaw (1) 4 --------------- Spring Plate Bracket (1) 5 --------------- 8" Straight Wrench Body (1) 6 --------------- Coil Spring (2) 7 --------------- Rivet (1) 7a --------------- Roll Pin (1) 8 43-90-3003 8" Heel Jaw with Rivet & Roll Pin Kit (1) 9 40-50-0447 8" Spring and Bracket Kit (1) 10 43-90-3005 8" Hook Jaw with Adjustment Nut Kit (1)
MILWAUKEE TOOL l www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, WI 53005
Drwg. 2
Page 2
EXAMPLE:
00
Component Parts (Small #) Are Included
0
When Ordering The Assembly (Large #).
6(2x)
4
1
1
10
2
9
3 7
8
7a
48-22-7110 10" STEEL STRAIGHT PIPE WRENCH
48-22-7210 10" ALUMINUM STRAIGHT PIPE WRENCH
48-22-7213 10" ALUMINUM STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 10" Hook Jaw (1)
2 --------------- 10" Adjustment Nut (1) 3 --------------- 10" Heel Jaw (1) 4 --------------- Spring Plate Bracket (1) 5 --------------- 10" Straight Wrench Body (1) 6 --------------- Coil Spring (2) 7 --------------- Rivet (1) 7a --------------- Roll Pin (1) 8 43-90-2000 10" Heel Jaw with Rivet & Roll Pin Kit (1) 9 40-50-3230 10" Spring and Bracket Kit (1) 10 43-90-0191 10" Hook Jaw with Adjustment Nut Kit (1)
48-22-7112 12" STEEL STRAIGHT PIPE WRENCH
48-22-7212 12" ALUMINUM STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 12" Hook Jaw (1)
2 --------------- 12" Adjustment Nut (1) 3 --------------- 12" Heel Jaw (1) 4 --------------- Spring Plate Bracket (1) 5 --------------- 12" Straight Wrench Body (1) 6 --------------- Coil Spring (2) 7 --------------- Rivet (1) 7a --------------- Roll Pin (1) 8 43-90-2001 12" Heel Jaw with Rivet & Roll Pin Kit (1) 9 40-50-3231 12" Spring and Bracket Kit (1) 10 43-90-0192 12" Hook Jaw with Adjustment Nut Kit (1)
2
5
NOTE:
To install Heel Jaw Kit (8), the head of the production rivet (7) must be care-
fully ground o󰀨. Use a thin tool like a
metal punch or nail to tap out the rivet.
7a
4 6
3
48-22-7114 14" STEEL STRAIGHT PIPE WRENCH
48-22-7214 14" ALUMINUM STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 14" Hook Jaw (1)
2 --------------- 14" Adjustment Nut (1) 3 --------------- 14" Heel Jaw (1) 4 --------------- Spring Plate Bracket (1) 5 --------------- 14" Straight Wrench Body (1) 6 --------------- Coil Spring (2) 7 --------------- Rivet (1) 7a --------------- Roll Pin (1) 8 43-90-2001 14" Heel Jaw with Rivet & Roll Pin Kit (1) 9 40-50-3232 14" Spring and Bracket Kit (1) 10 43-90-0193 14" Hook Jaw with Adjustment Nut Kit (1)
48-22-7118 18" STEEL STRAIGHT PIPE WRENCH
48-22-7218 18" ALUMINUM STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 18" Hook Jaw (1)
2 --------------- 18" Adjustment Nut (1) 3 --------------- 18" Heel Jaw (1) 4 --------------- Spring Plate Bracket (1) 5 --------------- 18" Straight Wrench Body (1) 6 --------------- Coil Spring (2) 7 --------------- Rivet (1) 7a --------------- Roll Pin (1) 8 43-90-2002 18" Heel Jaw with Rivet & Roll Pin Kit (1) 9 40-50-3233 18" Spring and Bracket Kit (1) 10 43-90-0194 18" Hook Jaw with Adjustment Nut Kit (1)
48-22-7124 24" STEEL STRAIGHT PIPE WRENCH
48-22-7224 24" ALUMINUM STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 24" Hook Jaw (1)
2 --------------- 24" Adjustment Nut (1) 3 --------------- 24" Heel Jaw (1) 4 --------------- Spring Plate Bracket (1) 5 --------------- 24" Straight Wrench Body (1) 6 --------------- Coil Spring (2) 7 --------------- Rivet (1) 7a --------------- Roll Pin (1) 8 43-90-2003 24" Heel Jaw with Rivet & Roll Pin Kit (1) 9 40-50-3234 24" Spring and Bracket Kit (1) 10 43-90-0195 24" Hook Jaw with Adjustment Nut Kit (1)
7
Place the heel jaw (3) on the wrench body (5), align the holes and tap roll pin (7a) in place to secure.
Page 3
EXAMPLE:
00
Component Parts (Small #) Are Included
0
When Ordering The Assembly (Large #).
1
1
10
2
2
5
6(2x)
4
8
9
3 7 7a
4 6
7a
7
3

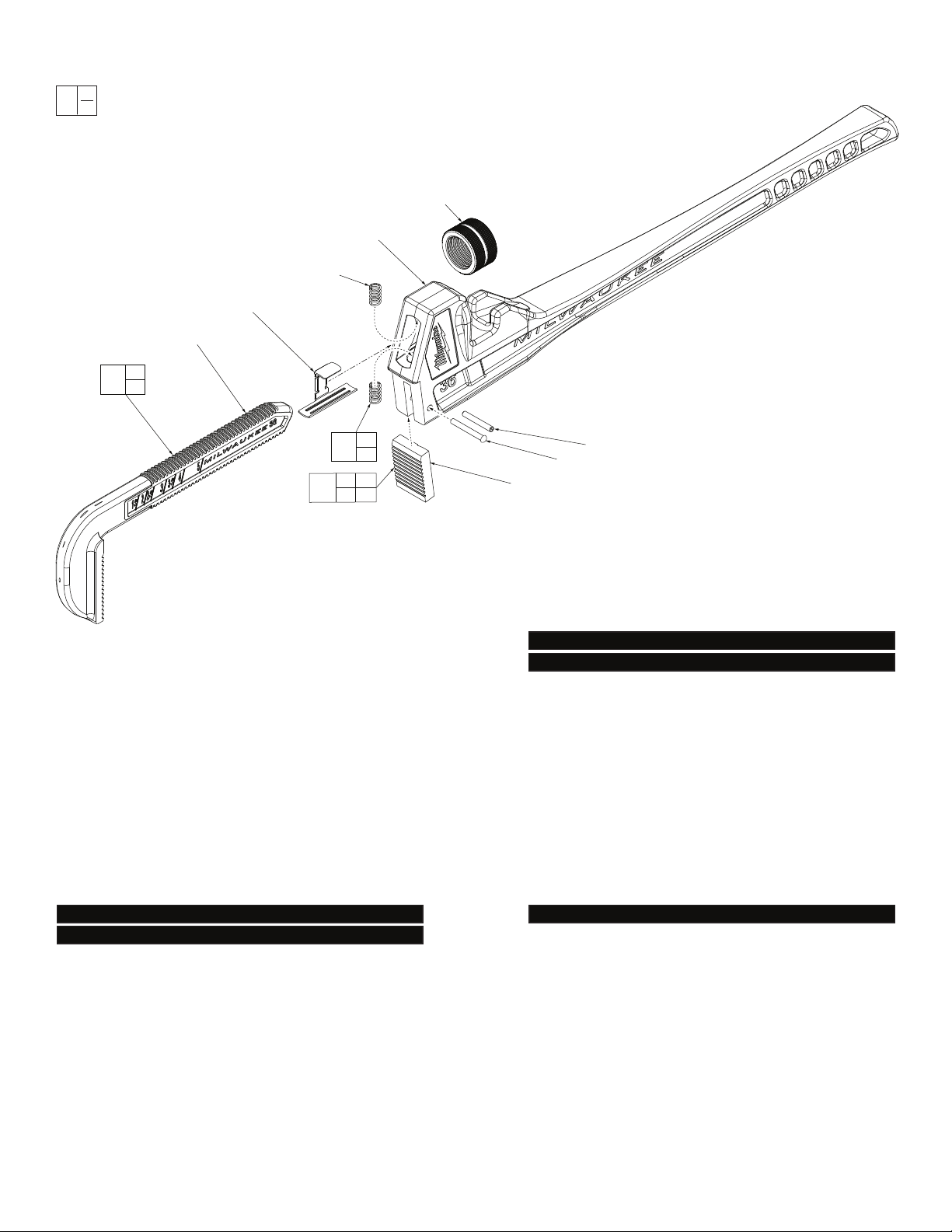

48-22-7148 48" STEEL STRAIGHT PIPE WRENCH
48-22-7248 48" ALUMINUM STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 48" Hook Jaw (1)
2 --------------- 48" Adjustment Nut (1) 3 --------------- 48" Heel Jaw (1) 4 --------------- Spring Plate Bracket (1) 5 --------------- 48" Straight Wrench Body (1) 6 --------------- Coil Spring (2) 7 --------------- Rivet (1) 7a --------------- Roll Pin (1) 8 43-90-2005 48" Heel Jaw with Rivet & Roll Pin Kit (1) 9 40-50-3236 48" Spring and Bracket Kit (1) 10 43-90-0198 48" Hook Jaw with Adjustment Nut Kit (1)
48-22-7136 36" STEEL STRAIGHT PIPE WRENCH
48-22-7236 36" ALUMINUM STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 36" Hook Jaw (1)
2 --------------- 36" Adjustment Nut (1) 3 --------------- 36" Heel Jaw (1) 4 --------------- Spring Plate Bracket (1) 5 --------------- 36" Straight Wrench Body (1) 6 --------------- Coil Spring (2) 7 --------------- Rivet (1) 7a --------------- Roll Pin (1) 8 43-90-2004 36" Heel Jaw with Rivet & Roll Pin Kit (1) 9 40-50-3235 36" Spring and Bracket Kit (1) 10 43-90-0197 36" Hook Jaw with Adjustment Nut Kit (1)
48-22-7160 60" STEEL STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 60" Hook Jaw (1)
2 --------------- 60" Adjustment Nut (1) 3 --------------- 60" Heel Jaw (1) 4 --------------- Spring Plate Bracket (1) 5 --------------- 60" Straight Wrench Body (1) 6 --------------- Coil Spring (2) 7 --------------- Rivet (1) 7a --------------- Roll Pin (1) 8 43-90-2006 60" Heel Jaw with Rivet & Roll Pin Kit (1) 9 40-50-3237 60" Spring and Bracket Kit (1) 10 43-90-0199 60" Hook Jaw with Adjustment Nut Kit (1)
Page 4
1
7
8
3 6 6a
1 2
EXAMPLE:
00
Component Parts (Small #) Are Included
0
When Ordering The Assembly (Large #).
5
3
6a

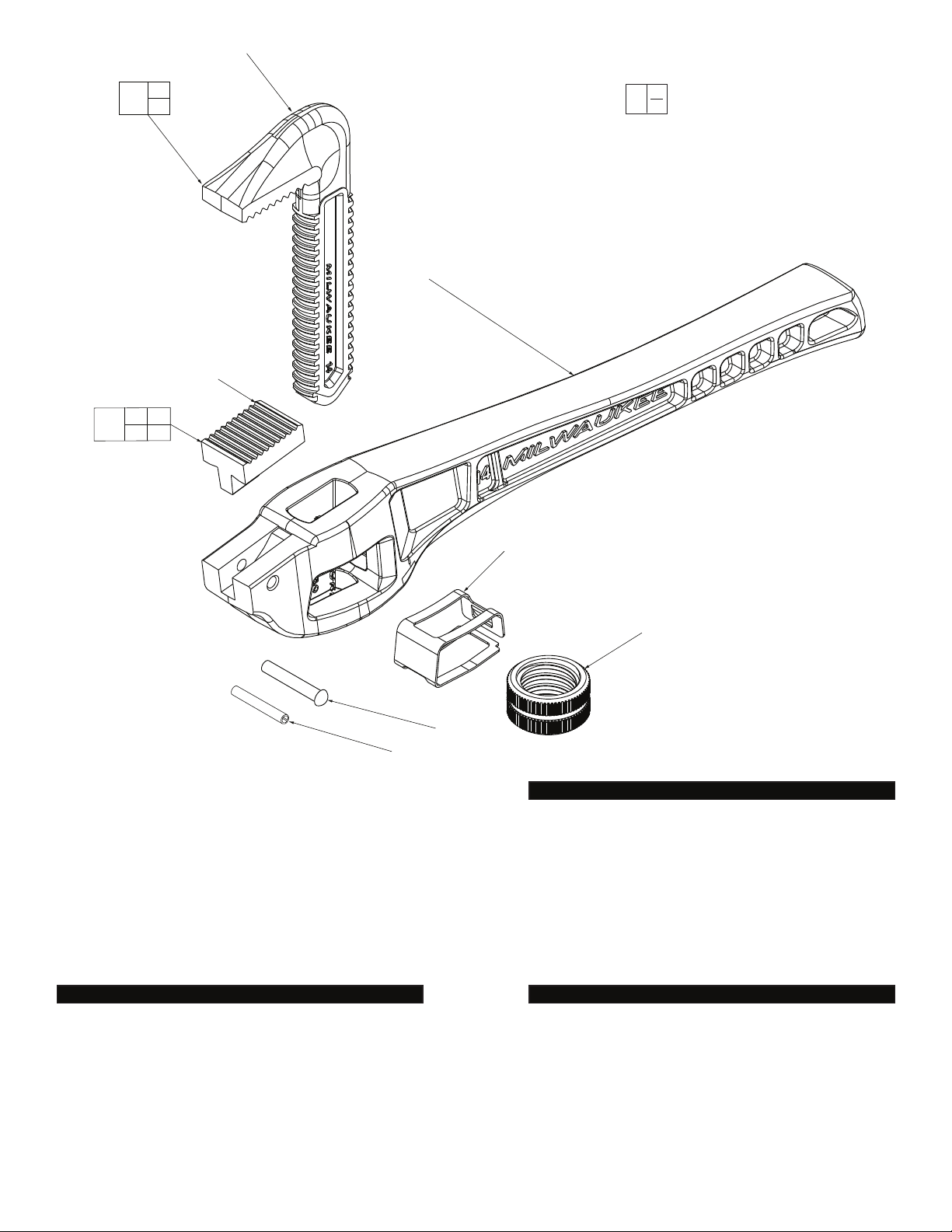

48-22-7184 14" ALUMINUM OFFSET PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 14" O󰀨set Hook Jaw (1)
2 --------------- 14" Adjustment Nut (1) 3 --------------- 14" Heel Jaw (1) 4 44-66-0401 Spring Plate Bracket (1) 5 --------------- 14" Straight Wrench Body (1) 6 --------------- Rivet (1) 6a --------------- Roll Pin (1) 7 43-90-2001 14" Heel Jaw with Rivet & Roll Pin Kit (1)
8 43-90-0251 14" O󰀨set Hook Jaw with
Adjustment Nut Kit (1)
4
NOTE:
To install Heel Jaw Kit (7), the head of the production rivet (6) must be care-
2
fully ground o󰀨. Use a thin tool like a
metal punch or nail to tap out the rivet. Place the heel jaw (3) on the wrench body (5), align the holes and tap roll pin (6a) in place to secure.
6
48-22-7185 18" ALUMINUM OFFSET PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 18" O󰀨set Hook Jaw (1)
2 --------------- 18" Adjustment Nut (1) 3 --------------- 18" Heel Jaw (1) 4 44-66-0402 Spring Plate Bracket (1) 5 --------------- 18" Straight Wrench Body (1) 6 --------------- Rivet (1) 6a --------------- Roll Pin (1) 7 43-90-2002 18" Heel Jaw with Rivet & Roll Pin Kit (1)
8 43-90-0252 18" O󰀨set Hook Jaw with
Adjustment Nut Kit (1)
48-22-7182 24" ALUMINUM OFFSET PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 24" O󰀨set Hook Jaw (1)
2 --------------- 24" Adjustment Nut (1) 3 --------------- 24" Heel Jaw (1) 4 44-66-0403 Spring Plate Bracket (1) 5 --------------- 24" Straight Wrench Body (1) 6 --------------- Rivet (1) 6a --------------- Roll Pin (1) 7 43-90-2003 24" Heel Jaw with Rivet & Roll Pin Kit (1)
8 43-90-0253 24" O󰀨set Hook Jaw with
Adjustment Nut Kit (1)
Page 5
4
1
EXAMPLE:
00
Component Parts (Small #) Are Included
0
When Ordering The Assembly (Large #).
1 2
3
2

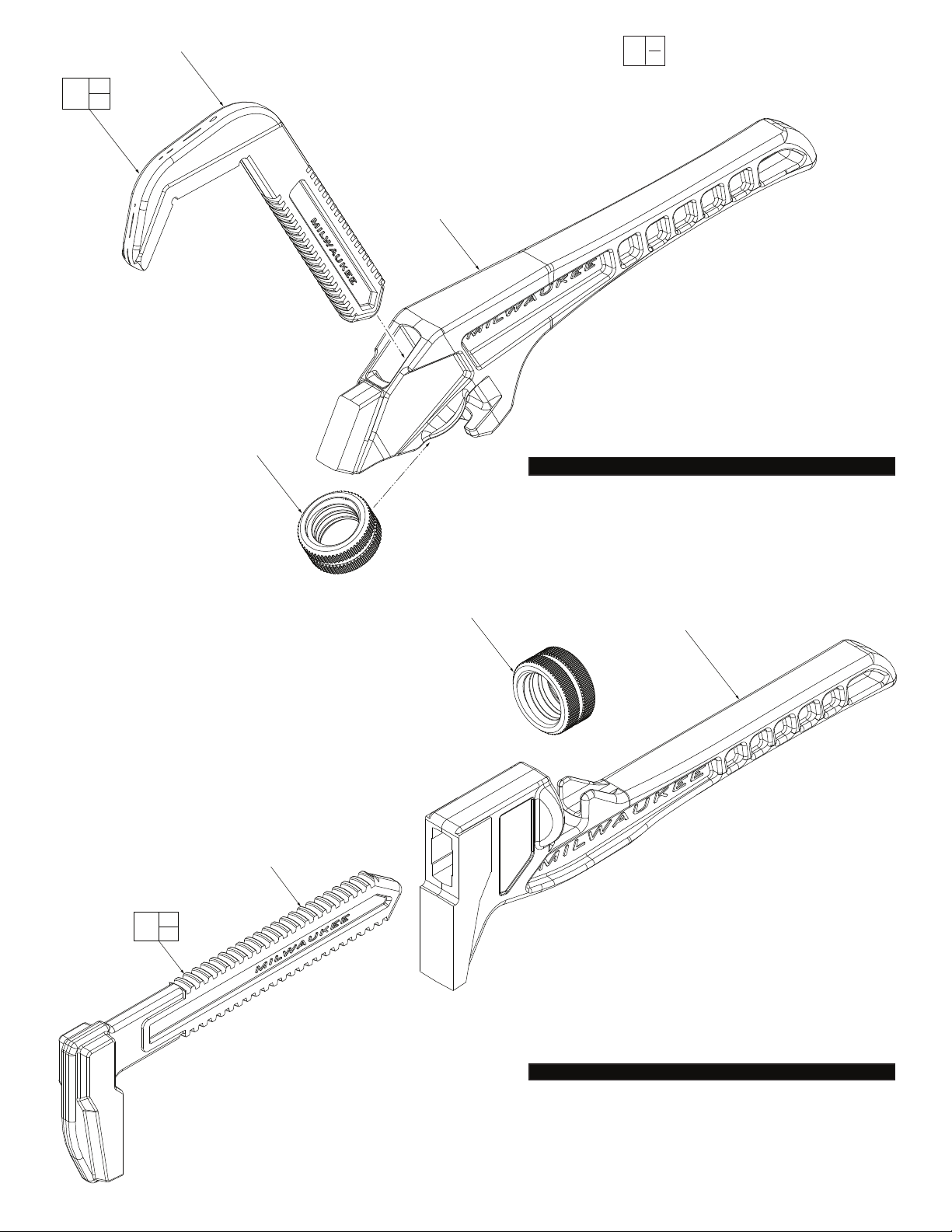

48-22-7171 10" STEEL OFFSET HEX PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 10" O󰀨set Hex Smooth Hook Jaw (1)
2 --------------- 10" Adjustment Nut (1)
3 --------------- 10" O󰀨set Hex Smooth
Pipe Wrench Body (1)
4 43-90-3000 10" O󰀨set Hex Smooth
Hook Jaw with Adjustment Nut Kit (1)
2
1
3
4
1 2
48-22-7186 12" STEEL SMOOTH JAW WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- 12" Smooth Hook Jaw (1)
2 --------------- 14" Adjustment Nut (1) 3 --------------- 12" Smooth Jaw Pipe Wrench Body (1) 4 43-90-3001 12" Smooth Hook Jaw with Adjustment Nut Kit (1)
Page 6
SERVICE PARTS
BULLETIN NO.
54-49-3155
10
1
4
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
14" CHEATER ADJUSTABLE PIPE WRENCH
CATALOG NO. 48-22-7314
1 2
REVISED BULLETIN
SEE PAGE TWO FOR CAT. NO. 48-22-7314
14" STEEL CHEATER PIPE WRENCH
12
11
DATE
8
3 7 7a
6(2x)
5
3
4
9
6
2
7a
7
NOTE:
To install Heel Jaw Kit (8), the head of the production rivet (7) must be
carefully ground o󰀨. Use a thin tool
like a metal punch or nail to tap out the rivet. Place the heel jaw (3) on the wrench body (5), align the holes and tap roll pin (7a) in place to secure.

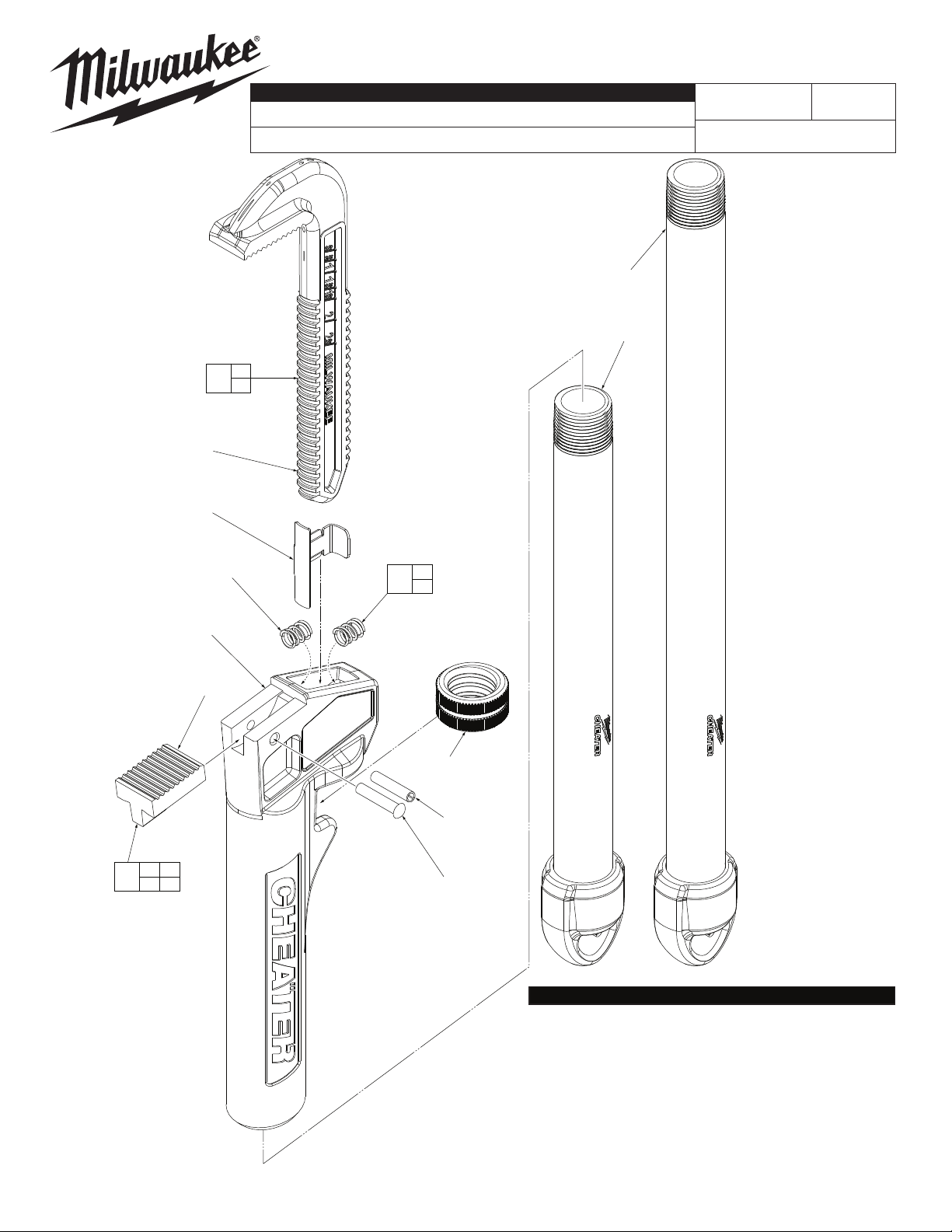

48-22-7314 14" CHEATER ADJUSTABLE PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ. 1 --------------- Cheater Hook Jaw (1)
2 --------------- Cheater Adjustment Nut (1) 3 --------------- Cheater Heel Jaw (1) 4 --------------- Spring Plate Bracket (1) 5 --------------- Cheater Wrench Body (1) 6 --------------- Coil Spring (2) 7 --------------- Rivet (1) 7a --------------- Roll Pin (1) 8 43-90-2001 9 40-50-3232 Cheater Spring and Bracket Kit (1) 10 43-90-0196 11 43-62-0641 Short Handle Assembly (1) 12 43-62-0643 Long Handle Assembly (1)
Cheater Heel Jaw with Rivet & Roll Pin Kit
Cheater Hook Jaw with Adjustment Nut Kit
(1)
(1)
