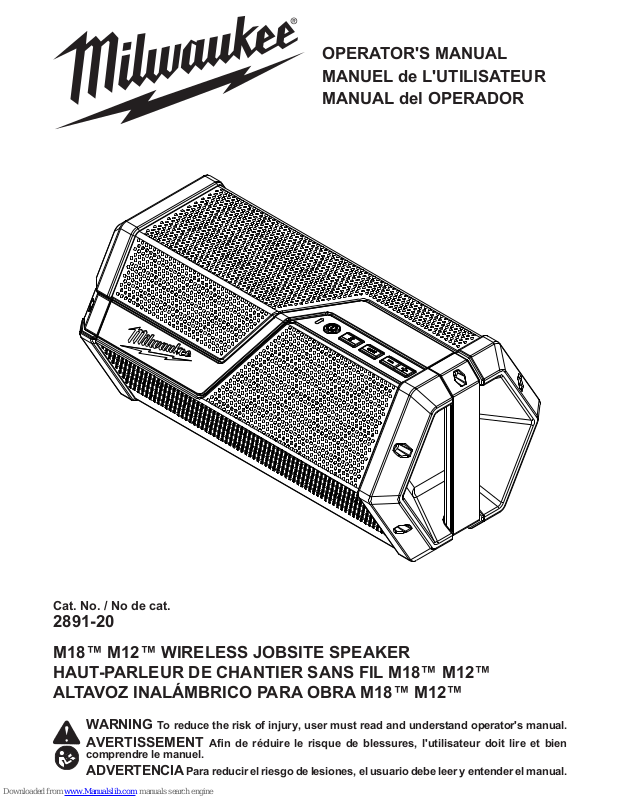

Milwaukee 2891-20 Operator's Manual
Cat. No. / No de cat.
2891-20
M18™ M12™ WIRELESS JOBSITE SPEAKER
HAUT-PARLEUR DE CHANTIER SANS FIL M18™ M12™
ALTAVOZ INALÁMBRICO PARA OBRA M18™ M12™
OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR
WARNING To reduce the risk of injury, user must read and understand operator's manual.
AVERTISSEMENT An de réduire le risque de blessures, l'utilisateur doit lire et bien
comprendre le manuel.
ADVERTENCIA Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.
2
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Read, understand and follow all
instructions. Failure to heed all
warnings listed below, may result in electric shock,
re and/or serious personal injury. Keep these instructions.
• Read these instructions.
• Keeps these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water. Never immerse
the apparatus in liquid or allow a liquid to ow inside the
apparatus. Water entering an apparatus will increase
the risk for electric shock.
• Clean only with dry cloth. Certain cleaning agents
and solvents are harmful to plastics and other insulated
parts. Some of these include: gasoline, turpentine,
lacquer thinner, paint thinner, chlorinated cleaning sol-
vents, ammonia and household detergents containing
ammonia. Clean dust and debris from vents. Keep the
apparatus handle clean, dry and free of oil or grease.
• Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
• Do not use near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
• Use only attachments/accessories specied by the
manufacturer.
• Only operate this apparatus in a well ventilated area.
• Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture or does not operate
normally. Service or maintenance performed by unqualied personnel could result in a risk of injury.
• A battery operated apparatus with integral batteries or a separate battery pack must be recharged
only with the specied charger for the battery. A
charger that may be suitable for one type of battery
may create a risk of re when used with another battery.
• Use battery operated apparatus only with specically designated battery packs. Use of any other bat-
teries may create a risk of re.
• When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys,
nails, screws, or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
sparks, burns, or a re.
• Avoid body contact with grounded surfaces such
as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is
grounded.
• Never disassemble the apparatus or try to do any
rewiring on the apparatus's electrical system.
• Do not expose this apparatus to dripping and splashing, or place objects lled with liquids on this unit.
SPECIFIC SAFETY RULES
• Maintain labels and nameplates. These carry im-
portant information. If unreadable or missing, contact
a MILWAUKEE service facility for a free replacement.
• This apparatus is designed to be powered by either
an 18 volt or a 12 volt MILWAUKEE Li-ion battery
pack. Do not attempt to use with any other voltage or
power supply.
Federal Communications Commission
WARNING: Changes or modifications to this unit
not expressly approved by the party responsible for
compliance could void the user ’s authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter. This
equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with
a minimum distance of 20 cm between the radiator and
any part of your body.
SYMBOLOGY
Volts
Direct Current
Double Insulated
Amps
To reduce the risk of injury, user must
read operator's manual.
C
US
UL Listing for Canada and U.S.
Indoor Use Only
Energy Efciency
4
5
SPECIFICATIONS
Cat. No. ..................................................... 2891-20
Volts......................................................... 12/18 DC
Amps ..................................................................2.6
Battery Type .............................. M12™ and M18™
Charger Type............................. M12™ and M18™
USB Output Volts............................................ 5 DC
Max USB Output Amps.......................................2.1
Recommended Ambient
Operating Temperature ...................... 0°F to 125°F
FUNCTIONAL DESCRIPTION
1
2
3
4
5
6
7
8 9
1. Low battery indicator
2. Power button
3. Bluetooth indicator button
4. Aux indicator button
5. Volume down
6. Volume up
7. AC/DC power supply jack
8. AUX jack
9. USB power outlet
EXTENSION CORDS
Grounded tools require a three wire extension
cord. Double insulated tools can use either a two
or three wire extension cord. As the distance from
the supply outlet increases, you must use a heavier
gauge extension cord. Using extension cords with
inadequately sized wire causes a serious drop in
voltage, resulting in loss of power and possible tool
damage. Refer to the table shown to determine the
required minimum wire size.
The smaller the gauge number of the wire, the greater
the capacity of the cord. For example, a 14 gauge
cord can carry a higher current than a 16 gauge cord.
When using more than one extension cord to make
up the total length, be sure each cord contains at
least the minimum wire size required. If you are using
one extension cord for more than one tool, add the
nameplate amperes and use the sum to determine
the required minimum wire size.
Guidelines for Using Extension Cords
• If you are using an extension cord outdoors, be sure
it is marked with the sufx “W-A” (“W” in Canada)
to indicate that it is acceptable for outdoor use.
• Be sure your extension cord is properly wired
and in good electrical condition. Always replace a
damaged extension cord or have it repaired by a
qualied person before using it.
• Protect your extension cords from sharp objects,
excessive heat and damp or wet areas.
Recommended Minimum Wire Gauge
For Extension Cords*
Nameplate Amps
Extension Cord Length
25' 50' 75' 100' 150'
0 - 2.0
2.1 - 3.4
3.5 - 5.0
5.1 - 7.0
7.1 - 12.0
12.1 - 16.0
16.1 - 20.0
18
18
18
18
16
14
12
18
18
18
16
14
12
10
18
18
16
14
12
10
--
18
16
14
12
10
--
--
16
14
12
12
--
--
--
* Based on limiting the line voltage drop to ve volts at 150%
of the rated amperes.
GROUNDING
WARNING
Improperly connecting the grounding wire can result in the risk of
electric shock. Check with a qualied electrician
if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug pro-
vided with the tool. Never remove the grounding
prong from the plug. Do not use the tool if the
cord or plug is damaged. If damaged, have it
repaired by a MILWAUKEE service facility before
use. If the plug will not t the outlet, have a
proper outlet installed by a qualied electrician.
Grounded Tools (Three-Prong Plugs)
Tools marked “Grounding Required” have a three
wire cord and three prong grounding plug. The plug
must be connected to a properly grounded outlet
(See Figure A). If the tool should electrically malfunction or break down, grounding provides a low
resistance path to carry electricity away from the
user, reducing the risk of electric shock.
The grounding prong in the plug is connected through
the green wire inside the cord to the grounding
system in the tool. The green wire in the cord must
be the only wire connected to the tool's grounding
system and must never be attached to an electrically
“live” terminal.
Your tool must be plugged into an appro-
Fig. A
priate outlet, properly installed and
grounded in accordance with all codes
and ordinances. The plug and outlet
should look like those in Figure A.
Double Insulated Tools (Two-Prong Plugs)
Tools marked “Double Insulated” do not require
grounding. They have a special double insulation
system which satises OSHA requirements and
complies with the applicable standards
Fig. B
Fig. C
of Underwriters Laboratories, Inc., the
Canadian Standard Association and
the National Electrical Code. Double
Insulated tools may be used in either
of the 120 volt outlets shown in Figures
B and C.
• Once the device has successfully paired with the
speaker, use the controls on the Bluetooth capable
device to move through tracks and control volume.
Volume
Use the
and buttons to decrease or increase
the volume.
MAINTENANCE
WARNING
To reduce the risk of injury, always
unplug the charger and remove the
battery pack from the charger or tool before
performing any maintenance. Never disassemble
the tool, battery pack or charger. Contact a
MILWAUKEE service facility for ALL repairs.
Maintaining Tool
Keep your tool, battery pack and charger in good
repair by adopting a regular maintenance program.
Inspect your tool for issues such as undue noise,
misalignment or binding of moving parts, breakage of
parts, or any other condition that may affect the tool
operation. Return the tool, battery pack, and charger
to a MILWAUKEE service facility for repair. After six
months to one year, depending on use, return the
tool, battery pack and charger to a MILWAUKEE
service facility for inspection.
If the tool does not start or operate at full power with
a fully charged battery pack, clean the contacts on
the battery pack. If the tool still does not work properly, return the tool, charger and battery pack, to a
MILWAUKEE service facility for repairs.
WARNING
To reduce the risk of personal in-
jury and damage, never immerse
your tool, battery pack or charger in liquid or
allow a liquid to ow inside them.
Cleaning
Clean dust and debris from vents. Keep handles
clean, dry and free of oil or grease. Use only mild
soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and
other insulated parts. Some of these include gasoline,
turpentine, lacquer thinner, paint thinner, chlorinated
cleaning solvents, ammonia and household deter-
gents containing ammonia. Never use ammable or
combustible solvents around tools.
Repairs
For repairs, return the tool, battery pack and charger
to the nearest service center.
ACCESSORIES
WARNING
Use only recommended accesso-
ries. Others may be hazardous.
For a complete listing of accessories, go online to
www.milwaukeetool.com or contact a distributor.
SERVICE - UNITED STATES
1-800-SAWDUST (1.800.729.3878)
Monday-Friday, 7:00 AM - 6:30 PM CST
or visit www.milwaukeetool.com
Contact Corporate After Sales Service Technical
Support with technical, service/repair, or warranty
questions.
Email: metproductsupport@milwaukeetool.com
Become a Heavy Duty Club Member at
www.milwaukeetool.com to receive important
notications regarding your tool purchases.
ASSEMBLY
WARNING
Recharge only with the charger
specied for the battery. For specic charging instructions, read the operator’s
manual supplied with your charger and battery.
Removing/Inserting the Battery
To remove the battery, push in the release buttons
and pull the battery pack away from the tool.
WARNING
Always remove battery pack before
changing or removing accessories.
To insert the battery, slide the pack into the body
of the tool. Make sure it latches securely into place.
WARNING
Only use accessories specically
recommended for this tool. Others
may be hazardous.
Low Battery Indicator
To protect the life of the battery pack, the low battery
indicator will ash red when the battery's charge is
low, but still operable. The indicator will light solid red
when the battery's charge is inoperable. If this happens,
remove the battery pack and charge it according to the
charger’s instructions.
Using the AC/DC Power Supply
Only use MILWAUKEE 18 volt AC/DC power supply
Cat. No. 23-81-0155. Insert the power supply into the
18 volt DC jack on the back of the speaker. Plug the
power supply into a suitable wall outlet.
Connecting an Auxiliary Device
Connect an MP3 player, CD player, or other audio
device directly to the speaker using the stereo auxiliary
jack AUX.
USB Power Outlet
This outlet can be used to charge a cell phone, power
an MP3 player or any other device that uses less than
2.1A of DC electrical current.
NOTE: Any device that uses more than 2.1 A of DC
electrical current will trip a self-resetting overload and
disable the output.
OPERATION
WARNING
To reduce the risk of re or electric
shock, do not expose this speaker
to rain or moisture.
Turning On/Off and
Connecting to Bluetooth
Press the Power button to turn the speaker on
and off.
Press the Bluetooth button to turn the Bluetooth
on. The speaker will begin to search for a previously
paired device.
• If no Bluetooth device was previously paired, Blue-
tooth will enter standy mode. The indicator light will
be solid.
• To pair the speaker to a new device,
press and hold the Bluetooth button for
2 seconds until the indicator light ashes.
It will then be in pair mode and can be
connected to a different device.
• To pair a device to the speaker, select
"M18/M12 Wireless Jobsite Speaker" on
the Bluetooth capable device.
• Once paired, the speaker will automatically
reconnect to the same device when the
speaker is turned on.
Loading...
