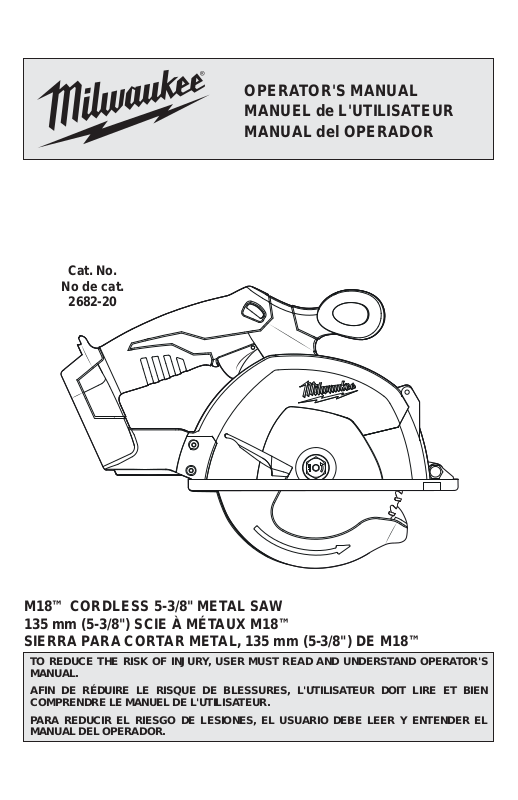

Cat. No.
No de cat.
2682-20
OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR
M18™ CORDLESS 5-3/8" METAL SAW
135 mm (5-3/8") SCIE À MÉTAUX M18™
SIERRA PARA CORTAR METAL, 135 mm (5-3/8") DE M18™
TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S
MANUAL.
AFIN DE RÉDUIRE LE RISQUE DE BLESSURES, L'UTILISATEUR DOIT LIRE ET BIEN
COMPRENDRE LE MANUEL DE L'UTILISATEUR.
PARA REDUCIR EL RIESGO DE LESIONES, EL USUARIO DEBE LEER Y ENTENDER EL
MANUAL DEL OPERADOR.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.
Failure to follow the warnings and instructions may result in electric shock, fi re and/or
serious injury. Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
• Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
• Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
ELECTRICAL SAFETY
WORK AREA SAFETY
• Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodifi ed plugs and matching outlets will
reduce risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
• When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk
of electric shock.
• If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the infl uence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
• Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
• Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your fi nger on the switch or energising power tools
that have the switch on invites accidents.
• Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
• Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
• If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
• Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
POWER TOOL USE AND CARE
• Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
• Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
• Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits
etc., in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
BA TTER Y T OOL USE AND CARE
• Recharge only with the charger specifi ed by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fi re
when used with another battery pack.
• Use power tools only with specifi cally desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and fi re.
2
• When battery pack is not in use, keep it away
from other metal objects like paper clips,
coins, keys, nails, screws, or other small metal
objects that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a fi re.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, fl ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
SERVICE
• Have your power tool serviced by a qualifi ed
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
SPECIFIC SAFETY RULES
DANGER:
• Keep hands away from cutting area and blade.
Keep your second hand on auxiliary handle or
motor housing. If both hands are holding the saw,
they cannot be cut by the blade.
• Do not reach underneath the workpiece. The
guard cannot protect you from the blade below the
workpiece.
• Adjust the cutting depth to the thickness of
the workpiece. Less than a full tooth of the blade
teeth should be visible below the workpiece.
• NEVER hold piece being cut in your hands
or across your leg. Secure the workpiece to
a stable platform. It is important to support the
work properly to minimize body exposure, blade
binding, or loss of control.
• Hold power tool by insulated gripping surfaces
when performing an operation where the cutting tool may contact hidden wiring or its own
cord. Contact with a "live" wire will also make
exposed metal parts of the power tool "live" and
shock the operator.
• When ripping always use a rip fence or straight
edge guide. This improves the accuracy of cut and
reduces the chance of blade binding.
• Always use blades with correct size and shape
(diamond vs. round) arbour holes. Blades that
do not match the mounting hardware of the saw
will run eccentrically, causing loss of control.
• Never use damaged or incorrect blade washers or bolts. The blade washers and bolts were
specially designed for your saw, for optimum
performance and safety of operation.
Causes and Operator Prevention of KICKBACK:
KICKBACK is a sudden reaction to a pinched,
bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece
toward the operator.
When the blade is pinched or bound tightly by the
kerf closing down, the blade stalls and the motor
reaction drives the unit rapidly back toward the
operator.
If the blade becomes twisted or misaligned in
the cut, the teeth at the back edge of the blade
can dig into the top surface of the wood causing
the blade to climb out of the kerf and jump back
toward operator.
KICKBACK is the result of saw misuse and/or
incorrect operating procedures or conditions and
can be avoided by taking proper precautions as
given below:
•Maintain a fi rm grip with both hands on the
saw and position your arms to resist KICKBACK forces. Position your body to either
side of the blade, but not in line with the
blade. KICKBACK could cause the saw to jump
backwards, but kickback forces can be controlled
by the operator, if proper precautions are taken.
•When blade is binding, or when interrupting
a cut for any reason, release the trigger and
hold the saw motionless in the material until
the blade comes to a complete stop. Never
attempt to remove the saw from the work or
pull the saw backward while the blade is in
motion or KICKBACK may occur. Investigate
and take corrective actions to eliminate the cause
of blade binding.
•When restarting a saw in the workpiece, center
the saw blade in the kerf and check that saw
teeth are not engaged into the material. If saw
blade is binding, it may walk up or KICKBACK
from the workpiece as the saw is restarted.
•Support large panels to minimize the risk of
blade pinching and KICKBACK. Large panels
tend to sag under their own weight. Supports must
be placed under the panel on both sides, near the
line of cut and near the edge of the panel.
•Do not use dull or damaged blade. Unsharpened or improperly set blades produce narrow
kerf causing excessive friction, blade binding and
KICKBACK.
•Blade depth and bevel adjusting locking levers must be tight and secure before making
cut. If blade adjustment shifts while cutting, it may
cause binding and KICKBACK.
•Use extra caution when making a "Plunge Cut"
into existing walls or other blind areas. The
protruding blade may cut objects that can cause
KICKBACK.
• Check lower guard for proper closing before
each use. Do not operate the saw if lower guard
does not move freely and close instantly. Never
clamp or tie the lower guard into the open
position. If saw is accidentally dropped, lower
guard may be bent. Raise the lower guard with the
retracting handle and make sure it moves freely
and does not touch the blade or any other part, in
all angles and depths of cut.
• Check the operation and condition of the lower
guard spring. If the guard and the spring are
not operating properly, they must be serviced
before use. Lower guard may operate sluggishly
due to damaged parts, gummy deposits, or a
buildup of debris.
• Lower guard should be retracted manually
only for special cuts such as "Plunge Cuts"
and "Compound Cuts". Raise lower guard by
retracting handle and as soon as blade enters
3
the material, the lower guard must be released.
For all other sawing, the lower guard should operate automatically.
• Always observe that the lower guard is covering the blade before placing saw down on
bench or fl oor. An unprotected, coasting blade
will cause the saw to walk backwards, cutting
whatever is in its path. Be aware of the time it takes
for the blade to stop after switch is released.
• Maintain labels and nameplates. These carry
important information. If unreadable or missing,
contact a MILWAUKEE service facility for a free
replacement.
• WARNING: Some dust created by power sanding,
sawing, grinding, drilling, and other construction
activities contains chemicals known to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Do not touch material after it has been cut. Cut
material may be very hot.
• Do not use cutting oil. The use of cutting oil may
cause a fi re.
• Do not use tool near fl ammable material. Sparks
may cause fi re.
• Do not cut workpieces covered or stained
with gas, oil, solvents, thinners, etc. Exposure
to these materials may damage the transparent
guard.
• Do not remove the transparent front guard. If
the transparent front guard is damaged or missing, return tool to authorized service station for
replacement.
• Do not start the blade when in contact with
workpiece. Wait for blade to reach full speed
before beginning cut.
• Do not use abrasive wheels.
• lead from lead-based paint
• crystalline silica from bricks and cement and other
masonry products, and
• arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.
SYMBOLOGY
Direct Current
Underwriters Laboratories, Inc.
United States and Canada
No Load Revolutions per Minute
(RPM)
SPECIFICATIONS
Cat. No. Volts DC No Load RPM Blade Size Arbor Depth of Cut
2682-20 18 3 600 5-3/8" 20 mm 1/8" to 2"
FUNCTIONAL DESCRIPTION
5
6
1. Front handle
2. Upper guard
3. Lock-off button
4. Trigger
4
7
3
2
1
14
13
12
15
5. Handle
6. Shoe
7. Lower guard lever
8. Lower guard
11
9. Blade bolt
8
10
9
10. Blade fl ange
11. Blade
12. LED
13. Transparent front
guard
14. Spindle lock
button
15. Depth adjusting
lever
16. Wrench
4
16
ASSEMBLY
WARNING Recharge only with the
charger specifi ed for the battery. For spe-
cifi c charging instructions, read the operator’s
manual supplied with your charger and battery.
Inserting/Removing the Battery
To remove the battery, push in the release buttons
and pull the battery pack away from the tool.
To insert the battery, slide the pack into the body of
the tool. Make sure it latches securely into place.
WARNING Always remove battery
pack before changing or removing accessories. Only use accessories specifi cally recom-
mended for this tool. Others may be hazardous.
Selecting Blade
Select a blade appropriate for your application. Refer to the “Accessories” section for a list of blades to
be used for the proper applications of this tool.
Always use sharp blades. Dull blades tend to
overload the tool and increase the chance of KICKBACK. Only use thin kerf blades with a maximum
safe operating speed greater than the no load RPM
marked on the tool's nameplate. Read the blade
manufacturer's instructions before use. Do not use
any type of abrasive cut-off wheel or dry diamond
cutting blades. Use the correct blade type for your
application. Using the wrong blade may result in
reduced performance or damage to the blade. Do
not use blades that are cracked or have broken
teeth. Do not sharpen ferrous metal cutting blades;
see the blade manufacturer's recommendations
regarding sharpening.
Installing and Removing Blades
1. Remove battery pack.
2. Place the saw on a fl at surface with the blade fac-
ing upwards. T o remove the bolt from the spindle,
push in the spindle lock button. While holding in
the spindle lock button, use the wrench provided
with the tool to turn the bolt counterclockwise.
Remove the bolt and outer fl ange.
3. Slide the lower guard lever up to raise the lower
guard. Remove the blade from
the spindle. Always clean the
spindle, upper guard and lower
guard to remove any dirt and
dust.
NOTE: Do not remove in-
ner blade flange or washer. Larger diameter of inner
fl ange should face the blade.
4. To install a blade, place the
blade on the spindle with
the teeth pointing in the
same direction as the arrow on the lower guard.
Release the lower guard
lever.
5. Place the blade fl ange on the spindle and hand
tighten the bolt.
6. While holding in the spindle lock button, use the
wrench to turn the bolt clockwise and tighten.
Arrow
Bolt
Outer
fl ange
Inner
fl ange
Washer
Spindle
Adjusting Depth
1. Remove battery pack.
2. To adjust the depth of the cut, hold the saw by
the handle and loosen the depth adjusting lever
by pulling it up.
Fig. 1
3. Raise or lower the shoe to the desired position.
For the proper depth setting, the blade should
extend no more than 1/4" below the material
being cut.
Fig. 2
1/4"
4. Push down the depth adjusting lever to secure
the shoe position.
Transparent Front Guard
The transparent front guard allows easy viewing of
the cutting line. If the transparent guard is cracked
or broken, return it to a MILWAUKEE service facility
for replacement. Never use the metal cutter with a
damaged or missing transparent guard.
WARNING T o reduce the risk of injury ,
do not remove the transparent front
guard. If the transparent front guard is damaged or missing, return tool to authorized
service station for replacement.
5
OPERATION
WARNING Always remove battery
pack before changing or removing accessories. Only use accessories specifi cally
recommended for this tool. Others may be
hazardous.
WARNING T o reduce the risk of injury ,
wear safety goggles or glasses with side
shields.
Causes and Operator Prevention of KICKBACK:
KICKBACK is a sudden reaction to a pinched,
bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece
toward the operator.
When the blade is pinched or bound tightly by the
kerf, or cutting slot, closing down, the blade stalls
and the motor reaction drives the unit rapidly back
toward the operator.
If the blade becomes twisted or misaligned in
the cut, the teeth at the back edge of the blade
can dig into the top surface of the wood causing
the blade to climb out of the kerf and jump back
toward operator.
KICKBACK is the result of tool misuse and/or
incorrect operating procedures or conditions and
can be avoided by taking proper precautions as
given below:
• Maintain a fi rm grip with both hands on the
saw and position your body and arm to allow
you to resist KICKBACK forces. KICKBACK
forces can be controlled by the operator, if proper
precautions are taken.
• When blade is binding, or when interrupting
a cut for any reason, release the trigger and
hold the saw motionless in the material until
the blade comes to a complete stop. Never
attempt to remove the saw from the work or
pull the saw backward while the blade is in
motion or KICKBACK may occur. Investigate
and take corrective actions to eliminate the cause
of blade binding.
• When restarting a saw in the workpiece,
center the saw blade in the kerf, or cut, and
check that saw teeth are not engaged into the
material. If saw blade is binding, it may walk up
or KICKBACK from the workpiece as the saw is
restarted.
• Support large panels to minimize the risk of
blade pinching and KICKBACK. Large panels
tend to sag under their own weight. Supports must
be placed under the panel on both sides, near the
line of cut and near the edge of the panel.
• Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow
kerf causing excessive friction, blade binding and
KICKBACK.
• Blade depth lever must be tight and secure before making cut. If blade adjustment shifts while
cutting, it may cause binding and KICKBACK.
• Use extra caution when making a “Pocket Cut”
into existing walls or other blind areas. The
protruding blade may cut objects that can cause
KICKBACK.
• Set the depth of cut for no more than 1/8" to
1/4" greater than the thickness of the stock.
The less blade exposed, the less chance of binding and KICKBACK. Before cutting, be sure depth
and bevel adjustments are tight.
• Be cautious of pitchy, knotty, wet or warped
stock. These are most likely to create pinching
conditions and possible KICKBACK. Do not rip
warped lumber. Avoid cutting nails.
• Stay alert. Any distraction can cause twisting
or binding. Repetitive cuts may lull the user into
careless movements.
General Operation
Always clamp the workpiece securely on a saw
horse or bench. See “APPLICATIONS” for the
correct way to support your work in different situations.
1. Draw a cutting line. Place the front of the shoe on
the edge of the workpiece without making blade
contact. Hold the handle with one hand and the
front handle with the other.
Fig. 3
2. Line up the sight line with your cutting line. Posi-
tion your arms and body to resist KICKBACK.
3. To start the saw, push the lock-off button down
while pulling the trigger. Allow the motor to reach
full speed before beginning cut.
Note: LED comes on when the lock-off button is
pushed down.
4. While cutting, keep the shoe fl at against the
workpiece and maintain a fi rm grip. Do not force
the saw through the workpiece. Forcing a saw
can cause KICKBACK. Use a light, continuous
pressure to make the cut while following the cut
line.
5. If making a partial cut, restarting in mid-cut or
correcting direction, allow the blade to come to
a complete stop. To resume cutting, center the
blade in the kerf, back the saw away from cutting edge a few inches, push the lock-off button
down while pulling the trigger and re-enter the
cut slowly.
6. If the saw binds and stalls, maintain a fi rm grip
and release the trigger immediately. Hold the
saw motionless in the workpiece until the blade
comes to a complete stop.
7. After fi nishing a cut, be sure the lower guard
closes and the blade comes to a complete stop
before setting the saw down.
Overload Protection
Overload protection automatically turns off the tool
when the motor is overloaded. The tool can become
overloaded when using a dull blade or cutting
materials too quickly. To prevent overload, always
use a sharp blade and follow the cutting instructions
under the "Applications" section.
If the tool turns off automatically:
1. Release the trigger.
2. Remove the blade from the workpiece.
3. Allow the tool to run under no load to ensure the
tool has properly cooled.
4. Resume the cut. When restarting a saw in the
workpiece, center the saw blade in the kerf, or
cut, and check that saw teeth are not engaged
into the material. If saw blade is binding, it may
walk up or KICKBACK from the workpiece as
the saw is restarted.
Troubleshooting
If the blade does not follow a straight line:
• Teeth are dull. This is caused by hitting a hard
object such as a nail or stone, dulling teeth on
one side. The blade tends to cut to the side with
the sharpest teeth.
• Shoe is out of line or bent
• Blade is bent
• Blade is loose.
If the blade binds, smokes or turns blue from
friction:
• Blade is dull
• Blade is on backwards
• Blade is bent
• Blade is dirty
• Workpiece is not properly supported
• Incorrect blade is being used
• Battery charge is low
Electric Brake
The electric brake engages when the trigger is
released, causing the blade to stop and allowing
you to proceed with your work. Generally, the saw
blade stops within two seconds. However, there
may be a delay between the time you release the
trigger and when the brake engages. Occasionally
the brake may miss completely. If the brake misses
frequently, the saw needs servicing by an authorized MILWAUKEE service facility . The brake is not
a substitute for the guard, and you must always wait
for the blade to stop completely before removing
the saw from the workpiece.
This tool is intended for cutting unhardened ferrous
APPLICATIONS
metal, non-ferrous metal, plastics, fi ber cement
board, and wood. Refer to the “Accessories” section for a list of blades to be used for the proper
applications of this tool. The following precautions
must be followed to reduce the risk of injury:
• Do not cut stacked materials. Cut one piece at a
time.
• Do not cut hardened steel.
• Cut materials with the wider edge of the shoe over
the clamped side of the material.
• Do not touch the saw blade, workpiece, or cutting
chips with bare hands immediately after cutting;
they may be hot and could burn skin.
• Adjust the cutting angle of the blade to the workpiece, so the blade goes through the thinnest
sections.
Cutting Angled Materials
When cutting angle materials, tilt the tool back to
avoid having the lower guard rest on the angle.
Correct Technique
Cutting Thin or Corrugated Materials
Cut thin and corrugated materials at least 1" from
the edge of the workpiece to avoid injury or damage to the tool caused by thin strips of metal being
pulled into the upper guard.
Cutting Large Sheets
Large sheets sag or bend if they are not correctly
supported. If you attempt to cut without leveling
and properly supporting the workpiece, the blade
will tend to bind, causing KICKBACK.
Support large sheets. Be sure to set the depth of
the cut so that you only cut through the workpiece,
not through the supports.
When cutting widths greater than 4", clamp or tack
1" lumber to workpiece and use the inside edge of
the shoe as a guide.
Fig. 4
Incorrect Technique
6
7
WARNING To reduce the risk of elec-
tric shock, check work area for hidden
pipes and wires before making pocket cuts.
Pocket Cutting
Pocket cuts are made in the middle of the workpiece when it can not be cut from an edge. We recommend using a Sawzall
saw for this type of cut. However, if you must use a
circular saw to make a pocket cut, USE EXTREME
CAUTION. To maintain control of the saw during
pocket cutting, keep both hands on the saw.
Fig. 5
1. Beginning at a corner, line up the sight line with
your cutting line. Tilt the saw forward, fi rmly fi xing
the front of the shoe on the workpiece. The blade
should be just above cutting line, but not touching it.
Raise the lower guard using the lower guard lever.
2. To start the saw, push the lock-off button down
while pulling the trigger. Allow the motor to reach
full speed before beginning cut. Using the front
of the shoe as a hinge point, gradually lower the
back end of the saw into the workpiece. Release
the lower guard lever and grasp the front handle.
3. When the shoe rests fl at against workpiece,
advance the saw to the far corner. Release the
trigger and allow the blade to come to a complete
stop before removing it from workpiece. Repeat
the above steps for each side of the opening.
Use a Sawzall® reciprocating saw, jig saw or
small hand saw to fi nish the corners if they are
not completely cut through.
®
reciprocating saw or jig
MAINTENANCE
WARNING T o reduce the risk of injury ,
always unplug the charger and remove
the battery pack from the charger or tool
before performing any maintenance. Never
disassemble the tool, battery pack or charger.
Contact a MILWAUKEE service facility for ALL
repairs.
Maintaining Tool
Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program.
After six months to one year, depending on use,
return the tool, battery pack and charger to a
MILWAUKEE service facility for:
• Lubrication
• Mechanical inspection and cleaning (gears,
spindles, bearings, housing, etc.)
• Electrical inspection (battery pack, charger,
motor)
• Testing to assure proper mechanical and
electrical operation
If the tool does not start or operate at full power
with a fully charged battery pack, clean the contacts
on the battery pack. If the tool still does not work
properly, return the tool, charger and battery pack,
to a MILWAUKEE service facility for repairs.
WARNING To reduce the risk of per-
sonal injury and damage, never immerse your
tool, battery pack or charger in liquid or allow
a liquid to fl ow inside them.
Cleaning
Clean dust and debris from charger and tool vents.
Keep tool handles clean, dry and free of oil or grease.
Use only mild soap and a damp cloth to clean the
tool, battery pack and charger since certain cleaning
agents and solvents are harmful to plastics and other
insulated parts. Some of these include gasoline,
turpentine, lacquer thinner, paint thinner, chlorinated
cleaning solvents, ammonia and household detergents containing ammonia. Never use fl ammable or
combustible solvents around tools.
Repairs
For repairs, return the tool, battery pack and charger to the nearest service center.
ACCESSORIES
WARNING Always remove battery
pack before changing or removing accessories. Only use accessories specifi cally
recommended for this tool. Others may be
hazardous.
For a complete listing of accessories refer to your
MILWAUKEE Electric Tool catalog or go online
to www.milwaukeetool.com. To obtain a catalog,
contact your local distributor or service center.
8
LIMITED WARRANTY - USA AND CANADA
Every MILWAUKEE power tool (including cordless product – tool, battery pack(s) - see separate & distinct CORDLESS BA TTERY
PACK LIMITED WARRANTY statements & battery charger and Work Lights*) is warranted to the original purchaser only to
be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part
on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship
for a period of fi ve (5) years* after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE
factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of
the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE
determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations,
abuse, normal wear and tear, lack of maintenance, or accidents.
*The warranty period for, Job Site Radios, M12™ Power Port and T rade T itan™ Industrial W ork Carts is one (1) year from the
date of purchase. The warranty period for a LED Work Light and LEDUpgrade Bulb is a limited LIFETIME warranty to the original
purchaser only, if during normal use the LED bulb fails the Work Light or Upgrade Bulb will be replaced free of charge.
*This warranty does not cover Air Nailers & Stapler, Airless Paint Sprayer, Cordless Battery Packs, Gasoline Driven Portable
Power Generators, Hand T ools, Hoist – Electric, Lever & Hand Chain, M12™ Heated Jackets, Reconditioned product and Test
& Measurement products. There are separate and distinct warranties available for these products.
Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manu-
facturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time
warranty service is requested.
ACCEPTANCE OF THE EXCLUSIVE REP AIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF
THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION,
YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL,
SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES
OR DELAYS ALLEGED T O BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF , OR DEFECT IN ANY PRODUCT
INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME ST A TES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITA TION OR EXCLUSION
MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES,
WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITA TION ANY IMPLIED W ARRANTY OF MERCHANT ABILITY OR FITNESS FOR A P ARTICULAR
USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES
ARE LIMITED TO THE DURA TION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME ST A TES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITA TION MAY NOT
APPLY T O YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
This warranty applies to product sold in the U.S.A. and Canada only.
Please consult the ‘Service Center Search’ in the Parts & Service section of MILWAUKEE’s website www .milwaukeetool.com
or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest MILWAUKEE factory Service Center location.
LIMITED WARRANTY - MEXICO, CENTRAL AMERICA AND CARIBBEAN
TECHTRONIC INDUSTRIES' warranty is for 5 year since the original purchase date.
This warranty card covers any defect in material and workmanship on this Power Tool.
To make this warranty valid, present this warranty card, sealed/stamped by the distributor or store where you purchased the
product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original proof of
purchase to the ASC.
Call toll-free 1 800 832 1949 to fi nd the nearest ASC, for service, parts, accessories or components.
Procedure to make this warranty valid
T ake the product to the ASC, along with the warranty card sealed/stamped by the distributor or store where you purchased the
product, and there any faulty piece or component will be replaced without cost for you. We will cover all freight costs relative
with this warranty process.
Exceptions
This warranty is not valid in the following situations:
a) When the product is used in a different manners from the end-user guide or instruction manual.
b) When the conditions of use are not normal.
c) When the product was modifi ed or repaired by people not authorized by TECHTRONIC INDUSTRIES.
Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.
SERVICE AND ATTENTION CENTER
Model:
Rafael Buelna No.1.
Col. Tezozomoc Mexico, Azcapotzalco D.F.
Date of Purchase:
Ph. 01 800 832 1949
Distributor or Store Stamp:
IMPORTED AND COMMERCIALIZED BY:
TECHTRONIC INDUSTRIES MEXICO, .S.A. DE C.V.
Av. Santa Fe 481 piso 6, Col. Curz Manca.
CP 05349, Cuajimalpa, D.F.
9
Loading...
