Milwaukee Tool 0725-21 User Manual [en, es, fr]
Cat. No.
No de cat.
0725-20

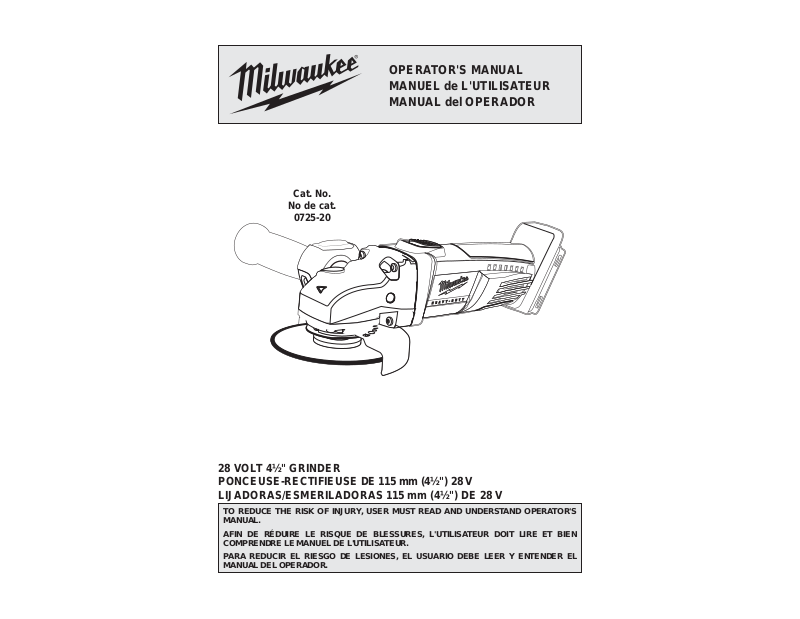

OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR
28 VOLT 4½" GRINDER
PONCEUSE-RECTIFIEUSE DE 115 m m (4½") 28 V
LIJADORAS/ESMERILADORAS 115 mm (4½") DE 28 V
TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S
MANUAL.
AFIN DE RÉDUIRE LE RISQUE DE BLESSURES, L'UTILISATEUR DOIT LIRE ET BIEN
COMPRENDRE LE MANUEL DE L'UTILISATEUR.
PARA REDUCIR EL RIESGO DE LESIONES, EL USUARIO DEBE LEER Y ENTENDER EL
MANUAL DEL OPERADOR.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING READ ALL SAFETY WARNINGS AND INSTRUCTIONS.
Failure to follow the warnings and instructions may result in electric shock, fi re and/or
serious injury. Save all warnings and instructions for future reference
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
• Keep work area clean and well lit. Cluttered or
WORK AREA SAFETY
dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
• Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodifi ed plugs and matching outlets will
reduce risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
• When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk
of electric shock.
• If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the infl uence of drugs, alcohol or
medication. A moment of inattention while oper-
ating power tools may result in serious personal
injury.
• Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
• Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your fi nger on the switch or energising power tools
that have the switch on invites accidents.
• Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
• Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
• If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
POWER TOOL USE AND CARE
• Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
• Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
• Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
• Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits
etc., in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
BA TTER Y T OOL USE AND CARE
• Recharge only with the charger specifi ed by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fi re
when used with another battery pack.
2
• Use power tools only with specifi cally desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and fi re.
• When battery pack is not in use, keep it away
from other metal objects like paper clips,
coins, keys, nails, screws, or other small metal
objects that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a fi re.
• Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact
accidentally occurs, fl ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
SERVICE
• Have your power tool serviced by a qualifi ed
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
SPECIFIC SAFETY RULES
Safety Warnings Common for Grinding, Sanding, Wire Brushing or Abrasive Cutting-Off
Operations:
• This power tool is intended to function as a
grinder, sander , wire brush or cut-off tool. Read
all safety warnings, instructions, illustrations
and specifi cations provided with this power tool.
Failure to follow all instructions listed below may
result in electric shock, fi re and/or serious injury .
• Operations such as polishing are not recom-
mended to be performed with this power tool.
Operations for which the power tool was not designed may create a hazard and cause personal
injury.
• Do not use accessories which are not specifi -
cally designed and recommended by the tool
manufacturer. Just because the accessory can
be attached to your power tool, it does not assure
safe operation.
• The rated speed of the accessory must be at
least equal to the maximum speed marked on
the power tool. Accessories running faster than
their rated speed can break and fl y apart.
• The outside diameter and the thickness of your
accessory must be within the capacity rating
of your power tool. Incorrectly sized accessories
cannot be adequately guarded or controlled.
• The arbour size of wheels, fl anges, backing
pads or any other accessory must properly fi t
the spindle of the power tool. Accessories with
arbour holes that do not match the mounting hardware of the power tool will run out of balance, vibrate
excessively and may cause loss of control.
• Do not use a damaged accessory. Before each
use inspect the accessory such as abrasive
wheels for chips and cracks, backing pad for
cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install
an undamaged accessory. After inspecting and
installing an accessory, position yourself and
bystanders away from the plane of the rotating
accessory and run the power tool at maximum
no-load speed for one minute. Damaged acces-
sories will normally break apart during this test
time.
• Wear personal protective equipment. Depend-
ing on application, use face shield, safety
goggles or safety glasses. As appropriate,
wear dust mask, hearing protectors, gloves
and work shop apron capable of stopping
small abrasive or workpiece fragments. The
eye protection must be capable of stopping
fl ying debris generated by various operations.
The dust mask or respirator must be capable of
fi ltrating particles generated by your operation.
Prolonged exposure to high intensity noise may
cause hearing loss.
• Keep bystanders a safe distance away from
work area. Anyone entering the work area
must wear personal protective equipment.
Fragments of workpiece or of a broken accessory
may fl y away and cause injury beyond immediate
area of operation.
• HHold power tool by insulated gripping surfac-
es only, when performing an operation where
the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting
a live wire may make exposed metal parts of the
power tool live and shock the operator.
• Position the cord clear of the spinning acces-
sory. If you lose control, the cord may be cut or
snagged and your hand or arm may be pulled into
the spinning accessory.
• Never lay the power tool down until the acces-
sory has come to a complete stop. The spinning
accessory may grab the surface and pull the power
tool out of your control.
• Do not run the power tool while carrying it at
your side. Accidental contact with the spinning
accessory could snag your clothing, pulling the
accessory into your body.
• Regularly clean the power tool’s air vents. The
motor’s fan will draw the dust inside the housing
and excessive accumulation of powdered metal
may cause electrical hazards.
• Do not operate the power tool near fl ammable
materials. Sparks could ignite these materials.
• Do not use accessories that require liquid
coolants. Using water or other liquid coolants
may result in electrocution or shock.
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or
snagged rotating wheel, backing pad, brush or
any other accessory. Pinching or snagging causes
rapid stalling of the rotating accessory which in turn
causes the uncontrolled power tool to be forced in
the direction opposite of the accessory’s rotation
at the point of the binding.
For example, if an abrasive wheel is snagged or
pinched by the workpiece, the edge of the wheel
that is entering into the pinch point can dig into
the surface of the material causing the wheel to
climb out or kick out. The wheel may either jump
toward or away from the operator, depending on
direction of the wheel’s movement at the point of
pinching. Abrasive wheels may also break under
these conditions.
3
Kickback is the result of power tool misuse and/or
incorrect operating procedures or conditions and
can be avoided by taking proper precautions as
given below.
• Maintain a fi rm grip on the power tool and posi-
tion your body and arm to allow you to resist
kickback forces. Always use auxiliary handle,
if provided, for maximum control over kickback
or torque reaction during start-up. The operator
can control torque reactions or kickback forces, if
proper precautions are taken.
• Never place your hand near the rotating acces-
sory. Accessory may kick back over your hand.
• Do not position your body in the area where
power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to
the wheel’s movement at the point of snagging.
• Use special care when working corners, sharp
edges etc. Avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing
have a tendency to snag the rotating accessory
and cause loss of control or kickback.
• Do not attach a saw chain woodcarving blade
or toothed saw blade. Such blades create frequent kickback and loss of control.
Safety Warnings Specific for Grinding and
Abrasive Cutting-Off Operations:
• Use only wheel types that are recommended
for your power tool and the specifi c guard
designed for the selected wheel. Wheels for
which the power tool was not designed can not
be adequately guarded and are unsafe.
• The guard must be securely attached to the
power tool and positioned for maximum safety,
so the least amount of wheel is exposed towards the operator. The guard helps to protect
operator from broken wheel fragments and accidental contact with wheel.
• Wheels must be used only for recommended
applications. For example: do not grind with the
side of cut-off wheel. Abrasive cut-off wheels are
intended for peripheral grinding, side forces applied
to these wheels may cause them to shatter.
• Always use undamaged wheel fl anges that are
of correct size and shape for your selected
wheel. Proper wheel fl anges support the wheel
thus reducing the possibility of wheel breakage.
Flanges for cut-off wheels may be different from
grinding wheel fl anges.
• Do not use worn down wheels from larger
power tools. Wheel intended for larger power tool
is not suitable for the higher speed of a smaller
tool and may burst.
Additional Safety Warnings Specifi c for Abra-
sive Cutting-Off Operations:
• Do not jam the cut-off wheel or apply excessive
pressure. Do not attempt to make an excessive
depth of cut. Overstressing the wheel increases
the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of
kickback or wheel breakage.
• Do not position your body in line with and
behind the rotating wheel. When the wheel, at
the point of operation, is moving away from your
body, the possible kickback may propel the spinning wheel and the power tool directly at you.
• When wheel is binding or when interrupting a
cut for any reason, switch off the power tool
and hold the power tool motionless until the
wheel comes to a complete stop. Never attempt
to remove the cut-off wheel from the cut while
the wheel is in motion otherwise kickback may
occur. Investigate and take corrective action to
eliminate the cause of wheel binding.
• Do not restart the cutting operation in the
workpiece. Let the wheel reach full speed and
carefully reenter the cut. The wheel may bind,
walk up or kickback if the power tool is restarted
in the workpiece.
• Support panels or any oversized workpiece to
minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their
own weight. Supports must be placed under the
workpiece near the line of cut and near the edge
of the workpiece on both sides of the wheel.
• Use extra caution when making a "pocketcut"
into existing walls or other blind areas. The
protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
Safety Warnings Specifi c for Sanding Opera-
tions:
• Do not use excessively oversized sanding disc
paper. Follow manufacturers recommendations, when selecting sanding paper. Larger
sanding paper extending beyond the sanding
pad presents a laceration hazard and may cause
snagging, tearing of the disc or kickback.
Safety Warnings Specifi c for Wire Brushing
Operations:
• Be aware that wire bristles are thrown by the
brush even during ordinary operation. Do not
over stress the wires by applying excessive
load to the brush. The wire bristles can easily
penetrate light clothing and/or skin.
• If the use of a guard is recommended for wire
brushing, do not allow any interference of the
wire wheel or brush with the guard. Wire wheel
or brush may expand in diameter due to workload
and centrifugal forces.
Additional Safety Warnings
• Maintain labels and nameplates. These carry
important information. If unreadable or missing,
contact a MILWAUKEE service facility for a free
replacement.
• WARNING: Some dust created by power sanding,
sawing, grinding, drilling, and other construction
activities contains chemicals known to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• lead from lead-based paint
• crystalline silica from bricks and cement and other
masonry products, and
• arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.
4
SPECIFICATIONS
Cat. No. Volts DC No Load RPM Spindle Thread Size Wheel Size Min. Wheel RPM Rating
0725-20 28 8000 5/8"-11 4-1/2" 8800
Use only MILWAUKEE M28™ or V28® battery packs.
SYMBOLOGY
Direct Current
Underwriters Laboratories, Inc.
United States and Canada
No Load Revolutions per
Minute (RPM)
FUNCTIONAL DESCRIPTION
4
1
6
1. Spindle lock
2. On/off switch
3. Handle
2
5
4. Side handle
5. Type 27 guard
6. Grinding disc
3
ASSEMBLY
WARNING Recharge only with the char-
ger specifi ed for the battery. For specifi c charg-
ing instructions, read the operator’s manual
supplied with your charger and battery.
WARNING Always remove battery
pack before changing or removing accessories. Only use accessories specifically
recommended for this tool. Others may be
hazardous.
Removing Battery Pack from Tool
Push in the release buttons and pull the battery
pack away from the tool.
Inserting Battery Pack into Tool
To insert the battery pack onto the tool, slide the
pack onto the body of the tool. Make sure it latches
securely into place.
Installing Side Handle
The side handle may be installed on either side of
gear case for right or left handed use. Position side
handle in the location which offers best control and
guard protection. T o install, thread side handle into
side handle socket on desired side of gear case
and tighten securely.
WARNING T o reduce the risk of injury
when grinding:
• ALWAYS use the proper guard.
• ALWAYS properly install the guard.
• ALW A YS hold the tool fi rmly with both hands
using the handles provided before and
during grinding.
• NEVER use a wheel that has been dropped.
• NEVER bang grinding disc onto work.
• NEVER grind without proper safety
equipment.
Installing, Removing and Adjusting the Guard
This tool is shipped with the guard installed. The
guard must be used when using the tool as a
grinder. The guard may be removed when using
tool as a sander.
1. Remove the battery
pack.
2. To remove the guard,
place the tool upside
down on a level surface. Remove any
accessories from
spindle.
3. Use a screwdriver to
lift up the retaining
tab and rotate the
guard to the front of
the tool. Pull off the
guard.
4. To install the guard,
line up the guard
from the front of the
tool. Slide the guard
under the spindle
plate.
5. Rotate the guard to
the position to best
protect the operator
(Fig. 2).
6. To adjust the guard,
rotate the guard to
one of the detent
slots.
5
Retaining
tab
Spindle plate
OPERATION
Fig. 3
Hold at a
5° to 15° angle
WARNING Always remove battery
pack before changing or removing
accessories. Only use accessories specifi -
cally recommended for this tool. Others may
be hazardous.
WARNING T o reduce the risk of injury ,
wear safety goggles or glasses with
side shields.
WARNING Only use accessories with
Maximum Safe Operating Speed rated
at least equal to the maximum speed marked
on the power tool. This speed is based on the
strength of the wheel, allowing for a reasonable
measure of safety. It is not meant to imply a
best or most effi cient operating speed. Do not
exceed the Maximum Safe Operating Speed.
Grinding Wheel / Sanding Disc Selection
Use sanding discs and grinding wheels that are:
• correct size as written on tool's nameplate.
• correct wheel type and grit for the job.
• rated at or above the RPM listed in the "WARNING" section on the tool's nameplate.
Use backing pads, adapters, and other accessories that are:
• correct size for tool and for sanding disc or grinding wheel.
• rated at or above the RPM listed in the "WARNING" section on the tool's nameplate.
• the proper accessory for the job.
Selecting Wheels
Grinding is the cutting action of thousands of abrasive grains on the face of a grinding wheel. When
grinding metals such as steel and iron, choose an
aluminum oxide grinding wheel. Select a silicon
carbide grinding wheel for stone and concrete. Use
cotton reinforced wheels for non-ferrous metals.
Type 27 Reinforced 1/8" thick or less Cut-Off
Wheels are suited for small cut-off and shallow
notching operations only.
Grinding and Cut-off Wheels
Always handle wheels carefully to avoid damage.
Before installing any wheel, always inspect it for
cracks. If wheel is cracked, discard it to prevent
others from using it.
WARNING T o reduce the risk of injury ,
the operator should be instructed in
the use, care and protection of grinding wheels.
Care of Grinding & Cut-Off Wheels
Grinding and cut-off wheels should be protected
from:
• wetness and extreme humidity
• any type of solvent
• extreme changes in temperature
• dropping and bumping
Grinding and cut-off wheels should be stored:
• in an organized way so wheels can be removed
without disturbing or damaging other wheels
• with their safety information
Grinding and cut-off wheels should NOT be:
• dropped
• rolled
• bumped
If any wheel is dropped, rolled, bumped, subjected
to extreme changes in temperature, or has come
into contact with solvents or wetness, discard wheel
immediately.
Installing/Removing Grinding Wheels
1. Remove the battery pack.
Fig. 1
Grinding
wheel
Flange
Spindle
Gear
case
2. Properly position the guard (Fig. 2).
Fig. 2
Operator's
Zones
3. Place the fl ange on spindle.
4. Place the selected wheel on the spindle and align
it with the fl ange.
5. Position the fl ange nut over the spindle according
to wheel thickness (Fig. 3).
Flange nut
position
for 1/8" thick or
less wheels
Flange nut
position
for 1/4" thick or
more wheels
6. Press in the spindle lock button while turning the
fl ange nut clockwise. Tighten securely using a
spanner wrench.
7. To remove wheel, remove the battery pack and
reverse the procedure.
6
Flange nut
1/8"
1/4"
Grinding
1. If you have just installed a grinding wheel or are
just beginning a period of work, test wheel by
letting it spin for one minute before applying it to
the workpiece.
NOTE: Out-of-balance wheels can mar work-
piece, damage the tool, and cause stress to
wheel that may cause wheel failure.
2. Use a clamp, vise or other practical means to
hold your work, freeing both hands to control
your tool.
3. When grinding, hold sander/grinder at a 5
15o angle, using constant pressure for a uniform
fi nish. Too great an angle causes concentrated
pressure on small areas which may gouge or
burn work surface.
Fig. 4
Hold at a
For best result use
only this portion of disc
4. To start the tool, grasp the handle and side
handle fi rmly and slide the switch to ON.
5. Allow grinding wheel to come to full speed before
beginning work.
6. Control pressure and surface contact between
wheel and workpiece. Too much pressure slows
grinding speed.
7. To stop the tool, release the switch. Make sure
the tool comes to a complete stop before laying
the tool down.
8. To lock-on the switch, slide the switch to ON and
then press down on the front of the switch. T o stop
the tool, press and release the switch. Make sure
the tool comes to a complete stop before laying
the tool down.
Using Cut-Off Wheels
5° to 15° angle
o
to
WARNING A Type “1” guard must be
installed when using a cut-off wheel
to provide maximum protection for the operator if the wheel should break.
Type “1” Cut-Off Wheels are suited for small cut-of f
and shallow notching operations only.
1. Firmly grasp body of tool
and side handle before
starting and while using
tool. Allow wheel to come to
full speed before starting.
2. When using a cut-off
wheel, hold Sander/Grinder as shown, using only the edge of the wheel.
3. Control pressure and surface contact between
disc and workpiece. Too much pressure slows
cutting speed.
WARNING Using the face of a Cut-Off
Wheel (as in grinding) will cause the
Wheel to crack and break, resulting in serious
personal injury.
Installing Wire Cup Brushes
WARNING Everyone in the area must
wear protective clothing and safety
goggles or face shields. Fatigued wires and
residue will fl y off the brush with considerable
force, causing potential for serious injury.
1. Unplug tool and place it upside down on a level
surface as shown. Remove any accessories from
spindle.
2. To install, thread wire cup
brush onto spindle. Press
the spindle lock button
while tightening brush with
a 7/8" open end wrench
(not provided with tool).
3. T o remove wire cup brush,
unplug tool and reverse
procedure.
Using Wire Wheel Brushes
Wire Cup
Brush
WARNING Because the wires on wire
wheel brushes are directed towards
the operator, a guard must be used to protect
the operator when fatigued wires break.
Wire wheel brushes are
useful for removing rust,
scale, burrs, weld slag, etc.
A wide variety of wire brushes are available for many
applications.
Test wire wheel brush for
balance and loose or damaged wires by running tool
at no load speed for at least one minute before
applying it to your work. During this time, no one
should stand in front of or in line with it. When applying brush to work, avoid using too much pressure.
This causes over-bending of wires and heat build-up
resulting in premature wire breakage, rapid dulling
and reduced brush life. Instead of using more pressure, try a wire wheel brush with more aggressive
cutting action (increased wire size, decreased wire
length or different brush type, i.e. knot type instead
of crimped wire type).
Wire Wheel Brush
Guard
WARNING Never exceed Maximum
Safe Operating Speed of brush. Do not use a
damaged brush or one which is functioning
improperly (throwing wires, out-of balance,
etc.). these conditions increase the possibility
of further brush failure and possible injury.
Discard and replace damaged brushes immediately.
7
Selecting Sanding Discs & Grit
Hold at a
5° to 15° angle
Refer to the table below to select the correct type
of sanding disc for your job. Generally, use 24 or
36 grit for heavy stock removal; 50, 60, or 80 grit
for medium stock removal and 120 grit for fi nishing.
Always begin with a coarse grit, using successively
fi ner grits to obtain the desired fi nish. See your
MILWAUKEE Electric Tool Catalog for a complete
list of sanding discs.
Aluminum Oxide
For fast cutting, general purpose discs for most
metal jobs. Best for cold-rolled steel, stainless
steel or metals requiring tough, fast cutting, long
lasting abrasives.
Aluminum Zirconia Bi-Cut
Unique grit pattern is arranged in clusters for faster stock removal and cleaning. Ideal for removing
paint from cars, boats, etc. without clogging.
Ceramic
Lasts up to 3 times longer than Aluminum Oxide
Discs. For general metal working. Ideal for tough
jobs.
Installing Backing Pad and Sanding Discs
1. Remove battery pack.
2. Place tool upside down on a level surface. Remove any accessories from spindle.
Fig. 5
Disc nut
Sanding
disc
Backing
pad
Spindle
Gear
case
3. Slip backing pad onto spindle with fl at side away
from gear case.
4. Place sanding disc on backing pad and secure
assembly to spindle with disc nut.
5. To tighten, press the spindle lock button while
turning disc nut clockwise with the spanner
wrench provided.
6. T o remove backing pad and sanding disc, remove
battery pack reverse procedure.
Sanding
1. Use a clamp, vise or other practical means to
hold your work, freeing both hands to control
your tool.
2. Hold sander/grinder at 5° to 15° angle to ensure
proper sanding pressure and control. Too great
an angle will result in too much pressure and
could cause excessive wear to the disc and workpiece. Too small an angle will reduce control.
Fig. 6
Hold at a
5° to 15° angle
For best result use
only this portion of disc
3. To start the tool, grasp the handle and side
handle fi rmly and slide the switch to ON.
4. Allow sanding disc to come to full speed before
beginning to sand. Use long, sweeping, side to
side strokes, advancing forward to produce the
desired fi nish.
5. To stop the tool, release the switch. Make sure
the tool comes to a complete stop before laying
the tool down.
6. To lock-on the switch, slide the switch to ON
and then press down on the front of the switch.
To stop the tool, press and release the switch.
Make sure the tool comes to a complete stop
before laying the tool down.
Cross Sanding
When fi nishing a surface that has been prepared
by a coarse disc or wheel, sand at right angles
to the strokes made by the coarser disc. Finishing marks left from previous sanding are easily
seen and removed for a uniform fi nish. Failure to
cross sand when changing from a coarse disc to
a fi nishing disc may result in deep scratches and
circular marks.
Removing Welds or Hammer Marks
When removing welds or hammer marks, limit
coarse sanding to the immediate area. Use successively fi ner grits to smooth surface.
Finishing Metal
Constantly move across the surface. Work faster on
curved surfaces where contact areas are smaller
and pressure is greater. Flat areas may appear at
the end of the stroke when pressure is too heavy.
Ease up on pressure at end of each stroke and
when reversing strokes.
Troubleshooting
Deep scratches and circular marks can result
from:
• Using too coarse a grit
• Using a partially glazed disc
• Dirt or loose metal on the workpiece
• Failure to sand across the grain when changing
from coarse to fi nishing discs
• Failure to use closed coated discs to reduce the
problem of grains working loose and scratching
the workpiece
Bluish discoloration of metal surface indicates:
• Excessive heat caused by circular motion in a
small area
• Excessive pressure
• Use of worn out or glazed discs
8
MAINTENANCE
WARNING T o reduce the risk of injury ,
always unplug the charger and remove the battery pack from the charger or tool
before performing any maintenance. Never
disassemble the tool, battery pack or charger.
Contact a MILWAUKEE service facility for ALL
repairs.
Maintaining Tool
Keep your tool, battery pack and charger in good
repair by adopting a regular maintenance program.
After six months to one year, depending on use,
return the tool, battery pack and charger to A
MILWAUKEE service facility for:
• Lubrication
• Mechanical inspection and cleaning (gears,
spindles, bearings, housing, etc.)
• Electrical inspection (battery pack, charger,
motor)
• Testing to assure proper mechanical and
electrical operation
If the tool does not start or operate at full power
with a fully charged battery pack, clean the contacts
on the battery pack. If the tool still does not work
properly, return the tool, charger and battery pack,
to a MILWAUKEE service facility for repairs.
WARNING To reduce the risk of per-
sonal injury and damage, never immerse your tool, battery pack or charger in
liquid or allow a liquid to fl ow inside them.
Cleaning
Clean dust and debris from charger and tool
vents. Keep tool handles clean, dry and free of oil
or grease. Use only mild soap and a damp cloth
to clean the tool, battery pack and charger since
certain cleaning agents and solvents are harmful to
plastics and other insulated parts. Some of these
include gasoline, turpentine, lacquer thinner, paint
thinner, chlorinated cleaning solvents, ammonia
and household detergents containing ammonia.
Never use flammable or combustible solvents
around tools.
Repairs
For repairs, return the tool, battery pack and charger to the nearest service center.
ACCESSORIES
WARNING Always remove battery pack
before changing or removing accessories. Only
use accessories specifi cally recommended for
this tool. Others may be hazardous.
For a complete listing of accessories refer to your
MILWAUKEE Electric Tool catalog or go online
to www.milwaukeetool.com. To obtain a catalog,
contact your local distributor or service center.
9
LIMITED WARRANTY - USA AND CANADA
Every MILWAUKEE power tool (including cordless product – tool, battery pack(s) - see separate & distinct CORDLESS
BATTERY PACK LIMITED WARRANTY statements & battery charger and Work Lights*) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILW AUKEE will repair
or replace any part on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in
material or workmanship for a period of fi ve (5) years* after the date of purchase unless otherwise noted. Return of the
power tool to a MILW AUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid
and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty
does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than
MILW AUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear , lack of maintenance, or accidents.
*The warranty period for, Job Site Radios, M12™ Power Port and T rade Titan™ Industrial Work Carts is one (1) year from
the date of purchase. The warranty period for a LED Work Light and LED Upgrade Bulb is a limited LIFETIME warranty
to the original purchaser only, if during normal use the LED bulb fails the Work Light or Upgrade Bulb will be replaced
free of charge.
*This warranty does not cover Air Nailers & Stapler, Airless Paint Sprayer, Cordless Battery Packs, Gasoline Driven
Portable Power Generators, Hand Tools, Hoist – Electric, Lever & Hand Chain, M12™ Heated Jackets, Reconditioned
product and Test & Measurement products. There are separate and distinct warranties available for these products.
Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The
manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at
the time warranty service is requested.
ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF
THE CONTRACT FOR THE PURCHASE OF EVERY MIL WAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION,
YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL,
SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES
OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT
INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME ST ATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION
MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES,
WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITA TION ANY IMPLIED W ARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES
ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT
APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
This warranty applies to product sold in the U.S.A. and Canada only.
Please consult the ‘Service Center Search’ in the Parts & Service section of MIL WAUKEE’ s website www.milwaukeetool.com
or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest MILWAUKEE factory Service Center location.
LIMITED WARRANTY - MEXICO, CENTRAL AMERICA AND CARIBBEAN
TECHTRONIC INDUSTRIES' warranty is for 5 year since the original purchase date.
This warranty card covers any defect in material and workmanship on this Power Tool.
To make this warranty valid, present this warranty card, sealed/stamped by the distributor or store where you purchased
the product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original
proof of purchase to the ASC.
Call toll-free 1 800 832 1949 to fi nd the nearest ASC, for service, parts, accessories or components.
Procedure to make this warranty valid
Take the product to the ASC, along with the warranty card sealed/stamped by the distributor or store where you purchased the product, and there any faulty piece or component will be replaced without cost for you. We will cover all
freight costs relative with this warranty process.
Exceptions
This warranty is not valid in the following situations:
a) When the product is used in a different manners from the end-user guide or instruction manual.
b) When the conditions of use are not normal.
c) When the product was modifi ed or repaired by people not authorized by TECHTRONIC INDUSTRIES.
Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.
SERVICE AND ATTENTION CENTER
Model:
Rafael Buelna No.1.
Col. Tezozomoc Mexico, Azcapotzalco D.F.
Date of Purchase:
Ph. 01 800 832 1949
Distributor or Store Stamp:
IMPORTED AND COMMERCIALIZED BY:
TECHTRONIC INDUSTRIES MEXICO, .S.A. DE C.V.
Av. Santa Fe 481 piso 6, Col. Curz Manca.
CP 05349, Cuajimalpa, D.F.
10
RÈGLES DE SÉCURITÉ GÉNÉRALES RELATIVES AUX
OUTILS ÉLECTRIQUES
AVERTISSEMENT LIRE TOUTES LES RÈGLES ET INSTRUCTIONS DE SÉCURITÉ.
Ne pas suivre l’ensemble des règles et instructions peut entraîner une électrocution,
un incendie ou des blessures graves. Conserver les règles et les instructions à des
fi ns de référence ultérieure. Le terme «outil électrique» fi gurant dans les avertissements ci-
dessous renvoie à l’outil électrique à alimentation par le réseau (à cordon) ou par batterie (sans fi l).
SÉCURITÉ DU LIEU DE TRA VAIL
• Maintenir la zone de travail propre et bien
éclairée. Les zones encombrées ou mal éclairées
sont favorables aux accidents.
• Ne pas utiliser d’outil électrique dans une at-
mosphère explosive, telle qu’en en présence
de liquides, de gaz ou de poussières infl am-
mables. Les outils électriques génèrent des
étincelles qui peuvent enfl ammer les poussières
ou les fumées.
• Tenir les enfants et les personnes non auto-
risées à l’écart pendant le fonctionnement
d’un outil électrique. Un manque d’attention de
l’opérateur risque de lui faire perdre le contrôle
de l’outil.
SÉCURITÉ ÉLECTRIQUE
• La fi che de l’outil électrique doit correspondre
à la prise d’alimentation. Ne jamais modifi er
la fi che d’une manière quelconque. Ne pas
utiliser d’adaptateur avec les outils électriques
mis à la terre (à la masse). Des fi ches non
modifi ées et des prises d’alimentation assorties
réduisent le risque de choc électrique.
• Éviter tout contact corporel avec des surfaces
reliées à la masse ou à la terre telles que tuyaux, radiateurs, cuisinières et réfrigérateurs.
Un risque de choc électrique plus élevé existe si
le corps est relié à la masse ou à la terre.
• Ne pas exposer les outils électriques à la pluie
ou à l’humidité. Le risque de choc électrique aug-
mente si de l’eau s’infi ltre dans un outil électrique.
• Prendre soin du cordon. Ne jamais utiliser le
cordon pour transporter, tirer ou débrancher
l’outil électrique. Tenir le cordon à l’écart de la
chaleur, des huiles, des arêtes coupantes ou
des pièces en mouvement. Un cordon endom-
magé ou emmêlé présente un risque accru de
choc électrique.
• Se procurer un cordon d’alimentation appro-
prié en cas d’utilisation d’un outil électrique à
l’extérieur. L’utilisation d’un cordon d’alimentation
pour usage extérieur réduit le risque de choc
électrique.
• S’il est nécessaire d’utiliser l’outil électrique
dans un endroit humide, installer un appareil
à courant résiduel (RCD). L’utilisation d’un RCD
réduit le risque de décharge électrique.
SÉCURITÉ INDIVIDUELLE
• Être sur ses gardes, être attentif et faire preuve
de bon sens en utilisant un outil électrique. Ne
pas utiliser un outil électrique en cas de fatigue ou sous l’infl uence de drogues, d’alcool
ou de médicaments. Un instant d’inattention lors
de l’utilisation d’un outil électrique peut entraîner
des blessures graves.
• Porter l’équipement de protection requis.
Toujours porter une protection oculaire.
Selon les conditions, porter aussi un masque
anti-poussières, des bottes de sécurité antidérapantes, un casque protecteur ou une protection
auditive afi n de réduire les blessures.
• Empêcher les démarrages accidentels.
S’assurer que la gâchette est en position
d’arrêt avant de brancher l’outil à une source
de courant, d’insérer la batterie, de le ramasser
ou de le transporter. Le fait de transporter
l’outil en gardant le doigt sur la gâchette ou de le
brancher lorsque la gâchette est en position de
marche favorise les accidents.
• Retirer toute clé de réglage avant de mettre
l’outil sous tension. Une clé laissée attachée
sur une pièce mobile de l’outil électrique peut
entraîner des blessures.
• Ne pas travailler à bout de bras. Bien garder
un bon équilibre à tout instant. Ceci permet de
mieux préserver la maîtrise de l’outil électrique
dans des situations imprévues.
• Porter des vêtements adéquats. Ne pas porter
de vêtements amples ni de bijoux. Ne pas approcher les cheveux, vêtements et gants des
pièces en mouvement. Les vêtements amples,
les bijoux ou les cheveux longs risquent d’être
happés par les pièces en mouvement.
• Si des dispositifs sont prévus pour l’extraction
et la récupération des poussières, vérifi er
qu’ils sont connectés et utilisés correctement.
L’utilisation de ces dispositifs peut réduire les
risques liés aux poussières.
UTILISATION ET ENTRETIEN
DE L’OUTIL ÉLECTRIQUE
• Ne pas forcer l’outil électrique. Utiliser l’outil
électrique approprié à l’application considérée. L’outil électrique adapté au projet considéré
produira de meilleurs résultats, dans des conditions de sécurité meilleures, à la vitesse pour
laquelle il a été conçu.
• Ne pas utiliser l’outil électrique si le commutateur ne le met pas sous ou hors tension. Tout
outil électrique dont le commutateur de marchearrêt est inopérant est dangereux et doit être
réparé.
• Débrancher la fi che de la prise d’alimentation
et/ou la batterie de l’outil électrique avant
d’effectuer des réglages, de changer
d’accessoires ou de ranger l’outil. De telles
mesures de sécurité préventive réduisent le risque
de mettre l’outil en marche accidentellement.
• Ranger les outils électriques inutilisés hors
de la portée des enfants et ne pas laisser des
personnes qui connaissent mal les outils électriques ou ces instructions utiliser ces outils.
11
Loading...
