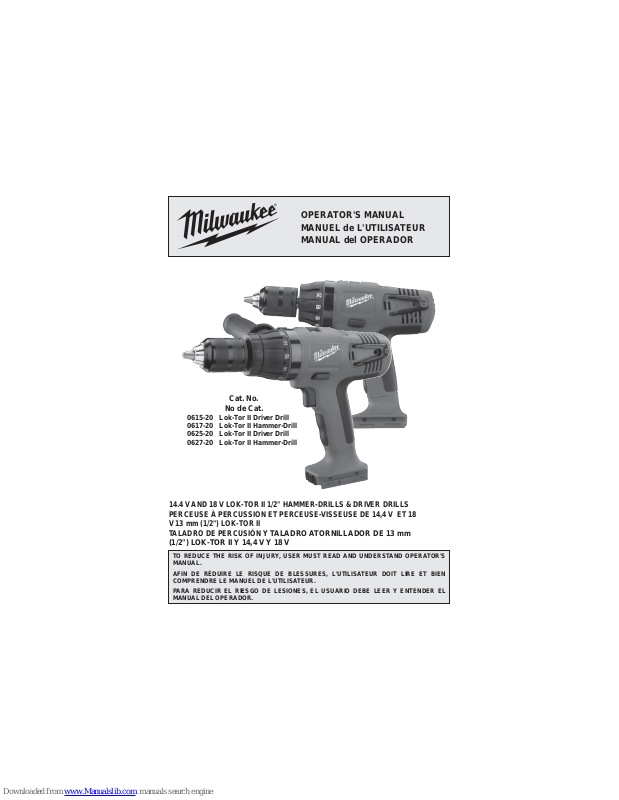

Milwaukee 0615-20, 0617-20, 0625-20, 0627-20, Lok-Tor II 0615-20 Operator's Manual
...
OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR
TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S
MANUAL.
AFIN DE RÉDUIRE LE RISQUE DE BLESSURES, L'UTILISATEUR DOIT LIRE ET BIEN
COMPRENDRE LE MANUEL DE L'UTILISATEUR.
PARA REDUCIR EL RIESGO DE LESIONES, EL USUARIO DEBE LEER Y ENTENDER EL
MANUAL DEL OPERADOR.
14.4 V AND 18 V LOK-TOR II 1/2" HAMMER-DRILLS & DRIVER DRILLS
PERCEUSE À PERCUSSION ET PERCEUSE-VISSEUSE DE 14,4 V ET 18
V 13 mm (1/2") LOK-TOR II
TALADRO DE PERCUSIÓN Y
TALADRO ATORNILLADOR DE 13 mm
(1/2") LOK-TOR II Y 14,4 V Y 18 V
0615-20 Lok-Tor II Driver Drill
0617-20 Lok-Tor II Hammer-Drill
0625-20 Lok-Tor II Driver Drill
0627-20 Lok-Tor II Hammer-Drill
Cat. No.
No de Cat.
2
3
PERSONAL SAFETY
GENERAL POWER TOOL SAFETY WARNINGS
WORK AREA SAFETY
ELECTRICAL SAFETY
• Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable
liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
• Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
• Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodifi ed plugs and matching outlets will
reduce risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. W ater entering a power tool will increase
the risk of electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
• When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
• If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
under the infl uence of drugs, alcohol or medi-
cation. A moment of inattention while operating
power tools may result in serious personal injury.
• Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
• Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your fi nger on the switch or energising power
tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
• Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or
jewellery. Keep your hair , clothing and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
• If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
WARNING READ ALL SAFETY WARNINGS AND INSTRUCTIONS.
Failure to follow the warnings and instructions may result in electric shock, fi re and/or
serious injury.
Save all warnings and instructions for future reference
The term "power tool" in the warnings refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
POWER TOOL USE AND CARE
• Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
• Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
• Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
• Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
preventive safety measures reduce the risk of
starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
• Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits
etc., in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.
BATTER Y T OOL USE AND CARE
SERVICE
• Have your power tool serviced by a qualifi ed
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
• Recharge only with the charger specifi ed by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fi re
when used with another battery pack.
• Use power tools only with specifi cally desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and fi re.
• When battery pack is not in use, keep it away
from other metal objects like paper clips,
coins, keys, nails, screws, or other small metal
objects that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a fi re.
• Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact
accidentally occurs, fl ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
SPECIFIC SAFETY RULES
FUNCTIONAL DESCRIPTION
• Use auxiliary handles supplied with the tool.
Loss of control can cause personal injury.
• Hold power tools by insulated gripping sur-
faces when performing an operation where
the cutting tool may contact hidden wiring
or its own cord. Contact with a “live” wire will
make exposed metal parts of the tool “live” and
shock the operator.
• Keep hands away from all cutting edges and
moving parts.
• Maintain labels and nameplates. These carry
important information. If unreadable or missing,
contact a MILWAUKEE service facility for a free
replacement.
• WARNING: Some dust created by power sand-
ing, sawing, grinding, drilling, and other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• lead from lead-based paint
• crystalline silica from bricks and cement and
other masonry products, and
• arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.
• Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.
1. Tool holder
2. Trigger
3. Control switch
4. Hammer/drill selector collar
(Hammer-Drill models only)
5. Keyless chuck
6. Side handle
7. Torque selector collar
8. Side handle ribs
9. Speed selector
1
2
4
5
3
6
7
9
8
4
5
OPERATION
WARNING T o reduce the risk of injury ,
wear safety goggles or glasses with side
shields.
WARNING Always remove battery
pack before changing or removing accessories. Only use accessories specifically
recommended for this tool. Others may be
hazardous.
ASSEMBLY
WARNING Recharge only with the
charger specifi ed for the battery. For specifi c
charging instructions, read the operator’s
manual supplied with your charger and
battery.
Symbology
Direct Current
No Load Revolutions per
Minute (RPM)
Underwriters Laboratories, Inc.
United States and Canada
WARNING Always lock trigger or
remove battery pack before changing or removing accessories. Only use accessories
specifi cally recommended for this tool. Others
may be hazardous.
Capacities
Steel
1/2"
1/2"
1/2"
1/2"
Wood
Flat Bit
1-1/2"
1-1/2"
1-1/2"
1-1/2"
Auger Bit
1-1/8"
1-1/8"
1-1/8"
1-1/8"
Hole Saw
2-1/8"
2-1/8"
2-1/8"
2-1/8"
Screws (dia.)
1/4"
1/4"
1/4"
1/4"
Masonry
N/A
1/2"
N/A
1/2"
0615-20
0617-20
0625-20
0627-20
Specifi cations
Cat. No.
0615-20
0617-20
0625-20
0627-20
Volts
DC
14.4
14.4
18
18
No Load RPM
Low 0-500
High 0-1700
Low 0-500
High 0-1700
Low 0-500
High 0-1700
Low 0-500
High 0-1700
No Load Blows
per Minute
N/A
Low 0-7500
High 0-25500
N/A
Low 0-7500
High 0-25500
Inserting Battery Pack into Tool
The battery pack may feel warm after the charging
cycle. If it is warm, maximize the output of the battery by allowing it to cool for a few minutes before
inserting it into the tool.
Battery pack can be inserted into the tool in two
ways.
1. For working in restricted spaces, insert the
battery pack from the front by sliding battery
pack into the body of the tool. Insert the battery
pack until the battery latches lock.
2. For optimum weight distribution and balance,
insert the battery pack from the back by sliding the battery pack into the body of the tool.
Insert the battery pack until the battery latches
lock.
3. To remove the battery pack, press in both
battery latches and slide the battery pack off
of the tool.
90° left
Side
handle
rib
Indent
Fig. 1
Bit
holder
Fig. 2
Belt clip
Tool release lever
Stud
Pin
Clamp
Clamp
release
Tool
holder
Front tangs
Installing the Side Handle
1. To install the side handle, loosen the side
handle grip until the ring is large enough to
slide over the torque selector collar.
2. Rotate the handle to 90° left or 90° right of the
trigger handle.
3. Push the ring tightly against the side handle
ribs on the tool. The indent in the side handle
must fi t over the appropriate rib.
4. Tighten the side handle grip securely.
5. To remove the side handle, loosen the side
handle grip until the ring is large enough to
slide off the tool.
WARNING T o reduce the risk of injury ,
always use a side handle when using this tool.
Always brace or hold securely.
Clip-Lok
TM
System
The Clip-Lok system consists of three pieces; the
belt clip, the tool holder, and the bit holder.
2. Remove screws holding the tool holder and
the bit holder.
3. Lift the holders at the narrow end and pull the
front tangs out of their slots.
4. Replace the pieces onto the desired side by
sliding the tangs into the slots. Tighten the
screws securely.
Attaching the Belt Clip
The belt clip can be mounted to tool belts, bags,
buckets, etc. To mount the belt clip:
1. Pull up the clamp release. The clamp will pop
out.
2. Slide the clamp over the tool belt, bag, bucket,
etc.
3. Press in the clamp to tighten.
Using the Clip-Lok Tool Holder
1. To attach the tool to the belt clip, slide the tool
holder over the stud on the belt clip until it is
held in place by the protruding pin.
2. To release the tool from the belt clip, grasp the
tool handle, push down on the tool release lever with your thumb, and pull up on the tool.
Using the Clip-Lok Bit Holder
The bit holder holds two standard 1/4" hex shank
bits up to two inches long.
1. Insert the bit by pressing it into the clip.
2. Remove the bit by lifting the tip of the bit and
pulling it out of the clip.
The system is shipped assembled for right-handed
use. To change the assembly for left-handed use:
1. Remove battery pack.
Using Keyless Chucks
Your cordless tool is equipped with a spindle lock.
The chuck can be tightened with one hand, creating
higher grip strengths on the bit.
Always remove the battery pack or lock the trigger
before inserting or removing bits.
1. To open the chuck jaws, turn the sleeve in the
counterclockwise direction.
When using drill bits, allow the bit to strike the
bottom of the chuck. Center the bit in the chuck
jaws and lift it about 1/16" off of the bottom. When
using screwdriver bits, insert the bit far enough
for the chuck jaws to grip the hex of the bit.
Fig. 3
Low
High
2. To close the chuck jaws, turn the sleeve in the
clockwise direction. The bit is secure when the
chuck makes a ratcheting sound and the sleeve
can not be rotated any further.
3. To remove the bit, turn the sleeve in the counterclockwise direction.
NOTE: A ratcheting sound may be heard when the
chuck is opened or closed. This noise is part of the
locking feature, and does not indicate a problem
with the chuck's operation.
Selecting Speed
The speed selector is on top
of the motor housing. Allow
the tool to come to a complete stop before changing
speeds. See “Applications”
for recommended speeds
under various conditions.
1. For Low speed (up to 500 RPM), push the speed
selector to the left.
2. For High speed (up to 1700 RPM), push the
speed selector to the right.
6
7
APPLICATIONS
WARNING To reduce the risk of elec-
tric shock, check work area for hidden pipes
and wires before drilling or driving screws.
Fig. 7
Push for
Forward
Push for
Reverse
PUSH TO CENTER TO LOCK
Fig. 4
To Hammer
Fig. 5
To Drill
Fig. 6
To Drive Screws
Torque
selector
collar setting
1 - 5
6 - 10
11 - 15
16 - 20
Drill
Low
High
0 - 17 in. lbs.
21 - 38 in. lbs.
42 - 60 in. lbs.
65 - 85 in. lbs.
460 in. lbs.
160 in. lbs.
0615-20
& 0617-20
Torque
0 - 17 in. lbs.
21 - 38 in. lbs.
42 - 60 in. lbs.
65 - 85 in. lbs.
495 in. lbs.
175 in. lbs.
0625-20
& 0627-20
Torque
Selecting Hammer or Drill Action
MILWAUKEE Hammer-Drills are designed for three
operating modes: drilling with hammering action,
drilling only, and driving screws. To set the operating
mode, rotate the hammer/drill selector collar and
torque selector collar to the desired symbols.
1. To use the hammer-drilling mode, rotate the
hammer/drill selector collar until the hammer
symbol
appears in line with the arrow. Then
rotate the Torque selector collar until the drill
symbol appears in line with the arrow. Apply pressure to the bit to engage the hammering
mechanism.
NOTE: When using carbide bits, do not use water
to settle dust. Do not attempt to drill through steel
reinforcing rods. This will damage the carbide
bits.
2. To use the drilling only mode, rotate the
hammer/drill selector collar until the drill symbol
appears in line with the arrow. Then rotate
the Torque selector collar until the drill symbol
appears in line with the arrow.
3. To use the driving screws mode, rotate the
hammer/drill selector collar until the drill symbol
appears in line with the arrow. Then rotate
the torque selector collar until the desired clutch
setting appears in line with the arrow.
The adjustable clutch ,when properly adjusted,
will slip at a preset torque to prevent driving the
screw too deep into different materials and to
prevent damage to the screw or tool.
The torque specifi cations shown here are approxi-
mate values.
NOTE: Because the above settings are only a
guide, use a piece of scrap material to test the different clutch positions before driving screws into
the workpiece.
Using Control Switch
The control switch may be set to three positions:
forward, reverse and lock. Due to a lockout mechanism, the control switch can only be adjusted when
the ON/OFF switch is not depressed. Always allow
the motor to come to a complete stop before using
the control switch.
For forward (clockwise) rotation, push in the control
switch from the right side of the tool. Check the
direction of rotation before use.
For reverse (counterclockwise) rotation, push in the
control switch from the left side of the tool. Check
direction of rotation before use.
To lock the trigger, push the control switch to the
center position. The trigger will not work while
the control switch is in the center locked position.
Always lock the trigger or remove the battery
pack before performing maintenance, changing
accessories, storing the tool and any time the tool
is not in use.
Starting, Stopping and Controlling Speed
1. To start the tool, grasp the handle fi rmly and
pull the trigger.
2. To vary the speed, increase or decrease the
pressure on the trigger. The further the trigger
is pulled, the greater the speed.
3. To stop the tool, release the trigger. Make sure
the bit comes to a complete stop before laying
the tool down.
Drilling
Set both the hammer/drill and torque selector collars to the drill positions.
Place the bit on the work surface and apply fi rm
pressure before starting. Too much pressure will
slow the bit and reduce drilling effi ciency. T oo little
pressure will cause the bit to slide over the work
area and dull the point of the bit.
If the tool begins to stall, reduce pressure slightly to
allow the bit to regain speed. If the bit binds, reverse
the motor to free the bit from the workpiece.
Drilling in Wood, Composition Materials and
Plastic
When drilling in wood, composition materials and
plastic, start the drill slowly, gradually increasing
speed as you drill. When drilling into wood, use
wood augers or twist drill bits. Always use sharp
bits. When using twist drill bits, pull the bit out of the
hole frequently to clear chips from the bit fl utes. To
reduce the chance of splintering, back work with a
piece of scrap wood. Select low speeds for plastics
with a low melting point.
Drilling in Metal
When drilling in metal, use high speed steel twist
drills or hole saws. Use a center punch to start the
hole. Lubricate drill bits with cutting oil when drilling
in iron or steel. Use a coolant when drilling in nonferrous metals such as copper, brass or aluminum.
Back the material to prevent binding and distortion
on breakthrough.
Drilling in Masonry
When drilling in masonry, select the hammer-drill
operating mode (hammer-drills only). Use high
speed carbide-tipped bits. Drilling soft masonry materials such as cinder block requires little pressure.
Hard materials like concrete require more pressure.
A smooth, even fl ow of dust indicates the proper
drilling rate. Do not let the bit spin in the hole without
cutting. Do not use water to settle dust or to cool
bit. Both actions will damage the carbide.
Driving Screws and Nut Running
Drill a pilot hole when driving screws into thick or
hard materials. Set the torque selector collar to the
proper position and set the speed to low. Use the
proper style and size screwdriver bit for the type
of screw you are using.
With the screwdriver bit in the screw, place the tip of
the screw on the workpiece and apply fi rm pressure
before pulling the trigger. Screws can be removed
by reversing the motor.
Overloading
Continuous overloading may cause permanent
damage to tool or battery pack.
Fig. 8
Reaction
Forward
rotation
Bracing
against the
fl oor
WARNING High rotational force. To
reduce the risk of injury, always hold or brace
securely. Always use side handle on tools.
Bit Binding
A high rotational force occurs when a bit binds. If
the bit binds, the tool will be forced in the opposite
direction of the bit rotation. Bits may bind if they
are misaligned or when they are breaking through
a hole. Wood boring bits can also bind if they run
into nails or knots. Be prepared for bit binding
situations.
To reduce the chance of bit binding:
• Use sharp bits. Sharp bits are less likely to bind
when drilling.
• Use the proper bit for the job. There are bits that
are designed for specifi c purposes.
• Use caution when drilling pitchy, knotty, wet or
warped material or when drilling in material that
may contain nails.
Typical Bracing Methods
8
9
FIVE YEAR TOOL LIMITED WARRANTY
Every MILWAUKEE power tool (including cordless product – tool, battery pack(s) and battery charger and
Work Lights – cordless fl ashlights) is warranted to the original purchaser only to be free from defects in
material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on
an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material
or workmanship for a period of fi ve (5) years* after the date of purchase. Return the electric power tool and
a copy of proof of purchase to a MILWAUKEE factory Service Center location or MILW AUKEE Authorized
Service Station, freight prepaid and insured. This warranty does not apply to damage that MILWAUKEE
determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.
*Every MILWAUKEE V™-technology LITHIUM-ION Battery Pack and XC LITHIUM-ION Battery Pack is
warranted for fi ve (5) years / 2000 charges from the date of purchase, whichever fi rst occurs. The fi rst
1000 charges or 2 years of the warranty, whichever fi rst occurs, are covered through free replacement
of the defective battery. This means that for the earlier of the fi rst 1000 charges or two (2) years from
the date of purchase/fi rst charge, a replacement battery will be provided to the customer for any defec-
tive battery free of charge. Thereafter, the remaining charges up to a total of 2000 or the remainder
of the fi ve (5) year period from the date of purchase, whichever fi rst occurs, will be covered on a pro
rata basis. This means that every customer gets an additional 1000 charges or three (3) years of pro
rata warranty on the V™-technology LITHIUM-ION Battery Pack and XC LITHIUM-ION Battery Pack
depending upon the amount of use.
*The warranty period for ALL non V™-technology and non XC LITHIUM-ION battery packs is two (2)
years from the date of purchase.
*The warranty period for M12 2-Beam Laser & M12 Power Port, all Ni-CD Battery Packs, Job Site Radios,
and Trade Titan™ Industrial Work Carts is one (1) year from the date of purchase.
Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE product. The
manufacturing date of the product will be used to determine the warranty period if no proof of purchase
is provided at the time warranty service is requested.
ACCEPTANCE OF THE EXCLUSIVE REP AIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN
IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT.
IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN
NO EVENT SHALL MILW AUKEE BE LIABLE FOR ANY INCIDENT AL, SPECIAL, CONSEQUENTIAL OR
PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS
ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY
PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. THIS W ARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER W ARRANTIES OR CONDITIONS, WRITTEN OR
ORAL, EXPRESSED OR IMPLIED. WITHOUT LIMITING THE GENERALITY OF THE FOREGOING,
MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR USE OR PURPOSE, AND ALL OTHER WARRANTIES.
This warranty applies to product sold in the U.S.A., Canada and Mexico only.
Please consult the ‘Service Center Search’ in the Parts & Service section of MILWAUKEE’s website
www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility
for warranty and non-warranty service on a Milwaukee electric power tool.
WARNING To reduce the risk of per-
sonal injury and damage, never immerse your
tool, battery pack or charger in liquid or allow
a liquid to fl ow inside them.
ACCESSORIES
For a complete listing of accessories refer to your
MILWAUKEE Electric Tool catalog or go online to
www.milwaukeetool.com. To obtain a catalog, contact your local distributor or a service center listed
on the back cover of this operator’s manual.
WARNING Always remove battery
pack before changing or removing accessories. Only use accessories specifically
recommended for this tool. Others may be
hazardous.
MAINTENANCE
WARNING T o reduce the risk of injury ,
always unplug the charger and remove the
battery pack from the charger or tool before
performing any maintenance. Never disassemble the tool, battery pack or charger.
Contact a MILWAUKEE service facility for
ALL repairs.
Cleaning
Clean dust and debris from charger and tool
vents. Keep tool handles clean, dry and free of oil
or grease. Use only mild soap and a damp cloth
to clean the tool, battery pack and charger since
certain cleaning agents and solvents are harmful to
plastics and other insulated parts. Some of these
include gasoline, turpentine, lacquer thinner, paint
thinner, chlorinated cleaning solvents, ammonia
and household detergents containing ammonia.
Never use flammable or combustible solvents
around tools.
Repairs
For repairs, return the tool, battery pack and charger to the nearest service center listed on the back
cover of this operator's manual.
Maintaining Tool
Keep your tool, battery pack and charger in good
repair by adopting a regular maintenance program.
After six months to one year, depending on use,
return the tool, battery pack and charger to A
MILWAUKEE service facility for:
• Lubrication
• Mechanical inspection and cleaning (gears,
spindles, bearings, housing, etc.)
• Electrical inspection (battery pack, charger,
motor)
• Testing to assure proper mechanical and
electrical operation
If the tool does not start or operate at full power
with a fully charged battery pack, clean the contacts
on the battery pack. If the tool still does not work
properly, return the tool, charger and battery pack,
to a MILWAUKEE service facility for repairs.
Fig. 10
Bracing against
a stud
Reverse rotation
Reaction
Forward rotation
Fig. 9
Forward
rotation
Bracing
against your
leg
Reaction
Reaction
Loading...
