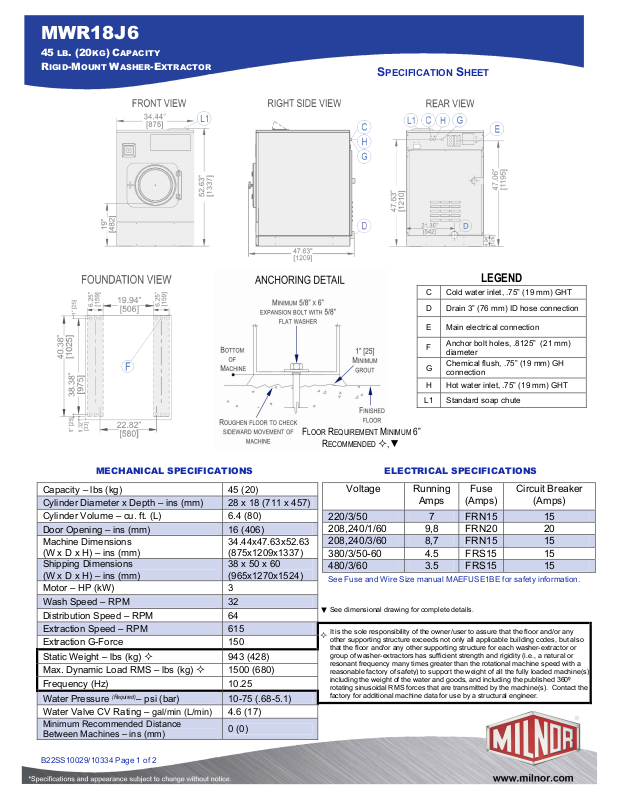

Milnor MWR18J6 Specifications

MWR18J6

y

45 LB. (20KG) CAPACITY

IGID-MOUNT WASHER-EXTRACTOR

R

SPECIFICATION SHEET

FLOOR REQUIREMENT MINIMUM 6”

R

ECOMMENDED , ▼

LEGEND

C Cold water inlet, .75” (19 mm) GHT

D Drain 3” (76 mm) ID hose connection

E Main electrical connection

Anchor bolt holes, .8125” (21 mm)

F

diameter
Chemical flush, .75” (19 mm) GH

G

connection

H Hot water inlet, .75” (19 mm) GHT

L1 Standard soap chute

MECHANICAL SPECIFICATIONS

Capacity – lbs (kg) 45 (20)
Cylinder Diameter x Depth – ins (mm) 28 x 18 (711 x 457)
Cylinder Volume – cu. ft. (L) 6.4 (80)
Door Opening – ins (mm) 16 (406)
Machine Dimensions

(W x D x H) – ins (mm)
Shipping Dimensions
(W x D x H) – ins (mm)

34.44x47.63x52.63
(875x1209x1337)
38 x 50 x 60
(965x1270x1524)

Motor – HP (kW) 3
Wash Speed – RPM 32
Distribution Speed – RPM 64
Extraction Speed – RPM 615
Extraction G-Force 150

Static Weight – lbs (kg) 
Max. Dynamic Load RMS – lbs (kg) 

943 (428)
1500 (680)

Frequency (Hz) 10.25

(Required)

Water Pressure

– psi (bar) 10-75 (.68-5.1)

Water Valve CV Rating – gal/min (L/min) 4.6 (17)

Minimum Recommended Distance
Between Machines – ins (mm)

B22SS10029/10334 Page 1 of 2

0 (0)

ELECTRICAL SPECIFICATIONS

Voltage Running

Amps

Fuse

(Amps)

Circuit Breaker

(Amps)

220/3/50 7 FRN15 15
208,240/1/60 9,8 FRN20 20
208,240/3/60 8,7 FRN15 15
380/3/50-60 4.5 FRS15 15
480/3/60 3.5 FRS15 15

See Fuse and Wire Size manual MAEFUSE1BE for safety information.

See dimensional drawing for complete details.

▼

It is the sole responsibility of the owner/user to assure that the floor and/or any



other supporting structure exceeds not only all applicable building codes, but also
that the floor and/or any other supporting structure for each washer-extractor or
group of washer-extractors has sufficient strength and rigidity (i.e., a natural or
resonant frequency many times greater than the rotational machine speed with a
reasonable factor
including the weight of the water and goods, and including the published 360º
rotating sinusoidal RMS forces that are transmitted by the machine(s). Contact the
factory for additional machine data for use by a structural engineer.

of safety) to support the weight of all the fully loaded machine(s)

W

MWR18J6

45 LB. (20KG) CAPACITY

IGID-MOUNT WASHER-EXTRACTOR

R

Standard Features:

• 6 speeds

• E-P PLUS

• Back-lit LCD display

• Single-motor inverter drive

• Tall, lifting ribs

• Sealed ball bearings

• High M.A.F. (Mechanical Action Factor)

• Large cylinder perforations

• Fresh-water flushing chemical manifold

• Auto tension V-belt drive

• Six (6) liquid chemical injection ports

• Control reads in English/second language

• 5-year limited warranty on frame, cylinder & shell

(2 wash, 1 distribution, 3 extract)

®

programmable controller

SPECIFICATION SHEET

Optional Features:

• Lint trap

• Mounting base, 10” or 6”

• Steam or electric heat

hy Purchase Milnor?

• Larger cylinder volume than most competitive similar sized washer-extractors

provides greater productivity. More linen washed per day, or fewer hours required
to process. BENEFIT: Saves labor.

• Greater cylinder perforated-area generates better wash quality, better rinsing and

better extraction. BENEFIT: Better extraction saves dryer fuel.

• Faster process times reduce fabric wear, promoting longer linen life!

BENEFIT: Saves linen replacement costs.

• Tall perforated ribs provide excellent lift and high drop.

BENEFIT: Greater mechanical action (M.A.F.) leads to better wash quality.

• 150-G high extract provides excellent moisture removal. Lower extract speeds

are available for uniforms, delicate textiles and blended fabrics.

BENEFIT: Better extraction saves dryer fuel.

• E-P Plus Controller with back-lit LCD display allows operator to choose formulas

from real words, not codes. Standard controller features English/Spanish (other
languages optional). Controller also provides diagnostic and error messages.
Shortens training time of new employees.

BENEFIT: Fewer operator errors.

• Superior product support through local, highly-skilled dealers.

BENEFIT: Faster repairs mean less downtime.

Safe chemical injection

Superior cylinder design

Contact Milnor for your local, authorized dealer::

Pellerin Milnor Corporation

P.O. Box 400 ● Kenner, LA 70063

t: 504-467-9591 ● f: 504-468-3094

B22SS10029/10334 Page 2 of 2

Solid industrial frame
